LTT68S18E - Fridge Logik - Free user manual and instructions

Brand	Logik
Model	LTT68S18E
Product Type	Table Top Fridge
Energy Efficiency Class	A+
Annual Energy Consumption	109 kWh/year
Fridge Storage Volume	66 L
Freezer Storage Volume	Not applicable (ice box only)
Defrost Type	Manual defrost
Climate Class	ST (16°C to 38°C ambient)
Noise Level	41 dB(A)
Rated Voltage	220-240 V~, 50 Hz
Rated Current	0.55 A
Rated Power	90 W
Overall Dimensions (H x W x D)	640 x 440 x 510 mm
Number of Shelves	5 (2 wire shelves, 3 wire racks)
Door Reversibility	Yes (left or right opening)
Refrigerant	Environmentally friendly, combustible
Safety Lock	Key lock to prevent child entrapment
Included Accessories	Drip tray, instruction manual
Cleaning Recommendation	Bicarbonate soda solution for interior
Recommended Temperature Setting	Position 3 (about 5°C)
Installation Clearances	25 mm sides/top, 50 mm rear
Weight (approx.)	Not specified; estimate 15-20 kg

Frequently Asked Questions - LTT68S18E Logik

How do I adjust the temperature?

Use the thermostat dial inside the fridge. Higher numbers mean lower temperatures. Recommended setting is position 3 (about 5°C). Adjust between 1-2 for colder environments and 4-5 for hotter.

What should I do if the fridge is making unusual noises?

Most noises are normal due to refrigerant circulation and compressor operation. This is not a fault and does not affect performance.

How do I reverse the door swing?

Unplug and empty the fridge. Tilt it backwards, remove top hinge cover, screws, hinge bracket, and door. Move hinge parts to opposite side. Requires a Phillips/flat screwdriver and hex spanner. We recommend a qualified technician.

How often should I defrost the fridge?

Defrost when frost buildup reaches 10 mm. Remove food, unplug, leave door open. Scrape frost with a plastic scraper. Do not use metal tools or electrical appliances.

What is the correct way to clean the fridge?

Remove shelves. Wipe interior with a weak bicarbonate soda solution, rinse with warm water, and dry. Exterior: damp cloth followed by standard furniture polish. Do not let polish contact the door seal.

Can I store frozen food in this fridge?

No, this fridge has an ice box for ice only. It is not designed for freezing food. Freezer volume is not specified.

What should I do if the fridge is not cooling properly?

Ensure room temperature is between 16°C and 38°C, door is not opened too often, and there is proper ventilation (25 mm sides/top, 50 mm rear). Wait 24 hours after plugging in before use. Check temperature with a thermometer.

How do I safely dispose of the fridge?

Do not dispose with household waste. Take to a designated WEEE collection point. Remove doors and locks to prevent child entrapment. Do not damage refrigerant pipes.

What are the power requirements?

Voltage: 220-240 V~, 50 Hz. Rated current: 0.55 A. Power: 90 W. Ensure socket is compatible with the plug.

Is the fridge safe for children?

Yes, but supervision is needed for children aged 8+. Keep the key away from children if lock is fitted. Do not allow children to clean or maintain without supervision.

USER MANUAL LTT68S18E Logik

Silver Table Top Fridge

GB

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

Safety Warnings....5

Unpacking 11

Installation....12

Location 12

Levelling the Unit 12

Free Space Requirements....12

Reversing the Door Swing....13

Cleaning Before Use 16

Before Using Your Unit....16

Product Overview....17

Operation 18

Switching On Your Unit 18

Adjusting the Temperature....18

Noises Inside the Unit! 18

Tips for Keeping Food in the Unit....19

Cleaning 19

Defrosting 19

Cleaning the Interior and the Exterior of the Unit....19

Maintenance 20

Care When Handling / Moving Your Unit....20

Servicing....20

Switching Off for Long Periods of Time 20

Condensation 20

Disposal 20

Specifications....21

Product Fiche 21

Innhold

NO

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
  • This appliance is intended for indoor household use and similar applications such as:
  – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments;
  – catering and similar non-retail applications.

• Ensure that the plug is easily accessible to enable disconnection from the mains supply.
- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (if applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Sikkerhetsadvarsler

NO

Thank you for purchasing your new Logik Fridge.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a rectangular refrigerator with lid and side clip (no text or symbols)

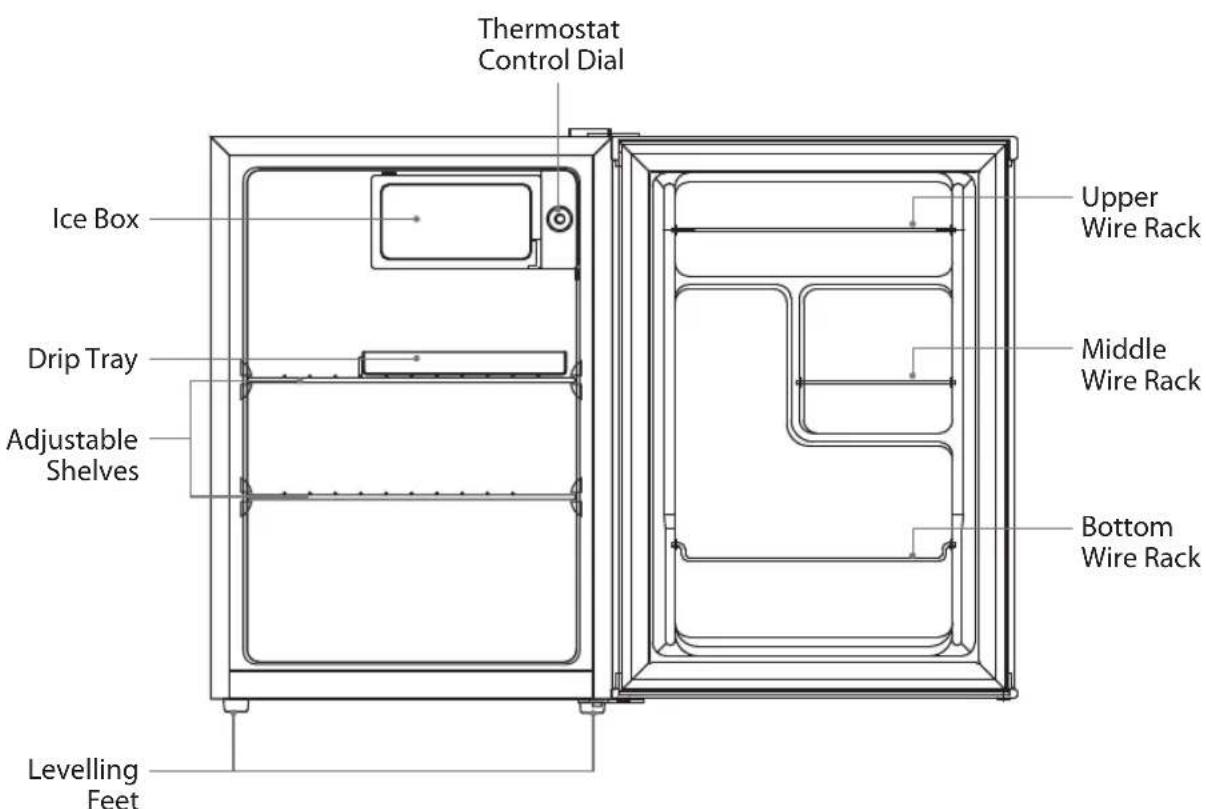

The Main Unit

Upper Wire Shelf

Lower Wire Shelf

Upper Wire Rack

Middle Wire Rack

Bottom Wire Rack

Drip Tray

Instruction Manual

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Free Space Requirements

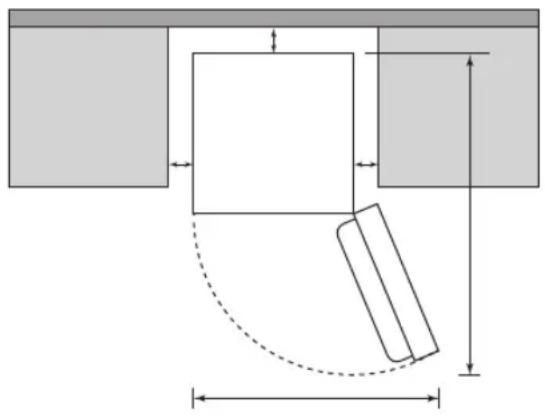

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location.

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle.

Pure mechanical diagram showing a rectangular block with two blocks and a curved dashed line indicating dimension (no text or symbols)

INSTALLATION

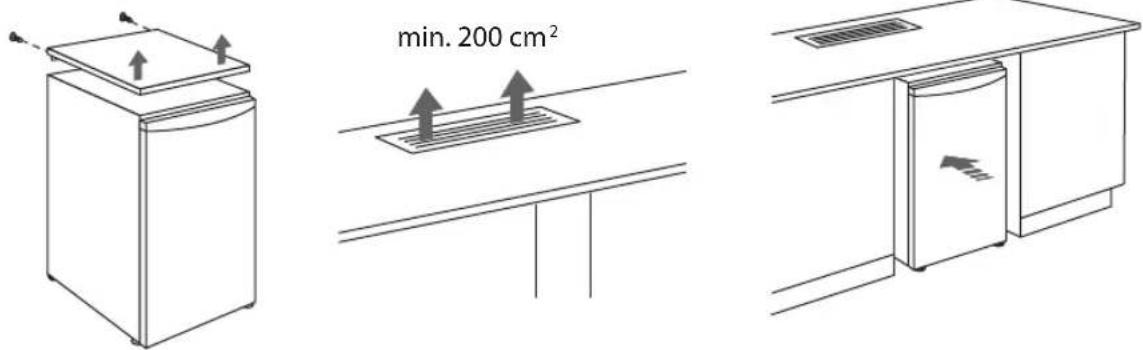

If the appliance is placed under a continuous worktop, the appliance lid (if applicable) may be removed and a ventilation grille of at least 200 ~cm^2 (available from DIY shops or specialist retailers) should be installed to the worktop above the rear of the appliance to increase ventilation.

Benefits of increased ventilation:

• Lowered power consumption
• Improved cooling performance
- Reduce running costs
• Prolong product life span

Reversing the Door Swing

Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner.

• Ensure the unit is unplugged and empty.
- To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
- Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
- If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

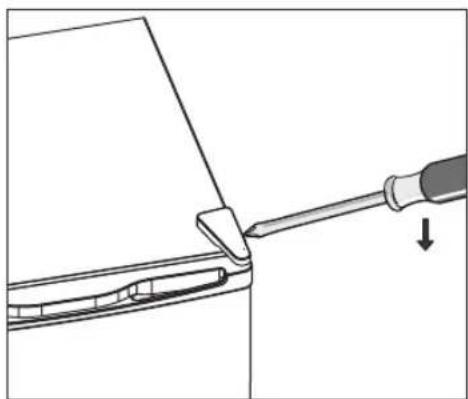

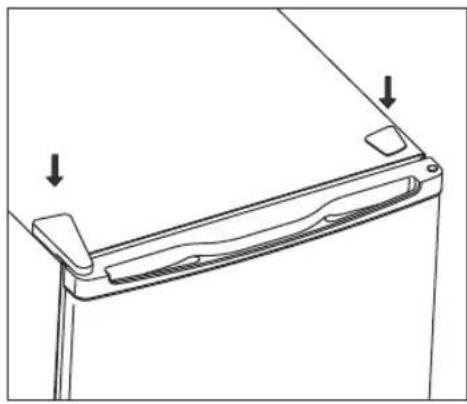

1. Remove the top right hinge cover.

Line drawing of a tool interacting with a device, showing a handle and arrow indicating direction (no text or symbols)

INSTALLATION

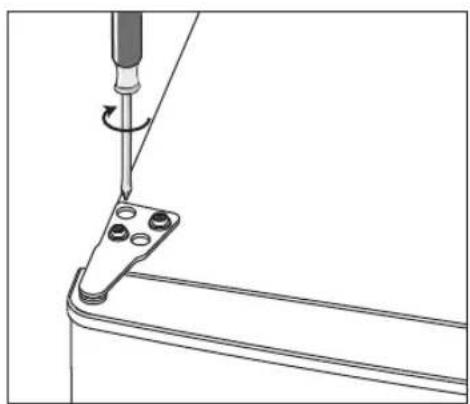

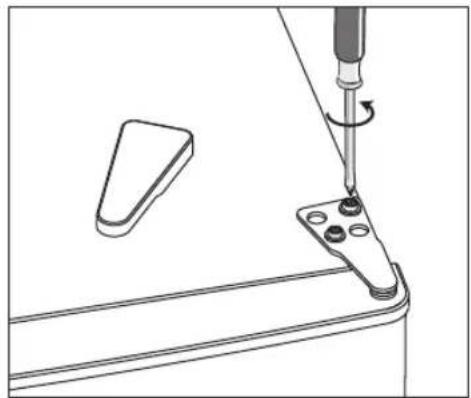

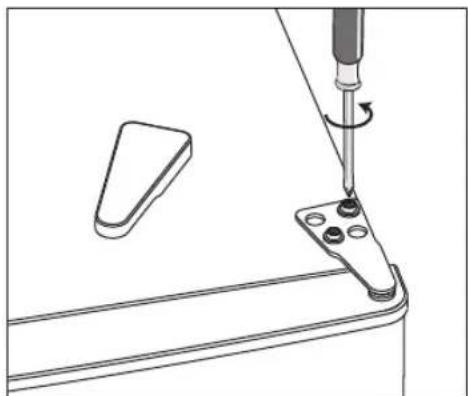

1. Undo the screws. Then remove the hinge bracket.

Technical line drawing of a screwdriver inserted into a mechanical component (no text or symbols)

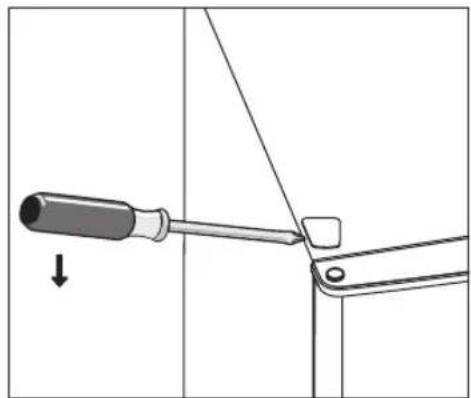

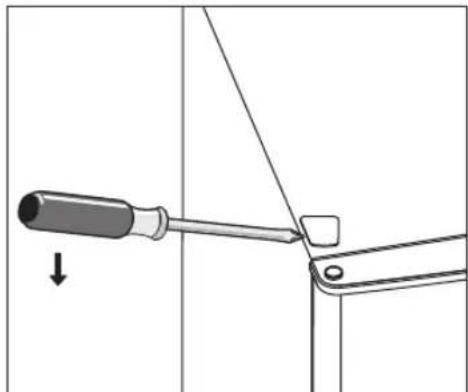

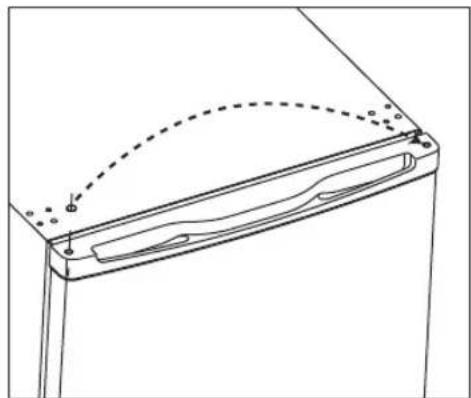

1. Remove the top left screw cover.

Diagram of a tool being inserted into a bracket, showing a screwdriver and handle (no text or symbols)

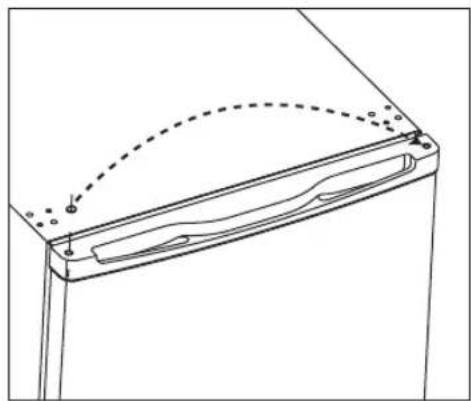

1. Move the core cover from left side to right side. And then lift the door and place it on a padded surface to prevent it from scratching.

Technical line drawing of a mechanical bracket with dashed curved line indicating motion or alignment (no text or symbols)

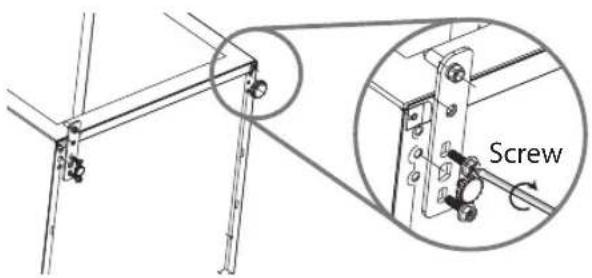

1. Remove the screws and bottom hinge. Then remove the adjustable feet from both side.

INSTALLATION

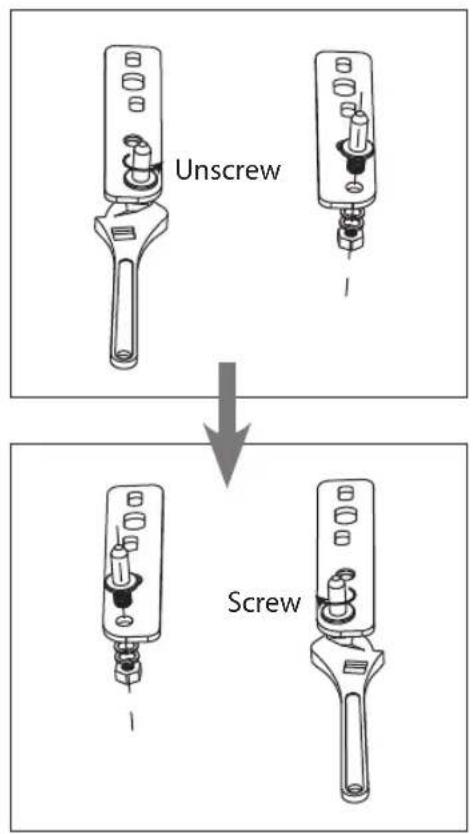

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

1. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

2. Insert the hinge bracket and screw it to the top of the unit.

3. Use a spanner to tighten it if necessary.

Technical line drawing of a mechanical assembly with a tool and rotating component (no text or symbols)

INSTALLATION

1. Put the hinge cover and the screw cover back.

Line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

1. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Simple line drawing of a rectangular refrigerator with lid (no text or symbols)

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the shelves in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

The ice box compartment is for ice only and not for freezing food.

Switching On Your Unit

1. Before connecting the unit to the mains supply make sure that the thermostat control dial is set at position 0. This is located on the inside the unit next to the ice box. Connect the mains cable to the mains socket.
2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 3 is the recommended setting when operating at normal room temperature (between 16^ C and 38^ C).
3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.
4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.
5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the recommended temperature in the unit should be 5^ C or lower.

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 2 for colder working environments (i.e. during winter) and between 4 to 5 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

Cleaning

Defrosting

Frost might build up in the unit after the it has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

Do not use a metal or sharp instrument to scrap away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 10 mm (0.39"). Choose a time when the stock of frozen food is low, follow these procedures:

1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then in a thick blanket to keep it cool.

2. Place a dry towel on the edge of the compartment shelf. Scrape away the frost using a plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer compartment and closing the door. As the solid frost loosens, scrape it away with the plastic scraper.

3. When defrosting is complete, clean your unit's interior and exterior.

Simple illustration of a gray spatula with a handle and circular end (no text or symbols)

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

This unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Rated Voltage	220-240V~, 50 Hz
Rated Current	0.55A
Rated Power	90 W
Overall Dimension (H x W x D)	640 x 440 x 510 mm

Features and specifications are subject to change without prior notice.

Product Fiche

Brand	Logik
Model	LTT68S18E
Household Appliance Category	1
Energy Efficiency Class	A+
Energy consumption 109 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Fridge Storage Volume	66 L
Freezer Storage Volume	-
Manual Defrost
Temperature Rise Time	-
Freezing Capacity	-
Climate Class	STThis appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Airborne Acoustical Noise	41 dB(A) re 1 pW

NO

Line drawing of a rectangular refrigerator with lid and side panel (no text or symbols)

Hovedenheten

∅vre trådhylle

Nedre trådhylle

∅vre trådstativ

Midtre trådstativ

Nederste trådstativ

Dryppskuff

Bruksanvisning

Plassering

Plassbehov

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

INSTALLASJON

Line drawing of a refrigerator with a lid and two upward arrows indicating top and front views (no text or symbols)

Line drawing of a cabinet with a door and ventilation grille (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component, showing tool path and force direction (no text or symbols)

INSTALLASJON

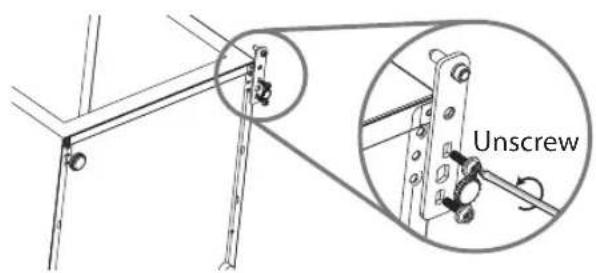

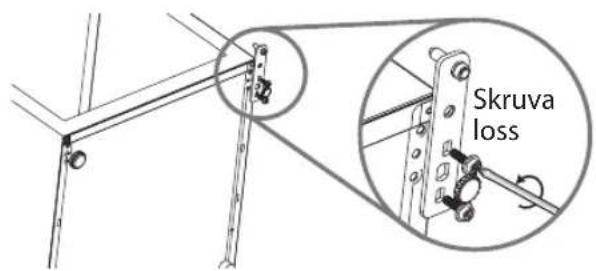

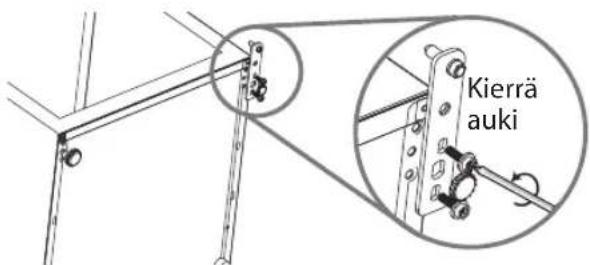

1. Løsne skruene. Fjern deretter hengselbraketten.

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Diagram of a screwdriver being inserted into a mechanical clamp (no text or symbols)

Technical line drawing of a mechanical component with dashed arc and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and rotating component (no text or symbols)

INSTALLASJON

1. Sett hengseldekslet og skruedekslet tilbake.

Technical line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

1. Se etter at døren, när den er lukket, har riktig innretning både vannrett og loddrett samt at pakningene er lukket på alle sidene för du til slutt strammer det nederste hengslet. Juster nivåføttene på nytt etter behov.

Simple line drawing of a rectangular refrigerator with lid (no text or symbols)

Rengjøring før bruk

Simple illustration of a gray spatula with a handle and spout (no text or symbols)

Line drawing of a rectangular refrigerator with lid and front panel (no text or symbols)

Huvudenhet

Övre gallerhylla

Nedre gallerhylla

Övre gallerhållare

Bruksanvisning

Plats

Luftcirkulationsbehov

Pure mechanical diagram showing a rectangular block with a dashed arc and dimension lines, no text or symbols present.

INSTALLATION

Line drawing of a tool interacting with a device, showing a handle and arrow indicating direction (no text or symbols)

INSTALLATION

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Diagram of a tool being adjusted with a screwdriver, showing a handle and lever mechanism (no text or symbols)

Technical line drawing of a mechanical bracket with dashed arc and mounting holes (no text or symbols)

INSTALLATION

Technical line drawing of a mechanical assembly with a tool and rotating component (no text or symbols)

INSTALLATION

Technical line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Simple line drawing of a rectangular box with a lid (no text or symbols)

Simple illustration of a kitchen spatula with handle and screwdriver (no text or symbols)

Line drawing of a rectangular refrigerator with lid and side trim (no text or symbols)

Laite

Yläritilähylly

Alaritilähylly

Yläritilähylly

Keskiritilähylly

Alaritilähylly

Pisaroiden keräilyalusta

Käyttöopas

Paikka

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

ASENNUS

Line drawing of a refrigerator with a lid and two upward arrows indicating top and front views (no text or symbols)

Line drawing of a cabinet with a door and ventilation grille (no text or symbols)

Line drawing of a tool interacting with a device, showing a handle and arrow indicating direction (no text or symbols)

ASENNUS

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Diagram of a screwdriver holding a tool, with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with dashed arc and mounting holes (no text or symbols)

ASENNUS

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

ASENNUS

Technical line drawing of a mechanical component with mounting holes and arrows indicating features (no text or symbols)

Simple line drawing of a rectangular refrigerator with lid and side trim (no text or symbols)

Simple illustration of a gray spatula with measurement markings (no text or symbols)

Line drawing of a rectangular refrigerator with lid and front panel (no text or symbols)

Hovedenheden

∅verste metalhylde

Nederste metalhylde

∅verste stangstativ

Midterste stangstativ

Brugervejledning

INSTALLATION

Placering

Krav til fri plads

Pure mechanical diagram showing a rectangular block with two blocks and a dashed arc indicating motion or dimension (no text or symbols)

INSTALLATION

Line drawing of a screwdriver inserted into a mechanical component (no text or symbols)

INSTALLATION

Technical line drawing of a screwdriver inserted into a mechanical component (no text or symbols)

Diagram of a tool being inserted into a bracket, showing a screwdriver and handle (no text or symbols)

Technical line drawing of a mechanical component with dashed arc and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and rotating component (no text or symbols)

INSTALLATION

Technical line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Simple line drawing of a rectangular refrigerator (no text or symbols)

Rengøring før brug

Simple illustration of a kitchen spatula with handle and screwdriver (no text or symbols)

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO

www.lefdal.com/support

SE www.elgiganten.se/support
