Product Type	Car Stereo Installation Kit
Brand	Metra
Model	99-9108B
Compatible Vehicles	Audi A6/R5 6/56 2000-2004, allroad 2001-2005
Radio Provision	ISO DIN (with pocket) and ISO DDIN
Color	Matte Black (painted)
Kit Components	Radio trim panel, radio brackets, pocket, (8) #8 x 3/8" Phillips screws
Tools Required	Metra 86-9001 radio removal tools (qty. 2), Phillips screwdriver
Wiring Harness (sold separately)	XSVI-9004-NAV (2004-up models)
Antenna Adapter (sold separately)	40-VW54 (2004-up models)
Installation Type	Dash disassembly required; aftermarket radio installation
Material	Plastic (trim panel, brackets, pocket)
Safety Notes	All accessories, switches, climate controls, and air bag indicator lights must be connected before cycling ignition. Do not remove factory radio with key in on position or while vehicle running.
Spare Parts / Repairability	Kit components not sold separately; contact Metra tech support for replacement parts
Tech Support	1-800-253-TECH (US), MECP certified technicians recommended
Dimensions	Approx. 7 x 5 x 2 inches (estimated)
Weight	Approx. 0.5 lbs (estimated)
Power Supply	Not applicable (passive mounting hardware)
Maintenance	Wipe clean with dry cloth; avoid solvents
Warranty	Standard Metra limited warranty (contact support)

Frequently Asked Questions - 99-9108B Metra

Which vehicles are compatible with the Metra 99-9108B kit?

The kit fits Audi A6/R5 6/56 models from 2000-2004 and Audi allroad from 2001-2005.

What radio sizes does the kit support?

It supports both ISO DIN (single-DIN) with a pocket and ISO DDIN (double-DIN) aftermarket radios.

What color is the trim panel?

The trim panel is painted matte black to match most factory dashboards.

Do I need any special tools for installation?

You will need two Metra 86-9001 radio removal tools and a Phillips screwdriver.

Is a wiring harness included?

No, the wiring harness and antenna adapter are sold separately. For 2004-up models, use Metra XSVI-9004-NAV harness and 40-VW54 antenna adapter.

What is the installation process?

First, disassemble the dash to remove the factory radio using removal tools. Then attach brackets to the trim panel, mount the pocket (for DIN), slide in the aftermarket radio, connect wiring, and reassemble.

Can I install a double-DIN radio?

Yes, the kit provides an ISO DDIN radio provision. Simply attach the brackets to the trim panel and slide the double-DIN radio into place.

Are there any safety precautions?

All accessories, switches, climate controls, and air bag indicator lights must be connected before cycling the ignition. Do not remove the factory radio with the key in the on position or while the vehicle is running.

What if I have installation issues?

Contact Metra Tech Support at 1-800-253-TECH. Have the vehicle apart and ready for troubleshooting steps. Also consider MECP certified technicians for professional installation.

How do I clean and maintain the kit?

Wipe the trim panel and components with a dry, soft cloth. Avoid using solvents or abrasive cleaners.

USER MANUAL 99-9108B Metra

Installation instructions for part 99-9108B

Audi A6/RS 6/S6 2000-2004, allroad 2001-2005 99-9108B

KIT FEATURES

• ISO DIN radio provision with pocket
• ISO DDIN radio provision
- Painted matte black

Interior view of a car dashboard with digital display and control buttons (no visible text or symbols)

KIT COMPONENTS

- A) Radio trim panel • B) Radio brackets • C) Pocket • D) (8) #8 x 3/8" Phillips screws

Technical line drawing of a rectangular frame with a recessed cutout (no text or symbols)

B

Technical line drawing of two mechanical components with mounting holes (no text or symbols)

C

D

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • XSVI-9004-NAV (2004-up models) Antenna Adapter: • 40-VW54 (2004-up models)

Table of Contents

Dash Disassembly 2

Kit Assembly

– ISO DIN radio provision with pocket.....2-3
– ISO DDIN radio provision 3

TOOLS REQUIRED

• Metra 86-9001 radio removal tools (qty. 2)
- Phillips screwdriver

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

99-9108B

Dash Disassembly Kit Assembly

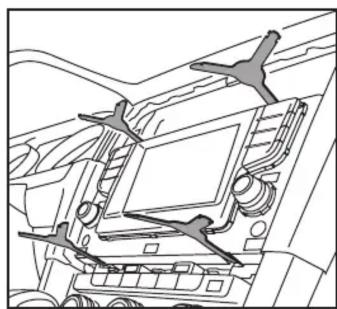

1. Insert (4) of the Metra 86-9001 radio removal tools into the slots on the front of the radio face, and then remove the radio. (Figure A)

Continue to kit assembly

Line drawing of a vehicle's internal components, possibly engine or dashboard, with no visible text or symbols.

(Figure A) (Figure A)

ISO DIN radio provision with pocket

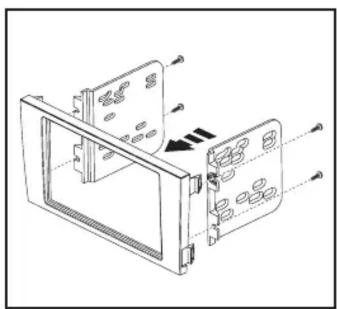

1. Attach the radio brackets to the radio trim panel using (4) #8 x 3/8" Phillips screws supplied. (Figure A)

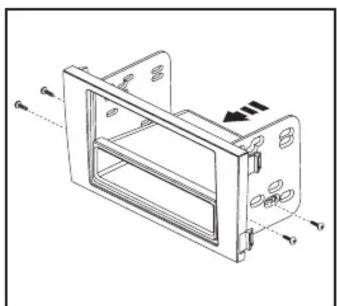

2. Attach the pocket to the bracket assembly using the (4) supplied #8 x 3/8" Phillips screws. (Figure B)
3. Remove the metal "DIN" sleeve and trim ring from the aftermarket radio.

Continued on the next page

Technical line drawing of a device casing with mounting holes and internal components (no text or symbols)

Technical line drawing of a mechanical housing component with mounting holes and directional arrows (no text or symbols)

(Figure B)

99-9108B

Kit Assembly

ISO DIN radio provision with pocket (continued)

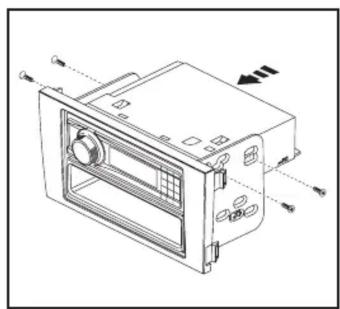

1. Slide the radio into the completed assembly, and then secure it to the assembly using the screws supplied with the radio. (Figure C)
2. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS.Re-connect the negative battery terminal and test the radio for proper operation.
3. Reassemble the dash in reverse order of disassembly.

Technical line drawing of a device casing with control panel and buttons (no text or symbols)

ISO DDIN radio provision

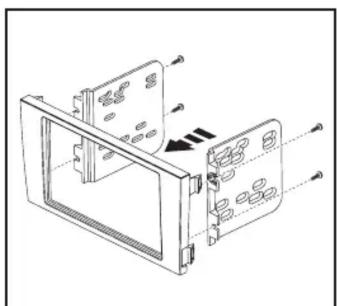

1. Attach the radio brackets to the radio trim panel using (4) #8 x 3/8" Phillips screws supplied. (Figure A)

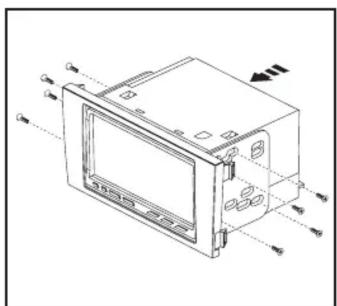

2. Slide the radio into the completed assembly, and then secure it to the assembly using the screws supplied with the radio. (Figure B)
3. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Re-connect the negative battery terminal and test the radio for proper operation.
4. Reassemble the dash in reverse order of disassembly.

Technical line drawing of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

(Figure A)(Figure C)

Technical line drawing of a device casing with internal components and directional arrows (no text or symbols)

(Figure B)

Installation instructions for part 99-9108B

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
