Type	Air Purifier with HEPA filter
Model	FU-P40S
Brand	Sharp
Dimensions (mm)	Approx. 390 x 600 x 230
Weight (kg)	Approx. 7.5
Power Supply	220-240V, 50/60Hz
Power Consumption (W)	50
Fan Speeds	3 speeds (Low, Medium, High)
Coverage Area (m²)	Up to 30
Filter Type	Pre-filter + HEPA + Activated Carbon
HEPA Filter Rating	H13 (captures 99.97% of particles ≥ 0.3μm)
Features	Plasmacluster ion technology, Timer up to 8h
Airflow (m³/h)	180
Noise Level (dB)	25-48
Filter Life	Approx. 2 years (based on 8h daily use)
Cleaning Method	Vacuum pre-filter monthly, replace filters as needed
Safety Features	Child lock, tip-over shut-off
Spare Parts Available	Filter set FZ-P40S, remote control optional
Warranty	2 years

Frequently Asked Questions - FU-P40S SHARP

How often should I replace the filters?

The HEPA filter and activated carbon filter should be replaced approximately every 2 years, depending on usage and air quality. The pre-filter can be vacuumed monthly and washed occasionally.

Can I wash the HEPA filter?

No, the HEPA filter is not washable. It must be replaced when dirty. Washing can damage the filter media.

How does the Plasmacluster technology work?

Sharp's Plasmacluster technology releases positive and negative ions into the air to neutralize airborne viruses, mold, and allergens.

What is the maximum coverage area?

The FU-P40S is designed for rooms up to 30 square meters (approx. 320 sq ft).

Does the unit have a timer?

Yes, it includes a timer that can be set from 1 to 8 hours.

How do I clean the pre-filter?

Vacuum the pre-filter monthly. If very dirty, gently wash with water and let dry completely before reinstalling.

What kind of filter does the FU-P40S use?

It uses a combination of pre-filter, HEPA filter (H13 grade), and activated carbon filter to capture dust, allergens, and odors.

Is the unit noisy?

Noise levels range from 25 dB on low to 48 dB on high, similar to a quiet conversation.

Can I use the purifier continuously?

Yes, it is designed for continuous operation. However, replacing filters regularly is important for optimal performance.

Where can I buy replacement filters?

Sharp replacement filters (model FZ-P40S) are available online or from authorized dealers.

USER MANUAL FU-P40S SHARP

Line drawing of a remote control unit with a remote and indicator panel (no text or symbols)

Free Standing

直立式

*Plasmacluster is a trademark of Sharp Corporation.
*Plasmacluster “離子簇” 是聲寶公司的商標。

香港電器安全規格

(國際電工委員會規格適合)

AIR PURIFIER

OPERATION MANUAL

空氣清新機

使用說明書

FEATURES

Plasmacluster Ion Control

The unit controls the ratio of negative ions and positive ions depending on the condition of the room.

- Clean Mode

Approximately the same numbers of positive and negative ions are discharged. This mode is effective for reducing some airborne mold.

- Ion Control Mode

Plenty of negative ions exist in natural surroundings such as waterfalls or forests. In this mode, negative ions will be released in an increased rate, in order to bring the room air close to this natural environment.

• AUTO Plasmacluster Ion Mode

The unit will switch between Clean Mode and Ion Control Mode automatically depending on the amount of impurities in the air detected by the dust and odor sensors.

- Filters

1) Pre-Filter

It collects large particles.

2) Washable Active Carbon Filter

Its deodorizing performance can be maintained by washing.

3) HEPA (High Efficiency Particulate Air) Filter with Microbial Control Filter

High-efficiency particle collection including pollen and dust.

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .... E-2

• W ARNING ......E-2
  • CAUTIONS CONCERNING OPERATION ...E-2
• REMOTE CONTROL LIMITATIONS ...... E-2
  • INSTALLATION GUIDELINES ...... E-3
  • FILTER GUIDELINES .....E-3
  • HOW SHARP AIR PURIFIER WORKS .....E-3

PART NAMES..... E-4

• MAIN UNIT DISPLAY ....E-4
  • INCLUDED.....E-4
• BACK E-4

PREPARATION...... E-5

• INSERTING BATTERIES IN THE REMOTE CONTROL ....E-5
• REMOTE CONTROL USE ......E-5
• FILTER INSTALLATION ......E-6

OPERATION E-8

Thank you for purchasing the SHARP Air Purifier. Please read this manual carefully for the correct usage information. Before using this product, be sure to read the section: "Important Safety Instructions."

After reading this manual, retain it in a convenient location for future reference.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING - To reduce the risk of electrical shock, fire or injury to persons:

• Read all instructions before using the air purifier.
• Use only a 220-240 volt outlet.
• Do not use the air purifier if the power cord or plug is damaged or the connection to the wall outlet is loose.
• Periodically remove dust from the power plug.
• Do not insert fingers or foreign objects into the intake or air outlet.
• When removing the power plug, always hold the plug and never pull the cord.

Electrical shock and/or fire from short circuit may occur as result.

• Do not use this air purifier near gas appliances or fireplaces.
• Remove the power plug from the wall outlet before cleaning the unit and when not using the unit.

Electrical shock from bad insulation and / or fire from short circuit may occur as a result.

• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, Sharp authorized service or similarly qualified person in order to avoid a hazard.
• Do not operate when using aerosol insecticides or in rooms where there is oily residue, incense, sparks from lit cigarettes, chemical fumes in the air or a humidity condition.
• Use care when cleaning the air purifier. Strong corrosive cleansers may damage the exterior.
• Only Sharp Authorized Servicers should service this air purifier. Contact the nearest Servicer for any problems, adjustments, or repairs.
• The batteries must be removed from the remote control before disposal, and the batteries must be disposed of safely.

CAUTIONS CONCERNING OPERATION

• Do not block the intake and air outlet.
• Do not use the unit near or on hot objects, such as range or where it may come into contact with steam.
  • Always hold the handle on the back of the main unit when moving it.
• Holding the front panel when carrying may cause it to detach, thus dropping the unit and resulting in bodily injury.
• Do not operate the unit without the filter.

Not only it does not improve filter performance, it may cause electric shock or malfunction.

- Clean the exterior with a soft cloth only.

The unit surface may be damaged or cracked.

In addition, the sensor may malfunction as a result.

REMOTE CONTROL LIMITATIONS

DO NOT USE THE REMOTE CONTROL IN THE FOLLOWING LOCATIONS:

- Any location where there is inverter lighting equipment or electronic spontaneous lighting equipment

The remote control may become inoperative. In this case, move away from such lighting equipment or change direction.

- Location exposed to direct sunlight or fluorescent.

The unit may not receive signals from the remote control.

INSTALLATION GUIDELINES

• During the operation of the product, please place the unit at least 2m away from equipments which involve electric wave such as televisions, radios or wave clocks, in case electrical interference occurs to such equipments.
• Leave at least 60cm of space from the wall.

The motor may overheat, causing a malfunction.

- A void a location where the sensor is exposed to direct wind.

The unit may not operate properly.

- A void locations where curtains, etc., come into contact with the intake or air outlet.

Curtains, etc., may become dirty or a malfunction may occur.

• Avoid locations where the unit is exposed to condensation, due to drastic temperature changes.
• Place on a stable surface with sufficient air circulation.
• Do not install when there is generation of lampblack, such as in a kitchen, etc.

The unit surface may crack or the sensor may malfunction as a result.

- The wall behind the air outlet may become dirty as time passes. When using the unit for extensive period in the same location, use a vinyl sheet, etc., to prevent the wall from becoming dirty. In addition, periodically clean the wall, etc.

FILTER GUIDELINES

- Follow the instructions in this manual for correct care and maintenance of the filters.

HOW SHARP AIR PURIFIER WORKS

An air purifier draws in room air from its air intake, lets the air pass through an Active Carbon Filter (Deodorizing Filter) and a HEPA Filter (dust collection filter) inside of the unit, then discharges the air from its air outlet. The air purifier repeats this process by moving its internal fan.

As air passes through, the HEPA Filter can remove dust particles. The Active Carbon Filter gradually absorbs odor elements as they repeatedly pass through the filter.

(Odor elements are absorbed by HEPA Filter as well.)

Some odor ingredients absorbed by the filters may become separated and may be discharged through the air outlet and result in additional odor. Depending on the usage environment, this odor may become strong in a shorter period than expected.

In this case, purchase the optional replacement filter kit FZ-P40SF.

NOTE

• The air purifier is designed to remove air-suspended dust and odor, but not harmful gases (for example, carbon monoxide contained in cigarette smoke). If the odor sources still exist, it cannot completely remove the odor. (for example, odors from construction materials and pet odors).
• It is suggested to open the window a bit when you are smoking in order to facilitate ventilation.

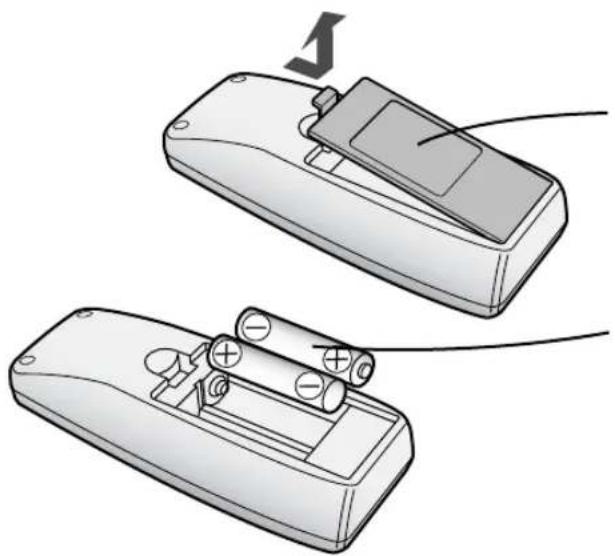

INSERTING BATTERIES IN THE REMOTE CONTROL

Illustration of two electronic devices with batteries and a switch, shown from different angles (no text or symbols)

1 Remove the back cover

Press and slide the back cover to remove.

2 Insert batteries

Insert batteries with shown below.

3 Close the back cover

Battery Information

• The battery life is about 1 year.
- The batteries for this remote control are for initial use only. Change the batteries when necessary.
- Incorrect usage of the batteries may cause battery fluid leakage and/or damage. Take care of the following when handling:
- When replacing the batteries, replace both batteries with new ones of the same type. (Use 2 AA manganese batteries.)
- When not using the unit or remote control for an extended period, remove the batteries.
- The batteries are for initial use only and may be depleted within 1 year.

REMOTE CONTROL USE

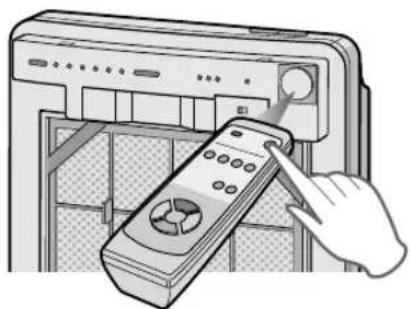

• Operate with the remote control facing the main unit receiver.
  •The signal range is about 7m.
• Make sure there are no objects blocking the path of the signal.
  • A beep sound will be heard from the main unit when a signal is received.

NOTE

- Avoid dropping or damaging the remote control, using in a high humidity condition, in direct sunlight or near a heat source.

FILTER INSTALLATION

To maintain the quality of the filters, they are installed in the main unit within plastic bags. Be sure to remove the filters from the plastic bags before using the unit.

1 Remove the filters

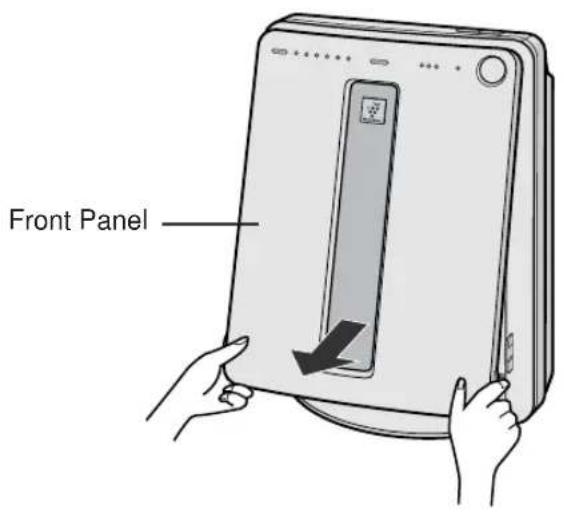

1 Remove the Front Panel. Pull the bottom of the Front Panel.

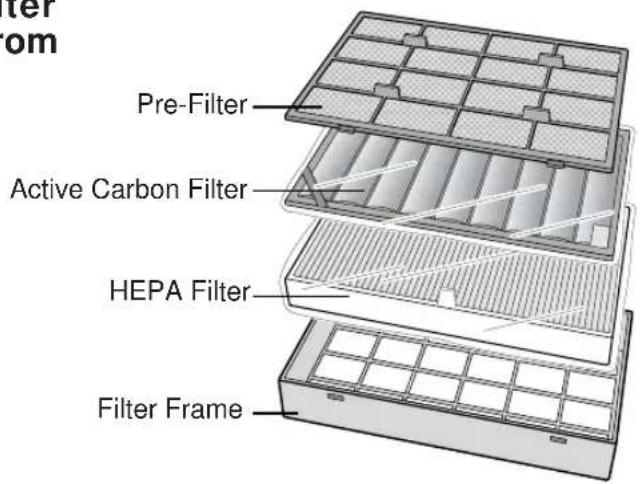

2 Pull out the Filter Frame and remove the Pre-Filter, Active Carbon Filter and HEPA Filter.

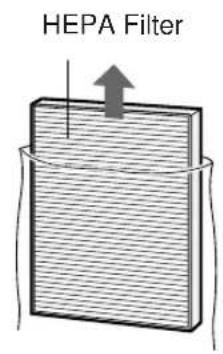

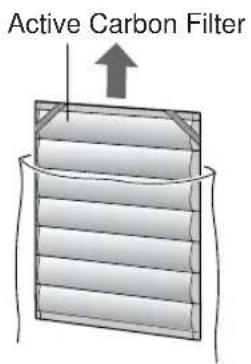

3 Remove the Active Carbon Filter (black) and HEPA Filter (white) from the plastic bags.

2 Install the filters

1 Place the HEPA Filter within the Filter Frame with the tabs facing up.

Do not install the filter backwards or the unit will not operate properly.

2 Place the Active Carbon Filter on top of the HEPA Filter with the bands (2 places) facing up.

3 Place the Pre-filter through the bands (2 places) located in the corners of the Active Carbon Filter.

Insert the tabs of the pre-filter into the associated holes of the Filter Frame.

4 Mount the Filter Frame to the main unit.

5 Fill in the usage start date on the Date Label.

Use the date as a guide for the Filter Replacement schedule.

Main Unit Controls

• AUTO
- 15 min. HIGH
• POLLEN
• SILENT
• NORMAL
• MAX

MAIN UNIT OPERATION

Power ON/OFF Button

• Used to start operation (short beep) and stop operation (long beep)
- Plasmacluster Indicator Light and Fan Speed Indicator Light turn on/off.
- Unless unplug the power cord, the operation starts in the previous mode the unit was operated in.

2 MODE Button

• The operation mode can be switched.

AUTO operation

The fan speed is automatically switched (HIGH*, NORMAL, SILENT) depending on the amount of pollution in the air. The sensors detect the pollution for efficient air purification.

15 min. HIGH\* operation

The unit will operate at HIGH* fan speed for 15 minutes, then will operate at Auto operation.

The operation mode is effective when quick removal of impurities in the air is desired.

POLLEN mode operation

The unit will operate at HIGH* fan speed for 10 minutes, then will alternate between NORMAL and HIGH for 20 minutes.

MAX operation

The unit will operate at a fan speed of MAX.

NORMAL operation

The unit will operate at a fan speed of NORMAL.

SILENT operation

The unit will operate quietly using minimal air intake.

* HIGH fan speed is an intermediate speed between NORMAL and MAX.

DETERMINING THE BASE IMPURITY RATE

For the first 30 seconds after the power plug is inserted into the wall outlet, the unit will check the conditions of the air. If operation is set to ON during this time, the CLEAN-SIGN LIGHT will alternately flash in green, orange and red.

PLASMACLUSTER INDICATOR LIGHT

Plasmacluster ion operation is selected using the remote control.

Blue light

When the Plasmacluster ion operation is in Clean Mode, or in AUTO Plasmacluster Ion Mode and the air in the room is impure, the light will activate and the unit will operate in Clean Mode.

Green light

When the Plasmacluster ion operation is in the Ion Control Mode, or in AUTO Plasmacluster Ion Mode and the air in the room is clean, this light will activate and the unit will operate in Ion Control Mode.

Light off

There are no Plasmacluster ions being generated.

- The light can be turned off by using the 'Display ON/OFF Button' on the Remote Control. In this case, Plasmacluster ions are generated. (Please turn off the light when not required.)

CLEAN-SIGN LIGHT

The color changes according to the air condition.

Clean (Green) Slightly Impure (Orange) Very Impure (Red)

ABOUT THE CLEAN-SIGN

• The condition of the CLEAN-SIGN depends on the room air condition detected by the Dust and Odor Sensor when the plug is inserted into the wall outlet.
• It is possible to have a green CLEAN-SIGN with impurities in the air at the time that the air purifier was just introduced to the room environment. After a while, however, the base impurity rate will be adjusted to detect room air condition correctly.
• Use the Display ON/OFF Button on the remote control to turn off the Indicator light.

FILTER INDICATOR LIGHT

Clean the Active Carbon Filter when the Filter Indicator Light activates. (The indicator light will activate in about 2 months, when using the unit or 24 hours daily.) (See Page E-12)

Operations available with the Remote Control

• AUTO
- MANUAL
• POLLEN
- OFF TIMER
- 15 min. HIGH
• DISPLAY ON/OFF

Plasmacluster lon mode selections

• AUTO
- CLEAN
- ION CONTROL
• OFF

POWER ON/OFF Button

• When you press the POWER ON/OFF Button, a short beep will sound and operation will start in AUTO Mode.
• Unless unplug the power cord, the operation starts in the previous mode the unit was operated in.
  • To stop, press the POWER ON/OFF Button again.
  A long beep will sound and operation will stop.

Auto (Fan Speed) Button

The fan speed switches automatically depending on the amount of impurities in the air.

Manual (Fan Speed) Button

The fan speed can be switched among Silent, NORMAL and MAX settings.

15 min. HIGH Button

See page E-8

Display ON/OFF Button

Switches the Plasmacluster Indicator Light and CLEAN-SIGN Light either ON or OFF.

Transmitter

Filter Reset Button

When the Washable Active Carbon Filter is cleaned and reinserted into the main unit, press the Filter Reset Button.

Pollen Mode Operation Button

See Page E-8

Off Timer Button

The set time switches every time the button is pressed as shown below.

• The indicator light shows the remaining time.
• The unit will stop operation when the timer is up.

Plasmacluster Ion Mode Selections

AUTO

When pressed, the unit will switch between Clean Mode and the Ion Control Mode automatically depending on the amount of impurities in the air as detected by the dust and odor sensors. Clean Mode will operate for 1 minute when the Auto function is selected.

⊖⊖⊖⊖ (ION CONTROL)

When pressed, the unit will constantly operate in Ion Control Mode.

The Plasmacluster Ion Indicator Light is green.

⊕⊖⊕⊖ (CLEAN)

When pressed, the unit will constantly operate in the Clean Mode, in which the same numbers of positive and negative ions are discharged. The Plasmacluster Indicator Light is blue.

OFF

The generation of ions will cease and the Plasmacluster Indicator Light will go out.

CARE AND MAINTENANCE

To maintain optimum performance of this air purifier, please clean the unit including the sensors and filters periodically.

When cleaning the unit, be sure to unplug the power cord, and never handle the plug with wet hands. Electrical shock and/or bodily injury may occur as a result.

MAIN UNIT

To prevent dirt or stains on the main unit, clean as often as necessary. If stains are allowed to remain, they may become hard to clean.

Wipe with a dry, soft cloth

For stubborn stains or dirt, use a soft cloth dampened with warm water.

Do not use volatile fluids

Benzene, paint thinner, polishing powder, etc., may damage the surface.

Do not use detergents

Detergent ingredients may damage the unit.

Keep the unit away from water

ODOR SENSOR / DUST SENSOR

The sensitivity of the sensor will become unstable if the odor/dust sensor is dirty or blocked. Remove dust from the surfaces of the sensor openings using a vacuum cleaner.

Hole of odor sensor Hole of dust sensor

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

FILTER CLEANING

Remove the Front Panel, Clean the surface of the Pre-Filter lightly with a vacuum cleaner. If it is contaminated heavily, remove it from the Filter Frame to wash it.

NOTE

• In case of washing, use a soft brush etc. and cold/warm water.
• Metal brushes or scrub brushes may cause damage.
  • After washing, leave it in the shade until it gets dried. Then place it back to the frame.
• Never wash or clean the HEPA Filter using the nozzle of a vacuum cleaner directly.
  This will greatly decrease the performance of the filters.

Illustration of a hand cleaning a grid-patterned panel with a brush (no text or symbols)

CARE AND MAINTENANCE

WASHABLE ACTIVE CARBON FILTER CARE

HAND WASH ONLY! DO NOT TUMBLE DRY!

Care Cycle

When the Filter Indicator Light lights up, this indicates that the filter needs to be cleaned. If the unit is kept on 24 hours a day then the Filter Indicator Light will activate in about 2 months.

The Filter Indicator Light is for reference. Clean the filter as often as necessary when odor persists.

1 Remove visible dirt with a vacuum cleaner.

Illustration of a hand cutting through a corrugated metal sheet (no text or symbols)

2 Fill a large container with warm water, add a mild kitchen detergent and stir.

Dilute as indicated on the detergent container.

Illustration of hands washing a surface in a rectangular basin (no text or symbols)

3 Allow the filter to soak approximately 30 minutes before washing.

If the filter surface is very dirty, scrub with an old tooth-brush.

Simple line drawing of a rectangular container with internal compartments (no text or symbols)

CAUTION

Handle with care to prevent damage to the activated carbon particles.

Illustration of a hand holding a pen over a striped panel (no text or symbols)

4 Rinse thoroughly with clean water

CAUTION

If rinsing in a container, be sure to rinse 3 to 4 times so that the odor is rinsed thoroughly from the filter.

Illustration of a faucet inserted into a rectangular basin with water flowing out (no text or symbols)

5 Remove excess water

The filter will be saturated with water after rinsing. To decrease drying time, wrap the filter in an old thick towel so that excess water can be removed.

CAUTION

Some carbon may adhere to the towel, but it is harmless.

Illustration of a hand rolling a rolled-up sheet of paper with horizontal strips (no text or symbols)

6 Dry the filter outdoors if possible in a well ventilated area.

Diagram of a layered structure with particles and a suspended top frame (no text or symbols)

CAUTION

• The wet filter is heavy. Fix it securely for drying to make sure it does not fall down.
• The filter takes longer to dry in winter, on rainy days. Wash it on a day when the weather is good and dry it in the sun.
  Move it indoors at night to prevent freezing.
• Dry the filter outdoors in a well ventilated area. If dried indoors, the water dripping off the filter may soil your floor.
• Make sure that the activated carbon has not shifted to one side inside the filter. If it has, distribute it evenly with your fingers.
• Let the filter dry thoroughly. If used while the filter is still moist, then the air that is exhausted from the main unit will have an odor. It may take 1 or 2 days to dry.

7 Reinstalling the Filter.

Reinstall the filter as shown on Page E-6,7

8 Once the Active Carbon Filter has been cleaned, connect the power cord to the outlet and press the Filter Reset Button on the Remote Control.

• Once the Filter Reset Button has been activated, you will hear a beep sound that means the unit has been reset.
  • The Filter indicator light will then go out automatically.

Filter Reset Button

FILTER REPLACEMENT GUIDELINES

Depending on the usage environment, air outlet odor may become strong after several months.

If dust or odors cannot be removed easily, replace the filters.

(Refer to HOW SHARP AIR PURIFIER WORKS E-3)

Guide for filter replacement timing

- The following filter life and replacement period is based on the condition of smoking 10 cigarettes per day and the dust collection/deodorization power is reduced by half compared with that of new filters.

We recommend to replace the filters more frequently if the product is used in a condition significantly severer than normal household use.

• HEPA Filter (with Microbial Control Filter)
About 5 years after opening
• Active Carbon Filter About 5 years after opening

REPLACING THE FILTERS

1 See page E-6,7 for directions on how to install the filters when replacing.
2 After replacing the filters:

Be sure to press the Filter Reset Button on the Remote Control with the power cord connected to the outlet.

A short beep will be heard and the operation hours stored in the memory will be reset.

The Filter Indicator Light will then go out automatically.

3 Fill in the usage start date of the filters on the Date Label.

Replacement Filters

Model: FZ-P40SF

• HEPA Filter (with Microbial Control Filter): 1 unit
• Active Carbon Filter: 1 unit

Please consult your dealer for purchase of replacement filters.

Illustration of a hand inserting a remote control into a rack-mounted air conditioner unit (no text or symbols visible)

Disposal of Filters

Please dispose of replaced filters according to the local disposal laws and regulations.

HEPA Filter (with Microbial Control Filter) materials:

• Filter: Polypropylene
• Frame: Polyester
• M microbial Control Filter: Polypropylene, Polyethylene

Active Carbon Filter Materials:

- Deodorizer: Activated charcoal

• Net: Polypropylene 60%, Polyester 40%

TROUBLESHOOTING

Before calling for repair, please review the list below, since the problem may not be a unit malfunction.

SYMPTOM	REMEDY (not a malfunction)
The Remote Control does not work	Have the batteries been depleted?Are the batteries inserted correctly?Is a fluorescent lighting in the room flickering due to service life?
Odors and smoke are not removed	Clean or Replace the filters if they appear to be heavily soiled.(Refer to E-12,E-13)
The CLEAN-SIGN Light lights green even when the air is impure	The air could be impure at the time the unit was plugged in.(Refer to E-9)
The CLEAN-SIGN Light lights orange or red even when the air is clean	The sensitivity of the sensor becomes unstable when the opening of the odor sensor is dirty or is clogged.Clean the dust around the sensor opening using a vacuum cleaner. (Refer to E-11)
The Plasmacluster Indicator Light remains green (or blue) and does not change	When in Clean Mode (or Ion Control Mode), the Plasmacluster Indicator Light color will not change.
A clicking or ticking sound is heard from the unit	Clicking sound is emitted when the unit is in the Ion Control Mode, and ticking sound is emitted when the unit is generating ions.If the sound is irritating, set the unit away from you.
The discharged air has an aroma or odor.	Check to see if the filters are heavily soiled.Replace the filters.Plasmacluster Air Purifiers emit small traces of ozone which may produce an odor. The amount of ozone emitted by the ion generator is very little which is below the saety levels set by the IEC 60335-2-65, and it is harmless to the human body.
The unit does not operate when cigarette smoke is in the air.	Is the unit installed in a location that is difficult for the sensor to detect cigarette smoke?Are the odor sensor openings blocked or clogged?(In this case, clean the openings.) (Refer to E-11)
The Filter Indicator Light remains activated even after replacing filter.	After replacing filters, connect the power cord to an outlet and press the Filter Reset Button on the remote control. (Refer to E-12)
The Plasmacluster Indicator Light or the CLEAN-SIGN Light will not activate.	Check to see if the Display OFF Mode on the Remote Control is selected. If so, then press the Display ON/OFF Button on the Remote Control to activate the indicator light.(Refer to E-10)

ERROR DISPLAY

LAMP INDICATION	REMEDY
The “Silent” Fan Speed Indicator Light blinks.	Fan motor disconnected or abnormal.Operation stops.Pressing the ON/OFF button will reset the error display, but if error occurs again, contact the shop where you purchased the unit.

SPECIFICATIONS

Model		FU-P40S
Power supply		220-240V 50/60Hz
Fan Speed Operation	Fan speed level	MAX	NORMAL	SILENT
	Rated power	34 W	8.1 W	3.3 W
	Air Flow Volume	240 m3/hour	120 m3/hour	30 m3/hour
Applicable floor surface		~31m2*
Cord Length		2.5m
Dimensions		415mm(W)x200mm(D)x570mm(H)
Weight		6.7kg

* The applicable floor surface area is the surface area for operating the unit in MAX fan level.

- Applicable floor surface area indicates the space where a certain amount of dust particle can be removed in 30 minutes.

Standby Power

In order to operate the electrical circuits while the power plug is inserted in the wall outlet, this product consumes about 0.7W of standby power.

For energy conservation, unplug the power cord when the unit is not in use.

中文

特性

離子簇控制

Illustration of two open batteries with battery packs and a switch, shown from different angles (no text or symbols)

1 打開後蓋 按下並滑動，以打開後蓋。

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

前過濾網

Illustration of a hand cleaning a grid-patterned panel with a brush (no text or symbols)

可清洗活性碳過濾網保養

只能手洗！

嚴禁烘乾！

保養周期

Illustration of a hand using a tool to cut or spread a rectangular sheet (no text or symbols)

Illustration of hands washing a substance in a rectangular basin (no text or symbols)

3 清洗前將過濾網浸泡大約30分鐘。

Simple line drawing of a rectangular container with internal compartments (no text or symbols)

注意

清洗時須加以小心，以防損壞活性碳粒子。

Hand holding a pen over a striped panel (no text or symbols visible)

4 用清水徹底沖洗

注意

Line drawing of a rectangular basin with a faucet inserted into it, no text or symbols present

5 除去多餘的水

Illustration of a hand rolling a rolled-up sheet of paper with horizontal lines (no text or symbols)

Diagram of a device with horizontal slats and hanging clips, showing particle distribution (no text or symbols)

注意

Illustration of a hand inserting a remote control into a server rack (no text or symbols visible)

棄置過濾網
