Product Type	Digital Projector (DLP)
Model	MP611/MP611c
Display Technology	1-Chip DMD (DLP)
Native Resolution	800 x 600 (SVGA)
Lens	F=2.6 to 2.77, f=20.4 to 23.5 mm, manual zoom/focus
Lamp Type	200W
Lamp Life	Up to 4000 hours (Normal mode); Up to 5000 hours (Economic mode)
Power Supply	AC 100–240V, 4.0A, 50/60 Hz (Automatic)
Power Consumption	285W (Max)
Dimensions (W x H x D)	278 mm x 94 mm x 219.5 mm
Weight	2.67 kg (5.9 lbs)
Input Interfaces	VGA (D-sub 15-pin), S-Video (Mini DIN 4-pin), Composite Video (RCA), Audio (Mini jack stereo), Component Video (via VGA adaptor)
Output Interfaces	VGA (D-sub 15-pin), USB (mouse), Speaker (2W mono)
Keystone Correction	Digital vertical (±40° approximate)
Picture Modes	PC: Dynamic, Presentation, sRGB, Cinema, Blackboard; Video: Dynamic, Standard, Cinema, Blackboard
Audio	Built-in 2W mono speaker
Security	Password protection, Kensington lock slot
Special Features	Auto adjustment, Blank, Freeze, Timer, MyScreen, Panel Key Lock, High Altitude Mode, Economic Mode, Quick Cooling
Included Accessories	Remote control (with battery), VGA cable, Power cord, Carry case, Quick start guide, User manual CD
Warranty	Limited warranty (details in manual)

Frequently Asked Questions - MP611C BENQ

How do I set up the projector for the first time?

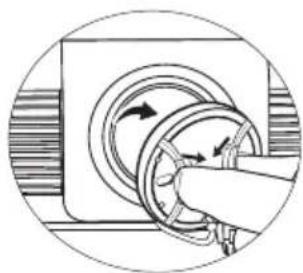

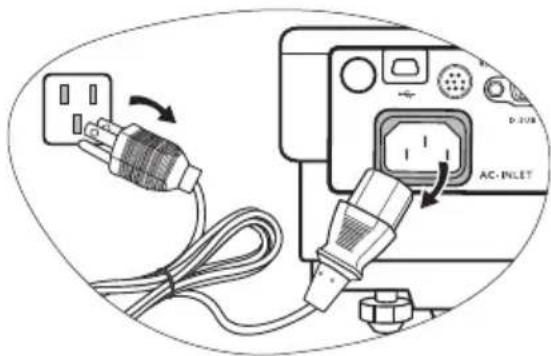

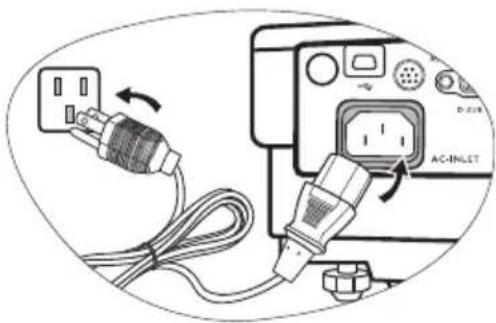

Connect the power cord, remove the lens cap, press and hold Power for 2 seconds. Adjust focus and zoom rings as needed. If prompted, enter the password (default: off).

How do I adjust keystone correction?

Press Left/Right on the projector or Keystone buttons on the remote control. Alternatively, go to Picture > Keystone in the OSD menu and adjust values.

How do I change the input source?

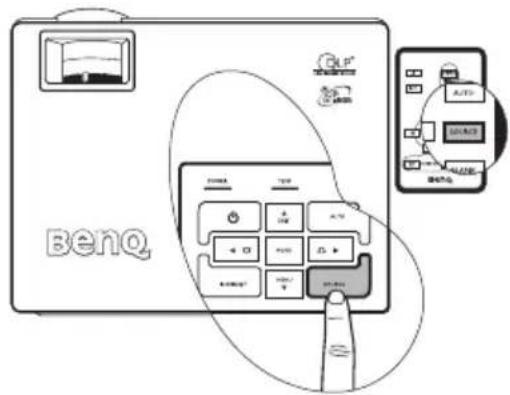

Press Source on the projector or remote control repeatedly to cycle through RGB, Component Video, S-Video, and Video inputs.

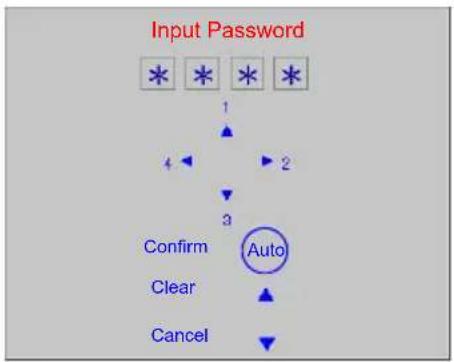

How do I set a password?

Go to Setting > Password in the OSD menu, select On, then enter a 4-digit password using the arrow buttons (1,2,3,4). Confirm the password. Write it down and keep in a safe place.

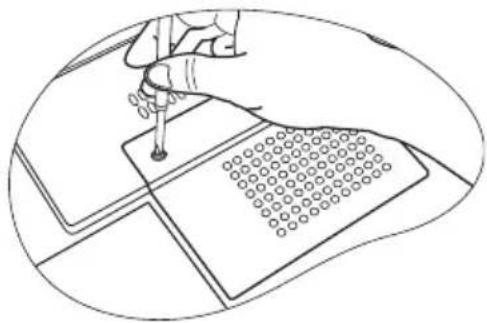

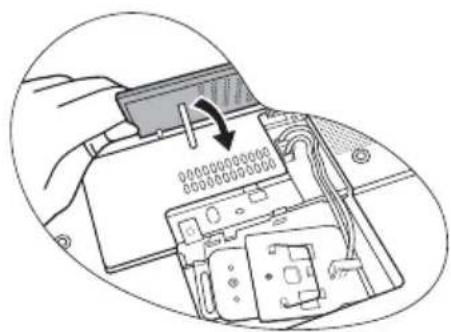

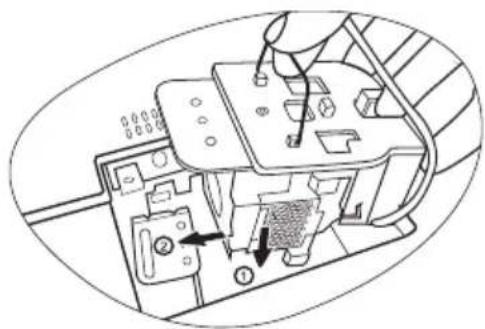

How do I replace the lamp?

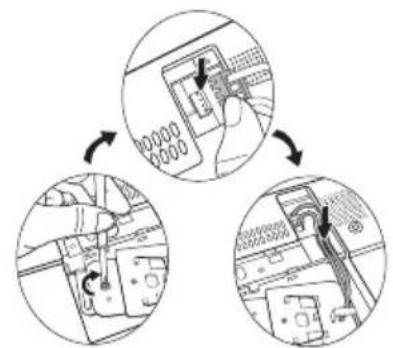

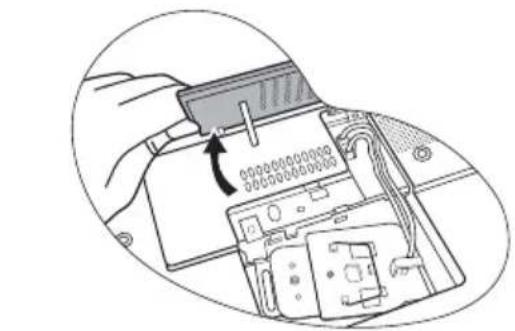

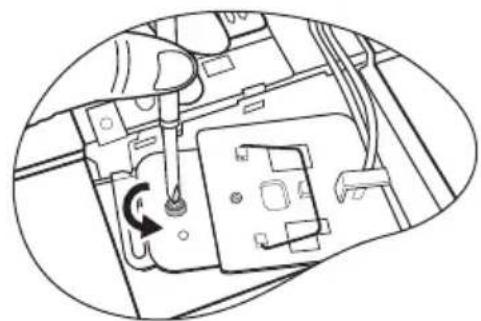

Turn off the projector, unplug, and let it cool for 45 minutes. Remove the lamp cover, loosen screws, disconnect lamp connector, and pull out the old lamp. Insert the new lamp, tighten screws, reconnect, replace cover, and reset the lamp counter by pressing and holding Exit for 5 seconds, then Auto.

How do I clean the lens?

Use compressed air to remove dust. For smears, moisten a soft cloth with lens cleaner and gently wipe the lens. Never use abrasive materials.

Why is there no image?

Check that the lens cap is removed, the video source is on and connected correctly, the correct input source is selected, and the projector is powered on. If using a laptop, ensure the external display is activated (e.g., FN + F3).

How do I use the presentation timer?

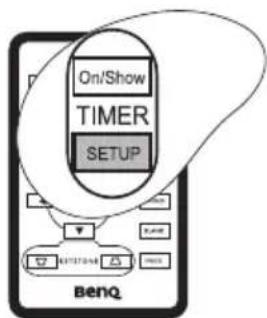

Press Timer Setup on the remote control, or go to Setting > Presentation Timer. Set the timer period, display option, position, counting direction, and sound reminder. Press Timer On/Show to activate or display.

How do I freeze the image?

Press Freeze on the remote control. An icon appears. Press Freeze again or Source on the projector to release.

How do I reset the lamp counter after replacement?

Press and hold Exit on the projector for 5 seconds to display total lamp hours. Then press Auto to reset to 0. Wait for OSD to disappear. Do not reset if the lamp was not replaced.

USER MANUAL MP611C BENQ

Copyright 2006 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are copyrights of their respective companies or organizations.

Table of contents

Important safety instructions.... 1

Introduction 5

Projector features .... 5

Shipping contents.... 6

Projector exterior view 7

Controls and functions 8

Positioning your projector 12

Choosing a location 12

Safety instructions for ceiling mounting of the projector 13

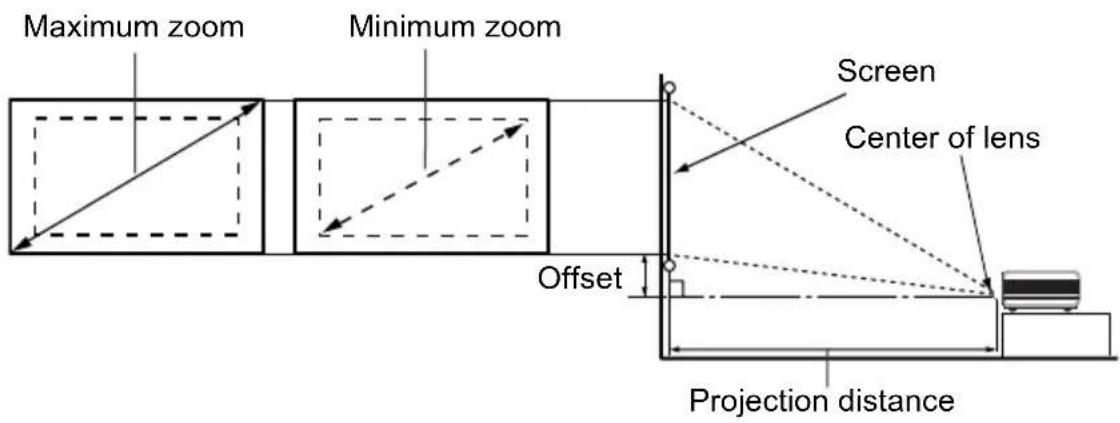

Obtaining a preferred projected image size 14

Connection.... 17

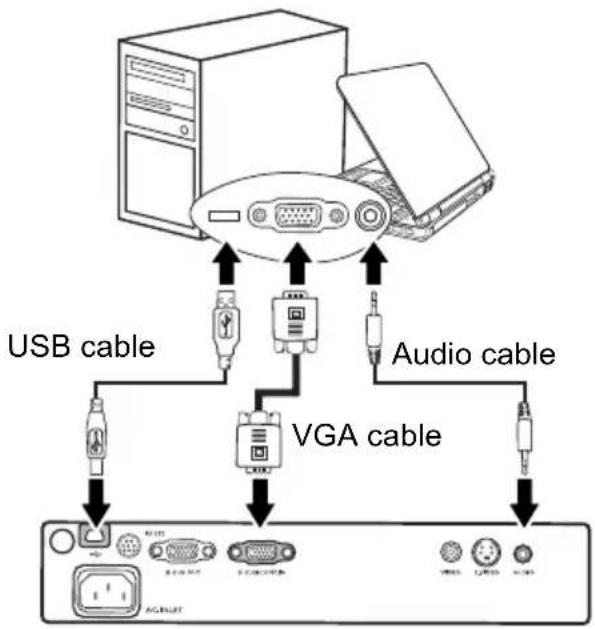

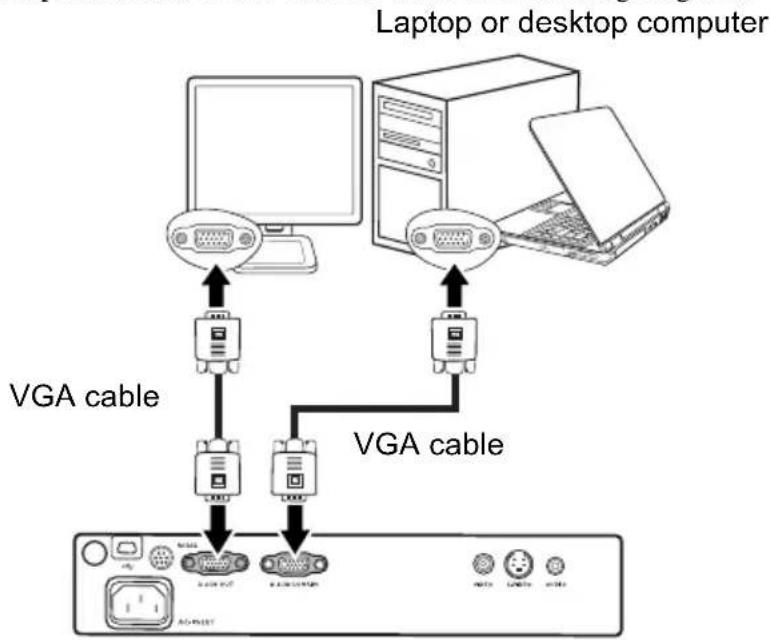

Connecting a computer or monitor 17

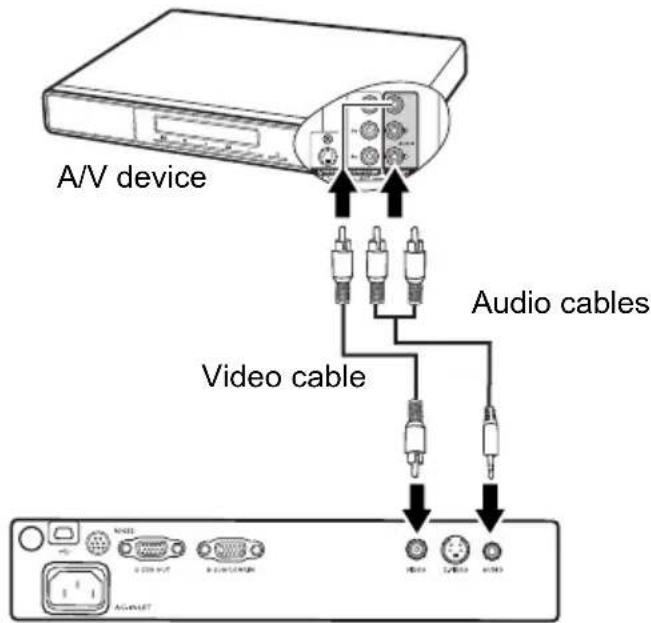

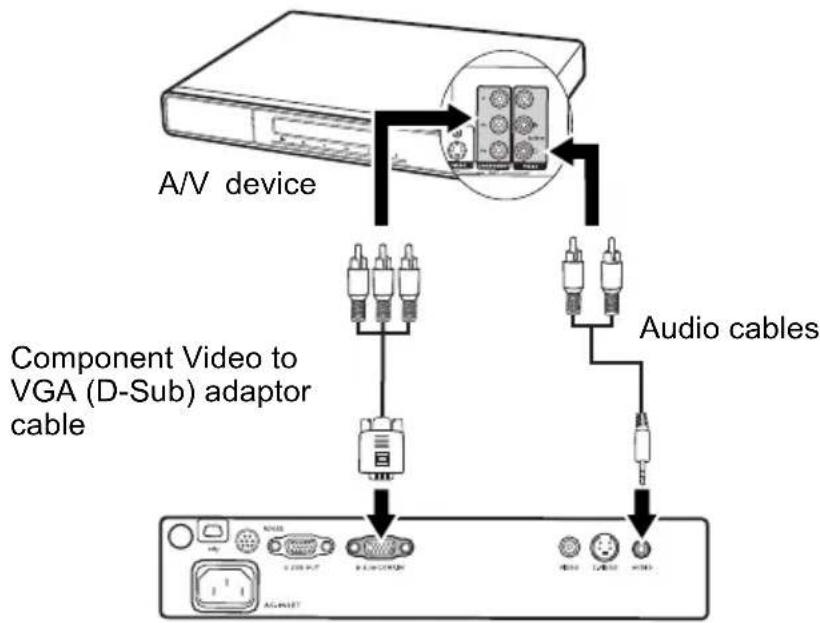

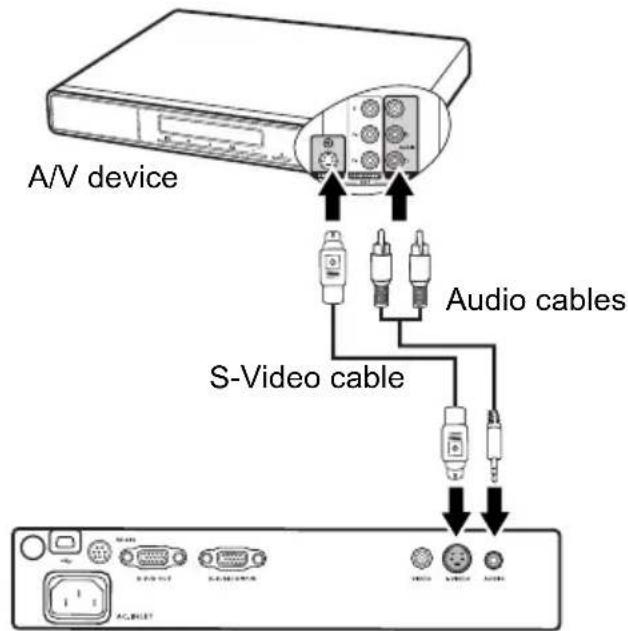

Connecting Video source devices.... 19

Operation 23

Start up 23

Utilizing the password function 24

Switching input signal 26

Adjusting the projected image 26

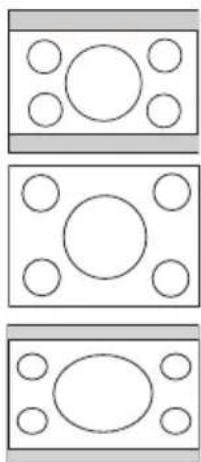

Selecting the aspect ratio 28

Selecting a picture mode 29

Hiding the image 30

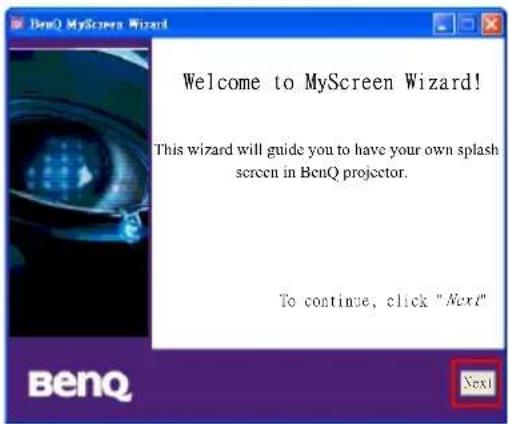

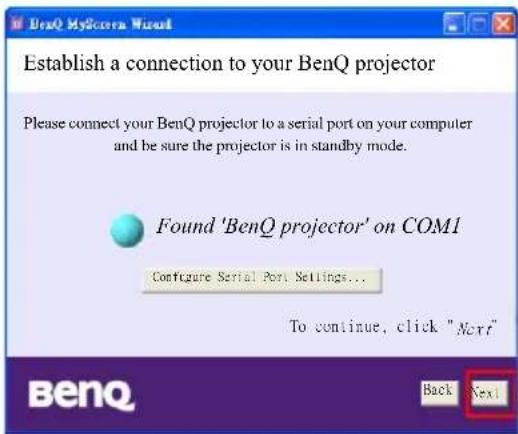

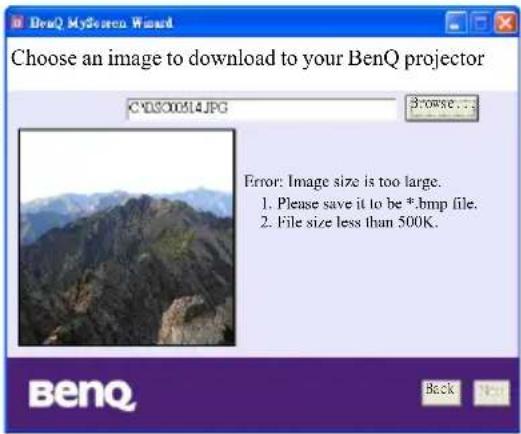

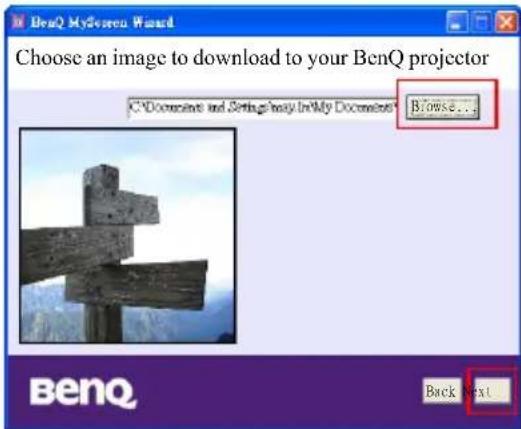

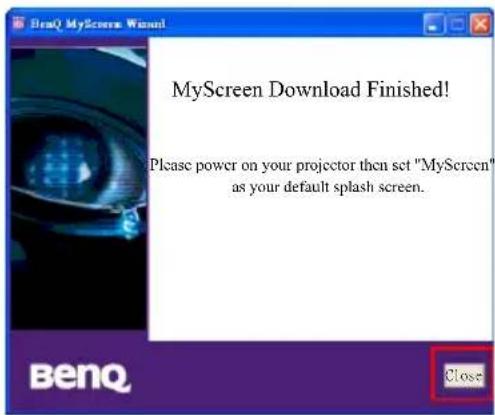

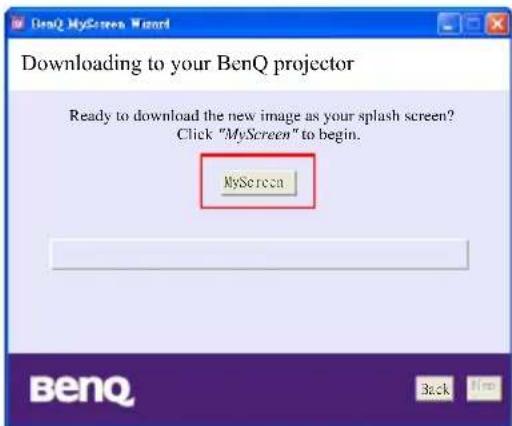

Creating your own startup screen-MyScreen function ... 30

Activating panel key lock 32

Setting the presentation timer 33

Freezing the image 33

Utilizing FAQ function 34

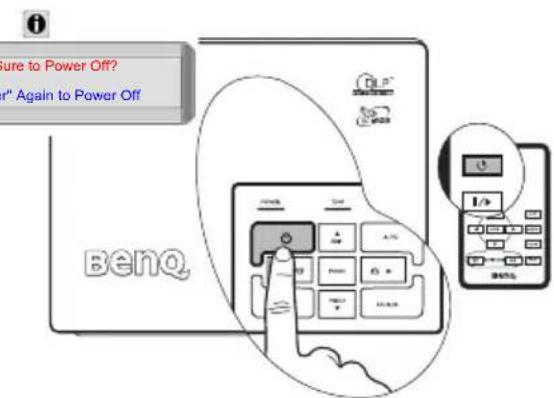

Shutting down the projector 34

Menu operation.... 35

Maintenance.... 44

Care of the projector 44

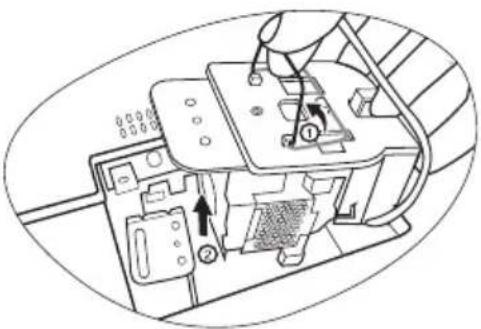

Lamp information 45

Troubleshooting.... 51

Specifications.... 52

Projector specifications ....52

Timing chart....53

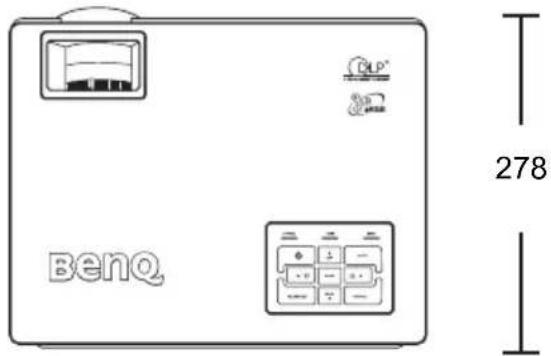

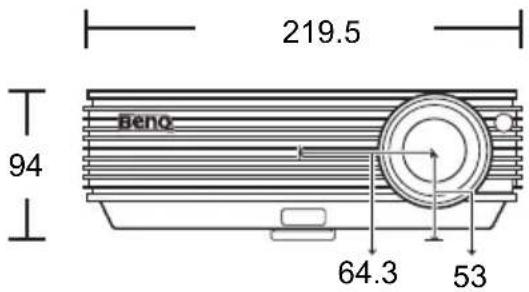

Dimensions....54

Warranty.... 55

Limited warranty ....55

Regulation statements.... 56

FCC statement ....56

EEC statement ....56

MIC statement ....56

WEEE directive ....56

Important safety instructions

Your BenQ projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before you operate your projector. Save it for future reference.

Cartoon illustration of a document being pushed by a projector (no text or symbols present)

1. Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.

Illustration of a projector with a pair of eyeglasses emitting light, accompanied by a prohibition sign (no text or symbols on the diagram itself)

1. Refer servicing to qualified service personnel.

Cartoon illustration of a projector with a cap and glasses, surrounded by clouds and thumbs (no text or symbols)

1. Always open the lens shutter or remove the lens cap when the projector lamp is on.

Cartoon illustration of a projector with eyes, nose, and speech bubble (no text or symbols)

1. In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a mains voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where the mains voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector or uninterruptible power supply (UPS).

Cartoon illustration of a projector with a smiling face and connected to a cable, emitting sound waves (no text or symbols)

1. Do not block the projection lens with any objects when the projector is under operation as this could cause the objects to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press BLANK on the projector or remote control.

Safety Instructions (Continued)

1. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

Cartoon illustration of a computer with a fan blowing out, surrounded by steam and motion lines (no text or symbols)

1. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond the rated life could cause them to break on rare occasions.

Cartoon illustration of a wooden box with a magnifying glass and a flame inside, showing a surprised face and a small flame inside (no text or symbols)

1. Never replace the lamp assembly or any electronic components unless the projector is unplugged.

Cartoon illustration of a projector with arms and legs, no text or symbols present

1. Do not place this product on an unstable cart, stand, or table. The product may fall, sustaining serious damage.

Illustration of a wooden box with a bubble and two cups on a flat surface, no text or symbols present.

1. Do not attempt to disassemble this projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts. The only user serviceable part is the lamp which has its own removable cover. Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.

Cartoon illustration of a projector with a dropper and two hands, no text or symbols present

Safety Instructions (Continued)

1. Do not place this projector in any of the following environments.

2. Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector.

3. Locations where temperatures may become excessively high, such as the inside of a car with all windows rolled up.
4. Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the projector's life span and darkening the image.

Illustration of three household appliances: a steaming pot, a projector, and a broom (no text or symbols)

• Locations near fire alarms
• Locations with an ambient temperature above 40^ C / 104^ F
• Locations where the altitudes are higher than 10000 feet.

1. Do not block the ventilation holes.

2. Do not place this projector on a blanket, bedding or any other soft surface.

3. Do not cover this projector with a cloth or any other item.
4. Do not place inflammables near the projector.

Simple line drawing of a door opening with steam rising from the ceiling (no text or symbols)

If the ventilation holes are seriously obstructed, overheating inside the projector may result in a fire.

1. Always place the projector on a level, horizontal surface during operation.

- Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of more than 15 degrees front to back. Using the projector when it is not fully horizontal may cause a malfunction of, or damage to, the lamp.

Illustration of a wooden projector with a magnifying glass resting on top of stacked books (no text or symbols)

1. Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing injury or resulting in damage to the projector.

Line drawing of a vintage-style portable device with front panel and side cups (no text or symbols)

Safety Instructions (Continued)

1. Do not step on the projector or place any objects upon it. Besides probable physical damage to the projector, doing so may result in accidents and possible injury.

Cartoon illustration of a coffee mug on a wooden box with steam bubbles and a smiling face (no text or symbols)

1. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply's wall socket and call BenQ to have the projector serviced.

Cartoon illustration of a person using a power plug to smoke from a chimney (no text or symbols)

1. This product is capable of displaying inverted images for ceiling mount installation.

Use only BenQ's Ceiling Mount Kit for mounting the projector and ensure it is securely installed.

Cartoon illustration of a wooden box character with eyes and arms, surrounded by flying birds (no text or symbols)

1. When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal phenomenon and not a product defect.

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use.

The projector offers the following features.

• Selectable password protected function
• Compact and portable unit
  • High quality manual zoom lens
• One-key auto-adjustment to display the best picture quality
  • Digital keystone correction to correct distorted images
• Adjustable color balance control for data/video display
• Ultra-high brightness projection lamp
• Ability to display 16.7 million colors
• Multi-language On-Screen Display (OSD) menus
• Switchable normal and Economic modes to reduce the power consumption
• Powerful AV function to provide high quality video image
• Component HDTV compatibility (YP bPr)

• Built-in speaker provides mixed mono audio when an audio input is connected

- The apparent brightness of the projected image will vary depending on the ambient lighting conditions, selected input source contrast/brightness settings, and is directly proportional to projection distance.

- The lamp brightness will decline over time and may vary within the lamp manufacturers specifications. This is normal and expected behavior.

Shipping contents

The projector is shipped with the cables required for connection to a PC or video equipment. Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase.

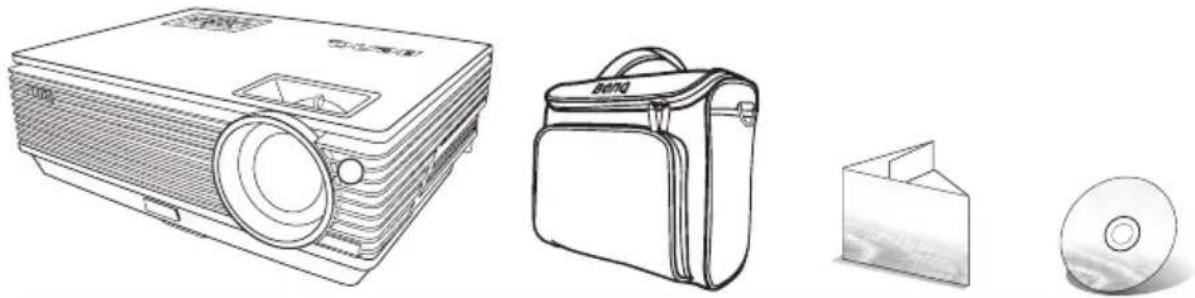

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

Line drawings of various electronic devices including a projector, a backpack, a CD, and a disc (no text or symbols present)

Projector Soft carry case Quick start
guide
User manual
CD

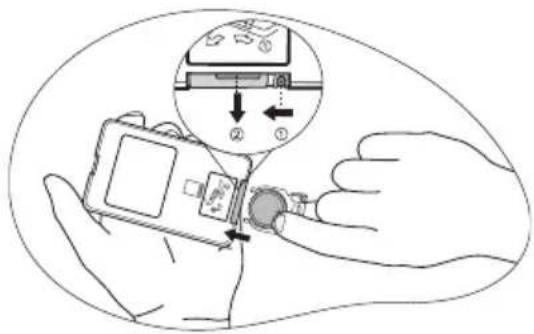

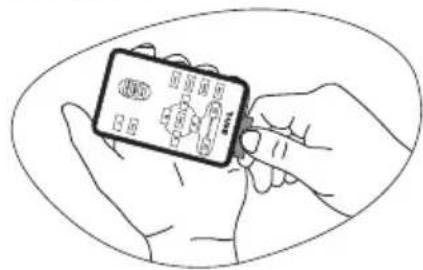

Pull the tab before using the remote control

User's manual Remote control with batteries

Two types of cable connectors shown in line drawings, no text or symbols present

VGA cable Power cord

Optional accessories

1. Spare lamp kit
2. Ceiling mount kit

3. Presentation Plus

4. HDTV (Y/b/Pr) cable

5. RS232 cable

Projector exterior view

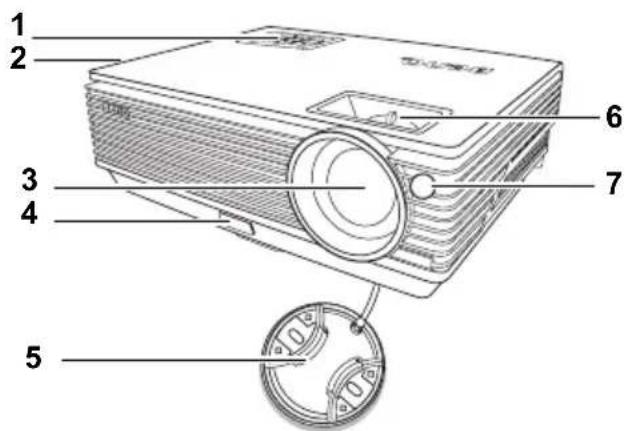

Front/upper side

1. External control panel (See "Projector" on page 8 for details.)
2. Vent (heated air exhaust)
3. Projection lens
4. Quick-release button
5. Lens cap
6. Focus ring and Zoom ring
7. Front IR remote sensor

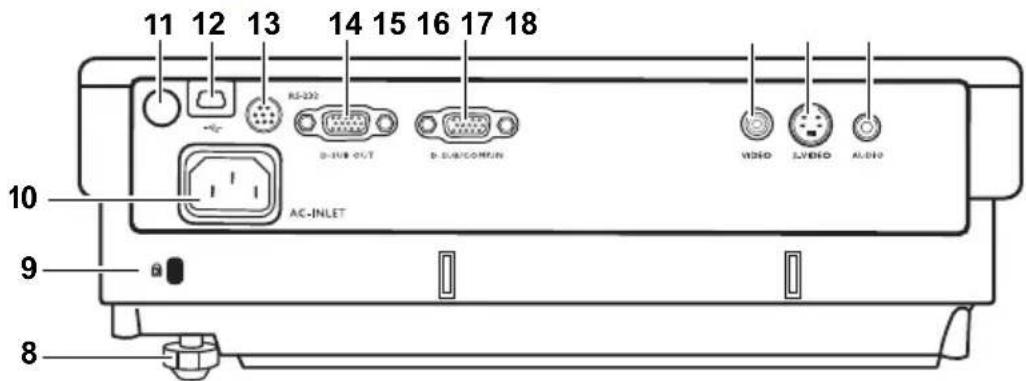

Rear side

See "Connection" on page 17 for details.

1. Rear adjuster foot
2. Kensington anti-theft lock slot
3. AC power cord inlet

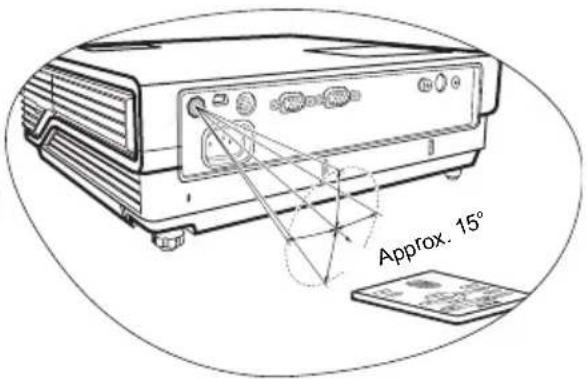

4. Rear IR remote sensor
5. USB socket
6. RS232 control port

7. RGB signal output socket

8. RGB (PC)/Component video (YPbPr/YCbCr) signal input socket

9. Video input socket
10. S-Video input socket
11. Audio socket

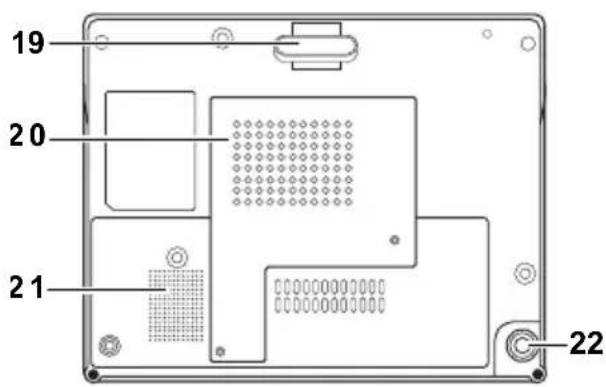

Lower side view

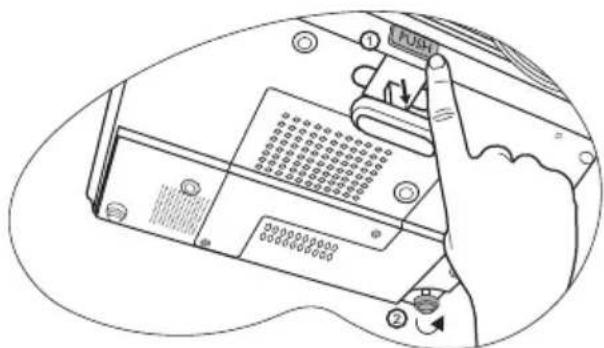

1. Quick-release foot
2. Lamp cover
3. Speaker grill
4. Rear adjuster foot

Controls and functions

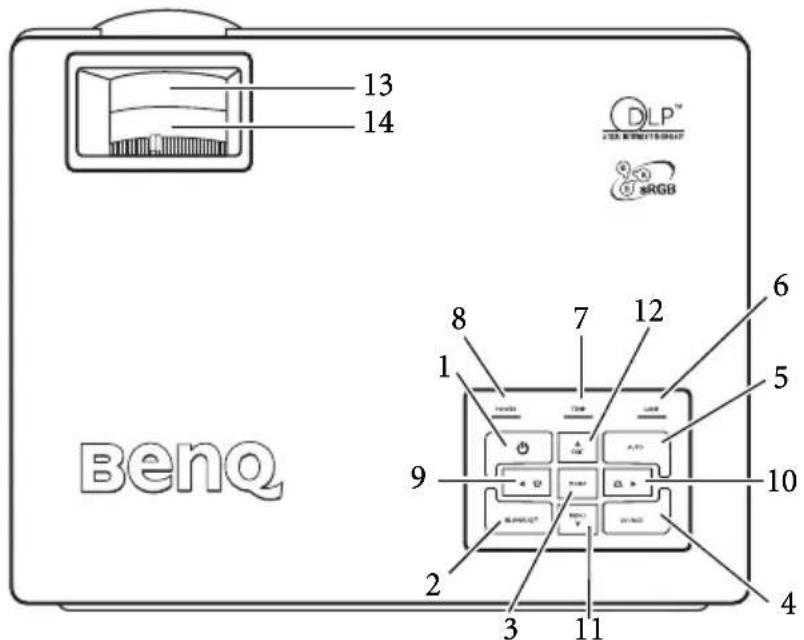

Projector

1. Power (Refer to "Start up" on page 23 and "Shutting down the projector" on page 34 for more information.) Turns the projector on or off.

2. Blank/Q? (Refer to "Hiding the image" on page 30 and "Utilizing FAQ function" on page 34 for more information.) Used to hide the screen image. You can press any key on the control panel to bring the image back. To start FAQ function, press and hold for 3 seconds.

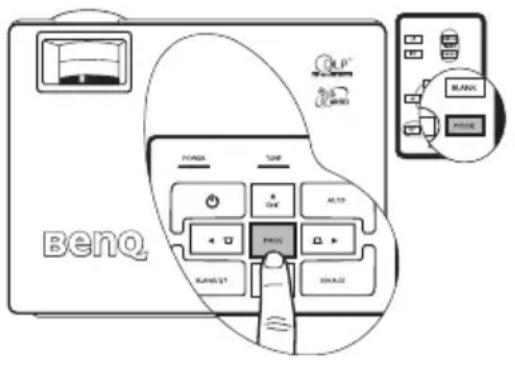

3. Mode (Refer to "Selecting a picture mode" on page 29 for more information.) Sequentially selects a predefined picture setting available for each input.

4. Source (Refer to "Switching input signal" on page 26 for more information.) Sequentially selects the input signal RGB, Component Video, S-Video or Video.

5. Auto (Refer to "Auto-adjusting the image" on page 27 for more information.) Automatically determines the best picture timings for the selected input.

6. Lamp indicator light (Refer to "Indicators" on page 49 for more information.) Indicates the status of the lamp. Lights up or flashes when the lamp has developed a problem.

7. Temperature warning light (Refer to "Indicators" on page 49 for more information.) Flashes red if the projector's temperature becomes too high.

8. Power indicator light (Refer to "Indicators" on page 49 for more information.) Lights up or flashes when the projector is under operation.

9. Left

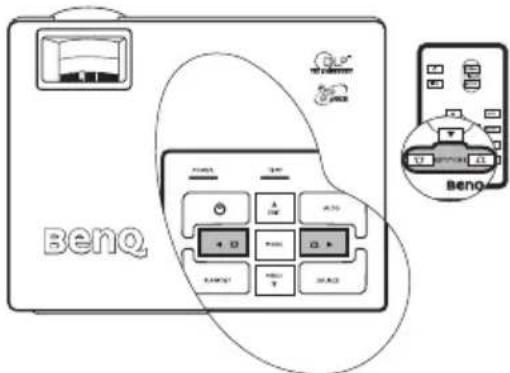

10. Right ▶ (Refer to "Correcting keystone" on page 27 for more information.) When the on-screen menu is not activated, #9 and #10 function as Keystone -/+ hot keys.

11. ▼Menu (Refer to "Using the menus" on page 36 for more information.) Turns on the on-screen display control menu.

12. ▲ Exit

Exits and saves the menu settings.

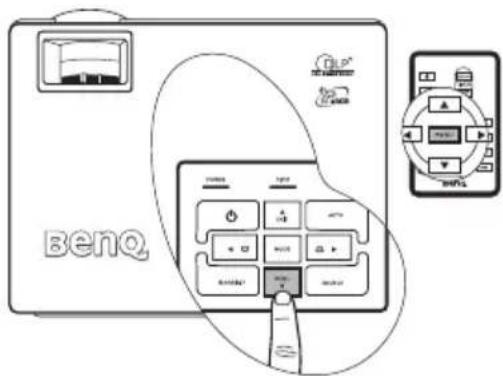

When the on-screen menu is activated, the #9 to #12 buttons are used as directional arrows to select the desired menu items and to make adjustments.

1. Focus ring (Refer to "Fine-tuning the image size and clarity" on page 27 for more information.)

Adjusts the focus of the projected image.

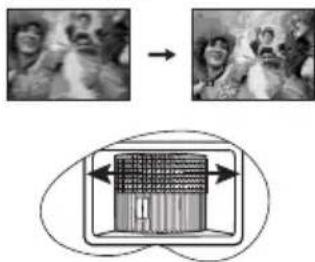

1. Zoom ring (Refer to "Fine-tuning the image size and clarity" on page 27 for more information.)

Adjusts the size of the image. Rotate clockwise to enlarge the image or rotate counter-clockwise to reduce the image size.

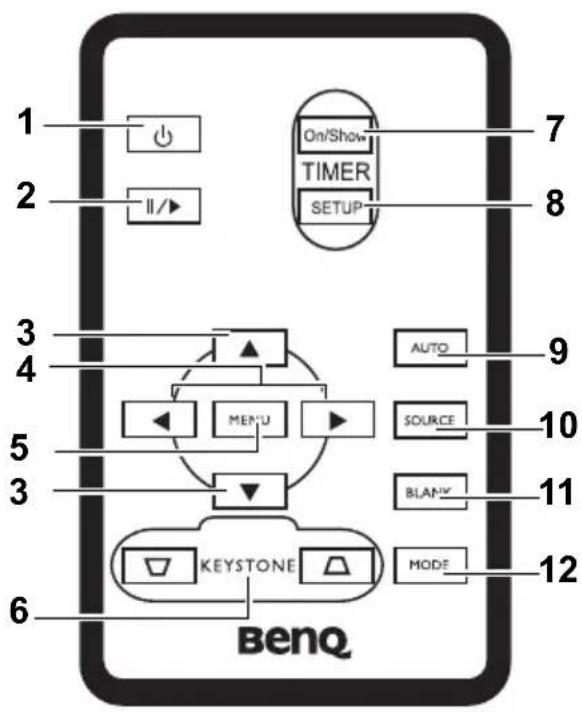

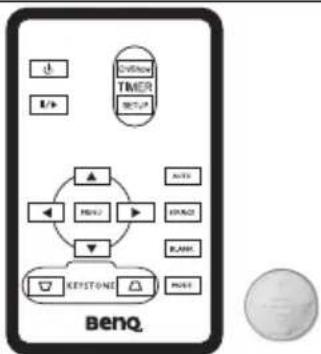

Remote control

1. Power(Refer to "Start up" on page 23 and "Shutting down the projector" on page 34 for more information.) Turns the projector on or off.

2. Freeze Freezes the projected image. An icon "will display in the lower right corner of the screen. To release the function, press Freeze again.

3. Up, Down

4. Left, Right When the on-screen menu is activated, the Up, Down, Left and Right buttons are used as directional arrows to select the desired menu items and to make adjustments.

5. Menu (Refer to "Using the menus" on page 36 for more information.) Displays or hides the On-Screen Display (OSD) menu system.

6. Keystone (Refer to page "Correcting keystone" on page 27 for more information.) Manually corrects distorted images resulting from an angled projection.

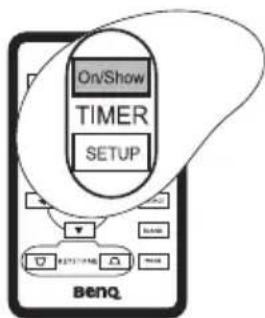

7. Timer On/Show (Refer to "Setting the presentation timer" on page 33 for more information.) A multifunctional key that activates, displays or hides on-screen timer based on your own timer setting.

8. Timer Setup (Refer to "Setting the presentation timer" on page 33 for more information.) Enters presentation timer setting directly.

9. Auto (Refer to "Auto-adjusting the image" on page 27 for more information.) Automatically determines the best picture settings for the displayed image.

10. Source (Refer to "Switching input signal" on page 26 for more information.) Sequentially selects the input signal RGB, Component Video, S-Video or Video.

11. Blank (Refer to "Hiding the image" on page 30 for more information.) Used to hide the screen image. Press any key on the remote control to restore the image.

12. Mode (Refer to "Selecting a picture mode" on page 29 for more information.) Sequentially selects a predefined picture setting available for each input.

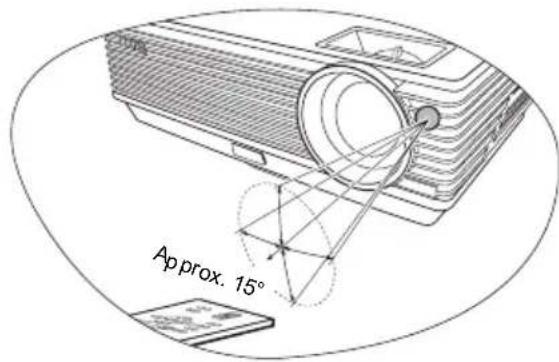

Remote control effective range

Infra-Red (IR) remote control sensors are located on the front and the back of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensors to function correctly. The distance between the remote control and the sensors should not exceed 6 meters (\~20 feet).

Make sure that there are no obstacles between the remote control and the IR sensors on the projector that might obstruct the infra-red beam.

- Operating the projector from the front

- Operating the projector from the rear

Replacing the remote control battery

1. Pull out the battery holder.

Please follow the illustrated instructions. Push and hold the locking arm whilst pulling out the battery holder.

1. Insert the new battery in the holder. Note the positive polarity should face outward.

2. Push the holder into the remote control.

- Avoid excessive heat and humidity.

• There may be battery damage if the battery is incorrectly replaced.

- Replace only with the same or equivalent type recommended by the battery manufacturer.

- Dispose of the used battery according to the battery manufacturer's instructions.

- Never throw a battery into a fire. There may be danger of an explosion.

- If the battery is dead or if you will not be using the remote control for a long time, remove the battery to prevent damage to the remote control from possible battery leakage.

3 Positioning your projector Choosing a location

Your projector is designed to be installed in one of four possible installation locations:

1. Table in front of screen;
2. Ceiling in front of screen;
3. Table at rear of screen;
4. Ceiling at rear of screen.

1. Front Table

Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

2. Front Ceiling

Select this location with the projector suspended upside-down from the ceiling in front of the screen.

Purchase the BenQ Projector Ceiling Mounting Kit from your dealer to mount your projector on the ceiling.

Simple line drawing of a pendulum setup with a pendulum mounted on a table and a human silhouette nearby (no text or symbols)

Simple line drawing of a human silhouette with a mechanical device and connecting lines, no text or symbols present.

Set in the Advanced > Mirror menu after you turn the projector on.

3. Rear Table

Select this location with the projector placed near the floor behind the screen.

Note that a special rear projection screen is required.

Simple line drawing of a pendulum setup with a pendulum and human silhouette (no text or symbols)

Set in the Advanced > Mirror menu after you turn the projector on.

4. Rear Ceiling

Select this location with the projector suspended upside-down from the ceiling behind the screen.

Note that a special rear projection screen and the BenQ Projector Ceiling Mounting Kit are required for this installation location.

Simple line drawing of a mechanical device connected to a vertical pole, with a human silhouette on the right side (no text or symbols)

Set 1 in the Advanced > Mirror menu after you turn the projector on.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

Safety instructions for ceiling mounting of the projector

We want you to have a pleasant experience using your BenQ projector, so we need to bring this safety matter to your attention to prevent damage to person and property.

If you intend to mount your projector on the ceiling, we strongly recommend that you use a proper fitting BenQ projector ceiling mount kit and that you ensure it is securely and safely installed.

If you use a non-BenQ brand projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws.

You can purchase a BenQ projector ceiling mount kit from the place you purchased your BenQ projector. BenQ recommends that you also purchase a separate Kensington lock compatible security cable and attach it securely to both the Kensington lock slot on the projector and the base of the ceiling mount bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.

Obtaining a preferred projected image size

The distance from the projector lens to the screen, the zoom setting, and the video format each factors in the projected image size.

The maximum (native) resolution of the projector is 1024 x 768 pixels, which is a 4 to 3 aspect ratio (expressed as 4:3). To be able to project a complete 16:9 (widescreen) aspect ratio image, the projector can resize and scale a widescreen image to the projector's native aspect width. This will result in a proportionally smaller height equivalent to 75% of the projector's native aspect height.

4:3 aspect image in a 4:3 aspect display area

16:9 aspect image scaled to a 4:3 aspect display area

Thus, a 16:9 aspect image will not utilize 25% of the height of a 4:3 aspect image displayed by this projector. This will be seen as darkened (unlit) bars along the top and bottom (vertical 12.5% height respectively) of the 4:3 projection display area whenever displaying a scaled 16:9 aspect image in the vertical center of the 4:3 projection display area.

When determining the position of your projector, you should consider its intended use and input signal aspect ratios. All inputs (other than composite Video being fed a 16:9 aspect signal) will display in a 4:3 aspect ratio (and will require an additional 33% display height than that of the scaled 16:9 aspect image projection area).

IMPORTANT: Do not select a permanent projector position based upon a 16:9 projection if you will ever need to select an input (other than composite Video being fed a 16:9 aspect signal).

The projector should always be placed horizontally level (like flat on a table), and positioned directly perpendicular ( 90^ right-angle square) to the horizontal center of the screen. This prevents image distortion caused by angled projections (or projecting onto angled surfaces).

The modern digital projector does not project directly forward (like older style reel-to-reel film projectors did). Instead, digital projectors are designed to project at a slightly upward angle above the horizontal plane of the projector. This is so that they can be readily placed on a table and will project forward and upwards onto a screen positioned so that the bottom edge of the screen is above the level of the table (and everyone in the room can see the screen).

If the projector is mounted on a ceiling, it must be mounted upside-down so that it projects at a slightly downward angle.

You can see from the diagram on page 16, that this type of projection causes the bottom edge of the projected image to be vertically offset from the horizontal plane of the projector. When ceiling mounted, this refers to the top edge of the projected image.

If the projector is positioned further away from the screen, the projected image size increases, and the vertical offset also increases proportionately.

When determining the position of the screen and projector, you will need to account for both the projected image size and the vertical offset dimension, which are directly proportional to the projection distance.

BenQ has provided a table of 4:3-aspect-ratio screen sizes to assist you in determining the ideal location for your projector. There are two dimensions to consider, the perpendicular horizontal distance from the center of the screen (projection distance), and the vertical offset height of the projector from the horizontal edge of the screen (offset).

How to determine the position of the projector for a given screen size

1. Select your screen size.

2. Refer to the table and find the closest match to your screen size in the left columns labelled '4:3 Screen Diagonal'. Using this value, look across this row to the right to find the corresponding average distance from screen value in the column labelled 'Average'. This is the projection distance.

3. On that same row, look across to the right column and make note of the vertical Offset value. This will determine the final vertical offset placement of the projector in relation to the edge of the screen.

4. The recommended position for the projector is aligned perpendicular to the horizontal center of the screen, at the distance from the screen determined in step 2 above, and offset by the value determined in step 3 above.

For example, if you are using a 120 inch screen, the average projection distance is 4467 mm and with a vertical offset of 183 mm.

If you place the projector in a different position (to that recommended), you will have to tilt it down or up to center the image on the screen. In these situations, some image distortion will occur. Use the Keystone function to correct the distortion. See "Correcting keystone" on page 27 for details.

How to determine the recommended screen size for a given distance

This method can be used for situations where you have purchased this projector and would like to know what screen size will fit in your room.

The maximum screen size is limited by the physical space available in your room.

1. Measure the distance between the projector and where you want to position the screen. This is the projection distance.
2. Refer to the table and find the closest match to your measurement in the average distance from screen column labelled 'Average'. Check that your measured distance is between the min and max distances listed on either side of the average distance value.
3. Using this value, look across that row to the left to find the corresponding screen diagonal listed in that row. That is the projected image size of the projector at that projection distance.
4. On that same row, look across to the right column and make note of the vertical Offset value. This will determine the final placement of the screen in relation to the horizontal plane of the projector.

For example, if your measured projection distance was 4.5m (4500mm), the closest match in the Average column is 4593 mm. Looking across this row shows that a 3000 mm (3 m) screen is required. If you can only obtain imperial sized screens, the listed screen sizes on either side of the 3 m screen are the 9' and 10' screens.

Checking the min and max projection distance values for these screen sizes, indicates that the 4.5 m measured projection distance will need to be reduced to fit the 9' size screen, or increased to fit the 10' size screen. The projector can be adjusted (using the zoom control) to display on these different screen sizes at those projection distances. Be aware that these different screens have different vertical offset values.

4:3 Screen Diagonal			Distance from Screen in mm			Vertical Offset in mm
Feet Inches mm Min length			(with max. zoom)	Average Max length (with min. zoom)
4 48 1219 1778 1867 1956 73
			1500 2187 2297 2406 90
5 60 1524 2222 2333 2444 91
6 72 1829 2667 2800 2933			110
			2000 2916 3062 3208		120
7 84 2134 3111 3267 3422			128
8 96 2438 3556 3733 3911			146
			2500 3645 3828 4010		150
9	108	2743 4000 4200 4400			165
			3000 4347 4593 4812		180
10 120	3048 4444 4667 4889			183
			3500 5104 5359 5614		210
12 144	3658 5334 5601 5867			219
			4000 5833 6124 6416		240
15 180	4572 6667 7000 7333			274
			5000 7291 7655 8020		300
18 216	5486 7999 8399 8799			329
			6000 8749 9186 9624		360
25	300	7620	11111	11667	12222	457

There is 3% tolerance among these numbers due to optical component variations. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

Connection

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.

In the connections shown below, some cables may not be included with the projector (see "Shipping contents" on page 6). They are commercially available from electronics stores.

Connecting a computer or monitor

Connecting a computer

The projector provides a VGA input socket that allows you to connect it to a laptop or desktop computer.

To connect the projector to a laptop or desktop computer:

1. Take the supplied VGA cable and connect one end to the D-Sub output socket of the computer.
2. Connect the other end of the VGA cable to the D-SUB/COMP IN signal input socket on the projector.
3. If you wish to make use of the projector (mixed mono) speaker, take a suitable audio cable and connect one end of the cable to the audio output socket of the computer, and the other end to the Audio socket of the projector.

The final connection path should be like that shown in the following diagram:

Laptop or desktop computer

Many laptops do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the laptop. Press FN and the labeled function key simultaneously. Refer to your laptop's documentation to find your laptop's key combination.

Connecting a monitor

If you want to view your presentation close-up on a monitor as well as on the screen, you can connect the RGB signal output socket on the projector to an external monitor with a VGA cable following the instructions below:

1. Connect the projector to a computer as described in "Connecting a computer" on page 17.
2. Take a suitable VGA cable (only one supplied) and connect one end of the cable to the D-Sub input socket of the video monitor.
3. Connect the other end of the cable to the D-SUB OUT socket on the projector. The final connection path should be like that shown in the following diagram:

The D-Sub output only works when an appropriate D-Sub input is made to the projector.

Connecting Video source devices

You can connect your projector to various Video source devices that provide any one of the following output sockets:

- Component Video

$$ \begin{array}{l} \cdot \quad S - V i d e o \ \cdot \text { V i d e o (c o m p o s i t e) } \ \end{array} $$

You need only connect the projector to a Video source device using just one of the above connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the Video source device as described below:

Best video quality

The best available video connection method is Component Video (not to be confused with composite Video). Digital TV tuner and DVD players output Component Video natively, so if available on your devices, this should be your connection method of choice in preference to (composite) Video.

See "Connecting a Component Video source device" on page 20 for how to connect the projector to a component video device.

Better video quality

The S-Video method provides a better quality analog video than standard composite Video. If you have both composite Video and S-Video output terminals on your Video source device, you should elect to use the S-Video option.

See "Connecting an S-Video source device" on page 21 for how to connect the projector to an S-Video device.

Least video quality

Composite Video is an analog video and will result in a perfectly acceptable, but less than optimal result from your projector, being the least video quality of the available methods described here.

See "Connecting a composite Video source device" on page 22 for how to connect the projector to a composite Video device.

Connecting Audio

The projector has a built-in mono speaker which is designed to provide basic audio functionality accompanying data presentations for business purposes only. It is not designed for, nor intended for stereo audio reproduction use as might be expected in home theatre or home cinema applications. Any stereo audio input (if provided), is mixed into a common mono audio output through the projector speaker.

If you have a separate sound system, you will most likely want to connect the audio output of your Video source device to that sound system, instead of to the mono audio projector. The audio connections illustrated in the following sections are provided for informational purposes only. You need not connect audio to the projector if there is an alternate sound system available, or if audio is not required.

Connecting a Component Video source device

Examine your Video source device to determine if it has a set of unused Component Video output sockets available:

• If so, you can continue with this procedure.

- If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a Component Video source device:

1. Take the (optional accessory) Component Video to VGA (D-Sub) adaptor cable and connect the end with 3 RCA type connectors to the Component Video output sockets of the Video source device. Match the color of the plugs to the color of the sockets; green to green, blue to blue; and red to red.

2. Connect the other end of the Component Video to VGA (D-Sub) adaptor cable (with a D-Sub type connector) to the D-SUB/COMP IN socket on the projector.

3. If you wish to make use of the projector (mixed mono) speaker, take a suitable audio cable and connect one end of the cable to the audio output socket of the computer, and the other end to the Audio socket of the projector.

The final connection path should be like that shown in the following diagram:

If you connect the projector to a High Definition TV (HDTV) tuner, the following standards are supported:

• 480i • 480p
• 576i • 576p
- 720p (50/60 Hz) • 1080i (50/60 Hz)

- The projector is only capable of playing mixed mono audio, even if a stereo audio input is connected. See "Connecting Audio" on page 19 for details.

• Component Video is the only video output that delivers native 16:9 aspect ratio picture.

- If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

Connecting an S-Video source device

Examine your Video source device to determine if it has an unused S-Video output socket available:

• If so, you can continue with this procedure.
- If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to an S-Video source device:

1. Take the (optional accessory) S-Video cable and connect one end to the S-Video output socket of the Video source device.
2. Connect the other end of the S-Video cable to the S-VIDEO socket on the projector. The final connection path should be like that shown in the following diagram:

- The projector is only capable of playing mixed mono audio, even if a stereo audio input is connected. See "Connecting Audio" on page 19 for details.

• If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.
• If you have already made a Component Video connection between the projector and this S-Video source device using Component Video connections, you need not connect to this device using an S-Video connection as this makes an unnecessary second connection of poorer picture quality. See "Connecting Video source devices" on page 19 for details.

Connecting a composite Video source device

Examine your Video source device to determine if it has a set of unused composite Video output sockets available:

• If so, you can continue with this procedure.

- If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to an composite Video source device:

1. Take the (optional accessory) Video cable and connect one end to the composite Video output socket of the Video source device.

2. Connect the other end of the Video cable to the VIDEO socket on the projector. The final connection path should be like that shown in the following diagram:

- The projector is only capable of playing mixed mono audio, even if a stereo audio input is connected. See "Connecting Audio" on page 19 for details.

- If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

- You need only connect to this device using a composite Video connection if Component Video and S-Video inputs are unavailable for use. See "Connecting Video source devices" on page 19 for details.

Operation

Start up

1. Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the Power indicator on the projector lights orange after power has been applied..

1. Remove the lens cap. If it is left on, it could become deformed due to the heat produced by the projector lamp.

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

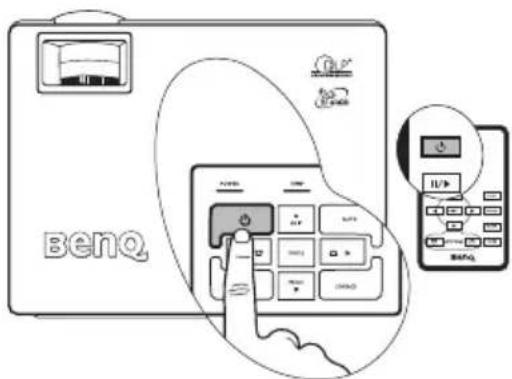

1. Press and hold (for 2 seconds) Power on the projector or remote control to start the projector. A "Power On Tone" will be heard. The Power indicator light flashes green and stays green when the projector is on.

The start up procedure takes about 30 seconds. In the later stage of start up, a startup logo is projected.

(If necessary) Rotate the focus ring to adjust the image clearness.

If you don't want to activate Power on/off tone, you can enter the OSD menu to disable this function. See "Mute (off)" on page 40 for details.

- If the projector is still hot from previous activity, it will run the cooling fan for approximately 90 seconds before energizing the lamp.

1. If you are prompted for a password, press the arrow buttons to enter a four-digit password. See "Utilizing the password function" on page 24 for details.

2. Switch on all of the connected equipment.

The projector will start to search for input signals. The current input source being scanned displays in the center of the screen. The searching message will continue displaying until an input source signal is found.

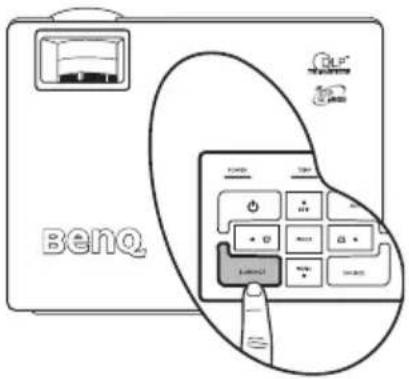

You can press SOURCE on the projector or remote control to select your desired input signal. See "Switching input signal" on page 26 for details.

If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the message 'Out of Range' displayed on a blank screen.

Utilizing the password function

For security purposes and to help prevent unauthorized use, the projector includes an option for setting up password security. The password can be set through the On-Screen Display (OSD) menu. For details of the OSD menu operation, please refer to "Using the menus" on page 36.

WARNING: You will be inconvenienced if you activate the password functionality and subsequently forget the password. Print out this manual (if necessary) and write the password you used in this manual, and keep the manual in a safe place for later recall.

Setting a password

Once a password has been set and activated, the projector cannot be used unless the correct password is entered every time the projector is started.

1. Open the OSD menu and go to [icon: 📄] Setting > Password. Select On by pressing Left ◀ or Right ▶.

2. When the function is activated for the first time, a prompt will display on the screen.

3. As pictured to the right, the four arrow buttons (Up ▲, Right ▶, Down ▼, Left ◀) respectively represent 4 digits (1, 2, 3, 4). Press the arrow buttons to enter four digits for the password.

4. When all digits are entered and the password is ready, press Auto to confirm.

IMPORTANT: The digits being input will display as asterisks on-screen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password: ____

Keep this manual in a safe place.

1. Enter the password again for verification.

2. Perform one of the following 3 steps.

i. Press Auto to continue. The set-up is finished when the message "Password setup completed" displays.

ii. Press Up ▲ to clear and re-enter four digits.

iii. Press Down ▼ to cancel the password set-up and return to the on-screen menu.

To disable password protection, go to Setting > Password after opening the OSD menu system. Select Off by pressing Left ◀ or Right ▶. Then press Down ▼ to confirm or Up ▲ to cancel.

Note that though the password function is disabled, you need to keep the old password in hand should you ever need to change the password by entering the old password.

If you forget the password

You will be asked to enter the four digit password every time you turn on the projector. If you enter the wrong password, the password error message displays. You can retry by pressing Up ▲, or if you did not record the password in this manual, and you absolutely do not remember it, you can use the password recall procedure.

Password Error

Try again

Forgot password, please refer to User's manual

Entering the password recall procedure

Press and hold Right ▶ on the projector for 3 seconds. The projector will display 4 sets of coded number on the screen. Write down the number and turn off your projector. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

Changing the password

1. Open the on-screen menu and go to

Setting > Change Password.

1. Press Left ◀ or Right ▶.
2. Enter the old password.

i. If the password is correct, you can go on to enter new password.
ii. If the password is incorrect, a "Password Error" message displays. Press Up ▲ to try again or press Down ▼ to cancel.

4 E n t e r a n e w p a s s w o r d

IMPORTANT: The digits being input will display as asterisks on-screen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password: ____

Keep this manual in a safe place.

1. Perform one of the following 3 steps.

i. Pressing Auto to confirm.
ii. Press Up ▲ to try again.
iii. Press Down ▼ to cancel the set-up and return to the on-screen menu.

6 Confirm the new password by re-entering the new password.

1. Perform one of the following 3 steps.

i. Pressing Auto completes the procedure.
ii. Press Up ▲ to try again.
iii. Press Down ▼ to cancel the set-up and return to the on-screen menu.

Switching input signal

The projector can be connected to multiple devices at the same time. However, it can only display one at a time.

When SOURCE on the projector control panel or the remote control is pressed, information of current signal and resolution will display at the lower right corner. Press SOURCE again to display a source selection bar. You can manually press SOURCE repeatedly until your desired signal is selected or let the projector automatically search for the availabel signal. Once detected, the selected source information will display at the lower right corner of the screen for 3 seconds. If there is multiple equipment connected to the projector, you can press the button again to search for another signal.

Be sure the Source Scan function in the Advanced menu is activated if you want the projector to automatically search the signals. See "Source Scan (on)" on page 41 for details

The brightness level of the projected image will change accordingly when you switch between different input signals. Data (graphic) "PC" presentations using mostly static images are generally brighter than "Video" using mostly moving images (movies).

The input type affects the options available for the Application Mode. See "Selecting a picture mode" on page 29 for details.

Adjusting the projected image

Adjusting the projection angle

The projector is equipped with 1 quick-release adjuster foot and 1 rear adjuster foot. These adjusters change the image height and projection angle. To adjust the projector:

1. Lift the projector up and press the adjuster button to release the adjuster. The adjuster will drop into position and be locked.

Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes.

1. Screw the rear adjuster foot to fine tune the horizontal angle.

Diagram of a computer mouse with a hand pressing the button (no text or symbols visible)

To retract the foot, hold up the projector while pressing the quick-release button, then slowly lower the projector. Screw the rear adjuster foot in a reverse direction.

If the screen and the projector are not perpendicular to each other, the projected image becomes vertically trapezoidal. To correct this situation, adjust the value of Keystone in the Picture menu, on the projector control panel, or on the remote control. See "Correcting keystone" on page 27 for details.

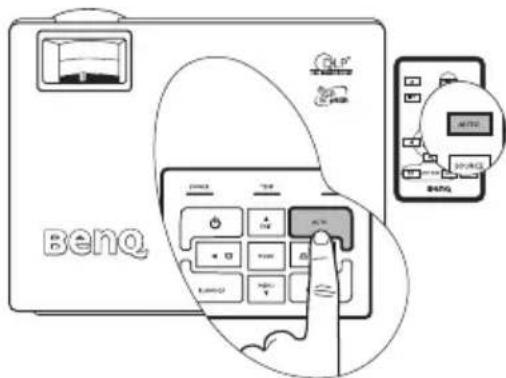

Auto-adjusting the image

In some cases, you may need to optimize the picture quality. To do this, press AUTO on the projector or remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust the values of Frequency and Clock to provide the best picture quality.

The current source information will be displayed in the lower right corner of the screen for 3 seconds.

The screen will be blank while AUTO is functioning.

Fine-tuning the image size and clarity

1. Adjust the projected image to the size that you need using the zoom ring.

1. Then sharpen the image by rotating the focus ring.

Two grayscale images showing a biological sample before and after transformation, with a magnified inset illustrating the internal structure (no text or symbols)

Correcting keystone

Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. It occurs when the projector is not perpendicular to the screen.

To correct this, besides adjusting the height of the projector, you will need to manually correct it following ONE of these steps.

1. Press Left ◀ /Right ▶ on the control panel of the projector to display the status bar labelled Keystone. Press Left ◀ to correct keystoning at the top of the image. Press Right ▶ to correct keystoning at the bottom of the image.

2. Press / on the remote control to display the status bar labelled Keystone, then press to correct keystoning at the top of the

image or press to correct keystoning at the bottom of the image.

1. Press ▼ Menu on the projector or Menu on the remote control. Go to Picture > Keystone and adjust the values by pressing Left ◀ /Right ▶ on the projector or Left ◀ /Right ▶ on the remote control.

For example,

Black-and-white photo of a wedding scene with people in traditional attire, no visible text or symbols

1. Press Left ◀ on the projector or
2. Press on the remote control or
3. Press Left ◀ on the projector or ◀ on the remote control when you are in Picture --> Keystone menu.

Black-and-white photo of two people in a wedding pose, one smiling and the other holding a microphone (no text or symbols visible)

Black-and-white photo of three people in military-style uniforms, one standing and two seated, with a color bar labeled 'Keystone' below (no other text or symbols)

1. Press Right ▶ on the projector or
2. Press on the remote control or
3. Press Right ▶ on the projector or ▶ on the remote control when you are in Picture -> Keystone menu.

Black-and-white photo of two people in a group, one smiling and the other looking upward (no visible text or symbols)

Selecting the aspect ratio

The 'aspect ratio' is the ratio of the image width to the image height. Most analog TV and computers are in 4:3 ratio, which is the default for this projector, and digital TV and DVDs are usually in 16:9 ratio.

With the advent of digital signal processing, digital display devices like this projector can dynamically stretch and scale the image output to a different aspect than that of the image input source.

You can change the projected image ratio (no matter what aspect the source is) by entering

Pro-Picture > Aspect Ratio. Select an aspect ratio to suit the format of the

video signal and your display requirements. There are three aspect ratios available:

In the pictures below, the black portions are inactive areas and the white portions are active areas.

1. Native: Scales an image proportionally to fit the projector's native resolution in its horizontal width. This is suitable for the incoming image which is either in 4:3 nor 16:9 and you want to make most use of the screen without altering the image's aspect ratio.
2. 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV and 4:3 aspect DVD movies, as it displays them without aspect alteration.
3. 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration.

Three identical rectangular panels with internal circles and ovals, no text or symbols present.

16:9 aspect ratio is only sourced through the Component Video input when being fed an appropriate 16:9 aspect signal. See "Connecting a Component Video source device" on page 20 and "Obtaining a preferred projected image size" on page 14 for details.

Selecting a picture mode

The projector is preset with several predefined application modes so that you can choose one to suit your operating environment and input source picture type. To select a operation mode that suits your need, press MODE repeatedly until your desired mode is selected. The picture modes available for different types of signals are listed below.

PC Signal Input

1. Dynamic Mode (Default): Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.

2. Presentation Mode: Is designed for presentations. The brightness is emphasized in this mode to match PC and notebook coloring.

3. sRGB Mode: Maximizes the purity of RGB colors to provide true-to-life images regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD.
4. Cinema Mode: Is appropriate for playing colorful movies, video clips from digital cameras or DVs through the PC input for best viewing in a blackened (little light) environment.
5. Blackboard Mode: Is designed for educational use. Images are allowed to be projected on a dark background, such as a blackboard instead of a normal screen. It is most suitable for a well lit environment with a dark background for projection.

YPbPr/S-Video/Video Signal Input

1. Dynamic Mode: Is suitable for playing gamebox-based video games in a normal living room lighting level environment.
2. Standard Mode (Default): Is appropriate for viewing colorful movies, video clips from digital cameras or DVs.
3. Cinema Mode: Is suitable for enjoying dark movies or DVD movies best viewed in a blackened (little light) home cinema or lounge room environment.
4. Blackboard Mode: Is designed for educational use. Images are allowed to be projected on a dark background, such as a blackboard instead of a normal screen. It is most suitable for a well lit environment with a dark background for projection.

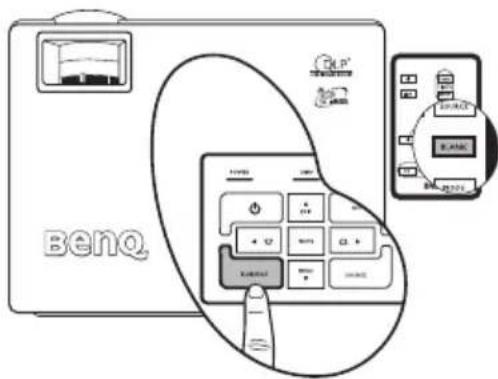

Hiding the image

In order to draw the audience's full attention to the presenter, you can use BLANK to hide the screen image. Press any key on the control panel to restore the image. The word “BLANK” appears at the lower right corner of the screen while the image is hidden. When this function is activated with video/S-video signal connected, the audio can still be heard.

You can set the blank time in the

Advanced > Blank Time to let the projector

return the image automatically after a period of time when there is no action taken on the blank screen. Note that once BLANK is pressed, the projector enters Economic mode automatically.

Do not block the projection lens from projecting as this could cause the blocking object to become heated and deformed or even cause a fire.

Creating your own startup screen-MyScreen function

In addition to selecting the projector preset startup screen from among BenQ logo, Black or Blue screen, you can make your own startup screen by downloading pictures from your computer to the projector.

1. Connect the projector to a desktop computer via RS232 cable (optional accessory). See "Connecting a computer" on page 17.

2. Before download starts, be sure the projector has entered Standby Mode. Follow the instruction below to enter Standby Mode:
   i. Plug AC power, and POWER, TEMP and LAMP LEDs on the projector will flash orange and then go off at the same time.
   ii. POWER LED then turns solid orange.

3. Insert the bundled CD into the CD drive of your computer. Click Install MyScreen Wizard and follow the on-screen instructions to proceed.

- Ensure you have sufficient privileges to install software.

- MyScreen utility may not be compatible with Windows 98/ME or Windows 2000. We recommend you to run MyScreen utility on Windows XP.

1. To execute MyScreen utility:

i. After MyScreen Wizard is successfully installed, execute MyScreen utility by
selecting this icon
Program Files.
ii. Click Next.
iii. Click Next.
iv. Click Browse to choose your desired image and then click Next.
v. Cick MyScreen to begin download.

vi. Cick Close after download finishes.

- There are limitations on image formats. *.bmp/*.jpg/*.png/*.gif files are acceptable, but there is no guarantee that every image file can be downloaded successfully. It depends on the file size and the color form.

- If the image size is too large, as pictured to the right, a warning message will show up after download begins. Click Back to choose another image and try again.

- Do not unplug the RS232 cable or close MyScreen Wizard window while downloading image. Failing to do so will lead to immediate shutdown of the projector and MyScreen utility. If this happens, unplug the power cord and plug it again to restart the download process.

Activating panel key lock

To prevent unauthorized changes in the settings or accidental button pushes, panel key lock can be activated to disable all panel key functions except POWER.

Go to Setting > Panel Key Lock, and select On by pressing Left ▶ /Right ▶ on the projector or remote control. A confirmation message displays. Press Down ▼ to confirm or press Up ▲ to cancel.

To release panel key lock, press and hold MENU▼ on the projector for 5 seconds, or use the remote

control to enter Setting > Panel Key

Lock and press Left ◀ /Right ▶ to select OFF. A confirmation message displays. Press Down ▼ to confirm or press Up ▲ to cancel.

- Buttons on the remote control are still in use when panel key lock is enabled.

- If you press POWER to turn off the projector without disabling panel key lock, the projector will still be in locked status the next time it is turned on.

Setting the presentation timer

Presentation timer can indicate the remaining presentation time on the screen to help you achieve better time management when giving presentation. Follow these steps to utilize this function:

1. Press Timer Setup on the remote control to enter timer setting

directly or go to Setting > Presentation Timer.

1. Select On by pressing Left /Right ▶. A confirmation message displays. Press Down ▶ to confirm or press Up ▶ to cancel.

2. Press ▼ Down to go to the next option and decide the timer period by pressing Left ◀ /Right ▶.

3. Press ▼ Down and choose if you want the timer to show up on the screen by pressing Left ◀ /Right ▶.

4. If you select Yes, press ▼ Down to go to the next option and set the timer position as in the upper left, upper right, lower left, or lower right corner by pressing Left ◀ / Right ▶.

5. Press ▼ Down and select your desired counting direction by pressing Left ◀ /Right ▶.

6. Press ▼ Down and decide if you want to activate sound reminder by pressing Left ◀ / Right ▶. If you select Yes, a double beep sound will be heard at the last 30 seconds of counting down/up, and a triple beep sound will be produced when the timer is up.

Timer On/Show on the remote control is a multifunctional key. If the presentation timer is off, pressing this button for the first time will activate timer and the second push on the button will display timer on the screen. If the timer is already on, pressing this button will display the timer on the screen.

- The duration of the on-screen timer is consistent with your timer setting. For example, if you set the timer to always display, after pressing this button for the first time to activate the timer, it will remain on the screen. If you set the timer to never display, the timer will only display on the screen for 5 seconds. Then it will disappear. Please note the timer is still counting after hidden.

- If the timer is already on, you need to reactivate the timer every time a new timer period is set.

Freezing the image

Press Freeze on the remote control to freeze the image. An icon will display in the lower right corner of the screen. To release the function, press the Freeze button on the remote control, or the Source button on the projector control panel. Note that pressing the Source button will also change the input source.

Even if an image is frozen on the screen, the pictures are running on the video or other device. If the connected devices have active audio output, you will still hear the audio even though the image is frozen.

Utilizing FAQ function

Press and hold BLANK/Q? on the projector for 3 seconds

or go to Advanced > FAQ. Possible solutions to problems encountered by users regarding image quality, installation, special feature operation and service information are available to you. Use Menu▼/EXIT▲ to select one out of these four major categories. Press Left◄/Right► for more specific questions. Then press ◀ Left/► Right for possible solutions. To exit, press EXIT▲.

Shutting down the projector

1. Press Power and a prompt message appears. Press Power a second time to turn the projector off.
2. The Power indicator light flashes orange and the lamp shuts down, the fans continue to run for approximately 90 seconds to cool down the projector.

• To protect the lamp, the projector will not respond to any commands during the cooling process.
- To shorten the cooling time, you can also activate the Quick cooling function. See "Quick Cooling (off)" on page 40 for details.
3. Once the cooling process finishes, a "Power Off Ring Tone" will be heard. Disconnect the power cord from the wall socket.
- Do not unplug the power cord before the projector shutdown sequence is complete or during the 90-second cooling down process.
- If the projector is not properly shut down, to protect the lamp, when you attempt to re-start the projector, the fans will run for a few minutes to cool down. Press Power again to start the projector after the fans stop and the Power indicator light turns orange.

Menu operation

Menu system

Please note that the on-screen display (OSD) menus vary according to the signal type selected.

	Functions available when receiving different signal types...
Sub-Menu	PC	Video / S-Video	Component Video
Picture	Picture ModeColor TempBrightnessContrast	Picture ModeColor TempBrightnessContrastColorTint*Sharpness
Pro-Picture	KeystoneAuto ResizeAspect RatioH PositionV PositionPhaseH. Size	KeystoneAuto ResizeAspect Ratio
Setting	MuteVolumeOSD TimeBlank TimeQuick CoolingPanel Key LockPasswordChange PasswordReset
Advanced	MirrorSource ScanLanguageSplash ScreenHigh Altitude ModeAuto OffEconomic ModePresentation TimerFAQ
Information	SourceResolutionPicture ModeEquivalent LampHour	SourceSystemPicture ModeEquivalent LampHour	SourceResolutionPicture ModeEquivalent LampHour

*When a Video or S-Video signal is connected, the function is only available with NTSC system selected.

Using the menus

The projector is equipped with on-screen display (OSD) menus for making various adjustments and settings.

There are 17 different menu languages. (Refer to page "Advanced menu" on page 41 for more details.)

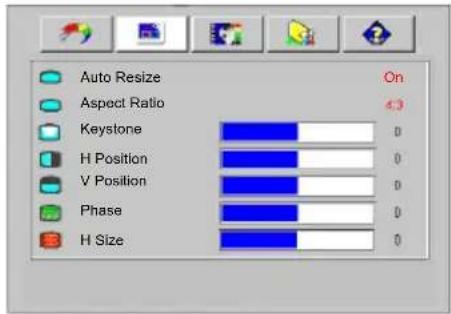

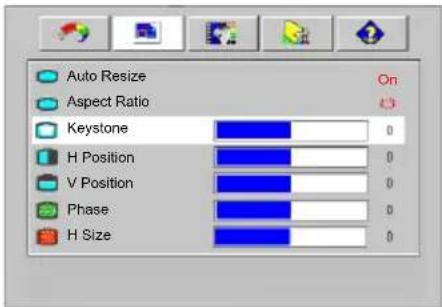

The following example describes the adjustment of the keystone.

1. Press Menu ▼ on the projector or Menu on the remote control to turn the on-screen menu on.

1. Adjust keystone values by pressing Left ◀ /Right ▶ on the projector or Left ◀ /Right ▶ on the remote control.

1. Use Left ◀ /Right ▶ on the projector or Left ◀ /Right ▶ on the remote control

to select the Pro-Picture

menu.

1. Press Exit ▲ or Menu ▼ on the projector or ▼ / ▲ on the remote control to select Keystone.

2. Press Exit ^▲ on the projector or press Menu twice ^* on the remote control to leave and save the setting.

*The first press leads you back to the submenu and the second press closes the on-screen menu.

Picture menu

Some picture adjustments are available only when certain input sources are in use. Unavailable adjustments are not shown on the screen.

FUNCTION (default setting / value)	DESCRIPTION
Picture Mode(PC: Dynamic;YPbPr/ S-Video/ Video: Standard)	Pre-defined application modes are provided so you can optimize your projector image set-up to suit your program type.You can use the remote control 'Mode' button to select a predefined application mode. See "Selecting a picture mode" on page 29 for details.
Color Temp (depends on the selected Application mode)	There are four color temperature* settings available.T1: With the highest color temperature, T1 makes the image appear the most bluish white than other settings.T2: Makes images appear bluish white.T3: Maintains normal colorings for white.T4: Makes images appear reddish white.*About color temperatures:There are many different shades that are considered to be “white” for various purposes. One of the common methods of representing white color is known as the “color temperature”. A white color with a low color temperature appears to be reddish white. A white color with a high color temperature appears to have more blue in it.
Brightness (depends on the selected input source)	Adjusts the brightness of the image. The higher the value, the brighter the image. And lower the setting, darker the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible.-3050+70
Contrast(depends on the selected input source)	Adjusts the degree of difference between dark and light in the image. The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.-3050+70
Color (depends on the selected input source)	Increases or decreases the color intensity of the image.
Tint (50)	Adjusts the color tones of the image. The higher the value, the more reddish the image becomes. The lower the value, the more greenish the image becomes.When a Video or S-Video signal is connected, the function is only available with NTSC system selected.
Sharpness (15)	Adjusts the image to make it look sharper or softer.

Pro-Picture menu

Some picture adjustments are available only when certain input sources are in use. Unavailable adjustments are not shown on the screen.

FUNCTION (default setting / value)	DESCRIPTION
Keystone (0)	Corrects any keystoning of the image. Refer to "Correcting keystone" on page 27 for more information.
Auto Resize (on)	Automatically resizes the input signal pixel resolution to the native resolution of the projector.On: The pixel resolution of the input signal is converted to the native resolution of the projector (800 x 600). For input signals with lower resolutions, gaps in the pixels are automatically interpolated into the image before being projected. This may distort the image clarity.Off: The image is projected as its original resolution, with no pixel conversion. For input signals with lower resolutions, the projected image will display smaller than if resized to full screen. You could adjust the zoom setting or move the projector towards the screen to increase the image size if necessary. You may also need to refocus the projector after making these adjustments.
Aspect Ratio (Native)	There are three options to set the image's aspect ratio depending on your input signal source.See "Selecting the aspect ratio" on page 28 for details.
H Position (0)	Adjusts the horizontal position of the projected image.
		-30+30
V Position (0)	Adjusts the vertical position of the projected image.
		-30	+30
Phase (depends on the selected input source)	This function allows you to adjust the clock phase to reduce image distortion.
H Size (0)	Adjusts the horizontal width of the image.

Setting menu

FUNCTION (default setting / value)	DESCRIPTION
Mute (off)	Toggles projector audio and Power On/Off Tone between on and off. To disable Power On/Off Tone, go to Setting > Mute and press Left ↕ /Right ↗. Then press Down ↘ to choose Power On/Off Tone and press Left ↕ /Right ↗ to select off.
Volume (5)	Adjusts audio volume level.
OSD Time (20)	Sets the length of time the OSD will remain active after your last button press. The range is from 5 to 100 seconds.
Blank Time (20)	Sets the image blank time when the Blank feature is activated, once elapsed the image will return to the screen.
Quick Cooling (off)	Enables or disables the Quick Cooling function. Selecting On enables the function and projector cooling time will be shortened from a normal 90-second duration to approximately 30 seconds.
Panel Key Lock (off)	Disables or enables all panel key functions except POWER on the projector and buttons on the remote control.
Password (off)	This is a selectable function. Selecting On limits use of the projector to only those who know the correct password. When the function is activated for the first time, you have to set a password for it. For more information, refer to "Utilizing the password function" on page 24. Once the password is set and this function is selected, the projector is password-protected. Users who do not know the correct password can not use the projector.WARNING: You will be inconvenienced if you activate the password functionality and subsequently forget the password.Print out this manual (if necessary) and write the password you used in this manual, and keep the manual in a safe place for later recall.The password can be entered by using either the buttons on the projector or the remote control.The digits being input will display as asterisks on-screen.
Change Password	You will be asked to enter the current password before changing to a new one. For more information, refer to "Utilizing the password function" on page 24.
Reset (No)	Returns all settings to the factory preset values.The following settings will still remain: Mirror, Language, Password, High Altitude Mode, Phase and H Position.

Advanced menu

FUNCTION (default setting / value)	DESCRIPTION
Mirror (Floor front)	The projector can be installed on a ceiling or behind a screen, or with one or more mirrors. Contact your dealer for the ceiling mount bracket (optional accessory) if you need to install the projector on your ceiling. Refer to "Choosing a location" on page 12 for more information.
Source Scan (on)	Sets whether the projector searches automatically for input signals. If the source scan is On, the projector will scan for input signals until it acquires a signal. If the function is not activated, the projector selects the last used input signal. The default value is 'RGB'.
Language (English)	Language sets the language for the OSD control menus.Use Left ◀/Right ▶ on the projector or remote control to select your desired language.
Splash Screen (BenQ logo)	Allows you to select which logo screen will display during projector start-up. Four modes are available: BenQ logo, Black screen, Blue screen or MyScreen.

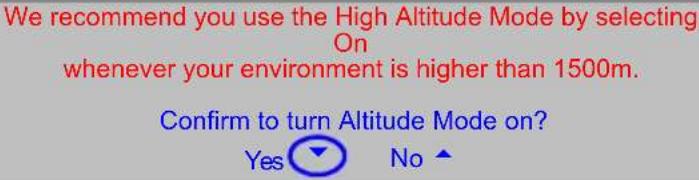

High Altitude Mode (off)	A mode for operation in areas like high altitude or high temperature. We recommend you use the High Altitude Mode when your environment is higher than 3000 feet above sea level, or is hotter than 40°C, or whenever the projector will be used for extended periods of time (>10 hours) without shutdown.To activate the High Altitude Mode, select On by pressing Left ◀/Right ▶ on the projector or remote control. A confirmation message displays. Press▼.Next time you turn on the projector, it will show a message pictured below as a reminder during the start-up.Current StatusHigh Altitude Mode OnThis mode is used for protecting projector from extreme environment and may cause high fan speed.Operation under "High Altitude Mode" may cause a higher decibel operating noise level because of increased fan speed necessary to improve overall system cooling and performance.If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.
Auto Off (Off)	This function allows the projector to turn off automatically if no input signal is detected after a set period of time. Press Left ◀/Right ▶ on the projector or remote control to set the duration before the projector is turned off.
Economic Mode (off)	Use this mode to reduce system noise and reduce power consumption by 20%. If this mode is activated, the light output will be reduced and result in darker projected images.Setting the projector in Economic mode extends the lamp timer automatic shutdown feature. For more information on how the total lamp hour is calculated, see "Calculation of lamp hour" on page 45.
Presentation Timer	Helps to remind the presenter to finish the presentation within a certain timeframe. Refer to "Setting the presentation timer" on page 33 for more information.
FAQ	Displays possible solutions to problems you may encounter.

Information menu

This menu shows you the current operating status of the projector.

Some picture adjustments are available only when certain input sources are in use. Unavailable adjustments are not shown on the screen.

FUNCTION DESCRIPTION
Source	Shows the current signal source.
Resolution	Shows the native resolution of the input signal.
Picture Mode	Shows the selected mode in the Picture menu.
Equivalent Lamp Hour Usage	Displays the equivalent lamp hour calculated by the built-in timer.
System	Shows the Video input system format, NTSC, SECAM or PAL.

Maintenance

Care of the projector

Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean.

Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing.

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface.

• Use a canister of compressed air to remove dust.
• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.

Never rub the lens with abrasive materials.

Cleaning the projector case

Before you clean the case, turn the projector off using the proper shutdown procedure as described in "Shutting down the projector" on page 34 and unplug the power cord.

• To remove dirt or dust, wipe the case with a soft, lint-free cloth.
• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Storing the projector

If you need to store the projector for an extended time, please follow the instructions below:

- Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to "Specifications" on page 52 or consult your dealer about the range.

• Retract the adjuster feet.
• Remove the batteries from the remote control.
• Pack the projector in its original packing or equivalent.

Transporting the projector

It is recommended that you ship the projector with its original packing or equivalent. When you carry the projector yourself, please use the original box or provided soft carry case.

Lamp information

Calculation of lamp hour

When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. The method of calculating the equivalent lamp hour is as follows:

Total (equivalent) lamp hour

= (hours used in Economic mode) + 4/3 (hours used in normal mode)

See "Economic Mode (off)" on page 42 for more information on Economic mode.

The lamp hour in Economic mode is calculated as 2/3 of that in normal mode. That is, using the projector in Economic mode helps to extend the lamp life by 1/3.

Warning message

When the Lamp indicator lights up red or a message appears suggesting it is time to replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode.

For more detailed information on projector warnings, please refer to "Indicators" on page 49.

The Lamp indicator light and Temperature warning light will light up if the lamp becomes too hot. Turn the power off and let the projector cool for 45 minutes. If the Lamp or Temp indicator still lights up after turning the power back on, please contact your dealer.

The following Lamp warning displays will remind you to change the lamp.

Message Status
i	Total (equivalent) lamp hour has reached 3000 hours. Install a new lamp for optimal performance.
f	Total (equivalent) lamp hour has reached 3950 hour. A new lamp should be fitted to avoid the inconvenience when the projector runs out of lamp time.Total (equivalent) lamp hour has reached 4000 hours. This message will flash in the center of the screen for about 30 seconds together with the Lamp indicator lighting up red for 40 seconds.It is strongly recommended that you replace the lamp at this age. The lamp is a consumable item. With the usage time increase, the lamp brightness diminished gradually. This is normal lamp behaviour. You can replace the lamp whenever you notice that the brightness level has significantly diminished. If the lamp is not replaced beforehand, it must be replaced after 4000 hours usage.
	If this warning message displays, the projector will shut down in 40 seconds. The lamp MUST be replaced before the projector will operate normally.

Replacing the lamp

• To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp.
- To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.
- To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces.
• To reduce the risk of injuries to fingers and/or compromising image quality by touching the lens, do not touch the empty lamp compartment when the lamp is removed.
- This lamp contains mercury. Consult your local hazardous waste regulations to dispose of this lamp in a proper manner.

1. Turn the power off and disconnect the projector from the wall socket. If the lamp is hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled.

2. Turn the projector over. Then loosen the screws on the lamp cover.

Line drawing of a hand using a tool to press or install a grid-patterned object on a surface (no text or symbols)

1. Remove the lamp cover from the projector.

Do not turn the power on with the lamp cover removed.

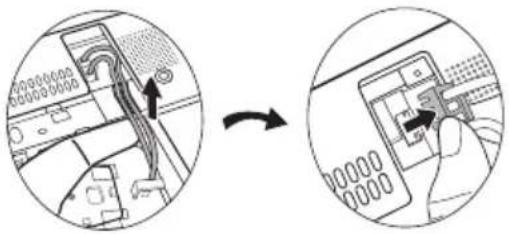

1. Remove the lamp cords from the slots.

2. Disconnect the lamp connector by pushing it against the projector while pulling it up.

3. Loosen the screw that secures the lamp.

4. Lift the handle so that it stands up. Use the handle to slowly pull the lamp out of the projector.

- Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector.

- Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials.

- Do not insert your hands into the projector after the lamp is removed. If you touch the optical components inside, it could cause color unevenness and distortion of the projected images.

1. As shown in the figure, lower the new lamp first and align the two holes on the lamp with the locators on the projector.

Diagram of a hand using a tool to switch a device into a control panel (no text or symbols visible)

Technical diagram of an electrical connector with labeled parts and wiring (no text or symbols present)

1. Tighten the screw that secures the lamp.

- Loose screw may cause a bad connection, which could result in malfunction.

- Do not over tighten the screw.

1. Connect the lamp connector to the projector.

2. Place the lamp cords back to the slots.

3. Replace the lamp cover on the projector.

4. Tighten the screw that secures the lamp cover.

- Loose screw may cause a bad connection, which could result in malfunction.

- Do not over tighten the screw.

Line drawing of a hand using a pipette to press or install a grid-patterned object on a surface (no text or symbols)

1. Restart the projector.

Do not turn the power on with the lamp cover removed.

1. Resetting the lamp counter

Do not reset if the lamp is not replaced as this could cause damage.

i. Press and hold the Exit ▲ button on the projector for 5 seconds to display the total used lamp time.

ii. Press Auto on the projector or on the remote control to reset the lamp hour to "0".

iii. Wait about 5 seconds to let the OSD disappear.

Lamp usage timer reset

0 Hours

Press "Auto" To Reset

Temperature information

When the Temperature warning light is on, it is warning you of the following possible problems:

1. The internal temperature is too high.

2. The fans are not working.

Turn the projector off and contact qualified service personnel for further help. For more detailed information, please refer to "Indicators" on page 49.

Indicators

Illustration

- Blank -: Light OFF

• O: Orange light
• R: Red light g h
• G: Green light g h
• G: Green light
g h

t

O

N

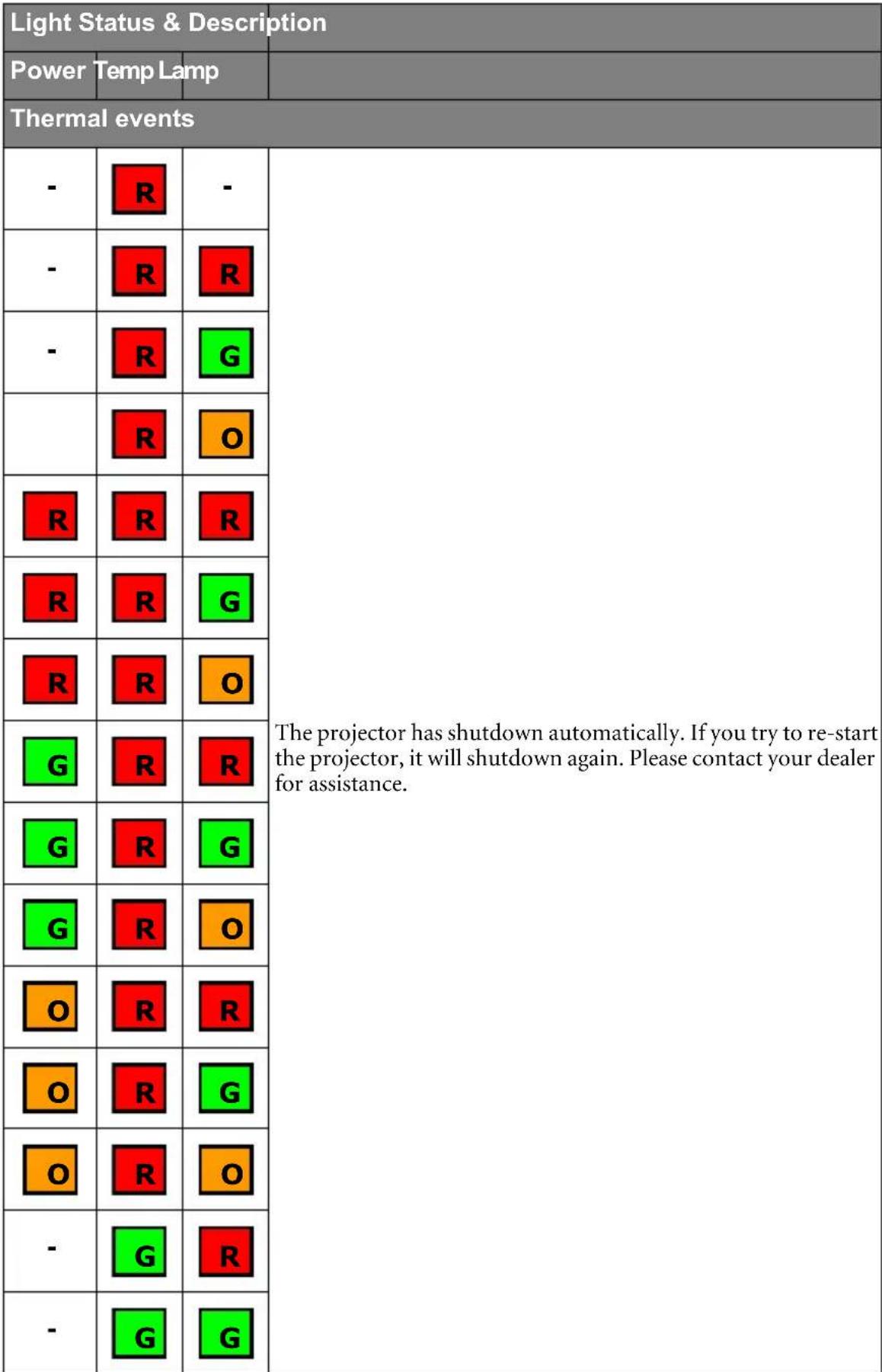

Light Status & Description
Power	Temp Lamp
Power events
			The projector has just been connected to a power outlet.
		-	Stand-by mode.
		-	Powering up.
		-	Normal operation.
		-	1. The projector needs 90 seconds to cool down as it was abnormally shut down without the normal cooling down process. Or2. The projector needs to cool for 90 seconds after the power is turned off.
		-	The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.
Lamp events
			The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.
-	-		1. The projector needs 90 seconds to cool down. Or2. Please contact your dealer for assistance.

Troubleshooting

⑦ THE PROJECTOR DOES NOT TURN ON.

Cause Remedy
There is no power from the power cable.	Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on.
Attempting to turn the projector on again during the cooling process.	Wait until the cooling down process has completed.

NO PICTURE

Cause Remedy
The video source is not turned on or connected correctly.	Turn the video source on and check that the signal cable is connected correctly.
The projector is not correctly connected to the input source device.	Check the connection.
The input signal has not been correctly selected.	Select the correct input signal with the Source key on the projector or remote control.
The lens cap is still attached to the lens.	Remove the lens cap.

⑦ BLURRED IMAGE

Cause Remedy
The projection lens is not correctly focused.	Adjust the focus of the lens using the focus ring.
The projector and the screen are not aligned properly.	Adjust the projection angle and direction as well as the height of the unit if necessary.
The lens cap is still attached to the lens.	Remove the lens cap.

⑦ REMOTE CONTROL DOES NOT WORK

Cause Remedy
The battery is out of power. Replace the battery with a new one.
There is an obstacle between the remote control and the projector.	Remove the obstacle.
You are too far away from the projector.	Stand within 6 meters (19.5 feet) of the projector.

⑦ THE PASSWORD IS INCORRECT

Cause Remedy
You do not remember the password.	Please see "Entering the password recall procedure" on page 25 for details.

Specifications

Projector specifications

All specifications are subject to change without notice.

General

Product name Digital Projector

Model name MP611/MP611c

Optical

Resolution 800 x 600 SVGA

Display system 1-CHIP DMD

Lens F/Number F=2.6 to 2.77, f=20.4 to 23.5 mm

Lamp 200W lamp

Electrical

Power supply AC100–240V, 4.0A, 50/60 Hz (Automatic)

Power consumption 285W (Max)

Mechanical

Dimensions 278 mm (W) x 94 mm (H) x 219.5 mm (D)

Weight 5.9 lbs (2.67 Kg)

Input terminal

Computer input

RGB input D-sub 15-pin (female) × 1

Video signal input

S-VIDEO Mini DIN 4-pin port x 1

VIDEO

RCA jack x1

HDTV signal input

D-sub <--> Component RCA jack x3, through RGB input

Audio signal input

Audio in

Mini jack stereo port

Output

RGB output

D-sub 15-pin (female) × 1

USB mouse connector

A/B series x 1

Speaker

(mixed mono) 2 watt x l

Environmental Requirements

Operating temperature

0^ 40^ at sea level

Operating relative humidity

10% \~ 90% (without condensation)

Operating altitude

• 0–1499 m at 0^ C– 35^ C

• 1500–3000 m at 0^ C– 30^ C

Timing chart

Supported timing for PC input

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Frequency (MHz)	Mode
640 x 480	31.469 59.940	25.175 VGA_60
	37.861 72.809	31.500 VGA_72
	37.500 75.000	31.500 VGA_75
	43.269 85.008	36.000 VGA_85
720 x 400	31.469	70.087	28.3221	720 x 400_70
800 x 600	37.879 60.317	40.000 SVGA_60
	48.077 72.188	50.000 SVGA_72
	46.875 75.000	49.500 SVGA_75
	53.674 85.061	56.250 SVGA_85
1024 x 768	48.363 60.004	65.000 XGA_60
	56.476 70.069	75.000 XGA_70
	60.023 75.029	78.750 XGA_75
	68.667 84.997	94.500 XGA_85
1280 x 768 47.77	60.09	80.768 SXGA_60
1280 x 800 49.65	59.96	83.458 SXGA_60
1280 x 1024 63.981	60.020	108.000	SXGA_60

Supported timing for Component-YPbPr input

Signal Format	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
480i(525i)@60Hz 15.73	59.94
480p(525p)@60Hz 31.47	59.94
576i(625i)@50Hz 15.63	50.00
576p(625p)@50Hz 31.25	50.00
720p(750p)@60Hz 45.00	60.00
720p(750p)@50Hz 37.50	50.00
1080i(1125i)@60Hz	33.75 60.00
1080i(1125i)@50Hz	28.13 50.00

Supported timing for Video and S-Video inputs

Video mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Color sub-carrier Frequency (MHz)
NTSC	15.73	60	3.58
PAL	15.63	50	4.43
SECAM	15.63	50	4.25 or 4.41
PAL-M	15.73	60	3.58
PAL-N	15.63	50	3.58
PAL-60	15.73	60	4.43
NTSC4.43	15.73	60	4.43

Dimensions

278 mm (W) x 94 mm (H) x 219.5 mm (D)

Unit: mm

Warranty

Limited warranty

BenQ warrants this product against any defects in material and workmanship, under normal usage and storage.

Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.

Important: The above warranty shall be void if the customer fails to operate the product in accordance with BenQ's written instructions, especially the ambient humidity must be in-between 10% and 90%, temperature in-between 0°C and 40°C, altitude lower than 10000 feet, and avoiding to operate the projector in a dusty environment. This warranty gives you specific legal rights, and you may have other rights which vary from country to country.

For other information, please visit support.BenQ.com.

Regulation statements

FCC statement

CLASS B: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the distance between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

EEC statement

This machine was tested against the 89/336/EEC (European Economic Community) for EMC (Electronic Magnetic Compatibility) and fulfills these requirements.

MIC statement

B class equipment (Household purpose info/telecommunications equipment)

This equipment has undergone EMC registration for household purpose, and can be used in any area including residential area.

WEEE directive

Disposal of Waste Electrical and Electronic Equipment by users in private households in the European Union.

This symbol on the product or on the packaging indicates that this can not be disposed of as household waste. You must dispose of your waste equipment by handling it over to the applicable take-back scheme for the recycling of electrical and electronic equipment. For more information about recycling of this equipment, please contact your city office, the shop where you purchased the equipment or your household waste disposal service. The recycling of materials will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and environment.
