Product Type	Refrigerator
Model	SUL60W13E
Brand	Sandstrøm
Fresh Food Storage Volume	146 L
Storage Temperature Range	0°C to 8°C (average ≤4°C)
Energy Consumption	0.250 kWh/24h (91 kWh/year)
Energy Efficiency Class	A++
Climate Class	ST (16°C to 38°C)
Defrost Type	Auto Defrost
Noise Level	42 dB(A)
Rated Voltage	220-240 V~
Rated Current	0.55 A
Overall Dimensions (W x D x H)	600 x 600 x 850 mm
Number of Adjustable Glass Shelves	2
Salad Bin	Yes (with cover)
Door Shelves	2 upper, 1 lower
Reversible Door	Yes
Internal Light	Yes (10W SES bulb)
Thermostat Control	8 positions (0-7)
Free Space Requirements	25 mm sides, 50 mm rear, 25 mm top
Included Accessories	Rear spacers, door handle, instruction manual

Frequently Asked Questions - SUL60W13E Sandstrøm

How do I adjust the temperature on my Sandstrøm SUL60W13E fridge?

Turn the thermostat control dial inside the fridge. Settings range from 0 (off) to 7 (coldest). For normal use, position 4 is recommended. For colder environments (winter), use positions 1-4; for hotter environments (summer), use 5-6.

Why is my fridge making unusual noises?

Most noises are normal. You may hear the refrigerant circulating or the compressor motor running. These sounds are typical and do not indicate a fault. If you hear loud or persistent unusual noises, contact a qualified technician.

Can I reverse the door swing on this fridge?

Yes, the door is reversible. However, we recommend contacting a qualified technician. If you do it yourself, follow the instructions in the manual carefully, including removing the top cover, hinges, and levelling feet. Ensure the unit is unplugged and empty.

How do I clean the interior of my fridge?

Remove all shelves and drawers. Wipe the inside with a weak solution of bicarbonate soda and warm water, then rinse with a damp cloth. Dry completely before replacing shelves. Clean the exterior with a damp cloth and furniture polish, avoiding the door seal.

Does the fridge need manual defrosting?

No, this model features auto defrost. Frost on the rear inner surface melts automatically during the compressor off-cycle. Water drains to a tray above the compressor and evaporates. Regularly check and clean the drain hole.

What are the recommended clearances for installation?

Leave at least 25 mm on each side, 50 mm at the rear, and 25 mm above the unit. Ensure the door can open to 160°. If placing under a worktop, a ventilation grille of at least 200 cm² is recommended.

How do I change the internal light bulb?

Set the thermostat to 0 and unplug the fridge. Use a flat screwdriver to gently prise off the light cover. Unscrew the old bulb anticlockwise and replace with a 10W SES bulb. Refit the cover and reconnect power.

What should I do if the fridge is not cooling enough?

Check that the thermostat is set correctly (try position 4 or higher). Ensure the door is sealing properly. Allow 24 hours after plugging in for temperatures to stabilize. If the unit is in a very hot or cold room, adjust accordingly. Consider using a fridge thermometer.

How much energy does the SUL60W13E use?

The rated energy consumption is 0.250 kWh/24h (91 kWh per year). Actual usage depends on location, door openings, and settings. This model is energy class A++.

How do I level the fridge?

Adjust the two levelling feet at the front by turning them. The fridge should be level to ensure proper door alignment and seal. Use a spirit level if necessary.

USER MANUAL SUL60W13E Sandstrøm

White rectangular refrigerator with 'Sandscen' branding on top (no other text or symbols visible)

GB

NO

SE

FI

DK

Safety Warnings....6

Unpacking....11

Installation....12

Location....12

Levelling the Unit....12

Installing the Spacers 12

Free Space Requirements 12

Reversing the Door Swing....13

Installing The Door Handle....17

Cleaning Before Use....17

Before Using Your Unit 17

Product Overview....18

Operation....19

Switching On Your Unit....19

Adjusting the Temperature 19

Noises Inside the Unit! 19

Cleaning 20

Defrosting....20

Cleaning the Interior and the Exterior of the Unit 20

Tips for Keeping Food in the Unit 20

Maintenance 21

Changing the Internal Light....21

Care When Handling....21

Servicing 21

Switching Off for Long Periods of Time 21

Condensation....21

Disposal....21

Specifications....22

Innhold

NO

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
  • This appliance is intended for indoor household use and similar applications such as:
  – farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
  – catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- Keep ventilation openings in the unit enclosure clear of obstructions.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

- Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)

• The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store volatile or flammable substances, such as aerosol cans with a flammable propellant, in the unit.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new Sandstrøm Fridge.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a simple refrigerator with lid and front panel (no text or symbols)

The Main Unit

Adjustable Glass Shelf x 2

Salad Bin Cover Shelf

Salad Bin

Upper Door Shelf x 2

Bottom Door Shelf

Rear Spacer x 2

Caps x 2

Handle

Screw hole covers x 2

Instruction Manual

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^irc C and 38^irc C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Installing the Spacers

Screw the spacers to the left and right side of the unit's rear part.

Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location. Please ensure there is adequate space for the door to fully open to 160°.

Pure mechanical diagram showing a rectangular block with a tilted rectangular element and dimension lines, no text or symbols present.

INSTALLATION

If the appliance is placed under a continuous worktop, the appliance lid (if applicable) may be removed and a ventilation grille of at least 200 cm ² (available from DIY shops or specialist retailers) should be installed to the worktop above the rear of the appliance to increase ventilation.

Benefits of increased ventilation:

• Lowered power consumption
• Improved cooling performance
• Reduce running costs
• Prolong product life span

Reversing the Door Swing

Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
  • All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.
• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

INSTALLATION

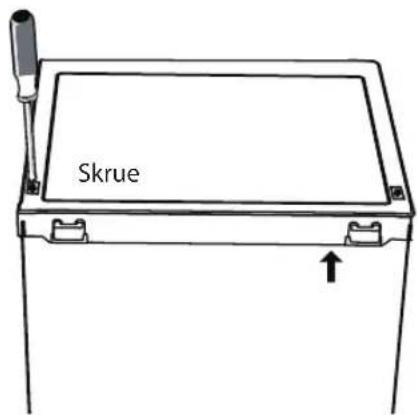

1. Remove the 2 screws.
2. Carefully lift the top cover away from the fridge.

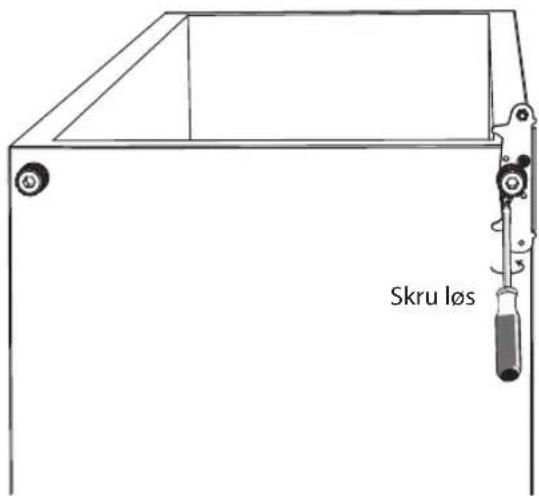

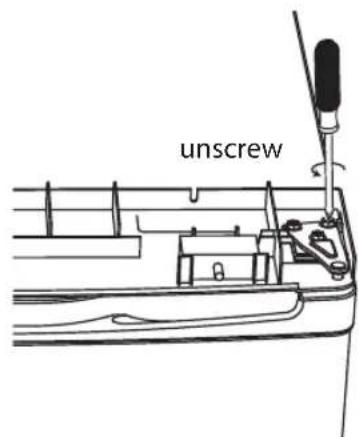

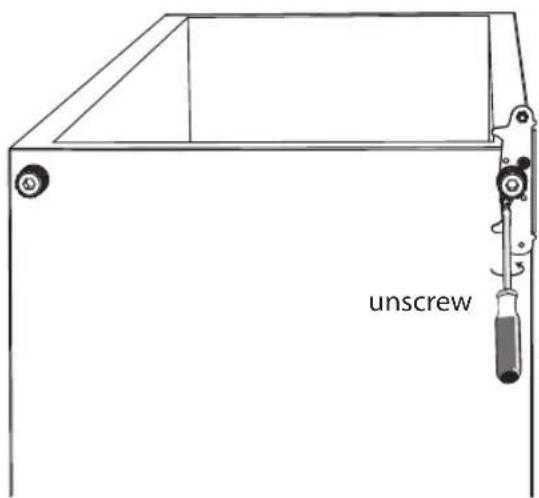

3. Remove the three screws, then remove the upper hinge that holds the door in place. Lift the door and place it on a padded surface to prevent it from scratching.
4. Remove the screws and bottom hinge. Then remove the levelling feet from both sides.

Line drawing of a computer monitor with an open top panel and a keyboard inserted (no text or symbols)

INSTALLATION

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Re-fit the bracket fitting the bottom hinge pin. Replace both levelling feet.

1. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

INSTALLATION

1. Put the top cover back.

Line drawing of a device with a top panel and bottom panel, showing a downward arrow indicating a process or transformation (no text or symbols present)

1. Screw the 2 screws.

1. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Line drawing of a simple white cabinet or enclosure with a handle and lid (no text or symbols)

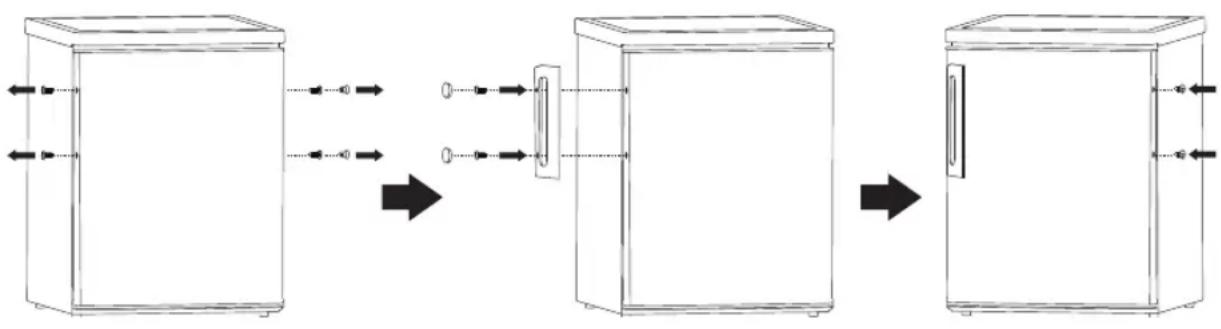

Installing The Door Handle

Please ensure you install the handle on the side of the door that opens, i.e., opposite side to the hinges.

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow the it time to fall to the correct temperature. Your unit should not be overfilled.

Product Overview

GB

Operation

Switching On Your Unit

1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are eight settings, of which position 7 is the coldest and position 0 turns the unit off.
2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 4 is the recommended setting when operating at normal room temperature (between 16°C and 38°C).
3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.
4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.
5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be an average of 5^irc C.

Line drawing of a mechanical component with numbered parts (0, 1, 2, 3, 4) and no visible text or symbols

GB

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 6 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

Cleaning

Defrosting

Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the off cycle of the compressor.

Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate.

Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment.

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Maintenance

Changing the Internal Light

1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply.
2. Use a flat bladed screwdriver and gently prise off the light bulb cover.
3. Remove the old bulb by unscrewing in an anticlockwise direction.
4. Replace with a new bulb (10W SES).
5. Refit the light bulb cover and reconnect the unit to the mains supply and switch on by adjusting the thermostat.

Diagram showing a bottle being cut with a tube, illustrating the process of fluid or material transfer (no text or symbols present)

GB

Care When Handling

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Specifications

Model SUL60W13E
Storage Volume - Fresh Food Storage Compartment	146L
Storage Temperature 0-8°C, average ≤ 4°C
Energy Consumption 0.250kWh / 24h
Energy consumption 91 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Appliances Category Category 1 (Refrigerator)
Energy Grading A++
EU Ecolabel N/A
Defrosting Type Auto Defrost
Climate Class ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Airborne Acoustical Noise 42dB(A)
Rated Voltage 220-240V~
Rated Current 0.55A
Overall Dimension (W x D x H) 600 x 600 x 850 mm

Features and specifications are subject to change without prior notice.

Line drawing of a simple refrigerator with a door handle and front panel (no text or symbols)

Hovedenheten

Justerbar glasshylle x 2

Hylle over salatskuff

Salatskuff

∅vre dørhylle x 2

Nederste dørhylle

Avstandsholder bakside x 2

Hetter × 2

Håndtak

Skruehulldeksler × 2

Instruksjonsmanual

Plassering

Innstallering av avstandsstykker

Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Plassbehov

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

INSTALLASJON

Line drawing of a computer keyboard with an upward arrow indicating the key component (no text or symbols present)

INSTALLASJON

Line drawing of a device with a top panel and bottom panel, showing a downward arrow indicating a process or operation (no text or symbols present)

1. Fest de to skruene.

1. Se etter at døren, när den er lukket, har riktig innretning både vannrett og loddrett samt at pakningene er lukket på alle sidene för du til slutt strammer det nederste hengslet. Juster nivåføttene på nytt etter behov.

Line drawing of a simple refrigerator with a door handle and front panel (no text or symbols)

Line drawing of a mechanical component with labeled parts (no text or symbols)

NO

Justere temperaturen

Diagram showing a bottle being cut with a funnel and arrow indicating rotation (no text or symbols)

NO

Line drawing of a simple refrigerator with lid and front panel (no text or symbols)

Huvudenhet

Flyttbar glashylla x 2

Lock salladslåda

Salladslåda

Övre dörrhylla x 2

Nedre dörrhylla

Bakre distanser x 2

Lock x 2

Handtag

Skruvhålsskydd x 2

Instruktionsbok

Plats

Technical line drawing of a cabinet with an inset showing a rotating cylindrical component (no text or symbols)

Luftcirkulationsbehov

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

INSTALLATION

Line drawing of a mechanical device with an upward arrow indicating motion or force (no text or symbols)

INSTALLATION

Line drawing of a computer monitor with an open keyboard and a downward arrow indicating compression (no text or symbols)

Line drawing of a simple rectangular cabinet or enclosure with a handle and top panel (no text or symbols)

Montera dörrhandtaget

Line drawing of a mechanical component with labeled parts (no text or symbols)

Diagram showing a bottle being cut with a tube, illustrating the process of fluid or material transfer (no text or symbols present)

SE

Line drawing of a simple refrigerator with lid and side door (no text or symbols)

Laite

Käyttöopas

Paikka

Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

ASENNUS

Line drawing of a computer keyboard with an upward arrow indicating the key component (no text or symbols present)

Line drawing of a device with a top panel and bottom panel, showing a downward arrow indicating a process or operation (no text or symbols present)

Simple line drawing of a rectangular cabinet or refrigerator with a handle and top panel (no text or symbols)

Oven kahvan asentaminen

Line drawing of a mechanical component with numbered parts (0, 1, 2, 3, 4) and no visible text or symbols

Diagram showing a bottle being cut with a side panel, illustrating the process of cleaning or packaging (no text or symbols present)

Line drawing of a simple rectangular cabinet with a lid and front panel (no text or symbols)

Hovedenheden

Justerbar glashylde x 2

Brugervejledning

Placering

Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Krav til fri plads

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

INSTALLATION

Line drawing of a computer keyboard with an upward arrow indicating the key component (no text or symbols present)

Line drawing of a device with a top panel and internal components, showing a downward arrow indicating a process or operation (no text or symbols present)

Line drawing of a simple refrigerator with a door and side panel (no text or symbols)

Line drawing of a mechanical component with labeled parts (no text or symbols)

Diagram showing a bottle being cut with a tube, illustrating the process of fluid or material transfer (no text or symbols present)

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO
