LSD185W19E - Fridge Logik - Free user manual and instructions

Product Type	Fridge Freezer with Water Dispenser
Brand	Logik
Model	LSD185W19E
Overall Dimensions (H x W x D)	1860 x 600 x 590 mm
Rated Voltage	220-240 V~, 50 Hz
Rated Current	0.65 A
Rated Power	95 W
Energy Efficiency Class	A+
Annual Energy Consumption	273 kWh/year
Fridge Storage Volume	220 L
Freezer Storage Volume	89 L
Freezing Capacity	4 kg / 24h
Temperature Rise Time	22 hours
Climate Class	N, ST (16°C to 38°C)
Airborne Acoustical Noise	42 dB(A)
Defrost Type	Manual (freezer compartment)
Water Dispenser	Integrated, manual fill water tank
Door Reversible	Yes (instructions provided)
Number of Fridge Glass Shelves	3
Number of Freezer Drawers	3 (2 upper, 1 bottom)
Levelling Feet	Yes (2 front adjustable)
Refrigerant Type	Environmentally friendly but combustible (specific type not specified)
Usage	Indoor household and similar applications

Frequently Asked Questions - LSD185W19E Logik

What should I do before using the fridge freezer for the first time?

Before first use, clean the interior with a weak solution of bicarbonate soda and rinse with warm water. Wait at least 2 hours after moving the unit before turning it on. Then wait 24 hours for the unit to reach the correct temperature before adding food.

How do I adjust the temperature on my Logik LSD185W19E?

The temperature is controlled by a thermostat dial with 8 settings (0 is off, 7 is coldest). Position 4 is recommended for normal room temperature (16°C to 38°C). Adjust higher for hot environments (6-7) and lower for cold environments (1-2).

Can I reverse the door swing?

Yes, the door swing can be reversed. The manual provides detailed steps. It requires a Philips screwdriver, flat bladed screwdriver, and hexagonal spanner. We recommend contacting a qualified technician for door reversal unless you are experienced.

How do I use the integrated water dispenser?

Ensure the water tank is securely in place. Open the lid on the water tank balcony and fill to the MAX level. Close the lid. Place a cup under the dispenser outlet and gently push the lever. After use, small drips are normal and collect in the overflow tray, which should be emptied periodically.

How often should I clean the water tank?

Clean the water tank if it has not been used for 48 hours. Also clean it before first use. Remove the water tank balcony and water tank, wash all parts with detergent, rinse thoroughly, and reattach. Replace the rubber ring inside the tank valve if worn.

What should I do if frost builds up in the freezer?

Defrost when the frost layer reaches 10 mm. Remove food, turn off the unit, and leave the door open. Scrape frost with a plastic scraper (do not use metal or sharp tools). To speed up, place a bowl of hot water inside the freezer and close the door. After defrosting, clean and dry thoroughly.

What are the recommended temperature guidelines for food storage?

The fridge compartment should be below 4°C, and the freezer at -18°C or lower. Store raw meat on the lowest shelf, dairy on middle, ready-to-eat foods on top. Fruits and vegetables go in the crisper bin. Do not store bananas, onions, potatoes, or garlic in the fridge.

What does the alarm or unusual noise mean?

Noises from the circulation of refrigerant and the compressor are normal. These have become more pronounced with CFC-free gases. The noise is not a fault and does not affect performance.

How do I clean the fridge freezer?

Remove shelves and drawers. Wipe interior with a weak bicarbonate soda solution, then rinse with warm water. Clean exterior with a damp cloth and furniture polish. Vacuum the condenser grille at the back with a soft brush attachment. Do not use electrical appliances inside the unit.

What safety precautions should I follow?

Keep ventilation openings clear. Do not use mechanical devices to defrost. Do not damage the refrigerant circuit (combustible gas). Ensure children do not play with the unit. Do not store explosive substances or glass bottles in the freezer. For disposal, break off locks and remove doors.

USER MANUAL LSD185W19E Logik

Fridge Freezer with Water Dispenser

Exterior view of a white refrigerator with a black digital display (no visible text or symbols)

Safety Warnings 8

Unpacking....18

Installation....19

Location....19

Levelling the Unit....19

Free Space Requirements 19

Reversing the Door Swing 20

Cleaning Before Use....23

Before Using Your Unit 23

Product Overview 24

Operation 25

Switching On Your Unit....25

Adjusting the Temperature....25

Noises Inside the Unit! 25

Tips for Keeping Food in the Unit 26

Preparations for Freezing 26

Defrosting Frozen Food 27

Integrated Water Dispenser....27

Cleaning the Water Tank....27

Filling the Water Tank 28

Using the Water Dispenser 28

Cleaning 29

Defrosting....29

Cleaning the Interior and the Exterior of the Unit 29

Maintenance 30

Care When Handling / Moving the Unit....30

Servicing....30

Switching Off for Long Periods of Time....30

Condensation....30

Disposal 30

Specifications....31

Product Fiche 31

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.

- This appliance is intended for indoor household use and similar applications such as:

– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

- The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

- Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (if applicable)

- To avoid contamination of food, pay attention to the following:

- opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance;

- clean regularly surfaces that can come in contact with food and accessible drainage systems;

- clean water tanks if they have not been used for 48 hours; flush the water system connected to a water supply if water has not been drawn for 5 days;

- store raw meat and fish in suitable containers in the refrigerator so that it is not in contact with or drip onto other food;

- two-star frozen-food compartments are suitable for storing prefrozen food, storing or making ice-cream and making ice cubes;

- one-, two- and three-star compartments are not suitable for the freezing of fresh food;

- if the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

The table below contains general guidelines on the storage of food in the refrigerator.

Refrigerator location Type of food
Fridge door • Foods with natural pres	ervatives, such as jams, juices, drinks, condiments. • Do not store perishable foods.
Crisper bin (salad bin) • Fruits, herbs a	nd vegetables should be placed separately in the crisper bin. • Do not store bananas, onions, potatoes, garlic in the refrigerator.
• Fridge shelf – bottom • Chiller bin	Raw meat, poultry, fish (for short-term storage)
Fridge shelf – middle Dairy products, eggs
Fridge shelf – top Foods that do not re	eed cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer/shelf • Foods for long	term storage. • Bottom drawer/shelf for raw meat, poultry, fish. • Middle drawer/shelf for frozen vegetables, chips. • Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Thank you for purchasing your new Fridge Freezer.

You must spend some time reading this installation/instruction manual in order to fully understand how to install and operate it.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

GB

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Front view line drawing of a double refrigerator with a small U-shaped lid (no text or symbols)

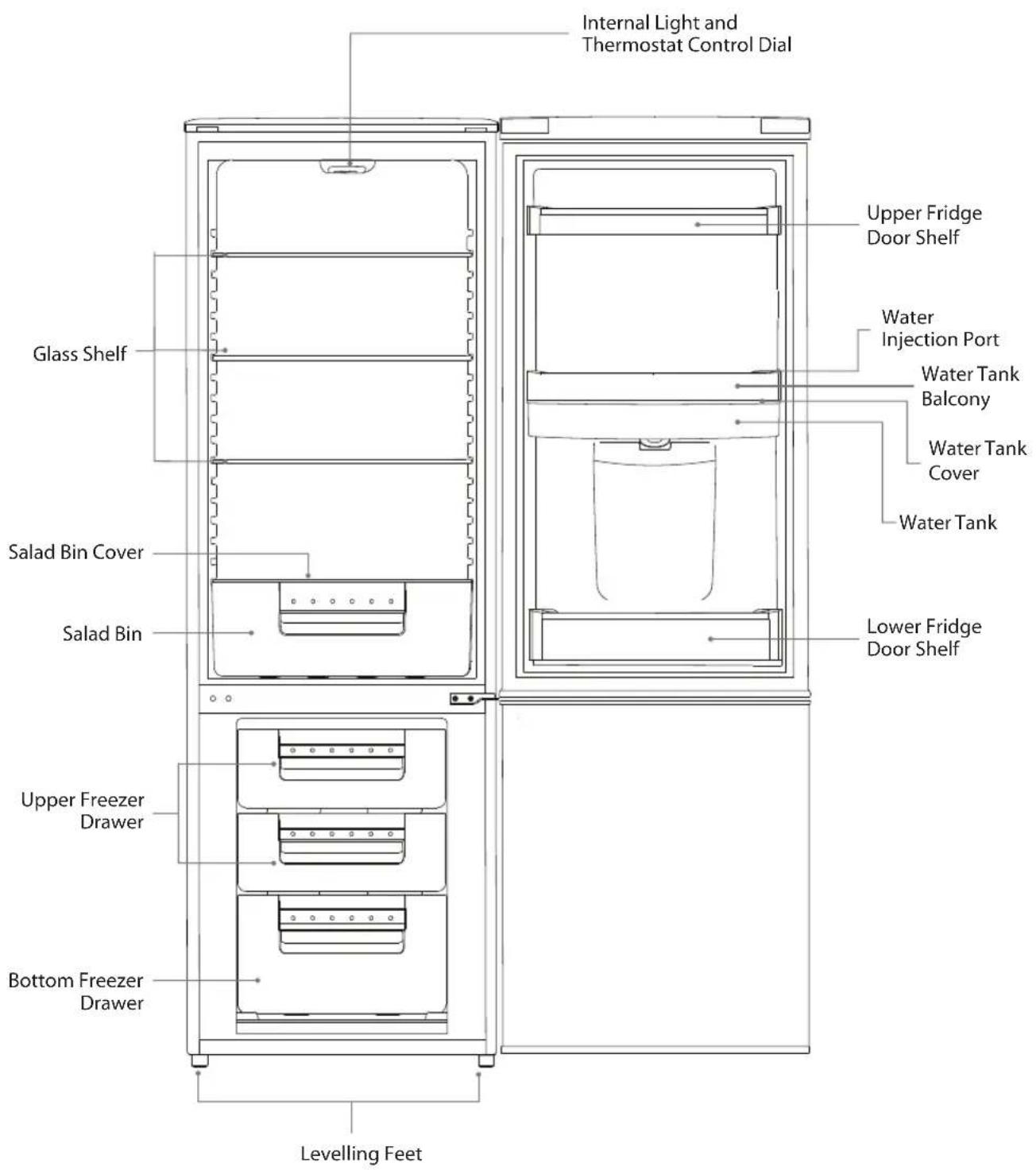

The Main Unit

Instruction Manual

Fridge Glass Shelf X 3 Salad Bin Cover

Line drawing of a rectangular box with a side tab and internal slot (no text or symbols)

Upper Freezer Drawer X 2 Bottom Freezer Drawer X 1

Salad Bin X 1

Water tank x 1 Water tank balcony x 1

Water tank cover x 1

Upper Fridge Door Shelf X 1

Rubber Ring

Lower Fridge Door Shelf X 1

Egg Tray

Upper Door Hinge Cover
Ice Tray

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Free Space Requirements

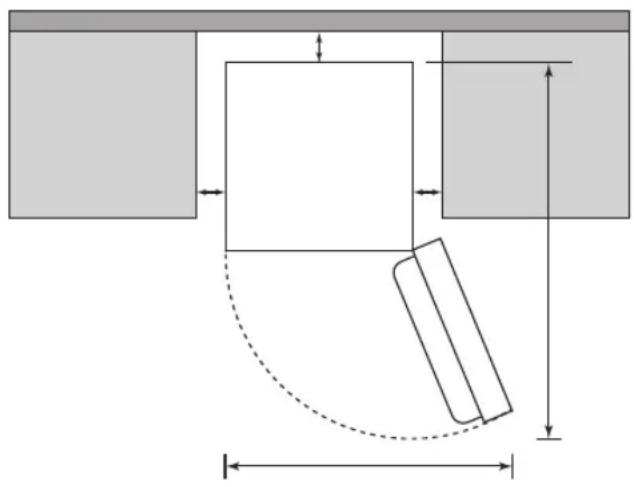

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location.

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle.

Pure mechanical diagram showing a rectangular block with a tilted support and dimension lines, no text or symbols present.

Reversing the Door Swing

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

• Remove the hinge cover and top hinge. Lift the upper door and place it on a padded surface to prevent it from scratching.

Simple line drawing of a door handle with a knob and handle (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

1. Remove the pin with a screwdriver and flip the hinge bracket. Then refit the pin to the hinge bracket.

1. Remove the top left screw cover.

Simple line drawing of a mechanical lever with a downward arrow indicating force or direction (no text or symbols)

INSTALLATION

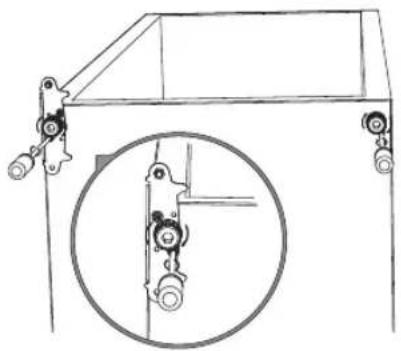

1. Take off the middle hinge by removing the screws. Lift the lower door and place it on a padded surface to prevent it from scratching.

1. Move the hinge hole covers from left side to right side.

Pure diagram of two symmetrical mechanical or structural components with no text, numbers, or symbols

1. Remove the lower screws, hinge bracket and levelling feet from the unit bottom.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

• Do not lay the unit flat as this may damage the coolant system.

• During door reversal, when swapping the position of the bottom hinge or adjusting the levelling feet, tilt the unit. Do not lay the unit flat.

• Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

Mechanical assembly diagram showing a valve mechanism with no text or symbols

Unscrew Screw

INSTALLATION

1. Refit the levelling feet, hinge bracket and lower screws to the opposite side.

Technical line drawing of a mechanical assembly with a circular inset showing a close-up of a component (no text or symbols)

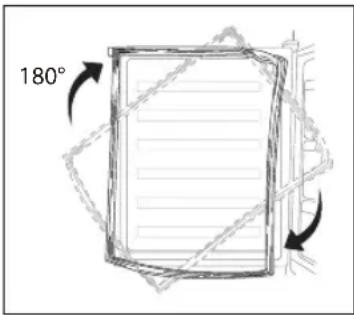

1. After replacing the lower door, reverse the middle hinge 180^ then screw the middle hinge back onto the opposite side of the unit.

Ensure the freezer door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the hinge.

1. Carefully set the upper door back into place. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge. Screw the other hinge cover.

Pure technical line drawing of two mechanical components without any text, numbers, or symbols

1. Fix the screw cover to the opposite side. Re-adjust the levelling feet as needed.

Simple line drawing of a corner joint with an arrow indicating direction (no text or symbols)

In some cases, the door seal may be crushed after prolonged storing pressure, resulting to the door seal not able to close properly when reversed.

Follow the steps below to solve the issue:

1. Peel off the door seal from the upper or lower corner and warm it with a hairdryer; the warmth can allow the door seal to return to its original form. Do not blow directly on the unit as the warmth may damage other parts of the unit.

2. Rotate the door seal upside down so that the side originally with the hinge stay with the hinge.

3. Insert the door seal back into the door from the upper or lower corner.

4. If the issue still occurs, contact your local service centre for assistance.

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and salad bin. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the unit.

- Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

GB

Egg Tray

Isometric view of a rectangular frame with internal triangular lattice pattern (no text or symbols)

Ice Tray

Switching On Your Unit

1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are eight settings, of which position 7 is the coldest and position 0 turns the unit off.
2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 4 is the recommended setting when operating at normal room temperature (between 16^ C and 38^ C).
3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the doors often.
4. To ensure that the unit is cool enough to sufficiently chill and freeze your food, wait 24 hours before filling it with food.
5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops. Place the thermometer in either the fridge or freezer compartment and leave overnight. The correct temperature for the fridge compartment should be lower than 4°C. The correct temperature for the freezer compartment should be -18°C or lower.

Simple line drawing of a device with a central component and two curved sides (no text or symbols)

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 2 for colder working environments (i.e. during winter) and between 6 to 7 for hotter ambient environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the doors. We recommend that you only open the doors when you need to put food in or take food out.

Preparations for Freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or uncleaned used food containers.
• Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state. Use special fridge freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

Line drawing of a hand pouring liquid into a container with a small object inside (no text or symbols)

- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Defrosting Frozen Food

1. Take the frozen food out from the freezer compartment and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted out unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

Integrated Water Dispenser

Follow these steps to ensure the water tank is cleaned before use.

Cleaning the Water Tank

1. Remove the water tank balcony by gripping both sides and carefully lifting free from the refrigerator door.
2. Remove the water tank by gripping both sides and carefully lifting free from refrigerator door. Detach water tank cover from water tank.
3. Clean all parts with washing detergent and rinse thoroughly.
4. Attach water tank cover to water tank and slide back into place.
5. Ensure water tank and cover is secure, then slide water tank balcony back into place.

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

Technical line drawing of a door handle assembly with mounting bracket and side view (no text or symbols)

Replace the original rubber ring inside the tank valve with the spare one if the original rubber ring is worn or missing.

Filling the Water Tank

1. Ensure the water tank is securely in place before filling with water.

2. Open the lid found on the water tank balcony.

3. Fill water tank to the MAX level indicated, then close the lid. Filling above the MAX level may cause water to overflow when closing the lid.

Simple line drawing of a container being poured into a container (no text or symbols)

GB

• Always ensure the water tank is securely attached before use.

The water dispenser may not function correctly if water tank is not secured. Do not use the refrigerator without the water tank.

Using the Water Dispenser

The water dispenser is located in the front of the upper door.

Simple line drawing of a container with a central slot and a lid (no text or symbols)

Water Dispenser Lever

Water Overflow Tray

Place a cup under the outlet and gently push against the dispenser level. Ensure the cup is lined up with the dispenser to prevent spillage.

Illustration of a hand pouring liquid into a cup (no text or symbols)

- After each use, small amounts of water may drip from the water dispenser. This is normal.

The excess water will collect in the water overflow tray. Empty the water overflow tray periodically to prevent spillage.

Defrosting

Frost might build up in the freezer compartment after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 10mm.

Choose a time when the stock of frozen food is low, follow these procedures:

1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick blanket to keep it cool.

2. Place a dry towel on the edge of the compartment shelf. Scrape away the frost using a plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer compartment and closing the door. As the solid frost loosens, scrape it away with the plastic scraper.

3. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Care When Handling / Moving the Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the unit, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in the unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the doors as a safeguard.

Specifications

Rated Voltage 220-240V~, 50 Hz
Rated Current 0.65 A
Rated Power 95 W
Overall Dimension (H x W x D) 1860 x 600 x 590 mm

Features and specifications are subject to change without prior notice.

Product Fiche

Brand Logik
Model LSD185W19E
Household Appliance Category 7
Energy Efficiency Class A+
Energy consumption 273 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Fridge Storage Volume 220 L
Freezer Storage Volume	89 L ***
Manual Defrost for the compartment.
Temperature Rise Time	22 hours
Freezing Capacity	4kg / 24h
Climate Class	N, STThis appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Airborne Acoustical Noise 42 dB(A) re 1	pW

Line drawing of a double refrigerator with top panel and side door (no text or symbols)

Hovedenheten

Instruksjonsmanual

Two identical 3D rectangular shapes with rounded corners, no text or symbols present.

Glasshylle i kjøleskap X 3 Hylle over salatskuff

Two technical line drawings of rectangular enclosures or storage compartments (no text or symbols)

∅vre Fryser skuff X 2 Nedre Fryser skuff X 1

Salatskuff X 1

Technical line drawing of two rectangular electronic components with internal slots and mounting holes (no text or symbols)

Vannbeholder x 1 Vannbeholderholder x 1

Vannbeholderdeksel x 1

Two technical line drawings of a mechanical component with flanges and brackets (no text or symbols)

Two technical line drawings of a tray with internal cavities, one showing a grid pattern and the other a multi-ring tray (no text or symbols)

Isterningbrett

∅vre dørhengseldeksel

Plassering

Plassbehov

Pure mechanical diagram showing a rectangular block with a tilted support and dimension lines, no text or symbols present.

Simple line drawing of a door handle and lever (no text or symbols)

Technical line drawing of a mechanical bracket or mounting detail with two bolts (no text or symbols)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

INSTALLASJON

Diagram of a mechanical clamp or bracket with a magnified inset showing a bracket detail (no text or symbols)

Pure mechanical diagram showing two symmetrical components with circular holes and dashed lines indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing a valve mechanism with no text or symbols

Skru løs Skrue

INSTALLASJON

Technical line drawing of a mechanical assembly with a circular inset showing internal components (no text or symbols)

Pure technical line drawing of two mechanical components with no text or symbols

Simple line drawing of a corner joint with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular frame with a central oval object (no text or symbols)

NO

Justere temperaturen

Line drawing of a hand pouring liquid from a container into a bag (no text or symbols)

Technical line drawing of a mechanical assembly with two components and an upward arrow indicating motion (no text or symbols)

Technical line drawing of a door handle assembly with mounting bracket and internal components (no text or symbols)

Bytt den originale gummiringen inne i tankventilen med en reservedel hvis den originale gummiringen er slitt eller mangler.

Line drawing of a container being poured into a larger container, with no text or symbols present.

Simple line drawing of a container with a central cylindrical object and a side outlet (no text or symbols)

Vanndispenseren

Vannoverflytstrau

Illustration of a hand holding a cup with a water dispenser (no text or symbols)

Front view line drawing of a double refrigerator with a U-shaped door and side railing (no text or symbols)

Huvudenhet

Instruktionsbok

Two identical 3D rectangular shapes with no text or symbols

Two technical line drawings of rectangular storage compartments with internal slots and handles (no text or symbols)

Two technical line drawings of rectangular electronic components with internal connectors (no text or symbols)

Vattentank x 1 Vattentankfack x 1

Vattentankens lock x 1

Two technical line drawings of a mechanical component with flanges and brackets (no text or symbols)

Luftcirkulationsbehov

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

Simple line drawing of a door handle with a small knob and a circular sensor symbol (no text or labels)

Pure technical line drawing of a mechanical component with no text or symbols

Simple line drawing of a mechanical lever with a fulcrum and pivot, no text or symbols present

INSTALLATION

Pure mechanical diagram showing two symmetrical components with dashed circular features, no text or symbols present

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing a valve mechanism with no text or symbols

Skruva loss Skruva

INSTALLATION

Technical line drawing of a mechanical assembly with a circular inset showing a gear mechanism (no text or symbols)

Pure technical line drawing of two mechanical components with no text or symbols

Simple line drawing of a corner joint with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a hand pouring liquid from a container into a container with a small object inside (no text or symbols)

Tina upp fryst mat

Technical line drawing of a mechanical assembly with mounting bracket and housing (no text or symbols)

Technical line drawing of a door handle assembly with mounting bracket and side view (no text or symbols)

Simple line drawing of a container being poured into a container with a handle (no text or symbols)

Simple line drawing of a container with a central slot and a lid (no text or symbols)

Vattendispensern

Översvämningsbricka

Illustration of a hand holding a cup with a black arrow indicating the process (no text or symbols present)

Line drawing of a double refrigerator with top panel and side door (no text or symbols)

Laite

Käyttöopas

Simple line drawing of a rectangular box with a side tab (no text or symbols)

Pure mechanical diagram showing a rectangular block with a tilted support and dimension lines, no text or symbols present.

Simple line drawing of a mechanical bracket or clamp (no text or symbols)

Technical line drawing of a mechanical assembly with two bolts and curved components (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

ASENNUS

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols present)

Diagram showing two symmetrical mechanical or structural components with circular features, no text or symbols present.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing a valve mechanism with no text or symbols

Kierrä auki Ruuvi

ASENNUS

Technical line drawing of a mechanical assembly with a circular inset showing internal components (no text or symbols)

Pure technical line drawing of two mechanical components with no text or symbols

Simple line drawing of a corner joint with an arrow indicating direction (no text or symbols)

Isometric line drawing of a rectangular frame with internal triangular patterns (no text or symbols)

Jääastia

Simple line drawing of a container with a side panel, enclosed in an arched frame (no text or symbols)

Line drawing of a hand pouring liquid from a container into a container with a small object inside (no text or symbols)

Pakastetun ruoan sulatus

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a door handle assembly with mounting bracket and side panel (no text or symbols)

Line drawing of a container being poured into a container with a curved arrow indicating motion (no text or symbols)

Simple line drawing of a container with a central slot and a side outlet (no text or symbols)

Veden annostelija

Illustration of a hand holding a cup with a water dispenser, showing a hand pouring liquid from a container (no text or symbols)

!

Front view line drawing of a double refrigerator with a handle and top panel (no text or symbols)

Hovedenheden

Brugervejledning

Line drawing of a rectangular box with a side tab and internal structure (no text or symbols)

∅verste Fryerskuffe X 2 Nederste Fryseskuffe X 1

Salatbeholder X 1

Krav til fri plads

Pure mechanical diagram showing a rectangular block with a curved cutout and dimension lines, no text or symbols present.

Simple line drawing of a door handle and lever (no text or symbols)

Technical line drawing of a mechanical component with two bolts and curved surfaces (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

INSTALLATION

Pure diagram of two symmetrical mechanical or structural components with no text, numbers, or symbols

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Mechanical assembly diagram showing a valve mechanism with no text or symbols

Skrue ud Skrue

INSTALLATION

Technical line drawing of a mechanical assembly with a circular inset showing a close-up of a component (no text or symbols)

Pure technical line drawing of two mechanical components without any text, numbers, or symbols

Simple line drawing of a corner joint with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular frame with an internal slot (no text or symbols)

Line drawing of a hand pouring liquid into a container with a small object inside (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a door handle assembly with mounting bracket and internal components (no text or symbols)

Skift den originale gummiring i ventilen i beholderen med reservedelen, hvis den originale gummiring er slidt eller mangler.

Simple line drawing of a container being poured into a container (no text or symbols)

Illustration of a hand holding a cup with a black arrow indicating rotation or movement (no text or symbols)

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO

DSG Retail Ireland Ltd (259460)

3rd Floor Office Suite,

Omni Park SC, Santry, Dublin 9, Republic of Ireland

Nowwww.elkjop.no/support

www.lefdal.com/support

SE www.elgiganten.se/support
