SMMP90RDX - Music Sandstrøm - Free user manual and instructions

Product Type	Wireless Optical Mouse
Model	SMMP90RDX
Brand	Sandstrøm
Connectivity	2.4 GHz Wireless via Nano Receiver
Sensor Type	BlueTrace Optical
Buttons	Left, Right, Scroll Wheel, Connect Button
Power Source	1 x AAA Battery (included)
Battery Life	Approximately 6 months (typical)
Sleep Mode	After 8 minutes of inactivity
Range	Up to 10 meters
System Requirements	Windows 2000/XP/Vista/7, USB port
Dimensions (approx.)	100 x 60 x 35 mm
Weight (with battery)	80 g
Color	Black
LED Indicator	Power on (3 sec), pairing (blinks 3 times), low battery (blinks 10 times)
ON/OFF Switch	Yes
Compliance	CE, WEEE, RoHS
Cleaning	Use a soft, dry cloth; avoid liquids
Safety	Keep away from children; do not look into optical sensor; battery precautions
Spare Parts	Not available; no user-serviceable parts
Warranty	1 year (standard)

Frequently Asked Questions - SMMP90RDX Sandstrøm

How do I install the battery?

Press and lift the battery cover on the bottom of the mouse. Insert one AAA battery, ensuring the polarities (+/-) match the compartment markings. Close the battery cover.

How do I connect the mouse to my computer?

Plug the included Nano Receiver directly into an available USB port on your computer. The mouse will automatically connect when powered on.

Why is my mouse not working?

Check that the ON/OFF switch is set to ON. Ensure the Nano Receiver is securely plugged into a USB port and the computer is on. Try a different USB port. Replace the battery if needed. If problems persist, press the Connect button on the mouse.

How do I activate the mouse?

Switch the ON/OFF button to the ON position. The mouse will automatically connect to the Nano Receiver. If the cursor does not move, press the Connect button on the bottom of the mouse.

Does the mouse have a sleep mode?

Yes, the mouse enters Sleep Mode after 8 minutes of inactivity. To reactivate it, simply click any button.

What should I do if the cursor moves erratically?

Change the working surface the mouse is operating on. Avoid reflective or glass surfaces. Also, try moving the mouse closer to the Nano Receiver or re-insert the receiver.

Can I use the mouse with a different operating system?

The mouse is compatible with Windows 2000/XP/Vista/7. It may work with other systems but is not guaranteed. No drivers are required for basic functionality.

How do I dispose of the mouse and batteries?

Dispose of the mouse separately from household waste as electronic waste. Batteries should be disposed of according to local laws. Do not incinerate.

What does the LED indicator mean?

When the mouse is turned on, the LED lights up for 3 seconds. During pairing, it blinks 3 times. When the battery is low, the LED blinks 10 times when the mouse is turned on.

How can I save battery life?

Turn off the mouse using the ON/OFF switch when not in use. The mouse also automatically enters Sleep Mode after 8 minutes of inactivity to conserve power.

USER MANUAL SMMP90RDX Sandstrøm

Wireless Blue Trace Mouse

Instruksjonsmanual

Black Sandstrom computer mouse with visible scroll wheel and brand logo (no text on device body)

Contents

GB

Unpacking......12

Product Overview......13

System Requirements ...... 14

Install the Battery 14

Connect the USB Nano Receiver 15

Activating the Wireless Mouse ..15

Sleep Mode 16

Hints and Tips...... 16

• Your product complies with CE rules.
• This product has no serviceable parts. Use of controls or adjustments of procedures other than the Quick Start Guide may result in danger.

Wireless Devices:

Before boarding any aircraft or packing a wireless device in luggage that will be checked, remove the batteries from the wireless device.

Wireless devices can transmit radio frequency (RF) energy, whenever batteries are installed and the wireless device is turned on (If it has an On/Off switch).

Battery-Powered Devices:

Improper use of batteries may result in battery fluid leakage, overheating, or explosion.

Released battery fluid is corrosive and may be toxic. It can cause skin and eye burns, and is harmful if swallowed.

To Reduce the Risk of Injury:

• Keep batteries out of the reach of children.
• Do not heat, open, puncture, mutilate, or dispose of batteries in fire.
• Do not mix new and old batteries or batteries of different types.
• Do not allow metal objects to touch the battery terminals on the device; they can become hot and cause burns.
• Never point the optical sensor toward the face, particularly the eyes, to avoid possible injury.
• While the mouse is functioning, optical light is visible to the naked eye.

• Avoid looking directly into the emitter hole while the mouse is active.

• Produktet er i samsvar med CE-reglene.

• Dette produktet har ingen servicedeler. Bruk av kontroller eller justeringer av andre typer enn de som er oppgitt i hurtigstartguiden, kan føre til fare.

Trådløse enheter:

Thank you for purchasing your new

Sandstrøm Wireless BlueTrace Mouse.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

• Mouse
• Nano Receiver
• AAA Size Battery
• Instruction Manual

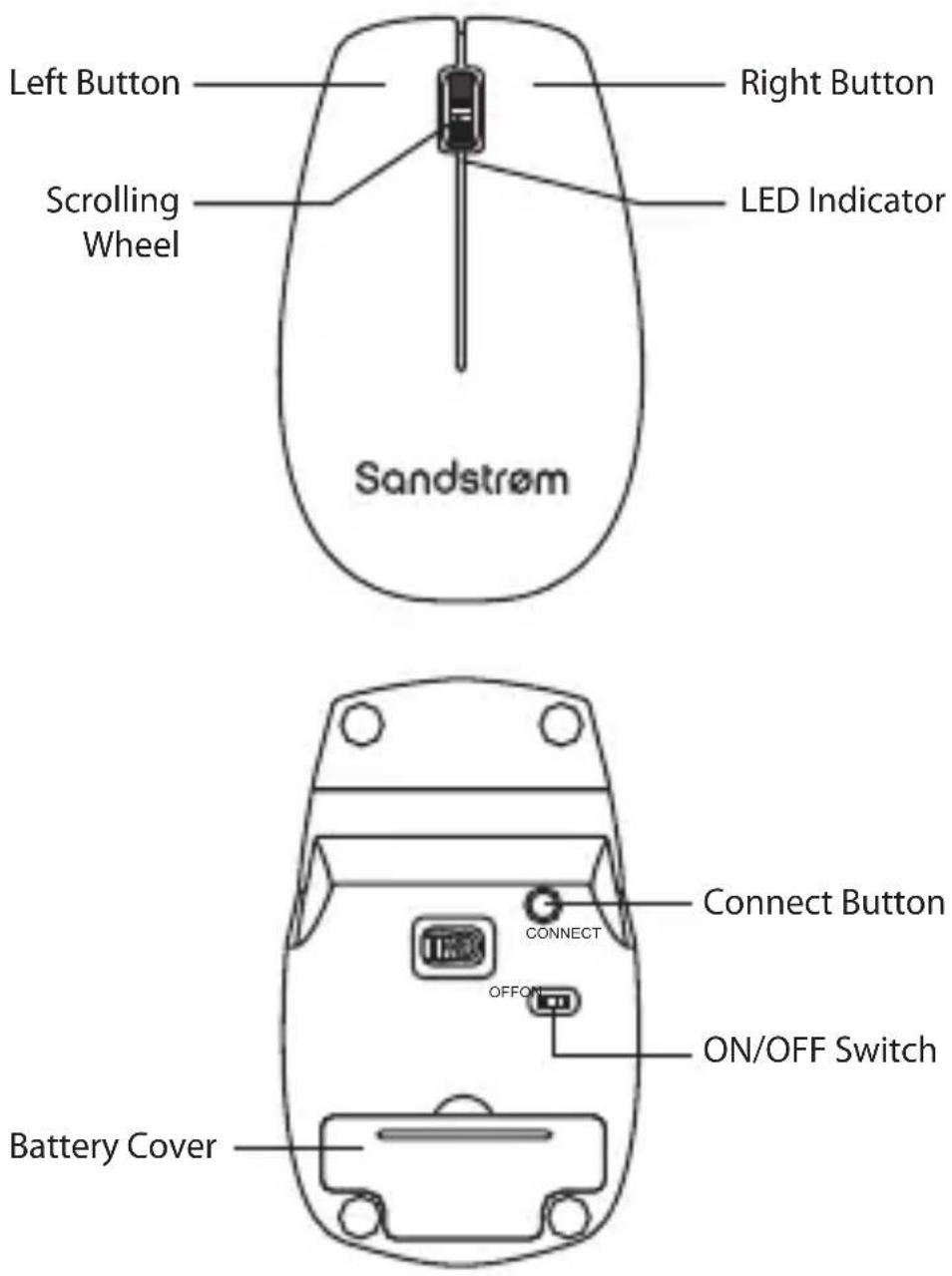

Product Overview

GB

Mouse Indicator
Power ON LED is on for 3 sec.
During Pairing LED blinks	3 times.
Low Battery Warning LED	blinks 10 times when turned on.

System Requirements

GB

Operating Systems:

Microsoft® Windows® 2000/ XP/ Vista™ & Windows® 7

Hardware:

1 available USB port

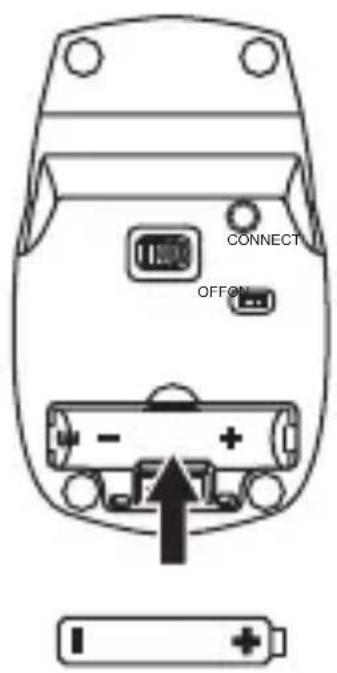

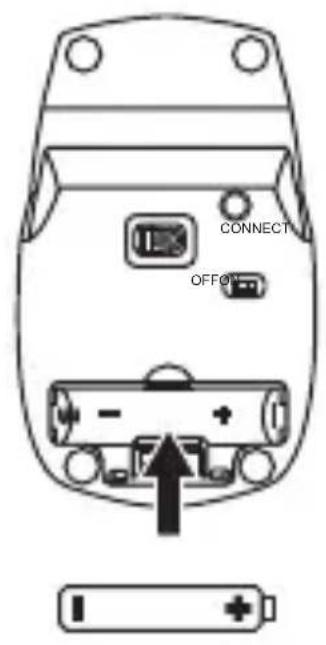

Install the Battery

1. Press and lift the battery cover.
2. Insert one AAA battery.
3. Close the battery cover.

Please ensure the batteries' polarities (+ / -) match the battery compartment's polarities.

Connect the USB Nano Receiver

Plug the Nano Receiver directly into the computer's USB port.

GB

Activating the Wireless Mouse

Switch the ON/OFF button to power on the mouse and then the mouse will automatically connect to the receiver plugged into your computer.

Move the mouse. If the cursor does not react, press the Connect button on the mouse. If the cursor still does not move after 30 seconds, please repeat these instructions.

To save energy, switch the ON/OFF button to the off position to turn off the mouse and disconnect the mouse and the Nano Receiver.

Sleep Mode

If the mouse has not been used for more than 8 minutes, it switches to Sleep Mode. To reactivate it, simply click the button.

Hints and Tips

Mouse Not Working:

1. Check that the power switch is in the on position.
2. Make sure the Nano Receiver is plugged into a USB port and the computer is on or try the Nano Receiver in a different USB port.
3. Check battery installation. Replace battery if needed.
4. If mouse performance is slow or intermittent around a wireless network, unplug the Nano Receiver from the USB port and then reinsert it. To reactivate the mouse, switch it on, off and on again using the ON/OFF switch on the bottom of the mouse.
5. Repeat the connection procedure. You can also try moving the mouse closer to the Nano Receiver.
6. If the mouse is moving erratically change the working surface which the mouse is operating on.

Se till att batteriernas polaritet (+ / -) matchar batterifackets polaritet.

Anslut USB-nanomottagaren

Koppla in nanomottagaren direkt i datorns USB-port.

SE

Aktivera den trådlösa musen

Diagram of a computer drive bay with ports and connectors, showing internal layout and a close-up of the outlet (no text or symbols)

Langattoman hiiren aktivointi

Polarita batérií (+/−) sa musí zhodovat's polaritou v priehradke pre batérie.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment.

To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

For more information, please contact the local authority or your retailer where you purchased the product.

Features and specifications are subject to change without prior notice.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

DSG International Sourcing declares that the wireless mouse complies with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK

SMMP90BK_WH_BL_RDX-130830V3
