Product Type	Total Frost Free Fridge Freezer
Brand	Logik
Model	LNF185W18E
Overall Dimensions (H x W x D)	1850 x 600 x 695 mm
Rated Voltage	220-240 V~, 50 Hz
Rated Current	0.9 A
Rated Power	110 W (Defrost: 160 W)
Energy Efficiency Class	A+
Annual Energy Consumption	307 kWh/year
Fridge Storage Volume	215 L
Freezer Storage Volume	95 L
Freezing Capacity	15 kg/24h
Temperature Rise Time	20 h
Climate Class	SN, N, ST, T
Airborne Acoustical Noise	43 dB(A)
Defrost System	Total Frost Free (Auto Defrost)
Door Reversible	Yes (User reversible)
Control Panel	Electronic with LED display
Modes	Eco, Holiday, Super Freeze, User Defined
Internal Light	LED (non-user replaceable)
Included Accessories	Glass shelves, salad bins, freezer drawers, egg tray, ice tray
Weight (Approx.)	Net weight not specified, estimated ~70 kg
Refrigerant	Environmentally friendly, combustible gas
Installation Clearances	Side: 25 mm, Rear: 50 mm, Top: 25 mm

Frequently Asked Questions - LNF185W18E Logik

How do I adjust the temperature in the fridge or freezer?

Press the FRIDGE button repeatedly to set fridge temperature (2-8°C) and the FREEZER button for freezer temperature (-16 to -22°C). Ensure the keypad is unlocked by pressing and holding MODE for 3 seconds if the lock indicator is on.

Can I reverse the door swing myself?

Yes, the door is reversible. The manual provides step-by-step instructions. You will need a Philips and flat-bladed screwdriver and a hexagonal spanner. We recommend having two people and tilting the unit backward. If unsure, contact a qualified technician.

What does the Holiday mode do?

Holiday mode sets the fridge temperature to 17°C to save energy while you are away. Do not store any food in the fridge during this mode. The freezer continues to operate normally. To activate, press MODE until the holiday indicator flashes.

How do I clean the fridge interior?

Unplug the unit and remove all shelves and drawers. Wipe the interior with a weak solution of bicarbonate soda, then rinse with warm water and dry completely. Do not use abrasive cleaners. Clean the exterior with a damp cloth and furniture polish, keeping the door closed to avoid polish on the seal.

Why is my fridge making unusual noises?

Noises such as gurgling, hissing, or compressor hum are normal. They are caused by the circulation of refrigerant and the compressor motor. This is more noticeable with new CFC-free gases. If the noise is loud or persistent, check that the unit is level and not touching walls.

How much food can I freeze in 24 hours?

The freezing capacity is 15 kg per 24 hours. To maintain quality, freeze food in small quantities and leave space for air circulation. Use appropriate freezer bags or containers.

What should I do if the internal light doesn't work?

The internal light is an LED that cannot be replaced by the user. If it fails, contact an authorized service agent for assistance. Do not attempt to replace it yourself.

How do I lock the control panel to prevent accidental changes?

Press and hold the MODE button for 3 seconds. The lock indicator will light up, and the keypad is locked. Repeat to unlock. This is useful to prevent children from changing settings.

What does the Super Freeze mode do?

Super Freeze quickly lowers the freezer temperature to freeze fresh food faster. It activates the compressor continuously. The mode automatically switches off after 26 hours, or you can manually exit by pressing MODE. The indicator will turn off after 5 seconds.

How do I prepare the fridge for long periods of non-use?

Unplug the unit, remove all food, clean thoroughly, and leave the doors slightly open to prevent odors. Ensure the interior is dry to avoid mold. If moving, keep the unit upright to avoid damaging the refrigerant circuit.

USER MANUAL LNF185W18E Logik

Total Frost Free Fridge Freezer

GB

White refrigerator with digital display showing 88°C, no visible text or symbols on the appliance body

Safety Warnings....8

Unpacking....14

Location....15

Levelling the Unit 15

Free Space Requirements ....15

Reversing the Door Swing 16

Cleaning Before Use....19

Before Using Your Unit ....19

Product Overview 20

Operation 21

Switching On Your Unit 21

Mode button....21

Eco mode....21

Holiday mode 21

Super Freeze mode....21

Lock / Unlock 21

Noises Inside the Unit! 22

Tips for Keeping Food in the Unit....22

Preparations for Freezing 22

Defrosting Frozen Food 22

Cleaning 23

Cleaning the Interior and the Exterior of the Unit....23

Maintenance 23

Changing the Internal Light 23

Care When Handling / Moving Your Unit....23

Servicing....23

Switching Off for Long Periods of Time....23

Condensation 23

Disposal 23

Specifications....24

Product Fiche 24

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
  • This appliance is intended for indoor household use and similar applications such as:

– farm houses and by clients in hotels, motels and other residential type environments;

– bed and breakfast type environments;

– catering and similar non-retail applications.

• Ensure that the plug is easily accessible to enable disconnection from the mains supply.
• If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
• Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.
  • The unit must be manoeuvred by a minimum of 2 persons.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Children should be supervised to ensure that they do not play with the unit.
• If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (if applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Sikkerhetsadvarsler

NO

Thank you for purchasing your new Logik Fridge Freezer.

You must spend some time reading this installation/instruction manual in order to fully understand how to install and operate it.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

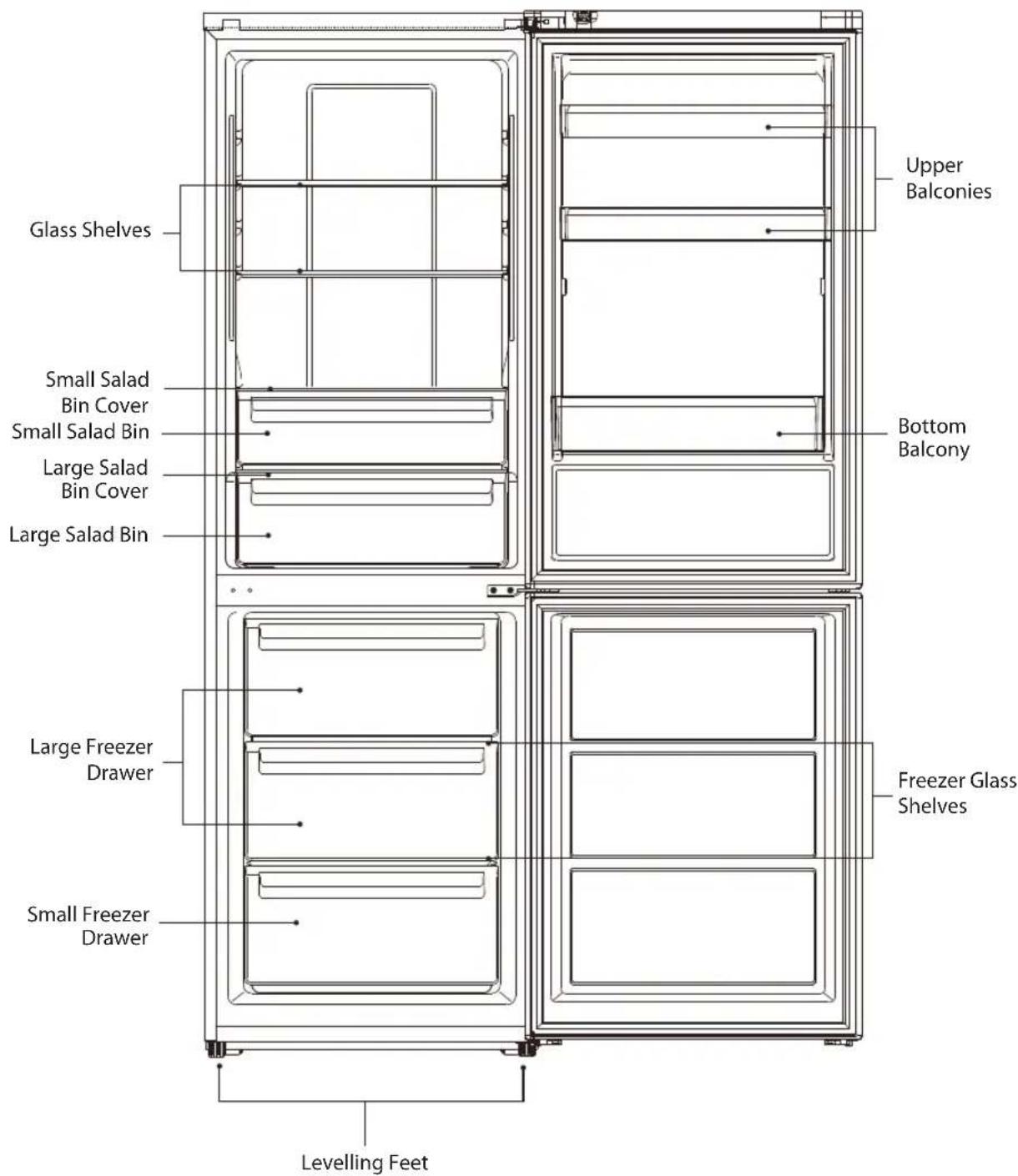

Freezer Glass Shelves X2

Glass Shelves X2

Small Salad Bin Cover X1

Large Salad Bin Cover X1

Simple line drawing of a refrigerator with a handle and top panel (no text or symbols)

Main Unit

Small Freezer Drawer X1

Small Salad Bin X1

Line drawing of a rectangular drawer with internal compartments (no text or symbols)

Large Salad Bin X1

Upper Balconies X2 Bottom Balcony X1

Line drawing of a rectangular box or drawer with no text or symbols

Large Freezer Drawer X2

Instruction Manual

Egg Tray Ice Tray

Door Corner Cover (right side)

Upper Hinge Cover (left side)

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 10^ C and 43^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Free Space Requirements

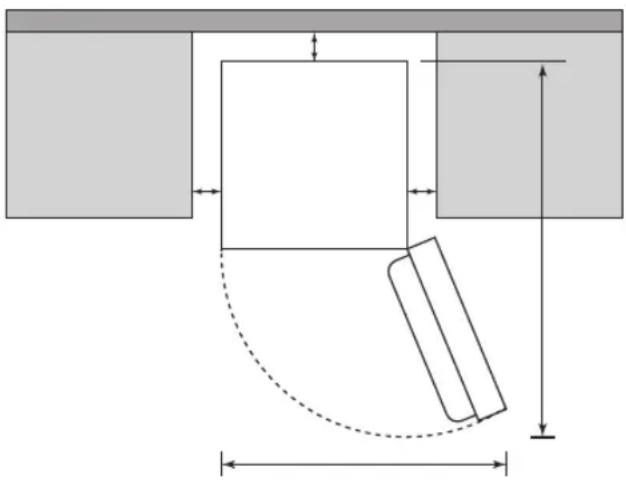

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location.

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle.

Pure mechanical diagram showing a lever mechanism with no text, numbers, or symbols

Reversing the Door Swing

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
  • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

• Remove screw on door cover, and lift the cover off the door.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

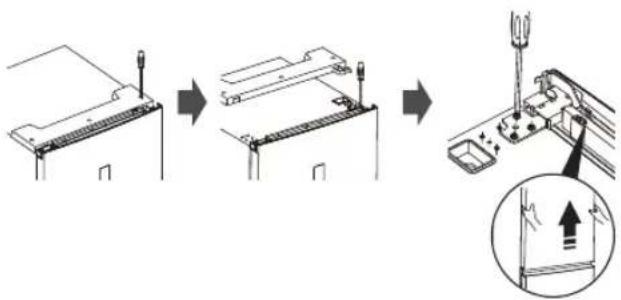

1. Remove the screws on the top cover and proceed to remove exposed screws and upper hinge. Disconnect the cable from the terminal at the top of the unit. Lift the upper door and place it on a padded surface to prevent from being scratched.

Be careful not to damage the wire inside the top cover of the upper door.

Upper hinge cover has left and right side. The upper hinge cover packed as an accessory is for the left side.

1. Loosen the hinge pin, reverse it and put it back to the hole, tighten into position. Take down the gasket and change its position.

Technical line drawing of a mechanical clamp or bracket assembly, showing a left-hand tool and right-hand tool (no text or symbols present)

INSTALLATION

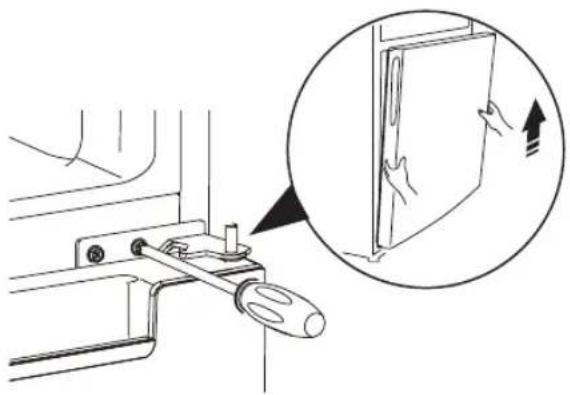

1. Remove the middle hinge. Lift the lower door and place it on a padded surface to prevent from being scratched.

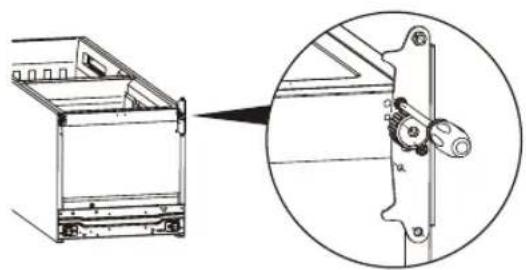

2. Lay down the unit. Remove both levelling feet, levelling feet fix board and bottom hinge. Swap the position of the levelling feet fix board with the bottom hinge.

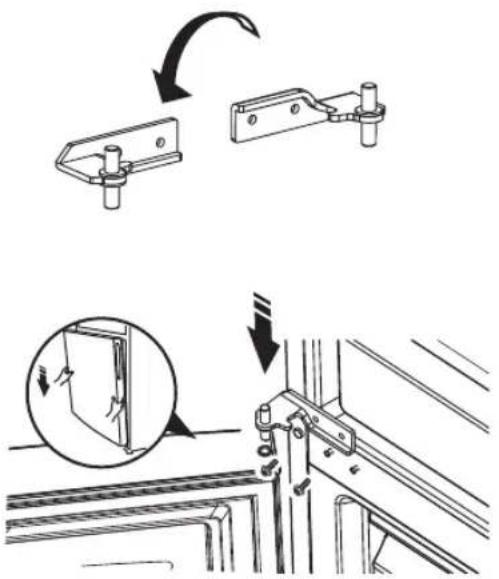

3. On the bottom hinge, move the position of the bottom hinge pin to the other hole. Tighten the pin securely.

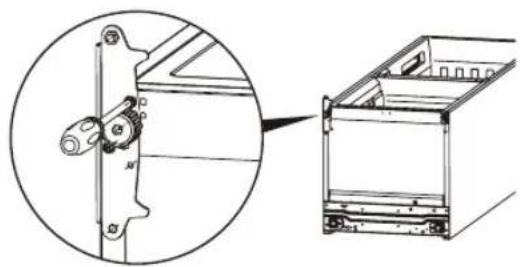

4. Screw the levelling feet fix board, bottom hinge and levelling feet tightly on their new position.

Line drawing of a mechanical clamp or bracket with an inset showing hand positioning near a door (no text or symbols)

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Mechanical assembly diagram showing two views of a bracket with mounting holes and fasteners (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a close-up view of a component (no text or symbols present)

GB

INSTALLATION

1. Stand the unit. Remove the middle hinge hole covers and swap their position with the middle hinge. Reverse the middle hinge.

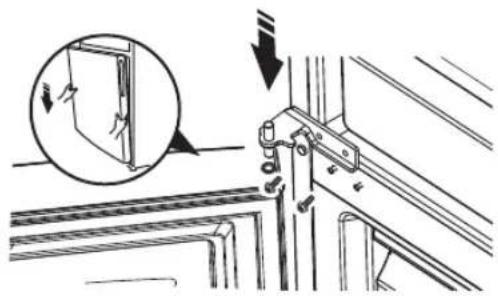

2. Place the bottom hole of the lower door onto the bottom hinge pin. Insert the middle hinge pin into the upper hole of the lower door. Tighten the pin securely. Screw the middle hinge tightly. Cover the remaining holes with the hole covers.

Ensure the lower door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the pin.

1. Carefully take the wire from the top of the upper door and thread through the other side.

2. Place the bottom hole of the upper door onto the middle hinge pin. Reverse the upper hinge. Insert the upper hinge pin into the upper hole of the upper door. Tighten the pin securely. Screw the upper hinge tightly. Cover the upper hinge with the upper hinge cover for left side and thread wire through the hinge cover. Connect the cable to the terminal.

Ensure the upper door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the pin.

Diagram showing a structural change with an arrow indicating direction (no text or symbols present)

Diagram of a kitchen sink with a drain and piping, no text or symbols present

INSTALLATION

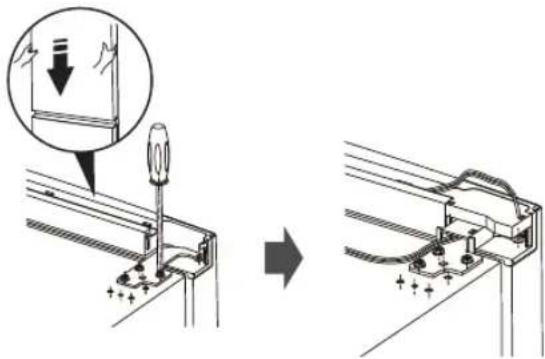

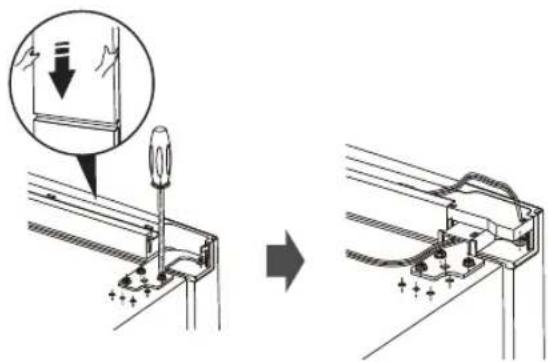

1. Pull out the decorative cover from the top cover and carefully insert into the grooves on opposite side.

2. Replace top cover and screw in tightly.

Technical line drawing of a mechanical bracket with mounting holes and a directional arrow indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and support bracket (no text or symbols)

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a damp sponge or cloth. Wipe completely dry before replacing the shelves and drawers. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the unit.

• Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle. You may damage the cooling circuit if the unit is turned on too soon.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Switching On Your Unit

1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by an electronic control panel. Before changing any settings, ensure the 🔒 is disabled.

2. Press FRIDGE button repeatedly to set temperature for the fridge compartment (2 to 8°C) and press FREEZER button repeatedly to set temperature for the freezer compartment (-16 to -22°C).

3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.

4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.

5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in either the fridge or freezer compartment and leave overnight. The correct temperature for the fridge compartment should be at the recommended 0-8°C. The correct temperature for the freezer compartment should be -18°C or lower.

Mode button

Press the MODE button repeatedly to cycle through the options available. Each press will cycle through in the following order: ECO Mode, Holiday Mode, Super Freeze, User Defined.

Eco mode

- To save energy, you can set the unit to eco mode. Press the MODE button repeatedly until the ECO indicator flashes on the display. After 5 seconds, the indicator will stop flashing but remain on. Temperature in the fridge will automatically set to 5^ and the freezer to -18^ to minimise energy consumption.

- To switch off, press the MODE button. The previous setting will resume after 5 seconds and the icon indicator will extinguish.

Holiday mode

- If you will be away for a period of time, you can set the fridge to holiday mode. Press MODE button repeatedly until 📋 indicator flashes on the display. After 5 seconds, the indicator will stop flashing but remain on. Temperature in the fridge will automatically set to 17°C. Do not store any food in the fridge during holiday mode.

• To switch off, press the MODE button. The previous setting will resume after 5 seconds and the indicator will extinguish.

Super Freeze mode

- Press MODE button repeatedly until ✕ indicator begins flashing on the display. After 5 seconds the indicator will stop flashing but remain on. Temperature in the freezer compartment will be quickly lowered.

- The Super Freeze Mode will automatically switch off after 26 hours. Alternatively, to switch off manually, press MODE button to exit. After 5 seconds the ✧ indicator will extinguish.

Lock / Unlock

Press and hold MODE button for 3 seconds to lock/unlock the keypad. The 🔊 indicator will light up when locked and extinguish when unlocked.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf at the bottom of the fridge compartment.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
  • Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
  • To prevent cold air escaping from the unit, try to limit the number of times you open the doors. We recommend that you only open the doors when you need to put food in or take food out.

Preparations for Freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.
• Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.
• Leave a small amount of air space when freezing liquids to allow expansion.
• You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.
• Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.
• You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Defrosting Frozen Food

1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Cleaning

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.

Maintenance

Changing the Internal Light

The internal light is an LED light. It cannot be changed by the user; please contact your service agent.

Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the doors ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Rated Voltage 220-240V~, 50 Hz
Rated Current 0.9 A
Rated Power 110 W (Defrost: 160 W)
Overall Dimension (H x W x D) 1850 x 600 x 695 mm

Features and specifications are subject to change without prior notice.

Product Fiche

Brand Logik
Model LNF185W18E
Household Appliance Category 7
Energy Efficiency Class A+
Energy consumption 307 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Fridge Storage Volume 215 L
Freezer Storage Volume	95 L ✦ ✦ ✦
Auto Defrost for the compartment.
Temperature Rise Time	20 hours
Freezing Capacity	15kg / 24h
Climate Class	SN, N, ST, TThis appliance is intended to be used at an ambient temperature between 10°C and 43°C.
Airborne Acoustical Noise 43 dB(A) re 1 pW

Line drawing of a double refrigerator with a handle and top panel (no text or symbols)

Hovedenheten

Liten fryserskuff X1

Liten salatskuff X1

Line drawing of a rectangular drawer with internal compartments (no text or symbols)

Stor salatskuff X1

Line drawing of a rectangular box or drawer with no text or symbols

Stor fryserskuff X2

Instruksjonsmanual

Eggbrett Isterningbrett

Plassbehov

Pure mechanical diagram showing a rectangular block with a tilted support and dimension lines, no text or symbols present.

Technical line drawing showing a mechanical assembly before and after modification (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly, showing a left-side view and a right-side view with no text or symbols.

INSTALLASJON

NO

Line drawing of a mechanical clamp or bracket with an inset showing a hand holding a door (no text or symbols present)

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Mechanical assembly diagram showing two views of a mechanical component with mounting holes and fasteners (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset view of a frame structure (no text or symbols)

INSTALLASJON

1. Sett opp enheten. Fjern de midtre hengselhulldekslene og bytt posisjonen med midthengslet. Reverser midthengslet.

2. Plasser bunnhullet på den nedre døren på den nedre hengseltappen. Sett den midtre hengseltappen i den nedre dørens øvre hull. Trekk tappen godt til. Skru midthengselet godt fast. Dekk til de resterende hullene med hulldekslene.

Technical line drawing of a mechanical bracket with mounting holes and a curved arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and screw mount (no text or symbols)

Rengjøring før bruk

Simple line drawing of a refrigerator with a handle and top panel (no text or symbols)

Huvudenhet

Liten fryslåda X1

Liten salladslåda X1

Line drawing of a rectangular drawer with internal compartments (no text or symbols)

Stor salladslåda X1

Line drawing of a rectangular box with a handle, no text or symbols present

Stor fryslåda X2

Instruktionsbok

Ägglåda Islåda

Luftcirkulationsbehov

Pure mechanical diagram showing a lever mechanism with no text, numbers, or symbols

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Technical line drawing of a mechanical clamp or bracket assembly, showing a left-side view and a right-side view with a downward arrow (no text or symbols present)

INSTALLATION

Line drawing of a mechanical clamp or bracket with an inset showing hand positioning on a door (no text or symbols)

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Mechanical assembly diagram showing two views of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

INSTALLATION

Diagram showing a structural change with an arrow indicating direction (no text or symbols present)

Diagram of a kitchen sink with a drain and piping, no text or symbols present

INSTALLATION

Technical line drawing of a mechanical bracket with mounting holes and a directional arrow indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and support bracket (no text or symbols)

Line drawing of a double refrigerator with a handle and top panel (no text or symbols)

Laite

Pieni pakastinlokero X1

Line drawing of a rectangular plastic container with internal compartments (no text or symbols)

Line drawing of a rectangular box or drawer with no text or symbols

Pure mechanical diagram showing a rectangular block with two blocks and dimension lines, no text or symbols present.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Technical illustration of a mechanical clamp or bracket being adjusted, showing a disassembled part before and after assembly (no text or symbols present)

ASENNUS

Line drawing of a mechanical clamp or bracket with an inset showing a hand holding a door (no text or symbols present)

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Mechanical assembly diagram showing two views of a lever handle with mounting holes and adjustment arrows (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset view of a component (no text or symbols present)

ASENNUS

Mechanical assembly diagram showing a bracket being lifted by an arrow (no text or symbols present)

Technical diagram showing a mechanical assembly with a magnified inset of a door frame detail (no text or symbols)

Diagram showing a structural change with an arrow indicating direction (no text or symbols present)

Diagram of a kitchen sink with a drain and piping system (no text or symbols)

ASENNUS

Technical line drawing of a mechanical bracket with mounting holes and a directional arrow indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and support bracket (no text or symbols)

Simple line drawing of a refrigerator with a handle and top panel (no text or symbols)

Hovedenheden

Lille fryserskuffe X1

Lille salatskuffe X1

Line drawing of a rectangular drawer with internal compartments (no text or symbols)

Stor salatskuffe X1

∅verste lågehylde til fryser X2

Line drawing of a rectangular box with a recessed top (no text or symbols)

Stor fryserskuffe X2

Brugervejledning

Æggebakke Isbakke

Krav til fri plads

Pure mechanical diagram showing a lever mechanism with no text, numbers, or symbols

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Technical line drawing of a mechanical clamp or bracket assembly, showing a left-side view and a right-side view with a downward arrow (no text or symbols present)

INSTALLATION

Line drawing of a mechanical clamp or bracket with an inset showing hand positioning on a door (no text or symbols)

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Mechanical assembly diagram showing two views of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

INSTALLATION

Diagram showing a structural change with an arrow indicating direction, no text or symbols present

Diagram of a kitchen appliance with a drain and piping (no text or symbols)

INSTALLATION

Technical line drawing of a mechanical bracket with mounting holes and a directional arrow indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and support bracket (no text or symbols)

Rengøring før brug

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO
