SJUMWH14E - Radio Sandstrøm - Free user manual and instructions

Product Type	Portable Radio
Brand	Sandstrøm
Model	SJUMWH14E
Dimensions (approx)	200 x 120 x 80 mm
Weight (approx)	0.5 kg
Power Supply	AC adapter (included) or 4 x AA batteries
Radio Bands	FM / AM
Display	LCD with backlight
Alarm Function	Yes, with snooze
Sleep Timer	Yes
Speaker	Built-in mono speaker
Headphone Jack	3.5 mm
Antenna	Telescopic for FM, ferrite rod for AM
Controls	Rotary knob for tuning, buttons for mode and settings
Programmable Presets	Up to 20 (10 FM, 10 AM)
Care & Cleaning	Wipe with dry cloth; avoid liquids
Safety	Keep away from water; not for outdoor use
Spare Parts & Reparability	Contact Sandstrøm support; limited user-serviceable parts
Manual Language	Multilingual (English, French, etc.)

Frequently Asked Questions - SJUMWH14E Sandstrøm

How do I set the clock on my Sandstrøm SJUMWH14E radio?

Press and hold the CLOCK button for 3 seconds, then use the tuning knob to adjust the hour and minute. Press CLOCK again to confirm.

How can I set the alarm?

Press the ALARM button once to enter alarm setup. Use the tuning knob to set the hour, then press ALARM again to set minutes. Finally, press ALARM to confirm and enable the alarm (indicated by a bell icon).

What type of batteries does the radio use?

The SJUMWH14E uses 4 x AA batteries (not included). For best performance, use alkaline batteries. You can also power it via the included AC adapter.

How do I switch between FM and AM?

Press the MODE button repeatedly to cycle through FM, AM, and other modes (if available). The current band will be shown on the display.

Can I save my favorite radio stations?

Yes. Tune to a station, then press and hold one of the preset number buttons (1-0) for 3 seconds until you hear a beep. You can save up to 20 stations (10 FM, 10 AM).

How do I activate the sleep timer?

Press the SLEEP button repeatedly to select the desired sleep time (e.g., 15, 30, 60 minutes). The radio will turn off automatically after the set time.

What should I do if the reception is poor?

For FM, fully extend the telescopic antenna and adjust its position. For AM, rotate the entire radio to align the internal ferrite rod antenna. Avoid placing the radio near metal objects or electrical appliances.

Is there a snooze function?

Yes. When the alarm sounds, press the SNOOZE button (usually the top button) to silence it for 9 minutes. The alarm will repeat until you press the ALARM button to turn it off.

How do I clean the radio?

Use a soft, dry cloth to wipe the exterior. Do not use water, solvents, or abrasive cleaners. Avoid getting moisture into any openings.

Where can I find the full user manual?

The user manual is included in the package or can be downloaded for free from notice-facile.com by searching for model SJUMWH14E. It is available in multiple languages.

USER MANUAL SJUMWH14E Sandstrøm

Contents

GB

Safety Warnings......6

Unpacking......21

Product Overview......22

Front & Side View ......22

Top View......23

Power Source 24

Battery Power 24

Battery Life (Approx. hours) ......24

Knowing When to Replace the Batteries....25

Mains Power......26

Using Earphones 27

Basic Operation......28

Powering ON/OFF......28

Adjusting the Volume......28

Setting Equaliser ......28

Language......28

Factory Reset......29

Software Version ......29

DAB Operation......30

Display 31

Showing Signal Strength ......31

Full Scan 32

Station Order 32

Station List....33

FM Operation 34

Selecting FM Mode ....34

Display 34

Scan Setting......35

Audio Setting 35

Presetting Stations 36

Storing Preset Stations......36

Recalling Preset Stations......36

AUX IN Mode 37

Maintenance ....38

Cleaning the Unit....38

Hints and Tips...... 39

Specifications......40

Innhold

NO

Stille inn equalizer ....48

Språk......48

Fabriktilbakestilling ....49

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, unplug from the mains socket and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and not subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
  • The mains socket must be located near the unit and should be easily accessible.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.
• Attention should be drawn to the use of apparatus in moderate climates.

Naked Flames

• Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit. Do not operate the unit with wet hands, near water or other liquid.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
  • Unplug the unit from the mains socket during a lightning storm.
• In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Mains Adapter Cable

- Make sure the unit or unit stand is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Mains Adapter

- The mains adapter will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adapter plugged in the mains socket while unattended for long periods of time. Disconnect the adapter from the power supply.

Use only power supplies listed in the user instructions.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the working performance of the unit, and cause a distorted sound.

Earphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Batteries

• Batteries used in the unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• Do not expose the battery to direct sunlight or sources of excessive heat.
• Attention should be drawn to the environmental aspects of battery disposal.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

Thank you for purchasing your

new product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Simple line drawing of a rectangular box with a horizontal slot (no text or symbols)

Main Unit Mains Adapter Instruction

Simple line drawing of a cable and power adapter with a terminal plug (no text or symbols)

Manual

Product Overview

GB

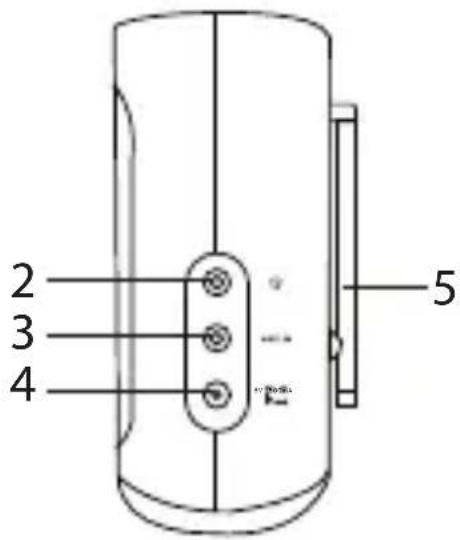

Front & Side View

Simple diagram of a rectangular box with a labeled point '1' on the top (no text or symbols within the diagram itself)

1. LCD display
2. Earphones Socket
3. AUX IN Socket
4. DC IN 6V 500mA Socket
5. Aerial

Top View

GB

1. Button

Press to switch radio on or off.

1. MODE Button

Press to switch among DAB, FM and AUX IN modes.

1. MENU Button

Press to display menu screen of DAB, FM and AUX IN modes.

1. PRESETS Buttons

• Press and hold to store preset station.

- Press to recall preset station.

1. VOLUME+/- Buttons

Press to increase/decrease volume.

1. TUNE / Buttons

Press to upwards/downwards browse options.

1. SELECT Button

Press to confirm selection.

Power Source

GB

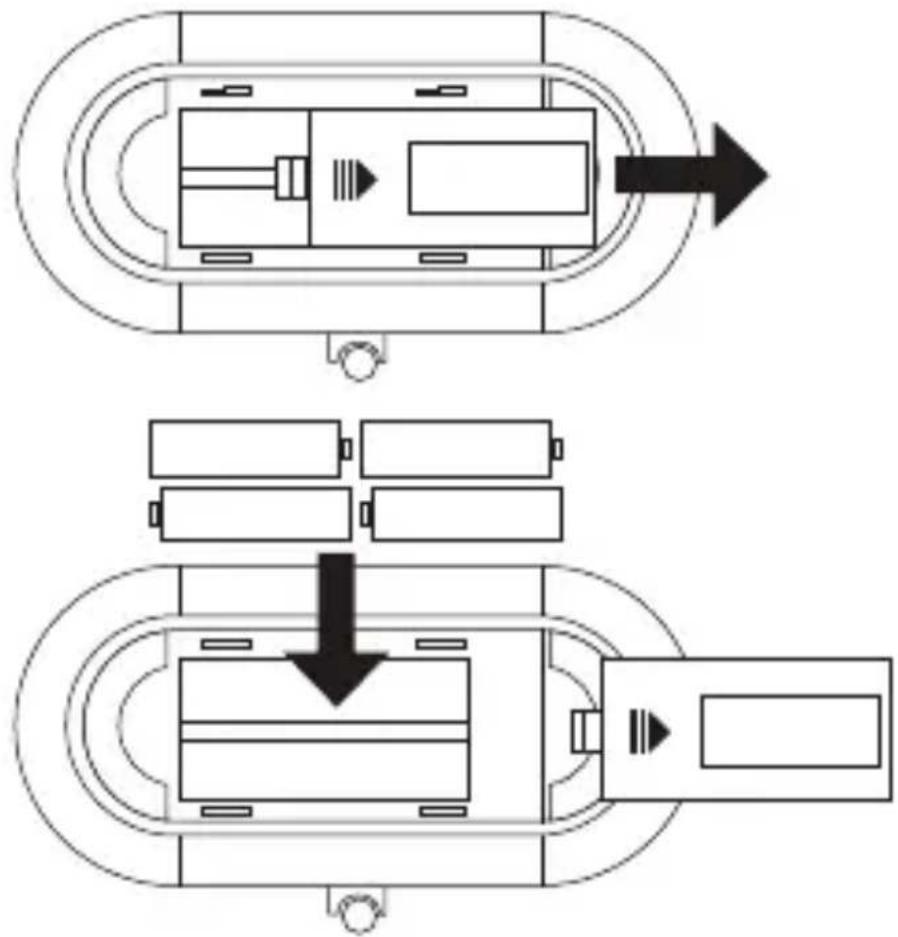

Battery Power

Insert 4 x 1.5V AA batteries (not included) correctly by following the polarity (+ or −) indications in the battery compartment.

Battery Life (Approx. hours)

When Using FM DAB
Alkaline (Size AA) 4 4

Knowing When to Replace the Batteries

• When the batteries become weak, the sound becomes weak and distorted.
• When the batteries are completely exhausted, the power is turned off.

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property.
• Install the batteries correctly by following the polarity (+ and −) indications in the battery compartment.
• Use only the types of batteries which are indicated in this manual.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of the used batteries as domestic waste. Dispose of them in accordance with local regulations.
• If you are not going to use the unit for a long time, remove the batteries to avoid damage from battery leakage and corrosion.
• Due to the short battery life span of some alkaline batteries, it is recommended to use rechargeable batteries. You will need to purchase a charger to charge the rechargeable batteries. This saves cost and is more environmental-friendly.

Mains Power

• This unit is designed to operate with the provided mains adapter.
• Connecting the unit to any other power source may cause damage to the unit. Unwind the mains adapter cable to its full length. Connect the end of the cable to the DC IN 6V-500mA Socket at the side of the unit and then connect the mains adapter to the mains socket. Make sure the mains adapter is firmly inserted into the mains socket. The unit is now connected and ready to use.

Diagram of a cable connection to a device with a wall-mounted panel and power outlet (no text or symbols)

Using Earphones

Turn down the volume before connecting the earphones. Slowly raise the volume with the earphones on until you reach your desired volume.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods of time.

Basic Operation

GB

Powering ON/OFF

• Press to switch the unit on.
• Press again to switch the unit off.
• To switch the unit off completely, unplug the power adapter from the mains socket.

Adjusting the Volume

- Adjust the volume to the desired level by pressing +/- Button.

Setting Equaliser

1. Press MENU and then repeatedly to select . Press SELECT to confirm.
2. Press repeatedly to select . Press SELECT to confirm.
3. Press ▲▼ repeatedly to set the level of Treble and Bass. Press SELECT to confirm.
4. Press ▲▼ to set the level of Treble and Bass. Press ← SELECT to confirm.

Language

1. Press MENU and then repeatedly to select . Press SELECT to confirm.

2. Press repeatedly to select . Press SELECT to confirm.

3. Press repeatedly to select the desired language. Press SELECT to confirm.

Factory Reset

1. Press MENU and then repeatedly to select . Press SELECT to confirm.
2. Press repeatedly to select . Press SELECT to confirm.
3. Press ▲▼ to select . Press ← SELECT to confirm.

After the factory reset, all the tuned stations, DAB/FM preset stations will be erased.

Software Version

1. Press MENU and then repeatedly to select . Press SELECT to confirm.
2. Press repeatedly to select . Press SELECT to confirm.
3. Press MENU to exit.

DAB Operation

GB

When you turn on the radio it will automatically search and store all the available stations. You may conduct an additional Full Scan to ensure all stations are picked up and stored. It is also recommended every few months to run a new scan to pick up any new DAB/DAB+ that may have begun broadcasting after your radio scanned last time.

1. For initial use, your radio will conduct a full scan and store stations list in memory.
2. Once the scanning is completed, the DAB/DAB+ stations will be displayed in alphanumeric order. The first station in the list will be selected.

• The DAB/DAB+ stations will be displayed and stored in alphanumeric order.
• If no DAB/DAB+ signal is found, it may be necessary for you to relocate your radio.

The clock will be updated automatically if you can receive DAB/FM signal in your location. In order to synchronize to the current local time, you must leave it on the DAB/FM station for a period of time.

Display

This feature enables you to select the station information which shows on the LCD display.

1. Press MENU button, and then press ▲buttons to select , press SELECT button to confirm.
2. Press ▲buttons to browse through Scrolling text, Signal strength, Program Type, Ensemble, Frequency, Signal quality, Bitrate and Codec, Format, and then press SELECT button to confirm your selection.

Showing Signal Strength

While you selected Signal strength, a signal bar with the strength of the current station will show on the LCD display.

The indicator on the signal bar shows the minimum acceptable signal level.

Stations with signal strength below the minimum signal level may not provide a steady stream of audio.

Full Scan

This feature enables your radio to scan for all available stations.

Press MENU button, and then press ▲buttons to select , press SELECT button to confirm.

Station Order

This feature enables your radio to display the stations in different order.

1. Press MENU button, and then press buttons to select , press SELECT button to confirm.
2. Press buttons to browse and , and then press SELECT button to confirm your selection.

Alphanumeric Display all stations in alphanumeric order.
Ensemble List	currently broadcasting active stations before inactive ones.

Station List

This feature enables you to select a station from available station list.

1. Press MENU button, and then press ▲buttons to select , press SELECT button to confirm.
2. Or, while a program is playing, press buttons to show station list.
3. Press buttons to browse stations list, and then press SELECT button to confirm. The selected station will be broadcasting.

FM Operation

GB

Selecting FM Mode

1. Press MODE button repeatedly to select FM mode.
2. For initial use, it will start at the beginning of the FM frequency range (87.50 MHz). Or it will play the last FM station you were listening to.
3. To manually change the FM frequency, make sure no other order/system setting is going on, press ▲▼ buttons to change the frequency by 0.05 MHz per step.
4. To automatically scan, while FM frequency shows up, press buttons first and then press SELECT button, your radio will skip forwards or backwards until it reached the next available station.

The clock will be updated automatically if you can receive DAB/FM signal in your location. In order to synchronize to the current local time, you must leave it on the DAB/FM station for a period of time.

Display

This feature enables you to select the station information which shows on the LCD display.

1. Press MENU button, and then press buttons to select , press SELECT button to confirm.
2. Press buttons to browse through Radio text, Program Type, Ps, Audio info and then press SELECT button to confirm your selection.

Scan Setting

By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations.

1. To change the scan settings to stop only at stations with good signal strength, press MENU button, and then press buttons to select , press SELECT button to confirm.

2. Press buttons to browse , and then press SELECT button to confirm.

Audio Setting

By default, all stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss).

1. To play weak stations in mono, press MENU button, and then press buttons to select

2. Press buttons to browse , and then press SELECT button to confirm.

Presetting Stations

GB

Storing Preset Stations

This is the same for DAB/DAB+ and FM stations.

Your radio can store up to 10 of your favourite DAB/DAB+ and FM stations as preset stations. This will enable you to access your favourite stations quickly and easily.

1. Press and hold the PRESETS button until display show <Preset Store < 1: (Empty) >>.
2. Press ▲ buttons to browse through the preset numbers 1-10.
3. Select one preset number and then press SELECT button, display will show .

Recalling Preset Stations

This is the same for DAB/DAB+ and FM stations.

1. Press MODE button repeatedly to select DAB or FM mode.
2. Press PRESETS button to show the saved preset stations.
3. Press buttons to select the stored preset station you want to play, and then press SELECT button to confirm.

AUX IN Mode

1. Before connecting to the mains socket, use a 3.5 mm audio cable (not included) to connect to your external audio device through the AUX IN Socket on the side of unit.
2. Connect power adapter to mains socket, press button to switch unit on.
3. Press MODE button repeatedly to select Auxiliary Input mode.
4. You may operate your audio device directly for playback features.
5. Press VOLUME +/- to adjust the volume to your desired level.

If there is low audio input or without audio input continuously for 10 minutes in Aux in mode, the unit will automatically switch to off mode to save power.

Maintenance

GB

Cleaning the Unit

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray an aerosol at or near the unit.

Hints and Tips

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Problem Solution
No power • Ensure	the mains adapter cable is connected securely. • Make sure that the unit is switched on.
No Sound Adjust the	volume control, it may not be turned up.
Static Sound Signal	reception is too low. Adjust the aerial or move the unit to a stronger signal location.
Sound is distorted	Volume is too high. Adjust the volume control.
Desired station not found	Weak signal. Search manually.
No coverage in your area or poor reception	Adjust the position of the aerial.
The display is blank	This may occur if the broadcaster changes the label of a service or removes a label while tuned. The unit will try to re-tune or perform a scan.

Specifications

GB

Main Unit

Model SJUMBL14E / SJUMRE14E / SJUMBU14E / SJUMWH14E
Power Consumption 3 W
Speaker Output Power	1 W rms
Radio Frequency FM 87.5 – 108 MHzDAB/DAB+ 174.928 - 239.200 MHz
Dimensions 135 mm (L) x 72 mm (W) x 139 mm (H)
Net weight 0.49 kg

Mains Adapter

Model HKP04-0600500dV

Manufacturer Hung Kay Industrial Co., Ltd

Power Supply AC Input: 100-240 V, 50/60 HzDC Output: 6V =500mA

We continually strive to improve our products. Specifications and features may change without prior notice.

Takk for at du kjøpte ny produktet.

Simple diagram with two nested rounded rectangles and a central rectangle, labeled '1' at the top-left corner (no text or symbols within the shapes)

1. LCD-skjerm
2. ∅retelefonkontakt
3. AUX IN-kontakt
4. DC IN 6V 500mA -kontakt
5. Antenne

Sett ovenfra

NO

1. -knapp

Batterilevetid (cirka timer)

Diagram of a wall-mounted power plug connected to a cylindrical device with a cable, showing wiring and component labels (no text or symbols beyond basic diagram)

Bruke øretelefoner

Stille inn equalizer

Simple line drawing of a rectangular box with a horizontal slot, no text or symbols present.

Simple line drawing of a cable and power adapter with a terminal plug (no text or symbols)

Simple diagram with two nested rounded rectangles and a central rectangle, no text or symbols present.

1. LCD-display
2. Hörlursuttag
3. AUX IN-ingången
4. DC IN 6V 500mA -uttag
5. Antenn

Vy ovanifrån

1. -knapp

Använda hörlurar

Simple line drawing of a rectangular box with rounded corners (no text or symbols)

Simple line drawing of a cable and plug with a terminal outlet (no text or symbols)

Simple diagram with two nested rounded rectangles and a central rectangle, no text or symbols present.

Paristokesto (arviolta tunteina)

Diagram of a power plug connected to a battery, showing wiring and connection points (no text or symbols)

FI

Simple line drawing of a rectangular object with a horizontal line inside, no text or symbols present

Trykkes for at skrue op/ned for lyden.

1. TUNE / knapper

Batteriets levetid (ca. i timer)

Under brug FM DAB
Alkaline (str. AA) 4 4

Diagram of a power plug connected to a cylindrical device with a 6V power outlet, showing wiring and connection points (no text or symbols)

DK

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

GB

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

FI

GB www.knowhow.com/knowledgebank

NOwww.elkjop.no/support

www.lefdal.com/support

SE www.elgiganten.se/support
