M02SMW18E - Sandwich Press MATSUI - Free user manual and instructions

Product Type	Sandwich Toaster
Brand	Matsui
Model	M02SMW18E
Power Consumption	700 W
Voltage	220-240 V ~ 50 Hz
Number of Cooking Plates	2 (upper and lower)
Plate Material	Non-stick coating
Housing Material	Plastic
Dimensions (approximate)	25 x 25 x 10 cm
Weight (approximate)	1 kg
Cord Length (approximate)	0.8 m
Handle Lock	Yes
Power Indicator	Yes
Temperature Indicator	Yes
Thermostat Control	Built-in (maintains cooking temperature)
Cooking Time	Approximately 3-4 minutes per sandwich
Cleaning Method	Wipe with damp cloth; do not immerse in water
Safety Features	Automatic temperature control, cool-touch handles (likely)
Included Accessories	Instruction manual

Frequently Asked Questions - M02SMW18E MATSUI

How long does it take to toast a sandwich?

The sandwich toaster takes approximately 3-4 minutes to cook a sandwich. The temperature indicator lights up when it's ready.

Can I use metal utensils to remove the sandwich?

No, never use metal objects as they may damage the non-stick cooking plates. Use wooden or silicone utensils instead.

How do I clean the sandwich toaster?

Unplug the appliance and let it cool down completely. Wipe the cooking plates with a damp cloth and dry thoroughly. Do not immerse in water or use abrasive cleaners.

Do I need to butter the bread?

Yes, it is recommended to spread a thin layer of butter, margarine, or cooking fat on the outside of the bread slices for a crispy golden result.

Can I use raw meat as a filling?

No, never use raw meat as a sandwich filling. All fillings should be pre-cooked or suitable for direct consumption.

What should I do if the power cord is damaged?

If the mains cable is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

Can children use this appliance?

Children aged 8 years and above can use the appliance if supervised. Children under 8 must be kept away from the appliance and cord.

Why does the temperature indicator turn on and off?

The built-in thermostat maintains the cooking temperature, so the indicator cycles on and off to regulate heat.

Can I cook other foods besides sandwiches?

The appliance is designed for sandwiches only. Using other foods may damage the plates or pose a safety risk.

How should I store the sandwich toaster?

After cleaning and cooling, wrap the mains cord around the bottom of the appliance and store it in a dry place away from children.

USER MANUAL M02SMW18E MATSUI

White plastic electrical switch or drain device with a rectangular body and side slots (no text or symbols visible)

Contents

GB

Safety Warnings 5

Unpacking....15

Product Overview ....16

First Time Use....16

Sandwich Making 18

Recipes for Sandwich Fillings 20

Cleaning and Maintenance ....21

Specifications....21

Innhold

NO

Do not touch the surface of the appliance during operation.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its mains cable out of the reach of children less than 8 years old.

- Your appliance should be used in such a way that it is protected from moisture e.g., condensation, splashed water etc. Do not place or store your appliance where it can fall or be pulled into water or any other liquid. Do not reach for the appliance if it has fallen in any water or any other liquid. Unplug immediately. Stand your appliance on a stable, level surface during use. Do not allow your appliance to sit on top of the mains cable.

- Make sure that children cannot touch the appliance when hot or pull the mains cable.

• It is dangerous to insert fingers or objects other than bread into the appliance.
• Bread may burn. Your appliance must not be used near or below curtains or other combustible materials. It must be watched when in use. Do not leave your appliance unattended. Your appliance should be placed away from heat sources such as radiators, gas/electric fires and direct sunlight.

- Keep the mains cable away from any heated surfaces.

- Use the appliance only for its intended use, as described in this manual.

- Do not use outdoors.

- Never use your appliance if it is damaged in any way. Do not remove any fixed covers.

- Never use this appliance if it is not working properly, or if it has been dropped or damaged.

- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

- Make sure the unit is earthed properly during use. Do not use the iron with any extension sockets. If in doubt, contact a qualified electrician.

FORSIKTIG: Varm overflate

Thank you for purchasing your new Matsui Sandwich Toaster.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

GB

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a mechanical component or housing (no text or symbols)

The Main Unit Instruction Manual

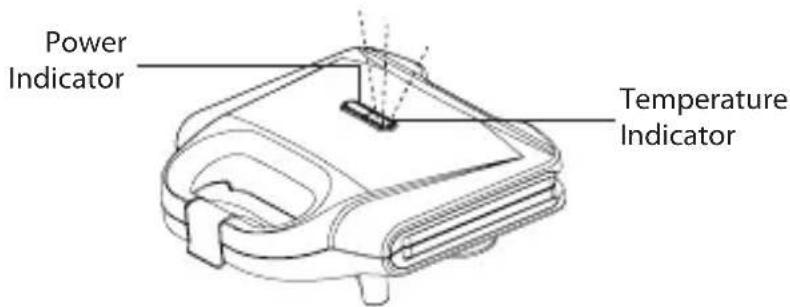

1. Power Indicator

2. Handle Lock

3. Temperature Indicator

4. Handle

First Time Use

Do not connect to the mains socket yet.

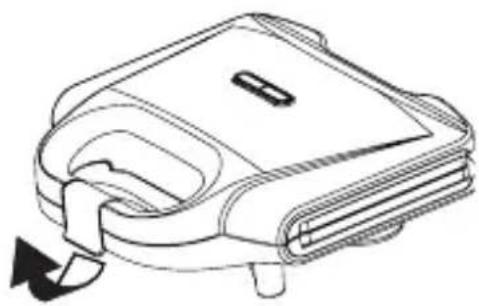

1. Open up your sandwich toaster by releasing the handle lock and lifting up the top half of the sandwich toaster.

Line drawing of a closed book with a curved spine and a scroll, showing no text or symbols.

1. Clean the surface of the cooking plates with a damp cloth and wipe dry.

Line drawing of a hand using a tool to cut or install a waffle (no text or symbols)

GB

1. Smear a layer of butter, margarine or cooking fat over the plates.

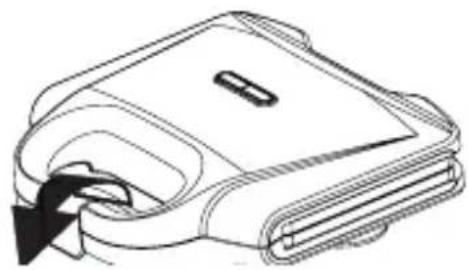

1. Gently squeeze the handles together and close the handle lock.

Line drawing of a device with a scroll and handle, showing a black arrow pointing to a component (no text or symbols)

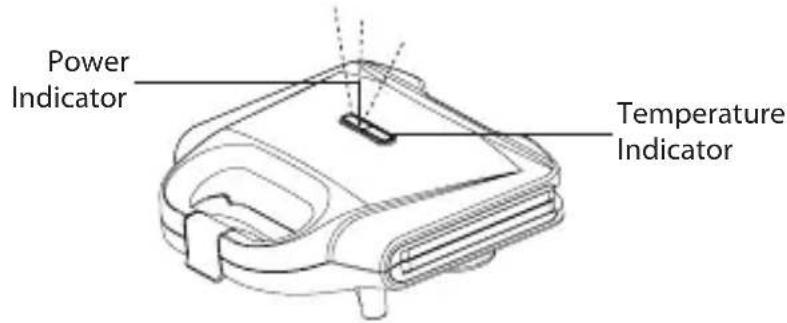

1. Connect the plug to the mains socket. The power indicator will light up.

1. When the temperature indicator lights up, unplug the mains plug from the mains socket.

Sandwich Making

Make sure the bread covers the cooking plates.

1. Connect the plug to the mains socket. The power indicator will illuminate and remain lit until the sandwich toaster reaches the correct cooking temperature.

1. When the temperature indicator lights up, open your sandwich toaster by releasing the handle lock and lifting up the top half of the sandwich toaster.

1. Place your bread on the lower half of the cooking plates with the buttered side facing down.

Line drawing of a waffle-shaped grating device with metal frame and two side panels (no text or symbols)

GB

1. Add fillings to the surface of the bread and then place another slice of bread on top, with the buttered side facing up.

2. Gently squeeze the handles together and lock the handles.

3. The temperature indicator will turn on and off whilst the built-in thermostat maintains the cooking temperature.

Line drawing of a device with a scroll wheel and handle, showing internal components (no text or symbols)

1. Your toasted sandwich should be ready in approximately 3-4 minutes. When the temperature indicator lights up, open the sandwich toaster with caution as it will be hot.

2. If you have finished, remember to unplug the mains plug from the mains socket.

Never use a metal object to remove your toasted sandwich as it may damage the cooking plates.

Cooking Hints:

Prepare the next sandwich while one is cooking.

When the temperature indicator switches off, it is the best time to cook the next sandwich. Always close the cooking plates to preserve the heat for the next sandwich.

Recipes for Sandwich Fillings

Never use raw meat as a sandwich filling. Do not reheat sandwiches that have a meat filling.

Here are some recipe examples:

• Tuna mayonnaise and sweet corn
• Cheese spread, ham and apple slices
- Pizza toppings, ham and grated cheddar cheese
• Brie with crushed walnuts and apple slices
• Avocado, crab and celery
• Cheddar cheese and onion

Cleaning and Maintenance

Do not use harsh cleaners, solvents or scouring pads as they may damage the casing.

1. Fully unplug the plug from the mains socket. Wait until the sandwich toaster has cooled down before cleaning.

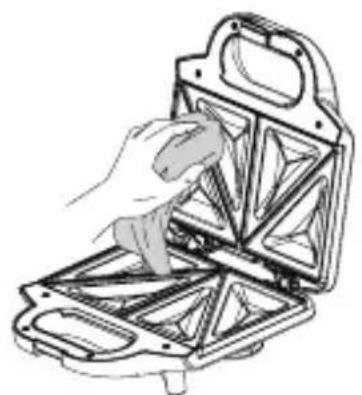

2. Clean the surface of the cooking plates with a damp cloth and wipe dry. Make sure you do not allow water to seep into the controls or heating elements.
3. After cleaning or when not in use, wrap the mains cable at the bottom of the sandwich toaster for storage.

Do not remove the cooking plates.

Line drawing of a hand using a waffle to cut the grating (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Specifications

Mains Supply: 220-240V \~50Hz

Power Consumption: 700W

Features and specifications are subject to change without prior notice.

Line drawing of a mechanical device with a handle and mounting bracket (no text or symbols)

Produktoversikt

1. Strømindikator

2. Temperaturindikator

3. Händtakslås

4. Håndtak

Førstegangsbruk

Line drawing of a device with a scroll and handle, showing a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand using a tool to cut or install a mechanical component (no text or symbols visible)

NO

Line drawing of a closed notebook with a scroll and a key inserted, showing no text or symbols

Line drawing of a waffle-shaped metal tray with two side panels, no text or symbols present

NO

Line drawing of a device with a scroll and handle, showing a black arrow pointing to a scroll (no text or symbols)

Line drawing of a hand using a tool to cut or install a waffle (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Spesifikasjoner

Nettstrøm: 220-240V \~50Hz

Strømforbruk: 700W

Line drawing of a mechanical component or housing (no text or symbols)

Line drawing of a device with a scroll and handle, showing a curved arm and base (no text or symbols)

Line drawing of a hand using a horse to cut the airfoil into a rectangular frame (no text or symbols)

Line drawing of a device with a scroll and handle, showing a black arrow pointing to a component (no text or symbols)

Technical line drawing of a waffle-shaped metal grating with internal triangular structure (no text or symbols)

Line drawing of a portable electronic device with a scroll wheel and handle, showing internal components (no text or symbols)

Line drawing of a hand using a tool to cut or install a waffle (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with a handle and mounting bracket (no text or symbols)

Laite Käyttöopas

Line drawing of a device with a scroll and handle, showing a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand using a tool to cut or install a mechanical component (no text or symbols)

Line drawing of a closed electronic device with a black arrow pointing to its side panel (no text or symbols)

Line drawing of a waffle-shaped metal tray with metal clamps and a handle, no text or symbols present

Line drawing of a device with a scroll and handle, showing a black arrow pointing to a component (no text or symbols)

Line drawing of a hand using a waffle to cut the pan into a metal frame (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Line drawing of a mechanical component or housing (no text or symbols)

Produktoversigt

1. Strømindikator

2. Håndtagslås

3. Temperaturindikator

4. Håndtag

Ved første brug

Line drawing of a device with a scroll and handle, showing a curved arrow indicating rotation (no text or symbols)

DK

Line drawing of a hand using a tool to cut or install a waffle (no text or symbols present)

Line drawing of a device with a black arrow pointing to a component (no text or symbols)

Technical line drawing of a waffle-shaped metal tray with triangular panels and handle (no text or symbols)

Line drawing of a device with a scroll and handle, showing a black arrow pointing to the scroll (no text or symbols)

Line drawing of a hand using a waffle to cut the grating (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

GB

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

FI
