Delight 6790 - Electric mixer OBH NORDICA - Free user manual and instructions

Product Type	Hand mixer
Brand	OBH Nordica
Model	Delight 6790
Number of Speeds	5 speeds + Turbo function
Material of Attachments	Stainless steel beaters and dough hooks
Power Supply	220-240 V, 50-60 Hz
Rated Power	400 W (estimated)
Maximum Continuous Operation	4 minutes
Rest Period	At least 20 minutes between uses
Weight	Approx. 1.2 kg
Dimensions (approx.)	20 x 10 x 15 cm
Cleaning	Beaters and dough hooks are dishwasher safe; wipe mixer body with damp cloth
Immersion Protection	Do not immerse the mixer body in water or other liquids
Safety Features	Automatic shut-off when overloaded? (not specified) Always unplug when not in use
Ejection Button	Press to release accessories (only when speed selector at 0)
Warranty	2 years limited guarantee (Sweden, Norway, Denmark, Finland)
Country of Origin	China (typical, but not specified)

Frequently Asked Questions - Delight 6790 OBH NORDICA

How do I attach the beaters or dough hooks?

Insert the beaters or dough hooks into the openings on the underside of the mixer until they click into place. For dough hooks, insert the one with a collar into the larger opening and the other into the smaller opening to prevent dough from rising up.

What is the maximum operating time?

Do not use the mixer continuously for more than 4 minutes. After that, let it rest for at least 20 minutes before using again.

Can I use the mixer for heavy dough?

Yes, but only for short periods. Use the dough hooks and select a lower speed (1-4) for mixing. Avoid overloading the motor; ensure the dough hooks can rotate freely.

How do I clean the mixer?

Remove the beaters/dough hooks and wash them in hot soapy water or in the dishwasher. Wipe the mixer body with a damp cloth and mild detergent. Never immerse the mixer in water or rinse it under running water.

What is the Turbo function and how do I use it?

The Turbo function provides an extra burst of speed for quick whipping. You can activate it at any speed setting. Use it for short periods only.

How do I release the attachments after use?

Ensure the speed selector is set to 0, then press the ejection button firmly. The beaters or dough hooks will detach. Be careful as they may be hot or have food residue.

What voltage does the mixer require?

The mixer is designed for 220-240 V household outlets only. Using a different voltage may damage the appliance and void the warranty.

What is covered under the warranty?

OBH Nordica provides a 2-year limited guarantee covering manufacturing defects in materials or workmanship. It does not cover misuse, normal wear, or damage from incorrect voltage. Proof of purchase is required.

Can I use the mixer to knead bread dough?

The dough hooks are suitable for light doughs. For heavier bread dough, use the mixer in short bursts (max 4 minutes) to avoid overheating. Consider using a stand mixer for heavy duty.

Is the mixer suitable for whipping egg whites?

Yes, use speeds 3-5 or Turbo for whipping egg whites. Ensure the beaters and bowl are clean and free of grease for best results.

USER MANUAL Delight 6790 OBH NORDICA

DESIGNING GOOD LIFE

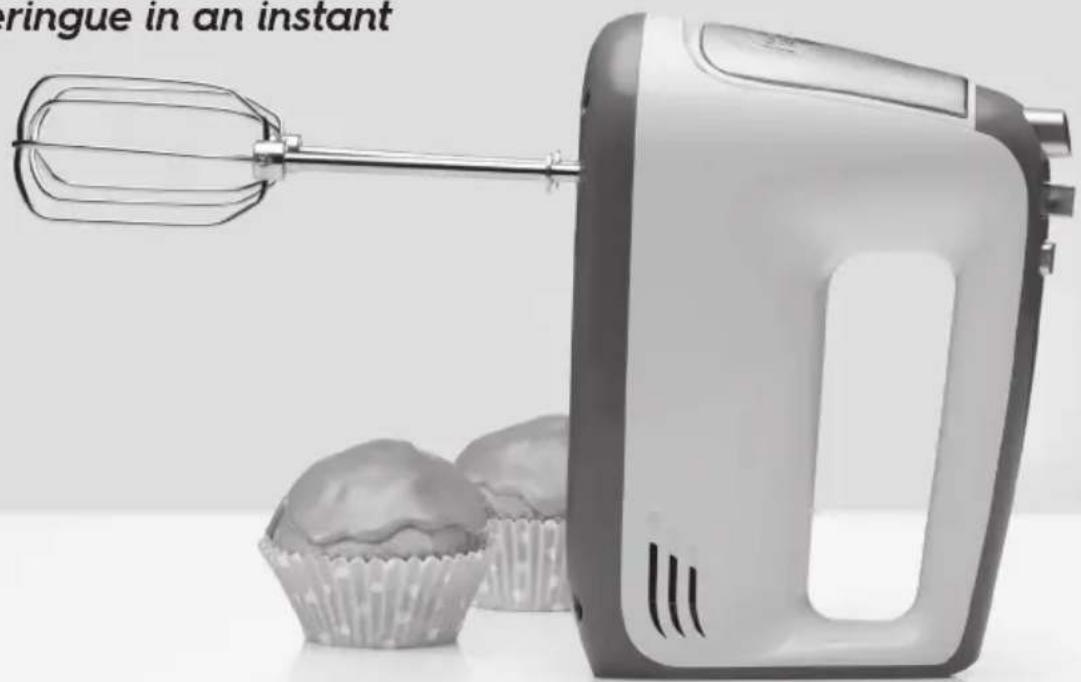

Hand Mixer DELIGHT

Effortless whipped cream and fluffy meringue in an instant

Making good!

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use, and save it for future use.
2. Plug the appliance to a household outlet of 220-240V only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply when disorder is experienced, when not in use, when parts are applied or removed from the appliance and before cleaning and maintenance.
4. The appliance must not be immersed into water or other liquids.
5. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
6. Cleaning and user maintenance shall not be made by children. Children shall be supervised to ensure that they do not play with the appliance.
7. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
8. Check that the cord is not hanging over the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.
10. The appliance should only be used under supervision.

11. The appliance should only be used for preparation of food.

12. The appliance must not be used continuously without a break. Maximum time of use: 4 minutes, then wait at least 20 minutes before the appliance is used again.

13. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, or his service agent or a similarly qualified person in order to avoid a hazard.
14. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended. Ask your installer for advice.
15. The appliance is for domestic use only.
16. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Before use

Clean the loose parts of the hand mixer (beaters and dough hooks) in soapy lukewarm water before use. Dry all parts thoroughly.

How to use the hand mixer

Hand mixer with beater

Place the mixer upright and hold on to the stem of the beaters while inserting them into the openings on the under side of the appliance. You will hear a click when the beaters are engaged. Position the 5-level speed control at 0 and insert the plug into a mains socket (remember to switch on) – the mixer is now ready for use.

Hold on to the handle of the mixer while inserting the whisks into the liquid to be whipped. Use your thumb to select the speed level by pushing the speed control to the right or to the left, respectively. Always start at step 1 and increase gradually if needed.

In order to avoid splashes, always keep the beaters in the ingredients in the bowl and switch off the mixer before lifting the beaters off the bowl.

Hand mixer with dough hooks

Insert the dough hook with a collar at the top of the stem into the big opening and the dough hook without collar into the small opening. It is important to position the hooks in this way in order to prevent the dough/the blend from working its way up the dough hooks and the stem.

Do not use the hand mixer more than 4 min. at a time and then let it rest for about 20 min. before proceeding.

NOTE! Make sure that the beaters and the dough hooks can rotate freely in the product to be whipped. If not, the motor may be overloaded!

What speed?

Steps 1-4: Blending of dried ingredients and liquids, whipping of cream and sauces and mashing of vegetables. Blending of cake dough or rather compact dough, using dough hooks, and stirring of sugar and fat to get a soft texture.

Steps 3-5: Whipping of cream, eggs and egg whites and beating of forcemeat and kneading of light dough.

Turbo: For extra fast whipping for short periods. The turbo function can be used at any speed and will increase the speed of the chosen setting.

After use

Switch off and unplug. Hold the mixer over a bowl or the sink and press the ejection button with your thumb for releasing the beaters/dough hooks. Please note that the beaters/dough hooks can only be released when speed control is set at "0". DO not press the speed control when in position 1 – 5.

Cleaning and maintenance

Wash beaters and dough hooks in hot water and washing liquid or in the dishwasher. Wipe the mixer with a cloth, if necessary with dishwasher liquid. Dry with a dry cloth or kitchen towel. Do not use scouring powder or other aggressive detergents that might scratch or delustre the surface of the appliance.

IMPORTANT: Never rinse the mixer under running water or immerse it into water or other liquids.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

172 66 Sundbyberg

Phone [phone]

www.obhnordica.com

Technical data

OBH Nordica 6790

5 speeds and turbo function

Beaters and dough hooks of stainless steel

CE

These instructions are subject to alterations or improvements.
