G-Seat - Gaming chair Infiniton - Free user manual and instructions

Product Type	Gaming Chair
Brand	Infiniton
Model	G-Seat
Seat Material	PU Leather
Frame Material	Metal
Foam Type	High-density foam
Weight Capacity	120 kg
Seat Height Range	45 - 55 cm
Backrest Recline	90° to 135°
Armrests	2D Adjustable (height & rotation)
Base Type	Nylon five-star base
Caster Material	PU casters
Rocking Mechanism	Yes, with tension control
Locking Mechanism	Tilt lock
Overall Dimensions (approx)	70 x 70 x 130 cm
Net Weight	20 kg
Power Supply	None (manual adjustment)
Main Features	Ergonomic design, adjustable lumbar support, headrest pillow, recline, rocking
Cleaning Instructions	Wipe with damp cloth and mild soap
Safety Standards	BIFMA compliant
Spare Parts Availability	Yes, through manufacturer
Warranty	2 years

Frequently Asked Questions - G-Seat Infiniton

How do I assemble the Infiniton G-Seat gaming chair?

Assembly is straightforward. Follow these steps: 1) Attach the five-star base to the casters. 2) Insert the gas lift into the base. 3) Secure the seat plate to the bottom of the seat. 4) Attach the backrest to the seat using the provided bolts. 5) Insert the seat onto the gas lift. 6) Attach the armrests. All necessary tools are included. For detailed instructions, refer to the assembly manual.

How do I adjust the seat height?

To adjust the seat height, locate the height adjustment lever under the right side of the seat. While seated, lift the lever to raise the chair or push down on the seat to lower it. Release the lever to lock the desired height.

How can I recline the backrest?

The backrest can be reclined between 90° and 135°. To adjust, pull the recline lever located on the right side of the seat while leaning back. Release the lever at your preferred angle to lock it in place.

How do I lock the rocking function?

The rocking function can be locked by turning the tension control knob under the seat clockwise until it clicks. To enable rocking, turn it counterclockwise. Adjust the tension knob to control rocking resistance.

What is the best way to clean the PU leather?

Clean the PU leather with a soft cloth dampened with mild soap and water. Avoid abrasive cleaners, alcohol, or solvents. Wipe dry with a clean cloth. Regular cleaning maintains the leather appearance and durability.

What is the weight capacity of this chair?

The Infiniton G-Seat gaming chair has a maximum weight capacity of 120 kg (265 lbs). Do not exceed this limit to ensure safety and longevity.

Can I replace the armrests?

Yes, the armrests are replaceable. Contact Infiniton customer support or authorized dealers to order replacement armrests. Remove the old armrests by unscrewing the bolts underneath and attach the new ones with the same screws.

How do I adjust the lumbar support?

The lumbar support is built into the backrest and can be adjusted using the lumbar knob located on the back of the chair. Turn the knob to increase or decrease support depth for optimal lower back comfort.

Is the chair delivered pre-assembled?

No, the chair requires self-assembly. All components, tools, and instructions are included in the box. Assembly typically takes 20-30 minutes with two people recommended.

What should I do if the chair feels wobbly?

If the chair wobbles, check the following: 1) Ensure the gas lift is fully inserted into the base. 2) Tighten all bolts connecting the seat and backrest. 3) Verify that the base is not damaged. If the issue persists, contact support for replacement parts.

USER MANUAL G-Seat Infiniton

Line drawing of an office chair with ergonomic design and adjustable armrest (no text or symbols)

Información general

Line drawing of an office chair with ergonomic design (no text or symbols)

M8X16X12		M5X10X2		CEAFD[FX1]		X1		X2		X1
G(CTBD)X1		H(ZYW)---		IX1	JX5		K		LX1		M(ZWXA)X1

	1	2
3	4	5
6	7

Ajuste del respaldo

• Gama Blanca: rmablanca.infiniton.es
• Gama Marrón: rma.infiniton.es

Line drawing of an office chair with patterned backrest and adjustable armrest (no text or symbols)

General information

Before using your new gaming chair, read this manual carefully. Save the manual for future reference and make it accessible to other users. Use the gaming chair only as described in the instructions. No liability is assumed for damages caused by non-compliance with the instructions.

The gaming chair must be used exclusively according to its intended use, for example: as seats for indoor use and for maximum use by one person.

Use:	Claim:
Camping area
Living room	X
Property area

Security advice

For your own safety, follow the instructions below to avoid personal injury and property damage.

• If any part is missing, it is broken, damaged or worn. Immediately stop using this product until the necessary repairs have been made.
  • In case of defect, please contact Infiniton.
• Do not use the chair unless all screws are tight.
• Check all screws monthly and retighten them if necessary.
• This product is only suitable as a seat for one person.
• This chair has been tested and is suitable for users with limited weight. People who are overweight should not use the chair.
• The gas pump must not be heated or opened. Repairs to the gas pressure pump and the height adjustment element of the seat can only be carried out by trained specialist personnel.

There is a risk of injury!

- Keep small parts away from children! There is danger of suffocation!

- Packaging materials, such as plastic bags, should not be available to children. Keep packaging material out of the reach of children. Discard it according to the local regulations in force.

Parts List

Remove all components of the product from the packaging. Remove all packing material from the pieces.

INFINITON

Line drawing of an office chair with ergonomic design (no text or symbols)

M8X16X12		M5X10X2		CEA D F X1		X1		X2		X1
G [225A]X1		H [2235]---		I X1	J X5		K		L		M X1

	1	2
3	4	5
6	7

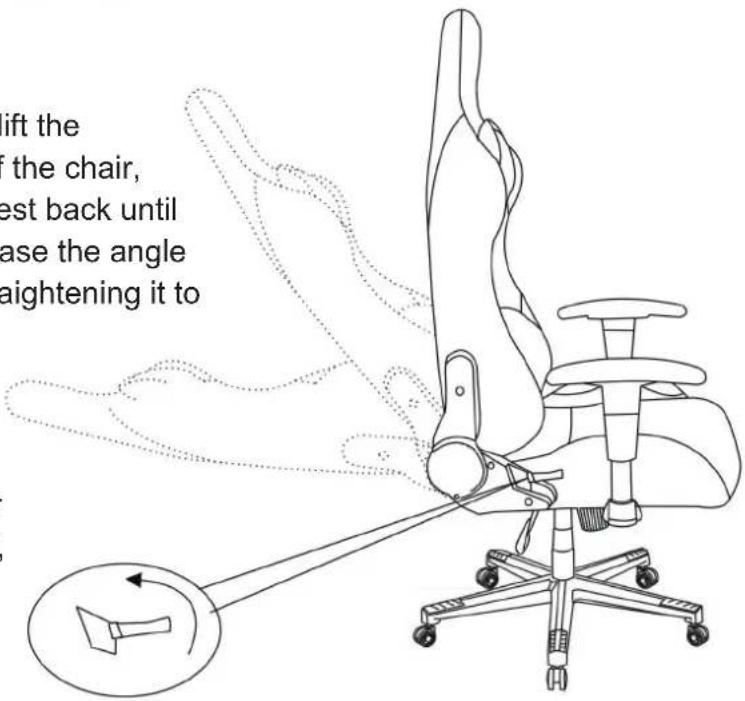

Backrest adjustment

To increase the angle of the backrest, lift the adjustment lever up on the right side of the chair, allowing your weight to push the backrest back until the desired angle is reached. To decrease the angle of the backrest, lift the handle while straightening it to the desired angle.

Tilt lock

To prevent tilting, gently push the lever inward. To tilt it back, pull out the lever, which will allow the chair to tilt backwards.

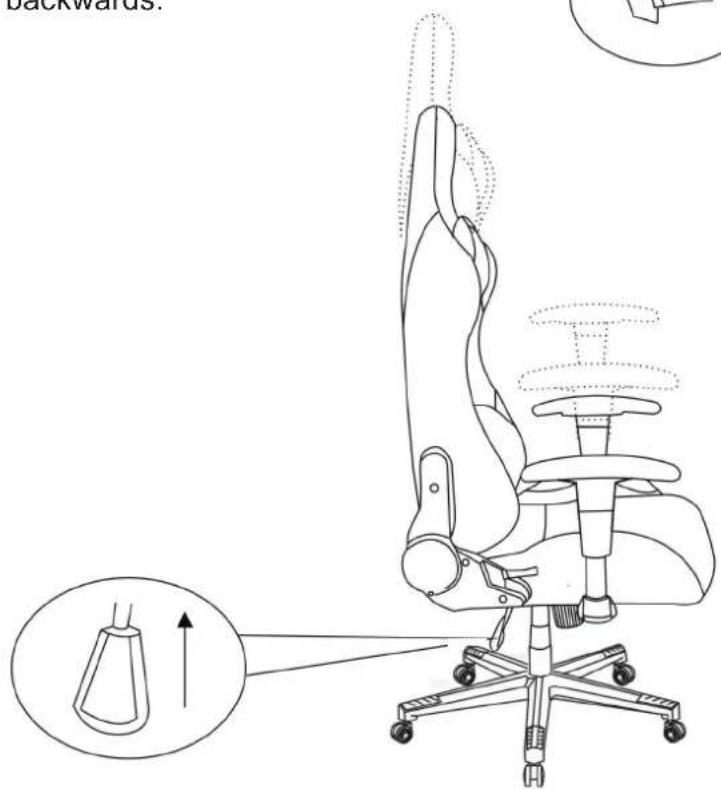

Seat height adjustment

To lift the chair, lift the height lift lever while lifting the seat weight until it reaches the desired height. Release the lever to lock. To lower the chair, lift the lever up to allow your weight to push the seat to the desired height. Release the lever to lock.

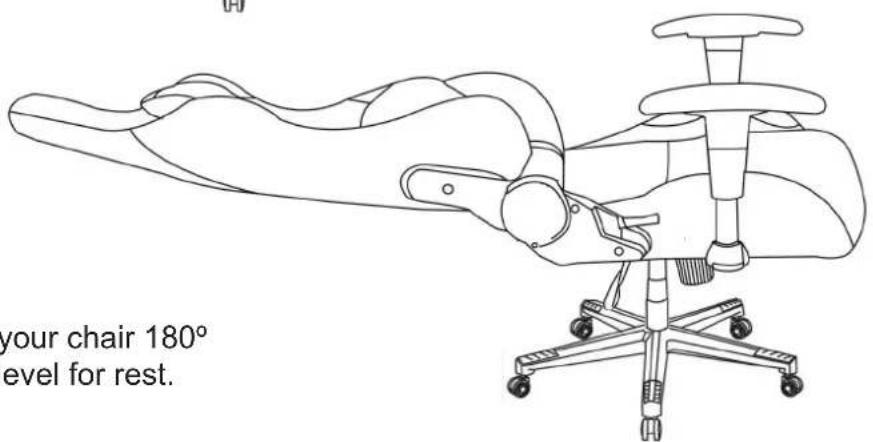

Fully reclined

Tone the back of your chair 180° to get an optimal level for rest.

PROCEDURE IN CASE OF FAILURE OF AN INFINITON PRODUCT

Dear customers, to request technical assistance or repair of your Infiniton product, you have our website, operating 24 hours a day and 7 days a week:

• Gama Blanca: rmablanca.infiniton.es
• Gama Marrón: rma.infiniton.es

Alternatively, if they wish, they can request technical assistance via email:

• Gama Blanca: [e-mail]
• Gama Marrón: [e-mail]

To streamline all procedures, the following information should always be indicated:

• Name and surname
• Telephone 1
• Telephone 2
• Full address
• Postal Code
• Population
• Brand
• Product model
• Serial number
• Failure presented by the product

If they wish, they can request technical assistance through the number 902 676 518 or 958 087 169, available only for white range products (except for free-standing microwaves).

Line drawing of an office chair with patterned backrest and adjustable armrest (no text or symbols)

Informação geral

Line drawing of an office chair with ergonomic design (no text or symbols)

M8X16X12		M5X10X2		CEA D F[X1]		X1		X2		X1
G[XAT2]X1		H---		IX1	JX5		K		L	MX1

	1	2
3	4	5
6	7

Ajuste do encosto

• Linha Branca: rmablanca.infiniton.es
• Linha Marrom: rma.infiniton.es
