Product Type	LED TV
Brand	XD
Model	43SF3VSAT
Screen Size	43 inches (108 cm)
Display Resolution	Full HD 1920 x 1080 pixels
Refresh Rate	60 Hz
Brightness	250 cd/m²
Contrast Ratio	3000:1 (static)
Viewing Angle	178° / 178°
Speakers	2 x 8W
Connectivity	HDMI (2), USB (1), VGA (1), AV input, Headphone out, Coaxial out
Wireless Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth not specified
Smart TV	Not available (basic TV)
Power Consumption	Operating: 70W, Standby: <0.5W
Power Supply	AC 100-240V, 50/60Hz
Dimensions (with stand)	97.3 x 61.5 x 20.0 cm
Dimensions (without stand)	97.3 x 56.7 x 8.8 cm
Weight (with stand)	8.5 kg
VESA Mount	200 x 200 mm
Energy Class	A+
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Spare Parts Availability	Contact authorized service center
Repairability Index	5.5 / 10 (estimated)

Frequently Asked Questions - 43SF3VSAT XD

How do I connect external devices to my XD 43SF3VSAT TV?

Use the HDMI ports for Blu-ray players, gaming consoles, or streaming devices. Connect a USB drive to the USB port to play media files. For older devices, use the VGA or AV input.

Why is there no sound coming from my TV?

Check if the volume is muted or set too low. Ensure external speakers are properly connected. Try pressing the Mute button on the remote. If still no sound, go to Settings > Audio and verify the audio output is set to TV speakers.

How do I mount my 43SF3VSAT on the wall?

Your TV supports VESA 200 x 200 mm wall mounts. Use a compatible mount and follow the instructions. Ensure the wall can support the TV's weight (8.5 kg). Always have a professional install if unsure.

What is the best picture setting for this TV?

For optimal viewing, set the picture mode to Standard in the menu. Adjust brightness (50-60), contrast (70-80), and sharpness (30) to your preference. For movies, try Cinema mode.

Can I use Bluetooth headphones with this TV?

The XD 43SF3VSAT does not have built-in Bluetooth. To use wireless headphones, connect a Bluetooth transmitter to the Audio Out port (3.5mm jack) or use a Bluetooth adapter with HDMI ARC.

How do I perform a factory reset?

Go to Settings > System > Factory Reset. Enter the PIN (default 0000 or 1234). Confirm to reset all settings to defaults. Note: This will erase all custom settings.

Why does my TV turn off by itself?

This could be due to the Sleep Timer being set. Press the Sleep button on the remote to check. Also, ensure the power cable is tight. If the issue persists, try a factory reset.

How do I update the TV firmware?

Since this is a basic TV, firmware updates may not be available. Check the XD website for any updates. If provided, download to a USB drive, insert into the TV, and follow on-screen prompts under Settings > Support.

What file formats are supported via USB?

The TV supports common formats: MP4, AVI, MKV for video; MP3, WMA for audio; JPEG, PNG for photos. Ensure the USB drive is formatted as FAT32.

How do I clean the TV screen?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. For stubborn smudges, lightly dampen the cloth with water (never use alcohol or chemicals). Avoid pressing hard.

USER MANUAL 43SF3VSAT XD

TELEVISORE A COLORI CON TELECOMANDO COLOUR TELEVISION WITH REMOTE CONTROL

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby mode or switched off.Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operatingWARNING: Never let people (including children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised.Use this TV set at an altitude of less than 200 meters above the sea level, in dry locations and in regions with moderate or tropical climates.The TV set is intended for household and similar general use but may also be used in public places.For ventilation purposes, leave at least 5cm of fre space around the TV.The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.The power cord plug should be easily accessibleDo not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.Do not expose the TV to dripping or splashing liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit).Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV.

Contents

Safety Information	26
Markings on the Product	27
Environmental Information	28
Features	28
Accessories Included	28
Standby Notifications	28
TV Control Switch & Operation	28
Inserting the Batteries into the Remote	29
Connect Power	29
Antenna Connection	29
License Notification	29
Remote Control	31
Connections	32
Switching On/Off	33
First Time Installation	33
Media Playback via USB Input	34
Media Browser Menu	34
FollowMe TV (if available)	34
CEC and CEC RC Passthrough	35
E-Manual	35
TV Menu Contents	36
General TV Operation	39
Using the Channel List	39
Configuring Parental Settings	39
Electronic Programme Guide (EPG)	39
Teletext Services	40
Software Upgrade	40
Troubleshooting & Tips	40
PC Input Typical Display Modes	41
AV and HDMI Signal Compatibility	41
Supported Video File Formats for USB Mode	42
Supported Picture File Formats for USB Mode	42
Supported Audio File Formats for USB Mode	42
Supported Subtitle File Formats for USB Mode	43
Supported DVI Resolutions	43
Connectivity	44
Internet Portal	47
Internet Browser	47
Smart Center	48

WARNINGApparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing - and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)

Environmental InformationThis television is designed to be environment friendly. To reduce energy consumption, you can follow these steps:If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy consumption accordingly. If you like to set the Backlight to a fixed value set as Custom and adjust the Backlight (located under the Energy Saving setting) manually using Left or Right buttons on the remote. Set as Off to turn this setting off.Note: Available Energy Saving options may differ depending on the selected Mode in the System>Picture menu. The Energy Saving settings can be found in the System>Picture menu. Note that some picture settings will be unavailable to be changed.If pressed Right button while Auto option is selected or Left button while Custom option is selected, "Screen will be off in 15 seconds." message will be displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don't press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again.Note: Screen Off option is not available if the Mode is set to Game.When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

FeaturesRemote controlled colour TVFully integrated digital terrestrial/cable/satellite TV (DVB-T-T2/C/S-S2)HDMI inputs to connect other devices with HDMI socketsUSB inputOSD menu systemStereo sound systemTeletextHeadphone connection

WARNINGDo not ingest the battery, Chemical Burn HazardThis product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.Keep new and used batteries away from children.If the battery compartment does not close securely, stop using the product and keep it away from children.If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

WARNINGNever place a television set in unstable or inclined locations. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:Using cabinets or stands recommended by the manufacturer of the television set.Only using furniture that can safely support the television set.Ensuring the television set is not overhanging the edge of the supporting furniture.Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.Not standing the television set on cloth or other materials placed between the television and supporting furniture.Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied.

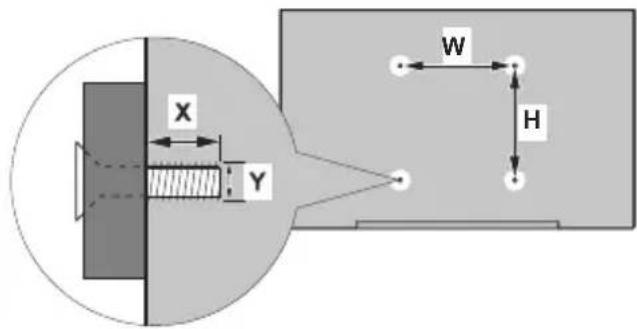

WALL MOUNTING WARNINGSRead the instructions before mounting your TV on the wall.The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.Do not install the TV on a ceiling or on an inclined wall.Use the specified wall mounting screws and other accessories.Tighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component

Information for Users on Disposal of Old Equipment and Batteries [European Union only]

Equipment bearing these symbols should not be disposed as general household waste. You should look for appropriate recycling facilities and systems for the disposal of these products. Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Wireless LAN Transmitter Specifications

Frequency Ranges Max Output Power

2400 - 2483,5 MHz (CH1-CH13) < 100 mW

5150 - 5250 MHz (CH36 - CH48) < 200 mW

5250 - 5350 MHz (CH52 - CH64) < 200 mW

5470 - 5725 MHz (CH100 - CH140) < 200 mW

Country Restrictions

This device is intended for home and office use in all EU countries (and other countries following the relevant EU directive) without any limitation except for the countries mentioned below.

Country Restriction
Bulgaria	General authorization required for outdoor use and public service
France In-door	use only for 2454-2483.5 MHz
Italy	If used outside of own premises, general authorization is required
Greece	In-door use only for 5470 MHz to 5725 MHz band
Luxembourg	General authorization required for network and service supply(not for spectrum)
Norway	Radio transmission is prohibited for the geographical area within a radius of 20 km from the centre of Ny-Alesund
Russian Federation	In-door use only

The requirements for any country may change at any time. It's recommended that user checks with local authorities for the current status of their national regulations for both 2.4 GHz and 5 GHz wireless LAN's.

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket or satellite plug to the SATELLITE INPUT (LNB) socket located on the back of the TV.

License Notification

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.
YouTube and the YouTube logo are trademarks of Google Inc.
This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

Scroll through the stored channels by pushing the button up or down.

To change source: Press the middle of the button twice(for the second time in total), the source list will appear on the screen. Scroll through the available sources by pushing the button up or down.
To turn the TV off: Press the middle of the button down and hold it down for a few seconds, the TV will turn into standby mode.

Notes:

- If you turn the TV off, this circle starts again beginning with the volume setting. - Main menu OSD cannot be displayed via control button.

Operation with the Remote Control

Press the Menu button on your remote control to display main menu screen. Use the directional buttons to select a menu tab and press OK to enter. Use the directional buttons again to select or set an item. Press Return/Back or Menu button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press the Source button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the Volume +/- and Programme +/- buttons on the remote.

Inserting the Batteries into the Remote

Remove the screw that secure the battery compartment cover on the back side of the remote control first. Remove the cover gently. Insert two AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Then screw the cover back on again.

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Remote Control

Standby: Switches On / Off the TV

Netflix: Launches the Netflix application

Numeric buttons: Switches the channel, enters a

number or a letter in the text box on the screen.

TV: Switches to TV Source

Back/Return: Returns to previous screen opens index.

Back, Return: Returns to Previous Screen, opens index price (in TXT mode).

page (in FX mode)

internet: Opens the portal page, where you can

Mainly web based applications

volume +/-

Directional buttons: Helps navigate menus, content

etc. and displays the subpages in TXT mode when

pressed Right or Left

Mute: Completely turns off the volume of the TV

Info: Displays information about on-screen content,

shows hidden information (reveal - in TXT mode)

EPG (Electronic programme guide): Displays the

electronic programme guide

Media browser: Opens the media browsing screen

Coloured Buttons: Follow the on-screen instructions.

for coloured button functions

Language: Switches among sound modes (analogue

Language: Switches among sound modes (analogue

TV), displays and changes audio/subtitle language (digital TV, where available).

(digital TV, where available)

Subtitles: Turns subtitles on and off (where available)

Rapid reverse: Moves frames backwards in media

such as movies

No function

Play: Starts to play selected media

Play: Starts to play selected media Stop: Stops the media being played

Stop. Stops the media being played

Pause: Pauses the media being played

Rapid advance: Moves frames forward in media such

as movies

Screen: Changes the aspect ratio of the screen

My button 4 (*)

My Button 1 ( ) My button 2 (*)

My Button 2 ( )

Quick Menu: Displays a list of menus for quick access

Text: Displays teletext (where available), press again

to superimpose the teletext over a normal broadcast

picture (mix)

Source: Shows all available broadcast and content

sources

Exit: Closes and exits from displayed menus or returns

to previous screen

to previous screen

Programme +/-

OK: Confirms user selections, holds the page (in TXT

mode), views channel list (DTV mode)

Menu: Displays TV menu

Swap: Quickly cycles between previous and current

channels or sources

(1) 2017年1月1日（星期六）

(*) MY BUTTON 1 & MY BUTTON 2:

These buttons may have default functions depending on the model. However you can set a special function to these buttons by pressing on them for five seconds when on a desired source or channel. A confirmation message will be displayed on the screen. Now the selected MY BUTTON is associated with the selected function.

Note that if you perform First Time Installation, MY BUTTON 1&2 will return to their default function.

select Home Mode for home use. This option will be available in System>Settings>More menu and can be turned off/on later.Depending on the model of your TV and the country selection Privacy Settings menu may appear at this point. Using this menu you can set your privacy privileges. Highlight a feature and use Left and Right directional buttons to enable or disable. Read the related explanations displayed on the screen for each highlighted feature before making any changes. You can use Programme +/- buttons to scroll up and down to read the entire text. You will be able to change your preferences at any time later from the Settings>Privacy Settings menu. If the Internet Connection option is disabled Network/Internet Settings screen will be skipped and not displayed. If the User has any questions, complaints or comments regarding this privacy policy or its enforcement, the User may contact via this email: [e-mail] OK button on the remote control to continue and the Network/Internet Settings menu will be displayed, if you confirm the previously displayed message asking whether you want to do the network settings. Please refer to Connectivity section to configure a wired or a wireless connection. If you want your TV to consume less power in standby mode, you can disable the Wake On option by setting it as Off. After the settings are completed press OK button to continue. To skip to the next step without doing anything select No and press the OK button when the message is displayed asking whether you want to do the network settings.After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.After all the available stations are stored, scan results will be displayed. Press OK to continue. The Edit Channel List menu will be displayed next. You can edit the channel list according to your preferences or press the Menu button to quit and watch TV.While the search continues a message may appear, asking whether you want to sort channels according to the LCN(*). Select Yes and press OK to confirm. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available).Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.Media Playback via USB InputYou can connect 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.IMPORTANTI Back up the files on your storage devices before connecting them to the TV.

Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting.Wait a little while before each plugging and unplugging as the player may still be reading files. Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a file.You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk.Note: When viewing image files the Media Browser menu can only display 1000 image files stored on the connected USB device.Media Browser MenuYou can play photo, music and movie files stored on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the Menu button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the Menu button again will exit from this screen. You can set your Media Browser preferences by using the Settings menu.

Loop/Shuffle Mode OperationStart playback with the Play button and activate All files in the list will be continuously played in original orderStart playback with the OK button and activate The same file will be played continuously (repeat)Start playback with the Play button and activate All files in the list will be played once in random orderStart playback with the Play button and activate All files in the list will be continuously played in the same random order.

FollowMe TV (if available)With your mobile device you can stream the current broadcast from your smart TV using the FollowMe TV feature. Install the appropriate Smart Center application to your mobile device. Start the application.For further information on using this feature refer to the instructions of the application you use.Note: This application may not be compatible with all mobile devices. HD channels are not supported and both of the devices must be connected to the same network.

Switching On/OffTo Switch the TV OnConnect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).To switch on the TV from standby mode either:Press the Standby button, Programme +/- or a numeric button on the remote control.Press the the middle of side function switch on the TV in.To Switch the TV OffPress the Standby button on the remote control or press the middle of the side function switch on the TV in and hold it down for a few seconds, the TV will switch into standby mode.To power down the TV completely, unplug the power cord from the mains socket.Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.First Time InstallationWhen turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.On the next screen, set your preferences using the directional buttons.Note: Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be oooo. You have to enter it if you are asked to enter a PIN for any menu operation later.About Selecting Broadcast TypeDigital Aerial: If Digital Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed.Digital Cable: If Digital Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed. According to your other preferences a confirmation message may be displayed before starting to search. Select YES and press OK to proceed. To cancel operation, select NO and press OK. You can select Network or set values such as Frequency, Network ID and Search Step. When finished, press OK button.Note: Searching duration will change depending on the selected Search Step.Satellite: If the research option Satellite is switch-on, TV will search for digital satellite channels after other initial settings are completed.Before performing the satellite search, some settings should be made:

If the type of installation is standard, you can select Antenna's Type on Direct, Single Satellite Cable or DiSEqC Switch using the button "◀" or ►.Direct: If you have a single receiver and a direct parabola, select this type of antenna. Press OK button to continue. Select a satellite available on the next screen and press OK for the scan of the services.Single Satellite Cable: If you have multiple receivers and a single satellite cable, select this type of antenna. Press OK button to continue. Configure the settings by following the instructions on the next screen. Press OK to scan the devices.DiSEqC switch: In case you have a multiple LNB or multiple satellite dish and a DiSEqC switch, select this type of antenna. Press OK button to continue. It will be possible to set four DiSEqC options (if available) on the next screen. Press OK button to scan the first satellite in the list.If the installation type is Operator - Tivusat will be made a research for the channels on the Hot Bird 13 East satellite according to Tivusat order.It will be possible select Antenna's Type on Direct, Single Satellite Cable or DiSEqC Switch by using the "◀" or ►buttons.Direct: If you have a single receiver and a direct parabola, select this type of antenna. Press OK button to continue. On the next screen will appear the Hot Bird (13.0E) satellite imposted, press OK for the scan of the services.Single Satellite Cable: If you have multiple receivers and a single satellite cable, select this type of antenna. Press OK button to continue. Configure the settings by following the instructions on the next screen. Press OK to scan the devices.DiSEqC switch: In case you have a multiple LNB or multiple satellite dish and a DiSEqC switch, select this type of antenna. Press OK button to continue. It will be possible to set four DiSEQ C options (if availables) on the next screen. Press OK button to scan the first satellite in the list.Analogue: If Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed.Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the channels of it will be listed on the top of the Channel List. When finished, press OK to continue.You can activate Store Mode option at this point. This option will configure your TV's settings for store environment and depending on the TV model being used, the supported features of it may be displayed on the top of the screen as an info banner. This option is intended only for store use. It is recommended to

Switching On/Off

TV Menu Contents
System - Picture Menu Contents
Mode		You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.
Contrast		Adjusts the light and dark values on the screen.
Brightness		Adjusts the brightness values on the screen.
Sharpness		Sets the sharpness value for the objects displayed on the screen.
Colour		Sets the colour value, adjusting the colours.
Energy Saving		For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Off or Off.Note: Available options may differ depending on the selected Mode.
Backlight		This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other then Custom.
Advanced Settings
	Dynamic Contrast	You can change the dynamic contrast ratio to desired value.
	Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
	Colour Temp	Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.
	White Point	If the Colour Temp option is set as Custom, this setting will be available. Increase the 'warmth' or 'coolness' of the picture by pressing Left or Right buttons.
	Picture Zoom	Sets the desired image size format.
	Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
	Skin Tone	Skin tone can be changed between -5 and 5.
	Colour Shift	Adjust the desired colour tone.
	HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
PC Position		Appears only when the input source is set to VGA/PC.
	Autoposition	Automatically optimizes the display. Press OK to optimize.
	H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
	V Position	This item shifts the image vertically towards the top or bottom of the screen.
	Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
	Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset		Resets the picture settings to factory default settings (except Game mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

By using the directional buttons select a desired category. Every category includes different topics. Select a topic and press OK to read instructions. To close the E-Manual screen press the Exit or Menu button. Note: The contents of the E-Manual may vary according to the model.

CEC and CEC RC Passthrough

This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.

The CEC option in the System>Settings>More menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.).

The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.

To terminate this operation and control the TV via the remote again, press Quick Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the System>Settings>More menu.

The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system).

When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.

Note: ARC is supported only via the HDMI2 input.

System Audio Control

Allows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the System>Settings>More menu as Amplifier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system.

Note: The audio device should support System Audio Control feature and CEC option should be set as Enabled.

E-Manual

You can find instructions for your TV's features in the E-Manual.

To use E-Manual, press to the Info button while main menu is displayed on the screen or press Quick Menu button, select Information Booklet and press OK.

Subtitle Mode		This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway.
Auto TV OFF		Sets the desired time for the TV to automatically go into standby mode when not being operated.
Biss Key		Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter Biss key on a broadcast, you can use this setting. Highlight Biss Key and press OK to enter keys on the desired broadcast.
Store Mode		Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.
Audio Video Sharing		Audio Video Sharing feature allows you to share files stored on your smartphone or tablet pc. If you have a compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your TV. See instructions of your sharing software for more information. Audio Video Sharing mode will not be available with internet portal feature.
Power Up Mode		This setting configures the power up mode preference. Last State and Standby options are available.
Virtual Remote		Enable or disable the virtual remote feature.
CEC		With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
CEC Auto Power On		This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.
Speakers		To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.
Show All Cookies (*)		Displays all saved cookies.
Delete All Cookies (*)		Deletes all saved cookies.
OSS		Displays Open Source Software license information.
These features may not be available depending on the model of your TV and the selected country in the First Time Installation.
Installation Menu Contents
Automatic channel scan tune)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Satellite: Searches and stores satellite stations.
Annual channel n	This feature can be used for direct broadcast entry.
Network channel scan	Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels. Digital Cable: Searches for cable network channels.
Dialogue fine e	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
Satellite tings	Displays satellite settings. Satellite list: Displays available satellites. You can Add, Delete satellites or Edit satellite settings on the list. Antenna installation: You can change satellite antenna settings and/or start a satellite scan.
Installation tings optional)	Displays installation settings menu. Standby Search(*): Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown. Dynamic Channel Update(*): If this option is set as Enabled, the changes on the broadcasts such as frequency, channel name, subtitle language etc., will be applied automatically while watching. (*) Availability depends on model.
Star Service t	Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Elect Active work	This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.
Last time stallation	Deletes all stored channels and settings, resets TV to factory settings.

System - Sound Menu Contents
Volume		Adjusts the volume level.
Equalizer		Selects the equalizer mode. Custom settings can be made only when in User mode.
Balance		Adjusts whether the sound comes from the left or right speaker.
Headphone		Sets headphone volume.Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
Sound Mode		You can select a sound mode (If the viewed channel supports).
AVL (Automatic Volume Limiting)		Sets the sound to obtain fixed output level between programmes.
Headphone/Lineout		When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone. Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.
Dynamic Bass		Enables or disables the Dynamic Bass.
Surround sound		Surround sound mode can be changed as On or Off.
Digital Out		Sets digital out audio type.
System - Settings Menu Contents
Conditional Access		Controls conditional access modules when available.
Language		You may set a different language depending on the broadcaster and the country.
Privacy Settings (*)		Manage your privacy privileges for smart TV related applications. Press OK to enter the menu and set according to your preferences.
Parental		Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.Note: Some menu options may not be available depending on the country selection in the First Time Installation. Default PIN can not be set to 0000. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.
Timers		Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.
Date/Time		Sets date and time.
Sources		Enables or disables selected source options.
Network/Internet Settings		Displays network/internet settings.
Accessibility		Displays accessibility options of the TV.
	Hard of Hearing	Enables any special feature sent from the broadcaster.
	Audio Description	A narration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it.
Netflix		You can view your ESN(*) number and deactivate Netflix.(*) ESN number is an unique ID number for Netflix, created especially to identify your TV.
More		Displays other setting options of the TV.
	Menu Timeout	Changes timeout duration for menu screens.
	Standby LED	If set as Off, the standby LED will not light up when the TV is in standby mode.
	Software Upgrade	Ensures that your TV has the latest firmware. Press OK to see the menu options.
	Application Version	Displays current software version.
Now/Next ScheduleNavigate (Directional buttons): Press the Directional buttons to navigate through the channels and events.Options (OK button): Displays event options.Event Details (Info button): Displays detailed information about selected events.Filter (Blue button): Views filtering options.Event OptionsUse the directional buttons to highlight an event and press OK button to display Event Options menu. The following options are available.Select Channel: Using this option, you can switch to the selected channel.Set Timer on Event / Delete Timer on Event: After you have selected an event in the EPG menu, press the OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future events. To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled.Notes: You cannot switch to any other channel or source while there is an active timer on the current channel.It is not possible to set timer for two or more individual events at the same time interval.Teletext ServicesPress the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.Digital TeletextPress the Text button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the Text button is pressed again, the TV returns to television broadcast.Software UpgradeYour TV is capable of finding and updating the firmware automatically via the broadcast signal or via Internet.Software upgrade search via user interfaceOn the main menu select System>Settings and then More. Navigate to Software upgrade and press the OK button. In Upgrade options menu select Scan for upgrade and press OK button to check for a new software upgrade.If a new upgrade is found, it starts to download the upgrade. After the download is completed confirm the question asking about rebooting	the TV by pressing the OK to continue with the reboot operation.3 AM search and upgrade modeYour TV will search for new upgrades at 3:00 o'clock if Automatic scanning option in the Upgrade options menu is set to Enabled and if the TV is connected to an aerial signal or to Internet. If a new software is found and downloaded successfully, it will be installed at the next power on.Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.Troubleshooting & TipsTv will not turn onMake sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.Poor pictureCheck if you have selected the correct TV system.Low signal level can cause picture distortion. Please check antenna access.Check if you have entered the correct channel frequency if you have done manual tuning.The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.No pictureThis means your TV is not receiving any transmission. Make sure the correct source has been selected.Is the antenna connected properly?Is the antenna cable damaged?Are suitable plugs used to connect the antenna?If you are in doubt, consult your dealer.No soundCheck if the TV is muted. Press the Mute button or increase the volume to check.Sound may be coming from only one speaker. Check the balance settings from Sound menu.Remote control - no operationThe batteries may be exhausted. Replace the batteries.Input sources - can not be selectedIf you cannot select an input source, it is possible that no device is connected. If not;Check the AV cables and connections if you are trying to switch to the input source dedicated to the connected device.

General TV OperationUsing the Channel ListThe TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press the Red button to open the Channel List. You can filter the listed channels by pressing the Blue button or open the Edit Channel List menu by pressing the Green button in order to make advanced changes in the current list.Managing the Favourite ListsYou can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Select the desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/Remove Favourites option. Press the OK button again. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.You can use the Filter function in the Edit Channel List menu to filter the channels in the Channel list permanently according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed every time the Channel list is opened. The filtering function in the Channel list menu will only filter the currently displayed Channel list in order to find a channel and tune in to it. These changes will not remain the next time the Channel list is opened if you don't save them. To save the changes on the list press the Red button after filtering while the Channel list is displayed on the screen.Configuring Parental SettingsThe Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the System>Settings>Parental menu.To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed.Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.Note: If the country option in the First Time Installation is set as France, Italy or Austria, Maturity Lock's value will be set to 18 as default.

Child Lock: If this option is set to ON, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.Internet Lock: If this option is set to ON, the open browser application in the portal will be disabled. Set to OFF to release the application again.Set PIN: Defines a new PIN number.Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.Note: Default PIN can not be set to 0000. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.Some options may not be available depending on the model and/or on the country selection in the First Time Installation.Electronic Programme Guide (EPG)Some channels send information about their broadcast schedules. Press the Epg button to view the Programme Guide menu.There are 3 different types of schedule layouts available, Timeline Schedule, List Schedule and Now/Next Schedule. To switch between them follow the instructions on the bottom of the screen.Timeline ScheduleZoom (Yellow button): Press the Yellow button to see events in a wider time interval.Filter (Blue button): Views filtering options.Select Genre (Subtitles button): Displays Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.Options (OK button): Displays event options.Event Details (Info button): Displays detailed information about selected events.Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.Search (Text button): Displays Guide Search menu.Now (Swap button): Displays current event of the highlighted channel.List Schedule(*)(*) In this layout option, only the events of the highlighted channel will be listed.Prev. Time Slice (Red button): Displays the events of previous time slice.Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.Event Details (Info button): Displays detailed information about selected events.Filter (Text button): Views filtering options.Next Time Slice (Green button): Displays the events of next time slice.Options (OK button): Displays event options.

General TV Operation Using the Channel List

Supported Video File Formats for USB Mode

Extension	Video Codec	Max. Resolution & Frame Rate & Bit Rate
.mpg, .mpeg, .dat, .vob	MPEG1/2, H.264, VC1	H.264: 1080Px2@30fps - 50Mbps, 1080P@60fps - 50Mbps Other: 1080P@60fps - 50Mbps
.ts, .trp, .m2ts
.avi	MPEG1/2, MPEG4, H.264, MJPEG
.mp4, .m4a, .m4v, .mov, .qt, .3gp, .3g2, .3gpp	MPEG1/2, H.263, MPEG4, H.264
.mkv	MPEG 1/2, MPEG4, H.264
.flv	Sorenson Sp, MPEG4, H.264
.ogm, .ogg	MPEG1/2, MPEG4
.asf, .wmv	MPEG4, WMV3, VC1
.rm, .rmvb	RV30, RV40
.webm	VP9, VP8

Supported Picture File Formats for USB Mode

Extension	Specification	Resolution (width x height)
.jpg, .jpeg	Baseline	8192 x 8192
	Progressive	3000 x 3000
.bmp	RGB 1/4/8/16/24/32 bit	8192 x 8192
	RLE 4/8 bit
.gif	87a
	89a (Only 1 picture at animation format)
.png	Grayscale, 24/32 bit per pixel
	Interlace format
	Progressive
.tiff, .tif	Tagged image file format
.webp	Lossy compression VP8 key frame version number support 0~3
	Lossless compression

Supported Audio File Formats for USB Mode

Extension	Format
.rnp3	.mp3
.ac3	.ac3
.aac	.AAC
.wma	.WMA
.amr	.AMR-NB, .AMR-WB
.wav	. MPEG La, .AAC, .PCM
.flac	. FLAC

AV and HDMI Signal Compatibility

Source Supported Signals Available
Back AV	PAL O
	SECAM O
	NTSC4.43 O
	NTSC3.58 O
YPbPr	480i, 480p 60Hz O
	576i, 576p 50Hz O
	720p	50Hz,60Hz	O
	1080i	50Hz,60Hz	O
HDMI	480i, 480p 60Hz O
	576i, 576p 50Hz O
	720p	50Hz,60Hz	O
	1080i	50Hz,60Hz	O
	1080p	24Hz, 25Hz, 30Hz, 50Hz, 60Hz	O

(X: Not Available, O: Available)

In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions.

Index Resolution Frequency
1	640x480 60Hz
2	640x480 75Hz
3	800x600 56Hz
4	800x600 60Hz
5	800x600 72Hz
6	800x600 75Hz
7	1024x768 60Hz
8	1024x768 70Hz
9	1024x768 75Hz
10	1152x864 75Hz
11	1280x768 60Hz
12	1360x768 60Hz
13	1280x960 60Hz
14	1280x1024 60Hz
15	1280x1024 75Hz
16	1400x1050 60Hz
17	1440x900 60Hz
18	1440x900 75Hz
19	1920x1080 60Hz

Supported Subtitle File Formats for USB Mode

Wired Connectivity

To Connect to a Wired Network

- You must have a modem/router connected to an active broadband connection.

- Connect your TV to your modem/router via an ethernet cable. There is a LAN port at the rear (back) of your TV.

LAN input on the rear side of the TV

To configure wired settings please refer to the Network/Internet Settings section in the System>Settings Menu.

Supported DVI Resolutions When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.

Broadband ISP connection A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4

Supported DVI Resolutions

and 5 GHz bands is

designed to increase bandwidth. These are optimized for smoother and faster

HD video streaming, file transfers and wireless gaming.

• The frequency and channel differ

depending on the area.

The transmission speed differs depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line traffic and the products that you use. The transmission may also be cut off or may get disconnected depending on the radio wave conditions, DECT phones or any other WiFi 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.

- The location where the transmission is most effective differs depending on the usage environment.

The Wireless feature of the TV supports 802.11 a,b,g & n type modems. It is highly recommended that you should use the IEEE 802.11n communication

Advanced Settings

Highlight Advanced Settings and press the OK button. On the next screen you can change the IP

and DNS settings of the TV. Highlight the desired one and press Left or Right button to change the setting from Automatic to Manual. Now you can enter the

Manual IP and / or Manual DNS values. Select the related item in the drop down menu and enter the new values using the numeric buttons of the remote. Press the OK button to save settings when complete

Wireless Connectivity

To Connect to a Wireless Network

The TV cannot connect to the networks with a hidden SSID. To make your modem's SSID visible, you should change your SSID settings via the modem's software. To Connect to a wireless LAN, you should perform the following steps:

To configure your wireless settings please refer to the Network/Internet Settings section in the System>Settings Menu.

Broadband

ISP connection

LAN input on the rear side of the TV

Configuring Wired Device Settings

Network Type

The Network Type can be selected as Wired Device, Wireless Device or Disabled, in accordance with the active connection to the TV set. Select this as Wired Device if you are connecting via an ethernet cable. Internet Speed Test Highlight Internet Speed Test and press the OK button. TV will check the internet connection bandwidth and display the result when complete.

External Subtitles
Extension Specification
.ssa SubStation Alpha
.ass Advanced SubStation Alpha
.srt Subripper
.sub Micro DVD / SubViewer
.sub + .idx VOBSub
.txt Micro DVD / TMPlayer / MPL2
.mpl MPL2
.smi Sami
.jss JACOSUB
.ttml TTML
.txt / .sub DVDSUBTITLE
.lrc	-
Internal Subtitles
Extension	Specification
.mkv VOBSub
.mkv A55 / SSA / TEXT
.dat, .mpg, .mpeg, .vob DVD Subtitle
.mp4 DVD Subtitle, TEXT

	56Hz 60Hz 66Hz 70Hz				72Hz 75Hz
640x400				☑
640x480		☑	☑		☑	☑
800x600	☑	☑		☑	☑	☑
832x624						☑
1024x768		☑	☑	☑	☑	☑
1152x864		☑		☑		☑
1152x870						☑
1280x768		☑				☑
1360x768		☑
1280x960		☑				☑
1280x1024		☑				☑
1400x1050		☑				☑
1440x900		☑				☑
1600x1200		☑
1680x1050		☑
1920x1080		☑

Scan for devices. After you select your TV and connect, the screen of your device will be displayed on your TV.Note: This feature can be used only if the mobile device supports this feature. Scanning and connecting processes differ according to the programme you use. Android based mobile devices should have the software version V4.2.2 and above.Connectivity TroubleshootingWireless Network Not AvailableEnsure that any firewalls of your network allow the TV wireless connection.Try searching for wireless networks again, using the Network/Internet Settings menu screen.If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connectivity section for more information on the process.If the TV does not function using the wired connection, check the modem (router). If the router does not have a problem, check the internet connection of your modem.Connection is SlowSee the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.Disruption during playback or slow reactionsYou could try the following in such a case:Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try changing the active channel on the WLAN router.Internet Connection Not Available / Audio Video Sharing Not WorkingIf the MAC address (a unique identifier number) of your PC or modem has been permanently registered, it is possible that your TV might not connect to the internet. In such a case, the MAC address is authenticated each time when you connect to the internet. This is a precaution against unauthorized access. Since your TV has its own MAC address, your internet service provider cannot validate the MAC address of your TV. For this reason, your TV cannot connect to the internet. Contact your internet service provider and request information on how to connect a different device, such as your TV, to the internet. It is also possible that the connection may not be available due to a firewall problem. If you think this causes your problem, contact your internet service provider. A firewall might be the reason of a connectivity and discovery problem while using the

TV in Audio Video Sharing mode or while browsing via Audio Video Sharing feature.Invalid DomainEnsure that you have already logged on to your PC with an authorized username/password and also ensure that your domain is active, prior to sharing any files in your media server program on your PC. If the domain is invalid, this might cause problems while browsing files in Audio Video Sharing mode.Using Audio Video Sharing Network ServiceAudio Video Sharing feature uses a standard that eases the viewing process of digital electronics and makes them more convenient to use on a home network.This standard allows you to view and play photos, music and videos stored in the media server connected to your home network.1. Server Software InstallationThe Audio Video Sharing feature cannot be used if the server programme is not installed onto your PC or if the required media server software is not installed onto the companion device. Please prepare your PC with a proper server programme.2. Connect to a Wired or Wireless Network See the Wired/Wireless Connectivity chapters for detailed configuration information.3. Play Shared Files via Media Browser Select Media Browser by using the directional buttons from the main menu and press OK. The media browser will then be displayed.Audio Video SharingSelect the desired media type on the main media browser menu and press OK. If sharing configurations are set properly, Device Selection screen will be displayed after selecting the desired media type. If available networks are found, they will be listed on this screen. Select media server or network that you want to connect to using the Up or Down buttons and press OK. If you want to refresh the device list, press the Green button. You can press Menu to exit. If you select the media type as Videos and choose a device from the selection menu. Then select the folder with video files in it on the next screen and all the available video files will be listed.To play other media types from this screen, you can go back to main Media Browser screen and select the media type as desired and then perform the network selection again. Or press the Blue button to switch to next media type quickly without changing the network. Refer to the Media Browser menu section for further information on file playback.If a problem occurs with the network, please switch your television off at the wall socket and back on

protocol in order to avoid any possible problems while watching videos.You must change your modem’s SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection.Configuring Wireless Device SettingsOpen the Network/Internet Settings menu and select Network Type as Wireless Device to start connection process.The TV will scan the wireless networks automatically. A list of available networks will be displayed. Please select your desired network from the list.Note:If the modem supports N mode, you should set N mode settings.If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via the directional buttons and the OK button on the remote control.Wait until the IP address is shown on the screen.This means that the connection is now established. To disconnect from a wireless network, highlight Network Type and press Left or Right buttons to set as Disabled.Highlight Internet Speed Test and press the OK button to check your internet connection speed. Highlight Advanced Settings and press the OK button to open the advanced setting menu. Use directional and numeric buttons to set. Press the OK button to save settings when complete.Other InformationThe status of the connection will be displayed as Connected or Not Connected and the current IP address, if a connection is established.Connecting to your mobile device via WiFiIf your mobile device has WiFi feature, you can connect it to your TV via a router, in order to access the content in your device. For this, your mobile device must have an appropriate sharing software.Connect to your router following the steps stated above in the Wireless Connectivity section.Afterwards, engage your mobile device with the router and then activate the sharing software on your mobile device. Then, select files that you want to share with your TV.If the connection is established correctly, you will be able to access the shared files from your mobile device via the Media Browser of your TV.Enter the Media Browser menu and the playback device selection OSD will be displayed. Select your mobile device and press the OK button to continue.	• If available, you can download a virtual remote controller application from the server of your mobile device application provider.Note:This feature may not be supported on all mobile devices.Wake ONWake-on-LAN (WoL) and Wake-on-Wireless LAN (WoWLAN) are standards that allow a device to be turned on or woken up by a network message. The message is sent to the device by a program executed on a remote device connected to the same local area network, such as a smartphone.Your TV is WoL and WoWLAN compatible. To enable this feature set the Wake On option in the Network/Internet Settings menu as On. It is necessary that both the device, from which the network message will be sent to the TV, and the TV are connected to the same network. Wake On feature is only supported for Android OS devices and can only be used via YouTube and Netflix applications.In order to use this feature the TV and the remote device should be connected at least once while the TV is on. If the TV is powered off, the connection should be reestablished, the next time it is switched on. Otherwise this feature will be unavailable. This does not apply, when the TV is switched into the standby mode.The performance of some devices in the market, may vary due to the software architecture. In order to use Wake On feature with a better performance, please make sure that your device has latest firmware version.Wireless DisplayWireless Display is a standard for streaming video and sound content by Wi-Fi Alliance. This feature provides the ability to use your TV as wireless display device.Using with mobile devicesThere are different standards which enable sharing of screens including graphical, video and audio content between your mobile device and TV.Plug the wireless USB dongle to TV first, if the TV doesn’t have internal WiFi feature.Then press the Source button on the remote and switch to Wireless Display source.A screen appears stating that the TV is ready for connection.Open the sharing application on your mobile device. These applications are named differently for each brand, please refer to the instruction manual of your mobile device for detailed information.
Smart CenterSmart Center is a mobile application running on iOS and Android platforms. With your tablet or phone, you can easily stream your favourite live shows and programmes from your smart TV. Also; you can launch your portal applications, use your tablet as a remote control for your TV and share media files.Note: Being able to use all functions of this application depends on the features of your TV.	Note: Internet connection is required for WEB based EPG informations.PORTAL: This tab displays the Portal applications in scrollable view. Unless FollowMeTV (if available) is active, the selected application will be displayed on your TV screen.Note: Internet connection is required. This tab is enabled if a portal page is in use.
Getting StartedTo use Smart Center features, connections have to be done properly. To get connected to your network wirelessly, plug in the Wi-Fi dongle to one of the USB ports if your TV doesn't have internal wifi feature. To be able to use internet based features, your modem/ router must be connected to the internet.	SETTINGS: Configure the application to your liking. You can change;Auto-lock (Only in IOS): The screen of the device automatically turns off after a certain amount of time. Default is off, which means the screen will always stay on.
IMPORTANT: Make sure the TV and mobile device are connected to the same network.For media sharing feature Audio Video Sharing option should be enabled(if available). Press the Menu button on the remote, select System>Settings>More menu and press OK. Highlight Audio Video Sharing and change as Enabled. Your TV is ready to connect to your mobile device now.	Auto-enable FollowMeTV: FollowMeTV function (if available) will start automatically when this setting is enabled. Default is disabled.
Install the Smart Center application onto your mobile device.Start the smart center application. If all connections are configured properly, you will see your TV's name on your mobile device. If your TV's name doesn't appear on the list, wait a while and tap on the Refresh widget. Select your TV from the list.	Auto-connection to TV: When enabled, your mobile device will automatically connect to last connected TV and skips the TV search screen.
Mobile Device screenOn the main screen you can find tabs to access various features.The application retrieves actual channel list from TV first when it starts.	Change TV (Only in IOS): Shows the currently connected TV. You can press on this setting to go to the "TV search" screen and change to a different TV.
MY CHANNELS: The programmes of first four channels from the channel list retrieved from the TV are shown. You can change the listed channels. Press on the channel thumbnail and hold. A list of channels will be displayed and you can choose your desired channel to be replaced.TV: You can watch content through the TV tab. In this mode you can navigate through the channel list retrieved from your TV and click on thumbnails to view the detail pages.	Edit custom channel list: You can edit your custom channel list using this setting.Choose channel list source: You can choose the channel list source to be used in the application. The options are "TV List" and "Custom List". Additionally you can activate "Remember my choice" option to set the selected channel list source as a constant choice. In this case if the selected source is available it will be used in the application.Version No: Displays the current version of the application.
EPG: You can view the broadcast schedules of selected channel lists through this tab. You can also navigate through channels by pressing on the selected channel on the EPG grid. Please note that updating / refreshing the EPG information may take a while depending on your network and web service quality.	Detail PageTo open detail page tap on a programme. On the detail page screen you can get detailed information of the programmes you select. There are "Details", "Cast&Crew" and "Videos" tabs to find on this page. DETAILS: This tab provides summary and information about the selected programme. Also there are links to facebook and twitter pages of the programme selected.CAST&CREW: Shows all the people contributed to the current programme.VIDEOS: Provides videos on Youtube related to the selected programme.Note: For some functions an internet connection may be required.

again. Trick mode and jump are not supported with the Audio Video Sharing feature.PC/HDD/Media Player or any other devices that are compatible should be used with a wired connection for higher playback quality.Use a LAN connection for quicker file sharing between other devices like computers.Note: There may be some PC's which may not be able to utilize the Audio Video Sharing feature due to administrator and security settings (such as business PC's).Internet PortalHINT: A broadband internet connection is required for high quality viewing. You must set the country option accordingly in theFirst Time Installationfor proper operation of the internet portalPortal feature adds your TV a feature that allows you to connect a server on the Internet and view the content provided by this server over your Internet connection. Portal feature allows you to view the music, video, clip or web content with defined short-cuts. Whether you can view this content without interruption depends on the connection speed provided by your internet service provider.Press theInternetbutton on your remote control to open internet portal page. You will see icons of the available applications and services on the portal screen. Use the directional buttons on your remote to select the desired one. You may view the desired content by pressing OK after selecting. Press Back/Returnbutton to return back to the previous screen. Moreover, you can access some features using the short-cut feature defined for the coloured or numeric buttons of your remote.Press theExitbutton to quit the Internet portal mode.PIP Window (depending on portal service)Current source content will be displayed in the PIP window, if you switch to portal mode while on any active source.If you switch to portal mode while watching TV channels, current programme will be displayed in the PIP window.Notes:Possible application dependent problems may be caused by the content service providerPortal service content and the interface may be changed at any time without prior notice.Third party internet services may change, be discontinued or restricted at any time.Internet BrowserTo use the internet browser, enter the portal first. Then launch theInternetapplication on the portal.(*) The appearance of the internet browser logo may change

In the initial screen of the browser, the thumbnails of the predefined (if any) links to web sites available will be displayed asSpeed Dialoptions along with the Edit Speed Dialand the Add to Speed Dialoptions.To navigate the web browser, use the directional buttons on the remote or a connected mouse. To see the browser options bar, move the cursor to the top of the page or press theBack/Returnbutton.History, Tabsand Bookmarksoptions and the browser bar which contains previous/next buttons, the refresh button, the adress/search bar, theSpeed Dialand theOperabuttons are available.To add a desired website to theSpeed Diallist for quick access, move the cursor to the top of the page or press theBack/Returnbutton. The browser bar will appear. Highlight theSpeed Dial- [icon] button and press theOKbutton. Then select Add to Speed Dialoption and press theOKbutton. Fill in the blanks forNameandAddress, highlight OKand press theOKbutton to add. Whilst you are on the site you wish to add to theSpeed Diallist, highlight theOpera- [icon] button and press theOKbutton. Then highlightAddto Speed Dialoption in the submenu and press theOKbutton again.Nameand Addresswill be filled automatically according to the site you are visiting. Highlight OKand press theOKbutton to add.You can also use theOperamenuptions to manage the browser. Highlight theOpera- [icon] button and press theOKbutton to see available page specific and general options.There are various ways to search or visit websites using the web browser.Enter the address of a website(URL) into the search/address bar and highlight theSubmitbutton on the virtual keyboard and press theOKbutton to visit the site.Enter keyword/s into the search/address bar and highlight theSubmitbutton on the virtual keyboard and press theOKbutton to start a search for the related websites.Highlight a Speed Dial thumbnail and press theOKbutton to visit the related website.Your TV is compatible with USB mice. Plug your mouse or wireless mouse adaptor into the USB input of your TV for easier and quicker navigation.Some web pages include flash content. These are not supported by the browser.Your TV does not support any download processes from the internet via the browser.All sites on the internet might not be supported. According to the site; content problems may occur. In some circumstances video contents might not be able to be played.

English - 50 -

In conformity with applicable rules and regulations

Information regarding EU countries (only)

The symbol indicates that the product must not be disposed of with the normal household wastes. Correct disposal of this product prevents any potentially negative impact on the environment and human health that could arise from any inappropriate handling of the product itself. To receive more detailed information regarding disposal waste collection service or the shop where you purchased the product.

Without notice Due to the continuous evolution of the products, the features and design of this model may change

4. Smart Center app.to be found on online application stores based on Android and iOS platforms)5. Router modem6. USB storage device in FAT32 format (required for PVR feature, if available)Notes:For Android devices, Normai(mdpi), Large(xdpi) and Extra similar screen sizes are not supported.For iOS devices, all screen sizes are Supported.User Interface of the Smart Center application is subject to change according to version installed on your device.

FollowMe TV Feature (if available)

Tap on the FOLLOW ME TV widget located at the bottom left of the screen of your mobile device to change the layout for FollowMe TV feature.

Tap the play icon to start streaming of the content (Android OS 4.0 or higher; 105 6 or higher version).

3. Mobile Device based on Android or iOS platform (Android OS 4.0 or higher; 105 6 or higher version).

2. Network connection

1. Smart TV

1. Smart TV

Requirements

The Keyboard page can be opened in two ways: by preserving the Keyboard ( ) widget on the application screen or automatically by receiving a command from the TV.

from the TV.

Keyboard Page

The Keyboard page can be opened in two ways: by preserving the Keyboard ( ) widget on the application screen or automatically by receiving a command from the TV.

Note: This feature is only for android based devices available.

Keyboard Page

You can tap on the Microphone/Widget and manage your application, giving voice commands such as "Portail", "Volume UP/Down", "Programme" UP/Down".

Note: This feature is only for android based devices available.

Voice Recognition

You can use the mobile device as a remote control for your TV once it has connected to the TV. To use smart remote full features tap on the UP-arrow on the bottom left side of the screen.

smart Remote Feature

You can use the mobile device as a remote control for your TV once it has connected to the TV. To use smart remote full features tap on the UP-arrow on the bottom left side of the screen.

Smart launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Photo Internet connection is required. This function will not work if a portal page is not in use.

work if a portal page is not in use.

Smart launcher Feature

You can use the portal page by tapping on the portal launcher widget.

Note: Not all image file formats are supported. This function will not work if audio Video Sharing feature is not supported.

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

Portal launcher

☐

Specifiche		Specification
Trasmissione TV	PAL BG/I/DK SECAM BG/DK	TV Broadcasting	PAL BG/I/DKSECAM BG/DK
Canali ricevibili	VHF (BAND I/III) - UHF(BAND U) - HYPERBAND	Receiving Channels	VHF (BAND I/III) - UHF(BAND U) - HYPERBAND
Ricezione digitale	TV con decoder digitale terrestre/cavo/satellitare integrati (DVB-T-T2/C/S-S2/HEVC H.265)	Digital Reception	Fully integrated digital terrestrial-cable-satellite TV (DVB-T-C-S)(DVB-T2, DVB-S2 compliant)
Numero dei canali memorizzabili	10 000	Number of Preset Channels	10 000
Indicatore di canale	OSD	Channel Indicator	On Screen Display
Ingresso antenna RF	75 Ohm (non bilanciato)	RF Aerial Input	75 Ohm (unbalanced)
Tensione Operativa	220-240V CA 50Hz	Operating Voltage	220-240V AC, 50Hz.
Audio	German+Nicam Stereo	Audio	German+Nicam Stereo
Potenza Uscita Audio(WRMS.) (10% THD)	2 x 8	Audio Output Power(WRMS.) (10% THD)	2 x 8
Consumo energetico (W)	75	Power Consumption (W)	75
Standby di rete (W)	< 3	Networked Standby (W)	< 3
TV Dimensioni PxLxA(con piedistallo) (mm)	220 x 974 x 615	TV Dimensions DxLxH(with foot) (mm)	220 x 974 x 615
TV Dimensioni PxLxA(senza piedistallo) (mm)	79/98 x 974 x 572	TV Dimensions DxLxH(without foot) (mm)	79/98 x 974 x 572
Display	43"	Display	43"
Temperatura di funzionamento e umidità	0°C fino a 40°C, 85%umidità	Operation temperature and operation humidity	0°C up to 40°C, 85%humidity max

A	VESA WALL MOUNT MEASUREMENTS
B	Hole Pattern Sizes (mm)	W	H
		200	200
C	Screw Sizes
D	Length (X)	min. (mm)	10
		max. (mm)	13
E	Thread (Y)	M6

	A B C D E
English	VESA WALL MOUNT MEASUREMENTS	Hole Pattern Sizes (mm) Screw Sizes Length (X) Thread (Y)
Deutsch	MASSANGABEN FÜR VESA-WANDMONTAGE	Lochmustergrößen (mm)	Schraubengrößen	Länge (X)	Gewinde (Y)
Français	DIMENSIONS DU SUPPORT DE FIXATION MURALE VESA	Dimensions des modèles de trous de montage (mm)	Dimensions des vis	Longueur (X)	Filetage (Y)
Italiano	Misurazioni installazione a parete VESA	Dimensioni schema foro (mm)	Dimensioni vite	Lunghezza (X)	Filettatura (Y)
Português	MEDIÇÕES DE MONTAGEM MURAL VESA	Dimensões do molde de furação (mm)	Tamanhos do parafuso	Comprimento (X)	Rosca (Y)
Español	MEDIDAS DEL MONTAJE DE PARED VESA	Tamaños de patrón para agujero (mm)	Tamaños de tornillo	Longitud (X)	Rosca (Y)
Türkçe	VESA DUVARA MONTAJ APARATI ÖLÇÜLERİ	Açılacak Delik Ölçüleri (mm)	Vida Ölçüleri	Uzunluk (X)	Yüzey (Y)
Еллянік	ДІАЗТАŞЕІЗ ВАЗНЗ ТОІХОУ VESA	Мечéßн охýματος опών (mm)	Мечéßн branching	Мнікос (X)	Эпейршца (Y)
Polski	WYMIARY DO MONTAZU NASCIENNEGO VESA	Rozmiary szablonu otworów (mm)	Rozmiary wkrętów	Długość (X)	Gwint (Y)
Čeština	ROZMĚRY DRŽÁKU NA ZEŐ VESA	Rozměry velikosti dér (mm)	Rozměry śroubů	Délka (X)	Závit (Y)
Magyar	VESA FALI TARTÓ MÉRETEK	Lyukak méretének nagysága(mm)	Csavar méret	Hossz (X)	Menet (Y)
Română	MĂSURĂTORI SUPORT PERETE VESA	Dimensiuni tipar gaurá (mm)	Dimensiuni şuruburi	Lungime (X)	Filet (Y)
Svenska	VESA VÄGGMONTERINGSMÄTT	Hälmönsterstorlear (mm)	Skruvstorlekar	Längd (X)	Tràd (Y)
Nederlands	VESA WANDMONTAGE METINGEN	Grootte booropening (mm)	Schroefgroote	Lengte (X)	Draad (Y)
Suomi	VESA-SEINÄASENNUKSEN MITAT	Reikäkuvion koot (mm)	Ruuvinkoot	Pituus (x)	Kierre (Y)
Norsk	VESA VEGGMONTERINGSMÄL	Hullmønster størrelser (mm)	Skruestørrelser	Lengde (x)	Tràd (Y)
Dansk	VESA VÆGMONTERINGS-MÄL	Hulmønster-størrelser (mm)	Skruestørrelser	Laengde(X)	Tràd (Y)
Русский	РАЗМЕРЫ НАСТЕННОГО КРЕПЛЕНИЯ VESA	Размеры системы отверстий	Размеры винтов	Длина(X)	Резьба (Y)
беларуская	ПАМЕРЫ НАСЦЕННАГА МАЦАВАННЯ VESA	Памеры сістзмы адтулин	Памеры вінтоў	Даўжыня (X)	Разьба (Y)
македонски	МЕРКИ ЗА МОНТИРАЊЕ НА СИД ЗА „BECA“	Шема на големини на дупката (мм)	Големина на шрафот	Должина (X)	Навој (Y)
українська	РОЗМІРИ НАСТИННОГО КРІПЛЕННЯ VESA	Відстань між кріпильними отворами, мм	Розміри гвингів	Довжина (X)	Діаметр різьби (Y)
Srpski	DIMENZIJE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenje	Dimenzije zavrtnjeva	Dužina (X)	Navoj (Y)
Slovenčina	ROZMERY DRŽIAKA NA STENU VESA	Rozmery vel'kosti dier (mm)	Rozmery skrutiek	Dížka (X)	Závit (Y)
Slovenščina	MERE STENSKEGA NOSILCA VESA	Velikosti vzorca lukenj (mm)	Velikosti vijakov	Dolžina (X)	Navoj (Y)
Hrvatski	VESA MJERE ZIDNOG DRŽAČA	Veličine uzorka otvora (mm)	Veličine vijka	Dužina (X)	Navoji (Y)
Bosanski	DIMENZIJE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenje	Dimenzije vijaka	Dužina (X)	Navoj (Y)
Български	РАЗМЕРИ ЗА КОМПЛЕКТ ЗА МОНТАЖ НА СТЕНА VESA	Размери на отвора (mm)	Размер на болта	Дължинат (X)	Резба (Y)
Lietuvių	VESA TVIRTINIMO PRIE SIENOS MATAVIMAI	Angos šablono dydis (mm)	Varžtu dydis	Igis (X)	Sriegis (Y)
Latviešu	VESA SIENAS STIPRINĀJUMA IZMĚRI	Caurumu šablona izměrs (mm)	Skrūvju izměri	Garums (X)	Vitne (Y)
Eesti	VESA SEINALE KINNITAMISE MÖÖDUD	Kruvi suuruse mõöt (mm)	Kruvi suurus	Körgus(x)	Keere (Y)
Shqip	PĚRMASAT E NJĘSISĘ SĘ MONTIMIT NĘ MUR VESA	Madhésitę modele të vrimave (mm)	Madhésitę e vidhave	Gjatësia (X)	Filetimi (Y)
عرابي	مfaceيس للتنبيت على الجدار	(أحاجال القوب (مم)	(أحاجال براقي)	(Х) اظول (Y)	(У) screens (Y)
لازلاز	VESA अनिय प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत্তि प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति पρत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्त
فارسی	VESA اندازه گیی آنسال دبوازی	(اندازه های الكوی سوراخ (فیلی متر)	(اندازه های بیج	(Х) طول (Y)	(У) رشته (Y)

A	Product Fiche
B	Commercial Brand:XD
C	Product No.	10117527
D	Model No.	XD43SF3VSAT
E	Energy efficiency class	A++
F	Visible screen size (diagonal,approx.) (inch/cm)	43 inches	109 cm
G	On mode average power consumption (Watt)	37,0
H	Annual energy consumption (kWh/annum) (*)	54
I	Standby power consumption (Watt)	0,50
J	Off mode power consumption (Watt)	N/A
K	Display resolution (px)	1920x1080

	A	B	C	D	E	F	Visible screen size(diagonal, approx.) (inch/cm)
English	Product Fiche Commercial Brand Product No.			Model No. Energy efficiency class
Deutsch	Produkt-Datenblatt	Markenzeichen		Produkt-Nr.	Modell-Nr.	Energieeffizienzklasse	Sichtbare Bildschirmgröße(diagonal,ca.) (Zoll /cm)
عرابي	Logistics مensing	العلامة التجارية: تيويكن		رقم المعتب	رقم الموتيل	قيمة علابه الطاقة	الحجم الشتالة المربعة (قتري)
Български	Справочен лист с техническите данни	Търговска марка		Продукт No	Модел No	Клас на енергийна ефективност	Видим размер на екрана(диагонал,прибл.) (инча /см )
čeština	Produktový list	Značka výrobce		Čísло produktu	Model č.	Energetická třída	Viditefna velikost obrazovky(ühlopřička,přibl.)(palcú /cm)
Dansk	Produktoplysningsskema	Varemærke		Produktnr.	Model nr.	Energieffektivitetsklasse	Synlig skærmstørrelse (diagonalt,ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki		Tuote nro.	Malli nro.	Virran tehokkuusluokka	Nakyván kuvaruudun koko(diagonaalinen,n.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale		Produit N°	Modèle N°	Classe d'efficacité énergétique	Taille d'écran visibie (diagonale,approx.) (pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka		Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Vidljiva veličina ekrana(dijagonalna,približno) (inča/cm)
Nederlands	Productfiche	Commercieel merk.		Productnr.	Modelnr.	Energie efficiëntie klasse	Zichtbare schermgroottie(diagonaal,ca.) (inches/cm)
Español	Ficha del Producto	Marca Comercial		N° de Producto	N° de Modelo	Clasificación Energética	Tamaño de pantalla visibie(diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecifikation	Varumärke		Produktnr.	Modellnr.	Energiklass	Synlig skarmstorlek(diagonal,ungefärlig) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale		Numero prodotto	Numero modello	Classe di efficienza energetica	Dimensłoni visibii dello scherm(diagonale,circa)(pollici/cm)
Polski	KARTA PRODUKTU Marka produktu Nr produktu Nr modelu					Klasa efektywności energetycznej	Widoczny obraz ekranu(przekątna,okolo)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi marka		Termékszám	Modellszám	Energiahatékonysági osztály	Latható kepitartomany (diagonális,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare		Produkt nr.	Modell nr.	Energieffektivitet klasse	Synlig skjermstørrelse (diagonal, ca.) (tommer/cm)
Português	Ficha do produto	Marca Comercial		Produto N°	Modelo N°	Classificação eficiência energética	Tamanho ecră visível (diagonal, aprox.) (polegadas/cm)
Română	Fişă produs	Marcă comercială		Nr. Produs	Nr. Model	Clasa de eficiență energetică	Dimenslunea ecranului vizibili(diagonală, aprox.) (inch/cm)
Русский	Справочный листок технических данных изделия	Торговая марка		Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали, приблизительно)(дюймов/см)
беларуская	Справочный листок технических данных изделия	Торговая марка		Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали,Около)(дюймов/см )
македонски	Технички податоци	Комерцијална марка		Производ бр.	Модел бр.	Класа на енергетска ефикасност	Големина на видлив екран(дијагонала, околу) (инчи/cm)
український	Технічні дані	Кормеційна марка		Артикул	Модель	Клас енергоспоживання	Видимии розмір екрана (диагональ, Приблизно) (дюймів/cm)
Srpski	Tehničke odlike	Komercijalna marka		Proizvod br.	Model br.	Klasa energetske efikasnosti	Veličina vidljivog ekrana (dijagonala, tokom) (inča/cm)
Slovenčina	Produktový list	Značka výrobcu		Čísло produktu	Model č.	Energetická trieda	Viditefna velikost obrazovky(uhlopriečka, zhruba) (palcov/cm)
Slovenščina	Opis izdelka	Komercialna znamka		Št. İzdelka	Št. Modela	Razred energetske učinkovitosti	Vidna velikost zaslona (diagonala, pribl.) (palcev/cm)
Еллянік	Делтію проївнітос	Емторикó σήμα		Ар. Проївнітос	Ар. Movitelou	Катіяоріа еврүгенікің атдобооңς	Ордоте мүүвөс ововің (ойадуавіс,тер.) (IVTSες/cm)
Bosanski	Техніčki podaci	Komercijalna marka		Produkt br.	Model br.	Klasa energetske efikasnosti	Vidljiva velicina ekranа (diagonala, priblžno.) (inča/cm)
Начиць	Китай 0015	Поял Лип		Тип 'оп	Бут 'оп	Люз тяж піту' аро	(олырк)(дам'я,люз'я) тяж тяж тяж
Türkçe	Ürün fişi	Ticari Marka		Ürün No.	Model No.	Enerji verimiliği sınıfı	Görüten ekran boyotu (çapraz, yakışk.) (inch/cm)
Shqlp	Tě dhěnat e produktit	Marka tregtare		Nr. i produktit.	Nr. i modelit.	Klasa е eficiencès sè energjisë	Madhësia e ekranit të dukshëm(diagonal, afërsisht) (inch/cm)
Lietuvių	Gaminio etiketė	Gamintojas		Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasė	Matomas ekranо dydis (jstrizaine,approx.) (colių/cm)
Latviešu	Produkta apraksts	Marka		Produkta nr.	Modeļa nr.	Energoefektivitătes klase	Ekranā izmers (pa diognali, apmçram)(collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja firma		Toote nr.	Mudeli nr.	Energiaklass	Vaadatava ekraani suurus (diagonaal, umbes) (tolli/cm)
فارسی	مشخصات محصول	مارک تجازی		ثموزه محصول	ثموزه متل	گروه کارایی لزرźی	کاری سطتهه‌کایی سطتهید (کنستی،کرزی) (بی)

	GHIJK
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschaltetem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr)	Standby-Stromverbrauch (Watt)	Stromverbrauch im ausgeschaltetem Zustand (Watt)	Display-Auflösung (px)
عربي	متوسط ت姆يلاك عناقة عند التف Silicon (Watt)	(الاستهلاك Bureau)	(استهلاك عناقة في wrضج استهلاك (متوسط)	(استهلاك عناقة في wrضج استهلاك (متوسط)	(WR) وضح الشانب (يكل)
Български	Средна консумация на електроенергия във включено състояние (Watt)	Годишна консумация на електроенергия (kWh/Годишна)	Консумация на електроенергия в режим на готовност (Watt)	Консумация на електроенергия в изключено състояние (Watt)	Разделителна способност на дисплея (пиксела)
čeština	Prüměrná spotřeba elektrické energie v zapnutém režimu (Wattü)	Roční spotřeba energie (kWh/Roční)	Spotřeba elektrické energie v pohotovostním režimu (Wattü)	Spotřeba elektrické energie ve rypnutém režimu (Wattü)	Rozlišení displeje (px)
Dansk	Gennemsnitligt stromforbrug i tøndt tilstand (Watt)	Arligt energiforbrug (kWh/Arligt)	Strømforbrug (standby)(Watt)	Strømforbrug i slukket tilstand (Watt)	Skærmopłosning (px)
Suomi	Päälä-tilan keskimääräinen virrankulutus (Wattila)	Vuositainen sähkönkulutu (kWh/Vuosittalnen)	Vakiovirran kulutus (Wattia)	Pois-tlan virrankulutus (Wattia)	Näytön erottelukyky (pikselia)
Français	Consommation énergétique moyenne en mode "marche" (Watt)	Consommation énergétique annuelle (kWh/annuel)	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode arrêt" (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošnja el. energije kada je proizvod uklıčen (Watta)	Godišnja potrošnja el. Energije (kWh/Godišnia)	Potrošnja el. energije u modu prípravnosti (Watta)	Potrošnja el. energije kada je proizvod skiučen (Watta)	Rezolucija zaslona (piksela)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarlijks energieverbruik (kWh/Jaarlijks)	Stand-by stroomverbruik (Watt)	Ult-modus stroomverbruik (Watt)	Schermresolutie (px)
Español	Consumo eléctrico medio, en funcionamiento (Vatio)	Consumo eléctrico anual (kWh/anual)	Consumo en modo en espera (Vatio)	Consumo eléctrico modo apagado (Vatio)	Resolución de pantalla (px)
Svenska	Strömkonsumtion i PA-läge (Watt)	Energikonsumtion per år (kWh/Arlig)	Strömkonsumtion i viloläge (Watt)	Strömkonsumtion i AV-läge (Watt)	Skårmupplösning (pixlar)
Italiano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluzione del display (px)
Polski	Srednie zużycie energii w trybie włączonym (Watów)	Roczne zużycie energii (kWh/Roczne)	Srednie zużycie energii w trybie oczekiwania (Watów)	Zużycie energii w trybie wyłączonym (Watów)	Rozdzielczość obrazu (pikseli)
Magyar	Energiafogyasztás bekapcsolva hagyott üzemmódban (Watt)	Eves energiafogyasztás (kWh/Eves)	Energiafogyasztás standby üzemmódban (Watt)	Energiafogyasztás kikapcsolt üzemmódban (Watt)	Képernyőfelbontás (px)
Norsk	Pámodus gjennomsnítlig stromforbruk (Watt)	Arlig stromforbruk (kWh/Arlig)	Hvilemodus strømforbruk (Watt)	Av-modus stromforbruk (Watt)	Skjermopplösning (piksel)
Português	Consumo energia em modo médio (Watt)	Consumo annual energia (kWh/anual)	Consumo energia em stand-by (Watt)	Consumo energia em modo alimentação (Watt)	Resolução do visor (pixel)
Româna	Consum electric mediu în modul pornit (Wat)	Consum anual de energie (kWh/anual)	Consum electric în stare de repaus (Wat)	Consum electric în modul oprit (Wat)	Rezoluția ecranului (pixeli)
Русский	Средний расход энергии в режиме работы (Вт)	Ежегодный расход энергии (kВт/Год)	Расход энергии в режиме ожидания (Вт)	Расход энергии в выключенном режиме (Вт)	Разрешение экрана (пикселей)
беларуская	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kWh/гајадове)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
македонски	Просечна потрошувачка кога е яктичен	Годишна потрошувачка на энергия (kWh/Голишна)	Потрошувачка во мирување (вати)	Потрошувачка кога е исклучен (вати)	Резолуција на екран (пиксели)
український	Середня спокивана потужність у робочому режимі (Вт)	Середньорічна спокивана потужність (kWh/Річне)	Споживана потужність у режимі чніквання (Вт)	Споживана потужність у вимкненому стані (Вт)	Роздільна здатність екрана (пикселів)
Srpski	Prosćna potrošnja kada je uključení (Vati)	Godišnja potrošnja energije (kWh/Godišnia)	Potrošnja tokom mirovanja (Vati)	Potrošnja kada je isključení (Vati)	Rezolucija displeja (piks.)
Slovenčina	Priemerna spotreba elektrickej energie v zapputom režime (Wattov)	Ročná spotreba energie (kWh/Ročná)	Spotreba elektrickej energie v pohotovostnom režime (Wattov)	Spotreba elektrickej energie vo vpputom režime (Wattov)	Rozlišenie displeja (pixl.)
Slovensčina	Poraba električne energije v povorečnem načinu (Wattov)	Letna poraba energije (kWh/Letna)	Poraba energije v stanju pripravljenosti (Wattov)	Poraba energije načinu izklopa (Wattov)	Resolucija zaslona (piks.)
Еллэтик	Мост катоюлшан резујатос катоурьгас (Watt)	Erfiya katоюлшан евёргуся (kWh/Erfiya)	Котаюлшан резујатос сттнів ауаповні (Watt)	Котаюлшан резујатос сттнів ауаповні (Watt)	Ак outуцан об'юв'є (Піл'єз)
Bosanski	Prosječna potrošnja kada je uključen (Watt)	Godišnja potrošnja energije (kWh/Godišna)	Potrošnja tokom mirovanja (Watt)	Potrošnja kada je isključen (Watt)	Rezolucija ekrana (piks.)
نامع	(оки)الزيم مزط بزيم بزيم نامع	(оки)الزيم مزط بزيم نامع نامع	(оки)الزيم مزط بزيم نامع نامع	(оки)الزيم مزط بزيم نامع نامع	(торг)الزيم نامع
Türkçe	Açık moddaki ortalama güç tüketimi (Watt)	Yillik enerji tüketimi (kWh/yillik)	Beklame durumunda enerji tüketimi (Watt)	Kapali moddaki güç tüketimi (Watt)	Ekran çözünurlüğü (piks.)
Shqip	Konsumi mesatar i energijse si i ndezur (Watt)	Konsumi vjetor i energijse (kWh/vjetor)	Konsumi i energijse si ne gatismen (Watt)	Konsumi i energijse si i Tikur (Watt)	Rezolucioni i ekranit (piks.)
Lietuvlu	Vidutinês energijos sąnaudos ljungus (Vatai)	Metinês energijos sąnaudos (kWh/Metinês)	Energijos sąnaudos budėjimo režimu (Vatai)	Energijos sąnaudos išjungus (Vatai)	Ekrano skiriamoji geba (pikselių)
Latviešu	Energijas patēriņš aktīvā režimā (Vati)	Gada energijas patēriņš (kWh/gada)	Energijas patēriņš gaidīšanas režimā (Vati)	Energijas patēriņš izslēgtā stāvoklī (Vati)	Displeja rezolúcija (pikseliem)
Eesti	Keskmine energiakulu töörežimil (Vatti)	Aaslane energiakulu (kWh/aaslane)	Energiakulu octerežimil (Vatti)	Energiakulu valjalultatud olekus (Vatti)	Ekraani resolutsioon (pikslit)
قارسي	(وزان متوسط مصرف برق در حات فعل (و」とا)	(وزان اززی مصرفی در سالکیلیروت مساعدایار (م.)	(mosruf برق خ Islands اstdنیه کار (و」とا)	(mosruf برق خ Islands خ Islands (و」とا)	( Pozان مصرف برق در خ Islands خ Islands (و」とا)

(*) English Energy consumption kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
(*) Deutsch Energieverbrauch kWh/Jahr, auf der Grundlage eines täglich vierständigen Betriebs des Fernsehgerätes an 365 Tagen. Der tatsächliche Energieverbrauch hängt von der Art der Nutzung des Fernsehgerätes ab.
استهلاك الطاقة كبلو واط مسوي، kWh داء على استهلاك طاقة لاتزین بعمل 4 ساعات يوميا لمدة 365 يوم. بعند استهلاك الت offline للطقة على طربة استخدام الجمال
(*) Български Консумация на енергия kWh годишно, изчислена на базата на 4 работни часа дневно при 365 дни. Действително консумираната енергия ще зависи от начина на употреба на телевизора.
(*) čeština Spotřeba elektrické energie kWh za rok vycházející ze spotřeby elektrické energie televizního přijímače, který je v provozu 4 hodiny denně po dobu 365 dní. Skutečná spotřeba elektrické energie závisí na způsobu použití
televizního přilímače.
(*) Dansk Energiforbrug: kWh om året, beregnet som fjernsynets effektforbrug, hvis det er taendt 4 timer om dagen i 365 dage. Det faktiske energiforbrug vil bero på, hvordan fjernsynet bruges.
(*) Suomi Energiankululus kWh:a vuodessa, kun oleetaan, että televisiota käytelään 4 tunlia päivässä 365 päivän ajan. Todellinen energiankululus nippuu television käyttötavasta.
(*) Français Consommation d'énergie de kWh par an, sur la base de la consommation électrique d'un téléviseur fonctionnant quatre heures par jour pendant trois cent soixante-cinq jours. La consommation réelle dépend des conditions
d'utilisation du téléviseur
(*) Hrvatski Utrošak energije iznosi kWh godišnje na temelju utroška energije televizora koji radi četiri sata dnevno 365 dana u godini. Stvarni utrošak energije ovisit će o tome kako se upotrebljava televizor.
(*) Nederlands Energieverbruik kWh per jaar, gebaseerd op het elektriciteitsverbruik van de televisie wanneer deze gedurende 365 dagen 4 uur per dag aanstaat. Het feitelijke energieverbruik is afhankelijk van de manier waarop de televisie wordt gebruikt.
(*) Español Consumo de energía: kWh al año, suponiendo cuatro horas de funcionamiento diario durante 365 días. El consumo efectivo dependerá de las condiciones reales de uso de la televisión.
(*) Svenska Energiförbrukning kWh per år, beräknad utifrån effektförbrukningen för en tv-mottagare som används fyra timmar per dygn under 365 dygn. Den faktiska energiförbrukningen kommer att bero på hur tv-mottagaren
används.
(*) Italiano Consumo di energia kWh/anno calcolato sulla base del consumo di un televisore in funzione per 4 ore al giorno per 365 giorni. Il consumo effettivo di energia dipende dall'utilizzo reale del televisore.
(*) Polski Zużycie energii kWh/rok na podstawie zużycia energii przez telewizor działający 4 godziny dziennie przez 365 dni. Rzeczywiste zużycie energii zależy od sposobu użytkowania telewizora.
(*) Magyar A televiziókészülék napi 4 órás üzem mellett az év 365 napjára vétilve évente kWh mannyiségű energiát fogyaszl. A tényleges energiafogyasztás a készülék üzemelletési módjától függ.
(*) Norsk Energiforbruk kWh per år, strømforbruket er basert på bruk av TV-en for 4 timer per dag for 365 dager. Det faktiske energiforbruket vil være avhengig av hvordan TV-en brukes.
(*) Português Consumo de energia de kWh por ano, baseado no consumo, em termos de potência, do televisor a funcionar 4 horas por dia durante 365 dias. O consumo de energia real dependerá do modo como o televisor é utilizado.
(*) Română Consumul de energie de kWh pe an, pe baza puterii consumate de aparatul TV atunci când este în funcțiune 4 ore pe zi timp de 365 de zile; consumul real de energie depinde de condițile de utilizare a aparatului TV.
(*) Русский Энеогопотребление кВт-ч в год проеодится из расчета потребления энергии телевизOOM при работе 4 часа в день на протяжении 365 дней. Фактическое потребление электроэнергии будет зависеть от того.
как используется телевизор.
(*) беларуская Энергаспажыванне квт-г у год прыводзіцца з разпіку спажывання энергії талевізарам пры працы 4 гадзіны ў дзень на працяну 365 дзён. Фактычнає спажыванне электраэнергії будів залежаць ад таго, як выкарыстоўввеща талевізар.
(*) македонски Евенглетската потрошувачка е kWh подишно, воз основа на потрошувачката на телевизиски уред што работи 4 часа дневно, 365 денови. Реалната енергетска потрошувачка їе зависи од тоа како се користи
телевизискиот уред.
(*) український Значення енергоспоживання кВт-год на рік базується на потужності, споживаної телевізором, що працює протягом 4 годин на день впродовик 365 днів. Фактичне споживання електроенергії запежить від
способу використання телевізора.
(*) Srpski Potrašnja struje od kWh na godišnjem nivou zasnovana je na potrošnji televizora koji je uključen 4 sata dnevno 365 dana godišnje. Stvarna potrošnja struje zavisiča o načina korišćenja televizora.
(*) Slovenčina Spotreba energie kWh za rok na základe spotreby elektrickej energie televizora, ktorý je v činnosti 4 hodiny denne počas 365 dní. Skutočná spotreba energie závisi od toho, ako sa televizor použiva.
(*) Slovenščina Poraba energije je kWh na leto, glede na napajalno energije televizorja, ki deluje 4 ure na dan v vseh 365 dneh. Dejanska poraba energije je odvisna od načina uporabe televizorja.
(*) ELAnvik Kaimvákuan svénusar kWh ová šine ir flásn ovu kaimvákuan ovícer amó ovu trášenem var istnákuan įsutinovia ová nušna evi 365 nušne. H nonunmik kinnvákuan svíčenar štavám amó ovu tožum vojóne ir
guokenuic.
(*) Bosanski Energetska potrošnja je XYZ kWh na godišnjem nivou, na osnovu potrošnje TV-a koji radi 4 h dnevno, 365 dana. Stvarna energetska potrošnja zavisi od toga koliko e TV koristi.
ת הַרְׁה אַרְׁה אַרְׁה אַרְׁה אַרְׁה אַרְׁה אַרְׁה אַרְׁה אַרְׁה אַרְׁה אַרְׁה אַרְׁה א' 365 לָבִי 4 לָבִי 4 לָבִי 4 לָבִי 4 לָבִי 4 לָבִי 4 לָבִי 4 לָבִי 4 לָבִי 4 לָבִי 4 לָבִי 4 לָבִי 4
(*) Türkçe 365 gün boyunca günde 4 saat çalışan televizyonun tükettigi güç referans alınarak yılda kWh enerji tüketimi. Güncel enerji tüketimi televizyonun nasıl kullanıldığına bağlı olacaktır.
(*) Shqip Konsumi i energilisë kWh në vit, bazuar në konsumin e energilisë së televizorit kur punon për 4 orë në ditë për 365 ditë. Konsumi aktual i energilisë varet nga mënyra e përdorimit të televizorit.
(*) Lietuvlu kWh energijos sunaudojimas per metus nurodomas atsižvelgus i tai, kiek energijos sunaudojama televizoriui vaikiant 4 valandas per dieną 365 dienas iš eilės. Faktinį energijos sunaudojimą lemš tai, kiek laiko bus
naudojamas televizorius.
(*) Latviešu Energijas paterinš kWh gada, nemot vėra televizora elektroenergijas paterinų, darbojoties 365 dienas, četras stundas dieną. Faktiskais energijas paterinš būs atkarigs no ta, kā televizors tiks izmantots.
(*) Eesti Energiatarbimine kWh aastas, eeldusel et televisor töötab neli tundi päevas ja 365 päeva aastas. Tegelik energiatarbimine oleneh televisori kasutusviisist.
میزان مصرف لترزی به میزان 365 کWh در هر سال بر الس میزان مصرف تلیزین به میزان 4 ساعت در روز برای 365 کWh در هر سال بر الس میزان مصرف تلیزین به میزان 4 ساعت در روز برای 365 کWh در هر سال بر الس میزان مصرف تلیزین به میزان 4 ساعت در روز برای 365 کWh در هر سال بر الس میزان مصرف تلی Mozین به میزان 4 ساعت در روز برای 365 کWh در هر سال بر الس میزان مصرف تلی Mozین به میزان 4 ساعت در روز برای 365 کWh در هر سال بر الس میزان مصرف تلی Mozین به میزان 4 ساعت در روز برای 365 کWh در هر نسال بر الس میزان مصرف تلی Mozین به میزان 4 ساعت در روز برای 365 کWh در هر نسال بر الس میزان مصرف تلی Mozین به میزان 4 ساعت در روز برای 365 کWh در هر نسال بر الس میزان مصرف تلی Mozین به میزان 4 نعده از ظلوبزین بتنگی دارد

TR: Işbu belgede; VESTEL Elektronik Sanayi ve Ticaret A.Ş., telsiz ekipmanı tipi TFT IDTV 'nin 2014/53/AB sayılı direktife uygun olduğunu beyan eder. AB uygunluk beyanının tam metni internet adresinde mevcuttur: doc.vosshub.com
EN: Hereby, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declares that the radio equipment type TFT IDTV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: doc.vosshub.com
BG: С настоящото VESTEL Elektronik Sanayi ve Ticaret A.Ş., декларира, че този тип радиосъоръжение TFT IDTV е в съответствие с Директива 2014/53/EC. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: doc.vosshub.com
CZ: Tímto VESTEL Elektronik Sanayi ve Ticaret A.Ş., prohlašuje, že typ rádiového zařízení TFT IDTV je v souladu se směrnici 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: doc.vosshub.com
DA: Hermed erklærer VESTEL Elektronik Sanayi ve Ticaret A.Ş., at radioudstyrstypen TFT IDTV er i overensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde tekst kan findes på følgende internetadresse: doc.vosshub.com
DE: Hiermit erklärt VESTEL Elektronik Sanayi ve Ticaret A.Ş., dass der Funkanlagentyp TFT IDTV der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: doc.vosshub.com
EL: Με την παρούσα ο/η VESTEL Elektronik Sanayi ve Ticaret A.Ş., δηλώνει ότι ο radioεξοπλισμός TFT IDTV πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: doc.vosshub.com
ES: Por la presente, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declara que el tipo de equipo radioeléctrico TFT IDTV es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: doc.vosshub.com
ET: Käesolevaga deklareerib VESTEL Elektronik Sanayi ve Ticaret A.Ş., et käesolev raadioseadme tüüp TFT IDTV vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: doc.vosshub.com
FI: VESTEL Elektronik Sanayi ve Ticaret A.Ş., vakuuttaa, että radiolaitetyyppi TFT IDTV on direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: doc.vosshub.com
FR: Le soussigné, VESTEL Elektronik Sanayi ve Ticaret A.Ş., déclare que l'équipement radioélectrique du type TFT IDTV est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante: doc.vosshub.com
HR: VESTEL Elektronik Sanayi ve Ticaret A.Ş., ovime izjavljuje da je radijska oprema tipa TFT IDTV u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: doc.vosshub.com
