Product Type	Colour Television with Remote Control
Brand	XD
Model	55S4K2VSAT

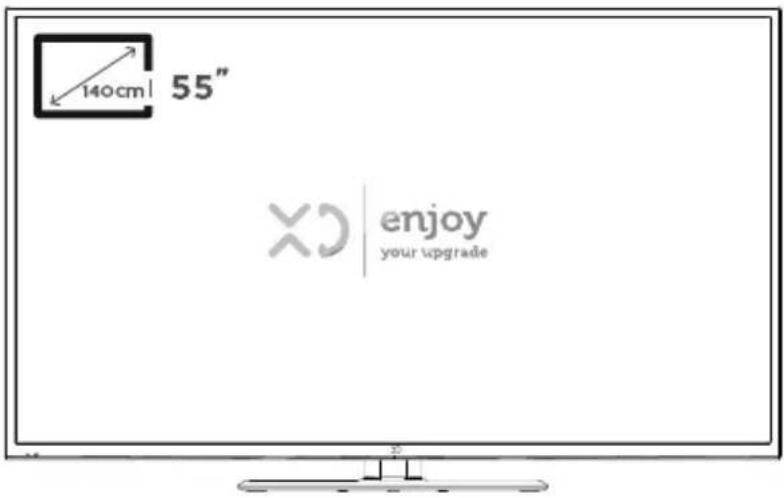

Display Size	55 inches (140 cm)
Display Resolution	3840 x 2160 (4K Ultra HD)
Power Consumption (On mode)	140 W
Standby Power Consumption	< 3 W
Operating Voltage	220-240 V AC, 50 Hz
Audio Output Power	2 x 10 W (RMS)
Dimensions with Stand (DxWxH)	235 x 1248 x 781 mm
Dimensions without Stand (DxWxH)	62 - 95 x 1248 x 730 mm
Weight	Approximately 18 kg (estimated)
Digital Reception	DVB-T-T2/C/S-S2 HEVC H.265
Connectivity	HDMI (3), USB (2), VGA, Ethernet LAN, Wi-Fi 802.11 a/b/g/n, CI Slot, Headphone, SPDIF Optical Out, Antenna, Satellite
Smart TV Features	Internet Portal, Netflix, Opera TV Store, Media Browser, Audio Video Sharing, FollowMe TV (if available)
HDR Support	HDR10, HLG
Audio Decoding	Dolby Audio
Remote Control	Yes, with dedicated Netflix button and MY BUTTON programmable keys
Energy Efficiency Class	Not specified, estimated A+ (typical for 55" 4K)
Safety Features	Child lock, automatic power down, wall mount warnings, battery safety for coin cell
Accessories Included	Remote Control, Instruction Book, Quick Start Guide, Batteries, Power Cable

Frequently Asked Questions - 55S4K2VSAT XD

What is the screen size of the XD 55S4K2VSAT TV?

The screen size is 55 inches (140 cm) diagonal, with a resolution of 3840 x 2160 (4K Ultra HD).

How do I connect the TV to Wi-Fi?

Go to System > Settings > Network/Internet Settings, select Network Type as Wireless Device, scan for available networks, choose yours, and enter the password if required.

Can I play media files via USB?

Yes, insert a USB drive into the USB input, press Media Browser on the remote, select the file type (Video, Music, Photo), and choose the file to play. Supported formats include MP4, AVI, MKV, JPEG, MP3, etc.

How do I perform a first-time installation?

When turning on the TV for the first time, follow the on-screen instructions: select language, country, and search for channels. You may need to set a PIN (cannot be 0000). The TV will automatically scan for digital terrestrial, cable, or satellite channels.

How can I update the TV's software?

Go to System > Settings > More > Software Upgrade. Select Scan for upgrade to check via broadcast or internet. You can also enable automatic scanning at 3 AM. Do not unplug during the process.

What is the power consumption in standby mode?

The standby power consumption is less than 3 W. The TV also has an automatic power-down feature after up to 8 hours of inactivity.

Does the TV support HDR content?

Yes, it supports HDR10 and HLG (Hybrid Log-Gamma). Ensure the HDMI input is set to Enhanced in Settings > Sources, and the source device is HDMI 2.0a compatible.

How do I use the FollowMe TV feature on my mobile?

Install the Smart Center app on your mobile device (Android/iOS). Ensure both TV and phone are connected to the same network. The app allows streaming live TV from the TV to your mobile.

What should I do if the remote control stops working?

First, check if the batteries are exhausted and replace them with new AAA batteries. Ensure there are no obstacles between the remote and the TV. If still not working, try pressing the power button on the TV directly.

Can I mount the TV on a wall?

Yes, use a compatible wall mount kit (available separately). Follow the wall mounting warnings in the manual: use specified screws, tighten firmly, and do not install on a ceiling or inclined wall. Ensure the wall can support the TV's weight.

USER MANUAL 55S4K2VSAT XD

TELEVISORE A COLORI CON TELECOMANDO COLOUR TELEVISION WITH REMOTE CONTROL

Indicazioni

Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours

and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away

from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

WARNING

Never place a television set in unstable or inclined locations. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking

simple precautions such as; Using cabinets or stands recommended by the manufacturer of the television set.

- Only using furniture that can safely support the television set. - Ensuring the television set is not overhanging

the edge of the supporting furniture. Not placing the television set on tall furniture (for example, cupboards or bookcases) without

anchoring both the furniture and the television set to a suitable support. Not standing the television set on cloth or other materials placed between the television and supporting furniture.

- Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied.

WALL MOUNTING WARNINGS

- Read the instructions before mounting your TV on the wall.

- The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV. - Do not install the TV on a ceiling or on an inclined

wall. - Use the specified wall mounting screws and other accessories. - Tighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.

- Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly. - Do not dispose of the batteries in fire or with hazardous or flammable materials.

Warning: Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component

Markings on the Product

The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Class II Equipment With Functional Earthing: This appliance is designed in such a way that it does not require a safety connection to electrical earth, the earth connection is used for functional purposes.

Protective Earth Connection: The marked terminal is intended for connection of the protective earthing conductor associated with the supply wiring.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

CLASS 1 Laser Product Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

WARNING

Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing - and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)

Safety Information

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains. The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby mode or switched off. Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: Never let people (including children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised. • Use this TV set at an altitude of less than 2000 meters above the sea level, in dry locations and in regions with moderate or tropical climates.

- The TV set is intended for household and similar general use but may also be used in public places. - For ventilation purposes, leave at least 5cm of free space around the TV.

- The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. - The power cord plug should be easily accessible. Do not place the TV furniture, etc. on the power cord

Not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands

as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.

- Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit). - Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV.

- Do not place any heat sources such as electric heaters, radiators, etc. near the TV set. - Do not place the TV on the floor and inclined surfaces. - To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children and domestic animals.

Contents

Safety Information 29

Markings on the Product ....30 Environmental Information ....31 Features ....31

Accessories Included .... 31 Standby Notifications .... 31

TV Control Switch & Operation ....32 Inserting the Batteries into the Remote .... 32 Connect Power .... 32

Antenna Connection .... 32 License Notification .... 33 Remote Control .... 34

Connections....35 Switching On/Off....36

First Time Installation .... 36 Media Playback via USB Input .... 37

Media Browser Menu .... 37 FollowMe TV (if available) .... 38 CEC and CEC RC Passthrough .... 38

E-Manual (if available) 38 General TV Operation 42

Using the Channel List ....42 Configuring Parental Settings ....42 Electronic Programme Guide (EPG) ....42

Teletext Services .... 43 Software Upgrade .... 43 Troubleshooting & Tips .... 43 PC Input Typical Display Modes .... 44

AV and HDMI Signal Compatibility .... 44 Supported Video File Formats for USB Mode .... 45 Supported Picture File Formats for USB Mode ... 45

Supported Audio File Formats for USB Mode .....46 Supported Subtitle File Formats for USB Mode .. 47 Supported DVI Resolutions ..... 47 Internet Portal ..... 51

Internet Portal ....51 Internet Browser ....51 Smart Center ....53

Environmental InformationThis television is designed to be environment friendly. To reduce energy consumption, you can follow these steps:If you set theEnergy Savingto Minimum, Medium, Maximum or Autothe TV will reduce the energy consumption accordingly. If you like to set theBacklightto a fixed value set asCustomand adjust theBacklight( located under theEnergy Saving setting) manually using Left or Right buttons on the remote. Set asOffto turn this setting off.Note:Available Energy Savingoptions may differ depending on the selectedModein theSystem>Picturemenu.The Energy Savingsettings can be found in the System>Picturemenu. Note that some picture settings will be unavailable to be changed.If pressed Right button whileAutooption is selected or Left button whileCustomoption is selected, "Screen will be off in 15 seconds."message will be displayed on the screen. SelectProceedand press OKto turn the screen off immediately. If you don't press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again.Note:Screen Offoption is not available if the Mode is set to Game.When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.	NTSC playbackAVL (Automatic Volume Limiting)PLL (Frequency Search)PC inputGame Mode (Optional)Picture off functionEthernet (LAN) for Internet connectivity and service802.11 a/b/g/n built in WIFI SupportAudio Video SharingHigh Dynamic Range (HDR)/ Hybrid Log-Gamma (HLG): Using this feature the TV can reproduce greater dynamic range of luminosity by capturing and then combining several different exposures. HDR/HLG promises better picture quality thanks to brighter, more realistic highlights, more realistic color and other improvements. It delivers the look that filmmakers intended to achieve, showing the hidden areas of dark shadows and sunlight with full clarity, colour and detail. HDR/HLG contents are supported via native and portal applications, HDMI, USB inputs and over DVB-S broadcasts. Set the related HDMI source input asEnhancedfrom theSourcesoption in theSettingsmenu in order to watch HDR/HLG images, if the HDR/HLG content is received through an HDMI input. The source device should also be at least HDMI 2.0a compatible in this case.	TV Control Switch & Operation1. Up direction2. Down direction3. Volume / Info / Sources List selection and Standby-On switchThe Control button allows you to control the Volume / Programme / Source and Standby-On functions of the TV.To change volume:Increase the volume by pushing the button up. Decrease the volume by pushing the button down.To change channel:Press the middle of the button in, the information banner will appear on the screen. Scroll through the stored channels by pushing the button up or down.To change source:Press the middle of the button in twice(for the second time in total), the source list will appear on the screen. Scroll through the available sources by pushing the button up or down.To turn the TV off:Press the middle of the button in and hold it down for a few seconds, the TV will turn into standby mode.To turn on the TV:Press the middle of the button in, the TV will turn on.Notes:If you turn the TV off, this circle starts again beginning with the volume setting.Main menu OSD cannot be displayed via control button.Operation with the Remote ControlPress theMenubutton on your remote control to display main menu screen. Use the directional buttons to select a menu tab and pressOKto enter. Use the directional buttons again to select or set an item. PressReturn/BackorMenubutton to quit a menu screen.Input SelectionOnce you have connected external systems to your TV, you can switch to different input sources. Press theSourcebutton on your remote control consecutively to select the different sources.Changing Channels and VolumeYou can change the channel and adjust the volume by using theVolume•/- andProgramme•/- buttons on the remote.	Inserting the Batteries into the RemoteRemove the back cover to reveal the battery compartment. Insert two size AAA batteries. Make sure the (-) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on.Connect PowerIMPORTANT:The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.Antenna ConnectionConnect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket or satellite plug to the SATELLITE INPUT (LNB) socket located on the rear side of the TV.Rear side of the TV
FeaturesTV supports Ultra HD (Ultra High Definition - also known as 4K) which provides resolution of 3840 x 2160 (4K:2K). It equals 4 times the resolution of Full HD TV by doubling the pixel count of the Full HD TV both horizontally and vertically. Ultra HD contents are supported from HDMI, USB inputs and over DVB-T2 and DVB-S2 broadcasts.Remote controlled colour TVFully integrated digital terrestrial/cable/satellite TV (DVB-T-T2/C/S-S2 HEVC H26s)HDMI inputs to connect other devices with HDMI socketsUSB inputOSD menu systemStereo sound systemTeletextHeadphone connectionAutomatic programming systemManual tuningAutomatic power down after up to eight hours.Sleep timerChild lockAutomatic sound mute when no transmission.	Accessories IncludedRemote ControlInstruction BookQuick Start GuideStandby NotificationsIf the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 3 minutes, it will go into standby. When you next switch-on, the following message will be displayed: "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.The Auto TV OFFoption(in theSystem>Settings+Moremenu) may be set to a value between 1 and 8 hours by default. If this setting is not set asOffand the TV has been left on and not been operated during the set time, it will switch into standby mode after the set time has expired. When you next switch-on the TV, the following message will be displayed. "TV switched to stand-by mode automatically because no operation was made for a long time." Press OK to continue.

Accessories Included

Standby Notifications

TV Control Switch & Operation

Connect Power

Antenna Connection

Rear side of the TV

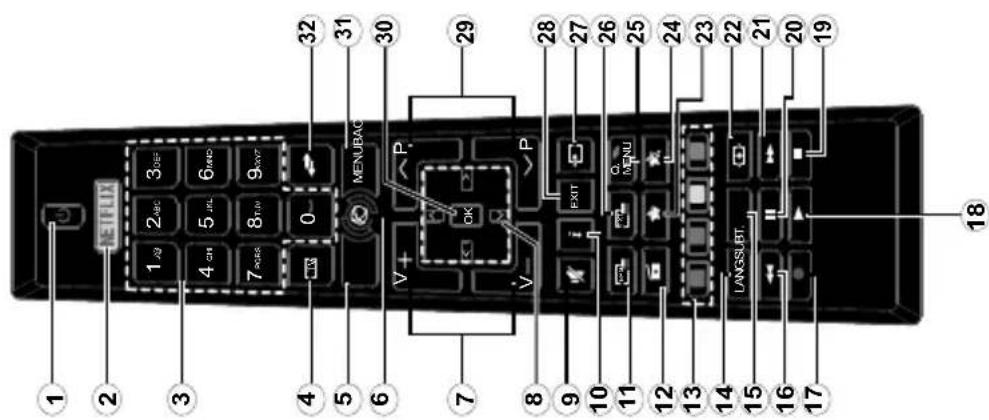

1. Standby: Switches On / Off the TV

2. Netflix: Launches the Netflix application

3. Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen.

4. TV: Switches to TV Source

5. Back/Return: Returns to previous screen, opens index

page (in TXT mode)

1. Internet: Opens the portal page, where you can reach

many web based applications

1. volume +1-

2. Directional buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left

3. Mute: Completely turns off the volume of the TV

4. Info: Displays information about on-screen content,

shows hidden information (reveal - in TXT mode) 11. EPG (Electronic programme guide): Displays the

electronic programme guide

1. Media browser: Opens the media browsing screen

2. Coloured Buttons: Follow the on-screen instructions for coloured button functions

3. Language: Switches among sound modes (analogue

TV), displays and changes audio/subtitle language (digital TV, where available)

1. Subtitles: Turns subtitles on and off (where available)

2. Rapid reverse: Moves frames backwards in media

such as movies

1. No function

2. Play: Starts to play selected media

3. Stop: Stops the media being played

4. Pause: Pauses the media being played

5. Rapid . advance: Moves frames forward in media such as movies

6. Screen: Changes the aspect ratio of the screen

7. My button 1(*)

8. My button 2 (*)

9. Quick Menu: Displays a list of menus for quick access

10. Text: Displays teletext (where available), press again

to superimpo picture (mix)

1. Source: Shows all available broadcast and content

sources

1. Exit Clo

to previous screen

1. Programme +/-

2. OK: Confirms user selections, holds the page (in TXT

mode), views channel list (DTV mode)

1. Menu: Displays TV menu

2. Swap: Quickly cycles between previous and current

channels or sources

Note that if you perform First Time Installation, MY

BOTTON I&2 will return to their default function.

Remote Control

(*) MY BUTTON 1 & MY BUTTON 2:

These buttons may have default functions depending on the model. However you can set a special function to these buttons by pressing on them for five seconds when on a desired source or channel. A confirmation message will be displayed on the screen. Now the selected MY BUTTON is associated with the selected function.

Note that if you perform First Time Installation, MY

BUTTON 1&2 will return to their default function.

Wireless LAN Transmitter Specifications

Frequency Ranges	Max Output Power
2400 - 2483,5 MHz (CH1-CH13) < 100 mW
5150 - 5250 MHz (CH36 - CH48) < 200 mW
5250 - 5350 MHz (CH52 - CH64) < 200 mW
5470 - 5725 MHz (CH100 - CH140) < 200 mW

Country Restrictions

This device is intended for home and office use in all EU countries (and other countries following the relevant EU directive) without any limitation except for the countries mentioned below.

Country Restriction
Bulgaria	General authorization required for outdoor use and public service
France In-door	use only for 2454-2483.5 MHz
Italy	If used outside of own premises, general authorization is required
Greece	In-door use only for 5470 MHz to 5725 MHz band
Luxembourg	General authorization required for network and service supply(not for spectrum)
Norway	Radio transmission is prohibited for the geographical area within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation	In-door use only

The requirements for any country may change at any time. It's recommended that user checks with local authorities for the current status of their national regulations for both 2.4 GHz and 5 GHz wireless LAN's.

License Notification

and the HDMI L

trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Manufactured under license from Dolby Laboratories, Dolby, Dolby Audio and the double-D

symbol are trademarks of Dolby Laboratories.

This produ

intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

Information for Users Equipment and Batteries

[European Union only]

Equipment bearing these symbols should not be disposed as general household waste.

these products.

Notice: The sign Pb below the symbol for batteries indicates

that this battery contains lead.

If the type of installation is standard, you can select Antenna's Type on Direct, Single Satellite Cable or DiSEqC Switch using the button "◀" o "▶".

Direct: If you have a single receiver and a direct parabola, select this type of antenna. Press OK button to continue. Select a satellite available on the next screen and press OK for the scan of the services.

Single Satellite Cable: If you have multiple receivers and a single satellite cable, select this type of antenna. Press OK button to continue. Configure the settings by following the instructions on the next screen. Press OK to scan the devices.

DiSEqC switch: In case you have a multiple LNB or multiple satellite dish and a DiSEqC switch, select this type of antenna. Press OK button to continue. It will be possible to set four DiSEqC options (if available) on the next screen. Press OK button to scan the first satellite in the list.

If the installation type is Operator - Italian Sorting will be made a research for the channels on the Hot Bird 13 East satellite according to a pre-set order. It will be possible select Antenna's Type on Direct , Single Satellite Cable or DiSEqC Switch by using the "◀" o "▶".buttons.

Direct: If you have a single receiver and a direct parabola, select this type of antenna. Press OK button to continue. Select a satellite available on the next screen and press OK for the scan of the services.

Single Satellite Cable: If you have multiple receivers and a single satellite cable, select this type of antenna. Press OK button to continue. Configure the settings by following the instructions on the next screen. Press OK to scan the devices.

English - 36 -

Switching On/Off
To Switch the TV On

Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).

To switch on the TV from standby mode either:

• Press the Standby button, Programme +/- or a numeric button on the remote control.

• Press the middle of the side function switch on

the TV in. To Switch the TV Off

Press the Standby button on the remote control or press the middle of the side function switch on the TV in and hold it down for a few seconds, the TV will switch into standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.

On the next screen, set your preferences using the directional buttons.

Note: Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be oooo. You have to enter it if you are asked to enter a PIN for any menu operation later.

About Selecting Broadcast Type

Digital Aerial: If Digital Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed.

Digital Cable: If Digital Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed. According to your other preferences a confirmation message may be displayed before starting to search. Select YES and press OK to

proceed. To cancel operation, select NO and press OK. You can select Network or set values such as Frequency, Network ID and Search Step. When finished, press OK button.

Note: Searching duration will change depending on the selected Search Step.

Satellite: If the research option Satellite is switch-on, TV will search for digital satellite channels after other initial settings are completed.Before performing the satellite search, some settings should be made:

Connections

NOTE: When connecting a device via the YPbPr or Back AV inputs, you must use the connection cables to enable connection. See the illustrations on the left side. I You can use YPbPr to VGA cable to enable YPbPr signal via VGA input. I You cannot use VGA and YPbPr at the same time. I To enable PC/YPbPr audio, you will need to use the back audio inputs with a YPbPr/PC audio cable for audio

connection. I When using the wall mounting kit (available from third party in the market, if not supplied), we recommend that you plug all your cables into the back of the TV before mounting on the wall. I Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. I The/Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV. I By connecting an HDMI cable to your TV, you have to use only a shielded (high grade) HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation. And make sure to use a High-Speed HDMI cable that can transmit high definition signals, such as 4K contents, for trouble-free transmission.

Connector Type Cables Device
	VGA Connection (back)
AUDIO IN	PC/YPbPr Audio Connection (back)	YPbPr/PC Audio Cable
	HDMI Connection (side&back)
SPDIF	SPDIF (Optical Out) Connection (back)
BACK AV	Back AV (Audio/Video) Connection (back)	Audio Video Cable
HEADPHONE	Headphone Connection (side)
YPBPR	YPbPr Video Connection (back)	PC to YPbPr Connection Cable
	USB Connection (side)
	CI Connection (side)
LAN	Ethernet Connection (back)	LAN / Ethernet Cable

If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

Note: The audio device should support System Audio Control feature and CEC option should be set as Enabled.

E-Manual (if available)

You can find instructions for your TV's features in the E-Manual.

To use E-Manual, press to the Info button while main menu is displayed on the screen or press Quick Menu button, select Information Booklet and press OK.

By using the directional buttons select a desired category. Every category includes different topics. Select a topic and press OK to read instructions. To close the E-Manual screen press the Exit or Menu button.

Note: The contents of the E-Manual may vary according to the model.

FollowMe TV (if available)

With your mobile device you can stream the current broadcast from your smart TV using the FollowMe TV feature. Install the appropriate Smart Center application to your mobile device. Start the application.For further information on using this feature refer to the instructions of the application you use.Note: This application may not be compatible with all mobile devices. Both of the devices must be connected to the same network.

CEC and CEC RC Passthrough

This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.The CEC option in the System>Settings>More menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.).The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.To terminate this operation and control the TV via the remote again, press Quick Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the System>Settings>More menu.The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system).When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.Note: ARC is supported only via the HDMI2 input.

System Audio ControlAllows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the System>Settings>More menu as Amplifier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system.

Loop/Shuffle Mode Operation
Start playback with the Play button and activate 📄	All files in the list will be continuously played in original order
Start playback with the OK button and activate 📄	The same file will be played continuously (repeat)
Start playback with the Play button and activate 📄	All files in the list will be played once in random order
Start playback with the Play button and activate 📄	All files in the list will be continuously played in the same random order.

Sound Mode	You can select a sound mode (If the viewed channel supports).
AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between programmes.
Headphone/ Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option asLineout.If you have connected headphones to the TV, set this option asHeadphone.Please ensure before using headphones that this menu item is set toHeadphone.If it is set toLineout,the output from the headphone socket will be set to maximum which could damage your hearing.
Dynamic Bass	Enables or disables the Dynamic Bass.
Surround sound	Surround sound mode can be changed asOnorOff.
Digital Out	Sets digital out audio type.
System - Settings Menu Contents
Conditional Access	Controls conditional access modules when available.
Language	You may set a different language depending on the broadcaster and the country.
Privacy Settings (*)	Manage your privacy privileges for smart TV related applications. PressOKto enter the menu and set according to your preferences.
Parental	Enter correct password to change parental settings. You can easily adjustMenu Lock,Maturity Lock,Child LockorGuidancein this menu. You can also set a newPINor change theDefault CICAM PINusing the related options.Note:Some menu options may not be available depending on the country selection in theFirst Time Installation.Default PIN can not be set to 0000 If you have defined the PIN(is requested depending on the country selection) during theFirst Time Installationuse the PIN that you have defined.
Timers	Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.
Date/Time	Sets date and time.
Sources	Enables or disables selected source options. There areRegular,EnhancedandDisabledoptions available for HDMI sources.RegularandEnhancedoptions are affecting the colour settings of the selected HDMI source. To be able to watch 4K images from an HDMI source related source setting should be set asEnhancedif the connected device is compatible with HDMI 2.0 and subsequent versions. Set asRegularif the connected device is HDMI 1.4 compatible. Set accordingly or disable the related HDMI source by setting asDisabled.
Network/Internet Settings	Displays network/internet settings.
Accessibility	Displays accessibility options of the TV.
Hard of Hearing	Enables any special feature sent from the broadcaster.
Audio Description	A narration track will be played for the blind or visually impaired audience. PressOKto see all availableAudio Descriptionmenu options. This feature is available only if the broadcaster supports it.
Netflix	If this feature is supported by your TV, you can view your ESN(*) number and deactivate Netflix. (*)ESN number is an unique ID number for Netflix, created especially to identify your TV.
More	Displays other setting options of the TV.
Menu Timeout	Changes timeout duration for menu screens.
Standby LED	If set as Off, the standby LED will not light up when the TV is in standby mode.
Software Upgrade	Ensures that your TV has the latest firmware. PressOKto see the menu options.
Application Version	Displays current software version.
Subtitle Mode	This option is used to select which subtitle mode will be on the screen (DVB subtille / Teletext subtitle) if both is available. Default value isDVBsubtitle. This feature is available only for the country option of Norway.

TV Menu Contents

System - Picture Menu Contents
Mode	You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.
Contrast	Adjusts the light and dark values on the screen.
Brightness	Adjusts the brightness values on the screen.
Sharpness	Sets the sharpness value for the objects displayed on the screen.
Colour	Sets the colour value, adjusting the colours.
Energy Saving	For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Off or Off.Note: Available options may differ depending on the selected Mode.
Backlight	This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other then Custom.
Advanced Settings
Dynamic Contrast	You can change the dynamic contrast ratio to desired value.
Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Colour Temp	Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.
White Point	If the Colour Temp option is set as Custom, this setting will be available. Increase the 'warmth' or 'coolness' of the picture by pressing Left or Right buttons.
Picture Zoom	Sets the desired image size format.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone	Skin tone can be changed between -5 and 5.
Colour Shift	Adjust the desired colour tone.
HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
PC Position	Appears only when the input source is set to VGA/PC.
Autoposition	Automatically optimizes the display. Press OK to optimize.
H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset	Resets the picture settings to factory default settings (except Game mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
System - Sound Menu Contents
Volume	Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in User mode.
Balance	Adjusts whether the sound comes from the left or right speaker.
Headphone	Sets headphone volume.Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.

Child Lock: If this option is set to ON, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.

Internet Lock: If this option is set to ON, the open browser application in the portal will be disabled. Set to OFF to release the application again.

Set PIN: Defines a new PIN number.

Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.

Note: Default PIN can not be set to 0000. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.

Some options may not be available depending on the model and/or on the country selection in the First Time Installation.

Electronic Programme Guide (EPG)

Some channels send information about their broadcast schedules. Press the Epg button to view the Programme Guide menu.

There are 3 different types of schedule layouts available, Timeline Schedule, List Schedule and Now/Next Schedule. To switch between them follow the instructions on the bottom of the screen.

Timeline Schedule

Zoom (Yellow button): Press the Yellow button to see events in a wider time interval.

Filter (Blue button): Views filtering options.

Highlight Genre (Subtitles button): Displays Highlight Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.

Options (OK button): Displays event options.

Event Details (Info button): Displays detailed information about selected programmes.

Next/Prev Day (Programme +/- buttons): Displays the programmes of previous or next day.

Search (Text button): Displays Guide Search menu.

Now (Source button): Displays current event of the highlighted channel.

List Schedule(*)

(*) In this layout option, only the events of the highlighted channel will be listed.

Prev. Time Slice (Red button): Displays the programmes of previous time slice.

Next/Prev Day (Programme +/- buttons): Displays the programmes of previous or next day.

Event Details (Info button): Displays detailed information about selected programmes.

Filter (Text button): Views filtering options.

Next Time Slice (Green button): Displays the programmes of next time slice.

General TV Operation

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press the Red button to open the Channel List. You can filter the listed channels by pressing the Blue button or open the Edit Channel List menu by pressing the Green button in order to make advanced changes in the current list.

Managing the Favourite Lists

You can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Select the desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/Remove Favourites option. Press the OK button again. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.

You can use the Filter function in the Edit Channel List menu to filter the channels in the Channel list permanently according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed every time the Channel list is opened. The filtering function in the Channel list menu will only filter the currently displayed Channel list in order to find a channel and tune in to it. These changes will not remain the next time the Channel list is opened if you don't save them. To save the changes on the list press the Red button after filtering while the Channel list is displayed on the screen.

Configuring Parental Settings

The Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the System>Settings>Parental menu. To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed.

Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.

Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Note: If the country option in the First Time Installation is set as France, Italy or Austria, Maturity Lock's value will be set to 18 as default.

Auto TV OFF	Sets the desired time for the TV to automatically go into standby mode when not being operated.
Biss Key	Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter Biss key on a broadcast, you can use this setting. Highlight Biss Key and press OK to enter keys on the desired broadcast.
Store Mode	Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.
Audio Video Sharing	Audio Video Sharing feature allows you to share files stored on your smartphone or tablet pc. If you have a compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your TV. See instructions of your sharing software for more information. Audio Video Sharing mode will not be available with internet portal feature.
Power Up Mode	This setting configures the power up mode preference. Last State and Standby options are available.
Virtual Remote	Enable or disable the virtual remote feature.
CEC	With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
CEC Auto Power On	This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.
Speakers	To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.
Show All Cookies (*)	Displays all saved cookies.
Delete All Coo-kies (*)	Deletes all saved cookies.
OSS	Displays Open Source Software license information.
(*) These features may not be available depending on the model of your TV and the selected country in the First Time Installation.
Installation Menu Contents
Automatic channel scan (Retune)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Satellite: Searches and stores satellite stations.
Manual channel scan	This feature can be used for direct broadcast entry.
Network channel scan	Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels. Digital Cable: Searches for cable network channels.
Analogue fine tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
Satellite Settings	Displays satellite settings. Satellite list: Displays available satellites. You can Add, Delete satellites or Edit satellite settings on the list. Antenna installation: You can change satellite antenna settings and/or start a satellite scan.
Installation Settings	Displays installation settings menu. Standby Search: Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown.
Clear Service List	Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Select Active Network	This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.
First time installation	Deletes all stored channels and settings, resets TV to factory settings.

AV and HDMI Signal Compatibility
Source Supported Signals Available
Side AV	PAL O
	SECAM O
	NTSC4.43		O
	NTSC3.58		O
YPbPr	480i, 480p	60Hz	O
	576i, 576p	50Hz	O
	720p 50Hz,60Hz	O
	1080i 50Hz,60Hz	O
HDMI	480i 60Hz	O
	480p 60Hz	O
	576i, 576p	50Hz	O
	720p 50Hz,60Hz	O
	1080i 50Hz,60Hz	O
	1080p	24Hz,25Hz,30Hz,50Hz,60Hz	O
	3840x2160p	24Hz,25Hz,30Hz,50Hz,60Hz	O
	4096x2160p	24Hz,25Hz,30Hz,50Hz,60Hz	O

Index Resolution Frequency
1	640x350 85Hz
2	640x480 60Hz
3	640x480 72Hz
4	640x480 75Hz
5	800x600 56Hz
6	800x600 60Hz
7	800x600 72Hz
8	800x600 75Hz
9	1024x768 60Hz
10	1024x768 70Hz
11	1024x768 75Hz
12	1024x768 85Hz
13	1152x864 75Hz
14	1280x768 60Hz
15	1280x768 75Hz
16	1280x960 60Hz
17	1280x960 75Hz
18	1280x1024 60Hz
19	1280x1024 75Hz
20	1360x768 60Hz
21	1366x768 60Hz
22	1400x1050 59Hz
23	1400x1050 60Hz
24	1400x1050 75Hz
25	1440x900 60Hz
26	1440x900 75Hz
27	1600x1200 60Hz
28	1680x1050 59Hz
29	1680x1050 60Hz
30	1920x1080 60Hz

Options (OK button): Displays event options.Now/Next ScheduleOptions (OK button): Displays event options.Event Details (Info button): Displays detailed information about selected programmes.Filter (Blue button): Views filtering options.Programme OptionsUse the directional buttons to highlight a programme and press OK button to display Event Options menu. The following options are available.Select Channel: Using this option, you can switch to the selected channel.Set Timer on Event / Delete Timer on Event: After you have selected a programme in the EPG menu, press the OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled.Notes: You cannot switch to any other channel while there is an active timer on the current channel.It is not possible to set timer for two or more individual events at the same time interval.Teletext ServicesPress the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.Digital TeletextPress the Text button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the Text button is pressed again, the TV returns to television broadcast.Software UpgradeYour TV is capable of finding and updating the firmware automatically via the broadcast signal or via Internet.Software upgrade search via user interfaceOn the main menu select System>Settings and then More. Navigate to Software upgrade and press the OK button. In Upgrade options menu select Scan for upgrade and press OK button to check for a new software upgrade.If a new upgrade is found, it starts to download the upgrade. After the download is completed confirm the question asking about rebooting

the TV by pressing the OK to continue with the reboot operation.3 AM search and upgrade modeYour TV will search for new upgrades at 3:00 o'clock if Automatic scanning option in the Upgrade options menu is set to Enabled and if the TV is connected to an aerial signal or to Internet. If a new software is found and downloaded successfully, it will be installed at the next power on.Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.Troubleshooting & TipsTv will not turn onMake sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.Poor pictureCheck if you have selected the correct TV system.Low signal level can cause picture distortion. Please check antenna access.Check if you have entered the correct channel frequency if you have done manual tuning.The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.No pictureThis means your TV is not receiving any transmission. Make sure the correct source has been selected.Is the antenna connected properly?Is the antenna cable damaged?Are suitable plugs used to connect the antenna?If you are in doubt, consult your dealer.No soundCheck if the TV is muted. Press the Mute button or increase the volume to check.Sound may be coming from only one speaker. Check the balance settings from Sound menu.Remote control - no operationThe batteries may be exhausted. Replace the batteries.Input sources - can not be selectedIf you cannot select an input source, it is possible that no device is connected. If not;Check the AV cables and connections if you are trying to switch to the input source dedicated to the connected device.

Supported Audio File Formats for USB Mode

Audio Codec Sample rate	Bit Rate	Container
MPEG1/2 Layer1	16KHz - 48KHz	32Kbps ~ 448Kbps	MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG), WAV (.wav)
MPEG1/2 Layer2	16KHz ~ 48KHz	8Kbps ~ 384Kbps	MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG), WAV (.wav)
MPEG1/2 Layer3	16KHz ~ 48KHz	8Kbps ~ 320Kbps	MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG), FLV (.flv), WAV (.wav), SWF (.swf)
AC3	32KHz, 44.1KHz, 48KHz	32Kbps ~ 640Kbps	AC3 (.ac3), AVI (.avi), Matroska (.mkv, .mka), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG)
EAC3	32KHz, 44.1KHz, 48KHz	32Kbps ~ 6 Mbps	EAC3 (.ec3), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG)
AAC, HEAAC	8KHz ~ 48KHz		AAC (.aac), AVI (.avi), Matroska (.mkv, .mka), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG), FLV (.flv), RM (.ra)
WMA	8KHz ~ 48KHz	128bps ~ 320Kbps	ASF (.wma, .asf), AVI (.avi), Matroska (.mkv, .mka)
WMA 10 Pro Mo	48KHz	< 192kbps
WMA 10 Pro M1	48KHz	< 384kbps
WMA 10 Pro M2	96KHz	< 768kbps
G711 A/mu-law	8KHz	64Kbps ~ 128Kbps	WAV (.wav), AVI (.avi), Matroska (.mkv, .mka), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a)
LBR (cook)	8KHz, 11.025KHz, 22.05KHz, 44.1KHz	6Kbps ~ 128Kbps	RM (.ra)
FLAC	8KHz~96KHz	< 1.6Mbps	Matroska (.mkv, .mka)

Supported Video File Formats for USB Mode

Video Codec Resolution Bit Rate Container
MPEG1/2	108OPx2@30fps, 108OP@60fps	40Mbps	MPEG program stream (.DAT, .VOB, .MPG, .MPEG), MPEG transport stream (.ts, .trp, .tp), MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), AVI (.avi), MKV (.mkv), ASF (.asf)
MPEG4			MPEG program stream (.MPG, .MPEG), MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), AVI (.avi), MKV (.mkv), ASF (.asf)
XviD MP4 (.mp4, .mov), AVI (.avi), MKV (.mkv), ASF (.asf)
Sorenson H.263 FLV (.flv), AVI (.avi), SWF(.swf)
H.263 MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), AVI (.avi), MKV (.mkv)
H.264	3840x2160@30fps, 108OP@60fps	135Mbps	FLV (.flv), MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), MPEG transport stream (.ts, .trp, .tp), ASF (.asf), AVI (.avi), MKV (.mkv)
Motion JPEG 72OP	30fps 10Mbps		AVI (.avi), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov), MKV (.mkv), ASF (.asf)
VP8 108OP@30fps	20Mbps MKV (.mkv), WebM (.webm)
HEVC/H.265	4K2K@60fps 100Mbps		MP4 (.mp4, .mov), MKV (.mkv), MPEG transport stream (.ts, .trp, .tp)
	108OP@60fps 50Mbps		MP4 (.mp4, .mov), MKV (.mkv), MPEG transport stream (.ts, .trp, .tp), 3GPP (.3gpp, .3gp)
VP9 4K2K@30fps 10	0Mbps MKV (.mkv), WebM (.webm)

Supported Picture File Formats for USB Mode

Image Photo Resolution (width x height) Remark
JPEG	Base-line 15360x8640		The limit for max resolution depends on DRAM size
	Progressive 1024x768
PNG	non-interlace 9600x6400
	interlace	1200x800
BMP		9600x6400

Supported Subtitle File Formats for USB Mode

Highlight Advanced Settings and press the OK button. On the next screen you can change the IP and DNS settings of the TV. Highlight the desired one and press Left or Right button to change the setting from Automatic to Manual. Now you can enter the Manual IP and / or Manual DNS values. Select the related item in the drop down menu and enter the new values using the numeric buttons of the remote. Press the OK button to save settings when complete.

Wireless Connectivity

To Connect to a Wireless Network

The TV cannot connect to the networks with a hidden SSID. To make your modem's SSID visible, you should change your SSID settings via the modem's software.

To Connect to a wireless LAN, you should perform the following steps:

To configure your wireless settings please refer to the Network/Internet Settings section in the System>Settings Menu.

Broadband
ISP
connection
Broadband
ISP
connection
Broadband ISP connection

To configure wired settings please refer to the Network/Internet Settings section in the System>Settings Menu.

- You might be able to connect your TV to your LAN depending on your network's configuration. In such a case, use an ethernet cable to connect your TV directly to the network wall outlet.

LAN input on the rear side of the TV

Configuring Wired Device Settings

Network Type

The Network Type can be selected as Wired Device, Wireless Device or Disabled, in accordance with the active connection to the TV set. Select this as Wired Device if you are connecting via an ethernet cable.

Internet Speed Test

Highlight Internet Speed Test and press the OK button. TV will check the internet connection bandwidth and display the result when complete.

Connectivity

Wired Connectivity

To Connect to a Wired Network

- You must have a modem/router connected to an active broadband connection.

- Connect your TV to your modem/router via an ethernet cable. There is a LAN port at the rear (back) of your TV.

LAN input on the rear side of the TV

To configure wired settings please refer to the Network/Internet Settings section in the System>Settings Menu.

Internal Subtitles
Extension Container Subtitle Code
dat, mpg, mpeg, vob MPG, MPEG DVD Subtitle
ts, trp, tp TS DVB Subtitle
mp4 MP4		DVD SubtitleUTF-8 Plain Text
mkv MKV		ASSSSAUTF-8 Plain TextVobSubDVD Subtitle
avi	AVI (1.0, 2.0),DMFo,1, 2	XSUBXSUB+

External Subtitles
Extension Subtitle Parser	Remark
.srt Subrip
.ssa/.ass SubStation Alpha
.smi SAMI
.sub	SubViewerMicroDVDDVDSusbtitleSystemSubIdx (VobSub)	SubViewer 1.0 & 2.0 Only
.txt TMPlayer

Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.

	56Hz 60Hz 66Hz 70Hz				72Hz 75Hz
640x480		☑				☑
800x600	☑	☑				☑
1024x768		☑		☑		☑
1280x768		☑				☑
1280x960		☑
1360x768		☑
1366x768		☑
1280x1024		☑		☑		☑
1400x1050		☑
1600x900		☑
1920x1080		☑

Open the sharing application on your mobile device. These applications are named differently for each brand, please refer to the instruction manual of your mobile device for detailed information.Scan for devices. After you select your TV and connect, the screen of your device will be displayed on your TV.Note: This feature can be used only if the mobile device supports this feature. Scanning and connecting processes differ according to the programme you use. Android based mobile devices should have the software version V4.2.2 and above.

information on how to connect a different device, such as your TV, to the internet.It is also possible that the connection may not be available due to a firewall problem. If you think this causes your problem, contact your internet service provider. A firewall might be the reason of a connectivity and discovery problem while using the TV in Audio Video Sharing mode or while browsing via Audio Video Sharing feature.Invalid DomainEnsure that you have already logged on to your PC with an authorized username/password and also ensure that your domain is active, prior to sharing any files in your media server program on your PC. If the domain is invalid, this might cause problems while browsing files in Audio Video Sharing mode.

Connectivity TroubleshootingWireless Network Not Available· Ensure that any firewalls of your network allow the TV wireless connection.· Try searching for wireless networks again, using the Network/Internet Settings menu screen.If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connectivity section for more information on the process.If the TV does not function using the wired connection, check the modem (router). If the router does not have a problem, check the internet connection of your modem.Connection is SlowSee the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.Disruption during playback or slow reactionsYou could try the following in such a case:Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try changing the active channel on the WLAN router.Internet Connection Not Available / Audio Video Sharing Not WorkingIf the MAC address (a unique identifier number) of your PC or modem has been permanently registered, it is possible that your TV might not connect to the internet. In such a case, the MAC address is authenticated each time when you connect to the internet. This is a precaution against unauthorized access. Since your TV has its own MAC address, your internet service provider cannot validate the MAC address of your TV. For this reason, your TV cannot connect to the internet. Contact your internet service provider and request

Using Audio Video Sharing Network ServiceAudio Video Sharing feature uses a standard that eases the viewing process of digital electronics and makes them more convenient to use on a home network.This standard allows you to view and play photos, music and videos stored in the media server connected to your home network.1. Server Software InstallationThe Audio Video Sharing feature cannot be used if the server programme is not installed onto your PC or if the required media server software is not installed onto the companion device. Please prepare your PC with a proper server programme.2. Connect to a Wired or Wireless Network See the Wired/Wireless Connectivity chapters for detailed configuration information.3. Play Shared Files via Media BrowserSelect Media Browser by using the directional buttons from the main menu and press OK. The media browser will then be displayed.Audio Video SharingSelect the desired media type on the main media browser menu and press OK. If sharing configurations are set properly, Device Selection screen will be displayed after selecting the desired media type. If available networks are found, they will be listed on this screen. Select media server or network that you want to connect to using the Up or Down buttons and press OK. If you want to refresh the device list, press the Green button. You can press Menu to exit.If you select the media type as Videos and choose a device from the selection menu. Then select the folder with video files in it on the next screen and all the available video files will be listed.

standards. They are not the actual speeds of data transmission.The location where the transmission is most effective differs depending on the usage environment.The Wireless feature of the TV supports 802.11 a,b,g & n type modems. It is highly recommended that you should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.You must change your modem's SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection.	Afterwards, engage your mobile device with the router and then activate the sharing software on your mobile device. Then, select files that you want to share with your TV.If the connection is established correctly, you will be able to access the shared files from your mobile device via the Media Browser of your TV.Enter the Media Browser menu and the playback device selection OSD will be displayed. Select your mobile device and press the OK button to continue.If available, you can download a virtual remote controller application from the server of your mobile device application provider.Note: This feature may not be supported on all mobile devices.
Configuring Wireless Device SettingsOpen the Network/Internet Settings menu and select Network Type as Wireless Device to start connection process.The TV will scan the wireless networks automatically. A list of available networks will be displayed. Please select your desired network from the list.Note: If the modem supports N mode, you should set N mode settings.If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via the directional buttons and the OK button on the remote control.Wait until the IP address is shown on the screen.This means that the connection is now established. To disconnect from a wireless network, highlight Network Type and press Left or Right buttons to set as Disabled.Highlight Internet Speed Test and press the OK button to check your internet connection speed. Highlight Advanced Settings and press the OK button to open the advanced setting menu. Use directional and numeric buttons to set. Press the OK button to save settings when complete.Other InformationThe status of the connection will be displayed as Connected or Not Connected and the current IP address, if a connection is established.Connecting to your mobile device via WiFiIf your mobile device has WiFi feature, you can connect it to your TV via a router, in order to access the content in your device. For this, your mobile device must have an appropriate sharing software.Connect to your router following the steps stated above in the Wireless Connectivity section.	Wake ONWake-on-LAN (WoL) and Wake-on-Wireless LAN (WoWLAN) are standards that allow a device to be turned on or woken up by a network message. The message is sent to the device by a program executed on a remote device connected to the same local area network, such as a smartphone.Your TV is WoL and WoWLAN compatible. To enable this feature set the Wake On option in the Network/Internet Settings menu as On. It is necessary that both the device, from which the network message will be sent to the TV, and the TV are connected to the same network. Wake On feature is only supported for Android OS devices and can only be used via YouTube and Netflix applications.In order to use this feature the TV and the remote device should be connected at least once while the TV is on. If the TV is powered off, the connection should be reestablished, the next time it is switched on. Otherwise this feature will be unavailable. This does not apply, when the TV is switched into the standby mode.Wireless DisplayWireless Display is a standard for streaming video and sound content by Wi-Fi Alliance. This feature provides the ability to use your TV as wireless display device.Using with mobile devicesThere are different standards which enable sharing of screens including graphical, video and audio content between your mobile device and TV.Plug the wireless USB dongle to TV first, if the TV doesn't have internal WiFi feature.Then press the Source button on the remote and switch to Wireless Display source.A screen appears stating that the TV is ready for connection.
Name and Address, highlight OK and press the OK button to add. Whilst you are on the site you wish to add to the Speed Dial list, highlight the Opera-0 button and press the OK button. Then highlight Add to Speed Dial option in the submenu and press the OK button again. Name and Address will be filled automatically according to the site you are visiting. Highlight OK and press the OK button to add.You can also use the Opera menu options to manage the browser. Highlight the Opera-0 button and press the OK button to see available page specific and general options.There are various ways to search or visit websites using the web browser.Enter the address of a website(URL) into the search/address bar and highlight the Submit button on the virtual keyboard and press the OK button to visit the site.Enter keyword/s into the search/address bar and highlight the Submit button on the virtual keyboard and press the OK button to start a search for the related websites.Highlight a Speed Dial thumbnail and press the OK button to visit the related website.Your TV is compatible with USB mice. Plug your mouse or wireless mouse adaptor into the USB input of your TV for easier and quicker navigation.Some web pages include flash content. These are not supported by the browser.Your TV does not support any download processes from the internet via the browser.All sites on the internet might not be supported. According to the site; content problems may occur. In some circumstances video contents might not be able to be played.Smart CenterSmart Center is a mobile application running on iOS and Android platforms. With your tablet or phone, you can easily stream your favourite live shows and programmes from your smart TV. Also: you can launch your portal applications, use your tablet as a remote control for your TV and share media files.Note: Being able to use all functions of this application depends on the features of your TV.Getting StartedTo use Smart Center features, connections have to be done properly. To get connected to your network wirelessly, plug in the Wi-Fi dongle to one of the USB ports if your TV doesn't have internal wifi feature. To be able to use internet based features, your modem/ router must be connected to the internet.IMPORTANT: Make sure the TV and mobile device are connected to the same network.	For media sharing feature Audio Video Sharing option should be enabled(if available).Press the Menu button on the remote, select System>Settings>More menu and press OK. Highlight Audio Video Sharing and change as Enabled. Your TV is ready to connect to your mobile device now.Install the Smart Center application onto your mobile device.Start the smart center application. If all connections are configured properly, you will see your TV's name on your mobile device. If your TV's name doesn't appear on the list, wait a while and tap on the Refresh widget. Select your TV from the list.Mobile Device screenOn the main screen you can find tabs to access various features.The application retrieves actual channel list from TV first when it starts.MY CHANNELS: The programmes of first four channels from the channel list retrieved from the TV are shown. You can change the listed channels. Press on the channel thumbnail and hold. A list of channels will be displayed and you can choose your desired channel to be replaced.TV: You can watch content through the TV tab. In this mode you can navigate through the channel list retrieved from your TV and click on thumbnails to view the detail pages.EPG: You can view the broadcast schedules of selected channel lists through this tab. You can also navigate through channels by pressing on the selected channel on the EPG grid. Please note that updating / refreshing the EPG information may take a while depending on your network and web service quality.Note: Internet connection is required for WEB based EPG informations.PORTAL: This tab displays the Portal applications in scrollable view. Unless FollowMeTV (if available) is active, the selected application will be displayed on your TV screen.Note: Internet connection is required. This tab is enabled if a portal page is in use.SETTINGS: Configure the application to your liking. You can change;Auto-lock (Only in IOS): The screen of the device automatically turns off after a certain amount of time. Default is off, which means the screen will always stay on.Auto-enable FollowMeTV: FollowMeTV function (if available) will start automatically when this setting is enabled. Default is disabled.

To play other media types from this screen, you can go back to main Media Browser screen and select the media type as desired and then perform the network selection again. Or press the Blue button to switch to next media type quickly without changing the network. Refer to the Media Browser menu section for further information on file playback.If a problem occurs with the network, please switch your television off at the wall socket and back on again. Trick mode and jump are not supported with the Audio Video Sharing feature.PC/HDD/Media Player or any other devices that are compatible should be used with a wired connection for higher playback quality.Use a LAN connection for quicker file sharing between other devices like computers.Note: There may be some PC's which may not be able to utilize the Audio Video Sharing feature due to administrator and security settings (such as business PC's).Internet PortalHINT: A broadband internet connection is required for high quality viewing. You must set the country option accordingly in the First Time Installation for proper operation of the internet portalPortal feature adds your TV a feature that allows you to connect a server on the Internet and view the content provided by this server over your Internet connection. Portal feature allows you to view the music, video, clip or web content with defined short-cuts. Whether you can view this content without interruption depends on the connection speed provided by your internet service provider.Press the Internet button on your remote control to open internet portal page.When switched to the portal screen, the image of the last watched source will be displayed in the background. You will see icons of the available items on the bottom left side of the screen. Use the directional buttons on your remote to move the focus to the desired item. You can view the content of an item or launch an application by pressing OK after highlighting. Press Back/Return button to return back to the previous screen.Under the Recent item recently used applications will be displayed. You can use this item to access these applications quickly.Under the Features item default applications will be displayed along with the Internet Browser app. These applications are not editable.Under the My Apps item the applications will be displayed which you have added using the Market app. Market is also an application under My Apps. Highlight Market app and press OK to see all the available applications. Highlight the desired one and press OK, a pop-up window will be displayed.

Highlight Add to my apps and press OK to add the highlighted application to My Apps in order to access it quickly at a later time. You can also highlight Go To App and press OK to launch the highlighted application.You can move or delete the applications added to My Apps. Highlight the application you want to edit and press the Upward directional button on the remote. Now the application is in edit mode. You can change the location of the application by pressing the Left or Right button. To delete the application press the Upward directional button a second time. The Close icon will be highlighted. Then press OK to remove the application from My Apps. Press the Downward button to exit the edit mode.After entering the Market screen you can also display Agreements. Select the Settings icon on the bottom right of the screen and press OK. Select Agreements in the pop-up window and press OK to display.If available, You can also install applications onto your TV using the Opera TV Store app under the Featured item.Press the Exit button to quit the Internet portal mode.Notes:Possible application dependent problems may be caused by the content service providerPortal service content and the interface may be changed at any time without prior notice.Third party internet services may change, be discontinued or restricted at any time.Internet BrowserTo use the internet browser, enter the portal first. Then launch the Internet application on the portal. (*) The appearance of the internet browser logo may changeIn the initial screen of the browser, the thumbnails of the predefined (if any) links to web sites available will be displayed as Speed Dial options along with the Edit Speed Dial and the Add to Speed Dial options.To navigate the web browser, use the directional buttons on the remote or a connected mouse. To see the browser options bar, move the cursor to the top of the page or press the Back/Return button. History, Tabs and Bookmarks options and the browser bar which contains previous/next buttons, the refresh button, the adress/search bar, the Speed Dial and the Opera buttons are available.To add a desired website to the Speed Dial list for quick access, move the cursor to the top of the page or press the Back/Return button. The browser bar will appear. Highlight the Speed Dial - button and press the OK button. Then select Add to Speed Dial option and press the OK button. Fill in the blanks for

In conformity with applicable rules and requirements

Information regarding EU countries (only)

The symbol indicates that the product must not be disposed of with the normal household wastes. Correct disposal of this product prevents any potentially negative impact on the environment and human health that could arise from any inappropriate handling of the product itself. To receive more detailed information regarding disposal waste collection service or the shop where you purchased the product.

Due to the continuous evolution of the products, the features and design of this model may change without notice.

Media Share Page

Mobile devices will automatically connect to a task connected TV and slides the TV search screen.

Change TV (Only in IOS): Shows the current connected TV. You can press on this setting to go to the "TV search" screen and change to a different TV.

Edit custom channel lists you can edit your custom channel lists using this setting.

Choose channel lists source: You can choose the channel lists source to be used in the application.

The options are "TV list" and "custom list".

Additionally you can activate "Remember my voice" option to set the selected channel lists source as a constant choice. In this case if the selected source is available it will be used in the application.

Version No: Displays the current version of the application.

Default Page

To open detail page tap on a programme. On the detail page screen you can get detailed information of the programmes you select. There are "Details",

Casta&crew: Shows all the people contributed to selected programme.

VideoS: Provides videos on youtube related to the current programme.

Note: This feature is only for and/or based devices available.

Selected.

Keyboard Page

You can tap on the Microrphone(●) widget and manage your application, giving voice commands such as "Portall", "Volume UP/Down", "Programme

Up/Down".

Note: This feature is only for and/or based devices available.

Requirementes

1. Smart TV

2. Network connection

3. Mobile Device based on Android or iOS platform

(Android OS 4.0 or higher; 105 6 or higher

version)

4. Smart Center app.(to be found on online application stores based on Android and iOS

Platforms)

5. Router modem

for iOS devices, all screen sizes are supported.

For iOS devices, all screen sizes are supported.

For Android devices, NormoM(modi), Large(xHdpi) screen sizes are supported. Devices with 3 or smaller screen sizes are not supported.

User interface of the Smart Center application is subject to change according to version installed on your device.

for Android devices, NormoM(modi), Large(xHdpi) and Extra

Notes:

Note that only digit((DVB-T/C/S) SD and HD channels are supported).

Multianguage audio support and substitute or/off features

are not functional.

the staffing performance may change depending on the quality of your connection.

Note that only digit((DVB-T/C/S) SD and HD channels are

supported.

Note that only digit((DVB-T/C/S) SD and HD channels are

more not functional.

Specifiche Specification
Trasmissione TV	PAL BG/I/DK/LL' SECAM BG/DK		TV Broadcasting	PAL BG/I/DK/LL' SECAM BG/DK
Canali ricevibili	VHF (BAND I/III) - UHF (BAND U) - HYPERBAND		Receiving Channels	VHF (BAND I/III) - UHF (BAND U) - HYPERBAND
Ricezione digitale	TV con decoder digitale terrestre/cavo/satellitare integrati (DVB-T-T2/C/S-S2/HEVC H.265)		Digital Reception	Fully integrated digital terrestrial-cable-satellite TV(DVB-T2/C/S2 - HEVC - H.265)
Numero dei canali memorizzabili	10,000		Number of Preset Channels	10.000
Indicatore di canale	OSD		Channel Indicator	On Screen Display
Ingresso antenna RF	75 Ohm (non bilanciato)		RF Aerial Input	75 Ohm (unbalanced)
Tensione Operativa	220-240V CA 50Hz		Operating Voltage	220-240V AC, 50Hz.
Audio	German+Nicam Stereo		Audio	German+Nicam Stereo
Potenza Uscita Audio (WRMS.) (10% THD)	2 x 10		Audio Output Power (WRMS.) (10% THD)	2 x 10
Consumo energetico (W)	140		Power Consumption (W)	140
Standby di rete (W)	< 3		Networked Standby (W)	< 3
TV Dimensioni PxLxA (con piedistallo) (mm)	235 x 1248 x 781		TV Dimensions DxLxH (with foot) (mm)	235 x 1248 x 781
TV Dimensioni PxLxA (senza piedistallo) (mm)	62/95 x 1248 x 730		TV Dimensions DxLxH (without foot) (mm)	62/95 x 1248 x 730
Display	55"		Display	55"
Temperatura di funzionamento e umidità	0°C fino a 40°C, 85% umidità		Operation temperature and operation humidity	0°C up to 40°C, 85% humidity max

A	VESA WALL MOUNT MEASUREMENTS
B	Hole Pattern Sizes (mm)	W	H
		400	200
C	Screw Sizes
D	Length (X)	min. (mm)	10
		max. (mm)	13
E	Thread (Y)	M6

	A B C D E
English	VESA WALL MOUNT MEASUREMENTS	Hole Pattern Sizes (mm) Screw Sizes Length (X) Thread (Y)
Deutsch	MASSANGABEN FÜR VESA-WANDMONTAGE	Lochmustergrößen (mm)	Schraubengrößen	Länge (X)	Gewinde (Y)
Français	DIMENSIONS DU SUPPORT DE FIXATION MURALE VESA	Dimensions des modèles de trous de montage (mm)	Dimensions des vis	Longueur (X)	Filetage (Y)
Italiano	Misurazioni installazione a parete VESA	Dimensioni schema foro (mm)	Dimensioni vite	Lunghezza (X)	Filettatura (Y)
Português	MEDIÇÕES DE MONTAGEM MURAL VESA	Dimensões do molde de furação (mm)	Tamanhos do parafuso	Comprimento (X)	Rosca (Y)
Español	MEDIDAS DEL MONTAJE DE PARED VESA	Tamaños de patrón para agujero (mm)	Tamaños de tornillo	Longitud (X)	Rosca (Y)
Türkçe	VESA DUVARA MONTAJ APARATI ÖLÇÜLERİ	Açılacak Delik Ölçüleri (mm)	Vida Ölçüleri	Uzunluk (X)	Yüzey (Y)
Ελληνικ	ΔΙΑΣΤΑΣΕΙΣ ΒΑΣΗΣ TOIXOY VESA	Μεγέθη σχήματος οπών (mm)	Μεγέθη βιδών	Μήκος (X)	Σπείρωμα (Y)
Polski	WYMIARY DO MONTAZU NAŚCIENNEGO VESA	Rozmiary szablonu otworów (mm)	Rozmiary wkrętów	Długość (X)	Gwint (Y)
čeština	ROZMĚRY DRŽÁKU NA ZEŐ VESA	Rozměry velikosti děr (mm)	Rozměry śroubů	Délka (X)	Závit (Y)
Magyar	VESA FALI TARTÓ MÉRETEK	Lyukak méretének nagysága(mm)	Csavar méret	Hossz (X)	Menet (Y)
Română	MĂSURĂTORI SUPORT PERETE VESA	Dimensiuni tipar gaurá (mm)	Dimensiuni şuruburi	Lungime (X)	Filet (Y)
Svenska	VESA VÄGGMONTERINGSMÄTT	Hälmönsterstorlear (mm)	Skruvstorlekar	Längd (X)	Tràd (Y)
Nederlands	VESA WANDMONTAGE METINGEN	Grootte booropening (mm)	Schroefgroote	Lengte (X)	Draad (Y)
Suomi	VESA-SEINÄASENNUKSEN MITAT	Reikäkuvion koot (mm)	Ruuvinkoot	Pituus (x)	Kierre (Y)
Norsk	VESA VEGGMONTERINGSMÄL	Hullmønster størrelser (mm)	Skruestørrelser	Lengde (x)	Tràd (Y)
Dansk	VESA VÆGMONTERINGS-MÄL	Hulmønster-størrelser (mm)	Skruestørrelser	Laengde(X)	Tràd (Y)
Русский	РАЗМЕРЫ НАСТЕННОГО КРЕПЛЕНИЯ VESA	Размеры системы отверстий	Размеры винтов	Длина(X)	Резьба (Y)
беларуская	ПАМЕРЫ НАСЦЕННАГА МАЦАВАННЯ VESA	Памеры сістзмы адтулин	Памеры вінтоў	Даўжыня (X)	Разьба (Y)
македонски	МЕРКИ ЗА МОНТИРАЊЕ НА СИД ЗА „BECA“	Шема на големини на дупката (мм)	Големина на шрафот	Должина (X)	Навој (Y)
українська	РОЗМІРИ НАСТИННОГО КРІПЛЕННЯ VESA	Відстань між кріпильними отворами, мм	Розміри гвингів	Довжина (X)	Діаметр різьби (Y)
Srpski	DIMENZIJE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenje	Dimenzije zavrtnjeva	Dužina (X)	Navoj (Y)
Slovenčina	ROZMERY DRŽIAKA NA STENU VESA	Rozmery vel'kosti dier (mm)	Rozmery skrutiek	Dížka (X)	Závit (Y)
Slovenščina	MERE STENSKEGA NOSILCA VESA	Velikosti vzorca lukenj (mm)	Velikosti vijakov	Dolžina (X)	Navoj (Y)
Hrvatski	VESA MJERE ZIDNOG DRŽAČA	Veličine uzorka otvora (mm)	Veličine vijka	Dužina (X)	Navoji (Y)
Bosanski	DIMENZIJE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenje	Dimenzije vijaka	Dužina (X)	Navoj (Y)
Български	РАЗМЕРИ ЗА КОМПЛЕКТ ЗА МОНТАЖ НА СТЕНА VESA	Размери на отвора (mm)	Размер на болта	Дължинат (X)	Резба (Y)
Lietuvių	VESA TVIRTINIMO PRIE SIENOS MATAVIMAI	Angos šablono dydis (mm)	Varžtu dydis	Igis (X)	Sriegis (Y)
Latviešu	VESA SIENAS STIPRINĀJUMA IZMĚRI	Caurumu šablona izměrs (mm)	Skrūvju izměri	Garums (X)	Vitne (Y)
Eesti	VESA SEINALE KINNITAMISE MÖÖDUD	Kruvi suuruse mõöt (mm)	Kruvi suurus	Kõrgus(x)	Keere (Y)
Shqip	PËRMASAT E NJËSISË SË MONTIMIT NË MUR VESA	Madhësitë modele të vrimave (mm)	Madhësitë e vidhave	Gjatësia (X)	Filetimi (Y)
عربية	مfaceيسيس للتنبیت على الجدار	(أ Combined القوب (م)م)	(أ Combined بالغ)	(Х) اطول (X)	(У) screens (Y)
الزام	VESA अनिय प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रतिप्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रतिप्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति п्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति П्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति Р्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति प्रति मेंग	(أ Combined القوب (م)م)	(أ Combined بالغ)	(Х) اطول (X)	(У) screens (Y)

A	Product Fiche
B	Commercial Brand:XD
C	Product No.	10117593
D	Model No.	XD55S4K2VSAT
E	Energy efficiency class	A+
F	Visible screen size (diagonal,approx.) (inch/cm)	55 inches	140 cm
G	On mode average power consumption (Watt)	86,0
H	Annual energy consumption (kWh/annum) (*)	125
I	Stand by power consumption (Watt)	0,50
J	Off mode power consumption (Watt)	N/A
K	Display resolution (px)	3840x2160

	A	B	C	D	E	F	Visible screen size(diagonal, approx.) (inch/cm)
English	Product Fiche Commercial Brand Product No.			Model No. Energy efficiency class
Deutsch	Produkt-Datenblatt	Markenzeichen		Produkt-Nr.	Modell-Nr.	Energieeffizienzklasse	Sichtbare Bildschirmgröße(diagonal,ca.) (Zoll /cm)
عرابي	Logistics Street	العلامة التجارية	Telek	رقم Modittel	رقم الموتيل	قيمة علامة Strategy	الحجم الشتالة المربعة (الصري)
Български	Справочен лист с техническите данни	Търговска марка		Продукт No	Модел No	Клас на енергийна ефективност	Видим размер на екрана(диагонал,прибл.) (инча /см )
čeština	Produktový list	Značka výrobce		Číslo produktu	Model č.	Energetická třída	Viditelná velikost obrazovky(ühlopřička,přibl.)(palcú /cm)
Dansk	Produktoplysningsskema	Varemærke		Produktnr.	Model nr.	Energieffektivitetsklasse	Synlig skarmstorrelse (diagonalt,ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki		Tuote nro.	Malli nro.	Virran tehokkuusluokka	Nakyván kuvaruudun koko(diagonaalinen,n.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale		Produit N°	Modèle N°	Classe d'efficacité énergétique	Taille d'écran visibie (diagonale,approx.) (pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka		Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Vidljiva veličina ekrana(dijagonalna,približno) (inča/cm)
Nederlands	Productfiche	Commercieel merk.		Productnr.	Modelnr.	Energie efficiëntie klasse	Zichtbare schermgrootie(diagonaal,ca.) (inches/cm)
Español	Ficha del Producto	Marca Comercial		N° de Producto	N° de Modelo	Clasificación Energética	Tamaño de pantalla visibie(diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecifikation	Varumärke		Produktnr.	Modellnr.	Energiklass	Synlig skarmstorlek(diagonal,ungefärlig) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale		Numero prodotto	Numero modello	Classe di efficienza energetica	Dimenstoni visibii dello scherm(diagonale,circa)(pollici/cm)
Polski	KARTA PRODUKTU Marka produktu Nr produktu Nr modelu					Klasa efektywności energetycznej	Widoczny obraz ekranu(przekątna,okolo)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi marka		Termékszám	Modellszám	Energiahatékonysági osztály	Latható kepitartomany (diagonális,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare		Produkt nr.	Modell nr.	Energieffektivitet klasse	Synlig skjermstørrelse (diagonal, ca.) (tommer/cm)
Português	Ficha do produto	Marca Comercial		Produto N°	Modelo N°	Classificação eficiência energética	Tamanho ecrà visível (diagonal, aprox.) (polegadas/cm)
Română	Fişă produs	Marcă comercială		Nr. Produs	Nr. Model	Clasa de eficiență energetică	Dimenstunea ecranului vizibili(diagonală, aprox.) (inch/cm)
Русский	Справочный листок технических данных изделия	Торговая марка		Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали, приблизительно)(дюймов/см)
беларуская	Справочный листок технических данных изделия	Торговая марка		Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали,Около)(дюймов/см )
македонски	Технички податоци	Комерцијална марка		Производ бр.	Модел бр.	Класа на енергетска ефикасност	Големина на видлив екран(дијагонала, околу) (инчи/cm)
український	Технічні дані	Кормеційна марка		Артикул	Модель	Клас енергоспоживання	Видимии розмір екрана (диагональ, Приблизно) (дюймів/cm)
Srpski	Tehničke odlike	Komercijalna marka		Proizvod br.	Model br.	Klasa energetske efikasnosti	Veličina vidljivog ekrana (dijagonala, tokom) (inča/cm)
Slovenčina	Produktový list	Značka výrobcu		Číslo produktu	Model č.	Energetická trieda	Viditelná velikost obrazovky(uhlopriečka, zhruba) (palcov/cm)
Slovenščina	Opis izdelka	Komercialna znamka		Št. izdelka	Št. Modela	Razred energetske učinkovitosti	Vidna velikost zaslona (diagonala, pribl.) (palcev/cm)
Еллнік	Делтію проїєю тос	Емторикó σήμα		Ар. Проїєю тос	Ар. Мотіеліου	Катиуорія евсуриакіє ато́бооңς	Ордо пуєввоє ововнє (oidayuvioș, терр.) (IVTOECI/cm)
Bosanski	Tehnički podaci	Komercijalna marka		Produkt br.	Model br.	Klasa energetske efikasnosti	Vidljiva velicina ekrana (diagonala, priblžno.) (inča/cm)
Начиц	Китай 0015	Чип и дип		Чип '0015	Чип '0015	Чип и дип и дип	(ФУРК)(ДИРЫ,ДИРЫ) ЧИЯ ПОД НИЯ
Türkçe	Ürün fişi	Ticari Marka		Ürün No.	Model No.	Enerji verimiliği sınıfı	Görüten ekran boyutu (çapraz, yakışk.) (inch/cm)
Shqlp	Tě dhěnat e produktit	Marka tregtare		Nr. i produktit.	Nr. i modelit.	Klasa e eficiencès sè energjisë	Madhësia e ekranit të dukshëm(diagonal, afërsisht) (inch/cm)
Lietuvių	Gaminio etiketė	Gamintojas		Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasė	Matomas ekranо dydis (jstrizaine, approx.) (colių/cm)
Latviešu	Produkta apraksts	Marka		Produkta nr.	Modeļa nr.	Energoefektivitāles klase	Ekranā izmers (pa diognali, apmçram)(collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja firma		Toote nr.	Mudeli nr.	Energiaklass	Vaadatava ekraani suurus (diagonaal, umbes) (tolli/cm)
فراسی	مشخصات محصول	مارک تجاری		朦زمه محصول	朦زمه Montreal	گروه کارایی نرژی	کاریز صطته میلی سостه (کننی، کریا) (بی)

	GHIJK
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschaltetem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr)	Standby-Stromverbrauch (Watt)	Stromverbrauch im ausgeschaltetem Zustand (Watt)	Display-Auflösung (px)
عربي	(متوسط تستهلاكEthylene 정تالعربية)	(الاستهلاكEthnicي لطلاك)	(الاستهلاكEthnicي لطلاك)	(الاستهلاكEthnicي لطلاك)	(الاستهلاكEthnicي لطلاك)
Български	Средна консумация на електроенергия във включено състояние (Watt)	Годишна консумация на електроенергия (kWh/Годишна)	Консумация на електроенергия в режим на готовность (Watt)	Консумация на електроенергия в изключено състояние (Watt)	Разделителна способност на дисплея(пиксела)
čeština	Prümérná spotřeba elektrické energie v rapputém režimu (Wattü)	Roční spotřeba energie (kWh/Roční)	Spotřeba elektrické energie v photovostnim režimu (Wattü)	Spotřeba elektrické energie ve vppnutém režimu (Wattü)	Rozlišení displeje (px)
Dansk	Gennemsnitligt strømforbrug i tøndt ilstand (Watt)	Arligt energiforbrug (kWh/Arligt)	Strømforbrug (standby)(Watt)	Strømforbrug i slukket tilstand (Watt)	Skærmoplesning (px)
Suomi	Päällä-tilan keskimääräinen Ivrankulutus (Wattla)	Vuosittainen sähkönkulutu (kWh/Vuosittalnen)	Vaklovirran kulutus (Wattla)	Pols-tilan Ivrankulutus (Wattla)	Näytön erottelukyky (pikselia)
Françals	Consommation énergétique moyenne en mode "marche" (Watt)	Consommation énergétique annuelle (kWh/annuel)	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode "ranût" (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošnja el. energije kada je proizvod ukliučen (Watta)	Godišnja potrošnja el. Energije (kWh/Godišnia)	Potrošnja el. energije u modu pripravnosti (Watta)	Potrošnja el. energije kada je proizvod skliučen (Watta)	Rezolucija zaslona (piksela)
Nederlands	Kan-modus gemiddeld stroomverbruik (Watt)	Jaarlijks energieverbruik (kWh/Jaarlijks)	Stand-by stroomverbruik (Watt)	Ult-modus stroomverbruik (Watt)	Schermresolutie (px)
Español	Consumo eléctrico medio, en funcionamiento (Vatio)	Consumo eléctrico anual (kWh/anual)	Consumo en modo en espera (Vatio)	Consumo eléctrico modo apagado (Vatio)	Resolución de pantalla (px)
Svenska	Strömkonsumtion i PA-läge (Watt)	Energikonsumtion per år (kWh/Arlig)	Strömkonsumtion i viloläge (Watt)	Strömkonsumtion i AV-läge (Watt)	Skärmupplösning (pixlar)
Italiano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluzione del display (px)
Polski	Srednie zużycie energii w trybie włączonym (Watów)	Roczne zużycie energii (kWh/Roczne)	Srednie zużycie energii w trybie oczekiwania (Watów)	Zużycie energii w trybie wyłączonym (Watów)	Rozdzielczość obrazu (pikseli)
Magyar	Energiafogyasztás bekapcsolva hagyott izemmódban (Watt)	Éves energiafogyasztás (kWh/Éves)	Energiafogyasztás standby izemmódban (Watt)	Energiafogyasztás kikapcsolt izemmódban (Watt)	Képernyőfelbontás (px)
Norsk	Pámodus gjennomsnittlig strømforbruk (Watt)	Arlig stromforbruk (kWh/Arlig)	Hvilemodus strømforbruk (Watt)	Av-modus strømforbruk (Watt)	Skjermopplösning (piksel)
Português	Consumo energia em modo médio (Watt)	Consumo annual energia (kWh/anual)	Consumo energia em stand-by (Watt)	Consumo energia em modo alimentação (Watt)	Resolução do visor (pixel)
Română	Consum electric mediu în modul pornit (Watj)	Consum anual de energie (kWh/anual)	Consum electric în stare de repaus (Watj)	Consum electric în modul oprit (Watj)	Rezoluța ecranului (pixeli)
Русский	Средний расход энергии в режиме работы (Вт)	Exegодный расход энергии (kBtw/Год)	Расход энергии в режиме ожидания (Вт)	Расход энергии в выключенном режиме (Вт)	Разрешение экрана (пикселей)
беларуская	Средний расход энергии в режиме включения (ватт)	Exegодный расход энергии (kWh/галанов)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
македонски	Просечна потрошувачка кога е якучен	Годишна потрошувачка на энергия (kWh/Голишна)	Потрошувачка во мирување (вати)	Потрошувачка кога е исклучен (вати)	Резолуција на екран (пиксели)
український	Середня спокивана потужність у робочому режимі (Вт)	Середньорічна споживана потужність (kWh/Річна)	Спохивана потужність у режимі очікVAHANIA (Вт)	Споживана потужність у вимкненому стані (Вт)	Роздільна здатність екрана (пикселів)
Srpski	Prosečna potrošnja kada je uključeni (Vati)	Godišnja potrošnja energije (kWh/Godišnia)	Potrošnja tokom mirovanja (Vati)	Potrošnja kada je isključeni (Vati)	Rezolucija displeja (piks.)
Slovenčina	Priemerna spotreba elektrickej energie v raputom režime (Wattov)	Ročná spotreba energie (kWh/Ročná)	Spotreba elektrickej energie v rohotovostnom režime (Wattov)	Spotreba elektrickej energie vo vruputom režime (Wattov)	Rozlišenie displeja (pixl.)
Slovensčina	Poraba električne energije v povprečnem načinu (Wattov)	Letna poraba energije (kWh/Letna)	Poraba energije v stanju pripravljenosti (Wattov)	Poraba energije načinu izklopa (Wattov)	Resolucija zaslona (piks.)
Елляvik	Месят катою́шон реúµatoς катоуру́йа (Watt)	Етіюю катою́шон евёре́йа (kWh/Eтіюю)	Катою́шон реúµatoς στην ανομού (Watt)	Катою́шон реúµatoς στεπενεργοποιηση (Watt)	Avóluon οθόνης (Піле́з)
Bosanski	Prosečna potrošnja kada je uključen (Watt)	Godišnja potrošnja energije (kWh/Godišnia)	Potrošnja tokom mirovanja (Watt)	Potrošnja kada je isključen (Watt)	Rezolucija ekrana (piks.)
Түйүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүүү		(подієм'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр ́	(подієм'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр ́	(подіșм'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юур'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр"юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'Юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юц'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр’юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'уюр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юу'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр''юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'юр'яу'юр'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу'яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"Яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яи"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу",яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"яу"80000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000020000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000003000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000500000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000040000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000006000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000750000000000000000000000000000000000000000000000000000000000000000000750000000000000000000000000000001550015501550155015501550155015501550155015501550155015501550155015501550155015501550155015515515515515515515515515515515515515515515515515515515515515515515515515515515515515515515515515515525555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555655555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555515555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555553155555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555125555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555511255555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555555551225555555555555555555555555555555555555555555555555555555555555555555555555512222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222

(*) English Energy consumption kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
(*) Deutsch Enerolieverbrauch kWhJahr. auf der Grundlace eines täglich vierstündigen Betriebs des Fernsehoerätes an 365 Tacen. Der tatsächliche Enerolieverbrauch händt von der Art der Nutzung des Fernsehoerätes ab.
(٣) عَرَبِ (٢)
(*) Български Консумация на енергия kWh горишно, измислена на базята на 4 работни цаса дневно при 365 лни. Пействительно консумиляната енергия ше заявки от начина на употреба на телевизопа
(*) čestina Spotřeba elektrické energie kWh za rok vycházeiící ze spotřebv elektrické energie televizního přilímače. který je v provozu 4 hodiny denně od dobu 365 dní. Skutečná spotřeba elektrické energie závisí na způsobu použití
televizniho prijimače.
(*) Dansk Energiforbrug: kWh om året, beregnet som fjernsynets effektforbrug, hvis det er taendt 4 timer om dagen i 365 dage. Det faktiske energiforbrug vil bero på, hvordan fjernsynet bruges.
(*) Suomi Energiankulutus kWh:a vuodessa, kun oletetaan, että televisiota käytetään 4 luntia päivässä 365 päivän ajan. Todellinen energiankulutus nippuu television käytötavasta.
(*) Francais Consommation d'énergie de kWh par an, sur la base de la consommation électrique d'un téléviseur fonctionnant quatre heures par jour pendant trois cent soixante-cinq jours. La consommation réelle dépend des conditions
d'utilisation du téléviseur
(*) Hrvatski Utrošak enerolie iznosi kWh oodišnie na temeliu utroška enerolie televizora koji radi četiri sata dnevno 365 dana u godini. Stvarni utrošak eneralie ovisit će o tome kako se upotreblava televizor.
(*) Nederlands Energieverbruik kWh per jaar, gebaseerd op het elektriciteitsverbruik van de televisie wanneer deze gedurende 365 dagen 4 uur per dag aanslaat. Het feitelijke energieverbruik is afhankelijk van de manier waarop de
televisie wordt gebruikt.
(*) Español Consumo de energía: kWh al año, suponiendo cuatro horas de funcionamiento diario durante 365 días. El consumo efectivo dependerá de las condiciones reales de uso de la televisión.
(*) Svenska Energiförbrukning kWh per år, beräknad utifrån effektförbrukningen för en tv-mottagare som används fyra timmar per dygn under 365 dygn. Den faktiska energiförbrukningen kommer att bero på hur tv-mottagaren
används.
(*) Italiano Consumo di energia kWh/anno calcolato sulla base del consumo di un televisore in funzione per 4 ore al giorno per 365 giorni. Il consumo effettivo di energia dipende dall'utilizzo reale del televisore.
(*) Polski Zużycie energii kWh/rok na podstawie zużycia energii przez telewizor działający 4 godziny dziennie przez 365 dni. Rzeczywiste zużycie energii zależy od sposobu użytkowania telewizora.
(*) Magyar A televiziókészülék napi 4 órás üzem mellett az év 365 napjára vétitve évente kWh mennyiségű energiál fogyaszt. A lényleges energiafogyasztás a készülék üzemeltelési módjától függ.
(*) Norsk Energiforbruk kWh per år, strømforbruket er basert på bruk av TV-en for 4 timer per dag for 365 dager. Det faktiske energiforbruket vil være avhengig av hvordan TV-en brukes.
(*) Português Consumo de energia de kWh por ano, baseado no consumo, em termos de potência, do televisor a funcionar 4 horas por dia durante 365 dias. O consumo de energia real dependerá do modo como o televisor é utilizado.
(*) Română Consumul de energie de kWh pe an, pe baza puterii consumate de aparatul TV atunci când este în funcțiune 4 ore pe zi timp de 365 de zile; consumul real de energie depinde de condițiile de utilizare a aparatului TV.
(*) Русский Энергопотребление кВт-ч в год поиводится из расчета потребления энергии телевизOOM при работе 4 часа в день на протяжении 365 дней. Фактическое потребление электроэнергии будет зависеть от того.
как используется телевизор.
(*) беларуская Энергаспажыванне квт-г у год прыводзіцца з разліку спажывання энергії тзлевізарам пры працы 4 гацзіны ў дзень на працягу 365 дзён. Фактычнає спажыванне электраэнергії будзе запежаць ад таго, як
выкарыстоўвваеща талевізар.
(*) македонски Евенретската потрошувачка е KWh годишно, воз основа на потрошувачката на телевизиски уред што работи 4 часа дневно, 365 денови. Реалната енергетска потрошувачка їе зависи од тоа како се користи
телевизисяют уред.
(*) український Значення венергоспоживання кВт год на рік базується на потужності, споживаної телевізором, що прашоє протягом 4 годин на день впродовж 365 днів. Фактичне споживання електроенергії залежить від
способу використання телевізора.
(*) Srpski Potrašnja struje od kWh na godišnjem nivou zasnovana je na potrošnji televizora koji je uključen 4 sata dnevno 365 dana godišnje. Stvarna potrošnja struje zavisiće o načina korišćenja televizora.
(*) Slovenčina Spotreba energie kWh za rok na základe spotreby elektrickej energie televizora, ktorý je v činnosti 4 hodiny denne počas 365 dní. Skutočná spotreba energie závisi od toho, ako sa televizor použiva.
(*) Slovenščina Poraba energije je kWh na leto, glede na napajalno energije televizorja, ki deluje 4 ure na dan v vsen 365 dneh. Dejanska poraba energije je odvisna od načina uporabe televizorja.
(*) Ελληνικ Κατανάλωση ενέργειας κWh ανά έτος, με βάση την κατανάλωση ισχύος από την τηλεάραση για τετράωρη λεπουργία ανά ημέρα επί 365 ημέρες. Η προγματική κατανάλωση ενέργειας εξαρτάται από τον τρόπα χρήσης της
αυσκευής.
(*) Bosanski Energetska potrošnja je XYZ kWh na godišnjem nivou, na osnovu potrošnje TV-a koji radi 4 h dnevno, 365 dana. Stvarna energetska potrošnja zavisi od toga koliko e TV koristi.
(1) כרִי. מְקַרָה לְקַרָה לְקַרָה לְקַרָה לְקַרָה לְקַרָה לְקַרָה לְקַרָה לְקַרָה לְקַרָה לְקַרָה וּוֹתָם, 365 לְקַרָה לְקַרָה לְקַרָה לְקַרָה לְקַרָה לְקַרָה לְקַרָה לְקַרָה לְקַרָה לְקַרָ
(*) Türkçe 365 gün boyunca günde 4 saat çalışan televizyonun tükettigi güç referans alınarak yılda kWh enerji tüketimi. Güncel enerji tüketimi televizyonun nasıl kullanıldığına bağlı olacaktır.
(*) Shqip Konsumi i energjisë kWh në vit, bazuar në konsumin e energjisë së televizorit kur punon për 4 orë në dite për 365 dite. Konsumi aktual i energjisë varet nga mënyra e përdorimit të televizorit.
(*) Lietuvlu kWh energijos sunaudojimas per metus nurodomas atsižvelgus | tai, kiek energijos sunaudojama televizoriui veikiant 4 valandas per dieną 365 dienas iš eilės. Faktinį energijos sunaudojimą lemš tai, kiek laiko bus
naudojamas televizorius.
(*) Latviešu Enerģijas patērinš kWh gadā, nemot vērā televizora elektroenerģijas patērinņu, darbojoties 365 dienas, četras stundas dienā. Faktiskais enerģijas patērinš būs atkarīgs no tā, kā televizors tiks izmantots.
(*) Eesti Energiatarbimine kWh aastas, oeldusel et televilisor töötab neli tundi päevas ja 365 päeva aastas. Tegellk energiatarbimine oleneb televilisori kasutusvilisist.

TR: Işbu belgede; VESTEL Elektronik Sanayi ve Ticaret A.Ş., telsiz ekipmanı tipi TFT IDTV 'nin 2014/53/AB sayılı direktife uygun olduğunu beyan eder. AB uygunluk beyanının tam metni internet adresinde mevcuttur: doc.vosshub.com
EN: Hereby, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declares that the radio equipment type TFT IDTV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: doc.vosshub.com
BG: С настоящото VESTEL Elektronik Sanayi ve Ticaret A.Ş., декларира, че този тип радиосъоръжение TFT IDTV е в съответствие с Директива 2014/53/EC. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: doc.vosshub.com
CZ: Tímto VESTEL Elektronik Sanayi ve Ticaret A.Ş., prohlašuje, že typ rádiového zařízení TFT IDTV je v souladu se směrnici 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: doc.vosshub.com
DA: Hermed erklærer VESTEL Elektronik Sanayi ve Ticaret A.Ş., at radioudstyrstypen TFT IDTV er i overensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde tekst kan findes på følgende internetadresse: doc.vosshub.com
DE: Hiermit erklärt VESTEL Elektronik Sanayi ve Ticaret A.Ş., dass der Funkanlagentyp TFT IDTV der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: doc.vosshub.com
EL: Με την παρούσα ο/η VESTEL Elektronik Sanayi ve Ticaret A.Ş., δηλώνει ότι ο radioεξοπλισμός TFT IDTV πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: doc.vosshub.com
ES: Por la presente, VESTEL Elektronik Sanayi ve Ticaret A.Ş., declara que el tipo de equipo radioeléctrico TFT IDTV es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: doc.vosshub.com
ET: Käesolevaga deklareerib VESTEL Elektronik Sanayi ve Ticaret A.Ş., et käesolev raadioseadme tüüp TFT IDTV vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: doc.vosshub.com
FI: VESTEL Elektronik Sanayi ve Ticaret A.Ş., vakuuttaa, että radiolaitetyyppi TFT IDTV on direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: doc.vosshub.com
FR: Le soussigné, VESTEL Elektronik Sanayi ve Ticaret A.Ş., déclare que l'équipement radioélectrique du type TFT IDTV est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante: doc.vosshub.com
HR: VESTEL Elektronik Sanayi ve Ticaret A.Ş., ovime izjavljuje da je radijska oprema tipa TFT IDTV u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: doc.vosshub.com
