Type de produit	Refrigerateur encastrable ou pose libre
Marque	Grundig
Modele	GRNE 4301
Dimensions (HxLxP)	1850 x 595 x 655 mm
Capacite brute	280 litres
Classe energetique	A++
Consommation annuelle	220 kWh
Alimentation	220-240 V, 50 Hz
Type de froid	Froid ventile (No Frost)
Securite enfants	Non specifique
Niveau sonore	42 dB
Commandes	Thermostat mecanique
Nombre de clayettes	4 clayettes en verre
Bac a legumes	1 bac a humidite controlee
Porte-bouteilles	Balconnet pour bouteilles
Poids net	72 kg
Gaz refrigerants	R600a
Duree de vie estimée	15 ans
Entretien	Nettoyer avec un chiffon humide, degivrer manuellement si necessaire
Reparabilite	Pieces detachees disponibles sur demande

Frequently Asked Questions - GRNE 4301 GRUNDIG

Comment regler la temperature du refrigerateur Grundig GRNE 4301 ?

Utilisez le thermostat situe a l'interieur du compartiment refrigere. Tournez le bouton vers le chiffre le plus eleve pour un froid plus intense, et vers le plus bas pour reduire le froid. La position recommandee est entre 3 et 4.

Quelle est la consommation electrique de ce refrigerateur ?

Le Grundig GRNE 4301 est classe A++ avec une consommation annuelle d'environ 220 kWh. Cela correspond a environ 0,60 kWh par jour.

Comment nettoyer le refrigerateur GRNE 4301 ?

Debranchez l'appareil, retirez les clayettes et les bacs. Nettoyez l'interieur avec un melange d'eau tiede et de vinaigre blanc. Evitez les produits abrasifs. Sechez soigneusement avant de remettre en marche.

Que faire si le refrigerateur fait trop de bruit ?

Verifiez que l'appareil est bien de niveau. Les bruits de gargouillement ou de cliquetis sont normaux. Si le bruit est fort ou continu, contactez le service apres-vente.

Le refrigerateur ne refroidit pas suffisamment, que faire ?

Verifiez que le thermostat est en position correcte. Assurez-vous que la ventilation arriere n'est pas bloquee. Si le probleme persiste, le gaz refrigerant peut etre en cause ; faites appel a un professionnel.

Comment degivrer le compartiment congelateur ?

Debranchez l'appareil, videz les aliments et laissez la porte ouverte. Placez des serviettes pour absorber l'eau de degivrage. Ne jamais utiliser d'objets tranchants pour enlever la glace.

Quelle est la capacite totale du refrigerateur GRNE 4301 ?

La capacite brute est d'environ 280 litres, avec un compartiment refrigere principal et un petit congelateur integre.

Puis-je installer ce refrigerateur dans un local non chauffe ?

Oui, mais la temperature ambiante ne doit pas descendre en dessous de 5°C ni depasser 38°C pour un fonctionnement optimal.

Comment changer la lampe interieure ?

Debranchez l'appareil. Retirez le diffuseur de la lampe en le tirant doucement. Remplacez l'ampoule par un modele identique (generalement E14, 10W max). Remettez le diffuseur et rebranchez.

Ou trouver les pieces detachees pour le Grundig GRNE 4301 ?

Les pieces detachees sont disponibles aupres du service client Grundig ou chez les revendeurs agrees. Consultez le site web ou contactez le support technique pour les references.

USER MANUAL GRNE 4301 GRUNDIG

Interior view of a refrigerator with a fish inside a transparent tray (no visible text or symbols)

Interior view of a refrigerator with open storage compartments and a small car icon on the door (no text or symbols visible)

TR ENG

içindekiler

Technical line drawing of a mechanical component with a labeled part (1), no text or symbols present.

Diagram showing a lightning bolt striking a wall-mounted device with a cable and plug (no text or symbols)

1.1.1 HC Uyarısı

Pure electrical circuit lines without any symbols

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

3.4 bağlantısı

Line drawing of a hand holding a small object inside a cabinet (no text or symbols)

4.2 İlk kullanım

Line drawing of a hand holding a circular device with numbered parts (no text or symbols)

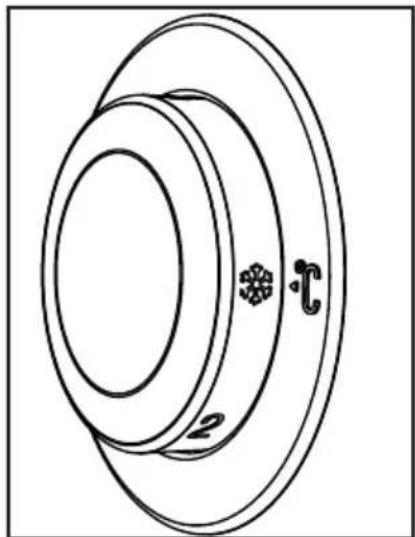

5.2 Hızlı dondurma

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and labeled features (no text or symbols)

Simple concentric oval diagram with a small 'r' mark at the center (no text or symbols beyond the label)

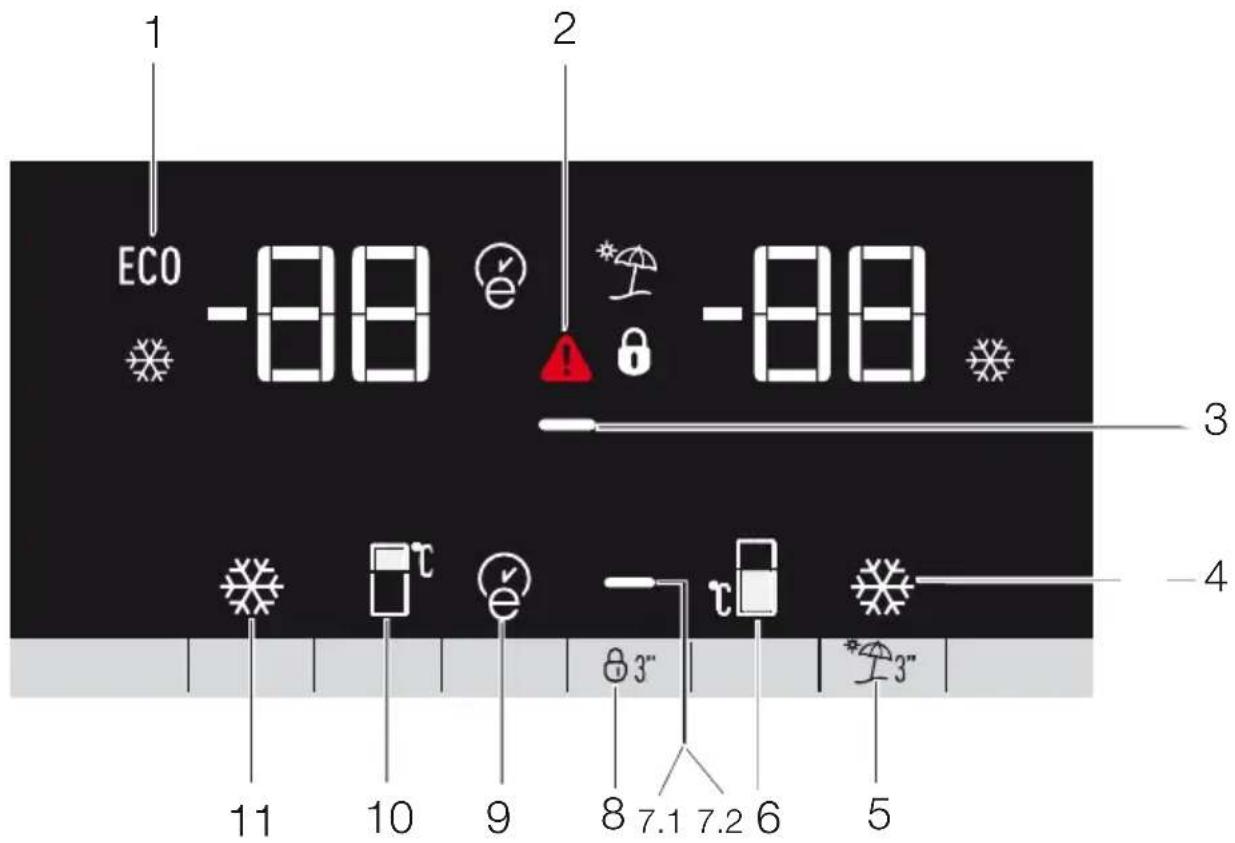

5.4 Gösterge paneli

Technical line drawings of a washing machine with three variants of internal components (no text or symbols)

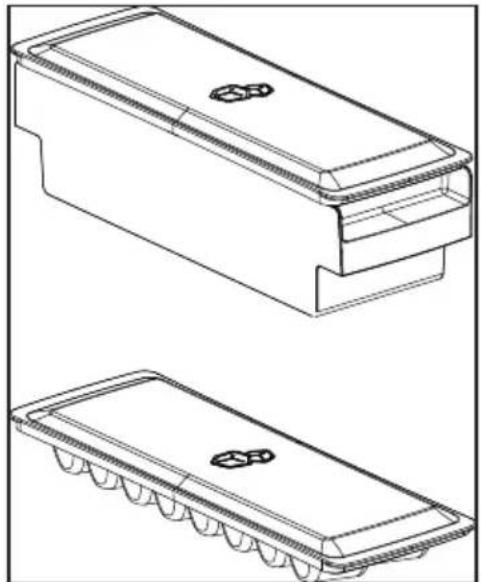

5.7 Buz kabı

Technical line drawings of two electronic component enclosures (no text or symbols)

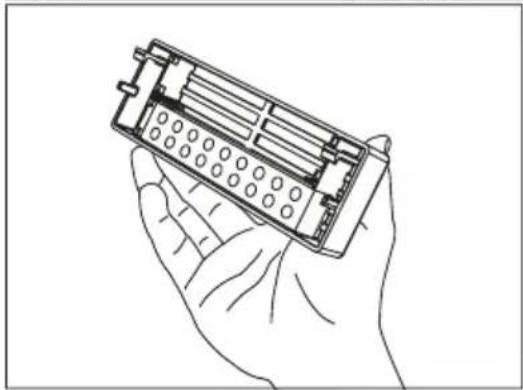

5.8 Yumurtalık

Line drawing of a cabinet interior with front panel, door, and window (no text or symbols)

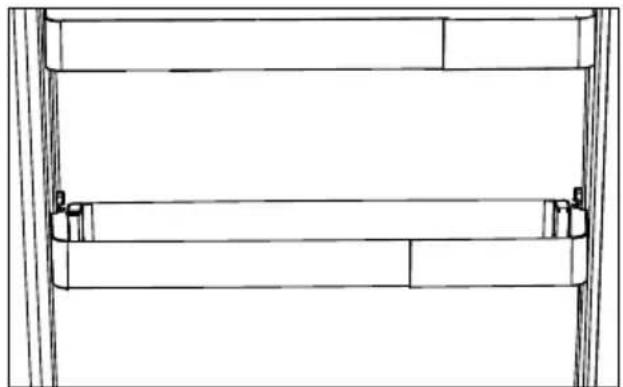

5.10 Sebzelik

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of two hands holding a blank rectangular object, no text or symbols present

Technical line drawing of a mechanical assembly or frame structure (no text or symbols)

Diagram of a mechanical or fluidic device with directional arrows indicating flow or movement (no text or symbols present)

5.13 Nem kontrollü sebzelik

(FreSHelf)

Architectural line drawing of two stacked shelves with directional arrows indicating movement or flow (no text or symbols)

Line drawing of a hand using a device to lift a cylindrical object into a base (no text or symbols)

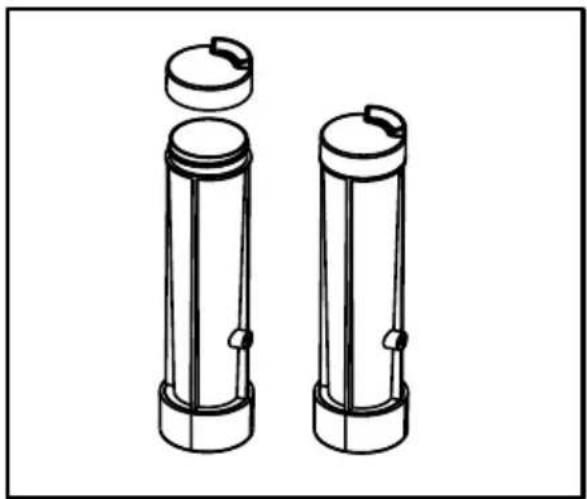

5.15 Koku filtresi

Technical line drawings of mechanical components, including a rectangular housing, internal compartments, and a folded housing (no text or symbols present)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

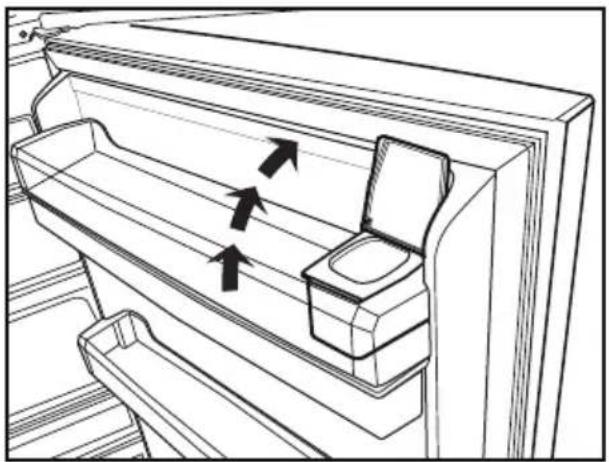

5.19 Su pinari

Simple line drawing of a rectangular container with a central trough (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

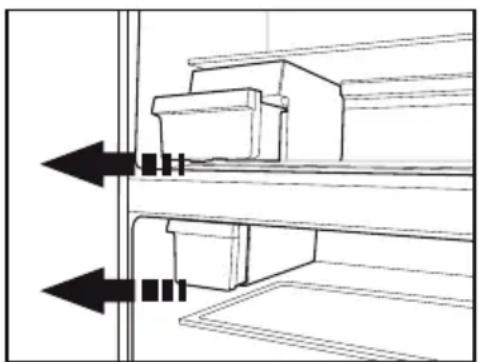

Line drawing of a refrigerator interior with two arrows indicating directional flow (no text or symbols)

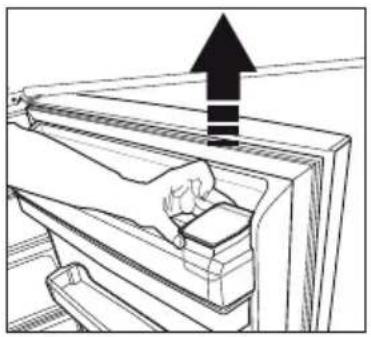

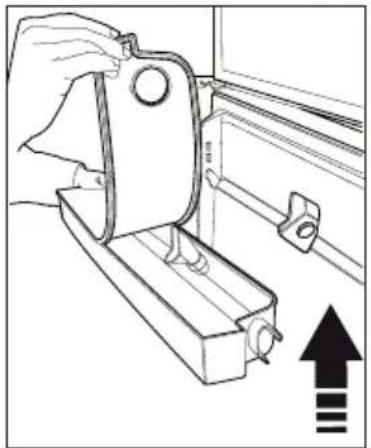

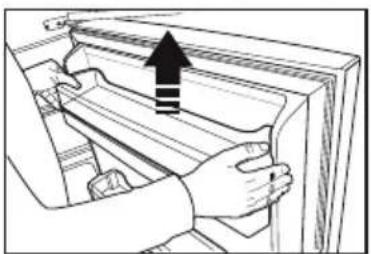

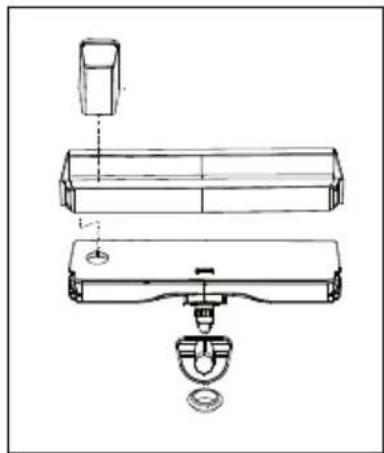

Dikkat!

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of a hand using a tool to lift or lift a wall-mounted device, with an upward arrow indicating force (no text or symbols present)

Illustration of hands holding a device with an upward arrow indicating motion (no text or symbols)

Line drawing of a hand holding a metal bracket with an upward arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Safety and environment instructions 3

2. Your Refrigerator 7

3 Installation 8

3.1 Appropriate installation location ....8

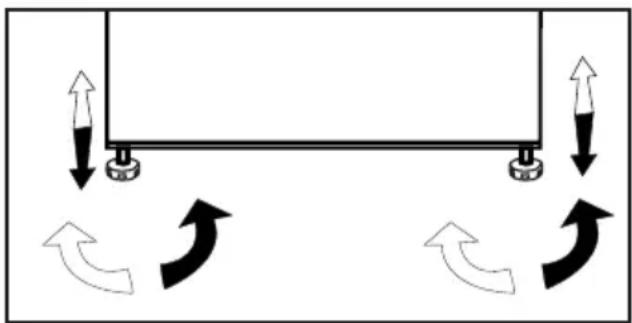

3.2 Installing the plastic wedges .8
3.3 Adjusting the feet 9
3.4 Electrical connection .....9
3.5Illumination lamp 9
3.6Open door warning .....9

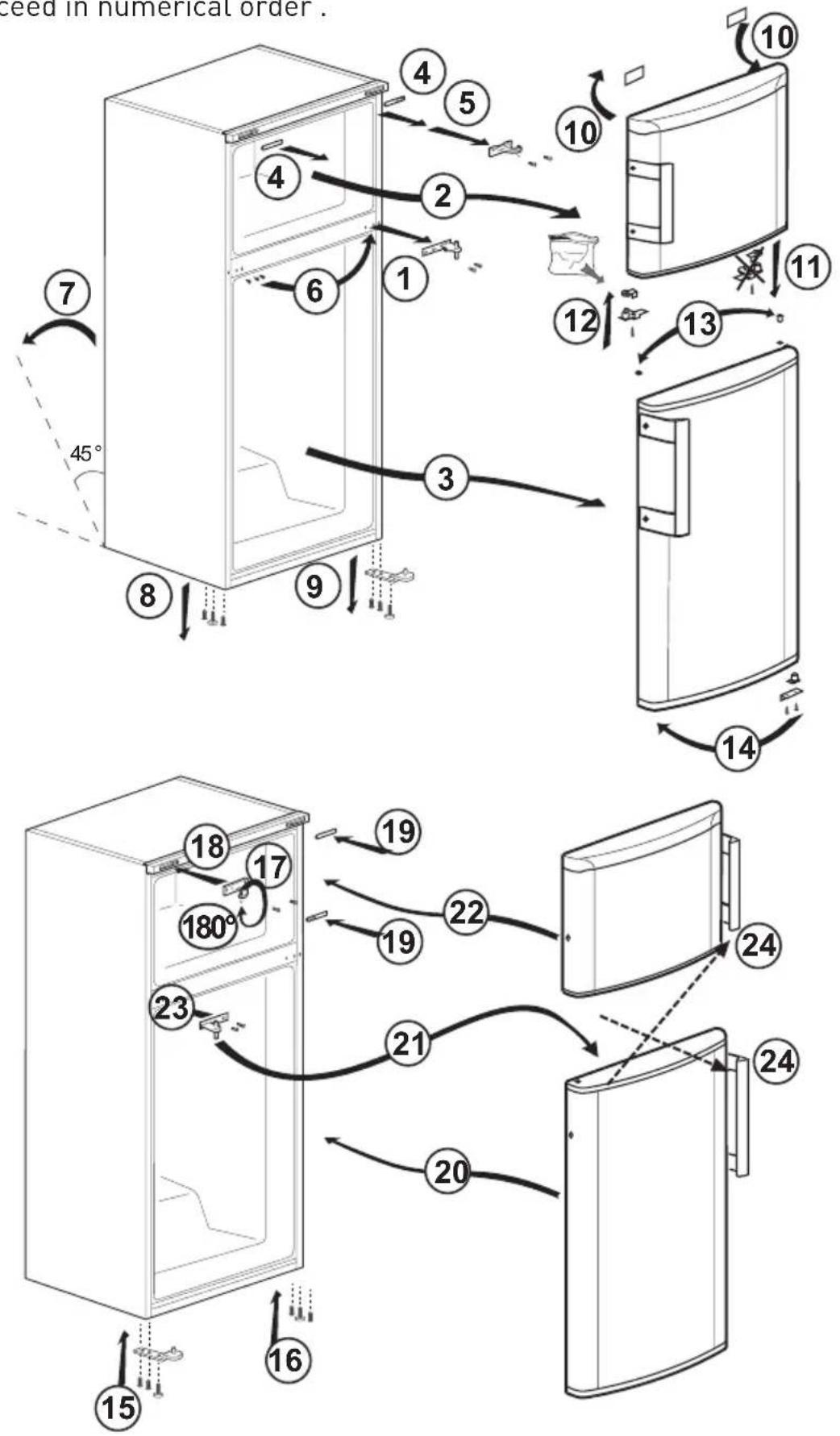

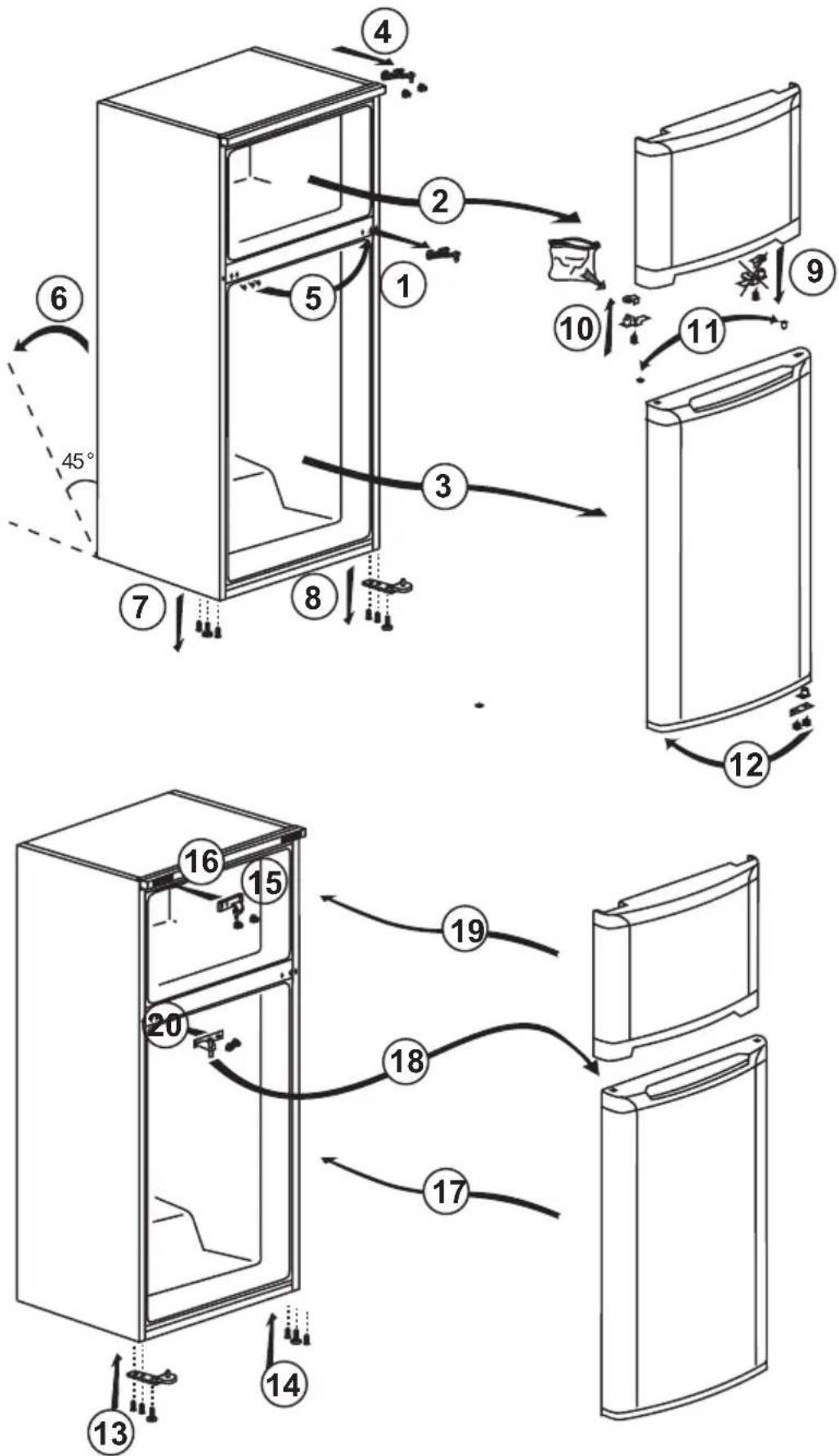

3.7 Reversing the doors .....10
3.8 Reversing the doors .....11

4 Preparation 12

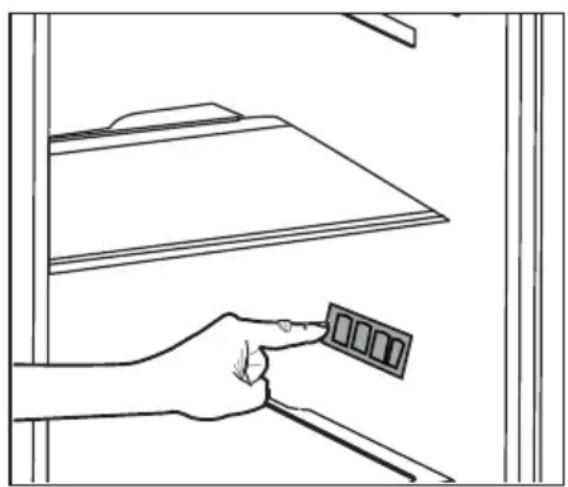

4.1 Things to be done for energy saving ....12
4.2 Initial use ....13

5 Operating the product 14

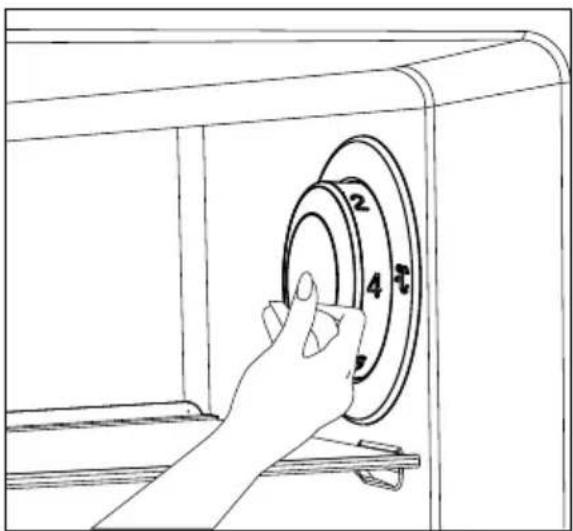

5.1 Temperature setting button .14
5.2 Fast freeze 14

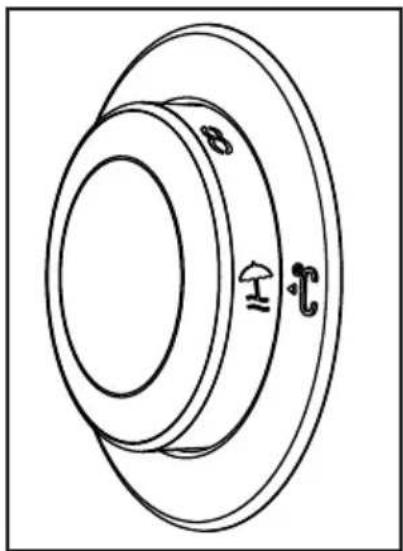

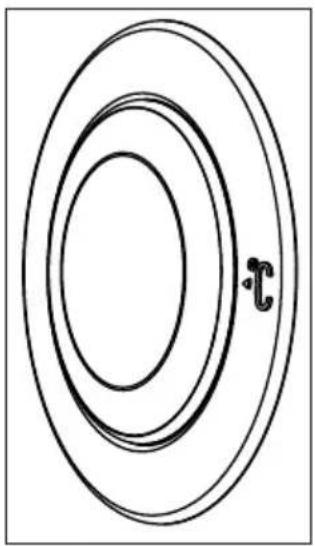

5.3 Vacation function .....15

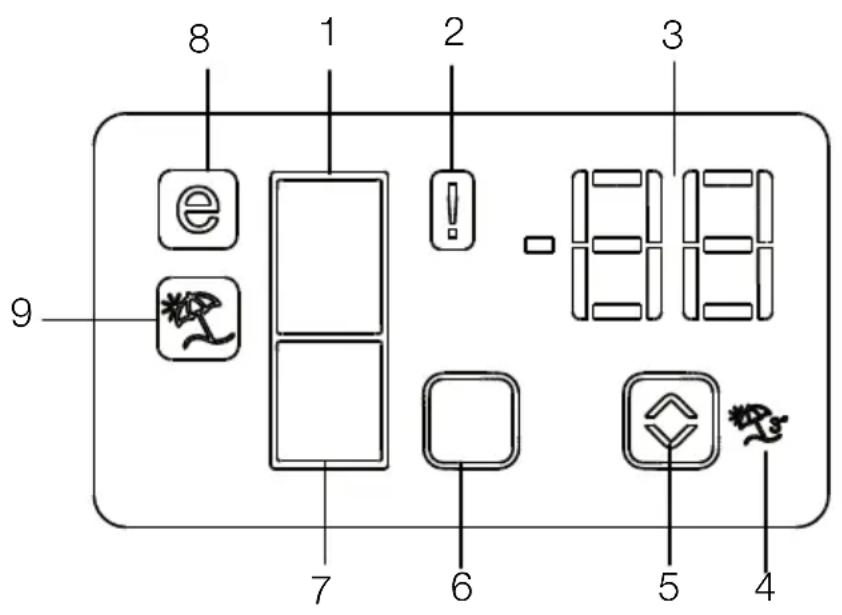

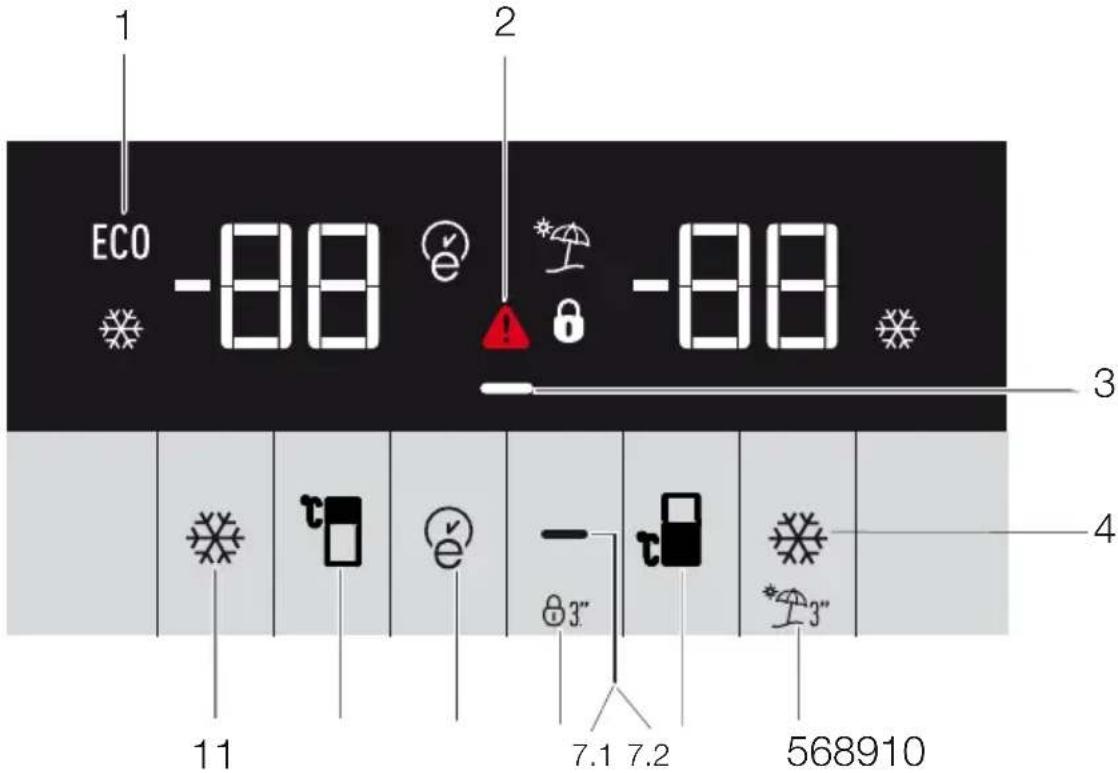

5.4 Indicator panel 16
5.5 Indicator panel 18
5.6 Indicator panel 21

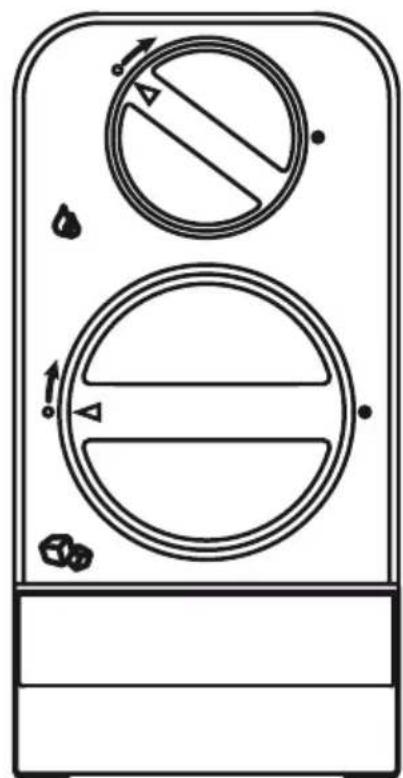

5.7 Twist Ice - matic .....24

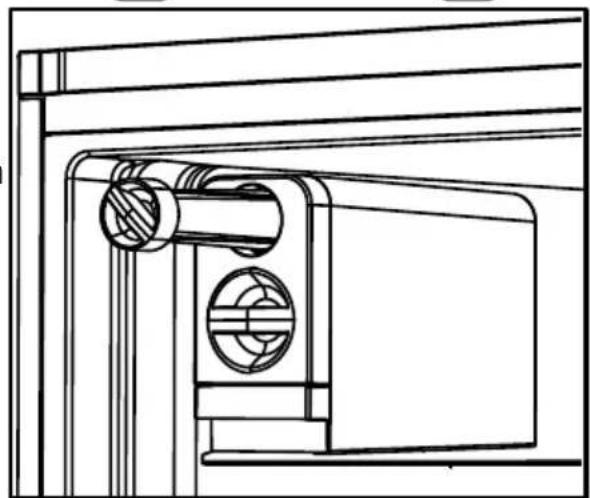

5.8 Egg holder....24
5.9 Ice container .....25

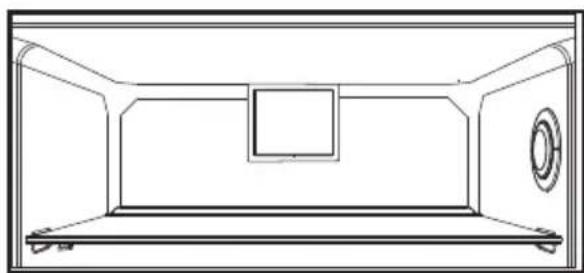

5.10 Fan 25

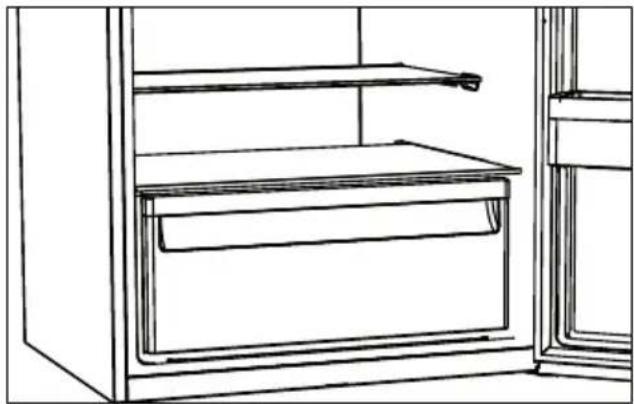

5.11 Crisper 25

5.12 Chiller compartment .....25

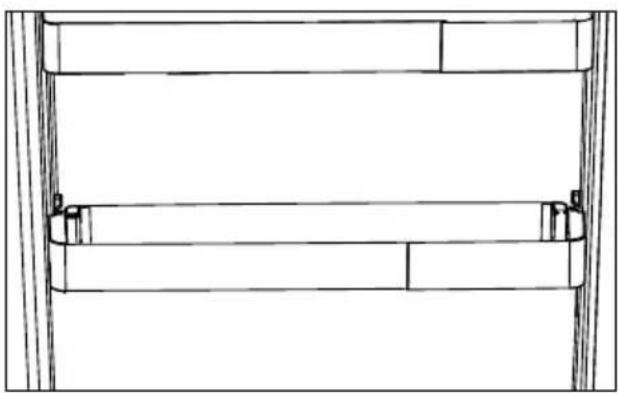

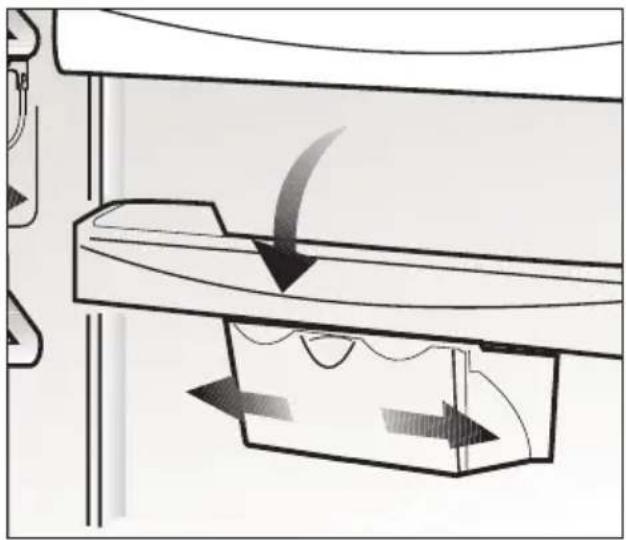

5.13 Moving door shelf .....26
5.14 Sliding storage container ..26
5.15 Blue light 26

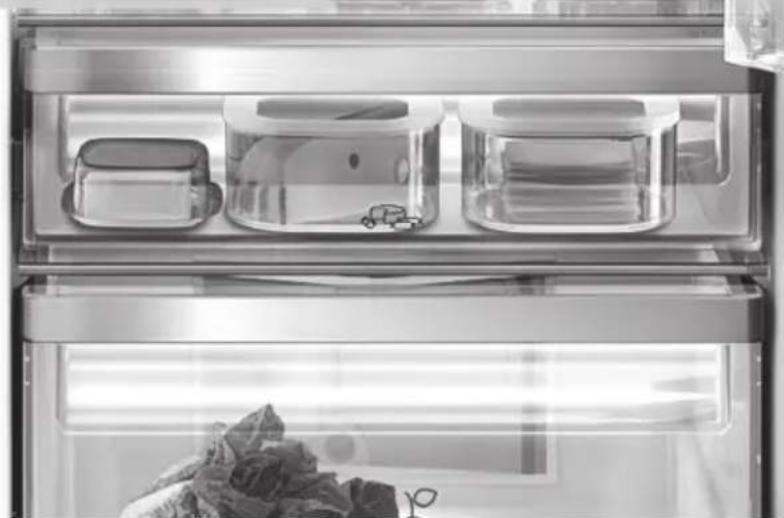

5.16 Humidity controlled crisper 27
5.17 Auto Icematic 27

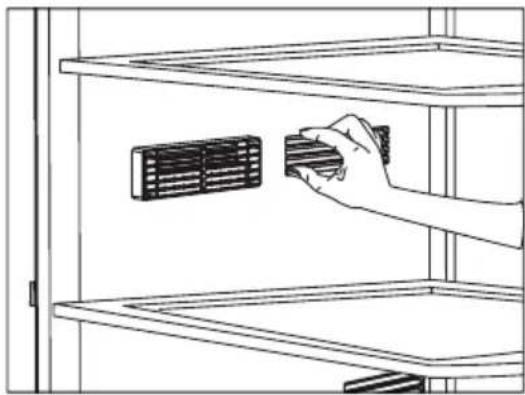

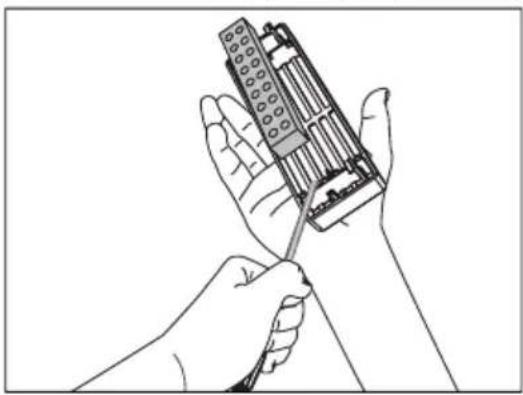

5.18 Description and cleaning of odor filter 28

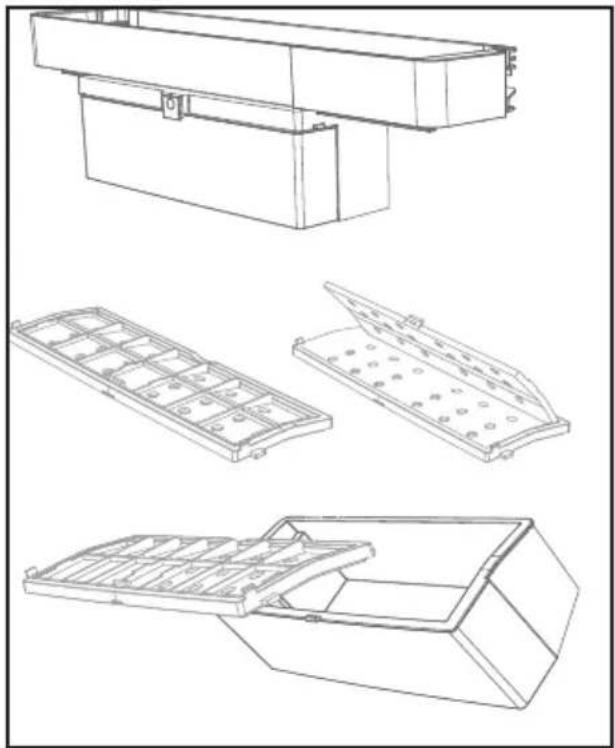

5.19 HerbBox/HerbFresh .....28

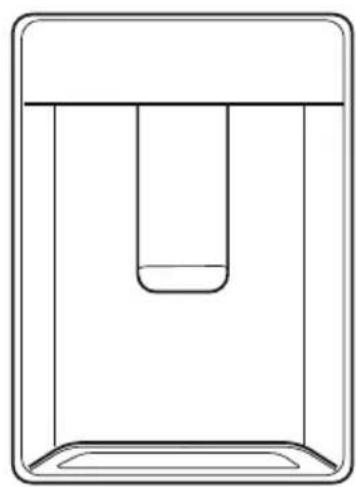

5.20 Using the water dispenser .29

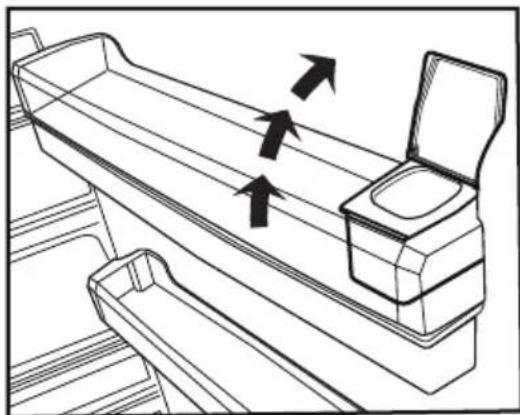

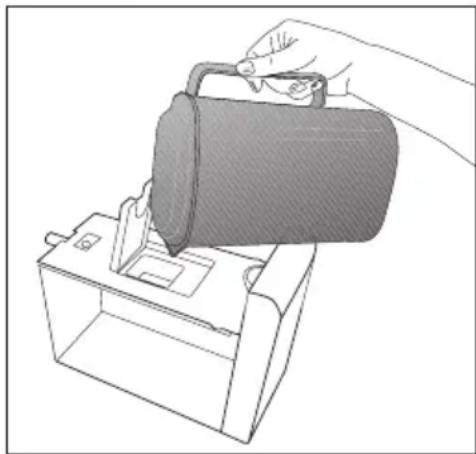

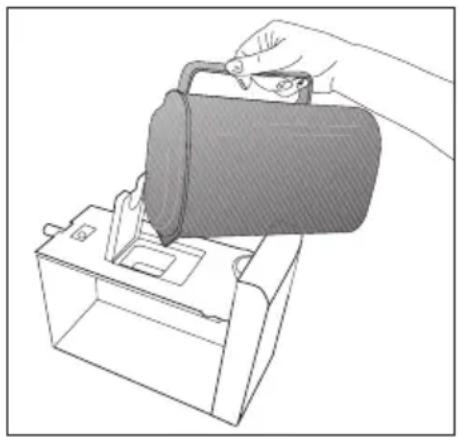

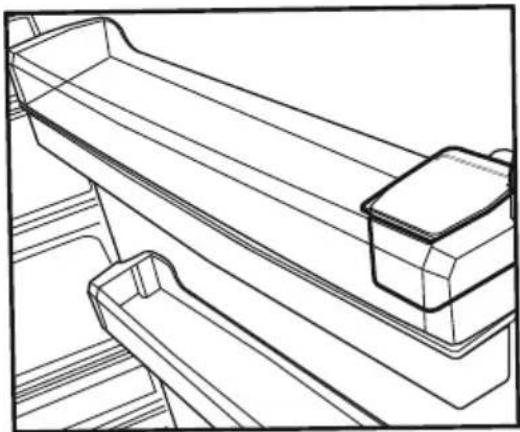

5.21 Filling the water dispenser's tank 29

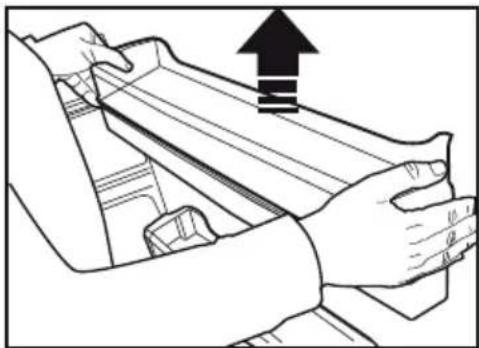

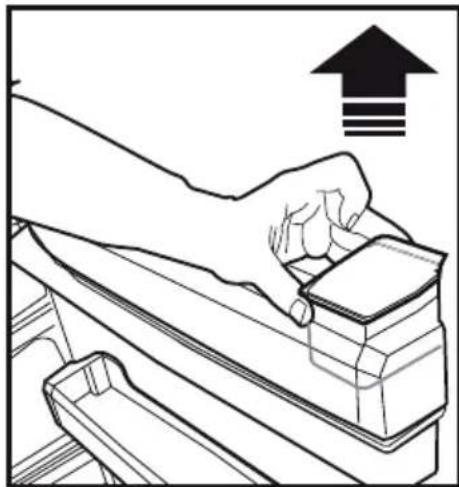

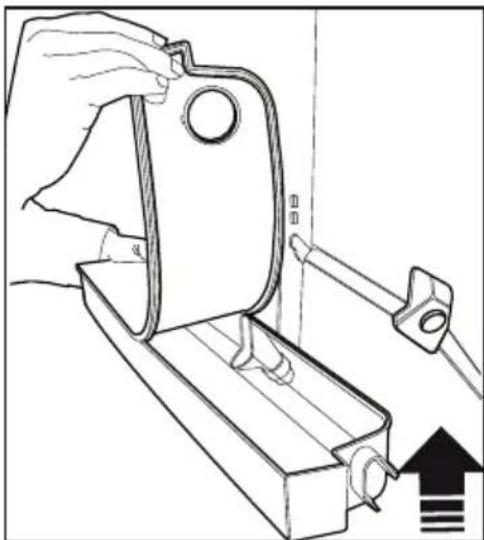

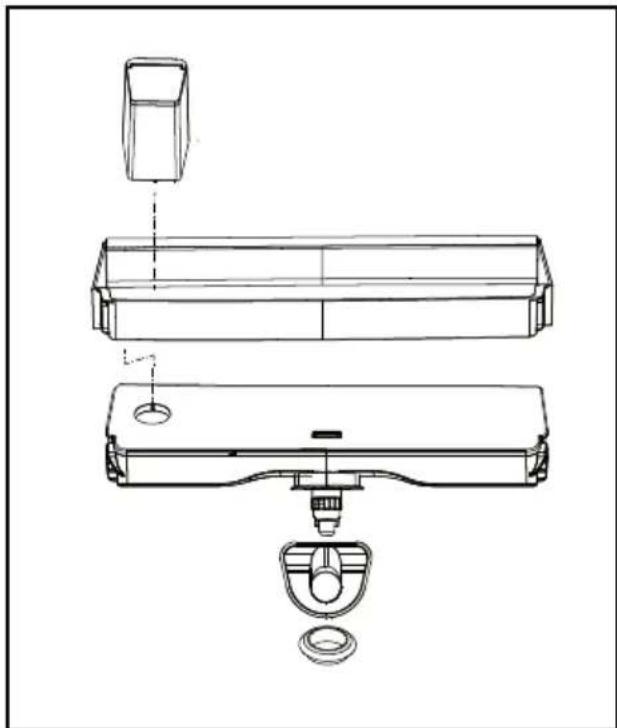

5.22 Cleaning the water tank ....30

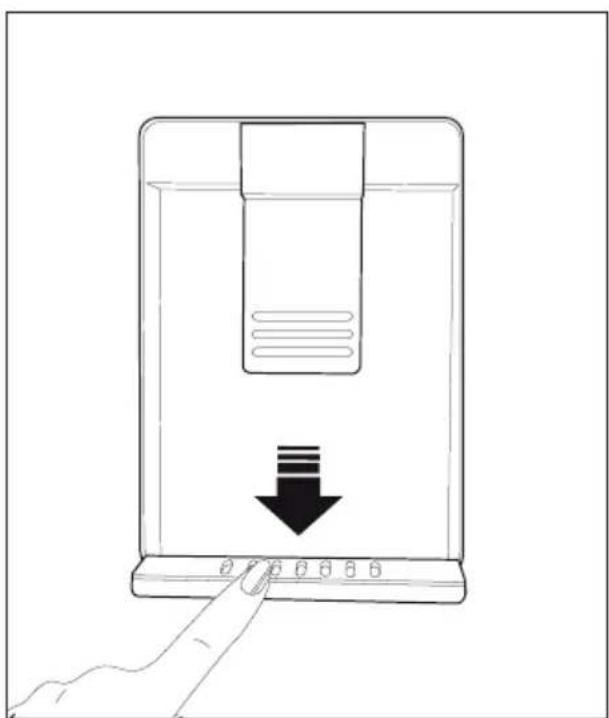

5.23 Drip tray 31
5.24 Freezing fresh food .....32
5.25 Recommendations for preserving the frozen food .....33
5.26 Deep-freeze information ....33
5.27 Placing the food ....33
5.28 Door open warning .....34
5.29 Changing the door opening direction ....34
5.30 Illumination lamp ....34

6. Maintenance and cleaning 35

6.1 Avoiding bad odours......35
6.2 Protecting the plastic surfaces 36
6.3 Door Glasses ....36

7. Troubleshooting 37

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

The user manual will help you use the product in a fast and safe way.

Will help you use your appliance in a fast and safe way.

Read the manual before installing and operating your product.

Follow the instructions, especially those for safety.

Keep the manual in an easily accessible place as you may need it later.

Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

	Important information or useful usage tips.
	Warning against dangerous conditions for life and property.
	Warning against electric voltage.
	Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

1. Safety and environment instructions

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.

Intended use

	WARNING:Keep ventilation openings, in the appliance enclosure or in the built-instructure, clear of obstruction.
	WARNING:Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
	WARNING:Do not damage the refrigerant circuit.
	WARNING:Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications.

1.1. General safety

- This product should not be used by persons with physical, sensory and mental disabilities, without sufficient knowledge and experience or by children. The device can only be used by such persons under supervision and instruction of a person responsible for their safety. Children should not be allowed to play with this device.

• In case of malfunction, unplug the device.
• After unplugging, wait at least 5 minutes before plugging in again.
- Unplug the product when not in use.
- Do not touch the plug with wet hands! Do not pull the cable to plug off, always hold the plug.
- Do not plug in the refrigerator if the socket is loose.
- Unplug the product during installation, maintenance, cleaning and repair.
- If the product will not be used for a while, unplug the product and remove any food inside.

- Do not use the product when the compartment with circuit cards located on the upper back part of the product (electrical card box cover) (1) is open.

Simple line drawing of a rectangular frame with a numbered label (1, 2, 3) and no text or symbols beyond labels.

Simple line drawing of a rectangular structure with a central trapezoidal base and an arrow pointing upward (no text or symbols)

• Do not use steam or steamed cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!
• Do not wash the product by spraying or pouring water on it! Danger of electric shock!
• In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorised service before doing anything.
• Plug the product into an earthed socket. Earthing must be done by a qualified electrician.

• If the product has LED type lighting, contact the authorised service for replacing or in case of any problem.

• Do not touch frozen food with wet hands! It may adhere to your hands!

• Do not place liquids in bottles and cans into the freezer compartment. They may explode.
• Place liquids in upright position after tightly closing the lid.
• Do not spray flammable substances near the product, as it may burn or explode.
• Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.
• Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.
• Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.
  • Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.
• Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.
  • Take care not to trap the power cable.

Diagram showing a lightning bolt striking a wall-mounted device with a power plug, no text or symbols present

1.1.1 HC warning

If the product comprises a cooling system using R600a gas, take care to avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire and ventilate the room immediately.

The label on the inner left side indicates the type of gas used in the product.

1.1.2 For models with water dispenser

• Pressure for cold water inlet shall be maximum 90 psi (620 kPa). If your water pressure exceeds 80 psi (550 kPa), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
• If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in

your installation. Consult Professional plumbers if you are not sure that there is no water hammer effect in your installation.

• Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33^ F ( 0.6^ C) minimum and 100^ F ( 38^ C) maximum.
  • Use drinking water only.

1.2. Intended use

• This product is designed for home use. It is not intended for commercial use.
• The product should be used to store food and beverages only.
• Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.
• The manufacturer assumes no responsibility for any damage due to misuse or mishandling.
• Original spare parts will be provided for 10 years, following the product purchasing date.

1.3. Child safety

- Keep packaging materials out of children's reach.

• Do not allow the children to play with the product.
• If the product's door comprises a lock, keep the key out of children's reach.

1.4. Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Pure electrical circuit lines without any symbols

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.5. Compliance with RoHS Directive

- This product complies with EU WEEE Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.6. Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

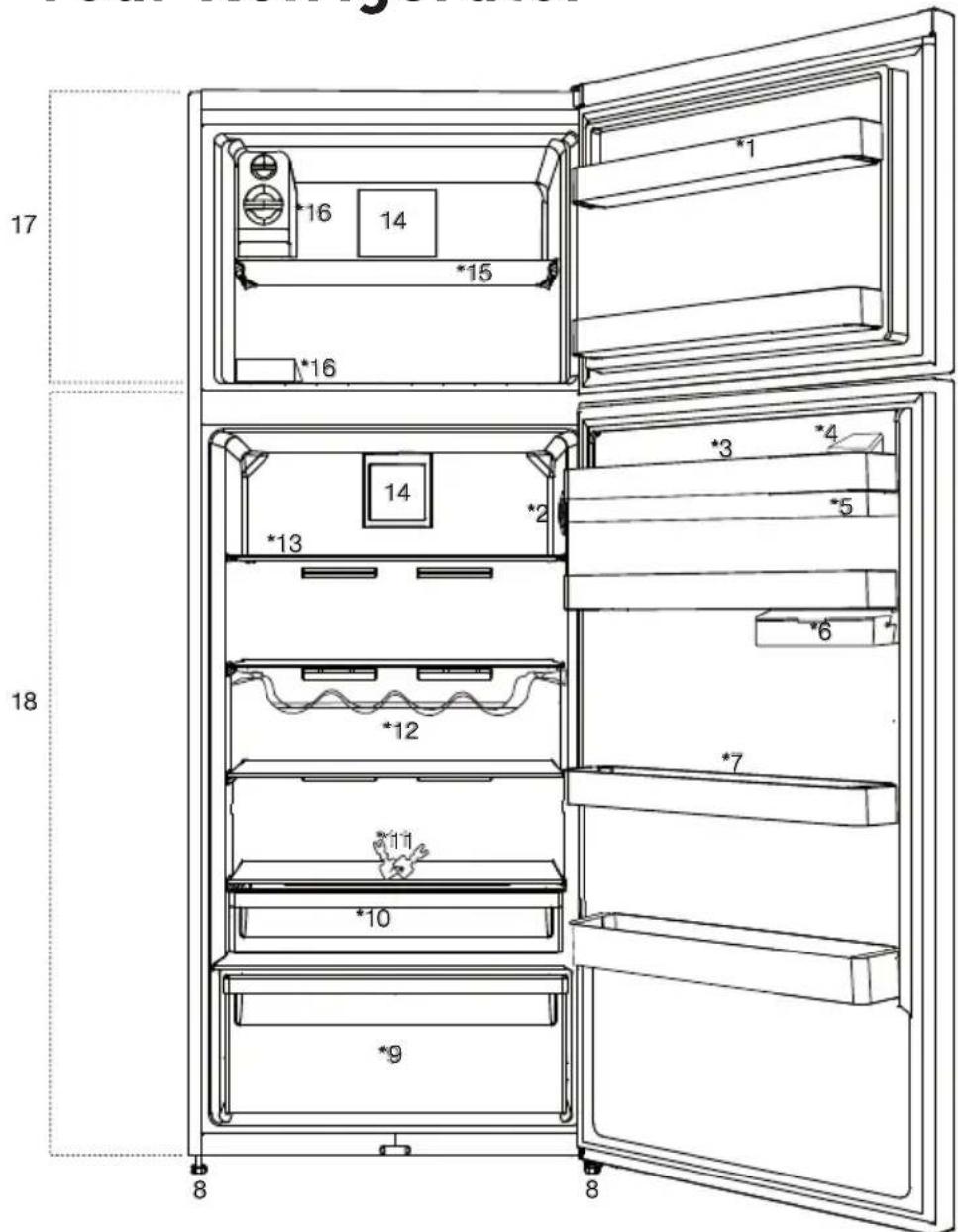

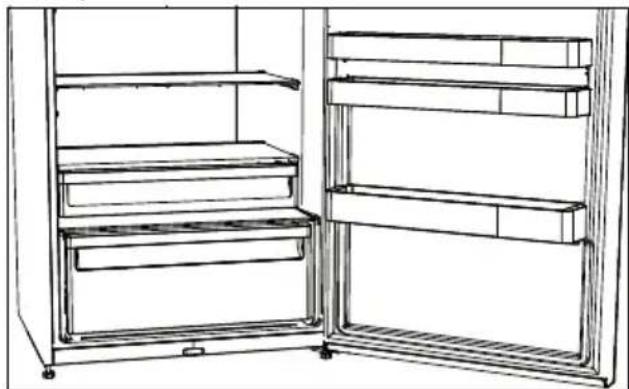

2. Your Refrigerator

1. Fridge - compartment door shelf
2. Temperature setting button
3. Water dispenser filling tank
4. Egg section
5. Water dispenser reservoir
6. Storage container under the door shelf
7. Moving door shelf
8. Adjustable feet

9. Crisper

10. Chiller compartment

11. Lock and key
12. Bottle shelf
13. Fridge - compartment glass shelf
14. Fan
15. Freezer compartment shelf
16. Icebox / Ice-making compartment
17. Freezer compartment
18. Fridge compartment

* optional

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

3 Installation

3.1 Appropriate installation location

Contact an Authorized Service for the installation of the product. In order to prepare the product for use, refer the information in the user manual and ensure that electrical installation and water installation are appropriate. If not, call a qualified electrician and technician to have any necessary arrangements carried out.

	WARNING:Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
	WARNING: Product must not be plugged in during installation. Otherwise, there is the risk of death or serious injury!
	WARNING: If the door clearance of the room where the product shall be place is so tight to prevent passing of the product, remove the door of the room and pass the product through the door by turning it to its side; if this does not work, contact the authorized service.

• Place the product on an even floor surface to prevent jolts.
  • Install the product at least 30 cm away from heat sources such as hobs, heater cores and stoves and at least 5 cm away from electrical ovens.
• Product must not be subjected to direct sun light and kept in humid places.
• Appropriate air ventilation must be provided around your product in order to achieve an efficient operation. If the product is to be placed in a recess in the wall, pay attention to leave at least 5 cm distance with the ceiling and side walls.
• Do not install the product in places where the temperature falls below -5°C.

3.2 Installing the plastic wedges

Plastic wedges supplied with the product are used to create the distance for the air circulation between the product and the rear wall.

1. To install the wedges, remove the screws on the product and use the screws supplied together with the wedges.
2. Insert the 2 plastic wedges onto the rear ventilation cover as illustrated in the figure.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

3.3 Adjusting the feet

If the product stands unbalanced after installation, adjust the feet on the front by rotating them to the right or left.

3.4 Electrical connection

WARNING: Do not make connections via extension cables or multi-plugs.

WARNING: Damaged power cable must be replaced by the Authorized Service Agent.

If two coolers are to be installed side by side, there should be at least 4 cm distance between them.

• Our company shall not be liable for any damages that will arise when the product is used without grounding and electrical connection in accordance with the national regulations.
• Power cable plug must be within easy reach after installation.
• Do not extension cords or cordless multiple outlets between your product and the wall outlet.

Hot Surface Warning! Side walls of your product is equipped with refrigerant pipes to improve the cooling system. Refrigerant with high temperatures may flow through these areas, resulting in hot surfaces on the side walls. This is normal and does not need any servicing. Please pay attention while touching these areas.

3.5 Illumination lamp

Do not attempt to repair yourself but call the Authorised Service Agent if the LED illumination lamps do not go on or are out of order.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

An audio warning will be given when the fridge or freezer compartment door of your product is left open for a certain period of time. This audio warning signal will mute when any button on the indicator is pressed or when the door is closed.

3.7 Reversing the doors

Proceed in numerical order.

3.8 Reversing the doors

Proceed in numerical order.

4 Preparation

4.1 Things to be done for energy saving

Connecting the product to electric energy saving systems is risky as it may cause damage on the product.

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload the refrigerator, cooling capacity will fall when the air circulation inside is hindered.
• In order to store maximum amount of food in the freezer compartment, the icematic, available in the freezer compartment and easily removable by hand, shall be taken out. Net volume and energy consumption values declared on the power data plate of your refrigerator are measured and tested by removing the icematic. Do not remove the shelves inside the freezer compartment and on the door of freezer compartment shall not be removed and they shall always be used they provide ease of use and efficiency in energy consumption.
• Airflow should not be blocked by placing foods on the sides of the freezer compartment fan.

A minimum distance of 3 cm shall be provided on the sides of protective fan cover.

• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.
• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.
• Depending on the features of your product, thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.
• Do not allow contact of the food with the fridge compartment temperature sensor shown in the figure below.

Line drawing of a hand inserting a small rectangular component into a cabinet (no text or symbols)

4.2 Initial use

Before starting to use your refrigerator, ensure that all preparations are made in accordance with the instructions in sections “Instructions for safety and environment” and “Installation”.

- Run the product without putting any food for 6 hours and do not open its door unless certainly required.

You will hear a noise when the compressor starts up. The liquids and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

Front edges of the product may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.

5 Operating the product

5.1 Temperature setting button

The interior temperature of your refrigerator changes for the following reasons;

• Seasonal temperatures,
- Frequent opening of the door and leaving the door open for long periods,
- Food put into the refrigerator without cooling down to the room temperature,
- The location of the refrigerator in the room (e.g. exposing to sunlight).
- You may adjust the varying interior temperature due to such reasons by using the setting button.
- The numbers around the control knob indicate the temperature values in "°C".
- If the ambient temperature is 25^ C, we recommend you to use the temperature control knob of your refrigerator at 4^ C. This value may be increased or decreased as required in other ambient temperatures.

Line drawing of a hand pressing down on a circular device with numbered parts (no text or symbols)

5.2 Fast freeze

If large amounts of fresh food are going to be frozen, adjust the temperature control knob to

I ^1 max. 24 hours before putting the fresh food in the fast freeze compartment.

It is strongly recommended to keep the knob at this position at least 24 hours to freeze maximum amount of fresh food declared as freezing capacity. Take special care not to mix frozen food and fresh food.

Remember to turn the temperature control knob back to its previous position once food has frozen.

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

5.3 Vacation function

If the doors of the product are not opened for 12 hours after the temperature control knob is switched to the hottest position, then the vacation function will be activated automatically.

Technical line drawing of a mechanical component with concentric rings and labeled features (no text or symbols)

To cancel the function, change the knob setting.

It is not recommended to store food in cooler compartment when the vacation function is active.

Simple concentric oval diagram with a small 't' mark at the center (no text or symbols beyond the label)

- When the setting operation is completed, you may press the temperature control knob and have it hidden.

5.4 Indicator panel

Indicator panels may vary according to the product model.

Audio – visual functions on the indicator panel helps you in using your product.

1. Fridge Compartment Indicator
2. Error status indicator
3. Temperature indicator
4. Vacation function button
5. Temperature setting button
6. Compartment selection button
7. Freezer compartment indicator
8. Economy mode indicator
9. Vacation function indicator
   *optional

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

1. Fridge compartment indicator

Fridge compartment light is illuminated while the fridge compartment temperature is set.

2. Error status indicator

If your refrigerator does not perform enough cooling or in case of a sensor fault, this indicator is activated. When this indicator is activated, "E" is displayed on the freezer compartment temperature indicator, and numbers such as "1,2,3..." are displayed on the fridge compartment temperature indicator. These numbers on the indicator inform service personnel about the error.

3. Temperature indicator

Indicates freezer, fridge compartment temperature.

4. Vacation function button

Press on Vacation Button for 3 seconds to activate this function. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.

To cancel this function press

Vacation button again.

5. Temperature setting button

Changes the temperature of the relevant compartment between -24°C... -18°C and 8°C...1°C.

6. Compartment selection button

Selection button: Press compartment selection button to switch between fridge and freezer compartments.

7. Freezer compartment indicator

Fridge compartment light is illuminated while the freezer compartment temperature is set.

8. Economy mode indicator

Indicates that the refrigerator operates in energy saving mode. This display shall be activated if the freezer compartment temperature is set to -18^ .

9. Vacation function indicator

Indicates that vacation is activated.

5.5 Indicator panel

Indicator panel allows you to set the temperature and control the other functions related to the product without opening the door of the product. Just press the inscriptions on relevant buttons for function settings.

1. Economy

This symbol is illuminated when the freezer compartment is set to -18°C'ye as the most economical setting value (EQO Economy indicator is turned off when quick cooling or quick freeze functions are selected.

2. High temperature / error warning indicator

This indicator (⚠️) illuminates during high temperature failures and error warnings.

3. Energy saving function (display off)

If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. When energy saving function is activated,

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal.

4. Quick cool

Quick cooling indicator ( ) is illuminated when quick cooling function is activated and fridge compartment temperature indicator value is displayed as 1. To cancel this function press Quick cooling button again. Quick cooling indicator will turn off and refrigerator will return to its normal settings. Quick cooling function is canceled automatically in 1 hour if you do not cancel it before. If you want to cool large amounts of fresh food, press the Quick cooling button before putting the food into the fridge compartment.

5. Vacation function

In order to activate vacation function, press the button no. (5) ( ) for 3 seconds, and the vacation mode indicator activates. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.

To cancel this function press

Vacation function button again.

6. Fridge compartment temperature setting

When the button no. (6) is pressed, you may set the temperature of the fridge compartment to 8,7,6,5,4,3,2 and 1 respectively (☐)

7.1 Energy saving function (display off):

Energy saving symbol (.) is illuminated and Energy saving function is activated when you press this button (.) When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal. Energy saving symbol is turned off and energy saving function is deactivated when you press this button (.) again.

7.2. Alarm off warning:

In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button to clear the warning.

8. Key lock

Press key lock button (3) simultaneously for 3 seconds. Key lock symbol will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button simultaneously for 3 seconds again. Key lock symbol will turn off and the key lock mode will be exited.

Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator (83"

9. Eco fuzzy

Press and hold eco fuzzy button for 1 seconds to activate eco fuzzy function.

Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active ( Ⓜ). Press and hold eco fuzzy function button for 3 seconds to deactivate eco fuzzy function.

This indicator is illuminated after 6 hours when eco fuzzy is activated.

10. Freezer compartment temperature setting

Temperature setting for freezer compartment is performed here. When button no. 10 is pressed, you may set the temperature of the freezer compartment to -18, -19, -20, -21, -22, -23 and -24 respectively.

11. Fast freeze

Press button no. (11) for fast freeze operation, quick freeze indicator (✗ shall be activated.

Quick freeze indicator is illuminated when quick freeze function is activated and fridge compartment temperature indicator is displayed as -27. To cancel this function press quick freeze button (again). Quick freeze indicator will turn off and refrigerator will return to its normal settings. Quick freeze function is canceled automatically in 24 hour if you do not cancel it before. If you want to freeze large amounts of fresh food, press the quick freeze button before putting the food into the freezer compartment.

5.6 Indicator panel

Indicator panel allows you to set the temperature and control the other functions related to the product without opening the door of the product. Just press the inscriptions on relevant buttons for function settings.

1. Economy

This symbol is illuminated when the freezer compartment is set to -18°C'ye as the most economical setting value (E00 Economy indicator is turned off when quick cooling or quick freeze functions are selected.

2. High temperature / error warning indicator

This indicator (▲) illuminates during high temperature failures and error warnings.

3. Energy saving function (display off)

If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal.

4. Quick cool

Quick cooling indicator ( ) is illuminated when quick cooling function is activated and fridge

Figures in this user manual are schematic and may not match the product exactly. If the subject parts are not included in the product you have purchased, then those parts are valid for other models.

compartment temperature indicator value is displayed as 1. To cancel this function press Quick cooling button again. Quick cooling indicator will turn off and refrigerator will return to its normal settings. Quick cooling function is canceled automatically in 1 hour if you do not cancel it before. If you want to cool large amounts of fresh food, press the Quick cooling button before putting the food into the fridge compartment.

5. Vacation function

In order to activate vacation function, press the button no. (5) ( ) for 3 seconds, and the vacation mode indicator activates. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.

To cancel this function press

Vacation function button again.

6. Fridge compartment temperature setting

When the button no. (6) is pressed, you may set the temperature of the fridge compartment to 8,7,6,5,4,3,2 and 1 respectively (☐)

7.1 Energy saving function (display off):

Energy saving symbol (.) is illuminated and Energy saving function is activated when you press this button (.). When energy saving function is activated, all symbols on the display other than energy

saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal. Energy saving symbol is turned off and energy saving function is deactivated when you press this button ( ) again.

7.2. Alarm off warning:

In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button to clear the warning.

8. Key lock

Press key lock button (8)3" simultaneously for 3 seconds. Key lock symbol

(8) will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button simultaneously for 3 seconds again. Key lock symbol will turn off and the key lock mode will be exited.

Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator ( )

9. Eco fuzzy

Press and hold eco fuzzy button for 1 seconds to activate eco fuzzy function.

Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is active ( Ⓞ Press and hold eco fuzzy function button for 3 seconds to deactivate eco fuzzy function.

This indicator is illuminated after 6 hours when eco fuzzy is activated.

10. Freezer compartment temperature setting

Temperature setting for freezer compartment is performed here. When button no. 10 is pressed, you may set the temperature of the freezer compartment to -18, -19, -20, -21, -22, -23 and -24 respectively.

11. Fast freeze

Press button no. (11) for fast freeze operation, quick freeze indicator ( shall be activated.

Quick freeze indicator is illuminated when quick freeze function is activated and fridge compartment temperature indicator is displayed as -27. To cancel this function press quick freeze button ( ) again. Quick freeze indicator will turn off and refrigerator will return to its normal settings. Quick freeze function is canceled automatically in 24 hour if you do not cancel it before. If you want to freeze large amounts of fresh food, press the quick freeze button before putting the food into the freezer compartment.

5.7 Twist Ice - matic

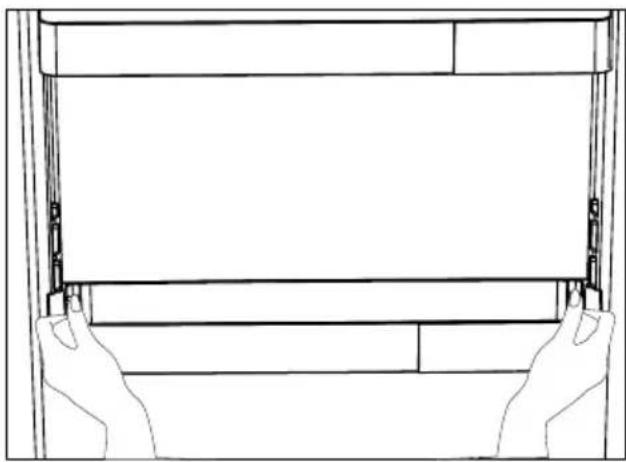

(This feature is optional)

• Remove the water tank by rotating it to the left.
• Open the water tank cover by turning it and add water to the water tank up to the lower part of the water tank cover.
• Place the water tank on its place as shown in the figure after adding water and have it seated by rotating it on the direction of the arrow. Water shall be poured down to the icebank.
• When ice has formed, rotate icebank knob in the direction of the arrow to allow that the ice is dropped down to the ice drawer.
  • Take the ice cubes by pulling ice drawer out.
• Pull the front face towards you in order to wash the icebank, and put it on the slides on the interior area and push it to its place in order to replace it.
• Pull the twist icematic unit towards you in order to remove the unit, and put it on the slides on the ceiling and push it to its place in order to replace it.

5.8 Egg holder

You can install the egg holder to the desired door or body shelf. If it will be placed on body shelves than the lower cooler shelves are recommended.

Never place the egg holder in the freezer compartment

Diagram of a dual-chamber air vent with circular gauges and directional arrows (no text or labels)

Technical line drawing of a mechanical assembly with cylindrical components and a circular component (no text or symbols)

Technical line drawing of two cylindrical mechanical components with mounting holes (no text or symbols)

5.9 Ice container

• Remove the ice container from the freezer compartment.
  • Fill the ice container with water.
• Place the ice container in the freezer compartment. About two hours later, the ice is ready.
• Remove the ice container from the freezer compartment and bend it over the service plate. Ice cubes will easily fall down to the service plate.

Technical line drawings of two electronic component enclosures (no text or symbols)

5.10 Fan

Fan is designed to ensure homogeneous distribution and circulation of the cold air inside your refrigerator. Operation time of the fan may vary depending on the properties of your product.

While the fan works only with the compressor in some products, the control system determines its operation time in some products in accordance with the cooling requirement.

Line drawing of a simple room interior with a double door, vent, and side table (no text or symbols)

5.11 Crisper

Crisper of the product is designed specially to keep the vegetables fresh without loosing their humidity. For this purpose, cool air circulation is intensified around the crisper in general.

Line drawing of an open refrigerator with a drawer and shelf (no text or symbols)

5.12 Chiller compartment

(This feature is optional)

Use this compartment to store delicatessen that shall be stored in a lower temperature or meat products that you will consume in a short time.

Chiller compartment is the coolest place in your refrigerator where you can keep dairy products, meat, fish and poultry under ideal storage conditions. Fruits and vegetables should not be stored in this compartment.

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

(This feature is optional)

Moving door shelf may be fixed in 3 different positions.

Press the buttons shown in the sides at the same amount in order to move the shelf. Shelf shall be movable.

Move the shelf up or down.

Release the buttons when you have the shelf in the desired position. Shelf shall be fixed on the position where you release the buttons.

Line drawing of two hands holding a rectangular object, viewed from above (no text or symbols)

Technical line drawing of a mechanical assembly with two horizontal panels and corner brackets (no text or symbols)

5.14 Sliding storage container

(This feature is optional)

This accessory is designed to increase the usable volume of the door shelves.

It allows you to easily place the tall bottles, jars and tins to the lower bottle shelf thanks to its ability to move right or left.

Diagram of a mechanical or fluidic device with directional arrows indicating flow or movement (no text or symbols present)

5.15 Blue light

(This feature is optional)

This accessory is designed to increase the usable volume of the door shelves.

It allows you to easily place the tall bottles, jars and tins to the lower bottle shelf thanks to its ability to move right or left.

5.16 Humidity controlled crisper 5.17 Auto Icematic

(FreSHelf)

(This feature is optional)

Humidity rates of the vegetables and fruit are kept under control with the feature of humidity-controlled crisper and the food is ensured to stay fresh for longer.

We recommend you to place the leafy vegetables such as lettuce, spinach and the vegetables which are sensitive to humidity loss, in a horizontal manner as much as possible inside the crisper, not on their roots in a vertical position.

While the vegetables are being placed, specific gravity of the vegetables should be taken into consideration. Heavy and hard vegetables should be put at the bottom of the crisper and the lightweight and soft vegetables should be placed over.

Never leave the vegetables inside the crisper in their bags. If the vegetables are left inside their bags, this will cause them to decompose in a short period of time. In case contacting with other vegetables is not preferred for hygiene concerns, use a perforated paper and other similar packaging materials instead of a bag.

Do not place together the pear, apricot, peach, etc. and apple in particular which have a high level of generation of ethylene gas in the same crisper with the other vegetables and fruit. The ethylene gas which is emitted by these fruit may cause the other fruit to ripen faster and decompose in a shorter time.

(This feature is optional)

The Auto Icematic allows you to make ice in the fridge easily.

Remove the water tank in the fridge compartment, fill it wilt water and install it back to obtain ice from the Icematic.

First ice cubes will be ready in approximately 2 hours in the Icematic drawer located in the freezer compartment.

If you fill the water tank completely, you will be able to obtain approximately 60-70 ice cubes.

Change the water in water tank if it has waited around 2-3 weeks.

For the products having automatic Icematic, sound may be heard during ice pouring. This sound is normal and does not signal any error.

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to lift a cylindrical object into a base (no text or symbols)

5.18 Description and cleaning of odor filter

(This feature is optional)

Odor filter prevents unpleasant odor build-up in your product.

1. Pull the cover into which the odor filter is installed downwards from the front section and remove as illustrated.
2. Leave the filter under sunlight for one day. Filter will be cleaned during this time.
3. Install the filter back to its place.

Odor filter must be cleaned once in a year.

Line drawing of a hand inserting a component into a rack with a grid-patterned vent (no text or symbols)

Line drawing of a hand holding an electronic device with internal components (no text or symbols)

Line drawing of two hands using a screwdriver to adjust a mechanical component (no text or symbols present)

5.19 HerbBox/HerbFresh

Remove the film container from HerbBox/HerbFresh+

Take the film out of the bag and put it into the film container as shown in the image.

Seal the container again and replace it into HerbBox/HerbFresh+ unit.

HerbBox-HerbFresh+ sections are especially ideal for storage of various herbs that are supposed to be kept in delicate conditions. You can store your unbagged herbs (parsley, dill, etc.) in this section horizontally and keep them fresh for a much longer period.

The film shall be replaced in every six months.

Technical line drawings of mechanical components, including a top view and three views (front, side, and interior) with no visible text or symbols.

5.20 Using the water dispenser

\*optional

It is normal for the first few glasses of water taken from the dispenser to be warm.

If the water dispenser is not used for a long period of time, dispose of first few glasses of water to obtain fresh water.

1. Push in the lever of the water dispenser with your glass. If you are using a soft plastic cup, pushing the lever with your hand will be easier.

2. After filling the cup up to the level you want, release the lever.

Please note, how much water flows from the dispenser depends on how far you depress the lever. As the level of water in your cup / glass rises, gently reduce the amount of pressure on the lever to avoid overflow. If you slightly press the arm, the water will drip; this is quite normal and not a failure.

Simple line drawing of a test tube inside a rectangular container (no text or symbols)

5.21 Filling the water dispenser's tank

Water tank filling reservoir is located inside the door rack.

1. Open the cover of the tank.
2. Fill the tank with fresh drinking water.
3. Close the cover.

Do not fill the water tank with any other liquid except for water such as fruit juices, carbonated beverages or alcoholic drinks which are not suitable to use in the water dispenser. Water dispenser will be irreparably damaged if these kinds of liquids are used. Warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks/liquids may damage the water tank.

Use clean drinking water only.

Capacity of the water tank is 3 litres; do not overfill.

Line drawing of a mechanical assembly with two stacked components (no text or symbols)

Line drawing of a mechanical device with two boxes and an open lid, showing directional arrows (no text or symbols)

5.22 Cleaning the water tank

1. Remove the water filling reservoir inside the door rack.
2. Remove the door rack by holding from both sides.

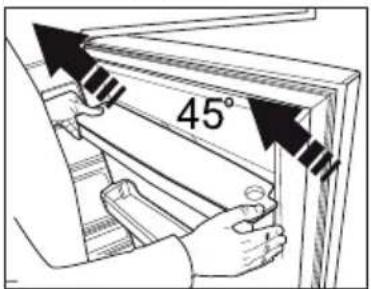

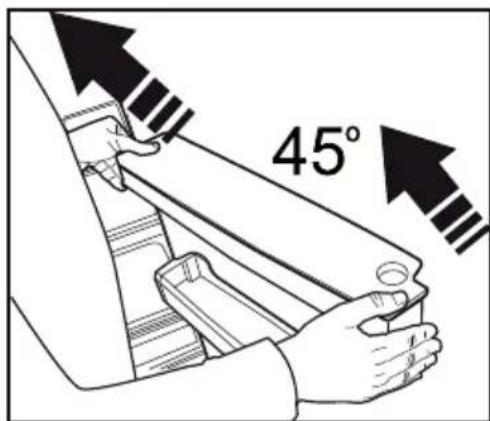

3. Grab the water tank from both sides and remove it with an angle of 45^ C.
4. Remove the cover of the water tank and clean the tank.

Components of the water tank and water dispenser should not be washed in dishwasher.

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Line drawing of a hand pressing down on stacked boxes with an upward arrow symbol (no text or labels)

Line drawing of hands operating a mechanical component with an upward arrow indicating motion (no text or symbols)

Line drawing of a hand operating a mechanical clamp or bracket with a vertical guide line (no text or symbols)

5.23 Drip tray

Water that dripped while using the water dispenser accumulates in the spillage tray.

Remove the plastic filter as shown in the figure.

With a clean and dry cloth, remove the water that has accumulated.

Line drawing of a hand pressing down on a device with a downward arrow indicating compression or disassembly (no text or symbols)

5.24 Freezing fresh food

• In order to preserve the quality of the food, it shall be frozen as quickly as possible when it is placed in the freezer compartment, use the fast freezing feature for this purpose.
• You may store the food longer in freezer compartment when you freeze them while they are fresh.
• Pack the food to be frozen and close the packing so that it would not allow entrance of air.
• Ensure that you pack your food before putting them in the freezer. Use freezer containers, foils and moisture-proof papers, plastic bags and other packing materials instead of traditional packing papers.

- Label each pack of food by adding the date before freezing. You may distinguish the freshness of each food pack in this way when you open your freezer each time. Store the food frozen before in the front side of compartment to ensure that they are used first.

The freezer compartment defrosts automatically.

• Frozen food must be used immediately after they are thawed and they should not be re-frozen.
• Do not freeze too large quantities of food at one time.

Freezer Compartment Setting	Fridge compartment Setting	Remarks
-18°C 4°C This is the normal recommended setting.
-20,-22 or -24°C	4°C	These settings are recommended when the ambient temperature exceeds 30°C.
Quick Freeze 4°C		Use when you wish to freeze your food in a short time. Your product will return to its previous mode when the process is over.
-18°C or colder 2°C		Use these settings if you think that your fridge compartment is not cold enough because of the hot ambient conditions or frequent opening and closing of the door.

5.25 Recommendations for preserving the frozen food

Compartment shall be set to -18^ at least.

1. Put packages in the freezer as quickly as possible after purchase without allowing the to thaw.
2. Check whether the "Use By" and "Best Before" dates on the packaging are expired or not before freezing it.
3. Ensure that the package of the food is not damaged.

5.26 Deep-freeze information

According to IEC 62552 standards, the product shall freeze at least 4.5 kg of food at 25^ C ambient temperature to -18^ C or lower within 24 hours for every 100-litres of freezer volume.

It is possible to preserve the food for a long time only at -18^ C or lower temperatures.

You can keep the freshness of food for many months (at -18^ C or lower temperatures in the deep freeze).

Foods to be frozen should not be allowed to come in contact with the previously frozen items to prevent them from getting thawed partially.

Boil the vegetables and drain their water in order to store vegetables for a longer time as frozen. After draining their water, put them in air-proof packages and place them inside the freezer. Food such as bananas, tomatoes, lettuce, celery, boiled eggs, potatoes are not suitable for freezing. When these foods are frozen, only their nutritional value and taste shall be affected negatively. They shall not be spoiled so that they would create a risk for human health.

5.27 Placing the food

Freezer compartment shelves	Various frozen food such as meat, fish, ice cream, vegetables and etc.
Refrigerator compartment shelves	Food in pans, covered plates and closed containers, eggs (in closed container)
Door shelves of fridge compartment	Small and packaged food or beverage
Crisper	Vegetables and fruits
Fresh zone compartment	Delicatessen (breakfast food, meat products that shall be consumed in a short time)

5.28 Door open warning

(This feature is optional)

Door open warning is given to user both visually and acoustically. If the warning continues for 10 minutes, interior lights will be turned off.

5.29 Changing the door opening direction

Door opening direction of your refrigerator can be changed according to the place you are using it. If this is necessary, please call your nearest Authorized Service.

Above description is a general expression. For information on changing the opening direction of the door, you must refer to the warning label located on the inner side of the door.

5.30 Illumination lamp

LED lamps are used as illumination lamps. Contact authorized service in case of any problem with this type of light. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

6. Maintenance and cleaning

Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals.

WARNING: Unplug the product before cleaning it.

• Never use gasoline, benzene or similar substances for cleaning purposes.
• Never use any sharp and abrasive tools, soap, household cleaners, detergent and wax polish for cleaning.
• Dissolve one teaspoon of carbonate in half litre of water. Soak a cloth with the solution and wrung it thoroughly. Wipe the interior of the refrigerator with this cloth and the dry thoroughly.
• Make sure that no water enters the lamp housing and other electrical items.
• If you will not use the refrigerator for a long period of time, unplug it, remove all food inside, clean it and leave the door ajar.
• Check regularly that the door gaskets are clean. If not, clean them.
• To remove door and body shelves, remove all of its contents.
• Remove the door shelves by pulling them up. After cleaning, slide them from top to bottom to install.

- Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces

- Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

6.1 Avoiding bad odours

Materials that may cause odour are not used in the production of our refrigerators. However, due to inappropriate food preserving conditions and not cleaning the inner surface of the refrigerator as required can bring forth the problem of odour. Pay attention to following to avoid this problem:

- Keeping the refrigerator clean is important. Food residuals, stains, etc. can cause odour. Therefore, clean the refrigerator with carbonate dissolved in water every 15 days. Never use detergents or soap.

- Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.

- Never keep the food that have expired best before dates and spoiled in the refrigerator.

6.2 Protecting the plastic surfaces

Do not put liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of the refrigerator. If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

6.3 Door Glasses

Remove the protective foil on the glasses.

There is a coating on the surface of the glasses. This coating minimizes the stain build-up and helps to remove the possible stains and dirt easily. Glasses that are not protected with such a coating may be subject to persistent binding of air or water based organic or inorganic dirt such as limescale, mineral salts, unburned hydrocarbons, metal oxides and silicones that can easily and quickly cause stains or material damage. Keeping the glass clean becomes too difficult despite the regular cleaning. Consequently, the appearance and the transparency of the glass deteriorates. Harsh and corrosive cleaning methods and compounds will intensify these defects and speed up the deterioration process.

Water-based cleaning products that are not alkaline and corrosive must be used for regular cleaning purposes.

Non-alkaline and non-corrosive materials must be used for cleaning so that the service life of this coating lasts for a long time.

These glasses are tempered to increase their durability against impacts and breaking.

A safety film is also applied to their rear surfaces as an extra safety measure in order to prevent them from causing damage to their surrounding in case of a breakage.

*Alkali is a base that forms hydroxide ions (OH ^- ) when it is dissolved in water.

Li (Lithium), Na (Sodium), K (Potassium) Rb (Rubidium), Cs (Cesium) and artificial and radioactive Fr (Fan-sium) metals are called ALKALI METALS.

7. Troubleshooting

Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

• The plug is not inserted into the socket correctly. >>> Insert the plug into the socket securely.
• The fuse of the socket which your refrigerator is connected to or the main fuse have blown out. >>> Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Door has been opened frequently. >>> Do not open and close the door of refrigerator frequently.
• Ambient is very humid. >>> Do not install your refrigerator into highly humid places.
• Food containing liquid is stored in open containers. >>> Store food with liquid content in closed containers.
• Door of the refrigerator is left ajar. >>> Do not leave the doors of your refrigerator open for a long time.
• Thermostat is set to a very cold level. >>> Set the thermostat to a suitable level.

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. The refrigerator will start running approximately after 6 minutes. Please call the Authorised Service Agent if the refrigerator does not start at the end of this period.
• The fridge is in defrost cycle. >>> This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.
• The refrigerator is not plugged into the socket. >>> Make sure that the plug is fit into the socket.
• Temperature settings are not made correctly. >>> Select the suitable temperature value.
• There is a power outage. >>> Refrigerator returns to normal operation when the power restores.

The operation noise increases when the refrigerator is running.

- The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

The refrigerator is running frequently or for a long time.

• New product may be wider than the previous one. Larger refrigerators operate for a longer period of time.
• The room temperature may be high. >>> It is normal that the product operates for longer periods in hot ambient.
• The refrigerator might be plugged in recently or might be loaded with food. >>> When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature. This is normal.
• Large amounts of hot food might be put in the refrigerator recently. >>> Do not put hot food into the refrigerator.
• Doors might be opened frequently or left ajar for a long time. >>> The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Do not open the doors frequently.
• Freezer or fridge compartment door might be left ajar. >>> Check if the doors are closed completely.
• The refrigerator is adjusted to a very low temperature. >>> Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. >>> Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

- The freezer temperature is adjusted to a very low value. >>> Adjust the freezer temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

- The fridge temperature is adjusted to a very low value. >>> Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers is frozen.

- The fridge temperature is adjusted to a very high value. >>> Adjust the fridge temperature to a lower value and check.

Temperature in the fridge or freezer is very high.

• The fridge temperature is adjusted to a very high value. >>> Fridge compartment temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature.
• Doors are opened frequently or left ajar for a long time. >>> Do not open the doors frequently.
  • Door is ajar. >>> Close the door completely.
• The refrigerator is plugged in or loaded with food recently. >>> This is normal. When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature.
• Large amounts of hot food might be put in the refrigerator recently. >>> Do not put hot food into the refrigerator.

Vibrations or noise.

• The floor is not level or stable. >>> If the refrigerator rocks when moved slowly, balance it by adjusting its feet. Also make sure that the floor is strong enough to carry the refrigerator, and level.
• The items put onto the refrigerator may cause noise. >>> Remove the items on top of the refrigerator.

There are noises coming from the refrigerator like liquid flowing, spraying, etc.

- Liquid and gas flows occur in accordance with the operating principles of your refrigerator. >>>It is normal and not a fault.

Whistle comes from the refrigerator.

- Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

• Hot and humid weather increases icing and condensation. It is normal and not a fault.
• Doors are opened frequently or left ajar for a long time. >>> Do not open the doors frequently. Close them if they are open.
  • Door is ajar. >>> Close the door completely.

Humidity occurs on the outside of the refrigerator or between the doors.

• There might be humidity in the air; this is quite normal in humid weather. >>> When the humidity is less, condensation will disappear.
• If moisture forms in the area between the two refrigerator doors, disable the “Energy Saving” mode.

Bad odour inside the refrigerator.

• No regular cleaning is performed. >>> Clean the inside of the refrigerator regularly with a sponge, lukewarm water or carbonate dissolved in water.
• Some containers or package materials may cause the smell. >>> Use a different container or different brand packaging material.
• Food is put into the refrigerator in uncovered containers. >>> Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.
• Remove the foods that have expired best before dates and spoiled from the refrigerator.

The door is not closing.

• Food packages are preventing the door from closing. >>> Replace the packages that are obstructing the door.
• The refrigerator is not completely even on the floor. >>> Adjust the feet to balance the refrigerator.
• The floor is not level or strong. >>> Also make sure that the floor is level and strong enough to carry the refrigerator.

Crispers are stuck.

- The food is touching the ceiling of the drawer. >>> Rearrange food in the drawer.

WARNING: If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorised Service Agent. Never try to repair a non-functional product yourself.

Notes

Notes
