Ultimate Blend - Blender OBH NORDICA - Free user manual and instructions

Product Type	Countertop Blender
Brand	OBH Nordica
Model	Ultimate Blend
Dimensions (H x W x D)	Approx. 40 x 20 x 20 cm
Weight	Approx. 3.5 kg
Power Consumption	800 W
Voltage	220-240 V, 50/60 Hz
Jug Capacity	1.5 L
Jug Material	BPA-free Tritan plastic
Blade Material	Stainless steel
Speed Settings	3 speeds plus pulse
Main Functions	Blending, crushing ice, pureeing, mixing
Safety Features	Safety lock lid, non-slip base, overload protection
Dishwasher Safe Parts	Jug, lid, and blade assembly (top rack)
Cleaning	Self-cleaning cycle with warm water and soap
Spare Parts Available	Jug, lid, seal, blade assembly
Repairability	Modular design; parts replaceable by user
Warranty	2 years

Frequently Asked Questions - Ultimate Blend OBH NORDICA

How do I assemble the blender?

Place the jug on the base, align the jug’s tabs with the base slots, and twist clockwise until it locks. Ensure the lid is firmly closed before use.

Can I crush ice in this blender?

Yes, the Ultimate Blend is designed to crush ice. Use the pulse function for best results, and do not fill the jug more than halfway with ice.

Is the jug dishwasher safe?

Yes, the jug, lid, and blade assembly are dishwasher safe on the top rack. Hand washing is recommended for the base.

What should I do if the blender stops working?

Check that the jug is properly locked on the base. If it still doesn’t start, unplug it for 10 minutes to reset the overload protection. If the problem persists, contact OBH Nordica support.

How do I clean the blender effectively?

Add warm water and a drop of dish soap to the jug, secure the lid, and run the 'self-clean' or high speed for 30 seconds. Rinse thoroughly.

Can I blend hot liquids?

No, do not blend hot liquids as pressure buildup can cause the lid to pop off. Allow liquids to cool to room temperature before blending.

What is the maximum capacity for blending?

The jug has a maximum capacity of 1.5 liters, but for thick mixtures, do not exceed 1 liter to avoid overflow.

Does the blender come with a recipe book?

Yes, the package includes a quick-start guide with a few basic recipes. More recipes are available on the OBH Nordica website.

How do I replace the blade assembly?

Unscrew the blade assembly from the bottom of the jug (turn clockwise then pull). Insert a new assembly and tighten. Ensure the seal is properly placed.

Is this blender suitable for making nut butters?

Yes, the powerful 800W motor can make nut butters. Use the tamper to push ingredients toward the blades if needed, and scrape down the sides regularly.

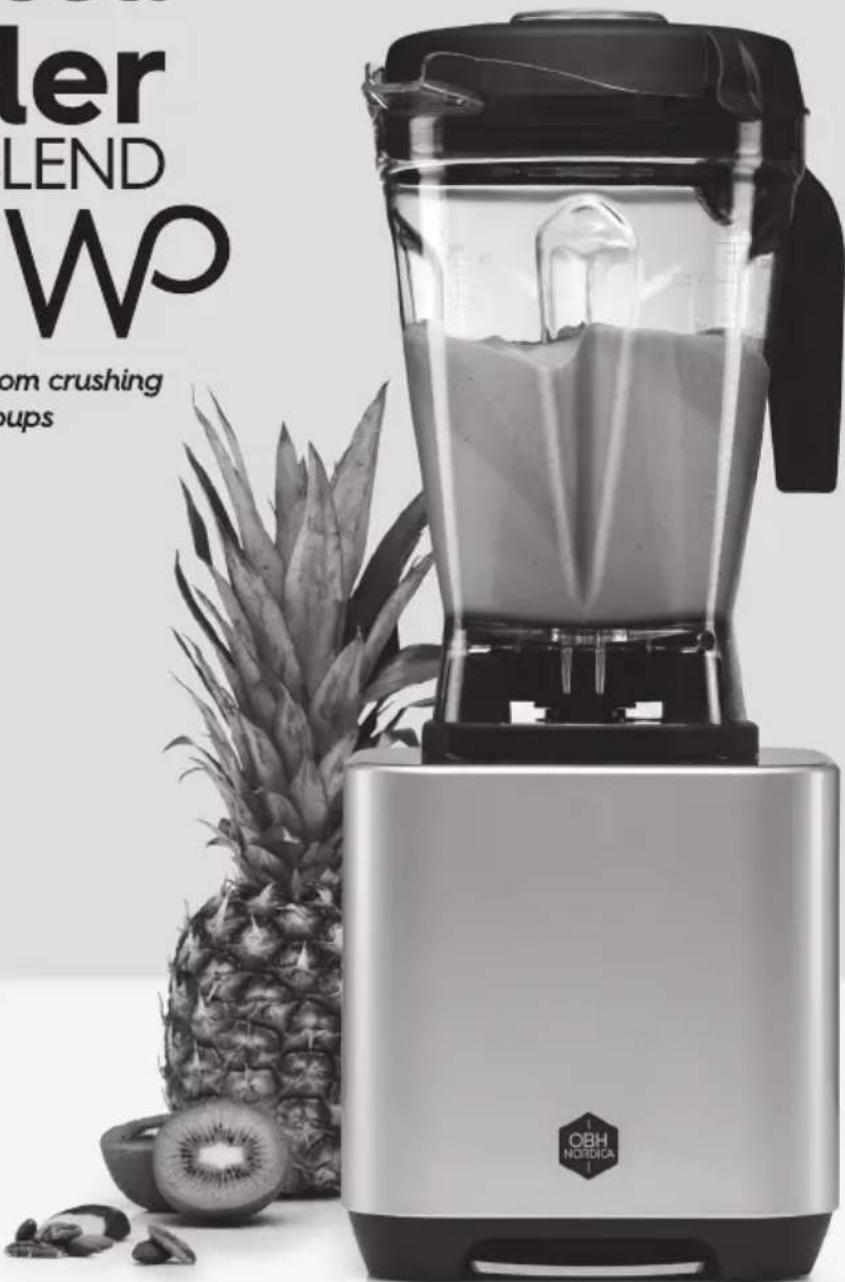

USER MANUAL Ultimate Blend OBH NORDICA

DESIGNING GOOD LIFE

High Speed Blender

ULTIMATE BLEND

1500 WP

For best blending result from crushing seeds to creating warm soups

Making good!

Bruksanvisning - svenska......sida 5 - 10

SMOOTHIE - 1 minuts blending.

RENG∅RING - 60 sekunders blendning.

OBH Nordica Denmark A/S

2750 Ballerup

Visiting address: Tempovej 27

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

Tekniske data

OBH Nordica 7766

220-240 V\~ 50 Hz

1500 W

Kandens volumen er 2 liter

SMOOTHIE – 1 minutts miksing.

CLEANING – 60 sekunders miksing.

PULS – hold knappen inne i korte intervaller for å mikse ingrediensene støtvis.

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 220-240 Volt AC only and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply in case of a problem, after use, when parts are mounted or removed from the appliance and before cleaning and maintenance.
4. Never immerse the appliance in water or any other liquid.
5. Do not let children use the appliance. Keep the appliance and the cord out of the reach of children.
6. Do not let children carry out cleaning and maintenance. Children should always be supervised in order that they do not play with the appliance.
7. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.
8. Check that the cord is not hanging free from the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.
10. The appliance should only be used under supervision.
11. Be careful when handling the appliance, as the

blade is extremely sharp! Do not touch the blade during use. Be careful that neither fingers nor tools touch the blade! Always unplug before cleaning.

1. Do not use the appliance continuously without a break. Maximum time of use: 3 minutes. Wait for at least 1 minute before you switch on the appliance again.
2. Always check the appliance, the cord and the switch before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid a hazard.
3. Extra protection can be obtained by installation of a residual current device of 30 mA. Check with your installer.
4. The appliance is for domestic use only.
5. If the appliance is used for other purposes than intended, or is not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages as a consequence of the above to the product are not covered by the warranty.

Before use

Wash the jug, lid and filler cap as instructed in “Cleaning and maintenance”. The blades at the base of the jug are very sharp and must be handled with the utmost care. Use a damp cloth to clean the motor unit.

Main components (see image on page 3)

1. Filler cap
2. Tight-fitting lid
3. Blender jug
4. Removable mounting plate for jug
5. Motor unit
6. Power switch
7. Pusher

8. Control panel

Use

Place the base unit on a flat, stable surface. Place the blender jug on the mounting plate and plug the appliance in.

Add the ingredients to the jug. Always start with liquid/soft ingredients, and then add solid/hard ingredients. NOTE! Never exceed the MAX mark on the jug. The jug can withstand temperatures up to 100°C.

Put the lid on securely and ensure that the filler cap is on when you turn the blender on.

You can add more ingredients directly through the lid by removing the filler cap during blending. Remember to replace the filler cap afterwards.

Do not insert fingers or any objects other than the pusher during blending.

Press the power button located at the bottom of the rear of the motor unit. Then press the Start/Stop button on the control panel. The display will light up and show speed "5" and the time "0:00", and a beep will sound. Select the desired programme depending on what is to be blended (see table below). The corresponding indicator light flashes. You can also set the timer for any time (max 7 min) using the arrow buttons (TIME). If you do not want speed 5, which is the preset speed, change it from 1 to H (highest speed) using the arrow keys (SPEED). See also the graphs on page 4 to see the various programme cycles.

Programmes

FRUIT & VEGETABLES - blending for 2 minutes.

ICE CRUSH - blending for 60 seconds.

SOUP - blending for 7 minutes. Be extra careful not to overfill the jug when selecting this programme.

SEEDS & NUTS - blending for 70 seconds.

SMOOTHIES - blending for 1 minute.

CLEANING - blending for 60 seconds.

PULSE - hold the button in for brief periods to blend the ingredients intermittently.

To start the blender after selecting the programme or blending time, press the Start/Stop button on the control panel and blending will begin.

If the ingredients do not rotate/blend in the jug, press down with the pusher supplied through the hole in the lid to feed the ingredients in.

Please note! With long blending times and/or blending fresh or thawed berries or similar, smoke may appear when you remove the lid. This is due to the motor running at high speed. Try blending for shorter times or use frozen ingredients.

After the programme has finished or the time has counted down, a beep sounds and blending ends. The display returns to showing speed "5" and time "0:00". Then press the power switch on the motor unit and unplug the appliance if it is not to be used further.

The appliance must rest for 5 minutes if the unit has been run for the maximum time (e.g. the SOUP programme). After this new cycle can begin. After a maximum of two cycles, the appliance must rest and cool to room temperature (this takes about 2 minutes).

Helpful tips

• Use a plastic/silicone spatula to scrape ingredients down inside the jug. Never use metal utensils as they may damage the jug and/or the blades.
• After about 5 minutes of continuous use, the jug becomes very hot, so take extra care when handling.
• Once the blender has been in operation for 7 minutes, it switches off automatically unless it is in “SOUP” mode, which blends for 7 minutes. Never blend liquids for longer than a total of 7 minutes.
• Use pulse mode for crushing hard ingredients.
• Make sure that the blender jug is completely dry before blending fresh herbs, garlic, onions, zest, breadcrumbs, nuts and dry spices.
• Do not store ingredients or liquids in the blender jug.
• Never mix carbonated drinks in the blender as excess pressure can form.

Overheating

The appliance is equipped with a thermostat that is activated if the motor becomes overloaded and ensures that the appliance has a long service life. If the thermostat is activated, turn off the appliance and unplug it. Wait 30 minutes before restarting the appliance. Clean the parts as instructed in "Cleaning and maintenance".

Cleaning and maintenance

Always unplug before cleaning. Never immerse the base unit in water or other liquids.

Lift the jug from the motor unit and remove the lid. The jug must be cleaned after each use or if it has not been used for a long time. The appliance has a useful automatic cleaning function. Fill the jug halfway with water and add a little washing-up liquid. Select the “CLEANING” programme and press the Start/Stop button on the panel to start. Rinse the jug with water after the cleaning process is finished. Wash the lid in hot water with a little washing-up liquid, then rinse thoroughly.

The jug, blades and filler cap are dishwasher safe.

Plastic parts may be discoloured by food such as carrots, beetroot, etc. Grease the parts with a little vegetable oil before cleaning them.

To clean the motor unit, wipe the exterior with a cloth moistened with mild detergent. Wipe with a dry towel and make sure the motor unit is completely dry after cleaning.

Check that the appliance and all its parts are completely dry before use and that the mounting plate is in place before fitting the jug.

IMPORTANT!

THE MOTOR SECTION MUST NEVER BE IMMERSED IN ANY LIQUID!

Disposing of the appliance

By law, electrical and electronic equipment must be collected for the recycling of components. Electrical and electronic equipment marked with the waste management symbol must be disposed of at a municipal recycling point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

Phone.: [phone]

www.obhnordica.com

Technical Data

OBH Nordica 7766

220-240V\~, 50 Hz

1500 W

Jug volume 2 litres

We reserve the right to make changes without notice.
