Product Type	Built-in Ceramic Hob
Number of Cooking Zones	4
Control Type	Touch Controls
Timer	Yes, up to 99 minutes
Child Lock	Yes
Auto Shutdown	Yes (8 hours at low power, 2 hours at high power)
Over-Temperature Protection	Yes
Residual Heat Indicator	Yes (display shows 'H')
Power Levels	9
Product Dimensions (L x W x H)	590 x 520 x 51 mm
Building-in Dimensions (A x B)	560 x 490 mm
Supply Voltage	220-240V~
Installed Power	5500-6600W
Weight	Approx. 11 kg
Color	Black
Cooktop Surface Material	Ceramic Glass
Care and Cleaning	Use ceramic hob cleaner; avoid abrasive scourers
Safety Features	Child lock, residual heat warning, auto shutdown, over-temperature protection
Spare Parts and Repairability	Only qualified technician can repair; spare parts available through after-sales
Installation Requirement	Thickness of work surface at least 30 mm, heat-resistant material

Frequently Asked Questions - K61 Scancool

How do I lock the controls to prevent accidental use?

Touch the keylock control (padlock icon) to lock the controls. The timer indicator will show 'Lo'. To unlock, touch and hold the keylock control for a while until 'Lo' disappears.

What should I do if the hob does not turn on?

Check that the hob is connected to the power supply and the mains switch is on. If there's no power outage, contact a qualified technician. Ensure the controls are not locked.

How do I set the timer to turn off a cooking zone automatically?

Select the cooking zone by touching its control, then touch the timer control. Use the '-' or '+' buttons to set the desired time (up to 99 minutes). The zone will switch off automatically when the timer expires.

Why are the touch controls unresponsive?

The controls may be locked (see FAQ 1). Also, ensure the control area is dry and clean. Use the ball of your finger, not the tip, to touch the controls.

How do I clean the ceramic glass surface?

For everyday soiling, apply a ceramic hob cleaner while the glass is warm (not hot), then wipe dry. For sugary spills, use a razor blade scraper held at 30° angle. Never use abrasive scourers.

What does the 'H' symbol mean on the display?

The 'H' indicates the cooking zone is hot (residual heat). It will disappear when the surface cools to a safe temperature. Do not touch the zone while 'H' is displayed.

Can I use any cookware on this hob?

Use cookware with a flat, smooth base that matches the cooking zone size. Avoid pans with jagged edges or curved bases. Always lift pans, do not slide them.

Why is the glass getting scratched?

Scratches can occur from using rough-edged cookware or abrasive cleaning products. Use smooth-bottom pans and mild cleaners. See the 'Care and Cleaning' section for proper methods.

What should I do if the hob automatically shuts down?

This is a safety feature called auto shutdown. If you left a cooking zone on, it will turn off after a set time (see manual table). Just restart the hob as usual.

Is it safe to use if I have a pacemaker?

This hob complies with electromagnetic safety standards. However, persons with pacemakers or other implants should consult their doctor or implant manufacturer before using the appliance.

USER MANUAL K61 Scancool

English ...... Page 12

Pure mechanical cross symbol without any text or labels

Pure mechanical cross symbol without any text or labels

Pure mechanical diagram showing a checkmark and arrow without any text or symbols

Pure technical diagram showing a checkmark and arrow without any text or symbols

Simple line drawing of a rectangular frame with four labeled corner points (A, B, C, D) and no text or symbols on the structure itself.

Simple line drawing of a mechanical clamp or bracket with a bolt, enclosed in a circle (no text or symbols)

Forsigtig

Congratulations on the purchase of your new Ceramic Hob.

We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it.

For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction /

Installation Manual for future reference.

Product Overview

Top View

Control Panel

1. max. 1800 W zone
2. max. 1200 W zone
3. max. 1800 W zone
4. max. 1200 W zone
5. Control panel

1. Heating zone selection controls
2. Power / Timer regulating controls
3. keylock control
4. ON/OFF control
5. Timer control

Product Information

The microcomputer ceramic cooker hob can meet different kinds of cuisine demands because of resistance wire heating, microcomputerized control and multi-power selection, really the optimal choice for modern families.

The ceramic cooker hob centers on customers and adopts personalized design.

The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.

Before using your New Ceramic Hob

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your ceramic hob.

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Choosing the right Cookware

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

Always lift pans off the ceramic hob - do not slide, or they may scratch the glass.

Using your Ceramic Hob

To start cooking

After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the ceramic hob has entered the state of standby mode.

1 Touch the ON/OFF control. all the indicators show "-"

2 Place a suitable pan on the cooking zone that you wish to use.

Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

3 Touching the heating zone selection control

4 Select a heat setting by touching the "-" or "+" control.

If you don't choose a heat setting within 1 minute, the ceramic hob will automatically switch off. You will need to start again at step 1.

You can modify the heat setting at any time during cooking.

By holding down either of these buttons, the value will adjust up or down.

When you have finished cooking

1 Touching the heating zone selection control that you wish to switch off

2 Turn the cooking zone off by scrolling down to "0" or touching "-" and "+" control together.

3 Turn the whole cooktop off by touching the ON/OFF control.

Beware of hot surfaces

"H" will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

Locking the Controls

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls

Touch the keylock control. The timer indicator will show "Lo"

To unlock the controls

1 Make sure the ceramic hob is turned on.

2 Touch and hold the keylock control for a while.

3 You can now start using your ceramic hob.

When the hob is in the lock mode, all the controls are disable except the ON/OFF, you can always turn the ceramic hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation.

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the ceramic hob. When an excessive temperature is monitored, the ceramic hob will stop operation automatically.

Residual Heat Warning

When the hob has been operating for some time, there will be some residual heat. The letter "H" appears to warn you to keep away from it.

Auto Shutdown

Another safety feature of the hob is auto shut down.

This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

Power level 1 2 3 4 5 6 7 8 9
Default working timer (hour) 8 8	8 4	4 4	2 2

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can set it to turn one cooking zone off or more than one after the set time is up.
• You can set the timer for up to 99 minutes.

Using the Timer as a Minute Minder

If you are not selecting any cooking zone

1 Make sure the cooktop is turned on. Note: you can use the minute minder even if you're not selecting any cooking zones.
2 Touch the timer control, the timer indicator show "--"
3 Adjust the timer setting by touch the "-" or "+" controls. The minute minder indicator will start flashing and will show in the timer display.

Hint: Touch the “-” or “+” control of the timer once to decrease or increase by 1 minute.

Touch and hold the "-" or "+" control of the timer to decrease or increase by 10 minutes.

If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

4 Touching the "-" and "+" together, the timer is cancelled, and the "--" will show in the minute display.
5 When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.
6 Buzzer will beep for 30 seconds and the timer indicator shows “- - ” when the setting time finished.

Setting the timer to turn one cooking zone off

1 Touching the heating zone selection control
2 Touch the timer control, the timer indicator show "10"
3 Set the time by touching the control of the timer

Hint: Touch the "-" or "+" control of the timer once will decrease or increase by 1 minute.

Touch and hold the "-" or "+" control of the timer will decrease or increase by 10 minutes.

If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

4 Touching the "-" and "+" together, the timer is cancelled, and the will show "--" in the minute display.
5 When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

Setting the timer to turn more than one cooking zone off

1 If more than one heating zone use this function, the timer indicator will show the lowest time. (e.g. zone 3# setting time of 10 minutes, zone 4# setting time of 5 minutes, the timer indicator shows "5".)

NOTE: The red dot next to power level indicator will flash (set to 10 minutes)

(set to 5 minutes)

2 When cooking timer expires, the corresponding cooking zone will be switch off automatically.

NOTE: If you want to change the time after the timer is set, you have to start from step 1

Cooking Guidelines

Cooking Tips

• When food comes to the boil, reduce the power setting.
• Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimise the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

Simmering, cooking rice

• Simmering occurs below boiling point, at around 85^ , when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flourthickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

Searing steak

To cook juicy flavoursome steaks:

1 Stand the meat at room temperature for about 20 minutes before cooking.
2 Heat up a heavy-based frying pan.
3 Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4 Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 - 8 minutes per side. Press the steak to gauge how cooked it is - the firmer it feels the more 'well done' it will be.
5 Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

For stir-frying

1 Choose an ceramic compatible flat-based wok or a large frying pan.
2 Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
3 Preheat the pan briefly and add two tablespoons of oil.
4 Cook any meat first, put it aside and keep warm.
5 Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.
6 Stir the ingredients gently to make sure they are heated through.
7 Serve immediately.

Heat Settings

Heat set- tings	Suitability
1 - 2 Delicate	warming for small amounts of foodMelting chocolate, butter, and foods that burn quicklyGentle simmeringSlow warming
3 - 4 Reheating	Rapid simmeringCooking rice
5 - 6 Pancakes
7 - 8 Sauteing	Cooking pasta
9 Stir-frying	SearingBringing soup to the boilBoiling water

Care and Cleaning

Everyday soiling on glass

(fingerprints, marks, stains left by food or non-sugary spillovers on the glass)

1 Switch the power to the cooktop off.
2 Apply a cooktop cleaner while the glass is still warm (but not hot!)
3 Rinse and wipe dry with a clean cloth or paper towel.
4 Switch the power to the cooktop back on.
- When the power to the cooktop is switched off, there will be no 'hot surface' indication but the cooking zone may still be hot! Take extreme care.
- Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.
- Never leave cleaning residue on the cooktop: the glass may become stained.

Boilovers, melts, and hot sugary spills on the glass

Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for ceramic glass cooktops, but beware of hot cooking zone surfaces:

1 Switch the power to the cooktop off at the wall.
2 Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.
3 Clean the soiling or spill up with a dish cloth or paper towel.
4 Follow steps 2 to 4 for 'Everyday soiling on glass' above.
- Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.
- Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.

Spillovers on the touch controls

1 Switch the power to the cooktop off.
2 Soak up the spill
3 Wipe the touch control area with a clean damp sponge or cloth.
4 Wipe the area completely dry with a paper towel.
5 Switch the power to the cooktop back on.
- The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

Hints and Tips

The cooktop cannot be turned on.

• No power.
• Make sure the cooktop is connected to the power supply and that it is switched on.
• Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.

The touch controls are unresponsive.

• The controls are locked.
• Unlock the controls. See section 'Using your ceramic cooktop' for instructions.

The touch controls are difficult to operate.

• There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.
  • Make sure the touch control area is dry and use the ball of your finger when touching the controls.

The glass is being scratched.

• Rough-edged cookware.
• Unsuitable, abrasive scourer or cleaning products being used.
• Use cookware with flat and smooth bases. See 'Choosing the right cookware'.
  • See 'Care and cleaning'.

Some pans make crackling or clicking noises.

• This may be caused by the construction of your cookware (layers of different metals vibrating differently).
  • This is normal for cookware and does not indicate a fault.

Technical Specification

Cooking Hob K 61
Cooking Zones 4 Zones
Supply Voltage 220-240V\~
Installed Electric Power. 5500-6600W
Product Size L×W×H(mm) 590×520×51
Building-in Dimensions A×B (mm) 560×490

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

Installation guide.

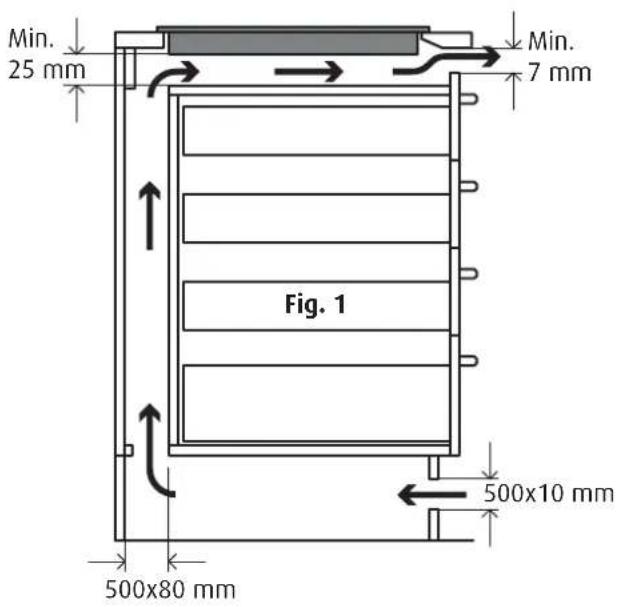

The hob can, without any problems, be built-in into any cabinet modules with drawers (fig. 1), oven (with ventilation) or similar appliance (fig. 2).

All you have to make sure is, that there is free access for the air intake/outlet and that there is enough ventilation in the cabinet below the hob.

The cross member in the top of the cabinet should be removed so a ventilation hole of atleast 7 mm is created.

See below:

If the tabletop thickness is e.g. 30 mm, must the front edge be removed where the air intake/outlet is. It must not be blocked.

Pure mechanical cross-section diagram without any text, numbers, or symbols

Pure mechanical diagram showing a checkmark and arrow without any text or symbols

Simple line drawing of a checkmark inside a shaded rectangular area with a downward arrow (no text or symbols)

If the tabletop thickness is above 30 mm, must a bevel cut be made in the front edge where the air intake/outlet. It must not be blocked.

Installation

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing.

Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760 mm.

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Technical diagram of a rectangular frame with four labeled corner points (A, B, C, D) and an inset showing a small mechanical component (no text or symbols present)

Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation.

A screw

B bracket

C Screw hole

D Hob base

Adjust the bracket position to suit for different work surface's thickness.

Cautions

1 The ceramic cooker hob must be installed by qualified personnel or technicians.

We have professionals at your service. Please never conduct the operation by yourself.

2 The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.

3 The ceramic cooker hob shall be installed such that better heat radiation can be ensured to enhance its reliability.

4 The wall and induced heating zone above the work surface shall withstand heat.

5 To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

6 A steam cleaner is not to be used.

7 This ceramic can be connected only to a supply with system impedance no more than 0.427 ohm. In case necessary, please consult your supply authority for system impedance information.

Connecting the hob to the mains power supply

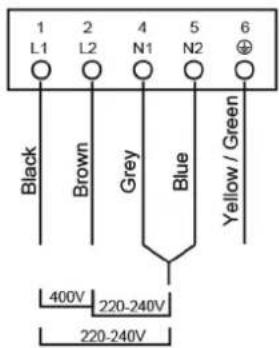

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below.

1 If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.

2 If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.

3 The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.

4 The cable must not be bent or compressed.

5 The cable must be checked regularly and only replaced by a properly qualified person.

Safety Warnings

Your safety is important to us. Please read this information before using your cooktop.

Installation

Electrical Shock Hazard

- Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.

• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp.
- Failure to use caution could result in injury or cuts.

Important safety instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it
  • could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.
• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.

Operation and maintenance

Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cook-top surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagnetic safety standards.
  • However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
• Failure to follow this advice may result in death.

Hot Surface Hazard

- During use, accessible parts of this appliance will become hot enough to cause burns.

• Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool.
• Never leave metal objects (such as kitchen utensils) or empty pans on the cooktop as they can become hot very quickly.
• Beware: magnetisable metal objects worn on the body may become hot in the vicinity of the cooktop. Gold or silver jewellery will not be affected.
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

Cut Hazard

• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted.
  Use with extreme care and always store safely and out of reach of children.
• Failure to use caution could result in injury or cuts.

Important safety instructions

• Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.

- Never use your appliance for warming or heating the room.

- After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.

- Do not allow children to play with the appliance or sit, stand, or climb on it.

- Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.

- Do not leave children alone or unattended in the area where the appliance is in use.

- Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.

- Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.

- Do not use a steam cleaner to clean your cooktop.

- Do not place or drop heavy objects on your cooktop.

• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the ceramic glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the ceramic glass.
• If the power supply cable is damaged, it must only be replaced by a qualified technician.
• Do not operate your cooktop by means of an external timer or separate remote-control system.
• This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environment; -bed and breakfast type environment.
  • Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • After use, switch off the hob element by its control and do not rely on the pan detector
• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiringrules.

DISPOSAL:

Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE).

By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
