RC-5D - Rice Cooker Coline - Free user manual and instructions

Product Type	Rice Cooker
Brand	Coline
Model	RC-5D
Capacity	5 cups (1.0 L)
Power	500 W
Voltage	220-240 V, 50/60 Hz
Dimensions (L x W x H)	250 x 250 x 250 mm
Weight	1.5 kg
Inner Pot Material	Non-stick coated aluminum
Body Material	Plastic and stainless steel
Functions	Cook, Keep Warm
Cooking Time (approx.)	20-30 minutes for white rice
Automatic Keep Warm	Yes
Safety Features	Auto shut-off, overheat protection
Cleaning	Wipe outer body with damp cloth; inner pot washable
Accessories Included	Measuring cup, rice paddle
Spare Parts Available	Yes, inner pot and lid
Manual Languages	EN, FI, SV
Pages in Manual	16

Frequently Asked Questions - RC-5D Coline

How do I cook rice with the RC-5D?

Measure rice using the provided cup, rinse, add water to the corresponding mark inside the pot, close the lid, and press the cook switch. The cooker will automatically switch to keep warm when done.

Can I cook other grains besides rice?

Yes, you can cook quinoa, oatmeal, and other grains. Adjust water ratio according to the grain type. Refer to the manual for specific guidelines.

How do I clean the rice cooker?

Always unplug and let it cool. Remove the inner pot and wash it with mild detergent and a soft sponge. Wipe the body with a damp cloth. Do not immerse the base in water.

What is the capacity of the RC-5D?

It has a capacity of 5 cups (uncooked rice), which yields about 10 cups of cooked rice.

How long does it take to cook rice?

Typically 20-30 minutes for white rice, depending on the quantity and type. Brown rice may take longer.

Does it have an automatic shut-off?

Yes, the rice cooker automatically switches to keep warm mode when cooking is complete, and it has overheat protection for safety.

What should I do if the cooker doesn't turn on?

Check that it is plugged in properly and the power cord is not damaged. If the indicator light is off, try a different outlet. If still not working, contact customer support.

Can I use the inner pot in the dishwasher?

It is recommended to hand wash the inner pot to preserve the non-stick coating. Avoid abrasive cleaners and metal utensils.

Where can I find spare parts for the RC-5D?

Spare parts such as the inner pot and lid are available through Coline's official website or authorized service centers. Check the manual for contact information.

Is the rice cooker suitable for induction cooktops?

No, this rice cooker is an electric appliance with its own heating element. It is not designed for use on induction or other cooktops.

USER MANUAL RC-5D Coline

Line drawing of a rice cooker with a digital display showing 'COOK' and 'WARN' buttons (no text or symbols on the cooker itself)

Art. No Model. No

18-4021 RC-5D-UK

34-7337 RC-5D

English 3

Svenska 6

Norsk 9

Suomi 12

Rice Cooker

Art.no 18-4021 Model RC-5D-UK 34-7336 RC-5D

Please read the entire instruction manual before use and save it for future reference. We apologise for any text or photo errors and any changes of technical data. If you have any questions concerning technical problems please contact our Customer Service Department (see address on reverse.)

Safety

• Never use the rice cooker if the mains lead is damaged.
• If the mains lead is damaged a new one must be replaced only by the retailer or manufacturer.
• Check that the power in the wall socket coincides with the power on the rice cooker's rating plate (230 V).
• Make sure that the lead never hangs down from the table or counter top. The lead should never get in direct contact with hot surfaces e.g. a stove burner.
• The rice cooker should only be connected to an earthed wall socket.
• Do not turn the rice cooker on before having put in the inner bowl.
• Place the rice cooker on an even and stable surface while using.
• Place the rice cooker out off reach for children.
• Bear in mind that the rice cooker's casing may get hot during use.
• Never immerse the rice cooker into water and never rinse it under running water.
• Do not use the rice cooker for frozen foods.
• The inner bowl may only be used for cooking with the rice cooker – never place the inner bowl directly on any source of heat.
• Never block the lid's steam opening with any object, such as a potholder etc., during use.
  • Always unplug the lead and let the rice cooker cool down before cleaning.
• Bear in mind that the keep warm function is activated as long as the lead is connected to the wall socket.
• The appliance is only meant for household purposes.
• If the switch is hard to push down while in cooking position (COOK), do not force it. This may occur if the inner bowl is not in it's correct position or when the cooking is just finished.
• Never leave the rice ladle or other kitchen tool in the rice cooker when it is in keep warm position.
• Do not use the keep warm function to reheat already cooked rice.

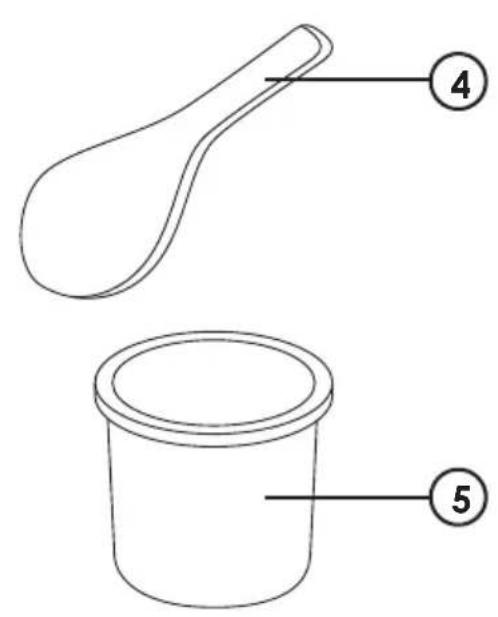

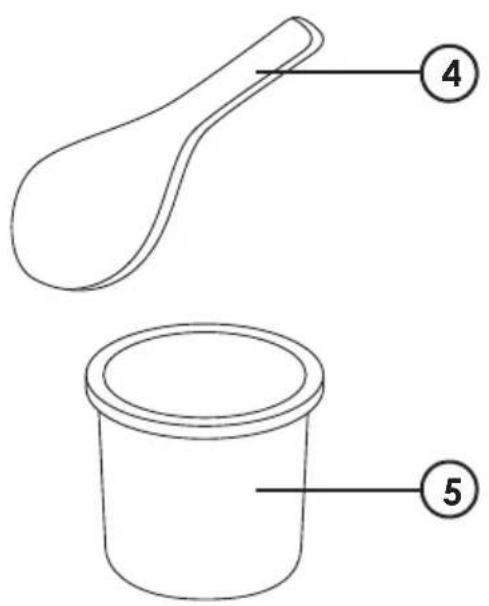

Product Description

1. Lid
2. Inner bowl
3. Rice cooker
4. Rice ladle
5. Measuring cup

Use

1. Measure up rice according to the instructions on the rice packaging. Rinse the rice in a separate bowl until the water is clear.
2. When the rice is rinsed, pour it into the rice cooker's inner bowl.
3. Measure up water according to the instructions on the rice packaging and pour into the inner bowl.
4. Make sure the rice cooker's heat plate is completely clean.
5. Place the inner bowl inside the rice cooker and put the lid on.
6. Connect the lead first to the rice cooker and then to the wall socket. The yellow indicator light will light up and indicate that the keep warm function (WARM) is activated.
7. Push the switch down to start the cooking. The red indicator light (COOK) lights up. Note! The switch does not stay pushed down if the inner bowl is incorrectly placed in the rice cooker.
8. Cooking will stop automatically when the rice is ready. The switch goes back to original position and the red indicator light switches off.
9. Let the rice sit with the lid on 6-8 minutes.
10. Disconnect the lead from the wall socket after use.

Cleaning

1. Unplug the lead from wall socket and let the rice cooker cool down properly before cleaning.
2. Remove the inner bowl and wash by hand in warm water with detergent. Wash the lid the same way.
3. Wipe the rice cookers outside with a damp cloth. Never put the rice cooker into water.
4. Never use solvents or abrasive cleaning solutions to clean the rice cooker or any of its accessories.
5. Clean the heat plate when needed with e.g. steel wool to secure good contact between the heat plate and the bottom of the inner bowl.

Disposal

Follow local ordinances when disposing of this product. If you are unsure about how to dispose of this product contact your municipality.

Specifications

Capacity 1.5 l

Power 500 W

Power Supply 230 V, 50 Hz

Riskokare

Art.nr 18-4021 Modell RC-5D-UK 34-7336 RC-5D

1. Lokk
2. Risskål
3. Riskoker
4. Rissleiv
5. Målebeger

Bruk
