Juice SJUTRE15E - Alarm Clock Sandstrøm - Free user manual and instructions

Product Type	Alarm Clock Radio
Brand	Sandstrøm
Model	Juice SJUTRE15E
Dimensions (approx.)	150 x 80 x 100 mm
Weight (approx.)	0.5 kg
Power Supply	AC 220-240V, 50/60Hz
Backup Battery	CR2032 (for time/alarm settings)
Radio Bands	FM (87.5 - 108 MHz)
Alarm Features	Dual alarm with radio or buzzer, snooze, sleep timer
Display	LED with adjustable brightness
Cleaning	Wipe with a soft, dry cloth
Safety	Keep away from water and moisture; use only supplied power adapter
Spare Parts	Backup battery (CR2032) available at electronics stores
Repairability	No user-serviceable parts; contact support for issues
General Information	User manual available in multiple languages

Frequently Asked Questions - Juice SJUTRE15E Sandstrøm

How do I set the alarm on my Sandstrøm Juice SJUTRE15E?

Press the ALARM button until the alarm time flashes. Use the + and - buttons to set hours and minutes, then press ALARM again to confirm.

How do I set the time manually?

Press and hold the TIME button until the display flashes. Use the + and - buttons to adjust the time, then press TIME again to save.

Why is my radio reception poor?

Extend the FM antenna fully and reposition the unit away from electronic devices or metal objects. Try rotating the antenna for better reception.

How do I change the backup battery?

Open the battery compartment on the bottom of the unit and replace the CR2032 battery with a new one, observing the correct polarity.

How do I adjust the display brightness?

Press the DIMMER button repeatedly to cycle through brightness levels (high, medium, low).

How do I use the snooze function?

When the alarm sounds, press the SNOOZE button. The alarm will stop for 9 minutes and then sound again. You can repeat this multiple times.

How do I set the sleep timer?

Press the SLEEP button repeatedly to select the desired sleep duration (e.g., 30, 60, 90 minutes). The radio will turn off automatically after the set time.

Can I set two separate alarms?

Yes, the SJUTRE15E has dual alarm capability. Press the ALARM button once for Alarm 1, again for Alarm 2, and set each separately.

How do I reset the unit to factory defaults?

Press and hold the + and - buttons simultaneously for about 3 seconds until the display resets. This clears all settings.

Why does the display stay on all night?

The display is always on for visibility. Use the DIMMER button to reduce brightness at night, or activate the sleep timer to turn off the display automatically.

USER MANUAL Juice SJUTRE15E Sandstrøm

Clock Radio with DAB+ / FM

SJUTBL15E / SJUTBU15E / SJUTRE15E / SJUTWH15E

Contents

GB

Safety Warnings......7

Unpacking......22

Product Overview......23

Front & Side View 23

Top View 24

Back View 26

Power Source 27

Mains Power......27

Charging from the USB OUTPUT

Charging Port 28

Using Earphones 29

Basic Operation......30

Powering ON/OFF......30

Adjusting the Volume......30

Language....30

Factory Reset 31

Software Version ......31

DAB Operation......32

Full Scan 32

Station Order 33

Station List....33

Viewing Station Information......34

Showing Signal Strength .....34

Storing Preset Stations......35

Recalling a Preset Station......35

FM Operation 36

Selecting FM Mode ....36

Scan Setting......36

Audio Setting 37

Viewing Station Information......37

Presetting Stations ....38

Recalling a Preset Station......38

AUX IN Mode 39

System settings......40

Setting Sleep 40

Setting Equaliser 40

Setting Alarm......41

Setting Time......42

Setting Contrast ....43

Maintenance ....44

Cleaning the Unit......44

Hints and Tips...... 44

Specifications......46

Innhold

NO

Systeminnstillinger ......66

Stille inn søvn 66

Stille inn equalizer ......66

Stille alarmen....67

Stille inn tid 69

Stille inn kontrast......69

Vedlikehold 70

DAB Operation......83

Fuld Scanning......137

Kanalrækkefølge 137

Stations Liste......138

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, unplug from the mains socket and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and not subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of heat.
• Attention should be drawn to the use of apparatus in moderate climates.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit. Do not operate the unit with wet hands, near water or other liquid.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
  • Unplug the unit from the mains socket during a lightning storm.
• In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Mains Adapter Cable

- Make sure the unit or unit stand is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Mains Adapter

- The mains adapter will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adapter plugged in the mains socket while unattended for long periods of time. Disconnect the adapter from the power supply.

Use only power supplies listed in the user instructions.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the working performance of the unit, and cause a distorted sound.

Earphones

• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Simple line drawing of a rectangular box with a horizontal rectangle inside, no text or symbols present.

Simple line drawing of a cable and plug with a power outlet (no text or symbols)

Main Unit Mains Adapter Instruction

Manual

Front & Side View

GB

1. Display
2. Speaker

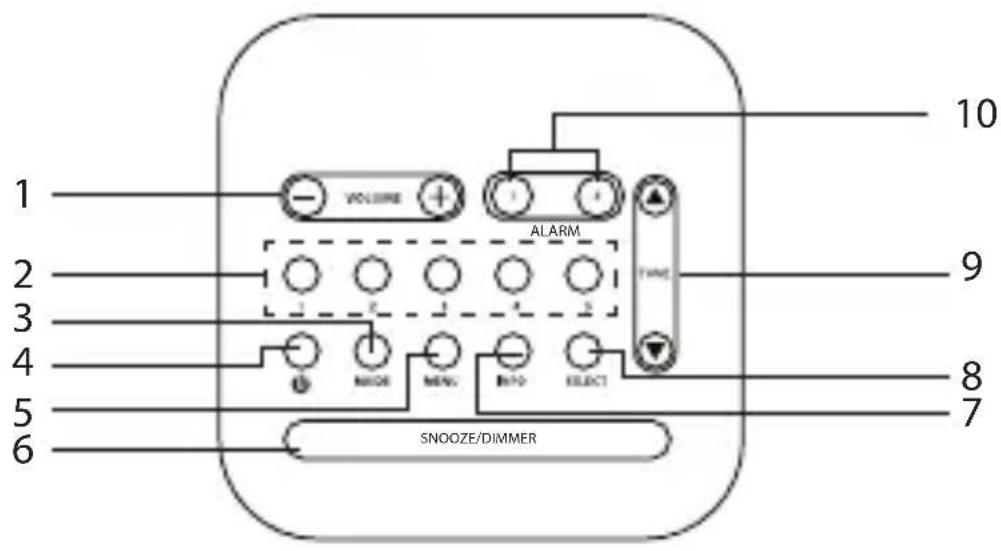

Top View

1. VOLUME +/- Buttons

Press to increase or decrease volume.

2. Preset Buttons 1-5

• Press and hold to store preset station.
  • Press to recall preset station.

3. MODE Button

Press to switch among DAB, FM and Auxiliary Input modes.

4. Button

Press to switch radio to on or standby.

5. MENU Button

Press to display menu screen of DAB, FM and Auxiliary Input modes.

6. SNOOZE/DIM Button

• Press to activate snooze function when alarm sounds.
• Press to change contrast of power on or standby.

7. INFO Button

Press to browse information of stations.

GB

8. SELECT Button

Press to confirm selection.

9. TUNE /▲Buttons

Press to upwards or downwards browse options.

10. ALARM 1 and ALARM 2 Buttons

Press to enter the Alarm 1/Alarm 2 setting. Press and hold to switch the Alarm 1/Alarm 2 On or Off.

Back View

GB

1. Earphones Socket
2. AUX IN Socket
3. DC IN 5V 2A Socket
4. USB OUTPUT 5V 1A Port
5. Aerial

Mains Power

• This unit is designed to operate with the provided mains adapter.
• Connecting the unit to any other power source may cause damage to the unit. Unwind the mains adapter cable to its full length. Connect the end of the cable to the DC IN 5V -2A Socket at the rear of the unit and then connect the mains adapter to the mains socket. Make sure the mains adapter is firmly inserted into the mains socket. The unit is now connected and ready to use.

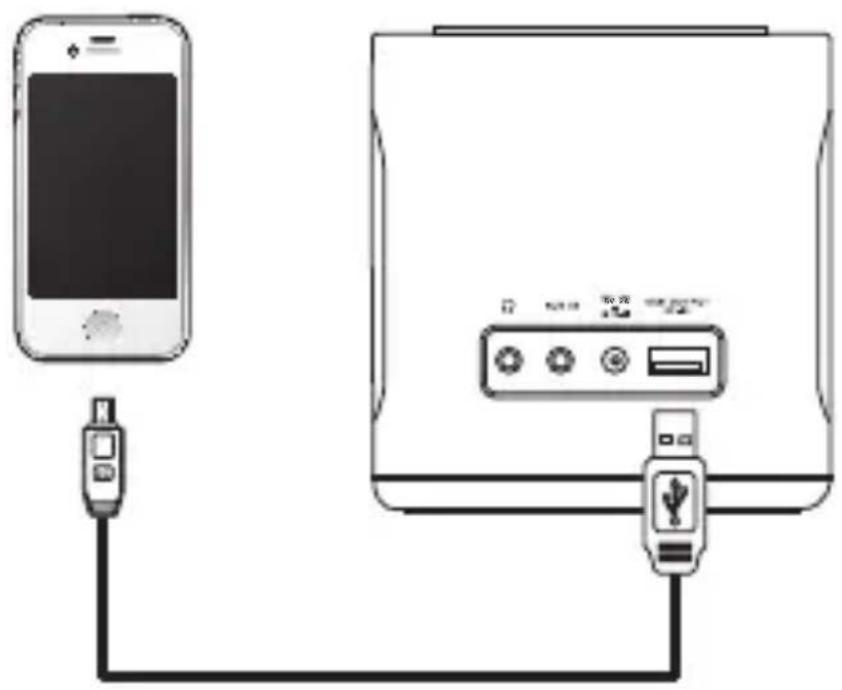

Charging from the USB OUTPUT Charging Port

The USB OUTPUT 5V -1A Charging Port is designed only for charging mobile devices (e.g. MP3 player, mobile phone, etc.). It supplies 5V DC at a charging current of up to 1000mA (1A).

Use a USB cable (not included) to connect mobile device to the USB OUTPUT 5V -1A Charging Port of the unit and the mobile device will start charging.

Diagram showing a smartphone connected to a device via a USB cable (no text or symbols present)

ONLY use the USB OUTPUT 5V=1A

Charging Port to charge small mobile devices. NEVER use this port for any other purpose.

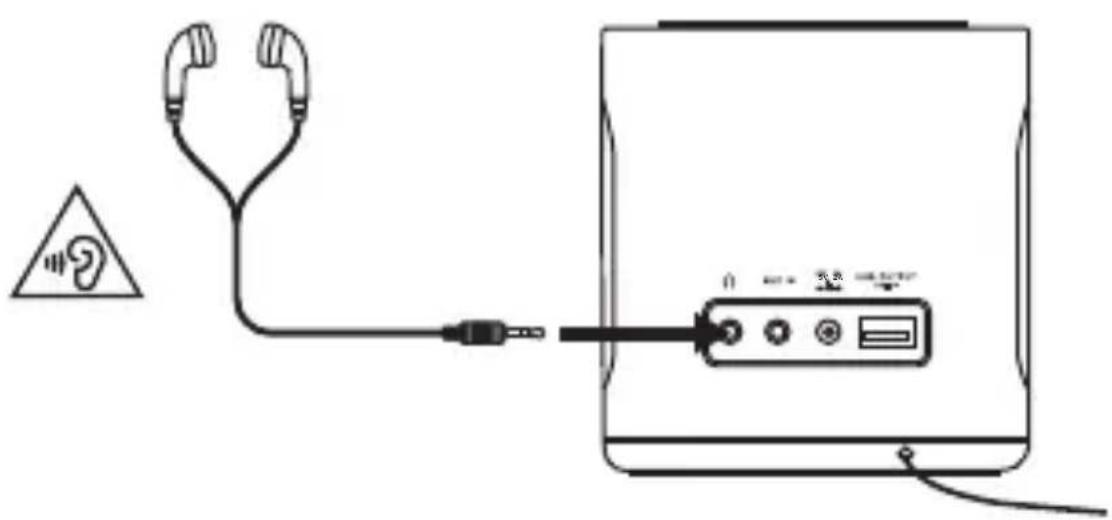

Using Earphones

Turn down the volume before connecting the earphones. Slowly raise the volume with the earphones on until you reach your desired volume. When earphones are connected, the speakers automatically mutes.

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods of time.

Powering ON/OFF

• Press⚠to switch the unit on.
• Press again to switch the unit to Standby mode.
• To switch the unit off completely, unplug the mains adapter from the mains socket.

Adjusting the Volume

- Adjust the volume to the desired level by pressing VOLUME +/-.

Language

1. When in DAB, FM or AUX IN mode, press MENU and then ▲repeatedly to select . Press SELECT to confirm.
2. Press repeatedly to select . Press SELECT to confirm.
3. Press repeatedly to select the desired language. Press SELECT to confirm.

Factory Reset

1. When in DAB, FM or AUX IN mode, press MENU and then ▲ repeatedly to select . Press SELECT to confirm.
2. Press ▲repeatedly to select . Press SELECT to confirm.
3. Press ▲▼ to select . Press SELECT to confirm.

After the factory reset, all the tuned stations, DAB/FM preset stations will be erased.

Software Version

1. Press MENU and then repeatedly to select . Press SELECT to confirm.
2. Press ▲repeatedly to select . Press SELECT to confirm.
3. Press MENU to exit.

When you turn on the radio it will automatically search and store all the available stations. You may conduct an additional Full Scan to ensure all stations are picked up and stored. It is also recommended every few months to run a new scan to pick up any new DAB/DAB+ that may have begun broadcasting after your radio scanned last time.

1. For initial use, your radio will conduct a full scan and store stations list in memory.
2. Once the scanning is completed, the DAB/DAB+ stations will be displayed in alphanumeric order. The first station in the list will be selected.

• The DAB/DAB+ stations will be displayed and stored in alphanumeric order.
• If no DAB/DAB+ signal is found, it may be necessary for you to relocate your radio.

The clock will be updated automatically if you can receive DAB/FM signal in your location. In order to synchronize to the current local time, you must leave it on the DAB/FM station for a period of time.

Full Scan

This feature enables your radio to scan for all available stations in DAB mode.

Press MENU button. Press ▲button to select . Press SELECT button to confirm.

Station Order

This feature enables your radio to display the stations in different order.

1. Press MENU button and then press ▲button to select . Press SELECT button to confirm.
2. Press buttons to browse and , and then press SELECT button to confirm your selection.

Alphanumeric	Display all stations in alphanumeric order.
Ensemble List	currently broadcasting active stations before inactive ones.

Station List

This feature enables you to select a station from available station list.

1. Press MENU button, and then press ▲buttons to select . Press SELECT button to confirm.
2. Or, while a program is playing, press ▲buttons to show station list.
3. Press buttons to browse stations list, and then press SELECT button to confirm. The selected station will broadcast.

Viewing Station Information

It is possible to view the information that is shown on the display when listening to a DAB/DAB+ program by pressing the INFO Button repeatedly. The display will show the information through Scrolling text, Signal strength, Program Type, Ensemble, Frequency, Signal quality, Bitrate and Codec, Format, Time and Date.

Showing Signal Strength

While you selected Signal strength, a signal bar with the strength of the current station will show on the display.

The indicator on the signal bar shows the minimum acceptable signal level.

Stations with signal strength below the minimum signal level may not provide a steady stream of audio.

Storing Preset Stations

This is the same for DAB/DAB+ and FM stations.

GB

Your can store up to 5 of your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily.

While a program is playing, press and hold one of preset buttons 1-5 until the display show .

Recalling a Preset Station

1. Press MODE button to select the mode (DAB or FM) you wish to play.
2. Press one of preset buttons 1-5 to select the stored preset station you want to play.

Selecting FM Mode

1. Press MODE button repeatedly to select FM mode.
2. For initial use, it will start at the beginning of the FM frequency range (87.50 MHz). Or it will play the last FM station you were listening to.
3. To manually change the FM frequency, make sure no other order/system setting is going on, press ▲▼ buttons to change the frequency by 0.05 MHz per step.
4. To automatically scan, while FM frequency shows up, press ▲buttons first and then press SELECT button, your radio will skip forwards or backwards until it reached the next available station.

The clock will be updated automatically if you can receive DAB/FM signal in your location. In order to synchronize to the current local time, you must leave it on the DAB/FM station for a period of time.

Scan Setting

By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations.

1. To change the scan settings to stop only at stations with good signal strength, press MENU button, and then press ▲buttons to select , press SELECT button to confirm.

2. Press ▲buttons to browse , and then press SELECT button to confirm.

Audio Setting

By default, all stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss).

1. To play weak stations in mono, press MENU button, and then press buttons to select
2. Press ▲ buttons to browse , and then press SELECT button to confirm.

The unit will automatically switch between stereo and mono when is selected depending on the signal strength, but you can override this and switch this function manually. This is helpful when receiving poor signal reception.

Viewing Station Information

It is possible to view the information that is displayed on the display when listening to a FM program by pressing INFO button repeatedly. The display will show the information through Radio Text, Program Type, Program Name, Audio info, Time and Date.

Presetting Stations

You can store up to 5 of your favourite FM stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must first be listening to the station that you would like to save. Press and hold the preset button number (1-5) to save your desired.
2. The station will be stored and the screen will show .

Recalling a Preset Station

Once you have saved a station, you can recall it by pressing the preset Preset button 1-5.

The AUX IN mode allows for quick and easy connection to an MP3 player or other external audio sources.

1. Before connecting to the mains socket, use a 3.5 mm audio cable (not included) to connect to your external audio device through the AUX IN Socket on the back of unit.
2. Connect power adapter to mains socket, press ⏻ button to switch unit on.
3. Press MODE button repeatedly to select mode.
4. In AUX IN mode, you may operate your audio device directly for playback features.
5. To gain optimal volume levels, adjusting the output volume level on the audio device as well is recommended.

If there is low audio input or without audio input continuously for 10 minutes in Aux in mode, the unit will automatically switch to standby mode to save power.

GB

Setting Sleep

This function enables your unit to switch to standby mode by itself after a set sleep time.

1. Press MENU and then repeatedly to select . Press SELECT to confirm.
2. Press ▲ repeatedly to select . Press SELECT to confirm.
3. Press ▲▼ Buttons to view options: Sleep Off, 15, 30, 45, 60 and 90 minutes. Select Sleep off and then press the SELECT Button to confirm. Sleep function will be switched off.
4. Press ▲▼ Buttons to select 15, 30, 45, 60 or 90 and then press the SELECT Button to confirm. The sleep icon ⏻ will show on the display. To view the set sleep time, redo above step 1.

Setting Equaliser

1. Press MENU and then repeatedly to select . Press SELECT to confirm.
2. Press ▲ repeatedly to select . Press SELECT to confirm.
3. Press repeatedly to set the level of Treble and \ Bass. Press SELECT to confirm.
4. Press ▲▼ to set the level of Treble and Bass. Press SELECT to confirm.

Setting Alarm

Your radio includes dual alarms. Make sure you have set the clock time before setting the alarm.

1. Press ALARM 1 or ALARM 2 button to select or . The display shows Alarm 1 Setup or Alarm 2 Setup. Press SELECT to confirm.
2. The display shows Alarm 1 Wizard or Alarm 2 Wizard. Press ▲ buttons to select options, and then press SELECT button to confirm the setting.

Alarm states On or Off
Alarm time 00:00 (manually set up the time)
Alarm duration time	15/30/45/60/90 minutes
Alarm mode:	DAB, FM or Buzz
Preset Last listened or saved preset station (not available for Buzz mode or no preset DAB/FM station stored).
Alarm active day	Daily, Once, Weekends or Weekdays
Alarm volume	Press VOLUME +/- button to adjust the alarm volume

1. When the display shows Alarm Saved, the alarm setting is successful. For it on will show on the display.
2. To temporarily switch off alarm, press SNOOZE/ DIMMER button to activate Snooze function when the alarm is sounding. Press SNOOZE/DIMMER button repeatedly to set the snooze period time of 5, 10, 15 or 30 minutes in turn. The set snooze time will show as Snooze mm:ss on the display.

Selecting Snooze period time depends on which alarm duration time you selected.

1. To turn off alarm, press ⏻ button when the alarm is sounding.
2. To cancel the alarm, refer to steps 1-2 to set in Alarm 1 Wizard or Alarm 1 Wizard, or press and hold Alarm 1 or Alarm 2 button.

Setting Time

1. Press MENU and then repeatedly to select . Press SELECT to confirm.
2. Press ▲ repeatedly to select , and then press SELECT button to view options as below:

Set Time/Date	Manually set-up both time and date
Auto update	Update from Any, Update from DAB, Update from FM or No update
Set 12/24 hour format	Set 24 hour or Set 12 hour
Set date format	DD-MM-YYYY or MM-DD-YYYY

1. Then setting time according to your personal preference.

Setting Contrast

This features enables you to change the contrast of power on and standby mode.

When unit power on or standby, press the SNOOZE/ DIMMER button repeatedly to change the contrast level of power on or standby mode cycle through High, Medium and Low.

Cleaning the Unit

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
- Do not spray an aerosol at or near the unit.

Hints and Tips

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Problem Solution
No power • Ensure the mains adapter cable is connected securely.• Make sure that the unit is switched on.
No Sound Adjust the volume control, it may not be turned up.
Static Sound Signal reception is too low. Adjust the aerial or move the unit to a stronger signal location.
Sound is distorted	Volume is too high. Adjust the volume control.
Desired station not found	Weak signal. Search manually.
No coverage in your area or poor reception	Adjust the position of the aerial.
The display is blank	This may occur if the broadcaster changes the label of a service or removes a label while tuned. The unit will try to re-tune or perform a scan.

GB

Specifications

GB

Main Unit

Model SJUTBL15E	/ SJUTBU15E / SJUTRE15E / SJUTWH15E
Power Consumption	10 W (max)
Output Power 2 W	rms × 2
Radio Frequency	FM 87.5 – 108 MHzDAB/DAB+ 174.928 - 239.200 MHz
Dimensions 103 mm (W) × 104 mm (D) × 111 mm (H)
Net weight 0.49 kg

Mains Adapter

Model SW0502000-W02

Manufacturer Brightpower Optoelectronic Technology Co. Ltd.

Power Supply AC Input: 100-240 V, 50-60 HzDC Output: 5V -2A

We continually strive to improve our products.

Features and specifications are subject to change without prior notice.

Takk for at du kjøpte ny produktet.

Line drawing of a device with an attached plug and cable, showing connection to a wall-mounted socket (no text or symbols present)

Lade fra USB OUTPUT ladeport

USB OUTPUT 5V -A-ladekontakten er beregnet kun for å lade mobilenheter (f.eks. MP3-spiller, mobiltelefon osv.). Den leverer 5V likestrøm med en ladestrøm på opptil 1000mA (1A).

Bruk en USB-kabel (ikke vedlagt) og koble mobilenheten til systemets USB OUTPUT 5V=1A-kontakt, så begynner ladningen av mobilenheten.

Diagram showing a smartphone connected to a device via a USB cable (no text or symbols present)

Stille inn equalizer

Simple line drawing of a rectangular device with a rectangular slot on top (no text or symbols)

Huvudenhet

Simple line drawing of a cable and plug (no text or symbols)

Nätadapter Instruktionsbok

Produktöversikt

Diagram showing a smartphone connected to a device via a USB cable (no text or symbols present)

Diagram showing a smartphone connected to a device via a USB cable (no text or symbols present)

Diagram showing a smartphone connected to a device via a USB cable (no text or symbols present)

DK

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

GB

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO

Symbol of a trash bin crossed with no visible text or labels

FI
