Product Type	Tumble Dryer
Model	TVP 5683
Brand	Cylinda
Drying Capacity	7 kg
Energy Efficiency Class	C
Annual Energy Consumption	561 kWh
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	45 kg
Noise Level	65 dB(A)
Drying System	Condenser
Number of Drying Programs	15
Drying Programs	Cotton, Synthetics, Delicates, Wool, Quick 30 min, Extra Dry, Iron Dry, etc.
Control Type	Electronic, Push button + Dial
Display	LCD
Delay Start	Up to 24 h
Child Lock	Yes
Lint Filter Cleaning Indicator	Yes
Water Tank Capacity	4 L
Power Voltage	230 V
Fuse Rating	10 A
Repairability Index	7.5 / 10

Frequently Asked Questions - TVP 5683 Cylinda

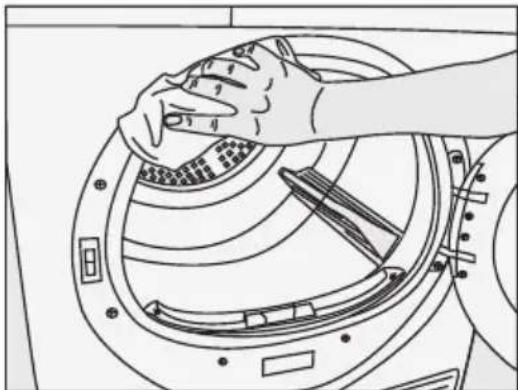

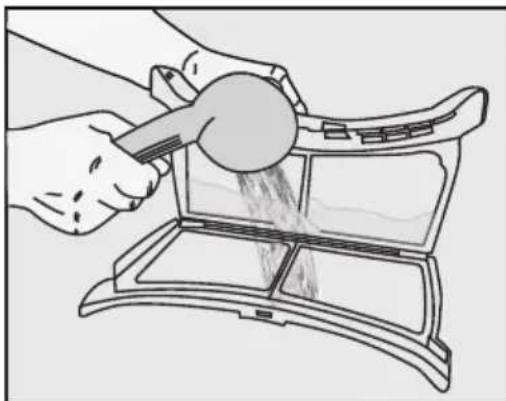

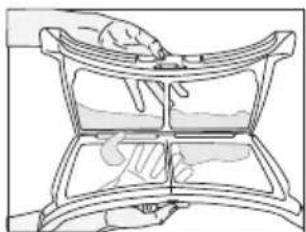

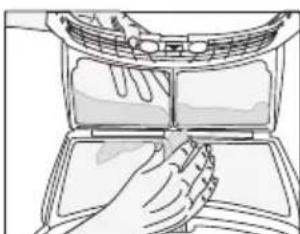

How do I clean the lint filter on my Cylinda TVP 5683 dryer?

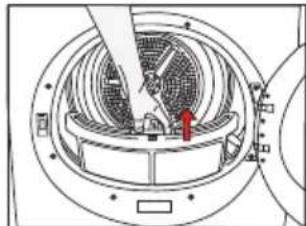

Open the door and pull the lint filter out from the bottom of the door opening. Remove lint by hand or with a soft brush. Wash the filter with warm water and mild detergent every few cycles, then dry thoroughly before reinserting.

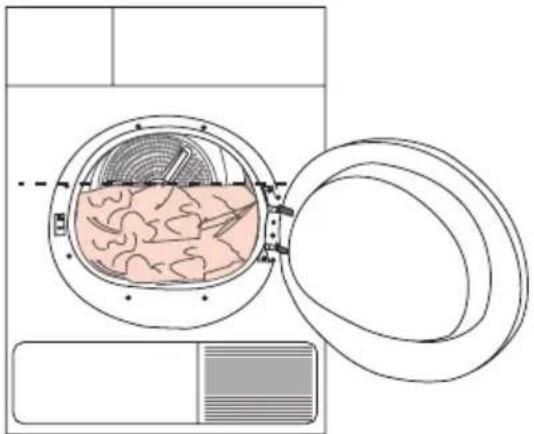

What is the maximum load capacity for the TVP 5683?

The maximum dry load capacity is 7 kg. Overloading can reduce drying performance and increase drying time.

How do I reset the dryer if it stops mid-cycle?

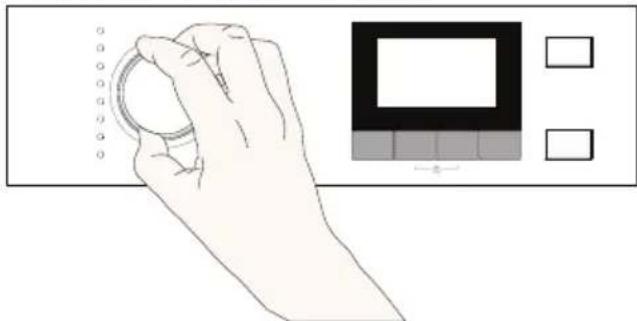

Press the Start/Pause button to pause, then turn the program selector dial off. Wait a few seconds, select the desired program, and press Start again. If the issue persists, check the lint filter, drain hose, and condensate tank.

Why is my dryer not heating properly?

Check that the dryer is not overloaded, the lint filter is clean, and the condensate tank is empty. Also ensure the room temperature is above 10°C. If still not heating, the heating element or thermostat may need inspection by a technician.

Can I vent the TVP 5683 to the outside?

No, this model is a condenser dryer and does not require external venting. It condenses moisture into a tank that must be emptied after each use.

How often should I clean the condenser unit?

Clean the condenser unit after every 30 drying cycles or once a month. Remove the condenser unit from the bottom front of the dryer and rinse with warm water. Let it dry completely before reinstalling.

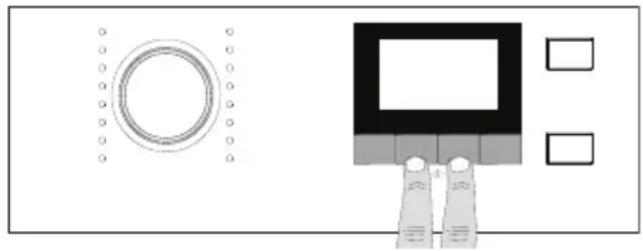

What does the 'Child Lock' feature do?

The child lock prevents children from changing the program or starting/stopping the dryer unintentionally. Activate it by pressing and holding the Child Lock button for 3 seconds. Deactivate the same way.

My dryer displays an error code. What should I do?

Common error codes: E1 (water tank full), E2 (lint filter blocked), E3 (drain problem). Check the corresponding component. If the code persists, consult the manual or contact Cylinda customer service.

Can I place the dryer in a cold garage?

The ambient temperature should be between 10°C and 40°C. Operating in a cold garage may reduce drying efficiency and could cause frost damage to the condensate tank. It is not recommended.

How do I change the door opening direction?

The door is reversible. Unscrew the hinge screws on the current side, remove the door, and reattach it on the opposite side using the provided screw holes. Follow the instructions in the manual for detailed steps.

USER MANUAL TVP 5683 Cylinda

Exterior view of a modern kitchen appliance set with washing machines, ovens, and cabinets against a solid pink background (no text or symbols visible)

TVP 5683

Cylinda

år efter år

Simple line drawing of an open book with no text or symbols visible

Pure electrical circuit lines without any symbols

Line drawing of a hand inserting a bag into a circular device with an open lid (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Hand operating a mechanical component with a tool, no visible text or symbols

Illustration of a hand inserting a plug into a device component (no text or symbols visible)

Technical diagram of a mechanical assembly with a coiled cable and housing (no text or symbols)

Illustration of a hand holding a small mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a washing machine with a circular vent and a rectangular base, showing sound waves (no text or symbols)

Technical line drawing of a mechanical device with internal components and a circular component (no text or symbols)

3.8 Byta belysningen

Diagram of a washing machine with internal tissue and lid, showing no text or symbols

Ljudsignalsnivåsymbol

Rengör filterfacket varningssymbol

Diagram of a device with a central fan and a cross symbol, no text or labels present

Pure diagram of a circular component and a rectangular panel with a hand interacting (no text or symbols)

Illustration of a hand holding a circular device with control panel and display screen (no text or symbols)

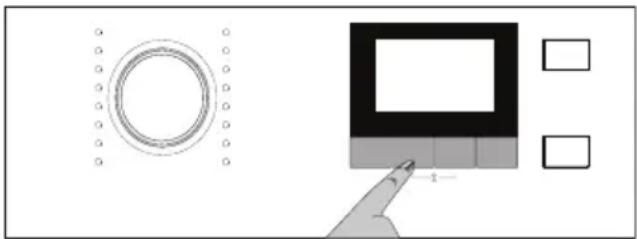

Hand pointing at a black rectangular screen with three square buttons, next to two empty square boxes (no text or symbols)

Simple line drawing of a speaker icon with sound waves, no text or symbols present

Låg volymnivå

Blank white rectangle with a small speaker icon in the bottom-left corner (no text or symbols)

Hög volymnivå

Hand pointing at a digital display with three blank square boxes on the right (no text or symbols)

Fuktig torknivå

Normal torknivå

Extra torr nivå

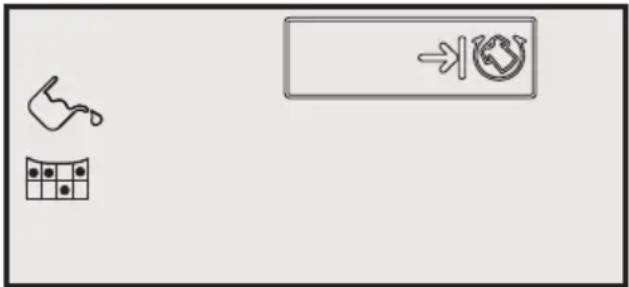

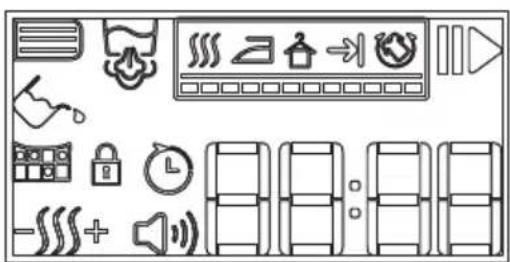

5.7 Varningssymboler

Varningslampor kan variera beroende på din maskinmodell.

Filterrengöring

Simple diagram with a rectangular box containing three vertical lines and two horizontal bars, no text or symbols present.

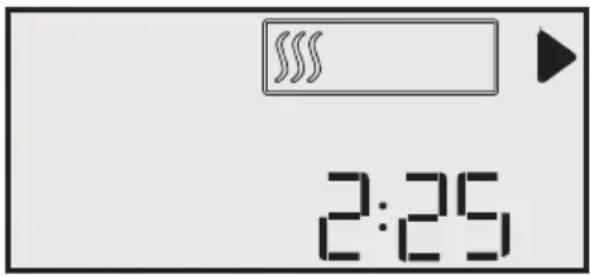

Sluttid

Diagram showing a circular component and a screen with a hand interacting with it (no text or symbols present)

Simple diagram with a clock icon and a play button, no text or symbols present

Pure electrical circuit lines without any symbols

Simple line drawing of a padlock icon on a plain background (no text or symbols)

Technical diagram of a mechanical fan or fan assembly with no visible text or symbols

Illustration of hands holding a cylindrical object with red arrows indicating rotation or movement (no text or symbols)

Line drawing of a hand holding a tray with a handle, no text or symbols present

Illustration of hands cleaning a car interior with a hand placing a button (no text or symbols)

Line drawing of hands using a tool to clean or remove material from a tray (no text or symbols)

Line drawing of a hand cleaning a circular mechanical component (no text or symbols)

Line drawing of hands installing or adjusting a circular component with tools (no text or symbols)

Line drawing of a hand placing a small object into a circular mechanical component (no text or symbols)

Line drawing of hands installing or adjusting a device panel on a machine (no text or symbols visible)

Line drawing of a hand holding a mechanical component with a tool, no text or symbols present

Line drawing of a hand cleaning a window with a red-handled tool (no text or symbols)

Illustration of a hand inserting a device into a computer case (no text or symbols visible)

Illustration of a hand inserting a component into a computer case (no text or symbols visible)

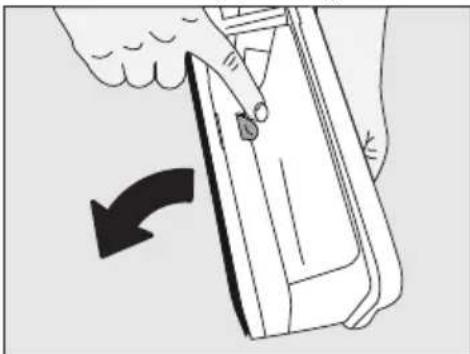

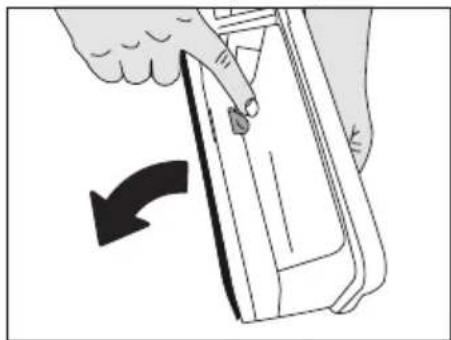

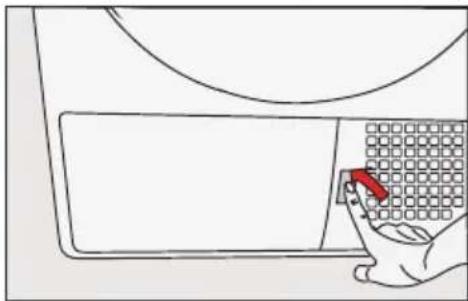

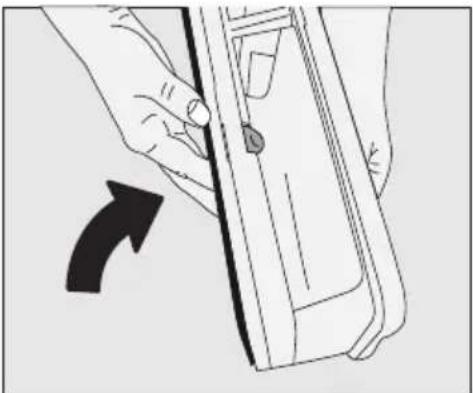

- Open the filter drawer by pressing the red button.

Illustration of a hand pressing down on a device with an arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

Diagram showing a device being processed into a cylindrical component, with arrows indicating process flow (no text or symbols present)

Diagram of an open and closed mechanical device with internal compartments (no text or symbols)

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols present)

Hand inserting a component into a device casing (no text or symbols visible)

Illustration of a hand pressing down on a computer monitor with a red arrow pointing to the screen (no text or symbols)

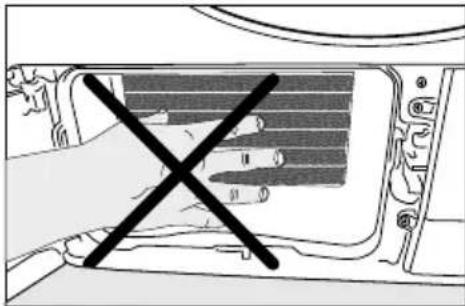

Diagram of a hand holding a device with a black X mark symbol, no text or labels present

Diagram showing a brush applying material to a panel inside a vehicle (no text or symbols visible)

Please read this user manual first!

Dear Customer,

Thank you for preferring a Cylinda product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Use this user manual for the model indicated on the cover page.

Simple line drawing of an open book with no text or symbols visible

Read the instructions.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning against electric shock.

Warning against hot surfaces.

Warning against fire hazard.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

1.1 General safety

• The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone.
• Children of less than 3 years should be kept away unless continuously supervised.
• Adjustable feet should not be removed. The gap between the dryer and the floor should not be reduced with materials such as carpet, wood and tape. This will cause problems with the dryer.
• Always have the installation and repairing procedures carried out by the Authorized Service. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
• Never wash the dryer by spraying or pouring water onto it! There is the risk of electric shock!

Important instructions for safety and environment

1.1.1 Electrical safety

Electrical safety instructions should be followed while electrical connection is made during the installation.

The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by utility.

• Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with the local regulations.
• The voltage and allowed fuse protection is stated on the type label plate.
• The voltage specified on the type label must be equal to your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation, maintenance, cleaning and repair works.
• Do not touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
• Do not use extension cords, multi-plugs or adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.
• Power cable plug must be easily accessible after installation.

Damaged mains cable should be changed notifying the Authorized Service.

If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!

Important instructions for safety and environment

1.1.2 Product safety

Superheating of the clothes inside of the dryer can occur if you cancel the programme or in the event of a power failure whilst the dryer is running, this concentration of heat can cause self-combustion and fire so always activate the ventilation programme to cool down or quickly remove all laundry from the dryer in order to hang them up and dissipate the heat.

Points to be taken into consideration for fire hazard:

Below specified laundry or items must not be dried in the dryer considering fire hazard.

• Unwashed laundry items
• Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.

For this reason especially the items containing the above specified stains must be washed very well, to do this use adequate detergent and choose a high washing temperature.

Below specified laundry or items must not be dried in the dryer due to the fire hazard:

• Garments or pillows bolstered with rubber foam (latex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads.
• Clothing cleaned with industrial chemicals. Items such as lighter, match, coins, metal parts, needle etc. may damage the drum set or may lead to functional problems. Therefore check all the laundry that you will load into your dryer.

Never stop your dryer before the programme completes. If you must do this, remove all laundry quickly and lay them out to dissipate the heat.

Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends.

Important instructions for safety and environment

- You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.

	Underwear that contains metal reinforcements should not be dried in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying.
	Use softeners and similar products in accordance with the instructions of their manufacturers.
	Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.

• Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
• Install your dryer at places suitable for home use. (Bathroom, closed balcony, garage etc.)
• Make sure that pets do not enter the dryer. Check the inside of the dryer before operating it.
• Do not lean on the loading door of your dryer when it is open, otherwise it may fall over.
• The lint must not be allowed to accumulate around the tumble dryer

Important instructions for safety and environment

1.2 Mounting over a washing machine

• A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent.
• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

Washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine.

Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	62 cm	60 cm	54 cm	50 cm	49 cm	45 cm	40 cm
54 cm	Can be installed						Can be installed	Cannot be installed
60 cm Can be installed							Cannot be installed

1.3 Intended use

• Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• Use the dryer only for drying laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of the dryer that you purchased is 10 years. During this period, original spare parts will be available to operate the dryer properly.

Important instructions for safety and environment

1.4 Child safety

• Packaging materials are dangerous for the children. Keep packaging materials away from children.
• Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock in order to prevent the children to tamper with the dryer.

Child-proof lock is on the control panel.(See Child lock)

- Keep loading door closed even when the dryer is not in use.

1.5 Compliance with the WEEE regulation and disposing of the waste product

Pure electrical circuit lines without any symbols

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do

not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.6 Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.7 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Important instructions for safety and environment

1.8 Technical Specifications

EN

Height (Min. / Max.) 84,6 cm / 86,6 cm*
Width 59,7 cm
Depth 65,4 cm
Capacity (max.) 8 kg**
Net weight (± 4 kg) 51 kg
Width	See type label***Voltage
Rated power input

* Min. height: Height with adjustable feet are closed.

Max. height: Height with adjustable feet are opened maximum.

** Dry laundry weight before washing.
*** Type label is located behind the loading door.

	Technical specifications of the dryer are subject to specification without notice to improve the quality of the product.
	Figures in this manual are schematic and may not match the product exactly.
	Values stated on markers on the dryer or in the other published documentation accompanying with the dryer are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.

2 Your Dryer

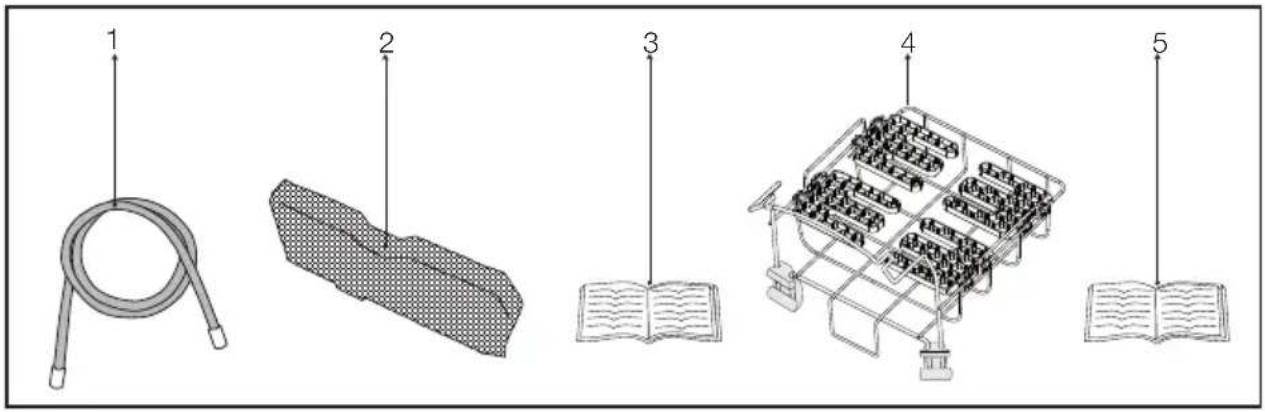

2.1 Package Contents

1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*

*It can be supplied with your machine depending on its model.

3 Installation

Before the calling the nearest Authorized Service for the installation of the dryer, ensure that electrical installation and water drain is appropriate referring to the user's manual. (See 3.3 Connecting to the drain and 3.5 Electrical connection) If they are not suitable, contact a qualified electrician and technician to make necessary arrangements.

Preparation of the dryer's location as well as the electrical and waste water installations is under customer's responsibility.

Prior to installation, visually check if the dryer has any defects on it. If the drier is damaged, do not have it installed. Damaged products cause risks for your safety.

Let your dryer wait for 12 hours before starting to use it.

3.1 Appropriate installation location

Install the dryer on a stable and level surface.

Dryer is heavy. Do not move it by yourself.

• Operate your dryer in a well ventilated, dust-free environment.
• The gap between the dryer and the surface should not be reduced by the materials such as carpet, wood and tape.
• Do not cover the ventilation grills of the dryer.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
• Once the dryer is installed, it should stay at the same place where its connections have been made. When installing the dryer, make sure that its rear wall does not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1 cm away from the edges of other furniture.
• Your dryer can be operated at temperatures between +5°C and +35°C. If the operating conditions fall outside of this range, operation of the dryer will be adversely affected and it can get damaged.
• The rear surface of the tumble dryer shall be placed against a wall.

Do not place the dryer on the power cable.

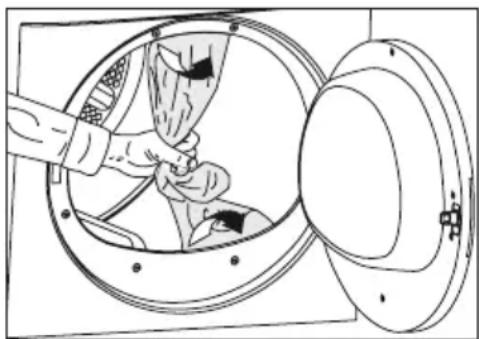

3.2 Removing the transportation safety assembly

Remove the transportation safety assembly before using the dryer for the first time.

• Open the loading door.
• There is a nylon bag inside the drum that contains a piece of styrofoam. Hold it from its section marked with XX XX.
• Pull the nylon towards yourself and remove the transportation safety assembly.

Diagram of a hand inserting a component into a circular device, showing internal components and wiring (no text or symbols)

Check that no part of the transportation safety assembly remains inside the drum.

3.3 Connecting to the drain

In products equipped with condenser unit, water accumulates in the water tank during the drying cycle. You should drain accumulated water after each drying cycle.

You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

Connecting the water drain hose

1-2 Pull hose at the behind of the dryer by hand in order to disconnect it from where it is connected. Do not use any tools to remove the hose.
3 Connect one end of the drain hose supplied with the dryer to the connection point from where you removed the hose of the product in previous step.
4 Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

Installation

Technical line drawing of a mechanical component with no visible text or symbols

Hand holding a mechanical component, no visible text or symbols

Illustration of a hand inserting a plug into a device (no text or symbols visible)

Technical diagram of a mechanical assembly with no visible text or symbols

	Hose connection should be made in a safe manner. Your drain house will be flooded if the hose comes out of its housing during water discharge.
	Water drain hose should be attached to a height of maximum 80 cm.
	Make sure that the water drain hose is not stepped on and it is not folded between the drain and the machine.

3.4 Adjusting the feet

• In order to ensure that the dryer operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet.
• Turn the feet to left or right until the dryer stands level and firmly.

Hand holding a mechanical component with a curved arrow indicating rotation (no text or symbols)

Never unscrew the adjustable feet from their housings.

3.5 Electrical connection

For specific instructions for electrical connection required during installation (see 1.1.1 Electrical Safety)

3.6 Transportation of the dryer

Unplug the dryer before transporting it. Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections.

We recommend carrying the dryer in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from the front.

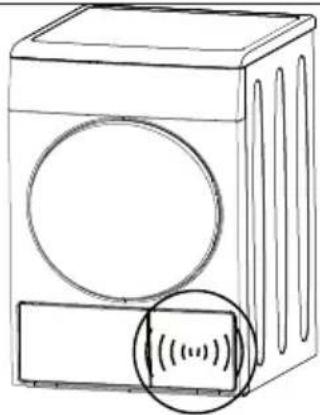

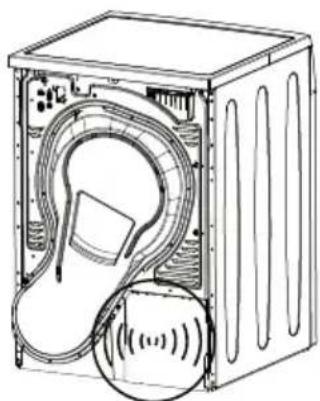

3.7 Warnings about sounds

It is normal to hear a metallic noise from the compressor sometimes during operation.

Line drawing of a washing machine casing with a circular vent and a rectangular base, showing no text or symbols.

Water collected during operation is pumped to water tank. It is normal to hear pumping noise during this process.

Technical line drawing of a washing machine casing with internal components and a speaker icon (no text or symbols)

3.8 Changing the illumination lamp

In case an illumination lamp is used in your laundry dryer. To change the Bulb/LED used for illumination of your tumble dryer, call your Authorized Service. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place laundry in the tumble dryer in a comfortable way. The lamps used in this appliance have to withstand extreme physical conditions such as vibrations and temperatures above 50 °C

4 Preparation

4.1 Laundry suitable for drying in the dryer

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.

LAUNDRY DRYING SYMBOLS
	Drying Symbols	Suitable for dryer		No Iron		Sensitive / Delicate dry		Do not dry with dryer		Do not dry
	Drying Settings	○At any temperature	●At high temperature	●At medium temperature	●At low temperature	●Without heating	○Hang to dry	—Lay to dry	■Hang wet to dry	□Lay in shadow to dry	PDry-cleanable
IRON	Iron -
	Dry or Steam			Iron at high temperature		Iron at medium temperature		Iron at low temperature		Do not iron
	Maximum temperature			200 °C 150		°C 110		°C

	Drying Settings
		At any temperature	At high temperature	At medium temperature	At low temperature	Without heating	Hang to dry	Lay to dry	Hang wet to dry	Lay in shadow to dry	Dry-cleanable

	Iron -
IRON	Dry or Steam	Iron at high temperature	Iron at medium temperature	Iron at low temperature	Do not iron	Iron without steam
	Maximum temperature	200 °C 150	°C 110	°C

4.2 Laundry not suitable for drying in the dryer

Delicate embroidered fabrics, woollen, silk garments, delicate and valuable fabrics, airtight items and tulle curtains are not suitable for machine drying.

4.3 Preparing laundry for drying

• Laundry may be tangled with each other after washing. Separate the laundry items before placing them into the dryer.
• Dry garments having metal accessories such as zippers, inside out.
• Fasten the zippers, hooks and buckles and button sheets.

4.4 Things to be done for energy saving

Following information will help you use the dryer in an ecological and energy-efficient manner.

• Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.
• Sort out the laundry depending on their type and thickness. Dry the same type of laundry together. For example thin kitchen towels and table clothes dries earlier than thick bathroom towels.
• Follow the instructions in the user manual for programme selection.
• Do not open the loading door of the machine during drying unless necessary. If you must certainly open the loading door, do not to keep it open for a long time.
• Do not add wet laundry while the dryer is in operation
• Clean the lint filter before or after each drying cycle. (See 6.1 Cleaning Lint Filter / Loading Door Inner Surface)

Preparation

- Clean the filter periodically when there is visible air collection on it or when the symbol lights up, if there is a filter drawer cleaning warning symbol «

» available. (See 6.4 Cleaning the filter drawer)

- Ventilate the room, where the dryer is located, well during drying.

4.5 Correct load capacity

Follow the instructions in the "Programme selection and consumption table". Do not load more than the capacity values stated in the table.

Diagram of a washing machine with internal tissue and lid, showing no text or symbols

It is not recommended to load the dryer with laundry exceeding the level indicated in the figure. Drying performance will degrade when the machine is overloaded. Furthermore, dryer and the laundry can get damaged.

Following weights are given as examples.

Laundry	Approximate weights (g)*
Cotton quit covers (double) 1500
Cotton quit covers (single) 1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 250
Cotton dresses	500
Dresses	350
Jeans	700
Handkerchiefs (10 pieces)	100
T-Shirts	125

*Dry laundry weight before washing.

5 Operating the product

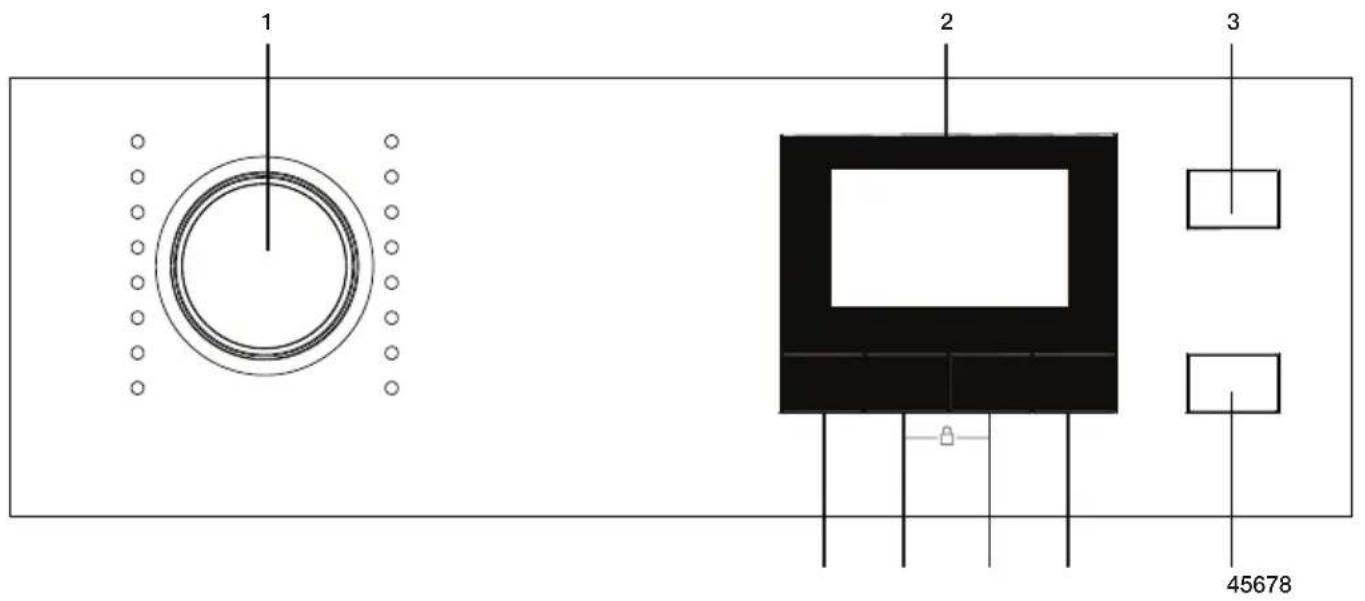

5.1 Control Panel

1. Program Selection button
2. Display
3. On-Off button
4. Start/Stand-by button
5. End Time button
6. Time Programs Adjusting button
7. Audio Warning Level button
8. Dryness Settings Selection button

5.2 Screen symbols

Buzzer level sym bol
Closet - dry
Clean filter drawer warning symbol Filter cleaning warning symbo
Child lock warning sym bol
Water tan k wam ing sym bol
→ End of cycle
Start/hold symbol
Anti-crease
Steam symbol
-SSS→Dryness level
End time
Iron-dry
88:88 Rem aining time indicator*
* Time displayed indicates the remaining time to the end of the cycle and this time varies as per the humidity of the laundry.

Operating the product

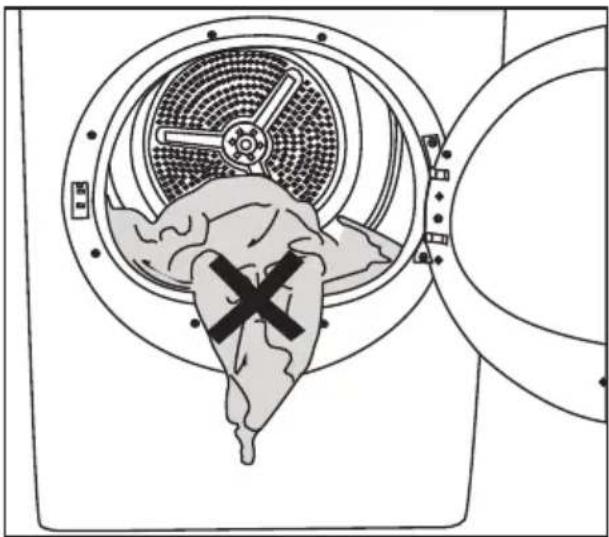

5.3 Preparing the dryer

Plug in the tumble dryer

Open device door.

Place the laundry into the tub in a slight loosely.

Close the door by pushing.

Diagram of a device with a central fan and explosion symbol, no readable text or labels

Make sure there is nothing door and the device while closing the door.

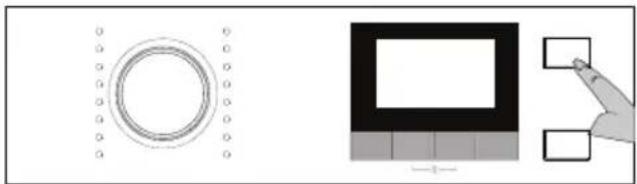

Press and hold On/Off/Cancel button for 1 second.

Pure diagram of a circular component and a rectangular device with control buttons, no text or symbols present.

- When dryer is used for the first time, declaration program (cupboard dry cottons) is selected.

Program doesn't start immediately only by pressing the On/Off/Cancel button. Start the program with the On/Off/Cancel button after program selection.

5.4 Program selection

Your dryer has 16 different programs.

Hand holding a circular device with control panel and display screen (no text or symbols visible)

- Select the desired program by turning the program selection button..

- Displayed program selection and consumption chart are based on sorting by preferences of majority of users.

Operating the product

5.5 Program selection and consumption chart

Programs Program Description		Capacity (kg)*	Spin Speed in Washing Machine (rpm)	Drying Time (min)
Cotton Extra Dry	You may dry your thick cotton laundry in this program such as towels, bathrobe, etc. You can put your laundry in the wardrobe without ironing.	8 1000	165
Cotton Cupboard Dry	You may dry all your cotton laundry in this program. (T-shirt, pants, pyjamas, baby clothes, underwear, linen, etc.) You can put your laundry in the wardrobe without ironing.	8 / 4 1000	159 / 104
Cotton Iron Dry	You may dry your cotton laundry to be ironed in this program to have them slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.)	8 1000	124
Synthetic Cupboard Dry	You may dry all your synthetic laundry in this program. (Shirt, T-shirt, underwear, tablecloth, etc.) You can put your laundry in the wardrobe without ironing.	4 800	65
Synthetic Iron Dry	You may dry your synthetic laundry to be ironed in this program to have them slightly damp for ease of ironing. (Shirt, T-shirt, tablecloth, etc.)	4 800	59
Jeans You may dry denim pants, skirts, shirts or jackets in this program. 4 1200 117
Daily	This programme is used to dry cottons and synthetics daily, and lasts for 100 minutes.	4 1000	100
WoolProtect	Use this programme to dry woolen garments such as jumpers that are washed according to the instructions.It is recommended that garments would be removed at the end of the programme.	1,5 600	148
Night	In this programme the level of noise emitted to the environment will be the lowest. Volume level will be fifty percent lower with respect to the 'wardrobe dry for cottons' programme.	8 100	240
Express	You can use this program to dry cotton laundry that you had wringed in high rpm in your washing machine. It dries 1 kg of your Cotton laundry (3 shirts / 3 T-shirts) in 49 minutes.	1 1200	49
Shirts 30' Use this programme to make 2 shirts ready for ironing in 30 minutes. 0,5 1200 30
Mix	Use this programme to dry non-pigmenting synthetic and cotton laundry items together.	4 1000	110
BabyProtect	This programme is used for baby clothes that bear machine dryable approval on its label.	3 1000	95
Delicates	You may dry your delicate laundry or laundry with hand wash symbol (silk blouses, thin underwear, etc.) at low temperature in this program.	2 600	50
Refresh	It just provides airing for 10 minutes without any hot air. You can air the cotton and linen laundry that are kept closed for a long time , and eliminate the odour in them.	--	10
Time programs	You can select the timer programs from 10 mins to 160 mins to achieve the desired final drying level under low temperature. In this program, the dryer dries for the time set, regardless of the dryness of the laundry.	--	-

* Weight of dry laundry before washing

Operating the product

Energy consumption values
Programs	Capacity (kg)	Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cottons linen Ready to wear**	8 / 4 10	00 % 60 1,43 / 0,84
Cottons Ready to iron	8 100	0 % 60 1,05
Synthetics Ready to wear	4 800	% 40 0,48
Power consumption of the off-mode for the standart cotton programme at full load, PO (W)				0,1
Power consumption of the left-on mode for the standart cotton programme at full load, PL (W)				1,0
Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed.R134a / 0,34 kg - GWP:1430 - 0,486 tCO2e

„Cotton cupboard dry programme“ used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton.
The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issued by the manufacturer of this machine.(M1621). In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark..
When the program ends for not having wrinkles on your delicate laundry, take out your laundry immediately and hang them.
To get better results from drying machine programs, your laundry should be washed with suitable program in your washing machine and wrung with recommended wringing speed.
Shirt might remain slightly damp at the end of the program. It is recommended not to leave the shirts inside the drying machine.

** : Energy Label standard program (EN 61121:2012)

All the values on the chart are identified according to EN 61121:2012 standard. Consumption values may vary from the valued in the chart depending on laundry type, wringing speed, ambient conditions and voltage levels.

Operating the product

5.6 Auxiliary functions Audible warning

Machine makes an audible warning when the program is completed. To adjust the sound level, use the Sound Warning Level button.

You can change the sound level before the program starts or while the program continues..

Diagram showing a circular component and a digital display with square buttons, no text or symbols present

Blank white rectangle with a small speaker icon in the corner (no text or symbols)

Volume level low

Blank white rectangle with a small speaker icon in the bottom-left corner (no text or symbols)

Volume level high

Dryness settings selection

Dryness settings button is used for adjusting to desired dryness. Program time may change depending on the selection.

You can activate this function only prior to start of program.

Pure electrical circuit lines without any symbols

Drying level damp

Drying level normal

Drying level extra

5.7 Warning symbols

Warning symbols may vary depending on the model of your machine.

Fibre filter cleaning

When the program is completed, the warning symbol for filter cleaning turns on.

	For detailed information, See 6 Maintenance and cleaning.
	If filter cleaning symbol constantly flashes See.7 Troubleshooting.

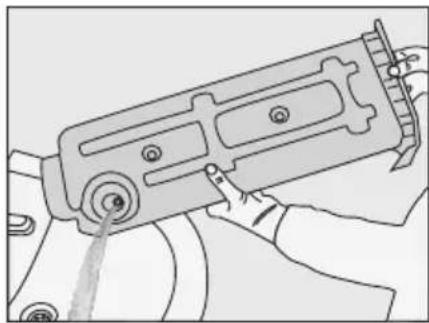

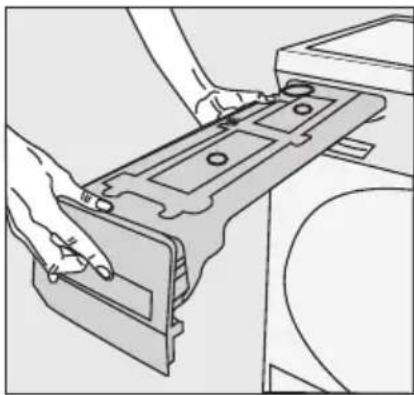

Emptying the water tank

When the program is completed, the warning symbol to empty the water tank turns on.

Operating the product

For detailed information, See 6 Maintenance and cleaning.

If the water tank fills up while the program continues, the warning symbol starts flashing and the machine goes into stand-by. In this case, empty the water tank and start the program by pressing the Start / Stand-by button. Warning symbol turns off and program resumes.

Cleaning the filter drawer

Warning symbol flashes periodically to remind that filter drawer must be cleaned.

For detailed information, See 6 Maintenance and cleaning.

Loading cover is open

If loading cover of the dryer is open while drying, Stand-by symbol turns on and program progress symbol flashes.

Simple diagram with a rectangular box containing three vertical bars and a wavy line inside, no text or symbols present.

End time

You can delay the end time of the program up to 24 hours with end time function.

Diagram showing a circular component and a monitor with control buttons, no text or symbols present

• Open the loading door and place the laundry.

• Select drying program, spin cycle and if needed, additional functions.

• Press the End Time selection button and set the delay time you wish. End Time symbol turns on. (When pressed and hold the button, End Time proceeds non-stop).

• Press the Start / Stand-by button. End time countdown starts and Start symbol turns on. “:” Separator in the middle of displayed delay time flashes.

Simple diagram with a clock icon and a play button, no text or symbols present

You can add or remove laundry within end time. End Time symbol will turn off at the end of countdown, drying starts and duration of program is displayed. Displayed time is the sum of normal drying time and end time.

Changing the end time

If you want to change the duration during the countdown:

• Press the On/Off/Cancel button for 3 seconds to cancel the program. Turn on the machine again and repeat the Delay Setting process for the duration you wish.
• When your machine is turned on for the first time, it turns on with the declaration program (cotton wardrobe dry).

Cancelling the end time function

If you want to cancel the end time countdown and start the program immediately:

- Press the On/Off/Cancel button for 3 seconds to cancel the program.

- Press the On/Off/Cancel button to start you previously selected program.

5.8 Starting the program

Press the ▶ Start/Stand-by button to start the program. Indicating start of the program, Start symbol turns on, “:” separator in the middle of remaining time keeps flashing. Program Progress Symbol turns on.

5.9 Program progress status

5.10 Child Lock

The machine has a child lock which prevents the program flow from being interrupted when the buttons are pressed during a program. To activate the child lock

• Press and hold time programs and audio warning buttons for 3 seconds.
• When the child lock is activated, the lock symbol on the screen turns on.

Pure electrical circuit lines without any symbols

Simple line drawing of a padlock icon on a plain background (no text or symbols)

• When the child lock is activated, all buttons on the panel except the On/Off/Cancel and Child Lock buttons are deactivated.
• When the child lock is activated, indicator symbols don't change if the position of Program Selection button is changed. When Program Selection button is turned and function buttons are pressed, the letters "CL" flashes on the screen.

- The child lock has to be deactivated to be able to start a new program after the current program is

finished or to be able to interfere with the program.

To Deactivate The Child Lock:

• Press and hold the child lock button for 3 seconds.
• Child lock deactivates when the dryer is turned off and on by the On/Off/Cancel button.

5.11 Changing the program after it is started

You can change the program you selected to dry your laundry with a different program after the machine starts running.

• For example, to select Extra Dry instead of Iron Dry, pause the program by pressing the Start / Stand-by button.
• Select the Extra Dry program using the Program Selection button.
• Press the Start/Stand-by button to start the program.

Adding and removing clothes during stand-by

• If you want to add or remove clothes to/from the machine after the drying program starts:
• Press the Start/Stand-by button to put the machine in Stand-by state. The drying operation stops.
• Open the loading door while in Stand-by state, and close the door after you remove or add laundry.
• Press the Start/Stand-by button to start the program.

	Adding laundry after the drying operation starts may cause the dried laundry inside the machine to mix with wet laundry and leave the laundry damp at the end of operation.
	Adding or removing laundry during drying may be repeated as many times as you wish. But this operation continuously interrupts the drying operation, and thus increases program duration and energy consumption. So, it is recommended to add laundry before the program starts.
	If a new program is selected by turning the program selection knob while the machine is in stand-by; the running program terminates and new program information is displayed on the screen.
	WARNING: Do not touch the inner surface of the drum while adding or removing clothes during a continuing program. The drum surface is hot.

Operating the product

5.12 Cancelling the program

If you want to cancel the program and terminate the drying operation for any reason after the machine starts running, keep the On/Off/Cancel button pressed for 3 seconds.

WARNING: The inside of the machine shall be extremely hot when you cancel the program during machine operation, so run the ventilation program to allow it to cool down.

5.13 End of program

When the program ends, the Fibre Filter Cleaning and Water Tank warning symbols on the program observation indicator turn on. Loading door may be opened and machine becomes ready for another run. To turn off the machine, press the On/Off/Cancel button.

Simple diagram with icons including a hand gesture, a grid pattern, and a globe symbol (no text or labels)

	Wrinkle Prevention function activates the 2 hour-Wrinkle Prevention program if laundry isn’t taken out of machine after completion of the program.
	Clean the fibre filter after each drying. See6.1 Cleaning Lint Filter / Loading Door Inner Surface
	Empty the water tank after each drying.See6.3 Draining the water tank

6 Maintenance and cleaning

Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals.

6.1 Cleaning Lint Filter / Loading Door Inner Surface

Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter.

	Such fiber and lint are generally formed during wearing and washing.
	Always clean the lint filter and the inner surfaces of the loading door after each drying process.
	You can clean the lint filter housing with a vacuum cleaner.

To clean the lint filter:

• Open the loading door.

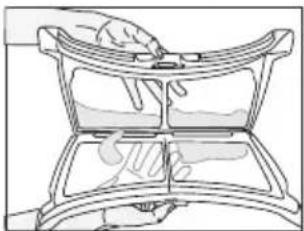

• Remove the lint filter by pulling it up and open the lint filter.

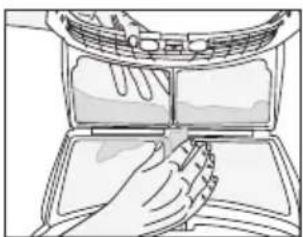

• Clean lint, fiber, and cotton raveling by hand or with a soft piece of cloth.
• Close the lint filter and place it back into its housing.

Technical diagram of a mechanical device with internal fan and adjustment mechanism (no text or labels)

Illustration of hands holding a cylindrical object with red arrows indicating motion or force (no text or symbols)

Illustration of a hand using a tool to lift a curved object (no text or symbols present)

Line drawing of hands cleaning a car air conditioner cover (no text or symbols)

- A layer can build up on the filter pores that can cause clogging of the filter after using the dryer for a while. Wash the lint filter with warm water to remove the layer that builds up on the lint filter surface. Dry the lint filter completely before reinstalling it.

Illustration of hands using a tool to clean or prepare food items in a tray (no text or symbols visible)

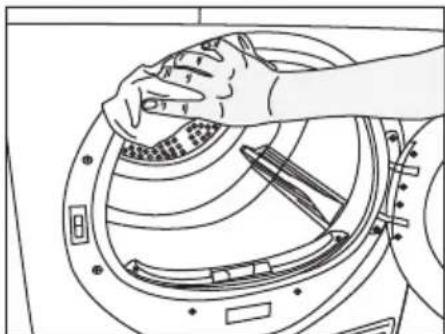

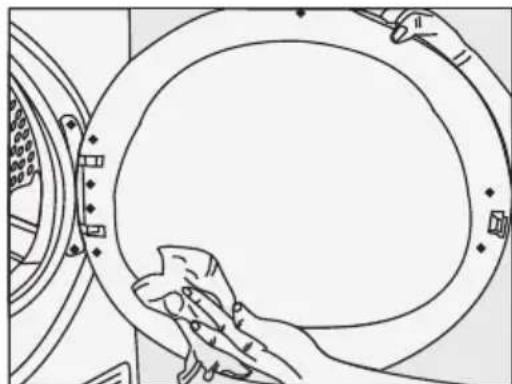

- Clean the entire inner surface of the loading door and loading door gasket with a soft damp cloth.

Line drawing of hands cleaning a circular mechanical component (no text or symbols)

Line drawing of hands cleaning a circular mechanical component with a brush (no text or symbols)

Maintenance and cleaning

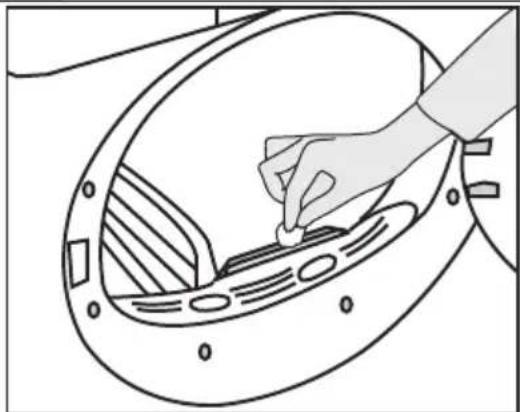

6.2 Cleaning the sensor

There are dampness sensors in the dryer that detect whether the laundry is dry or not.

To clean the sensors:

• Open the loading door of the dryer.
• Allow the machine to cool down if it is still hot due to the drying process.
• Wipe the metal surfaces of the sensor with a soft cloth, dampened with vinegar and dry them.

	Clean metal surfaces of the sensors 4 times a year.
	Do not use metal tools when cleaning metal surfaces of the sensors.
	Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion!

Line drawing of a hand inserting a small component into a circular device (no text or symbols)

6.3 Draining the water tank

Dampness of the laundry is removed and condensed during drying process and the water that arise accumulates in the water tank. Drain the water tank after each drying cycle.

	Condensed water is not drinkable!
	Never remove the water tank when the program is running!

If you forget to drain the water tank, the machine will stop during the subsequent drying cycles when the water tank is full and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause button to resume the drying cycle.

To drain the water tank:

Pull the drawer and remove the water tank carefully.

Line drawing of hands installing or adjusting a mechanical component (no text or symbols visible)

- Drain the water in the tank.

Line drawing of a hand operating a mechanical device with a tool inserted (no text or symbols)

• If there is lint accumulation in the funnel of the water tank, clean it under running water.
• Place the water tank into its seat.

If the direct water draining is used as an option, there is no need to empty the water tank.

6.4 Cleaning the filter drawer

Lint and fiber that could not be captured by the lint filter are blocked in the filter drawer behind the kick plate. Clean the filter periodically when there is visible air collection on it or when the symbol lights up, if there is a filter drawer cleaning warning symbol available.

There is an one stage filter. This one stage filter is from sponge

Maintenance and cleaning

To clean the filter drawer:

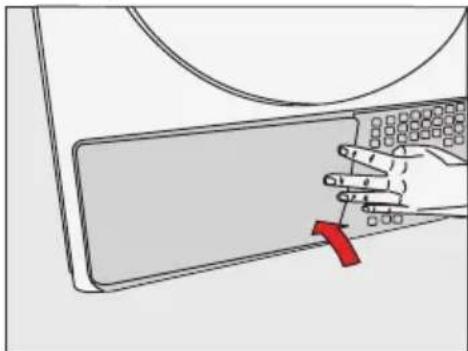

- Press the kick plate button to open the kick plate.

Illustration of a hand cleaning a window with a grid pattern (no text or symbols)

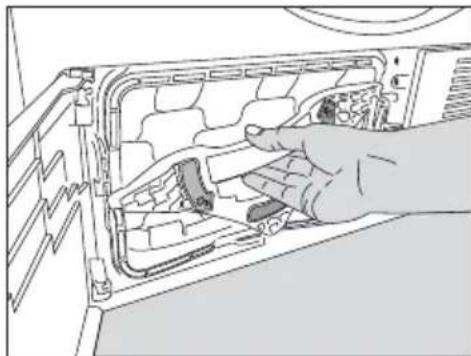

- Remove the filter drawer cover by turning it in the direction of arrow.

Hand inserting a component into a device casing (no text or symbols visible)

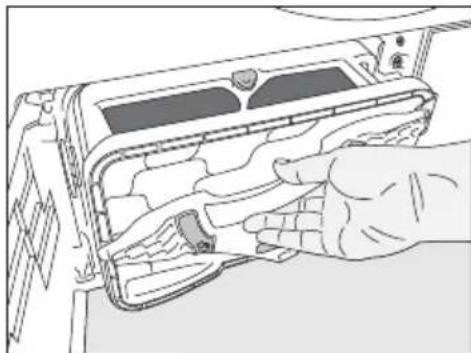

- Pull out the filter drawer.

Illustration of a hand inserting a device into a computer case (no text or symbols visible)

- Open the filter drawer by pressing the red button.

Illustration of a hand pressing down on a device with a black arrow indicating rotation (no text or symbols)

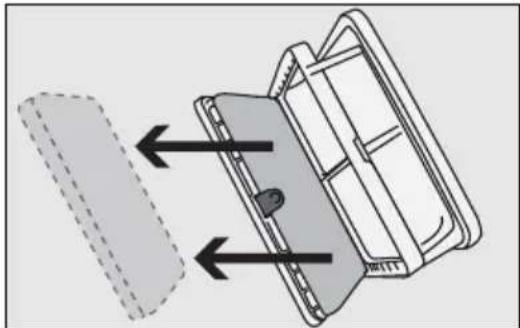

• Take out the filter drawer sponge.

Diagram of a mechanical device with arrows indicating force or movement, showing internal components and a dashed-line component (no text or symbols)

- Wash the filter drawer sponge by hand to remove the fiber and lint on the surface. After washing the sponge, squeeze it by hand and remove the excess water. Well-dry the sponge before storing it.

It is not necessary to clean the sponge if lint and fiber accumulation on it is not significant.

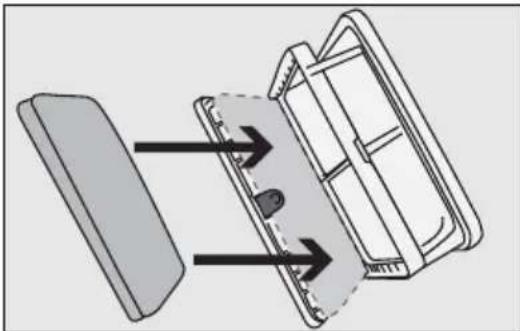

- Place the sponge back into its place.

Diagram of a mechanical assembly with directional arrows indicating flow or movement (no text or symbols present)

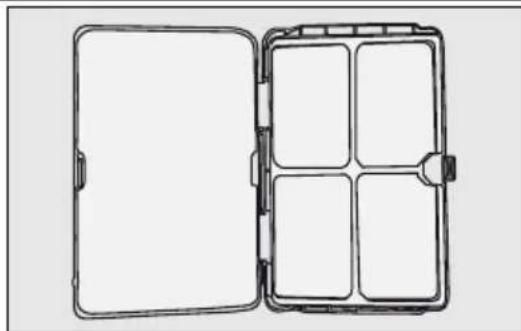

Please place the sponge carefully inside the frame of the filter cassette shown by arrows in order to avoid squeezing when filter drawer closed".:

Line drawing of an open and closed mechanical device with six compartments (no text or symbols)

Maintenance and cleaning

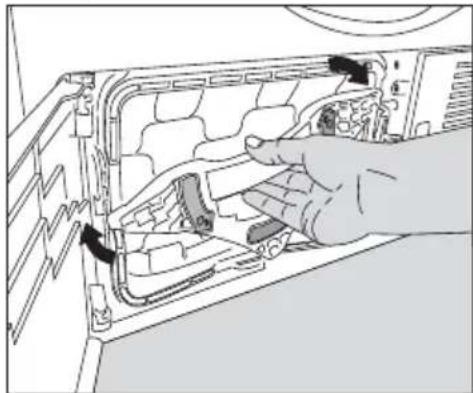

- Close the filter drawer as to lock the red button.

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols present)

- Place the filter drawer back into its place, turn the filter drawer cover in the arrow direction and close it securely.

Illustration of a hand inserting a component into a computer drive (no text or symbols visible)

- Close the kick plate cover.

Illustration of a hand typing on a keyboard with a red scroll wheel (no text or symbols)

Drying without the filter drawer sponge in place will damage the machine!

A dirty lint filter and filter drawer will cause longer drying periods and higher energy consumption.

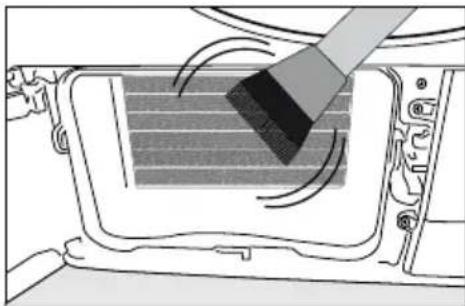

6.5 Cleaning the evaporator

Clean the lint accumulated on the fins of the evaporator located behind the filter drawer with a vacuum cleaner.

Diagram of a device interior with a hand crossed out, showing no text or symbols

Diagram showing a brush applying material to a rectangular panel with internal structure (no text or symbols)

You can also clean by hand provided that you wear protective gloves. Do not attempt to clean with bare hands. Evaporator fins can harm your hand.

7 Troubleshooting

Drying process takes too much time.

• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Filter drawer may be blocked>>>clean the foam inside the filter drawer.
• Ventilation grids on the front side of the machine are blocked. >>> Remove the objects (if any) that block ventilation in front of the ventilation grids.
• Ventilation is not sufficient since the room where the machine is installed is very small. Open the door and window of the room to avoid the room temperature increase too much.
• Lime deposit has built up on the dampness sensor. >>> Clean the dampness sensor.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Laundry comes out wet at the end of drying.

After drying, the hot clothes feel damper than their actual dampness level.

• It is likely that the selected programme did not suit the laundry type.>>>Checking the care labels on clothes, select appropriate programme for the laundry type or use timer programmes in addition.
• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Filter drawer may be blocked>>>clean the foam inside the filter drawer.
• Excessive laundry is loaded. >>> Do not load the dryer in excess.
• Laundry is not spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Dryer does not switch on or the programme does not start. Dryer does not start when it is set.

• It is not plugged in. >>> Make sure that the machine is plugged in.
• The loading door is ajar. >>> Make sure that the loading door is closed securely.
• Programme is not selected or the Start / Pause / Cancel button is not pressed. >>> Make sure that the programme is selected and the machine is not in Pause mode.
• Childproof Lock is activated. >>> Deactivate the Childproof Lock.

Programme is interrupted without any cause.

• Loading door is ajar. >>> Make sure that the loading door is closed securely.
• There was a power failure. >>> Press Start / Pause / Cancel button to start the programme.
  • Water tank is full. >>> Drain the water tank.

Laundry has shrunk, become felted or deteriorated.

- A programme suitable for the laundry type is not used. >>> Check the garment tag and select a programme suitable for the fabric type.

Drum lighting does not turn on. (On models with lamp)

• Dryer is not switched on with the On / Off button. >>> Make sure that the dryer is switched on.
• Lamp is defective. >>> Call Authorized Service Agent to have the lamp replaced.

End/Anti-creasing symbol is on.

- Anti-breasing programme is activated in order to prevent laundry that has remained in the machine from creasing. >>> Turn off the dryer and take out the laundry.

Troubleshooting

End symbol is on.

Programme is over. Turn off the dryer and take out the laundry.

Lint Filter Cleaning symbol is on.

Lint filter is not cleaned. >>> Clean the lint filter.

Lint Filter Cleaning symbol is flashing.

Filter housing is clogged with lints. >>> Clean the lint filter housing.A deposit has built up on the lint filter pores that may cause clogging. >>> Wash the lint filter with warm water.Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer.

Water leaks from the loading door

Lint has accumulated on the inner surfaces of the loading door and on the surfaces of the loading door gasket. >>> Clean the inner surfaces of the loading door and the surfaces of the loading door gasket.

Loading door opens spontaneously.

Loading door is ajar. >>> Push the loading door to close until you hear a locking sound.

Water Tank warning symbol is on/flashing.

Water tank is full. >>> Drain the water tank.Water draining hose is bent. >>> If the product is connected directly to a wastewater drain, check the water drain hose.

Filter Drawer Cleaning warning symbol is flashing.

Filter drawer is not cleaned. >>> Clean the sponge and the filter cloth in the filter drawer.

	If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.
	In an event that you encounter an issue on any part on your appliance, you can ask for a replacement by contacting the authorized service with the appliance model number.
	Operating the appliance with non-authentic parts may lead the appliance to malfunction.
	Manufacturer and distributor are not liable for malfunctions resulting from using non-authentic parts.

PRODUCT FICHE
Complying Commission Delegated Regulation (EU) No 392/2012
Supplier name or trademark		Cylinda
Model name		TVP 5683
Rated capacity (kg)		8
Type of Tumble Dryer	Air Vented	-
	Condenser	•
Energy efficiency class(1)		A+++
Annual Energy Consumption (kWh)(2)		176
Type of Control	Automatic	•
	Non-automatic	-
Energy consumption of the standard cotton programme at full load (kWh)		1,43
Energy consumption of the standard cotton programme at partial load (kWh)		0,84
Power consumption of the off-mode for the standard cotton programme at full load, P_0 (W)		0,1
Power consumption of the left-on mode for the standard cotton programme at full load, P_L (W)		1,0
The duration of the left on mode (min)		30
Standard cotton programme(3)
Programme time of the standard cotton programme at full load, T_dry (min)		159
Programme time of the standard cotton programme at partial load, T_dry1/2 (min)		104
Weighted programme time of the standard cotton programme at full and partial load (T-)		128
Condensation efficiency class(4)		A
Average condensation efficiency of the standard cotton programme at full load, C_dry		91%
Average condensation efficiency of the standard cotton programme at partial load, C_dry1/2		91%
Weighted condensation efficiency of the standard cotton programme at full load and partial load, C_t		91%
Sound power level for the standard cotton programme at full load(5)		64
Built-in		-

: Yes -: No
(1) Scale from A+++ (most efficient) to D (least efficient)
(2) Energy consumption based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
(3) "Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton
(4) Scale from G (lest efficient) to A (most efficient)
(5) Weighted average value — L_WA expressed in dB(A) re 1 pW

?

service

• Vi har service i hela landet / Nationwide service
- G&in-pil www.cylinda.se / Visit www.cylinda.se
• Ring 0771 2S 2500 (endayt lokalitaxa) / Call 0771 25 25:00

uppge

• Maskintyp / Model code
- Serienummer / Serial number
• Inköpsdatum / Purchase date

• Problembeskrivning / Problem description
• Namnoch adress / Name and address
• Ditt telefornummer / Phone number
