Product Type	Front-Loading Condenser Tumble Dryer
Model	Samsung DV90M50003W
Capacity	9 kg (dry laundry)
Energy Efficiency Class	A++
Annual Energy Consumption	258 kWh/year (based on 160 cycles)

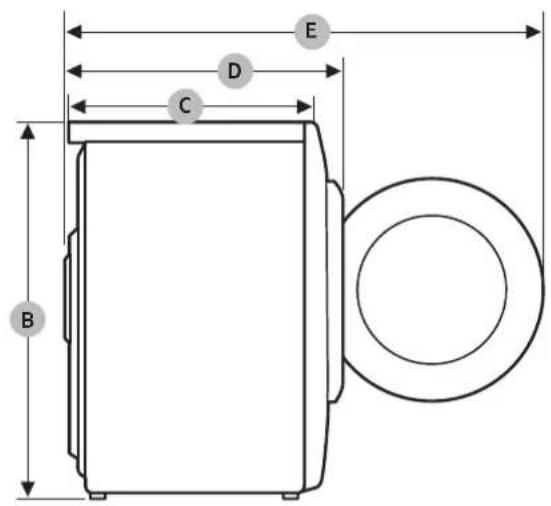

Dimensions (W x H x D)	600 x 850 x 600 mm
Depth with Door Open	1095 mm
Weight	50 kg
Power Supply	220-240 V / 50 Hz
Power Consumption	750-850 W
Drying Technology	Heat Pump
Noise Level (Drying)	65 dB(A)
Display	Digital Graphic Display
Number of Drying Programs	13 (including Cotton, Synthetics, Delicates, Wool, etc.)
Key Features	Wrinkle Prevent, Delay End (up to 24h), Child Lock, Smart Check, Mixed Load Bell, Rack Dry
Lint Filter	Removable, cleanable (inner and outer filter)
Water Tank	Removable, must be emptied after each load
Heat Exchanger	Clean monthly with brush or vacuum
Refrigerant	R-134a (0.32 kg, GWP 1430)
Door Reversible	Yes (two types depending on model)
Installation Clearances	Sides: 25 mm, Top: 25 mm, Front: 490 mm, Rear: 51 mm

Frequently Asked Questions - DV90M50003W SAMSUNG

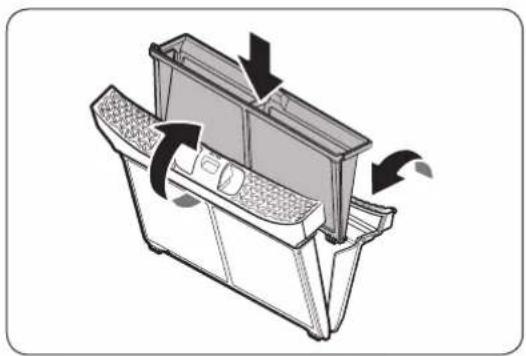

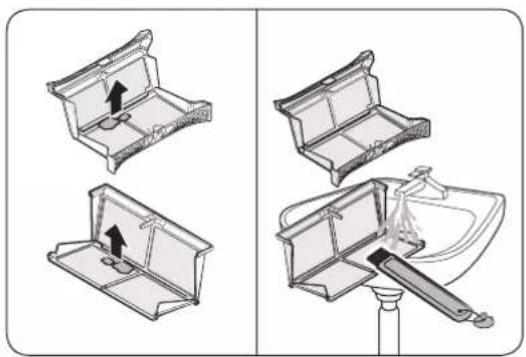

How do I clean the lint filter?

Open the door, pull the lint filter upward, open the outer filter, remove the inner filter, unfold both filters, remove lint with the cleaning brush, rinse under water if needed, dry completely, reassemble and reinsert. Clean after every load for optimal performance.

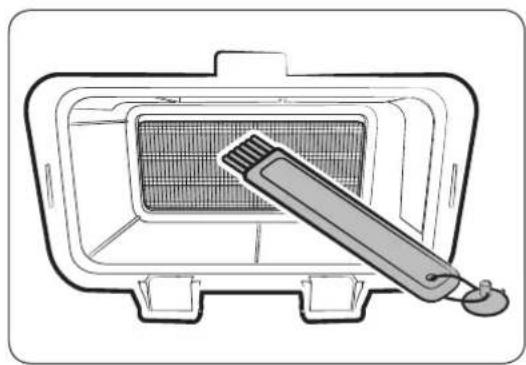

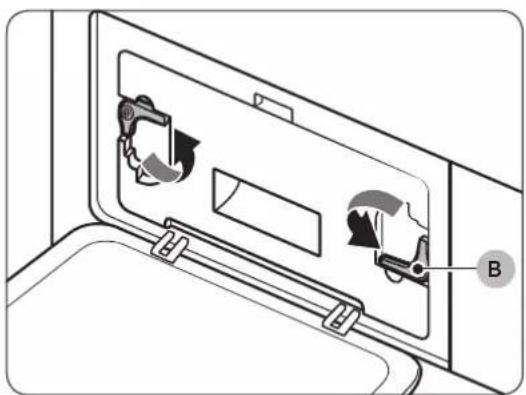

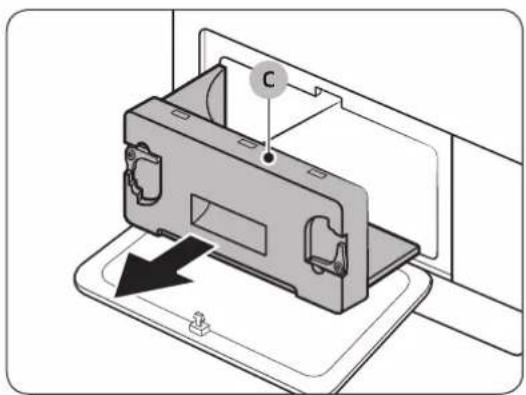

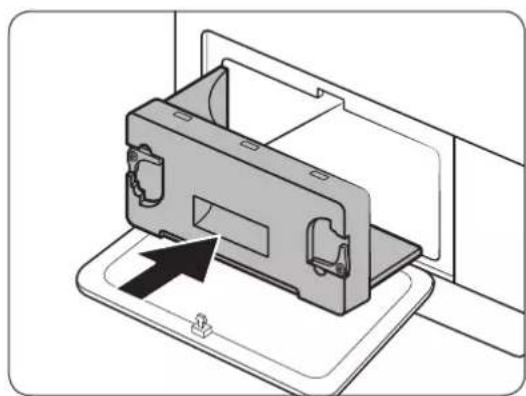

How often should I clean the heat exchanger?

Clean the heat exchanger at least once a month. Open the outer cover, unlock the fixers, remove the inner cover, gently clean the heat exchanger fins with the provided brush or a vacuum cleaner attachment. Do not use water or touch the fins with bare hands.

What does the 'HC' error code mean?

The 'HC' code indicates compressor overheat. If this appears, unplug the dryer and contact Samsung service. Do not attempt to use the dryer until the issue is resolved.

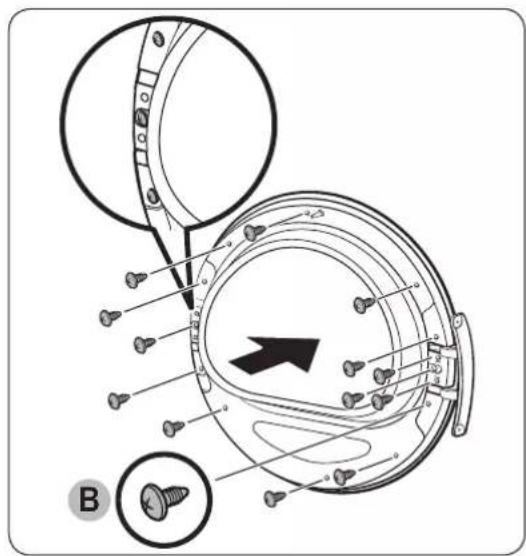

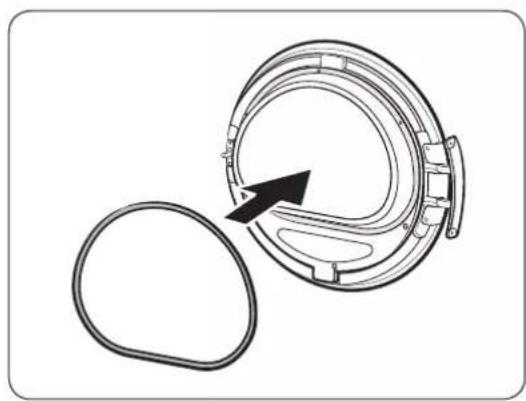

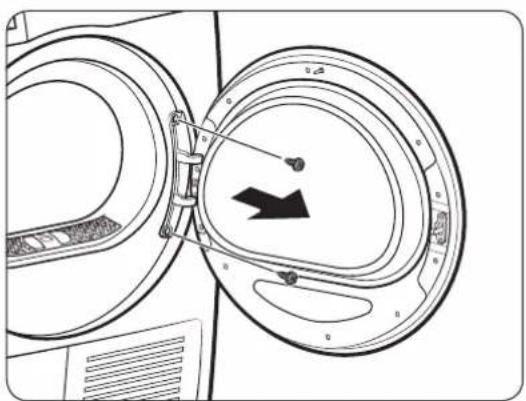

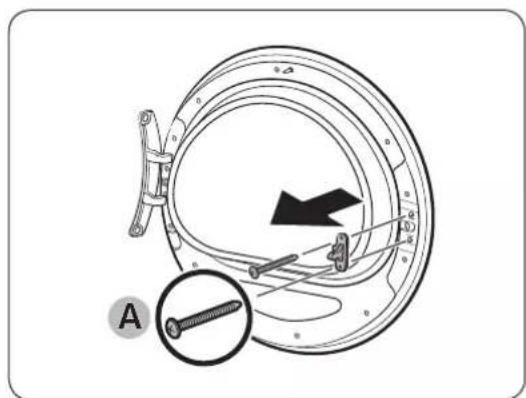

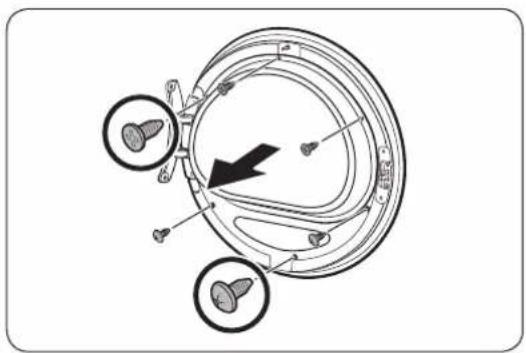

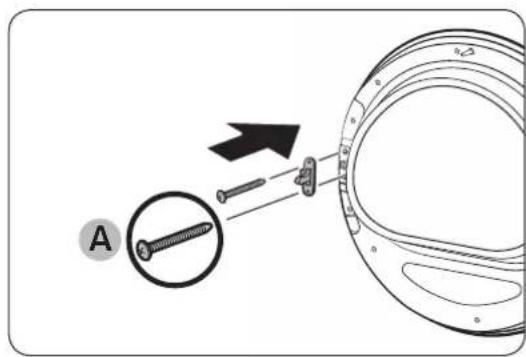

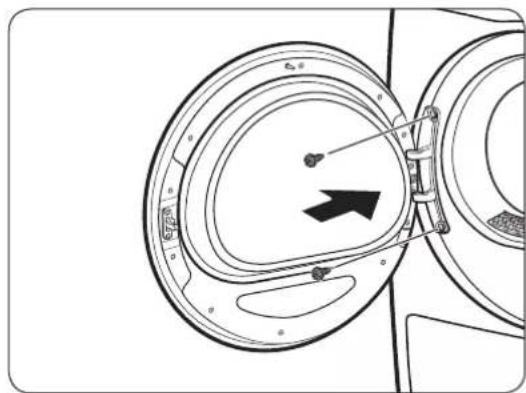

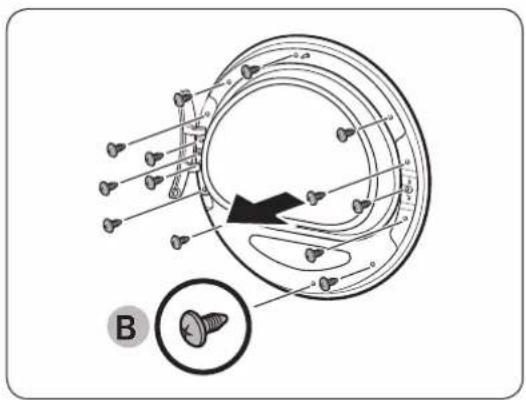

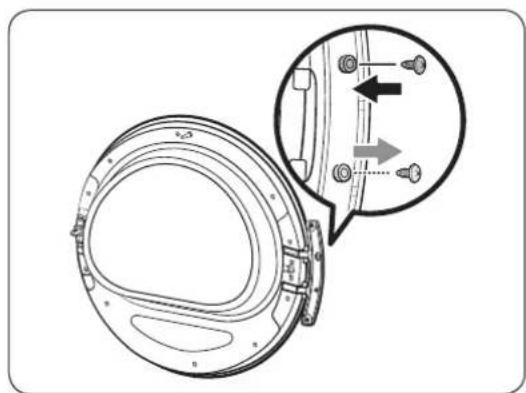

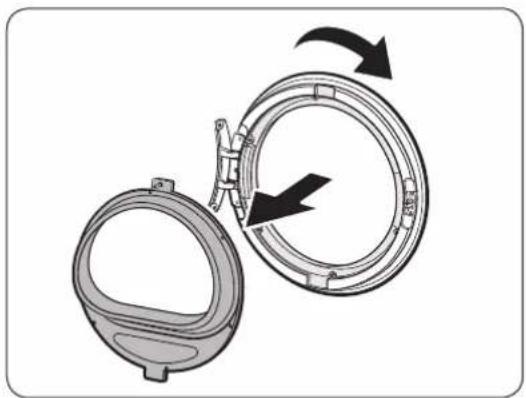

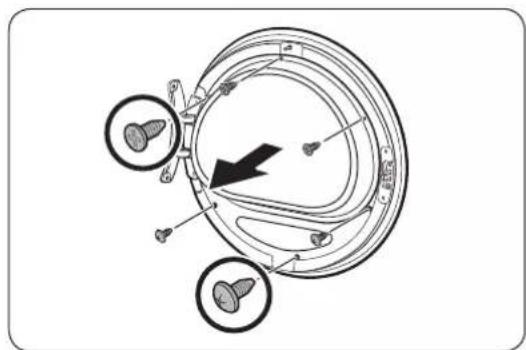

Can I reverse the door opening direction?

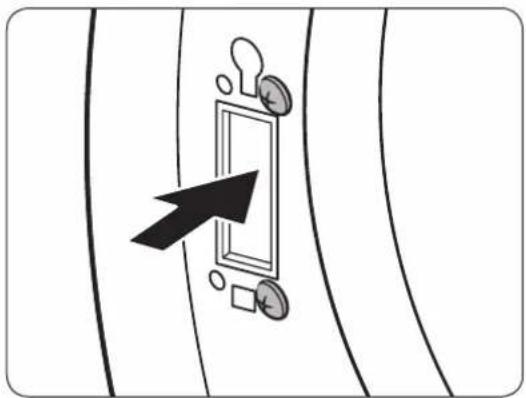

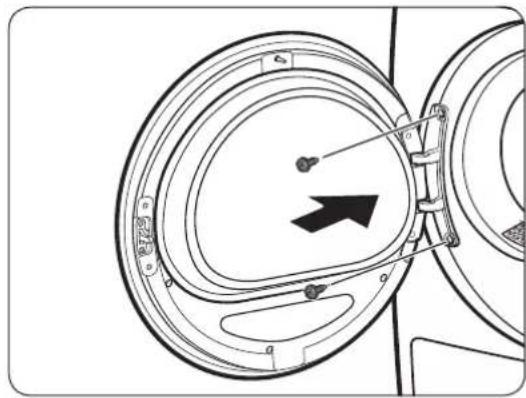

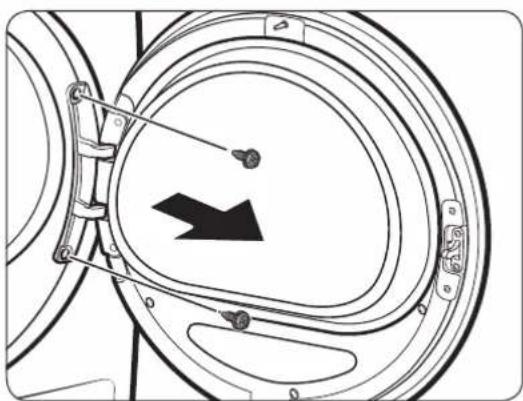

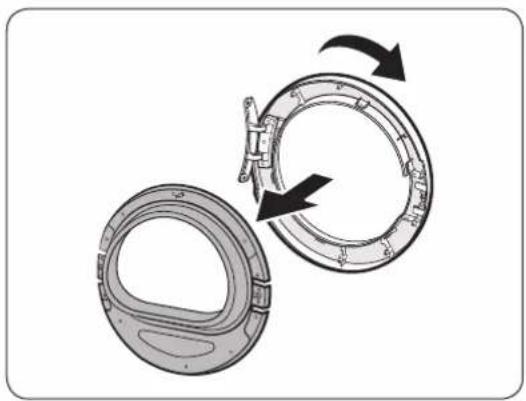

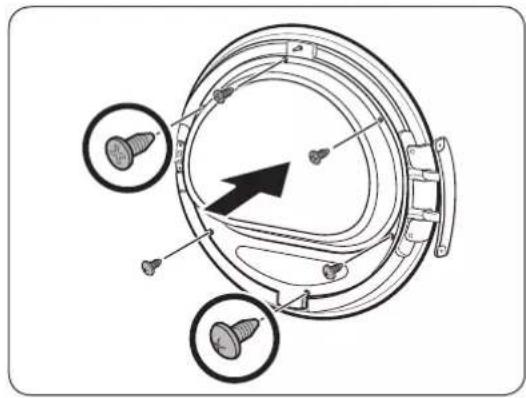

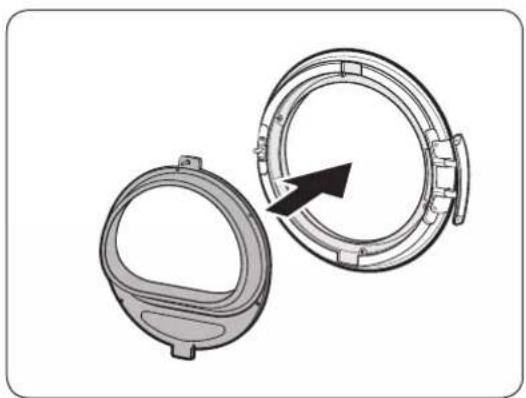

Yes, the door is reversible. For Type 1 models: remove the door, unscrew hinge and glass holder, rotate door cover 180°, reassemble on the opposite side. For Type 2 (DV**M5***K* models): similar process with additional bolt-screws. It is recommended to have a qualified technician perform this.

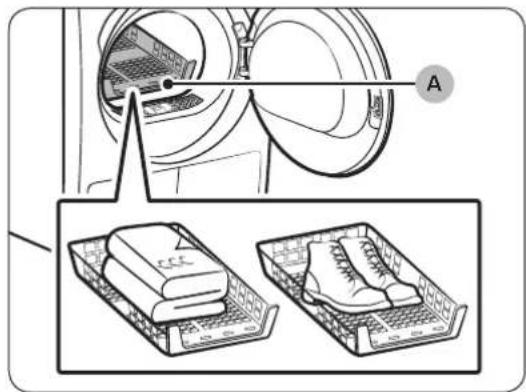

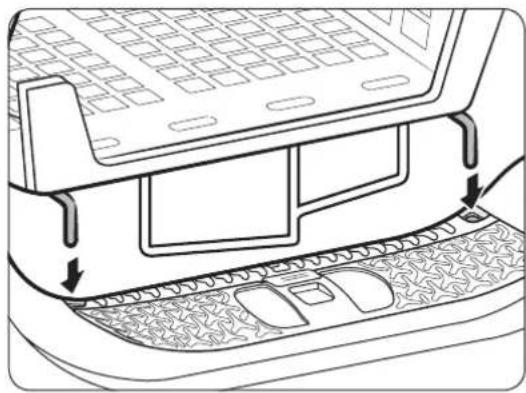

How do I use the Rack Dry feature?

Insert the drying rack into the drum, placing its front lips into the holes of the door diaphragm. Place items (max 1.5 kg) flat on the rack, select TIME DRY cycle, set desired time (up to 150 min), and start. Ideal for sneakers, sweaters, or stuffed toys.

Why does the dryer stop before clothes are dry?

Possible causes: the load is too small (add more items) or too large (remove some). Check if the lint filter or heat exchanger is clogged. Ensure the water tank is empty. The cycle may also be in the cool-down phase.

How do I activate Child Lock?

Simultaneously press and hold the Mixed Load Bell and Smart Control (or Wrinkle Prevent and Dry Level) buttons for 3 seconds. The indicator lights up. To deactivate, repeat the same action. Child Lock remains active even after turning the dryer off.

What is the 'Mixed Load Bell' and how does it work?

The Mixed Load Bell alerts you when the average dryness reaches 80% during certain cycles (e.g., Cotton, Synthetics). This allows you to remove items that dry quickly or that you prefer slightly damp, while the rest continue drying.

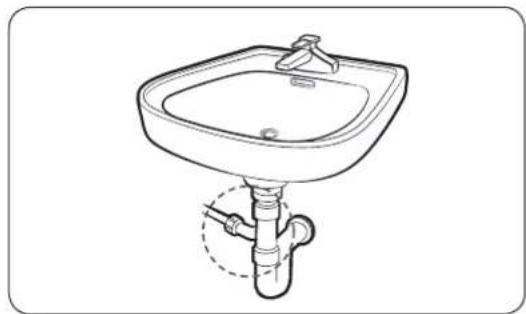

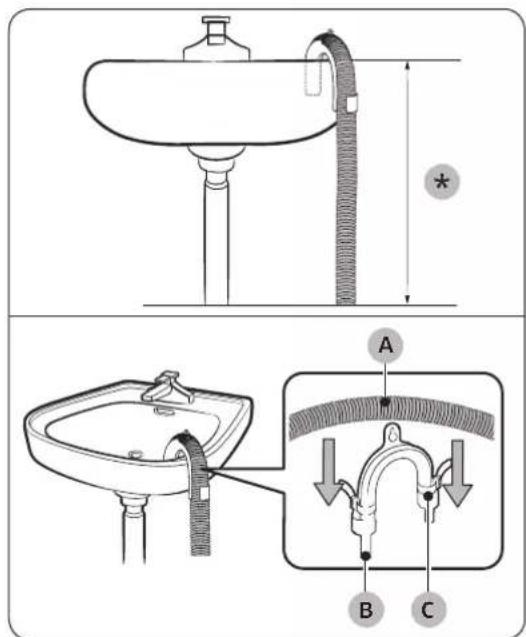

Can I use the drain hose instead of emptying the water tank?

Yes, you can install the drain hose. Remove the drain hose from hole (A) and insert into hole (B), then connect the long drain hose (supplied) to a drain pipe or wash basin. Ensure the hose is placed lower than 90 cm from the dryer bottom to avoid leaks.

What should I do if the dryer displays '5C' error?

The '5C' code indicates the water tank is full or the drain pump is out of order. Empty the water tank first. If the error persists, check for blockages in the drain hose. If still unresolved, contact Samsung service.

USER MANUAL DV90M50003W SAMSUNG

What you need to know about the safety instructions 4 Important safety symbols 4 Important safety precautions 5 Critical installation warnings 7 Critical usage warnings 9 Usage cautions 10 Critical cleaning warnings 12 Instructions about the WEEE 13

Installation 14

What's included 14 Installation requirements 16 Dryer 18 Drain hose (if necessary) 19 Installation checklist 22 Before using the dryer 22 Door reversal 22

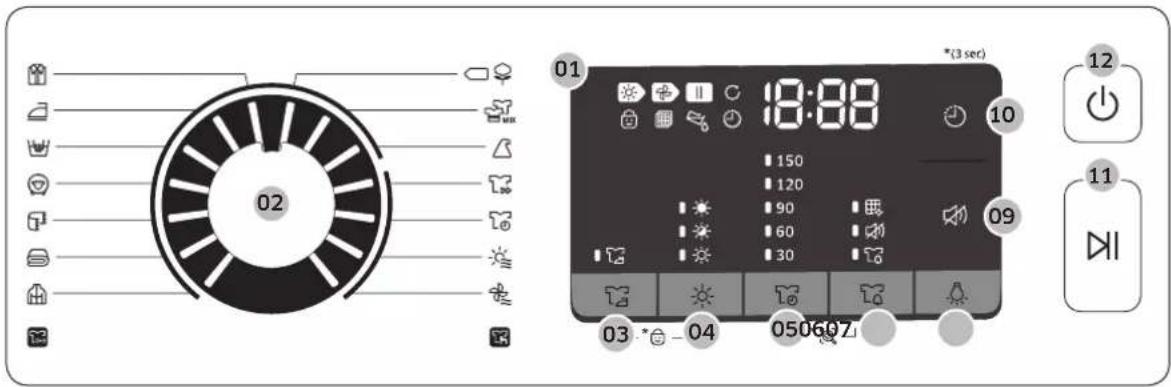

Operations 30 Control panel 30 Getting started 36 Special features 40

Maintenance 41 Control panel 41 Exterior 41 Drum 41 Lint filter 41 Water tank 43 Heat exchanger 44

Troubleshooting 46 Checkpoints 46 Information codes 47

English2

Appendix 48

Fabric care chart 48

Protecting the environment 49

Specification

Consumption data 52

Sheet of household tumble driers 54

50

Safety information

Congratulations on your new Samsung dryer. This manual contains important information on the installation, use, and care of your appliance. Please take the time to read this manual to take full advantage of your dryer's many benefits and features.

What you need to know about the safety instructions

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

Important safety symbols

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.

CAUTION

Hazards or unsafe practices that may result in personal injury and/or property damage.

NOTE

Indicates that a risk of personal injury or material damage exists.

Read the instructions

These warning signs are here to prevent injury to yourself and others.

Please follow them explicitly.

After reading this manual, store it in a safe place for future reference.

Read all instructions before using the appliance.

As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate this appliance, familiarize yourself with its operation and exercise care when using it.

WARNING - Risk of Fire

• Clothes dryer installation must be performed by a qualified technician.
• Install the clothes dryer according to the manufacturer's instructions and local codes.
  • To reduce the risk of severe injury or death, follow all installation instructions.

English4

Important safety precautions

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. For use in Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Children should be supervised to ensure that they do not play with the appliance.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
6. For appliances with ventilation openings in the base, that a carpet must not obstruct the openings.

Safety information

1. For use in Europe: Children of less than 3 years should be kept away unless continuously supervised.
2. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
3. The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
4. The lint trap has to be cleaned frequently, if applicable.
5. Lint must not to be allowed to accumulate around the tumble dryer. (not applicable for appliances intended to be vented to the exterior of the building)
6. Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.
7. Do not dry unwashed items in the tumble dryer.
8. Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
9. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
10. Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

English6

1. The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
2. Remove all objects from pockets such as lighters and matches.
3. WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
4. Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
5. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
6. WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

Heat pump model only: The instructions shall also include the substance of the following:

WARNING: In the appliance enclosure or in the built-in structure, keep ventilation openings clear of obstruction.

WARNING: Do not damage the refrigerant circuit.

Critical installation warnings

WARNING

The installation of this appliance must be performed by a qualified technician or service company.

- Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury.

English 7

Safety information

Plug the power cord into a wall socket and use the socket for this appliance only. In addition, do not use an extension cord.

• Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or fire.
• Ensure that the power voltage, frequency and current are the same as those of the product specifications. Failure to do so may result in electric shock or fire. Failure Plug the power plug into the wall socket firmly.

Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.

• Unplug the power plug and clean it with a dry cloth.
• Failure to do so may result in electric shock or fire.

Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

- If a child places a bag over its head, it may result in suffocation.

This appliance must be properly grounded.

Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

• This may result in electric shock, fire, an explosion, or problems with the product
• Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national codes.

Do not install or keep the product exposed to the outdoor elements.

Do not use a damaged power plug, damaged power cord or loose wall socket.

• This may result in electric shock or fire.

If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified technician in order to avoid a hazard.

This appliance should be positioned to be accessible to the power plug after installation.

Do not pull or excessively bend the power cord.

Do not twist or tie the power cord.

Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

• This may result in electric shock or fire.

Do not pull the power cord, when unplugging the power plug.

• Unplug the power plug by holding the plug.
• Failure to do so may result in electric shock or fire.

English8

This appliance must be properly grounded. Never plug the power cord into a receptacle that is not grounded adequately and in accordance with local and national codes. See installation instructions for grounding this appliance.

Install this appliance in a location with solid, level floor.

- Failing to do so may result in abnormal vibrations, noise or problems with the product.

Since an ingredient in hair spray may degrade the hydrophile property of the heat exchanger so that dew may appear on the outer surface of the appliance when the cooling operation is running, do not install the appliance in a beauty salon.

This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are accessible.

Critical usage warnings

WARNING

Do not let children or pets on or into the product. In addition, when disposing of this product, disassemble the door lock (lever).

• This may result in children falling and injuring themselves.
- If children become locked in the product, there is a danger of suffocation.

Do not try to access the inside of the product when the drum is rotating.

Do not sit on the product or lean against the door.

- This may result in the product turning over and resulting in injury.

Dry the laundry only after it was spun by an appropriate washing machine.

Do not dry unwashed items in the tumble dryer.

Do not drink the condensed water.

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Do not dry laundry contaminated by inflammable materials such as gasoline, kerosene, benzene, thinner, alcohol, etc.

• This may result in electric shock, fire or explosion.

Do not let pets chew or play with the dryer.

• This may result in electric shock or injury.

When disposing of the product, separate the door and the power cord before disposing of the product.

- Failing to do so may result in damage to the power code or an injury.

Do not touch the power plug with wet hands.

• This may result in electric shock.

English 9

Safety information

When gas (city gas, propane gas, LP gas) leaks, do not touch this appliance or the power cord, ventilate immediately.

• At this time, do not use the ventilating fan.
• A spark may cause an explosion or fire.

Do not repair, replace, or attempt to service any part of the appliance unless specifically recommended in the user-repair instructions. You must also have the skills necessary to service this appliance.

Do not attempt to repair, disassemble, or modify the appliance yourself.

• Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.
• When repairing or reinstalling the appliance is required, contact your nearest service center.
• Failure to do so may result in electric shock, fire, problems with the product, or injury.

The product you have purchased is designed for domestic use only.

The use for business purposes qualifies as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.

If the product generates strange noise, smells of something burning, or generates smoke, immediately cut-off the power and contact the service center.

- Otherwise, it may cause an electric shock or fire as a result.

Do not let children (or pets) play in or on your product. The product door does not open easily from the inside and children may be seriously injured if trapped inside.

Usage cautions

CAUTION

Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

- This may result in electric shock, fire, problems with the product, or injury.

Do not touch the glass door and inside of the drum during or just after drying as it is hot.

• This may result in burns.

The door glass becomes hot during washing and drying. Therefore, do not touch the door glass.

Also, do not allow children to play around the washing machine or touch the door glass.

• This may result in burns.

Do not press the buttons using sharp objects such as pins, knives, fingernails, etc.

• This may result in electric shock or injury.

English10

Do not dry laundry containing forming rubber (latex) or similar rubber textures.

- If forming rubber is heated, it may start a fire.

Do not dry laundry contaminated by vegetable oil or cooking oil as a large amount of the oil will not be removed when washing the laundry. In addition, use the Cool Down cycle so that the laundry is not heated.

- The oxidization heat of the oil may start a fire.

Make sure that the pockets of all clothing to be dried are empty.

- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to the appliance.

Do not dry clothing with large buckles, buttons, or other heavy metal (zippers, hooks and eyelets, button-up covers).

If necessary, use the laundry net for small and lightweight laundry such as fabric tie belt, apron strings, and underwire bras which can dissolve or break during a cycle.

Dryer sheets are compatible with this model, and are recommended for better drying performance.

Dryer sheets are also beneficial in reducing the static electricity generated during a drying cycle. Static electricity could lead to damage of laundry items and potentially the appliance.

Do not use the dryer near dangerous powders such as coal dust, wheat flour, etc.

• This may result in electric shock, fire or an explosion.

Do not place inflammable materials near the product.

- This may result in toxic gases from the product, damage to parts, electric shock, fire or an explosion.

- The appliance should not be placed behind lockable doors etc.

Do not touch the rear side of the appliance during or immediately after drying is complete.

- The appliance remains hot and may cause burns.

Contains fluorinated greenhouse gases.

Hermetically sealed equipment.

Do not vent gases into the atmosphere.

Refrigerant (Type): R-134a (GWP = 1430)

Refrigerant (Charging)

• DV**M52****: 0.37 kg, 0.529 tCO ₂ e

• DV**M50****: 0.32 kg, 0.458 tCO ₂ e

Safety information

Critical cleaning warnings

WARNING

Do not clean the appliance by spraying water directly onto it.

Do not use benzene, thinner or alcohol to clean the appliance.

- This may result in discoloration, deformation, damage, electric shock or fire.

Before cleaning or performing maintenance, unplug the appliance from the wall socket.

- Failure to do so may result in electric shock or fire.

Clean the filter case before and after using the dryer.

Clean the inside of the product on a regular basis by asking an authorized service engineer.

Clean the Heat Exchanger with a soft brush or vacuum cleaner once a month, Do not touch the heat exchanger with your hand. Otherwise, it may cause an injury.

The interior of the dryer should be cleaned periodically by qualified service personnel.

English12

Instructions about the WEEE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or anti-smoking (no text present)

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product regulatory obligations, e.g. REACH, WEEE or Batteries, visit our sustainability page available via www.samsung.com

Installation

What's included

Carefully unpack the dryer. Keep all packaging materials away from children. The parts and location of parts shown below may differ from your dryer. Before installation, make sure the dryer has all the parts listed here. If the dryer and/or parts are damaged or missing, contact the nearest Samsung customer service center.

Dryer at a glance

01 Top cover 02 Water Tank

03 Lint filter 04 Heat exchanger

05 Levelling Leg 06 Door

07 Control Panel

English14

Accessories (supplied)

Simple line drawing of a symmetrical mechanical bracket or clamp (no text or symbols)

Simple line drawing of a curved object resembling a stylized bar or ribbon (no text or symbols)

Simple line drawing of a bulb-like object with a flared top and base (no text or symbols)

Hose guide Cable tie Hose connector

Simple line drawing of a coiled cable or hose with two connectors (no text or symbols)

Simple line drawing of a closed book with a blank cover (no text or symbols)

Simple line drawing of a rectangular container with internal compartments (no text or symbols)

Long drain hose (2 m) User manual Rack Dry (applicable
models only)

Simple line drawing of a laboratory pipette with a bulbous tip (no text or symbols)

Cleaning brush

Accessories (not supplied)

Simple line drawing of a handheld device with no text or symbols

Bracket-Stacking kit (Part # SK-DH; SK-DA; SKK-DF)

Isometric line drawing of a rectangular electronic component with mounting holes (no text or symbols)

Stacking kit (SKK-DD, SKK-DDX)

NOTE

• The stacking kit allows the dryer to be stacked on top of a washer. Please note that the stacking kit can only be used with Samsung washers and dryers. To purchase a stacking kit (Part # SK-DH; SK-DA; SKK-DF), contact a Samsung service center or local appliance retailer. The stacking kit differs with the model.
• For stacking instructions with the dryer, see the installation manual included in the stacking kit.
• For information about model-specific availability of the stacking kit, see the installation manual included in the stacking kit.

Installation

Installation requirements

NOTE

This dryer must be installed by a qualified installer. If service is required due to poor or faulty installation, it is considered the owner's responsibility and may void the warranty. Keep these instructions for future reference.

WARNING

• Do not plug the power cord into a wall outlet before the dryer is completely installed.
• Have two or more persons help move the dryer.
• Do not let children or pets play in, on, or around the dryer. Proper supervision is necessary at all times.
• Keep all packaging materials away from children.
• Do not replace a damaged power cord or power plug yourself. Have Samsung or a qualified service technician replace a damaged power cord or power plug.
• Do not attempt to repair, disassemble, or modify the dryer. For any repairs, contact the nearest Samsung service center.
• Remove the door/lids from all discarded appliances to avoid children from suffocating.
• If the dryer generates a strange noise, burning smells, or smoke, unplug the power plug immediately and contact the nearest Samsung service center.
• Do not unplug the dryer while it is operating.
• Do not place flammable objects near the dryer.

English16

Location requirements

Select a level, well-constructed surface that will withstand vibrations. Select a location where a grounded, 3-prong outlet is easily accessible.

WARNING

• Install the dryer indoors only.
- Do not install the dryer in areas exposed to the weather.
- Do not install the dryer where the temperature may fall below 5 °C or rise above 35 °C.
- Do not install the dryer where gas may leak.
- Do not block the cooling grill's air inlet located at the dryer front.

Alcove or closet installation

For alcove or closet installation, the dryer requires the following minimum clearances:

Sides Top Front Rear
25 mm 25 mm 490 mm 51 mm

If installing the dryer with a washer, the front of the alcove or closet must have an unobstructed air opening of at least 490 mm.

Electrical and grounding requirements

• The dryer requires an AC 220-240 V 50 Hz electrical supply.
• The dryer must be properly grounded. If the dryer malfunctions or breaks down, grounding reduces the risk of electric shock by providing a path of least resistance for the electric current. The dryer comes with a power cord that has a 3-prong grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• If you have any questions regarding the electrical or grounding requirements, please contact Samsung or a qualified electrician.

WARNING

• Plug into a grounded, 3-prong outlet.
• Do not use a damaged power plug, cord, or loose or damaged wall outlet.
• Do not use an adapter or an extension cord.
• Improper connection of the equipment-grounding conductor may result in electric shock. If you are unsure if the dryer is properly grounded, check with a qualified electrician.
• Do not modify the power plug, power cord, or power outlet in any way.
• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

Installation

Dryer

Before you install the dryer, make sure you have read Installation requirements on page 16. Please note that the following instructions are for installation without using a drain hose. For instructions for using a drain hose, see the next section, Drain hose. For convenience, consider installing the dryer next to your washer.

Installation

Two identical diagrams showing a mechanical component with arrows indicating rotation, labeled C and D (no text or symbols beyond labels)

1. Gently slide the dryer into the desired location.
2. Use a level (A) and check the levelness of the dryer from side to side and front to back.
3. If the dryer is not level, adjust the levelling leg (B). Turning the leg counter-clockwise retracts the leg. Turning the leg clockwise extends the leg.
4. Once the dryer is level, make sure the dryer stands firmly on the floor.
5. Plug in the dryer.

NOTE

• To set the dryer to the same height as the washer, fully retract (C) the levelling legs by turning them counter clockwise, then loosen (D) the legs by turning them clockwise.
• Extend the levelling leg only as much as necessary. Extending the levelling leg more than necessary can cause the dryer to vibrate.

English18

Drain hose (if necessary)

Line drawing of a front view of a washing machine casing with internal components and a highlighted inset (no text or symbols)

The dryer comes with a built-in water tank. However, if you do not want to use the water tank, you may install the drain hose. The provided accessory hose (long drain hose) can be used as an extension to the drain hose.

1. Remove the drain hose from hole (A), and insert it into hole (B).

Installation

Technical diagram of a mechanical assembly with labeled component A (no text or symbols present)

Over a wash basin:

1. Insert one end of the accessory hose (long drain hose) into hole (A).

2. Insert the other end (outlet) of the accessory hose to the drainage system in one of the following ways:

3. Make sure to place the end of the accessory hose lower than 90 cm (*) from the bottom of dryer.

4. To bend some point of the accessory hose, use the supplied plastic hose guide (B) and secure the guide to the wall with a hook or to the tap with a piece of string. Assemble the drain hose (A) and the hose guide (B) and fix them with the cable-tie (C).
5. You can drain the condensed water by connecting the accessory hose (long drain hose) to the drain-outlet directly.

CAUTION

Do not extend the drain hose. Water may leak from the connected area. Use a long drain hose.

English20-

By using the drain pipe of the wash basin:

1. Assemble the hose connector (A), and attach it to the end of the accessory hose as shown.

CAUTION

To prevent water leak, make sure to connect the hose and the connector firmly.

Line drawing of a square sink with a pipe and handle, no text or symbols present

1. Connect the hose adapter directly to the drain pipe of the wash basin.

Installation

Installation checklist

• The dryer is plugged into a properly grounded outlet.
• All packaging material is completely removed and properly disposed.
• The dryer is level and standing firmly on the floor.
• Start the dryer to make sure that it runs, heats, and shuts off.
• Run a TIME DRY cycle for 20 minutes to see if the HC information code is displayed. If this is the case, contact a local service center.
  • After installation, we recommend that you wait at least 1 hour before using the dryer.

Before using the dryer

• Make sure no accessory remains inside the drum.
- Plug in the power cord just before operating the dryer.
- Do not block the air inlet hole of the cooling grill at the front of the dryer.
- Do not place inflammable objects near the dryer and keep the surroundings clean.
- Keep the dryer level with the ground.
- Do not remove the adjustable levelling legs of the dryer. They are necessary to keep the dryer level with the ground.

Door reversal

You might want to reverse the direction of the door, depending on your site conditions or to your needs.

WARNING

Make sure door reversal is performed by a qualified technician.

Type 1

Technical line drawing of a mechanical component with a circular housing and directional arrow (no text or symbols)

1. Open the door, and then loosen the two screws on the door hinge. While holding the door with both hands, slightly lift to remove it.

English22

Diagram of a mechanical component with a circular housing and a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with three circular features and directional arrows, no text or symbols present.

Diagram showing a mechanical component with two circular parts and directional arrows indicating rotation or assembly (no text or symbols)

1. Use a thin object to remove the door sealing.

2. On the inside of the door, remove the upper 3 screws and the lower 3 screws on the glass holder, and then remove the glass holder.

3. When complete, rotate the door cover by 180 degrees.

Installation

Installation

Technical illustration of two mechanical components with a directional arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical component with three circular insets showing screw holes and a central arrow (no text or labels)

Diagram of a mechanical component with an arrow indicating direction, showing a circular housing and a separate oval component (no text or symbols)

1. Insert the glass holder into the new position of the door cover. Make sure the door hinge is in the same position as in the figure.

2. Tighten the upper 3 screws and the lower 3 screws on the glass holder.

NOTE

The screw shapes differ by dimension. Make sure you tighten the correct screw.

1. Insert the door sealing in the correct position.

English24

Technical diagram of a door panel with screw fasteners and a switch, showing no text or symbols

Diagram showing a door with keyhole and coin symbols, no text or labels present

1. Remove the 2 screws that remain after removing the door hinge.

2. Loosen the 4 screws on the lever holder. Remove the lever holder, and then reinsert it to the opposite side.

3. On the opposite hinge frame, tighten the removed 2 screws in step 7 above. Note that you must tighten them on the right (top-right and bottom-right) of the frame.

Installation

Installation

Technical diagram of a mechanical component with an inset showing a close-up view of a bracket and a dashed line indicating alignment (no text or symbols present)

Technical line drawing of a mechanical component with circular housing and internal structure, no text or symbols present

1. Move the bottom screws of the door hinge to the upper side of the door hinge. Then, tighten the screws. (DV**M 5***1*/DV**M5***2*/DV**M5***3* models only)

2. Put the door hinge on the opposite side, and then tighten the 2 screws to fix the door to the dryer.

Type 2 (DV**M5***K* models)

Diagram of a mechanical device with two circular components and a directional arrow, no text or symbols present

1. Remove the door hinge, and then remove the door.
2. Remove 2 bolt-screws on the door.

English26

Technical diagram of a mechanical assembly with a magnified inset showing a screw and pin (no text or symbols)

Diagram showing two mechanical components with rotational arrows indicating motion (no text or symbols)

1. Remove 2 screws (A) from the door lever.

2. Remove 14 screws (B) from the inner holder.

3. Remove the inner-holder glass, and then turn the door cover by 180 degrees.

Installation

installation

Two mechanical components with a circular housing and an arrow indicating rotation (no text or symbols)

1. Insert the inner-holder glass into the reversed door cover.

2. Tighten the 14 screws (B) on the inner holder.

CAUTION

Make sure you tighten the screws (B) on the inner holder, not the screws (A).

1. Tighten the 2 screws (A) on the door lever.

CAUTION

Make sure you tighten the screws (A) on the door lever, not the screws (B).

English28-

Technical diagram of a mechanical component with an inset showing a close-up view of a cylindrical assembly (no text or symbols present)

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

1. Move the bottom screws of the door hinge to the upper side of the door hinge. Then, tighten the screws.

2. Fix the door hinge on the opposite side.

3. Tighten the 2 bolt-screws.

NOTE

To return the door to the initial position, follow the steps again. Please note that the door, hinges, and other parts would be in the opposite orientation as listed in these steps.

Operations

Control panel
DV9*M5****/DV8*M5****

DV7*M5*****

English30-

01 Digital Graphic Display	Displays all cycle information, including cycle time, information codes, and dryer status. See the table below for status details.
		Drying in progress		Child Lock activated/deactivated
		Cooling in progress Wrinkle Prevent
		Stop		Heat-exchanger clean alarm
		Wrinkle Prevent in progress		Sound on/off
		Check filter Mixed Load Bell
		Delay End Smart Check
		Empty the water tank
02 Cycle Selector	Turn the dial to select a cycle. See theCycle overviewon page 33for available cycles.
03 Wrinkle Prevent	Adds approximately 2 hours of intermittent tumbling at the end of the selected cycle to reduce wrinkles. A large circle appears in display panel, and the drum rotates intermittently. To activate, press Wrinkle Prevent. The corresponding indicator lights up.
04 Dry Level	Press to select the dryness level in theSHIRTS TOWELS , COTTON MIXED LOAD and SYNTHETICS cycles. The dryness can be set in three levels (1-3). Level 1 is used to partially dry items that lay flat or hang to dry. Level 3 is the strongest and is used to dry larger or bulk loads.
05 Time	Press to adjust the cycle time forTIME DRY, WARM AIR and COOL AIR cycles.The following time options (unit: minute) are available: 30, 60, 90, 120, and 150.• 120 minutes and 150 minutes are not available forWARM AIR and COOL AIR cycles.• The exact drying time differs depending on the humidity of the load.

Operations

06 Mixed Load Bell	This alarm is available only with SHIRTS 📁, COTTON , MIXED LOAD 📋, and SYNTHETICS 🕒cycle. If a load contains mixed fabrics, the Mixed Load Bell indicator ( )blinks when the average dryness of the item is 80 % dry. This lets you take items that you don't want fully dried or that dry quickly out of the dryer early while letting others continue to dry.
07 Lamp(DV9*M5*****/DV8*M5***** )	Press to turn on or off the interior lamp. The lamp stays lit for 5 minutes after it has turned on, and then turns off automatically.
08 Smart Check(DV7*M5***** )	If the dryer has detected an issue, Smart Check allows you to check the status of the dryer using a smart phone.
09 Sound On/Off	Press to mute/unmute the sound of the control panel. The sound setting is retained when you turn the dryer off and turn it on again.
10 Delay End	You can adjust the finish time of the selected cycle in 1-hour increments all the way up to 24 hours.
11 Start/Pause	Press to start or pause a cycle. If the dryer is running, press the button once to pause the dryer. Press again to resume.
12 Power	Press to turn the dryer on/off. If the dryer turns on for 10 minutes without any button being pressed, the dryer automatically turns off.

English32

Cycle overview

Cycle Description	Use to quickly dry one item such as a shirt. 4
SHIRTS 📋	This cycle finishes the drying process in a moist state, which facilitates ironing.	4
IRON DRY 📋
DELICATES 📌	For items to be handled with care such as lingerie. 2
WOOL 📌	For machine washable and tumble dryable wool only. For best results, turn laundry inside out before drying.	2
TOWELS 📌	Use to dry loads such as bath towels. 6
BEDDING 📌	For bulky items such as blankets, sheets, comforters, and light duvets.	2
OUTDOOR CARE 📌	For outdoor wear such as skiwear and mountain clothing, and also for fabrics such as spandex, stretch, and microfiber. It is recommended to use this cycle after you have washed your laundry using the OUTDOOR CARE 📌cycle with your washing machine.	2
COOL AIR 📌	All types of fabric. For freshening up or airing items of laundry that have not been worn for long.	-
WARM AIR 📌	For small, pre-dried items. The dry time defaults to 30 minutes.Timed cycle for all types of fabric except for wool and silk. Dry laundry that is still slightly damp or has already been pre-dried. Also suitable for the subsequent drying of multi-layered, thick laundry that does not dry readily.NOTEThis cycle is suitable for drying individual woollen fabrics, sports shoes and soft toys. Only dry these using the basket for woollens.	-

Operations

Cycle Description	Use to set a desired dry time.1. Turn the Cycle Selector to select TIME DRY2. Press Time to set the drying time between 30 minutes and 150 minutes. Keep pressing Time cycles through the available time options in 30-minute increments.NOTEThe actual cycle time may differ depending on the dryness of items.	Max load (kg)
TIME DRY	For drying light cotton synthetics or items that needs quick drying. The default dry time is 35 minutes.	-
QUICK DRY 35'	For lightly soiled blouses, and shirts that are made of polyester (Diolen, Trevira), polyamide (Perlon, nylon), or other similar blends.	1
SYNTHETICS	For mixed loads consisting of cotton and synthetic fabrics.	4
MIXED LOAD	For lightly cottons, bed linen, table linen, underwear, towels, and shirts.	Max
COTTON	For lightly cottons, bed linen, table linen, underwear, towels, and shirts.	Max

English34

Cycle chart

NOTE

For best results, follow the load size recommendations for each dry cycle.

• Large load: Fill the drum to about 34 full. Do not add items over this level as they need to tumble freely.
  • Medium load : Fill the drum to about 12 full.
• Small load: Fill the drum with 3-5 items, not more than 14 full.

Cycle Recommended items Load size Dry Level
SHIRTS	Non-iron shirts or blouses made of cotton, linen, synthetic fibres or blended fabrics.	4	Available
IRON DRY	This cycle finishes the drying process in a moist state, which facilitates ironing.	4	Unavailable
DELICATES	Silk, fine fabrics and lingerie.	2	Unavailable
WOOL	For machine washable and tumble dryable wool only.	2	Unavailable
TOWELS	Use to dry loads such as bath towels.	6	Available
BEDDING	For bulky items such as blankets, sheets, comforters, and light duvets.	2	Unavailable
OUTDOOR CARE	For outdoor wear such as skiwear and mountain clothing, and also for fabrics such as spandex, stretch, and microfiber.	2	Unavailable
COOL AIR	All types of fabric. For freshening up or airing items of laundry that have not been worn for long.	- Unavailable
WARM AIR	Small Items & damp clothing Everyday items suitable for heat drying	- Unavailable
TIME DRY	All types of fabric; time programme. - Unavailable
QUICK DRY 35'	Synthetics and light cottons	1	Unavailable
SYNTHETICS	Synthetic or blended fabrics.	4	Available
MIXED LOAD	Mixed load consisting of cotton and synthetic fabrics	7, 8, 9	Available
COTTON	For lightly cottons, bed linen, table linen, underwear, towels, and shirts.	7, 8, 9	Available

Operations

Getting started

Simple steps to start

1. Press ⏻ Power to turn the dryer on.
2. Load the dryer and close the door.
3. Turn the Cycle Selector to select a cycle.
4. Change the cycle settings (☀️ Dry Level, and 📋 Time) as necessary.
5. Select necessary settings and options to your preference. (Wrinkle Prevent, Lamp, Mixed Load Bell, and/or Delay End).
6. Press ▷I Start/Pause. The dryer indicator lights up, and the estimated cycle time appears on the display.

NOTE

The number of available settings and options differs with the cycle.

To change the cycle during operation

1. Press ▷|Start/Pause to stop operation.
2. Select a different cycle.
3. Press and hold ▷ll Start/Pause to start new cycle.

Sorting and loading

• Put only one wash load in the dryer at a time.
• Avoid mixing heavy and lightweight items together.
• To increase drying efficiency when drying one or two items, add a dry towel to the load.
• For best results, untangle items before inserting into the dryer.
  • Overloading restricts the tumbling process, resulting in uneven drying and wrinkling.
• Unless recommended on the care label, avoid drying woolens or fiberglass items.
• Avoid drying unwashed items.
• Do not dry items soiled with oil, alcohol, gasoline, etc.

English36

Rack Dry (applicable models only)

Set the drying time up to 150 minutes according to the moisture and weight of the items to dry. When drying laundry using the drying rack, the TIME DRY cycle is recommended.

Line drawing of a car rear bumper with decorative patterned backrest and side door (no text or symbols)

A. Rack dry

1. Position the drying rack in the drum, inserting the front lips of the rack into the holes of the door diaphram.
2. Place items on the rack, leaving enough space where air can circulate. For clothing items, fold and place flat on the rack. For shoes, place shoes with their soles facing down.
3. Close the door and press ⏻ Power. Select TIME DRY 📋, and then press 🔔 Time to select the drying time.
4. Press ▷I Start/Pause.

Operations

Drying suggestions

Items (max 1.5 kg) Description
Washable sweaters (block to shape and lay flat on rack)	When drying the laundry using the rack, fold and place the clothes on the rack to prevent the clothing from becoming wrinkled.
Stuffed toys (cotton or polyester fiber filled)
Stuffed toys (foam or rubber-filled)
Foam rubber pillows
Sneakers To dry sports shoes, place the shoes	on the rack so that the soles of the shoes are facing downwards.

CAUTION

• Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the items and lead to a fire hazard.
  • To prevent damage to shoes, use Dry Rack.

English38

Cycle guide

Always follow the care label when drying. If care label instructions are not available, refer to the following table.

Bedspreads and comforters	• Use the High temperature settings.
Blankets • For best results	, dry only one blanket at a time.
Cloth diapers • Use the H	gh temperature settings.
Down-filled items	• Do not dry on a heat setting. Doing so may cause a fire hazard. Only use the COOL AIR cycle.
Foam rubber (rug backs, stuffed toys, etc.)	• Do not dry on a heat setting. Doing so may cause a fire hazard. Only use the COOL AIR cycle.
Pillows • Add a few dry to	towels to help tumble and fluff items.• Do not dry kapok or foam pillows with heat. Use only the COOL AIR cycle.
Plastics (shower curtains, outdoor furniture covers, etc.)	• Use COOL AIR or TIME DRY• Set the dry level to lower or the lowest.

CAUTION

Do not use the dryer to dry items that are not listed above.

Operations

Special features

Delay End

You can set the dryer to complete a selected cycle at your set time.

1. Select a cycle with necessary options.
2. Press 🔒 Delay End repeatedly to set a time between 1 hours and 24 hours in 1-hour increments.
3. Press ▷| Start/Pause. The corresponding indicator blinks, and the clock begins counting down to the set time.

NOTE

To cancel the Delay End settings, restart the dryer using the ⏻ Power button.

Child Lock

Child Lock prevents children from playing with the dryer. When Child Lock is activated, all buttons except for the ⏻ Power button are disabled. To activate/deactivate Child Lock, simultaneously press and hold 📋 Mixed Load Bell and Smart Control or 🌐 Wrinkle Prevent and 🌐 Dry Level for 3 seconds.

NOTE

If Child Lock is activated, and the dryer is turned off and then on again, Child Lock remains activated.

Smart Check

If the dryer has detected an issue, Smart Check allows you to check the status of the dryer using a smartphone. Please note that Smart Check can only be used for Galaxy and iPhone series smartphones.

To use Smart Check, make sure you have downloaded the Samsung Smart Washer/Dryer app, and then follow the steps below.

1. Press and hold 📋 Time and 📋 Mixed Load Bell for 3 seconds or press 🔒 Smart Check. The LED's on the display panel rotate, and the Smart Check code is displayed.

2. On the smartphone, open the Samsung Smart Washer/Dryer app and tap the 🔒 Smart Check button.

3. Focus the smartphone's camera on the Smart Check code shown on the display panel.

4. If the information code is recognized, the app provides detailed information for the issue and further instructions.

NOTE

• If the dryer reflects light on the display, the smartphone may fail to recognize the information code.
• If the smartphone fails to recognize the code, manually enter the information code into the smartphone.

English40

Maintenance

WARNING

• Do not clean the dryer by directly spraying water onto the dryer.
• Do not clean the dryer with benzene, thinner, alcohol, or acetone. This may cause discoloration, deformation, damage, electric shock, or fire.
• Before cleaning the dryer, be sure to unplug the power cord.

Control panel

Clean with a soft, damp cloth. Do not use abrasive cleaners. Do not spray cleaners directly on the panel. Immediately wipe up any spills or liquids from the control panel.

Exterior

Clean with a soft, damp cloth. Do not use abrasive cleaners. Avoid using or placing sharp or heavy objects near/on the dryer. Keep detergent and laundry supplies on the pedestal (sold separately) or in a separate storage container.

Drum

Clean with a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel. Wipe remaining residue with a clean, dry cloth.

Lint filter

Clean the lint filter after each load.

Diagram of a car interior with a mounted device and upward arrow indicating motion (no text or symbols)

1. Open the door and pull the lint filter upward to remove.

Maintenance

Technical diagram of a mechanical device with labeled component A and directional arrows indicating motion (no text or symbols beyond label)

Diagram showing two steps of a toilet or sink opening process, with no text or symbols present.

Diagram of a device with internal components and directional arrows indicating flow or movement (no text or symbols)

1. Open the outer filter and remove the inner filter (A).

2. Unfold both the inner filter and the outer filter.

3. Remove the lint from both filters, and then clean the filters with the cleaning brush.

NOTE

To clean the filters thoroughly, clean the filters in running water, and then dry them completely.

1. Put the inner filter into the outer filter, and then reinsert the lint filter into the original position.

CAUTION

• Clean the lint filter after each load. Otherwise, the drying performance may decrease.
• Do not operate the dryer without the inner filter inside the outer filter.
• Using the dryer with a wet lint filter may cause mold, bad odors, or a decrease in drying performance.

English42

Water tank

To avoid leaks, empty the water tank after every load.

1. Using both hands, pull the water tank (A) forward to remove.

Technical line drawing of a mechanical component with labeled point B (no text or symbols beyond label)

1. Empty the water through the drain hole (B) and place the water tank back into place.

NOTE

If you empty the water tank and press ▷ll Start/Pause, the corresponding indicator turns off.

Maintenance

Heat exchanger

Clean the heat exchanger at least once a month. (or When the Buzzer rings and the heat exchanger indicator lights up on the display.)

1. Gently press the top part of the outer cover (A) to open.

Diagram of a door latch mechanism with two clips and a label B, no text or symbols present

1. Unlock the fixers (B).

Diagram of a device being inserted into a tray, showing internal components and a black arrow indicating direction (no text or symbols)

1. Remove the inner cover (C).

English44

Diagram of a microwave oven with a brush applying material inside (no text or symbols)

Illustration of a mechanical component with a cloth hanging from its side (no text or symbols)

Diagram of a device component with an arrow indicating assembly or insertion, no text or symbols present

1. Clean the heat exchanger with the provided cleaning brush or a vacuum cleaner with a brush attachment. Take care not to bend or damage the heat exchanger fins when cleaning. This may lead to a decrease in drying performance.

CAUTION

• To avoid physical injury and burns, do not touch or clean the heat exchanger with bare hands.

• Do not use water to clean the heat exchanger.

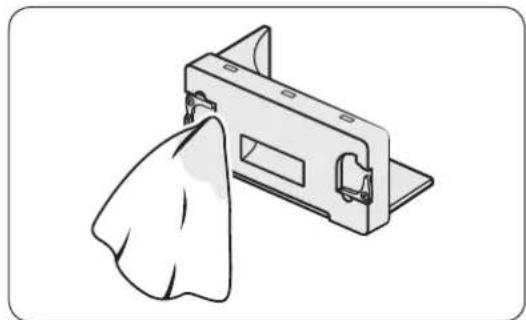

• Clean the inner cover with a smooth, damp cloth.

• Reinsert the inner cover to its original position, and then lock the fixers.

• Close the outer cover.

NOTE

After cleaning, make sure the fixers are locked.

Troubleshooting

Checkpoints

If you encounter an issue with the dryer, first check the table below and try the suggestions.

Symptom Action
Dryer does not run	Make sure the door is completely closed.Make sure the power cord is plugged in.Check the home's circuit breaker and fuses.Empty the water tank.Clean the lint filter.
Dryer does not heat	Check the home's circuit breaker and fuses.Select a heat setting other than COOL AIRCheck the lint filter and heat exchanger filter. Clean them if necessary.Dryer may be in the cool-down phase of the cycle.
Dryer does not dry	Check the above, plus...Make sure the dryer is not overloaded.Sort light and heavy items separately.Reposition large, bulky items to ensure even drying.Check that the dryer is draining properly.For small loads, add a few dry towels.Clean the lint filter and heat exchanger filter.
Dryer is noisy	Check for coins, buttons, lighters, etc.Make sure the dryer is level and standing firmly on the floor.The dryer may hum due to air moving through the drum and fan. This is normal.
Dries unevenly	Seams, pockets, and other parts of clothing are harder to dry than others. This is normal.Sort heavy and light items separately.
Dryer emits an odor	The dryer may draw household odors in from the surrounding air and then exhaust them. This is normal.
Dryer turns off before the load is dry	Dryer load is too small. Add more items and restart the cycle.Dryer load is too large. Remove items and restart the cycle.

English46

Symptom Action
Lint on clothes	Make sure the lint filter is clean before every load.Dry lint-producing items (fuzzy towels) separate from lint trappers, such as black linen pants.Divide larger loads into smaller loads.
Items still wrinkled after Wrinkle Prevent	Small loads of 1-4 items work best.Load fewer items. Load similar type items.
Odors remain in items after Cool Air	Make sure to thoroughly wash items with strong odors.

Information codes

If the dryer fails to operate, you may see an information code on the display. Check the table below and try the suggestions.

Information code	Meaning Action
tC Air temperature	sensor issue	Clean the lint filter and/or heat exchanger filter. If this continues, call for service.
tC5	Compressor temperature sensor issue	Wait 2-3 minutes. Turn the power on and restart.
dC	Running the dryer with door open	Close the door and restart.If this continues, call for service.
HC Compressor overheat	Call for service.
9C2 Low voltage detected		Check if the power cord is plugged in. If this continues, call for service.
5C	Water tank fullDrain pump is out of order	Empty the water tank, turn the power on, and restart. If this continues, call for service.
FIL+tEr (Buzzer rings)	Heat exchanger needs to be cleaned	Clean the heat exchanger.

For any codes not listed above, or if the information code continues to appear, call for service.

Appendix

Fabric care chart

The following symbols provide garment care direction. The Clothing care labels include symbols for drying, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems.

Wash cycle

	Normal
	Permanent Press / WrinkleResistant / Wrinkle Control
	Gentle / Delicates
	Hand Wash

Water Temperature**

●●●	Hot
●●	Warm
●	Cold

NOTE

** The dot symbols represent appropriate wash water temperatures for various items. The temperature range for Hot is 41-52 °C, for Warm 29-41 °C and for Cold 16-29 °C. (Wash water temperature must be a minimum of 16 °C for detergent activation and effective cleaning.)

Bleach

	Any Bleach (when needed)
	Only Non-Chlorine (color-safe) Bleach (when needed)
	Tumble Dry Cycle

Normal

	Permanent Press / WrinkleResistant / Wrinkle Control
	Gentle/ Delicates

Special instructions

	Line Dry / Hang to Dry
	Drip Dry
	Dry Flat

Heat setting

	High
	Medium
	Low
	Any Heat
	No Heat/Air

English48-

Iron dry or steam temperatures

	High
	Medium
	Low

Warning symbols for laundering

	Do Not Wash
	Do Not Wring
	Do Not Bleach
	Do Not Tumble Dry
	No Steam (added to iron)
	Do Not Iron

Dry-clean

	Dry-clean
	Do Not dry-clean
	Line Dry/ Hang to Dry
	Drip Dry
	Dry Flat

Protecting the environment

This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance.

Appendix

Specification

Line drawing of a front-loading washing machine with control panel and side panel (no text or symbols)

DV9*M52****, DV8*M52****, DV7*M52****

TYPE FRONT LOADING DRYER
DIMENSIONS	A 600 mm
	B 850 mm
	C 600 mm
	D 640 mm
	E 1095 mm
WEIGHT 50 kg
ELECTRICAL REQUIREMENTS	220-240 V / 50 Hz	550-600 W
ALLOWABLE TEMPERATURE 5-35 °C

English50-

DV9*M50****, DV8*M50****, DV7*M50****

TYPE FRONT LOADING DRYER
DIMENSIONS	A 600 mm
	B 850 mm
	C 600 mm
	D 640 mm
	E 1095 mm
WEIGHT 50 kg
ELECTRICAL REQUIREMENTS	220-240 V / 50 Hz	750-850 W
ALLOWABLE TEMPERATURE 5-35 °C

Appendix

Consumption data

Model Program Load (kg)* Energy (kWh)				Max. Duration(Minutes)
DV9*M52****	COTTON 📋♀**	9 1.56 188
		4.5 0.9 130
	IRON DRY 📋**	9 1.1 130
	SYNTHETICS 📁	4.5 0.71 86
DV8*M52****	COTTON 📋♀**	8 1.43 169
		4 0.8 120
	IRON DRY 📋**	8 1.02 118
	SYNTHETICS 📁	4 0.65 80
DV7*M52****	COTTON 📋♀**	7 1.26 148
		3.5 0.73 110
	IRON DRY 📋**	7 0.94 108
	SYNTHETICS 📁	3.5 0.61 75

*: Weight of dry laundry
**: EN 61121:2013 test program

All data without a "star" against it was calculated using EN 61121:2013

Consumption data can vary from the nominal values given above depending in the size of the load, types of textiles, residual moisture levels after spinning, fluctuations in the electricity supply and any extra options selected.

English52

Model Program Load (kg)* Energy (kWh)				Max. Duration(Minutes)
DV9*M50****	COTTON 📄♀**	9 2.20 190
		4.5 1.12 130
	IRON DRY 📄**	9 1.70 155
	SYNTHETICS 📄	4.5 0.85 78
DV8*M50****	COTTON 📄♀**	8 1.87 170
		4 1.10 125
	IRON DRY 📄**	8 1.54 140
	SYNTHETICS 📄	4 0.78 72
DV7*M50****	COTTON 📄♀**	7 1.67 150
		3.5 1.00 120
	IRON DRY 📄**	7 1.43 130
	SYNTHETICS 📄	3.5 0.67 68

* : Weight of dry laundry
**: EN 61121:2013 test program
All data without a "star" against it was calculated using EN 61121:2013
Consumption data can vary from the nominal values given above depending in the size of the load, types of textiles, residual moisture levels after spinning, fluctuations in the electricity supply and any extra options selected.

Appendix

Sheet of household tumble driers

Data sheet for Domestic Tumble Driers

As detailed in EU regulation No. 392/2012

NOTE

"*" Asterisk(s) means variant model and can be varied (0-9) or (A-Z).

Samsung
Model Name DV7*M52**** DV8*M52**** DV9*M52****
Capacity kg 7 8 9
Type Condenser Condenser Condenser
Energy Efficiency
A+++ (highest efficiency) to D (least efficient) A+++ A+++ A+++
Energy Consumption
Annual Energy Consumption (AE_C)1)	kWh/yr 158.0 176.0 194.0
Automatic tumble drier Yes Yes Yes
Energy consumption (E_dry) standard cotton programme at full load	kWh 1.26	1.43 1.56
Energy consumption (E_dry.1/2) standard cotton programme at partial load	kWh 0.73	0.80 0.90
off mode and left-on mode
The power consumption off-mode (P_o) at full load	W	0.50	0.50	0.50
The power consumption in left-on mode (P_I) at full load	W	5.00 5.00	5.00
Duration of the left-on mode	min	10	10	10
Programme to which the information on the label and the Sheet relate2)		Cotton + Dry Level 2 + (Wrinkle Prevent off)
programme duration of the standard program
Weighted Programme time standard cotton programme at full load and partial load	min	126	141	155
Programme Time (T_dry) standard cotton programme at full load	min	148	169	188
Programme Time (T_dry.1/2) standard cotton programme with partial load	min	110	120	130
condensation efficiency class
A (most efficient) to G (least efficient)		B	B	B
Average condensation efficiency at full load	%	81	81	81
Average condensation efficiency at partial load	%	81	81	81
Weighted condensation efficiency	%	81	81	81
Airborne noise emissions
Dry at full load	dB (A) re 1 pW	65	65	65
Name of company		Samsung Electronics Co., Ltd.

English54

Samsung
Model Name DV7*M50**** DV8*M50**** DV9*M50****
Capacity kg 7 8 9
Type Condenser Condenser Condenser
Energy Efficiency
A+++ (highest efficiency) to D (least efficient) A++ A++ A++
Energy Consumption
Annual Energy Consumption (AE_C)1	kWh/yr 211	0 235.0 258.0
Automatic tumble drier Yes Yes Yes
Energy consumption (E_dry) standard cotton programme at full load	kWh 1.67	1.87 2.20
Energy consumption (E_dry.1/2) standard cotton programme at partial load	kWh 1.00	1.10 1.12
off mode and left-on mode
The power consumption off-mode (P_o) at full load	W	0.50 0.50	0.50
The power consumption in left-on mode (P_l) at full load	W	5.00 5.00	5.00
Duration of the left-on mode	min	10	10	10
Programme to which the information on the label and the Sheet relate2		Cotton + Dry Level 2 + (Wrinkle Prevent off)
programme duration of the standard program
Weighted Programme time standard cotton programme at full load and partial load	min	133	144	156
Programme Time (T_dry) standard cotton programme at full load	min	150	170	190
Programme Time (T_dry.1/2) standard cotton programme with partial load	min	120	125	130
condensation efficiency class
A (most efficient) to G (least efficient)		B	B	B
Average condensation efficiency at full load	%	81	81	81
Average condensation efficiency at partial load	%	81	81	81
Weighted condensation efficiency	%	81	81	81
Airborne noise emissions
Dry at full load	dB (A) re 1 pW	65	65	65
Name of company		Samsung Electronics Co., Ltd.

English 55

Appendix

NOTE

1. Energy consumption is measured as the annual 9 kg 258 kWh (8 kg 235 kWh) used per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
2. 'standard cotton programme' used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton. Consumption data can vary from the nominal values given above depending in the size of the load, types of textiles, residual moisture levels after spinning, fluctuations in the electricity supply and any extra options selected.

English56

Memo

Memo

Memo

SAMSUNG

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
DENMARK 707 019 70 www.samsung.com/dk/support
FINLAND 030-6227 515 www.samsung.com/fi/support
NORWAY 21629099 www.samsung.com/no/support
SWEDEN 0771 726 786 www.samsung.com/se/support

Varmepumpetørretumbler

Brugervejledning

DV9*M52****/DV8*M52****/DV7*M52****/DV9*M50****/

DV8*M50****/DV7*M50****

SAMSUNG

Indhold

Installationskrav 15

Tørretumbler 17

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Simple line drawing of a curved mechanical component (no text or symbols)

Simple line drawing of a curved object resembling a stylized bar or clamp (no text or symbols)

Simple line drawing of a bulb-like object with a flared top and rounded base (no text or symbols)

Slangeholder Kabelbinder Slangetilslutning

Simple line drawing of a coiled tube or hose with two connectors (no text or symbols)

Simple line drawing of a closed book with a blank cover (no text or symbols)

Brugervejledning

Simple line drawing of a rectangular container with internal grid pattern (no text or symbols)

Simple line drawing of a pen-like object with a loop handle (no text or symbols)

Rengøringsbørste

Simple line drawing of a mechanical component or bracket (no text or symbols)

Stablingssæt med beslag (del nr. SK-DH; SK-DA; SKK-DF)

Isometric line drawing of a rectangular electronic component with mounting holes (no text or symbols)

Stablingssæt (SKK-DD, SKK-DDX)

BEMÆRK

Two identical diagrams showing a mechanical component with arrows indicating rotation, labeled C and D (no text or symbols beyond labels)

Line drawing of a washing machine casing with internal components and a magnified inset showing internal wiring (no text or symbols)

Technical diagram of a mechanical assembly with labeled component A (no text or symbols beyond label)

Over en vaskekumme:

Line drawing of a square sink with a pipe fitting and a handle, no text or symbols present

1. Slut slangeadapteren direkte til vaskekummens afledningsslange.

Dansk20-

Technical line drawing of a mechanical component with a circular housing and directional arrow (no text or symbols)

Diagram of a mechanical component with a black arrow indicating rotation or assembly (no text or symbols present)

Diagram showing a mechanical device with a rotating ring and clamping mechanism, no text or symbols present

Technical illustration of two mechanical components with a directional arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with three circular insets showing screw placements and a black arrow indicating direction (no text or symbols present)

Diagram of a mechanical component with an arrow indicating rotation or assembly (no text or symbols present)

Diagram of a door panel with screw fasteners and a switch, showing no text or symbols

Diagram showing a door with coins and a keyhole, pointing downward (no text or symbols)

Technical diagram of a mechanical component with an inset showing a close-up view of a bracket detail (no text or symbols present)

Technical line drawing of a mechanical component with circular housing and internal structure, no text or symbols present

Type 2 (modellerne DV**M5***K*)

Diagram of a mechanical device with two circular components and a directional arrow, no text or symbols present

Diagram showing a mechanical component rotating around a circular ring with directional arrows (no text or symbols)

Two mechanical components with a circular housing and an arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

Diagram of a washing machine with circular components and a black arrow indicating direction (no text or symbols)

Line drawing of a car rear bumper with decorative patterned backrest and door panel (no text or symbols)

A. Tørrehylde

Diagram of a car interior with a mounted device and upward arrow indicating motion (no text or symbols)

Technical diagram of a mechanical device with labeled component A and directional arrows indicating motion (no text or symbols beyond label)

Diagram showing two steps of a toilet withdrawal mechanism, with no text or symbols present.

Diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with labeled point B (no text or symbols beyond label)

Diagram of a door latch mechanism with two clips and a labeled component (B), no text or symbols present.

Diagram of a device being inserted into a tray, showing internal components and a black arrow indicating direction (no text or symbols)

Diagram of a microwave oven with a brush applying material inside (no text or symbols)

Illustration of a mechanical component with a cloth hanging from its side (no text or symbols)

Diagram of a device casing with an arrow indicating assembly or insertion, no text or symbols present

●●●	Lunken
●●	Varm
●	Kold

BEMÆRK

Line drawing of a front-loading washing machine with control panel and side panel (no text or symbols)

DV9*M52****, DV8*M52****, DV7*M52****

TYPE		T∅RRETUMBLER MED PÅFYLDNING FRA FORSIDEN
DIMENSIONER	A 600 mm
	B 850 mm
	C 600 mm
	D 640 mm
	E 1095 mm
VÆGT 50 kg
ELEKTRISKE KRAV	220-240 V / 50 Hz	550-600 W
TILLADT TEMPERATUR 5-35 °C

Dansk48-

DV9*M50****, DV8*M50****, DV7*M50****

TYPE		T∅RRETUMBLER MED PÅFYLDNING FRA FORSIDEN
DIMENSIONER	A 600 mm
	B 850 mm
	C 600 mm
	D 640 mm
	E 1095 mm
VÆGT 50 kg
ELEKTRISKE KRAV	220-240 V / 50 Hz	750-850 W
TILLADT TEMPERATUR 5-35 °C

Appendiks

Forbrugsdata

Model Program Belastning (kg)* Energi (kWh)				Maks. varighed (minutter)
DV9*M52****	BOMULD 📄♀**	9 1,56 188
		4,5 0,9 130
	STRYGET∅RT 📄**	9 1,1 130
	SYNTETISK 📄	4,5 0,71 86
DV8*M52****	BOMULD 📄♀**	8 1,43 169
		4 0,8 120
	STRYGET∅RT 📄**	8 1,02 118
	SYNTETISK 📄	4 0,65 80
DV7*M52****	BOMULD 📄♀**	7 1,26 148
		3,5 0,73 110
	STRYGET∅RT 📄**	7 0,94 108
	SYNTETISK 📄	3,5 0,61 75

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Simple line drawing of a curved mechanical component (no text or symbols)

Simple line drawing of a curved object resembling a stylized bar or clamp (no text or symbols)

Simple line drawing of a bulb-like object with a flared top and rounded base (no text or symbols)

Simple line drawing of a coiled tube or hose with two connectors (no text or symbols)

Simple line drawing of a closed book with a blank cover (no text or symbols)

Simple line drawing of a rectangular container with internal grid pattern (no text or symbols)

Simple line drawing of a pen-like object with a looped tip (no text or symbols)

Puhdistusharja

Simple line drawing of a mechanical component or bracket (no text or symbols)

Isometric line drawing of a rectangular electronic component with mounting holes (no text or symbols)

Väliasennussarja

(Osanro SK-DH; SK-DA; SKK-DF)

Two identical diagrams showing a mechanical component with arrows indicating rotation, labeled C and D (no text or symbols beyond labels)

Line drawing of a washing machine casing with internal components and a magnified inset showing internal wiring (no text or symbols)

Technical diagram of a mechanical assembly with labeled component A (no text or symbols beyond label)

Pesualtaan päälle:

Line drawing of a square sink with a pipe fitting and a handle, no text or symbols present

Technical line drawing of a mechanical component with a circular housing and directional arrow (no text or symbols)

Diagram of a mechanical component with a black arrow indicating rotation or assembly (no text or symbols present)

Diagram showing a mechanical device with a circular component and a rotating ring, both with directional arrows indicating rotation (no text or symbols present)

Technical illustration of two mechanical components with a directional arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with three circular features and a black arrow indicating direction (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, showing a circular housing and a separate oval component (no text or symbols)

Diagram of a door panel with screwdrivers and a switch, showing no text or symbols

Diagram showing a door with a keyhole and coin slot, pointing at it (no text or symbols present)

Technical diagram of a mechanical component with an inset showing a close-up view of a bracket detail (no text or symbols present)

Diagram of a mechanical component with circular housing and internal structure, showing a black arrow indicating direction (no text or symbols)

Diagram of a mechanical device with two circular components and a directional arrow, no text or symbols present

1. Irrota luukun vivun 2 ruuvia (A).

1. Irrota sisäpidikkeen 14 ruuvia (B).

Diagram showing a mechanical component rotating around a circular ring with directional arrows (no text or symbols)

Two mechanical components with a circular housing and an arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

Diagram of a washing machine with circular components and an arrow indicating direction (no text or symbols)

Line drawing of a car rear bumper with decorative patterned backrest and side-mounted buttons (no text or symbols)

A. Kuivausteline

Diagram of a car interior with a mounted device and upward arrow indicating motion (no text or symbols)

Technical diagram of a mechanical device with labeled components and directional arrows (no text or symbols)

Illustration of a bathroom sink with an open drawer and a showerhead, showing four different steps (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with labeled point B (no text or symbols beyond label)

Diagram of a door latch with two hanging clips and a labeled component (B), no text or symbols present.

Diagram of a device with a labeled component 'C' and an arrow indicating direction (no text or symbols present)

Diagram of a grater inside a container with a toothbrush touching the interior (no text or symbols)

Illustration of a mechanical component with a cloth hanging from its side (no text or symbols)

Diagram of a device being inserted into a housing, showing internal components and an arrow indicating insertion (no text or symbols present)

Suomi44

Vianetsintä

Line drawing of a front-loading washing machine with control panel and side panel (no text or symbols)

DV9*M52****, DV8*M52****, DV7*M52****

TYPPI EDESTÄ TÄYTETTÄVÄ		KUIVAUSRUMPU
MITAT	A 600 mm
	B 850 mm
	C 600 mm
	D 640 mm
	E 1095 mm
PAINO 50 kg
SÄHKÖVAATIMUKSET	220-240 V / 50 Hz	550-600 W
SALLITTU LÄMPÖTILA 5-35 °C

Liite

DV9*M50****, DV8*M50****, DV7*M50****

TYPPI EDESTÄ TÄYTETTÄVÄ		KUIVAUSRUMPU
MITAT	A 600 mm
	B 850 mm
	C 600 mm
	D 640 mm
	E 1095 mm
PAINO 50 kg
SÄHKÖVAATIMUKSET	220-240 V / 50 Hz	750-850 W
SALLITTU LÄMPÖTILA 5-35 °C

Suomi50-

Kulutusarvot

Malli Ohjelma Täyttömäärä (kg)* Energia (kWh)				Enimmäiskesto(minuuteissa)
DV9*M52****	PUUVILLA 📄♀**	9 1,56 188
		4,5 0,9 130
	SILITYSKUIVA 📋*	9 1,1 130
	SYNTEETTISET 📁	4,5 0,71 86
DV8*M52****	PUUVILLA 📄♀**	8 1,43 169
		4 0,8 120
	SILITYSKUIVA 📋*	8 1,02 118
	SYNTEETTISET 📁	4 0,65 80
DV7*M52****	PUUVILLA 📄♀**	7 1,26 148
		3,5 0,73 110
	SILITYSKUIVA 📋*	7 0,94 108
	SYNTEETTISET 📁	3,5 0,61 75

KYSYMYKSET JA KOMMENTIT

MAA SOITA	TAI VIERAILE VERKKOSIVUILLAMME
DENMARK 707	019 70 www.samsung.com/dk/support
FINLAND 030-	6227 515 www.samsung.com/fi/support
NORWAY 2162	29099 www.samsung.com/no/support
SWEDEN 0771	726 786 www.samsung.com/se/support

CE

DC68-03794D-05

Varmepumpetørker

Brukerhåndbok

DV9*M52****/DV8*M52****/DV7*M52****/DV9*M50****/DV8*M50****/DV7*M50****

SAMSUNG

Innhold

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Simple line drawing of a curved mechanical bracket or clamp (no text or symbols)

Simple line drawing of a curved object resembling a stylized bar or clamp (no text or symbols)

Simple line drawing of a bulb-like object with a flared top and rounded base (no text or symbols)

Slangeholder Kabelfeste Slangekobling

Simple line drawing of a coiled tube or hose with two connectors (no text or symbols)

Simple line drawing of a closed book with a blank cover (no text or symbols)

Brukerhändbok

Simple line drawing of a rectangular container with internal grid pattern (no text or symbols)

Simple line drawing of a pen-like object with a loop handle (no text or symbols)

Rengjøringsbørste

Simple line drawing of a mechanical component or bracket (no text or symbols)

Sett for brakettstabling
(Delenr. SK-DH; SK-DA; SKK-DF)

Isometric line drawing of a rectangular electronic component with mounting holes (no text or symbols)

Stablesett
(SKK-DD, SKK-DDX)

MERK

Two identical diagrams showing a mechanical component with arrows indicating rotation, labeled C and D (no text or symbols beyond labels)

Line drawing of a washing machine casing with internal components and a magnified inset showing internal wiring (no text or symbols)

Technical diagram of a mechanical assembly with labeled component A (no text or symbols beyond label)

Line drawing of a square sink with a pipe fitting and a handle, no text or symbols present

1. Koble slangeadapteren direkte til avløpsrøret på vasken.

Norsk20-

Technical line drawing of a mechanical component with a circular housing and directional arrow (no text or symbols)

Diagram of a mechanical component with a black arrow indicating rotation or assembly (no text or symbols present)

Diagram of a circular mechanical or biological structure with internal components and directional arrows, no readable text or symbols present.

Diagram showing a mechanical device with a circular component and a rotating ring, both with directional arrows indicating rotation (no text or symbols present)

Technical illustration of two mechanical components with a directional arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with three circular features and a black arrow indicating direction (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, showing a circular housing and a separate oval component (no text or symbols)

Diagram of a door panel with screwdrivers and a switch, showing no text or symbols

Diagram showing a door with a keyhole and coin slot, pointing to a black arrow (no text or symbols)

Technical diagram of a mechanical component with an inset showing a close-up view of a bracket detail (no text or symbols present)

Technical line drawing of a mechanical component with circular housing and internal structure, no text or symbols present

Type 2 (DV**M5***K*-modeller)

Diagram of a mechanical device with two circular components and a directional arrow, no text or symbols present

Diagram showing a mechanical component rotating around a circular ring with directional arrows (no text or symbols)

Two views of a mechanical component with a circular housing and an arrow indicating rotation (no text or symbols)

1. Sett inn den innerste glassholderen i det omvendte dørdekselet.

2. Stram de 14 skruene (B) på den innerste holderen.

⚠️ FORSIKTIG

Technical diagram of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

1. Flytt de nederste skruene på dørhengselet til den øverste delen av dørhengselet. Deretter strammer du skruene.

Diagram of a washing machine with a circular dial and arrow indicating direction (no text or symbols)

1. Fest dørhengselet på den motsatte siden.
2. Stram de 2 bolteskruene.

MERK

Technical line drawing of a car rear bumper with decorative patterned seating and door panel (no text or symbols)

A. Stativtørking

Diagram of a car interior with a double door and upward arrow indicating motion (no text or symbols)

Technical diagram of a mechanical device with labeled component A and directional arrows indicating motion (no text or symbols beyond label)

Diagram showing two steps of a toilet or sink assembly, with no visible text or symbols.

Diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with labeled point B (no text or symbols beyond label)

Diagram of a door latch mechanism with two clips and a label B, no text or symbols present

Diagram of a device being inserted into a tray, showing internal components and a black arrow indicating direction (no text or symbols)

1. Fjern innerdekselet (C).

vedlikehold

Norsk42-

Diagram of a microwave oven with a brush applying material inside (no text or symbols)

Illustration of a mechanical component with a cloth hanging from its side (no text or symbols)

Diagram of a device casing with an arrow indicating assembly or insertion, no text or symbols present

Temperaturer for stryking eller damping

	Høy
	Middels
	Lav

Varselssymboler for klesvask

Line drawing of a front-loading washing machine with control panel and side panel (no text or symbols)

DV9*M52****, DV8*M52****, DV7*M52****

TYPE FRONTMATET T∅RKETR∅MMEL
MÅL	A 600 mm
	B 850 mm
	C 600 mm
	D 640 mm
	E 1095 mm
VEKT 50 kg
ELEKTRISITETSKRAV 220-240 V / 50 Hz 550-600 W
TILLATT TEMPERATUR 5-35 °C

Norsk48

DV9*M50****, DV8*M50****, DV7*M50****

TYPE FRONTMATET T∅RKETR∅MMEL
MÅL	A 600 mm
	B 850 mm
	C 600 mm
	D 640 mm
	E 1095 mm
VEKT 50 kg
ELEKTRISITETSKRAV 220-240 V	/ 50 Hz 750-850 W
TILLATT TEMPERATUR 5-35 °C

Vedlegg

Forbruksdata

Modell Program Last (kg)* Energi (kWt)				Maks varighet (minutter)
DV9*M52****	BOMULL 📄♀**	9 1,56 188
		4,5 0,9 130
	STRYKET∅RT 📄**	9 1,1 130
	SYNTETISK 📄	4,5 0,71 86
DV8*M52****	BOMULL 📄♀**	8 1,43 169
		4 0,8 120
	STRYKET∅RT 📄**	8 1,02 118
	SYNTETISK 📄	4 0,65 80
DV7*M52****	BOMULL 📄♀**	7 1,26 148
		3,5 0,73 110
	STRYKET∅RT 📄**	7 0,94 108
	SYNTETISK 📄	3,5 0,61 75

Installationskrav 15

Torktumlare 17

Kylmedium (typ): R-134a (GWP = 1430)

Kylmedium (laddning)

• DV**M52****: 0,37 kg, 0,529 tCO 2 e
• DV**M50****: 0,32 kg, 0,458 tCO 2 e

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a curved mechanical bracket or clamp (no text or symbols)

Simple line drawing of a curved object resembling a stylized bar or clamp (no text or symbols)

Simple line drawing of a bulb-like object with a flared top and rounded base (no text or symbols)

Simple line drawing of a coiled tube or hose with two connectors (no text or symbols)

Simple line drawing of a closed book with a blank cover (no text or symbols)

Bruksanvisning

Simple line drawing of a rectangular container with internal grid pattern (no text or symbols)

Ställtorkning (endast tillämpliga modeller)

Simple line drawing of a pen-like object with a handle and spout (no text or symbols)

Rengöringsborste

Simple line drawing of a mechanical component or bracket (no text or symbols)

Konsol-kombinationssats (artikelnummer SK-DH; SK-DA; SKK-DF)

Isometric line drawing of a rectangular electronic component with mounting holes (no text or symbols)

Kombinationssats (SKK-DD, SKK-DDX)

OBS!

Two identical diagrams showing a mechanical component with arrows indicating rotation, labeled C and D (no text or symbols beyond labels)

Line drawing of a washing machine casing with internal components and a magnified inset showing internal wiring (no text or symbols)

Technical diagram of a mechanical assembly with labeled component A (no text or symbols present)

Line drawing of a square sink with a pipe fitting and a handle, no text or symbols present

Technical line drawing of a mechanical component with a circular housing and directional arrow (no text or symbols)

Diagram of a mechanical component with a black arrow indicating rotation or assembly (no text or symbols present)

Diagram showing a mechanical device with a circular component and a rotating ring, both with directional arrows indicating rotation (no text or symbols present)

Technical illustration of two mechanical components with a directional arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with three circular insets showing screw placements and a black arrow indicating direction (no text or symbols present)

Diagram of a mechanical component with an arrow indicating direction, showing a circular housing and a separate oval component (no text or symbols)

Diagram of a door panel with screwdrivers and a switch, showing no text or symbols

Diagram showing a door with a keyhole and coin slot, pointing at it (no text or symbols present)

Technical diagram of a mechanical component with an inset showing a close-up view of a bracket detail (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with two circular components and a directional arrow, no text or symbols present

Diagram showing a mechanical component rotating around a circular ring with directional arrows (no text or symbols)

Two views of a mechanical component with a circular housing and an arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

Diagram of a washing machine with a circular dial and arrow indicating direction (no text or symbols)

Technical line drawing of a car rear bumper with decorative patterned seating and door panel (no text or symbols)

A. Ställtorkning

Diagram of a car interior with a double door and upward arrow indicating motion (no text or symbols)

Technical diagram of a mechanical device with labeled component A and directional arrows indicating motion (no text or symbols beyond label)

Illustration of a bathroom sink with an open drawer and a showerhead, showing four different steps (no text or symbols)

Diagram of a device with internal components and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical component with labeled point B (no text or symbols beyond label)

Diagram of a door latch mechanism with two clips and a labeled component (B), no text or symbols present.

1. Lås upp läsen (B).

Diagram of a device being inserted into a tray, showing internal components and a black arrow indicating direction (no text or symbols)

1. Ta bort den inre luckan (C).

Svenska42-

Diagram of a grater inside a rectangular chamber with a tool inserted (no text or symbols)

Illustration of a mechanical component with a cloth hanging from its side (no text or symbols)

Diagram of a device being inserted into a housing, showing internal components and a black arrow indicating the direction (no text or symbols present)

Line drawing of a front-loading washing machine with control panel and side panel (no text or symbols)

DV9*M52****, DV8*M52****, DV7*M52****

TYP FRONTMATAD TORKTUMLARE
MÄTT	A 600 mm
	B 850 mm
	C 600 mm
	D 640 mm
	E 1095 mm
VIKT 50 kg
KRAV FÖR ELFÖRSÖRJNING	220-240 V / 50 Hz	550-600 W
TILLÄTNA TEMPERATURER 5-35 °C

Svenska48

DV9*M50****, DV8*M50****, DV7*M50****

TYP FRONTMATAD TORKTUMLARE
MÄTT	A 600 mm
	B 850 mm
	C 600 mm
	D 640 mm
	E 1095 mm
VIKT 50 kg
KRAV FÖR ELFÖRSÖRJNING	220-240 V / 50 Hz	750-850 W
TILLÄTNA TEMPERATURER 5-35 °C

Bilaga

Förbrukningsdata

Modell Program Vikt (kg) Energi (kWh)				Max. längd (minuter)
DV9*M52****	BOMULL 📄♀**	9 1,56 188
		4,5 0,9 130
	STRYKTORRT 📋*	9 1,1 130
	SYNTET 📁	4,5 0,71 86
DV8*M52****	BOMULL 📄♀**	8 1,43 169
		4 0,8 120
	STRYKTORRT 📋*	8 1,02 118
	SYNTET 📁	4 0,65 80
DV7*M52****	BOMULL 📄♀**	7 1,26 148
		3,5 0,73 110
	STRYKTORRT 📋*	7 0,94 108
	SYNTET 📁	3,5 0,61 75
