USER MANUAL POWX0682 PowerPlus

1 APPLIANCE 3
2 DESCRIPTION (FIG.A) 3
3 PACKAGE CONTENT LIST....3
4 SYMBOLS 3
5 GENERAL POWER TOOL SAFETY WARNINGS ....4
5.1 Work area 4
5.2 Electrical safety....4
5.3 Personal safety 4
5.4 Power tool use and care....5
5.5 Service....5
6 ADDITIONAL SAFETY INSTRUCTIONS ....5
7 ASSEMBLY 6
7.1 Attaching the handle....6
7.2 Removing the blades....6
7.3 Attaching the blades....6
8 OPERATION....6
8.1 Operating the saw....6
8.2 Switching ON/OFF....6
8.3 Feed speed....6
8.4 nstruction for cutting various cross sectional materials....7
8.5 Lubricant instructions....7
8.6 Dust extraction....8
9 CLEANING AND MAINTENANCE....8
9.1 Cleaning....8
9.2 Checking and replacing the carbon brushes 8
10 TECHNICAL DATA....8
11 NOISE....9
12 SERVICE DEPARTMENT....9
13 STORAGE....9
14 TROUBLESHOOTING 9

POWERPLUS HIGH QUALITY TOOLS

POWX0682 EN

15 WARRANTY....10
16 ENVIRONMENT 10
17 DECLARATION OF CONFORMITY 11

DUAL SAW 1500W

POWX0682

1 APPLIANCE

This item is designed to saw all material without changing the saw blades. It makes smoother, cleaner cuts with less vibration and kickback then any other single blade saw. It is not designed for commercial use.

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG.A)

1. ON/OFF switch

2. Wax stick

3. Auxiliary handle

4. Saw blades

5. Dust extraction outlet

6. Lock button

7. Protection cover

3 PACKAGE CONTENT LIST

■ Remove all packing materials

■ Remove remaining packaging and transit supports (if existing)

- Check the completeness of the packing content

- Check the appliance, the power cord, the power plug and all accessories for transportation damages.

- Keep the packaging materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.

WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!

1 x dual saw

1 x auxiliary handle

2 x Tungsten universal saw blades

1 x wrench

(assembled)

1 x manual

10 x wax stick

When parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

	Denotes risk of personal injury or damage to the tool.		Read manual before use.
—	In accordance with essential safety standards of applicable European directives.Wear noise protection.		Class II - The machine is double insulated; earth wire is therefore not necessary.Wear a mask in dusty conditions.
	Wear eye protection.		Wear gloves.

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

5.1 Work area

• Keep work area clean and well lit. Cluttered and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

5.3 Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries.

- Avoid accidental starting. Ensure the switch is in the off position before plugging in.

Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

5.4 Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or sticking of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to stick and are easier to control.
• Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could lead to a hazardous situation.

5.5 Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

6 ADDITIONAL SAFETY INSTRUCTIONS

• Always keep one hand on the auxiliary handle and the other on the motor housing.
• Keep your body positioned to either side of the saw blade, but not in line with the saw blade.
• Do not reach under the material being cut.
• Do not attempt to remove cut material when the blade is running.
• Never clamp or tie the lower guard into the open position.
• Do not use any blades other than the DUALSAW blades especially designed for this tool.
• The lower guard should be retracted manually only for making special cuts such as 'pocket cuts' and 'compound cuts'.
• Never hold the piece being cut in your hands or across your leg.
• Never attempt to operate saw with only one blade. Kickback will occur and send the saw towards you resulting in serious injury.

- If the blades come in contact with the work piece before they reach full speed, it could cause the saw to kickback toward you resulting in serious injury.

7 ASSEMBLY

7.1 Attaching the handle

■ Screw handle into saw (fig 1).
■ Use nut to tighten the handle.

7.2 Removing the blades

Be sure to first unplug the electric cord from the electrical outlet and allow blades to cool before removing the blades.

• Push the spindle lock to secure the blade (Fig 2).
• Use the blade wrench to unscrew the lock nut (Fig 3).
  ■ Remove lock nut from the blade (Fig 4).
• Open lower guard of the blade (Fig 5).
  ■ Lift up and remove "Face B" blade (Fig 6).
  ■ Lift up and remove "Face A" blade (Fig 7).

7.3 Attaching the blades

• Identify "Face A" and "Face B" on your new set of DUALSAW blades (Fig 8).
• Open lower guard and place "Face A" blade on saw and fit on the outer arbor shaft (Fig 9).
• Place "Face B" blade on top of "Face A" blade and fit on inner arbor shaft (Fig 10).
  ■ Place lock nut onto shaft (Fig 11).
• Tighten lock nut using blade wrench tool (Fig. 12).

8 OPERATION

8.1 Operating the saw

• Push lock button and press the on/off trigger. Always let the blades reach full speed before you begin to cut into the work piece.
• Apply steady and even pressure when making a cut. Forcing the saw causes rough cuts and could shorten the life of the saw or cause kickback.
• Always feed material parallel to the blade. Feeding at an angle can burn the blade and damage the blade teeth.
  ■ To stop the saw, release trigger.

8.2 Switching ON/OFF

• To turn on the machine, push the ON/OFF switch in the ON position.
• To turn the machine off, push the ON/OFF switch into the OFF position.
• Inrush currents can cause short-time voltage drops; under unfavorable power supply conditions, other equipment may be affected (if the system impedance of the power supply is lower than 0,127 + j0,079 Ohm, disturbances are unlikely to occur); if you need further clarification, you may contact your local power supplier.

8.3 Feed speed

Feed speed is how quickly you push the saw blades through the material being cut. The correct feed speed is totally determined by the hardness and the thickness of the material being cut.

If the feed speed is too slow the blades will only press down the material rather than cutting it. The blade edges glide an wear down the material, what causes a poor cut and will cause excessive wear on the blades.

If the feed speed is too fast there is a definitive risk that the cut might split. The splinter will get bigger and bigger and eventually break risking serious personal injury.

If the feed speed is too high there is risk that the cut might split and the splintering opening's volume will not be sufficient to divert all shaving. The result is poor cut with significant discharge on the lower side of the material.

8.4 nstruction for cutting various cross sectional materials

		Flat strip:Move blades in a 90° angle across the piece.
		Soft metals:Apply lubrication sticks.
		Square tube:Move blades in diagonal.
		U profile:Move blades in diagonal.
		Round tube:Move blades through the piece making sure they come out in a 90° angle.
		Sheets::Slide blades through the sheet.

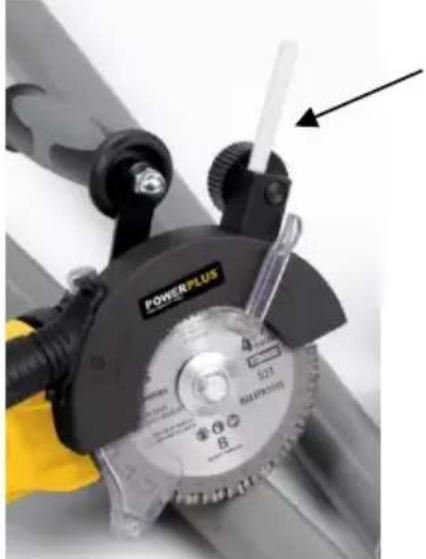

8.5 Lubricant instructions

To become a longer blade life time, lubrication of the blades is necessary, especially when cutting aluminium, copper, stainless steel and cast iron:

- Place the wax stick into the foreseen hole.

■ Turn the feeder wheel to lubricate the blades.

Close-up of a power plant tool with a labeled dial and mechanical components (no readable text or symbols)

Proper dosage is required.

8.6 Dust extraction

Attach a vacuum cleaner to the dust extraction outlet.

Ask your vacuum distributor for the correct connection piece if it isn't included.

9 CLEANING AND MAINTENANCE

Attention! Before performing any work on the equipment, pull the power plug.

9.1 Cleaning

• Keep the ventilation slots of the machine clean to prevent overheating of the engine.
• Regularly clean the machine housing with a soft cloth, preferably after each use.
• Keep the ventilation slots free from dust and dirt.
• If the dirt does not come off use a soft cloth moistened with soapy water.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

9.2 Checking and replacing the carbon brushes

The carbon brushes must be checked on a regular basis.

• In case of wear, replace both carbon brushes at the same time.
  ■ Mount the carbon brush holders.
  ■ After mounting new carbon brushes, let the machine run at no load for 15 minutes.

Use only the correct type of carbon brushes.

10 TECHNICAL DATA

Rated voltage	230-240V
Rated frequency	50Hz
Power	1500W
No – load speed	4200 min ^-1
Max. cutting depth	45mm
Saw blade diameter	160mm
Teeth	48T
Protection class	Double insulated

11 NOISE

Noise values measured according to relevant standard. (K=3)

Acoustic pressure level LpA	98 dB(A)
Acoustic power level LwA	109 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration)

Max. 3.3 m/s²

K = 1,5 ~m / s^2

12 SERVICE DEPARTMENT

• Damaged switches must be replaced by a qualified technician.
• If the connecting cable (or mains plug) is damaged, it must be replaced by a particular connecting cable which is available from our service department. Replacement of the connecting cable must only be carried out by our service department (see last page) or by a qualified person (qualified electrician).

13 STORAGE

• Thoroughly clean the whole machine and its accessories.
• Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures.
• Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
• Don't keep it in plastic bags to avoid humidity build-up.

14 TROUBLESHOOTING

Problem	Cause	Solution
Very high spark generation	1. Damaged teeth2. Feed speed is too slow3. Blunt teeth	1. Replace blades2. Increase feed speed3. Replace blades
A lot of wear in sections	1. Feed speed is too fast2. Damaged teeth3. Blunt teeth4. Not cutting parallel or perpendicular to work surface	1. Reduce the feed speed2. Replace blades3. Hold saw parallel to work surface
Blades are breaking	1. Damaged teeth2. Feed speed is too fast3. Blunt teeth4. Blades have burned out	1. Replace blades2. Reduce feed speed

15 WARRANTY

- This product is warranted for a 36-months period effective from the date of purchase by the first user.

- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

- We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

- You can always obtain more information at the number 00 32 3 292 92 90.

- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

- Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

- Your purchase receipt must be kept as proof of date of purchase.

- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

16 ENVIRONMENT

Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

17 DECLARATION OF CONFORMITY

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product: Twin-disk cutter

trade mark: Powerplus

model: POWX0682

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2004/108/EC

2006/42/EC

2011/65/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60745-1: 2009

EN60745-2-5: 2010

EN55014-1:2006

EN55014-2: 1997

EN61000-3-2: 2006

EN61000-3-11:2000

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Hugo Cuypers

Certification Manager

30/10/2013
