Product Type	Freestanding Microwave Oven with Grill
Brand	Schaub Lorenz
Model	MW823G SP
Oven Capacity	23 liters
Microwave Power	800 W
Grill Power	1000 W
Power Levels	5 microwave, 1 grill, 2 combi
Auto-Programs	12
Control Type	Digital display with rotary knob and buttons
Timer	Digital, max 60 minutes
Turntable	Yes (glass)
Grill Rack	Yes (metal)
Child Lock	Yes (press and hold PAUSE/CANCEL 3 sec)
Clock	24-hour digital clock with setting
Defrost Modes	3 (meat, poultry, seafood) by weight
Instant Cook	1 min at high power, adjustable
Multi-Sequence Cooking	Up to 4 sequences
Delayed Start	Yes (auto-start)
Dimensions (HxWxD)	27.8 x 48.2 x 38.5 cm
Weight (net)	12.6 kg
Power Supply	230 V AC / 50 Hz, 1280 W
Frequency	2450 MHz
Safety Features	Door interlocks, auto power reduction, child lock
Cleaning	Wipe with damp cloth, mild detergent; turntable washable
Guarantee	24 months (conditions apply)

Frequently Asked Questions - MW823G SP SCHAUB LORENZ

How do I set the clock on my MW823G SP microwave?

Press and hold the PRESET/CLOCK/DEFROST button for 3 seconds. Use the rotary knob to set hours, press the same button, set minutes, then press again or wait 5 seconds.

How do I use the defrost function?

Press PRESET/CLOCK/DEFROST repeatedly to select d.1 (meat), d.2 (poultry), or d.3 (seafood). Turn the rotary knob to set the weight (0.1-2.0 kg for meat, etc.), then press INSTANT/START. Turn food halfway when prompted.

Can I use metal containers in the microwave?

No, metal containers or utensils should not be used in microwave mode as they can cause sparks and damage the oven. Use only microwave-safe ceramic, glass, or plastic.

How do I clean the microwave?

Unplug the appliance. Clean the interior with a damp cloth and mild detergent if needed. Wipe the door seals and outside with a damp cloth. Do not use abrasive cleaners. The turntable and ring can be washed in warm soapy water.

How do I activate the child lock?

Press and hold the PAUSE/CANCEL button for 3 seconds to lock the control panel. Repeat to unlock.

What does 'End' and beeping mean after cooking?

When cooking finishes, the display shows 'End' and beeps 3 times. The beep repeats every 3 minutes until you press PAUSE/CANCEL or open the door.

Can I use the grill rack during microwave cooking?

No, the grill rack is not suitable for microwave-only cooking. It should only be used in grill or combi modes.

How do I set a delayed start?

First, ensure the current time is set. Then set the cooking power and time. Press and hold PRESET/CLOCK/DEFROST for 3 seconds, set the desired start time (hours and minutes), then press the same button again to confirm. The microwave will start automatically.

What are the auto-cooking programs?

Turn the rotary knob anticlockwise to select from A.1 to A.12 (popcorn, potatoes, vegetable, meat, fish, chicken, warming, beverages, rice, pasta, bread, pizza). Confirm with knob press, set weight, then press INSTANT/START.

Why does the power reduce automatically at high power?

To ensure best operating life, the microwave automatically decreases output after a certain period when set to maximum power. This is normal and does not affect cooking results significantly.

USER MANUAL MW823G SP SCHAUB LORENZ

Red Schaub Loretz microwave oven with digital display and control buttons (no visible text or symbols on main body)

Three different kitchen appliances: a black microwave, a lime green microwave, and a white microwave (no visible text or labels)

Three vintage kitchen micrometers in white, red, and black, displayed side by side (no visible text or labels)

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions.... 22
2. Installation 25
3. Operation....26

3.1 Control panel....27
3.2 Auto-reminder.... 28
3.3 Setting of the time of the day. 28
3.4 Microwave-cooking....28
3.5 Instant cooking....29
3.6 Defrosting....29
3.7 Auto-cooking mode.... 30
3.8. Auto-start (delayed start).... 31
3.9 Multi-sequence-cooking.... 31
3.10 Child lock.... 32

1. Microwave cooking.... 32

4.1 Basics of microwave cooking.... 32
4.2 Suitable cookware 33

1. Cleaning and maintenance 34
2. Technical data.... 35
3. Waste management 35
4. Guarantee conditions .... 36

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.

The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

1. Safety instructions

i Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

⚠️ DANGER! Indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠️ CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

⚠ WARNING! Indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! Indicates possible damage to the appliance.

Precautions to avoid possible exposure to excessive microwave energy

1	Do not attempt to operate this appliance with the door open as open-door operating can result in harmful exposure to microwave energy. Do not break or tamper with the safety interlocks.
2	Do not place any object between the front of the appliance and the door or allow soil or cleaner residuals to accumulate on the sealing surfaces.
3	Do not operate the appliance if it is damaged. It is particularly important that the door closes properly and that there is not any damage on the:
a	door (bent).
b	hinges and latches (must not be broken or loosened).
c	door seals and sealing surfaces.
4	The appliance should not be adjusted or repaired by anyone except properly qualified service personal.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
i The appliance is intended for cooking in a private household only.
i The appliance is intended for indoor-use only.
i The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.

DANGER!

1. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
2. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
3. Never try to repair the appliance yourself. If the appliance does not operate properly, disconnect it from the mains and contact the shop you purchased the appliance at. Original spare parts should be used only.
4. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

WARNING!

1. Operate the appliance with 220\~240V AC/50Hz only. Do not use an extension cord or a multiple socket.
2. Connect the appliance to a properly grounded socket only. Use a safety socket to minimize any risk of electric shock. The plug must be accessible after installation.
3. The technical data of your energy supply must meet the data on the rating label. The main current circuit must be equipped with a safety shut-down device.

4. Any repair or service work including the removal of any cover, which protects from exposure to microwave energy, must be performed by an qualified professional only.

5. The appliance is not intended to be built-in. Only operate the appliance when freestanding.

6. Only operate the appliance when the door is closed.
7. Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket..
8. Accessible parts may become hot during use. Young children should be kept away. Do not touch the hot parts of the appliance. RISK OF BURNS!
9. Do not use the appliance to dry clothes or wet newspapers etc.
10. Do not use the appliance when it is empty.
11. In order to reduce any risk of fire in the appliance:

a. Check the appliance frequently when you use plastic or paper containers.
b. Remove wire twist-ties from paper or plastic bags before you place such a bag in the appliance.
c. Switch off or unplug the appliance if you notice any smoke. Keep the door closed to stifle any flames.
d. Do not use the appliance to store anything inside.
e. Do not leave any items, e.g. paper, cooking utensils or food, inside the appliance even when it is not running.

1. Do not fry in the appliance. Hot oil can damage parts of the appliance and result in skin-burns.
2. Never heat any food or liquids in sealed containers, because they can explode.
3. The contents of feeding bottles and baby food should be stirred or shaken and their temperature should be checked before serving to avoid burns.
4. Do not use a steam cleaner to clean the appliance. RISK OF ELECTRIC SHOCK!
5. Disconnect the appliance from the mains before cleaning or maintenance.
6. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
7. This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.
8. Children must never play with the appliance. Touching the appliance during operation can cause serious burns.
9. Only allow children to use the appliance without supervision, when adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.
10. When the appliance is operated in its combination mode, children should only use the appliance under an adult's supervision due to the high temperatures.

CAUTION!

1. This appliance complies with the current European safety legislation. We do wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating.
2. Lead the power cord in such a way that you will not trip on it.
3. Microwave heating of beverages can result in delayed eruptive boiling. Be extremely careful when handling the container.
4. Do not heat eggs in their shell or hard-boiled eggs as they may explode even after microwave heating has ended.
5. Cooking utensils may become hot because of the heat transferred by the heated food. Pot-holders may be needed to handle such utensils.

NOTICE

1. Do not use the door to transport the appliance as you will damage the hinges.
2. Do not connect your appliance to the mains unless all packaging and transit protectors have been removed. Do not use any aggressive detergents to remove the transit protectors.
3. Regularly cleaning and maintenance grants proper operation and optimal performance of your appliance.
4. Check your utensils if they are suitable for use in a microwave appliance.

2. Installation

1. Remove the packaging material completely. If there is a protective foil on the appliance, remove it completely, too. When the appliance is damaged, please contact the shop you purchased the appliance at.
2. Do not install the appliance near of sources of heat or moisture such as hobs or water containers.
3. The distance to TV-sets, radios and antennas should be more than 5 meters; otherwise interference may occur.
4. The back of the appliance must be aligned towards a wall.

5. Manufacturing residue or oil on the oven or heating element may release odours or smoke. These are normal operating conditions. Open the door of the room or a window for ventilation.

6. Minimum distances for proper ventilation.

Back ↔ Wall	10 cm
Left/right ↔ other object/wall	5 cm
Above the top	20 cm

3. Operation

1 Window
3 Housing
5 Rotating axis
7 Door interlock
9 Waveguide cover

2 Turntable
4 Rotating ring
6 Oven cavity
8 Grill rack

WARNING

1. Do not remove the waveguide cover when cleaning the appliance.
2. Check that the waveguide cover is installed properly and not damaged during cooking.

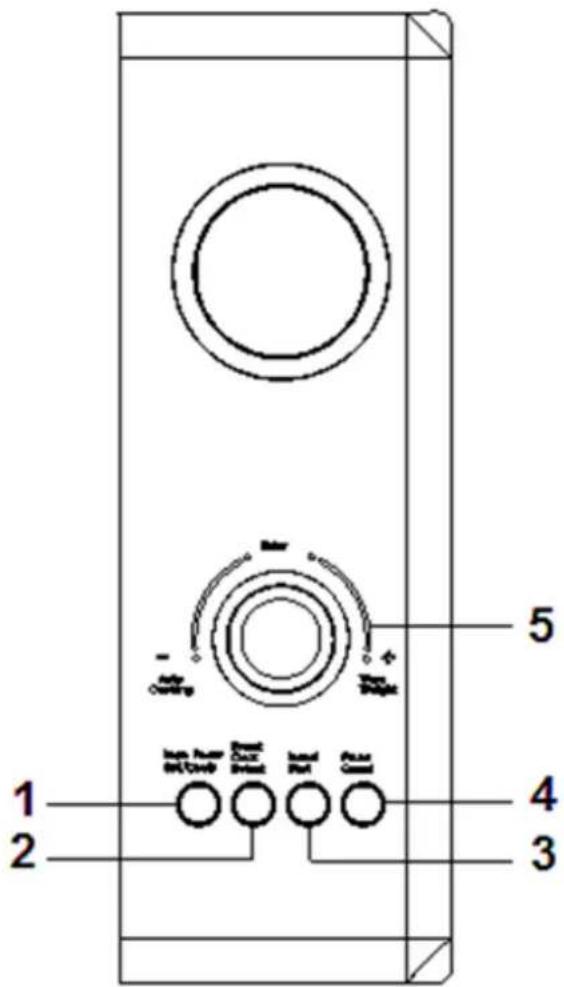

3.1 Control panel

1 Setting of microwave power level/grill mode.
2 Setting of the clock/defrost mode.
3 Start.
4 Press once: stop cooking. Press twice: reset.
5 Rotary knob for setting the cooking time and weight. Rotary knob for selecting an auto-cooking mode.

When you have plugged in the appliance, the display flashes three times. Then the clock indicates 1:00 and the colon : flashes. Now you can set the cooking menu and time.
When the appliance is plugged in, it has entered the stand-by mode.
The information After power up the colon flashes in the following schedules is only valid if you have unplugged the appliance before.

3.2 Auto-reminder

When cooking has finished, the display indicates End and you hear 3 beeps. The beep will continue every 3 minutes unless you press PAUSE/CANCEL once or open the door

3.3 Setting of the time of the day.

Example: Setting of 12:30
Step		Display
1	After power up the colon flashes.	:
2	Press and hold the PRESET/CLOCK/DEFROST button for 3 seconds.	0:00
3	Turn the ROTARY KNOB to set the hours.	12:00
4	Press PRESET/CLOCK/DEFROST again.	12:00
5	Turn the ROTARY KNOB to set the minutes.	12:30
6	Press PRESET/CLOCK/DEFROST again or wait 5 seconds.

3.4 Microwave-cooking

For cooking and heating food. Press the MICRO POWER.GRILL/COMBI -button; the display indicates 100P-80P-60P-40P-20P-G-C.1-C.2 cyclically.

100%	High power	For quick and thorough cooking.
80%	Medium-high power	For medium express cooking.
60%	Medium power	For steaming food.
40%	Medium-low power	For defrosting food.
20%	Low power	Keep-warm function.
G	Grill.	The heating element is activated while the appliance is operating. Suitable for thin slices of meat, sausages or chicken wings.
C1	Combination of grilling and microwave-cooking.	30 % of cooking time → microwave output, 70 % of cooking time → grilling.
C2	Combination of grilling and microwave-cooking.	55 % of cooking time → microwave output, 45 % of cooking time → grilling.

CAUTION!

1. Do not operate the appliance when it is empty.
2. Do not use the grill rack while microwave-cooking.

3. When you have set maximum power, the appliance will decrease the power output after a certain period of time to ensure best operating life.

4. If you turn the food during operation, press the INSTANT/START button once to continue the preset cooking procedure.

5. If you want to take out the food before the preset time has elapsed, you must press the PAUSE/CANCEL button once to cancel the setting so it will not be activated accidentally when you start a new cooking menu.

Example: Cooking at 80P for 10 minutes.

Step		Display
1	After power up the colon flashes.	:
2	Select the desired microwave power by pressing the MICRO POWER.GRILL/COMBI button consecutively.	80P
3	Set the cooking time using the ROTARY KNOB.	10:00
4	Press INSTANT/START. The display indicates the count-down of the cooking time.

It is recommended to turn the food halfway. After you turned the food, press INSTANT/START once to continue.

3.5 Instant cooking

In stand-by mode press the INSTANT/START-button. The appliance starts operating in high power level. The default cooking time is 1 minute. You can increase or decrease the cooking time with the WEIGHT/TIME-knob.

3.6 Defrosting

Press PRESET/CLOCK/DEFROST. The display d.1-d.2-d.3 cyclically.

d.1	Meat. Weight 0.1 to 2.0 kg.
d.2	Poultry. Weight 0.2 to 3.0 kg.
d.3	Seafood. Weight 0.1 to 0.9 kg.

1. Turn the food for proper defrosting.
2. To defrost food will need a longer period of time than to cook it.
3. The defrosting procedure is completed, when you can cut the food with a knife.
4. Microwaves penetrate most food by approx. 4 cm.
5. Consume defrosted food immediately. Do not put it in the fridge and do not refreeze it.

Example: defrosting of 0.4 kg poultry

Step		Display
1	After power up the colon flashes.	:
2	Press PRESET/CLOCK/DEFROST to select the mode.	d.2
3	Turn the ROTARY KNOB to set the weight	0.4
4	Press INSTANT/START to start operation.	5:16
5	You will hear an acoustic signal twice when 50% of the cooking time have elapsed. Open the door and turn the food. Close the door. Press INSTANT/START..

3.7 Auto-cooking mode

When the colon on the display flashes, turn the rotary knob anticlockwise. The display indicates A.1 to A.12 cyclically. Press the rotary knob to confirm your setting and set the weight of the food.

Select the relevant setting concerning kind and weight of the food. Strictly observe the advice given in the schedule below; otherwise you may seriously influence the cooking procedures.

Display	Food	Weight
A.1	Popcorn	2 possible settings: 3.0 Oz und 3.5 Oz.
A.2	Potatoes	2 possible settings: 0.45 kg und0.65 kg.
A.3	Vegetable	5 possible settings: 0.1 kg. 0.2 kg → 0.5 kg.
A.4	Meat	6 possible settings: 0.2 kg. 0.3 kg → 0.7 kg.
A.5	Fish	6 possible settings: 0.2 kg. 0.3 kg → 0.7 kg.
A.6	Chicken	6 possible settings: 0.2 kg. 0.3 kg → 0.7 kg.
A.7	Warming	5 possible settings: 0.2 kg. 0.4 kg → 1.0 kg.
A.8	Beverages	2 possible settings: 250 ml und 500 ml.
A.9	Rice	5 possible settings: 0.1 kg. 0.2 kg → 0.5 kg.
A.10	Pasta	5 possible settings: 0.1 kg. 0.2 kg → 0.5 kg.
A.11	Bread	5 possible settings: 0.1 kg. 0.2 kg → 0.5 kg.
A.12	Pizza	2 possible settings: 1 share and 2 shares.

1. When the appliance is in stand-by mode, enable the auto-cooking mode by turning the ROTARY KNOB in anticlockwise direction. If you turn the ROTARY KNOB in clockwise direction, the setting of the time will be activated.

2. The temperature of the food to be cooked should be 20^-25^ . Higher or lower temperatures will affect the duration of the cooking time.

3. Temperature, weight and shape of the food do influence the cooking procedure significantly. If you note differences from the above specified information, customize the cooking times for providing a better result.

4.

Example: Steaming of 0.4 kg fish.

Step		Display
1	After power up the colon flashes.	:
2	Turn the ROTARY KNOB in anticlockwise direction to select the menu.	A.5
3	Press ENTER to confirm	A.5
4	Set the weight using the ROTARY KNOB.	0.4
5	Press INSTANT/START.	10:00

3.8. Auto-start (delayed start)

If you do not want your setting to start immediately, you can set a cooking procedure and delayed starting time. This special function requires a 2-steps-setting: (1) the setting of the current time of the day and (2) the setting of the cooking procedure and cooking time.

Example: It is 12:30. You want to operate the appliance with 100P microwave power at 14:20 for 9 minutes and 30 seconds.

Step		Display
1	After power up the colon flashes.	:
1.1	Press and hold PRESET/CLOCK/DEFROST for 3 seconds.	0:00
1.2	Turn the ROTARY KNOB to set the hours.	12:00
1.3	Press PRESET/CLOCK/DEFROST again.	12:00
1.4	Turn the ROTARY KNOB to set the minutes.	12:30
1.5	Press PRESET/CLOCK/DEFROST again or wait 5 seconds.	12:30
2	Set cooking procedure and cooking time.
2.1	Set the power level using MICRO POWER.GRILL/COMBI.	100P
2.2	Turn the ROTARY KNOB to set the cooking time.	9:30
2.3	Press and PRESET/CLOCK/DEFROST for 3 seconds to return to the current time of the day.
3	Set the starting time as described in steps 1.2, 1.3, und 1.4.
4	Press PRESET/CLOCK/DEFROST to confirm the delayed starting time. The setting is activated now. The cooking procedure wi start at 14:20.
5	You can check the delayed starting time by pressing PRESET/CLOCK/DEFROST.

3.9 Multi-sequence-cooking

1. You can set a multi-sequence, if desired.

2. When the microwave-cooking period of time has elapsed, grilling starts automatically.

3. You can set a maximum of 4 sequences.

Example: 3 minutes cooking with 100P microwave power, then 9 minutes of grilling (2-sequences-setting).

Step		Display
1	100P microwave power for 3 minutes.
1.1	Press MICRO POWER.GRILL/COMBI and select power.	100P
1.2	Set the cooking time using the ROTARY KNOB.	3:00
2	Grilling for 9 minutes.
2.1	Press MICRO POWER.GRILL/COMBI-button to select.	G
2.2	Turn the ROTARY KNOB to set the cooking time.	9:00
3	Press INSTANT/START to start operation.

3.10 Child lock

Use this function to lock the control panel, (a) when you clean the appliance or (b) to protect it from being operated by children without supervision.

Press and hold the PAUSE/CANCEL for 3 seconds to activate the child lock. Repeat operation for deactivation.

4. Microwave cooking

4.1 Basics of microwave cooking

1. Arrange your food carefully. Place thick pieces at the outer areas of your arrangement.
2. Consider the cooking times. Choose the shortest time available. If needed, add some more cooking time later. Any food, which is cooked too long in a microwave, can begin to fume or catch fire.
3. Cover food while it is cooking. Covering avoids splashes and enhances an even cooking procedure.
4. Turn over your food once while cooking it. Food like chicken or hamburgers will then cook faster. Larger pieces like roasts must be turned over at least once.
5. Rearrange food like meat-balls in the middle of the cooking time from the outer areas to the inner ones (and inversely) and also turn them over.
6. If you use browning dishes or containers which become hot, place a heat-resistant insulator such as a porcelain plate under them to protect the turntable and rotary ring from heat.
7. If you use microwave-safe plastic wrap, it must not contact the food as the wrap may melt.
8. Some microwave-safe plastic cookware might not be suitable for cooking food

with a high content of fat and sugar. Moreover, the preheating time specified in the dish instruction manual must not be exceeded.

4.2 Suitable cookware

1. Use microwave-safe cookware made of heat-resistant ceramic, glass or plastic only.
2. Do not use metal-made cookware or other metal-made items or plates with metal-made ornaments. Microwave radiation cannot penetrate metal.
3. ⚠️ WARNING! Metal can generate sparks. RISK OF FIRE.

Schedule: general guide for choosing the right utensils

Heat-resistant ceramic
Microwave	Grill	Convection*	Combi
yes	yes	yes	yes
Never use the ceramics which are decorated with metal rim or glazed.

Heat-resistant plastic
Microwave	Grill	Convection*	Combi
yes	no	no	no

Cannot be used for long time microwave cooking.

Heat-resistant glass
Microwave	Grill	Convection*	Combi
yes	yes	yes	yes

Grill rack
Microwave	Grill	Convection*	Combi
no	yes	no	no

Plastic film
Microwave	Grill	Convection*	Combi
yes	no	no	no

Should not be used when cooking meat or chops as the high temperature m damage the film.

Metal containers
Microwave	Grill	Convection*	Combi
no	no	no	no

Should not be used in a microwave oven. Microwaves cannot penetrate metal.

Lacquered items
Microwave no	Grill no	Convection* no	Combi no

Poor heat-resistant. Cannot be used for high-temperature cooking.

Bamboo wood and paper
Microwave	Grill	Convection*	Combi
no	no	no	no

Poor heat-resistant. Cannot be used for high-temperature cooking.

5. Cleaning and maintenance

⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it.

1. Keep the inside of your appliance clean. When food splatters or spilled liquids are on the walls of your appliance, clean it with a damp cloth. Mild detergents may be used if the appliance has become very dirty. Avoid the use of sprays and other harsh cleaners as they may stain, streak or dull the door-surface.
2. Clean the outside with a damp cloth. Water should not run into the ventilation-openings to prevent damage to the operating parts inside the appliance.
3. Wipe both sides of the door and the window, the door seals and adjacent parts frequently using a damp cloth to remove any spills or spatters. Do not use abrasive cleaners.
4. The control panel should not become wet. Clean it with a soft and damp cloth. When cleaning the control panel, leave the door open so the appliance cannot be switched on accidentally.
5. If steam accumulates inside or around the outside of the door, wipe it with a soft cloth. This may occur when the appliance runs under high-humidity-conditions. It is a normal occurrence.
6. It is sometimes necessary to remove the turntable and/or rotating ring for cleaning. Wash the turntable/ring in warm soapy water, then rinse and dry thoroughly. When having removed the rotating ring from the appliance, you must reinstall it in its proper position.
7. 3 methods to remove odours from your appliance:
   a. Place several lemon slices in a cup. Heat with high power for 2 to 3 minutes.
   b. Place a cup of black tea in the oven. Heat with high power for 1 minute.
   c. Place some orange peels on a flat plate. Heat with high power for 1 minute.
8. ⚠️ WARNING! If it is necessary to remove the internal light ^2 of the appliance, please contact the shop you purchased the appliance at.

Inspection of possible malfunctions

Please check the following before asking for repair:

a. Place one cup of water (approx. 150 ml) in a glass measure in the oven and close the door properly. The oven lamp should go off when the door is closed properly. Let the oven work for 1 min.

b. Does the oven lamp light?
c. Does the cooling fan work? (Put your hand over the ventilation openings at the back of the appliance.)
d. Does the turntable rotate? (The turntable can rotate clockwise or anticlockwise.)
e. Has the water become hot?

If NO is the answer to any of the above questions, please check your wall socket and the fuse in your fuse box.

If both the wall socket and the fuse are operating properly, please contact the shop you purchased the appliance at.

6. Technical data

Model	Freestanding Microwave-Oven
Volume/oven	23 l
Max. power/microwave	800W
Max. power/grill	1000W
Input voltage	1280W
Voltage/frequency	230V AC/50Hz
Frequency microwaves	2450 MHz
Power levels microwave/grill/combi	5/1/2
Auto-programmes	12
Display	√
Acoustical signal	√
Child lock	√
Timer	Digital/max. 60 minutes
Turntable/grill rack	√
Dimensions appliance H*W*D in cm	27.8*48.2*38,5
Weight net/gross in kg	12.60/14.20

7. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.

4. Dispose of any paper and cardboard into the corresponding containers.

5. Dispose of any plastics into the corresponding containers.

6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.

7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are Please contact your local authorities to recyclable. receive further information.

8. Guarantee conditions

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication.

The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the Schaub-Lorenz-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a Schaub-Lorenz-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.

2. the appliance is repaired by a non-professional.

3. the appliance is damaged by the vendor, the installer or a third party.

4. the installation or the start-up is performed inappropriately.

5. the maintenance is inadequately or incorrectly performed.

6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Schauf Lorenz

August 2016

Please contact the shop you purchased the appliance at.

Subject to alterations

Updated

23/08/2016
