Product Type	Built-in Microwave with Grill
Brand	Electrolux
Model	EMS26264OW
Color	White
Capacity	26 Liters
Microwave Power Output	900 W
Grill Power	1000 W
Control Type	Touch control panel
Display	Digital LED display
Door Opening	Drop-down door
Turntable	Yes, glass turntable
Clock Function	Yes, with timer
Defrost Function	Yes, weight and time defrost
Child Lock	Yes
Interior Light	Yes
Cleaning Mode	Steam clean function (optional)
Dimensions (W x H x D)	595 x 455 x 395 mm
Built-in Dimension (W x H x D)	560 x 450 x 550 mm
Net Weight	20 kg
Voltage / Frequency	230 V / 50 Hz
Energy Consumption (Standby)	1 W
Accessories Included	Glass turntable, crisper plate, grill rack

Frequently Asked Questions - EMS26264OW ELECTROLUX

How to set the clock on Electrolux EMS26264OW?

Press the Clock button, then use the number pad to enter the time (24-hour format). Press Clock again to confirm.

How to use the grill function?

Select the Grill mode by pressing the Grill button repeatedly to choose a combination level (e.g., Grill only or Grill + Microwave). Set cooking time and press Start.

Why is the microwave not heating?

Check that the door is fully closed and the Child Lock is not activated. If the problem persists, the magnetron may be defective. Contact service.

How to clean the interior?

Use a damp cloth with mild detergent. Avoid abrasive cleaners. For stubborn stains, use the Steam Clean function: place a bowl of water inside, run on high power for 5 minutes, then wipe.

What does error code E24 mean?

Error E24 indicates a keyboard short circuit or a stuck button. Try unplugging the microwave for 1 minute to reset. If it persists, service is needed.

Can I use metal containers in this microwave?

No, metal containers can cause sparks and damage the microwave. Only use microwave-safe glass, ceramic, or plastic. The grill rack provided is safe for grill mode.

How to defrost food?

Press the Defrost button, enter the weight (in kg or lbs), and press Start. The microwave will automatically adjust time and power. Turn food halfway for even defrost.

How to change the power level?

Press Power Level repeatedly to cycle through levels from 100% to 10%. Or enter the desired number (1-9) after pressing the button. Then set cooking time.

Why is the turntable not rotating?

Check that the turntable glass plate is centered on the drive hub. Ensure no food debris is blocking rotation. If the motor is faulty, service is required.

How to reset the microwave after a power outage?

Unplug the microwave for 2-3 minutes, then plug it back in. The display should reset. You may need to reset the clock and any timer settings.

USER MANUAL EMS26264OW ELECTROLUX

Thinking of you Electrolux

EMS26203O

EMS262640

EN MICROWAVE OVEN USER MANUAL 2

SV MIKROVÄGSUGN ANVÄNDARMANUAL 35

FI MIKROAALTOUUNI KÄYTTÖOHJE 66

NO MIKROB∅LGEOVN BRUKERHÄNDBOK 97

DA MIKROB∅LGEOVN BRUGERVEJLEDNING 130

2 www.electrolux.com

CONTENTS

SAFETY INFORMATION....3

PRODUCT DESCRIPTION....7

CONTROL PANEL....8

BEFORE FIRST USE 8

OPERATION 10

PROGRAMME CHARTS 17

RECIPES 23

CARE AND CLEANING 29

TROUBLESHOOTING 31

TECHNICAL INFORMATION 31

INSTALLATION 32

ENVIRONMENT CONCERNS 34

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning/Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To avoid the danger of fire

The microwave oven should not be left unattended during operation. Power levels that are too high or cooking times that are too long may overheat foods resulting in a fire. The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency. The AC power supply must be 230 V, 50 Hz, with minimum 16 A distribution line fuse, or a minimum 16 A distribution circuit breaker. It is recommended that a separate circuit serving only this appliance be provided. Do not store or use the oven outdoors.

If food being heated begins to smoke, DO NOT OPEN THE DOOR. Turn off and unplug the oven and wait until the food has stopped smoking. Opening the door while food is smoking may cause a fire. Only use microwave-safe containers and utensils. Do not leave the oven unattended when using disposable plastic, paper or other combustible food containers. Clean the waveguide cover, the oven cavity, the turntable and turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire. The microwave oven is intended for heating food and

beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

Do not place flammable materials near the oven or ventilation openings. Do not block the ventilation openings. Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire. Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire. To make popcorn, only use special microwave popcorn makers. Do not store food or any other items inside the oven. Check the settings after you start the oven to ensure the oven is operating as desired. See the corresponding hints in this operation manual.

To avoid the possibility of injury

WARNING! Do not operate the oven if it is damaged or malfunctioning. Check the following before use:
a) The door; make sure the door closes properly and ensure it is not misaligned or warped.
b) The hinges and door safety latches; check to make sure they are not broken or loose.
c) The door seals and sealing surfaces; ensure that they have not been

damaged. d) Inside the oven cavity or on the door; make sure there are no dents. e) The power supply cord and plug; ensure that they are not damaged. Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

Do not operate the oven with the door open or alter the door safety latches in any way. Do not operate the oven if there is an object between the door seals and sealing surfaces.

Do not allow grease or dirt to build up on the door seals and adjacent parts. Follow the instructions for “Care & cleaning”. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.

To avoid the possibility of electric shock Under no circumstances should you remove the outer cabinet. Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately and call an authorised ELECTROLUX service agent. Do not immerse the power supply cord or plug in water or any other liquid. Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven.

Do not attempt to replace the oven lamp yourself or allow anyone who is not authorised by ELECTROLUX to do so. If the oven lamp fails, please consult your dealer or call an authorised ELECTROLUX service agent.

If the power supply cord of this appliance is damaged, it must be replaced with a special cord. The exchange must be made by an authorised ELECTROLUX service agent.

To avoid the possibility of explosion and sudden boiling

WARNING! Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build up of pressure even after the oven has been turned off. Take care when microwaving liquids. Use a wide-mouthed container to allow bubbles to escape.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.

To prevent sudden eruption of boiling liquid and possible scalding:

1. Stir liquid prior to heating/reheating.

2. It is advisable to insert a glass rod or similar utensil into the liquid whilst reheating.

3. Let liquid stand for at least 20 seconds in the oven at the end of cooking time to prevent delayed eruptive boiling.

Do not cook eggs in their shells and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs before reheating them in the microwave oven.

Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode.

To avoid the possibility of burns

Use pot holders or oven gloves when removing food from the oven to prevent burns. Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns.

To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly.

Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature. Always stand back from the oven door when opening to avoid burns from escaping steam and heat. Slice stuffed baked foods after heating to release steam and avoid burns.

Keep children away from the door and accessible parts that may become hot when the grill is in use. Children should be kept away to prevent them burning themselves. Do not touch the oven door, outer cabinet, rear cabinet, oven cavity, ventilation openings, accessories and dishes during GRILL mode, DUAL GRILL mode and AUTO COOK operation as they will become hot. Before cleaning make sure they are not hot. To avoid misuse by children

WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential environments; bed and breakfast type environments.

Do not lean or swing on the oven door. Do not play with the oven or use it as a toy. Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying special attention to packaging (e.g. self-heating materials) designed to make food crisp, as they may be extra hot.

Other warnings

Never modify the oven in any way. This oven is for home food preparation only and may only be used for cooking food. It is not suitable for commercial or laboratory use.

To promote trouble-free use of your oven and avoid damage

Never operate the oven when it is empty except where recommended in the operation manual, see page 14 note 2. Doing so may damage the oven. When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and turntable support due to heat stress. The preheating time specified in the dish's instructions must not be exceeded. Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans in the oven. Only use the turntable and the turntable support designed for this oven. Do not operate the oven without the turntable.

To prevent the turntable from breaking:

a) Before cleaning the turntable with water, leave the turntable to cool.
(b) Do not put hot foods or hot utensils on a cold turntable.
c) Do not put cold foods or cold utensils on a hot turntable.

Do not place anything on the outer cabinet during operation. Do not use plastic containers for microwaving if the oven is still hot from using the GRILL mode, DUAL GRILL mode and AUTO COOK operation because they may melt. Plastic containers must not be used during above modes unless the container manufacturer says they are suitable.

Important!

If you are unsure how to connect your oven, please consult an authorised, qualified electrician. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure. Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction.

PRODUCT DESCRIPTION MICROWAVE OVEN AND ACCESSORIES

1 Grill heating element
2 Front trim
3 Oven lamp
4 Control panel
5 Door opening button
6 Waveguide cover
7 Oven cavity
8 Seal packing
9 Door seals and sealing surfaces

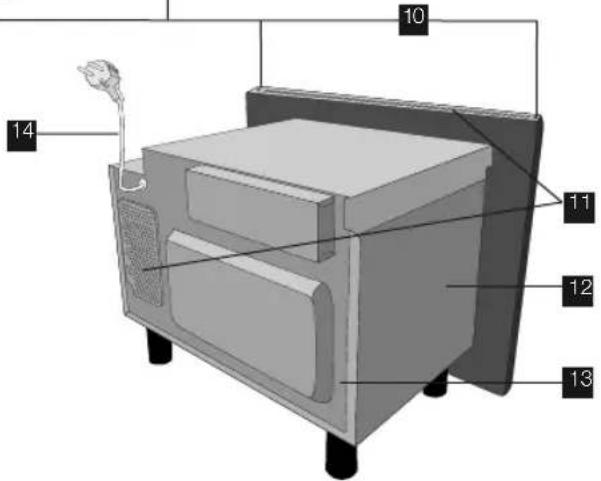

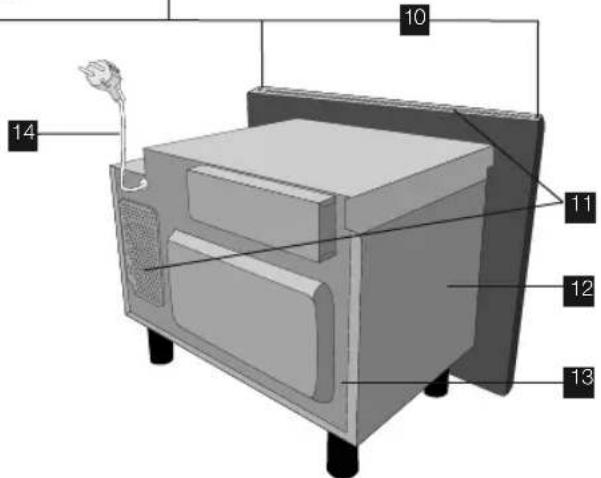

10 Fixing points (4 points)
11 Ventilation openings
12 Outer cover
13 Rear cabinet
14 Power supply cord

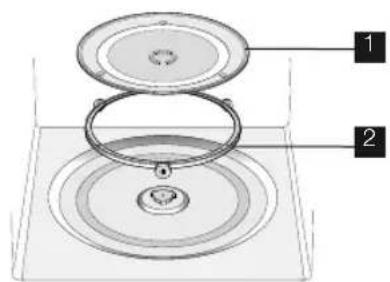

Check to make sure the following accessories are provided:

1 Turntable
2 Turntable support
3 High rack
4 Low rack
5 4 fixing screws (not shown)

• Place the turntable support on the floor of the cavity.
• Then place the turntable on the turntable support.
• To avoid turntable damage, ensure dishes or containers are lifted clear of the turntable rim when removing them from the oven.

i

When you order accessories, please mention two items: part name and model name to your dealer or an authorised ELECTROLUX service agent.

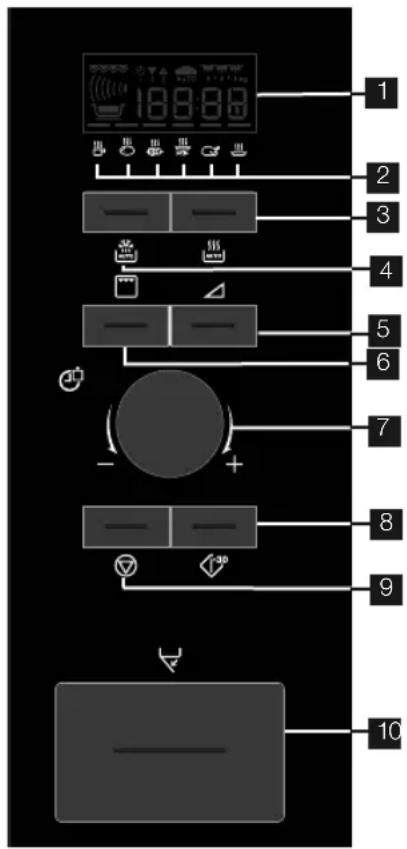

CONTROL PANEL

1 DIGITAL DISPLAY indicators

Grill

Plus/Minus

Microwave

Auto defrost bread

Dual

Auto defrost

Clock

Weight

Cooking stages

2 AUTO COOK indicators
3 AUTO COOK button
4 AUTO DEFROST button
5 POWER LEVEL button
6 GRILL button
7 TIMER/WEIGHT knob
8 START/+30 button
9 STOP button
10 DOOR OPENING button

BEFORE FIRST USE

ECON MODE

The oven is set in 'ENERGY SAVE' mode ('Econ')

1. Plug in the oven.
2. The display will show: 'Econ'.
3. The display will count down from 3:00 to zero.
4. When zero is reached, the oven goes into 'Econ' mode and the display goes blank.

- To cancel Econ mode, set the clock.

SETTING THE CLOCK

The oven has a 12 and 24 hour clock.

Example: To set the clock to 11:30 (12 hour clock).

1. Open the door.
2. The display will show: 'Econ'.
3. Press and hold the START/+30 button for 5 seconds. The oven will beep. The display will show:

1. Rotate the TIMER/WEIGHT knob to adjust the hour.
2. Press the START/+30 button once then rotate the TIMER/WEIGHT knob to adjust the minutes.
3. Press the START/+30 button.
4. Check the display:
5. Close the door.

• You can rotate the TIMER/WEIGHT knob clockwise or anti-clockwise.
• If you press the STOP button the clock will not be set. The display will show: 'Econ'.

Example: To set the clock to 23:30 (24 hour clock).

1. Open the door.
2. The display will show: 'Econ'.
3. Press and hold the START/+30 button for 5 seconds. The oven will beep. The display will show:
4. Press the START/+30 button. The display will show: 24H
5. Rotate the TIMER/WEIGHT knob to adjust the hour.
6. Press the START/+30 button once then rotate the TIMER/WEIGHT knob to adjust the minutes.
7. Press the START/+30 button.
8. Check the display: 2330
9. Close the door.

(If you want to change the clock to 24 H, press the START/+30 button again.)

1. Press the STOP button.
2. The display will show: 'Econ'.
3. Close the door.
4. The oven will count down from 3:00 to zero.
5. When zero is reached, the oven goes into Econ mode and the display goes blank.

USING THE STOP BUTTON

Use the STOP button to:

1. Erase a mistake during programming.
2. Stop the oven temporarily during cooking, press once.
3. Cancel a programme during cooking, press twice.

⑦

i

• You can rotate the TIMER/WEIGHT knob clockwise or anti-clockwise.
• If you press the STOP button the clock will not be set. The display will show: 'Econ'.

ADJUSTING THE TIME WHEN THE CLOCK IS SET

Example: To set the clock to 11:45.

1. Open the door.
2. Press and hold the START/+30 button for 5 seconds. The oven will beep. The display will
   show:
   (If you want to change the clock to 24 H, press the START/+30 button again.)

1. Rotate the TIMER/WEIGHT knob to adjust the hour.
2. Press the START/+30 button once then rotate the TIMER/WEIGHT knob to adjust the minutes.

3. Press the START/+30 button.

4. Check the display: 1145

TO CANCEL THE CLOCK AND SET ECON MODE

1. Open the door.
2. Press and hold the START/+30 button for 5 seconds. The oven will beep. The display will show:

CHILD SAFETY LOCK

The oven has a safety feature which prevents the accidental running of the oven by a child. When the lock has been set, no part of the microwave will operate until the lock feature has been cancelled.

Example: To set the child safety lock.

1. Press and hold the STOP button for 5 seconds.

⑦

The oven will beep twice and 'LOC' will be displayed:

i

• To cancel the child safety lock, press and hold the STOP button for 5 seconds, the oven will beep twice and the time of day will be displayed.
• Child safety lock cannot be set if the clock is not set.

124

OPERATION

To cook/defrost food in a microwave oven, the microwave energy must be able to pass through the container to penetrate the food. Therefore it is important to choose suitable cookware. Round/oval dishes are preferable to square/oblong ones, as the food in the corners tends to overcook.

It is important to turn, rearrange or stir food to ensure even heating. Standing time is necessary after cooking, as it enables the heat to disperse equally throughout the food.

Food characteristics

Composition Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care should be taken as overheating can lead to fire.
Density Food density will affect the amount of cooking time needed. Light porous foods, such as cakes or bread, cook more quickly than heavy, dense foods, such as roasts and casseroles.
Quantity The cooking time must be increased as the amount of food placed in the oven increases (e.g. four potatoes will take longer to cook than two).
Size Small foods and small pieces cook faster than large ones, as microwaves can penetrate from all sides to the centre. For even cooking make all the pieces the same size.
Shape Foods which are irregular in shape, such as chicken breasts or drumsticks, take longer to cook in the thicker parts. Round shapes cook more evenly than square shapes when microwave cooking.
Temperature of food	The initial temperature of food affects the amount of cooking time needed. Chilled foods will take longer to cook than food at room temperature. Cut into foods with fillings (e.g. jam doughnuts) to release heat or steam.

Cooking techniques

Arrange Place the thickest parts of food towards the outside of the dish (e.g. chicken drumsticks).

Cover Use vented microwave cling film or a suitable lid.

Pierce Foods with a shell, skin or membrane must be pierced in several places before cooking or reheating as steam will build up and may cause food to explode (e.g. potatoes, fish, chicken, sausages).Important! Eggs should not be heated using microwave power as they may explode, even after cooking has ended (e.g. poached, hard boiled).

Stir, turn and rearrange For even cooking it is essential to stir, turn and rearrange food during cooking. Always stir and rearrange from the outside towards the centre.

Stand Standing time is necessary after cooking to enable the heat to disperse equally throughout the food.

Shield Some areas of food being defrosted may become warm. Warm areas can be shielded with small pieces of foil, which reflect microwaves (e.g. legs and wings on a chicken).

MICROWAVE SAFE COOKWARE

Cookware Microwave safe		Comments
Aluminium foil/ containers	√/ ✘	Small pieces of aluminium foil can be used to shield food from overheating. Keep foil at least 2 cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer. Follow instructions carefully.
Browning dishes	√	Always follow the manufacturer's instructions. Do not exceed heating times given. Be very careful as these dishes become very hot.
China and ceramics	√/ ✘	Porcelain, pottery, glazed earthenware and bone china are usually suitable, except for those with metallic decoration.
Glassware e.g. Pyrex ®	√	Care should be taken if using fine glassware as it can break or crack if heated suddenly.
Metal	✕	It is not recommended to use metal cookware when using microwave power as it will arc, which can lead to fire.
Plastic/polystyrene e.g. fast food containers	√	Care must be taken as some containers warp, melt or discolour at high temperatures.
Cling film	√	Should not touch the food and must be pierced to let the steam escape.
Freezer/roasting bags	√	Must be pierced to let steam escape. Ensure bags are suitable for microwave use. Do not use plastic or metal ties, as they may melt or catch fire due to the metal arcing.
Paper - plates, cups and kitchen paper	√	Only use for warming or to absorb moisture. Care must be taken as overheating may cause fire.
Straw and wooden containers	√	Always attend the oven when using these materials as overheating may cause fire.
Recycled paper and newspaper	✕	May contain extracts of metal which will cause arcing and may lead to fire.

MICROWAVE COOKING

Your oven can be programmed for up to 90 minutes. The input unit of cooking time varies from 15 seconds to five minutes. It depends on the total length of the cooking time as shown in the table.

Cooking time Increasing unit

0-5 minutes 15 seconds

5-10 minutes 30 seconds

10-30 minutes 1 minute

30-90 minutes 5 minutes

MANUAL DEFROSTING

For manual defrosting (without operating the Auto Defrost feature), use 270 W. The defrost symbol appears in the window display whenever the power level is selected.

Your oven has 6 power levels.

Power setting	Suggested use
900 W/HIGH	Used for fast cooking or reheating (e.g. soup, casseroles, canned food, hot beverages, vegetables, fish).
630 W	Used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as cheese sauce and sponge cakes. At this reduced setting, the sauce will not boil over and food will cook evenly without over cooking at the sides.
450 W	For dense foods which require a long cooking time when cooked conventionally (e.g. beef dishes) it is advisable to use this power setting to ensure the meat will be tender.
270 W/DEFROST	To defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard.
90 W	For gentle defrosting (e.g. cream gateaux or pastry).
0 W	For standing/kitchen timer.

W = WATT

Example: To heat soup for 2 minutes and 30 seconds on 630 W microwave power.

1. Press the POWER LEVEL button twice.

1. Enter the time by rotating the TIMER/WEIGHT knob clockwise/anti-clockwise until 2.30 is displayed.

1. Press the START/+30 button.

1. Check the display:

• When the door is opened during the cooking process, the cooking time on the digital display stops automatically. The cooking time starts to count down again when the door is closed and the START/+30 button is pressed.
• If you wish to know the power level during cooking, press the POWER LEVEL button once.
• You can increase or decrease the cooking time during cooking by rotating the TIMER/WEIGHT knob.
• You can change the power level during cooking by pressing the POWER LEVEL button.
• To cancel a programme during cooking, press the STOP button twice.

Important!

If the power level is not selected, 900 W/HIGH is automatically set.

KITCHEN TIMER

Example: To set the kitchen timer for 7 minutes.

1. Press the POWER LEVEL button 7 times.

1. Enter the time by rotating the TIMER/WEIGHT knob clockwise/anti-clockwise until 7.00 is displayed.

1. Press the START/+30 button.

1. Check the display:

i

- To pause the timer, press the STOP button. To resume the timer press START/+30, to exit press STOP again.

ADD 30 SECONDS

The START/+30 button allows you to operate the two following functions.

1. Direct Start

You can directly start cooking on 900 W/ HIGH microwave power level for 30 seconds by pressing the START/+30 button.

2. Extend the cooking time

You can extend the cooking time for multiples of 30 seconds if the button is pressed while the oven is in operation.

i

- You can also use +30 seconds during grill mode.

- You cannot use this function during AUTO COOK or AUTO DEFROST.

PLUS AND MINUS

The PLUS ⚠️ and MINUS ∨ function enables you to decrease or increase the cooking time when using the automatic programmes.

If you prefer boiled potatoes which are cooked but still firm, use MINUS.

Alternatively, if you prefer boiled potatoes softer, use PLUS.

Example: To cook 0.3 kg of boiled potatoes, well done.

1. Select the menu required by pressing the AUTO COOK button twice.

1. Turn the TIMER/WEIGHT knob until 0.3 is displayed.

1. Press the POWER LEVEL button once to select the PLUS adjustment.

1. Press the START/+30 button.

1. Check the display:

i

• To cancel PLUS/MINUS, press the POWER LEVEL button 3 times.
• If you select PLUS, the display will show ⁺ .
• If you select MINUS, the display will show▼.

GRILL AND DUAL GRILL COOKING

This microwave oven has two GRILL cooking modes:

1. Grill only
2. Dual Grill (grill with microwave)

Important!

1. The high or the low rack is recommended for grilling.
2. You may detect smoke or a burning smell when using the grill for the first time, this is normal and does not indicate a fault with the oven. To avoid this problem, when using the grill for the first time, operate the grill without food for 20 minutes.

1. Grill only cooking

This mode can be used to grill/brown food.

Example: To make toast for 4 minutes.

1. Press the GRILL button once.

1. Enter the time by rotating the TIMER/WEIGHT knob clockwise/anti-clockwise until 4.00 is displayed.

1. Press the START/+30 button.

1. Check the display:

2. Dual grill cooking

This mode uses a combination of grill power and microwave power (90 W to 630 W). The microwave power level is preset to 270 W.

Button Power setting

Grill x 1 0 W

Grill x 2 270 W

Grill x 3 450 W

Grill x 4 630 W

Grill x 5 0 W

Example: To cook grill skewers for 7 minutes on DUAL GRILL (450 W).

1. Press the GRILL button 3 times.

1. Enter the time by rotating the TIMER/WEIGHT knob clockwise/anti-clockwise until 7.00 is displayed.

1. Press the START/+30 button.

1. Check the display:

MULTIPLE SEQUENCE COOKING

A sequence of 3 stages (maximum) can be programmed using MICROWAVE, GRILL OR DUAL GRILL.

Example: To cook:

2 minutes and 30 seconds on

630 W power (Stage 1)

5 minutes grill only (Stage 2)

Stage 1

1. Press the POWER LEVEL button twice.

1. Enter the desired time by rotating the TIMER/WEIGHT knob clockwise until 2.30 is displayed.

1. Check the display

Stage 2

1. Press the GRILL button once.

1. Enter the desired time by rotating the TIMER/WEIGHT knob clockwise until 5.00 is displayed.

1. Press the START/+30 button.

1. Check the display:

The oven will begin to cook for 2 minutes and 30 seconds at 630 W and then for 5 minutes on grill only.

AUTO COOK AND AUTO DEFROST

AUTO COOK and AUTO DEFROST automatically works out the correct cooking mode and cooking time. You can choose from 6 AUTO COOK and 2 AUTO DEFROST menus.

Auto Cook

Food Symbol Setting
Beverage Microwave
Boiled potatoes/Jacket potatoes		Microwave
Grilled skewers Microwave + grill
Gratinated fish fillet Microwave + grill
Grilled chicken Microwave + grill
Gratin Microwave + grill

Example: To cook 0.3 kg of boiled potatoes.

1. Select the menu required by pressing the AUTO COOK button twice.

1. Turn the TIMER/WEIGHT knob until 0.3 is displayed.

1. Press the START/+30 button.

1. Check the display:

When action is required (e.g. to turn food over) the oven stops and the audible bell sounds, remaining cooking time and the indicator will flash on the display. To continue cooking, press the START/+30 button. At the end of the AUTO COOK time, the programme will automatically stop. The audible bell sounds and the cooking symbol will flash. After 1 minute and a reminder beep, the time of day will be displayed.

Auto Defrost

Food Symbol
Meat/fish/poultry
Bread

Example: To defrost 0.2 kg of bread.

1. Select the menu required by pressing the AUTO DEFROST button twice.

1. Turn the TIMER/WEIGHT knob until 0.2 is displayed.

1. Press the START/+30 button.

1. Check the display:

When action is required (e.g. to turn food over) the oven stops and the audible bell sounds, remaining cooking time and the indicator will flash on the display. To continue cooking, press the START/+30 button. At the end of the AUTO DEFROST time, the programme will automatically stop. The audible bell sounds and the cooking symbol will flash. After 1 minute and a reminder beep, the time of day will be displayed.

PROGRAMME CHARTS

AUTO COOK AND AUTO DEFROST CHARTS

Auto cook Weight(increasing unit)/Utensils		Button Procedure
Beverage (Tea/Coffee)	1-6 cups1 cup = 200 ml		• Place cup towards edge of turntable.
Boiled and jacket potatoes	0.2-1.0 kg (100 g) Bowl and lid		Boiled potatoes: Peel the potatoes and cut them in similar sized pieces.Jacket potatoes: Choose potatoes of similar size and wash them. • Put the boiled or jacket potatoes into a bowl. • Add the required amount of water, approx. 2 tbsp per 100 g and a little salt. • Cover with lid. • When the audible bell sounds, stir and re-cover. • After cooking, stand for approx. 2 min.
Grilled skewers fillet	0.2-0.8 kg (100 g) High rack		• See recipe for ‘Grilled skewers’ on page 19. • Place on the high rack and cook. • When the audible bell sounds, turn over.
Gratinated fish fillet	0.5-1.5 kg* (100 g) Gratin dish Low rack	—	• See recipes for ‘Gratinated fish fillet’ on page 19. * Total weight of all ingredients.
Grilled chicken	0.9-1.8 kg (100 g) Flan dish Low rack		• Mix together 2 tbsp oil, 1 tsp paprika, salt and pepper and spread on the chicken. • Pierce the skin of the chicken. • Put the chicken breast side down in a flan dish. • Place on the low rack and cook. • When audible bell sounds, turn over. • After cooking, leave for approx. 3 min in the oven, remove and put on a plate for serving.
Gratin 0.5-1.5 kg* (100 g) Gratin dish Low rack		— **	• See recipes for ‘Gratin’ on page 20. * Total weight of all ingredients.

i Chilled foods are cooked from 5 °C, frozen foods are cooked from -18°C.

Auto defrost Weight(increasing unit)/Utensils		Button Procedure
Meat/fish/poultry	0.2-1.0 kg (100 g)Flan dish		Place the food in a flan dish in the centre of the turntable.When the audible bell sounds, turn the food over, rearrange and separate. Shield thin parts and warm spots with aluminium foil.After defrosting, wrap in aluminium foil for 15-45 min, until thoroughly defrosted.Minced meat: When the audible bell sounds, turn the food over. Remove the defrosted parts if possible. Not suitable for whole poultry.
(Whole fish, fish steaks,fish fillets, chicken legs,chicken breast, mincedmeat, steak, chops,burgers, sausages)
Bread 0.1-1.0 kg (100 g)AUTO Flan dish		x2	Distribute in a flan dish in the centre of the turntable. For 1.0 kg, distribute directly on the turntable.When the audible bell sounds, turn over,rearrange and remove defrosted slices.After defrosting cover in aluminium foil and stand for 5-15 min until thoroughly defrosted.

Chilled foods are cooked from 5 °C, frozen foods are cooked from -18 °C.

i

• Enter the weight of the food only. Do not include the weight of the container.
• For food weighing more or less than weights/quantities given in the Auto cook and defrost charts, use manual operation.
• The final temperature will vary according to the initial temperature. Check food is piping hot after cooking.
• When action is required (e.g. to turn food over) the oven stops and the audible bell sounds, remaining cooking time and the indicator will flash on the display. To continue cooking, press the START/+30 button.
  • After Microwave/Grill/Dual Grill modes the cooling fan may come on.

Auto defrost

• Steaks and chops should be frozen in one layer.
• Minced meat should be frozen in a thin shape.
  • After turning over, shield the defrosted portions with small, flat pieces of aluminium foil.
• The poultry should be processed immediately after defrosting.

4 pieces
400 g	pork cutlets, cubed
100 g	streaky bacon
100 g	onions, quartered
250 g	tomatoes, quartered
100 g	green pepper, cubed
2 tbsp	oil
4 tsp	paprika
	salt
1 tsp	cayenne pepper
1 tsp	Worcester sauce

Gratinated fish fillet 'Esterhazy'

0.5 kg 1.0 kg 1.5 kg

230 g 450 g 680 g fish fillet

100 g 200 g 300 g leeks (cut into rings)

20 g 40 g 60 g onion (finely sliced)

40 g 100 g 140 g carrot (grated)

10 g 15 g 20 g butter or margarine

salt, pepper and nutmeg

1 tbsp 11/2 2 tbsp lemon juice tbsp

50 g 100 g 150 g crème fraîche

50 g 100 g 150 g Gouda, grated

Gratinated fish fillet 'Italian'

0.5 kg 1.0 kg 1.5 kg
200 g 430 g 630 g fish fillet
1/2 tbsp	1 tbsp 11/2 tbsp	lemon juice
1/2 tbsp	1 tbsp 11/2 tbsp	anchovy butter
30 g 50 g 80 g Gouda, grated
salt and pepper
150 g 300 g 450 g fresh tomatoes
1 tbsp 11/2 tbsp	2 tbsp chopped mixed herbs
100 g 180 g 280 g Mozzarella
1/2 tbsp	3/4 tbsp	1 tbsp basil, chopped

1. Thread meat and vegetables alternately on 4 wooden skewers.
2. Mix the oil with the spices and brush over the kebabs.

3. Place the kebabs on the high rack and cook on AUTO COOK "Grilled skewers".

4. Put vegetables, butter and the spices into a casserole dish and mix well. Cook for 2-6 min on 900 W depending on weight.

5. Wash the fish, dry and sprinkle with lemon juice and salt.
6. Mix the crème fraîche with the vegetables and season again.
7. Put half of the vegetables in a gratin dish. Place the fish on top and cover with the remaining vegetables.
8. Spread the Gouda over the top, place on the low rack and cook on AUTO COOK "Gratinated fish fillet".

9. After cooking, stand for approx. 5 min.

10. Wash and dry the fish and sprinkle with lemon juice, salt and anchovy butter.

11. Place in a gratin dish.
12. Sprinkle the Gouda over the fish.
13. Place the tomatoes on top of the cheese.
14. Season with salt, pepper and the mixed herbs.
15. Drain the Mozzarella, cut into slices and place on the tomatoes. Sprinkle the basil over the cheese.
16. Place the gratin dish on the low rack and cook on AUTO COOK "Gratinated fish fillet".
17. After cooking, stand for approx. 5 min.

Spinach gratin
0.5 kg 1.0 kg 1.5 kg
150 g 300 g 450 g leaf spinach, defrosted, drained
15 g 30 g 45 g onion, finely chopped
	salt, pepper and nutmeg
5 g 10 g 15 g butter or margarine to grease the dish
150 g 300 g 450 g boiled potatoes, sliced
35 g 75 g 110 g cooked ham, diced
50 g 100 g 150 g crème fraîche
1 2 3 eggs
40 g 75 g 115 g grated cheese

Potato and courgette gratin
0.5 kg 1.0 kg 1.5 kg
5 g	10 g 15 g butter or margarine to grease the dish
200 g 400 g 600 g boiled potatoes, sliced
115 g 230 g 345 g courgette, finely sliced
75 g 150 g 225 g crème fraîche
1	2	3	eggs
1/2	1	2	clove of garlic, crushed
salt and pepper
40 g 80 g 120 g Gouda, grated
10 g 20 g 30 g sunflower kernels

REDUCED POWER LEVEL

Important!

If you cook the food over the standard time with only the same cooking mode, the power of the oven will lower automatically to avoid

1. Mix together the leaf spinach with the onion and season with salt, pepper and nutmeg.
2. Grease the gratin dish. Place alternate layers of potato slices, diced ham and spinach in the dish. The top layer should be spinach.
3. Mix the eggs with crème fraîche, add salt and pepper and pour over the gratin.
4. Cover the gratin with the grated cheese.
5. Place on the low rack and cook on AUTO COOK "Gratin".

6. After cooking, stand for 5-10 min.

7. Grease the gratin dish and place alternate layers of potato slices and courgette in the dish.

8. Mix the eggs with crème fraîche, season with salt, pepper and garlic and pour over the gratin.
9. Sprinkle the Gouda cheese over the gratin.
10. Finally sprinkle the gratin with sunflower kernels.
11. Place on the low rack and cook on AUTO COOK "Gratin".
12. After cooking, stand for 5-10 min.

overheating (the microwave power level will be reduced or the grill heating element will begin to light on and off). After pausing for 90 seconds, full power can be reset.

Cooking mode Standard time Reduced power level

Microwave 900 W 20 minutes Microwave 630 W

Grill 20 minutes Grill - 50 %

Dual Grill Grill - 20 minutes Grill - 50 %

COOKING CHARTS

Abbreviations used

tbsp = tablespoon cup = cupful g = gram ml = millilitre	min = minutes
tsp = teaspoon kg = kilogram l = litre	cm = centimetre

Heating food and drink

Food/drink		Quantity -g/ml-	Setting	Power Level	Time -Min-	Method
Milk,	1 cup	150	Micro	900 W	approx. 1	do not cover
Water,	1 cup	150	Micro	900 W	approx. 2	do not cover
	6 cups	900	Micro	900 W	8-10	do not cover
	1 bowl	1000	Micro	900 W	9-11	do not cover
One plate meal (vegetables, meat and trimmings)		400	Micro	900 W	4-6	sprinkle some water onto the sauce, cover, stir halfway through heating
Soup/stew		200	Micro	900 W	1-2	cover, stir after heating
Vegetables		200	Micro	900 W	2-3	if necessary add some water, cover
		500	Micro	900 W	3-5	stir halfway through heating
Meat, 1 slice*		200	Micro	900 W	approx. 3	thinly spread sauce over the top, cover
Fish fillet*		200	Micro	900 W	3-5	cover
Cake, 1 slice		150	Micro	450 W	1/2 -1	place in a flan dish
Baby food, 1 jar		190	Micro	450 W	1/2 -1	transfer into a suitable microwaveable container, after heating stir well and test the temperature
Melting margarine or butter*		50	Micro	900 W	1/2	cover
Melting chocolate		100	Micro	450 W	3-4	stir occasionally

* from chilled

Defrosting

Food Quantity	-g-	Setting Power Level	Time -Min-	Method Standing	time -Min-
Goulash 500 Micro 270 W 8-9 stir halfway through defrosting 10-30
Cake, 1 slice 150 Micro 90 W 1-3 place in a flan dish 5
Fruit (e.g. cherries, strawberries, raspberries, plums)	250 Micro 270 W 3-5 spread out evenly, turn over halfway through defrosting				5

The times shown in the table are guidelines which may vary according to freezing temperature, quality and weight of the foodstuffs.

Defrosting and cooking

Food	Quantity Setting -g-		Power Time Level -Min-		Added Method water -tbsp-		Standing time -Min-
Fish fillet	300	Micro	900 W	9-11	-	cover	2
One plate meal	400	Micro	900 W	8-10	-	cover, stir after 6 minutes	2
Broccoli	300	Micro	900 W	6-8	3-5	cover, stir halfway through cooking	2
Peas	300	Micro	900 W	6-8	3-5	cover, stir halfway through cooking	2
Mixed vegetables	500	Micro	900 W	9-11	3-5	cover, stir halfway through cooking	2

Cooking, grilling and browning

Food Quantity -g-		Setting Power Level		Time -Min-	Method Standing time -Min-
Broccoli 500 Micro 900 W 6-8 add 4-5 tbsps water, cover, stir halfway through cooking					-
Peas 500 Micro 900 W 6-8 add 4-5 tbsps water, cover, stir halfway through cooking					-
Carrots 500 Micro 900 W 9-11 cut into rings, add 4-5 tbsps water, cover, stir halfway through cooking					-
Roasts (pork, 1000 veal, lamb)	Micro	450 W	16-18	season to taste, place on the low rack,0 turn over after*
	Dual Grill	450 W	5-7*
	Micro	450 W	14-16
	Dual Grill	450 W	4-6
1500	Micro	450 W	26-28	10
	Dual Grill	450 W	5-8*
	Micro	450 W	26-28
	Dual Grill	450 W	4-5
Roast beef (medium)	1000	Micro	630 W	5-8	season to taste, place on the low rack,0 turn over after*
		Dual Grill	630 W	8-10*
		Dual Grill	630 W	3-5
1500	Micro	630 W	12-15	10
	Dual Grill	630 W	12-15*
	Dual Grill	630 W	4-6
Chicken legs 200 Dual Grill		450 W	6-7*	season to taste, place skin side downB on the high rack, turn over after*
			4-6
Rump steaks 400 Grill 2 pieces, medium		Grill	11-12*	place on the high rack, turn over after*, season after grilling
			6-8
Browning of gratin dishes		Grill 8-13 place dish on the low rack
Cheese toastie	1 piece	Micro	450 W	1/2	toast the bread and spread with butter, top with a slice of cooked ham, a slice of pineapple and a slice of cheese
		Grill		5-6
	4 pieces	Micro	450 W	1/2-1
		Grill		5-6
Frozen pizza	300	Micro	450 W	4-6	place on the low rack
		Dual Grill	450 W	4-6
	400	Micro	450 W	6-7
		Dual Grill	450 W	5-7

RECIPES

All the recipes in this book are calculated on the basis of 4 servings unless otherwise stated.

Adapting recipes for the microwave oven

If you would like to adapt your favourite recipes for the microwave, you should take note of the following: shorten cooking times by a third to a half. Follow the example of the recipes in this book.

Foods which have a high moisture content such as meat, fish, poultry, vegetables, fruit, stews and soups can be prepared in your microwave without any difficulty.

Onion soup

Utensils: Bowl with lid (2 l capacity) 4 soup bowls (200 ml)

10 g butter or margarine

100 g onions, sliced

800 ml meat stock salt and pepper

2 slices bread

40 g grated cheese

Aubergines stuffed with minced meat

Utensils: Bowl with lid (1 l capacity) Shallow flan dish (approx. 30 cm diameter)

250 g aubergines

200 g tomatoes

1 tbsp olive oil to grease the dish

100 g onions, chopped

4 mild green chillies, seeds removed

200 g minced beef

2 garlic cloves, crushed

2 tbsp parsley, chopped salt and pepper paprika

60 g Feta cheese, cubed

Foods which have little moisture, such as platters of food, should have the surface moistened prior to heating or cooking.

The amount of liquid to be added to raw foods, which are to be braised, should be reduced to about two thirds of the quantity in the original recipe. If necessary, add more liquid during cooking.

The amount of fat to be added can be reduced considerably. A small amount of butter, margarine or oil is sufficient to flavour food. For this reason your microwave is excellent for preparing low-fat foods as part of a diet.

1. Grease the bowl, add the sliced onion, meat stock and the seasoning. Cover and cook. 9-11 min. 900 W

2. Toast the slices of bread, cut them into cubes and divide them among the soup bowls. Pour the soup over the toast cubes and sprinkle on the cheese.

3. Place the bowls on the turntable, and grill. 6-7 min. Grill

4. Cut the aubergines in half lengthways. Scoop out the flesh with a teaspoon to leave a shell about 1 cm thick. Dice the scooped-out flesh.

5. Remove the skin from the tomatoes and chop.

6. Grease the bottom of the bowl with the olive oil. Add the onions, cover and cook. 2 min. 900 W

7. Cut the chillies into rings. Retain a third for the garnish. Mix the minced meat with the diced aubergines, onions, tomatoes, chilli rings, garlic and parsley. Season to taste.

8. Dry the aubergine halves. Fill with half of the mince mixture, spread the feta cheese on top, and then add the rest of the filling.

9. Arrange the aubergine halves in the greased flan dish, place the dish on the low rack and cook.

11-13 min. Dual Grill (630 W)

Garnish the aubergine halves with the chilli rings and continue cooking.

4-7 min. Dual Grill (630 W)

After cooking, stand for approx. 2 min.

Mushrooms with rosemary

Utensils: Bowl with lid (1 l capacity) Shallow round dish with lid (approx. 22 cm diameter)

8 large mushrooms (approx. 225 g), whole

20 g butter or margarine

50 g onion, finely chopped

50 g bacon, finely diced black pepper fresh rosemary, chopped

125 ml dry white wine

125 ml cream

20 g flour

Sole fillets

Utensils: Shallow oval oven dish with microwave cling film (approx. 26 cm long)

400 g sole fillets

1 lemon, whole

150 g tomatoes

10 g butter or margarine to grease the dish

1 tbsp vegetable oil

1 tbsp parsley, chopped salt and pepper

4 tbsp white wine

20 g butter

Almond trout

Utensils: Shallow oval gratin dish (approx. 32 cm long)

4 trout (200 g), trimmed juice of one lemon salt

30 g butter or margarine

50 g flour

10 g butter or margarine to grease the dish

50 g almond flakes

1. Remove the stalks from the mushrooms. Chop the stalks into small pieces.

2. Grease the shallow dish. Add the onions, the diced bacon and the mushroom stalks. Season with pepper and rosemary, cover and cook.
   3-5 min. 900 W Leave to cool.

3. Heat the cream and 100 ml of the wine in the bowl.
   1-3 min. 900 W

4. Mix the remaining wine with the flour, stir into the hot liquid, cover and cook. Stir once during cooking. approx. 1 min. 900 W

5. Fill the mushrooms with the bacon mixture and put in shallow dish. Pour the sauce over the mushrooms and cook on the rack. 6-8 min. Dual Grill (630 W) After cooking, stand for approx. 2 min.

6. Wash the fish and pat dry. Remove any bones.

7. Cut the lemon and the tomatoes into thin slices.

8. Grease the oven dish with butter. Place the fish fillets in the dish and drizzle with the vegetable oil.

9. Sprinkle parsley over the dish, place the tomato slices on top and season. Place the lemon slices on top of the tomatoes and pour the white wine over them.

10. Place small pats of butter on top of the lemon, cover and cook. 11-13 min. 630 W After cooking, stand for approx. 2 min.

11. Wash and dry the trout and sprinkle with lemon juice. Rub salt to the interior and exterior of the fish and leave to stand for 15 min.

12. Melt the butter. 1 min. 900 W

13. Dry the fish, spread with the butter and roll in the flour.

14. Grease the dish. Put the trout in the dish and cook on the low rack. Two thirds through the cooking turn the trout and scatter the almonds over them.

15-18 min. Dual Grill (450 W)

After cooking, stand for approx. 2 min.

Fish fillet with cheese sauce

Utensils: Bowl with lid (1 l capacity) Shallow round gratin dish (approx. 25 cm diameter)

800 g fish fillets

2 tbsp lemon juice salt

10 g butter or margarine

50 g onion, finely chopped

20 g flour

100 ml white wine

1 tsp vegetable oil to grease the dish

100 g Emmental cheese, grated

2 tbsp parsley, chopped

Zürich veal stew

Utensils: Bowl with lid (2 l capacity)

600 g veal fillet

10 g butter or margarine

50 g onion, finely chopped

100 ml white wine seasoned gravy browning, for approx. 1/2 I gravy

300 ml cream

1 tbsp parsley, chopped

Stuffed ham

Utensils: Bowl with lid (2 l capacity) Oval gratin dish with lid (approx. 26 cm long)

150 g leaf spinach, chopped

150 g fromage frais, 20 % fat content

50 g Emmental cheese grated pepper and paprika

8 slices cooked ham (400 g)

125 ml water

125 ml cream

20 g flour

20 g butter or margarine

10 g butter or margarine to grease the dish

1. Wash the fish, pat dry and sprinkle with lemon juice. Rub with salt.

2. Grease the bowl. Add the diced onion, cover and cook.

1-2 min. 900 W

1. Sprinkle the flour over the onions and white wine and mix.

2. Grease the gratin dish and place the fish in it. Pour the sauce over the fish and sprinkle with cheese. Place on the low rack and cook.

7-8 min. 450 W

14-16 min. Dual Grill (450 W)

After cooking, stand for approx. 2 min.

1. Cut the veal into strips.

2. Grease the dish with the butter. Put the meat and onion into the dish, cover and cook. Stir once during cooking.

6-9 min. 900 W

1. Add the white wine, gravy browning and cream, stir, cover and continue cooking. Stir occasionally.

3-5 min. 900 W

1. Stir the mixture after cooking, stand for approx. 5 min. Garnish with parsley.

2. Mix the spinach with the cheese and fromage frais, season to taste.

3. Place a tablespoon of the filling on top of each slice of cooked ham, and roll up. Spear the ham with a wooden skewer to fasten it.

4. Make a béchamel sauce; to do this, pour the water and cream into a bowl and heat.

2-4 min. 900 W

Mix the flour and butter to make a roux, add to the liquid, and whisk until dissolved. Cover, cook until thick.

1-2 min. 900 W

Stir and taste.

1. Place the sauce into the greased dish, place the filled rolls of ham onto the sauce and cook with lid.

10-12 min. Dual Grill (630 W)

After cooking, stand for approx. 5 min.

Veal cutlets with mozzarella

Utensils: Shallow square gratin dish with lid (approx. 25 cm long)

150 g Mozzarella cheese, sliced

500 g tinned tomatoes, drained

4 veal cutlets (600 g)

20 ml olive oil

2 cloves of garlic, chopped

20 g capers

oregano

salt and pepper

Lasagne

Utensils: Bowl with lid (2 l capacity)

Shallow square dish with lid (approx.

20 × 20 × 6 cm)

300 g tinned tomatoes

50 g ham, chopped

50 g onion, finely chopped

1 clove of garlic, crushed

250 g minced beef

2 tbsp tomato purée

salt and pepper

50 g Parmesan cheese, grated

1 tsp mixed chopped herbs

1 tsp olive oil

1 tsp vegetable oil to grease the dish

125 g lasagne verde

1 tbsp Parmesan cheese, grated

1. Wash the veal, dry and beat them flat.

2. Purée the tomatoes, add the garlic, oil, salt, pepper, capers and oregano and pour over the veal. Cover and cook.

15-19 min. 630 W

Turn the meat slices over.

1. Place slices of Mozzarella on each cutlet, season and cook uncovered on the high rack.

9-12 min. Dual Grill (630 W)

After cooking, stand for approx. 5 min.

1. Chop the tomatoes, mix with the ham and onion, garlic, minced beef and tomato purée. Season, cover and cook.

5-8 min. 900 W

1. Mix the crème fraîche with the milk, Parmesan cheese, herbs, oil and spices.

2. Grease the dish and cover the bottom with about 1 / 3 of the pasta. Put half of the minced meat mixture on the pasta and pour on some sauce. Repeat and finish with the remaining pasta. Cover the pasta with sauce and sprinkle with Parmesan cheese. Cook with the lid on.

13-17 min. 630 W

After cooking, stand for approx. 5-10 min.

Courgette & noodle gratin

Utensils: Gratin dish (approx. 26 cm long)

80 g macaroni, cooked

400 g tinned tomatoes, chopped

150 g onion, finely chopped basil, thyme, salt and pepper

1 tbsp oil to grease the dish

450 g courgettes, sliced

150 g sour cream

2 eggs

100 g Cheddar cheese, grated

Pears in chocolate sauce

Utensils: Bowl with lid (2 l capacity)

Bowl with lid (1 I capacity)

4 whole pears, peeled (600 g)

60 g sugar

10 g vanilla sugar

1 tbsp pear liqueur

150 ml water

130 g dark chocolate, chopped

100 g crème fraîche

1. Mix the tomatoes with the onions and season well. Add the macaroni. Pour the tomato sauce over the macaroni and spread the courgette slices on top.

2. Beat the sour cream and the eggs and pour over the gratin. Sprinkle the grated cheese on top. Place on the low rack and cook.

18-21 min. 900 W

7-8 min. Dual Grill (630 W)

After cooking, stand for approx. 5-10 min.

1. Place the sugar, vanilla sugar, pear liqueur and water into the bowl, stir, cover and cook. 1-2 min. 900 W

2. Place the pears in the liquid, cover and cook. 5-8 min. 900 W Take the pears out of the cooking liquid, and place in the refrigerator.

3. Put 50 ml of the cooking liquid into the smaller bowl. Add the chocolate and crème fraîche, cover and cook.

2-3 min. 900 W

1. Stir the sauce well, pour over the pears and serve.

Semolina pudding with raspberry sauce

Utensils: Bowl with lid (2 l capacity)

4 Ramekin dishes

500 ml milk

40 g sugar

15 g chopped almonds

50 g semolina

1 egg yolk

1 tbsp water

1 egg white

250 g raspberries

50 ml water

40 g sugar

1. Place the milk, sugar and almonds in the bowl, cover and cook.

3-5 min. 900 W

1. Add the semolina, stir, cover and cook. 10-12 min. 270 W

2. Beat the egg yolk with the water in a cup and stir into the hot mixture. Beat the egg white until it is stiff, and fold it into the mixture. Pour the pudding into ramekins.

3. To make the sauce, wash and dry the raspberries and place into a bowl with the water and sugar. Cover and heat.

2-3 min. 900 W

1. Purée the raspberries and serve with the semolina pudding.

Cheesecake

Utensils: Spring form tin (approx. 26 cm diameter) Base:

300 g flour

1 tbsp cocoa

10 g baking powder

150 g sugar

1 egg

10 g butter or margarine to grease the tin Filling:

150 g butter or margarine

100 g sugar

10 g vanilla sugar

3 eggs

400 g fromage frais, 20 % fat content

40 g powdered vanilla pudding mix

1. In a bowl, mix together the flour, cocoa, baking powder and sugar.
2. Add the egg and butter and mix in a food processor.
3. Grease the tin. Roll out the dough and line the tin, leaving 2 cm around the edges to form a rim. Bake the pastry. 6-8 min. 630 W
4. Whisk the butter and sugar until light and fluffy. Slowly whisk in the eggs. Add the fromage frais and the powdered vanilla pudding mix.
5. Spread the mixture over the cheesecake base and cook. 15-19 min. 630 W

CARE AND CLEANING

CAUTION: DO NOT USE COMMERCIAL OVEN CLEANERS, STEAM CLEANERS, ABRASIVE, HARSH CLEANERS, ANY THAT CONTAIN SODIUM HYDROXIDE OR SCOURING PADS ON ANY PART OF YOUR MICROWAVE OVEN. CLEAN THE OVEN AT REGULAR INTERVALS AND REMOVE ANY FOOD DEPOSITS. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Oven exterior

The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel.

Control panel

Open the door before cleaning to de-activate the control panel. Care should be taken when cleaning the control

panel. Using a cloth dampened with water only, gently wipe the panel until it becomes clean. Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner.

Oven interior

1. For cleaning, wipe any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not remove the waveguide cover.
2. Make sure that mild soap or water does not penetrate the small vents in the walls which may cause damage to the oven.
3. Do not use spray type cleaners on the oven interior.
4. Heat up your oven regularly by using the grill. Remaining food or fat splashed can cause smoke or a bad smell.

Turntable and turntable support

Remove the turntable and turntable support from the oven. Wash the turntable and turntable support in mild soapy water. Dry with a soft cloth. Both the turntable and the turntable support are dishwasher safe.

Door

To remove all trace of dirt, regularly clean both sides of the door, the door seals and sealing surfaces with a soft, damp cloth. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Racks

These should be washed in a mild washing up liquid solution and dried. The racks are dishwasher safe.

Important! A steam

cleaner should not be used.

TROUBLESHOOTING

Problem Check if . . .
The microwave appliance is not working properly?	The fuses in the fuse box are working.There has not been a power outage.If the fuses continue to blow, please contact a qualified electrician.
The microwave mode is not working?	The door is properly closed.The door seals and their surfaces are clean.The START/+30 button has been pressed.
The turntable is not turning?	The turntable support is correctly connected to the drive.The ovenware does not extend beyond the turntable.Food does not extend beyond the edge of the turntable preventing it from rotating.There is nothing in the well beneath the turntable.
The microwave will not switch off?	Isolate the appliance from the fuse box.Call an authorised ELECTROLUX service agent.
The interior light is not working?	Call your local ELECTROLUX service agent. The interior light bulb can be exchanged only by a trained ELECTROLUX service agent.
The food is taking longer to heat through and cook than before?	Set a longer cooking time (double quantity = nearly double time) or If the food is colder than usual, rotate or turn from time to time or Set a higher power setting.

TECHNICAL INFORMATION

AC Line Voltage 230 V, 50 Hz, single phase
Distribution line fuse/circuit breaker Minimum 16 A
AC Power required:	Microwave	1.37 kW
	Grill	1.00 kW
	Microwave/Grill	2.35 kW
Output power:	Microwave	900 W (IEC 60705)
	Grill	1000 W
Microwave Frequency 2450 MHz * (Group 2/Class B)
Outside Dimensions:	EMS26264O	594 mm (W) x 459 mm (H) x 404 mm (D)
	EMS26203O	594 mm (W) x 388 mm (H) x 404 mm (D)
Cavity Dimensions 342 mm (W) x 207 mm (H) x 368 mm (D) **
Oven Capacity 26 litres **
Turntable ø 325 mm, glass
Weight approx. 19.5 kg
Oven lamp 25 W/240-250 V

* This Product fulfils the requirement of the European standard EN55011. In conformity with this standard, this product is classified as group 2 class B equipment. Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food. Class B equipment means that the equipment is suitable to be used in domestic establishments. ** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less.

This oven complies with the requirements of Directives 2004/108/EC, 2006/95/EC, 2009/125/EC and 2011/65/EU.

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AS PART OF CONTINUOUS IMPROVEMENT

INSTALLATION

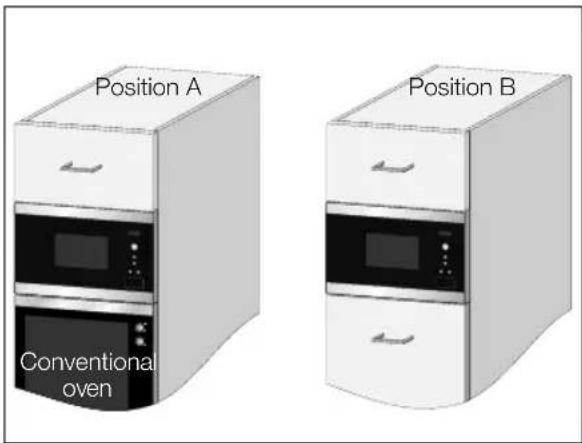

The microwave can be fitted in position A or B:

Position	Niche size
	W	D	H
A	560 x 550 x 380
	560 x 550 x 450
B	560 x 500 x 380
	560 x 500 x 450

Measurements in (mm)

INSTALLING THE APPLIANCE

1. Remove all packaging and check carefully for any signs of damage.
2. Fit the appliance into the kitchen cupboard slowly, and without force, until the front frame of the oven seals against the front opening of the cupboard.

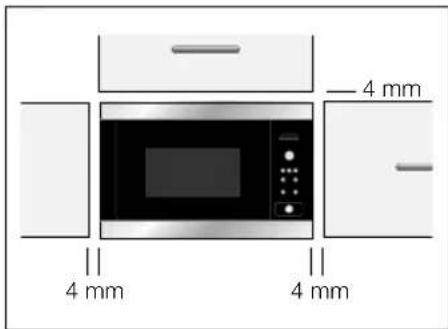

3. Ensure the appliance is stable and not leaning. Ensure that a 4 mm gap is kept between the cupboard door above and the top of the frame (see diagram).

Fixing Option 1:

Fix the oven in position with the screws provided. The fixing points are located on the top and bottom corners of the oven.

Fixing Option 2:

Please see the template sheet supplied with this oven.

! Important!

Ensure the bottom of the oven is 85 cm or more above the floor. It is important to ensure that the installation of this product conforms to the instructions in this operation manual and the conventional oven manufacturer's installation instructions.

CONNECTING THE APPLIANCE TO THE POWER SUPPLY

• The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency. Or it should be possible to isolate the oven from the supply by incorporating a switch in the fixed wiring in accordance with the wiring rules.
• The socket should not be positioned behind the cupboard.
• The best position is above the cupboard, see (A).

• Connect the appliance to a single phase 230 V/50 Hz alternating current via a correctly installed earth socket. The socket must be fused with a 16 A fuse.
• The power supply cord may only be replaced by an electrician.
• Before installing, tie a piece of string to the power supply cord to facilitate connection to point (A) when the appliance is being installed.
• When inserting the appliance into the high-sided cupboard, DO NOT crush the power supply cord.
• Do not immerse the power supply cord or plug in water or any other liquid.

ELECTRICAL CONNECTIONS

WARNING!

THIS APPLIANCE MUST BE EARTHED

The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, you must call your local ELECTROLUX service agent.

ENVIRONMENT CONCERNS

Ecologically responsible disposal of packaging materials and old appliances

PACKAGING MATERIALS

ELECTROLUX microwave ovens require effective packaging to protect them during transportation. Only the minimum packaging necessary is used.

Packaging materials (e.g. foil or styrofoam) can place children at risk.

Danger of suffocation. Keep packaging material away from children.

All packaging materials used are environment friendly and can be recycled. The cardboard is made from recycled paper and the wooden parts are untreated. Plastic items are marked as follows:

«PE» polyethylene e.g. packaging film
«PS» polystyrene e.g. packaging (CFC-free)
«PP» polypropylene e.g. packaging straps By using and re-using the packaging, raw materials are saved and waste volume is reduced. Packaging should be taken to your nearest recycling centre. Contact your local council for information.

DISPOSAL OF OLD APPLIANCES

Old appliances should be made safe before disposal by removing the plug, and cutting off and disposing of the power cable.

It should then be taken to the nearest recycling centre. Check with your local Council or Environmental Health Office to see if there are facilities in your area for recycling the appliance.

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

INNEHÅLL

VIKTIGA SÄKERHETSINSTRUKTIONER 36

PRODUKTÖVERSIKT 40

KONTROLLPANEL 41

INNAN FÖRSTA ANVÄNDNING 41

ANVÄNDA MIKROVÅGSUGNEN 43

PROGRAMTABELLER 50

RECEPT 56

SKÖTSEL OCH RENGÖRING 61

VAD GÖR JAG OM 63

SPECIFICATIONER 63

INSTALLATION 64

MILJÖINFORMATION 65

FÖR PERFEKT RESULTAT

www.electrolux.com/productregistration

Att undvika brandrisk

KONTROLLPANEL

1 DIGITAL DISPLAY indikatorer

Grill

Plus/Minus

Mikrovågor

Autoupptining bröd

Dubbelgrill

Autoupptining

Klockan

Vikt

Olika stadier undermatlagningen

2 Symboler AUTOTILLAGNING
3 Knappen AUTOTILLAGNING
4 Knappen AUTOUPPTINING
5 Knappen UGNENS EFFEKTNIVÅ
6 Knappen GRILL
7 Vredet TIMER/VIKT
8 Knappen START/+30
9 Knappen STOP
10 Knappen för DÖRRÖPPNING

INNAN FÖRSTA ANVÄNDNING

ECO-LÄGE

msk = matsked Kkp = kaffekopp g = gram ml = milliliter min = minuter

tsk = tesked kg = kilogram l = liter cm = centimeter

Värma mat och dryck

Monteringsalternativ 2:

TEKNISET TIEDOT....94

ASENNUS 95

YMPÄRISTÖÄ KOSKEVIA TIETOJA 96

TÄYDELLISTEN TULOKSIEN SAAVUTTAMISEKSI

i

OHJAUSPANEELI

MIKROAALLOT KYPSENNYS

MANUAALISESSA SULATUKSESSA

Painike Asetus

Grill x 1 0 W

Grill x 2 270 W

Grill x 3 450 W

Grill x 4 630 W

Grill x 5 0 W

RESEPTEJÄ AUTOMAATTIKYPSENNYS

Grillivartaat

AUTOMAATTINEN TEHON VÄHENNYS

Huomautus!

VALMISTUSAIKATAULUKOT

Käytetyt lyhenteet

rkl = ruokalusikka kuppi = kupillinen g = gramma ml = millilitra min = minuuttia

tl = teelusikka kg = kilogramma l = litra cm = senttimetri

www.electrolux.com/productregistration

1 Grillvarmeelement
2 Frontkant
3 Ovnslampe
4 Kontrollpanel
5 Døråpner
6 Plate som beskytter bølgeleder
7 Ovnsrom
8 Pakning for dreietallerken
9 Dørpakning og lukkeflater
10 Festepunkter (4 punkter)
11 Ventilasjonsåpninger
12 Ytre kasse
13 Bakre kasse
14 Strømledning

KONTROLLPANEL

1 DIGITALT DISPLAY indikatorer

Grill

Pluss/minus

Mikrobølger

Autotining brød

Dobbel grill

Autotining

Klokken

Vekt

Tillagningstadier

2 AUTOTILBEREDNING indikatorer
3 AUTOTILBEREDNING knapp
4 AUTOTINING knapp
5 EFFEKTNIVÅ knapp
6 GRILL knapp
7 TID/VEKT knappen
8 START/+30 knapp
9 STOPP knapp
10 D∅RÅPNINGS knapp

F∅R DEN BRUKES F∅RSTE GANG

ECON. INNSTILLINGER

Ovnen er innstilt på energisparingsmodus – "Econ."

Knapp Makt innstillingen

Grill x 1 0 W

Grill x 2 270 W

Grill x 3 450 W

Grill x 4 630 W

Grill x 5 0 W

TILBEREDNING I FLERE TRINN

1 ss olivenolje for å smøre inn formen

pepper, nykvernet salt, pepper

1 ss olivenolje for å smøre inn formen

450 g squash, i skiver

150 g rømme

2 egg

100 g revet gulost

Innstillingsalternativ 2:

HVAD SKAL JEG G∅RE, HVIS....159

SPECIFICATIONER 159

INSTALLERING 160

MILJ∅OPLYSNINGER 162

VI TÄENKER PÅ DIG

www.electrolux.com/productregistration

i

BETJENINGSPANEL

1 DIGITALT DISPLAY indikatorer

Grill

Plus/Minus

Mikrobølger

Ovnen bipper. Displayet viser:

HVAD SKAL JEG G∅RE, HVIS
