ER-CA65 - Nail Clipper PANASONIC - Free user manual and instructions

Product Type	Hair Clipper
Model Number	ER-CA65
Brand	Panasonic
Power Supply	AC 100-240 V, 50/60 Hz (Adaptor RE9-37)
Adaptor Output	DC 1.9 V, 1.4 A
Battery Type	Nickel-Metal Hydride (Built-in rechargeable)
Charging Time	8 hours
Operating Time (Full Charge)	Approximately 40 minutes continuous
Blade Life	About 2 years (based on 2 uses/month, 20 min each)
Battery Life	About 3 years (based on 3 charges/month)
Attachments Included	3/6mm, 9/12mm, 15/18mm comb attachments; 20/30/40mm comb attachment; 50/60/70mm comb attachment; Natural cutting attachment; Point cutting attachment; Thinning (1/3) attachment
Washable	Hand-held part is washable (detach from power cord)
Oil Included	Yes, for blade maintenance
Cleaning Brush Included	Yes
AC Operation	Can be used while charging (when switch set to '1')
Safety Features	Overheating protection, water resistance (hand-held part)
Storage Temperature	5 °C to 35 °C for charging
Made In	China
Warranty	Refer to warranty card included

Frequently Asked Questions - ER-CA65 PANASONIC

How long does it take to fully charge the ER-CA65?

Charging time is 8 hours. A full charge provides approximately 40 minutes of continuous operation.

Can I use the clipper while it is charging?

Yes, set the switch to position '1' while connected to the AC adaptor. If it does not operate, set to '0·CHARGE' for about 1 minute then back to '1'.

How do I clean the blade?

You can rinse the hand-held part under water after detaching from the power cord. Shake off excess water, wipe, and dry with the 'washable' indicator facing up. Alternatively, use the cleaning brush to remove hair.

How often should I oil the blades?

Apply a few drops of oil at the indicated arrows after each use to maintain cutting performance and prevent dullness or abnormal noise.

What attachments are included with ER-CA65?

The ER-CA65 includes: 3/6mm, 9/12mm comb attachments; 20/30/40mm comb attachment; 50/60/70mm comb attachment; Natural cutting attachment; Thinning (1/3) attachment.

How do I remove the blade for cleaning?

Hold the clipper with the 'Panasonic' mark facing up, push the blade with your thumb while catching it in your other hand. Ensure switch is at '0·CHARGE' before removal.

What is the expected lifespan of the blades and battery?

Blade life is about 2 years (2 uses/month, 20 min each). Battery life is about 3 years (3 charges/month). Even if not used, charge at least every 6 months.

Can I use the clipper on pets?

No, the manual explicitly states: 'Do not trim the hair of a pet.' Use only for human hair.

Is the ER-CA65 washable?

Yes, the hand-held part is washable. Detach from the power cord before rinsing under water. Dry thoroughly after cleaning.

How do I replace the built-in rechargeable battery?

The battery is replaceable but requires disassembly. Fully discharge, disconnect from AC adaptor, remove the hand-held part as illustrated, and carefully detach the battery. Shorting terminals must be avoided. Dispose of battery properly.

USER MANUAL ER-CA65 PANASONIC

Operating Instructions

电动理发器

Hair Clipper

型号

Model No. ER-CA70/ER-CA65/ER-CA35

中文 2

English 8

保修证 13

Line drawing of a hairpin with comb and handle (no text or symbols)

Before operating this unit, please read these instructions completely and save them. 在使用本产品前，请仔细阅读本说明书并妥善保管，以备将来参考。

安全说明

产品型号分别是：ER-CA70/ER-CA65/ER-CA35

变压器额定电压：a. c100-240V\~50-60HZ

变压器额定电流：110mA

变压器输出：d.c1.9V—1.4A

理发器额定电压：d.c1.2V

充电时间：8h

原产地：中国

生产日期：见商品上刻印

执行标准：GB4706.1附录B、GB4706.9、Q/SXDGWB 6

松下电工·万宝电器(广州)有限公司

广州市番禺区市广路万宝基地

充电

▶3/6mm, 9/12mm, 15/18mm 定长配件

Illustration of a hand holding a spray can and a spray can with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a tool with liquid, before and after a process, ending with a large arrow (no text or symbols)

Illustration of three hands performing a process with a tool, next to a large blue arrow (no text or symbols)

Failure to observe the Safety instructions may result in death, serious injury, electric shock, fire or short circuit.

▶ Be careful when handling the AC adaptor

• Disconnect the AC adaptor from the outlet when cleaning the clipper.
• Always grip the AC adaptor and not the power cord.
• Do not use the clipper if the power cord or the AC adaptor is worn, or if the AC adaptor does not fit snugly in the outlet
• Do not damage or deform the power cord. Do not place heavy objects on the power cord or trap it between objects.
• Clean the power plug regularly to remove any dust or dirt.
• The power cord cannot be replaced. If it is damaged, the AC adaptor should be discarded.

▶ Keep out of liquid

• Do not use the clipper with AC operation in bathrooms.
• Do not insert and remove the AC adaptor with wet hands.
• Do not allow the AC adaptor to get wet.
• Do not wipe the clipper or AC adaptor with thinner, benzine or alcohol.

▶ Failure to observe the following may result in injuries to the skin

• Do not press the blade against the skin.
• Do not use the clipper for any purpose other than trimming
• Do not trim the hair of a pet.
• Check that the blades are not damaged or deformed before use.
• Before using each time, apply oil at the places marked with arrows. (See page 6.)

▶Caution for when charging

- Charging for longer than 48 hours may shorten the life of the battery.

The clipper may become warm during operation and/or charging. This is normal.

▶ Caution for usage and storage

• Charge the clipper at temperatures of between 5^ and 35^ for it to work correctly.
• Do not use any power cord or AC adaptor other than the one specifically designed for this model. (RE9-37)
• Do not disassemble or modify the clipper. Do not attempt repairs.
• Repairs must always be requested to your dealer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
  • This clipper is for indoor use only.
• Do not store the clipper in a place exposed to direct sunlight or near a heater or other source of heat.

Specifications

Product Name: clipper

Model: ER-CA70/ER-CA65/ER-CA35

Adaptor rated voltage: a.c100-240V \~ 50-60HZ

Adaptor rated current: 110mA

Adaptor output: d.c1.9V— 1.4A

Clipper rated voltage: d.c1.2V

Charging time: 8 hours

Made in China

Production Date: Consult the date printed on product

This unit complies with the Chinese standard GB4706.1

appendix B, GB4706.9 and Q/SXDGWB 6

Panasonic Electric works Wanbao (Guangzhou)co.,Ltd.

Wanbao Base, Shiguang Road, Panyu District, Guangzhou Post code: 511495 Tel: [phone] (Switchboard)

- The above specifications may be subject to change without prior notice.

English

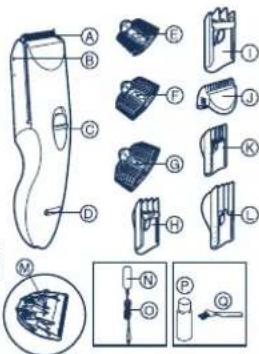

Parts identification

④ Blade
⑧Attachment mounting
©Switch
⑭Charging indicator lamp
⑤3/6mm comb attachment
⑤9/12mm comb attachment
©15/18mm comb attachment
①Natural cutting attachment
① Point cutting attachment
① Thinning (1/3) attachment
©20/30/40mm comb attachment
⑤50/60/70mm comb attachment
⑮ Lever for cleaning
⑨AC adaptor (RE9-37)
©Power cord
©Oil
@Cleaning brush

Attachments	ER-CA70	ER-CA65	ER-CA35
3/6mm comb attachment	√	√	√
9/12mm comb attachment	√	√	√
15/18mm comb attachment	√	-	-
Natural cutting attachment	√	√	-
Point cutting attachment	√	-	-
Thinning (1/3) attachment	√	√	-
20/30/40mm comb attachment	√	√	√
50/60/70mm comb attachment	√	√	-

Charge

Charging

1. Set the switch to "0•CHARGE", and insert the power cord into the clipper.
2. Connect the AC3. Disconnect the AC adaptor from the outlet when charging is completed. adaptor into an outlet. The charging indicator lamp will light up.

•The charging time is 8 hours.
- 1 full charge will provide approximately 40 minutes of continuous operation.
- The indicator lamp may take several minutes to become bright, when the charge has drained completely from the battery.

Inserting the attachment

▶20/30/40mm,50/60/70mm comb attachments
1. Adjust the attachment to the desired trimming height by sliding it until it clicks while the switch is in "0·CHARGE".

• Set the attachment to the correct position. Otherwise you cannot set the switch to "1".
• Actual hair length will be a little longer than the height you set.

1. Select the cutting heights indicated on the insides and sides of the attachments.

2. Mount the attachment to the clipper as illustrated.

3. Remove the attachment from the clipper.

▶Natural cutting attachment and Point cutting attachment

These attachments allow thinning of hair by cutting from the inner side. Hair volume is reduced, and hair tips are trimmed at various lengths to leave a natural look.

Natural cutting attachment:

Desirable hair lengths are 30 mm-70 mm (hair lengths shorter than 30 mm may be too short to cut in some situations.)

Point cutting attachment:

Desirable hair lengths are less than 30 mm (for cutting sideburns and around the ears.)

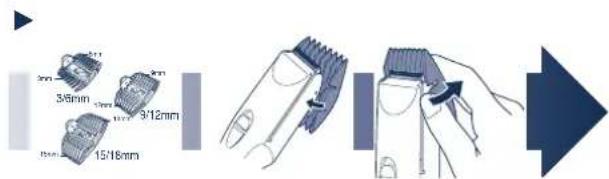

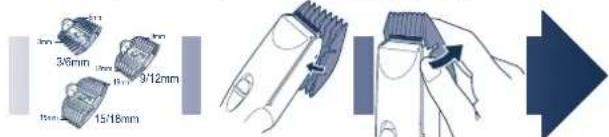

▶ 3/6mming/Attachment/15/18mm comb attachments

1. Insert the attachment 2 over the trimming blades until it clicks as illustrated.

2. To remove the s attachment, push both sides while pulling the attachment.

1 Cut hair to the correct height by moving the clipper back against the flow of the hair.

- Do not use the clipper in an inverted position. This can cut hair too deeply.

▶Trimming with no attachments

Cutting without an attachment will trim hair length to 1 mm or less.

1. Cut hair by placing the clipper head directly on the scalp.

▶AC operation

If you connect the AC adaptor to the clipper in the same way as for charging, and set to the switch to where "1" is visible, you can use it even if the battery capacity is low. If the clipper does not operate, set the switch to "0•CHA-RGE", wait about 1 minute and then set it back to "1". Be careful not to discharge the battery completely with • the switch left in "1". It causes the battery life to shorten.

Care

Blade maintenance

The following is the symbol for a washable clipper. The symbol means the hand-held part may be cleaned under water.

Mounting and removal of the blade

1. Hold the clipper with the "Panasonic" mark facing upward and push the blade with your thumb while catching the blade in your other hand.

- Be sure to set the switch to "0•CHARGE" before you remove the blade.

1. To remount the blade, fit the mounting hook into the blade mounting on the clipper and push in until it clicks.

▶ Blade life

Blade life will vary according to the frequency and length of use. It is expected to be about 2 years when using the clipper twice a month for 20 minutes each time. If cutting efficiency is reduced despite proper maintenance, change the blades.

▶Battery life

Battery life will vary according to the frequency and length of use. If the batteries are charged 3 times a month, the service life will be approximately 3 years.

It is recommended that the clipper be recharged at least every 6 months even when not in regular use because the charge will drain from the batteries and their service life may be shortened.

Cleaning the blade

▶If washing in water

Warning - Detach the hand held part from the power cord before cleaning it in water.

Illustration of a hand holding a test tube with liquid, before and after a process, ending with a large arrow (no text or symbols)

1. Rinse off any hairs sticking to the blade and any hairs inside the clipper.

2. Shake the clipper 4 or 5 times gently, wipe off any water drops from the clipper and blade, and then let it dry onto a towel with the "washable" indicator facing upward.

▶If cleaning with brush

1. Brush off 2. Remove the any hairs blade and from the brush off from the clipper and the hairs from around the blade.

2. Brush the hairs out from between the fixed blade and the moving blade while pressing down on the lever for cleaning to raise the moving blade.

▶After cleaning the blade with water or brush

1. Apply a few drops of the oil to the points indicated by the arrows.

2. Remount the blade on the clipper.

- Apply the oil to the clipper after use. Otherwise the blades may become dull, make abnormal noises, or becomes hot and lead to the deterioration of cutting performance.

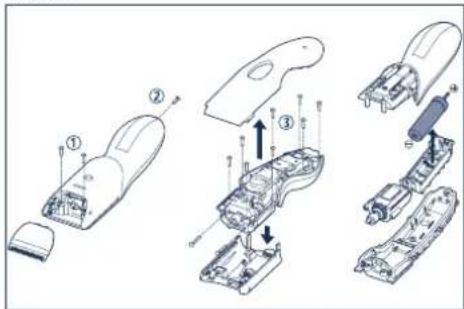

Removing the buili-in rechargeable battery

Remove the battery as illustrated.

Disconnect the clipper from the AC adaptor when 1. removing the battery.

Fully discharge the battery.2.

Disassemble hand held part as illustrated (①-③) then 3. disattach the battery Be careful not to short the + and - terminals of the battery 4. after removing it.

Important notice regarding environmental protection

The built-in rechargeable Nickel-Metal Hydride battery contains substances that may be environmentally harmful. Please remove the battery before discarding your clipper.

For environmental protection and recycling of materials

This clipper contains a Nickel-Metal Hydride battery. Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Panasonic

保修证

保修条款

商品型号: ER-CA70/ER-CA65/ER-CA35

制造编号：

(Address): Wanbao Base, Shiguang Road, Panyu District, Guangzhou

电话(Tel): [phone]

传真(Fax): [phone]

邮政编码(Post Code): 511495

原产地：中国

F. No.1 CH, EN(2009-1-20)

中国印刷

Printed in China
