Indigo 6764 - Other Kitchen Appliances OBH NORDICA - Free user manual and instructions

Product Type	Hand Mixer
Brand	OBH Nordica
Model	Indigo 6764
Power Consumption	300 watts
Voltage	220-240 V AC
Speed Settings	5 speeds + Turbo function
Attachments	2 chromed whisks and 2 chromed dough hooks
Maximum Continuous Use	3 minutes
Cool-down Time	30 minutes minimum
Dimensions (approx.)	20 x 10 x 15 cm
Weight (approx.)	1.2 kg
Power Cord Length (approx.)	1.2 m
Material	Chrome-plated steel attachments, plastic motor housing
Dishwasher Safe Parts	Whisks and dough hooks
Cleaning Motor Unit	Wipe with damp cloth, do not immerse
Safety Features	Release button only works at speed 0; automatic shut-off not specified
Warranty	According to current law, requires receipt
Intended Use	Domestic food preparation

Frequently Asked Questions - Indigo 6764 OBH NORDICA

How do I attach the whisks or dough hooks?

Hold the mixer upright and push the stem of the whisk or dough hook into the opening underneath. You will hear a click when it locks. The markings on the housing show which opening to use for each attachment.

What is the maximum continuous operating time?

Do not use the mixer continuously for more than 3 minutes. After that, let it cool down for at least 30 minutes before using again.

Can I wash the attachments in the dishwasher?

Yes, the whisks and dough hooks are dishwasher safe. You can also wash them in warm water with a little detergent.

How do I clean the motor part?

Never immerse the motor unit in water. Wipe it with a damp cloth and mild detergent, then dry with a soft cloth.

What is the Turbo function used for?

The Turbo button gives an extra speed boost for short periods. It can be used at any speed setting for faster whipping or mixing.

Can I use both a whisk and a dough hook at the same time?

No, use either two whisks or two dough hooks together. Do not mix them.

Why does the release button not work?

The release button only works when the speed selector is at 0 (off). Make sure you have switched off and unplugged the mixer.

What speed should I use for different tasks?

Speed 1-2 for blending dry ingredients, cream, egg mixtures, and dough hooks for cake dough. Speed 3-5 for whipping cream, eggs, and kneading light dough. Turbo for extra fast whipping.

Is the mixer suitable for heavy dough like bread?

It is designed for domestic use and can handle light to medium dough. For very heavy dough, use the dough hooks at low speed and do not exceed 3 minutes of use.

What should I do if the mixer stops during use?

Immediately set the speed to 0 and unplug. Allow it to cool down for 30 minutes before trying again. If it still does not work, contact the manufacturer or an authorized service agent.

USER MANUAL Indigo 6764 OBH NORDICA

Quick and easy to use

300 watt

5 speed settings

Turbo function

Chromed beaters and dough hooks

Bruksanvisning – svenska......sida 3 – 6

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

Tlf.: 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 6764

OBH Nordica Norway AS

Postboks 5334, Majorstuen

0304 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica 6764

220-240V vekselstrøm

300 watt

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 220-240 V only and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply in case of a problem, after use, when parts are mounted or removed from the appliance and before cleaning and maintenance.
4. Never immerse the appliance in water or any other liquid.
5. Do not let children use the appliance. Keep the appliance and the cord out of the reach of children.
6. Do not let children carry out cleaning and maintenance. Children should always be supervised in order that they do not play with the appliance.
7. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.
8. Check that the cord is not hanging free from the edge of the table.
9. Do not place the appliance on or near hotplates, open fire or the like.
10. The appliance should only be used under supervision.
11. The appliance should only be used for the preparation of various food.
12. Do not use the appliance continuously without a break. Maximum time of use: 3 minute; wait for at least 30 minutes before you use the appliance again.

13. Always check the appliance, the cord and the switch before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid a hazard.

14. Extra protection can be obtained by installation of a residual current device of 30mA. Check with your installer.

15. The appliance is for domestic use only.
16. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages as a consequence of the above to the product are not covered by the warranty.

Before use

Before you use the appliance for the first time, read the instruction manual carefully and save it for future use.

The loose parts of the mixer (whisks and dough hooks) should be cleaned in lukewarm water and a little detergent. Wipe thoroughly.

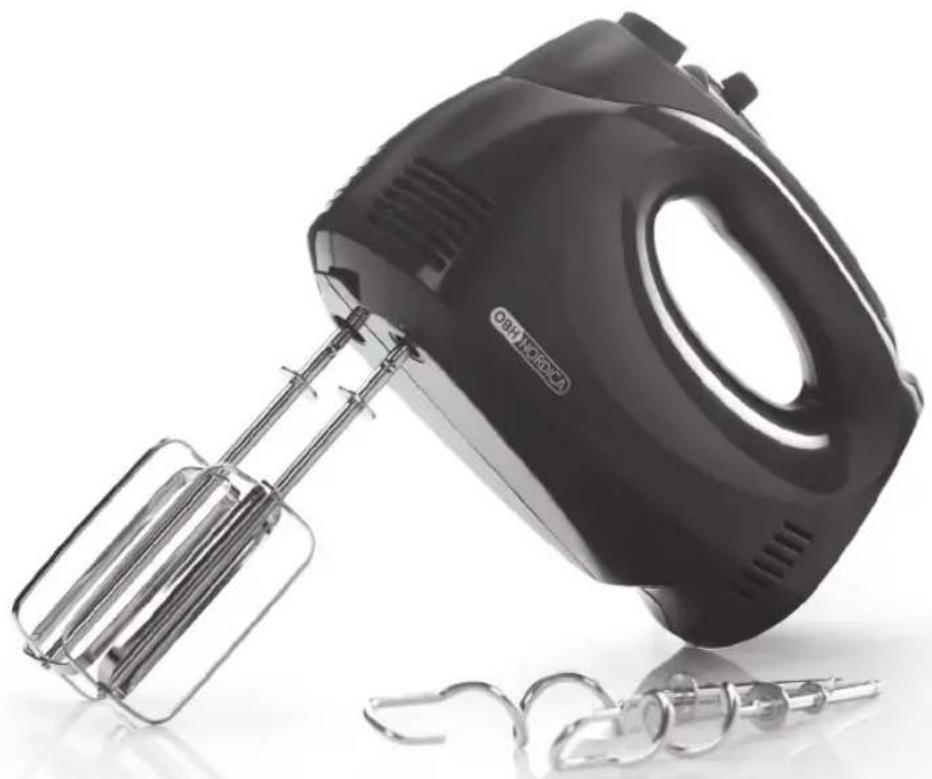

Parts of the appliance

A. Motor part
B. Release button to loosen the whisks and the dough hooks off the mixer.
C. Speed selector 0-5
D. Turbo button
E. Whisks
F. Dough hooks

How to use the whisks

Position the mixer upright and hold on to the stem of the whisks, while pushing them into the openings underneath the appliance. When you hear a click, the whisks are locked.

Position the speed selector at 0 and insert the plug into a mains socket. The mixer is now ready for use.

Hold on to the handle of the mixer while inserting the whisks into the liquid to be whipped. Use your thumb to select the speed level by pushing the speed control to the right or to the left, respectively. Always start at step 1 and increase gradually if needed.

Move the whisks around in the bowl in order to obtain a consistent blend.

In order to avoid splashes, always keep the whisks in the bowl during use. Switch off the mixer before removing the whisks from the bowl.

The whisk is used for whipping egg whites, cream and thin mixtures. Do not use the whisk to mix tough mixtures such as shortcrust pastry etc.

NOTE! The whisks and the dough hooks should work freely in the product to be whipped/mixed, as if not, the motor could be overcharged.

Do not use a whisk and a dough hook at the same time.

How to use the dough hooks

Place the mixer upright and hold on to the stem of the whisks while inserting them into the openings underneath the appliance. The markings on the housing of the appliance show where to insert which whisk. When you hear a click, the whisks are locked. It is important that the dough hooks are inserted into the correct openings. If not, the dough will work its way up the hooks and the handle. The dough hooks are for thicker products, e.g. tough dough such as shortcrust pastry etc.

Choice of speed

Speed 1-2 Blending of dried ingredients and liquids such as cream, egg mixtures and mashing of vegetables. Mixing with dough hooks for cake dough and thicker dough.

Speed 3-5: Whipping of cream, whole eggs and egg whites and mixing of minced meat and kneading of light types of dough.

Turbo: For extra fast whipping for short periods. The turbo function can be used at any speed to increase the speed of the chosen setting.

The maximum mixing time for continuous mixing is 3 minutes, followed by a break of 30 minutes.

NOTE! The whisks and the dough hooks should work freely in the product to be whipped/mixed, as if not, the motor could be overheated.

After use

Position the speed selector at 0 and unplug. Press the release button with your thumb to loosen the whisks/dough hooks. Note that the release button can only be activated when the speed button is in position 0.

Cleaning and maintenance

Wash the whisks and the dough hooks in warm water and a little washing-up liquid or in the dishwasher. Wipe the motor part with a cloth, may-be damped with a little water and detergent. Wipe with a dry cloth and some kitchen towel. Do not use aggressive detergents and tools that could scratch or dull the surface.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Warranty according to current law. Any claim shall be accompanied by the cash receipt with purchase date. When raising a claim the appliance must be returned to the store of purchase.

OBH Nordica AB

Löfströms Allé 5

SE-174 55 Sundbyberg

Tel [phone]

www.obhnordica.se

Technical data

OBH Nordica 6764

220-240 volt AC

300 watt

5 speed levels and turbo function

Whisks and dough hooks in chrome-plated steel

These instructions are subject to alterations or improvements.

OBH NORDICA

Indigo Hand Mixer

SE/IDV/6764/UVN/280513
