Daybreak 2296 - Coffee maker OBH NORDICA - Free user manual and instructions

Product Type	Automatic drip coffee maker
Brand	OBH Nordica
Model	Daybreak 2296
Capacity	12 cups (1.5 liters)
Dimensions (H x W x D)	34 x 25 x 20 cm
Weight	2.1 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	900 W
Water Tank	Removable, transparent with scale markings
Filter Type	Permanent filter (included) or #4 paper filters
Brewing System	Anti-drip function, pause and serve
Keep Warm Function	Automatic keep warm for 2 hours
Water Level Indicator	Yes, external water level indicator
Carafe	Glass carafe with non-drip spout
Controls	On/off switch with indicator light
Safety Features	Automatic shut-off, overheat protection
Housing Material	Plastic and stainless steel
Cord Length	0.8 m
Cleaning	Descaling recommended every 3 months; removable parts dishwasher safe
Accessories Included	Permanent filter, measuring spoon

Frequently Asked Questions - Daybreak 2296 OBH NORDICA

How do I descale the OBH Nordica Daybreak 2296 coffee maker?

Mix a descaling solution (or white vinegar and water) in the water tank, run a full brew cycle without coffee grounds, then repeat with clean water. Refer to the manual for frequency (every 3 months).

What is the maximum capacity of the Daybreak 2296?

The coffee maker can brew up to 12 cups (1.5 liters) at a time.

Can I use paper filters with this model?

Yes, you can use #4 paper filters or the included permanent filter.

Why does my coffee maker stop brewing mid-cycle?

This may be due to limescale buildup. Descale the machine. Also check that the water tank is properly seated and the lid is closed.

How do I clean the carafe and filter basket?

Both the carafe and filter basket are dishwasher safe (top rack). Alternatively, wash with warm soapy water.

Does the Daybreak 2296 have an automatic shut-off?

Yes, the coffee maker has an automatic shut-off after 2 hours of keep-warm mode for safety.

Can I use the pause-and-serve feature to pour a cup mid-brew?

Yes, the anti-drip system allows you to remove the carafe and pour a cup during brewing; replace it promptly to avoid overflow.

Where can I find spare parts for the Daybreak 2296?

Spare parts such as carafes and filters are available from OBH Nordica's official website or authorized retailers. Use the model number 2296.

What is the power consumption of this coffee maker?

The rated power is 900 W, operating at 220-240V.

How do I adjust the strength of the coffee?

The strength is controlled by the amount of coffee grounds you use. For stronger coffee, add more grounds (do not exceed the filter basket capacity).

USER MANUAL Daybreak 2296 OBH NORDICA

DESIGNING GOOD LIFE

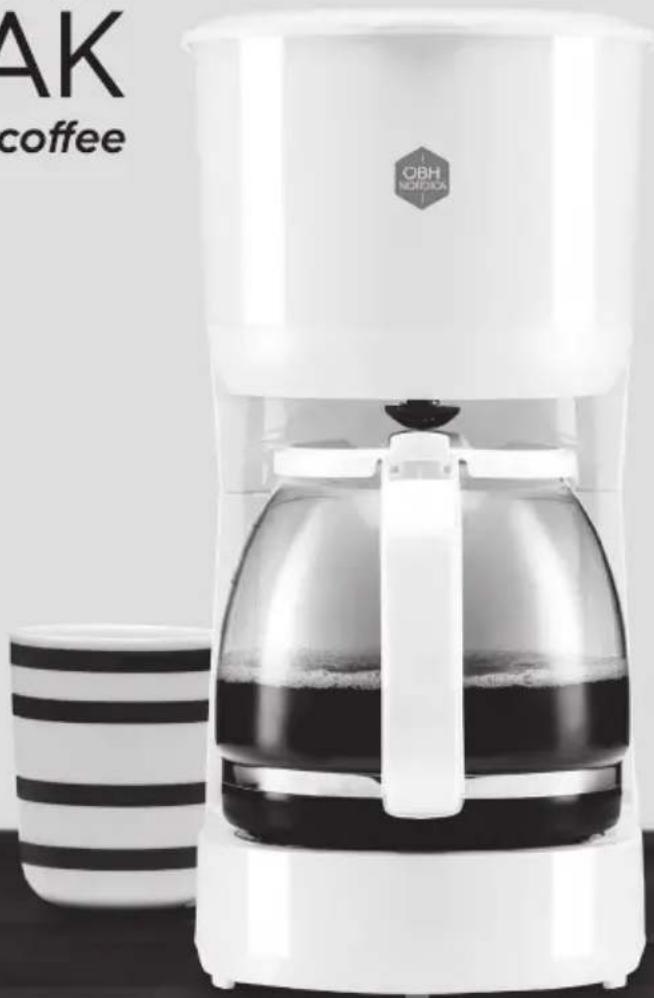

Coffee Maker DAYBREAK

For a tasteful cup of coffee

Making good!

Bruksanvisning - svenska......sida 4 - 8

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 220-240V AC only, and use the appliance only for the intended use.
3. Always unplug the appliance from the mains supply, if the appliance does not function properly, when not in use and before cleaning and maintenance.
4. Never immerse the appliance in water or any other liquid.
5. This appliance can be used by persons (including children aged 8 years and over) and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety and they understand the hazards involved.
6. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
7. Cleaning and maintenance shall not be made by children, unless they are over the age of 8 and supervised.
8. Keep the appliance and the cord out of reach of children under the age of 8.

9. Check that the cord is not hanging over the edge of the table.

10. Do not place the appliance on or near hotplates, open fire or the like.

11. The appliance should only be used under supervision.
12. Always examine appliance, cord and plug for damage before use. If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or a similarly qualified person in order to avoid a hazard.
13. For additional protection the installation of a residual current device (RCD) with a rated residual operating current not exceeding 30 mA is recommended. Ask your installer for advice.
14. The appliance is for domestic use only.
15. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

You are welcome to visit our website www.obhnordica.se for inspiration and further information about our products.

Parts of the appliance (see page 3)

1. Filter funnel
2. Lid for water tank
3. Water tank
4. Water indicator
5. Housing
6. On/off switch
7. Glass carafe

Brew twice without coffee before use. Let the water run through and pour out the water. Rinse the glass carafe and repeat the procedure in order to completely clean the coffee maker. NOTE! Always use clean, cold water.

Coffee brewing

Lift the lid and fill the water tank with the amount of water you want – but do not exceed the Maximum marking (12 cups/1.5 litre.) See the marking on the outer side of the water tank for filling.

Please note that the amount of coffee will always be a little less, since the coffee grounds absorb some water. Put the glass carafe on the heating plate and make sure that the glass carafe is correctly positioned in order that the drip stop is activated by the lid of the glass carafe.

Open the lid to the filter unit and insert a coffee filter (1x4) in the filter funnel. Add the amount of coffee you want in the filter – approx. 1 measuring jug a cup. Remember that the lid of the filter unit should be closed in order to switch on the coffee maker.

Plug the appliance and switch on the coffee maker by means of the switch, and the white signal lamp around the switch will go on to indicate that the brewing is on. When the brewing is done, the signal lamp changes to red.

The heating plate under the glass carafe gets very hot. Remember always to switch off the coffee maker, when the carafe has been emptied or when you no longer want to keep the coffee warm. For hygienic reasons we recommend always to remove the used coffee filter from the funnel after brewing.

Anti-drip function

This coffee maker has an automatic anti-drip function that prevents coffee from running through the filter funnel, if the carafe is removed from the heating plate.

This means that the glass carafe can shortly be removed from the coffee maker during brewing. It is important, however, to put back the glass carafe on the heating plate within 30 seconds. If not, the coffee will overflow.

Automatic switch-off

The coffee maker is equipped with a switch-off function that automatically switches off the appliance after 40 minutes.

Cleaning and maintenance

Switch off the coffee maker, unplug and let the coffee maker cool before cleaning. Remove any used coffee filter and clean the coffee maker with a damp cloth and wipe with a soft, dry cloth - never use scouring powder or a sponge! Never immerse the coffee maker in water or keep it under running water. The glass carafe and the lid as well as the filter funnel should be washed by hand as they are not dishwasher proof.

NOTE! If the coffee maker is used in places where there is a risk of frost (caravans, summer cottages etc.) make sure to empty the water tank

COMPLETELY (turn the appliance upside down). This will also prevent damage to the coffee maker in case of any remaining water freezing. Remember always to empty the coffee maker if it should not be used for a certain period of time.

Descaling

An acrid and bitter taste often indicates that the coffee maker needs descaling. If the brewing time prolongs considerably or if the coffee maker is “sizzling”, this is a clear indication that the appliance needs descaling.

We recommend that you descale the coffee maker as soon as the descaling indicator starts flashing or even more frequently if you live in an area with hard water. Use a mixture of household vinegar and water, or alternatively citric acid and water for descaling.

Descaling with household vinegar:

1. Fill water in the container up to the 4 cups marking.
2. Add acid to the 6 cups marking.
3. Switch on the maker and let 2/3 of the solution pass through.
4. Switch off the maker and let it rest for about 15 minutes.
5. Switch it on again and let the rest of the solution pass.
6. Finally, let the appliance boil with clean water 2 or 3 times.
7. Repeat the procedure if normal brewing time is not obtained.
8. Do not use other descaling methods.

Descaling with citric acid:

1. Fill water in the container up to the 10 cups marking.
2. Add 60 g of citric acid.
3. Switch on the maker and let 2/3 of the solution pass through.
4. Switch off the maker and let it rest for about 15 minutes.
5. Switch it on again and let the rest of the solution pass.
6. Finally, let the appliance boil with clean water 2 or 3 times.
7. Repeat the procedure if normal brewing time is not obtained.
8. Do not use other descaling methods.

Lime coating is not covered by the warranty.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

Phone: [phone]

www.obhnordica.com

Technical data

OBH Nordica 2296, 2297

220-240V\~, 50 Hz

1000 watt

Capacity: 12 cups - 1,5 litre

Automatic switch-off -40 minutes

CE

These instructions are subject to alterations or improvements.
