Product Type	23.0-inch Color LCD Monitor
Panel Technology	VA (Vertical Alignment)
Resolution	1920 x 1080 (Full HD)
Dot Pitch	0.2655 mm
Viewing Angles	178° horizontal / 178° vertical (CR ≥ 10)
Contrast Ratio	3000:1 (typical); up to 10000:1 with ContrastEnhancer
Response Time	Gray-to-gray: approx. 7 ms (Overdrive: Enhanced)
Display Colors	Approx. 16.77 million (8-bit + FRC)
Video Inputs	D-Sub 15-pin, DVI-D, HDMI x2
Audio	Built-in speakers (0.5 W + 0.5 W), headphone jack
Power Supply	100-120 VAC / 200-240 VAC, 50/60 Hz
Power Consumption	45 W max (with speakers), < 1.0 W in power saving mode
Dimensions (with stand)	549 x 403 x 212 mm (21.6 x 15.9 x 8.3 in)
Dimensions (without stand)	549 x 393 x 58 mm (21.6 x 15.5 x 2.28 in)
Weight (with stand)	Approx. 6.9 kg (15.2 lbs)
Weight (without stand)	Approx. 6.1 kg (13.4 lbs)
Color Modes	User1, User2, sRGB, Paper, Game, Cinema
Special Features	Auto EcoView, ContrastEnhancer, Power Resolution, Overdrive, Paper mode
Remote Control	Included (battery CR2032)
Cleaning	Soft cloth; mild detergent for cabinet; avoid solvents
Stand Tilt	20° up / -5° down
VESA Mount	100 x 100 mm (M4 screws)

Frequently Asked Questions - Foris FS2331 EIZO

What is the native resolution of the EIZO Foris FS2331?

The native resolution is 1920 x 1080 (Full HD). For best image quality, set your PC to this resolution.

How do I switch between color modes?

Press the MODE button on the remote control. Each press cycles through User1, User2, sRGB, Paper, Game, and Cinema modes.

Does the monitor support HDMI audio?

Yes, it supports 2-channel linear PCM audio via HDMI. You can also use the stereo mini jack input for external audio sources.

How can I reduce power consumption?

Enable Auto EcoView (press the EcoView button) to automatically adjust brightness based on ambient light. Also, use the Power Save setting in the menu to allow the monitor to enter power saving mode when no signal is detected.

How do I clean the screen safely?

Use a soft, lint-free cloth (like cotton or lens cleaning paper). For stubborn stains, slightly dampen the cloth with water. Never use solvents like alcohol, benzene, or abrasive cleaners.

What should I do if the monitor doesn't display an image?

First, check the power indicator. If blue, adjust Brightness/Contrast in the menu. If orange, the monitor is in power saving mode – move the mouse or press a key. If a ‘Signal Error’ message appears, verify the input signal resolution and frequency are within the monitor’s specifications (see manual).

Can I mount this monitor on an arm?

Yes, it supports VESA 100 x 100 mm mounting. Use M4 x 12 mm screws (supplied). Ensure the arm can support at least 6.1 kg (the weight without stand).

How do I reset the monitor to factory settings?

Go to the Monitor Settings menu, select Reset, and confirm. This resets all adjustments except HDCP authentication.

What is the Paper mode for?

Paper mode reduces contrast and color temperature to mimic the appearance of printed paper, making it easier on the eyes for reading.

Does the monitor have built-in speakers?

Yes, it has two built-in stereo speakers (0.5 W + 0.5 W). There is also a headphone jack for private listening.

USER MANUAL Foris FS2331 EIZO

Please read PRECAUTIONS, this User's Manual, and Setup Guide (separate volume) carefully to familiarize yourself with safe and effective usage.

• Please refer to the Setup Guide for basic information ranging from connection of the monitor to a PC or external device to using the monitor.
• The latest User's Manual is available for download from our web site: http://www.eizo.com

Location of Caution Statement

CR Coin Lithium Battery contains Perchlorate Material - special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Product specification may vary with sales areas. Confirm the specification in the manual written in language of the region of purchase.

Copyright© 2010 EIZO NANAO CORPORATION All rights reserved.

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION.

EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION's receipt of said information.

Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

Notice for this monitor

This product is suited to creating documents, viewing multimedia content, and other general purposes.

This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications.

This product may not be covered by warranty for uses other than those described in this manual.

The specifications noted in this manual are only applicable for power cords and signal cables specified by us.

Use optional products manufactured or specified by us with this product.

As it takes about 30 minutes for the performance of electrical parts to stabilize, adjust the monitor 30 minutes or more after the monitor power has been turned on.

In order to suppress the luminosity change by long-term use and to maintain the stable luminosity, use of a monitor in lower brightness is recommended.

When the screen image is changed after displaying the same image for extended periods of time, an afterimage may appear. Use the screen saver or power save function to avoid displaying the same image for extended periods of time.

Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime (refer to “Cleaning” (page 4)).

The LCD panel is manufactured using high-precision technology. However, missing pixels or lit pixels may appear on the LCD panel, this is not malfunction. Percentage of effective dots: 99.9994% or higher.

The backlight of the LCD panel has a fixed life span. When the screen becomes dark or begins to flicker, please contact your dealer.

Do not press on the panel or edge of the frame strongly, as this may result in the display malfunction, such as the interference patterns, etc. If pressure is continually applied to the panel, it may deteriorate or damage your panel. (If the pressure marks remain on the panel, leave the monitor with a white or black screen. The symptom may disappear.)

Do not scratch or press on the panel with any sharp objects, as this may result in damage to the panel. Do not attempt to brush with tissues as this may scratch the panel.

When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur inside and outside the monitor. In that case, do not turn the monitor on and wait until dew condensation disappears, otherwise it may cause some damages to the monitor.

Cleaning

Attention

- Never use any solvents or chemicals, such as thinner, benzene, wax, alcohol, and abrasive cleaner, which may damage the cabinet or panel.

Note

- Optional ScreenCleaner is recommended for cleaning the panel surface.

Panel

• Clean the panel with a soft cloth such as cotton cloth or lens cleaning paper.
• If necessary, stubborn stains can be removed by moistening part of a cloth with water to enhance its cleaning power. After that, clean the panel again with a dry cloth for better finishing.

Cabinet

- Clean the cabinet with a soft cloth dampened with a little mild detergent.

To use the monitor comfortably

• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor according to the environmental conditions.
• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.

CONTENTS

Cover 1

Notice for this monitor .... 3

CONTENTS 5

Chapter 1 Introduction ...... 7

1-1. Features 7

1-2. Controls and Functions 8

Before Using Remote Control 9
How to install battery 9:
Receivable Range of Remote Control ...... 9:

☐sk contents and software overview .....10
use "ScreenManager Pro for LCD(DDC/CI)/EIZO ScreenSlicer" .....10

1-4. Basic Operations and Functions .....11

Basic operation of the Setting menu .....11
Functions 12

Chapter 2 Adjusting Screens .... 13

2-1. Compatible Resolutions/Formats .....13

Analog Input (D-Sub) 13
Digital Input (DVI-D, HDMI: PC signal) .....13
Digital Input (HDMI: video signal) ......13

2-2. Setting the Resolution .....14

Windows 7 ......14
Windows Vista 14
Windows XP....14
Mac OS X 14

2-3. Adjusting Color ....15

select the display mode (Color Mode) .....15
perform advanced adjustments .....16
Adjustable settings in each mode .....16
adjust brightness "Brightness" 17
adjust black level "Black Level" 17
adjust contrast "Contrast"......18
adjust the color saturation "Saturation" .....18
adjust hue "Hue" 19
adjust color temperature "Temperature" ...19
set ContrastEnhancer "ContrastEnhancer" 20
reduce image blur "Power Resolution" ..... 20
adjust gamma "Gamma" 21
adjust gain "Gain" 21
set overdrive intensity "Overdrive" 22

2-4. Screen Adjustment 22

Digital Signal Input 22
Analog Signal Input 22

2-5. Screen Size Changing 26

Analog Input (D-Sub)/Digital Input (DVI-D, HDMI: PC signal) 26
Digital Input (HDMI: video signal) 27 To set the screen ratio “Overscan” 27

Chapter 3 Setting Monitor 28

3-1. Adjusting Volume...... 28
to turn the volume up/down 28
To mute the sound temporarily.... 28

3-2. Switching sound source for HDMI signal input "Source" 28

3-3. To adjust the sound level "Sound Level". 29

3-4. Enabling/Disabling DDC/CI communication "DDC/CI" 29

3-5. Locking Buttons "Key Lock" 29

3-6. Setting the EIZO Logo Display "Logo" .... 30

3-7. Setting Language "Language" 30

3-8. Changing the HDCP authentication setting for HDMI signal input .... 30

3-9. Resetting the Monitor to the Default Settings ....31

To reset the color adjustments "Color Reset" 31
reset all adjustments to the default settings "Reset" 31

Chapter 4 Power Saving Functions ...... 32

4-1. Setting Power Saving "Power Save" ..... 32
Monitor 32
Audio Output 33

4-2. Setting Power Indicator "Power Indicator" 33

4-3. Enabling/Disabling Automatic Brightness Adjustment "Auto EcoView". 34

4-4. Checking the power saving level ..... 34

4-5. Enabling/Disabling Auto Power-OFF "Off Timer (min)" 34

Chapter 5 Connecting Cables ...... 36

5-1. Connecting Multiple External Devices ..... 36
switch among input signals 36

Chapter 6 Troubleshooting .... 37

Chapter 7 Reference ...... 41

7-1. How to Attach the Optional Arm .....41
7-2. Attaching the Stand base 42
7-3. Displaying Monitor Information "Information" 42
7-4. Specifications 43
7-5. Glossary 46
7-6. Preset Timing 48

Appendix 49

Trademark 49

License 49

ENERGY STAR 49

TCO 50

FCC Declaration of Conformity 50

China Measures for RoHS Compliance in ChinaRoHS 61

Chapter 1 Introduction

Thank you very much for choosing an EIZO color LCD monitor.

1-1. Features

• 23" wide format LCD
  • Applicable to the resolution of 1920 × 1080 .
• Panel with a wide field of view adopted VA panel with 178^ horizontal and vertical viewing angles.
• HDMI connector × 2
• Applicable to the PC input signal using HDMI input, allowing three different digital signal inputs from a PC.
• The Color Mode function allows the user to select the display mode optimum to the displayed image.
• The Paper mode reproduces an easy-on-the-eyes display that looks just like printed paper. See “To select the display mode (Color Mode)” (page 15).
• ContrastEnhancer function
  Automatically adjusts the contrast according to the image, enabling the display of high contrast and sharp animated images.
  See "To set ContrastEnhancer "ContrastEnhancer" (page 20).
  • Power Resolution function
  You can reduce image blur by enhancing its outline.
  See “To reduce image blur “Power Resolution”” (page 20).
• Two dedicated gamma modes (“Power1”/“Power2”) suitable for game images implemented. The images will be sharpened by increasing the halftone (Power1) and low-tone (Power2) contrasts.
  See “To adjust gamma “Gamma”” (page 21).
• A variety of Screen Size can be selected, such as dot by dot (image is displayed without scaling the input signals), Letterbox, Overscan (change of the display area of the input image)
  See "2-5. Screen Size Changing" (page 26).
• The software “ScreenManager Pro for LCD (DDC/CI)” to adjust the screen using the mouse and keyboard is included.
  See "1-3. EIZO LCD Utility Disk" (page 10).
• Remote control enables easy operation, setting and adjustment of the monitor.
  See "1-2. Controls and Functions" (page 8).
• Color sheets (in three colors) to be pasted at the bottom of the monitor included. Select your desired color to add an accent to the monitor.
  See "Setup Guide".
  • HDCP (High-bandwidth Digital Content Interface)
  • Built-in stereo speakers and headphone jack
  See "1-2. Controls and Functions" (page 8).

1-2. Controls and Functions

Monitor

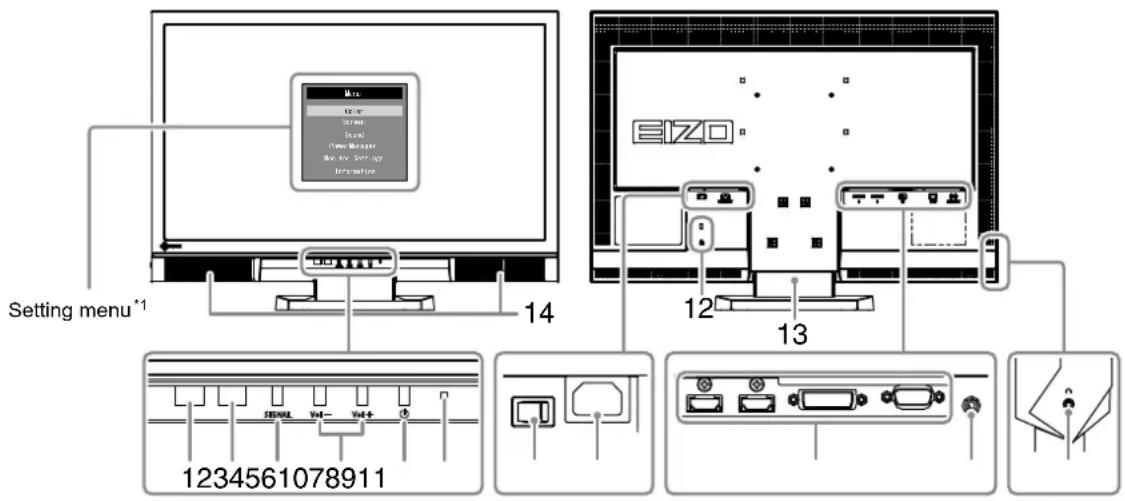

1. Auto EcoView sensor	Detects ambient brightness. Auto EcoView function (page 34).
2. Remote control detector	Receives the signal from the remote control.
3. SIGNAL button	Switches input signals for display (page 36).PC1 (DVI) → PC2 (D-SUB) → HDMI1 → HDMI2
4. Vol — / Voutton Displays the volume adjustment menu to volume up or down.
5. ⏻ button	Turns the power on or off.
6. Power indicator	Indicates the monitor's operation status.Blue: OperatingOrange: Power saving modeRed Power offOFF: Main power off
7. Main power switch	Turns the main power on or off.
8. Power connector	Connects the power cord.
9. Input signal connector	Left: HDMI connector × 2 (HDMI1, HDMI2) / Center: DVI-D connector /Right: D-Sub mini 15-pin connector
10. Stereo mini jack	Connects the stereo mini jack cable.
11. Headphone jack	Connects the headphones.
12. Security lock slot	Complies with Kensington's MicroSaver security system.
13. Stand*2	Used to adjust the angle of the monitor screen.
14. Speaker	Outputs audio source.

*1 See page 11 for how to use.

^2 An optional arm (or an optional stand) can be attached by removing the stand (see “7-1. How to Attach the Optional Arm” (page 41)).

Remote Control

1. OFF TIMER Sets the time until the monitor power-off.
2. DISPLAY Displays the current input port.
3. SCREEN SIZE Changes the screen size.
4. POWER Turns the power on or off.
5. INPUT SELECT Switches input signals for display.
	PC PC1 (DVI) → PC2 (D-SUB)
	HDMI HDMI1 → HDMI2
6. MUTE Mutes sound temporarily.
7. VOLUME +/- Adjusts the volume.
8. MENU Displays/Exits the Setting menu.
9. RETURN Returns to the previous menu in menu operation.
10. <I ∧ V >	Chooses and increases/decreases adjustment settings for advanced adjustment using the Setting menu.: Displays the brightness adjustment menu (page 17).
11. ENTER	Determines an item on the menu screen, and saves values adjusted.
12. MODE	Changes the color mode.
13. EcoView	Displays/Exits the EcoView menu.

● Before Using Remote Control

How to install battery

1. While pushing the tab toward the arrow (1), pull out the battery case (2).
2. Insert a battery with the positive side up. (Battery model number: CR2032)
3. Insert the battery case until it clicks.

Receivable Range of Remote Control

Use the remote control inside of the range as below.

1-3. EIZO LCD Utility Disk

An “EIZO LCD Utility Disk” (CD-ROM) is supplied with this product. The following table shows the disk contents and the overview of the software programs.

● Disk contents and software overview

The disk includes software programs for adjustment, and User's Manual. Refer to Readme.txt file on the disk for software startup procedures or file access procedures.

Item Overview		Windows	Macintosh
A Readme.txt file √ √
Screen adjustment pattern files Used	when adjusting the image of analog signal input manually.	√	√
ScreenManager Pro for LCD (DDC/CI)	Software for adjusting the screen using the mouse and keyboardThis software does not run on a PC connected via the HDMI input.	√	-
EIZO ScreenSlicer Software that divides a screen and lays out multiple windows efficiently.		√	-
User's Manual of this monitor (PDF file) √ √

● To use “ScreenManager Pro for LCD(DDC/CI)/EIZO ScreenSlicer”

For the installation and use of “ScreenManager Pro for LCD(DDC/CI)/EIZO ScreenSlicer”, refer to the respective User’s Manual on the disk.

1-4. Basic Operations and Functions

● Basic operation of the Setting menu

1. Displaying the Setting menu

1. Press on the remote control. The Setting menu appears.

2. Adjusting/Setting

1. Choose a menu to adjust/set with , and then press . The Sub menu appears.

1. Choose an item to adjust/set with , and then press . The adjustment/ setting menu appears.

1. Adjust/set the selected item with ,<, ,and then press .

3. Exiting

1. Press

Note

• To go back to the previous menu, press

● Functions

The following table shows all the Setting menu's adjustment and setting menus.

Main menu Setting Reference
Color*1	Color Mode “2-3. Adjusting Color” (page 15)
	Brightness
	Black Level
	Contrast
	Saturation
	Hue
	Temperature
	Advanced Settings	ContrastEnhancer
		Power Resolution
		Gamma
		Gain
		Overdrive
	Color Reset
Screen Auto Screen	Adjust *2		“2-4. Screen Adjustment” (page 22)
	Auto Range Adjust*2
	Clock*2
	Phase*2
	Position*2
	Color Space*3
	Smoothing
Sound Source	*3		“3-2. Switching sound source for HDMI signal input “Source”” (page 28)
	Sound Level “3-3. To adjust the sound level		“Sound Level”” (page 29)
	Power Save “4-1. Setting Power Saving “Power		Save”” (page 32)
PowerManager Power Save
Monitor Settings DDC/CI “3-4. Enabling/Disabling DDC/CI			communication “DDC/CI”” (page 29)
			“3-5. Locking Buttons “Key Lock”” (page 29)
			“3-6. Setting the EIZO Logo Display “Logo”” (page 30)
			“4-2. Setting Power Indicator “Power Indicator”” (page 33)
			“3-7. Setting Language “Language”” (page 30)
			“3-9. Resetting the Monitor to the Default Settings” (page 31)
Information			“7-3. Displaying Monitor Information “Information”” (page 42)

^1 The adjustment/settings available on the “Color” menu depend on the selected Color mode. The above table shows the sub menus when the User1 or User2 mode is selected.
^2 These functions can be adjusted with analog input.
^*3 This function is available with HDMI signal input.

Chapter 2 Adjusting Screens

2-1. Compatible Resolutions/Formats

The monitor supports the following resolutions and signal format.

Analog Input (D-Sub)

Resolution Applicable Signals			Vertical Scan Frequency	Dot Clock
640 × 480 VGA, VESA, CEA-861 up to 75 Hz				148.5 MHz(Max.)
720 × 400 VGA TEXT 70 Hz
800 × 600 VESA up to 75 Hz
1024 × 768 VESA up to 75 Hz
1280 × 720 CEA-861 60 Hz
1280 × 960 VESA 60 Hz
1280 × 1024 VESA up to 75 Hz
1680 × 1050	VESA CVT, VESA CVT RB		60 Hz
1920 × 1080*	CEA-861 60 Hz

Digital Input (DVI-D, HDMI: PC signal)

Resolution Applicable Signals			Vertical Scan Frequency	Dot Clock
640 × 480		VGA, CEA-861	60 Hz	148.5 MHz(Max.)
720 × 400 VGA		TEXT 70 Hz
800 × 600 VESA		60 Hz
1024 × 768 VESA		60 Hz
1280 × 720 CEA-861 60 Hz
1280 × 960		VESA	60 Hz
1280 × 1024 VESA		60 Hz
1680 × 1050		VESA CVT, VESA CVT RB	60 Hz
1920 × 1080*		CEA-861 60 Hz

A graphics board in conformance with the VESA and CEA-861 standards is required.

*Recommended resolution

Digital Input (HDMI: video signal)

• Video signal
• VGA / 525i (480i)/525p (480p)/1125i (1080i)/750p (720p)/1125p (1080p): 60 Hz
• 625i (576i)/625p (576p)/1125i (1080i)/750p (720p)/1125p (1080p): 50 Hz
• Audio signal
• 2ch linear PCM (32 kHz / 44.1 kHz / 48 kHz)

2-2. Setting the Resolution

When you connect the monitor to the PC and find that the resolution is improper, or when you want to change the resolution, follow the procedure below.

Windows 7

1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click "Screen resolution".
3. On the "Screen Resolution" dialog box, select the monitor.
4. Click "Resolution" to select the desired resolution.
5. Click the [OK] button.
6. When a confirmation dialog box is displayed, click [Keep changes].

Windows Vista

1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click "Personalize".
3. On the "Personalization" window, click "Display Settings".
4. On the "Display Settings" dialog box, select the "Monitor" tab and select desired resolution in the "Resolution" field.
5. Click the [OK] button.
6. When a confirmation dialog box is displayed, click [Yes].

Windows XP

1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click "Properties".
3. When the “Display Properties” dialog box is displayed, click the “Settings” tab and select desired resolution for “Screen resolution” under “Display”.
4. Click the [OK] button to close the dialog box.

Mac OS X

1. Select "System Preferences" from the Apple menu.
2. When the "System Preferences" dialog box is displayed, click "Displays" for "Hardware".
3. On the displayed dialog box, select the "Display" tab and select desired resolution in the "Resolutions" field.
4. Your selection will be reflected immediately. When you are satisfied with the selected resolution, close the window.

2-3. Adjusting Color

● To select the display mode (Color Mode)

This function allows easy selection of a desired mode according to monitor application.

Display Modes

Mode Purpose
User1 Select one	of these user modes to define a desired set of parameter settings.
User2
sRGB Suitable for color matching with sRGB compatible peripherals.
Paper Produces a printed paper effect by decreasing contrast and color temperature.
Game Suitable for displaying game images.
Cinema Suitable for displaying movie-like images.

Procedure

1. Press MODE on the remote control.

The mode name appears at the center of the screen.

1. The mode among the list is highlighted in turn each time is pressed.

You can switch the current mode with or while the mode menu is being displayed.

Note

• The Setting menu and the Mode menu cannot be displayed at the same time.
• “ScreenManager Pro for LCD (DDC/CI)” allows you to select the Color mode automatically according to the application used (see “Chapter 3 Auto Fine-Contrast” in the “ScreenManager Pro for LCD (DDC/CI)” User’s Manual).

● To perform advanced adjustments

The “Color” menu of the Setting menu allows you to set and save the independent color adjustment for each mode.

Attention

• The monitor will take about 30 minutes before its internal electric components stabilize. Wait 30 minutes or more after turning the monitor power on before starting adjustment.
• Perform the range adjustment first when adjusting color for analog signals (see “To adjust color gradation automatically “Auto Range Adjust”” (page 25)).
• The same image may be seen in different colors on multiple monitors due to their monitor-specific characteristics. Make fine color adjustment visually when matching colors on multiple monitors.

Note

• The value shown in "K" is available only as reference.
• Using the “ScreenManager Pro for LCD (DDC/CI)” allows you to perform the color adjustment by using the mouse and keyboard of your PC. (Refer to “Chapter 4 Color Adjustment” in the User’s Manual for “ScreenManager Pro for LCD (DDC/CI)”).

● Adjustable settings in each mode

The adjustable settings depend on the mode. (You cannot select any non-adjustable or non-settable function.) For instructions on how to adjust or set each function, refer to subsequent pages.

√: Adjustable -: Not adjustable

Function		Color Mode
		User1User2	sRGB	Paper	Game	Cinema
Brightness √ √ √ √ √
Black Level √ - - √ √
Contrast √ - - √ √
Saturation √ - - √ √
Hue √ - - √ √
Temperature		√ - √ √ √
Advanced Settings	ContrastEnhancer	√ - - √ √
	Power Resolution	√ - - √ √
	Gamma	√ - - √ -
	Gain	√ - - - -
	Overdrive	√ - - √ -
Color Reset		√ √ √ √ √

● To adjust brightness "Brightness"

The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel).

Adjustable range

0 to 100

Procedure

1. Choose "Color" in the Setting menu, and press ENTER.

2. Choose "Brightness" in the "Color" menu, and press ENTER. The "Brightness" menu appears.

3. Use or for adjustment.

4. Press ENTER to exit the adjustment.

Note

• While the Setting menu is not displayed, or on the remote control is available for adjustment.
• If you feel that the image is too bright even if the brightness is set to 0 or that the image is too dark even if the brightness is set to 100, adjust the contrast.

● To adjust black level "Black Level"

You can adjust the black level of images.

Adjustable range

0 to 100

Procedure

1. Choose "Color" in the Setting menu, and press ENTER.
2. Choose "Black Level" in the "Color" menu, and press ENTER. The "Black Level" menu appears.
3. Use of for adjustment.
4. Press ENTER to exit the adjustment.

Note

• After completing black level adjustment, readjust the contrast as appropriate.

● To adjust contrast "Contrast"

The brightness of the screen is adjusted by varying the video signal level.

Adjustable range

0 to 100

Procedure

1. Choose "Color" in the Setting menu, and press ENTER.

2. Choose "Contrast" in the "Color" menu, and press ENTER. The "Contrast" menu appears.

3. Use or for adjustment.

4. Press ENTER to exit the adjustment.

Note

• In the contrast of 50, every color gradation is displayed (for PC input signal only).
• When adjusting the monitor, it is recommended to perform the brightness adjustment which may not lose the gradation characteristics, prior to the contrast adjustment.
• Perform the contrast adjustment in the following cases.
• When you feel the image is too dark even if the brightness is set to 100 (Set the contrast to higher than 50.)
• When you feel the image is too bright even if the brightness is set to 0 (Set the contrast to lower than 50.)

● To adjust the color saturation "Saturation"

This function allows you to adjust color saturation.

Adjustable range

-50 to 50

Procedure

1. Choose "Color" in the Setting menu, and press ENTER.

2. Choose "Saturation" in the "Color" menu, and press ENTER. The "Saturation" menu appears.

3. Use of for adjustment.

4. Press ENTER to exit the adjustment.

Attention

• Using this function may make some color gradations unavailable for display.
• The minimum value (-50) changes the screen to monochrome.

Note

● To adjust hue "Hue"

This function allows you to adjust hue.

Adjustable range

-50 to 50

Procedure

1. Choose "Color" in the Setting menu, and press ENTER.
2. Choose "Hue" in the "Color" menu, and press ENTER.
   The "Hue" menu appears.
3. Use or for adjustment.
4. Press ENTER to exit the adjustment.

Attention

- Using this function may make some color gradations unavailable for display.

● To adjust color temperature “Temperature”

Color temperature can be adjusted.

The color temperature is normally used to express the hue of “White” and/or “Black” by a numerical value.

The value is expressed in degrees "K" (Kelvin).

The screen becomes reddish at a low color temperature, and bluish at a high color temperature, like the flame temperature. A gain preset value is set for each color temperature setting value.

Adjustable range

Off, 4000K-10000K (specified by every 500K unit, including 9300K)

Procedure

1. Choose "Color" in the Setting menu, and press ENTER.

2. Choose "Temperature" in the "Color" menu, and press ENTER. The "Temperature" menu appears.

3. Use of for adjustment.

4. Press ENTER to exit the adjustment.

Note

• “Gain” allows you to perform more advanced adjustment (see “To adjust gain “Gain”” (page 21)).
• If you set to "Off", the image is displayed in the preset color of the monitor (Gain: 100 for each RGB).
• When gain is changed, the color temperature is changed to "Off".

● To set ContrastEnhancer "ContrastEnhancer"

This function allows you to set whether to automatically adjust the contrast according to the darkness or brightness of a scene, for example.

Procedure

1. Choose "Color" in the Setting menu, and press ENTER.
2. Choose "Advanced Settings" in the "Color" menu, and press ENTER.
3. Choose "ContrastEnhancer" in the "Advanced Settings" menu, and press ENTER.
   The "ContrastEnhancer" menu appears.
4. Select "Enable" or "Disable" with ⓐ.
5. Press ENTER to exit the adjustment.

Note

- Setting "Enable" allows you to display high contrast and sharp images.

● To reduce image blur "Power Resolution"

You can reduce image blur by enhancing its outline.

Adjustable range

Off, 1, 2, 3

Procedure

1. Choose "Color" in the Setting menu, and press ENTER.
2. Choose "Advanced Settings" in the "Color" menu, and press ENTER.

3. Choose "Power Resolution" in the "Advanced Settings" menu, and press ENTER. The "Power Resolution" menu appears.

4. Use or for adjustment.

5. Press ENTER to exit the adjustment.

Note

• If you keep pressing the Ⓗ button for two seconds or more while “Power Resolution” is displayed, the monitor enters the demo mode. To return to normal display, keep pressing Ⓗ or for at least two seconds.
• Left half of screen: Power Resolution On
• Right half of screen: Power Resolution Off

● To adjust gamma "Gamma"

Gamma can be adjusted. The brightness of the monitor varies depending on the input signal, however, the variation rate is not proportional to the input signal. To keep the balance between the input signal and the brightness of the monitor is called as “Gamma correction”.

Adjustable range

1.8, 2.0, 2.2, 2.4, 2.6, 2.8, Power1, Power2

Procedure

1. Choose "Color" in the Setting menu, and press ENTER.
2. Choose "Advanced Settings" in the "Color" menu, and press
3. Choose "Gamma" in the "Advanced Settings" menu, and press The "Gamma" menu appears.
4. Use of for adjustment.
5. Press ENTER to exit the adjustment.

Note

• Choosing "Power1" will help to sharpen halftone images by increasing their contrast.
• Choosing "Power2" will help to make dark images visible by increasing the low-tone contrast.

● To adjust gain "Gain"

The brightness of each color component red, green, and blue is called “Gain”. You can change the hue of “white” by adjusting gain.

Adjustable range

0 to 100

Procedure

1. Choose "Color" in the Setting menu, and press ENTER.
2. Choose "Advanced Settings" in the "Color" menu, and press
3. Choose "Gain" in the "Advanced Settings" menu, and press
   The "Gain" menu appears.

1. Adjust gain with of for each of red, green, and blue.

2. Press ENTER to exit the adjustment.

Attention

- Using this function may make some color gradations unavailable for display.

Note

- The value of gain changes with that of color temperature.

- When gain is changed, the color temperature is changed to "Off".

● To set overdrive intensity "Overdrive"

This function allows you to set overdrive intensity based on the use of the monitor. You can reduce Image lags by setting it to “Enhanced” when displaying animated images.

Adjustable range

Enhanced, Standard, Off

Procedure

1. Choose "Color" in the Setting menu, and press ENTER.
2. Choose "Advanced Settings" in the "Color" menu, and press ENTER.

3. Choose "Overdrive" in the "Advanced Settings" menu, and press ENTER. The "Overdrive" menu appears.

4. Use or for adjustment.

5. Press ENTER to exit the adjustment.

Attention

• The overdrive function is disabled in the following cases:
• The vertical scan frequency of input signals is more than 60 Hz
• The screen size is "Normal" (excluding the case that the display resolution is 1920 x 1080) or "Letterbox"

2-4. Screen Adjustment

● Digital Signal Input

When digital signals are input, images are displayed correctly based on the preset data of the monitor, but if characters and/or lines appear blurred, go to “6. Modify blurred characters or lines.” (page 26).

When performing more advanced adjustment, see “2-3. Adjusting Color” (page 15) and subsequent pages.

● Analog Signal Input

Attention

• The monitor will take about 30 minutes before its internal electric components stabilize. Wait 30 minutes or more after turning the monitor power on before starting adjustment.
• The Self Adjust (automatic screen adjustment) function does not work for the images under the resolution of 800 × 600 (SVGA).
• The self adjustment (or automatic screen adjustment) function works correctly when an image is fully displayed over the Windows or Macintosh display area. They do not work properly in the cases below:
• When an image is displayed only on a part of the screen (command prompt window, for example)
• When a black background (wallpaper, etc.) is in use
  Also, these functions cannot work properly in some graphic boards.

The monitor screen adjustment is used to suppress flickering of the screen or adjust screen position and screen size correctly according to the PC to be used.

Note

• The Self Adjust function works when all of the following conditions are satisfied:
• When a signal is input into the monitor for the first time or when a resolution or vertical/horizontal scan frequency not used before is set

If the screen is not displayed correctly even after performing the Self Adjust operation, adjust the screen according to the procedures on the following pages to use the monitor comfortably.

Setting Procedures

1. Perform the auto adjustment.

To adjust flickering, screen position, and screen size automatically "Auto Screen Adjust"

Procedure

1. Choose "Screen" in the Setting menu, and press ENTER.
2. Choose "Auto Screen Adjust" in the "Screen" menu, and press ENTER.
3. Select "Yes" with < or and press . ENTER

Flickering, screen position, and screen size are corrected by the auto-adjustment function.

If the screen is not displayed correctly even after performing "1. Perform the auto adjustment." (page 23), perform the adjustments according to the procedures on the following pages. If the screen is displayed correctly, go to "5. Adjusting color gradation." (page 25).

2. Prepare to use analog screen adjustment patterns.

Load the "EIZO LCD Utility Disk" to your PC, and then open the "Screen adjustment pattern files".

Note

- For details and instructions on opening the "Screen adjustment pattern files", refer to the Readme.txt file.

3. Perform the auto adjustment again with the analog screen adjustment pattern displayed.

To adjust flickering, screen position, and screen size automatically "Auto Screen Adjust"

Procedure

1. Display Pattern 1 in full screen on the monitor using the "Screen adjustment pattern files".

1. Choose "Screen" in the Setting menu, and press .ENTER

2. Choose "Auto Screen Adjust" in the "Screen" menu, and press ENTER.

3. Select "Yes" with < or and press . ENTER

Flickering, screen position, and screen size are corrected by the auto-adjustment function.

If the screen is not displayed correctly even after performing "3. Perform the auto adjustment again with the analog screen adjustment pattern displayed." (page 23), perform the adjustments according to the procedures on the following pages. If the screen is displayed correctly, go to "5. Adjusting color gradation." (page 25).

4. Choose "Screen" from the Setting menu to perform advanced adjustments.

Adjust the clock, phase and position, in this order.

- To eliminate vertical bars "Clock"

Procedure

1. Choose "Clock" in the "Screen" menu, and press ENTER. The "Clock" menu appears.
2. Adjust the clock with Ⓞ to eliminate vertical bars. Press Ⓞ slowly so as not to miss the adjustment point.
3. Press to exit the adjustment. When blurring, flickering or bars appear on the screen after adjustment, proceed to "Phase" to remove flickering or blurring.

- To remove flickering or blurring "Phase"

Procedure

1. Choose "Phase" in the "Screen" menu, and press ENTER. The "Phase" menu appears.
2. Adjust the phase with Ⓞ to minimize flickering or blurring.
3. Press ENTER to exit the adjustment. When vertical bars appear on the screen after adjustment, go back to “To eliminate vertical bars “Clock””. (Clock → Phase → Position)

Attention

- Flickering or blurring may not be eliminated depending on your PC or graphics board.

To correct the screen position "Position"

Note

- Since the number of pixels and the pixel positions are fixed on the LCD monitor, only one position is provided to display images correctly. The position adjustment is made to shift an image to the correct position.

Procedure

1. Choose "Position" in the "Screen" menu, and press ENTER. The "Position" menu appears.

2. Adjust the position with ⏻/∧∨>

3. Press ENTER to exit the adjustment.

1. Close Pattern 1.

5. Adjusting color gradation.

To adjust color gradation automatically "Auto Range Adjust"

Every color gradation (0 to 255) can be displayed by adjusting the signal output level.

Procedure

1. Display Pattern 2 in full screen on the monitor using the "Screen adjustment pattern files".

1. Choose "Screen" in the Setting menu, and press . ENTER

2. Choose "Auto Range Adjust" in the "Screen" menu, and press ENTER. The "Auto Range Adjust" menu appears.

3. Select "Yes" with Ⓡ, and press . ENTER The output range is set automatically.

4. Close Pattern 2.

6. Modify blurred characters or lines.

To modify blurred characters/lines "Smoothing"

When an image is displayed with a resolution other than recommended, the characters or lines of the displayed image may blur.

Attention

- Smoothing setting may not be required depending on the display resolution. (You cannot choose the smoothing icon.)

Adjustable range

1 to 5

Procedure

1. Choose "Screen" in the Setting menu, and press ENTER.
2. Choose "Smoothing" in the "Screen" menu, and press ENTER.
   The "Smoothing" menu appears.
3. Use or for adjustment.
4. Press ENTER to exit the adjustment.

2-5. Screen Size Changing

● Analog Input (D-Sub)/Digital Input (DVI-D, HDMI: PC signal)

The image with the resolution other than the recommended resolution is displayed in full screen automatically. You can change the screen size by using the “Screen Size” function.

Setting Function
Full Screen Displays	an image in full screen. Images are distorted in some cases because the vertical rate is not equal to the horizontal rate.
Enlarged Displays	an image in full screen. In some cases, a blank horizontal or vertical border appears to equalize the vertical rate and the horizontal rate.
Normal Displays images with the specified resolution.

Example: Image size 1024 × 768

Full Screen Enlarged Normal

Geometric diagram with concentric circles and intersecting lines inside a rectangle (no text or symbols)

(1920 × 1080) (1440 × 1080)

Geometric diagram with a central circle and eight surrounding circles, enclosed in a rectangle (no text or symbols)

(1024 × 768)

Geometric diagram with concentric circles and radial lines inside a square frame (no text or symbols)

Procedure

1. Press SCREEN SIZE on the remote control.

Each time you press SCREEN SIZE , the size changes.

Attention

- Selecting "Normal" may make some color gradations unavailable for display.

● Digital Input (HDMI: video signal)

The screen size can be changed with the "Screen Size" function.

Setting Function Screen Display
Auto The monitor	automatically changes the screen size according to the aspect ratio and resolution information from the external device. This can be set only for HDMI (SD Signal) input.
Full Screen Displays	an image in full screen. Images are distorted in some cases because the vertical rate is not equal to the horizontal rate.
Enlarged Displays	an image in full screen. In some cases, a blank horizontal or vertical border appears to equalize the vertical rate and the horizontal rate.
Letterbox Displays	Letterbox of 16 : 9 in full screen. Except for Letterbox, the upper and lower parts of the projected image are cut. This can be set only for HDMI (SD Signal) input.
Normal*1	The image is displayed without scaling the input signals.

^1 When “Screen Size” is “Normal”, “Overscan” is fixed at “Off”.

Procedure

1. Press SCREEN SIZE on the remote control. Each time you press the size changes.

Attention

- Selecting "Normal" may make some color gradations unavailable for display.

To set the screen ratio "Overscan"

In order to hide distortion or noise at the image's edge, the display area of the input image can be changed so that peripheral images are not displayed.

Setting Function
On Displays an input image in the screen by trimming the vertical and horizontal parts of the image.
Off	Displays most of the input image.

Procedure

1. Press SCREEN SIZE on the remote control. The "Screen Size" menu appears.
2. Select "Overscan" with Ⓥ.
3. Use < or > for adjustment.
4. Press ENTER to exit the adjustment.

Attention

- When “Screen Size” is “Normal”, “Overscan” is fixed at “Off”.

Chapter 3 Setting Monitor

3-1. Adjusting Volume

● To turn the volume up/down

This function allows you to adjust the volume.

Adjustable range

0 to 30

Procedure

1. Press + or on the remote control.

Note

• Alternatively, you can use Vol + or Vol — on the monitor for adjustment. (see "1-2. Controls and Functions" (page 8)).
• The volume for the HDMI1, HDMI2, and the stereo mini jack can be set individually.

● To mute the sound temporarily

Procedure

1. Press Ⓜ on the remote control. Mute sound temporarily. By pressing the button again or pressing + the sound comes back.

Note

• The mute setting can also be released by pressing vol the monitor.
• While the monitor is muted, press - or _0 the monitor to decrease the volume setting.

3-2. Switching sound source for HDMI signal input "Source"

This function allows you to switch sound source for HDMI signal input. You can select the HDMI or stereo mini jack.

Procedure

1. Choose "Sound" in the Setting menu, and press ENTER.
2. Choose "Source" in the "Sound" menu, and press ENTER.
   The "Source" menu appears.
3. Select "HDMI" or "Stereo Mini Jack" with OK.
4. Press ENTER to exit the adjustment.

Note

- This function is available with HDMI signal input. However, if a DVI-HDMI adapter cable is used, the sound source is automatically “Stereo Mini Jack” and cannot be changed.

3-3. To adjust the sound level "Sound Level"

The input sound level can be adjusted.

The volume difference may occur depending on the kinds of input signals, since the average sound level of the external device differs.

Adjustable range

-1 to 1

Procedure

1. Choose "Sound" in the Setting menu, and press ENTER.

2. Choose "Sound Level" in the "Sound" menu, and press ENTER.
   The "Sound Level" menu appears.

3. Use or for adjustment.

4. Press ENTER to exit the adjustment.

Note

- For example, if the volume difference of PC1 and PC2 input signals becomes large, you can reduce the volume difference between them by raising the “Sound Level” of the lower volume side.

3-4. Enabling/Disabling DDC/CI communication "DDC/CI"

This function allows you to enable/disable the DDC/CI communication (see “7-5. Glossary” (page 46)).

Procedure

1. Choose "Monitor Settings" in the Setting menu, and press ENTER.

2. Choose "DDC/CT" in the "Monitor Settings" menu, and press ENTER. The "DDC/CT" menu appears.

3. Select "Enable" or "Disable" with ⓐ.

4. Press ENTER to exit the adjustment.

Note

- HDMI input does not support DDC/CI communication.

3-5. Locking Buttons "Key Lock"

This function allows you to lock the buttons on the monitor.

Procedure

1. Choose "Monitor Settings" in the Setting menu, and press ENTER.

2. Choose "Key Lock" in the "Monitor Settings" menu, and press ENTER. The "Key Lock" menu appears.

3. Select "On" with Ⓞ. >

4. Press ENTER to exit the adjustment.

Note

• The following operations are available even if the buttons are locked:
• Turning on or off the monitor with the Power button
• Does not lock the remote control operation.

3-6. Setting the EIZO Logo Display "Logo"

When the monitor is turned on, the EIZO logo appears on the screen. You can choose to display or not to display the EIZO logo.

Procedure

1. Choose "Monitor Settings" in the Setting menu, and press ENTER.

2. Choose "Logo" in the "Monitor Settings" menu, and press ENTER. The "Logo" menu appears.

3. Select "On" or "Off" with OK.

4. Press ENTER to exit the adjustment.

3-7. Setting Language "Language"

This function allows you to select a language for the Setting menu or displaying message.

Selectable languages

English/German/French/Spanish/Italian/Swedish/Japanese/Simplified Chinese/Traditional Chinese

Procedure

1. Choose "Monitor Settings" in the Setting menu, and press ENTER.

2. Choose “Language” in the “Monitor Settings” menu, and press ENTER. The “Language” menu appears.

3. Choose a language with or.

4. Press ENTER to exit the adjustment.

3-8. Changing the HDCP authentication setting for HDMI signal input

The external device cannot be authenticated successfully according to your external device and the screen cannot be displayed. In this case, follow the procedures below to change the HDCP from the normal to extended state.

Procedure

1. Press POWER on the remote control or On the monitor to turn OFF the monitor power.

2. Press SIGNAL on the monitor for five seconds or more.

The setting changes and the monitor power is turned on.

Note

- The current setting status can be identified based on the color used to display the input port or signal error.

Setting Input port Signal Error
Normal	HDMI 1	HDMI 1Signal Error
Extended	HDMI 1	HDMI 1Signal Error

3-9. Resetting the Monitor to the Default Settings

There are two different Resets: Color Reset for only resetting the color adjustments to the default settings and Full Reset for resetting all settings to the defaults.

Attention

• After resetting, you cannot undo the operation.

Note

- Regarding the default setting, see "Main Default Settings" (page 44).

● To reset the color adjustments "Color Reset"

This function only resets the color adjustments for the currently selected mode to the default settings.

Procedure

1. Choose "Color" in the Setting menu, and press ENTER.
2. Choose "Color Reset" in the "Color" menu, and press ENTER.
3. Select "Yes" with ◀ or ▶
4. Press ENTER.
   The color adjustments revert to the default settings.

● To reset all adjustments to the default settings "Reset"

This function resets all adjustments to the default settings.

Attention

- The reset operation cannot return the HDCP authentication setting (“3-8. Changing the HDCP authentication setting for HDMI signal input” (page 30)) to the default setting.

Procedure

1. Choose "Monitor Settings" in the Setting menu, and press ENTER.
2. Choose "Reset" in the "Monitor Settings" menu, and press ENTER.
3. Select "Yes" with ◀ or ▶
4. Press ENTER.

All adjustments revert to the default settings.

Chapter 4 Power Saving Functions

4-1. Setting Power Saving "Power Save"

- Monitor

This function allows you to specify whether to set the monitor into the power saving mode, depending on the state of an external device connected to it. When the monitor has shifted to the power saving mode, the images on the screen are not displayed.

Attention

• Turning off the main power switch or unplugging the power cord completely shuts off power supply to the monitor.
• Power consumption varies even when the stereo mini jack cable is connected.

Note

- The monitor changes to the power saving mode about 15 seconds after the signal input ceases to be detected.

Procedure

1. Choose "PowerManager" in the Setting menu, and press ENTER.

2. Choose "Power Save" in the "PowerManager" menu, and press ENTER. The "Power Save" menu appears.

3. Select "Enable" or "Disable" with ⓐ.

4. Press ENTER to exit the adjustment.

Power Saving System

Analog Signal Input

This monitor complies with the VESA DPM standard.

PC Monitor Power Indicator
On Operating Blue
Power saving mode	STAND-BY SUSPENDED OFF	Power saving mode	Orange
Power Off		Power saving mode	Orange

Digital Signal Input

When the external device connected is a PC

This monitor complies with the DVI DMPM standard.

PC Monitor Power Indicator
On Operating Blue
Power saving mode	Power saving mode	Orange
Power Off	Power saving mode	Orange

When the external device connected is not a PC

Ext. Device	Monitor Power	Indicator
Power On	Operating Blue
Power Off	Power saving mode	Orange

Attention

• When all the conditions below are met, the monitor does not change to the power saving mode even if “Power Save” is set to “Enable”:
• "Power Save" for Sound is set to "Sound On" ("Audio Output" (page 33))
• In the mute state (“To mute the sound temporarily” (page 28))
  In these cases, reset the mute.

Exiting the power saving mode

If the monitor receives input, it automatically exits the power saving mode and returns to the normal display mode.

● Audio Output

This monitor allows you to turn off the audio output from the speakers/headphone at the power saving mode.

Procedure

1. Choose "Sound" in the Setting menu, and press ENTER.

2. Choose "Power Save" in the "Sound" menu, and press ENTER.
   The "Power Save" menu appears.

3. Select "Sound On" or "Sound Off" with ⓐ.

4. Press ENTER to exit the adjustment.

Attention

- No audio is output while the monitor is in the Power Saving mode, if the HDMI signal is input or the sound source is of HDMI.

4-2. Setting Power Indicator "Power Indicator"

This function allows you to set the power indicator (blue) ON/OFF in the monitor ON condition.

Procedure

1. Choose "Monitor Settings" in the Setting menu, and press ENTER.
2. Choose "Power Indicator" in the "Monitor Settings" menu, and press ENTER. The "Power Indicator" menu appears.
3. Select "Enable" or "Disable" with or.
4. Press ENTER to exit the adjustment.

4-3. Enabling/Disabling Automatic Brightness Adjustment "Auto EcoView"

The sensor on the front side of the monitor detects the environmental brightness to adjust the screen brightness automatically and comfortably by using the Auto EcoView function.

Attention

- Be careful not to block the sensor on the lower side of the monitor when using the Auto EcoView function.

Procedure

1. Press EcoView on the remote control. The “EcoView” menu appears.
2. Select "On" or "Off" with OK.
3. Press ENTER to exit the adjustment.

Note

- As “Brightness” in the Setting menu is changed, the auto adjustment range for Auto EcoView is also changed.

4-4. Checking the power saving level

The EcoView menu allows you to check Power Reduction, CO2 Reduction, and Eco Performance Level. The more indicators light up representing the Eco Performance Level, the higher the power saving level attained.

Procedure

1. Press EcoView on the remote control. The “EcoView” menu appears.

4-5. Enabling/Disabling Auto Power-OFF “Off Timer (min)”

This function allows you to set the time to power off the monitor automatically.

Adjustable range

Disable, 30, 60, 90, 120, 150, 180

Procedure

1. Press OFF TIMER on the remote control. Each time you press, the set time changes.

Canceling Off Timer

1. Press OFF TIMER until "Disable" appears.

Checking the remaining time

1. Press OFF TIMER when the Off Timer is set. The time to turn off the power appears.

Extending the time of the Off Timer

1. Press OFF TIMER while the remaining time is displayed. Each time you press, the time is extended.

Chapter 5 Connecting Cables

5-1. Connecting Multiple External Devices

The product has multiple connections to external devices and allows you to switch to one of the connections for display.

Attention

- Do not use dual link cables.

Connection examples

● To switch among input signals

Press of on the remote control to change the input signal.

When the signal is switched, the active input port name appears at the top right corner of the screen.

Note

- SIGNAL on the monitor also can change the input. (see "1-2. Controls and Functions" (page 8)).

Chapter 6 Troubleshooting

If a problem still remains after applying the suggested remedies, contact your local dealer.

No picture

Problem Possible cause and remedy
1. No picture• Power indicator does not light.	Check whether the power cord is connected properly.Turn off the main power, and then turn it on again a few minutes later.Turn the main power switch on.Press POWER on the remote control (or ⏻on the monitor).
Power indicator is lighting blue. Increase	“Brightness”, “Contrast”, or “Gain” in the Setting menu (see “To perform advanced adjustments” (page 16)).
Power indicator is lighting orange. Check	whether the signal cable is connected properly.Check whether the external device is turned on.Operate the mouse or keyboard.Switch the input signal.If an external device is plugged into the HDMI port, change the HDCP authentication setting. Power off once and then press SIGNAL on the monitor for five seconds or more to change the setting and then turn on the power again. (see “3-8. Changing the HDCP authentication setting for HDMI signal input” (page 30)).
2. The message below appears. This message appears when the signal is not input correctly even when the monitor functions properly.
Example:PC2 (D-SUB)Signal Error	The message shows that the input signal is out of the specified range.When the analog signal (D-Sub)/ digital signal (DVI-D, HDMI: PC signal) is input, take the measures below:- Check whether the PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see “2-1. Compatible Resolutions/Formats” (page 13)).- Reboot the PC.- Select an appropriate display mode using the graphics board’s utility. Refer to the manual of the graphics board for details.

Imaging problems (for both digital and analog)

Problem Possible cause and remedy
3. The screen is too bright or too dark.	·Use “Brightness” or “Contrast” in the Setting menu to adjust it. (The LCD monitor backlight has a limited life span. When the screen becomes dark or begins to flicker, contact your local dealer.) ·Turn on the Auto EcoView function. The monitor detects the environmental brightness to adjust the screen brightness automatically.
4. Characters are blurred. ·Check whether the	PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see “2-1. Compatible Resolutions/Formats” (page 13)). ·Use “Smoothing” in the Setting menu to adjust it (see “To modify blurred characters/lines “Smoothing”” (page 26)).
5. Afterimages appear. ·Afterimages are particular to LCD monitors. Avoid displaying the same image for a long time. ·Use the screen saver or power save function to avoid displaying the same image for extended periods of time.
6. Green/red/blue/white dots or defective dots remain on the screen.	·This is due to LCD panel characteristics and is not a failure.
7. Interference patterns or pressure marks remain on the screen.	·Leave the monitor with a white or black screen. The symptom may disappear.
8. Noise appears on the screen.	·In the Setting menu, set “Overdrive” to “Off” (see “To set overdrive intensity “Overdrive”” (page 22)). ·When entering the signals of HDCP system, the normal images may not be displayed immediately.
9. The screen is whitish or blackish. ·Use “Color Space” of the “Screen” submenu (for the HDMI input), “Black Level” (see “To adjust black level “Black Level”” (page 17)), and “Contrast” (see “To adjust contrast “Contrast”” (page 18)) in the Setting menu to adjust it.

Imaging problems (for digital only)

Problem Possible cause and remedy
10. The color shown on the display is not correct (for HDMI input).	• Change the color space of the video signal in “Screen” - “Color Space” under the Setting menu.
11. The screen flashes (for HDMI input) • Transmittable signals differ on the category of the HDMI cable. Check whether the cable support High Speed.

Imaging problems (for analog only)

Problem Possible cause and remedy
12. Display position is incorrect.• Use “Position” in the Setting menu to correct the image position (see “To correct the screen position “Position”” (page 25)).• If the problem persists, use the graphics board’s utility if available to change the display position.
13. Vertical bars appear on the screen or a part of the image is flickering.	• Use “Clock” in the Setting menu to adjust it (see “To eliminate vertical bars “Clock”” (page 24)).
14. Whole screen is flickering or blurring.	• Use “Phase” in the Setting menu to adjust it (see “To remove flickering or blurring “Phase”” (page 24)).

Other problems

Problem Possible cause and remedy
15. The “Smoothing” on the Setting menu “Screen” cannot be selected.	You cannot choose “smoothing” when the screen is displayed in the following resolutions or settings.- The resolution is 1920 × 1080- Screen Size is “Normal”
16. The auto adjustment function does not work.	This function does not work during digital signal input.This function is intended for use on the Macintosh and on AT-compatible PC running Windows. It does not work properly when an image is displayed only on a part of the screen (command prompt window, for example) or when a black background (wallpaper, etc.) is in use.This function does not work correctly with some graphics boards.
17. No audio output. · Check whether the stereo	mini jack cable is connected properly.Check whether volume is set to 0.Check the current external device and audio playback software to see whether they are configured correctly.If HDMI input is used, check the current external device and the “Source” setting in the Setting menu (see “3-2. Switching sound source for HDMI signal input “Source”” (page 28)).
18. “ScreenManager Pro for LCD (DDC/CI)” does not run.	“ScreenManager Pro for LCD (DDC/CI)” does not run when a PC is connected to the HDMI input.
19. Will not change to the power saving mode	When all the conditions below are met, the monitor does not change to the power saving mode even if “Power Save” is set to “Enable”:- “Power Save” for Sound is set to “Sound On” (“Audio Output” (page 33))- In the mute state (“To mute the sound temporarily” (page 28))In these cases, reset the mute.

Chapter 7 Reference

7-1. How to Attach the Optional Arm

An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the corresponding optional arm (or optional stand). http://www.eizo.com

Attention

• When attaching an arm or stand, follow the instructions of their user's manual.
• When using another manufacturer's arm or stand, confirm the following in advance and select one conforming to the VESA standard. Use the M4 × 12 mm screws supplied with this product.
• Clearance between the screw holes: 100 mm × 100 mm
• Thickness of plate: 2.6 mm
• Strong enough to support weight of the monitor unit (except the stand) and attachments such as cables.
• When using an arm or stand, attach it to meet the following tilt angles of the monitor.
• Up 45°, down 45° (horizontal display, and vertical display rotated 90 degrees clockwise)
• Connect the cables after attaching an arm or stand.
• The monitor and arm or stand are heavy. Dropping them may result in injury or equipment damage.

Procedure

1. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down.
2. Remove the Stand base.

Turn the fixing screws for the Stand base to detach it.

1. Attach the arm or stand to the monitor.

Secure the monitor to the arm or stand using the screws specified in the user's manual of the arm or stand.

Technical line drawing of a mechanical assembly with no visible text or symbols

7-2. Attaching the Stand base

The once removed the Stand base can be attached to the monitor again with the following procedures.

Procedure

1. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down.

2. Attach the Stand base.

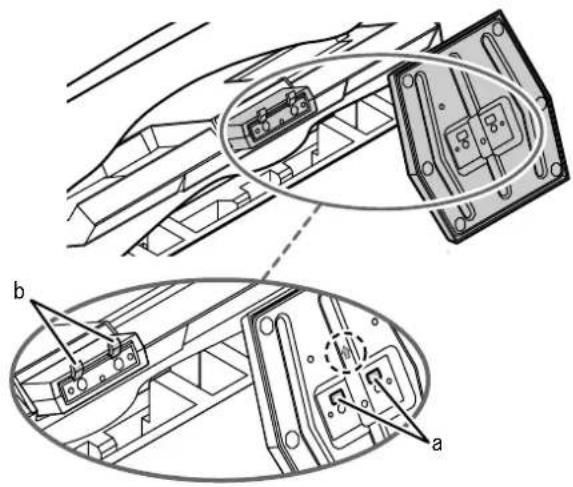

Hold the Stand base with the arrow “↑ facing upward, align the two holes (a) of the Stand base with the two tabs (b) at the bottom of the monitor, and snap the tabs into the holes.

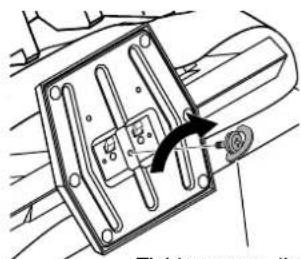

1. Turn the supplied screw in the "LOCK" direction to lock the Stand base.

Tighten screw, then press knob flat.

7-3. Displaying Monitor Information "Information"

This function allows you to display the model name, serial number, usage time, resolution, and input signal.

Procedure

1. Choose "Information" in the Setting menu, and press ENTER. The "Information" menu appears.

Attention

- The usage time is not always "0" when you purchase the monitor due to factory inspection.

7-4. Specifications

LCD Panel Size	23.0-inch (580 mm)
	Type TFT color LCD, VA
	Surface treatment Anti-Glare Hard Coating
	Surface hardness 3H
	Viewingangles Viewingangles: Horizontal 178°, vertical 178° (CR≥10)
	Dot Pitch 0.2655mm
	Response Time Black-white-black: Approx. 25 msGray-to-gray: Approx. 7 ms (Overdrive setting: Enhanced)
	Contrast ratio 3000:1 (when ContrastEnhancer setting is “On” 10000:1)
Horizontal Scan Frequency	Analog		31-81 kHz
	Digital	DVI	31-68 kHz
		HDMI	15-68 kHz
Vertical Scan Frequency	Analog		55-76 Hz (non-interlace)
	Digital	DVI	59-61Hz (non-interlace)(VGA TEXT: 69-71Hz)
		HDMI	49-61 Hz (VGA TEXT: 69-71 Hz)
Applicable video signal formats			VGA / 525i (480i)/525p (480p)/1125i (1080i)/750p (720p)/1125p (1080p): 60 Hz625i (576i)/625p (576p)/1125i (1080i)/750p (720p)/1125p (1080p): 50 Hz
Applicable audio signal formats			2ch linear PCM (32 kHz / 44.1 kHz / 48 kHz)
Resolution			1920 Dots ×1080 Lines
Max. Dot Clock			148.5 MHz
Max. Display Color			Approx. 16.77 million colors (1064.33 million colors/10bit LUT)
Display Area (H × V)			509.76 mm × 286.74 mm (20.1 inch × 11.3 inch)
Power Supply			100-120 VAC ±10%, 50/60 Hz 0.75A200-240 VAC ±10%, 50/60 Hz 0.45A
Power Consumption	Screen Display On		45 W or less (Speaker working)43 W or less (Speaker not working)
	Power saving mode		1.0 W or less (for D-Sub single signal input, when stereo mini jack cable is not connected)
	Power Off		0.17 W or less
	Main Power Off		0 W
Input Signal Connector			D-Sub mini 15-pin
			DVI-D connector (Applicable to HDCP)
			HDMI Type A*1 × 2
Analog Input Signal (Sync)			Separate, TTL, positive/ negative
Analog Input Signal (Video)			Analog, Positive (0.7Vp-p/75Ω)
Digital Signal Transmission			TMDS (Single Link)
Videosignalmemory (Max.)			D-Sub input: 45 types, DVI-D input: 10 types,HDMI1 input: 10 types, HDMI2 input: 10 types
Audio Output			Speaker output: 0.5 W + 0.5 W (8Ω, THD+N: 1% or less)Headphone output: 2 mW + 2 mW
Line Input			Input impedance: 44 kΩ (typ.)Input level: 2.0 Vrms (Max.)
Plug & Play			VESA DDC 2B/EDID structure 1.3

^*1 HDMI CEC (or mutual control) is not supported.

Dimensions (Width) × (Height) × (Depth)	Main unit 549 mm (21.6 inch) × 403 mm (15.9 inch) × 212 mm (8.3 inch)
	Main unit (without stand)	549 mm (21.6 inch) × 393 mm (15.5 inch) × 58 mm (2.28 inch)
Mass Main unit	Approx. 6.9 kg (15.2 lbs)
	Main unit (without stand)	Approx. 6.1kg (13.4 lbs)
Movable range Tilt: 20° Up, -5° Down
Environmental Conditions	Temperature Operating:	5°C to 35°C (41°F to 95°F)Storage: -20°C to 60°C (-4°F to 140°F)
	Humidity Operating: 20% to 80% R.H. (no condensation)Storage: 10% to 90% R.H. (no condensation)
	Air Pressure Operating:	700 to 1,060 hPaStorage: 200 to 1,060 hPa

Main Default Settings

Color Mode D-Sub/DVI-D input: User1	HDMI input: Game
Off Timer Disable
Screen Size D-Sub/DVI-D input: Full screen	HDMI (PC signal/HD signal) input: Full screenHDMI (SD signal) input: Auto
Auto EcoView On
Smoothing 3
Sound Level	0
Sound - Power Save	Sound Off
PowerManager - Power Save	Enable
DDC/CI	Enable
Key Lock	Off
Logo	On
Power Indicator	Enable
Language	English

Outside Dimensions

Unit: mm (inch)

Accessories

Cleaning Kit EIZO “ScreenCleaner”
Signal cable (D-Sub mini 15-pin) MD-C87

For the latest information about the accessories, refer to our web site.

http://www.eizo.com

7-5. Glossary

Clock

The analog signal input monitor needs to reproduce a clock of the same frequency as the dot clock of the graphics system in use, when the analog signal is converted to a digital signal for image display. This is called clock adjustment. If the clock pulse is not set correctly, some vertical bars appear on the screen.

Color Space

Color space is a method to specify and express the color. There are YUV and RGB, etc. YUV expresses the color by using the luminance (Y), the color difference of R (U) and the color difference of blue (V). RGB does it by using the gradation of 3 colors of Red (R, Green (G) and Blue (B)).

DDC/CI (Display Data Channel/Command Interface)

VESA provides the standardization for the interactive communication of the setting information, etc. between a PC and the monitor.

DVI (Digital Visual Interface)

DVI is a digital interface standard. DVI allows direct transmission of the PC's digital data without loss. This adopts the TMDS transmission system and DVI connectors. There are two types of DVI connectors. One is a DVI-D connector for digital signal input only. The other is a DVI-I connector for both digital and analog signal inputs.

DVI DMPM (DVI Digital Monitor Power Management)

DVI DMPM is a digital interface power-saving function. The “Monitor ON (operating mode)” and “Active Off (power-saving mode)” are indispensable for DVI DMPM as the monitor’s power mode.

Gain

This is used to adjust each color parameter for red, green and blue. An LCD monitor displays the color by the light passing through the panel color filter. Red, green and blue are the three primary colors. All the colors on the screen are displayed by combining these three colors. The color tone can be changed by adjusting the light intensity (volume) passing through each color's filter.

Gamma

Generally, the monitor brightness varies nonlinearly with the input signal level, which is called “Gamma Characteristic”. A small gamma value produces a low-contrast image, while a large gamma value produces a high-contrast image.

HDCP (High-bandwidth Digital Content Protection)

Digital signal coding system developed to copy-protect the digital contents, such as video, music, etc. This helps to transmit the digital contents safely by coding the digital contents sent via the DVI or HDMI connector on the output side and decoding them on the input side.

Any digital contents cannot be reproduced if both of the equipments on the output and input sides are not applicable to HDCP system.

HDMI (High-Definition Multimedia Interface)

HDMI is a digital interface standard, developed for consumer electrical appliance or AV device. This standard is issued on the basis of the DVI standard which is one of an interface specification for the connection between a PC and a monitor. The projected image, sound and control signal without compressed enable to be transmitted with one cable.

Overdrive

This technology enhances response speed by increasing the potential difference at the time of motion of liquid-crystal pixels, and it is used for liquid-crystal TV sets and others in general. It provides clear-cut three-dimensional display with little image lag, by improving response speed of the intermediate graduation range that frequently appears in moving images.

Phase

Phase means the sampling timing to convert the analog input signal to a digital signal. Phase adjustment is made to adjust the timing. It is recommended that phase adjustment be made after the clock is adjusted correctly.

Range Adjustment

Range adjustment controls the signal output levels to display every color gradation. It is recommended that range adjustment be made before color adjustment.

Resolution

The LCD panel consists of numerous pixels of specified size, which are illuminated to form images. This monitor consists of 1920 horizontal pixels and 1080 vertical pixels. At a resolution of 1920 × 1080 , all pixels are illuminated as a full screen (1:1).

sRGB (Standard RGB)

International standard for color reproduction and color space among peripheral devices (such as monitors, printers, digital cameras, scanners). As a form of simple color matching for the Internet, colors can be displayed using tones close to those of the transmission and reception devices.

Temperature

Color temperature is a method to measure the white color tone, generally indicated in degrees Kelvin. The screen becomes reddish at a low temperature, and bluish at a high temperature, like the flame temperature.

5000K: Slightly reddish white

6500K: White referred to as daylight-balanced color

9300K: Slightly bluish white

TMDS (Transition Minimized Differential Signaling)

TMDS is one of the signal transmission methods for the digital interface.

VESA DPM (Video Electronics Standards Association - Display Power Management Signaling)

VESA specifications achieve increased energy efficiency for computer monitors. This involves standardization of signals sent from the computer (graphics board).

DPM defines the status of signals transmitted between the computer and monitor.

7-6. Preset Timing

The following table shows factory preset analog signal timing:

Attention

• Display position may be deviated depending on the PC connected, which may require screen adjustment using Setting menu.
• If a signal other than those listed in the table is input, adjust the screen using the Setting menu. However, screen display may still be incorrect even after the adjustment.
• When interlace signals are used, the screen cannot be displayed correctly even after screen adjustment using the Setting menu.

Resolution	Applicable Signals	Frequency Polarity
		Dot Clock: MHz		Horizontal: kHz	Vertical: Hz	Horizontal Vertical
640 × 480	VGA/CEA-861 25.	18	31.47 59.94	Negative	Negative
720 × 400	VGA TEXT		28.32		31.47	70.09	Negative
640 × 480	VESA		31.50		37.50	75.00	Negative
800 × 600	VESA		40.00		37.88	60.32	Positive
800 × 600	VESA		49.50		46.88	75.00	Positive
1024 × 768	VESA		65.00		48.36	60.00	Negative
1024 × 768	VESA		78.75		60.02	75.03	Positive
1280 × 720	CEA-861		74.25		45.00	60.00	Positive
1280 × 960	VESA		108.00		60.00	60.00	Positive
1280 × 1024	VESA		108.00		63.98	60.02	Positive
1280 × 1024	VESA		135.00		79.98	75.03	Positive
1680 × 1050	VESA CVT		146.25		65.29	59.95	Negative
1680 × 1050	VESA CVT RB		119.00		64.67	59.88	Positive
1920 × 1080	CEA-861		148.50		67.50	60.00	Positive

Appendix

Trademark

VESA is a registered trademark or a trademark of the Video Electronics Standards Association in the United States and other countries.

Windows, Windows Vista, Windows Media, and Xbox 360 are registered trademarks of Microsoft Corporation in the United States and other countries.

Apple, Mac, Macintosh, iMac, eMac, Mac OS, MacBook, PowerBook, ColorSync, QuickTime, and iBook are registered trademarks of Apple Inc.

Acrobat, Adobe, Adobe AIR, and Photoshop are registered trademarks of Adobe Systems Incorporated in the United States and other countries.

PowerPC is a registered trademark of International Business Machines Corporation.

Pentium is a registered trademark of Intel Corporation in the United States and other countries.

AMD Athlon and AMD Opteron are trademarks of Advanced Micro Devices, Inc.

GRACoL and IDEAlliance are registered trademarks of International Digital Enterprise Alliance.

ColorVision, ColorVision Spyder2 are registered trademarks of DataColor Holding AG.

Spyder3 is a trademark of DataColor Holding AG.

Eye-One, ColorMunki, and X-Rite are registered trademarks or trademarks of X-Rite Incorporated.

TouchWare is a trademark of 3M Touch Systems, Inc.

NextWindow is a registered trademark of NextWindow Ltd.

RealPlayer is a registered trademark of RealNetworks, Inc.

NEC is a registered trademark of NEC Corporation. PC-9801 and PC-9821 are trademarks of NEC Corporation.

PlayStation is a registered trademark of Sony Computer Entertainment Inc.

PSP and PS3 are trademarks of Sony Computer Entertainment Inc.

ENERGY STAR is a registered trademark of the United States Environmental Protection Agency in the United States and other countries.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

EIZO, the EIZO Logo, FlexScan, FORIS, RadiForce, RadiCS, RadiNET, and ScreenManager are registered trademarks of EIZO NANAO CORPORATION in Japan and other countries.

ColorNavigator, EIZO EasyPIX, EcoView NET, EIZO ScreenSlicer, i·Sound, Screen Administrator, UniColor Pro, and Raptor are trademarks of EIZO NANAO CORPORATION.

All other company and product names are trademarks or registered trademarks of their respective owners.

License

The round gothic bold bit map font used for the characters displayed above this product is designed by Ricoh.

ENERGY STAR

As an ENERGY STAR Partner, EIZO NANAO CORPORATION has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This product has acquired TCO standard that relates to safety, ergonomics, environment and so forth of office equipment. For overview of the TCO, refer to our website.

http://www.eizo.com

FCC Declaration of Conformity

For U.S.A. , Canada, etc. (rated 100-120 Vac) Only
FCC Declaration of Conformity
We, the Responsible Party	EIZO NANAO TECHNOLOGIES INC.
	5710 Warland Drive, Cypress, CA 90630
	Phone: [phone]
declare that the product	Trade name: EIZO
	Model: FORIS FS2331
is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.* Reorient or relocate the receiving antenna.* Increase the separation between the equipment and receiver.* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.* Consult the dealer or an experienced radio/TV technician for help.
Changes or modifi cations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note
Use the attached specifi ed cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device.- AC Cord- Shielded Signal Cable (Enclosed)
Canadian Notice
This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de le classe B est conforme à la norme NMB-003 du Canada.

EIZO NANAO CORPORATION (hereinafter referred to as "EIZO") and distributors authorized by EIZO (hereinafter referred to as the "Distributors") warrant, subject to and in accordance with the terms of this limited warranty (hereinafter referred to as the "Warranty"), to the original purchaser (hereinafter referred to as the "Original Purchaser") who purchased the product specified in this document (hereinafter referred to as the "Product") from EIZO or Distributors, that EIZO and Distributors shall, at their sole discretion, either repair or replace the Product at no charge if the Original Purchaser becomes aware within the Warranty Period (defined below) that the Product malfunctions or is damaged in the course of normal use of the Product in accordance with the description in the instruction manual attached to the Product (hereinafter referred to as the "User's Manual").

The period of this Warranty is limited to (i) five (5) years from the date of purchase of the Product; or, limited to the expiration of (ii) 30,000 hours of its use of the Product (hereinafter referred to as the "Warranty Period"); provided, however, that the Warranty Period for the LCD panel of the Product is limited to three (3) years from the date of purchase of the Product. EIZO and Distributors shall bear no liability or obligation with regard to the Product in relation to the Original Purchaser or any third parties other than as provided under this Warranty.

EIZO and Distributors will cease to hold or store any parts of the Product upon expiration of seven (7) years after the production of such parts is discontinued. In repairing the monitor, EIZO and Distributors will use renewal parts which comply with our QC standards.

The Warranty is valid only in the countries or territories where the Distributors are located. The Warranty does not restrict any legal rights of the Original Purchaser.

Notwithstanding any other provision of this Warranty, EIZO and Distributors shall have no obligation under this Warranty whatsoever in any of the cases as set forth below:

(a) Any defect of the Product caused by freight damage, modification, alteration, abuse, misuse, accident, incorrect installation, disaster, faulty maintenance and/or improper repair by third party other than EIZO and Distributors;
(b) Any incompatibility of the Product due to possible technical innovations and/or regulations;
(c) Any deterioration of display performance caused by the deterioration of expendable parts such as the LCD panel and/or backlight, etc. (e.g. changes in brightness, changes in brightness uniformity, changes in color, changes in color uniformity, defects in pixels including burnt pixels, etc.);
(d) Any defect of the Product caused by external equipment;
(e) Any defect of the Product on which the original serial number has been altered or removed;
(f) Any defect of the Product caused by liquid leaking from battery;
(g) Any normal deterioration of the product, particularly that of consumables, accessories, and/or attachments (e.g. batteries, buttons, rotating parts, remote control, cables, User's Manual, etc.); and
(h) Any deformation, discoloration, and/or warp of the exterior of the product including that of the surface of the LCD panel.

To obtain service under the Warranty, the Original Purchaser must deliver the Product, freight prepaid, in its original package or other adequate package affording an equal degree of protection, assuming the risk of damage and/or loss in transit, to the local Distributor. The Original Purchaser must present proof of purchase of the Product and the date of such purchase when requesting services under the Warranty.

The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original Warranty Period.

EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS FOR REPAIR.

EIZO AND DISTRIBUTORS MAKE NO FURTHER WARRANTIES, EXPRESSED OR IMPLIED, WITH RESPECT TO THE PRODUCT AND ITS QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USE. IN NO EVENT SHALL EIZO OR DISTRIBUTORS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHER DAMAGE WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFIT, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT OR IN ANY CONNECTION WITH THE PRODUCT, WHETHER BASED ON CONTRACT, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE, EVEN IF EIZO OR DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS EXCLUSION ALSO INCLUDES ANY LIABILITY WHICH MAY ARISE OUT OF THIRD PARTY CLAIMS AGAINST THE ORIGINAL PURCHASER. THE ESSENCE OF THIS PROVISION IS TO LIMIT THE POTENTIAL LIABILITY OF EIZO AND DISTRIBUTORS ARISING OUT OF THIS LIMITED WARRANTY AND/OR SALES.

BEGRENZTE GARANTIE

China Measures for RoHS Compliance in ChinaRoHS

关于电子信息产品污染控制标识
