Product Type	Integrated Dishwasher
Brand	Sandstrøm
Model	SID60W14N
Place Setting Capacity	14
Dimensions (W x D x H)	598 mm x 550 mm x 815 mm
Weight (approx.)	45 kg
Power Consumption	1850 W
Rated Voltage	230 V~50 Hz
Water Pressure Range	0.04 - 1.00 MPa
Energy Efficiency Class	A+++
Noise Level	45 dB(A) re 1 pW
Wash Programmes	Auto, Intensive, Normal, Eco, Delicate, Express 60', Rapid, Soak
Half Load Option	Yes (upper/lower/both baskets)
Delay Start	Up to 24 hours (1-hour increments)
Control Panel	Electronic with display, On/Off, Delay, Alt, Programme, Function buttons
Rinse Aid Dispenser	Adjustable (6 settings, factory setting 4)
Salt Reservoir	Approx. 1.2 kg capacity, adjustable water hardness setting H1-H6
Filter System	Removable coarse and fine filters
Spray Arms	Two (upper and lower), jets cleanable with cocktail stick
Condensation Strip	Included for worktop protection
Safety Features	Child lock (by supervision), anti-flooding system, earthing required
Eco Programme Duration	180 min
Annual Energy Consumption	237 kWh
Annual Water Consumption	2800 litres
Installation Type	Built-under (can be built-in)

Frequently Asked Questions - SID60W14N Sandstrøm

How do I adjust the water hardness setting?

Press the On/Off button to turn on the dishwasher. Then press and hold the P program button for 5 seconds until the salt refill indicator flashes. Press the P button repeatedly to select the desired hardness level (H1 to H6) from the table in the manual. Finally, press the On/Off button to save.

What detergent should I use?

Only use detergents specifically designed for automatic dishwashers, either powder or tablets. Follow the manufacturer's instructions for the correct amount. For tablets, check if they should be placed in the cutlery basket or detergent compartment.

How do I clean the filters?

Ensure the dishwasher is switched off. Turn the coarse filter anti-clockwise and lift it out. Rinse all filters (coarse, fine, and cylinder) under running water. Refit in reverse order, gently tightening the coarse filter clockwise until it clicks.

Why is there white residue on my dishes?

This may be due to insufficient rinse aid or salt, or the rinse aid setting too low. Refill the rinse aid reservoir and adjust the dial to a higher setting (up to 6). Also check the salt level and water hardness setting. Ensure the salt cap is tightly closed.

Can I open the door during a cycle?

Yes, but be careful: open the door slightly to avoid hot water spillage. The cycle will automatically pause. When you close the door, the dishwasher will resume after 10 seconds. If not closed properly, it will beep every minute.

How do I use the half load function?

Load dishes only in the upper or lower basket, or both. Press On/Off, select a programme, then press the Alt button repeatedly until the indicator for the desired basket (upper, lower, or both) lights up. Close the door to start.

What items should not be washed?

Do not wash wooden items, delicate glassware, antiques, plastic items not marked dishwasher-safe, copper, brass, tin, aluminium, silver with residues of egg/mustard. Also avoid items soiled with ash, sand, wax, grease, or paint.

How do I set the delay start?

Load dishes, turn on the unit, select a programme, then press the Delay Start button repeatedly to set the delay (1-24 hours). Each press adds 1 hour. Close the door, and the dishwasher will start automatically at the set time.

What does error code E4 mean?

E4 indicates an overflow or leakage. Disconnect from the mains and water supply, then call a qualified service agent. Do not attempt repairs yourself.

How do I maintain the spray arms?

Switch off the dishwasher. Use a pointed object like a cocktail stick to loosen any food particles in the spray arm jets. Do not remove the spray arms. Clean them regularly to ensure proper water flow.

USER MANUAL SID60W14N Sandstrøm

Integrated Dishwasher

GB

Interior view of a stainless steel multi-level kitchen appliance with visible dish cycles and control panel (no text or symbols)

Safety Warnings 8

Unpacking.... 18

Installation....19

Product Overview 26

Front View....26

Upper Basket 26

Internal View....26

Rear View 26

Lower Basket 26

Control Panel....27

Before Operating 28

To Open the Door....28

To Close the Door 28

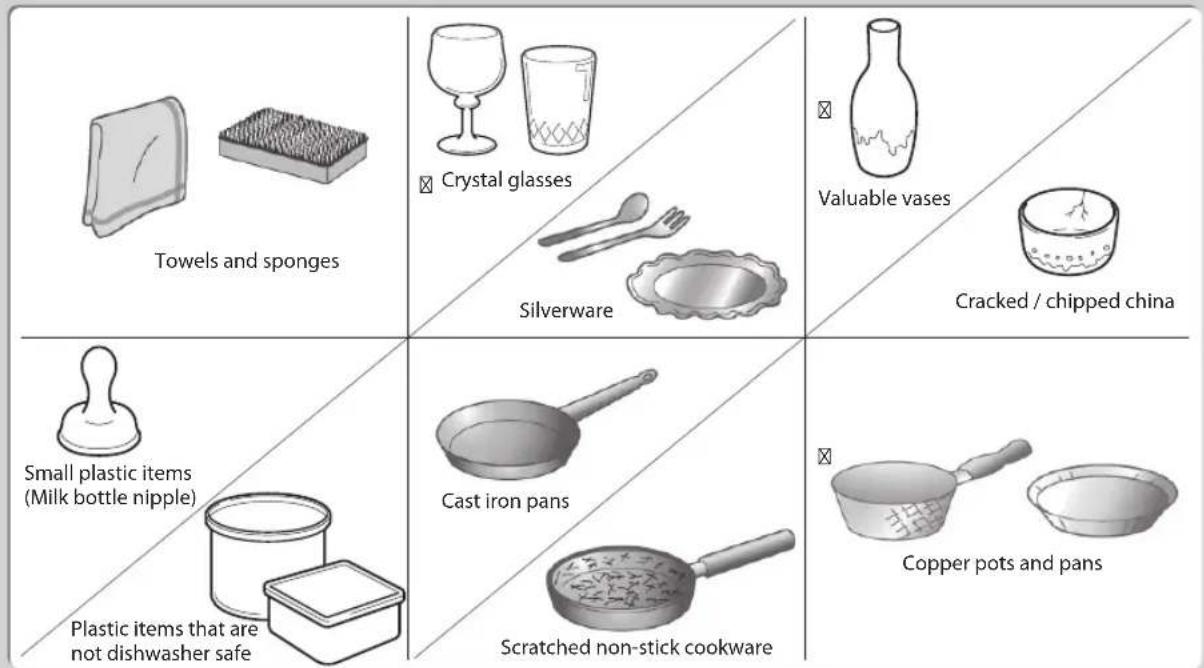

Items Not Suitable for Use in the Dishwasher....28

Adding Detergent Powder or Tablet....29

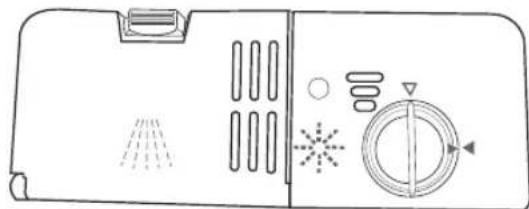

Adding Rinse Aid ....30

Adjusting the Rinse Aid Reservoir 30

Adding Salt....31

Adjusting Salt Consumption 32

Loading the Dishwasher 33

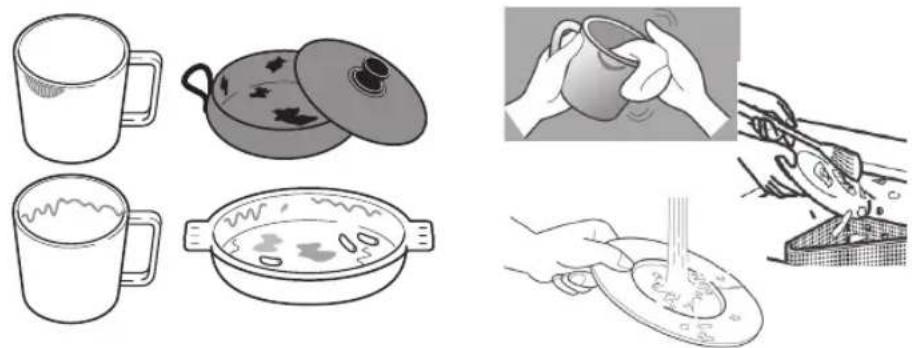

Before Loading the Dishwasher ....33

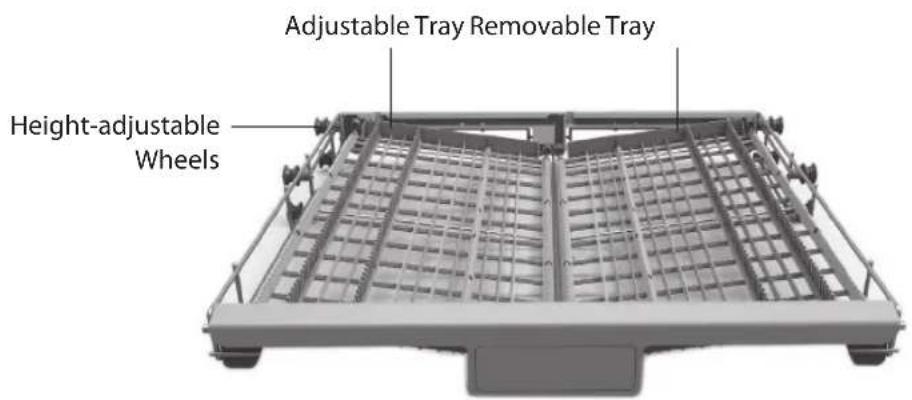

Upper Basket 34

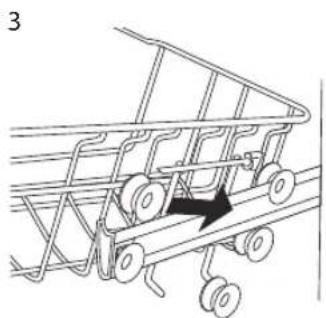

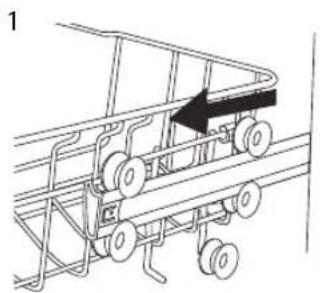

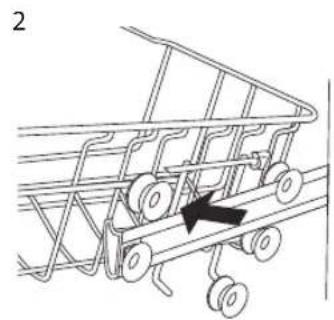

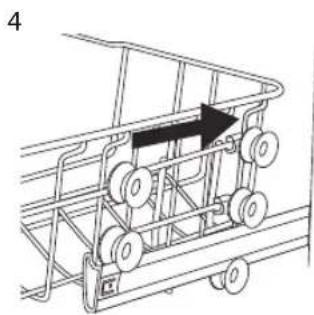

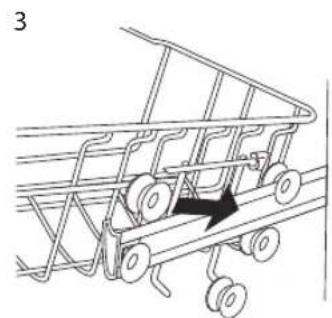

Adjusting the Upper Basket 34

Hinged Cup Rack....34

Loading the Upper Basket for 14 Place Settings....35

Lower Basket 35

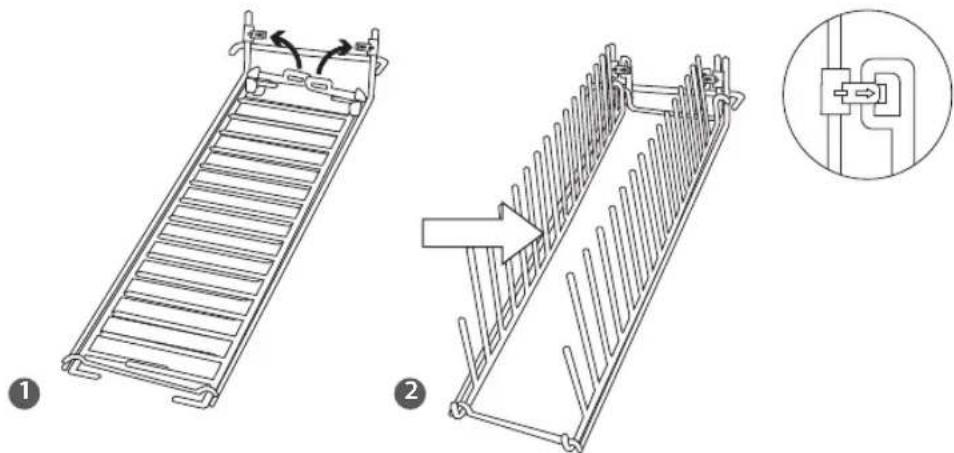

Hinged Spikes....35

Loading the Lower Basket for 14 Place Settings....36

Cutlery Basket 36

Wash Cycle Table....38

Starting a Wash Cycle 39

Changing a Programme 40

At the End of a Programme....40

Switching Off the Unit 40

Unloading the Dishwasher 40

Delay Start 41

Half Load 41

Cleaning After Use....42

External Care 42

The Door and the Door Seal....42

The Control Panel....42

Internal Care 42

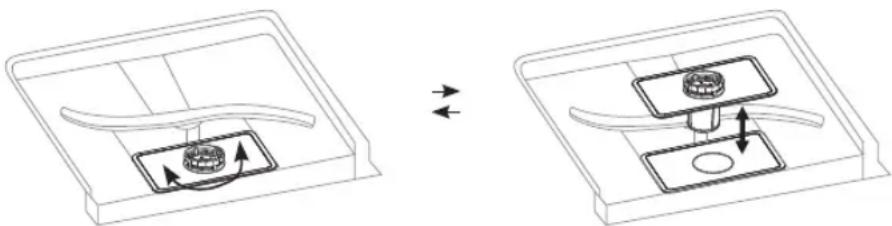

Filtering System 42

Spray Arms....43

Frost Precaution 43

Moving the Dishwasher 43

Maintenance After a Prolonged Period of Non-Operation 44

Hints and Tips 44

Disposal of the Dishwasher 46

Disposal of Packing Material 46

Specifications....47

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the dishwasher and keep them for future reference.
• Retain the manual. If you pass the dishwasher onto a third party, make sure to include this manual.
• Keep ventilation openings in the dishwasher enclosure clear of obstructions.
• Choose a location for your dishwasher away from heat sources such as radiators or fires.
  • Children should be supervised to ensure that they do not play with the dishwasher.
• Keep mains cable out of reach from children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep children away from detergents and rinse aids. These may cause chemical burns in the mouth, throat and eyes or asphyxiation.
• Keep children away from the dishwasher when the door is open.
• Switch off and disconnect from the mains supply before fitting or removing tools/attachments, after use and before cleaning.
• Keep your fingers away from moving parts and fitted attachments.
  • Never use a damaged machine.
• If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
• Keep the mains cable and plug away from water.
  • Never exceed the maximum capacities.
  • 2 people are required to lift this dishwasher.
  • Only use the dishwasher for its intended domestic use.
  • This appliance is intended for indoor household use and similar applications such as:

– farm houses and by clients in hotels, motels and other residential type environments;

– bed and breakfast type environments;

– catering and similar non-retail applications.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

• Do not sit or stand on the door or dish rack.
- Do not move your dishwasher by holding the door or its edges. Hold the dishwasher around its sides or base when moving it.
- Do not touch the heating element during or immediately after use.

• Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully when there is a programme running, as there is a risk of hot water spraying out of the appliance.
  • Do not place any heavy objects on the open door. The appliance could tip.
• When loading items to be washed:
• Locate sharp items so that they will not damage the door seal;
• Warning: Knives and other utensils with sharp points must be loaded in the basket with the points downwards or placed horizontally.
  • Do not allow plastic items to come into contact with heating element.
• Check that the detergent receptacle is empty after completion of the wash cycle.
  • Do not wash plastic items unless they are marked dishwasher safe or equivalent.
  • Use only detergent and rinse aids designed for an automatic dishwasher.
• Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3mm contact separation in all poles.
  • The door should not be left in the open position since this could present a tripping hazard.
• For energy saving, always remember to switch the dishwasher off when you have finished using it. The dishwasher should not be left unattended when in use.
• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
• During installation, the power supply cord must not be excessively or dangerously bent or flattened.
  • Do not tamper with controls.
  • The appliance is to be connected to the water mains using new hose sets.
  • The maximum number of place settings to be washed is 14.
• The maximum permissible inlet water pressure is 1Mpa, and the minimum permissible inlet water pressure is 0.04Mpa.

Earthing Instructions

WARNING: THIS APPLIANCE MUST BE EARTHED.

• This appliance is equipped with a mains cable having an equipment-earthing conductor and an earthing plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with local standards and requirements.

• Improper connection of the equipment-earthing conductor could result in a risk of electric shock.
  • The wires in the cord are coloured as follows:
  • Green and Yellow = Earth,
• Blue = Neutral,
• Brown = Live.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed or the plug does not fit correctly.
  • Never modify the plug provided with the appliance.

- t.ex. bed and breakfast;

- bed and breakfast type miljøer;

Thank you for purchasing your new Sandstrøm Dishwasher.

You must spend some time reading this installation/instruction manual in order to fully understand how to install and operate it.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

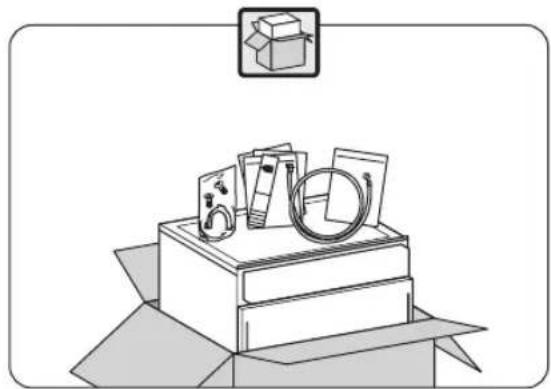

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Technical line drawing of a front-loading washing machine (no text or symbols)

The Main Unit

Salt Funnel

Water Supply Hose

Condensation Strip

Lower Hook X 2

Hop Hook x 2

Installation Hook x 2

M4x10 Screw x 4

M4 Nut x 4

Toc Panel x 1

ST3.5x25 Screw x 2

Hole Cover x 2 Toe Panel Mounting
Bracket x 2

Instruction Manual

ST3.5x45 Screw x 4ST4x14 Screw x 14S

This product has been wet tested to ensure correct operation. As a result some water may remain inside the unit. This is normal and safe. Remove any water droplets from the exterior if necessary.

Location

When selecting a position for your dishwasher you should make sure the installation surface is flat and firm, and the room is well ventilated. Avoid locating your dishwasher near a heat source, e.g. cooker, boiler or radiator. Extreme cold ambient temperatures may also cause the appliance not to perform properly. This dishwasher is not designed for use in a garage or outdoor installation.

Do not drape the dishwasher with any covering. When installing, ensure that free space is left at the sides.

All parts removed must be saved to do the reinstallation in the future. Ensure the dishwasher is unplugged and empty. We recommend that 2 people handle the dishwasher during installation.

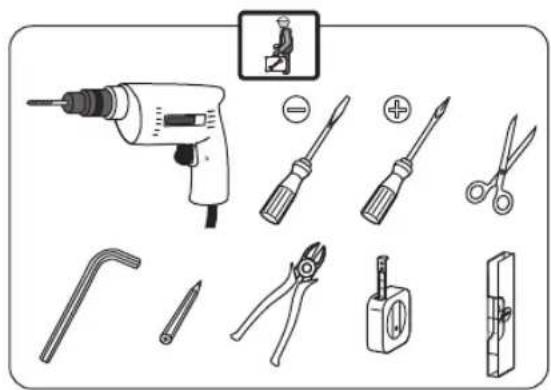

1. Please ensure the dishwasher is installed by a qualified technician. Refer to the tools required.

The supplied door template also contains installation steps which will assist installation.

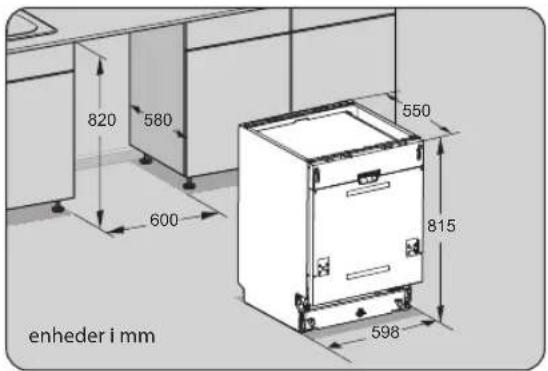

1. Ensure there is clearance each side of the unit to allow slight sideways movement for servicing when required. The height of the unit is 815 mm. The figure outlines the minimum dimensions required to accommodate the dishwasher within fitted kitchen furniture units.

Illustration of an open box with accessories and a cardboard box (no text or symbols)

INSTALLATION

1. Do not connect the unit to the mains socket before installation. Ensure you are not installing the unit right in front of the mains socket. This is to avoid potential damage to the back of the unit.

1. The condensation strip must be fitted to the underside of the worktop above your dishwasher to protect it against any moisture. Its purpose is to protect your worktop's underside from steam rising from the dishwasher.

Remove the backing paper from the condensation strip.

Simple line drawing of a rectangular object with an arrow indicating direction, no text or symbols present.

1. Stick the condensation strip to the underside of the worktop.

Ensure the surface is clean prior to sticking the condensation strip to the underside of the worktop.

Failure to attach the condensation strip could result in damage to the underside of your worktop!

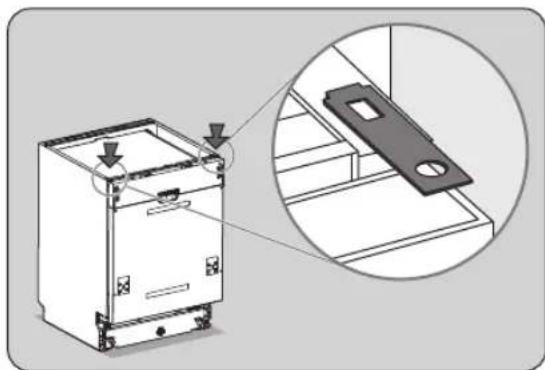

6. For Wooden Worktop Only

Place the Installation Hook to secure the unit as shown.

Diagram of a refrigerator with an inset close-up showing the exterior panel (no text or symbols present)

INSTALLATION

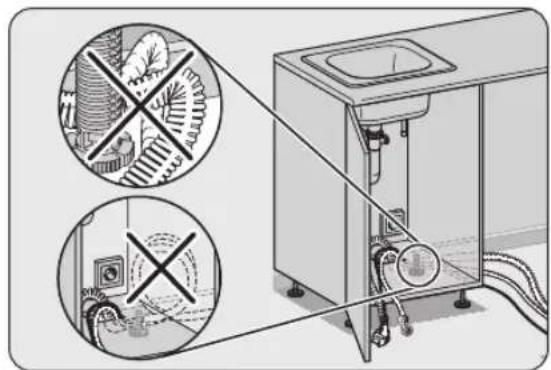

1. Position the dishwasher next to a water tap and a drain. Ensure the water inlet and drain hoses are not kinked or squashed. The unit must not stand on the mains cable.

GB

Diagram of a kitchen appliance showing a sink, washing machine, and piping (no text or symbols)

1. Good levelling is essential for correct closure and sealing of the door. When the unit is correctly levelled, the door should not catch the inner liner on either side of the cabinet. Adjust the adjustable feet to obtain the optimum levelling of the unit (max. 5cm).

1. Tape the supplied Door Template to the dishwasher door. Ensure the aesthetic door weight is a minimum of 3kg and a maximum of 7kg. Make sure the top of the template is at the top of the door. Drill the required holes following the depth and diameter shown on the Door Template.

INSTALLATION

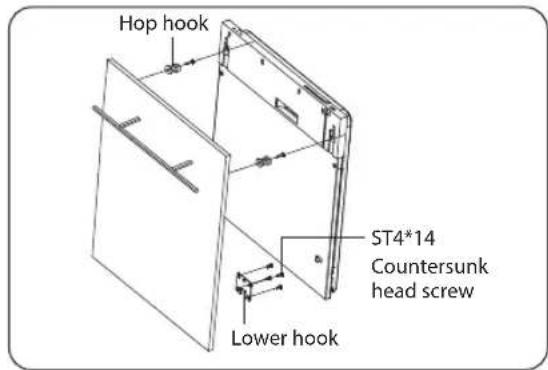

1. Install the Aesthetic Panel onto the dishwasher door. After the aesthetic panel is installed, the tension of the dishwasher door spring can be adjusted by rotating the adjusting bolt. If the tension is right, the door will remain horizontal in the fully open position.

1. Remove the screws on both sides of the dishwasher door and replace with ST3.5x45 screws. Ensure to tighten the screws and to secure the Aesthetic Panel.

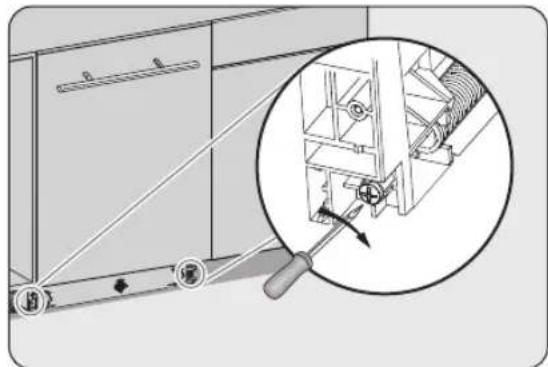

1. Adjust the bolt to loosen or tighten the tension of the dishwasher door.

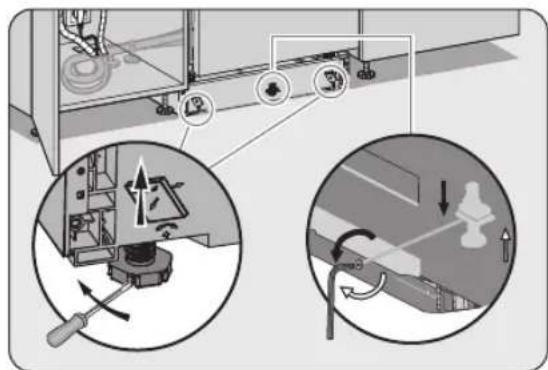

1. Adjust the adjustable feet again to obtain the optimum levelling of the unit.

INSTALLATION

1. To secure the dishwasher under the table top, tighten the screws as shown. Note their positioning for the different types of worktops.

Wooden Worktop

Synthetic / Ceramic Worktop

1. Cut out a 589 mm wide plinth for toe panel. Tape the supplied toe panel mounting brackets to the toe panel as shown. Drill the required holes.

1. Determine the correct position for the toe panel mounting bracket, remove the bracket and bend the metal tab. This ensures that the toe panel won't slide in further than you need.

INSTALLATION

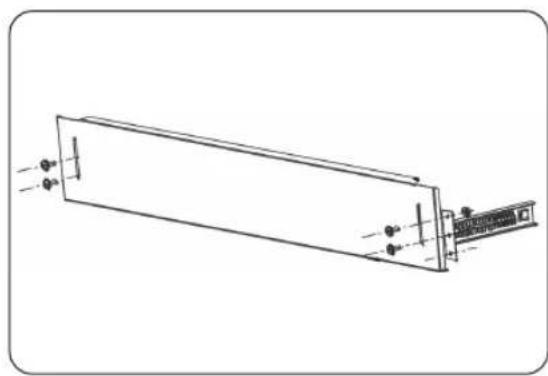

1. Attach the toe panel mounting brackets to the toe panel. Align the screw holes, then using the 4 screws ST4x14 to secure the toe panel.

Technical line drawing of a rectangular electronic device with mounting bracket and internal components (no text or symbols)

1. Insert the toe panel to the dishwasher.

1. Make sure your plumbing is suitable for use with the dishwasher. If in doubt contact a qualified plumber. This unit MUST BE connected to COLD WATER MAINS using the new water inlet hose. OLD HOSE SETS MUST NOT BE RE-USED. The water pressure from the water mains needs to be at a minimum of 0.04 MPa and a maximum of 1.00MPa.

- Connect one end of the safety water supply hose to your dishwasher, and then connect the other end of the hose to your water mains. Please ensure the black rubber seal is in place.

• After connecting the hose, turn on your water mains and check for leaks.

- Connect the dishwasher to the mains socket.

You may use a Y-Adaptor (not included) for an additional water feed for another appliance, for example a washing machine. This is only applicable for cold water mains. A Y-Adaptor is available from most DIY stores.

About the Water Supply Hose

The water supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

• Do not bend your drain hose.

Cross-sectional diagram of mechanical components with no visible text or symbols

- You may use the U-shaped drain hose holder to secure your drain hose and to avoid bending it.

- Secure the water drain hose to the waste pipe to avoid it coming off during the washing process.

• The waste pipe must only be connected to the foul drains and not the surface water drainage system.
• The water drain hose should be placed between 40 cm and 100 cm from the floor level and must not be extended, otherwise the unit may not be able to expel the waste water properly.
• Please close the hydrant after using.

Technical illustration of a pipe drainage system inside a washing machine, showing internal components and piping (no text or symbols)

Product Overview

GB

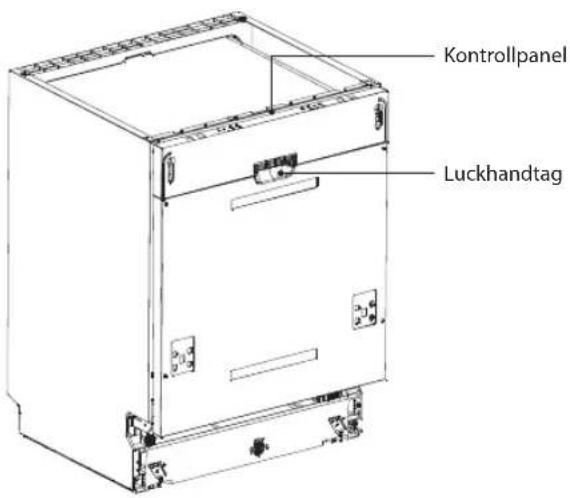

Front View

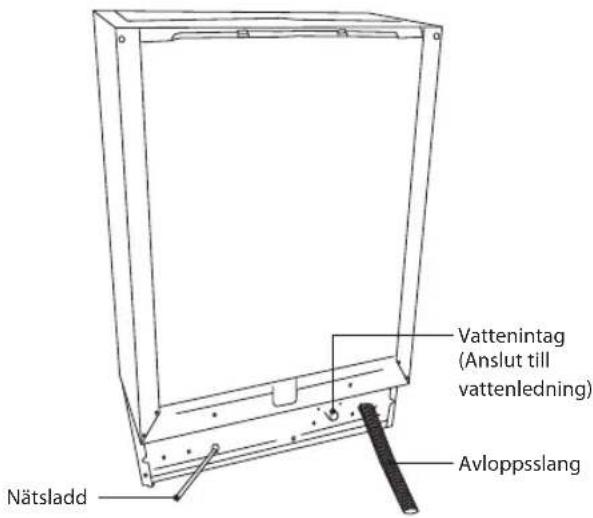

Rear View

Upper Basket Lower Basket

Internal View

Control Panel

GB

1. On/Off Button

To turn the dishwasher on and off.

2. Delay Start Button

• Press repeatedly to preset the delay timer and delay the starting time by up to 24 hours.
  • Each press of this button increases the delay start time by 1 hour intervals.

3. AltButton

Press to select the half load washing cycle and display language*.

\* Setting the Display Language

• Switch on the unit.
• Press and hold the Alt Button for 5 seconds within 60 seconds after the unit is switched on.
• Press the Alt Button repeatedly to select your desired language.
• Confirm selection by not pressing any button for about 5 seconds.

4. P Programme Button

Press repeatedly to select your required washing programme.

5. Function Button

Press repeatedly to select extra drying, power wash, express or no function.

6. Display Window

Displays delay start time, error codes, language, programme, etc.

Before Operating

To Open the Door

• First open the door slightly to avoid water spillage.
  • Pull the door handle.

If the door is opened during operation all functions are automatically interrupted.

To Close the Door

• After loading the dishes, push the baskets fully into the dishwasher.
- Lift the door upwards and push until it clicks into position.
• Do not slam the dishwasher door.

Items Not Suitable for Use in the Dishwasher

When purchasing new crockery and cutlery, please make sure they are dishwasher-proof. Some items are not suitable for dishwashers.

The Following Items Are Not Suitable

• Wooden cutlery and crockery or items with wooden parts may discolour and fade. The glue used in these items is not dishwasher-proof and wooden handles may come loose after being washed in a dishwasher.
  • Craft items, antiques, valuable vases and decorative glassware are also not suitable for dishwashers.
• Plastic items (e.g. tupperware) which are not heat resistant may melt or loose shape due to the high temperature in the dishwasher.
  • Copper, brass, tin and aluminium items may discolour or become matt.
• Clouding may occur on glasses and delicate glassware after frequent washing. Do not wash delicate glassware, or glassware containing lead crystal in a dishwasher. Wash delicate glassware by hand instead.
  • Silver and aluminium parts have a tendency to discolour during washing. Residues like egg white, egg yolk and mustard often cause discolouring and staining on silver. Therefore, please clean the residues from silver immediately after use.

Adding Detergent Powder or Tablet

Only use detergents specifically designed for use in dishwashers. To be more environmentally friendly, please use no more than the correct amount of detergent. Fill the detergent dispenser with detergent power or tablet. See the detergent manufacturers instructions for the correct amount to use. If using tablets read the manufacturers recommendations on the tablet packaging in order to determine where the tablet should be placed (e.g. cutlery basket, detergent compartment etc.)

Irritant

• WARNING! Keep out of the reach of children.
- Irritating to eyes.
- Avoid contact with eyes. In case of contact with eyes, rinse immediately with plenty of water and seek medical advice.
• If swallowed, seek medical advice immediately.

Please follow the steps below to fill the detergent dispenser.

1. Push the button on the lid of the detergent dispenser in the direction of the arrow until the flap springs open.

1. Fill the detergent dispenser with detergent powder to both main wash detergent chamber and pre-wash detergent chamber, or insert the detergent tablet to the main detergent chamber. The marking indicates the filling level.

All programmes with pre-wash need an additional detergent dosage that must be placed in the pre-wash detergent chamber. If using tablets please check the detergent manufacturers instructions. Please refer to the wash cycle table. This detergent will take effect during the pre-wash phase.

main wash detergent chamber

pre-wash detergent chamber

1. Close the lid firmly so that it clicks into place.

Adding Rinse Aid

Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into the reservoir. This model is designed to use liquid rinse aids only.

Please follow the steps below to pour the rinse aid into the storage reservoir, and the amount will dispense automatically.

1. Turn the cap and open as indicated.

1. When the cap open marking is aligned, you may lift the cap up.

1. Pour the rinse aid until the rinse aid indicator turns completely black in colour and close the cap.

2. Be careful not to overfill the reservoir. Wipe up any spills.

Diagram of a kitchen appliance with shower, fan, and circular dial (no text or symbols)

• If the water hardness in your area is soft, you may not need rinse aid as it may cause white film to develop on your dishes.
• If you decide to use a detergent tablet, you do not need to add rinse aid into the rinse aid reservoir.
• Rinse aid refill warning indicator will illuminate when the reservoir is running out of rinse aid and requires refilling.
• Alternatively, you can judge the amount of rinse aid by checking the rinse aid indicator next to the reservoirs cap when the indicator is black, it means it is full. When it is clear, it means it is almost empty.

Adjusting the Rinse Aid Reservoir

The rinse aid reservoir has six settings. Both the recommended setting and the factory setting is "4". If the dishes are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free.

If there are some rinse aid residue left in the washing compartment or your dishes, please turn the rinse aid dispenser dial to 1.

Adding Salt

If the water in your area is hard, deposits will form on your dishes and utensils. As such, this appliance contains a salt reservoir for you to reduce the hardness of the water.

Please follow the steps below to pour the salt into the salt reservoir and to correspond to the water hardness level in your area.

1. Remove the lower basket and unscrew the reservoir cap.

1. Place the funnel provided over the salt reservoir. Pour in approximately 1.2kg of dishwasher salt depending on the brand used.

Technical line drawing of a funnel and circular mechanical component (no text or symbols)

1. Fill the reservoir with water until it overflows (first use only).

2. Clean any excess salt from around the reservoir opening and then screw the cap on again firmly.

3. Run the "Rapid" wash programme immediately (without any crockery in the dishwasher) to remove any traces of salt from the compartment.

• The salt refill warning indicator on the control panel will illuminate when the reservoir is running out of salt and requires refilling.
• The salt refill warning indicator will cease to illuminate within a few days, depending on how quickly the salt dissolves.
• If you decide to use a detergent tablet, you may not need to add salt, this depends upon the water hardness in your area and the type of tablet being used. Check with your water supplier and the detergent tablet manufacturers instructions.

Adjusting Salt Consumption

Salt consumption must be adjusted to correspond to the water hardness level in your area. If you don't know how hard the water in your home is, please ask the company that supplies water in your area.

It is recommended that adjustments should be made in accordance with the following chart.

Water Hardness				Selector Position	Salt Consumption (Gram/Cycle)
German °dh F	French °fh British	°Clarke mmol/l
0-5 0-9 0-6	0-0.94 H1 0
6-11 10-20	7-14 1.0-2.0 H2	9
12-17 21-30	15-21 2.1-3.0 H3	12
18-22 31-40	22-28 3.1-4.0 H4	20
23-34 41-60	29-42 4.1-6.0 H5	30
35-55 61-98	43-69 6.1-9.8 H6	60

1^ dh (German degree) = 0.178 mmol/l
1°fh (French degree) = 0.099 mmol/l
1°Clark (British degree) = 0.142 mmol/l

• Do not use everyday table salt or cooking salt as they contain insoluble substances which could damage the dishwasher.
• Do not pour detergent into the salt container. This will damage the dishwasher.

To optimise your dishwasher for the local water hardness, please follow the steps below and refer to the above table.

1. Press the ⏻ On/Off button to switch on the dishwasher.
2. Press and hold the P program button for 5 seconds until the salt refill warning indicator will be on periodically.
3. Press the P program repeatedly to adjust the water hardness level: H1 / H2 / H3 / H4 / H5 / H6.
4. After adjusting the water hardness level, press the ⏻ On/Off button to save the setting.

Loading the Dishwasher

Before Loading the Dishwasher

In general, please observe the following notes before loading your cutlery and crockery in the basket.

- Remove lipstick stains and any food residues from crockery and dishes. Rinse if necessary.

Illustration showing various cooking and cooking steps: cup, pot, pan, bowl, and dish (no text or symbols)

• Dishes and cutlery must not lay inside one another, or cover each other.
- Load your cutlery and crockery so that water can access all surfaces.

Diagram of a medical or laboratory setup with labeled components and light rays, no readable text or symbols present.

• Ensure all items are securely positioned.
- Hollow items such as cups, glasses, pans, etc. must be placed upside down in the basket.
- Wide based items should be placed at an angle so that water can run off them freely.
- The spray arms must not be blocked by items which are too tall or hang through the baskets. If in doubt, test for free movement by manually rotating the spray arms.
• Ensure that small items cannot fall through the holders in the baskets.

• For safety reasons, do not operate the dishwasher without the dishwasher basket in place.
• Do not wash items soiled with ash, sand, wax, lubricating grease or paint in the dishwasher. These items can damage the dishwasher. Ash does not dissolve and will be distributed in the dishwasher.

Upper Basket

We recommend using the upper basket for small and lightweight items such as cups saucers, glasses, dessert bowls, etc. Shallow pans or casserole dishes can also be placed in the dishwasher basket.

Line drawing of a wireframe basket structure with no text or symbols

Line drawing of kitchen utensils including a ladle, spatula, and knife (no text or symbols)

Long items such as soup ladles, mixing spoons and long knives should be placed lying down in the middle of the cutlery basket.

Adjusting the Upper Basket

More space can be created for large items on the upper or lower baskets by adjusting the height of the upper basket. Lower / raise the upper basket sliding the basket out and replacing it using the wheels on the rails at the correct height. Ensure that basket is stable after adjusting the height.

Diagram of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Hinged Cup Rack

To make room for taller items in the upper basket, fold the cup rack against the basket rails.

Technical line drawing of a grid structure with hexagonal elements, showing two views (no text or symbols)

Loading the Upper Basket for 14 Place Settings

For optimum placement of crockery in the upper basket, please refer to the following list and the accompanying image.

Number Item
1 Cups
2 Saucers
3 Glasses
4 Small Serving Bowls
5 Medium Serving Bowls
6 Large Serving Bowls

GB

To prevent water dripping from the upper basket onto the dishes in the lower basket, we recommend that you empty the lower basket first and then the upper basket.

Lower Basket

We recommend that large and the most difficult to clean items are placed in the lower basket, such as plates, serving platters, saucepans, serving bowls, pots, pans, lids etc. We recommend placing serving dishes and lids at the side of the basket to avoid blocking the rotation of the spray arms.

Illustration of kitchen utensils including a pan, lid, and pot arranged in a wire cage (no text or symbols)

Hinged Spikes

The spikes are used for holding plates and a platter. They can be lowered to make more room for large items. Please refer below for the steps to lower the spikes.

Technical line drawing of two mechanical components with internal structure and connection details (no text or symbols)

Loading the Lower Basket for 14 Place Settings

For optimum placement of crockery in the lower basket, please refer to the following list and image.

Number Item

2 Saucers

4 Small Serving Bowls

5 Medium Serving Bowls

7 Dessert Dishes

8 Dinner Plates

9 Soup Plates

10 Oval Platter

Cutlery Basket

To make unloading much easier, cutlery should be grouped in zones and placed in the cutlery basket. Please refer to the list and image for optimum placement.

Number Item
1 Forks
2 Soup spoons
3 Dessert spoons
4 Teaspoons
5 Knives
6 Serving spoons
7 Gravy ladle
8 Serving fork

There are 6 ways to use the cutlery basket so that it can adjust to the tall objects in the upper basket.

Method 1

Raise Right Tray to Slant towards Centre

1. Lift right-hand side tray up.
2. You will feel it click into place.

Method 2

Raise Both Trays to Slant towards Centre

1. Lift right tray.
2. Lift left tray.
3. You will feel both click into place.

Method 3

Double-stack Trays on Left

1. Lift right tray.
2. Slide left, slot into place.
3. You will feel the tray click into place.

Method 4

Remove Right Tray

1. Life right tray.
2. Slide left and up, lift out.

Method 5

Raise Right Tray 1 Level, Keep Horizontal

1. Lift right tray.
2. Slide left and up.
3. Slide back to the right.
4. You will feel it click into place.

Method 6

Remove Cultery Basket

1. Remove the entire basket by pulling towards you and lifting out.

3D rendering of a metal tray with grid pattern and mounting bracket (no text or symbols)

3D rendering of a mechanical device with grid structure and mounting brackets (no text or symbols visible)

3D rendering of a mechanical tray with a grid and an arrow pointing to the center (no text or symbols visible)

3D diagram of a mechanical assembly with grid and bracket components (no text or symbols)

3D rendering of a mechanical tray with grid pattern and mounting brackets (no text or symbols)

Wash Cycle Table

GB

Programme	Cycle Selection Information	Process Detergent Amount		Running Time (min.)	Energy Consumption (Kwh)	Water Consumption (L)	Rinse Aid
Auto wash	Auto sensing wash, lightly, normally or heavily soiled crockery, with or with out dried-on food.	Pre-wash (45°C)	Pre-wash (5g)	120-180	0.9-1.3 8.4	-12.7
		Autowash (45-55°C)	Main wash (30g)
		Rinse Rinse (62°C)
		Drying
Intensive	For heaviest soiled crockery, and normally soiled pots pans dishes etc with dried on soiling.	Pre-wash (50°C)	Pre-wash (5g)	175 1.6	17
		Wash (65°C)	Main wash (30g)
		Rinse Rinse Rinse (65°C)
		Drying
Normal	For normally soiled loads, such as pots, plates,glasses and lightly soiled pans.	Pre-wash (45°C)	Pre-wash (5g)	185 1.3	14
		Wash (55°C)	Main wash (30g)
		Rinse Rinse (65°C)
		Drying
Eco* (EN50242)	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.	Pre-wash	Pre-wash (5g)	180 0.8	3 10
		Wash (50°C)	Main wash (30g)
		Rinse (60°C)
		Drying
Delicate	For lightly soiled crockery and glass.	Pre-wash	Pre-wash (5g)	115 0.8	7 14
		Wash (45°C)	Main wash (30g)
		Rinse Rinse (60°C)
		Drying
Express 60'	For lightly soiled loads that do not need excellent drying efficiency.	Pre-wash (50°C)	Pre-wash (5g)	60 1.1	5 10
		Wash (60°C)	Main wash (30g)
		Rinse (60°C)
		Drying
Rapid	A shorter wash for lightly soiled loads that do not need drying.	Wash (40°C)	Main wash (30g)	40 0.5	11
		Rinse Rinse (45°C)
Soak	To rinse dishes that you plan to wash later that day.	Pre-wash 8 0.0	4

* To comply with Standards of Performance, i.e., EN50242, the economy setting is used as reference.

• Express function is available only for intensive, normal, economy, or glass washing cycle.
• Extra drying function is available only for intensive, normal, economy, glass, or 1 hour washing cycle.
• If you choose to use detergent tablet in these washing cycles, please do not add rinse aid.

Condensing dry technology

• Energy is saved by drying the dishes using the remaining heat after the last rinse cycle.
- Wash cycle times are extended due to this drying method.
- Some wash programmes do not have a drying function, please refer to the Wash Cycle Table for more details.

Starting a Wash Cycle

1. Ensure the unit is connected to the mains power and the water supply is fully opened (water pressure between 0.04MPa and 1.00MPa).
2. Open the door. Pull out the lower and upper baskets, load the dishes and push the baskets back. It is recommended that the lower basket is loaded first, and then the upper basket.
3. Pour in the detergent or place the detergent tablet in the detergent compartment and close firmly afterwards.
4. Press the ⏻ On/Off button.
5. Select the wash cycle programme based on the loading and soil requirements. Please refer to the section Wash Cycle Table.
6. The indicator light of the selected programme will illuminate.
7. Close the dishwasher door. A click sound should be heard when the door is closed correctly. Do not slam the door.
8. The washing cycle will begin shortly.

If you open the dishwasher's door during the washing cycle and then close it, the dishwasher will continue the current washing programme after 10 seconds. However, if the door is not closed correctly after 1 minute, the dishwasher will beep at 1 minute intervals.

Changing a Programme

To change the programme if the washing cycle has already started, follow the steps below.

1. Open the door slightly to avoid water spillage before opening the door fully. Check if the unit has dispensed the detergent or detergent tablet. This will depend on how long the washing cycle was running for.
2. If the detergent dispenser lid is opened, we suggest you to allow the wash cycle to complete.
3. If the detergent dispenser lid is still closed, press and hold down the P program button for 3 seconds to cancel the programme. You can then select the required new programme button and close the dishwasher door. The unit will start the new washing cycle shortly.

At the End of a Programme

At the end of the programme, the dishwasher will beep.

The condensation strip helps prevent the risk of steam damage to the worktop edging above the dishwasher. It is advisable to leave the door closed until you are ready to unload the crockery. Do not leave the door only partially open. Do not leave the appliance unattended with the door fully open as this could present a trip hazard.

Switching Off the Unit

To save energy, remember to switch the dishwasher off using the ⏻ On/Off button. The dishwasher will continue to use electricity until it is switched off with the ⏻ On/Off button.

If the dishwasher is not going to be used for a long period of time, e.g. whilst on holiday, disconnect the unit from the mains supply.

Unloading the Dishwasher

Allowing dishes to cool down before unloading is important as dishes tend to break and chip more easily when they are hot. Therefore, if you open the dishwasher door fully after switching off, it will allow the dishes to cool down much faster.

Unload the lower basket first, followed by the cutlery basket and then the upper basket. This will prevent water drops from the upper basket from falling on to the dishes in the lower basket.

Delay Start

The starting time of a washing programme can be delayed and adjusted. Please follow the steps below.

1. Open the dishwasher door and load your soiled dishes and crockery.
2. Press the ⏻ On/Off button to turn on the dishwasher.
3. Select your preferred programme.
4. Press the Ⓤ button repeatedly to select your desired delay period (range up to 24 hours).

Each press of this button increases the delay start time by 1 hour increments.

1. Close the door and the unit will start the programme at the assigned time automatically.

Half Load

In case you do not have enough dishes for a full load, the half load option can be selected. Three types of wash cycles can be selected: lower basket, upper basket and both baskets. This will help save hot water and electricity. To use these functions, please follow the steps below.

1. Open the dishwasher door and load your soiled dishes and crockery onto the basket.
2. Press the ⏻On/Off button to turn on the dishwasher.
3. Select your preferred programme.
4. Press the Alt button, the half load indicator will light up.

If you have dishes only in the upper basket, press the Alt button repeatedly until the upper indicator is lit. Only dishes on the upper basket will be washed. Make sure there are no dishes in the lower basket while using this feature.

If you have dishes only in the lower basket, press the Alt button repeatedly until the lower indicator is lit. Only dishes on the lower basket will be washed. Make sure that there are no dishes in the upper basket while using this feature.

1. Close the door and the unit will start the programme.

Cleaning After Use

External Care

The Door and the Door Seal

Clean the door seals regularly with a soft damp cloth to remove food deposits.

When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

The Control Panel

If cleaning is required, the control panel should be wiped with a soft damp cloth ONLY.

• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

Internal Care

Filtering System

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water.

Follow the steps below to clean the filters in the wash cabinet.

1. Ensure the dishwasher is switched off.
2. Turn the coarse filter anti-clockwise and gently lift it out.
3. Rinse all the filters under running water, including the filter cylinder, and then refit all filters in the reverse order.
4. Gently rescrew the coarse filter in clockwise direction. There will be a slight click when located correctly.

Diagram showing a device being processed from a base to a top panel, with no visible text or symbols.

• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.
• NEVER use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Spray Arms

Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be checked and cleaned regularly.

Line drawing of a curved mechanical component with mounting holes and a central base (no text or symbols)

Ensure the dishwasher is switched off. Use a pointed object, e.g. a cocktail stick, to loosen food particles in the spray arms' jets.

Do not attempt to remove the spray arms.

GB

Frost Precaution

Avoid placing the dishwasher in a location where the temperature can get below 0^ C. If your appliance is left in an unheated place over the winter, you are advised to:

1. Disconnect the unit from the water inlet.
2. Turn on the unit. Select any washing cycle and let it run for 1 minute only. This drains out all the excessive water that remains in the unit.
3. Disconnect from the mains socket.
4. Empty the dishwasher.
5. Close the dishwasher's door.
6. Disconnect the unit from the water drain. Use a suitable receptacle to catch any residual water in the pipes.

Should you encounter any difficulties with the above steps, please ask a service technician for assistance.

Moving the Dishwasher

If you have to move the unit, for instance due to moving house, you are advised to:

1. Disconnect the dishwasher from the mains socket.
2. Disconnect the dishwasher from the water inlet and drain. Use a suitable receptacle to catch any residual water in the pipes.
3. Remove the dishwasher from the current location with the hoses discharged.
4. Pull the unit out together with the hoses.

• Avoid over tilting the unit during transportation.
  • 2 people are required to handle the dishwasher during installation.

Maintenance After a Prolonged Period of Non-Operation

If you are not going to use the unit for a prolonged period of time, you are advised to:

1. Disconnect the dishwasher from the mains socket.
2. Disconnect the dishwasher from the water inlet and drain. Use a suitable receptacle to catch any residual water in the pipes.
3. Slightly open the door to prevent unpleasant smells building up in the compartment.
4. Ensure the washing compartment of the dishwasher is clean.

Hints and Tips

• Repairs should only be carried out by a qualified technician in strict accordance with current local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage to the unit.
• Before calling for service, please refer to the section Hints and Tips to solve some general problems by yourself.

Technical Problems

Technical Problems
Problem Possible Causes Remedy
The dishwasher does not start.	The door is not properly closed. Close the door firmly.
	The unit is not connected to the mains socket.	Connect the mains plug to the mains socket.
	The unit is not switched on.	Press the ⏻ On/Off button and select a programme.
Error code “E1” displayed. Longer	inlet time. • Fauces is not open.	• Water intake is restricted.• Water pressure is too low.
Error code “E4” displayed. • Overflow.	• Leakage in the dishwasher.	• Disconnect from the mains socket.• Call a qualified service agent.
Error code “E8” displayed. Failure	of orientation of distributary valve.	• Open circuit or break of distributary valve.
Error code “EC” displayed. • Fault of PCB data transmission.• PCB failure.		• Call a qualified service agent.
The drain pump is not working properly.	The anti-flooding system has operated.	• Disconnect from the mains socket.• Disconnect the water inlet.• Call a qualified technician.
General Problems
Problem Possible Causes Remedy
Detergent residue is left in the dispenser at the end of the programme.	The detergent dispenser was still damp when detergent was added.	Make sure the dispenser is dry before adding detergent.
The detergent dispenser lid cannot be closed properly.	Clogged detergent residue is blocking the catch.	Clean the catch.
Knocking noise in the wash cabinet.	A spray arm is knocking against an item in a basket.	Interrupt the programme, and rearrange the items which are obstructing the spray arm. See the section Loading the Dishwasher.
Smearing appears on glassware and cutlery.	The rinse aid dosage is set too high.	Adjust the dial of the rinse aid dispenser to a lower setting.
Dishes, cutlery and glasses are not dry.	The amount of rinse aid may be insufficient, or the rinse aid reservoir is almost empty.	Replenish the reservoir, adjust the rinse aid dispenser dial to a higher setting or change the brand of rinse aid.
	Crockery was taken out of the dishwasher too soon.	Leave the crockery in the dishwasher until you hear an audible sound.
White residue is visible on cutlery and crockery, clouding occurs on glassware; film can be wiped off.	Not enough rinse aid was used.	Replenish the reservoir, adjust the rinse aid dispenser dial to a higher setting or change the brand of rinse aid.
	There is not enough salt in the salt reservoir.	Fill the salt reservoir.
	The salt reservoir cap has not been screwed on correctly.	Ensure that it is screwed back on correctly.
	Unsuitable detergent has been used.	Change your detergent. Use a dishwasher standard powder detergent.
	The salt consumption setting is too low.	Select a higher salt consumption setting.
Glassware is dull and discoloured; film cannot be wiped off.	The glassware is not dishwasher proof. The surfaces are affected.	Wash the non-dishwasher proof glassware by hand.
Tea or lipstick stains have not been completely removed.	The wash temperature of the selected programme was too low.	Select a programme with a higher wash temperature.
	The bleaching effect of the detergent used is too low.	Change your detergent.
	Forgot to pre-rinse or remove the stains with a napkin prior to washing.	Pre-rinse or remove the stains with a napkin prior to washing.

Disposal of the Dishwasher

• When disposing of your old dishwasher, first make it unusable. Disconnect from the electricity and water supplies, cut off the cable and the plug from the mains cable. Make the door lock inoperative, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the dishwasher.
• At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a local authority waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from an inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
• Please ensure that it presents no danger to children while being stored for disposal.

Disposal of Packing Material

Please dispose of the plastic wrappings and bags safely and keep out of the reach of babies and young children.

Specifications

Model SID60W14N
Dimensions 598 mm(W) x 550 mm(D) x 815 mm(H)
Capacity 14 Place Settings
Water Pressure Required 0.04 - 1.00MPa
Power Consumption 1850 W
Rated Voltage 230 V~50 Hz
Off Mode Power Consumption 0.45W
Left-on Mode Power Consumption 0.49W
Energy Efficiency Class 1	A+++
Annual Energy Consumption 2	237 kWh
Energy Consumption of the Standard Cleaning Cycle 0.83 kWh
Annual Water Consumption 2	2800 litres
Drying Efficiency Class 3	A
Standard Cleaning Cycle 4	ECO 50°C
Program Duration of the Standard Cleaning Cycle 180 min
Noise Level 45 dB(A) re 1 pW
Mounting Build Under
Could be built-in Yes

Features and specifications are subject to change without prior notice.

Note:

① A + + + (highest efficiency) to D (lowest efficiency)
② Based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
③ A (most efficient) to G (least efficient)
4 This is the program used for the Energy label information and is suitable for cleaning soiled normally soiled tableware. It is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

• The device meets the European standards and the directives in the current version at delivery:
- LVD 2006/95/EC
- EMC 2004/108/EC
- ERP 2009/125/EC

- The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc.

Line drawing of a rectangular electronic device casing with mounting brackets and control panel (no text or symbols)

Hovedenheten

Salttrakt

Sikkerhetsvannslange

Kondensstrimmel

Nedre krok × 2

Opphengskrok × 2

Dørmal

Illustration of an open box with accessories and a cardboard box above it (no text or symbols)

INSTALLASJON

Simple line drawing of a rectangular object with an arrow indicating direction, accompanied by an inset diagram of a cabinet or shelf (no text or symbols)

1. Klistre kondensstrimmelen til undersiden av arbeidsflaten.

Sørg for at overflaten er ren før du klistrer kondensstrimmelen til undersiden av arbeidsflaten.

Hvis du ikke fester kondensstrimmelen, kan det oppstå skade på undersiden av arbeidsflaten!

Diagram of a refrigerator with an inset close-up showing the exterior panel (no text or symbols present)

INSTALLASJON

NO

Diagram of a kitchen sink and washing machine with water flow indicators (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a tool interacting with a component (no text or symbols present)

INSTALLASJON

INSTALLASJON

Technical line drawing of a rectangular electronic device with mounting bracket and indicator lights (no text or symbols)

Cross-sectional diagram of mechanical components with no visible text or symbols

Diagram showing a pipe connection inside a washing machine with a sink and piping (no text or symbols)

2. Forsinket start-knapp

Line drawing of a kitchen appliance with shower, fan, and circular dial (no text or symbols)

NO

Diagram of a funnel pouring into a circular mechanical component with a central shaft (no text or symbols)

Illustration showing various cooking and cooking items including a mug, pot, pan, and dish (no text or symbols present)

Diagram of a mechanical or optical setup with lenses, gears, and beams (no text or symbols)

Line drawing of a wireframe basket structure with no text or symbols

NO

Line drawings of kitchen utensils including a ladle, spatula, and knife (no text or symbols)

Diagram of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and a black arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and a black arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Hengslet koppstativ

Technical line drawing of a grid structure with hexagonal patterns, showing structural deformation (no text or symbols)

Lette inn 14 kuverter i den øvre kurven

Illustration of kitchen utensils including a pot, pan, and lid (no text or symbols)

Hengslede spisser

Technical line drawings of two mechanical components with internal structure, no text or symbols present

Sette inn 14 kuverter i den nedre kurven

3D rendering of a mechanical cage or platform structure with grid and frame elements (no text or symbols visible)

3D rendering of a mechanical tray with grid pattern and two upward arrows indicating force or movement (no text or symbols)

3D rendering of a mechanical tray with internal grid structure and mounting brackets (no text or symbols)

3D diagram of a mechanical assembly with grid and mounting brackets (no text or symbols)

3D rendering of a mechanical tray with grid pattern and mounting brackets (no text or symbols)

Oppvasktabell

Diagram showing a device with a button and directional arrows, before and after assembly (no text or symbols)

Line drawing of a curved mechanical lever with mounting base (no text or symbols)

NO

Line drawing of a white rectangular appliance with mounting brackets and control panel (no text or symbols)

Huvudenhet

Salttratt

Luckmall

Illustration of an open box with scattered items including a box, rings, and documents (no text or symbols)

INSTALLATION

Simple line drawing of a rectangular object with an arrow indicating direction, next to an inset diagram of a cabinet or shelf (no text or symbols)

Technical illustration of a mechanical device with an inset close-up showing a component detail (no text or symbols present)

INSTALLATION

SE

Diagram of a kitchen appliance system with a sink, vent, and washing machine (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols present)

INSTALLATION

INSTALLATION

Technical line drawing of a rectangular electronic device with mounting bracket and internal components (no text or symbols)

Cross-sectional diagram of mechanical components with no visible text or symbols

Diagram of a pipe connection inside a kitchen appliance, showing internal components and piping (no text or labels)

Produktöversikt

Vy framifrån

Baksida

Diagram of a kitchen appliance with showerhead, ventilation slots, and circular dial (no text or labels)

Diagram of a funnel pouring liquid into a circular mechanical component (no text or symbols)

Illustration showing various cooking and cooking items including a mug, pot, pan, and dish (no text or symbols present)

Diagram of a mechanical or optical setup with lenses, gears, and beams (no text or symbols)

Line drawing of a wireframe basket structure with no text or symbols

Line drawings of kitchen utensils including a ladle, spatula, and knife (no text or symbols)

SE

Diagram of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and a black arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and a black arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Fällbart koppställ

Technical line drawing of a grid structure with two views showing structural changes (no text or symbols)

Illustration of kitchen utensils including a pot, pan, and lid (no text or symbols)

Nedfällbara piggar

Technical line drawings of two mechanical components with internal structure, no text or symbols present

3D rendering of a metal tray with grid pattern and mounting bracket (no text or symbols)

3D rendering of a mechanical device with grid structure and mounting brackets (no text or symbols visible)

3D rendering of a mechanical tray with internal grid structure and an arrow indicating direction (no text or symbols)

3D diagram of a mechanical tray with internal grid structure and directional arrows (no text or symbols)

3D rendering of a mechanical tray with grid pattern and metal frame (no text or symbols visible)

Diskcykeltabell

Diagram showing a device being processed from a base to a top panel, with arrows indicating motion (no text or symbols present)

Line drawing of a curved mechanical component with mounting holes and a central base (no text or symbols)

Frostskydd

Line drawing of a multi-chamber appliance cabinet (no text or symbols)

Laite

Suolasuppilo

Luukun kaavakuva

Illustration of an open box with accessories and a cardboard box above it (no text or symbols)

ASENNUS

Simple line drawing of a rectangular object with an arrow indicating direction, no text or symbols present.

Technical illustration of a mechanical device with an inset close-up showing a component detail (no text or symbols)

ASENNUS

Diagram of a kitchen appliance system showing a sink, washing machine, and piping (no text or labels)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols present)

ASENNUS

ASENNUS

Technical line drawing of a rectangular electronic device with mounting holes and internal components (no text or symbols)

Cross-sectional diagram of mechanical components with no visible text or symbols

Technical illustration of a pipe drainage system inside a washing machine, showing internal components and tubing (no text or symbols)

Diagram of a kitchen appliance with shower, fan, and circular dial (no text or labels)

Diagram of a funnel pouring liquid into a circular mechanical component (no text or symbols)

Illustration showing various cooking and cooking steps: cup, pot, lid, bowl, and dish (no text or symbols)

Diagram of a mechanical assembly with rollers and shafts, no visible text or symbols

Line drawings of kitchen utensils including a rack, a ladle, and a knife (no text or symbols)

Kaatuva kuppiteline

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and a black arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and a black arrow indicating direction (no text or symbols)

Diagram of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Kaatuva kuppiteline

Technical line drawing of a grid structure with an arrow indicating rotation (no text or symbols)

tai

Technical line drawing of a structural framework with hexagonal lattice elements and a curved arrow indicating rotation (no text or symbols)

Illustration of kitchen utensils including a pot, pan, and lid (no text or symbols)

Kaatuvat pidikkeet

Technical line drawings of two mechanical components with internal structure, no text or symbols present

3D rendering of a metal tray with grid pattern and mounting bracket (no text or symbols)

3D rendering of a mechanical device with grid structure and mounting brackets (no text or symbols visible)

3D rendering of a mechanical tray with internal grid structure and an arrow indicating direction (no text or symbols)

3D rendering of a mechanical tray with grid pattern and directional arrows (no text or symbols)

3D rendering of a mechanical tray with grid and metal supports (no text or symbols visible)

Pesuohjelmataulukko

Diagram showing a device with a button and directional arrows, before and after assembly (no text or symbols)

Line drawing of a curved mechanical lever with mounting base (no text or symbols)

Line drawing of a white rectangular appliance with mounting brackets and control panel (no text or symbols)

Hovedenheden

Salttragt

Sikkerhedsslange

Kondensunderlag

Nedre krog x 2

Låsekrog x 2

Installationskrog x 2

M4x10 skruc x 4

M4 møtrik x 4

Fodpanel x 1

ST3.5*25 skrue x 2

ST3.5*45 skrue x 4ST4*14 skrue x 14ST

Lågeskabelon

Illustration of an open box with scattered items including a box, rings, and documents (no text or symbols)

INSTALLATION

Simple line drawing of a rectangular object with an arrow pointing downward, next to an inset diagram of a cabinet or shelf (no text or symbols)

Diagram of a kitchen appliance with a close-up inset showing internal components (no text or symbols)

INSTALLATION

Diagram of a kitchen appliance showing a sink, washing machine, and piping (no text or symbols)

Technical diagram showing a mechanical assembly with an inset close-up of a tool interacting with a component (no text or symbols visible)

INSTALLATION

INSTALLATION

Technical line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

Cross-sectional diagram of mechanical components with no visible text or symbols

Technical illustration of a pipe connection system inside a kitchen sink, showing internal components and tubing (no text or symbols)

1. Tænd/sluk knap

Diagram of a kitchen appliance with shower, fan, and circular dial (no text or labels)

Diagram of a funnel pouring into a circular mechanical component with a central shaft (no text or symbols)

Illustration showing various cooking and cooking steps: cup, pot, pan, bowl, and dish (no text or symbols)

Diagram of a medical or laboratory procedure showing a device with lenses and tubing, no text or symbols present.

Line drawing of a wireframe basket structure with no text or symbols

Line drawings of kitchen utensils including a ladle, spatula, and knife (no text or symbols)

Diagram of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and a black arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and a black arrow indicating direction (no text or symbols)

Diagram of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Technical line drawing of a grid structure with two views showing structural changes (no text or symbols)

Illustration of kitchen utensils including a pan, lid, and pan with a mesh net (no text or symbols)

Hængslede spyd

Technical line drawings of two mechanical components with internal structure, no text or symbols present

3D rendering of a metal tray with grid pattern and support frame (no text or symbols)

3D rendering of a mechanical tray with grid structure and two upward arrows indicating force or movement (no text or symbols)

3D rendering of a mechanical assembly with no visible text or symbols

3D diagram of a mechanical assembly with grid and mounting brackets (no text or symbols)

3D rendering of a mechanical tray with grid pattern and mounting brackets (no text or symbols)

Skema over vaskecyklus

Diagram showing a device with a button and directional arrows, before and after assembly (no text or symbols)

Line drawing of a curved mechanical component with mounting holes and a central base (no text or symbols)

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO
