LUL55W14E - Fridge Logik - Free user manual and instructions

Product Type	Freestanding Refrigerator
Brand	Logik
Model	LUL55W14E
Fresh Food Storage Volume	127 Litres
Energy Efficiency Class	A++
Annual Energy Consumption	91 kWh/year
Climate Class	ST (Subtropical)
Defrost Type	Auto Defrost
Noise Level	42 dB(A)
Rated Voltage	220-240 V~
Rated Current	0.55 A
Overall Dimensions (W x D x H)	550 x 580 x 850 mm
Free Space Requirements (Sides/Rear/Top)	25 mm / 50 mm / 25 mm
Door Opening Angle	Up to 160°
Door Reversible	Yes
Interior Light	10W SES bulb (replaceable)
Adjustable Glass Shelves	2 shelves
Salad Bin	Yes, with cover
Door Shelves	3 (2 upper + 1 bottom)
Temperature Control	Thermostat dial, 7 settings (1 warmest, 7 coldest)
Recommended Temperature Setting	Position 4 (average 5°C)
Refrigerant	Environmentally friendly but combustible gas
Usage	Indoor household and similar (hotels, caterings)

Frequently Asked Questions - LUL55W14E Logik

How do I adjust the temperature on my Logik LUL55W14E refrigerator?

The thermostat control dial inside the fridge has 8 settings (0 to 7). Position 7 is the coldest, and 0 turns the unit off. For normal room temperature (16-38°C), set to position 4. Adjust higher (5-7) for hotter environments and lower (1-4) for colder environments.

Why is my fridge making unusual noises?

Most noises are normal and caused by the circulation of refrigerant liquid in the cooling system, especially with CFC-free gases. You may hear the compressor motor working. This is not a fault and does not affect performance.

How do I reverse the door swing on my Logik LUL55W14E?

The door is reversible. You will need a Philips screwdriver, flat bladed screwdriver, and hexagonal spanner. Unplug the unit, tilt it back, remove the top cover, upper hinge, door, bottom hinge, and levelling feet. Then swap the hinge pin and reassemble on the opposite side. We recommend 2 people and a qualified technician for this task.

How do I defrost the refrigerator?

This model features auto defrost. Frost on the inner rear surface will automatically defrost during the compressor's off cycle. Water drains through a hole to a tray above the compressor and evaporates. Regularly check and clean the drain hole to ensure proper drainage.

How do I change the interior light bulb?

Set the thermostat to 0 and disconnect the mains. Use a flat bladed screwdriver to gently prise off the light bulb cover. Unscrew the old bulb anticlockwise and replace with a new 10W SES bulb. Refit the cover and reconnect.

What is the recommended temperature for storing food?

The average temperature should be 5°C. Use a special fridge thermometer placed in the centre overnight to check. The thermostat setting position 4 is recommended for normal conditions.

How much free space is needed around the fridge?

Ensure 25 mm free space on both sides, 50 mm at the rear, and 25 mm at the top. The door needs enough space to open fully to 160°. If placed under a worktop, a ventilation grille of at least 200 cm² should be installed above the rear.

How do I clean the interior and exterior?

Remove all shelves and drawers. Clean the inside with a weak solution of bicarbonate soda, rinse with warm water, and dry completely. For the exterior, use a damp cloth and then furniture polish, avoiding the magnetic door seal. Vacuum the condenser grille at the back with a soft brush attachment.

What should I do if the fridge is not cooling enough?

Check the thermostat setting: increase to a higher number (5-7). Ensure the unit is not in a hot or cold room, and avoid frequent door openings. Wait 24 hours after filling with food. If problems persist, contact a qualified technician.

How do I store food correctly in the fridge?

Store cooked meats/fish above raw ones to avoid bacterial transfer. Keep raw meats in a covered container on the lowest shelf. Leave space around food for air circulation. Wrap or cover food to prevent flavour transfer and drying out. Let pre-cooked food cool before placing inside.

USER MANUAL LUL55W14E Logik

Exterior view of a white stainless steel refrigerator with a side door (no text or symbols visible)

Safety Warnings....5

Unpacking....15

Installation....16

Location 16

Levelling the Unit 16

Installing the Spacers....16

Free Space Requirements 16

Reversing the Door Swing....17

Installing The Door Handle 21

Cleaning Before Use 21

Before Using Your Unit....21

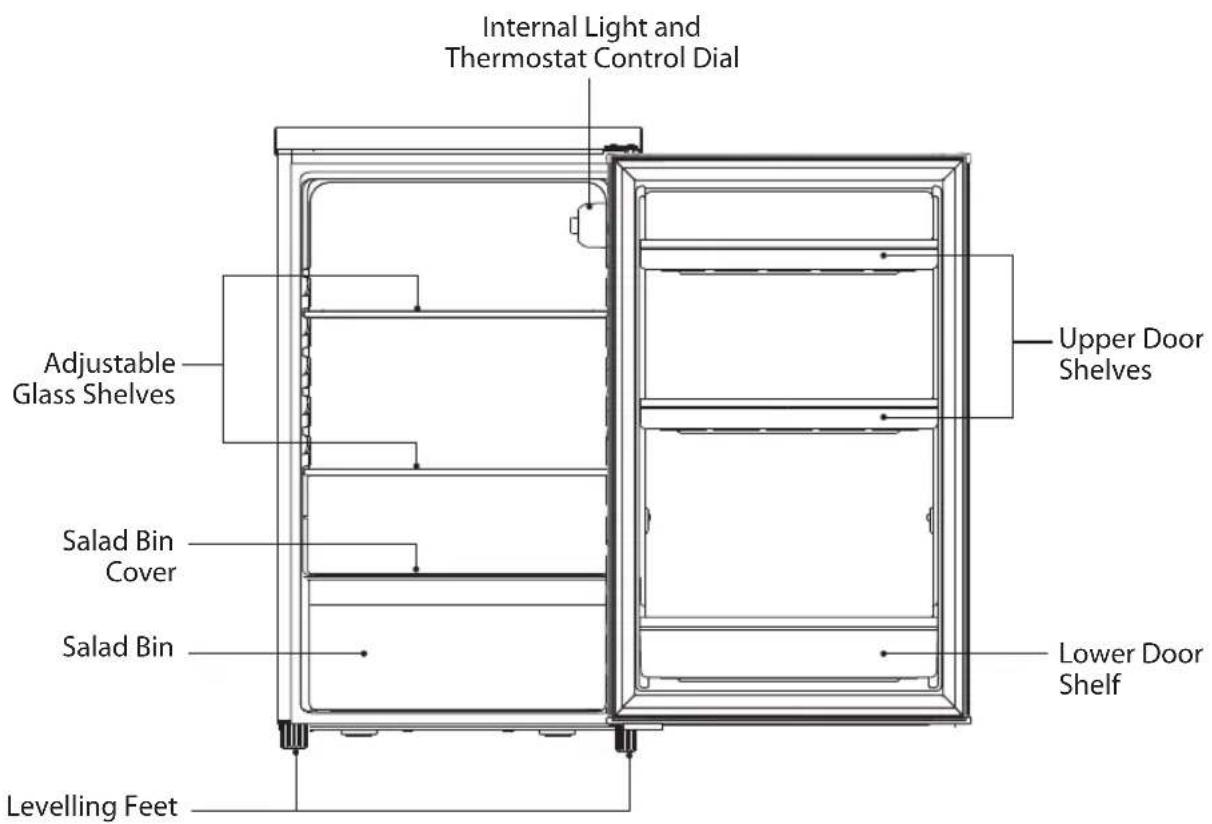

Product Overview....22

Operation 23

Switching On Your Unit 23

Adjusting the Temperature....23

Noises Inside the Unit! 23

Cleaning 24

Defrosting 24

Cleaning the Interior and the Exterior of the Unit....24

Tips for Keeping Food in the Unit....24

Maintenance 25

Changing the Internal Light 25

Care When Handling 25

Servicing 25

Switching Off for Long Periods of Time....25

Condensation 25

Disposal....25

Specifications....26

Innehåll

SE

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
• This appliance is intended for indoor household use and similar applications such as:

– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
– catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- Keep ventilation openings in the unit enclosure clear of obstructions.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

- Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)

• The unit must be manoeuvred by a minimum of 2 persons.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the unit.
• If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.
• Do not store volatile or flammable substances, such as aerosol cans with a flammable propellant, in the unit.
• Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new Logik Fridge.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a simple refrigerator with a door and side panel (no text or symbols)

The Main Unit

Adjustable Glass Shelf x 2

Salad Bin Cover Shelf

Salad Bin

Upper Door Shelf x 2

Bottom Door Shelf

Rear Spacer x 2

Caps x 2

Handle

Screw hole covers x 2

Instruction Manual

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Installing the Spacers

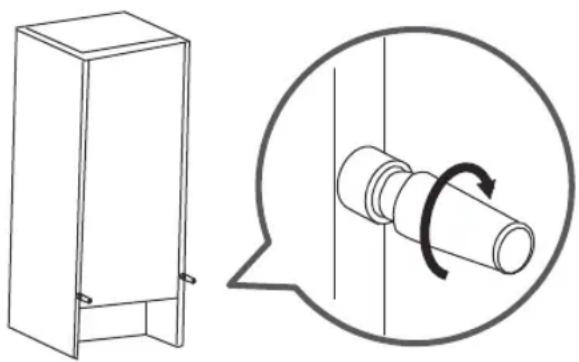

Screw the spacers to the left and right side of the unit's rear part.

Technical line drawing of a cabinet with an inset showing a rotating cylindrical component (no text or symbols)

Free Space Requirements

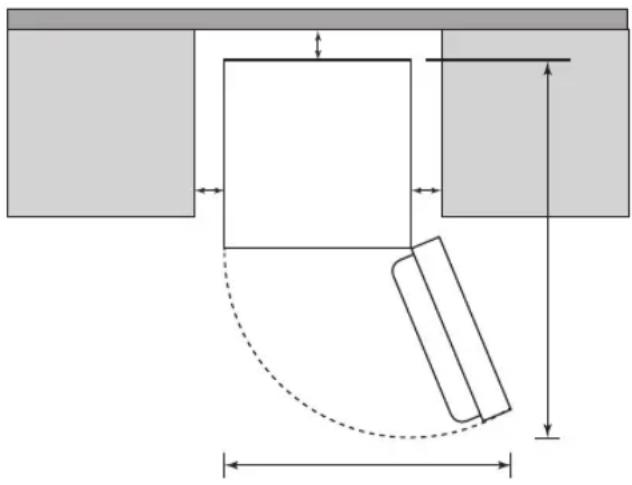

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location. Please ensure there is adequate space for the door to fully open to 160°.

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

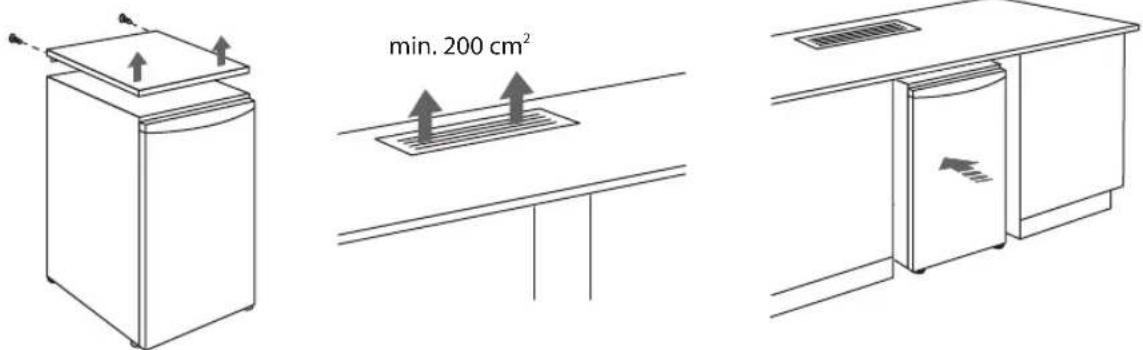

If the appliance is placed under a continuous worktop, the appliance lid (if applicable) may be removed and a ventilation grille of at least 200 cm ^2 (available from DIY shops or specialist retailers) should be installed to the worktop above the rear of the appliance to increase ventilation.

Benefits of increased ventilation:

• Lowered power consumption
• Improved cooling performance
• Reduce running costs
• Prolong product life span

Reversing the Door Swing

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
- To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
- Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
- If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

GB

INSTALLATION

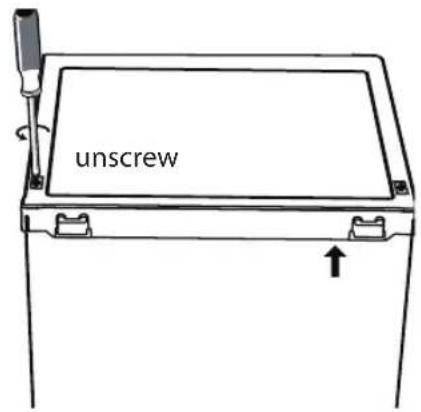

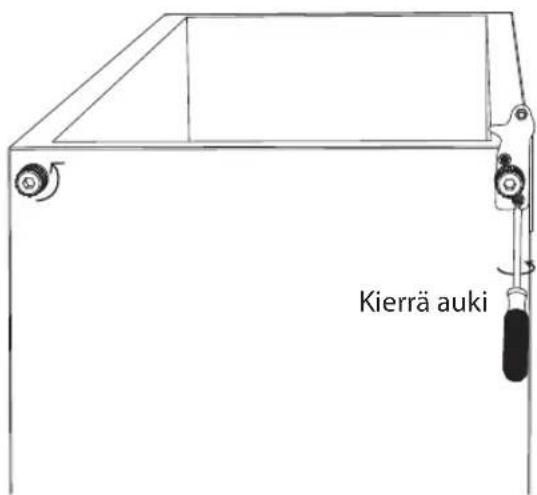

1. Remove the 2 screws.

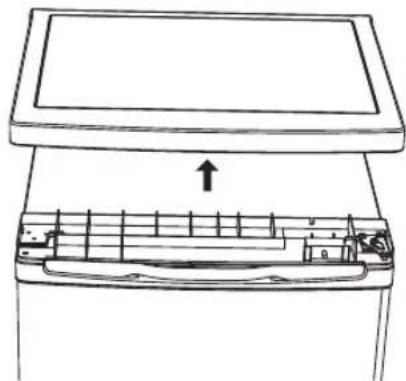

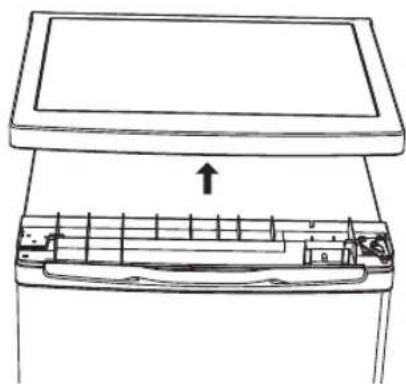

2. Carefully lift the top cover away from the fridge.

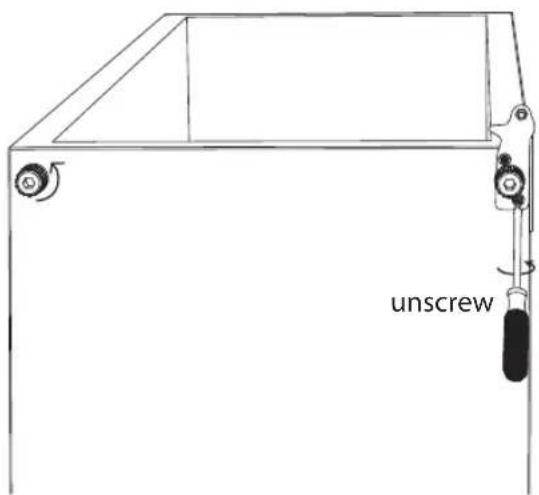

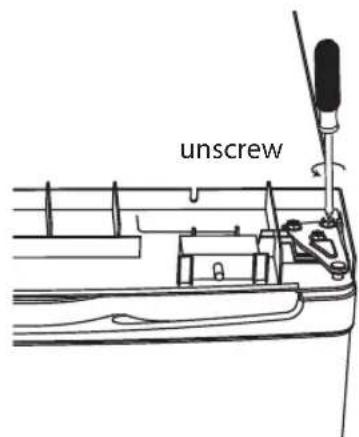

3. Remove the three screws, then remove the upper hinge that holds the door in place. Lift the door and place it on a padded surface to prevent it from scratching.

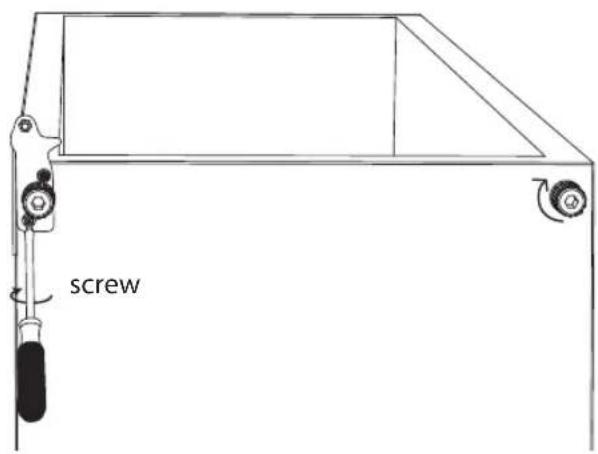

4. Remove the screws and bottom hinge. Then remove the levelling feet from both side.

Line drawing of a computer keyboard with an upward arrow indicating the key component (no text or symbols present)

INSTALLATION

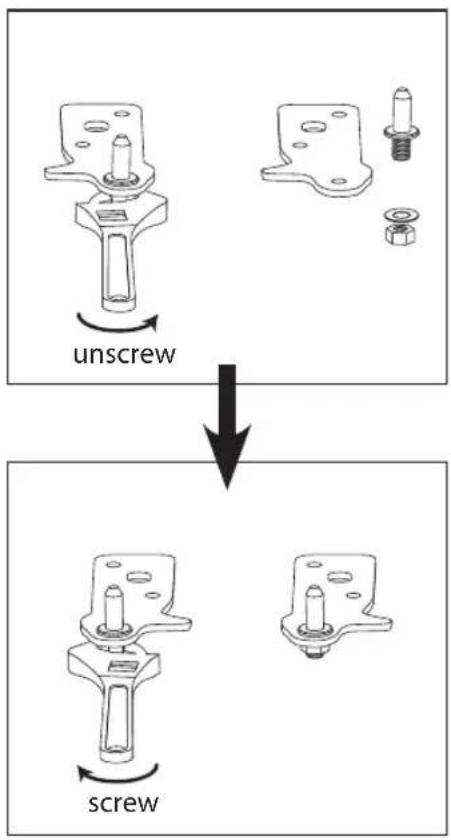

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Re-fit the bottom hinge. Replace both levelling feet.

1. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

GB

INSTALLATION

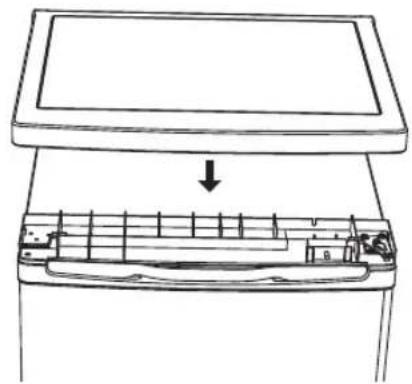

1. Put the top cover back.

Line drawing of a mechanical device with a downward arrow indicating force or movement (no text or symbols)

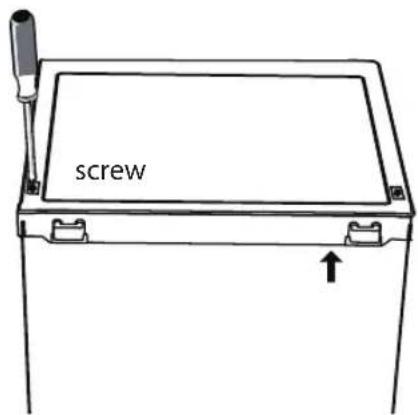

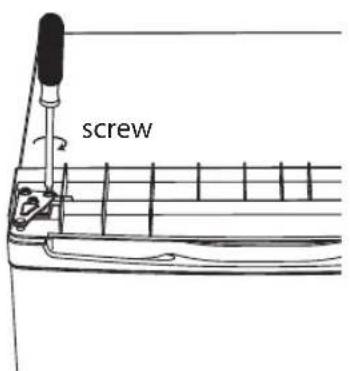

1. Screw the 2 screws.

1. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Simple line drawing of a rectangular refrigerator with lid and front panel (no text or symbols)

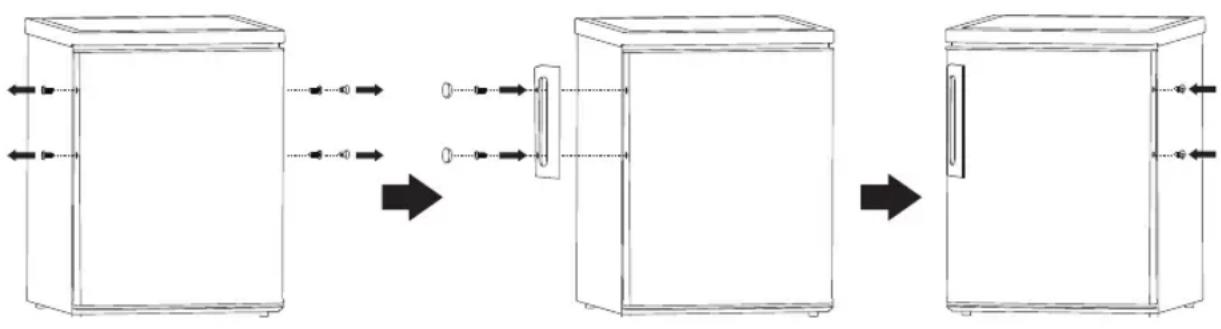

Installing The Door Handle

Please ensure you install the handle on the side of the door that opens, i.e., opposite side to the hinges.

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On! Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow the it time to fall to the correct temperature. Your unit should not be overfilled.

Switching On Your Unit

1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are eight settings, of which position 7 is the coldest and position 0 turns the unit off.
2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 4 is the recommended setting when operating at normal room temperature (between 16°C and 38°C).
3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.
4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.
5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be an average of 5^ C.

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 7 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

GB

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

Cleaning

Defrosting

Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the off cycle of the compressor.

Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate.

Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment.

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Changing the Internal Light

1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply.
2. Use a flat bladed screwdriver and gently prise off the light bulb cover.
3. Remove the old bulb by unscrewing in an anticlockwise direction.
4. Replace with a new bulb (10W SES).
5. Refit the light bulb cover and reconnect the unit to the mains supply and switch on by adjusting the thermostat.

Technical line drawing of a mechanical component with no visible text or symbols

Care When Handling

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Model LUL55W14E
Storage Volume - Fresh Food Storage Compartment	127L
Storage Temperature 0-8°C, average ≤ 4°C
Energy Consumption 0.250kWh / 24h
Energy consumption 91 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Appliances Category Category 1 (Refrigerator)
Energy Grading A++
EU Ecolabel N/A
Defrosting Type Auto Defrost
Climate Class ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Airborne Acoustical Noise 42dB(A)
Rated Voltage 220-240V~
Rated Current 0.55A
Overall Dimension (W x D x H) 550 x 580 x 850 mm

Features and specifications are subject to change without prior notice.

Line drawing of a simple refrigerator with a door handle (no text or symbols)

Hovedenheten

Justerbar glasshylle x 2

Hylle over salatskuff

Salatskuff

∅vre dørhylle x 2

Nederste dørhylle

Avstandsholder bakside x 2

Hetter × 2

Håndtak

Skruehulldeksler × 2

Instruksjonsmanual

NO

Plassering

Innstallering av avstandsstykker

Technical line drawing of a cabinet with an inset showing a rotating cylindrical component (no text or symbols)

Plassbehov

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

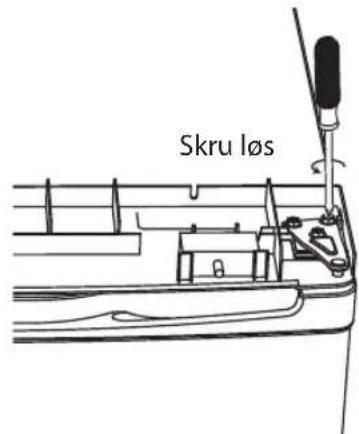

INSTALLASJON

Line drawing of a laptop keyboard with an upward arrow indicating the key component (no text or symbols present)

INSTALLASJON

Line drawing of a computer keyboard with an arrow indicating compression or disassembly (no text or symbols present)

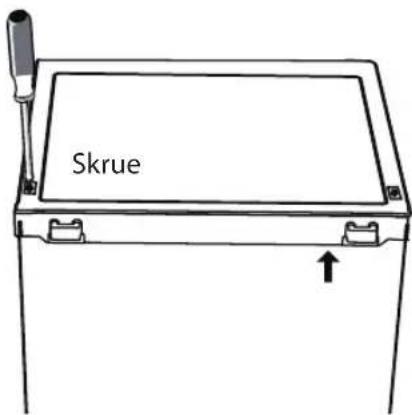

1. Fest de to skruene.

1. Se etter at døren, när den er lukket, har riktig innretning både vannrett og loddrett samt at pakningene er lukket på alle sidene för du til slutt strammer det nederste hengslet. Juster nivåføttene på nytt etter behov.

Simple line drawing of a rectangular cabinet or refrigerator (no text or symbols)

Rengjøring før bruk

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a simple refrigerator with a lid and front panel (no text or symbols)

Huvudenhet

Flyttbar glashylla x 2

Lock salladslåda

Salladslåda

Övre dörrhylla x 2

Nedre dörrhylla

Bakre distanser x 2

Lock x 2

Handtag

Skruvhålsskydd x 2

Instruktionsbok

Plats

Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Luftcirkulationsbehov

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

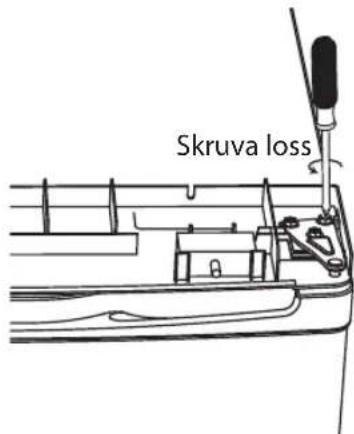

INSTALLATION

Line drawing of a laptop keyboard with an upward arrow indicating the key component (no text or symbols present)

INSTALLATION

Line drawing of a computer monitor with an open keyboard and a downward arrow indicating compression (no text or symbols)

Simple line drawing of a rectangular refrigerator with lid and frontrest (no text or symbols)

Montera dörrhandtaget

Technical line drawing of a mechanical component with no visible text or symbols

SE

Line drawing of a simple refrigerator with lid and side door (no text or symbols)

Laite

Käyttöopas

Paikka

Technical line drawing of a cabinet and a mechanical component with rotational arrow (no text or symbols)

Pure mechanical diagram showing a rectangular block with internal components and dimension lines, no text or symbols present.

ASENNUS

Line drawing of a mechanical device with an upward arrow indicating motion or force (no text or symbols)

ASENNUS

Line drawing of a mechanical device with a downward arrow indicating force or movement (no text or symbols)

Simple line drawing of a rectangular refrigerator with lid and side legs (no text or symbols)

Oven kahvan asentaminen

Technical line drawing of a mechanical component with no visible text or symbols

FI

Line drawing of a simple refrigerator with a lid and front panel (no text or symbols)

Hovedenheden

Justerbar glashylde x 2

Brugervejledning

Placering

Technical line drawing of a cabinet with an inset showing a rotating cylindrical component (no text or symbols)

Krav til fri plads

Pure mechanical diagram showing a linkage mechanism with no text, numbers, or symbols

INSTALLATION

Line drawing of a computer keyboard with an upward arrow indicating the key component (no text or symbols present)

Line drawing of a device with a top panel and bottom panel, showing a downward arrow indicating a process or operation (no text or symbols present)

Simple line drawing of a rectangular refrigerator with lid and side trim (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO
