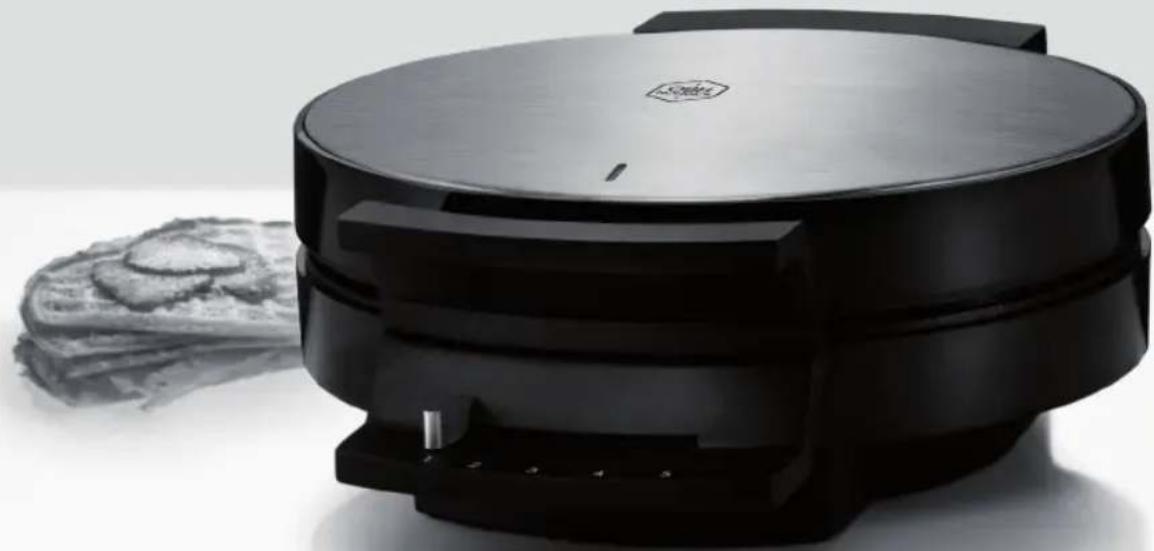

Single Elite 6963 - Waffle Maker OBH NORDICA - Free user manual and instructions

Product Type	Waffle Maker
Brand	OBH Nordica
Model	Single Elite 6963
Voltage	220-240 V AC
Power Consumption	1000 W
Temperature Settings	1 (low) to 5 (high)
Indicator Light	Orange (heating) / Green (ready)
Plate Coating	Non-stick
Number of Waffles per Batch	1 (single)
Safety Features	Thermostat control; Do not immerse; Keep cord away from hot surfaces; For indoor use only
Cleaning Instructions	Wipe with damp cloth and mild detergent; do not use abrasive tools
First Use	Lubricate plates with cooking grease; discard first two waffles
Included Recipe	Basic crispy waffle recipe
Warranty	According to current law (valid with purchase receipt)
Certifications	CE
Material	Plastic housing with non-stick metal plates
Dimensions (approx)	25 x 20 x 10 cm
Weight (approx)	1.5 kg
Cord Length (approx)	0.8 m
Color	Black and silver

Frequently Asked Questions - Single Elite 6963 OBH NORDICA

How do I use the waffle maker for the first time?

Before first use, dry the plates with a damp cloth and lubricate them with cooking grease. Do not eat the first two waffles produced.

What temperature setting should I use?

The temperature is adjustable from 1 (pale baking) to 5 (darker baking). We recommend experimenting to find your preferred result.

Why does the indicator light change between orange and green during baking?

This is normal. The thermostat maintains the set temperature, causing the light to cycle.

How long does it take to bake a waffle?

Baking time depends on the batter and desired doneness. Check by opening the appliance and lifting the waffle with a plastic or wooden utensil.

Can I use metal utensils on the waffle plates?

No, only use wooden or plastic utensils to avoid damaging the non-stick coating.

How should I clean the waffle maker?

Unplug and let it cool completely. Wipe the plates with a damp cloth and a little washing-up liquid. Do not use hard or sharp utensils. Wipe the housing with a damp cloth.

Is the waffle maker safe to leave unattended?

No, the appliance should only be used under supervision. Always unplug when not in use.

Can I make other foods besides waffles?

The manual only describes waffle making. It is designed for waffles only; using for other purposes may void warranty.

What kind of batter is recommended?

A thick batter is recommended for crispy waffles. A basic recipe is included in the manual.

What is the warranty for this product?

Warranty according to current law. Any claim must be accompanied by the cash receipt with purchase date. Return the appliance to the store of purchase.

USER MANUAL Single Elite 6963 OBH NORDICA

DESIGNING GOOD LIFE

Waffle iron

single

ELITE

For crisp and golden brown waffles

Making good!

Bruksanvisning - svenska......sida 3 - 6

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

Tlf.: 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 6953, 6963

220-240 volt \~

1000 watt

OBH Nordica Norway AS

Postboks 5334, Majorstuen

0304 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica 6953, 6963

220-240 V \~

1000 W

CE

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 220-240V AC only and use the appliance only for the intended use.
3. Always unplug from the mains supply when the appliance is not in use.
4. Never immerse the appliance in water or any other liquid.
5. This appliance can be used by persons (including children from the age of 8) with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.
6. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
7. Cleaning and maintenance should not be made by children under the age of 8 and they shall be supervised.
8. Position the appliance and the cord out of the reach of children under the age of 8.
9. Check that the cord is not hanging free from the edge of the table.
10. Do not place the appliance on or near hotplates, open fire or the like.

11. The appliance should only be used under supervision.

12. The appliance is not for outdoor use.

13. Take care that the cord does not touch the hot surfaces of the appliance or the plates and do not move the appliance, when it is hot.
14. The surfaces of the appliance get hot during use, so do not touch these parts and let the appliance cool before cleaning.
15. Only use wooden utensils in order to protect the non-stick coating of the plates.
16. When you switch off the appliance, always pull the switch and not the cord.
17. WARNING! In order to avoid a hazard due to inadvertent resetting, this appliance must not be supplied through an external switching device, such as e.g. a timer, or be connected to a circuit that is regularly switched on and off automatically.
18. Always check the appliance, the cord and the switch before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid a hazard.
19. Extra protection can be obtained by installation of a residual current device of 30 mA. Check with your installer.
20. The appliance is for domestic use only.
21. If the appliance is used for other purposes than intended or not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any consequential damages to the product or other things are not covered by the warranty.

You are welcome to visit our website www.obhnordica.se for inspiration and further information about our products.

Before use

Unwind the cord completely. Dry the plates with a damp cloth and lubricate with scooking grease before you use the waffle maker for the first time. Do not eat the first two waffles.

Use

Plug the appliance to a wall outlet and the signal lamp surrounding the temperature controller will turn orange. Set the wanted temperature by pulling the temperature selector to the wanted setting (1-5). Setting 1 corresponds to low temperature (pale baking) and 5 corresponds to high temperature (darker baking). We recommend that you try your way to get the result that you want. When the set temperature is reached, the signal lamp turns green. The waffle maker is now ready for use.

Baking

Stir the batter before you pour it in the waffle maker in order that the flour does not remain at the bottom of the bowl. Pour the batter in the centre of the lower plate and close the waffle maker and press the plates for a few seconds to spread the batter evenly. It is important that the handles are not completely closed during baking, as this will prevent the waffle from “fermenting”. The signal lamp may change between orange and green during baking, which means that the set temperature is kept by the thermostat.

Baking time

The baking time depends on the batter and the degree of baking you want. When you think that the waffle is done, open the appliance and lift the waffle with a plastic or wooden utensil (metal could damage the coating). Put the waffle on a grid to keep it crispy.

Cleaning

Always unplug after use and before cleaning. Never clean the waffle maker when still connected to the wall outlet. Let the waffle maker cool completely before cleaning. Never immerse the appliance or the cord in water or any other liquid.

Only use a damp cloth and possibly with a little washing-up liquid for cleaning the plates. Never use hard or sharp utensils to clean the plates in order not to damage the coating. Wipe the housing with a damp cloth.

Basic recipe for crispy waffles

400 g wheat flour
150 g sugar
175 g butter
6 dl milk
2 eggs
1.5 tsp baking powder
1.5 tsp vanilla sugar

Mix all the dry ingredients. Add milk and melted butter. Whip thoroughly and add the eggs. You may use a hand mixer or an electric mixer. Let the butter rest in a cool place for about 30 minutes before baking the waffles. The batter should be thick. Bake the waffles and put them on a grid to stay crispy. You get the best waffles if you eat them while they are still warm.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Warranty according to current law. Any claim shall be accompanied by the cash receipt with purchase date. When raising a claim the appliance must be returned to the store of purchase.

OBH Nordica AB

Löfströms Allé 5

SE-174 66 Sundbyberg

Tel [phone]

www.obhnordica.se

Technical data

OBH Nordica 6953, 6963

220-240V \~

1000 W

CE

These instructions are subject to alterations or improvements.
