BAKE N JOY - Waffle Maker FAKIR - Free user manual and instructions

Product Type	Waffle Maker
Brand	Fakir
Model	BAKE N JOY
Power	1000 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (L x W x H)	25 x 20 x 10 cm
Weight	1.5 kg
Plate Material	Non-stick coated aluminum
Number of Waffles	2 (square or round)
Temperature Control	Adjustable thermostat
Indicator Lights	Power and ready lights
Cool-Touch Handle	Yes
Anti-Slip Feet	Yes
Cord Storage	Integrated cord wrap
Safety Features	Auto shut-off after prolonged use
Cleaning	Wipe with damp cloth; do not immerse
Spare Parts Availability	Plates and cord available from Fakir service
Manual Languages	English, Turkish
Repairability Index	7/10 (parts available, simple construction)
Included Accessories	Measuring cup, drip tray

Frequently Asked Questions - BAKE N JOY FAKIR

How do I use the waffle maker for the first time?

Before first use, wipe the plates with a damp cloth. Heat the appliance empty for about 10 minutes to burn off any manufacturing residues. Let it cool, then wipe again. Your waffle maker is ready.

What is the correct batter consistency for best results?

Use a batter that is slightly thicker than pancake batter. Too thin may overflow; too thick may not cook evenly. Follow your favorite waffle recipe.

How do I adjust the temperature?

Turn the thermostat knob to the desired setting. Low for light waffles, high for crispy ones. A ready light indicates when the plate is hot enough.

Can I cook other foods in the waffle maker?

Yes, you can make hash browns, grilled sandwiches, or even brownie waffles. However, always use non-stick compatible foods to avoid damaging the coating.

How do I clean the waffle maker?

Unplug and let it cool completely. Wipe the plates with a damp cloth or paper towel. For stuck residue, use a soft brush. Never immerse in water or use abrasive cleaners.

Why does the ready light turn off during cooking?

The thermostat cycles to maintain the set temperature. The light turns on when heating, and off when the temperature is reached. This is normal.

What if the waffle sticks to the plates?

Ensure the plates are well-seasoned. Lightly brush with oil before each use. If sticking persists, check the non-stick coating for damage.

Is the waffle maker safe to leave unattended?

Never leave the appliance unattended while in use. It has an auto shut-off feature, but it's safer to monitor it.

Where can I find replacement plates or parts?

Contact Fakir customer service or visit their official website. Use the model number BAKE N JOY to order spare parts.

How do I store the waffle maker?

Let it cool completely, wrap the cord around the base, and store upright in a dry place. Do not stack heavy items on top.

USER MANUAL BAKE N JOY FAKIR

Exterior view of a circular mechanical device with 'Fakir' branding and 'Boke N Joy' label, no other text or symbols visible.

Simple line drawing of an open box with a black upward arrow on top (no text or symbols)

Close-up of a waffle-shaped pastry with lattice texture (no text or symbols visible)

Tarifler:

Biskuvi Waffle

Close-up of a mechanical rotary switch or dial with no visible text or symbols

Information About the Operating Instructions....11

Liability....11

Notices in the Operating Instructions....11

CE Declaration of Conformity....12

Intended Use....12

Unauthorized Use 12

Safety is Important 12

Important Safeguards....13

Before first time usage 14

Unpacking....15

How to use ....16

Cooking Tips....16

Cleaning....17

Storage 17

Waste Disposal....17

Dispatch....17

Information About the Operating Instructions

Thank you for purchasing Fakir Bake N Joy Waffle Maker. It was developed and manufactured to work reliably for many years.

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

Fakir Elektrikli Ev Aletleri DIŞ Tic. A.Ş. will accept no liability for damages resulting from failure to comply with the operating instructions.

Fakir Elektrikli Ev Aletleri DIŞ Tic. A.Ş. cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Notices in the Operating Instructions

WARNING!

Indicates notices which, if ignored, can result in risk of in jury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives. 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive”. The appliance bears the CE mark on the rating plate.

Intended Use

This product designed for just household use. It is not suitable for Business and industry type. Otherwise it will be accepted as “out of warranty conditions” by our Authorized Services.

Unauthorized Use

• This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance.
• Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance...
• Keep packaging films away from children - danger of suffocation!

Safety is Important

WARNING!

For yours and other safety please read the instructions before using the appliance. Please keep this instruction in a safe place for the further use. If you pass the appliance on, pass on the instructions too.

WARNING!

Repairs and maintenance may be performed only by trained technicians (e.g. Fakir customer service). Only original Fakir replacement parts may be used. Improperly repaired or serviced appliances may pose a danger to the user. Fakir Elektrikli Ev Aletleri DIŞ Tic A.Ş. will Not be responsible of any problem if any repair or maintenance made by other than Fakir Services.

Important Safeguards

Do not touch hot Top cover. Use handles or knobs. Surfaces become extremely hot.

- To prevent against electrical hazards, do not immerse cord, plug or toaster in water or other liquid. See instructions for cleaning.

- Close supervision is necessary when any appliance is used by children or near children.

• Always unplug appliance from outlet when not in use and before cleaning. Allow to cool before cleaning and handling.

- Do not operate any appliance with a damaged cord or plug, Do not replace that if the power or plug is damaged. After appliance malfunctions, or is dropped or damaged in any manner. Return the appliance to an authorized service facility for examination, repair or electrical or mechanical adjustment.

- Do not use any unauthorized attachments. This will void the warranty and may cause fire, electric shock or injury.

- Do not use outdoors.

- Do not let cord hang over edge of table or counter or touch hot surfaces.

- Do not place toaster on or near a hot gas or electric burner or a heated oven.

- To disconnect, grasp plug and remove from outlet. Never unplug by pulling the cord.

- Do not use toaster for other than intended use.

- Oversized foods. Metal foil packages or utensils must not be inserted in the machine as they may involve a risk of fire or electric shock.

- Do not operate machine near flammable materials such as curtains, wall fabric, etc. to prevent fire.

- To avoid possibility of fire, do not leave toaster unattended during use.

• Always use the grill on a dry surface.

- Avoid the use of scouring pads or harsh detergents as they may damage the surface.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Caution: Hot surface

- Cleaning and user maintenance shall not be made by children without supervision.

- The appliances are not intended to be operated by means of an external timer or separate remote-control system.

"Keep the instruction manuel for later use."

Before first time usage

• Unpack your new Health Grill and remove all extra fittings such as plastic wrappers and cable clamps meant for protection during transportation.
• Before starting up your new Health Grill, check the contents for completeness and any visible damage.
• Read the directions for use carefully.

"The temperature of accessible surfaces may be high when the appliance is operating. Do not touch surfaces, always use the handle."

"If the surface is cracked, switch off the appliance to avoid the possibility of the electric shock."

"During the initial use, some smoke can appear, this is normal for new heating elements and will cease with further use."

Unpacking

Unpack the device and check the content of the packaging for completeness. Should you note any damage incurred during transit, please contact your dealer immediately.

Simple line drawing of an open box with an upward arrow inside, no text or symbols present.

WARNING!

Never use a defective appliance.

NOTICE!

Keep the packaging for storage and future transports (e.g. for moves, service).

Power consumption: 1000 Watt

Voltage : 220-240V/50-60Hz

Protection class : II

Usage life : 7 years

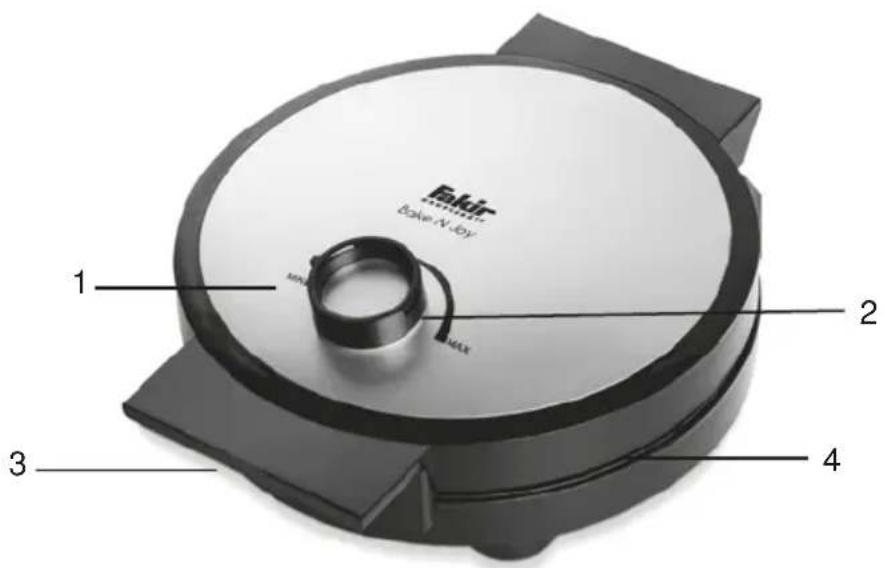

1-Heat adjustment button
2- Red and green indicator lights
3- Handle
4- Waffle plates

How to use 1- Connect the plug to the mains socket.

2- The power on red light will come on.
3- Turn the temperature dial to the desired heat setting.
4- Preheat the unit with plates closed, after approximately 3-5 minutes, the temperature is reached and ready light (green) will come on.

5- Use the handle to lift the upper plate and pour the creamy mixture on the bottom cooking plate by using wooden or plastic (heat resistant) utensils.

Close-up of a waffle-shaped pastry with lattice texture (no text or symbols visible)

Recipes:

Biscuit Waffles

Pre heat 5mins before on high temperature setting Ingredients: 5 egg yolks, 5 tbsp. hot water, 100 g sugar, grated rind of lemon, 150 g flour, baking powder, 5 egg whites, whisked,

Preparation:

Beat the egg yolks, water, sugar and lemon rind. Stir in the flour sifted with baking powder and finally gently fold in the whisked egg whites. Bake the dough immediately.

Sprinkle the baked waffles with icing sugar, almond, honey or ice cream and serve them warm.

Cinnamon Waffles

Ingredients:

125 g margarine or butter, 3 eggs, 50 g sugar, 1 packet vanilla, 250 g flour, 1 tsp. cinnamon, 2 tsp. baking powder, 125 ml lukewarm water

Preparation: Whisk the fat, sugar and vanilla sugar add the eggs one after another. Gently fold in the flour sifted with baking powder and the lukewarm water, and finally add the cinnamon. Bake the dough immediately. Sprinkle the baked waffles with sugar and cinnamon. Serve warm.

Cooking Tips 1- The cooking time will depend on the type, thickness and volume of foods, whatever, you can increase the cooking times.

2- In order to maintain the crispness of the waffles, place them next to each other on a rack to cool. (Placed on top of each other, the waffles will lose their crispness).

3- If milk is used instead of water, the waffles will be softer and darker.

Cleaning 1- Disconnect from the main socket and ensure the apliance

completely cooled down before cleaning.

2- Use a paper towel moistened with a little cooking oil to remove stubborn stains.
3- Wipe all surfaces with a clean, damp cloth

Storage When your cooking is finished, make sure all the parts are

Close-up of a kitchen appliance with a circular fan and control knob (no visible text or symbols)

clean and dry. You place your device in it's giftbox or another dry place.

Your device designed for your comfort. You can place it vertical as seen on photo and save more place in your kitchen.

Waste Disposal

Three black-and-white symbols: a recycling bin with crossed lines, a horizontal line with a rectangle, and a circular recycling symbol (no text or labels)

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center.

The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them.

For advice on recycling, refer to your local authority or your dealer.

This appliance is compatible with 2002/96/EC WEEE directive.

Dispatch

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

This product is produced on behalf of Fakir Elektrikli Ev Aletleri Dış Ticaret A.Ş. by Ningbo Kaibo Group Co., Ltd The Northern industrial park of zhouxiang Cixi Ningbo, China TEL:[phone]
