Product Type	Freestanding Dishwasher
Model	SFO 2201
Dimensions (H x W x D)	438 x 550 x 500 mm
Power Supply	230 V ~ 50 Hz, 1280 W
Water Pressure Range	0.04 - 1.0 MPa (0.4 - 10 bar)
Place Settings	6
Energy Efficiency Class	A+
Annual Energy Consumption	174 kWh
Annual Water Consumption	1820 L
Noise Level	49 dB(A)
Drying Efficiency Class	A
Programs	Intensive, Normal, ECO, 90 min, 1 Hour, Rapid
Standard Cleaning Cycle	ECO 50°C, 180 min
Rinse Aid Capacity	110 ml
Salt Container Capacity	Approx. 1 kg
Filter System	Coarse, Fine, Main filter
Mounting	Freestanding, can be built-in
Safety Features	Overflow protection, child lock (supervision required), earthing
Inlet Hose	Cold water only, 3/4 inch threaded connector

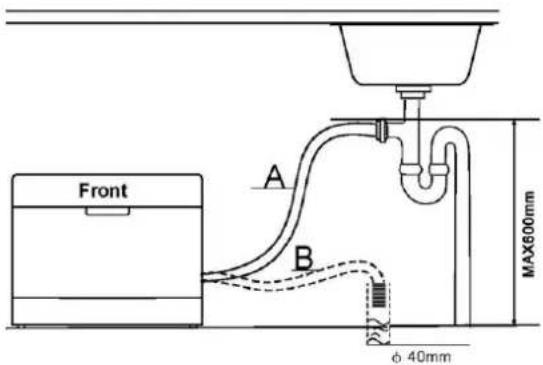

Drain Hose	Max length 4 m, max height 60 cm
Installation	Requires qualified professional

Frequently Asked Questions - SFO 2201 Scandomestic

How do I fill the salt container?

Remove the lower basket, unscrew the cap, add 1 liter of water before first use, then add about 1 kg of dishwasher salt using the funnel. Screw the cap back tightly and run a wash cycle immediately. Only refill when the salt warning light illuminates.

How do I adjust the rinse aid dosage?

Open the rinse aid dispenser cap and rotate the dial to a higher number (e.g., 5 or 6) if dishes have water spots or poor drying. Reduce if sticky white stains appear. Factory setting is 4.

What should I do if the dishwasher won't start?

Check that the door is closed securely, the power cord is plugged in, and the circuit breaker is not tripped. Ensure the power button is pressed. If still not starting, see the error codes section.

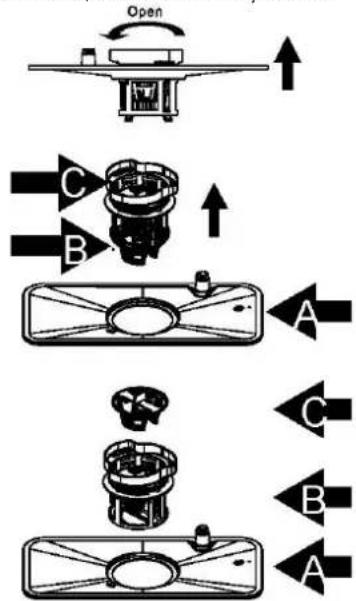

How do I clean the filters?

Turn the filter assembly counterclockwise and lift it out. Separate the coarse, fine, and main filters. Rinse under running water and use a brush if needed. Reassemble in reverse order and replace. Clean weekly.

Why are my dishes not clean?

Ensure dishes are loaded correctly without blocking spray arms. Use a more intensive program if needed, add more detergent, and check that filters are clean. Also verify water pressure is adequate.

What does the error code 'Rapid light flickering' mean?

It indicates longer inlet time. Check that the water tap is fully open, water pressure is sufficient, and the inlet hose is not kinked or blocked.

Can I open the door during a cycle?

Yes, but press Start/Pause first. Open the door carefully as hot steam may escape. Close the door and press Start/Pause again to resume after 10 seconds.

How do I add a forgotten dish?

Press Start/Pause, open the door slightly, wait for spray arms to stop, then fully open and add the dish. Close the door and press Start/Pause again. Do this before the detergent cup opens.

Why is there white film on the interior?

Hard water minerals can cause white film. Clean the interior with a damp sponge and dishwasher detergent. Ensure salt and rinse aid are properly filled. Run a quick wash with salt.

How do I clean the spray arms?

Grasp the middle of the spray arm and pull upward to remove. Wash under running water to clear clogged nozzles. Reinsert and ensure they rotate freely.

USER MANUAL SFO 2201 Scandomestic

English ...... Page 18

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

9
10

Cross-sectional diagram of a mechanical device with a hand adjusting a component (no text or symbols visible)

Close-up of a hand holding a circular dial indicator with a small circle symbol, next to a device panel (no visible text or labels)

Close-up of a kitchen sink with a hand near the door (no visible text or symbols)

Close-up of a hand holding a small electronic device with ventilation slots (no visible text or symbols)

VIGTIGT!

Close-up of a white appliance control panel with a black arrow pointing to a button (no visible text or symbols)

Close-up of a kitchen sink with a lid and control panel (no visible text or symbols)

Interior view of a microwave oven with labeled components (A and E), showing internal compartments and control panel (no readable text or symbols beyond labels)

B - Mikrofilter

Technical line drawing of a mechanical device showing internal components and an upward arrow (no text or symbols)

Technical diagram of a mechanical assembly with a screwdriver inserted into a pipe, showing internal components and connection (no text or labels)

Line drawing of a mechanical device with a hand holding a handle (no text or symbols)

Important safety informations

When using your dishwasher, follow the precautions listed below:

• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. For EN60335-1
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. For IEC60335-1.

- This appliance is for indoor use only, for household use only.

- To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Please unplug before cleaning and maintenance the appliance.

- Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.

Earthing instruction

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

Do not modify the plug provided with the appliance; If it does not fit the outlet.

• Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

• Do not operate your dishwasher unless all enclosure panels are properly in place.

• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.

• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.

When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
- Check that the detergent powder is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
- For plastic items not so marked, check the manufacturer's recommendations.
- Use only detergent and rinse additives designed for an automatic dishwasher.
- Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• Children should be supervised to ensure that they do not play with the appliance.
- The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
- During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls.
- The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
- The maximum number of place settings to be washed is 6.
• The maximum permissible inlet water pressure is 1MPa.
- The minimum permissible inlet water pressure is 0.04MPa.

OPERATING INSTRUCTIONS

IMPORTANT!

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

Controlpanel

1 Power Button: To turn Power the power supply.
2 Power Light: To be on when the Power Button is Pressed down.
3 Salt Warning Light: To be on when the softener needs to be refilled.
4 Rinse Aid Warning Light: To be on when the rinse aid dispenser needs to be refilled.
5 Program indicator lights.
6 Washing Program Selector: Press the button to select wash cycles
7 "Start/Reset" Button: Press this button to start or pause the dishwasher, the process pilot lamp will be blinking when starting.

Dishwasher parts

1 Salt Container
2 Detergent Dispenser
3 Cutlery Basket
4 Filter assembly
5 Rinse Aid Dispenser
6 Spray Arms
7 Cup Shelf
8 Basket
9 Inlet pipe connector
10 Drain pipe connector

3

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

9
10

Filling the salt container

Always use salt intended for use with dishwasher. The salt container is located beneath the basket and should be filled as follows:

Attention!

• Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of dam ages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any caused damages.
• Only fill with salt just before starting one of the complete washing program mes. This will prevent any grains of salt or salty water, which may have been split, remaining of the bottom of the machine for any period of time, which may cause corrosion.

Diagram of a hand cleaning or inspecting a device component, showing internal components and a handle (no text or symbols)

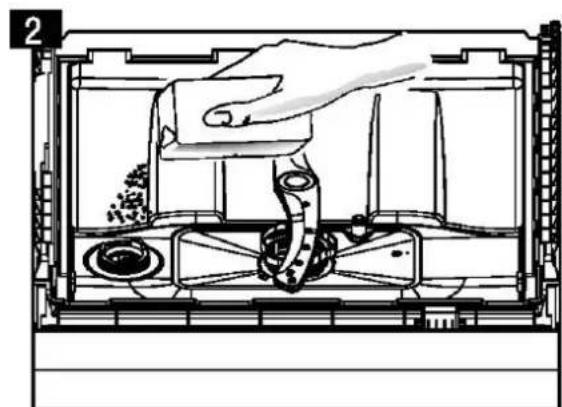

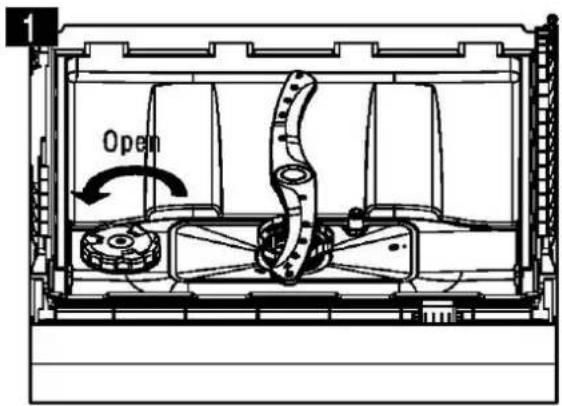

A Remove the basket and then unscrew and remove the cap from the salt container.
B Before first wash, add 1lt. of water in the salt container of your machine.
C Place the end of the funnel (supplied) into the hole and introduce about 1kg of salt. It is normal for a small amount of water to come out of the salt container.
D After filling the container, screw the cap tightly back clockwise.
E Usually, the salt warning light will be cease to be illuminated within 2-6 days after the salt container has been filled with salt.

F Immediately after filling the salt into the salt container, a washing programme should be started. Otherwise filter system, pump or other important parts of the machine may be damaged by salty water. It is out of warranty.

Important

1 The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how fully the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there is no salt warning light in the control panel (For some Models), you can judge when to load the salt into the softener by the cycles that the dishwasher had run.
2 If there are spills of the salt, a soak or a rapid program should be run to remove the excess salt.

Adjusting Salt Consumption

1 Close the door, within 60 seconds after power on, press "Start/Reset" button and hold for 5 seconds, the machine will enter setting mode.
2 Press the "Start/Reset" button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
3 Exit the status of salt adjustment

There are 6 levels of salt consumption in all. It is recommended to select the level according to below table:

Hardness level water softener Display
irc dH1)	mmol/l2)
0-5 0 -	0,9 1 H1: RAPID
6-11 1,0	- 2,0 2 H2: 1 hour
12-17	2,1 - 3,0	3 H3: 1 hour & RAPID
18-22	3,1 - 4,0	4*	H4: 90 min
23-34 4,1 - 6,1	5	H5: 90 min & RAPID
35-45	6,2 - 8,0	6 H6: 90 min & hour

Note:

1) German degree of measurement for the water hardness
2) millimol, international unit for water hardness
*) factory setting

Contact your local water board for information on the hardness of your water supply.

Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes. That can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black.

The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!: Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "c" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full

3 / 4 full

1 / 2 full

1 / 4 full - Should refill to eliminate spotting

Empty

How to fill the Rinse Aid Dispenser

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Important!

Clean up any rinse aid spill during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

Hand holding a control knob on a device panel (no visible text or symbols)

Close-up of a medical device with a white spherical object on its side, no visible text or symbols

Close-up of a hand holding a white object with a label '3' visible, next to a white appliance (no readable text or symbols)

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spotting is "4". (Factory value is "4".)

Remark!: Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

Detergents

Detergents with have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Normally new pulverised detergent is without phosphate, thus he water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 ∞dH. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses. In this case please add more detergent to reach better results.

Detergents without chlorine do only bleach a little. Strong and coloured spots will not remove completely. In this case please choose a program with higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

• Conventional, alkaline detergents with caustic components.
- Low alkaline concentrated detergents with natural enzymes.

The use of Normal washing program in combination with concentrated detergent reduces pollution and is good for your dishes.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short Programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent and rinse aid then conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

REMARK!

• If the lid is closed: press release button. The lid will spring open. Always add the detergent just before starting each wash cycle.
• Only use branded detergent aid for dishwasher.

Warning!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Close-up of a white electronic device with a knob and control knob, no visible text or symbols

Interior view of a kitchen appliance with a tray, lid, and control knob (no visible text or symbols)

Proper Use of Detergent

Only use detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes.

Fill in detergent dispenser

Fill the detergent dispenser with detergent.

The marking indicates the dosing levels, as

illustrated on right:

A Location of main wash cycle detergent.
B Location of pre-wash cycle detergent

Please observe the manufacturers dosing and storage

Interior view of a microwave oven with labeled components (no text or symbols visible)

Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

REMARK!

• You see information about the amount of detergent for the single program on table for program selection.
• Please be aware that soiling levels and water hardness can effect wash results.
• Please observe the manufacturer's recommendations on the detergent packaging.

Loading the dishwashers baskets

Consider buying utensils which are identified as dishwasher-proof.

Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from detergent manufacturers.

For particular items, select a program with as low temperature as possible.

To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

Not suitable for use

• Cutlery with wooden, horn china or mother-of-pearl handles.
- Plastic items that are not heat resistant. Older cutlery with glued parts that is not temperature resistant.
- Bonded cutlery items or dishes.
- Pewter or copper items.
- Crystal glass.
• Steel items subject to rusting.
- Wooden platters.
- Items made from synthetic fibres.

Limited suitability

• Some types of glasses can become dull after a large number of washes.
  • Silver and aluminium parts have a tendency to discolour during washing.
• Glazed patterns may fade if machine washed frequently.

Before and after loading the diswasher baskets

For the best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.

- Scrape off any large food paritcles. Soften remnants of burnt food in pans it is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

• Items such as cups, glasses, pots/pans, etc. are face downwards.
• Curved items, or those with recesses, should be loaded at aslant so that water can run off.
• All utensils are stacked securely and can not tip over.
• All utensils are placed in the way that the spray arms can rotated freely during washing.
• Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
• Load hollow items such as cups, glasses, pans etc. with the opening facing downwards so that water cannot collect in the container or a deep base.

• Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage to glasses, they must not be touched.

• Long bladed knives stored in an upright position are a potential hazard!

• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable energy consumption.

Positioning the dishes

Position the dishes and cookware so that they will not get moved by the spray of water.

1 Cups
2 Medium serving bowl
3 Glasses
4 Saucers
5 Dish
6 Oval platter
7 Dinner plates
8 Soup plates
9 Dessert dishes
10 Cutlery basket
11 Serving spoons

Cutlery basket

Position the dishes and cookware so that they do not get moved by the spray of water.

1 Forks
2 Soup spoons
3 Dessert spoons
4 Teaspoons
5 Knives
6 Serving spoons
7 Gravy ladles
8 Serving forks

Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down!

Starting a washing programme

Program Cycle	Selection Information	Description of cycle Detergent Pre/main	Run time (min.)	Energy (Kwh)	Water consumption. (L)	Rinse aid
Intensive For	heaviest soiled crockery, and normally soiled pots and pan, dishes etc with dried on soiling.	Pre-wash (50°C)Wash (70°C)RinseRinseRinse (70°C)Drying	3/15 g or (3 in 1)	140 0,90	10*
Normal For	normally soiled loads, such as pots, plates, glasses and lightly soiled pans.	Pre-washWash (60°C)RinseRinse (70°C)Drying	3/15 g or (3 in 1)	120 0,70	8*
ECO (*EN 50242)	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.	Pre-washWash (50°C)RinseRinse (70°C)Drying	3/15 g or (3 in 1)	180 0,61	6,5*
90 min For	lightly soiled crockery and glass.	Wash (65°C)Rinse (70°C)Drying	18 g or (3 in 1)	60 0,65	7*
1 time	For lightly soiled loads that do not need excellent drying efficiency	Wash (65°C)Rinse (50°C)Drying	18 g or (3 in 1)	60 0,55	6*
Rapid wash	A shorter wash for lightly soiled loads and quick wash	Wash (40°C)RinseRinse (40°C)	15 g 30 0,23 6

• Fill the Rinse aid container.
- *EN 50242 : This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows: Rinse aid setting: 6

Starting a wash cycle...

• Pull out the basket.
• Pour in the detergent
- Insert the plug into the socket. The power supply is 220-240 VAC 50 HZ, the specification of the socket is 10 A 250 VAC.
• Make sure that the water supply is turned on to full pressure.
- Press the program button, the wash program will be changed as follows direction

ECO->90 min>1 Hour->Rapid->Intensive->Normal;

If a program is selected, the response light will light. Then press the Start/Reset button, the dishwasher begins to start.

- When you press the Start/Reset button to pause during washing, the program light will stop blinking and the dishwasher will mooring every minute unless you press the Start/Reset button to start.

Premise: You can modify the washing program, If the dishwasher just worked for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. In this case, the detergent dispenser must be refilled.

Press Start/Pause Button to pause the machine when the door is closed, Press Program Button more than three seconds the machine will be in stand by state, then you can change the program to the desired cycle setting

The program lights show the status of the dishwasher:

a) One of the program lights on.... stand by or pause.
b) One of the program lights blinking.... running.

If you open the door during washing, the machine will pause. When you close the door and press the Start/Pause Button, the machine will keep on working after 10 seconds.

Forgot a dish

A forgotten dish can be added any time before the detergent cup opens.

1 Press the Start/Pause button.
2 Open the door a little to stop the washing.
3 After the spray arms stop working, you can open the door completely
4 Add forgotten dishes.
5 Close the door.
6 Press the Start/Pause button, the dishwasher will run after 10 seconds.

At the end of the wash cycle

When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then stop.

Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid scald, the dishes and utensils are still hot and more susceptible to breakage. They will also dry better.

• Switch Off the Dishwasher
  Switch off the dishwasher by pressing the ON/OFF button.
• Turn off the water tap!
• Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

- Unloading the dishwasher

It is normal that the dishwasher is wet inside.

It is dangerous to open the door when washing, because the hot water may scald you.

Maintenance and cleaning

Filtering system

The filter prevent larger remnants of food or other objects from getting inside the pump.

The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter).

A - Main filter

Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.

B - Fine filter

This filter holds soil and food residues in the sump area and prevents it from being redeposited on the dishes during a cycle.

C - Coarse filter C

Larger items, such as pieces of bone or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by this filter, gently squeeze the tap on the top of this filter and lift it out.

Filter assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle.

For best performance and results, the filter assembly must be cleaned regularly.

For this reason, it is a good idea to remove the larger food particles trapping in the filter after each wash cycle by rinsing the filter and cup under running water. To remove the filter assembly, pull the cup handle in the upward direction.

Warning

Never run the dishwasher without the filters in place.

The dishwasher must never be used without the filters.

Improper replacement of the filter may reduce the performance

level of the appliance and damage dishes and utensils.

Step 1: Contrarotate the filter assembly, then lift it all up.

Step 2: Lift B and C up from A;

Step 3: Separate B and C.

Remark:

If do it from step1 to step 3, the filter system will be removed; while if do it from Step 3 to Step 1, the filter system will be installed.

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

Important:

The entire filter assembly should be cleaned once a week.

Cleaning The Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward.

Warning

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of dishwasher could be decreased.

Cleaning

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly. For the exterior use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

- Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.

Warning: Abrasive agents or some paper towel should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

Cleaning the Spray Arms

Technical line drawing of a mechanical device with internal components and an upward arrow indicating motion (no text or symbols)

The spray arms can be easily removed for periodic cleaning of the nozzles to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded.

Grasp the middle of the spray arm, pull it upwards to remove it. Wash the arms under a jet of running water and replace it carefully to its seat. After reassembly, check that the spray arms rotate freely. Otherwise, check that they have been installed correctly.

Keep your dishwasher in good shape

• After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.
- Remove the Plug
- Before cleaning or performing maintenance, always remove the plug from the socket.
• No Solvents or Abrasive Cleaning
• To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a

cloth with warm soapy water.

• To remove spots or stains from the surface of the interior, use a cloth dampened with water with a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a long time

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

Installation instructions

Disconnect electrical power and electrical equipments before installing dishwasher, should be done by qualified professionals. Failure to do so can result in death or electrical shock.

Preparation

The installation position of dishwasher should be near the existing water inlet tap and drain outlet and power socket. One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Positioning the appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

Power connection

For personal safety:

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing.

Connection from the power cord.

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical requirements

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Cold water connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

Please Note: If the supplied hose cloes not fit your tap, please contact your local plumbing supply center where adapters are available for purchase.

Connection of the drain hose

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. The free end of the hose must be at a height lower than 60cm and must not be immersed into water to avoid the backflow of it.

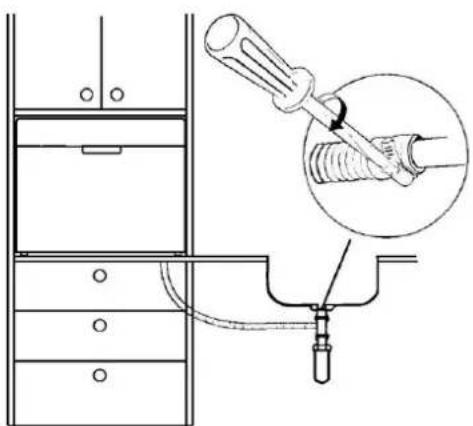

How to Drain Excess Water From Hoses

If the sink is more than 1000 mm higher than the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Technical diagram showing a mechanical assembly with a screwdriver inserted into a threaded component (no text or labels present)

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose.

It must be no longer than 4 metres, otherwise the cleaning effect of the dishwasher could be reduced.

Start the dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly.
2 The inlet valve is open.
3 Inlet hose connections are fully tightened and not leaking. 4 The wires are tightly connected.
5 The power is switched on.
6 The inlet and drain hoses are not kinked.
7 All packing and print materials should be taken out of the dishwasher.

Remark:

After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

Error codes

Before you call service, look at the following

When some malfunctions come on, the appliance will display error codes to warn you:

Codes

The rapid light flicker fleetly

• Longer inlet time.
• Faucets is not opened, or water intake is restricted, or water pressure is too low.

Longer water inlet

• Overflow.
• Some element of dishwasher leaks.

Warning: If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

	Problem Possible causes What to do
Technical problems	Dishwasher will not start	Fuse blown, or the circuit breaker tripped.	Replace fuse or reset circuit breaker.Remove any other appliances sharing the same circuit with the dishwasher
		Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
		Door of dishwasher not properly closed.	Make sure to close the door property and latch it.
	The water is not pumped out	Kink in drain hoseFilter clogged.Kitchen sink clogged.	Clean The FilterCheck kitchen sink to make sure it is draining well.If the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwasher.
General problems	Suds in the tub Improper detergent Use only the special dishwasher detergent to avoid suds. If this occurred, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then Start any wash cycle to drain out the water. Repeat if necessary.
	Stained tub interior Detergent with colourant was used		Make sure that the detergent is the one without colourant
	White film on inside surface	Hard water minerals To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves.Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
	Rust on the cutlery The affected items are not corrosion resistant.
			Always run the Quick wash programme without any crockery in the dishwasher and without selecting the Turbo function (if present), after adding dishwasher salt.
			the lid of softer is loose. Check the lid. Ensure the fix is fine.
Noise	Knocking noise	The spray arm is knocking against an item in a basket.	Interrupt the program, and rearrange the items which are obstructing the spray arm.
	Rattling noise	Item of crockery are loose in the wash cabinet	Interrupt the program, and rearrange the items of crockery.
	Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on dishwasher function. If in doubt, contact a suitably qualified plumber.
Unsatisfied washing result	The dishes are not clean	The dishes are not loaded correctly	See notes in " Loading the Dishwasher Baskets ".
		The programme was not powerful enough.	Select a more intensive programme.See" Wash Cycle Table".
		Not enough detergent was dispensed.	Use more detergent, or change your detergent.
		Item are blocking the path of spray arms.	Rearrange the items so that the spray can rotate freely.
		The filter combination in the base of wash cabinet is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked.	Clean and/or fit the filter combination correctly.Clean the spray arm jets. See "Cleaning the Spray cabinet is not clean or Arms".
	Problem Mulig årsag Lösningsforslag
Unsatisfied washing result	Cloudiness of glassware	Combination of soft water and too much detergent	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
	Black or grey marks on dishes	Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
	Detergent left in dispenser	Dishes block detergent cups. Re-loading the dishes properly.
Unsatisfied drying result	The dishes are not drying	Improper loading Load the dishwasher as suggested in the directions.
		Too little rinse-aid dispenser. Increase the amount of rinse-aid/Refill the rinse-aid
		Dishes are removed too soon. Do not empty your dishwasher immediately after washing.Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once the dishes are barely warm to the touch. Empty the low basket first. This prevents water form dropping off dishes in the upper basket.
		Wrong programme selection In short programmes the washing temperature is lower. This also lowers cleaning performance. Choose a programme with a long washing time.
		Using cutlery with a low-quality coating	Water drainage is more difficult with these items.Cutlery or dishes of this type are not suitable for washing in the dishwasher.

Technical Data Sheet

Model SF02201

Standard place settings....6

Energy efficiency class ....A+

Annual energy consumption.... 174 kWh

Energy consumption of the standard cleaning cycle....0.61kWh

Power consumption of off-mode 0.49 W

Power consumption of left-on mode 0.49 W

Annual water consumption....1820 liter

Drying efficiency class....A

Standard cleaning cycle ....ECO 50°C

Program duration of the standard cleaning cycle ..... 180 min

Noise level 49 dB(A) re 1 pW

Mounting .... Free standing

Could be built-in .... Yes

Dimensions (HxWxD) 438 x 550 x 500 mm

Power consumption 1280 W

Rated voltage / frequency .....230 V\~ / 50 Hz

Water pressure 0.4-10 bar = 0.04-1.0 MPa

Datasheet

1 A + + + (highest efficiency) to D (lowest efficiency)
2 Energy consumption "174" kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption "1820" litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
4 A (highest efficiency) to G (lowest efficiency)
5 This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery:

• LVD 2006/95/EC
• EMC2004/108/EC
• ErP 2009/125/EC

The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc.

The manual is based on the European Union's standards and rules.

Quick guide

For detailed operating method read the corresponding content in this manual.

Switch on the machine:

• Press the power switch button to switch on the appliance.
• Open the door.

Fill the detergent dispenser:

Compartment A: For each wash cycle.

Compartment B: For programmes with pre-wash only, (follow the user instructions).

Check the rinse aid level:

• Mechanical indicator C.
  • Electric indicator on control panel (if provided).

Check the regeneration salt level:

- (Only on models with water softener systems). Electric indicator on control panel (if provided). If there is no salt warning light in the control-panel, you can estimate when to fill the salt into the softener by number of the cycles the dishwasher has run.

Line drawing of a hand holding a device with a handle and internal components (no text or symbols)

Load the baskets:

• Scrape off any large food parties.
- Soften remnants of burnt food in pans, then load the baskets.
• Refer to the dishwasher loading instructions.

Select a programme:

- Close the door. Press the program button until the selected program lights up. (see the section entitled: Operation instructions)

Running the dishwasher

- Turn on the water and press the "start/reset" button. The machine will start working after about 10 seconds.

Changing the programme:

1 A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If in this case, the detergent dispenser must be refilled.
2 Press the "start/reset" button, then press the program button more than 3 seconds to cancel the running program.
3 Select a new program.
4 Restart the dishwasher.

Add forgotten dishes in the dishwasher

1 Press "start/reset" button to stop the machine.
2 Open the door.
3 Add the forgotten dishes.
4 Close the door, then press the "start/reset" button, the dishwasher will start running again after 10 seconds..

If the appliance is switched off during a wash cycle:

If the appliance was switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the diswasher from the beginning.

Warning! Open the door carefully. Hot steam my escape when the door is opened.

Switch off the appliance:

When the working cycle if finished, the buzzer of the dishwasher will sound 8 times, then stop. Turn off the appliance using the power button. Since the appliance is standing by, it will power off automatically after 30 min without operating.

Turn off the water tap, unload the baskets:

Warning: Wait a few minutes (about 15 min) before unloading the diswasher to avoid scald, as the dishes and utnesils are still hot and more susceptible to break.

They also could dry better
