| Product Type | Front Loading Washing Machine |
| Model | EcoBubble WW85H5290EW |
| Brand | Samsung |
| Dimensions (W x D x H) | 600 mm x 600 mm x 850 mm |
| Net Weight | 68 kg |
| Wash and Spin Capacity | 8.5 kg |
| Spin Speed | Up to 1200 rpm |
| Water Pressure | 50 kPa ~ 800 kPa |
| Water Volume (approximate) | 51 L |
| Power Supply | AC 220-240 V / 50 Hz |
| Power Consumption (Wash) | 120 W at 220 V / 120 W at 240 V |
| Power Consumption (Wash + Heat) | 2000 W at 220 V / 2400 W at 240 V |
| Power Consumption (Spin) | 500 W at 230 V |
| Key Technology | Eco Bubble, Fuzzy Control, Smart Check |
| Cycles | Cotton, Synthetics, Bedding, Wool, Eco Drum Clean, Super Eco Wash, Outdoor Care, Baby Care, Delicates, Daily Wash, Dark Garment, Stain Away |
| Additional Options | Delay End, Quick Wash, Easy Iron, Pre-wash, Soak, Intensive, Child Lock, Sound Off |
| Drum Clean | Eco Drum Clean cycle with auto alarm |
| Safety Features | Child Lock, overload protection, door lock, emergency drain |
| Maintenance | Debris filter cleaning, detergent drawer cleaning, water hose mesh filter cleaning |
Frequently Asked Questions - EcoBubble WW85H5290EW SAMSUNG
User questions about EcoBubble WW85H5290EW SAMSUNG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Washing machine in PDF format for free! Find your manual EcoBubble WW85H5290EW - SAMSUNG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EcoBubble WW85H5290EW by SAMSUNG.
USER MANUAL EcoBubble WW85H5290EW SAMSUNG
Washing Machine user manual
Imagine the possibilities
Thank you for purchasing this Samsung product.
SAMSUNG
contents
SETTING UP YOUR WASHING MACHINE
11

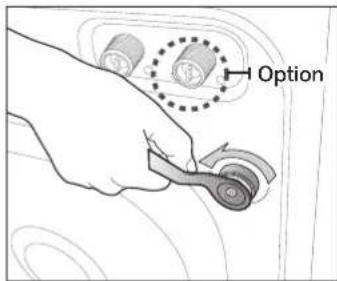

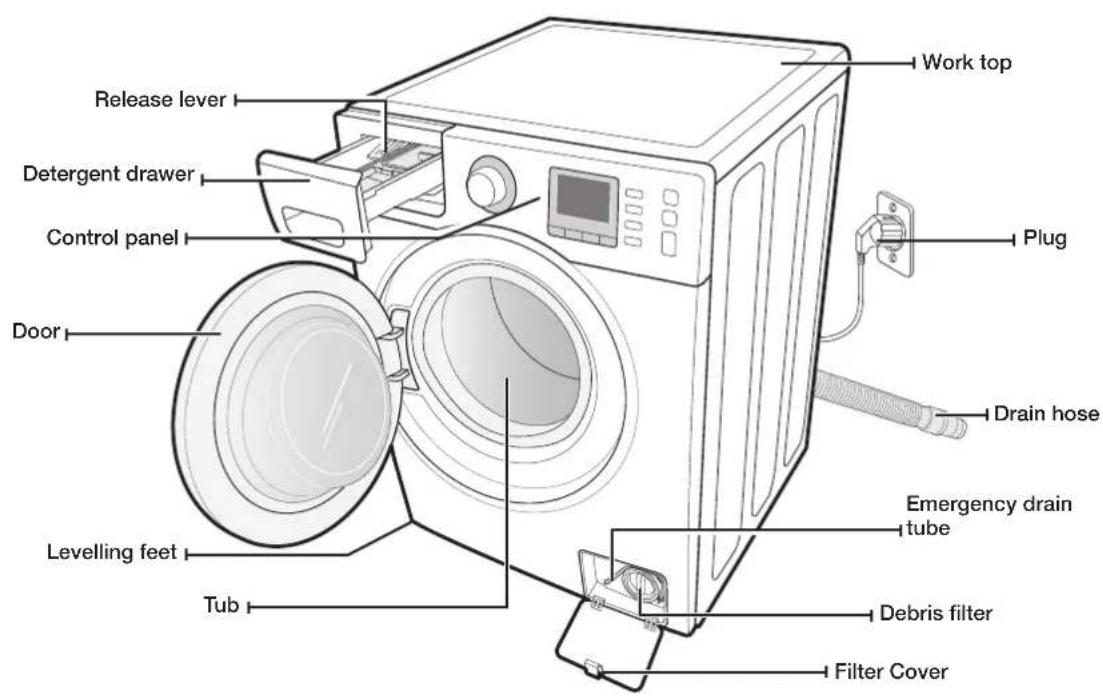

11 Checking the parts
12 Meeting installation requirements
12 Electrical supply and grounding

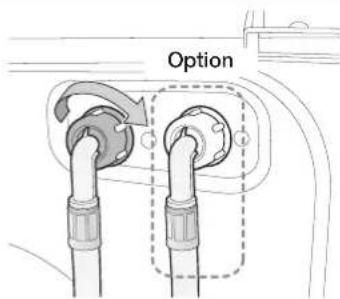

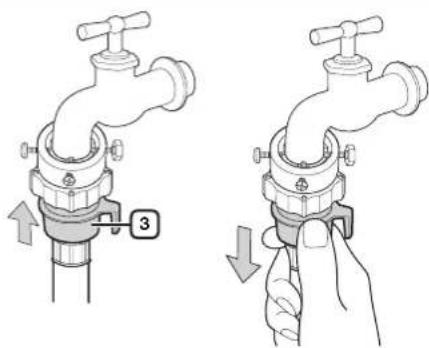

12 Water Supply

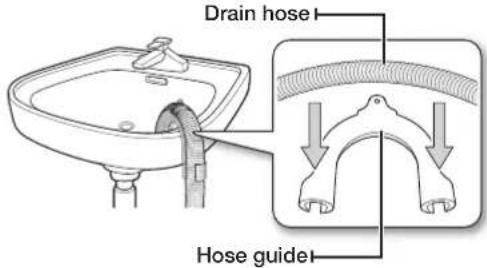

13 Drain
Flooring
13 Surrounding temperature
13 Above or closet installation
13 Installing your washing machine
WASHING A LOAD OF LAUNDRY
19
19 Washing for the first time
19Basicinstructions

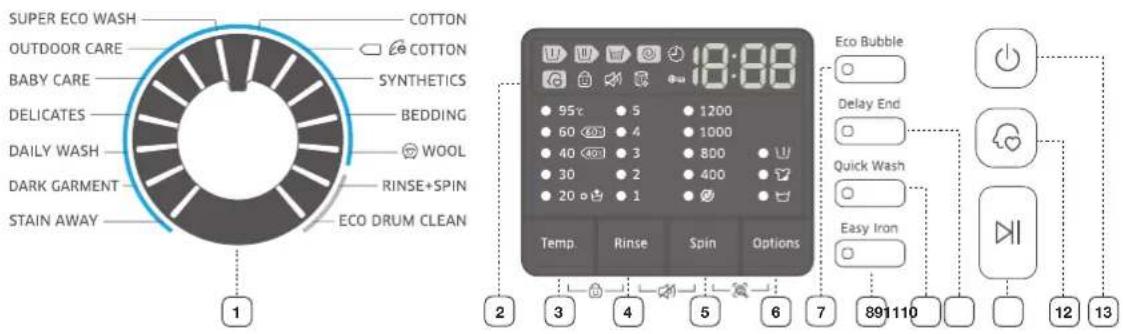

20 Using the control panel
23 Child lock

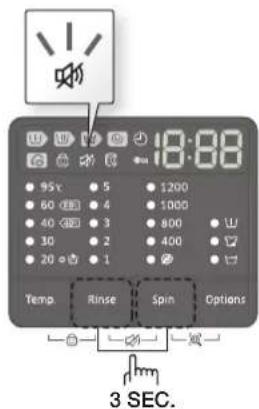

23 Sound off
23 Delay end
24 My cycle
24 Smart Check
25 -co Bubble
26 Washing clothes using the cycle selector
27 Washing clothes manually
27 Laundryguidelines
28 Detergent and additives information
28 Which detergent to use

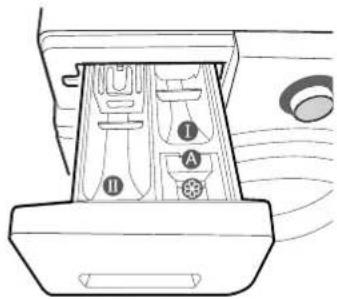

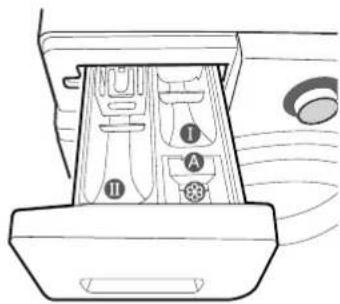

29 Detergent drawer
29 Liquid Deterger. (Selected models)
CLEANING AND MAINTAINING YOUR WASHING MACHINE
30
30 Eco Drum Clean

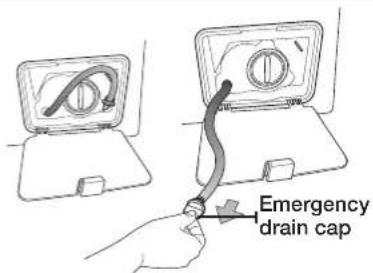

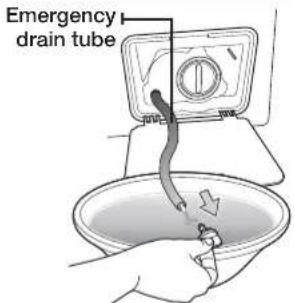

31 Draining the washing machine in an emergency

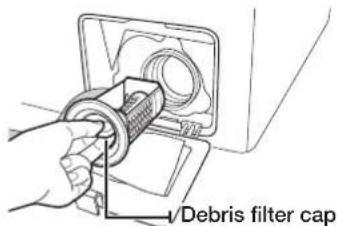

32 Cleaning the debris filter
32 Cleaning the exterior

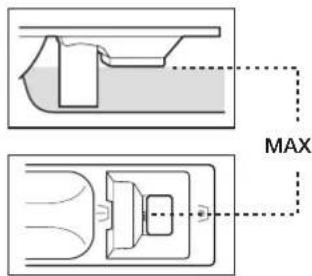

33 Cleaning the detergent drawer and drawer recess
33 Cleaning the water hose mesh filter
34 Repairing a frozen washing machine
34 Storing your washing machine
TROUBLESHOOTING AND INFORMATION CODES
35
35 Check these points if your washing machine...
36Informationcodes
CYCLE CHART
37
37Cyclechart
APPENDIX
38
38 Fabric care chart
38 Protecting the environment
39Specifications
English - 2
safety information
Congratulations on your new Samsung washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your washer's many benefits and features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the extensive features and functions of your new appliance and retain it at a safe place near the appliance for your future reference. Use this appliance only for its intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your washer.
Because these following operating instructions cover various models, the characteristics of your washer may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or find help and information online at www.samsung.com.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
What the icons and signs in this user manual mean:
| WARNING | Hazards or unsafe practices that may result in severe personal injury, death and/or property damage. |
| CAUTION | Hazards or unsafe practices that may result in personal injury and/or property damage. |
| CAUTION | To reduce the risk of fire, explosion, electric shock, or personal injury when using your washer, follow these basic safety precautions: |
| Do NOT attempt. | |
| Do NOT disassemble. | |
| Do NOT touch. | |
| Follow directions explicitly. | |
| Unplug the power plug from the wall socket. | |
| Make sure the machine is grounded to prevent electric shock. | |
| Call the service centre for help. | |
| Note | |
These warning signs are here to prevent injury to you and others. Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment using electricity and moving parts, potential hazards exist. To safely operate this appliance, become familiar with its operation and exercise care when using it.
safety information
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:
Do not let children (or pets) play in or on your washing machine. The washing machine door does not open easily from the inside and children may be seriously injured if trapped inside.
This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
For use in Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are accessible.
For appliances with ventilation openings in the base, that a carpet must not obstruct the openings.
The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
sEVErE Warning siGns for installation
The installation of this appliance must be performed by a qualified technician or service company.
- Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury.
The appliance is heavy, take care upon lifting it
Plug the power cord into an AC 220-240V / 50Hz wall socket or higher and use the socket for this appliance only. In addition, do not use an extension cord.
- Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or fire.
- Ensure that the power voltage, frequency and current are the same as those of the product specifications. Failure to do so may result in electric shock or fire. Plug the power plug into the wall socket firmly.
Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failure to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the cord runs towards the floor.
- If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.
- If a child places a bag over its head, it may result in suffocation.
When the appliance or power plug or power cord is damaged, contact your nearest service centre.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- This may result in electric shock, fire, an explosion, or problems with the product.
- Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national codes.
Do not install this appliance near a heater, inflammable material.
Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops).
Do not install this appliance in a location of low temperature
- Frost may cause tubes to burst.
Do not install this appliance in a location where gas may leak.
- This may result in electric shock or fire.
Do not use an electric transformer.
- It may result in electric shock or fire.
Do not use a damaged power plug, damaged power cord or loose wall socket.
- This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
English - 5
safety information
Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.
- This may result in electric shock or fire.
Do not pull the power cord, when unplugging the power plug.
- Unplug the power plug by holding the plug.
- Failure to do so may result in electric shock or fire.
Do not lay the power cord and tubes where you may fall over them.
caution siGns for installation
This appliance should be positioned in such a way that it is accessible to the power plug.
- Failure to do so may result in electric shock or fire due to electric leakage.
Install your appliance on a level and hard floor that can support its weight.
- Failure to do so may result in abnormal vibrations, moves, noise, or problems with the product.
sEVErE WarninG siGns for usinG
If the appliance is flooded, turn off the water & power supply immediately and contact your nearest service centre.
- Do not touch the power plug with wet hands.
- Failure to do so may cause electric shock.
If the appliance generates a strange noise, a burning smell or smoke, unplug the power plug immediately and contact your nearest service centre.
- Failure to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug. Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or fire.
Do not let children play in or on the washer. In addition, when disposing of the appliance, remove the washer door lever.
- If trapped inside, the child may become trapped and suffocate to death.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the washer before using it.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other flammable or explosive substances.
- This may result in electric shock, fire or an explosion.
Do not open the washer door by force while it is operating (high-temperature washing/drying/spinning).
- Water flowing out of the washer may result in burns or cause the floor to be slippery.
This may result in injury.
- Opening the door by force may result in damage to the product or injury.
Do not insert your hand under the washer.
- This may result in injury.
Do not touch the power plug with wet hands.
- This may result in electric shock.
Do not turn the appliance off by unplugging the power plug while an operation is in progress.
- Plugging the power plug into the wall socket again may cause a spark and result in electric shock or fire.
Do not let children or infirm persons use this washer unsupervised. Do not let children climb in the appliance.
- Failure to do so may result in electric shock, burns or injury.
Do not insert your hand or a metal object under the washer while it is operating.
- This may result in injury.
Do not unplug the appliance by pulling at the power cord, always grip plug firmly and pull straight out from the outlet.
- Damage to the cord may cause short-circuit, fire and/or electric shock.
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.
- When repairing or reinstalling the appliance is required, contact your nearest service centre.
- Failure to do so may result in electric shock, fire, problems with the product, or injury.
If the water supply hose comes loose from the Water tap and floods the appliance, unplug the power plug.
- Failure to do so may result in electric shock or fire.
Unplug the power plug when the appliance is not being used for long periods of time or during a thunder/lightning storm.
- Failure to do so may result in electric shock or fire.
safety information
caution siGns for usinG
When the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power plug and clean the washer using a damp and soft cloth.
- Failure to do so may result in discolouration, deformation, damage or rust.
The front glass may be broken by a strong impact. Take care when using the washer. - When the glass is broken, it may result in injury.
After a water supply failure or when reconnecting the water supply hose, open the Water Tap slowly.
Open the Water Tap slowly after a long period of non-use.
- The air pressure in the water supply hose or the water pipe may result in damage to a part or in water leakage.
If a drain error occurs during an operation, check if there is a draining problem. - If the washer is used when it is flooded because of a draining problem, it may result in electric shock or fire due to electric leakage.
Insert the laundry into the washer completely so that laundry does not get caught in the door.
- If laundry gets caught in the door, it may result in damage to the laundry or the washer, or result in water leakage.
Ensure that the Water Tap is turned off when the washer is not being used.
- Ensure that the screw on the water supply hose connector is properly tightened.
- Failure to do so may result in property damage or injury.
Take care that the rubber seal and the front door glass are not contaminated by a foreign substance (e.g. waste, thread, hair, etc.)
- If a foreign substance is caught in the door or the door is not completely closed, it may cause a water leakage.
Open the Water Tap and check if the water supply hose connector is firmly tightened and that there is no water leaking before using the product.
- If the screws or the water supply hose connector are loose, it may result in water leakage.
The product you have purchased is designed for domestic use only.
The use for business purposes qualifies as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.
Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in electric shock, fire, problems with the product, or injury.
Do not spray volatile material such as insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also result in electric shock, fire or problems with the product.
Do not place an object that generates a electromagnetic field near the washer.
- This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not touch the water.
- This may result in burns or injury.
Do not wash, spin or dry water-proof seats, mats or clothing (*) unless your appliance has a special program for washing these items.
- Do not wash thick, hard mats even if the washer mark is on the care label.
- This may result in injury or damage to the washer, walls, floor or clothing due to abnormal vibrations.
* Woollen Bedding, rain covers, fishing vests, ski pants, sleeping bags, diaper covers, sweat suits, and bicycle, motor cycle, car covers, etc.
Do not operate the washer when the detergent box is removed.
- This may result in electric shock or injury due to water leakage.
Do not touch the inside of the tub during or just after drying as it is hot.
- This may result in burns.
Do not insert your hand into the detergent box after opening it.
- This may result in injury as your hand may be caught by the detergent input device. Do not place any objects (such as shoes, food waste, animals) other than laundry into the washer.
- This may result in damage to the washer, or injury and death in the case of pets due to the abnormal vibrations.
Do not press the buttons using sharp objects such as pins, knives, fingernails, etc.
- This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams or lotions usually found in skincare shops or massage clinics.
- This may result in the rubber seal becoming deformed and water leakage.
Do not leave metal objects such as a safety pin or hair pin, or bleach in the tub for long periods of time.
- This may cause the tub to rust.
- If rust starts appearing on the surface of the tub, apply a cleansing agent (neutral) to the surface and use a sponge to clean it. Never use a metal brush.
Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry contaminated by dry cleaning detergent.
- This may result in spontaneous combustion or ignition due to the heat of the oxidation of the oil.
Do not use hot water from water cooling/heating devices.
- This may result in problems with the washer.
English - 9
safety information
Do not use natural hand-washing soap for the washer.
- If it hardens and accumulates inside the washer, it may result in problems with the product, discolouration, rust or bad odors.
Do not wash large laundry items such as Bedding in the washing net.
- Place socks and brassieres into the washing net and wash them with the other laundry.
- Failure to do so may result in injury due to abnormal vibrations.
Do not use hardened detergent.
- If it accumulates inside the washer, it may result in water leakage.
For washing machines with ventilation openings in the base, ensure that the opening is not obstructed by carpet or any other obstacles.
Make sure that the pockets of all clothing to be washed are empty.
- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to the appliance.
Do not wash clothing with large buckles, buttons, or other heavy metal.
sEVErE WarninG siGns for cIEaninG
Do not clean the appliance by spraying water directly onto it.
Do not use the strong acid cleaning agent.
Do not use benzene, thinner or alcohol to clean the appliance.
- This may result in discolouration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failure to do so may result in electric shock or fire.
setting up your washing machine
Be sure to have your installer follow these instructions closely so that your new washing machine works properly and so that you're not at risk of injury when doing laundry.
CHECKING THE PARTS
Carefully unpack your washing machine, and make sure you've received all of the parts shown below. If your washing machine was damaged during shipping, or if you do not have all of the parts, contact Samsung Customer Service or your Samsung dealer.
| Water supply hose | ||||||
* Bolt hole covers : The number of bolt hole covers depends on the model (3\~5 covers).
English - 11
setting up your washing machine
MEETING INSTALLATION REQUIREMENTS
Electrical supply and grounding
Never use an extension cord.
Use only the power cord that comes with your washing machine.
When preparing for installation, ensure that your power supply offers:
• AC 220-240 V / 50 Hz fuse or circuit breaker
• Individual branch circuit serving only your washing machine
Your washing machine must be grounded. If your washing machine malfunctions or breaks down, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current.
Your washing machine comes with a power cord having a three-prong grounding plug for use in a properly installed and grounded outlet.
Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
Improperly connecting the equipment-grounding conductor can result in electric shock.
Check with a qualified electrician or serviceman if you are unsure if the washing machine is properly grounded. Do not modify the plug provided with the washing machine. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.
Water Supply
Your washing machine will fill properly when your water pressure is 50 kPa \~ 800 kPa. Water pressure less than 50 kPa may cause water valve failure, not allowing the water valve to shut off completely. Or, it may take the washing machine longer to fill than what the controls allow, resulting in your washing machine turning off. (A fill-time limit, designed to prevent overflows/flooding if an internal hose becomes loose, is built into the controls.)
The water taps must be within 120cm of the back of your washing machine for the provided inlet hoses provided to reach your washing machine.
Most plumbing supply stores sell inlet hoses of various lengths up to 305 cm long.
You can reduce the risk of leaks and water damage by:
• Making water taps easily accessible.
- Turning off taps when the washing machine is not in use.
• Periodically checking for leaks at water inlet hose fittings.
Before using your washing machine for the first time, check all connections at the water valve and taps for leaks.
Drain
Samsung recommends a standpipe height of 65cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory.
Flooring
For best performance, your washing machine must be installed on a solidly constructed floor. Wood floors may need to be reinforced to minimize vibration and/or unbalanced loads. Carpeting and soft tile surfaces are contributing factors to vibrations and the tendency for your washing machine to move slightly during the spin cycle.
Never install your washing machine on a platform or poorly supported structure.
Surrounding temperature
Do not install your washing machine in areas where water may freeze, since your washing machine always retains some water in its water valve, pump, and hose areas. Frozen water in the lines can cause damage to belts, the pump, and other components.
Alcove or closet installation
To operate safely and properly, your new washing machine requires minimum clearances of:
Sides - 25 mm Rear - 50 mm
Top - 25 mm Front - 465 mm
If both the washing machine and a dryer are installed together, the front of the alcove or closet must have at least 465 mm unobstructed air opening. Your washing machine alone does not require a specific air opening.
INSTALLING YOUR WASHING MACHINE
STEP 1
Selecting a location
Before you install the washing machine, make sure the location:
- Has a hard, level surface without carpeting or flooring that may obstruct ventilation
• Is away from direct sunlight
• Has adequate ventilation
• Will not be freezing (below 0 °C)
• Is away from heat sources such as oil or gas - Has enough space so that the washing machine doesn't stand on its power cord
setting up your washing machine
STEP 2
Removing the shipping bolts
Before installing the washing machine, you must remove all shipping bolts from the back of the unit.
- Loosen all the bolts with the supplied wrench.


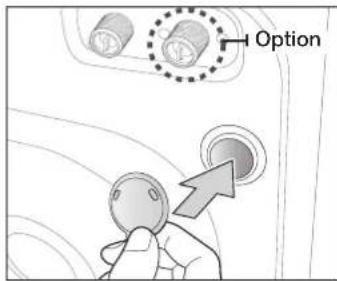

Option- Fill the holes with the supplied plastic covers.
Packaging materials can be dangerous to children; keep all packaging material (plastic bags, polystyrene, etc.) well out of the reach of children.
STEP 3
Adjusting the Levelling feet
When installing your washing machine, ensure that the power plug, the water supply and the drain are easily accessible.
-
Slide the washing machine into position.
-

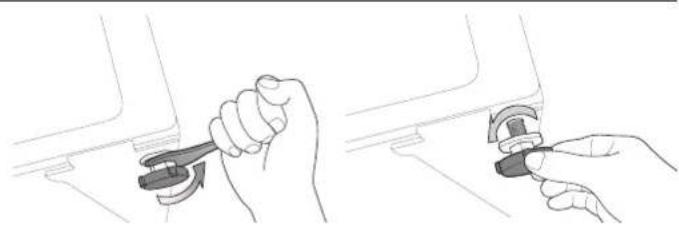

Level your washing machine by turning the levelling feet in and out as necessary by hand.
Connecting the water and drain
Connecting the water supply hose

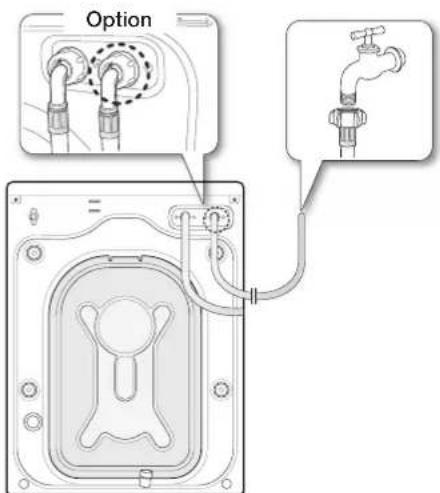

- Take the L-shaped arm fitting for the cold water supply hose and connect it to the cold water supply intake on the back of the machine. Tighten by hand.
The water supply hose must be connected to the washing machine at one end and to the water tap at the other. Do not stretch the water supply hose. If the hose is too short, replace the hose with a longer, high pressure hose.
- Connect the other end of the cold water supply hose to your sink's cold water tap and tighten it by hand. If necessary, you can reposition the water supply hose at the washing machine end by loosening the fitting, rotating the hose, and retightening the fitting.
- Take the red L-shaped arm fitting for the hot water supply hose and connect it to the hot water supply intake on the back of the machine. Tighten by hand.
- Connect the other end of the hot water supply hose to your sink's hot water tap and tighten it by hand.
- Use a Y-piece if you only want to use cold water.
setting up your washing machine
Connecting the water supply hose
- Remove the adaptor from the water supply hose.
- Connect the adaptor to the water tap by tightening the screws firmly while lifting the adaptor upwards. Turn part (2) following the arrow and connect (1) and (2).


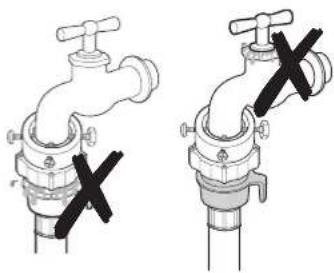

Water tap 1 2- Connect the water supply hose to the adaptor. When you release part (3), the hose automatically connects to the adaptor making a 'click' sound.
After you have connected the water supply hose to the adaptor, ensure that it is connected correctly by pulling the water supply hose downwards.
- Turn on the water supply and ensure that no water leaks from the water valve, tap or adaptor. If there is a water leaks, repeat the previous steps.
Do not use your washing machine if there is a water leak. This may cause electric shock or injury.
Use the most conventional type of tap for the water supply. In case the tap is square or too big, remove the spacing ring before inserting the tap into the adaptor.
Connecting the Aqua Hose (Selected models)
The Aqua Hose was invented for perfect leakage protection. It is attached to the water supply hose and automatically cuts off the water flow if the hose is damaged. It also displays a warning indicator.
- Connect the water supply hose to the tap as shown.
setting up your washing machine
Connecting the drain hose
The end of the drain hose can be positioned in three ways:
-
Over the edge of a wash basin: The drain hose must be placed at a height of between 60 and 90 cm. To keep the drain hose spout bent, use the supplied plastic hose guide. Secure the guide to the wall with a hook or to the tap with a piece of string to prevent the drain hose from moving.
-
In a sink drain pipe branch: The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60 cm above the ground.
The standpipe drain requires;
• minimum diameter 5 cm.
• minimum carry-away capacity 60 liter per minute.
Powering your washing machine
Plug the power cord into a wall sockets, an AC 220-240V / 50Hz approved electrical outlet protected by a fuse or circuit breaker. (For more information on electrical and grounding requirements, see page 12.)
Test run
Make sure that you install your washing machine correctly by running the Rinse+Spin cycle after the installation is complete.
STEP 6
Calibration mode
Samsung washing machine detects the laundry weight automatically. For more accurate weight detection, please run Calibration Mode after the installation. Calibration mode is done by following the steps below.
-
Remove laundry or any contents in the machine and turn off the machine.
-
Press the Temp button and Delay End button simultaneously, and press the Power(↓) button in addition. Then the machine turns on.(for WW85H5290E*)
-
Press the Start/Pause(▶) button to activate "Calibration Mode".
-
The drum rotates clockwise and counterclockwise approximately for 3 minutes.
-
When "Calibration Mode" is finished, "En/0(End)" appears on the display, and the machine automatically turns off. The washing machine is now ready for use.
washing a load of laundry
With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash first.
WASHING FOR THE FIRST TIME
Before washing laundry for the first time, you must run a complete empty cycle (i.e. no laundry).
- Press the Power(⏻) button.
- Add a little detergent to the detergent compartment ① in the detergent drawer.
- Turn on the water supply to the washing machine.
- Press the Start/Pause( )button.
This will remove any water that might be left over in the machine from the manufacturer's test run.
Compartment Ⓞ Detergent for the main wash, water softener, pre-soaking agent, bleach and stain removal product.

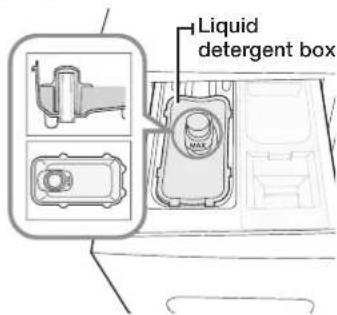

To use liquid detergent, use the liquid detergent box (refer to page 29 of the manual for the corresponding model). Do not add powdered detergent into the liquid detergent box.
Compartment ⓤ: Additives, e.g. fabric softener or former (fill no higher than lower edge (MAX) of "A").
BASIC INSTRUCTIONS
- Load your laundry into the washing machine.
Do not overload the washing machine. To determine the load capacity for each type of laundry, refer to the chart on page 27-28.
• Make sure that laundry is not caught in the door, as this may cause a water leak.
- Washing detergent may remain in the front rubber part of the washer after a wash cycle. Remove any remaining detergent, as they may cause a water leak.
- Do not touch the door glass while your washing machine is running or it may be hot.
- Do not open the detergent drawer or the debris filter while your washing machine is running or you might be exposed to hot water or steam.
- Do not wash water-proofed items in normal cycle except outdoor care program.
- Close the door until it latches.
- Turn the power on.
- Add detergent and additives to the dispenser drawer.
- Select the appropriate cycle and options for the load.
The Wash Indicator light will illuminate and the estimated cycle time will appear in the display.
- Press the Start/Pause(▷) button.
washing a load of laundry
usinG tHE control panEI
Select the tumble pattern and spin speed for the cycle.
For detailed information, refer to "Washing clothes using the cycle selector". (see page 26)
cotton - For average or lightly soiled cottons, bed linen, table linen, underwear, towels, shirts, etc.
€ cotton - Optimal performance with lower energy for cotton fabrics, bed linen, table linen, underwear, towels or shirts. For energy saving, the actual washing temperature may be lower than specified.
syntHEtics - For averagely or lightly soiled blouses, shirts, etc., made of polyester (diolen, trevira), polyamide (perlon, nylon) or other similar blends.
bEddinG - For bed spread, bed sheet, Bedding cover etc.
Wash under 2.5 kg and only 1 kind of Bedding to achieve the best result.
Wool - Only for machine-washable wool. A load should be less than 2.0 kg.
- The wool course washes the laundry using gentle cradling actions. During the wash, the gentle cradling and soaking actions are continued to protect the wool fibers from shrinkage / distortion and for a super gentle clean. This stop operation is not a problem.
- Neutral detergent is recommended for wool course, for improved washing results and for improved care of the wool fibers.
rinsE + spin - Use for a load that needs rinsing only or to add rinse-added fabric softener to a load.
Eco drum cIEan - Use for drum cleaning. It cleanses dirt and bacteria of drum. Regular use (after every 40 washes) is recommended. No detergent or bleach needed.
supEr Eco WasH - Low temperature Eco Bubble ensures that you achieve perfect wash results while allowing effective energy saving.
outdoor carE - Use for outdoor wear such as mountain clothes, skiwear, and sports wear. Fabrics include functional technology finishes and fibers such as spandex, stretch, and micro-fiber.
baby carE - High temperature wash and extra rinses ensure that no washing powder remains to mark your thin clothes.
dElicatEs - For sheer fabrics, brassieres, lingerie, dresses, shirts and blouses. For best results, use liquid detergent.
daily WasH - Use for everyday items such as underwear and shirts.
| dark GarmEnt - Additional rinses and reduced spinning ensure that your favourite dark clothes are washed gently and rinsed thoroughly.stain aWay- Featuring the soaking cycle to effectively remove stains from the laundry. During the soaking cycle, the drum stops rotating. This is not a system failure. | ||
| 2 DIGITAL GRAPHIC DISPLAY | Displays the remaining wash cycle time, all cycle information, and error messages. | |
| 3 TEMP SELECTION BUTTON | Press this button repeatedly to cycle through the available water temperature options: (Cold Water: , 20 °C, 30 °C, 40 °C, 60 °C and 95 °C). | |
| 4 RINSE SELECTION BUTTON | Press this button to add additional rinse cycles. The maximum number of rinse cycles is five. | |
| 5 SPIN SELECTION BUTTON | Press the button repeatedly to cycle through the available speeds for the spin cycle. | |
| WW85H5290E* | 400, 800, 1000, 1200 rpm | |
| “No spin ”- The laundry remains in the drum and no spin cycle is performed after the final drain.“Rinse Hold ”- The laundry remains soaking in the final rinse water.Before the laundry can be unloaded, either a Drain or Spin cycle must be performed. | ||
| 6 OPTIONS SELECTION BUTTON | Press this button repeatedly to cycle through the options:(Soak) → (Intensive) → (Pre Wash) → (Soak) + (Intensive)→ (Soak) + (Pre Wash) → (Intensive) + (Pre Wash) →(Soak) + (Intensive) + (Pre Wash) → (off)“Prewash”: Press this button to select pre-wash. Pre-wash is only available with: COTTON, COTTON, SYNTHETICS, BEDDING, SUPER ECO WASH, BABY CARE, DAILY WASH, DARK GARMENT, STAIN AWAY.“Soak Use this option to effectively remove stains from your laundry by soaking your laundry.The Soak function is performed 13 minutes into the wash cycle.The Soak function continues for 30 minutes with six cycles, where one cycle is a soak cycle that spins for 1 minute and stands still for 4 minutes.The Soak function is only available for the following wash programs: COTTON, COTTON, SYNTHETICS, BEDDING, SUPER ECO WASH, BABY CARE, DAILY WASH, STAIN AWAY.“Intensive”: Press this button when the laundry is heavily soiled and needs to be washed intensively. The cycle time is increased for each cycle. | |
| 7 ECO BUBBLE SELECTION BUTTON | Eco Bubble selection is turned on as a default. Press the Eco Bubble option button once to deselect and the Bubble Generator OFF (shown on the panel), press it again to turn the function back ON.Some wash cycles must have Eco Bubble option ON (will show on the panel, and the Generator will turn on automatically).Other wash cycles do not need this option and automatically turn the Generator OFF.On many cycles, you can manually adjust this option, which will visibly affect wash time on the panel to achieve results (please see page 25 for more information). | |
washing a load of laundry
| 8 EASY IRON SELECTION BUTTON | Press this button to prepare your laundry so that it can be easily ironed by reducing the wrinkles during the spin cycle.Easy Iron is only available for the following wash programs:COTTON, COTTON, SYNTHETICS, BEDDING, SUPER ECO WASH, BABY CARE, DAILY WASH, DARK GARMENT, STAIN AWAY.When Easy Iron is selected, you can set the spin cycle speed up to 800 rpm. (If you select Easy Iron with a spin cycle speed set to higher than 800 rpm, the spinning speed is automatically changed to 800 rpm.) | |
| 9 QUICK WASH SELECTION BUTTON | For lightly soiled garments and less than 2 kg laundry that you require quickly. It takes about minimum 15 minute, but can vary from the indicated values depending on water pressure, water hardness, water inlet temperature, room temperature, type and amount of washing and degree of soiling, utilized detergent unbalanced load, fluctuation in the electricity supply and extra options selected.Press this button repeatedly to choose cycle time: 15 min → 20 min → 30 min → 40 min → 50 min → 1 hr → OffWarningPowdered/Liquid detergent should be under 20 g (for 2 kg load) or detergent may remain on the clothes. | |
| 10 DELAY END SELECTION BUTTON | Press this button repeatedly to cycle through the available Delay End options.The hour displayed indicates the time when the wash cycle will be finished.You can set the time of Delay End in hourly units more than estimated time of current cycle. | |
| WW85H5290E* from 3 hours to 19 hours in one hour increments | ||
| 11 START/PAUSE SELECTION BUTTON(∅) | Press to pause and restart a cycle. | |
| 12 MY CYCLE SELECTION BUTTON(∅) | Choose your favorite cycle including temperature, spin, soil level, option, etc. | |
| 13 POWER BUTTON(∅) | Press it once to turn your washing machine on, press it again to turn your washing machine off.If the washing machine is left on for more than 10 minutes without any buttons being touched, the power automatically turns off. | |

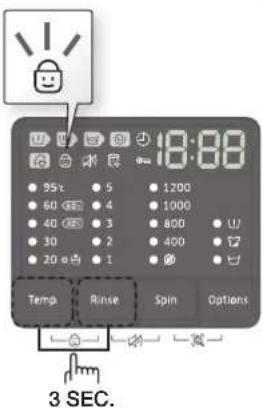

Child lock
The Child Lock function allows you to lock the buttons so that the wash cycle you've chosen can't be changed.
Activating/Deactivating
If you want to activate or deactivate the Child Lock function, press the Temp and Rinse buttons at the same time for 3 seconds. "Child Lock 🔒" will be lit when this feature is activated.
When the Child Lock function is activated, only the Power (⏻) button works. The Child Lock function remains on even after the power is turned on and off or after the disconnecting and reconnecting the power cord.
The Sound Off function can be selected during all courses. When this function is selected, sound is turned off for all courses. Even if the power is turned on and off repeatedly, the setting is retained.
Activating/Deactivating
If you want to activate or deactivate the Sound Off function, press the Rinse and Spin buttons at the same time for 3 seconds. The "Sound Off will be lit when this feature is activated.
You can set the washing machine to finish the current course at specific hours later.
This is useful if you want to finish the wash by the time you come home from business.
- Manually or automatically set your washing machine according to the type of laundry you are washing.
- Press the Delay End button repeatedly until the delay time is set.
- Press the Start/Pause(H) button. The "Delay End ⏻" indicator will be lit, and the clock will begin counting down until it reaches the set time.
- To cancel a Delay End function, press the Power(↓) button and then turn the washing machine on again.
Case study
You want to finish a two-hour course after 3 hours from now. For this, you add the Delay End option to the current course with the 3-hour setting, and press the Start/Pause button at 2:00 p.m. Then, what happens? The washing machine starts operating at 3:00 p.m., and ends at 5:00 p.m. Provided below is the time line for this case.
2:00 pm 3:00 pm 5:00 pm
Start EndSet the Delay End to 3 hours.
English - 23
washing a load of laundry
My cycle
Allows you to activate your custom wash (temperature, rinse, spin, etc.) with one button convenience.
By pushing the My Cycle(4) button, press the My Cycle button to load and use the saved My Cycle options. The "My Cycle" light will indicate activation. Also, the chosen course and option lights will flicker.
You can set all options as follows in the My Cycle mode.
- Turn the water supply on.
- Press the Power(√button.
- Select cycle using the Cycle Selector.
- After cycle selection, set each option.
See the "Cycle Chart" on page 37 for available option settings with each cycle.
- You can then store the selected cycle and options by pressing and holding the My Cycle(☐) button for longer than 3 seconds in My Cycle mode. The cycle and options you select will be displayed the next time you choose the My Cycle function.
You can change the My Cycle settings by repeating the same process above. The last used setting will be displayed the next time you choose the My Cycle function.
If you press My Cycle and release it within 3 seconds, the previously saved course and options appear. If you press and hold My Cycle for 3 second or longer, the currently set course and options are saved and the LED blinks for 3 seconds.
Smart Check
To enable this function, you must first download the "Samsung Smart Washer" app from Google Play or App Store, and install it on a mobile device featuring the camera operation.
-
Press and hold the Spin and Options buttons simultaneously for 3 seconds to enter the Smart Check mode.
-
The washing machine starts the self-diagnosis procedure, and display an error code if an error is found.
-
Run the Samsung Smart Washer app on your mobile device, and tap Smart Check.
-
Present the mobile device to the washing machine's display panel so that the mobile device and the washing machine face each other. Then, the error code will be recognized automatically by the app.
-
When the error code is recognized correctly, the app provides detailed information for the error with further actions.
- If the washing machine reflects light on the display, the app may fail to recognize the error code.
- If the app fails to recognize the Smart Check code consecutively, enter the error code manually onto the app screen.
Eco Bubble
Eco Bubble allows detergent to distribute evenly and penetrate fabrics faster and deeper.
The bubble function is available in all courses except for ECO DRUM CLEAN course and the function availability is as follows.
WW85H5290E*:
| Course Bubble function Canceling the bubble function | ||
| COTTON, COTTON, SYNTHETICS,BEDDING, DAILY WASH,DARK GARMNET, STAIN AWAY | Available | Available |
| WOOL, SUPER ECO WASH, OUTDOOR CARE, BABY CARE, DELICATES | Not available | |
| ECO DRUM CLEAN Not available - | ||
• A different bubble function may be applied depending the course.
Eco Bubble selection is default. Press it once to deselect bubble option, press it again to select bubble option.
- Open the door, place the laundry inside the wash tub and close the door.
- Press the Power(⏻) button.
- Select a function.
-
Place the appropriate amount of detergent and fabric softener into the corresponding compartments depending on the amount of laundry and close the detergent drawer.
-
Add the appropriate amount of detergent into the detergent compartment and add the fabric softener to softener compartment just under the fiber softener base line (MAX) of "A").
- When the Prewash course is selected, add detergent into the prewash compartment① as well.
- To use liquid detergent, leave the liquid detergent box in the drawer(refer to "Liquid Detergent" section on page 29).
Do not add powdered detergent into the liquid detergent box.
-
Press the Start/Pause button.
-
Press the Start/Pause(Ⅱ) button to start the wash.
- The amount of the laundry is automatically detected and the laundry is washed.
- Once a washing machine operation begins, you cannot add or select the bubble function.
• Enough bubbles are generated with the specified amount of detergent.
- Please clean the Debris filter frequently. Periodic cleaning helps generate sufficient bubbles.
- Depending on the detergent and the laundry, the bubbles may be absorbed and seem like a small quantity.
- Although bubbles are generated once the wash begins, it may take several minutes for users to see them.
Washing clothes using the cycle selector
Your new washing machine makes washing clothes easy, using Samsung's "Fuzzy Control" automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed.
- Turn on your sink's water tap.
- Press the Power(√button.
- Open the door.
- Load the articles one at a time loosely into the drum, without overfilling it.
- Close the door.
- Add detergent, softener, and pre-wash detergent (if necessary) into the appropriate compartments.
Pre-wash is only available when selecting the COTTON, e COTTON, SYNTHETICS, BEDDING, SUPER ECO WASH, BABY CARE, DAILY WASH, DARK GARMENT, STAIN AWAY cycles. It is only necessary if your clothing is heavily soiled.
- Use the Cycle Selector to select the appropriate cycle according to the type of material: COTTON, CO TOTTON, SYNTHETICS, BEDDING, WOOL, SUPER ECO WASH, OUTDOOR CARE, BABY CARE, DELICATES, DAILY WASH, DARK GARMENT, STAIN AWAY. The relevant indicators will illuminate on the control panel.
- At this time, you can control the wash temperature, the amount of rinses, the spinning speed, and the delay time by pressing the appropriate option button.
- Press the Start/Pause(▶) button and the wash will begin. The process indicator will light up and the remaining time for the cycle will appear in the display.
Pause Option
Within 5 minutes of starting a wash, it is possible to add/remove laundry items.
- Press the Start/Pause(▷) button to unlock the door.
The door cannot be opened when the water is too HOT or the water level is too HIGH. - After closing the door, press the Start/Pause(▶) button to restart the wash.
When the cycle is finished:
After the total cycle has finished, the power will turn off automatically.
- Open the door.
- Remove laundry.
Washing clothes manually
You can wash clothes manually without using the Cycle Selector.
- Turn the water supply on.
- Press the Power( ) button on the washing machine.
- Open the door.
- Load the articles loosely into the drum one at a time, without overfilling it.
- Close the door.
- Add detergent and, if necessary, softener or prewash detergent, into the appropriate compartments.
- Press the Temp button to select the temperature. (Cold water: ☑, 20°C, 30°C, 40°C, 60°C, 95°C)
- Press the Rinse button to select the required number of rinse cycles.
The maximum number of rinse cycles is five.
The wash duration is increased accordingly. - Press the Spin button to select the spin speed.( ☑: No Spin; □:Rinse Hold )
- Press the Delay End button repeatedly to cycle through the available Delay End options. The hour displayed indicates the time at which the wash will be finished.
- Press the Start/Pause(☐) button and the machine will begin the cycle.
LAUNDRY GUIDELINES
Follow these simple guidelines for the cleanest laundry and the most efficient wash.
Always check the Care label on clothing before washing.
Sort and wash your laundry according to the following criteria:
- Care Label: Sort laundry into cottons, mixed fibres, synthetics, silks, wools and rayons.
• Colour: Divide whites and colours. Wash new colour items separately.
• Size: Placing items of different sizes in the same load will improve the wash action. - Sensitivity: Wash delicate items separately, using the Delicate wash cycle for pure, new woollen items, curtains and silk articles. Check the labels on the items you are washing or refer to the fabric care chart in the appendix.
Emptying pockets
Before each wash, empty all the pockets of your laundry. Small, irregularly shaped hard objects, such as coins, knives, pins, and paperclips could damage your washing machine. Do not wash clothing with large buckles, buttons, or other heavy metal objects.
Metal on clothing may damage your clothing as well as the tub. Turn clothing with buttons and embroidered clothes inside out before washing them. If zips of pants and jackets are open while washing, the spin basket may be damaged. Zips should be closed and fixed with a string before washing.
Clothing with long strings may become entangled with other clothes damaging them. Be sure to fix the strings before starting the wash.
Prewashing cotton
Your new washing machine, combined with modern detergents, will give perfect washing results, thus saving energy, time, water and detergent. However, if your cotton is particularly dirty, prewash with a protein-based detergent.
washing a load of laundry
Determining the load capacity
Do not overload the washing machine or your laundry may not wash properly. Use the chart below to determine the load capacity for the type of laundry you are washing.
| Fabric Type Load Capacity | |
| Model | WW85H5290E* |
| COTTON- average/lightly soiled- heavily soiled | 8.5 kg |
| SYNTHETICS | 3.5 kg |
| BEDDING | 2.0 kg |
| WOOL | 2.0 kg |
| OUTDOOR CARE | 2.0 kg |
| BABY CARE | 4.0 kg |
| DELICATES | 2.0 kg |
- When the laundry is unbalanced ("UE" lights up on the display), redistribute the load. If the laundry is unbalanced, the spin efficiency may be degraded.
- When washing Bedding or Bedding cover, the wash time may be lengthened or the spin efficiency may be degraded.
- For Bedding or Bedding cover, the recommended load capacity is 2.5 kg or less.
Make sure to insert brassieres (water washable) into a laundry net (to be purchased additionally).
- The metal parts of the brassieres may break through the material and damage the laundry. Therefore make sure to place them inside a fine laundry net.
- Small, light clothing such as socks, gloves, stockings and handkerchiefs may become caught around the door. Place them inside a fine laundry net.
Do not wash the laundry net by itself without other laundry. This may cause abnormal vibrations that could move the washing machine and cause an accident resulting in injury.
Which detergent to use
The type of detergent you should use is based on the type of fabric (cotton, synthetic, delicate items, wool), colour, wash temperature, and degree of soiling. Always use “low suds” laundry detergent, which is designed for automatic washing machines.
Follow the detergent manufacturer's recommendations based on the weight of the laundry, the degree of soiling, and the hardness of the water in your area. If you do not know how hard your water is, enquire at your local water authority.
Do not use detergent that has hardened or solidified as the detergent may remain in the rinse cycle. It may cause your washing machine to not rinse properly or result in the overflow becoming blocked.
Detergent drawer
Your washing machine has separate compartments for dispensing detergent and fabric softener. Add all laundry additives to the correct compartment before starting your washing machine.
Do not open the detergent drawer while your washing machine is running or you might be exposed to hot water or steam.

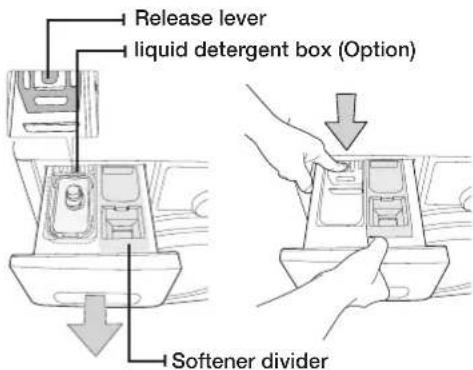

- Pull out the detergent drawer on the left side of the control panel.
- Add the recommended amount of laundry detergent directly into the detergent compartment ⑪ before starting your washing machine.
To use liquid detergent, use the liquid detergent box (refer to "Liquid Detergent" for the corresponding model).
- Do not add powdered detergent into the liquid detergent box.
- Add the recommended amount of fabric softener into the softener compartment if required. DO NOT exceed the MAX FILL (A) line.
Do NOT add any powder/liquid detergent to the softener compartment (®).
When washing large items do NOT use the following detergetnt types.
- Tablet and capsule type detergents - Detergents using a ball and net
Concentrated or thick fabric softener and conditioner must be diluted with a little water before being poured into the dispenser (prevents the overflow from becoming blocked).
Be careful that the fabric softener does not overflow, when you close the detergent drawer after adding fabric softener into the rinse detergent compartment.
Liquid Detergent (Selected models)
To use liquid detergent, place the liquid detergent box into the main wash section of the detergent drawer and pour liquid detergent into the liquid detergent box.
- DO NOT fill above the MAX line. - When using powdered detergent, remove the liquid detergent box from the detergent drawer. Powdered detergent will not dispense with liquid detergent box. - After a wash, some liquid may remain in the detergent drawer.
cleaning and maintaining your washing machine
Keeping your washing machine clean improves its performance, wards off unnecessary repairs, and lengthens its life.

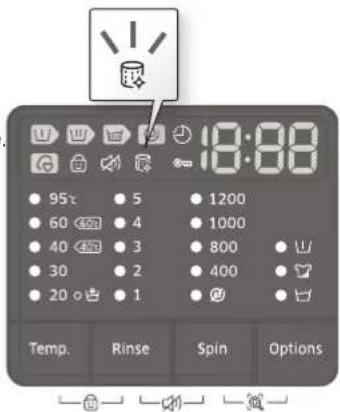

Eco drum cIEan
This course is a self-cleaning course that removes mold that may occur inside the washing machine.
-
Press the Power(⏻) button.
-
Turn the Cycle Selector to the ECO DRUM CLEAN course.
• You can only use the Delay End function.
- The water temperature during the ECO DRUM CLEAN is set to 70 °C.
Due to the features of the washing machine, the water temperature is set to 70 °C during the Eco Drum Clean cycle, but the display can only show 60 °C on the control panel. You cannot change the temperature.
- It will auto set cotton 30 °C middle water level program when cloth is put in.
-
Place the appropriate amount of cleansing agent into the detergent compartment and close the detergent drawer (when cleaning the drum using a cleansing agent).
-
Be sure to use the recommended cleansing agent for cleaning the drum.
- There are powder-type and liquid-type drum cleansing agents. The liquid-type cleaning agent is only available with liquid detergent box (option).
- If you press the Start/Pause button, the ECO DRUM CLEAN course begins.
- Using the ECO DRUM CLEAN course, you can clean the drum without using a cleansing agent.
- Never use the ECO DRUM CLEAN course when laundry is in the washing machine. This may result in damage to the texture or a problem with the washing machine.
• In the ECO DRUM CLEAN course, never use normal detergent.
- Use only 1/10 of the amount of the drum cleansing agent recommended by the cleansing agent manufacturer.
- Since using a chlorine bleaching agent may discolour the product, be sure to use only oxygen bleaching agents.
- Powder-type cleansing agent: Use a [powder-type bleaching agent] or a [cleansing agent for drum cleaning only].
- Liquid-type cleansing agent: Use a [liquid-type oxygen bleaching agent] or a [cleansing agent for drum cleaning only].
The ECO DRUM CLEAN Auto Alarm Function
- If the "ECO DRUM CLEAN" indicator on the display and the lamp on the Cycle Selector are lit after a wash, it indicates that tub (drum) cleaning is required. In this case, remove the laundry from the washing machine, turn the power on, and clean the drum by performing the ECO DRUM CLEAN course.
- If you do not perform the ECO DRUM CLEAN course, the "ECO DRUM CLEAN" indicator on the display and the lamp on the Cycle Selector are turned off. However, the "ECO DRUM CLEAN" indicator on the display and the lamp on the Cycle Selector are turned on again after two washes are performed. However, this will not result in a problem with the washing machine.
- Although generally, the ECO DRUM CLEAN Auto Alarm appears once a month or so, the frequency may differ depending on the number of times the washing machine is used.
- In case of the alarm, please also clean the debris filter (refer to "Cleaning the debris filter" section on page 32). Otherwise the performance of the bubble function may lower down.
DRAINING THE WASHING MACHINE IN AN EMERGENCY
-
Unplug the washing machine from the power supply.
-
Open the filter cover by pressing down and pulling its handle.
Hold the cap on the end of the emergency drain tube and slowly pull it out.
-
Allow all the water to flow into a bowl.
Remain water maybe more than you expected. Prepare larger bowl.
-
Reinsert the emergency drain cap and the drain tube.
-
Replace the filter-cover.
cleaning and maintaining your washing machine
CLEANING THE DEBRIS FILTER
We recommend cleaning the debris filter 5 or 6 times a year, or when the error message of "5E" is displayed. (Refer to "Draining the washing machine in an emergency" in the previous section.) If foreign substances accumulate debris filter, the performance of the bubble function will be degraded.
Before cleaning the debris filter, make sure to unplug the power cord.
- Remove the remaining water first (refer to "Draining the washing machine in an emergency" on page 31.)
If you separate the filter without draining the remaining water, the remaining water may trickle out. - Open the filter cover by using a key or coin.
- Unscrew the emergency drain cap by turning it to the left and drain off all the water.
- Unscrew the debris filter cap.
- Wash any dirt or other material from the debris filter. Make sure the drain pump propeller behind the debris filter is not blocked.
- Replace the debris filter cap.
- Replace the filter cover.
Do not open the debris filter cap while the machine is running or hot water may flow out.
- Make sure to replace the filter cap after the filter cleaning. If the filter is out of the machine, your washing machine may malfunction or leak water.
• The filter should be fully assembled after the filter cleaning.
CLEANING THE EXTERIOR
- Wipe the washing machine surfaces, including the control panel, with a soft cloth using a nonabrasive household detergent.
- Use a soft cloth to dry the surfaces.
- Do not pour water onto the washing machine.
CLEANING THE DETERGENT DRAWER AND DRAWER RECESS
- Press the release lever on the inside of the detergent drawer and pull the drawer out.
- Remove the softener divider and the liquid detergent box(option) from the detergent drawer.
- Replace the softener divider and the liquid detergent box (option) by pushing it firmly into the drawer.
- Push the drawer back into place.
- To remove any remaining detergent, perform a rinse cycle without any laundry in the drum.
You should clean the water hose mesh filter at least once a year, or when the error message of "4E" is displayed:
- Turn off the water supply to the washing machine.
- Unscrew the hose from the back of the washing machine. To prevent water from gushing out due to the air pressure in the hose, cover the hose with a cloth.
- Gently pull out the mesh filter from the end of the hose using a pair of pliers and rinse it under water until clean. Also clean inside and outside the threaded connector.
- Push the filter back into place.
- Screw the hose back onto the washing machine.
- Make sure the connections are watertight and turn on the tap.
cleaning and maintaining your washing machine
rEpairinG a froZEn WasHinG macHinE
If the temperature drops below freezing and your washing machine is frozen:
- Unplug the washing machine.
- Pour warm water over the tap to loosen the water supply hose.
- Remove the water supply hose and soak it in warm water.
- Pour warm water into the washing machine drum and let it sit for 10 minutes.
- Reconnect the water supply hose to the water tap and check if the water supply and drain are operating normal.
storinG your WasHinG macHinE
If you need to store your washing machine for an extended time, it's better to drain and disconnect it. Washing machines can be damaged if water is left in the hoses and internal components before storage.
- Select the COTTON cycle and push the Quick Wash button and run your washing machine through the cycle without a load.
- Turn the water taps off and disconnect the inlet hoses.
- Unplug your washing machine from the electrical outlet, and leave your washing machine door open to allow air to circulate inside the tumbler.
If your washing machine has been stored in below-freezing temperatures, allow time for any leftover water in your washing machine to thaw out before using it.
troubleshooting and information codes
CHECK THESE POINTS IF YOUR WASHING MACHINE...
| PROBLEM SOLUTION | |
| Will not start • Make sure your washing machine is plugged in.Make sure the door is firmly closed.Make sure the water source tap(s) are turned on.Make sure to press the Start/Pause button. | |
| Has no water or not enough water | Turn the water tap on fully.Make sure the water source hose is not frozen.Straighten the water intake hoses.Clean the filter on the water intake hose. |
| Has detergent remaining in the detergent drawer after the wash cycle is complete | Make sure your washing machine is running with sufficient water pressure.Make sure the detergent is added to the center of the detergent drawer. |
| Vibrates or is too noisy | Make sure your washing machine is on a level surface. If the surface is not level, adjust the washing machine feet to level the appliance.Make sure that the shipping bolts are removed.Make sure your washing machine is not touching any other object.Make sure the laundry load is balanced. |
| The washing machine does not drain and/or spin | Straighten the drain hose. Eliminate kinked hoses.Make sure the debris filter is not clogged. |
| Door is locked shut or will not open. | The door will not open until 3 minutes after the machine stops or the power turns off. |
If the problem persists, contact your local Samsung Customer Service.
troubleshooting and information codes
information codEs
If your washing machine malfunctions, you may see an information code on the display. If this happens, please check the table below and try the suggested solution before calling Customer Service.
| CODE SYMBOL SOLUTION | |
| dE | Make sure the door is firmly closed.Make sure that laundry is not caught in the door. |
| 4E | Make sure the source water tap is turned on.Check the water pressure.Clean the mesh filters of water hose.When the washer displays the “4E” code, the washer do draining for 3 minutes. During this time, the Power button is inoperative. |
| 5E | Clean the debris filter.Make sure the drainage hose is installed correctly.Clean the water hose mesh filter. |
| UE | The laundry load is unbalanced. Redistribute the load. If only one item of clothing needs washing, such as a bathrobe or pair of jeans, the final spin result might be unsatisfactory and an “UE” error message will be shown in the display window. |
| cE/3E | Call the after-sales service. |
| Sd/Sud | This occurs when too much foaming is detected. It is also displayed while foaming is removed. When the removal is finished, the normal cycle proceeds.(This is one of the normal operations. It is an error for preventing non-sensing faults.) |
| Uc | If the voltage of the supplied power is instable, the washing machine will be paused to protect its electric devices.If the correct voltage is supplied, the cycle will resume automatically. |
For any codes not listed above, or if the suggested solution doesn't fix the problem, call your Samsung Service Centre or local Samsung dealer.
cycle chart
cyclE cHart
(● user option)
WW85H5290E*:
| PROGRAM | Max load(kg) DETERGENT | Max Temp (°C) | Spin Speed(MAX) rpm | |||
| WW85H5290E* | Pre-wash wash | Softener WW85H5290E* | ||||
| cotton 8.5 | ● | yes | ● | 95 1200 | ||
| ce cotton | 8.5 | ● | yes | ● | 60 1200 | |
| syntHEtics 3.5 | ● | yes | ● | 60 1200 | ||
| bEddinG 2.0 | ● | yes | ● | 60 800 | ||
| Wool 2.0 - yes | ● | 40 800 | ||||
| Eco drum cIEan -- yes - 70 400 | ||||||
| supEr Eco WasH | 4.0 | ● | yes | ● | 40 1200 | |
| outdoor carE 2.0 - yes | ● | 40 1200 | ||||
| baby carE | 4.0 | ● | yes | ● | 95 1200 | |
| dElicatEs | 2.0 - yes | ● | 40 400 | |||
| daily WasH | 4.0 | ● | yes | ● | 60 1200 | |
| dark GarmEnt 4.0 | ● | yes | ● | 40 1200 | ||
| stain aWay | 4.0 | ● | yes | ● | 60 1200 | |
| PROGRAM | Eco Bubble | Delay end | Easy Iron | Intensive | Soak | Quick Wash |
| cotton | ● | ● | ● | ● | ● | ● |
| ce cotton | ● | ● | ● | ● | ● | - |
| syntHEtics | ● | ● | ● | ● | ● | - |
| bEddinG | ● | ● | ● | ● | ● | - |
| Wool | ● | ● | - | - | - | - |
| Eco drum clEan | - | ● | - | - | - | - |
| supEr Eco WasH | ● | ● | ● | ● | ● | - |
| outdoor carE | ● | ● | - | - | - | - |
| baby carE | ● | ● | ● | ● | ● | - |
| dElicatEs | ● | ● | - | - | - | - |
| daily WasH | ● | ● | ● | - | ● | - |
| dark GarmEnt | ● | ● | ● | ● | - | - |
| stain aWay | ● | ● | ● | ● | ● | - |
- A cycle with a prewash takes approx. 19 minutes longer.
- The cycle duration data has been measured under the conditions specified in Standard IEC60456/EN60456.
Please run Calibration Mode after the installation (see page 18). - Cotton 60 °C and 40 °C + Eco Bubble are programs according to EN60456.
- Course time in individual homes may differ from the values given in the table due to variations in the pressure and temperature of the water supply, the load and the type of laundry.
- When the Intensive Wash function is selected, the cycle time is increased for each cycle.
English - 37
appendix
fabric carE cHart
The following symbols provide garment care directions. The care labels include four symbols in this order: washing, bleaching, drying and ironing (and dry cleaning when necessary). The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundry problems.
[Z2:  | Resistant material Can be ironed at 100 °C max | ||
 Delicate fabric Do not iron | |||
 Item may be washed at 95 °C | Can be dry cleaned using any solvent | ||
 Item may be washed at 60 °C | Dry clean with perchloride, lighter fuel, pure alcohol or R113 only | ||
 Item may be washed at 40 °C | Dry clean with aviation fuel, pure alcohol or R113 only | ||
 Item may be washed at 30 °C Do not dry clean | |||
 Item may be hand washed Dry flat | |||
 Dry clean only Can be hung to dry | |||
 Can be bleached in cold water Dry on clothes hanger | |||
 Do not bleach Tumble dry, normal heat | |||
 Can be ironed at 200 °C max Tumble dry, reduced heat | |||
 Can be ironed at 150 °C max Do not tumble dry |
protEctinG tHE EnVironmEnt
- This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance.
- Do not exceed the detergent quantities recommended in the detergent manufactures' instructions.
• Use stain removal products and bleaches before the wash cycle only when strictly necessary. - Save water and electricity by only washing full loads (the exact amount depends upon the program used).
appendix
spEcifications
| TYPE FRONT LOADING WASHING MACHINE | |||
| dimEnsions | WW85H5290E* | ||
| W600mm X D600mm X H850mm | |||
| WatEr prEssurE | 50 kPa ~ 800 kPa | ||
| WatEr VolumE | 51 ℓ | ||
| nEt WEiGHt | WW85H5290E* | ||
| 68 kg | |||
| WasH and spin capacity | 8.5 kg | ||
| poWEr consumption | MODEL WW85H5290E* | ||
| WASHING | 220 V 120 W | ||
| 240 V 120 W | |||
| WASH AND HEATING | 220 V 2000 W | ||
| 240 V 2400 W | |||
| SPIN | MODEL WW85H5290E* | ||
| 230V 500 W | |||
| PUMPING 34 W | |||
| spin rEVolutions | MODEL WW85H5290E* | ||
| rpm 1200 | |||
The appearance and specifications of the product are subject to change without prior notice for purposes of product enhancement.
memo
memo
memo
memo
SAMSUNG
QUESTIONS OR COMMENTS?
| Country CALL OR VISIT US ONLINE AT | ||
| INDONESIA | 021-5699777708001128888 | www.samsung.com/id/support |
WW85H5290E*
Line drawing of a hand using a tool to adjust or install a component (no text or symbols present)LANGKAH 4
Diagram showing two-step installation of a faucet with labeled parts and directional arrows indicating movement.natural_image
Two identical illustrations of a faucet with a valve, each marked with a black X symbol (no text or labels present)- Jika mulut keran air berulir, sambungkan keran penyedia air ke mulut keran seperti ditunjukkan.
Diagram of a car interior showing labeled compartments A, B, and C with directional arrows indicating flow or movement.natural_image
Illustration of a brached top being placed into a box with patterned lid (no text or symbols)text_image
Diagram of a refrigerator interior with labeled compartments I, II, and A, showing airflow or ventilation flow.
WOOL
RINSE+SPIN
ECO DRUM CLEAN
- Jika Anda menekan tombol Mulai/Jeda(II), program ECO DRUM CLEAN(BERSIHKAN TABUNG EKO) dimulai.

