12200012 - Blender Exido - Free user manual and instructions

Product Type	Blender
Brand	Exido
Model	12200012
Power	400W
Capacity	1.5 liters
Speed Settings	2 speeds + pulse function
Blade Material	Stainless steel
Jug Material	Plastic, BPA-free
Dimensions (HxWxD)	40 x 20 x 20 cm
Weight	1.5 kg
Power Supply	220-240 V, 50/60 Hz
Functions	Blending, pureeing, crushing ice
Cleaning	Removable jug and lid, dishwasher safe (jug only)
Safety Features	Safety lock lid, non-slip base, overheat protection
Included Accessories	Blending jug, lid, measuring cup
Warranty	1 year limited

Frequently Asked Questions - 12200012 Exido

How do I use the Exido 12200012 blender?

Place the jug on the base, add ingredients, and secure the lid. Select a speed using the dial or press the pulse button for short bursts. Always ensure the lid is locked before operation.

Can this blender crush ice?

Yes, the stainless steel blades are designed to crush ice. Use the pulse function and add ice gradually for best results.

How should I clean the blender?

The jug and lid are removable and can be washed in warm soapy water or placed on the top rack of a dishwasher. Wipe the motor base with a damp cloth. Never immerse the base in water.

What safety features does it have?

The blender includes a safety lock that prevents operation if the lid is not properly secured. It also has non-slip feet and an overheat protection system.

Can I blend hot liquids?

No, do not blend hot liquids as pressure buildup can cause the lid to blow off and result in burns. Allow liquids to cool below 60°C before blending.

How do I replace the blade assembly?

Contact Exido customer service for replacement parts. Do not attempt to remove the blade assembly yourself as it requires proper tools and sealing to avoid leakage.

Is the blender dishwasher safe?

The plastic jug and lid are dishwasher safe (top rack only). The blade assembly and motor base should be cleaned by hand with a damp cloth.

What is the voltage and frequency?

The blender operates on 220-240 V, 50/60 Hz. Use only with matching electrical outlets.

What is the warranty period?

The Exido 12200012 comes with a 1-year limited warranty covering manufacturing defects. See the manual for details.

What is the capacity of the jug?

The blender jug has a maximum capacity of 1.5 liters. Do not exceed the maximum fill line indicated on the jug.

USER MANUAL 12200012 Exido

OVERSIGT OVER APPARATETS DELE

To get the best out of your new appliance, please read this user guide carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference, so that you can remind yourself of the functions of your appliance.

SAFETY MEASURES

General

• Incorrect use of this appliance may cause personal injury and damage.
• Use for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Guarantee Terms).

- For domestic use only. Not for outdoor or commercial use.

- For connection to 230 V, 50 Hz only.

- Do not immerse the appliance, cord or plug in water and make sure no water enters the appliance.

• Never touch the appliance, cord or wall socket with wet or damp hands.
• Do not expose the appliance to direct sunlight, high temperatures, humidity, dust or corrosive substances.
• Never leave the appliance unattended when it is switched on.
• Keep the appliance under constant supervision while in use. keep an eye on children in the vicinity of the appliance when it is being used. The appliance is not a toy.
• The appliance is not to be used by persons with reduced sensitivity, physical or mental disabilities or persons who are unable to use the appliance, unless supervised or instructed by a person responsible for their safety.
• The appliance contains sharp parts - keep out of the reach of children.
  Use only accessories supplied with the appliance or those recommended by the manufacturer.

Use

• Always use with a bowl.
- Do not switch on unless the whisks or dough hook are fitted.

- Do not leave the appliance running for more than 5 minutes at a time. If the appliance has been running for more than 5 minutes, leave it to cool down before you use it again.

- Putting too many ingredients in the bowl can overload the motor.

- Never touch the whisks or dough hook while in operation. Risk of serious injury. Switch off appliance and wait until the whisks or dough hook have stopped revolving before touching them.

- Never stick kitchen implements or other objects into the whisks or dough hooks while in operation. Risk of serious injury and damage to the appliance.

- Never eject the whisks or dough hooks while the appliance is in operation.

- Switch appliance off and disconnect from the mains before cleaning, changing whisks/dough hooks and when not in use.

• Remove whisks/dough hooks from the appliance before cleaning them.
• Do not cover the ventilation holes.
• Never insert anything into the ventilation holes.

Cord and plug

• Do not let the cord hang out over the edge of the work surface.
• Check that it is not possible to pull or trip over the cord or any extension cord.
• Keep the cord and appliance away from heat sources, hot objects and naked flames.
• Unplug before changing accessories, cleaning, and when not in use. Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
• Ensure that the cord is fully extended.
• The cord must not be twisted or wound around the appliance.
• Check regularly that neither cord nor plug is damaged and do not use if they are, or if the appliance has been dropped or damaged in any other way.

- If the appliance, cord or plug have been damaged, have the appliance inspected and if necessary repaired by an authorised repairer. Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under the guarantee. Unauthorised repairs or modifications to the appliance will invalidate the guarantee.

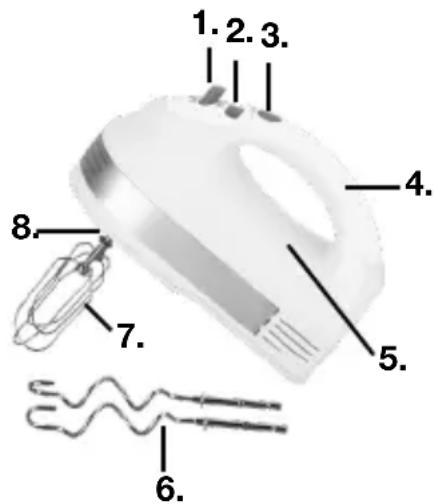

KEY TO THE MAIN COMPONENTS OF THE APPLIANCE

1. Eject button (EJECT)
2. Speed button
3. Turbo button (TURBO)
4. Handle
5. Motor section
6. Dough hooks
7. Whisks
8. Harness holes

PRIOR TO FIRST USE

• Remove all packaging and transport materials from the inside and outside of the appliance.
• Check that the appliance has no visible damage and that no parts are missing.
• Clean all parts that come into contact with food before using the appliance for the first time (or after prolonged storage). See "Cleaning".

USING THE APPLIANCE

1. Fit the whisks (7) or dough hooks (6) in their holes (8); press them home and turn until you hear them click. o The two whisks are identical and fit in either hole. o The two hooks are different: The hook with a flat ring at the top can ONLY be inserted into the marked hole, whilst the other can ONLY be inserted in the other hole.
2. Check that the speed button (2) is set to 0 (= off).
3. Connect the appliance.
4. Lower the whisks/dough hooks into the bowl with ingredients before switching on to avoid splashes.

1. Switch on by pushing the speed button to the right.
   o The appliance has 5 speed settings: 1 is the lowest and 5 the highest.
   o Start at low speed and gradually increase.
   o Putting too many ingredients in the bowl can overload the motor.

2. Press the Turbo button (3) at any setting to boost speed. Only use the Turbo button for a short period at a time.

3. Turn off the appliance by pushing the speed button to position "0" when you have finished using it.

4. Disconnect from the mains before removing whisks or dough hooks. Press the eject button (1).

STORAGE

• Ensure that the appliance is clean, dry and completely cool before storing it.
• Store the appliance in a clean and dry place, for instance in its box.
• Do not place heavy objects on top of the appliance.
• The cord must not be twisted or wound around the appliance.

CLEANING

When cleaning the appliance, you should pay attention to the following:

- Remove the plug from the mains socket, and allow the appliance to cool down completely before cleaning it.

- Never immerse the appliance in water and make sure no water enters the appliance.

- Clean the appliance by wiping it with a damp cloth. A little detergent can be added if the appliance is heavily soiled.

- Whisks and dough hooks can be washed in soapy water by hand or in a dishwasher.

- Do not use scouring pads, steel wool or any form of strong solvents or abrasive cleaning agents to clean the appliance, as they can damage the external surfaces of the appliance.

- IMPORTANT! Allow to dry completely after cleaning. Do not use the appliance if it is damp.

- Always clean the appliance before putting it away if it is not to be used for a prolonged period.

FOR UNITED KINGDOM ONLY

Plug wiring:

This product is fitted with a BS 1363 5-amp plug. If you have to replace the fuse, only those that are ASTA or BSI approved to BS1362 and with a rated current of 5 amps should be used. If there is a fuse cover fitted, this cover must be refitted after changing the fuse. If the fuse cover is lost or damaged, the plug must not be used. You must also check if the socket outlets in your home fit with the plug of the appliance. If the socket outlet in your home does not fit with the plug, the plug must be removed and disposed of safely as insertion of the plug into the socket is likely to cause electric hazard.

As this product is a class II appliance, the pin of BS plug for earth connection is false.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Adexi product is marked with this symbol: 📋

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

In accordance with the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge. In some member states you can in certain cases return used equipment to the retailer from whom you purchased it, if you are purchasing new equipment. Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

GUARANTEE TERMS

The guarantee does not apply:

• if the above instructions have not been followed
• if the appliance has been tampered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
  to faults in the electricity supply.

- if the appliance is faulty due asked questions.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu. Go to the “Consumer Services” menu and click on “Frequently Asked Questions” to view the most frequently

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

IMPORTER

Adexi Group

www.adexi.eu

We cannot be held responsible for any printing errors.
