245-092 - Milk frother Exido - Free user manual and instructions

Product Type	Milk Frother
Brand	Exido
Model	245-092
Capacity (Heating)	240 ml (max)
Capacity (Frothing)	115 ml (max)
Power Supply	230 V ~ 50 Hz
Plug Type	BS 1363 13-amp (UK)
Functions	Heating, Frothing, Heating & Frothing
Automatic Shut-off	Yes
Overload Protection	Yes (flashing blue indicator)
Jug Material	Non-stick coating
Lid Material	Plastic with silicone seal
Accessories	Whisk and Stirrer
Storage	Whisk and stirrer store in lid
Cleaning	Hand wash only; not dishwasher safe
Do Not Immerse	Base, cord, and plug must not be immersed
Indicator Lights	Two (power/heat and frothing)
Control	Start/Pause button
Safety Features	Do not operate without milk; do not overfill; cool down before reuse
Usage	Domestic use only
Heating Time	Approx. 2 minutes to 70°C
Frothing Time	Approx. 65 seconds
Cool-down Time	2 minutes before next use

Frequently Asked Questions - 245-092 Exido

How do I heat milk without frothing?

Install the stirrer (not the whisk), pour milk up to the top mark (240 ml), close lid, place on base, and press the start/pause button. The appliance will automatically shut off when the milk reaches approximately 70°C.

How do I froth milk?

Install the whisk, pour milk up to the middle mark (115 ml), close lid, place on base, and hold the start/pause button for about 2 seconds. The top indicator light will turn on and frothing starts. It shuts off automatically after about 65 seconds.

Can I heat and froth milk at the same time?

Yes. For heating and frothing, install the whisk, fill milk to the middle mark (115 ml), and press the start/pause button normally (short press). The appliance will heat and froth the milk simultaneously and shut off at optimal temperature.

What should I do if the blue indicator light keeps flashing?

The appliance is overloaded. Disconnect the power and wait approximately 5 minutes before using it again.

How should I clean the milk frother?

Unplug and let it cool completely. Clean whisk and stirrer in warm soapy water, rinse, and dry. Fill the jug with warm water, let it stand, empty, and wipe with a damp cloth. Do not immerse the base, cord, or plug. The appliance is not dishwasher safe.

Can I wash the jug and accessories in the dishwasher?

No, the appliance and accessories are not dishwasher safe. Hand wash only.

What type of milk can I use?

The appliance is designed for cow's milk. Other types of milk may produce less foam or not heat properly. Always ensure the milk volume is above the bottom mark.

How long does it take to heat milk?

Heating milk to approximately 70°C takes about 2 minutes. The appliance shuts off automatically.

Can I use the appliance without the lid?

No, the lid must be closed during use for proper operation and automatic shut-off. The silicone seal ensures a tight fit.

What should I do if the appliance does not turn on?

Check that the plug is connected to a suitable socket (230 V, 50 Hz) and that the base is dry. Make sure the jug is properly placed on the base. If the appliance still does not work, contact customer service.

USER MANUAL 245-092 Exido

UK Electric milk frother 22

OVERSIGT OVER APPARATETS DELE

INNAN FÖRSTA ANVÄNDNING

F∅R APPARATET TAS I BRUK F∅RSTE GANG

ENNEN ENSIMMÄISTÄ KÄYTTÖKERTAA

To get the best out of your new appliance, please read this user guide carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference, so that you can remind yourself of the functions of your appliance.

SAFETY MEASURES

General

• Incorrect use of this appliance may cause personal injury and damage.
• Use for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Guarantee Terms).
• For domestic use only. Not for outdoor or commercial use.
• For connection to 230 V, 50 Hz only.
• Never immerse the base of the appliance, the cord or plug in water, and make sure no water enters the base.
• Never touch the appliance, cord or plug with wet or damp hands.
• Do not expose the appliance to direct sunlight, high temperatures, humidity, dust or corrosive substances.

• Never leave the appliance unattended when it is switched on.

• Keep the appliance under constant supervision while in use. Keep an eye on children in the vicinity of the appliance when it is being used. The appliance is not a toy.

• The appliance is not to be used by persons with reduced sensitivity, physical or mental disabilities or persons who are unable to use the appliance, unless supervised or instructed by a person responsible for their safety.
• Use only accessories supplied with the appliance or those recommended by the manufacturer.
• The appliance may only be used with the base supplied. The base supplied must not be used with other appliances.

Use

• Always place the appliance on a dry, level, firm and heat-resistant surface well away from any edges.
• The appliance must not be placed or stored near other sources of heat.
• Do not cover.
• Do not switch on the appliance unless there is milk in it.
• Do not fill the appliance above the top mark (240 ml) when heating milk and above the middle mark (115 ml) when frothing milk. The marks are on the inside of the jug.

• Make sure the lid is closed when the appliance is in use, as the automatic switch-off function otherwise does not operate correctly.

• Avoid touching the outside of the appliance when in use, as it becomes hot. Always hold the lid by the handle. Be careful of hot steam when opening the lid.

• Please note that the appliance will remain hot for a while after you switch it off. Always allow it to cool completely before you put it away or clean it.
• If the blue indicator lamp keeps flashing, the appliance is overloaded. Disconnect the power and wait approximately 5 minutes before using the appliance again.

Cord and plug

• Do not let the cord hang out over the edge of the work surface.
• Keep the cord and appliance away from heat sources, hot objects and naked flames.
• Unplug before changing accessories or cleaning and when not in use. Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
• Check regularly that neither cord nor plug is damaged and do not use if they are, or if the appliance has been dropped or damaged in any other way.
• If the appliance, cord or plug has been damaged, have the appliance inspected and if necessary repaired by an authorised repairer. Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under the guarantee. Unauthorised repairs or modifications to the appliance will invalidate the guarantee.

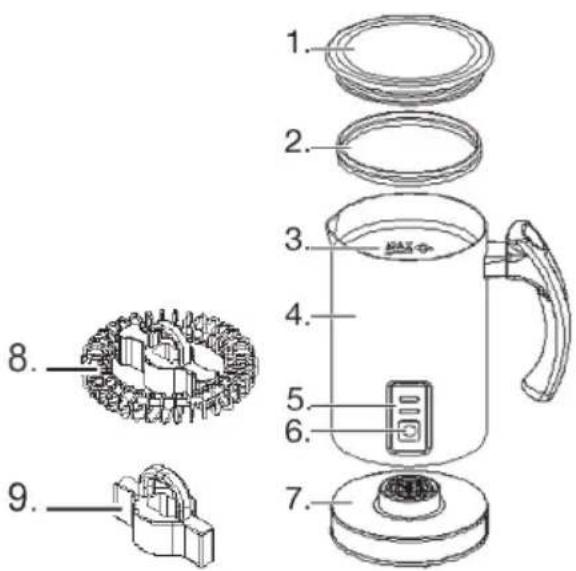

KEY TO THE MAIN COMPONENTS OF THE APPLIANCE

1. See-through lid
2. Silicone seal (ring)
3. Max. filling
4. Jug with non-stick coating
5. Indicator lights
6. Start/pause button
7. Base with power cord
8. Whisk
9. Stirrer

PRIOR TO FIRST USE

• Remove all packaging and transport materials from the inside and outside of the appliance.
• Check that the appliance has no visible damage and that no parts are missing.
• Clean all parts that come into contact with food before using the appliance for the first time (or after prolonged storage). See “Cleaning”.

USING THE APPLIANCE

Heating of milk

1. Remove the lid (1).
2. Install the stirrer (9) in the base of the jug (4).
3. Pour the desired quantity of milk into the appliance.

Do not fill the appliance above the top mark (3) on the inside of the edge (240 ml). Always ensure that the amount of milk exceeds the bottom mark.

1. Check that the silicone seal (2) is correctly fitted to the lid and seals properly.

2. Close the lid and ensure that it clicks into place.

3. Place the appliance on the base (7) and connect the appliance.

4. Press the "start/pause" (6) button to switch on the appliance. The two indicator lamps (5) are lit and the appliance will start heating the milk.

5. The appliance will turn off automatically a few seconds after the milk has reached the optimum temperature (approximately 70 °C). It takes around 2 minutes.

6. Leave the appliance to cool for two minutes before using it again.

7. Remove the plug from the socket and allow the appliance to cool after use.

8. Clean all parts before storing the appliance. See "Cleaning".

Heating and frothing of milk

1. Remove the lid.

2. Fit the whisk (8) into the base of the jug.

3. Pour the desired quantity of milk into the appliance. o Do not fill the appliance above the middle mark on the inside of the jug (115 ml). Always ensure that the amount of milk exceeds the bottom mark.

4. Check that the silicone seal is correctly fitted to the lid and seals properly.

5. Close the lid and ensure that it clicks into place.

6. Place the appliance on the base and connect the appliance.

7. Press the "Start/pause" button to switch on the appliance. The two indicator lamps are lit and the appliance will start heating the milk.

8. The appliance will turn off automatically a few seconds after the milk has reached the optimum temperature (approximately 70^ C). It takes around 2 minutes.

9. Leave the appliance to cool for two minutes before using it again.

10. Remove the plug from the socket and allow the appliance to cool after use.

11. Clean all parts before storing the appliance. See "Cleaning".

Frothing of milk

1. Remove the lid.
2. Fit the whisk into the base of the jug.
3. Pour the desired quantity of milk into the appliance.

Do not fill the appliance above the middle mark on the inside of the jug (115 ml). Always ensure that the amount of milk exceeds the bottom mark.

1. Check that the silicone seal (2) is correctly fitted to the lid and seals properly.
2. Close the lid and ensure that it clicks into place.
3. Place the appliance on the base and connect the appliance.
4. Start the appliance by holding down the "start/pause" button for approximately 2 seconds. The top indicator lamp will be lit and the appliance starts frothing the milk.
5. The appliance will turn off automatically a few seconds after the frothing of the milk has completed (it takes about 65 seconds).
6. Remove the plug from the socket once you have finished using the appliance.
7. Clean all parts before storing the appliance. See "Cleaning".

Tip: The stirrer and the whisk can be stored in the holder on the inside of the lid when not in use.

CLEANING

When cleaning the appliance, you should pay attention to the following:

• Remove the plug from the mains socket, and allow the appliance to cool down completely before cleaning it.
• Never immerse the base of the appliance, the cord or plug in water, and make sure no water enters the base.
• Clean the appliance and the accessories carefully after each use.

o Clean the whisk and stirrer in warm soapy water. Rinse the parts in clean water and leave them to dry.
o Fill the jug with warm water and leave it to stand for a couple of minutes. Empty the jug and wipe it with a clean damp cloth. Wipe dry with a dry cloth or tea towel.
o The appliance and accessories are not dishwasher-safe.

- Do not use scouring pads, steel wool or any form of strong solvents or abrasive cleaning agents to clean the appliance, as they can damage the external surfaces of the appliance.

- IMPORTANT! Allow to dry completely after cleaning. The appliance must not be used if the base or the bottom of the jug is wet.

- Always clean the appliance before putting it away if it is not to be used for a prolonged period.

FOR UNITED KINGDOM ONLY

Plug wiring:

This product is fitted with a BS 1363 13-amp plug. If you have to replace the fuse, only those that are ASTA or BSI approved to BS1362 and with a rated current of 13 amps should be used. If there is a fuse cover fitted, this cover must be refitted after changing the fuse. If the fuse cover is lost or damaged, the plug must not be used. You must also check if the socket outlets in your home fit with the plug of the appliance. If the socket outlet in your home does not fit with the plug, the plug must be removed and disposed of safely as insertion of the plug into the socket is likely to cause electric hazard. A replacement plug should be wired according to following description.

Important

This appliance must be earthed. The wires in the cord set are coloured thus:

BLUE- Neutral, Brown-Live, Green& Yellow-earth (For detachable plug only)

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire that is coloured Green& Yellow must be connected to the terminal in the plug that is marked

The wire that is coloured blue must be connected to the terminal that is marked with the letter N or coloured black.

The wire that is couloured brown must be connected to the terminal that is marked with the letter L or coloured red.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Adexi product is marked with this symbol: 📋

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

In accordance with the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge. In some member states you can, in certain cases, return the used equipment to the retailer from whom you purchased it, if you are purchasing new equipment. Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

GUARANTEE TERMS

The guarantee does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• if the appliance is faulty due to faults in the electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu.

Go to the “Consumer Services” menu and click on “Frequently Asked Questions” to view the most frequently asked questions.

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

IMPORTER

Adexi Group www.adexi.eu

We cannot be held responsible for any printing errors.
