245106 - Boiler Exido - Free user manual and instructions

Product Type	Electric Water Heater (Boiler)
Model	245106
Brand	Exido
Capacity	50 Liters
Power Supply	230 V ~ 50 Hz
Power Consumption	2000 W
Dimensions (H x W x D)	85 cm x 45 cm x 45 cm
Weight	22 kg
Temperature Range	30°C to 75°C
Maximum Pressure	8 bar
Heating Element	Enclosed stainless steel
Insulation	Polyurethane foam
Safety Features	Thermal cut-off, pressure relief valve, anti-corrosion anode
Installation	Wall-mounted vertical
Connection	G 1/2 inch water connections
Certification	CE
Warranty	2 years
Maintenance	Descaling recommended every 6 months; replace anode every 2 years
Spare Parts Availability	Thermostat, heating element, anode, safety valve
Manual Languages	EN, DA, DE, FI, NO, SV

Frequently Asked Questions - 245106 Exido

How do I set the water temperature on my Exido 245106 boiler?

Use the temperature dial on the front of the boiler. Turn it to your desired setting, typically between 30°C and 75°C. Wait for the water to heat up.

Why is my boiler leaking water?

Common causes include a faulty pressure relief valve, loose connections, or a damaged tank. Check the valve and connections first. If the leak persists, consult a professional.

How often should I descale the boiler?

Descaling is recommended every 6 months to prevent limescale buildup, especially in hard water areas. Use a descaling solution suitable for electric water heaters.

What does the pressure relief valve do?

The pressure relief valve automatically releases excess pressure to prevent tank rupture. If it discharges water frequently, the pressure may be too high; check your expansion tank.

How can I reduce my energy consumption?

Set the thermostat to 50-60°C, insulate exposed pipes, and consider an insulation blanket around the tank. Also, reduce hot water usage.

What should I do if the water is not heating?

Check the power supply and circuit breaker. If power is on, the thermostat or heating element may be faulty. These are replaceable spare parts.

Can I install the boiler myself?

Installation should be performed by a qualified professional to ensure proper electrical and plumbing connections and compliance with local codes.

How do I replace the sacrificial anode?

The anode should be inspected every 2 years. To replace, drain the tank, remove the old anode (usually located on top), and install a new one. Tighten securely.

Why does my boiler make a rumbling noise?

Rumbling is often caused by sediment buildup at the bottom of the tank. Flushing the boiler regularly (every 6-12 months) can reduce noise.

What is the warranty period?

The Exido 245106 comes with a 2-year warranty covering manufacturing defects. Retain your purchase receipt for warranty claims.

USER MANUAL 245106 Exido

OVERSIGT OVER APPARATETS DELE

To get the best out of your new appliance, please read this user guide carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference, so that you can remind yourself of the functions of your appliance.

SAFETY MEASURES

General

• Incorrect use of this appliance may cause personal injury and damage.
• Use for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Guarantee Terms).
• For domestic use only. Not for outdoor or commercial use.
  • For connection to 230 V, 50 Hz only.
• Never submerge the appliance base, cord or plug in water, and no water must be allowed to enter the appliance base.
• Never touch the appliance, cord or plug with wet or damp hands.
• Do not expose the appliance to direct sunlight, high temperatures, humidity, dust or corrosive substances.
• Keep the appliance under constant supervision while in use. Keep an eye on children in the vicinity of the appliance when it is being used. The appliance is not a toy.

• The appliance should not be used by persons with reduced sensitivity, physical or mental disabilities or persons who are unable to use the appliance, unless supervised or instructed by a person responsible for their safety.

• Use only accessories supplied with the appliance or those recommended by the manufacturer.

• The appliance may only be used with the base supplied.

Use

• Always place the appliance on a dry, level, firm and heat-resistant surface well away from any edges.
• The appliance must not be placed or stored near other sources of heat.
• Do not cover.
• Do not switch on the appliance unless there is water in it.
• The water level in the appliance must not be below the marks "MIN" or above "MAX" on the water level gauge.
• Avoid touching the outside of the appliance when in use, as it becomes hot. Touch the handle and buttons only. Be careful of hot steam when opening the lid.
• Please note that the appliance will remain hot for a while after you switch it off. Always allow it to cool completely before you put it away or clean it.

Cord and plug

• Do not let the cord hang out over the edge of the work surface.
• Keep the cord and appliance away from heat sources, hot objects and naked flames.
• Remove the plug from the socket before removing the lid from the appliance, before cleaning, or when the appliance is not in use. Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.

- Check regularly that neither the cord nor the plug is damaged and do not use if they are, or if the appliance has been dropped or damaged in any other way.

- If the appliance, cord or plug has been damaged, have the appliance inspected and if necessary repaired by an authorised repairer. Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under the guarantee. Unauthorised repairs or modifications to the appliance will invalidate the guarantee.

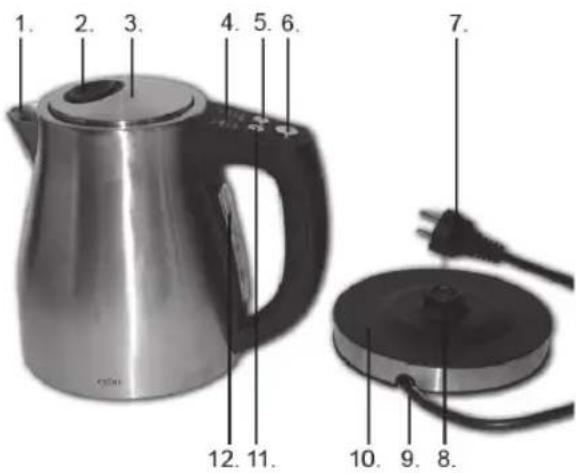

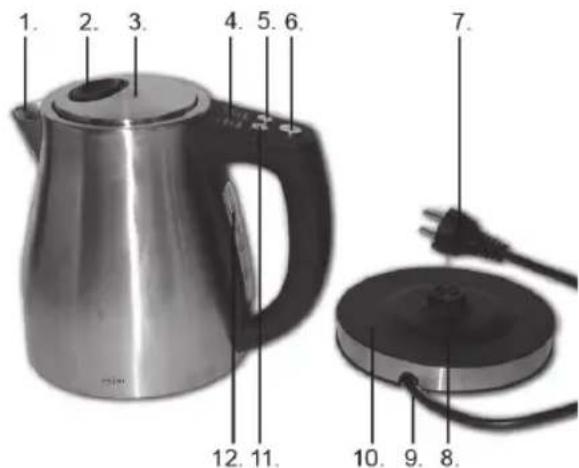

KEY TO THE MAIN COMPONENTS OF THE APPLIANCE

1. Limescale filter (not shown)

2. Release button for lid

3. Lid

4. Four temperature indicators (40°C, 60°C, 80°C, 100°C)

5. Button for adjusting the temperature

6. On/Off button

7. Cord and plug

8. Connector

9. Cord holder

10. Base

11. Button for heat maintenance function

12. Water level gauge

PRIOR TO FIRST USE

Before using for the first time (or after a long period of storage), fill the appliance with water and boil the water. Empty and refill and boil again.

1. Fill the appliance up to the maximum level ("MAX") shown on the water level gauge (12) (the appliance can hold a maximum of 1.2 litres).
2. Switch on as described under "Using the Appliance". Allow the water to boil.
3. Pour out the water once it has boiled.
4. Repeat point 2 once more. The appliance is now ready for use.

USING THE APPLIANCE

1. Open the lid (3) using the release button (2).
2. Pour fresh water into the appliance. Fill the appliance with water at least to the minimum mark ("MIN") and not exceeding the maximum mark ("MAX"). The marks are shown on the water level gauge.
3. Close the lid and ensure that it clicks into place.
4. Place the appliance on its base (10) by positioning it so the connector (8) on the base fits into the hole on the underside of the appliance.

5. Connect the appliance by plugging the plug (7) into the socket and turning the power on.

6. Adjust the temperature to which the water should be heated by pressing the button for adjusting the temperature (5). There is a choice of four different temperatures: 40^ C, 60^ C, 80^ C or 100^ C. The temperature indicator (4) will light on after the desired temperature is set.

7. Push the On/Off button (6). The indicator lamp for the selected temperature will flash and the appliance will start heating the water.

8. When the water has been heated to the selected temperature, the indicator lamp will light off and the appliance will automatically turn off.
   o If you want to interrupt the boiling, you can shut off the appliance at any time using the On/Off button.
   o By default, the appliance is set to heat the water to 100 °C: If you want to heat the water to 100°C, simply press the on/off button to start heating the water.

9. When the water is heated up, you can maintain the heat using the heat maintenance function (11).

o Set the desired temperature by pressing the button for adjusting the temperature. Press the button for the heat maintenance function and then press the on/off button.
When the heat maintenance function is activated, the button for the heat maintenance function will turn into flashing from the state of constant on. The button for the heat maintenance function can be deactivated by pressing the button once more, or by pressing the on/off button. The active time will be 2 hours under the heat maintenance mode.

• Whilst the heat maintenance function is activated, the button for adjusting the temperature may not be used.
  o The appliance remembers the temperature for which the heat maintenance function was last set. If you would like to change this temperature, you should adjust the temperature next time you use the appliance.
  o The appliance can be set to heat the water to a desired temperature and automatically keep warm at the desired temperature from the beginning. Press the button for adjusting the temperature to adjust the desired temperature, then press the button for the heat maintenance function to select the heat maintenance function, and press the “On/Off” button to start heating the water. The temperature indicator will turn into flashing from the state of constant on after starting to heat the water. When the water attains the desired temperature, the temperature indicator will turn into constant on from the state of flashing, and the indicator of the heat maintenance button will turn into flashing from the state of constant on. The appliance comes into the mode to keep the water warm at the set temperature.

Tip: You can wind any excess cord into the cord storage holder (9) on the underside of the base.

Anti boil-dry device

If you switch the appliance on without having filled it with water, or when the water level is below the “MIN” mark, the anti boil-dry device will automatically switch it off. The appliance can be switched on normally as soon as it is filled with a sufficient amount of water.

CLEANING

When cleaning the appliance, you should pay attention to the following:

• Remove the plug from the mains socket, and allow the appliance to cool down completely before cleaning it.
• Never submerge the appliance base, cord or plug in water, and no water must be allowed to enter the appliance base.
• Clean the appliance and base by wiping with a damp cloth. A little detergent can be added if the appliance is heavily soiled.
• Do not use scouring pads, steel wool or any form of strong solvents or abrasive cleaning agents to clean the appliance, as they can damage the external surfaces of the appliance.
• Remove the limescale filter (1) from the appliance and carefully clean it with a soft brush. Remove the filter by pulling it upwards and out of the holder. Replace the filter in the appliance after cleaning.
• IMPORTANT! Allow the appliance to dry fully after cleaning before using again. The appliance must not be used if the base or the underside of the appliance is wet.
• Ensure the appliance is clean and dry before storage.

DESCALING

The lime content of ordinary tap water means lime scale may gradually be deposited inside the appliance. This lime scale may be loosened using acetic acid (NOT ordinary vinegar) or descaler, available in supermarkets, etc.

1. Mix 100 ml acetic acid with 300 ml cold water, or follow the instructions on the descaler packaging.
2. Pour the solution into the appliance and switch on using the On/Off button.
3. Boil until the appliance switches off automatically.
4. Leave the solution in the appliance for approx. 10 minutes before emptying.
5. To remove the last residues of lime scale and acetic acid, fill the appliance with fresh cold water and boil. Do this three times. The appliance is now ready for use.

FOR UNITED KINGDOM ONLY

Plug wiring:

This product is fitted with a BS 1363 13-amp plug. If you have to replace the fuse, only those that are ASTA or BSI approved to BS1362 and with a rated current of 13 amps should be used. If there is a fuse cover fitted, this cover must be refitted after changing the fuse. If the fuse cover is lost or damaged, the plug must not be used. You must also check if the socket outlets in your home fit with the plug of the appliance. If the socket outlet in your home does not fit with the plug, the plug must be removed and disposed of safely as insertion of the plug into the socket is likely to cause electric hazard. A replacement plug should be wired according to following description.

Important

This appliance must be earthed. The wires in the cord set are coloured thus:

BLUE- Neutral, Brown-Live, Green& Yellow-earth (For detachable plug only)

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire that is coloured Green& Yellow must be connected to the terminal in the plug that is marked with the letter E or by the earth symbol,or coloured green & yellow.

The wire that is coloured blue must be connected to the terminal that is marked with the letter N or coloured black.

The wire that is couloured brown must be connected to the terminal that is marked with the letter L or coloured red.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Adexi product is marked with this symbol: 📋

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

In accordance with the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge. In some member states you can, in certain cases, return the used equipment to the retailer from whom you purchased it, if you are purchasing new equipment.

Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

GUARANTEE TERMS

The guarantee does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• if the appliance is faulty due to faults in the electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu.

Go to the “Consumer Services” menu and click on “Frequently Asked Questions” to view the most frequently asked questions.

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

IMPORTER

Adexi Group

www.adexi.eu

We cannot be held responsible for any printing errors.
