USER MANUAL 11493, 11492 MAGIMIX

Le Robot Café Automatic

Fr

Mode d'emploi

NI

Gebruiksaanwijzing

Uk

Instructions of use

Two black glass cups filled with orange-colored beverage, each with a spoon and sugar cubes, placed on a tray with blurred background (no text or symbols visible)

magimix®

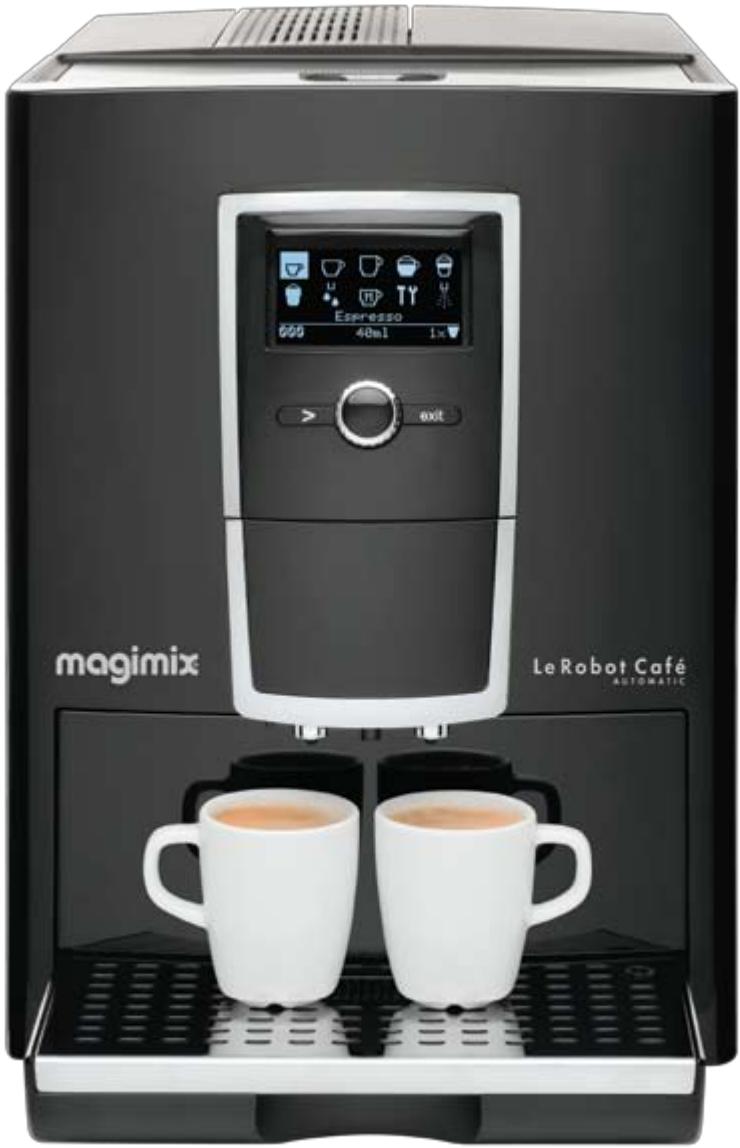

Exterior view of a modern black coffee maker with digital display and keyboard (no visible text or symbols)

Exterior view of a Magimix coffee machine with two cups, showing brand name and product details (no text-heavy elements)

Descriptif 2

Espresso 40ml 1x > exit

Touche de sortie

Espresso

Café Crème*

Café Lungo

Cappuccino

Latte Macchiato

Lait chaud

Eau chaude

Mon café

Paramètres

Entretien

LISTE DES PARAMETRES

Recettes au café

Filtre

Dureté de l'eau

Température

Temps

Langue

Rinçage final

Mode ECO

Statistique

Close-up of a black computer mouse control button with an open circle and minus sign (no text or symbols visible)

Close-up of a black button with an orange circular icon and the number 1, no visible text or symbols.

Appuyez.

White mug on a black industrial machine (no visible text or symbols)

Rincer svp

White coffee cup on a black tray with 'mogimix' branding visible (no text or symbols on the cup itself)

Close-up of a mechanical component with a vertical rod and blurred background (no visible text or symbols)

Remplissez d'eau.

Close-up of a hand pouring coffee beans from a laptop into a printer (no text or symbols visible)

Close-up of a finger pointing right with an orange oval highlight, no text or symbols visible

Espresso 40 ml 1x

Close-up of a button with an orange arrow pointing right, next to a circular icon with the number '>

Appuyez.

Espresso 40 ml 1x

User interface button with a right-pointing arrow, likely to progress or press any action

Appuyez.

Two white mugs stacked on a dark tray, one above the other (no text or symbols visible)

Espresso 40 ml 1x

Hand inserting a black card into a device (no visible text or symbols)

Ouvrez.

Simple grayscale illustration of a vertical cylindrical object inside a rectangular frame (no text or symbols)

Réglez. Refermez la porte.

Close-up of a hand pouring granular substance from a circular container onto a dark surface (no text or symbols visible)

Product photo of a Mogimix coffee maker with a mug on a keyboard (no visible text or symbols)

Placez 1 tasse.

Close-up of a mechanical component with a vertical rod and blurred background (no visible text or symbols)

Remplissez d'eau.

Close-up of a hand pouring coffee beans from a machine (no text or symbols visible)

Close-up of a hand inserting a small object into a device labeled 'logimix' (no other text or symbols visible)

White coffee mug and metal mug on a machine (no visible text or symbols)

Cappuccino 200 ml 20% 1x

Close-up of a finger pointing right with an orange oval highlight, no text or symbols present

Cappuccino 200 ml 20% 1x

Close-up of a magnifying glass with an orange right-pointing arrow, set against a dark background (no text or symbols)

Appuyez.

Cappuccino 200 ml 20% 1x

Close-up of a finger pointing right with an orange arrow, no text or symbols visible

Appuyez.

Cappuccino 200 ml 20% 1x

Close-up of a hand inserting a small electronic device into a black device (no visible text or symbols)

Product photo of a coffee machine with a white cup and a metallic mug, no visible text or symbols.

Close-up of a magnifying glass with an orange right-pointing arrow, no text or symbols visible

User interface button with a right-pointing arrow icon, likely from a software interface

3D rendering of a black plastic electronic device with a perforated base (no text or symbols visible)

Hand inserting a small object into a device (no visible text or symbols)

Close-up of a hand pressing down on a printer with a paper clip (no visible text or symbols)

Hand placing a white paper into a printer with a laptop (no visible text or symbols)

Hand inserting a device into a black case (no visible text or symbols)

Retirez le cache.

magimix solder light

Hand holding a black electronic device with a screen and indicator lights (no visible text or symbols)

Hand inserting a black plastic device into a larger black container (no visible text or symbols)

Retirez la porte.

Close-up of a hand pressing down on a black electronic device with a yellow curved arrow indicating motion (no text or symbols visible)

Close-up of a black electronic device with mechanical components, no visible text or symbols

Two-panel photo showing hands installing or adjusting a device into a black case (no visible text or symbols)

Hand pressing down on a black electronic device with two orange arrows pointing to the button (no text or symbols visible)

Black plastic enclosure with a yellow arrow pointing to a cutout, no visible text or symbols

Grid of nine kitchen and dining icons including cups, teacups, bowls, glasses, utensils, fork, and a plate (no text or symbols)

White mug on a black stand with 'mogimix' branding, no visible text or symbols on the cup or background

Close-up of a black electronic device with white cables and ventilation ducts (no visible text or symbols)

Black-and-white icon set showing various kitchen and dining utensils including a cup, mug, bowl, cup with cutlery, fork, and plate (no text or symbols)

White mug on a black industrial machine (no visible text or symbols)

Close-up of a hand inserting a small object into a black electronic device (no visible text or symbols)

Grid of nine white icons representing various food and beverage items on a black background (no text or symbols)

White mug on a black industrial machine (no visible text or symbols)

Hand placing a battery into a rack (no visible text or symbols)

Black and white icon grid with nine kitchen-related icons including cups, bowls, teapot, and fork (no text or symbols)

White mug on a black industrial machine (no visible text or symbols)

Black-and-white icon grid showing various kitchen utensils and containers (no text or symbols)

White mug on a black industrial machine (no visible text or symbols)

Two white ceramic cups filled with tea, one with a cookie and the other with a cookie, placed on a tray (no text or symbols visible)

L'Expresso

White ceramic teacup filled with coffee, placed on a saucer with a blurred background of bread and glassware (no text or symbols visible)

Le Cappuccino

Two white ceramic teacups on saucers, one filled with amber tea, with a spoon nearby (no text or symbols visible)

Le Ristretto

Two black glass cups filled with creamy soup, served with spoons on a metal tray (no text or symbols visible)

Le Macchiato

Interior view of a kitchen appliance with a tray holding several brown granular material (no visible text or symbols)

Close-up of a hand placing a black battery stack into a stack (no visible text or symbols)

Uitneembaar waterreservoir (1,8 l.)

Digital display

Selectietoetsen

Uitstroomopeningen

Close-up of a black toggle switch with an open circle and minus sign (no text or symbols visible)

AAN / UIT -schakelaar

Close-up of a stainless steel vacuum cleaner with black lid and piping (no visible text or symbols)

Melk Karaf*

Bak voor koffiedik

Koffiediklade

Close-up of a black plastic tray with a perforated base and orange highlight arrows indicating components (no text or symbols)

Espresso 40ml 1x > exit

Uitgang toetsen

Espresso

Café Crème*

Café Lungo

Cappuccino

Latte Macchiato

Warme melk

Heet water

Mijn koffie

Instellingen

Onderhoud

Close-up of a black computer mouse control button with an open circle and minus sign (no text or symbols visible)

Close-up of a black button with an orange circular icon, no visible text or symbols

Drukken.

White mug displayed on a black tray with 'mogimiz' branding visible (no text or symbols on the mug itself)

White coffee cup on a black tray with 'mogimix' branding visible (no text or symbols on the cup itself)

NORMAAL - HOOG- MAXIMAAL- INDIVIDUEEL

Close-up of a mechanical device with a cylindrical component and a leaf-like structure in the background (no visible text or symbols)

Met water vullen.

Close-up of a hand pouring coffee beans from a laptop into a printer (no text or symbols visible)

Close-up of a finger pointing right with an orange oval highlight, no text or symbols visible

Espresso 40 ml 1x

Close-up of a finger pointing right with an orange oval highlight, no text or symbols present

Drukken.

Espresso 222 40 ml 1x

User interface button with a right-pointing arrow icon, likely for navigation or progress

Drukken.

Two white mugs placed on dark trays, one above the other (no text or symbols visible)

Hand inserting a black rectangular object into a larger black container (no text or symbols visible)

Openen.

Simple grayscale image of a rectangular object with a central vertical element, no visible text or symbols.

Close-up of a metal spoon lifting a brown granular substance from a curved surface (no text or symbols visible)

Product photo of a Mogimix coffee maker with a mug on a keyboard (no visible text or symbols)

Close-up of a mechanical device with a vertical rod and blurred background (no visible text or symbols)

Met water vullen.

Close-up of a hand pouring coffee beans from a small container onto a machine (no text or symbols visible)

Close-up of a hand inserting a small object into a device labeled 'logimix' (no other text or symbols visible)

Bevestig de Melkschuimer.

Product photo of a coffee machine with a white cup and a metallic mug beside it (no visible text or symbols)

Cappuccino 200 ml 20% 1x

User interface button with a right-pointing arrow icon, likely for navigation or progress

Cappuccino 200 ml 20% 1x

Close-up of a button with an orange arrow pointing right, next to a circular ring (no text or symbols visible)

Drukken.

Cappuccino 200 ml 20% 1x

User interface button with a right-pointing arrow icon, likely for navigation or progress

Drukken.

Cappuccino 200 ml 20 % 1x

Close-up of a hand inserting a small electronic device into a black device (no visible text or symbols)

Bevestig de Melkschuimer.

Product photo of a coffee machine with a white cup and a metallic mug, no visible text or symbols.

Close-up of a magnifying glass with an orange right-pointing arrow, no text or symbols visible

Warm water

User interface button with a right-pointing arrow icon, likely from a software interface

Warm water 150 ml 1x

3D rendering of a black plastic tray with a perforated base (no text or symbols visible)

Hand inserting a small object into a file or folder (no visible text or symbols)

Close-up of a hand cleaning a white object from a printer (no visible text or symbols)

Hand inserting a device into a black box (no visible text or symbols)

magazine cooling light

Hand holding a black electronic device with a circular button (no visible text or symbols)

Hand inserting a black plastic device into a larger black container (no visible text or symbols)

Verwijder de deur.

Close-up of a hand pressing down on a black electronic device with a yellow curved arrow indicating motion (no text or symbols visible)

Close-up of a black electronic device with visible internal components (no text or symbols)

Two-panel photo showing hands installing or adjusting a device into a black box (no visible text or symbols)

Hand pressing down on a black electronic device with two yellow arrows pointing to the button (no text or symbols visible)

Close-up of a black plastic enclosure with an orange arrow pointing to a small cutout (no text or symbols visible)

Black and white image of various kitchen utensils including a cup, mug, bowl, fork, and water dispenser (no text or symbols)

White mug on a black stand with 'mogimix' branding, no visible text or symbols on the cup or background

Close-up of a black electronic device with white cables and ventilation ducts (no visible text or symbols)

Black-and-white icon set showing various kitchen and dining utensils including a cup, mug, bowl, cup with cutlery, fork, and plate (no text or symbols)

White mug on a black stand with 'mogimix' branding, no visible text or symbols on the cup or background

Close-up of a hand inserting a small object into a black electronic device (no visible text or symbols)

Grid of nine white kitchen and drink icons on black background, no text or symbols present

White mug inside a black industrial machine labeled 'mogimiz' (no visible text on the mug itself)

Hand placing a small electronic component into a black rack (no visible text or symbols)

Black and white image showing various kitchen and dining items including mugs, teapot, fork, and water dispenser (no text or symbols)

White coffee cup on a black industrial machine (no visible text or symbols)

Black-and-white icon grid showing various kitchen and dining utensils (mups, bowls, fork, water dispenser) with no text or symbols

White mug on a black industrial machine (no visible text or symbols)

Two white ceramic cups filled with tea, one with a cookie and the other with a cookie, placed on a tray (no text or symbols visible)

Espresso

White ceramic teacup filled with coffee, placed on a saucer with blurred background items (no text or symbols visible)

Cappuccino

Two white teacups on saucers with a spoon, no text or symbols visible

Ristretto

Two black beverage glasses on a metal tray with spoons and side dishes (no visible text or symbols)

Macchiato

Rinsing 42
Language selection 42
Setting the clock 43
Installing the filter 44
Setting the water hardness level 45
Selecting the temperature 45

Brewing a coffee

Preparing the machine 46
Espresso/double espresso/coffee lungo 46
Grinding settings 47
Ground coffee 47

Brewing a cappuccino/latte machiatto 48

Hot milk/hot water 49

Aftercare

Weekly aftercare 50
Rinsing the nozzle 51
Cleaning the nozzle 51
Changing the water filter 52
Cleaning programme 52
Descaling programme 53

Recipes 54

Screen messages 55

Troubleshooting 56

Safety instructions 57

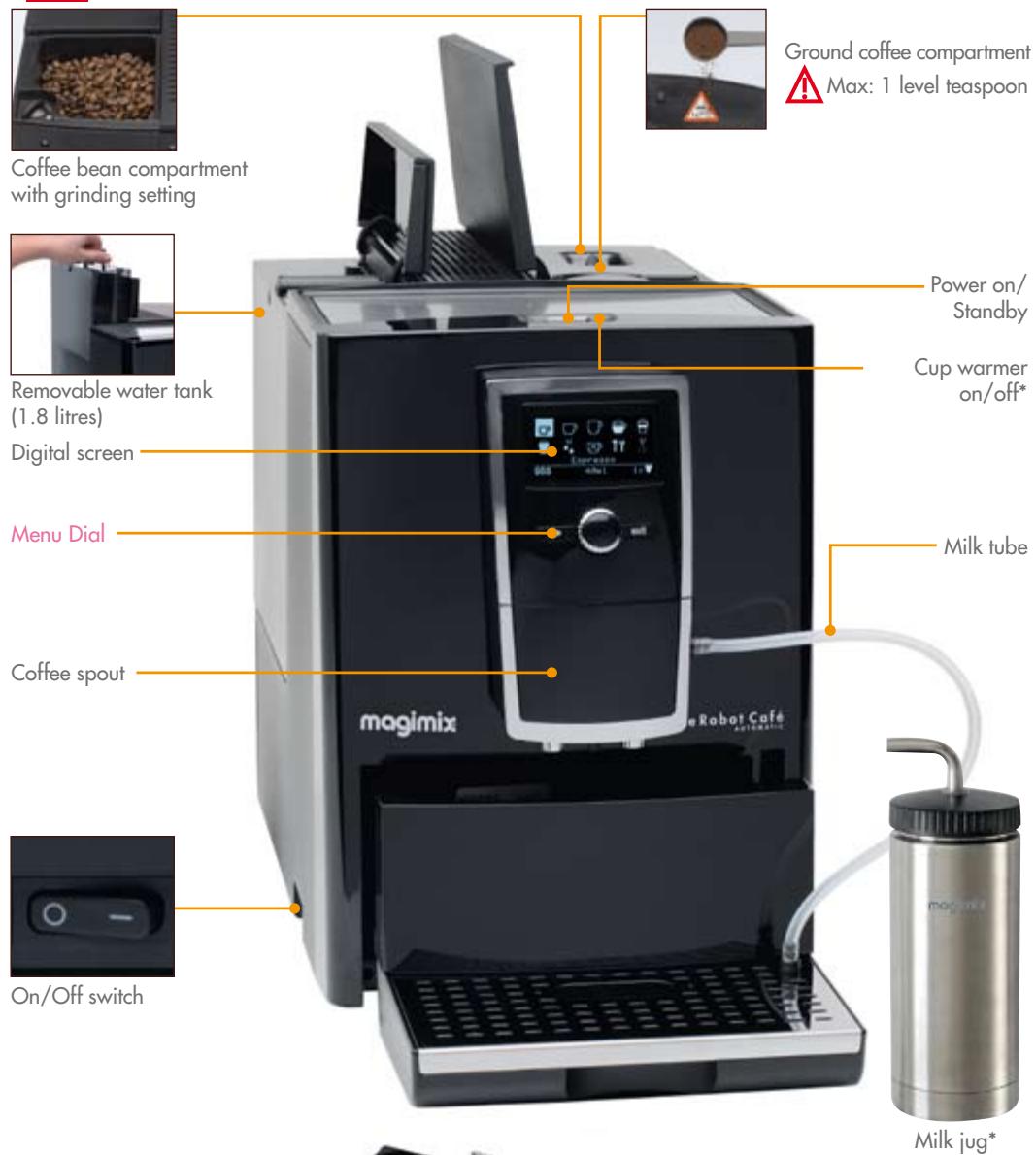

Read these safety instructions carefully before using your machine.

Grounds container
Grounds drawer

Close-up of a black plastic tray with a perforated base and orange highlight arrows indicating components (no text or symbols)

Measuring spoon: 1 level spoon = 1 cup (1 coffee)

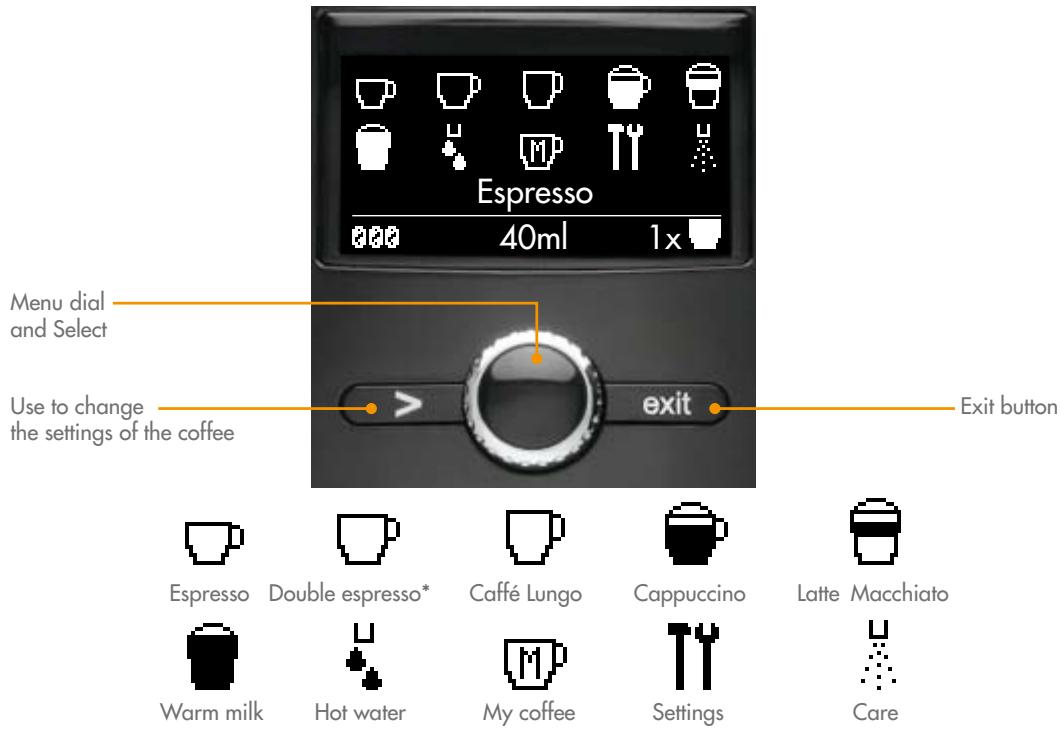

Espresso 40ml 1x Menu dial and Select Use to change the settings of the coffee exit Exit button Espresso Double espresso* Caffè Lungo Cappuccino Latte Macchiato Warm milk Hot water My coffee Settings Care

SETTINGS

Coffee recipes

You can change the pre-selection for each preparation
Filter
Indicates whether or not you have chosen to install the water filter. (p. 44)
Water hardness
Choose your water hardness setting (p. 45)
Temperature
Choose between three temperature settings for your coffee. The individual option allows you to set the temperature for each coffee
Times
Setting the on/off time.
Language
Select your language (p. 42)
OFF-Rinse
Rinsing the system
ECO mode
You can set the machine to go into standby later
Statistics
You can find out how many times each function has been used.

The exit button enables you to return to the previous menu at any time.

* medium coffee

Rinsing

Before you use your machine for the first time, you must rinse the water circuit to remove any residual water in the system.

Close-up of a black computer mouse control button with an open circle and minus sign (no text or symbols visible)

Plug into earthed socket. Switch the machine on.

Close-up of a black button with an orange circular icon, no visible text or symbols

Turn the coffee machine on by pressing the button located on the top of the machine.

White mug on a black industrial machine (no visible text or symbols)

Place a cup underneath the spout.

Fill with water

Fill the water tank with water.

Fill up system

Press the menu dial.

Heating

System filling up

Place a cup underneath the flow head.

Rinse

Press the menu dial.

Note: Scroll through the menu by turning the menu dial.

Language selection

Settings

Select 'Settings' using the menu dial.

Language

Select 'Languages'.

Language: English

Select the desired language.

exit

Press the exit button until you return to the main menu.

Setting the clock

You can press the exist button at anytime to go back a step.

Settings

Select 'Settings'.

Times

Select 'Times'.

Clock

Select 'Clock'.

Set clock

Select the hour and minutes using the menu dial.

Setting the timer for the automatic switch-on

You can press the exist button at anytime to go back a step.

Settings

Select 'Settings'

Times

Select 'Times' using the menu dial.

Unit auto ON at

Select 'unit auto on at' using the menu dial.

Set auto on

Select the hour and minutes using the menu dial.

Setting the timer for automatic switch-off

You can press the exist button at anytime to go back a step.

Settings

Select 'Settings' using the menu dial.

Times

Select 'Times' using the menu dial.

Unit auto OFF after

Select 'Unit auto OFF after'.

Unit auto OFF after 0.5 1h 2h 3h 4h

Select preferred time for the machine to switch off after last use.

Installing the water filter

- Option 1

If you use the filter option, the water hardness will no longer be displayed.

Settings

Select 'Settings' using the menu dial

Filter

Select 'Filter' using the menu dial.

White coffee cup on a black tray with 'mogimix' branding visible (no text or symbols on the cup itself)

Place a cup underneath the spout.

Filter inserted? YES

Select YES.

Fill with water

Fill with fresh water.

Insert filter

Empty the water tank. Place the cartridge in the water tank. Press the menu dial.

Rinsing filter

[Non-Text]

exit

Press exit to go back.

- Option 2

If you decide not to use the filter option, you will need to set the water hardness (p.)

Settings

Select 'Settings' using the menu dial.

Filter

Select 'Filter' using the menu dial.

Filter inserted? NO

Select 'NO' using the menu dial.

exit

Press exit to go back.

Setting the water hardness

If, and only if, you have not installed your filter, you must select the water hardness.

1 s 1 min

Dip the test strip in cold water.

The test shows	That your water is...
	Very soft
	Soft
	Average hardness
	Hard
	Very hard

Compare using the chart above.

Select 'Settings' using the menu dial.

Water hardness

Select 'Water hardness' using the menu dial.

Water hardness Level 2 : 8-14°

Select your water hardness level using the menu dial.

exit

Press the exit button until you return to the main menu.

Selecting the temperature

You can choose between four temperature settings for your coffee.

NORMAL - HIGH - MAXIMUM - INDIVIDUAL

The individual option allows you to choose the desired temperature for each type of coffee.

Settings

Select 'Settings' using the menu dial.

Temperature

Select 'Temperature'.

Normal High Maximum Individually

Select the desired temperature using the menu dial.

exit

Press the exit button until you return to the main menu.

Preparing the machine

Close-up of a mechanical component with a vertical rod and blurred background (no visible text or symbols)

Fill the water tank with fresh water.

Close-up of a hand pouring coffee beans from a laptop into a printer (no text or symbols visible)

Fill the coffee bean compartment.

Espresso / Coffee cream / Coffee Lungo

You can make your coffee at anytime by pressing the menu dial.

Espresso 222 40 ml 1x

Select your chosen coffee type.

Close-up of a finger pointing right with an orange oval highlight, no text or symbols visible

Press if you want to change the settings.

Espresso 40 ml 1x

Select the desired intensity of coffee.

Close-up of a finger pointing right with an orange oval highlight, no text or symbols present

Press.

Espresso 200 ml 40 ml 1x

Select the desired level.

Close-up of a button with an orange arrow pointing right, next to a circular icon with the number '1' and a magnifying glass.

Press.

Black and white photo of two mugs placed on a tray, no visible text or symbols

Place one or two cups under the spout.

Espresso 222 40 ml 1x

Select one or two cups. Press.

Note: The coffee settings you set ate remembered until you switch your coffee machine off standby mode.

Grinding settings

The paler the beans (lightly roasted) the finer they must be ground.

Only adjust the grind setting while the grinder is running.

Hand pressing a button on a black electronic device (no visible text or symbols)

Open.

Simple grayscale image of a vertical cylindrical object inside a rectangular frame (no text or symbols)

Select your desired level. Close.

To set to a coarse grind, slide to the right. To set a finer grind, slide to the left.

Ground coffee

Close-up of a hand holding a spoon above a dark container with granular substance (no text or symbols visible)

Pour the ground coffee into the compartment. Close the lid.

Product photo of a mug on a coffee machine labeled 'mogimix' (no additional text or symbols visible)

Place 1 cup under the spout.

Powder is ready

Press the menu dial.

Never use more than one measuring spoon of ground coffee.

Never insert anything other than ground coffee or cleaning tablets into the ground coffee compartment.

If the ground coffee compartment is opened by mistake or a button has not been pressed within a minute of putting the ground coffee in, the machine will automatically be rinsed through via the spout.

If this happens, close the lid and wait 1 minute.

The settings for each coffee are pre-programmed. However, for each coffee type you can set the strength and volume of your coffee.

It is not possible to prepare simultaneously 2 milk preparations (except on the chrome model).

Close-up of a mechanical component with a vertical rod and blurred background (no visible text or symbols)

Fill the water tank.

Close-up of a hand pouring coffee beans from a machine (no text or symbols visible)

Fill the coffee bean compartment.

Close-up of a hand inserting a small electronic device into a black device (no visible text or symbols)

Attach the milk tube.

Product photo of a white coffee mug and a metallic mug on a machine (no visible text or symbols)

Place 1 cup under the spout. Fill the jug 1/3 full of milk and place the milk tube in the jug.

Cappuccino 200 ml 20% 1x

Select your chosen coffee type.

Close-up of a finger pointing right with an orange oval highlight, no text or symbols present

Press if you want to change the settings.

Cappuccino 200 ml 20% 1x

Select the desired intensity.

Close-up of a magnifying glass with an orange right-pointing arrow, no text or symbols visible

Press.

Cappuccino 200 ml 20% 1x

Select the desired volume.

Close-up of a button with an orange arrow pointing right, next to a circular icon with the number '>

Press.

Cappuccino 200 ml 20% 1x

Select the desired amount of froth. Press.

It may take a few seconds for the process to begin.

Rinse the nozzle and your milk jug*immediately after use (see p. 51)

* only available on Chrome model

Warm milk

The settings for each preparation are pre-programmed. However, for each option you can set the strength and volume of your coffee.

It is not possible to prepare milk for 2 coffees simultaneously (except on the chrome model).

Close-up of a hand inserting a small electronic device into a black device (no visible text or symbols)

Attach the milk tube.

Product photo of a coffee machine with a white cup and a metallic mug, no visible text or symbols.

Place 1 cup under the spout. Fill the jug 1/3 full of milk and place the milk tube in the jug.

Warm milk 150 ml

Select Warm milk.

Close-up of a magnifying glass with an orange right-pointing arrow, set against a dark background (no text or symbols)

Press if you want to change the settings.

Warm milk 150 ml

Select the desired level. Press.

Rinse the nozzle and your milk jug*immediately after use (see p.)

* only available on Chrome model

Hot water

Hot water

Select Hot water.

User interface button with a right-pointing arrow icon, likely from a software interface

Press if you want to change the settings.

Hot water 150 ml 1x

Select the desired level. Press the menu dial.

Always unplug the machine and wait for it to cool down before cleaning. Do not put any of the parts in the dishwasher. Do not use an abrasive sponge or aggressive detergent.

Weekly aftercare

3D rendering of a black plastic electronic device with a perforated base (no text or symbols visible)

Empty the drip tray and the grinds container.

• Water tank
• Tray + grid
• Contacts

Clean and dry well using water + mild detergent.

Hand inserting a small object into a device (no visible text or symbols)

Wipe the exterior of the machine housing with a damp cloth.

Close-up of a hand pressing down on a printer with a paper clip (no visible text or symbols)

Clean the inside a damp cloth and dry the compartment and the lid.

Hand inserting a device into a black case (no visible text or symbols)

Remove the cover.

magnex Linking Light

Disassemble and clean under running water.

Hand holding a black electronic device with a screen and indicator lights (no visible text or symbols)

Reassemble and replace.

Hand inserting a black plastic device into a larger black container (no visible text or symbols)

Open the door.

Close-up of a hand pressing down on a black plastic tray with an orange curved arrow (no text or symbols visible)

Raise the release handle, pressing the red button at the same time.

Close-up of a black electronic device with mechanical components, possibly a printer or scanner (no visible text or symbols)

Remove the machine's central unit.

Two-panel photo showing hands installing or adjusting a device into a black case (no visible text or symbols)

Clean the funnel + filter with a damp cloth.

Hand pressing down on a black electronic device with two orange arrows pointing to the button (no text or symbols visible)

Place the central unit back in the machine.

Close-up of a black plastic enclosure with an arrow pointing to a cutout (no text or symbols visible)

Lock into place by pushing the handle down, pressing the red button at the same time. Screw the door shut.

Rinsing of the nozzle

Grid of nine kitchen and dining icons including cups, teacups, bowls, cups with utensils, fork, and plate (no text or symbols)

Select Care.

Press the menu dial.

White mug on a black industrial machine (no visible text or symbols)

Place a cup underneath the spout.

Rinse frother

Select Rinse frother. Press.

Close-up of a black electronic device with white cables and a partially visible 'magnolia' label (no readable text or symbols beyond labels)

Attach the milk tube on the flow head and the drip tray.

Unclear when using machine for the first time.

Once the milk tube has been connected press the menu dial.

Rinsing frother Do not remove milk tub

Cleaning of the nozzle

Black-and-white icon set showing various kitchen and dining utensils including a cup, mug, bowl, cup with cutlery, fork, and plate (no text or symbols)

Select Care. Press the menu dial.

White mug on a black industrial machine (no visible text or symbols)

Place a cup underneath the spout.

Clean frother

Select Clean frother. Press menu dial.

Close-up of a hand inserting a small object into a device (no visible text or symbols)

Attach the milk tube to the side of the spout and put the other end in cleaner.

Connect hose pipe with spout and put in cleaner

Press menu dial.

Cleaning frother Do not remove h.p

Changing the filter

Grid of nine white icons representing various food and beverage items on a black background (no text or symbols)

Select Settings. Press menu dial.

Filter

Select Filter. Press menu dial.

White coffee cup on a black industrial machine (no visible text or symbols)

Place a cup underneath the spout.

Filter inserted? YES

Select 'YES'. Press the menu dial.

Replace filter

Select 'Replace filter'. Press the menu dial.

Hand placing a battery into a rack (no visible text or symbols)

Empty the water tank. Change the filter.

Replace filter

Press menu dial again.

Rinse filter

Select 'YES'. Press the menu dial.

Cleaning programme

A message on the screen informs you when the machine needs cleaning. Never interrupt the cleaning programme once it has started.

Black and white image of various kitchen utensils including a cup, mug, bowl, spoon, and fork (no text or symbols)

Select Care. Press the menu dial.

White mug on a black industrial machine (no visible text or symbols)

Place a cup underneath the spout.

Clean system

Select 'Clean system'.

Cleaning tablet in powdershaft

Put a cleaning tablet* in the ground coffee compartment. Close the lid.

Start cleaning

Press menu dial.

Empty trays

Empty the trays and put them back.

* Cleaning tablets are available from Magimix Customer care.

Descaling programme

A message will appear on the screen when you need to descale your coffee machine.

Never interrupt the descaling programme once it has started.

Never use vinegar or a vinegar-based product for descaling.

Always remove the water filter before descaling.

Black-and-white icon grid showing various kitchen and dining utensils (mups, bowls, fork, water dispenser) with no text or symbols

Select Care. Press the menu dial.

White mug on a black industrial machine (no visible text or symbols)

Place a cup underneath the spout.

Descale system

Press the menu dial.

Empty trays

Empty the trays.

Empty tanks

Empty the water tank.

Fill up water

Fill the tank with fresh water + descaling product up to 0.5 l mark.

Start descaling

Press the menu dial.

Descaling takes about 20 minutes.

Empty trays

Empty the trays.

Fill with water

Fill the water tank with fresh water.

Start rinsing

Select using the menu dial.

Two white ceramic cups filled with tea, one with a cookie and the other with a cookie, placed on a tray (no text or symbols visible)

Espresso

Espresso coffee is characterised by the colour of its creamy golden top, midway between russet and hazel, and by its extremely rich aroma...Espresso coffee represents roughly 40 or 50 ml of black coffee served in a 60 ml cup.

White ceramic teacup filled with coffee, placed on a saucer with a blurred background of bread and glassware (no text or symbols visible)

Cappuccino

Fill a large cup 13 full with frothed milk (see "Cappuccino" chapter, p. 49). Froth the milk using the cappuccino attachment. You can either spoon the froth onto your espresso coffee and sprinkle it with cocoa powder or pour the coffee on top of your frothed milk.

Two white ceramic teacups on saucers, one filled with amber tea, with a spoon nearby (no text or symbols visible)

Ristretto

This is concentrated espresso coffee, made from the same quantity of ground coffee, but only half the water. It never exceeds 30 ml.

Two black glass cups filled with creamy soup, served with spoons on a metal tray (no text or symbols visible)

Macchiato

"Macchiato" means "spotted" in Italian. It closely resembles cappuccino coffee, but is stronger and has a more powerful aroma. Make a cup of espresso coffee and top it with a spoonful of milk froth.

Screen messages	Actions
Fill up pipe-sys	Press the central switch.Remove or change the water filter.
Fill water	Fill the water tank with fresh water.Ensure the water tank is fitted correctly.
Fill beans	Pour coffee beans into the coffee bean compartment. This message will remain on the screen until you grind some more coffee.
Empty trays	Empty the trays.Clean the contacts at the bottom of the drip tray and dry thoroughly.
Trays missing	Ensure the drip tray is correctly positioned.Clean the silver contacts at the back of the drip tray and dry thoroughly.
Please clean	Clean the machine (see p. 52).
System Calcif	Descale the machine (see p. 53).
Filter change	Replace the filter (see p. 52).
Close the door	Check that the central unit is properly positioned (see p. 50).Check the door is closed properly.
Please rinse	Place a cup under the spout.Press the central switch.
Question	Answer
No coffee flow.	Check the water tank is fitted properly.Fill the water tank with fresh water.Ensure trays are correctly fitted.Descale your machine (see p. 53)Clean the central unit filter (see p. 52)
Coffee flow reduced to a dribble.	Coffee ground too finely: adjust the setting to a coarser grind.
Coffee too watery, not strong enough.	Refill the coffee bean compartment.Reduce the volume of coffee in ml.Select a stronger coffee.Reduce the fineness of the grind.
Unpleasant taste.	Coffee: stale? Acidic?: replace the coffee beans..Chlorinated water?: use the filter cartridge or bottled water (low mineral content).After descaling, fill the water tank and rinse the machine through, 1⁄2 via the nozzle, 1⁄2 via the flow head.
Coffee not hot enough.	Adjust the coffee temperature setting (see p. 45).
Insufficient coffee flow.	Refill the coffee bean compartment.
Grinder making unusual noise.	Refill the coffee bean compartment.Call Magimix Customer Care 0844 5738655.
Milk not frothy enough.	Rinse your pipe and the cappucino device.We recommend using cold, full fat milk.
Milk tube not working.	Clean the tube (see p. 51).Ensure it is correctly assembled.
No water supply.	Ensure the water tank is full.Rinse the machine (see p. 52).
Water around the base of the machine.	Empty the drip tray.If problem continues contact Magimix Customer Care on 0844 5738655.
Machine not working at all.	Check all the connections.Close the ground coffee compartment and wait for one minute.Rinse (see p.).Call Magimix Customer Care 0844 5738655.
Where can I buy cleaning tablets?	Call Magimix Customer Care on 0844 5738655.

This symbol means that this product must not be treated as household waste. It must be taken to a suitable collection point for the recycling of electrical or electronic equipment.

To find out where your nearest collection points are, contact your local council or the local waste reception centre.

• Check that the voltage of your power supply corresponds to that shown on the identification plate of your machine.
• Never leave children near the machine unattended. The machine has not been designed for use by children.
• This machine has not been designed for use by persons (including children) with physical, sensory or mental impairments or who are lacking in knowledge or experience, unless they have the necessary supervision or have received instructions as to how to use the machine by a person responsible for their safety.
• The machine must always be connected to an earthed socket.
• Never allow the power cord to dangle over the work surface.
• Never allow the machine or its power cord to come into contact with a hot or wet surface.
• Always unplug the machine after using it, before you fill the water tank and move or clean the machine. Never tug on the power cord to unplug it.
• Never leave the machine and/or its power cord near heat.
• While using the machine, avoid touching certain parts which can become extremely hot (spout, nozzle, etc.).
• Never heat flammable liquids with the steam.
  • Always fill the tank with cold water and never add other types of liquid.
• Malfunctions due to failure to descale the machine or the use of a descaling method other than that described in the Instructions for Use are not covered by the guarantee.
• Never use your machine if it has fallen, been dropped or if it is not working properly. If the power cord has been damaged, it must be repaired by an agent approved by Magimix. For further information please contact Magimix Customer Care on 0844 5738655, in order to avoid all possible danger.
• Never use your machine outside.
• This machine is intended solely for domestic use.
  The following usages are not covered by the guarantee: in kitchen areas reserved for personnel in shops, offices and other workplace environments, on farms, by the patrons of hotels, motels and other commercial environments of a residential nature, and in bed and breakfast-type environments.

Exterior view of a Magimix coffee machine with two cups, no visible text or symbols on the device itself.

magimix®

www.magimix.com
