Product Type	Water Heater and Boiler
Brand	Fakir
Model	Fergo
Operating Voltage	230V
Power Consumption	7000W (3000W + 4000W)
Frequency	50Hz
Operating Pressure	4-6 bar
Temperature Settings	30°C, 60°C, 80°C (adjustable via key)
Safety Features	Pressure relief valve, fireproof insulation, earthing, diaphragm water cut-off, fireproof cord, double thermostat, anti-scale resistance
Protection Class	Additional isolation
Electrical Requirement	32A automatic fuse
Water Connection	Water battery and control valve
Installation	By Fakir technical service only
Maintenance	Turn key to 0 and run cold water to prevent calcification
Frost Protection	Do not use if frozen; warm environment and run water before use
Certifications	CE, TÜV, TSE
Guarantee	Does not cover frost damage or unauthorized modifications

Frequently Asked Questions - Fergo FAKIR

How do I install the Fakir Fergo water heater?

Installation must be carried out by Fakir technical service staff. It includes connecting to a 32A automatic fuse and ensuring proper earthing. Water inlet and outlet connections should be made to the water battery with a control valve.

What temperature settings are available?

The adjusting key allows three temperature settings: 30°C, 60°C, and 80°C. Turn the key to position 1 (30°C), 2 (60°C), or 3 (80°C) according to your needs.

How does the safety system work?

The appliance has 7 safety features: a pressure relief valve, fireproof insulation, earthing, a diaphragm that cuts off power if water supply stops, fireproof cord assembly, a double thermostat for overheat protection, and a non-calcifying resistance with additional isolation.

What electrical specifications are required?

The Fakir Fergo operates at 230V, 50Hz, with a total power of 7000W (3000W + 4000W). It requires a 32A automatic fuse on the fuse panel.

How can I prevent calcification?

After each use, turn the adjusting key to the '0' position and open the tap until cold water flows. This helps prevent scale buildup and prolongs the appliance's life.

What should I do if the water heater freezes?

Do not use the appliance if frozen. First, warm the environment, then let water run for about 3 minutes before turning the adjusting key. Frost damage is not covered under warranty.

Can I adjust the water temperature using the tap?

Yes, you can also fine-tune the water temperature by adjusting the tap water flow. The key sets the base temperature, and the tap allows further adjustment.

What should I do after using the water heater?

After operation, close the water inlet valve, switch off the fuse, and turn the adjusting key to '0'. Also open the tap until cold water runs to flush the system.

Is the Fakir Fergo safe from water leaks?

Yes, the manufacturer states there is no threat of leakage. The appliance is approved by TSE and includes multiple safety features to prevent leaks.

What certifications does this product have?

The Fakir Fergo holds CE, TÜV, and TSE quality certifications, ensuring compliance with European and Turkish standards.

USER MANUAL Fergo FAKIR

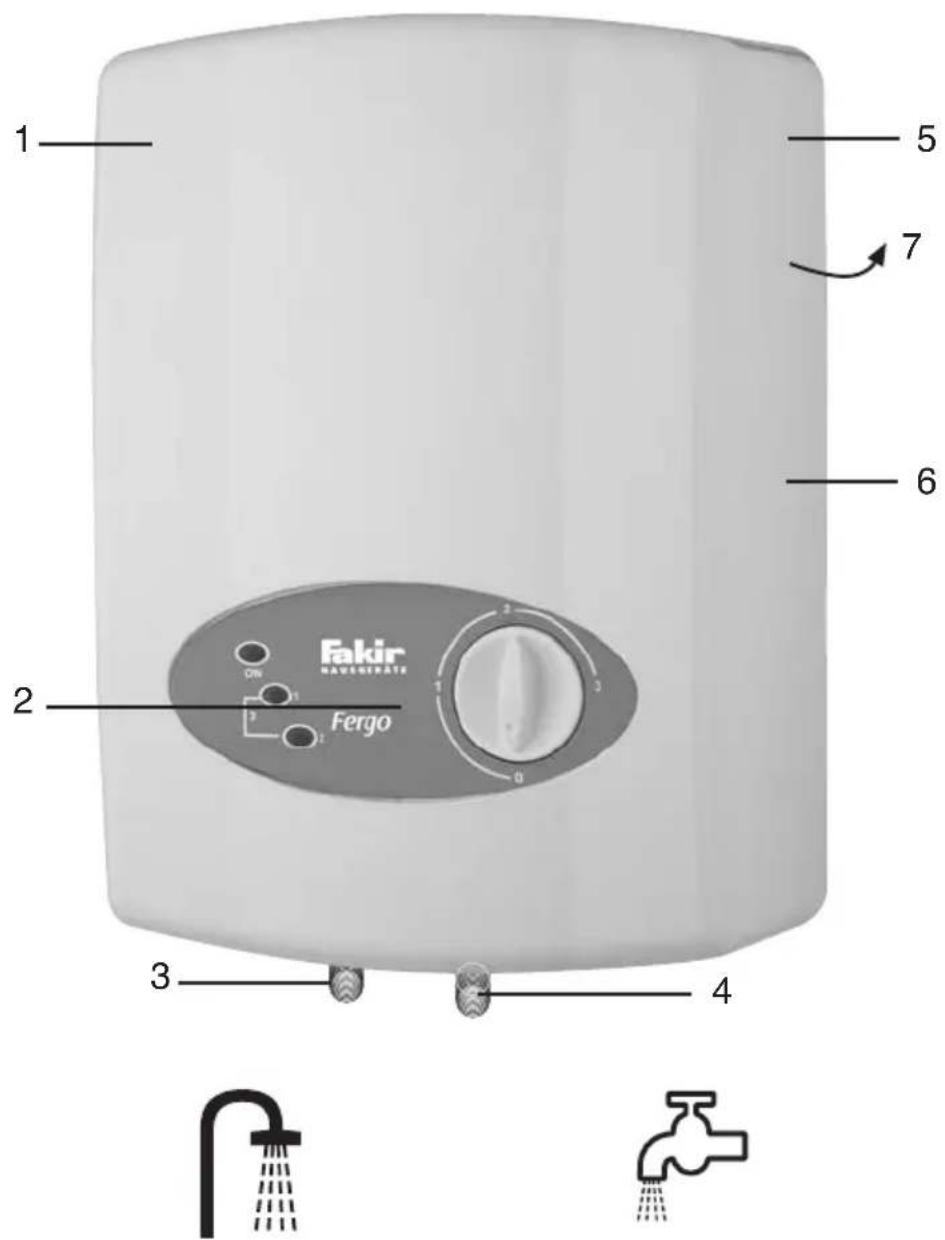

1. Front Cover
2. Adjusting key and signal lamp
3. Hot water outlet tube
4. Cold water outlet tube

5. Hole for the power cord

6. Back cover

7. Assembling

All the parts that are used in production of Fakir Perfetto has CE, TÜV and Turkish Standart Enstitute (TSE) quality document.

ASSEMBLYING INFORMATION

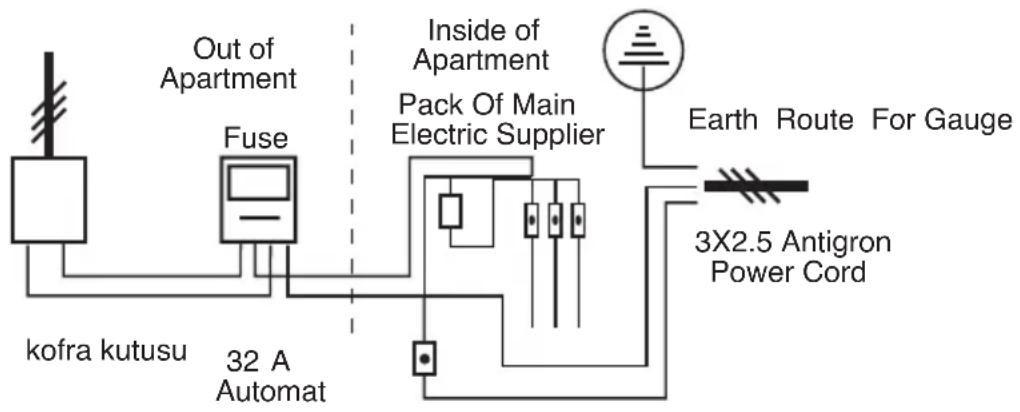

Machine should be connected to the inlet of fuse panel with 32 A automat as it is seen in the schema.

Appliance should be earthed.

Operating voltage : 230V

Power : 30A 3000+4000=7000W

Frequency : 50Hz A.A.

Operating pressure : 4 6 bar

Beat voltage : 330V

Level of isolation : Additional isolation

1- Assembling should be made to the water battery.
2- Water control valve should be connected to the inlet.
3- With the help of the adjusting key, under normal conditions,
30-60-80 degree centigrate hot water could be supplied.
4- The assembling of the appliance is made free of charge by Fakir technical services. (The items that comes with the product and used for the assembling is free of charge. The other items that will be used additionally will be paid by customer

PROTECTION SYSTEM WITH 7 SAFETY EQUIPMENT

1- Safety valve against excessive water pressure.
2- Original fireproof material and additional isolated outer surface.
3- Earthted route connection that protect against leak.

4- Diaphgram system that stops the energy entrance in the case of water cut off
5- Fireproof insider cord assembly
6- Protector against excessive heat with double thermostat
7- Resistance that is not calcificated and with additional isolation.

Not: There is no threat of leak at our equipment. It is approved by TSE.

MAINTENANCE INSTRUCTIONS

1- After fixing the equipment, the tempeture of the water could be adjusted by turning the key to 1,2 or 3 according to the season and need.
2- You could adjust the water tempature also by the tap.
3- In the case of connection of battery has made, you should close water inlet valve, fuse and the adjusting key after the operation finished.

IMPORTANT POINTS FOR MAINTENANCE

1- To make your equipment works longer and to avoid the calcification, the adjusting key should come to "0" point and the tap should be open till the water starts to come cold

2- The frosted equipment should not be used. Before using, the environment should be warmed and the adjusted key should be moved after the water has pour for 3 minutes. (The problems that rooted from the getting icy is not under the guarantee.

3- While equipment is on working, other equipment with high voltage should not use the same electrical line.

4- The cover of equipment should not be opened by people other than authorized technical service staff.

5- The company is not responsible from the defects that rooted from the operations of unauthorized people.

Attention:

- Connection and assemblying should be made by Fakir Technical Service Staff. (Electric and water installation is not included.).

- In the case of any defect, you should apply to the Fakir Technical Service Staff.
