GSP 846 IX - Dishwasher BOMANN - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	Bomann
Model	GSP 846 IX
Dimensions (H x W x D)	845 x 598 x 600 mm
Weight	50 kg
Power Supply	220-240 V, 50 Hz, 10 A
Water Connection Pressure	0.5 - 10 bar
Place Settings	12
Energy Class	A++
Annual Energy Consumption	262 kWh
Water Consumption per Cycle	10.5 L
Noise Level	49 dB(A)
Drying System	Condensation drying
Number of Programs	6
Programs	Eco, Intensive, Normal, Quick, Glass, Pre-Rinse
Delay Start	Up to 24 hours
Safety Features	Child lock, leak protection, overflow protection
Filter Type	Self-cleaning multi-layer filter
Basket Features	Foldable plate holders, cup racks, cutlery basket
Interior Material	Stainless steel
Control Panel	Electronic with LED display

Frequently Asked Questions - GSP 846 IX BOMANN

What are the dimensions of the Bomann GSP 846 IX dishwasher?

The dimensions are 845 mm in height, 598 mm in width, and 600 mm in depth. It requires a cutout height of 820-870 mm for integrated installation.

How do I connect the water supply?

Connect the inlet hose to a cold water tap with a 3/4 inch thread. Ensure the water pressure is between 0.5 and 10 bar. Use the provided hose and tighten securely.

Do I need to use salt and rinse aid?

Yes, for optimal cleaning and drying results, use dishwasher salt to regenerate the water softener and rinse aid to improve drying and prevent spots. Refill when indicators light up.

How often should I clean the filter?

Clean the coarse and fine filters after every 5-10 cycles to prevent clogging. Rinse under running water and remove any debris. The micro filter can be cleaned less frequently.

What do error codes like E1 or E4 mean?

E1 indicates a water supply issue (no or insufficient water). Check the tap and hose. E4 signals a leak. Turn off the water and contact support. Refer to the manual for full codes.

Can I wash pots and pans with burnt-on food?

Yes, use the Intensive program (70°C) for heavily soiled items. Pre-rinse large residues, but avoid placing items with excessive burned food to prevent filter clogging.

How do I load the dishwasher for best cleaning?

Place plates facing the spray arms, cups upside down, and utensils with handles down in the basket. Do not overload; ensure water can reach all items. Use the upper rack for delicate glassware.

What detergent should I use?

Use a quality dishwasher detergent (powder, gel, or tablets). For better results, use tablets with built-in salt and rinse aid. Adjust dosage based on water hardness.

How can I reduce energy consumption?

Use the Eco program for normally soiled dishes; it uses less water and energy. Run full loads only. Use the delay start to run during off-peak hours. Clean the filter regularly.

What maintenance does the dishwasher require?

Regularly clean the door seal, spray arms (remove and rinse), and exterior. Check the drain hose for kinks. Run a cleaning cycle with a dishwasher cleaner monthly to remove grease and scale.

USER MANUAL GSP 846 IX BOMANN

Cutaway view of a white kitchen appliance showing internal components like dishwashers and refrigerators (no text or labels visible)

Quick operation guide

Fordetailedoperatingmethodreadthecorrespondingcontentontheinstructionmanual.

Switch on the appliance

Press the On/Off button to switch on the appliance, Open the door.

With each wash cycle.

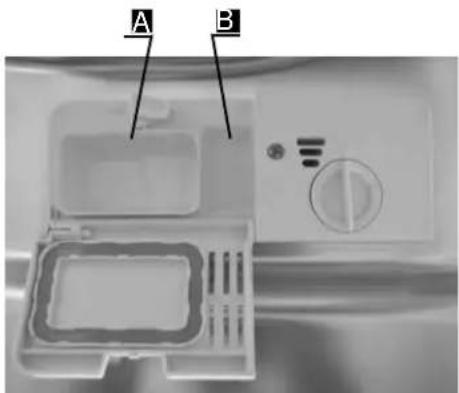

Compartment B:

Forprogrammeswithpre-washonly.

(Followtheuserinstructions!)

Close-up of a kitchen appliance with labeled parts A, B, and C (no visible text or symbols beyond labels)

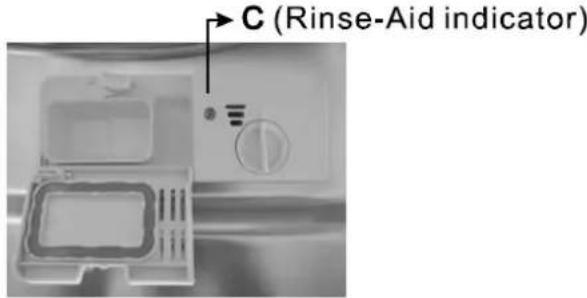

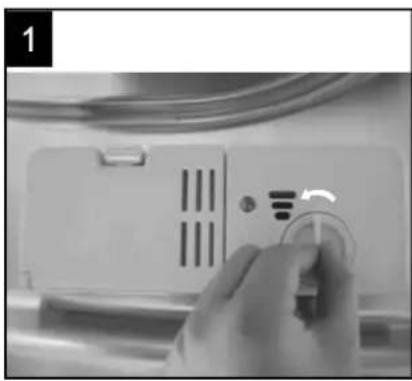

Checktherinseaidlevel

Mechanical indicator C.

Electricindicatoroncontrolpanel(ifprovided).

Checktheregeneration saltlevel

(Onmodelswithwatersoftenersystemonly.)

Electricindicatoroncontrolpanel(ifprovided).

Ifthereisnosaltwarninglightinthecontrolpanel

(forsomemodels),youcanestimatewhentofillthesaltinto

thesoftenerbythenumberofcyclesthedishwasherhasrun.

Loadthebaskets

Scrapeoffanylargeamountofleftoverfood. Softenremnantsofburntfoodinpans,

thenloadthebaskets. Refertothedishwasherloadinginstructions.

Selectaprogramme

Close the door, Press the Programme Button until the selected programme lights up.

( See the section entitled "Operating instruction" )

Runningthedishwasher

Turnonthewatertapandpressthe. Them Start/Railuser/Buttoing

afterabout10seconds.

- Changingtheprogramme

- 1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispensermustberefilled.

1. Press the Start/Pause button, the machine will pause, press the program button more than 3 seconds then you can change the program to the desired cycle setting.

3.PresstheStart/PauseButton,thedishwasherwillrunafter10seconds

- Addforgottendishesinthe dishwasher.

- 1. PresstheStart/PauseButtontostopthewashing.

1. Openthedooralittle.

2. After the spray arms stop working, you can open the door completely.

4.Addforgottendishes.

5.Closethedoor

1. Press the Start/Pause Button, the dishwasher will run after 10 seconds.

WARNING!

Openthedoorcarefully. Hotsteammayescape when the door is opened!

- If the appliance is switched off during a wash cycle.

- If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-on-state).

Switchofftheappliance

Whentheworkingcyclehasfinished,thebuzzerof the

dishwasherwillsound8times,thenstop.

TurnofftheapplianceusingtheOn/OffButton.

Turnoffthewatertap, unloadthebaskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling

thedishesandutensilswhiletheyarestillhotandmoresusceptibletobreak.

They will also dry better.Unload the appliance, starting from the lower basket.

Read this Manual

DearCustomer,

This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farmhouses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

-the dishwasher is not intended for outdoor use

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.

- Keep it as a refer in the later days.

■ Passitonto any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself.

If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information....1

2) Disposal....2

3) Operating Instructions....3

Control Panel....3

DishwasherFeatures....3

4) Prior using for the first time....4

A、Water Softener....4

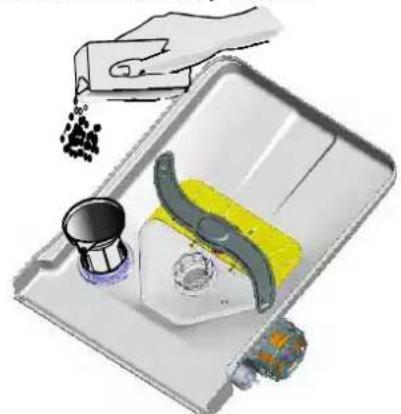

B、Loading the Salt into the Softener.....5

C、Fill the Rinse Aid Dispenser....5

D、FunctionofDetergent....6

5) Loading the Dishwasher Basket....9

Attention before or after loading the Dishwasher Baskets....9

Loading the upper Basket....10

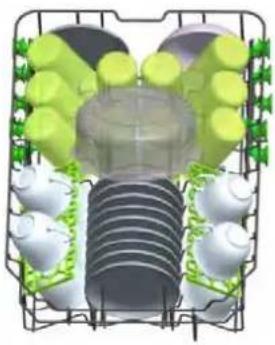

Loading the Lower Basket....10

6) Starting a washing programme....11

WashCycleTable....11

Turning on the Appliance....11

Change the Programme....12

At the Ene of the Wash Cycle....12

7) Maintenance and cleaning....13

Filtering System....13

Caring for the Dishwasher....14

8) Installation instruction.....15

Positioning the Appliance....15.

About Power Connection....15

Water Connection....16

Start of dishwasher....17

9) Troubleshooting Tips....18

Before calling for service....18

Errorcodes....19

Technical information....20

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING!

When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofanelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug.
■ Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith alllocalcodesandordinances.

▲WARNING!

■ Improperconnectionoftheequipment-grounding conductorcanresultintheriskofanelectricshock.
■ Checkwithaqualifiedelectricianorservice representativeifyouareindoubtwhetherthe applianceisproperlygrounded.Donotmodifythe plugprovidedwiththeappliance;Ifitdoesnotfit theoutlet.Haveaproperoutletinstalledbya qualifiedelectrician.

WARNING! PROPER USE

■ Do not abuse, sit on, or stand on the door or dish rackofthedishwasher.
■ Donottouchtheheatingelementduringor immediatelyafteruse. (Thisinstructionisonlyapplicabletomachines withavisualheatingelement.)
■ Donotoperateyourdishwasherunlessall enclosurepanelsareproperlyinplace.Open thedoorverycarefullyifthedishwasheris operating,thereisariskofwatersquirtingout.
■ Donotplaceanyheavyobjects on orstand the doorwhenitisopen. The appliance could tip forward.
■ When loading items to be washed: 1) Locate sharp items so that they are not likely to damagethedoorseal; 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■ When using your dishwasher, you should prevent plastic items from coming into contact with the heating element.(This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent compartment is empty after completion of the wash cycle.
■ Donotwashplasticitemsunlesstheyaremarked dishwashersafeortheequivalent.Forplasticitems notsomarked,checkthemanufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.
- Keepchildrenawayfromdetergentandrinseaid, keepchildawayfromtheopendoorofthe dishwasher,therecouldstillbesomedetergent leftinside.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning the safe use of the appliance understand the hazards involved.
■ Childrenshallnotplaywiththeappliance.
■ Cleaning and maintenance by the user shall not be made by children unless they are older 8 years and supervised.
■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
■ The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
■ Removethedoortothewashingcompartmentwhen removinganolddishwasherfromserviceordiscardingit.
■ Please dispose of packing materials properly.
■ Thedishwasherisnotintendedforoutdooruse.
■ During installation, the power supply must not be excessively or dangerously bent or flattened. Donottamperwithcontrols.
The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
■ The maximum number of place settings to be washed is 10.
■ The maximum permissible inlet water pressure is 1Mpa.
■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2.Disposal

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with the standard international abbreviations:

■ PE——for polyethylene, e.g. sheet wrapping material

■ PSforpolystyrene, e.g. padding material

■ POM — polyoxymethylene, e.g. plastic clips

■ PP — polypropylene, e.g. Salt filler

■ ABS — Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

■ Packaging material could be dangerous for children!

For disposing of package and the appliance please go to a recycling centre. Therefore cut off the powersupplycable and makethedoorclosing device unusable.

■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

3. Operation Instruction

IMPORTANT Togetthebestperformancefromyourdishwasher,readalloperatinginstructions beforeusingitforthefirsttime.

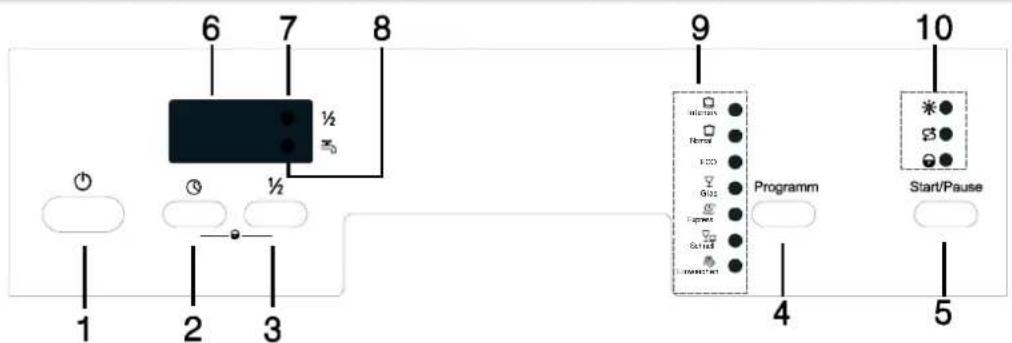

Control Panel

1. On/Off Button: to switch On/Off the appliance.
2. Delay Button : Press the button to add the delay time.
3. Half-load function Button: To select Half-load function. (With this Half-load function you can only use it when you have only about or less then 6 place settings dish wave, and you can see less water and energy consumption, you only be used with lintensive, Normal, Eco, Glass and 60min.)
4. Program Button: To Pressthe button to select appropriate Program.
   5.Start/Pausebutton: Tostarttheselected washing program or pause the washing program when the machine is working.

5. Display screen: to show the remaining time and the state(running state, delay time, error codes etc)

6. Half-load indicators: To show Half-load function starting up or not.

7. Water faucet indicator:

8. Program indicators: To show which program you have chose.

9. Other indicators:

10. Rinse Aid indicator: * Indicates when the dispenser needs to be refilled.

11. Add salt indicator: S Indicates when the dispenser needs to be refilled.
12. Childlockindicator:

Attention: 🔒

Child lock function: press delay button and 1/2 loading button simultaneously to lock the program.

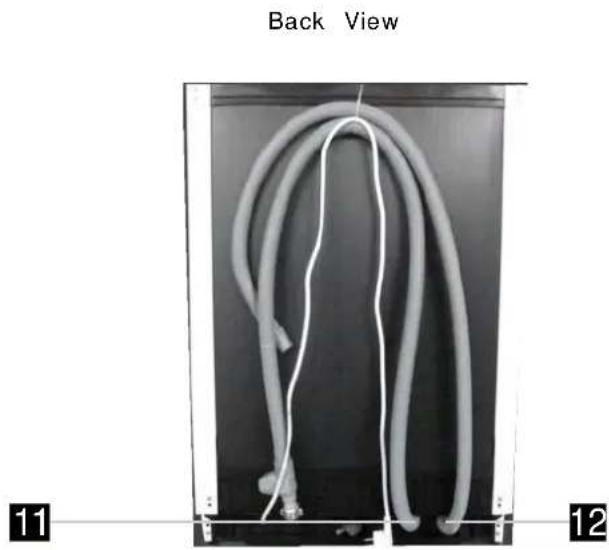

Dishwasher Features

Close-up of a coiled white cable or hose wrapped in a black container, labeled 'Back View' and numbered 11 and 12 (no text on the subject itself)

1 Topspray arm
2 Cutleryrack
3 Upperbasket

4 Innerpipe
5 Lowerbasket
6 Saltcontainer

7 Dispenser
8 Cupshelf
9 Sprayarms

10 Filterassembly
11 Inletpipe
12 Drainpipe

4. Prior using for the first time

Before using your dishwasher for the first time:

A. Setthewatersoftener
B. Add 1.5Kg dishwasher salt and then full fill the salt container with water

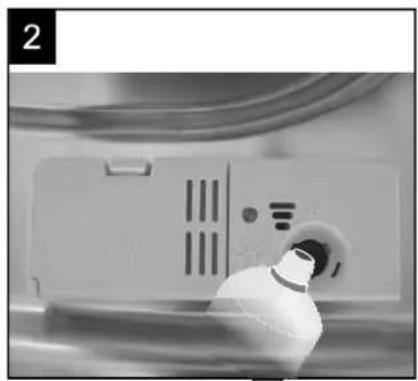

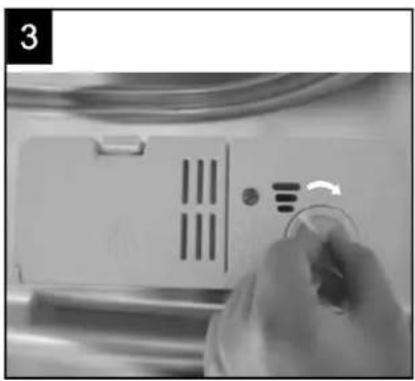

C. Fill the rinse aid dispenser
D. Fillindetergent

A. Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Switch on the appliance;

2. Press the Start/Pause button for more than 5 seconds to start the water softener set model within 60 seconds after the appliance was switched on (The Salt and Rinse aid warning lights will be on periodically when it get in the set model);

3. Press the Start/Pause button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;

4. Press the Power button to end the setup model.

WATERHARDNESS				DisplayPosition	Saltconsumption(gram/cycle)
dH	fH	Clarke	mmol/l
0~5	0~9	0~6	0~0.94	H1	0
6-11	10-20	7-14	1.0-2.0	H2	9
12-17	21-30	15-21	2.1-3.0	H3	12
18-22	31-40	22-28	3.1-4.0	H4	20
23-34	41-60	29-42	4.1-6.0	H5	30
35-55	61-98	43-69	6.1-9.8	H6	60

Note:1

1 dH=1.25Clarke=1.78fH=0.178mmol/l

DH: German degree

fH:Frenchdegree

Clark: British degree

Note:2

Themanufactory setting: H4(EN50242)

Contact your local water board for information on the hardness of your water supply.

NOTE: If your model does not have any water softener, you may skip this section.

WATERSOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

B. Loading the Salt Into the Softener

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained in the following:

Attention!

■ Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
■ Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

1

3D mechanical component diagram showing a highlighted yellow component with a purple and purple button, labeled 'Open' with an arrow (no text or symbols on the component itself)

2

Illustration of a hand pouring granular material into a tray with a bag and cleaning tool (no text or symbols)

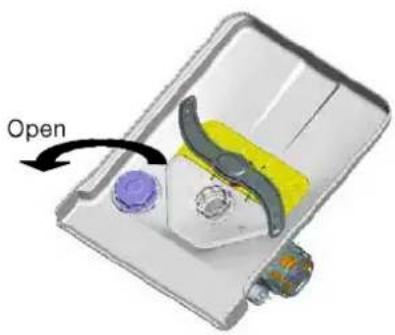

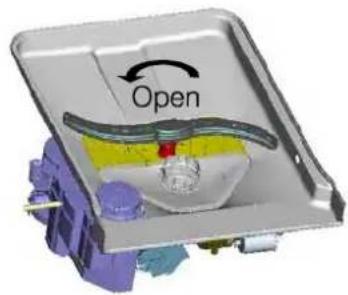

A After the lower basket has been removed, unscrew and remove the cap from the salt container.
B Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C Full fill the salt container with water, It is normal for a small amount of water to come out of the salt container.
D After filling the container, screw the cap tightly back clockwise. E The salt warning light will stop being after the salt container has been filled with salt.
F Immediately after filling the salt into the salt container, a washing program should be started (Wesuggesttouseashort program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.
3. If the machine needs to be dumped for the reasons of transit, repair and so on, please use the bibulous cloth or analog to blot up the water in the salt container, and screw the cap tightly, afterward, transit or repair the machine. After transiting or repairing the machine and confirming it in order, load the salt into the softener according to the process of "B. Loading the salt into the Softener". Otherwise, it could be make the big damage to the machine, for example, rustiness, conk and so on. Such problems are out of the guarantee range.

C. Fill the Rinse Aid Dispenser

RinseAidDispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aiddispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

FunctionofRinseAid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1 / 4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4full
1/2full
1/4 full-Should refill to eliminate spotting
Empty

Close-up of a hand pressing a button on a white appliance panel with visible buttons and wiring (no text or symbols)

Black and white photo of a medical device with a person visible in the foreground (no text or symbols)

Close-up of a hand pressing down on a white electronic device panel with buttons and wires (no visible text or symbols)

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during thenextwash. Don't forget to replace the cap before you close dishwasher door.

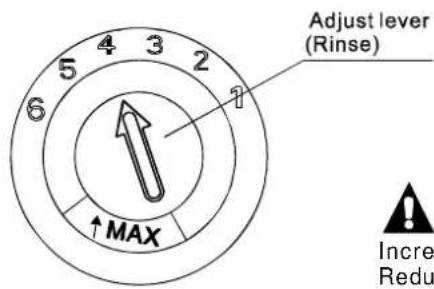

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factoryvalueis"4".)

NOTE:

Increase the dose if there are drops of water or limespots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

D. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Attention!

ProperUseofDetergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 °dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split into two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

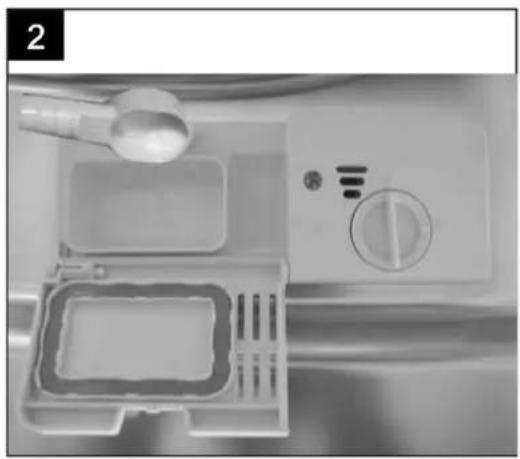

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for anormal wash load. Moreheavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

AmountofDetergenttoUse

Close-up of a kitchen appliance with a hand holding a tool and a control panel (no visible text or symbols)

NOTE:

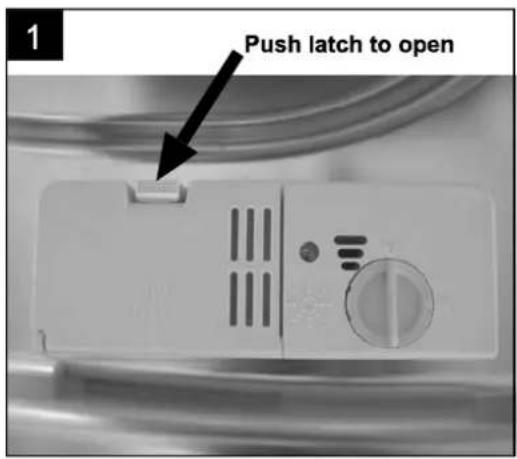

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergentaidfordishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Fillin Detergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A The place of main wash cycle detergent placed.

B The place of pre-wash cycle detergent placed.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Closethelidandpressuntilillocksinplace.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ You find information about the amount of detergent for the single programme on the last page.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

5. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Useamild detergentthat is described as 'kindtodishes'. If necessary, seek further information from the detergent manufacturers.
■ Forparticularitems, select a program with as low atemperature as possible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Arenotsuitable

■ Cutlery with wooden, hornchina or mother-of-pearlhandles

■ Plastic items that are not heat resistant

■ Oldercutlerywithgluedpartsthatarenot temperatureresistant

■ Bonded cutlery items or dishes

■ Pewterorcooperitems

■ Crystalglass

■ Steel items subject to rusting

■ Woodenplatters

■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after alargenumberofwashes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and itemsof cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method Loading Normal Dishware

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishwares such as glasses, coffee and teacups and saucers, as well as plates, small bowls and shallowpans (as long asthey are not toodirty). Position the dishes and cook wareso that they will not get moved by the spray of water.

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

3D diagram of a mechanical component with green and white spheres arranged around it, no text or symbols present.

Illustration of kitchen utensils including a pan, lid, and pot (no text or symbols)

Pleaseberemindedthat:

Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.

The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

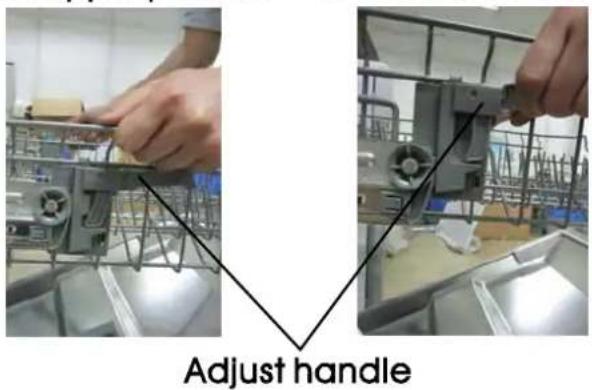

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create morespace for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by lift up the basket for the upper position, and up press the handle to lower the upper basket, see the picture below:

Lift the basket for upper position

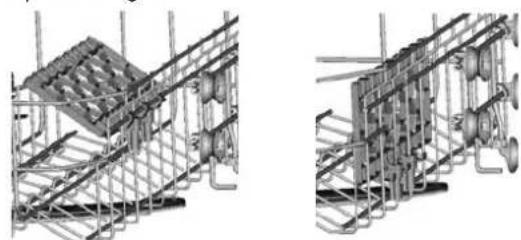

Folding back the cup shelves

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Two technical diagrams showing structural steel frameworks with internal components and no visible text or symbols

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

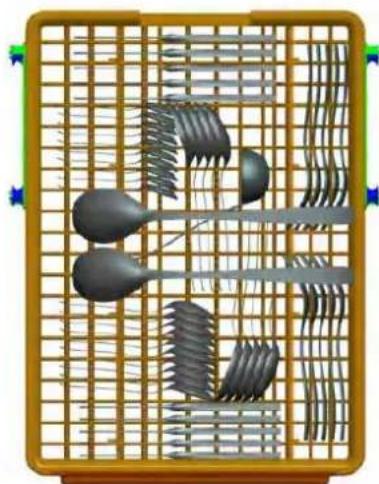

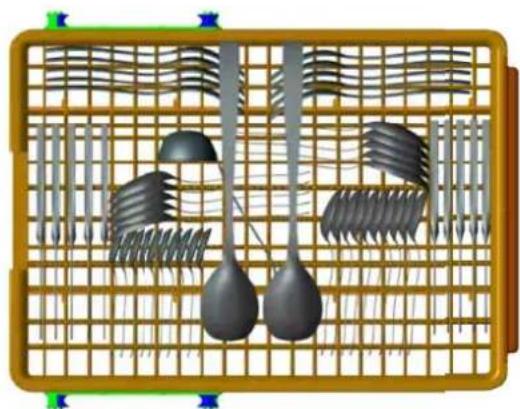

Cutlery Basket

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

For a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together.
■ Silverware is placed with the male face up.
■ Long utensils in the middle.

3D rendered diagram of mechanical components arranged in a grid, no text or symbols visible

6. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Intensiv	For heaviest soiled crockery, and normally soiledpots、pansdishesetcwithdried onsoiling.	Pre-wash(50°C)Wash(65°C)RinseRinseRinse(55°C)Drying	3/22g(or)3in1	130	1.20	16
Normal	For normally soiled loads, such as pots、plates、 glasses and lightly soiled pans.	Pre-wash(45°C)Wash(55°C)RinseRinse(65°C)Drying	3/22g(or)3in1	155	1.07	13
ECO (*EN 50242)	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.	Pre-washWash(50°C)RinseRinse(65°C)Drying	22g(or)3in1	175	0.83	9
Glas	For lightly soiled crockery and glass.	Pre-washWash(40°C)RinseRinse(60°C)Drying	22g	110	0.70	13
[2525] Express	For lightly soiledloadsthat do not need excellent drying efficiency.	Pre-wash(50°C)Wash(60°C)Rinse(55°C)Drying	3/22g	60	0.85	9
[HDBK], Schnell	A shorter wash for lightly soiled loads and quick wash.	Wash(40°C)RinseRinse(45°C)	20g	40	0.45	10
[4YHB] Einweichen	To rinse dishes that you plan to wash later that day.	Pre-wash		8	0.01	3.5

NOTE:

*EN 50242 : This programme is the test cycle. The information for comparability test in accordance with EN50242, as follows:

■ Capacity:10setting

■ Position Upper basket: upper wheels on rails

■ Rinse aid setting: 6

PI:0.49w; Po:0.45w.

Turning On the Appliance

Starting acyclewash

1 Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled Loadingthe Dishwasher). "

2 Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").

3 Insert the plug into the socket. The power supply is 220-240 VAC/50 Hz, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.

4 Close the door, press the On/Off button to switch on the machine.

5 Press the program button, the wash program will be changed as follows direction: Intensiv ->Normal->ECO>Glas->Express->Schnell->Einweichen If a program is selected, the response light will light on. Then press the Start/Pause button, the dishwasher begins to start.

When you press the Start/Pause button to pause during washing, the LED display window “888” will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start.

Change the Program...

Premise:

1 A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Press the Start/Pause button, the machine will pause, press the program button more than 3s then you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle...").
3 The LED display shows the state of the dishwasher:
a) The LED shows '-:--' stand by
b) The LED shows 'H:MM' and not blinking----Being paused
c) The LED shows 'H MM' and blinking----Running

NOTE:

If you open the door during a wash cycle, the machine will pause. the LED display window “888” will stop blinking and the buzzer will mooing every minute unless you closetedoor. After you closetedoor, the machine will keep on working after 10 seconds.

Forgot to Add a Dish?

Aforgottendishcanbeaddedanytimebeforethedetergentcupopens.

1 PresstheStart/PauseButtontostopthewashing.

4 Addforgottendishes.

2 Openthedoor alittle.

5 Closethe door

3 After the spray arms stop working, you can open the door completely.

6 Press the Start/PauseButton, the dishwasher will run after 10 seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ SwitchOfftheDishwasher

The program light is on but is not blinking, only in this case the programme has ended.
1. Switch off the dishwasher by pressing the ON/OFF button.
2. Turnoff the watertap!

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloadingthedishwasher

It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

7. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed.

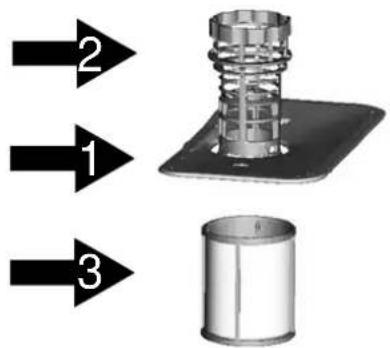

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

Mainfilter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarsefilter 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and liftout.

Finefilter 3

Thisfilterholds soil and food residues in the sumparea and prevents it from being redeposit on the dishes during wash cycle.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damaged dishes and utensils.

1

Step 1: Turn the filter in anti-clockwise direction,

2

3D mechanical assembly diagram showing internal components with no visible text or symbols

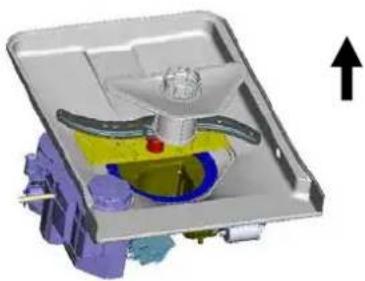

Step 2: lift the filter assy up

NOTE: Whenfollowingthisprocedurefromstep1tostep2,thefiltersystemwillberemoved; whenfollowingitfromStep2toStep1,thefiltersystemwillbeinstalled.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters underrunning water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Interior view of a rectangular electronic device with internal components and a black arrow pointing to a section (no visible text or symbols)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use aspraycleanerofanykind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows :

1. Cutoff the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard waterchemicalswillclogthe sprayarmjetsandbearings.

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

To removethelowerspray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ RemovethePlug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

Toclean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ WhennotinUseforaLongTime

It is recommend that you run a washcycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seal to last longer and prevent odours from forming within the appliance.

■ MovingtheAppliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factor that cause odourstoform in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Installation instruction

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the Appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2^ .

About Power Connection

WARNING!

Forpersonal safety:

■ DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
■ DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING CONNECTION FROM THE POWER CORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

⚠ Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING!

■ Improperconnectionoftheequipmentearthingconductorcanresultintheriskofan electricshock.
■ Checkwithaqualifiedelectricianorservicerepresentativeifyouareindoubtwhetherthe applianceisproperlyearthed.
■ Donotmodifytheplugprovidedwiththeappliance.Iftheplugdoesnotfitproperlytothe outlet,pleasehaveaqualifiedelectriciantoinstallaproperoutlet.

Water Connection

How to Connect the safety supply hose

Hand holding a faucet with a handle, no text or symbols present

The appliance must be connected to the watermains using new hose-sets. The old hose-sets should not be reused.

Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consultour Service Department for advice.

1 Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.
2 Tighterthescrewsofthesafetysupplyhosetothefaucetwiththread3/4inch.
3 Turnwaterfullyonbeforestartingthedishwasher.

ABOUT THE SAFETY SUPPLY HOSE.

The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

▲ WARNING!

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to Disconnect the safety supply hose

1 Turnoffthewater.
2 Unscrewthesafetysupplyhosefromthefaucet.

COLD WATER CONNECTION

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damagethe appliance.

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

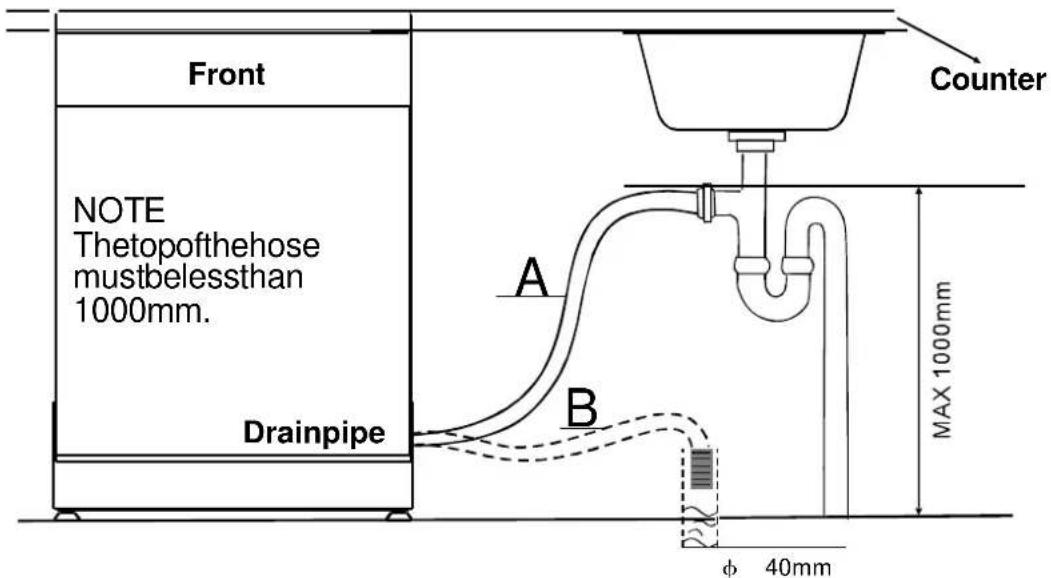

PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excesswater from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

SyphonConnection

The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dish. The water drain hose should be fixed.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is a leakage at the connections of the conducts
4 The wires are tightly connected
5 Thepowerisswitchedon
6 The inlet and drain hoses are knotted

7 Allpacking materials and printings should be taken out from the dishwasher

Attention: Afterinstallation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

9. Troubleshooting Tips

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem	Possible CausesWhat To Do
Dishwasher doesn't start	Fuseblown,orthe circuitbreakeracted	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
	Powersupplyisnot turnedon	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedinto the wallsocket.
	Waterpressureislow	Checkthatthewatersupplyisconnectedproperlyand thewateristurnedon.
	Doorofdishwasher notproperlyclosed.	Makesuretoclosethedoorproperlyandlatchit.
water not pumped form dishwasher	Kinkindrainhose	Checkdrainhose.
	Filterclogged	Checkcoarsethefilter"Clean(see Sectionified)
	Kitchensinkclogged	Checkthekitchensinktomakesureitisdrainingwell.Iftheproblemisthekitchensinknotdraining,youmay needaplumberratherthanaservicemanfordishwashers.
Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoidsuds.Ifthisoccurs,openthedishwasherandletsudsevaporate.Add1gallonofcoldwatertothetub.Closeandlatchthe dishwasher,thenselectanycycle.Dishwasherwilldrain outthewateratthefirststep.Openthodoorafterdraining isstopandcheckifthesudsisdisappeared.Repeatifnecessary.
	Spilledrinse-aid	Alwayswipeuprinse-aidspillsimmediately.
Stained tub interior	Detergentwith colourantwasused	Makesurethatthedetergentistheonewithout colourant.
White film on inside surface	Hardwaterminerals	Tocleantheinterior,useadampspongewith dishwasherdetergentandwearrubbergloves.Neveruseanyothercleanerhandishwasher detergentfortheriskoffoamingorsuds.
There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.
	Aprogrammewasnot runafterdishwasher saltwasadded.Tracesofsalthave gottenintowashcycle.	Alwaysrunthequickwashprogramme.withoutanycrockeryinthedishwasherand withoutselectingtheTurbofunction(ifpresent),afteraddingdishwashersalt.
	Thelidofthesofter isloose	Checkthelip.Ensurethefixisfine.
Knocking noise in the wash cabinet	As p a y a r m i s knockingagainst aniteminabasket	Interrupttheprogramme.andrearrangetheitems whichareobstructingthespayarm.r
Rattling noise in the wash cabinet	Itemsofcrockery arelooseinthe washcabinet	Interrupttheprogramme,andrearrangetheitemsofcrockery.
Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-sectionof thepiping.	Thishasnoinfluenceonthedishwasherfunction.ifindoubt,contactasuitablyqualifiedplumber.

	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas notpowerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemsareblocking thepathofspayarms.r	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination in the base of wash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect ashortestcycletowashtheglasswareandtoget themclean.
	Black or gray marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminateethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis-factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Toolittlerinse-aid	Increasetheamountofrinse-aid/refilltherinse-aid dispenser.
		Dishesareremoved toosoon	Donotemptyyourdishwasherimmediatelyafter washing.Openthedoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyoncet hedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogram hasbeenselected	Inshortprogramthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choose aprogramwithalongwashingtime.
		Useofcutlerywith alow-qualitycoating	Waterdrainageismoredifficultwiththeseitems.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
E1	Longerinlettime.	Faucetsisnotopened,orwaterintakeis restricted,orwaterpressureistoolow.
E4	Overflow.	Someelementofdishwasherleaks.

WARNING!

■ Ifoverflowoccurs,turnoffthemainwatersupplybeforecallingaservice.
■ Ifthereiswaterinthebasepanbecauseofanoverfillorsmallleak, thewatershouldberemovedbeforererestartingthedishwasher.

Technical Information

Height:845mm
Width:450mm
Depth:600mm	(with the door closed)
Water pressure:0.04-1.0MPa
Powersupply:seerating label
Capacity:10placesettings

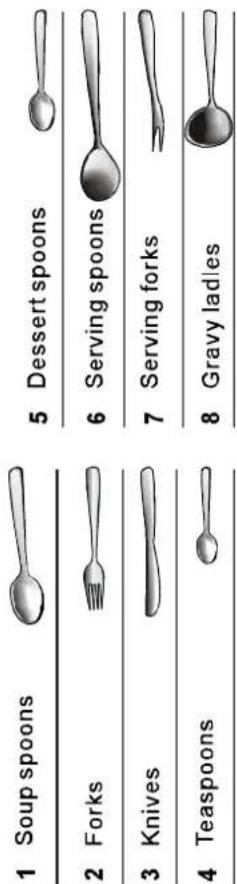

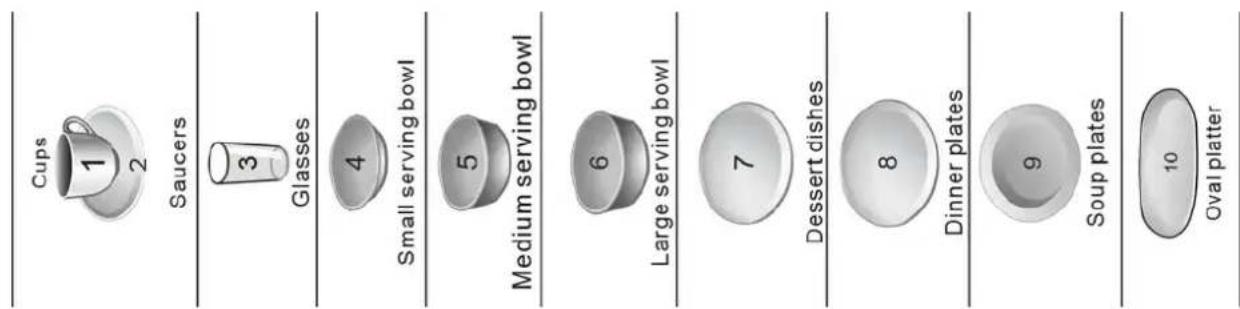

Loading the baskets according to En50242:

1. Upper basket:


1. Cutterly basket:


3D rendered diagram of mechanical components arranged in a grid, no text or symbols visible

1. Lower basket:


Information for comparability tests in accordance with EN 50242
Capacity: 10 place settings
Position of the upper basket: lower position Programme: ECO
Rinse aid setting: 6
Softener setting: H4

Technical Data Sheet

Sheet of household dishwasher according to EU Directive 1059/2010:

Manufacturer	BOMANN
Type/Description	GSP846ix
Standardplacesettings	10
Energy efficiency class 1	A+
Annualenergyconsumption 2	238kWh
Energy consumption of the standard cleaning cycle	0.83kWh
Power consumption of off-mode	0.45W
Power consumption of left-on mode	0.49W
Annualwaterconsumption 3	2520liter
Drying efficiency class 4	A
Standardcleaningcycle 5	ECO50 °C
Program duration of the standard cleaning cycle	175min
Noiselevel	49dB(A)re1pW
Mounting	Freestanding
Couldbebuilt-in	Yes
Height	84.5cm
Width	45.0cm
Depth(with connectors)	60cm
Powerconsumption	1930W
Ratedvoltage/frequency	230V~/50Hz
Waterpressure (flowpressure)	0.4-10bar=0.04-1M Pa

NOTE:

1 A+++(highest efficiency) to D (lowest efficiency)
② Energy consumption “238” kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption “2520” litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
4 A (highest efficiency) to G (lowest efficiency)
5 This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery:

-LVD2006/95/EC
-EMC2004/108/EC
-EUP2010/1016

The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amountofdetergent, etc.

The manual is based on the European Union's standards and rules.
