Product Type	Steam Cleaner & Mop
Brand	Morphy Richards
Model	70490
Water Tank Capacity	0.8 litres
Steam Temperature	115°C
Steam Runtime per Fill	More than 30 minutes
Heating Time	Approximately 30 seconds
Variable Steam Setting	Yes, adjustable on handle
Power Supply	230V ~ 50Hz (UK standard)
Accessories Included	Floor cloths (hard floor & carpet), utility cloth, squeegee nozzle, utility nozzle, deflector nozzle, spot brush with spare brushes, nozzle cleaning pin, boiler cleaning brush, detachable steam comb, detachable carpet glide base, water filling funnel
Floor Cloth Material	Washable microfiber fabric
Brush Sliders	Yes, for stubborn stain removal
Safety Features	Lock button, steam release valve; do not direct at people or electrical components
Maintenance	Use distilled water to prevent limescale; clean boiler and steam outlet after approx. 10 uses if not using distilled water
Guarantee	1 year standard, 2 years upon registration (UK/Ireland)
Cloths Care	Machine washable at 60°C max
Weight (approx.)	2.5 kg
Dimensions	Not specified by manufacturer
Compatible Surfaces	Hard floors, carpets, upholstery, bedding, glass, tiles, grout
Replacement Parts Available	Yes, via Morphy Richards helpline or website

Frequently Asked Questions - 70490 MORPHY RICHARDS

What type of water should I use in the steam cleaner?

We strongly recommend using distilled or de-ionised water to prevent limescale build-up. In hard water areas, this is especially important. If you use tap water, clean the boiler and steam outlet after every 10 uses.

How long does it take to heat up?

After switching on, the steam cleaner heats up in about 30 seconds. The green 'steam ready' light will illuminate when steam is ready.

Can I use the steam cleaner on wooden floors?

Yes, but set the variable steam setting to 'minimum' to avoid making the floors too wet. Always test on an inconspicuous area first.

How do I clean the boiler?

If you use distilled water, boiler cleaning is less frequent. Otherwise, after approx. 10 uses, remove the steam outlet and clean the chamber using the supplied nozzle cleaning brush. Refer to the manual for detailed steps.

Can I use chemical detergents or perfumes in the water?

No, do not add any chemical detergents, perfumes, alcohol, or descaler to the water. Only use plain water (preferably distilled).

What does the warranty cover?

The standard warranty is 1 year, extended to 2 years if you register online within 28 days (UK and Ireland only). It covers manufacturing faults but not limescale issues or consumables like cloths.

How do I unblock the steam nozzle?

Use the supplied nozzle cleaning pin (item 22) inserted into the centre of the steam nozzle to clear blockages. After unblocking, remove the outlet and clean the chamber.

Can I use the steam cleaner on carpets?

Yes, attach the carpet glide base and use the carpet floor cloth. Set the variable steam to 'maximum' and use slow strokes. Vacuum carpets thoroughly before steaming.

How should I store the appliance?

After use, empty the water tank and allow it to dry. Wrap the cord around the cord holders. You can use the hanger strap to hang the appliance for storage.

Where can I buy replacement parts or cloths?

Contact the Morphy Richards helpline (UK: 0844 873 0726) or visit their website at www.morphyrichards.com for genuine spare parts and accessories.

USER MANUAL 70490 MORPHY RICHARDS

Register online for your 2 year guarantee. See back of this instruction book for details. (UK and Ireland customers only) www.morphyrichards.co.uk

Product photo of a morphine brush tool with black and white body (no visible text or symbols)

Supersteam Steam Mop & Cleaner

Please read and keep these instructions

Limescale

• Naturally occurring minerals in tap water can result in a build-up of limescale inside all water heating appliances. This can affect performance and, with time, could result in blockages that could stop the product working. To prevent this possibility, we strongly recommend using distilled/de-ionised water in this steam cleaner. This is especially important in hard water areas.
  • Distilled/de-ionised water should be obtainable from most large supermarkets.
• If distilled/de-ionised water is not used, then after approximately each ten uses, the boiler and steam outlet must be cleaned as described on page 7. Failure to do so may invalidate the warranty.

VC70490 MUK Rev 1

For competitions, product hints and tips and much more, join us online at our blog, Facebook or Twitter pages.

www.homeofthehouseproud.com

www.facebook.com/LoveYourHome

www.twitter.com/MRLoveYourHome

If you have a problem or complaint, please call our dedicated UK based helpline before returning your product to the retailer from where it was purchased.

UK Helpline: 0844 871 0960

Replacement Parts: 0844 873 0726

Ireland Helpline: 1800 409 119

For details of other Morphy Richards products, plus replacement parts and accessories, please see our website: www.morphyrichards.com

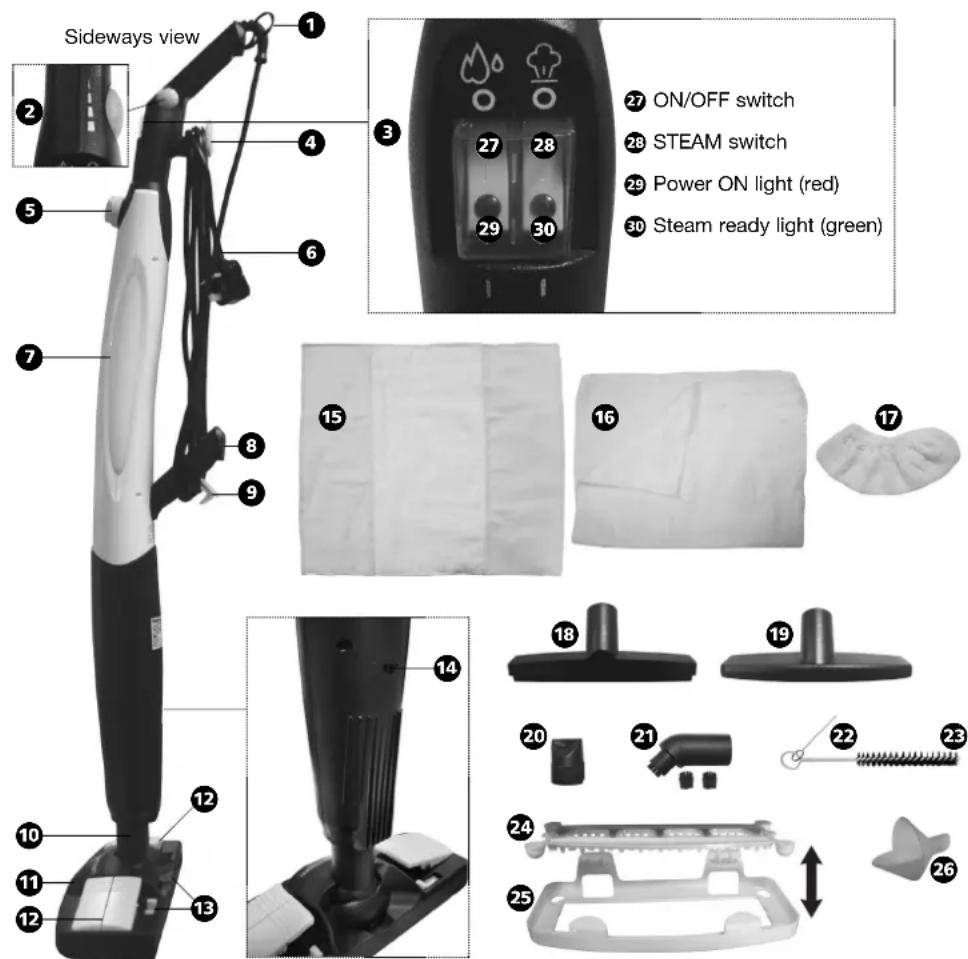

FEATURES

① Hanger strap
② Variable steam setting
3 Control switches (see 27/28/29/30)
4 Power cord holder (with quick release)
⑤ Water tank filler cap
6 Power cord
⑦ Water tank
8 Lower handle

9 Fold-out power cord holder
10 Lock button
11 Floor head
12 2x Floor cloth grips (set on either side)
13 Brush sliders
14 Steam release valve (located on rear)
15 Floor cloth (for hard floors)
16 Floor cloth (for carpets)
⑰ Elasticated utility cloth

18 Squeegee nozzle
19 Utility nozzle
20 Deflector nozzle
21 Spot brush (with 2x spare brushes)
22 Nozzle cleaning pin
23 Boiler cleaning brush
24 Detachable steam comb attachment
25 Detachable carpet glide base attachment
26 Water filling funnel

OPERATING THE APPLIANCE

Please remember that the steam cleaner operates by emitting steam at an increased temperature of 115^ C. Never use it on objects or surfaces which cannot resist this temperature, or on delicate materials such as dralon, plastic, natural fur etc.

If in doubt, check carefully on a part of the material where minor marks will not matter.

FILLING THE WATER TANK

In hard water areas, we strongly recommend using distilled or de-ionised water (available from larger supermarkets). This will prevent limescale build-up which with time will affect the performance of the cleaner. Problems caused by limescale are not covered by the guarantee.

1 Remove the tank filler cap by unscrewing it anti-clockwise and fit the funnel provided.
2 With the cleaner held at around 45^ , pour the water into the funnel. The maximum capacity is 0.8 litres of water which will give more than 30 minutes of steaming. Use less water if required. Do not overfill.
3 Remove the funnel and refit the cap. Press the black centre of the cap to ensure the air valve is free. This valve prevents water escaping but allows air into the tank. Test this valve by pressing the centre after every filling.

ASSEMBLY

1 Depending on the task, decide on the nozzle and prepare the nozzle as shown in later sections (pages 4-6). To fit the nozzle to the main body, align the hole in the nozzle with the lock button 10 on the main body. Press the lock button in and then push the nozzle fully on until the lock button clicks into place A.

Close-up of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols visible)

USING THE PRODUCT

WARNING: Before switching ON, make sure the nozzle is located in safe area and away from persons. Steam will be emitted after around 30 seconds.

1 Press the ON/OFF switch 27 and the red power ON light 29 will illuminate. The boiler will start to heat but no steam will be emitted.
2 Press the STEAM switch 28, after about 30 seconds when the boiler is up to temperature, the water pump will start, the green steam ready light 30 will illuminate and steam will be emitted.
3 The steam output can be regulated using the variable steam setting control on the side of the handle B.

Close-up of a hand holding a black cable with wires (no visible text or symbols)

When using on hard/wooden floors, we recommend setting to minimum steam to prevent the floors becoming too wet.

- To stop the steam, switch either switch to the OFF position 27. For quick breaks, we suggest just switching OFF the STEAM switch 28s.

After switching the cleaner to OFF, steam will continue to be emitted for a few seconds until the boiler is empty.

WARNING: Switch OFF and unplug before changing nozzles. After use, nozzles will be very hot, allow to cool before handling.

CARPET CLEANING

IMPORTANT: Carpets should be dry vacuumed thoroughly before using the steam cleaner.

For freer movement of the steamer over larger carpeted areas, the carpet glide base attachment 25 can be used.

1 Detach and remove the steam comb section 24 from the carpet glide attachment.
2 Fold the floor cloth (for carpets) 16 and place inside the carpet glide base 25 C.

Hand holding a white plastic tray with a small object on top (no text or symbols visible)

3 Secure the floor head 11 inside the carpet glide base attachment 25 and connect the floor cloth (for carpets) 16 to the attachment by using the floor cloth grips 12 D.

Close-up of hands using a handheld device to press or install a white fabric or plastic sheet (no visible text or symbols)

4 When cleaning carpets and rugs, set the variable steam setting ② to "maximum". Use slow forward and backward cleaning strokes over the desired area.

Carpet pile rejuvenation

To rejuvenate flattened carpet piles, remove the floor cloth (for carpets) 16 and connect the carpet glide base attachment 25 to the floor head with the steam comb attachment 24 in place E.

Exploded view of a mechanical clamp assembly showing internal components and alignment arrows (no text or symbols)

HARD FLOOR CLEANING

Reduce the steam flow to a lower setting by turning the variable steam setting ②. Use both forward and backward strokes across the floor area.

When cleaning parquet, laminate and wood floors, set the variable steam setting ② to "minimum".

Both sides of the floor cloth (for hard floors) 15 can be used. Choose the smoother side for easier movement and attach to the floorhead using the floor cloth grips 12 to secure it in place F.

Close-up of a fabric sample with numbered annotations (12, 15) and arrows indicating direction, no readable text or symbols present.

When the floor cloth becomes very wet or too dirty, rinse out the moisture, use the reverse side or replace with a clean, dry cloth.

Stubborn stains on hard floors

To remove stubborn stains on hard surfaces, fold and attach the floor cloth (for carpets) 16 whilst leaving the brushes underneath the floor head 11 visible C.

White curved object with a textured base, possibly a lampshade or cushion (no text or symbols visible)

Move the brush sliders 13 so that the brushes appear underneath the floor head 11. Move the brushes back and forth over the area.

IMPORTANT: Do not use the brushes for routine carpet and hard floor cleaning as unnecessary scrubbing may cause damage.

SANITISING BEDDING AND UPHOLSTERY

To sanitise and remove dust mites and allergens from bedding and upholstery, fit the utility nozzle and pass the steam slowly and evenly over the surface, ensuring all areas are treated. Repeat the process. Leave the mattress to dry thoroughly before covering.

ATTACHING ACCESSORIES

IMPORTANT: Before connecting any of the accessories (excluding the floor head 11), first connect the deflector nozzle 20 to the end of the steam outlet on the main body of the steam cleaner.

Fit the required accessory over the deflector nozzle by aligning the hole in the side of the accessory with the lock button 10 on the main body of the steam cleaner. Ensure that the lock button clicks firmly into place H.

Close-up of a black mechanical component with directional arrows indicating movement or assembly (no text or symbols visible)

Squeegee nozzle 18

For cleaning glass and mirror panels. Use the squeegee at a very low steam flow by adjusting the variable steam setting ②. Use a cloth to wipe the blade and remove excess water during usage.

This accessory is ideal for cleaning windows, patio doors, conservatory glass, tiles and shower screens.

To clean windows, start at the top of the window, pressing the squeegee to the surface and drag downwards. Move the squeegee in straight passes from top to bottom. Wipe the rubber blade and the bottom edge of the window dry after each pass.

For small window panels, remove the squeegee tool and spray the steam directly onto the surface. Use the squeegee separately to wipe away the moisture.

WARNING: Do not use on very cold glass, as the sudden temperature change may crack the glass.

Spot brush 20

For cleaning the grout between tiles or stubborn marks and stains on hard surfaces. Use at medium or high steam flow by adjusting the variable steam setting ②.

Apply gentle pressure. Too much force may damage the bristles. Two sets of spare bristles are supplied. To change, loosen the screw and pull out the bristle set.

Utility nozzle 19

For cleaning tiled surfaces, cabinets and worktops in kitchens and bathrooms. Also use this attachment for cleaning upholstery, curtains, blinds, pillows and mattresses. Use on a low to medium steam flow by adjusting the variable steam setting ②. Cover the utility nozzle ⑮ with the elasticated utility cloth ⑰ ⅰ.

Close-up of hands holding a small object with a dark central mass, possibly a battery or sensor (no visible text or symbols)

The utility tool can also be used to clean sanitary ware such as toilet bowls, taps or drain covers. Use this nozzle at maximum steam flow. Point it directly at non-permanent stains on carpets or upholstery whilst holding a clean cloth near the stained area to capture any loosened dirt.

NOTE: When the steam cleaner is used for cleaning in a horizontal or inclined position, shake the steam cleaner gently to ensure that the weighted tubing inside the tank is in the correct (immersed) position.

STORAGE

Wrap the cord around the two power cord holders ④ and ⑨, folding the lower holder out from its location on the lower handle ⑧.

Your steam cleaner comes with a hanger strap ① to hang the product from during storage.

AFTER USE

Follow the two maintenance steps below after every use.

1 Switch the cleaner off and unplug from the socket. Wait until the cleaner has cooled down completely.
2 Empty the water tank by unscrewing the cap and pouring out the water. Allow the inside of the water tank to dry out before replacing the filler cap.

CARE AND MAINTENANCE

IMPORTANT: Unless distilled or de-ionised water is used, then after approximately each ten uses, the steam outlet must be removed and cleaned along with the boiler.

Rinsing the water tank

Regularly rinse the water tank ⑦ to release any limescale deposits that have collected on the bottom of the tank. Use clean cold water and fit the filler cap ⑤ to allow vigorous rinsing.

Naturally occurring minerals in tap water can result in a build-up of limescale inside all water heating appliances. This can affect performance and, with time, could result in blockages that could stop the product working. To prevent this possibility, we strongly recommend using distilled or de-ionised water in this steam cleaner. This is especially important in hard water areas.

Distilled or de-ionised water should be obtainable from most large supermarkets.

If distilled or de-ionised water is not used, then after approximately each ten uses, the boiler and steam outlet must be cleaned as described on page 7. Failure to do so may invalidate the warranty.

Steam outlet cleaning

1 Unplug the cleaner from the electrical outlet and allow the steam cleaner to completely cool down.
2 Pull down the nozzle lock J1 and twist the steam outlet J2, releasing it from its locked position.

3 Pull upwards J ; this will remove it completely from the steam chamber along with an attached spring K.

Close-up of a hand holding a coiled spring attached to a black cylindrical device (no text or symbols visible)

4 Insert the nozzle brush into the chamber L.

Close-up of hands holding a coiled wire with an arrow indicating direction (no text or symbols visible)

Rotate the brush while pulling it in and out of the chamber. Insert the steam nozzle back into the chamber and turn it clockwise to lock back into position.

Unblocking the steam outlet

If steam flow appears reduced, the steam nozzle may be blocked. Insert the nozzle cleaning pin 22 into the centre of the steam nozzle. This will clear any blockages that may have formed M. After unblocking, remove the outlet and clean the chamber.

Close-up of a hand holding a pen tip next to a mechanical component with arrows indicating direction (no text or symbols visible)

Cleaning the cloths

The floor cloths 15/16 and the elasticated utility cloth 17 can all be machine washed (60°C max). For heavy soiling, soak the cloths in warm water and detergent or a mild stain remover. Allow to completely dry before storing.

Contact our hotline to purchase replacement cloths.

- Your cleaner is manufactured to withstand normal day-to-day use, but an occasional wipe over with a damp cloth will help maintain it.

Abrasive cleaners should not be used.

HELPLINE

If you have any difficulty with your appliance, do not hesitate to call us. We are more likely to be able to help than the store from where you bought it.

Please have the following information ready to enable our staff to deal with your query quickly.

• Name of the product.
• Model number as shown on the underside of the appliance.
• Serial number as shown on underside of the appliance.

UK Helpline 0844 871 0960

Replacement Parts 0844 873 0726

Ireland Helpline 1800 409 119

WEBSITE

You may also contact us through our website, or visit the site to browse and purchase appliances, spare parts and accessories from the extensive Morphy Richards range.

www.morphyrichards.com

6 UK Helpline 0844 871 0960 Replacement Parts 0844 873 0726 Ireland Helpline 1800 409 119

IMPORTANT SAFETY INSTRUCTIONS

Personal safety

• WARNING: Never direct steam at electrical components or fittings. If in doubt about the suitability of steam for cleaning an appliance, contact the appliance manufacturer for advice prior to cleaning.
• WARNING: Never touch the plug or cable with wet hands.
• WARNING: Nozzles and tools will be hot after use. Allow to cool before attempting to remove.
• WARNING: Do not discharge the steam towards people. Danger of scalding.

• To protect against fire, electric shock and personal injury, do not immerse cord, plug or cleaner in water or other liquid.
• The plug should be removed from the wall socket after use, before cleaning, filling or changing the accessories.
• The accessories get very hot. Allow to cool before changing.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Do not use the appliance without the filling cap in place.

Location

• Do not use or keep this product outside.
• Do not store the appliance near hot surfaces eg. ovens or heating appliances.

Mains lead

• Do not allow the mains lead to become strained.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person(s) in order to avoid a hazard.

Product safety

• WARNING: Always test on an inconspicuous area first. Never use on materials that can't resist high temperature, such as dralon, natural fur etc.
• Never modify the steam cleaner in any way.
• Never operate the steam cleaner without water in the tank. Always top-up with water during extended periods of use.
• Never fill the steam cleaner's tank with anything other than water.
• Press the centre button on the water tank cap at every refill and ensure that the cap has been screwed down fully before use.

Other safety considerations

• Do not use any chemical detergents, perfumes, alcohol or descaler etc in water.
  • Repairs to electrical appliances are only to be undertaken by trained personnel.

• Unprofessional repairs can be dangerous for users.

• Use only genuine Morphy Richards spare parts and accessories.
  • The appliance must never be left running when unsupervised.
• This steam cleaner is intended for domestic use only. Misuse or use for commercial or any other purpose will render the guarantee invalid.

Children

• Never allow children to use this appliance.
  • Children do not understand the dangers associated with operating electrical appliances. Never allow children to use this appliance.
  • Children should be supervised to ensure that they do not play with the appliance, or stumble over the power cord.

ELECTRICAL REQUIREMENTS

Check that the voltage on the rating plate of your appliance corresponds with your house electricity supply which must be A.C. (Alternating current).

If the socket outlets in your home are not suitable for the plug supplied with this appliance, the plug should be removed and the appropriate one fitted.

WARNING: The plug removed from the mains lead, if severed, must be destroyed, as a plug with a bared flexible cord is hazardous if engaged into a live socket outlet.

WARNING: This appliance must be earthed.

Should the fuse in the 13 amp plug require changing, a 13 amp BS1362 fuse must be fitted.

REGISTERING YOUR TWO YEAR GUARANTEE

Your standard one year guarantee is extended for an additional 12 months when you register the product within 28 days of purchase with Morphy Richards. If you do not register the product with Morphy Richards within 28 days, your product is guaranteed for 1 year. To validate your 2 year guarantee register with us online at www.morphyrichards.co.uk

N.B. Each qualifying product needs to be registered with Morphy Richards individually.

Please note that the 2 year guarantee is only available in the UK and Ireland. Please refer to the one year guarantee for more information.

YOUR ONE YEAR GUARANTEE

It is important to retain the retailer's receipt as proof of purchase. Staple your receipt to this back cover for future reference.

Please quote the following information if the product develops a fault. These numbers can be found on the base of the product.

Model no.

Serial no.

All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase, it should be returned to the place of purchase for it to be replaced.

If the fault develops after 28 days and within 12 months of original purchase, you should contact the Helpline number quoting Model number and Serial number on the product, or write to Morphy Richards at the address shown.

You may be asked to return a copy of proof of purchase.

Subject to the exclusions set out below (see Exclusions), the faulty appliance will then be repaired or replaced and dispatched usually within 7 working days of receipt.

If you suspect a fault, follow the simple checks detailed below before retrying the appliance or calling the helpline.

- Check the steam outlet is not blocked.

- Check the plug is firmly in the socket.

- Check the socket is working by trying another appliance.

- Check the fuse in the plug.

If, for any reason, this item is replaced during the 1 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase.

To qualify for the 1 year guarantee, the appliance must have been used according to the instructions supplied.

For electrical products sold within the European Community. At the end of the electrical products useful life, it should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country.

Morphy Richards products are intended for household use only.

Morphy Richards has a policy of continuous improvement in product quality and design. The company, therefore reserves the right to change the specification of its models at any time.

EXCLUSIONS

Morphy Richards shall not be liable to replace or repair the goods under the terms of the guarantee where:

1 The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturer's recommendations or where the fault has been caused by power surges or damage caused in transit.

2 The appliance has been used on a voltage supply other than that stamped on the products.

3 Repairs have been attempted by persons other than our service staff (or authorised dealer).

4 The appliance has been used for hire purposes or non domestic use.

5 The appliance is second hand.

6 Morphy Richards are not liable to carry out any type of servicing work, under the guarantee.

7 The guarantee excludes consumables such as cloths and spot brush bristles.

- This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer.

morphy richards

The After Sales Division Morphy Richards Ltd

Mexborough, South Yorkshire, England, S64 8AJ

Helplines (office hours)

UK 0844 871 0960

Spare Parts 0844 873 0726

Republic of Ireland 1800 409 119

VC70490 MUK Rev 1 01/11

For details of other Morphy Richards products, plus replacement parts and accessories, please see our website:

www.morphyrichards.com
