Product Type	Microwave Oven with Grill
Brand	TEAM
Model	MW 26 DG
Power Consumption (Microwave)	1200 W
Power Consumption (Grill)	1000 W
Microwave Output Power	800 W
Operation Frequency	2450 MHz
Outside Dimensions (HxWxD)	262 x 452 x 381 mm
Oven Cavity Dimensions (HxWxD)	210 x 315 x 314 mm
Capacity	21 L (approx)
Turntable Diameter	245 mm
Net Weight	11.4 kg
Cooking Modes	Microwave, Grill, Combination 1 (30% MW + 70% Grill), Combination 2 (55% MW + 45% Grill)
Auto Cook Menus	9 preset programs (Milk, Rice, Spaghetti, Potatoes, Auto Reheat, Fish, Chicken, Beef/Mutton, Skewered Meat)
Auto Defrost	By weight for meat, poultry, seafood
Quick Start	Yes, by pressing Start repeatedly
Child Lock	Yes, press and hold Stop/Cancel for 3 seconds
Digital Clock	Yes, 12-hour display
Control Type	Touch buttons and rotary dial
Grill Heater	Yes, quartz heater
Cord Length	1.4 m
Grounding Required	Yes
Safety Features	Door safety lock system, child lock, auto shut-off
Cleaning	Wipe with damp cloth; glass tray dishwasher safe; avoid harsh cleaners
Disposal	Do not dispose as unsorted municipal waste; follow WEEE directive

Frequently Asked Questions - MW 26 TEAM

Can I use metal containers in the microwave?

No, metal utensils or dishes with metallic trim should not be used as microwaves cannot penetrate metal and may cause sparks. Use heat-resistant glass, ceramics, or microwave-safe plastic.

How do I set the clock on the MW 26?

Press the RELOJ button, turn the TIEMPO/MENÚ dial to set the hour, press RELOJ again, then turn the dial to set minutes, and press RELOJ to confirm.

What does the Child Lock do and how to activate it?

The Child Lock prevents unsupervised use by children. Press and hold the PARAR/CANCELAR button for 3 seconds until the lock indicator appears. To cancel, press and hold again for 3 seconds.

Can I use the grill and microwave together?

Yes, use Combination 1 (30% microwave, 70% grill) or Combination 2 (55% microwave, 45% grill) for even cooking and browning.

How do I defrost food automatically?

Turn the dial to select Auto Defrost (code 10), then use the AJUSTE DE PESO button to set the weight. The oven automatically adjusts time and power.

Why does my microwave cause interference with my TV?

Microwave ovens can cause radio/TV interference. Try reorienting the antenna, moving the oven away, or plugging it into a different outlet on a separate circuit.

How should I clean the microwave?

Unplug the oven. Wipe interior with a damp cloth; use mild detergent for stubborn stains. Do not let water seep into vents. The glass tray and roller ring can be washed in warm soapy water or dishwasher.

What should I do if the oven stops working?

Check the power cord is securely plugged in, the circuit breaker hasn't tripped, the timer is set, and the door is fully closed. If issue persists, contact a qualified electrician.

Can I heat sealed containers or eggs in the microwave?

No, sealed containers may explode due to pressure buildup. Eggs in shell and whole hard-boiled eggs can also explode even after heating. Always pierce foods with heavy skins.

What is the maximum weight the turntable can hold?

The oven can hold food weight up to approximately 5 kg (including container), but refer to the turntable's maximum load capacity specified in the manual (typically around 3-5 kg).

USER MANUAL MW 26 TEAM

Microondas Microwave oven

I/B Version

060515

TEAM MW 26 DG

230 V \~ 800 W

SP MANUAL DE INSTRUCCIONES

PANEL DE MANDOS

Pantalla digital

READ these instructions carefully before installing and operating the oven. Keep them for further reference.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the :
① Door (bent),
② Hinges and latches (broken or loosened),
③ Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

SPECIFICATIONS

Power consumption: 230V\~50Hz, 1200W(Microwave)

1000W(Grill)

Output: 800W

Operation frequency: 2450MHz

Outside dimensions: 262mm(H)×452mm(W)×381mm(D)

Oven cavity dimensions: 210mm(H)×315mm(W)×314mm(D)

Capacity:

Turntable system: {Φ245mm}

Net weight: Approx.11.4kg

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
b) Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
c) Check to ensure that the control panel is programmed correctly and the timer is set.
d) Check to ensure that the door is securely closed. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A COMPETENT QUALIFIED ELECTRICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

11 TEAM MW 26 DG - 060515

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact a competent qualified electrician.
3. This microwave oven must be placed on a flat, stable surface to hold its weight (+/- 16.5kg) and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides.
6. Do not cover or block any openings on the appliance. Do not remove the feet.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in case of emergency.
9. Do not use the oven outdoors.

GROUNDING INSTRUCTIONS

WARNING: THIS APPLIANCE MUST BE GROUNDED. This oven is equipped with a cord of 1.4 meter, the power socket should be within this distance. Avoid using extension cords or make sure they are compatible with the power of your appliance. This appliance requires 4.0 kVA.

We advise you to call for an electrician if you have any questions concerning the technical installation of your appliance.

RADIO INTERFERENCE

1. Operation of the microwave oven can cause interference to your radio, TV or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the following measures:
   a. Clean door and sealing surface of the oven.
   b. Reorient the receiving antenna of radio or television.
   c. Relocate the microwave oven with respect to the receiver.
   d. Move the microwave oven away from the receiver.
   e. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy, please read all instructions carefully before using the appliance:

1. Only use the appliance for domestic purposes and in the way indicated in these instructions. This appliance is not suitable for professional use. Do not use corrosive chemicals or vapours in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

2. Do not operate the oven when empty.

3. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person.

4. As with any appliance, close supervision is necessary when used by children.

5. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.

b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.

c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

1. ⚠️CAUTION: Liquid or other food must not be heated in sealed containers since they are liable to explode.

2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when you handle the container.

3. CAUTION: Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns. Do not warm up greasy foods in the microwave oven, as it might catch fire.

4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.

5. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before cooking.

6. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

7. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.

8. Utensils should be checked to ensure that they are suitable for use in microwave oven. Utensil Test: Place the empty utensil in the oven, microwave at high power for 1 minute. A utensil that becomes very hot should not be used.

9. ⚠️WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation that involves the removal of any cover that gives protection against exposure to microwave energy.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.

2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the centre of the dish to the outside.

13 TEAM MW 26 DG - 060515

UTENSILS GUIDE

1. We advise you to use utensils that are specially conceived for microwave cooking as they allow energy to pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fire.
4. Round/oval dishes rather than square/oblong ones are recommended, as food in corners tends to overcook.

The table below is a general guide to help you select the correct utensils.

Cookware	Microwave Cooking	Grill Cooking	Combination Cooking
Heat-Resistant Glass	Yes	Yes	Yes
Non Heat-Resistant Glass	No	No	No
Heat-Resistant Ceramics	Yes	Yes	Yes
Microwave-Safe Plastic Dish	Yes	No	No
Kitchen Paper	Yes	No	No
Metal Tray	No	Yes	No
Metal Rack	No	Yes	No
Aluminum Foil & Foil Containers	No	Yes	No

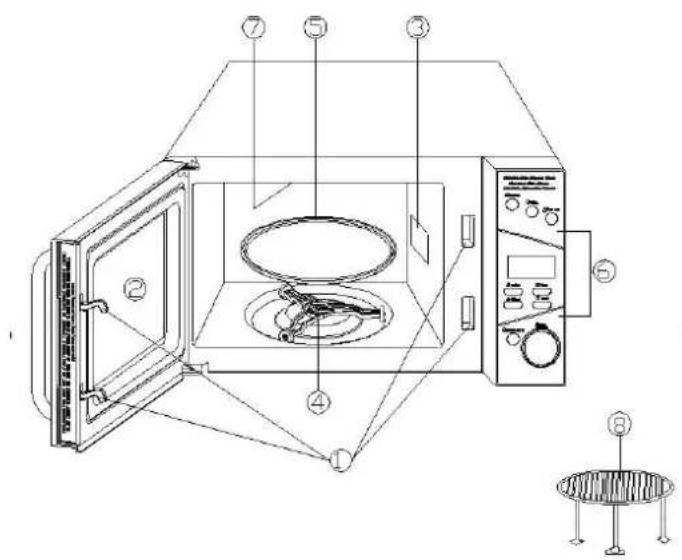

1. Door safety lock system
2. Oven window
3. Oven air vent
4. Shaft and roller ring
5. Glass tray
6. Control panel
7. Grill heater
8. Grill rack

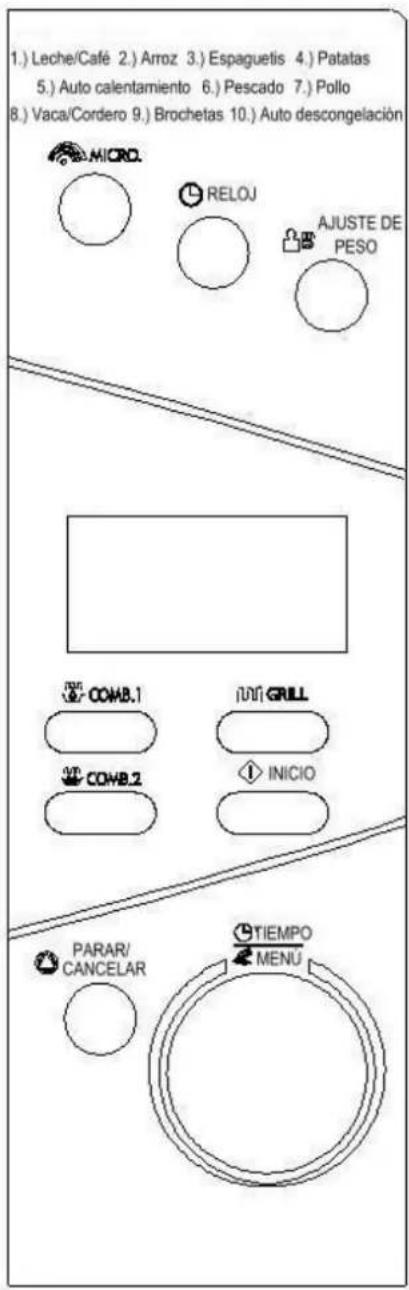

CONTROL PANEL

15 TEAM MW 26 DG - 060515

Menu action screen

Cooking time, power, action indicators, and clock time are displayed.

Micro.

Touch this button a number of times to set microwave cooking power level.

Grill

Pressthis button to set a grill-cooking program.

Comb. 1/Comb. 2

Press this button to set a combination cooking program.

Turn the dial to input cooknig time, select the kind of food you want to cook.

Ajuste de peso (Weight adjustment)

Press a number of times to specify weight.

Reloj (clock)

Use to set clock time.

Touch to start a cooking program.

Simply touch it a number of times to set cooking time and the oven will immediately cook at full power level.

Parar/Cancelar (stop/cancel)

Press to cancel setting or reset the oven before setting a cooking program.

Press once to temporarily stop cooking, or twice to cancel cooking altogether.

It is also used for setting child lock.

HOW TO SET THE OVEN CONTROLS

Each time a button is touched, a beep will sound to acknowledge the touch.

SETTING DIGITAL CLOCK

FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30 (A.M. or P.M.).

1. Press RELOJ button once.
2. Turn TIEMPO/MENÚ to indicate the hour digit 8.
3. Press RELOJ button.
4. Turn TIEMPO/MENÚ to indicate the minute digits until the screen shows 8:30.
5. Press RELOJ to confirm the setting.

To check clock time during cooking, press the RELOJ button.

MICROWAVE COOKING

To cook with microwave power alone, press the MICRO. button a number of times to select a cooking power level, and then use the TIEMPO/MENÚ dial to set a desired cooking time. Select power level by pressing the MICRO. button.

Press MICRO. button	Cooking power
once	100%
twice	80%
3 times	60%
4 times	40%
5 times	20%
6 times (Setting timer)	0

For example, suppose you want to cook for 1 minute at 60% of microwave power.

1. Press MICRO button 3 times.
2. Turn TIEMPO/ MENÚ to 1:00.
3. Press INICIO button.

GRILL

The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, pieces of chicken or sausages. It is also suitable for hot sandwiches and au gratin dishes.

For example, suppose you want to grill for 12 minutes.

1. Press GRILL button.
2. Turn the TIEMPO/ MENU to 12:00.
3. Press INICIO button.

COMBINACIÓN 1

30% time for microwave cooking, 70% for grill cooking. Use for fish, potatoes or au gratin. FOR EXAMPLE: Suppose you want to set combinación 1 cooking for 25 minutes.

1. Press COMB. 1 button.
2. Turn TIEMPO/ MENÚ to 25:00.
3. Press INICIO button.

16 TEAM MW 26 DG - 060515

COMBINACIÓN 2

55% time for microwave cooking, 45% for grill cooking. Use for puddings omelettes, baked potatoes and poultry.

FOR EXAMPLE: Suppose you want to set combination 2 cooking for 12 minutes.

1. Press COMB. 2 button.
2. Turn TIEMPO/ MENÚ to 12:00.
3. Press INICIO button.

AUTO DEFROST

Use to defrost frozen meat, poultry and seafood by weight. The defrosting time and power level are automatically set once the food category and the weight are programmed.

FOR EXAMPLE: Suppose you want to defrost 200g of meat.

1. Turn TIEMPO/MENÚ until the 10 ^th auto cook menu, then turn it again until the display indicates 200g.
2. Press INICIO button.

AUTO COOK MENU

For food or following cooking mode, it is not necessary to program the duratin and the cooking power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this food.

You may need to turn food over at the middle of wooking time to obtain uniform cooking.

For example, to cook 400g of fish..

Turn TIEMPO/MENÚ dial clockwise to show food code.

Press AJUSTE DE PESO button repeatedly to indicate weight 400g.

CODE	FOOD	IMPORTANT NOTES
1	Milk/Coffee (unit)	1. As you presse AJUSTE DE PESO button once or repeatedly, number of servings or weight parameters will appear on screen, select the one equal to the weight of food you have placed in the oven.2. The result of auto cooking depends on factors such as voltage fluctuation, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place the food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.
2	Rice (g)
3	Spaghetti (g)
4	Potatoes (g)
5	Auto reheat (g)
6	Fish (g)
7	Chicken (g)
8	Beef/Mutton (g)
9	Skewered Meat (g)
10	Auto defrost

QUICK START

This feature allows you to start the oven quickly.

Press the INICIO button a number of times to set the cooking time, the oven starts work at full power level immediately.

17 TEAM MW 26 DG - 060515

CHILD LOCK

Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will show up on display screen, and the oven can not be operated while the CHILD LOCK is set. To set the CHILD LOCK: Press and hold the PARAR/CANCELAR button for 3 seconds, a beep sounds and LOCK indicator lights.

To cancel the CHILD LOCK: Press and hold the PARAR/CANCELAR button for 3 seconds until lock indicator on display goes off.

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the window on both sides with a damp cloth to remove any spills or spatters.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions, this is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
9. Remove odours from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult a competent qualified electrician to have it replaced.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol — the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
