Product Type	Freestanding Fridge-Freezer
Model	KSM 9640 A
Brand	Blomberg
Energy Efficiency Class	A++
Annual Energy Consumption	226 kWh/year
Total Net Capacity	344 L
Fridge Net Capacity	244 L
Freezer Net Capacity	100 L
Freezing Capacity	10 kg/24h
Noise Level	42 dB
Climate Class	SN-ST (Subnormal to Subtropical)
Defrost Type	Automatic (Fridge), Manual (Freezer)
Cooling System	Static with Frost Free freezer
Dimensions (H x W x D)	185 x 60 x 65 cm
Weight	68 kg
Adjustable Shelves	Yes, 5 glass shelves
Door Alarm	Yes
LED Lighting	Yes
Water Dispenser	No
Ice Maker	No
Reversible Door	Yes
Maintenance	Clean interior with mild detergent; defrost freezer annually
Safety Features	Child lock, anti-tip brackets optional
Spare Parts Availability	Via authorized service centers

Frequently Asked Questions - KSM 9640 A BLOMBERG

What is the recommended temperature setting for the fridge?

The ideal fridge temperature is between 3°C and 5°C. Use the control panel to adjust.

How do I defrost the freezer?

This model has a manual defrost freezer. Remove food, turn off appliance, let ice melt, and clean. Do not use sharp tools.

Why is my fridge making noise?

Normal operating sounds include humming (compressor), gurgling (refrigerant), and clicking (thermostat). If unusually loud, ensure it's level and not touching walls.

Can I reverse the door opening?

Yes, the door is reversible. Refer to the manual for step-by-step instructions. You may need a screwdriver.

How often should I clean the condenser?

Clean the condenser coils every 6-12 months to maintain efficiency. Use a vacuum or brush. Ensure the appliance is unplugged.

What does the door alarm mean?

The door alarm sounds if the door is left open for more than 60 seconds. Close the door to stop it. If it persists, check the seal.

Is there a holiday mode?

This model may not have a dedicated holiday mode. To save energy when away, remove perishables and keep the door closed. You can also lower the temperature.

How do I replace the LED light?

LED lights are long-lasting. If faulty, contact a qualified technician. Do not attempt to replace it yourself as it may require specialized tools.

What should I do if the fridge is not cooling?

Check power supply, thermostat setting, and door seal. Ensure vents are not blocked. If problem persists, call service.

Can I install this fridge in a garage?

The climate class SN-ST allows ambient temperatures from 10°C to 38°C. In colder garages, freezing may occur; in hot garages, performance may drop.

USER MANUAL KSM 9640 A BLOMBERG

KSM 9640 A+ KSM 9640 XA+

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful usage tips.
⚠ Warning against dangerous conditions for life and property.
⚠ Warning against electric voltage.

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

1 Your refrigerator 3

Technical specifications of your refrigerator 4

2 Warnings 5

General safety 5

Starting Up 6

If there are any children at home... 6

Intended use 6

Safety instructions 6

Things to be done for energy saving ...... 6

3 Installation 7

Preparation 7

Points to be considered when re-transporting

your refrigerator 7

Before operating your refrigerator 8

Electric connection 8

Disposing of the packaging 8

Disposing of your old refrigerator 9

Adjusting the legs 9

Replacing the interior light bulb 9

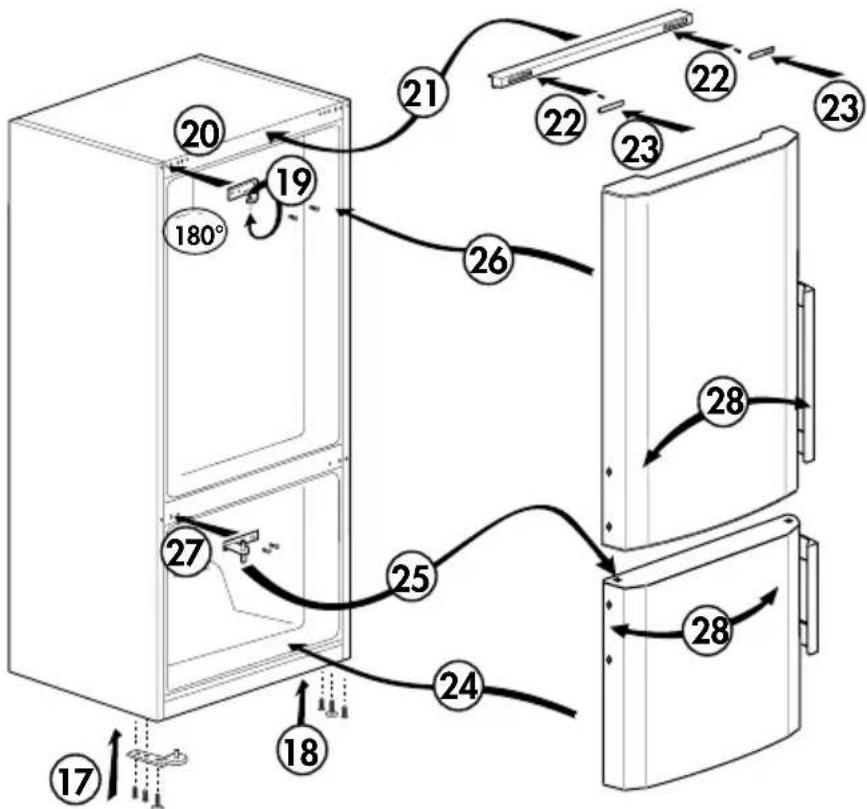

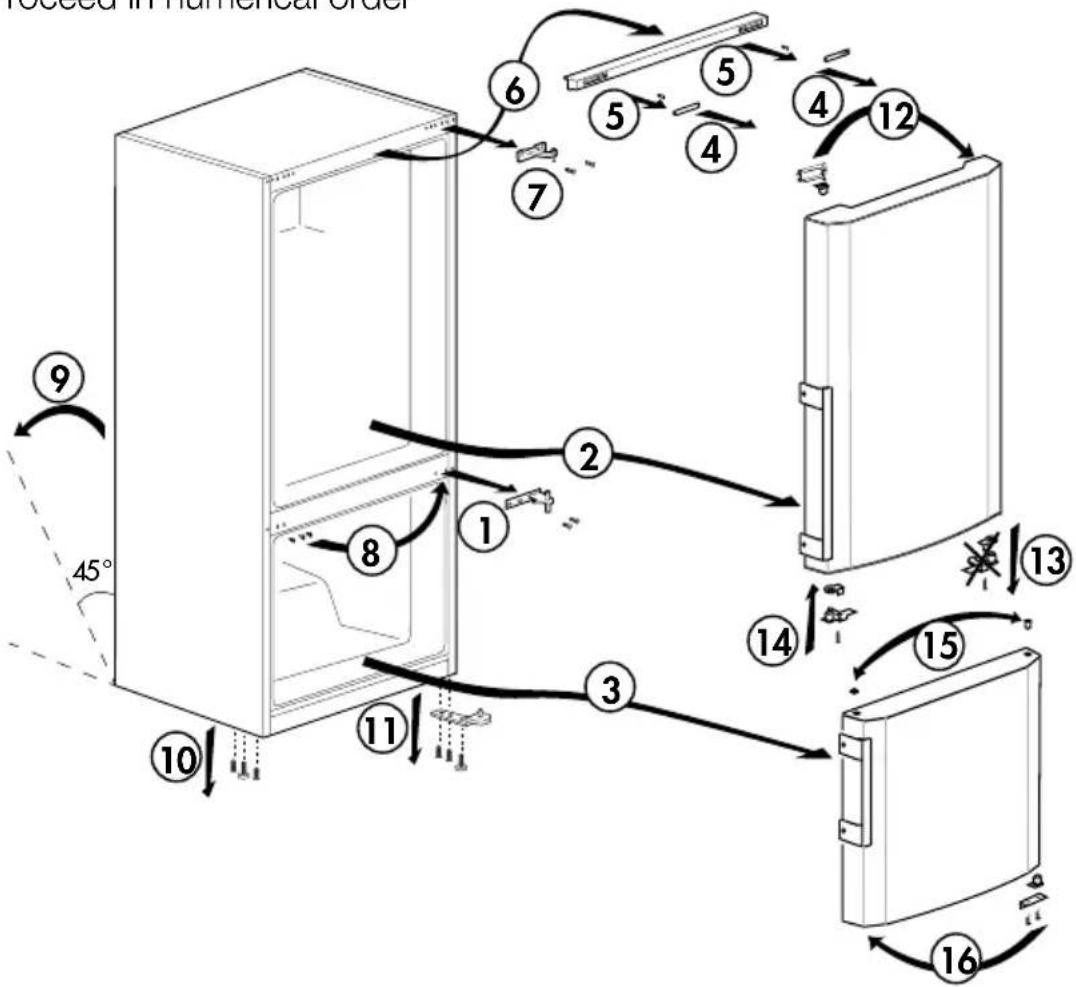

Reversing the doors 10

4 Using your refrigerator 11

Thermostat setting button 11

Defrost 11

Icematic and ice storage container ..... 12

5 Maintenance and cleaning 13

Protection of plastic surfaces 13

6 Recommended solutions for the problems 14

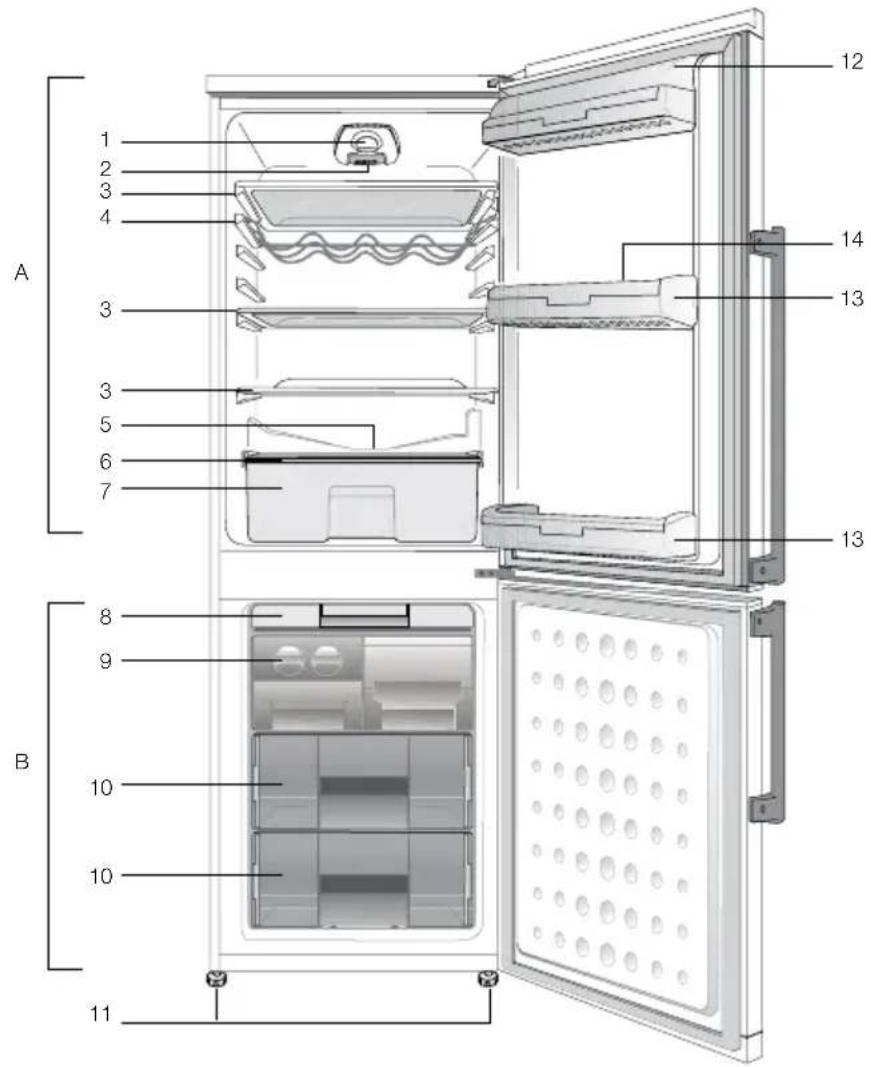

1 Your refrigerator

A Fridge compartment
B Freezer compartment

1. Interior light
2. Thermostat knob
3. Movable shelves
4. Wine rack
5. Defrost water collection channel - Drain tube

6. Crisper cover

7. Salad crisper

8. Ice bank
9. Icematic and ice storage container
10. Freezer compartment
11. Adjustable front feet
12. Dairy compartment
13. Adjustable door shelves
14. Egg tray

i Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

Technical specifications of your refrigerator

Energy Class	A+
Annual Energy Consumption (kWh/year)*	238
Fridge Compartment Volume (Net-It)	175
Total Frozen Food Compartment Volume (Net-It)	78
Star Class	[25×3]
Temperature Increasing Time (hours)**	21
Freezing Capacity (kg/24 hours)	4
Climate Class	SN
Noise Level (dB(A))	41
Total Net Volume (lt)	253
(H) Height (cm)	165
(W) Width (cm)	59.5
(D) Depth (cm)	60
Weight (kg)	64
Total Power (W)	70
Electric Supply (V/Hz)	220/50
Coolant Type	R600a

* (Actual consumption varies depending on where and how the appliance is used)

** (Power failure safety; it is recommended not to consume the food in freezer compartment after this period.)

i Technical specifications can be changed to increase the product quality without being subject to prior notice.
Values stated on the markings on the product or in the printed materials supplied with the product are the values obtained in laboratory in accordance with relevant standards. Such values may vary depending on the usage of the product and the ambient conditions.
The dimensions given on the table describe the minimum required space to place the unit with doors closed.

2 Warnings

Please review the following information. If these are not followed, personal injury or material damage may occur. Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

General safety

• When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.
• Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorized services.
• Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)
• Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.
• Do not touch frozen food by hand; they may stick to your hand.
• Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor might get in contact with the electrical parts and cause short

circuit or electric shock.

• Never use the parts on your refrigerator such as the door as a means of support or step.
• Do not use electrical devices inside the refrigerator.
• Do not damage the cooling circuit, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured may cause skin irritations and eye injuries.
• Do not cover or block the ventilation holes on your refrigerator with any material.
• Repairs of the electrical appliances must only be made by qualified persons. Repairs performed by incompetent persons may create a risk for the user.
• In case of any failure or during a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.
• Do not pull by the cable when pulling off the plug.
• Place the beverage with higher proofs tightly closed and vertically.
• Flammable items or products that contain flammable gases (e.g. spray) as well as the explosive materials should never be kept in the appliance.
• Do not use mechanical devices or other means to accelerate the defrosting process, others than those

recommended by the manufacturer.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance

Starting Up

• Do not operate a damaged refrigerator. Consult your service if you have any doubts.
• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.

If there are any children at home...

- Do not allow children play with your refrigerator. They might harm themselves and the refrigerator. (E.g. do not allow them hang from the door.)

Intended use

• This product is designed for domestic use.
• It should not be used outdoors. It is not appropriate to use it outdoor even if the place is covered with a roof.

Safety instructions

• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
• Contact the authorized service when there is a power cable damage and etc. so that it will not create a danger for you.
• Caution: Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

⚠️ Your product is equipped with a natural cooling system (R600a) which does not contain CFC and HFC gases. This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, do not dispose the product in fire; keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Things to be done for energy saving

Do not leave the doors of your refrigerator open for a long time.
Do not put hot food or drinks in your refrigerator.
Do not overload your refrigerator so that the air circulation inside of it is not prevented.
Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
i Pay attention to keep your food in closed containers.

3 Installation

⚠️ Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Preparation

• Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
• The ambient temperature of the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.
• Please make sure that the interior of your refrigerator is cleaned thoroughly.
• If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.

• When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

• The door should not be opened frequently.

• It must be operated empty without any food in it.
• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

- Original packaging and foam materials should be kept for future transportations or moving.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please remember...

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

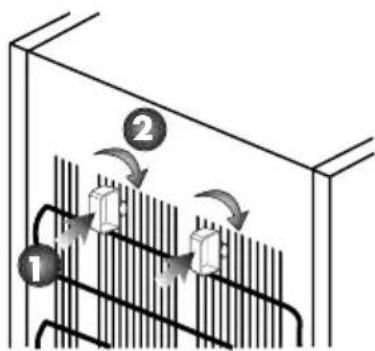

2. Insert the 2 plastic wedges between the wires of the condenser as illustrated in the following figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.)

3. Clean the interior of the refrigerator as recommended in the "Maintenance and cleaning" section.

4. Plug the refrigerator into the wall outlet. When the fridge door is open the fridge compartment interior light will come on.

5. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

6. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

• The connection must be in compliance with national regulations.
• The power cable plug must be easily accessible after installation.
• Voltage and permitted fuse protection are indicated in the “Specifications” section.
• The specified voltage must be equal to your mains voltage.
• Extension cables and multiway plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician.

⚠️ Product must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose them of by classifying them in accordance with the waste instructions. Do not dispose them of along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old machine without giving any harm to the environment.

- You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Adjusting the legs

If your refrigerator is unbalanced;

You can balance your refrigerator by turning the front legs of it as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram showing a beam supported at both ends with directional arrows indicating force or motion (no text or symbols)

Replacing the interior light bulb

Should the light fail to work, proceed as follows.

1- Switch off at the socket outlet and pull out the mains plug.

You may find it useful to remove shelves for easy access.

2- Use a flat tipped screwdriver to remove the light diffuser cover.

3- First check that the bulb hasn't worked loose by ensuring it is screwed securely in the holder. Replace the plug and switch on.

If the bulb works, replace the light cover by inserting the rear lug and pushing up to locate the front two lugs.

4- If the light still fails to work, switch off at the socket outlet and pull out the mains plug. Replace the bulb with a new 15 watt (max) screw cap (SES) bulb.

5- Carefully dispose of the burnt-out light bulb immediately.

Replacement light bulb can easily be obtained from a good local electrical or DIY store.

Diagram of a mechanical component with a central cylindrical part and a circular top, labeled '1' at the bottom (no text or symbols on the diagram itself)

Hand holding a tool interacting with a circular object, no text or symbols visible

Illustration of a hand holding a small object with a circular component, no text or symbols present

Illustration of a hand holding a small object with a circular top and ring, no visible text or symbols

Reversing the doors

Proceed in numerical order

Illustration of a hand holding a device with directional arrows indicating motion (no text or symbols)

Thermostat setting button

The interior temperature of your refrigerator changes for the following reasons;

• Seasonal temperatures,
• Frequent opening of the door and leaving the door open for long periods,
• Food put into the refrigerator without cooling down to the room temperature,
• The location of the refrigerator in the room (e.g. exposing to sunlight).
• You may adjust the varying interior temperature due to such reasons by using the thermostat. Numbers around the thermostat button indicates the cooling degrees.
• If the ambient temperature is higher than 32^ C, turn the thermostat button to maximum position.
• If the ambient temperature is lower than 25^ C, turn the thermostat button to minimum position.

Defrost

A) Fridge compartment

Fridge compartment performs full-automatic defrosting. Water drops and a frosting up to 7-8 mm can occur on the inner rear wall of the fridge compartment while your refrigerator cools down. Such formation is normal as a result of the cooling system. The frost formation is defrosted by performing automatic defrosting with certain intervals thanks to the automatic defrosting system of the rear wall. User is not required to scrape the frost or remove the water drops.

Water resulting from the defrosting passes from the water collection groove and flows into the evaporator through the drain pipe and evaporates here by itself.

Check regularly to see if the drain pipe is clogged or not and clear it with the stick in the hole when necessary.

Deep freezer compartment does not perform automatic defrosting in order to prevent decaying of the frozen food.

Illustration of a hand using a dropper to apply liquid onto a surface with an upward arrow (no text or symbols)

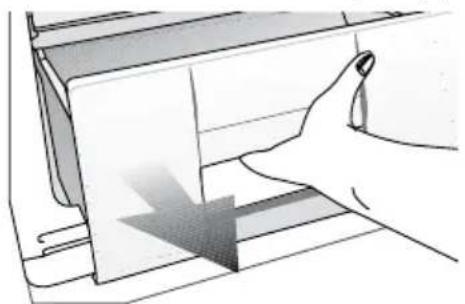

B) Freezer compartment

Defrosting is very straightforward and without mess, thanks to a special defrost collection basin.

Defrost twice a year or when a frost layer of around 7 (1/4") mm has formed. To start the defrosting procedure, switch off the appliance at the socket outlet and pull out the mains plug.

All food should be wrapped in several layers of newspaper and stored in a cool place (e.g. fridge or larder).

Containers of warm water may be placed carefully in the freezer to speed up the defrosting.

Do not use pointed or sharp-edged objects, such as knives or forks to remove the frost.

Never use hair dryers, electrical heaters or other such electrical appliances for defrosting.

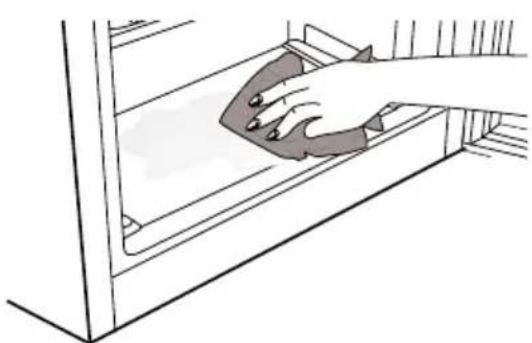

Sponge out the defrost water collected in the bottom of the freezer compartment. After defrosting, dry the interior thoroughly.

Insert the plug into the wall socket and switch on the electricity supply.

Illustration of a hand pressing down a printer into a paper (no text or symbols visible)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Line drawing of a hand inserting a device into a cabinet with two circular cutouts (no text or symbols)

Illustration of a hand holding a knob, with no visible text or symbols

Icematic and ice storage container

Using the Icematic

* Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice.
* Turn the knobs on it clockwise by 90 degrees.

Ice cubes in the cells will fall down into the ice storage container below.

* You may take out the ice storage container and serve the ice cubes.
* If you wish, you may keep the ice cubes in the ice storage container.

Ice storage container

Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

5 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the appliance before cleaning.

• Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
• Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.
• Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
• Make sure that no water enters the lamp housing and other electrical items.
• If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
• Check door seals regularly to ensure they are clean and free from food particles.
• To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

- Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

6 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

Complaint Possible Reason Solution
The refrigerator does not operate	Is the refrigerator properly plugged in? Insert the plug to the wall socket.
	Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out?	Check the fuse.
Condensation on the side wall of the fridge compartment.	Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers. Leaving the door ajar.	Switching the thermostat to a colder degree. Decreasing the time the door left open or using it less frequently. Covering the food stored in open containers with a suitable material. Wipe the condensation using a dry cloth and check if it persists.
Compressor is not running	Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet.	Your refrigerator will start running approximately after 6 minutes. Please call the service if your refrigerator does not startup at the end of this period.
	The fridge is in defrost cycle.	This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.
	Your refrigerator is not plugged into the socket.	Make sure that he plug is inserted tightly to the wall socket.
	Are the temperature adjustments correctly made?
	There is a power failure. Call your electricity supplier.
The fridge is running frequently or for a long time.	Your new refrigerator may be wider than the previous one.	This is quite normal. Large refrigerators operate for a longer period of time.
	The ambient room temperature may be high.	This is quite normal.
	The refrigerator might have been plugged in recently or might have been loaded with food.	Cooling down of the refrigerator completely may last for a couple of hours longer.
	Large amounts of hot food might have been put in the refrigerator recently.	Hot food causes longer running of the refrigerator until they reach the safe storage temperature.
	Doors might have been opened frequently or left ajar for a long time.	The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently.
	Freezer or fridge compartment door might have been left ajar.	Check if the doors are tightly closed.
The fridge is running frequently or for a long time.	The refrigerator is adjusted to a very low temperature.	Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.
	Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated.	Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.
The temperatures are too low
The fridge temperature very low.	The fridge temperature is adjusted to a very low temperature.	Adjust the fridge temperature to a warmer degree and check.
Food kept in the fridge compartment drawers are freezing.	The fridge temperature is adjusted to a very low temperature.	Adjust the fridge temperature to a warmer degree and check.
The temperatures are too high.
Temperature in the fridge or freezer is very high.	The fridge temperature is adjusted to a very high degree. Fridge adjustment has an effect on the temperature of the freezer.	Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level.
	Doors might have been opened frequently or left ajar for a long time.	Warm air rushes into the fridge or freezer when the doors are opened.Open the doors less frequently.
	The door might be left ajar. Close the door completely.
	Large amounts of hot food might have been put in the refrigerator recently.	Wait until the fridge or freezer reaches the desired temperature.
	The refrigerator might have been plugged in recently.	Cooling down of the refrigerator completely takes time because of the size.
Noise
The operation noise increases when the refrigerator is running.	The operating performance characteristics of the refrigerator may change according to the changes in the ambient temperature.	It is normal and not a fault.
Vibrations or noise.	The floor is not even or it is weak. The refrigerator rocks when moved slowly.	Make sure that the floor is level, strong and capable to carry the refrigerator.
	The noise may be caused by the items put onto the refrigerator.	Such items should be removed from the top of the refrigerator.
There are noises like liquid spilling or spraying.	Liquid and gas flows happen in accordance with the operating principles of your refrigerator.	It is normal and not a fault.
There is a noise like wind blowing.	Air activators (fans) are used in order to allow the refrigerator to cool efficiently.	It is normal and not a fault.
Water/condensation/ice in the refrigerator.
Condensation on the inner walls of refrigerator.	Hot and humid weather increases icing and condensation.	It is normal and not a fault.
	The doors are ajar.	Make sure that the doors are closed completely.
	Doors might have been opened very frequently or they might have been left open for along time.	Open the door less frequently.
Water/condensation/ice on the outside of the refrigerator.
Humidity occurs on the outside of the refrigerator or between the doors.	The weather may be humid.	This is quite normal in humid weather. When the humidity is less, condensation will disappear.
Bad odor inside the refrigerator.	Inside of the refrigerator must be cleaned.	Clean the inside of the refrigerator with a sponge, warm water or carbonated water.
	Some containers or packaging materials might be causing the smell.	Use a different container or different brand packaging material.
Opening and closing of the doors
The door(s) is (are) not closing.	Food packages may prevent the door's closing.	Replace the packages that are obstructing the door.
	The refrigerator is probably not completely vertical on the floor and it might be rocking when slightly moved.	Adjust the elevation screws.
	The floor is not level or strong.	Make sure that the floor is level and capable to carry the refrigerator.
Crisper(s) are stuck.	The food might be touching the ceiling of the drawer.	Rearrange food in the drawer.

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

1 Ihr Kühlschrank 3

Diagram showing a beam supported at both ends with directional arrows indicating force or motion (no text or symbols)

Diagram of a mechanical component with a central cylindrical part and a circular housing (no text or symbols)

Hand holding a tool interacting with a circular object, labeled '2' at bottom left (no text or symbols on the object itself)

Illustration of a hand holding a small object with a circular component, no text or symbols present

Illustration of a hand holding a small object with a circular top and ring, no text or symbols present

Illustration of a hand holding a device with a circular component and directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a spoon above a droplet on a surface, with an upward arrow indicating motion (no text or symbols)

B) Tiefkühlbereich

Illustration showing two steps of cleaning a refrigerator interior, with hand cleaning the lid (no text or symbols present)

Line drawing of a hand inserting a device into a cabinet with two circular cutouts (no text or symbols)

Illustration of a hand pressing a button on a piano keyboard (no text or symbols visible)

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

1 Il frigorifero 3

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Simple line drawing of a mechanical component with a central shaft and circular housing (no text or symbols)

Hand holding a tool interacting with a bowl-shaped object (no text or symbols visible)

Illustration of a hand holding a small object with a circular component, no text or symbols present

Illustration of a hand holding a small object with a circular top and a base, no text or symbols present.

Illustration of a hand holding a device with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a dropper to apply liquid onto a surface with an upward arrow (no text or symbols)

B) Scomparto freezer

Line drawing of a hand inserting into a device into a rack with two circular cutouts (no text or symbols)

Illustration of a hand pressing down on a button with a circular button, no text or symbols present

⚠️ Your product is equipped with a natural cooling system (R600a) which does not contain CFC and HFC gases. This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, do not dispose the product in fire; keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Energibesparende foranstaltninger

Elektrisk tilslutning

Simple diagram showing a beam with supports and directional arrows indicating force or motion (no text or symbols)

Diagram of a mechanical component with a central cylindrical part and a circular housing, labeled '1' at the bottom (no text or symbols on the diagram itself)

Hand holding a tool interacting with a circular object, labeled '1' and '2' (no text or symbols on the object itself)

Illustration of a hand holding a small object with a circular component above it, no text or symbols present.

Illustration of a hand holding a small object with a circular top and ring, no text or symbols present

Vende dørene

Illustration of a hand holding a device with a circular component and directional arrows indicating motion (no text or symbols)

Indstilling af termostatknap

Illustration of a hand holding a tool over a surface with a downward arrow and a dot, no text or symbols present.

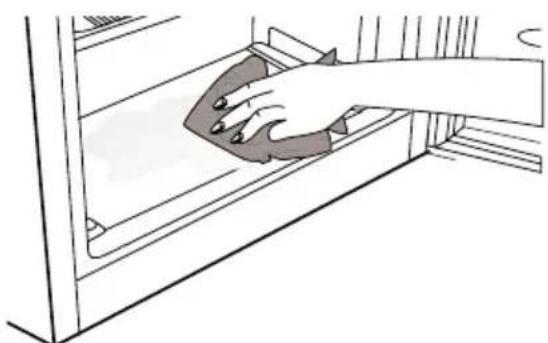

B) Fryseskabet

Illustration of a hand pressing down a printer into a paper (no text or symbols visible)

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Ice-matic

Line drawing of a hand inserting into a device into a cabinet (no text or symbols)

Illustration of a hand pressing a button on a piano keyboard (no text or symbols visible)

Diagram showing a beam with supports and directional arrows indicating force or motion (no text or symbols)

Simple line drawing of a mechanical component with a central cylindrical feature and a circular top (no text or symbols)

Hand holding a tool interacting with a circular object on a tray (no text or symbols visible)

Illustration of a hand holding a small object with a circular component above it, no text or symbols present.

Illustration of a hand holding a small electronic component with a circular top and base (no text or symbols visible)

Przekładanie drzwi

Illustration of a hand holding a device with directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a pipette over a surface with an upward arrow and a black dot (no text or symbols)

B) Zamrażarka

Illustration showing two steps of cleaning a wall-mounted air conditioner, with hand cleaning and cleaning the interior (no text or symbols)

Line drawing of a hand inserting a component into a cabinet with two circular cutouts (no text or symbols)

Illustration of a hand pressing a button on a device panel (no text or symbols visible)
