USER MANUAL GO W485DS CANDY
安全须知
注意：
安全须知
警告：
- 使用四个支撑脚把洗衣机调整到水平位置。
1) 洗涤温度
三、选择洗涤程序
警告：
重要提醒：
操作说明
清洁和日常保养

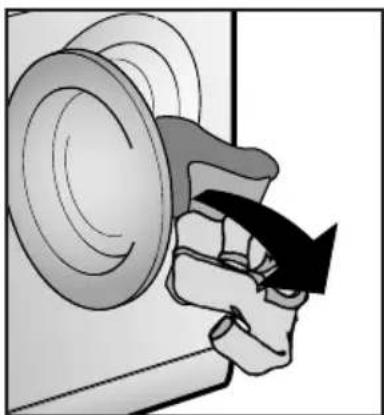

3. 清洁机门：
机门要经常用湿布清洁。因为累积起来
的水垢和污渍有可能导致机门漏水。
不要用带磨砂功能的清洁器具清洁机
门，因为这样会刮花机门玻璃表面。
4. 运输机器或者长时间不使用机器时：
With the purchase of this Candy household appliance, you have shown that you will not accept compromises: you want only the best.
Candy is happy to present their new washing machine, the result of years of research and market experience through direct contact with Consumers. You have chosen the quality, durability and high performance that this washing machine offers.
Candy is also able to offer a vast range of other household appliances: washing machines, dishwashers, washer-dryers, cookers, microwave ovens. Traditional ovens and hobs, refrigerators and freezers.
Ask your local retailer for the complete catalogue of Candy products.
Please read this booklet carefully as it provides important guide lines for safe installation, use and maintenance and some useful advise for best results when using your washing machine.
Keep this booklet in a safe place for further consultation.
When contacting Candy or a Customer Services Centre always refer to the Model, No., and G number (if applicable of the appliance see panel).
INDEX
Introduction
General points on delivery
Guarantee
Safety Measures
Technical Data
Setting up and Installation
Control Description
Table of Programmes
Selection

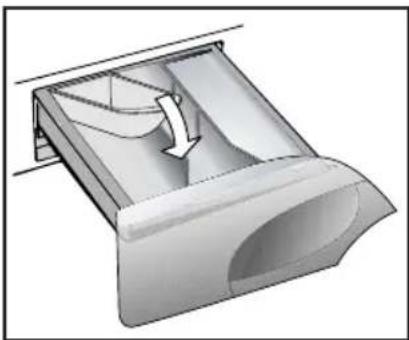

Detergent drawer
The Product
Washing
Drying cycle
Automatic washing/Drying cycle
Cleaning and routine maintenance
Faults Search
CHAPTER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
CHAPTER 1
GENERAL POINTS ON DELIVERY

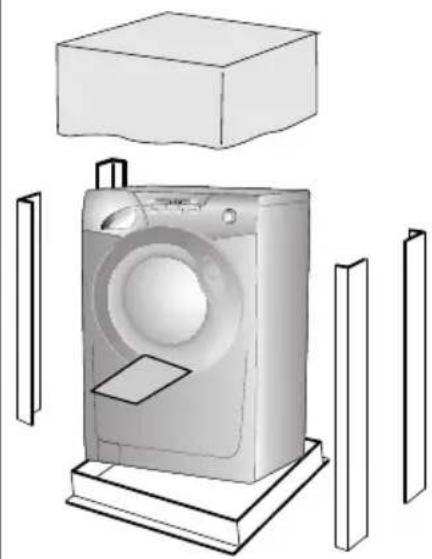

On delivery, check that the following are included with the machine:
A) INSTRUCTION MANUAL
B) CUSTOMER SERVICE ADDRESSES
C) GUARANTEE CERTIFICATES
D) CAPS
E) BEND FOR OUTLET TUBE
F) LIQUID DETERGENT OR LIQUID BLEACH COMPARTMENT (CONTAINER)
KEEP THEM IN A SAFE PLACE
Check that the machine has not incurred damage during transport. If this is the case, contact your nearest Candy Centre.
CHAPTER 2
GUARANTEE
The appliance is supplied with a guarantee certificate which allows free use of the Technical Assistance Service.
CHAPTER 3
SAFETY MEASURES
IMPORTANT: FOR ALL CLEANING AND MAINTENANCE WORK
- Remove the plug
● Turn off the water inlet tap.
● All Candy appliances are earthed. Ensure that the main electricity circuit is earthed. Contact a qualified electrician if this is not the case.
CE Appliance complies with European Directives 73/23/EEC and 89/336/EEC, replaced by 2006/95/EC and 2004/108/EC, and subsequent amendments.

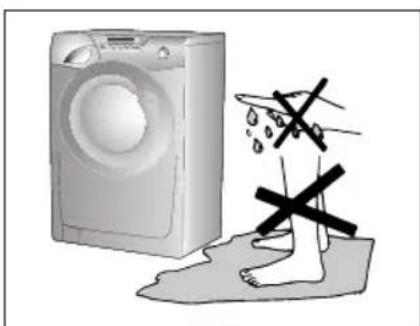

- Do not touch the appliance with wet or damp hands or feet.
- Do not use the appliance when bare-footed.
● Extreme care should be taken if extension leads are used in bathrooms or shower rooms. Avoid this where possible.

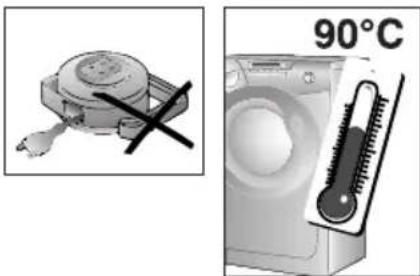

WARNING: DURING THE WASHING CYCLE, THE WATER CAN REACH A TEMPERATURE OF 90°C.
● Before opening the washing machine door, ensure that there is no water in the drum.
EN

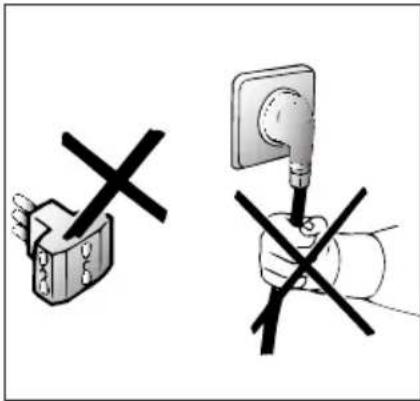

- Do not use adaptors or multiple plugs.
● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
- Do not pull the mains lead or the appliance itself to remove the plug from the socket.
- Do not leave the appliance exposed to atmospheric agents (rain,sun etc.)
● In the case of removal, never lift the appliance by the knobs or detersive drawer.

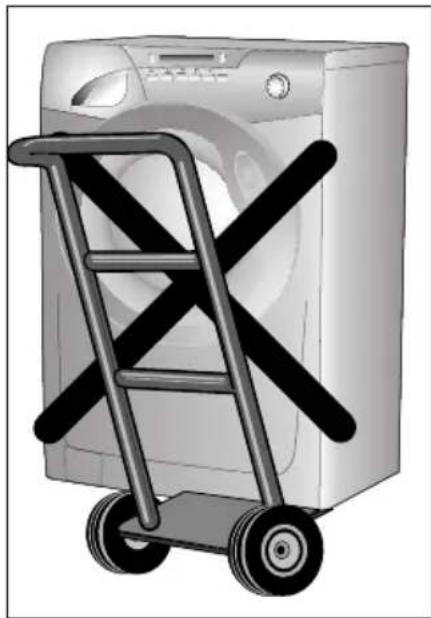

● During transportation
do not lean the door against the trolley.
Important!
When the appliance location is on carpet floors, attention must be paid so as to ensure that there is no obstruction to the bottom vents.

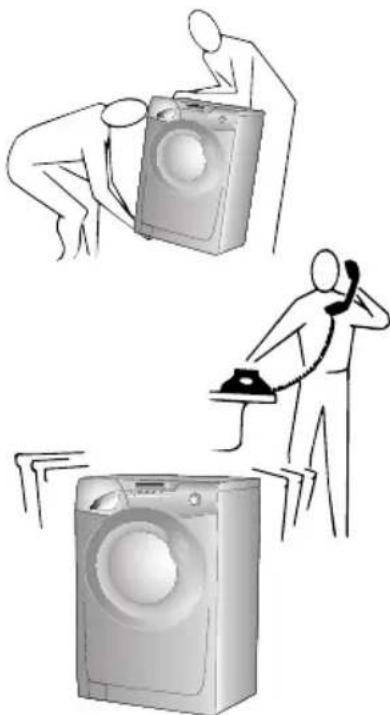

● Lift the appliance in pairs as illustrated in the diagram.
● In the case of failure
and/or incorrect operation, turn the washing machine off, close the water inlet tap and do not tamper with the appliance. Contact a Candy Technical Assistance Centre for any repairs and ask for original Candy spare parts. Avoidance of these norms may compromise the safety of the appliance.
● Should the supply cord (mains cable) be demaged, this is to be replaced by a specific cable available from the after sales service centre.


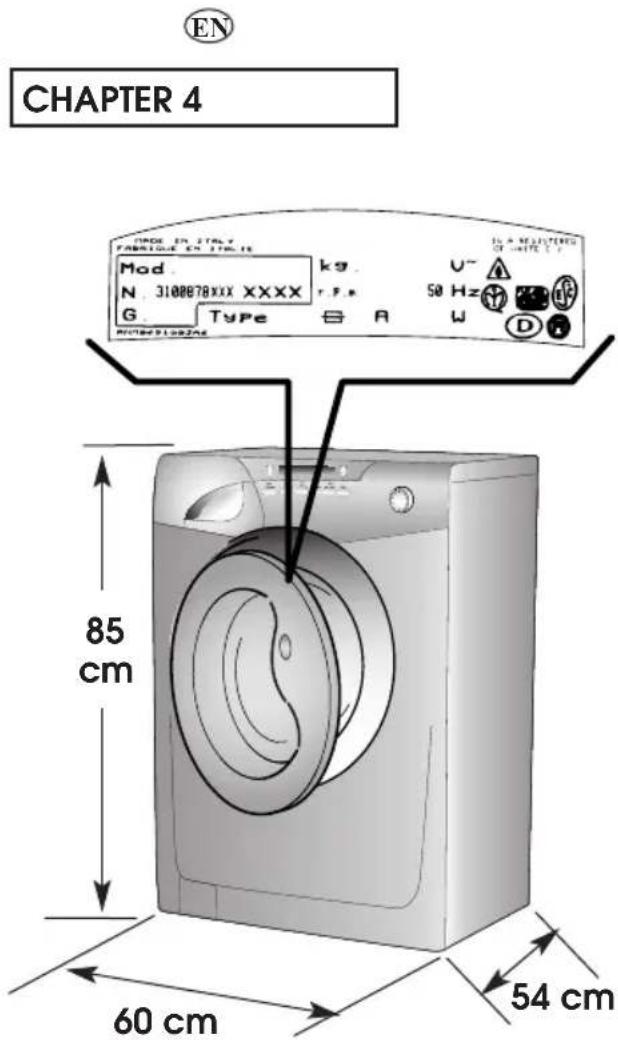

| TECHNICAL DATA | | | Washing Drying |
| MAXIMUM WASHLOAD DRY | kg | | 8 | 5 |
| NORMAL WATER LEVEL | I | 6÷15 |
| POWER INPUT | W | 2150 |
| ENERGY CONSUMPTION(PROG.90°C) | kWh | 1,8 |
| POWER CURRENT FUSEAMP | A | 10 |
| SPINr.p.m. | SEE RATING PLATE |
| WATER PRESSURE | MPa | min. 0,05max. 0,8 |
| SUPPLY VOLTAGE | V | 220 - 240 |
CHAPTER 5
SETTING UP INSTALLATION

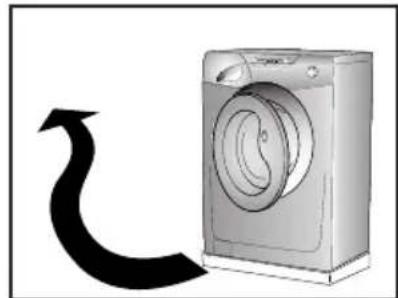

Move the machine near its permanent position without the packaging base.
Carefully cut the securing strap that holds the main cord and the drain hose.
Remove the 3 fixing screws marked (A) and remove the 3 spacers marked (B)
Remove the screw (C).
A spacer will fall inside the machine.
By tilting the machine, remove the above mentioned spacer.
Cover the 4 holes using the caps provided in the instruction booklet pack.
WARNING:
DO NOT LEAVE THE PACKAGING IN THE REACH OF
CHILDREN AS IT IS A POTENTIAL SOURCE OF DANGER.
Fix the sheet of corrugated material on the bottom as shown in picture.
Connect the fill hose to the tap.
The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.
IMPORTANT: DO NOT TURN THE TAP ON AT THIS TIME.

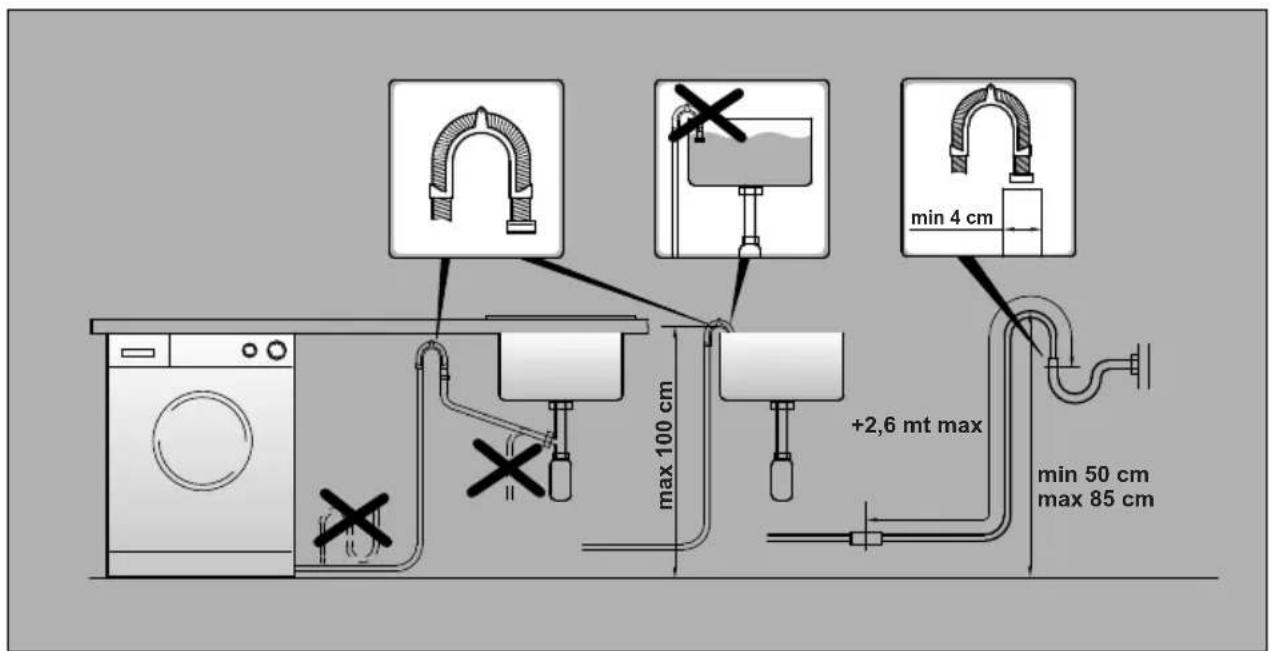

Position the washing machine next to the wall. Hook the outlet tube to the edge of the bath tub, paying attention that there are no bends or contractions along the tube.
It is better to connect the discharge hose to a fixed outlet of a diameter greater than that of the outlet tube and at a height of min. 50 cm. If is necessary to use the plastic sleeve supplied.
The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer.
EN
Use the 4 feet to level the machine with the floor:
a) Turn the nut clockwise to release the screw adjuster of the foot.
b) Rotate foot to raise or lower it until it stands firmly on the ground.
c) Lock the foot in position by turning the nut anti-clockwise until it comes up against the bottom of the machine.
Ensure that the knob is on the "OFF" position and the load door is closed
Insert the plug.
ATTENTION:
should it be necessary to replace the supply cord, connect the wire in accordance with the following colours/codes:
BLUE - NEUTRAL (N)
BROWN - LIVE (L)
YELLOW-GREEN - EARTH (
After installation, the appliance must be positioned so that the plug is accessible.
CHAPTER 6
CONTROLS
| Door handle | A |
| Timer knob for wash programmes with OFF position | B |
| Wash Temperature button | C |
| Spin Speed button | D |
| Degree of soiling button | E |
| Buttons indicator light | F |
| Intensive button | G |
| Aquaplus button | H |
| Start Delay button | I |
| Drying programme selection button | L |
| Start button | M |
| Door locked indicator light | N |
| Digital Display | O |
| Detergent drawer | P |
| DESCRIPTION OF CONTROL | | |
| “Kg DETECTOR”(Function active only on Cotton and Synthetics programmes)Through every wash phase “Kg DETECTOR” allows to monitor information onthe wash load in the drum.So, as soon as the “Kg DETECTOR” is set in motion,in the first 4 minutes of the wash,it:- adjusts the amount of water required- determines the length of the wash cycle- controls rinsingaccording to the type of fabric selected to be washed it:- adjusts the rhythm of drum rotation for the type of fabric being washed- recognises the presence of lather, increasing, if necessary,the amount of water during rinsing- adjusts the spin speed according to the load, thus avoiding any imbalance.In this way “Kg DETECTOR” is able to decide, by itself, the most suitable programme for each individual wash from the hundreds of possible wash combinations.“Kg DETECTOR” meets the need for easy use by permitting a simplified programme selection. In fact, the user need only tell the machine the type of fabric in the drum and the degree of soiling, to obtain a perfect wash with the highest level of drying possible with a spin which really cares for your clothes. | | |
| DOOR HANDLEPress the finger-bar inside the door handle to open the door | A | |

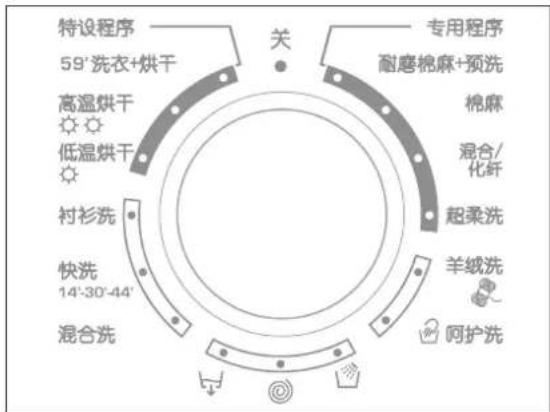

| ENPROGRAMME SELECTOR WITH OFF POSITION | B |  |
| WHEN THE PROGRAMME SELECTOR IS TURNED THE DISPLAYLIGHTS UP TO SHOW THE SETTINGS FOR THE PROGRAMMESELECTED. TODAY, MOST DETERGENTS HAVE BEEN IMPROVED TOWASH EFFICIENTLY AT LOWER TEMPERATURES, THEREFORE WEHAVE SET THE DEFAULT TEMPERATURE SETTINGS OF EACHPROGRAMME TO A LOWER LEVEL, SAVING ELECTRICITY ANDREDUCING THE CARBON FOOTPRINT OF YOUR MACHINE.YOU CAN SELECT AN HIGH TEMPERATURE BY PRESSING THETEMPERATURE BUTTON. PLEASE REFER TO THE PROGRAMMEGUIDE FOR THE MAXIMUM TEMPERATURE TO WHICH EACHPROGRAMME CAN BE SET.N.B. TO SWITCH THE MACHINE OFF, TURN THE PROGRAMMESELECTOR TO THE "OFF" POSITION. |
| Press the "Start/Pause" button to start the selected cycle.The programme carries out with the programme selectorstationary on the selected programme till cycle ends.Switch off the washing machine by turning the selector to OFF. |
| NOTE:THE PROGRAMME SELECTOR MUST BE RETURN TO THEOFF POSITION AT THE END OF EACH CYCLE OR WHENSTARTING A SUBSEQUENT WASH CYCLE PRIOR TO THENEXT PROGRAMME BEING SELECTED AND STARTED. |
| "WASH TEMPERATURE" BUTTONWhen a programme is selected the relevant indicator will lightup to show the recommended wash temperature.The Temperature button can be used to decrease or increasethe temperature of your chosen wash cycle.Each time the button is pressed, the new temperature level isshown on the Wash Temperature Indicator. | [5WWV] | 温度选择 |
| "SPIN SPEED" BUTTONThe spin cycle is very important to remove as much water aspossible from the laundry without damaging the fabrics.Youcan adjust the spin speed of the machine to suit your needs.By pressing this button, it is possible to reduce the maximumspeed, and if you wish, the spin cycle can be cancelled.To reactivate the spin cycle is enough to press the button untilyou reach the spin speed you would like to set.For not damage the fabrics, it is not possible to increase thespeed over that automatically suitable during the selection ofthe program.It is possible to modify the spin speed in any moment, alsowithout to pause the machine. | [3C-BH] | 转速选择 |
| NOTE:THE MACHINE IS FITTED WITH A SPECIAL ELECTRONIC DEVICE,WHICH PREVENTS THE SPIN CYCLE SHOULD THE LOAD BEUNBALANCED. THIS REDUCES THE NOISE AND VIBRATION INTHE MACHINE AND SO PROLONGS THE LIFE OF YOURMACHINE. |
By selecting this button (active only on COTTON and MIXED FIBRES programmes) there is a choice of 3 levels of wash intensity, depending on how much the fabrics are soiled.
Once the programme has been selected the indicator light will automatically show the minimum level required for that programme. Pressing the button increases the duration of the wash cycle, and adjusts the wash settings accordingly. For example: Using this button on the Rapid Wash cycle will enable you to select either a 14, 30 or 44 minute wash cycle.
强力模式
These light up when the relevant buttons are pressed.
If an option is selected that is not compatible with the selected programme then the light on the button first flashes and then goes off.
The option buttons should be selected before pressing the START button
By pressing this button a sensors system come into operation. They affect both the selected temperature, keeping it at a constant level throughout the wash cycle, and the mechanical function of the drum.
The drum is made to turn at two different speeds at crucial moments. When the detergent enters the garments, the drum rotates in such a way that the detergent is distributed in a uniform manner; during the wash and rinse procedures, however, the speed increases in order to maximise the cleaning action. Thanks to this special system, the efficiency of the wash procedure is improved WITHOUT ANY INCREASE IN THE LENGTH OF THE PROGRAM.
强力祛污
| “AQUAPLUS” BUTTONBy pressing this button you can activate a special new wash cycle in theColourfastandMixed Fabricsprograms, thanks to the new Sensor System.This option treats with care the fibres of garments and the delicate skin of those who wear them.The load is washed in a much larger quantity of water and this, together with the new combined action of the drum rotation cycles, where water is filled and emptied, will give you garments which have been cleaned and rinsed to perfection.The amount of water in the wash is increased so that the detergent dissolves perfectly, ensuring an efficient cleaning action.The amount of water is also increased during the rinse procedure so as to remove all traces of detergent from the fibres.This function has been specifically designed for people with delicate and sensitive skin,for whom even a very small amount of detergent can cause irritation or allergy.You are advised to also use this function for children’s clothing and for delicate fabrics in general, or when washing garments made of towelling, where the fibres tend to absorb a greater quantity of detergent.To ensure the best performance for your wash, this function is always activated on the Delicates and Woollens/Handwash programs. | H | 超净洗涤 |
| “DELAY START” BUTTONThis button allows you to pre-programme the wash cycle to delay the start of the cycle for up to 24 hours.To delay the start use the following procedure:Set the required programme.Press the button once to activate it (h00 appears on the display) and then press it again to set a 1 hour delay (h01 appears on the display); the pre-set delay increases by 1 hour each time the button is pressed, until h24 appears on the display, at which point pressing the button again will reset the delay start to zero.Confirm by pressing the “START/PAUSE” button (the light on the display starts to flash). The countdown will begin and when it has finished the programme will start automatically.It is possible to cancel the delay start by taking the following action:Press and hold the button for 5 seconds until the display will show the settings for the programme selected.At this stage it is possible to start the programme previously selected by pressing the “START/PAUSE” button or to cancel the process by setting the selector to the OFF position and then selecting another programme. | I | 预约 |

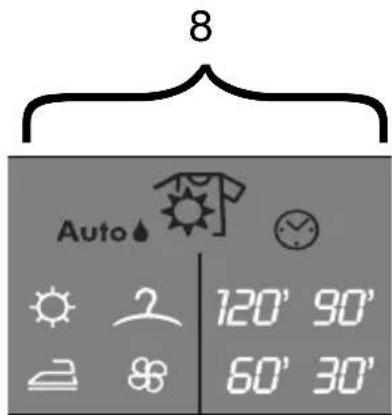

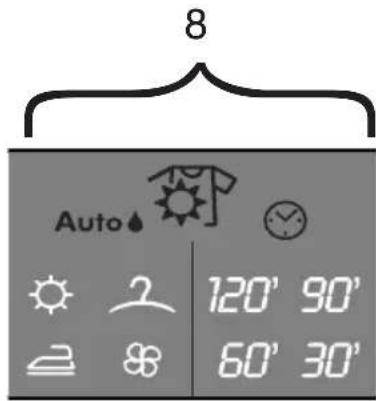

With the programme selector not in the OFF position, press the button to select the required drying programme; an indicator will light to display the drying result selected each time you press the button.
To cancel the selection before the start of a drying programme, press the button repeatedly until the indicators go out or return the programme selector to the OFF position.
To cancel the cycle during the drying phase, hold the button down for 2 seconds until the cooling indicator lights up; given the high temperature inside the drum, we recommend that you allow the dryer to complete the cool down period before returning the programme selector to the OFF position and removing the laundry.
NOTE:
Do not dry unwashed items in the washer dryer.
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the washer dryer.

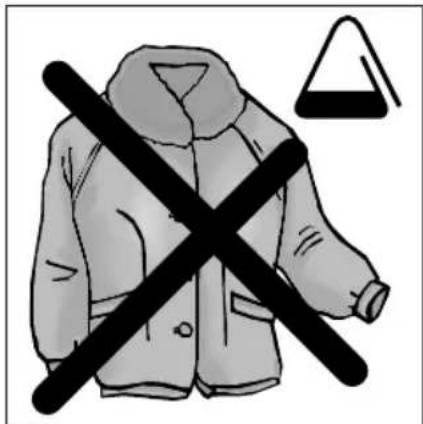

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the washer dryer.
Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
The final part of a washer dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
WARNING:
Never stop a washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
L
烘干模式
Press to start the selected cycle.
NOTE:
FEW SECONDS AFTER THE START THE WASH CYCLE WILL BEGIN. DURING THE FIRST 4 MINUTES OF THE WASH CYCLE, THE KG DETECTOR (ACTIVE ONLY ON COTTON AND SYNTHETICS PROGRAMMES) WILL WEIGH THE CLOTHES AND UPDATE THE MAXIMUM WASH TIME REMAINING ON THE DISPLAY EVERY FIVE SECONDS UNTIL THE WEIGHT HAS BEEN DETERMINED. WHILE THIS FUNCTION IS OPERATING THE "Kg DETECTOR" INDICATOR IS ON.
CHANGING THE SETTINGS AFTER THE PROGRAMMES HAS STARTED (PAUSE)
Press and hold the "START/PAUSE" button for about 2 seconds, the flashing lights on the options buttons and time remaining indicator will show that the machine has been paused, adjust as required and press the "START/PAUSE" button again to cancel the flashing lights.
If you wish to add or remove items during washing, wait 2 minutes until the safety device unlocks the door. When you have carried out the manoeuvre, close the door, press START button and the appliance will continue working where it left off.
CANCELLING THE PROGRAMME
To cancel the programme, set the selector to the OFF position.
Select a different programme.
Re-set the programme selector to the OFF position.
开始/暂停
DOOR LOCKED INDICATOR
The "Door Locked" indicator light is illuminated when the door is fully closed and the machine is ON. When START is pressed on the machine with the door closed the indicator will flash momentarily and then illuminate.
If the door is not closed the indicator will continue to flash.
A special safety device prevents the door from being opened immediately after the end of the cycle. Wait for 2 minutes after the wash cycle has finished and the Door Locked light has gone out before opening the door. At the end of cycle turn the programme selector to OFF.

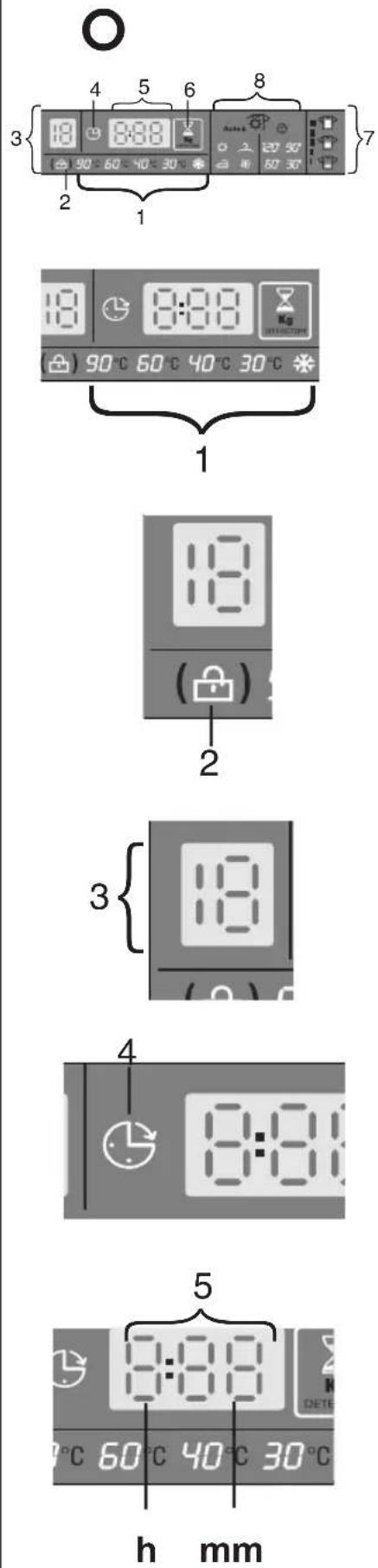

"DIGITAL" DISPLAY
The display's indicator system allows you to be constantly informed about the status of the machine:
1) WASH TEMPERATURE
When a programme is selected the relevant indicator will light up to show the recommended wash temperature. The Temperature button can be used to decrease or increase the temperature of your chosen wash cycle. Each time the button is pressed, the new temperature level is shown on the Wash Temperature Indicator.
2) DOOR LIGHT
Once the START/PAUSE button has been pressed the light first flashes then stops flashing and remains on until the end of the wash.
2 minutes after the end of the wash the light goes off to show that the door can now be opened.
3) SPIN SPEED
Once the programme has been selected, the maximum spin speed allowed for that programme appears on the display. Pressing the spin button will reduce the speed by 100 rpm each time the button is pressed. The minimum speed allowed is 400 rpm, or it is possible to omit the spin by pressing the spin button repeatedly.
This flashes when delay start has been set.
5) CYCLE DURATION
When a programme is selected the display automatically shows the cycle duration, which can vary, depending on the options selected.
Once the programme has started you will be kept informed constantly of the time remaining to the end of the wash.
The appliance calculates the time to the end of the selected programme based
upon a standard loading, during the cycle, the appliance corrects the time to that applicable to the size and composition of the load.
If is selected the automatic washing/drying cycle, at the end of the wash phase, the drying time remaining to the end will be shown on the display.
6)Kg DETECTOR Indicator
Available on Cotton and Synthetic cycles, during the first 4 minutes of the cycle the intelligent sensor will weigh the laundry and adjust the cycle time, water and electricity consumption accordingly.
7) DEGREE OF SOILING
When a programme is selected the relevant indicator will light up to show the minimum possible degree of soiling. Selecting a greater degree of soiling using the special button will cause the corresponding indicator to light up.
8) DRYING PROGRAMME INDICATORS
The indicators display the type of the drying programme: Automatic Programmes: By selecting one of these 3 automatic programmes, the washer-dryer will calculate the time needed for drying and the residual dampness required, according to the load and drying type selected. After pressing the START button, the display will shown the drying time remaining.
The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to that applicable to the size and composition of the load.
☀ = Extra dry drying programme (recommended for towels, bathrobes and bulky loads)
= Cupboard dry drying programme
= Iron dry drying programme
USEFUL TIPS:
The 30 minute drying programme is recommended for small loads (less than 1 kg) or slightly damp loads. Your washer-dryer ends the cycle automatically when it reaches the drying level selected. For the correct operation of the appliance, it is preferable not to interrupt the drying phase unless it is really necessary.
Timed programmes:
120 minutes - 90 minutes - 60 minutes - 30 minutes: They may be used to select timed drying programmes.
Cool down phase
Switched on during the final cool down period, in the last 10 minutes of each drying phase.
CHAPTER 7
TABLE OF PROGRAMMES
| PROGRAM FOR: | PROGRAMME SELECTOR ON: | WEIGHT MAX kg | RECOMMENDED TEMP. °C | MAX TEMP. °C | CHARGE DETERGENT |
| 2 | ✿ | 1 |
| Resistant fabrics Cotton, linen with Prewash | 1) *耐磨棉麻+预洗 | 8 | 60° | Up to: 90° | ● | ● | ● |
| Cotton, mixed resistant, Coloureds | 1) *棉麻** | 8 | 40° | Up to: 60° | ● | ● | |
| Mixed fabrics and synthetics Cotton, mixed fabrics, synthetics | 1) *混合/化纤 | 4 | 40° | Up to: 60° | ● | ● | |
| Very delicate fabrics | 超柔洗 | 2,5 | 40° | Up to: 40° | ● | ● | |
| "MACHINE WASHABLE" woollens | | 2 | 40° | Up to: 40° | ● | ● | |
| Hand wash | | 1,5 | 30° | Up to: 30° | ● | ● | |
| Rinse | * [IMAGE] | - | - | - | △ | ● | |
| Fast spin | * [IMAGE] | - | - | - | | | |
| Drain only | | - | - | - | | | |
| Mix & Wash system programme | * 混合洗 | 8 | 40° | Up to: 40° | ● | ● | |
| Resistant fabrics Mixed fabrics and synthetics Rapid 14 minute | 2) 快洗 14'-30'-44' | 1,5 | 30° | Up to: 30° | ● | ● | |
| Resistant fabrics Mixed fabrics and synthetics Rapid 30 minute | 2,5 | 30° | Up to: 40° | ● | ● | |
| Resistant fabrics Mixed fabrics and synthetics Rapid 44 minute | * | 3,5 | 30° | Up to: 40° | ● | ● | |
| Mixed, delicate synthetics | * 衬衫洗 | 4 | 30° | Up to: 30° | ● | ● | |
| Mixed - Drying | 低温烘干☀ | 4 | - | - | | | |
| Cotton - Drying | 高温烘干☀☀ | 5 | - | - | | | |
| Cotton - Mixed | 59'洗衣+烘干 | 1,5 | 30° | Up to: 30° | ● | ● | |
Please read these notes
When washing heavily soiled laundry it is recommended the load is reduced to 4 kg maximum.
Washing
Use the programme ** with the maximum degree of soiling selected, maximum spin speed and a temperature of 60°C.
Programme recommended also for test with a lower temperature.
Drying
First drying with 5kg (the load consist: pillowcases and hand-towels) selecting the cotton drying programme (☀️) cupboard dry (2).
Second drying with 3kg (the load consist: 3 sheets and hand towels) selecting the cotton drying programme (☀️) 120 minutes (120').
The spin speed may also be reduced, to match any guidelines suggested on the fabric label, or for very delicate fabrics cancel the spin completely this option is available with a spin speed button.
- Pressing the wash temperature button makes it possible to wash at any temperature below the maximum allowed.
* Programmes for automatic drying.
1) For the programmes shown you can adjust the duration and intensity of the wash using the degree of soiling button.
2) Using the Degree of soiling button on the Rapid cycle will enable you to select either a 14, 30 or 44 minute wash cycle.
When only a limited number of articles have stains which require treatment with liquid bleaching agents, preliminary removal of stain can be carried out in the washing machine. Pour the bleach into the liquid bleach container, inserted into the compartment marked "2" in the detergent drawer, and set the special programme "RINSE".
When this phase has terminated, turn the programme selector on the "OFF" position, add the rest of the fabrics and proceed with a normal wash on the most suitable programme.
CHAPTER 8
SELECTION
For the various types of fabrics and various degrees of dirt the washing machine has different programme bands according to: wash cycle, temperature and length of cycle (see table of washing cycle programmes).
RESISTANTS FABRICS
The programmes have been designed for a maximum wash and the rinses, with spin intervals, ensure perfect rinsing. The final spin gives more efficient removal of water.
MIXED AND SYNTHETIC FABRICS
The main wash and the rinse gives best results thanks to the rotation rhythms of the drum and to the water levels. A gentle spin will mean that the fabrics become less creased.
SPECIAL DELICATE FIBRES
This is a new wash cycle which alternates washing and soaking and is particularly recommended for very delicate fabrics.
The wash cycle and rinses are carried out with high water levels to ensure best results.
WOOLMARK PROGRAMME
The special cycle, enables to thoroughly wash garments without damaging them.
The cycle comprises of alternate periods of activity and pauses with a maximum temperature of 40^ C and concludes with 3 rinses and a short spin.
耐磨棉麻+预洗
棉麻
混合/化纤
超柔洗
羊绒洗
SPECIAL "HAND WASH"
This washing machine also has a gentle Hand Wash programme cycle. This programme allows a complete washing cycle for garments specified as "Hand Wash only" on the fabric care label. The programme has a temperature of 30°C and concludes with 3 rinses and a slow spin.
SPECIAL "RINSE" PROGRAMME
This programme carries out three rinses with a intermediate spin (which can be reduced or excluded by using the correct button). It can be used for rinsing any type of fabric, eg. use after hand-washing.
This program can be also used as cycle of Bleaching (see table of washing cycle programmes).
SPECIAL "FAST SPIN" PROGRAMME
Programme "FAST SPIN" carries out a maximum spin (which can be reduced by using the correct button).
DRAIN ONLY
This programme drains out the water.
"MIX & WASH SYSTEM" PROGRAMME
This is an exclusive Candy system and involves 2 great advantages for the consumer:
• to be able to wash together different type of fabrics (e.g. cotton + synthetic etc...) FAST COLOUREDS;
• to wash with a considerable energy saving.
The "Mix & Wash" programme has a temperature of 40°C and alternate dynamic phases (the basket that turns) to static phases (fabrics in soak in phase of rest) with a duration programme that almost reaching the 2 hours. The energy consumption for the complete cycle is only 850 W/h.
Important:
- the first washing of new coloureds fabrics must be done separately;
- in every case, never mix NON-FAST COLOUREDS fabrics.
呵护洗
混合洗
RAPID PROGRAMME
The Rapid programme allows a washing cycle to be completed in just 14 minutes! This programme is particularly suited to slightly dirty cottons and mixed fabrics. Using the Degree of soiling button on the Rapid cycle will enable you to select either a 14, 30 or 44 minute wash cycle. When selecting the rapid programme, please note that we recommend you use only 20% of the recommended quantities shown on the detergent pack. For information about these programmes please refer to the programmes table.
"SHIRTS" PROGRAMME
This programme allows a complete washing cycle for shirts. The main wash and the rinse gives best results thanks to the rotation rhythms of the drum and to the water levels. The programme has a maximum temperature of 30^ C and concludes with 3 rinses and a short spin.
SYNTHETICS DRYING
Mixed fabrics (synthetics/cotton), synthetic fabrics.
COTTON DRYING
Cotton, terry towelling, linen, hemp fabrics, etc...
RAPID 59'
A complete express washing and drying cycle lasting only 59'. This is an ideal program for having dry, refreshed and ready-to-wear clothes as soon as the cycle is finished.
- Maximum load: 1,5 kg (4 shirts for example)
- Lightly soiled fabrics (cotton and mixed fabrics)
With this program we recommend that you reduce the detergent loading dose (compared to the normal one), in order to avoid detergent waste.
快洗 14'-30'-44'
衬衫洗
低温烘干
高温烘干
59' 洗衣+烘干
CHAPTER 9

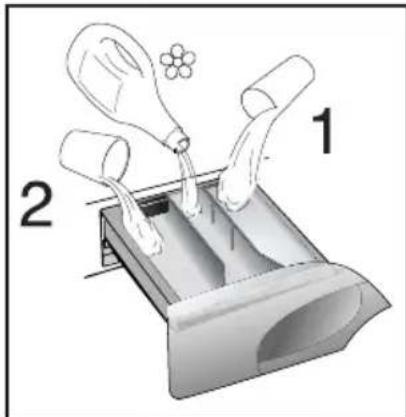

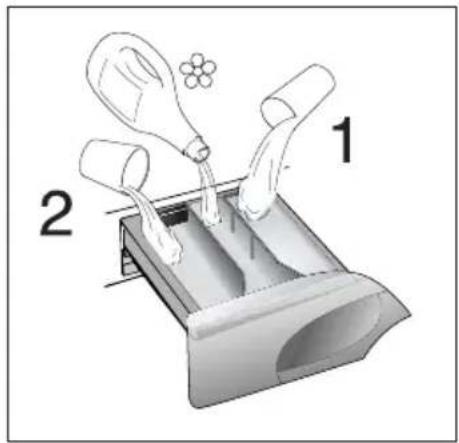

DETERGENT DRAWER
The detergent draw is split into 3 compartments:
- the compartment labelled "1" is for prewash detergent;
- the compartment
labelled "♂" is for special additives, fabric softeners, fragrances, starch, brighteners etc;
- the compartment labelled "2" is for main wash detergent.
If liquid detergents are used, please insert the special container supplied into the compartment marked "2" in the detergent drawer. This ensures that the liquid detergent enters the drum at the right stage of the wash cycle.
This special container must be inserted into the compartment marked "2" in the detergent drawer, also when you wish to use the "RINSE" programme as BLEACHING cycle.
NOTE: SOME DETERGENTS ARE DIFFICULT TO REMOVE. FOR THESE, WE RECOMMEND YOU USE THE SPECIAL DISPENSER WHICH IS PLACED IN THE DRUM.
NOTE: ONLY PUT LIQUID PRODUCTS IN THE COMPARTMENT
LABELLED "☐". THE MACHINE IS PROGRAMMED TO AUTOMATICALLY TAKE UP ADDITIVES DURING THE FINAL RINSE STAGE FOR ALL WASH CYCLES.
CHAPTER 10
THE PRODUCT
IMPORTANT:
When washing heavy rugs, bed spreads and other heavy articles, it is advisable not to spin.
To be machine-washed, woollen garments and other articles in wool must bear the "Machine Washable Label".
IMPORTANT:
When sorting articles ensure that:
- there are no metal objects in the washing (e.g.brooches, safety pins, pins, coins etc.).
- cushion covers are buttoned, zips and hooks are closed, loose belts and long tapes on dressing gowns are knotted.
- runners from curtains are removed.
- attention is paid to garment labels.
- when sorting, any tough stains should be removed prior to washing using stain removers only recommended on label.
CHAPTER 11
CUSTOMER AWARENESS
A guide environmentally friendly and economic use of your appliance.
MAXIMISE THE LOAD SIZE
Achieve the best use of energy, water, detergent and time by using the recommended maximum load size.
Save up to 50% energy by washing a full load instead of 2 half loads.
DO YOU NEED TO PRE-WASH?
For heavily soiled laundry only!
SAVE detergent, time, water and between 5 to 15% energy consumption by NOT selecting Prewash for slight to normally soiled laundry.
IS A HOT WASH REQUIRED?
Pretreat stains with stain remover or soak dried in stains in water before washing to reduce the necessity of a hot wash programme.
Save up to 50% energy by using a 60°C wash programme.
BEFORE USING A DRYING PROGRAMME...
SAVE energy and time by selecting a high spin speed to reduce the water content in laundry before using a drying programme.
WASHING
VARIABLE CAPACITY
This washing machine automatically adapts the level of the water to the type and quantity of washing. In this way it is also possible to obtain a "personalized" wash from an energy saving point of view.
This system gives a decrease in energy consumption and a sensible reduction in washing times.
EXAMPLE:
A net bag should be used for particularly delicate fabrics.
Let us suppose that the washing consists of HEAVILY SOILED COTTON (tough stains should be removed with suitable stain removal).
It is advisable not to wash a load made up entirely of articles in towelling fabric which absorb a lot of water and become too heavy.
- Open the detergent drawer (P).
● Put 120 g in the main wash compartment marked 2.
● Put 50 ml of the desired additive in the additives compartment.
- Close the detergent drawer (P).
● Ensure that the water inlet tap is turned on.
● And that the discharge tube is in place.
PROGRAMME SELECTION
Refer to the programme guide to select the most suitable programme.
Turning the selector knob required programme is activate. The display will show the settings for the programme selected.
Adjust the wash temperature if necessary.
Press the option buttons (if required)
Then press the START button.
When the START button is pressed the machine sets the working sequence in motion.
The programme carries out with the programme selector stationary on the selected programme till cycle ends.
EN
Warning: If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.
- When the programme has ended the word "End" will appear on the display
● Wait for the door lock to be released (about 2 minutes after the programme has finished).
- Switch off the machine by turning the programme selector to the "OFF" position.
- Open the door and remove the laundry.
● Turn off the water supply after every use.
FOR ALL TYPES OF WASH CONSULT THE PROGRAMME TABLE AND FOLLOW THE OPERATIONS IN THE ORDER INDICATED.
CHAPTER 12
DRYING
DON'T DRY GARMENTS MADE FROM FOAM RUBBER OR FLAMMABLE MATERIALS.
IMPORTANT: THIS DRYER CAN ONLY BE USED FOR LAUNDRY WHICH HAS BEEN WASHED AND SPIN DRIED.
WARNING:
Indications given are general, therefore some practice is needed for the best drying results. We recommend setting a lower drying time than indicated, when first using, so as to establish the degree of dryness required. We recommend not to dry fabrics that fray easily, such as rugs or garments with a deep pile, to avoid air duct clogging.
The water is then conveyed to the drain circuit, which is sealed and therefore, no steam can be released outside.
IMPORTANT
NEVER OPEN THE DOOR AFTER THE DRYING CYCLE HAS BEGUN - WAIT UNTIL THE COOL DOWN PERIOD PROVIDED FOR BY THE CYCLE.
Only dry pre-spun laundry
The washer/dryer can perform two types of drying:
1 Cotton, terry towelling, linen, hemp fabrics, etc...
Advisory note
During drying phase the drum will accelerate to a higher speed to distribute the load and to optimize the drying performance
2 Mixed fabrics (synthetics/cotton), synthetic fabrics.
高温烘干
低温烘干
DRYING CYCLE
- Open door.
- Fill with up to 5 kg - in case of large items (e.g. sheets) or very absorbent items (e.g. towels or jeans), it is a good idea to reduce the load.
- Close door.
● Turn programme dial to 📍 cotton.
- Select the degree of dryness that you require. This ranges from Extra Dry (☀) for bath towels and bathrobes, through Cupboard Dry (2) for items that will be put away without ironing, to iron dry (☐) that leaves the laundry suitable for ironing.
If you wish to select a timed drying cycle, press the "drying programme selection" button until the required time indicator lights up.
DOUBLE-SKIN DOOR
The appliance door is fitted with a protective shield to prevent contact with the glass door which can reach high temperatures, during the drying cycle.
WARNING: DO NOT TOUCH DOOR FOR ANY REASON.
● Make sure water inlet valve is open.
● Make sure water drain is correctly positioned.
WARNING:
DO NOT DRY WOOLLEN GARMENTS OR ARTICLES WITH SPECIAL PADDING, (E.G. QUILTS, QUILTED ANORAKS, ETC.).
DELICATE FABRICS IF GARMENTS ARE DRIP/DRY, LOAD LESS ITEMS AO AS TO PREVENT CREASING.
EN
- Press the START button.
● The drying phase will begin with the programme dial fixed on the ⚙️ symbol until the end of drying.
● The drying programme indicator will be on until the cool down phase will begin and the indicator (✗) will go on.
At the end of the programme the word "END" will appear on the display.
● Wait for the door lock to be released (about 2 minutes after the programme has finished).
The "Door Security" indicator light will go out.
- Switch off the machine by turning the programme selector on the "OFF" position.
- Open the door and remove the laundry.
● Turn off the water supply after every use.
CHAPTER 13
AUTOMATIC WASHING/DRYING
WARNING: ONLY A MAXIMUM 5 KG OF DRY LAUNDRY CAN BE LOADED OTHERWISE THE DRIED LAUNDRY WILL BE NOT SATISFACTORY.
Washing:
Open the drawer, choose the detergent and put in the correct amount.
Refer to the list of washing programmes according to fabrics to be washed (e.g. very dirty cotton) and without pressing Start button, prepare wash as described:
Turning the selector knob, the required programme is activated.
The display will show the settings for the programme selected.
Adjust the wash temperature if necessary.
Press the option buttons (if required)
Check that the tap is turned on and that the discharge hose is positioned correctly.
Drying:
Select the degree of dryness that you require.
This ranges from Extra Dry
( ⚙ ) for bath towels and bathrobes, through Cupboard Dry ( 2 ) for items that will be put away without ironing, to iron dry ( ≅ ) that leaves the laundry suitable for ironing.
If you wish to select a timed drying cycle, press the "drying programme selection" button until the required time indicator lights up.
Press the "Start/Pause" button.
The programme carries out with the programme selector stationary on the selected programme till cycle ends.
At the end of the wash phase the display will shown the drying time remaining.
The washer-dryer will then complete the entire drying programme.
The drying programme indicator will be on until the cool down phase will begin and the indicator (✗) will go on.
At the end of the programme the word "END" will appear on the display.
Wait for the door lock to be released (about 2 minutes after the programme has finished).
The "Door Security" indicator light will go out.
Switch off the machine by turning the programme selector on the "OFF" position.
Open the door and remove the laundry.
Turn off the water supply after every use.
TABLE OF DRYING TIMES (IN MINUTES):
| PROGRAMME | COTTON | MIXED |
| Min 1 Kg | Max 5 Kg | Min 1 Kg | Max 4 Kg |
Extra Cupboard  Iron | from 30' from 30' from 30' | to 230' to 220' to 170' | from 30' from 30' from 30' | to 170' to 150' to 80' |
The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to that applicable to the size and composition of the load.
CHAPTER 14
CLEANING AND ROUTINE MAINTENANCE
Do not use abrasives, spirits and/or diluents on the exterior of the appliance. It is sufficient to use a damp cloth.
The washing machine requires very little maintenance:
● Cleaning of drawer compartments.
- Filter cleaning
● Removals or long periods when the machine is left standing.
CLEANING OF DRAWER COMPARTMENTS
Although not strictly necessary, it is advisable to clean the detergent, bleach and additives compartments occasionally.
Remove the compartments by pulling gently.
Clean with water.
Put the compartments back into place
EN
FILTER CLEANING
The washing-machine is equipped with a special filter to retain large foreign matter which could clog up the drain, such as coins, buttons, etc. These can, therefore, easily be recovered. The procedures for cleaning the filter are as follows:
- Open the flap
● Only available on certain models:
Pull out the corrugated hose, remove the stopper and drain the water into a container.
● Before removing the filter, place an absorbent towel below the filter
cap to collect the small amount of water likely to be inside the pump
● Turn the filter anticlockwise till it stops in vertical position.
- Remove and clean.
● After cleaning, replace by turning the notch on the end of the filter clockwise. Then follow all procedures described above in reverse order.
REMOVALS OR LONG PERIODS WHEN THE MACHINE IS LEFT STANDING
For eventual removals or when the machine is left standing for long periods in unheated rooms, the drain hose should be emptied of all remaining water.
The appliance must be switched off and unplugged. A bowl is needed. Detach the drainage hose from the clamp and lower it over the bowl until all the water is removed.
Repeat the same operation with the water inlet hose.
CHAPTER 15
| FAULT | CAUSE | REMEDY |
| 1. Does not function on any programme | Mains plug not plugged in | Insert plug |
| Mains switch not on | Turn on mains switch |
| No power | Check |
| Electric circuit fuses failure | Check |
| Load door open | Close load door |
| 2. Does not load water | See cause 1 | Check |
| Inlet tap turned off | Turn on water inlet tap |
| Timer not set correctly | Set timer on correct position |
| 3. Does not discharge water | Discharge tube bent | Straighten discharge tube |
| Odd material blocking filter | Check filter |
| 4. Water on floor around washing machine | Leak from the washer between the tap and inlet tube | Replace washer and tighten the tube on the tap |
| 5. Does not spin | The washing machine has not discharged water | Wait a few minutes until the machine discharges water |
| “No spin” setting (some models only) | Turn the programme dial onto spin setting |
| 6. Strong vibrations during spin | Washing machine not perfectly level | Adjust special feet |
| Transport bracket not removed | Remove transport bracket |
| Washing load not evenly distributed | Distribute the washing evenly |
| 7. Display reads error 0, 1, 5, 7, 8, 9 | - | Call service. |
| 8. Display reads error 2 | No water fill. | Check water supplies are on. |
| 9. Display reads error 3 | No pump out. | Check drain is clear.Check drain hose is not kinked. |
| 10. Display reads error 4 | Machine overfilled with water. | Turn off water supply to machine.Call service. |
| Advisory noteDuring drying phase the drum will accelerate to a higher speed to distribute the load and to optimize the drying performance |
If the fault should persist, contact a Candy Technical Assistance Centre. For prompt servicing, give the model of the washing machine, to be found on the label placed on the cabinet inside of the porthole or on the guarantee certificate.
Important
1The use of environment friendly detersives without phosphates may produce the following effects:
- The discharge rinse water may result cloudier due to the presence of zeolites in suspension. This does not compromise the efficiency of the rinses.
- The presence of white powder (zeolites) on the washing at the end of the washing cycle. This does not remain incorporated in the fabric and does not alter the colour.
- The presence of foam in the last rinse water which is not necessarily a sign of inadequate rinsing.
- The non-ionic surface-active agents present in the composition of washing machine detersives are often difficult to remove from the washing itself and, even in small quantities, may produce visible signs of the formation of foam.
- Carrying out further rinses, in cases such as this, is not useful.
2 If your washing machine fails to function, carry out the above-mentioned checks before calling the Candy Technical Assistance Service.
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment
Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
