Product Type	Condenser Tumble Dryer
Model	GCC 560NB
Brand	Candy
Capacity	6 kg
Dimensions (H x W x D)	85 x 59.5 x 54 cm
Weight	35 kg
Energy Efficiency Class	B
Annual Energy Consumption	560 kWh
Power Consumption (off-mode)	0.40 W
Voltage	220-240 V
Frequency	50 Hz
Noise Level	65 dB(A)
Number of Programs	15
Drying Programs	Cotton, Synthetics, Delicates, Wool, Mix, Rapid, Iron Dry, Cupboard Dry, Extra Dry, etc.
Anti-Crease Function	Yes
Delay Start	Up to 24 hours
Filter Cleaning Indicator	Yes
Water Tank Capacity	5 L
Condenser Cleaning	Self-cleaning condenser
Reversing Drum	Yes
Child Lock	Yes
Spare Parts Availability	7 years

Frequently Asked Questions - GCC 560NB CANDY

How do I clean the lint filter?

Open the door and pull the lint filter upward. Remove the lint by hand or with a soft brush. Rinse under running water if needed, then dry and reinsert. Clean after every drying cycle.

What should I do if the dryer stops mid-cycle?

Check if the water tank is full (if condenser model) or if the lint filter is clogged. Also ensure the load is not too large. Press the start button to resume after resolving the issue.

Can I dry woollen items?

Yes, use the dedicated Wool program with low heat. Do not overload and remove items as soon as the program ends to prevent shrinkage.

How often should I clean the condenser?

Clean the condenser every month or when the indicator lights up. Remove the condenser unit from the bottom compartment and rinse with water. Let it dry before reinserting.

Why is my laundry still damp after a cycle?

Possible causes: overload, clogged filter, full water tank, or selected program too short. Check these and run an extra drying time if needed.

What does the 'Anti-Crease' function do?

After the drying cycle ends, the drum rotates periodically without heat for up to 2 hours to prevent wrinkles from setting. You can remove clothes at any time during this phase.

How do I use the delay start?

Press the Delay button repeatedly to set the desired delay in hours (up to 24). Then select your program and press Start. The dryer will begin after the set delay.

Is the dryer vented or condenser?

The Candy GCC 560NB is a condenser dryer. It uses a heat exchanger to remove moisture, collecting water in a tank. No external venting required.

What should I do if the dryer displays an error code?

Consult the manual for specific codes. Common issues include blocked filter, full water tank, or overheating. Power off, resolve the cause, and restart.

How can I reduce energy consumption?

Use the Eco program, spin clothes at high speed in the washing machine, clean filters regularly, and avoid overloading the dryer.

USER MANUAL GCC 560NB CANDY

6kg

English	2
Slovensko	15
Norsk	28
Svenska	41
Suomi	54
Dansk	67

Introduction 3

Delivery Information 3

Safety Reminders 3

Use 4

Installation 5

The Laundry 5

Ventilation 6

Environmental Issues 7

Gias Service 7

Electrical Requirements 7

Adjusting the Feet 7

Preparing the Load 8

Clothes Preparation 9

Do Not Tumble Dry 9

Energy Saving 9

Sorting the Load 9

Drying Guide 9

Controls and Indicators 9

Selecting the Programme 10

Door and Filter 11

Opening the Door 11

Filter 11

Filter Care Indicator 11

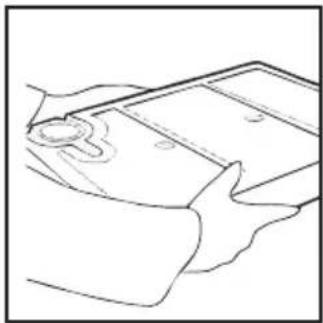

Water Container 11

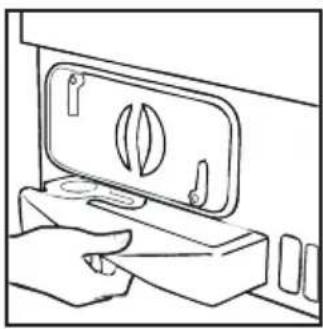

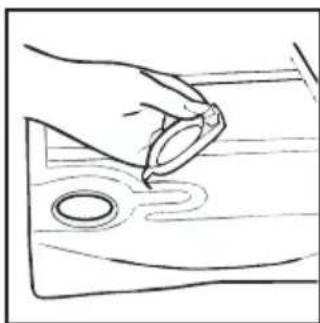

To Remove the Container 11

Condenser 12

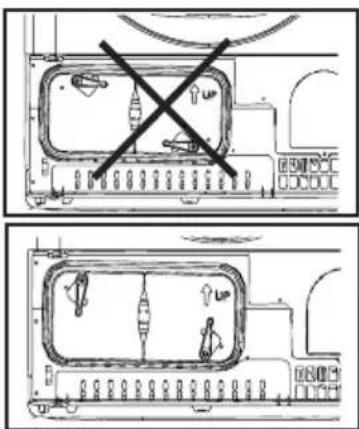

To Remove the Condenser 12

Operation 13

Delay Start Function 13

Cancelling and Resetting the Programme 13

Cleaning and Routine Maintenance 13

Cleaning the Dryer 13

Technical Specifications 13

Troubleshooting 14

Customer Service 14

Spares 14

Gias Service 14

INTRODUCTION

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

Delivery Information

Please check that the following items are delivered with the appliance:

• Instruction manual
  • Guarantee card
• Energy label

⚠️ Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS.

Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse.

SAFETY REMINDERS

Use

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

- WARNING Misuse of a tumble dryer may create a fire hazard.

INTRODUCTION

SAFETY REMINDERS

Use

• This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet.
• Do not lean on the door when loading the machine or use the door to lift or move the machine.
• Do not allow children to play with the machine or its controls.
• WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.
• WARNING Where the hot surface symbol is A located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
• Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.
• Do not continue to use this machine if it appears to be faulty.
• Lint and fluff must not be allowed to collect on the floor around the outside of the machine.

INTRODUCTION

SAFETY REMINDERS

Installation

• Check that the product has no visible signs of damage before use. If damaged do not use and please call GIAS Service.
• Do not use adapters, multiple connectors and/or extensions.
• Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer.

The Laundry

- Do not dry unwashed items in the tumble dryer.

• Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should not be put into the dryer.
• Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.
• Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be

INTRODUCTION

SAFETY REMINDERS

Ventilation

- Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

- Installing the rear of the appliance close to a wall or vertical surface.

- There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet should be kept clear of obstruction. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed.

- Check regularly that the air flowing through the dryer is not restricted.

- Check frequently the fluff filter after use, and clean, if necessary.

- Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet

- NEVER install the dryer up against curtains.

- In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the follow configuration.

-Stacking kit Mod 35100019: for minimum washing machine depth 49 cm

-Stacking kit Mod 35900120: for minimum washing machine depth 51 cm

The stacking kit shall be one of that above, obtainable from our spare service.

The instructions for installation and any fixing attachments, are provided with the staking kit.

Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between +2°C and +35°C. Please note that operating in cold condition (between +2 and +15°C) might imply some water condensation and water drops on floor.

Environmental Issues

- All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.

- To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

European Directive 2002/96/EC

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

GIAS Service

- To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.

If the appliance is not running properly or breaks down, switch it off and disconnect the plug from the socket. Consult GIAS Service for possible repair.

SAFETY REMINDERS

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase. Check that the supply circuit is rated to at least 10A.

Electricity can be extremely dangerous.

This appliance must be earthed.

The socket outlet and the plug on the appliance must be of the same type.

Do not use multiple adapters and/or extension leads.

The plug should be accessible for disconnection after the appliance has been installed.

CE Appliance complies with European Directive 2004/108/EC, 2006/95/EC and subsequent amendments.

You may be charged for a service call if a problem with your machine is caused by incorrect installation.

If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.

Do not plug the machine in and switch it on at the mains until the installation is completed. For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice.

Adjusting the Feet

Once the machine is in place the feet should be adjusted to ensure that the machine is level.

PREPARING THE LOAD

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum.
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the caresymbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

During the last 15 minutes (roughly) the load is always tumbled in cool air

Do not overload the drum, large items when wet can exceed the maximum admissible clothes

Maximum Drying Weight

• Cottons Max. 6kg
• Synthetics Max. 3 kg

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying. Tumble drying at high tem.

Tumble drying at low temperature only. Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

- By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

- By drying level

CONTROLS AND INDICATORS

Control Panel and Indicator Lights

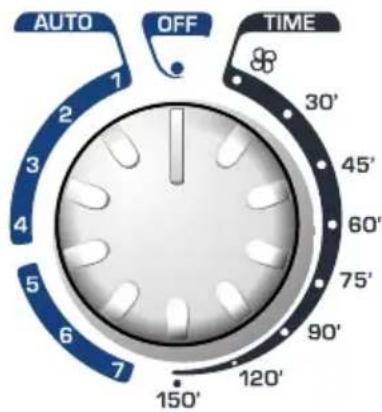

Programme Selector – Select the required programme

Delay Start button Ⓗ – Allows the user to delay the start of the drying cycle (see details of Operation on page 10)

Start/Pause button ▷III – Press to commence the selected drying programme

Delicates button – Press to reduce the heat level for delicate items, the indicator above the button will light up. To change the heat setting the programme must be reset

Low Heat – Indicator light ON High Heat – Indicator light OFF

Filter Care indicator Ⓧ – lights when the filter needs cleaning

Empty Water indicator 📋 – lights when the water container is full

Progress display

DRY – When the programme is selected the DRY indicator will flash, when the programme starts the DRY indicator will light up.

- Indicator lights when there is a short time left until completion of the programme. At this stage of the drying cycle the machine enters the Cool Down phase.

The length of the Cool Down phase varies between 10 and 15 minutes depending on the programme.

END – Indicator lights when the programme is finished.

SELECTING THE PROGRAMME

The Candy Sensor Dry machine gives many options for drying the laundry to suit all circumstances.

The table on the next page lists the programmes and the function of each programme.

Note: The sensor may not detect a small load of small articles. For small loads and separate items or pre-dried fabrics with low moisture content, use the timed programmes.

Set the programme between 30 and 75 minutes depending on the load size and dryness required, and select high or low heat depending upon the fabric type.

If the sensor does not detect the item the dryer will only operate for 10 minutes before going into cooldown.

If the load is too large or too wet to tumble dry the dryer will automatically go into cooldown after approximately 3 hours.

SELECTING THE PROGRAMME

PROGRAMME	DESCRIPTION
Perfect home [0771]	Select the degree of dryness that you require. This ranges from for bath towels and bathrobes, through for items that will be put away without ironing, to the programme that leaves the laundry suitable for ironing.
Extra Dry
Cupboard Dry [4DY0]
Iron Dry [2724]
Wool Finish	A gentle programme specially created to get woollens softer after air-drying. This delicate warm air cycle, lasting 12 minutes, can also be used to get woollens 'refreshed' after being stored in the wardrobe.
No Crease	The No crease programme provides a conditioning and anticrease function. The dryer will heat the load for 9 minutes followed by a 3 minute cool down period and is especially good for garments which may have been left for some time prior to ironing, in a linen basket for example. Garments may also become stiffened when dried outside on a washing line or inside on radiators. This programme relaxes the creases in the fabric making ironing quicker and easier.
40' Rapid [6X0H]	The 40' Rapid programme allows a drying cycle to be completed quickly. This is an ideal programme for having dry, refreshed and ready-to-wear clothes in less than 40'. This special programme constantly monitors the dryness and temperature in the drum thanks to the sensor using, using the exact time and energy you need! The machine finishes the cycle when the cupboard dry level is reached. The stated cycle length could vary according to fabric types, load size and residual moisture in the garments. The maximum load is 2kg and the programme is suitable for all types of fabric where tumble drying is appropriate.
150'	150' minutes of drying
120'	120' minutes of drying
90'	90' minutes of drying
75'	75' minutes of drying
60'	60' minutes of drying
45'	45' minutes of drying
30'	30' minutes of drying
Refresh [IMAGE]	Tumbling the laundry in cool air for 20 minutes

Opening the Door

Line drawing of a hand holding a circular mechanical component (no text or symbols)

Pull on handle to open the door.

To restart the dryer, close the door and press.

WARNING! When the tumble dryer is in use the drum and door may be VERY HOT. Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

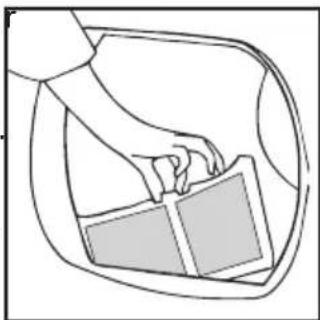

1. Pull the filte upwards.

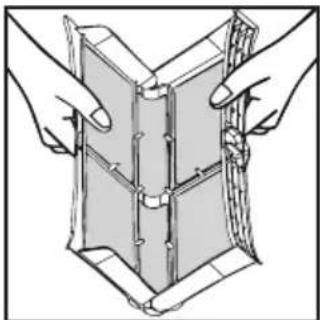

2. Open filter as shown.

3. Gently remove lint using a soft brush or your fingertips.

4. Snap the filter together and push back into place.

Line drawing of a person holding a folder inside a car (no text or symbols)

Filter Care Indicator

Lights when the filter needs cleaning.

If the laundry is not drying check that the filter is not clogged.

Illustration of two hands holding a folded or layered object, no text or symbols present

DO NOT USE WATER TO CLEAN THE FILTER.

WATER CONTAINER

The water removed from the laundry during the drying cycle is collected in a container at the bottom of the dryer. When the container is full the indicator on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle.

NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To Remove the Container

1. Gently pull the bottom of the kickplate so that it unclips from the dryer. The top section can then be unhinged allowing the kickplate to be completely removed.

Line drawing of a person holding a folder, no text or symbols present

1. Pull firmly on the handgrip and slide the water container out of the dryer.

Line drawing of a hand pressing down on a door with a leaf symbol (no text or labels)

Support the container with both hands. When full, the water container will weigh about 4kg.

1. Open the lid located on the top of the container and empty the water.

Line drawing of a hand holding a tablet device (no text or symbols)

1. Refit the lid and slide the water container back into position. PUSH FIRMLY INTO PLACE.

2. Refit the kickplate by engaging the hinges at the top and 'snapping' the lower clips into place.

Line drawing of a hand holding a ring above a wooden surface with circular indentations (no text or symbols)

Important: Always switch off and remove the plug from the electricity supply before cleaning the condenser.

To maintain the efficiency of the dryer regularly check that the condenser is clean.

To Remove the Condenser

1. Remove the kickplate.

2. Turn the two locking levers anti-clockwise and pull out the condenser.

3.Pull out the condenser unit.

1. Gently remove any dust of fluff with a cloth, then wash the unit by holding it under a running tap turning it so that water flows between the plates, to remove any dust of fluff.

2. Check the gasket position after cleaning. Fit the gasket in to the groove if it is misaligned.

3. Refit the condenser ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise. Be sure that condenser unit fixed to the basement tightly.

4. Refit the kickplate.

Line drawing of a person holding a rectangular object, no text or symbols present

Simple line drawing of a vehicle or enclosure with no text, numbers, or symbols

Line drawing of a hand inserting a card into a bracket (no text or symbols)

Illustration of hands cleaning a window with a handle and lid (no text or symbols)

Pure diagram of a mechanical or architectural component with no visible text, numbers, or symbols

Simple line drawing of a mechanical component with cross-bracing and curved surfaces (no text or symbols)

Simple line drawing of a geometric structure with intersecting lines (no text or symbols)

OPERATION

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.

2. Gently close the door pushing it slowly until you hear the door 'click' shut.

3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).

4. If drying synthetics, acrylics or delicate items, press the 🎨 button to reduce the heat level. The light next to the push button will light up when the machine is in low heat setting. To deselect in the first few minutes of the programme, press the 🔊 button, after this time reset the machine to change the setting.

5. Press the ▷■ button. The dryer will start automatically and the DRY indicator will be continuously lit.

6. If the door is opened during the programme to check the laundry, it is necessary to press ▷III to recommence drying after the door has been closed.

7. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.

8. When the programme is complete the END indicator will light.

9. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

OPERATION

Delay Start Function

The Delay Start Function allows the user to delay the start of the drying cycle by 3, 6 or 9 hours.

When the function is first selected the display will show a delay of 3 hours, subsequent presses of the button will increase the delay to 6 or 9 hours.

To commence the programme press and the appliance will complete the drying cycle at the end of this time. The 3, 6 or 9 hour indicator light will flash to indicate that the start delay is in progress.

Cancelling and Resetting the Programme

To cancel a programme press the that it has been reset.

button for 3 seconds. The DRY light will flash to indicate

CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
  • Regularly clean the condenser.
• After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
• Wipe the outside of the machine and the door with a soft cloth.
• DO NOT use abrasive pads or cleaning agents.
• To prevent the door sticking or the build up of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The Drum, door and load may be very hot.

Technical Specifications

Drum capacity	115 litres
Maximum load	6 kg
Height	85 cm
Width	60 cm
Depth	60 cm
Energy Label Band	B

Information for Test Laboratory

EN 61121 Programme Programme To Use

-DRY COTTON	-Cupboard Dry
-IRON DRY COTTON	-Iron Dry
-EASY-CARE TEXTILE	-Cupboard Dry + Synthetic

IMPORTANT Always switch off and remove the plug from the electricity supply before cleaning this appliance.

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

TROUBLESHOOTING

What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.

If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone.

Drying time is too long/clothes are not dry enough...

• Have you selected the correct drying time/programme?
• Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
• Does the filter need cleaning?
  • Is the dryer overloaded?
• Has the option been selected from a previous cycle?

The dryer does not operate...

• Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.
• Is the plug properly connected to the mains supply?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice.
They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.
- Has not been installed in accordance with the installation instructions.
- Has been used incorrectly.

Spares

Always use genuine spares, available direct from GIAS Service.

GIAS Service

For service and repairs call your local GIAS Service engineer.

Uvod 16

Podatki o Dobavi 16

Odstranjevanje Embalaže 16

European Directive 2002/96/EC

Line drawing of a hand holding a circular mechanical component (no text or symbols)

Za odpiranje vrat potegnite ročico. Za ponovni zagon sušilnega stroja zaprite vrata in pritisnite tipko ▷ III

Line drawing of a hand placing a rectangular object into a car's side panel (no text or symbols)

Signalna Lučka za Stanje Filtra

se prižge, ko je treba filter očistiti.

Če se perilo ne suši pravilno, preverite, da ni filter Zamašen.

Illustration of two hands holding a folded or layered object, no text or symbols present

Voda, ki izhlapeva iz perila med sušenjem, se zbira v zbiralni posodi, ki jo najdete na dnu sušilnega stroja.

Line drawing of a person holding a grid-patterned panel inside a vehicle (no text or symbols)

Line drawing of a hand inserting a device into a box with a leaf symbol (no text or labels)

Line drawing of a hand holding a rectangular object with a circular mark on the left (no text or symbols)

Line drawing of a hand holding a ring on a wooden surface with two circular holes (no text or symbols)

KONDENZATOR

Line drawing of a person inserting a card into a folder (no text or symbols)

Simple line drawing of a vehicle or road with a rectangular frame and curved roof (no text or symbols)

Line drawing of a hand inserting a card into a device (no text or symbols)

Illustration of hands using a tool to interact with a vertical bar, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a structural truss system with beams and supports (no text or labels)

1.Odprite vrata in potisnite perilo v boben. Prepričajte se, da ne ovira zapiranje vrat.
2. Nežno zaprite vrata – pritisnite jih, da se slišno zaprejo.
3. Obrnite stikalo za izbiranje programov na ustrezen program (gl. razpredelnico programov).
4.Če sušite sintetiko, akril ali drugo perilo iz občutljivih tkanin, pritisnite na ustrežno tipkò , da znižate temperaturo sušenja. Ob tem se osvetli lučka ob tipki, kar pomeni, da je temperatura sušenja znižana. Če si tekom prvih nekaj minut premislite, znova pritisnite na isto tipko , da zvišate temperaturo sušenja. Če želite to storiti pozneje, pa morate program resetirati.
5.Pritisnite na tipko ▷II Stroj začne sušiti, indikator SUŠENJE je osvetljen.
6.Če med izvajanjem programa odprete vrata, da preverite stanje perila, po ponovnem zapiranju vrat znova pritisnite na tipko▶III .
7. Proti koncu programa se vklopi faza ohlajanja – perilo se v hladnem zraku ohladi.
8.Ko je program zaključen, se osvetli indikator KONEC PROGRAMA.
9. Boben se v presledkih obrača, da bi se perilo kar najmanj zmečkalo – dokler ne izklopite stroja oz. dokler ne odprete vrata.
1.Odprite vrata in potisnite perilo v boben. Prepričajte se, da ne ovira zapiranje vrat.
2. Nežno zaprite vrata – pritisnite jih, da se slišno zaprejo.
3. Obrnite stikalo za izbiranje programov na ustrezen program (gl. razpredelnico programov).
4.Če sušite sintetiko, akril ali drugo perilo iz občutljivih tkanin, pritisnite na ustrežno tipkò , da znižate temperaturo sušenja. Ob tem se osvetli lučka ob tipki, kar pomeni, da je temperatura sušenja znižana. Če si tekom prvih nekaj minut premislite, znova pritisnite na isto tipko , da zvišate temperaturo sušenja. Če želite to storiti pozneje, pa morate program resetirati.
5.Pritisnite na tipko ▷II Stroj začne sušiti, indikator SUŠENJE je osvetljen.
6.Če med izvajanjem programa odprete vrata, da preverite stanje perila, po ponovnem zapiranju vrat znova pritisnite na tipko▶III .
7. Proti koncu programa se vklopi faza ohlajanja – perilo se v hladnem zraku ohladi.
8.Ko je program zaključen, se osvetli indikator KONEC PROGRAMA.
9. Boben se v presledkih obrača, da bi se perilo kar najmanj zmečkalo – dokler ne izklopite stroja oz. dokler ne odprete vrata.

Obratovanje

Indikator for filteredlikehold 37

Vannbeholder 37

SIKKERHETSPÄMINNELSER

Bruk

SIKKERHETSPÅMINNELSER

Bruk

SIKKERHETSPÅMINNELSER

Installasjon

SIKKERHETSPÅMINNELSER

VENTILASJON

SIKKERHETSPÅMINNELSER

Miljømessige hensyn

Line drawing of a hand holding a circular mechanical component (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Indikator For Filteredlikehold

Lyser när filteret trenger rengjøring.

Illustration of two hands holding a folded or layered object, no text or symbols present

IKKE BRUK VANN TIL Å GJ∅RE FILTERET RENT

VANNBEHOLDER

Line drawing of a person holding a rectangular object, no text or symbols present

Line drawing of a hand pressing down on a device with a lid and buttons (no text or symbols)

Line drawing of a hand holding a rectangular object with a circular mark on the left (no text or symbols)

Line drawing of a hand holding a ring above a wooden surface with circular indentations (no text or symbols)

Line drawing of a person holding a rectangular object, no text or symbols present

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a hand inserting a card into a rectangular device (no text or symbols)

Line drawing of a hand cleaning a toothbrush (no text or symbols)

Pure diagram of a mechanical component with no text, numbers, or symbols

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Simple line drawing of a geometric structure with diagonal lines and curved elements (no text or symbols)

Sketch of a geometric line intersecting a vertical structure (no text or symbols)

DRIFT

Line drawing of a hand holding a circular mechanical component (no text or symbols)

Line drawing of a hand opening a car door with a closed door (no text or symbols)

Filterindikator

Illustration of two hands assembling or folding a rectangular object with internal components (no text or symbols)

RENGÖR ALDRIG FILTRET MED VATTEN

VATTENBEHÅLLARE

Illustration of a person holding a folder, no text or symbols visible

Line drawing of a hand inserting a device into a rack with a lid (no text or symbols)

Line drawing of a hand holding a tablet device (no text or symbols)

Simple line drawing of a hand holding a ring above a wooden surface with two circular holes (no text or symbols)

Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a rectangular object with a cross mark on top and bottom (no text or symbols)

Simple line drawing of a geometric structure with triangular elements and curved lines (no text or symbols)

Simple line drawing of a geometric structure with intersecting lines and curved surfaces (no text or symbols)

FUNKTION

Line drawing of a hand holding a circular mechanical component (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of two hands holding a folded or layered object with internal components (no text or symbols)

ÄLÄ PUHDISTA SUODATINTA VEDELLÄ

VESISÄILIÖ

Line drawing of a person holding a folder, no text or symbols present

Line drawing of a hand pressing down on a device with a leaf-shaped lid (no text or symbols)

Line drawing of a hand holding a tablet device (no text or symbols visible)

Hand holding a ring on a wooden surface, with no visible text or symbols

Two technical line drawings showing a hand holding a folder and a device with a curved arrow (no text or symbols)

Line drawing of a hand inserting a card into a rectangular device (no text or symbols)

Diagram of a hand holding a mechanical component, possibly a valve or pump, with no visible text or symbols.

Pure mechanical component diagram without any text, numbers, or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a roof structure with diagonal bracing (no text or symbols)

KONEEN KÄYTTÖ

Line drawing of a hand holding a circular mechanical component (no text or symbols)

Illustration of two hands folding a folded or folded object with visible internal structure (no text or symbols)

BRUG IKKE VAND TIL RENG∅RING AF FILTERET

VANDBEHOLDER

Line drawing of a person holding a folder, no text or symbols present

Line drawing of a hand pressing down on a door panel with a leaf symbol (no text or labels)

Line drawing of a hand holding a device with a scroll wheel (no text or symbols)

Simple line drawing of a hand holding a ring above a wooden surface with two circular holes (no text or symbols)

Line drawing of a person holding a rectangular object, no text or symbols present

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Hand inserting a card into a rectangular device (no text or symbols visible)

Line drawing of a hand holding a tool near a vertical object (no text or symbols)

Pure diagram of a mechanical component with no text, numbers, or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a mechanical component with intersecting lines (no text or symbols)

BETJENING
