Product Type	LED Television
Brand	TV Star
Model	LED22F2
Screen Size	22 inches (55.9 cm)
Display Technology	LED
Resolution	1366 x 768 pixels (HD Ready)
Dimensions (with stand)	Approx. 510 x 360 x 150 mm
Dimensions (without stand)	Approx. 510 x 310 x 80 mm
Weight (with stand)	Approx. 3.5 kg
Power Consumption (typical)	30 W
Standby Power Consumption	Less than 1 W
Power Supply	AC 100-240V, 50/60Hz
Audio Output	2 x 5W speakers
Connectivity	1 x HDMI, 1 x USB, 1 x AV input, 1 x VGA
Tuner	DVB-T/T2/C (built-in)
Remote Control	Included
Wall Mount Compatibility	VESA 100x100 mm
Main Features	HD Ready, USB media playback, sleep timer, parental lock
Care Instructions	Wipe with soft dry cloth; avoid liquids and abrasive cleaners
Safety Precautions	Do not expose to rain or moisture; disconnect during storms; place on stable surface
Spare Parts	Remote control and stand available from authorized dealers
Repairability	Classified as not easily repairable by user; contact support

Frequently Asked Questions - LED22F2 TV Star

How do I connect my TV Star LED22F2 to an antenna?

Connect the antenna cable to the RF IN port on the back of the TV. Then go to Menu > Channel > Auto Scan to search for channels.

Can I mount the TV on a wall?

Yes, the LED22F2 supports VESA 100x100 mm wall mounts. Use a compatible wall bracket and follow the installation instructions.

What is the screen resolution of the TV Star LED22F2?

The screen resolution is 1366 x 768 pixels, which is HD Ready quality.

How do I connect USB devices to play media?

Insert a USB drive into the USB port. Then press Source on the remote and select USB. Use the remote to navigate and play files.

Is the TV Star LED22F2 compatible with HDMI devices?

Yes, it has one HDMI port for connecting devices like gaming consoles, DVD players, or streaming sticks.

How do I perform a factory reset?

Go to Menu > Settings > Reset and confirm. A PIN may be required (default is 0000). This will erase all user settings.

Why is there no sound from the TV?

Check if Mute is active. Ensure volume is turned up. Also check audio output settings and external device connections.

What should I do if the remote control is not working?

Replace the batteries with new ones. Ensure there are no obstructions between remote and TV sensor. Point directly at the TV.

Can I record TV programs on this TV?

No, the TV Star LED22F2 does not have built-in recording capability. You would need an external recorder.

How do I clean the TV screen safely?

Turn off the TV and let it cool. Use a soft, dry cloth to gently wipe the screen. Do not use water or cleaning agents as they may damage the display.

USER MANUAL LED22F2 TV Star

Logo featuring a stylized 'TV' with stars and curved lines, no text or symbols present.

STAR

LED COLOR TV

EN USER MANUAL

Please read these instructions carefully and retain for future reference

LT VARTOTOJO INSTRUKCIJA

Please read these instructions carefully and retain for future reference.

Table Of Contents

Preparations Guide

Safety Information....2

Important Safety Precautions....3

Installed And Connected TV

TV Bracket assemble....4

TV Buttons And Terminal Interface....5

External device connection diagram....6

Install And Connect TV....7

TV Stand installation Instructions....7

Function Description

Picture Menu....8

Sound Menu....10

Applications....12

Preferences....15

Setup 18

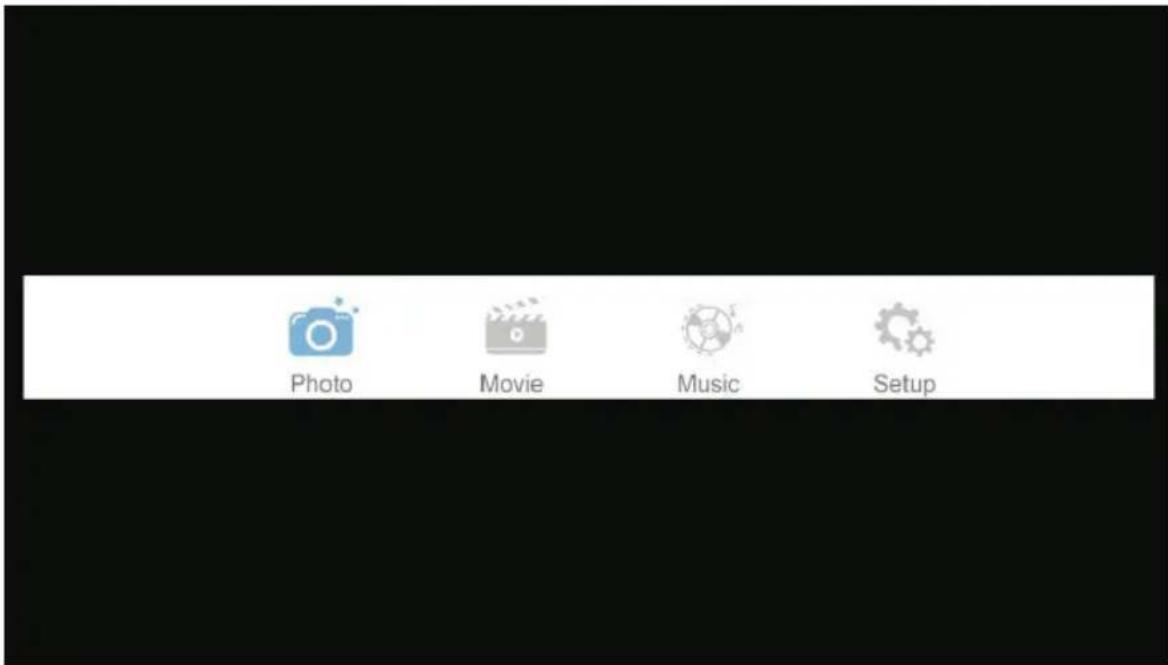

Media Operation....20

Multimedia

Photo....21

Movie....22

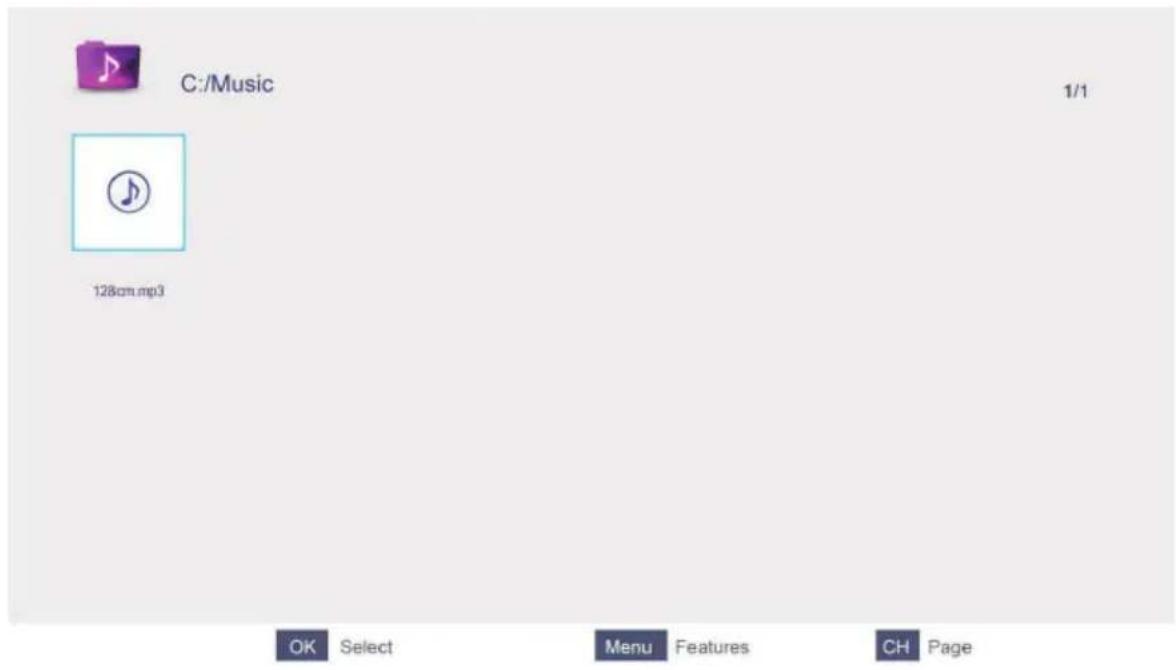

Music....23

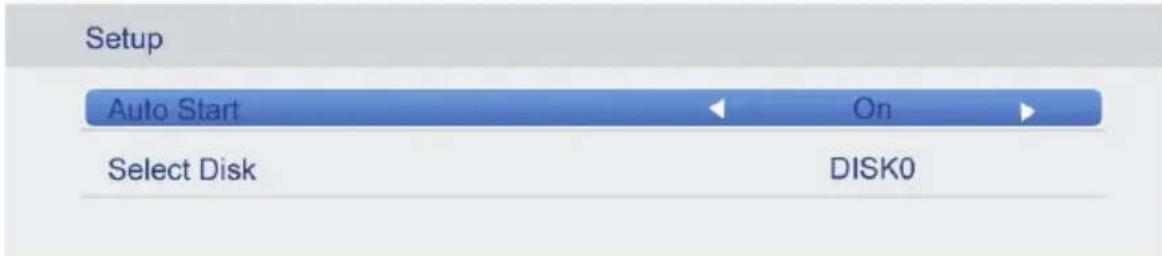

Setup....24

Other Information

Help....25

Specifications....26

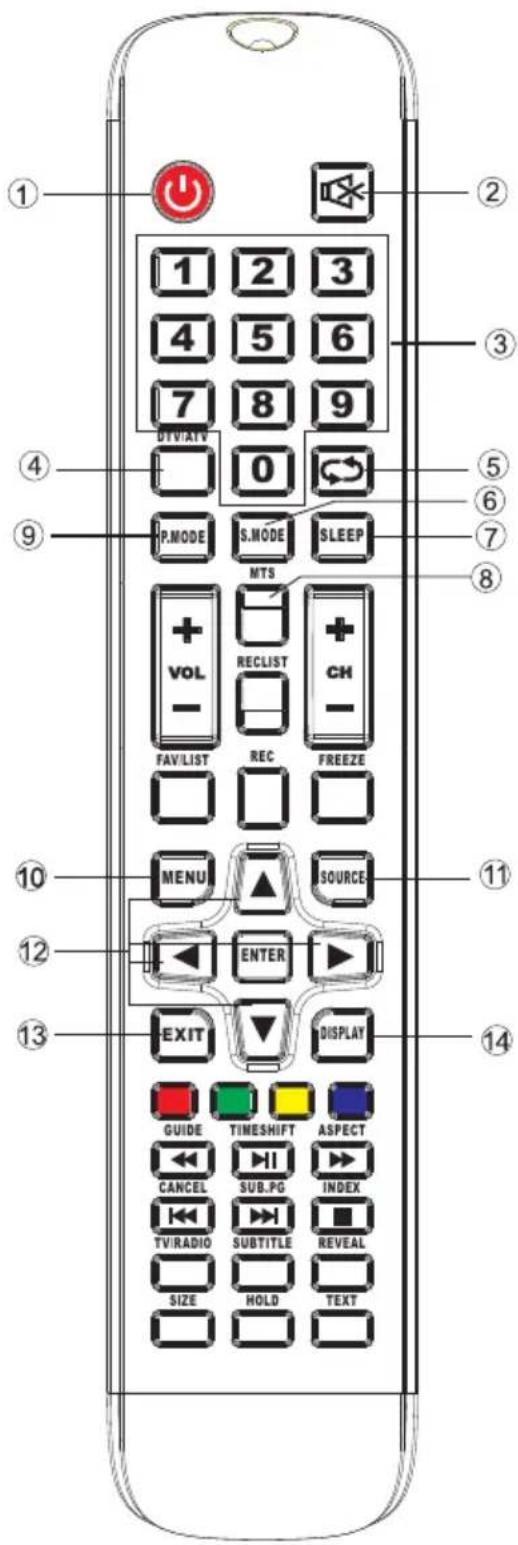

Remote Controller....27

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

High voltages are used in the operation of this product. to reduce the risk of electric shock, do not remove cover of the cabinet, refer servicing to qualified service personal

If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating in the literature accompanying the appliance.

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Warning The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Important Safety Precautions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Warning to reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

15. The apparatus shall be disconnected from the mains by placing the power/standby switch in the standby position and unplugging the power cord of the apparatus from the AC mains receptacle.

16. The socket-out shall be installed near the equipment and shall be easily accessible.

17. This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

18. Apparatus shall not be exposed to dripping or splashing.

19. Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

20. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

21. Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.

22. The USB terminal should be loaded with 0.5 A under normal operation.

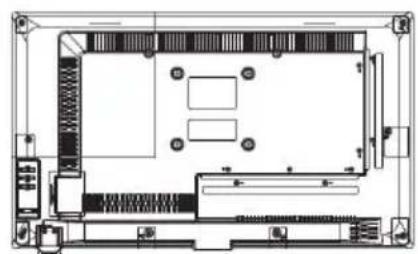

TV Bracket assemble

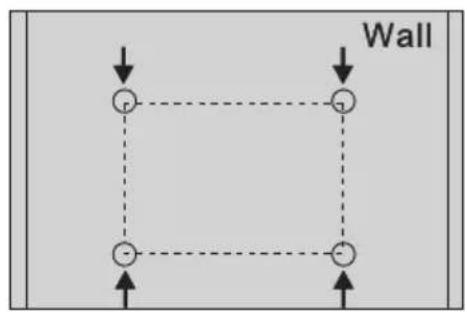

Fix the TV on the wall

1. First, put the TV on the table smoothly and put some soft cloth on the table to avoid scratching the screen.

2. User the screw driver to take off the screws which are fixed on the bottom stand (the direction of the arrow, refer to the ptoto1). And take off the bottom stand (please take off the screws and bottom stand carefully).

3. Make one bracket which can fix on the wall according to the size of arrow direction of photo2 and photo3.

4. Drill four holes properly on the wall (the size only for reference) and put into four screws.(optional parts) Drill four holes properly on the wall (the size only for reference) and put into four screws.(optional parts)

5. according to the step 4, use the screwdriver to lock the screw on the back of the TV. then hang the TV on the wall.

Technical line drawing of a computer monitor layout (no text or labels)

1

Technical line drawing of a device rear panel with no visible text or symbols

2

3

Note:

1. The bracket fixed on the wall is optional part.
2. when you assemble the TV, there should be no other articles on the around and front and please keep the distance from other articles.
3. When assemble the TV, please ask the career man to fix in order to avoid the danger.
4. The fixing picture is only for reference.
5. Please follow the use manual about bracket assemble to fix the TV.
6. Attach the mounting bracket from the VESA compatible wall mounting kit.

TV Buttons And Terminal Interface

TV Buttons

Note: The following is only functional schematic, And the actual position and arrangement of different models may be different.

VOL+

VOL -

CH+

CH-

MENU

SOURCE

(1):Turn ON/OFF Power.

SOURCE: External Signal Input Selection.

MENU: Display Main MENU And Confirm MENU Item Selection.

CH+/-:Selecting Channel.

VOL+/-:Adjusting Volume.

Terminal Interface

Note: The following are the various terminal interface, the actual position and arrangement, the number of different models may be different.

	AV inputExternal AV Signal Input AndRelevant Rith/Left Sound Channel		EARPHONE outputWhen earphones are plugged in,speakers are disabled
	CI SLOTThe card reader input CI(common interface) this requires CAM (conditional access module) used for pay TV.		USB inputConnect a USB device here to play its media files or to recordprograms via the PVR function.
	Y Pb Pr inputConnect to the composite terminal of your DVD/VCR (Some models without this interface)		SCART inputstandard,it supports composite and RGBsignal input.It is a connection for european (Some models without this interface)
	HDMI inputDigital signal input from HDMI video connector.		COAXIALConnect the SPDIF receiver.
	ANT 75Connect the antennal/cadle tv input (75/VHF/UHF)
	VGA inputPC analog signal input
	PC AUDIO INPUTVGA input and audio input when VGA input

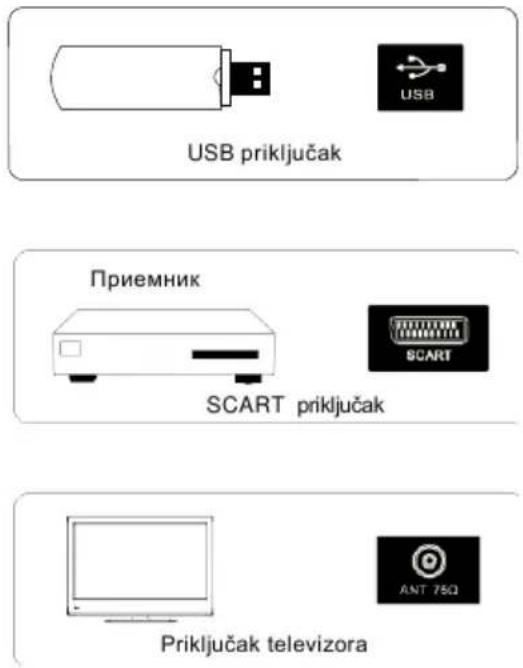

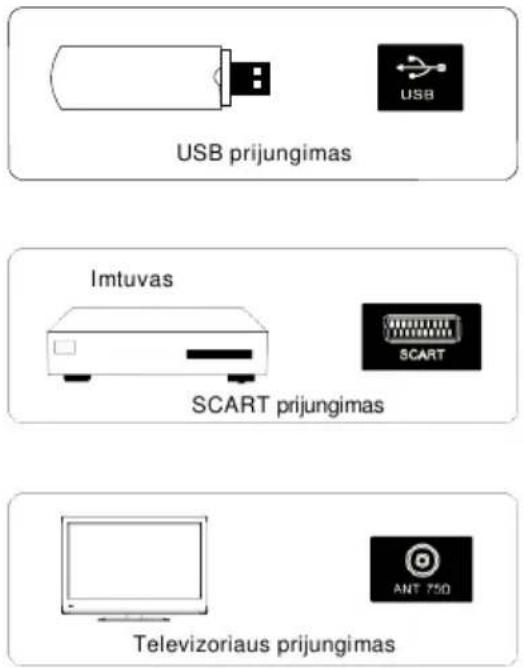

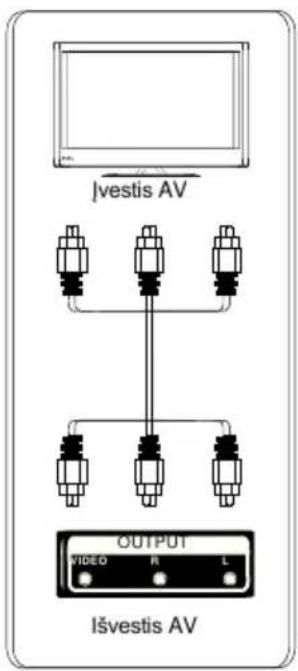

External device connection diagram

Install And Connect TV

3

2
1

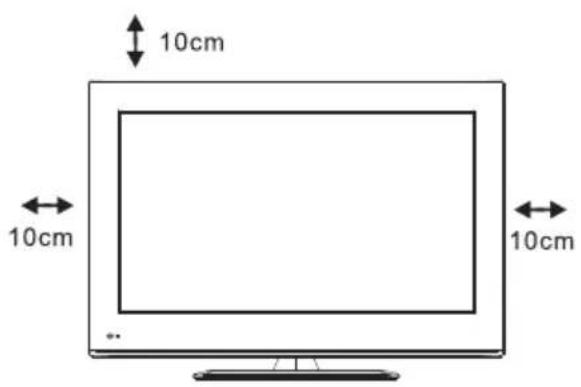

Set your TV

To put your TV in a firm place which can bear the weight of the TV.

To avoid danger, please don't expose the TV near water or heating place (such as light, candle, heating machine), do not block the ventilation at the back of TV.

Connect antenna and power

1. Connect the antenna cable to the antenna socket on the back of the TV.
2. To plug the power cord of TV (AC 100-240V\~50/60Hz).

Turn on TV

1. Press the power button of the TV the indication light will turn to green. if it is on standby mode (the light is red), press the power button on the remote control to turn on the TV.

Note:

Picture for reference purposes only.

Please prevail in kind

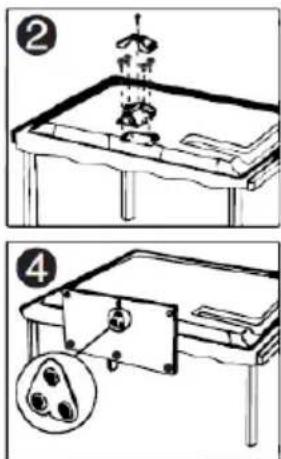

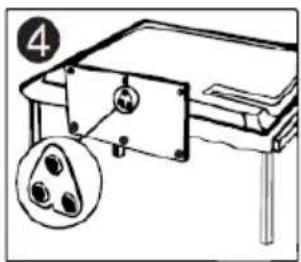

TV Stand Installation Instructions

1. Open the carton and remove the TV and scattered accessories and base (some models without base).
2. to avoid the injury of the TV, covered with a soft mattress, put it on the table, face down on a soft mattress, the base of the neck is fixed on the TV with screws.
3. screw the base and connected to the TV.
4. the installation is complete.

Note:

Picture for reference purposes only.

Please prevail in kind

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Function Description

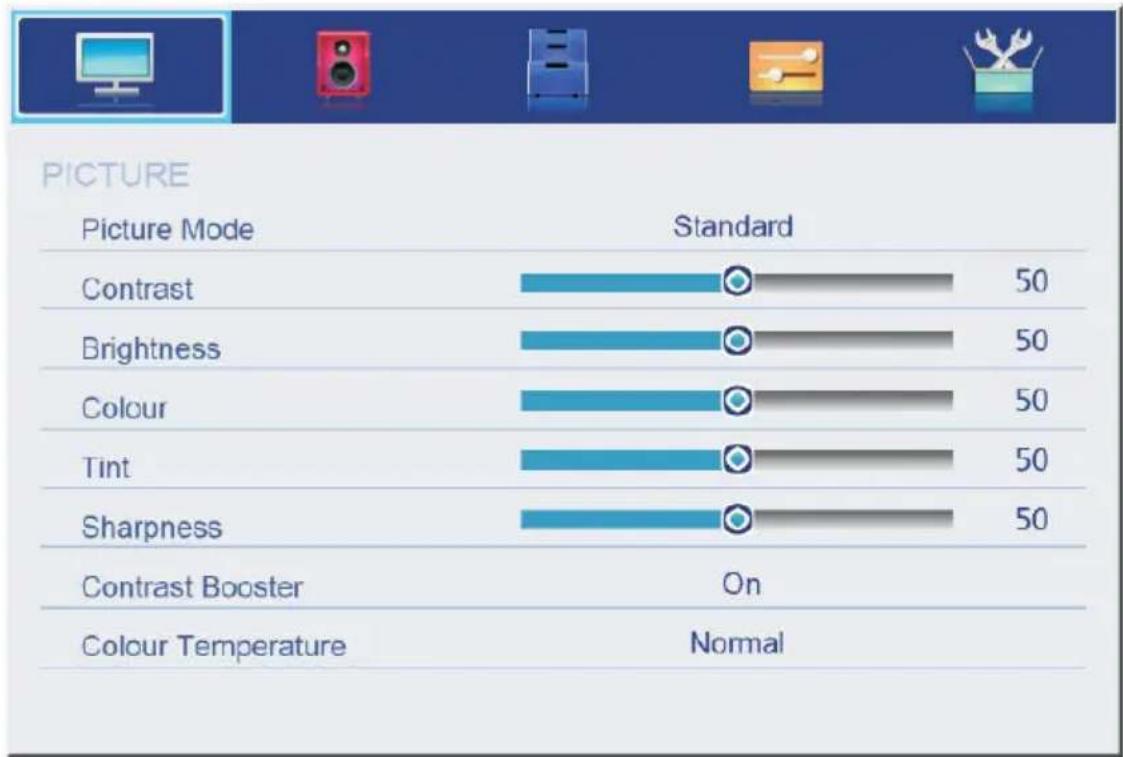

Picture Menu

The picture is for a reference only; the actual item is the standard.

Press TV MENU button to display the main menu.

Press ▲/▼ button to select Picture in the main menu, and then press ENTER button to enter.

1. Press ▲/▼ button to select the option that you want to adjust in the Picture menu, and then press ENTER button or ▶ button to enter.
2. Press ◀/▶ button to adjust or press ▲/▼ button to select. And press ENTER button to select the sub menu.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu, and press EXIT button to exit the entire menu.

Picture Mode

Press ▲/▼ button to select Picture Mode, then press ENTER button to enter and press ◀/▶ button to select.

You only can change the value of brightness, contrast, sharpness, color, when the picture is in User mode.

TIPS: You can press P-MODE button on the remoter control again and again to change the picture mode directly.

Picture Mode

Standard

Contrast

Press ▲/▼ button to select Contrast, then press ENTER button to enter and press ◀/▶

Function Description

button to adjust. Then press MENU button to return back the previous menu directly.

Brightness

Press ▲/▼ button to select Brightness, then press ENTER button to enter and press ◀/▶ button to adjust. Then press MENU button to return back the previous menu directly.

Colour

Press ▲/▼ button to select Colour, then press ENTER button to enter and press ◀/▶ button to adjust. Then press MENU button to return back the previous menu directly.

Tint

Press ▲/▼ button to select Tint, then press ENTER button to enter and press ◀/▶ button to adjust. Then press MENU button to return back the previous menu directly.

Sharpness

Press ▲/▼ button to select Sharpness, then press ENTER button to enter and press ◀/▶ button to adjust. Then press MENU button to return back the previous menu directly.

Contrast Booster

Press ▲/▼ button to select Contrast Booster, then press ENTER button to enter and press ◀/▶ button to select On or Off. Then press MENU button to return back the previous menu directly.

Colour Temperature

Press ▲/▼ button to select Colour Temperature, then press ENTER button to enter and ◀/▶ button to select Standard, Cool, Warm.

DNR

Press ▲/▼ button to select DNR, and then press ENTER button to enter and ◀/▶ button to select Off, Low, Middle, High.

Reset

Press ▲/▼ button to select Reset, then press ENTER button to enter the confirm menu, and then choose OK to reset the value.

Function Description

SOUND Menu

The picture is for a reference only; the actual item is the standard.

Press MENU button to display the main menu.

Press ▲/▼ button to select Sound in the main menu, and then press ENTER button or ▶ button to enter.

1. Press ▲/▼ button to select the option that you want to adjust in the Sound menu, then press ENTER button to enter.
2. press ◀/▶ button to adjust or press ▲/▼ to select, and press ENTER button to select submenu.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu, or press EXIT button to exit the entire menu.

Sound mode

Press ▲/▼ button to select Sound mode, and then press ENTER button to enter. And then press ◀/▶ button to select.

You can change the value of bass and treble, Balance and EQ, when the sound is in User mode.

TIPS: You can press S-MODE button on the remote control to change the Sound Mode directly.

Sound Mode

Standard

Bass

Press ▲/▼ button to select Bass, then press ENTER or ▶ button to enter and press ◀/▶ button to adjust. It can only be adjusted under user mode. Then press MENU button to return

Function Description

back the previous menu directly.

Treble

Press ▲/▼ button to select Treble, then press ENTER button to enter and press ◀/▶ button to adjust. It can only be adjusted under user mode Then press MENU button to return back the previous menu directly.

Balance

Press ▲/▼ button to select Balance, then press ENTER button to enter and press ◀/▶ button to adjust. Then press MENU button to return back the previous menu directly.

Surround

Press ▲/▼ button to select Surround, and then press ENTER button to enter and press ◀/▶ button to select ON or OFF.

AVL

Press ▲/▼ button to select AVL, and then press ENTER button to enter and press ◀/▶ button to select ON or OFF.

Digital Audio Output

Press ▲/▼ button to select Digital Audio Output, then press ENTER button to enter and press ◀/▶ button to select.

Then press ENTER button or ▶ button to enter and press ◀/▶ button to adjust, then press MENU button to return back the previous menu directly.

Reset

Press ▲/▼ button to select Reset, then press ENTER button to enter RESET menu.

Function Description

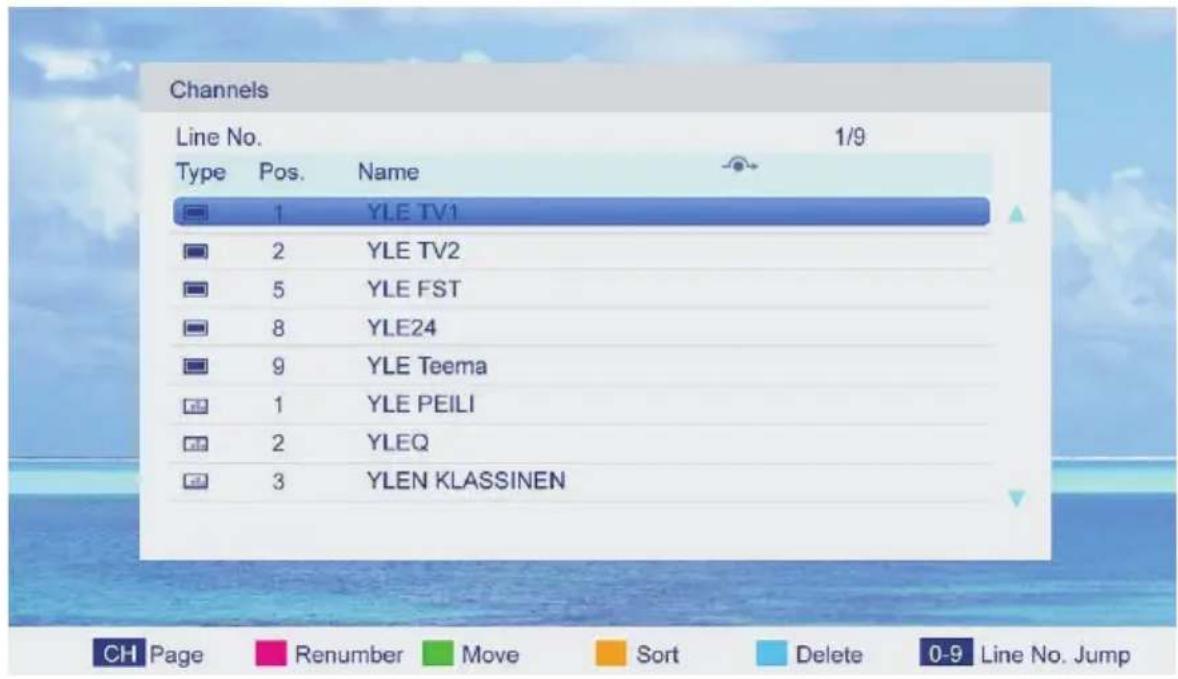

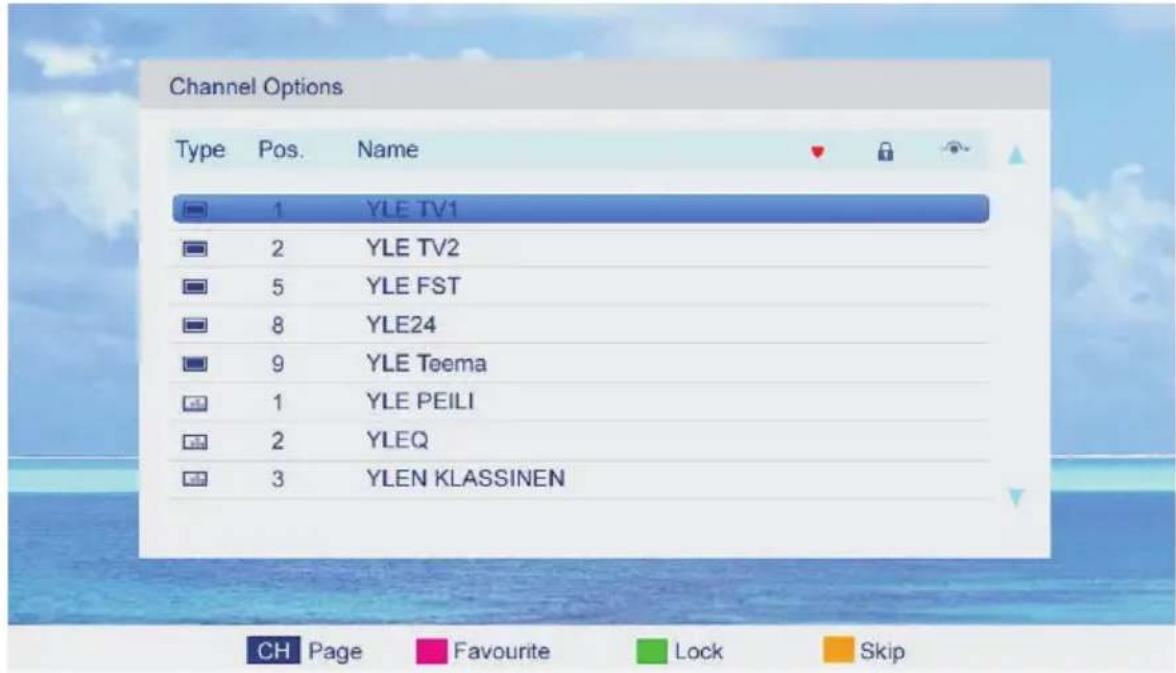

Channel

Press ▲/▼ button to select Channel, and then press ENTER button to play the channel selected. The menu will appear as follows:

Key Description:

CH button: Press CH+ or CH- to turn the page.

RED button: Press this button to modify the channel number.

GREEN button: Press this button to move down the channel.

YELLOW button: Press this button to the order to restore the default channel.

GREEN button: Press this button to delete the channel selected.

0-9 button: Press these buttons to jump to the appropriate channel by inputting different channel number.

Function Description

Channel Options

Press ▲/▼ button to select Channel Options, and then press ENTER button to the channel List menu. The menu will appear as follows:

Key Description:

CH button: Press CH+ or CH- to turn the page.

RED button: Press this button to set the favorites channels.

GREEN button: Press this button to lock the channel.

YELLOW button: Press this button to skip the channel, if the channels already skipped, press YELLOW button again will cancel skip.

Country

Press ▲/▼ button to select Country, and then press ◀/▶ button to select which area you stay.

DTV Type

Press ▲/▼ button to select DTV Type, then press ◀/▶ button to select.

(Available DTV Type: Cable, Terrestrial)

Auto Tuning

Press ▲/▼ button to select Auto Tuning, and then press ENTER button to enter (When the System Lock is on, please input the PIN code to unlock).

Select to open the auto searching page, and press Enter button to start the scan.

ATV Manual Tuning

Press ▲/▼ button to select ATV Manual Tuning, and then press ENTER button to start the scan.

Function Description

DTV Manual Tuning

Press ▲/▼ button to select DTV Manual Tuning, and then press ENTER button to start the scan.

Common Interface

Press ▲/▼ button to select Common Interface, and then press ENTER button to display the CI slot Information.

PREFERENCES

The picture is for a reference only; the actual item is the standard.

Press MENU button to display the main menu.

Press ▲/▼ button to select PREFERENCES in the main menu, and then press ENTER or ▶ to enter.

PREFERENCES
Menu Language	English
Teletext Language	English
Key Lock	Off
PC Settings	Enter
PIN Setting	Enter
Parental Control	Enter
Auto Power Down	4 hours

1. Press ▲/▼ button to select the option that you want to adjust in the PREFERENCES menu, then press ENTER to enter.
2. Press ◀/▶ button to adjust or press ▲/▼ button to select.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu and press EXIT button to exit the entire menu.

Function Description

Menu Language

Press ▲/▼ button to select Menu Language, then press ENTER or ▶ button to enter the sub menu, then press ▲/▼ button to select, then press ENTER or ▶ button to confirm.

Teletext Language

Press ▲/▼ button to select Teletext Language, then press ENTER or ▶ button to enter the sub menu, then press ▲/▼ button to select, then press ENTER or ▶ button to confirm.

Key Lock

Press ▲/▼ button to select Key Lock, then press ENTER button to enter and press ◀/▶ button to select ON or OFF.

PC Settings

Press ▲/▼ button to select PC Settings, then press ENTER to enter the sub menu. Then Press ▶ to enter, then press ENTER or ▶ to confirm. (When the PC signal is connected).

Function Description

PIN Setting

Press ▲/▼ button to select PIN Setting, then press ENTER button to enter the sub menu, and than you can set a password.

Parental Control

Press ▲/▼ button to select Parental Control, then press ENTER or ▶ button to enter the sub menu. Then press ▲/▼ button to select Rate (From4-17, or None). Then press

ENTER or ▶ button to confirm.

Change Pin Code

Press ▲/▼ button to select Change Pin Code, then press ENTER to enter and Change Pin Code menu will appear as follows:

Input old password at "Old Password", (if the old password is incorrect, the password will not be allowed to modify.)

Input new password at "New Password".

Input new password again at "Confirm New Password", if new password and confirm new password consistent, the successfully updated menu will appear a few second, otherwise, the menu will display the password mismatch.

Auto Power Down

Press ▲/▼ button to select Auto Power Down and press ◀/▶ button to select OFF/1 hours/2 hours/3 hours/4 hours

Function Description

SETUP

The picture is for a reference only; the actual item is the standard.

Press MENU button to display the main menu.

Press ▲/▼ button to select Setup in the main menu, then press ENTER to enter.

SETUP
OSD Timer			Off
Cinema			Super Live
Blue Screen			On
Sleep Timer			Off
Location			Home
Quick Setup			Enter
Upgrade			Enter
Channel Details			Enter
Reset TV			Enter

1. Press ▲/▼ button to select the option that you want to adjust in the Setup menu, then press ENTER or ▶ button to enter.
2. Press ◀/▶ button to adjust or press ▲/▼ button to select.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu and press EXIT button to exit the entire menu.

OSD Timer

Press ▲/▼ button to select OSD Timer, and then Press ◀/▶ button to select. (Available OSD Timer: 10 S, 20 S, 30S, 40S, 50S, 60S, off), then press ENTER button to confirm.

Cinema

Press ▲/▼ button to select Cinema, and then Press ◀/▶ button to select. (Available Cinema: Auto, 4x3, Wide, Super Live), then press ENTER button to confirm.

Blue Screen

Press ▲/▼ button to select Blue Screen, then press ◀/▶ to select On or Off. Then press ENTER to confirm.

Function Description

Sleep Timer

Press ▲/▼ button to select Sleep Timer, and then Press ◀/▶ button to select. (Available Sleep Timer: 00:15, 00:30, 01:00, 01:30, 02:00, off), then press ENTER button to confirm.

Location

Press ▲/▼ button to select Location, and then Press ◀/▶ button to select Home or Store, then press ENTER button to confirm.

Quick Setup

Press ▲/▼ button to select Quick Setup, and then Press then press ENTER button to enter the sub menu, enter the password if locked, and then you can quickly make some basic settings of the TV.

Channel Detaile

Press ▲/▼ button to select Channel Detaile.

Upgrade

Press ▲/▼ button to select Upgrade.

Reset TV

Press ▲/▼ button to select Reset TV, and then press ENTER to enter the sub menu, enter the password if locked, and then you can restore factory settings.

Shopping Mode

Press ▲/▼ button to select Shopping Mode.

Multimedia

MEDIA OPERATION

The picture is for a reference only; the actual item is the standard.

Note: Before operation MEDIA menu, Plug in USB device or memory card, then press SOURCE button to set the Source to Media.

Press ▲/▼ button to select MEDIA in the Source Menu, and then press ENTER or ▶ to enter. You can also enter the Media by pressing MEDIA button on the remote control.

1. Press ▲/▼ button to select the option that you want to adjust in the Media menu, then press ENTER or ▶ button to enter.
2. Press ◀/▶ button to adjust or press ▲/▼ button to select.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu and press EXIT button to exit the entire menu.

Multimedia


The picture is for a reference only; the actual item is the standard.

Press ◀/▶ button to select Music in the main menu, and then press ENTER button to enter.

Press EXIT button to return back to the previous menu.

Press ▲/▼ to select the photos, press ENTER or ▶ || button to view.

You can see the information of the current playing photo after press INFO button, then press

▶ || button to play or pause, you can see the playing state in the right.

Then press ▲/▼ or ◀/► button to ratite the picture.

Notes: Other menu and description are the same as that for Movie menu.

Multimedia

Movie

The picture is for a reference only; the actual item is the standard.

Press ◀/▶ button to select Movie in the main menu, then press ENTER button to enter.

Press EXIT button to return back to the previous menu.

Press ▲/▼button to select the folder that you want to view.

Press ENTER button to select the sub folder.

Press ENTER button or ▶ || button to play,

Press ■ button or EXIT button to stop playing.

Press the ◀ button to return back to previous page.

Multimedia

You can see the information of the current playing media at the first flew second or after press INFO button.

Music

The picture is for a reference only; the actual item is the standard.

Press ◀/▶ button to select Music in the main menu, and then press ENTER button to enter.

Press EXIT button to return back to the previous menu.

Press ▲/▼ button to select the sonny you want to listen, and then press ENTER or ▶ || or ▶ button to play.

Press ◀ button to return back to the previous menu.

Multimedia

You can see the information of the current playing sonny at the left of the menu.

Setup

The picture is for a reference only; the actual item is the standard.

Press ◀/▶ button to select Setup in the main menu, and then press ENTER button to enter.

Press EXIT button to return back to the previous menu.

Press ▲/▼ button to select the option, and then Press ◀/▶ button to select it on or off.

Help

No Power	Check the AC cord of TV is plus in or not. If still no power, please Pull out the plug and replug in after60 seconds. And open the TV again
Signal receive not properly	To cause double image or phantom if there has high building or high mountain round TV. You can adjust image effect by manually operation: consult instruction of vernier regulation or change the direction of external antenna.If you use the indoor antenna . under certain circumstance, receive will be more difficult .So you can change the direction of the antenna to adjust the image effect . If can't change image receiving effect either , you have to use external antenna.
No picture	Check the antenna at the back of TV is connected properly or not.Try to select other channels and check whether the TV problem itself or not.
but,Video is ok without audio	Increase the volume.Check the TV is in mute mode or not , and please press the mute button to make sound resume.
Audio is ok, but color error or no picture.	Increase contrast and brightness.
snow statics picture and noise	Check the antenna at the back of TV is connected or not.
Level broken line	vacuum, such as hair drier, Maybe has electrical appliance interfere-please turn off these kinds of electrical appliance, cleaner and so on.
Image or-Dual "simulacrum" The TV no response with the Remote.	Perhaps the location for the antenna is not good. Use the tall beamed antenna can be improved quality of the display image.Operate the remote direct to the remote sensor on the TV. If still no response for the TV, please check if the plastic bag on the remote take or not. And check if the location for the battery is correct. Change the new battery.The TV will shift to the STAND BY if no response from the remote in the few minutes.
.NO Video In (PC Mode)	Please check if the display cable connect to the VGA correcte .Please check if there has the bend on the display cable.
Vertical twinkling (PC Mode)	Enter the main menu, Use the clock regulator for the Video display noise to eliminate the vertical line.
horizontal ripping (PC Mode)	Adjust the Audio sound horizontal in the main menu to clear the horizontal ripping line.
The screen is too bright or too dark (PC Mode)	Adjust the contrast ratio or brightness in the main menu.
PC Function no response	Check the computer setting in the state of compatible display resolution
Ripping line in RCA connecting	Please use good quality connecting cable.
Problem still exist	Unplug the power cable and wait for 30 seconds, then connect. If there is some problem with our TV, do not repair it by yourself, please contact with the customer service center.

There will be complete picture and the brightness will come down if the TV is in: Note So please do not keep the TV in a state of same, the static picture for too long time Menu or same picture that has much difference in brightness and contrast ratio for too long time.

Machine Technical Specifications

Screen Size	TV System	Speaker Output
16"	PAL/SECAM	5W+5W
19"	PAL/SECAM	5W+5W
20"	PAL/SECAM	5W+5W
22"	PAL/SECAM	5W+5W
24"	PAL/SECAM	5W+5W
32"	PAL/SECAM	10W+10W
39"/40"	PAL/SECAM	10W+10W
42"	PAL/SECAM	10W+10W
46"	PAL/SECAM	10W+10W
50"	PAL/SECAM	10W+10W

Screen Size	Power Consumption	Main accessories
16"	24W	User's manual x1Remote controller x1AAA Batteries x2
19"	36W/48W
20"	36W/48W
22"	36W/48W
24"	48W
26"
32"	56W/65W/100W
39"/40"	70W/75W
42"	85W
46"	110W
50"	135W

★ LIFE TIME : 60,000 Hrs

Remote Controller

1. POWER : Set your TV to power on or standby mode.
2. MUTE : Press to mute the sound. Press again or press VOL+ to unmute.
3. 0-9: Press 0\~9 to select a TV channel directly while watching TV. The channel will change after 2 seconds. Applicable for entering page number in teletext mode and so on.
4. DTV/ATV: Switch between Analog and Digital TV
5. Return to the previous viewed program.
6. S.MODE: Press to cycle through the different sound settings
7. SLEEP: Select amount of time before TV turn itself off automatically.
8. MTS: Press to search the NICAM modes.
9. P.MODE: Press to cycle through the different picture settings
10. MENU: Allow you to navigate the on-screen menus.
11. SOURCE: Open the main menu, press to list the sources
12. ▲▼ ◀▶ ENTER: Allow you to navigate the on-screen menus and adjust the system settings to your preference.
13. EXIT: Exit from the menu or sub-menu and cancel the function in process (if applicable)
14. DISPLAY: Press to display the source and channel's info.

Battery Installation:

Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off. Put two AAA batteries inside the battery compartment with their + and - ends aligned as indicated. Do not mix old and new batteries or different types of batteries.

Slide the lid until you hear it click into place.

Using the Remote Control:

Unless stated, otherwise, the remote control can operate all the features of the TV.

Always point the remote control directly at the remote sensor in front of the TV.

Remote Controller

1. VOL+/VOL-: Press to increase / decrease the sound level.
2. TV/RADIO : When watching channel, allows you to switch between TV and Radio modes
3. GUIDE:1. Launches the EPG (Electronic Program Guide) 2. Fast reverse in PVR or Media Player mode.
4. TIME SHIFT: 1.DTV channel time shift Function. 2.play on PVR or Media Player mode.
5. CANCEL: 1. When a page is selected in the mode of text, it may take some time before it becomes available, pressing the CANCEL key will return to the TV mode. When the required page is found, the page number will appear at the top of the TV picture, press the CANCELkey to return to the mode of text for you to browse this page.
6. Previous chapter in PVR or Media Player mode
7. INDEX:1. Request the Index page in Teletext mode. 2.Exit the playing function in PVR or Media Player mode.
8. SIZE: Change the size of display in Teletext mode.
9. REVEAL: Reveal or Hide the hidden words.
10. COLOR BUTTONS: Teletex switch of the analog parts, the items selection in the menu of the digital parts and the practice of the MHEG5 in the DVB menu.
11. CH+/CH- : Press to scan through channels.
12. FAV/LIST: press to open the favorite list. then you can select the favorite channel.
13. ASPECT: 1. Select picture scale.
14. fast forward in PVR or Media Player mode.
15. FREEZE: press to freeze the picture
16. SUB. PG 1. Press to access sub page.
17. Next chapter in PVR or Media Player mode.
18. SUBTITLE: To show and set the language of current DTV.
19. HOLD: HOLD On or Off for current page display.
20. TEXT: Switch the teletext on and off.
21. RECLIST: Show the recorded list.
22. REC: Record begin in PVR mode.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Top-down schematic of a computer monitor layout showing front, top, and side views (no text or labels)

1

Architectural floor plan of a multi-chamber office or kitchen area (no text or labels visible)

2

3

Pastaba:

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

Funkciju aprašymas

Vaizdo meniu

APPLICATIONS
Channel			Enter
Channel Options			Enter
Country			Russia
DTV Type			Terrestrial
Auto Tuning			Enter
ATV Manual Tuning			Enter
DTV Manual Tuning			Enter
Common Interface			Enter

PREFERENCES
Menu Language			English
Teletext Language			English
Key Lock			Off
PC Settings			Enter
PIN Setting			Enter
Parental Control			Enter
Auto Power Down			4 hours

SETUP
OSD Timer			Off
Cinema			Super Live
Blue Screen			On
Sleep Timer			Off
Location			Home
Quick Setup			Enter
Upgrade			Enter
Channel Details			Enter
Reset TV			Enter

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Top-down schematic of a computer monitor layout showing front, top, and side views (no text or labels)

1

Architectural floor plan showing room layouts and structural elements (no text or labels)

2

3

Примечание:

Описание функций

Меню изображения

APPLICATIONS
Channel			Enter
Channel Options			Enter
Country			Russia
DTV Type			Terrestrial
Auto Tuning			Enter
ATV Manual Tuning			Enter
DTV Manual Tuning			Enter
Common Interface			Enter

PREFERENCES
Menu Language			English
Teletext Language			English
Key Lock			Off
PC Settings			Enter
PIN Setting			Enter
Parental Control			Enter
Auto Power Down			4 hours

SETUP
OSD Timer			Off
Cinema			Super Live
Blue Screen			On
Sleep Timer			Off
Location			Home
Quick Setup			Enter
Upgrade			Enter
Channel Details			Enter
Reset TV			Enter

EE

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Top-down schematic of a computer monitor layout showing front, top, and side views (no text or labels)

1

Architectural floor plan of a room with furniture layout (no text or labels)

2

3

Märkus:

Diagram showing a desktop computer tower connected to two audio connectors: VGA and PC audio input (no text or symbols on components)

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

APPLICATIONS
Channel			Enter
Channel Options			Enter
Country			Russia
DTV Type			Terrestrial
Auto Tuning			Enter
ATV Manual Tuning			Enter
DTV Manual Tuning			Enter
Common Interface			Enter

PREFERENCES
Menu Language	English
Teletext Language	English
Key Lock	Off
PC Settings	Enter
PIN Setting	Enter
Parental Control	Enter
Auto Power Down	4 hours

SETUP
OSD Timer			Off
Cinema			Super Live
Blue Screen			On
Sleep Timer			Off
Location			Home
Quick Setup			Enter
Upgrade			Enter
Channel Details			Enter
Reset TV			Enter

Kaugjuhtimispult

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Architectural floor plan of a flat-screen TV unit with ventilation grilles and buttons (no text or labels)

1

Architectural floor plan of a room with furniture layout (no text or labels)

2

3

Σημείωση:

Ρυθμίστε

την τηλεόρασή σας

Simple line drawing of a mechanical device with a suspended component (no text or symbols)

APPLICATIONS
Channel	Enter
Channel Options	Enter
Country	Russia
DTV Type	Terrestrial
Auto Tuning	Enter
ATV Manual Tuning	Enter
DTV Manual Tuning	Enter
Common Interface	Enter

PREFERENCES
Menu Language			English
Teletext Language			English
Key Lock			Off
PC Settings			Enter
PIN Setting			Enter
Parental Control			Enter
Auto Power Down			4 hours

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Ovaj znak upozorava korisnika na to, da postoje bitna uputstva za korišćenje i održavanje u materijalu dobijenom sa uređajem.

Upozorenje Ovaj znak u trouglu upozorava na opasan napon u ovom uređaju, koji predstavlja rizik od strujnog udara.

Architectural floor plan showing room layouts and furniture layout (no text or labels)

1

Architectural floor plan showing room layouts and structural elements (no text or labels)

2

3

Napomena:

1. Zidni nosač, koji je pričvršćen na zid, je dopunski deo.
2. Montirajući televizor, budite sigurni, da okolo i ispred nema stranih predmeta, držite ih na dovoljnoj udaljenosti.
3. Montirajući televizor, zamolite pomoćnika da ga učvrsti, da bi se izbegli problemi.
   5.Slike montaže – su samo za uputstvo.
4. Pratite uputstvo za montažu televizora.
5. Montirajte nosač iz kompleta za zidno montiranje.

Dugmad TV i priključci interfejsa

SRB

Dugmad televizora

Napomena: dole je navedena samo funkcionalna šema, stvaran položaj i raspored u različitim modelima može da se razlikuje.

VOL+

VOL -

CH+

CH-

MENU

SOURCE

① :Uklj/Isklj napajanja.

3

2
1

Montirajte televizor

Simple line drawing of a table with a hanging object and a label (2), no text or symbols present.

Opis funkcija

Postavke slike

Slika je samo za uputstvo; faktički element je standardni.

Pritisnite dugme TV MENU, da bi se otvorio glavni meni.

Pritisnite dugme ▼ / ▲, da bi ste izabrali Picture u glavnom meniju, zatim pritisnite dugme ENTER, da bi ste ušli.

1. Pritisnite dugme ▲/▼, da bi ste izabrali tu stavku, koju želite da podesite u meniju Slike, pritisnite ENTER ili▶, da bi ste ušli.
2. Pritisnite dugme ◀/▶, da bi ste podesili ili pritisnite ▲/▼, da bi ste izabrali. Pritisnite ENTER, da bi ste izabrali podmeni.
3. Nakon završetka podešavanja, Pritisnite dugme MENU, da bi ste sačuvali i vratili u prethodni meni, pritisnite dugme EXIT, da bi ste izašli iz menija.

Režim slike

Pritisnite dugme ▲/▼, da bi ste izabrali režim slike, zatim pritisnite ENTER, da bi ste ušli i pritisnite ◀/▶, da bi ste izabrali..

Vi možete da promenite osvetljenje, kontrast, oštrinu, boje samo tad, kad se slika nalazi u režimu korisnika.

Napomena: Vi možete pritisnuti dugme P-MODE na daljinskom upravljaču, da bi ste neposredno promenili režim slike.

Picture Mode

Standard

Kontrast

Pritisnite dugme ▲/▼, da bi ste izabrali kontrast, zatim pritisnite dugme ENTER, da bi ste ušli i pritisnite ◀/►, da bi ste podesili. Zatim pritisnite dugme MENU, da bi ste se vratili u prethodni meni..

Opis funkcije

Osvetljenje

Pritisnite dugme ▲/▼, da bi ste izabrali Osvetljenje, zatim pritisnite dugme ENTER, da bi ste ušli i pritisnite ◀/▶, da bi ste podesili. Zatim pritisnite dugme MENU, da bi ste se vratili u prethodni meni.

Boja

Pritisnite dugme ▲/▼, da bi ste izabrali Boju, zatim pritisnite dugme ENTER, da bi ste ušli i pritisnite ◀/►, da bi ste podesili. Zatim pritisnite dugme MENU, da bi ste se vratili u prethodni meni.

Pozadinsko svetlo

Pritisnite dugme ▲/▼, da bi ste izabrali Pozadinsko svetlo, zatim pritisnite dugme ENTER, da bi ste ušli i pritisnite ◀/▶, da bi ste podesili. Zatim pritisnite dugme MENU, da bi ste se vratili u prethodni meni.

Oštrina

Pritisnite dugme ▲/▼, da bi ste izabrali Oštrina, zatim pritisnite dugme ENTER, da bi ste ušli i pritisnite ◀/▶, da bi ste podesili. Zatim pritisnite dugme MENU, da bi ste se vratili u prethodni meni.

Filter Contrast Booster

Pritisnite dugme ▲/▼, da bi ste izabrali filter Contrast Booster, zatim pritisnite dugme ENTER, da bi ste ušli i pritisnite ◀/►, da bi ste izabrali UKLJ ili ISKLJ. Zatim pritisnite dugme MENU, da bi ste se vratili u prethodni meni.

Temperatura boje

Pritisnite dugme ▲/▼, da bi ste izabrali Temperaturu boja, zatim pritisnite dugme ENTER, da bi ste ušli i pritisnite ◀/▶, da bi ste izabrali standardni, hladni ili topli režim.

Digitalna redukcija buke (DNR)

Pritisnite dugme ▲/▼, da bi ste izabrali Digitalna redukcija buke, zatim pritisnite dugme ENTER, da bi ste ušli i pritisnite ◀/►, da bi ste izabrali nivo redukcije buke: isklj, niski, srednji, visoki.

Resetovanje

Pritisnite dugme ▲/▼, da bi ste izabrali Resetovanje, zatim pritisnite dugme ENTER, da bi ste ušli u potvrđujući meni i izaberite OK, da bi ste resetovali.

Opis funkcija

Opcije zvuka

Slika je samo za uputstvo; faktički element je standardni.

Pritisnite dugme TV MENU, da bi se otvorio glavni meni.

Pritisnite dugme ▼ / ▲, da bi ste izabrali Sound u glavnom meniju, zatim pritisnite dugme ENTER, da bi ste ušli

1. Pritisnite dugme ▲/▼, da bi ste izabrali tu stavku, koju želite da podesite u meniju zvuka, zatim pritisnite dugme ENTER.
2. Pritisnite dugme ◀/▶, da bi ste podesili ili pristisnite ▲/▼, da bi ste izabrali., zatim pritisnite dugme ENTER, da bi ste izabrali podmeni.
3. Nakon završetka podešavanja, pritisnite dugme MENU, da bi ste sačuvali i vratili u prethodni meni i pritisnite dugme EXIT, da bi ste izašli iz menija.

Režim zvuka

Pritisnite dugme ▲/▼, da bi ste izabrali Sound mode, zatim pritisnite dugme ENTER, da bi ste ušli. Zatim pritisnite dugme ◀/►, da bi ste izabrali.

Vi možete promeniti značenje niskih i visokih frekvenci, bilans i ekvilajzer, kada je zvuk u režimu korisnika.

Napomena: Vi možete pritisnuti dugme S-MODE na daljinskom upravljaču, da bi ste neposredno promenili režim zvuka.

Sound Mode Standard

Niske

Pritisnite dugme ▲/▼, da bi ste izabrali Bass, zatim pritisnite dugme ENTER ili dugme ◀/►, da bi ste ušli, i pritisnite ◀/►, da bi ste podesili. Podešavanje je moguće samo u režimu korisnika.

Zatim pritisnite dugme MENU, da bi ste se vratili u prethodni meni.

Opis funkcija

Visoke

Pritisnite dugme ▲/▼, da bi ste izabrali Treble, zatim pritisnite dugme ENTER, da bi ste ušli, i pritisnite ◀/►, da bi ste podesili. Zatim pritisnite dugme MENU, da bi ste se vratili u prethodni meni.

Bilans

Pritisnite dugme ▲/▼, da bi ste izabrali Balance, zatim pritisnite dugme ENTER, da bi ste ušli, i pritisnite ◀/▶, da bi ste podesili. Podešavanje je moguće samo u režimu korisnika. Zatim pritisnite dugme MENU, da bi ste se vratili u prethodni meni

Okružujući zvuk

Pritisnite dugme ▲/▼, da bi ste izabrali Surround, zatim pritisnite dugme ENTER, da bi ste ušli, i pritisnite ◀/►, da bi ste izabrali ON ili OFF.

AVL

Pritisnite dugme ▲/▼, da bi ste izabrali AVL, zatim pritisnite dugme ENTER, da bi ste ušli, i pritisnite ◀/▶, da bi ste izabrali ON ili OFF.

Digitalni audio izlaz

Pritisnite dugme ▲/▼, da bi ste izabrali Digital Audio Output, zatim pritisnite dugme ENTER, da bi ste ušli, i pritisnite ◀/►, da bi ste izabrali.

Zatim pritisnite dugme ENTER ili ▶, da bi ste ušli, i pritisnite ◀/▶, da bi ste podesili. Zatim pritisnite dugme MENU, da bi ste se vratili u prethodni meni

Resetovanje

Pritisnite dugme ▲/▼, da bi ste izabrali Reset, zatim pritisnite dugme ENTER, da bi ste ušli u meni resetovanja.

Opis funkcija

Prilozi

Slika je samo za uputstvo; faktički element je standardni.

Pritisnite dugme

APPLICATIONS
Channel	Enter
Channel Options	Enter
Country	Russia
DTV Type	Terrestrial
Auto Tuning	Enter
ATV Manual Tuning	Enter
DTV Manual Tuning	Enter
Common Interface	Enter

1. Pritisnite dugme ▲/▼, da bi ste izabrali tu stavku, koju želite da podesite u meniju priloga, zatim pritisnite dugme ENTER, da bi ste ušli.
2. Pritisnite dugme ◀/▶, da bi ste izabrali i pritisnite ENTER, da bi ste izabrali podmeni.
3. Nakon završetka podešavanja, pritisnite dugme MENU, da bi ste sačuvali i vratili u prethodni meni i pritisnite dugme EXIT, da bi ste izašli iz menija.

Opis funkcija

Kanali

Pritisnite dugme ▲/▼, da bi ste izabrali Channel, zatim pritisnite dugme ENTER, da bi ste prešli na izabrani kanal.

PREFERENCES
Menu Language			English
Teletext Language			English
Key Lock			Off
PC Settings			Enter
PIN Setting			Enter
Parental Control			Enter
Auto Power Down			4 hours

1. Pritisnite dugme ▲/▼, da bi ste izabrali tu stavku, koju želite da podesite u meniju mogućnosti, zatim pritisnite dugme ENTER, da bi ste ušli.
2. Pritisnite dugme ◀/▶, da bi ste podesili i pritisnite ▲/▼, da bi ste izabrali podmeni.
3. Nakon završetka podešavanja, pritisnite dugme MENU, da bi ste sačuvali i vratili u prethodni meni i pritisnite dugme
   EXIT, da bi ste izašli iz menija.

Opis funkcija

Jezik menija

Pritisnite dugme ▲/▼, da bi ste izabrali Menu Language, zatim pritisnite dugme ENTER ili ▶, da bi ste ušli u podmeni, zatim, da bi ste izabrali, pritisnite ▲/▼, pritisnite dugme ENTER ili ▶, da bi ste potvrdili.

Jezik teleteksta

Pritisnite dugme ▲/▼, da bi ste izabrali Teletext Language, zatim pritisnite dugme ENTER ili ▶, da bi ste ušli u podmeni, zatim, da bi ste izabrali, pritisnite ▲/▼, pritisnite dugme ENTER ili ▶, da bi ste potvrdili.

Blokiranje dugmadi

Pritisnite dugme ▲/▼, da bi ste izabrali Key Lock, zatim pritisnite dugme ENTER ili ▶, da bi ste izabrali ON ili OFF.

Parametri PC

Pritisnite dugme ▲/▼, da bi ste izabrali PC Settings, zatim pritisnite dugme ENTER, da bi ste ušli u podmeni, pritisnite ▶, da bi ste ušli, zatim pritisnite dugme ENTER ili ▶, da bi ste potvrdili. (Kada je podključen ka PC).

Opis funkcija

Podešavanje PIN

Pritisnite dugme ▲/▼, da bi ste izabrali PIN Setting, zatim pritisnite dugme ENTER, da bi ste ušli u podmeni, nakon čega možete podesiti šifru..

Roditeljska kontrola

Pritisnite dugme ▲/▼, da bi ste izabrali Parental Control, zatim pritisnite dugme ENTER ili▶, da bi ste ušli u podmeni. Zatim pritisnite dugme ▲/▼, da bi ste izabrali nivo (od 4 do 17 ili ne uključivati). Zatim pritisnite dugme ENTER ili▶, da bi ste potvrdili.

Promena PIN koda

SETUP
OSD Timer			Off
Cinema			Super Live
Blue Screen			On
Sleep Timer			Off
Location			Home
Quick Setup			Enter
Upgrade			Enter
Channel Details			Enter
Reset TV			Enter

1. Pritisnite dugme ▲/▼, da bi ste izabrali tu stavku, koju želite da podesite u meniju podešavanja, zatim pritisnite dugme ENTER ili ▶ da bi ste ušli.
2. Pritisnite dugme ◀/▶, da bi ste podesili i pritisnite ▲/▼, da bi ste izabrali.
3. Nakon završetka podešavanja, pritisnite dugme MENU, da bi ste sačuvali i vratili u prethodni meni i pritisnite dugme

Top-down schematic of a computer monitor layout showing internal components and connectors (no text or labels)

1

Architectural floor plan of a computer room showing internal components and ventilation ducts (no text or labels)

②

③

L2nu:

1. Πωυημ υρωριωδ ρωραωρη ωωύημωνιτίξ πρωτυ μωρησικής ύωυ:
   2.2tnniuunwgnjgp untwnnptlhu' hwufnqutp, np 2nnpg slywu lynquhwuh wnwplywutp, wnlywnipjwu ntkwpniu wwhtp npwup htnwnnpnipjwu qpu:
   3.2tnnuunwgnjgn utwnnptlhu, hunntp 2tp oquwlywuhu wupwglt l wju hunhputphg huniwwhtni hwufwn:
2. Stwnnpuwu qduwuputpp uhuju dwunpwguwu huwup tü:
   5.2tultp htnnuunwgnjgh pwnpwlp utnwnptlni hpwhwuqutphu:
3. Stnwnptp wju pwndwqn, npp utpwnlwd t wwnh unluunwdh hwnlp hwnjwnntuqlwd hwnlwpwdni utg:

AV uunuph uhugniu
AV ununph uhwgnul

Diagram showing two electronic devices connected to a server rack, with no visible text or symbols.

Ztnniuunwgnjgh utwnwnniu u uhwgniu

Stnwnntp htnnuuugnign

Stnwnptp htnnuunwgnjgu wufip uwltptuh ypu, npp muiwly t nhfuwuwl ypu pu2hú: qnuwqhg funuwtjtni hwiwp htnni uwhtp htnnuunwgnjgn zph yuw gtpuniŋjuwú nput wnpniptphg, (onhfuwl' unú, unwpwgnigh), ujh juwwhwutp htnnuunwgnjgh tuhtu ywhwuwlq ypu qntuyn onwuhnfunipjuwú hwiwylwpqh w2huunuwp:

Uhugptp withwulwpu ni hthynpwlywi ulnigniup

1. Uhwgntp wlthwylwph lqwptlp htnnnwnwngnjgh tunhú lwhwubwlgh ynw qnublnn wlthwylwph hwufwp bwhwuntuulud puhlyhu:
2. Uhwqntp htnniunwgnigh hl. ulnigfuwi lwpp: (AC 100-240V\~50/60Hz)

Uhwgntp htnnuunwgnjgn

1. Utnutp htnntuunwgnjgh ynw qnuulnn uhwguwu lynawhp, qniuwjhu gnighzp yhwuwsh; kpt wju qnuulniuf t uwwuuufw ntdhuniuf, wuw qniuwjhu gnighzp ywpuhp t; utnutp htnwlqwnwlpudw uwhuwwlph ynw qnuulnn uhwguwu lynawhp` uhwgutni hwiup:

L2nul: qdwqwnltputnp uhwju dwunpnipjwu hwufw tü:

Ztnnluunwgnjgh unwlnhph untwnpufu nntgnuig

1. Fugtp wplhp, npipu hwutp htoniunwgnjgp, wputuniwputpp u unwlnhpp (npn2 unntjutpnuf unwlnhpp utpwnlud sk):
2. Чунцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцьцв
3. Tunutp húpp l u wúpwgptp htnnuunwgnjghu:
4. Stwnnpniup lwwwnpulud t:
   U2nu: qduuquunltputnp uhuju duunpnipjuw huufw tlu:

\$nh48hultrtyuugnho3nh

Twnlytnutph pwnpwgwth

Uqwnp uhwju dwunpnipjwi huufwp t; uhwuwgh hufwpjnul t unwuhwpun:

Utntutp TV MENU lynawlqn` hhuwllqu' p#npwgwllqn gnigwnpttni hwufwn:

Uttnutp ▼ / ▲ lynówln hhuówluqiu plunpwguwulyniu Picture pudhbu plunptni hwnfup, wjünhtbnu utnutp ENTER lynówln unljuw pudhu üninp qnpdtni hwnfup:

APPLICATIONS
Channel	Enter
Channel Options	Enter
Country	Russia
DTV Type	Terrestrial
Auto Tuning	Enter
ATV Manual Tuning	Enter
DTV Manual Tuning	Enter
Common Interface	Enter

ARM

PREFERENCES
Menu Language	English
Teletext Language	English
Key Lock	Off
PC Settings	Enter
PIN Setting	Enter
Parental Control	Enter
Auto Power Down	4 hours

\$NH4Y8HUTFHYUFGNHP3NH

Cunpwgwlgh ltqni

Utnutp ▲/▼ lynówln Menu Language pünptini hwufw, wjunihtuni utnutp ENTER lwwf ▶ ' túpwguwln pwgtini hwufw, nphg htunn utnutp ▲/▼ lynówln pünnpni pniu lwwuwptini hwufw, utnutp ENTER lwwf ▶ plunpuw d tqniu hwwunwuntini hwufw:

Ztnniuunwutpuuh ltqni

Utnutp ▲/▼ lynawln Teletext Language pwnptni huwup, wjunihtnu utnutp ENTER lquf ▶ túpwgwulpn pwgtni huwup, nphg htunn utnutp ▲/▼ lynawln pwnpnipjniu lquwnuptni huwup, utnutp ENTER lquf ▶ pwnpluw ltqniu hwwunwnntni huwup:

Чнáwlutph wpqtlwuhwniu

Utnutp ▲/▼ lynawlpr Key Lock plunptini hwufw, wjunihtuni utnutp ENTER l ◀/▶ ' uhwgutini yuw wuguntini hwufw ON/OFF:

Zuwuynqnqzwjhui wwnwutunptn

Utnutp ▲/▼lnawlqn PC Settings pwnptni hwufw, wjunihtuni utnutp ENTER tupwguulqn gnigwnptni hwufw, utnutp ▶ unutni hwufw, nphg htunn utnutp ENTER lquf ▶ huuunwuntni hwufw: (uwpnn t oqnwnqnpdulti hwufwlpqshu uhwglud lhtuni pupwgpni):

\$nht48hultrtyuugrnho3nht

PIN lunnh lwnpwnpnufup

Utnutp ▲/▼ lynawlp PIN Setting punptni hwufw, wjunihtuni utnutp ENTER tupugwtlp pugtni hwufw, nphg htunn lwpnn tp uwhufutl quuntuwpwn:

SETUP
OSD Timer	Off
Cinema	Super Live
Blue Screen	On
Sleep Timer	Off
Location	Home
Quick Setup	Enter
Upgrade	Enter
Channel Details	Enter
Reset TV	Enter

ARM

1. Utnutp ▲/▼ lynawlp, npuhtuqh pünntp wju lhtnp, npp gwuhwulniuf tp lwpqwulnptl uwhuhwulniufutph pünpwugwulniuf, utnutp ENTER lwiuf ▶ uniunp qnpdtjni hwnfup:
2. Utnutp ◀/▶ lynawlp lwpqwulnpniufutp uwwni hwufw pwwf utnutp ▲/▼ lwpqwulnpniufu plunptni hwufw:
3. Υυρωμηριστρι υλωρυκήνις θιον ατημε τρ ΜΕΝΟ 'ηρωμα υχωρωμήνι ι λ ωωμηρη ψωθύμι ιτρωμπωνώμη κωμίων; ατημε τρ ΕΧΙΤ ' πλωρωμωθύμις ηπιρα χωμη κωμίων;

OSD 'kynwuhu gnigwnpynn p#npwgwlh dwi#w#w#w#w

Uttnutp ▲/▼ lynawlp Timer pwnptni hudwp, wjunihtunl utnutp ◀/► 2tp huwupbnpwd unwnptpwly pwnptni hudwp: (2uwpwulnpnipnjntutpp: 10 yplq., 20 yplq., 30 yplq., 40 yplq., 50 yplq., 60 yplq., wigwunt), utnutp ENTER huuunwuntni hudwp:

Чипршппн

Utnutp ▲/▼ lynawln Cinema pwnptni hwufw, utnutp ◀/► 2tp uwhpwnpwd wnpptpwly pwnptni hwufw: (Uhnpwnpnuh hwwpwlnpnipjntutpp: Uqunn, 4x3, luji, Super Live` qtpntwl), nphg htunn utnutp ENTER hwwunwuntnu hwufw:

UNHLSHUETRU

Чипрчупнпшлтр

Uwupn uhwju dwunpnipjwi huufup t; yhuunwgh huufwpilniu t uwnutwnpun: Utnutp MENU lynawlp qjhuwlnp plunpwgwulp gnigwnptini huufup: Utnutp ▼ / ▲ lynawlp qjhuwlnp plunpwgwulpniu Setup pwdhtu plunptini huufup, wjunihtuni utnuttp ENTER lynawlp unljwl pwdhu uninp qnpdtini huufup:

Utnútp ▲/▼lnáwln lpwnqwnlpnniufu pünptjni hwnfwp, wuw utnútp ◀/►lnáwln wju uhwgutjni lquf wigwuntjni hwnfwp ON /OFF:

Setup

09104304

Etyunpwuüniguwu pugwulwynipjniu

Uqnui2wup uhui t pünniuyniu

^a wunlykpp puqgwlywniu t

Чнітн умшіг дміці

2wju lqu, uwlquju puqulqujnu t wuwuqtpn lquf juuqhp t dwqtl qniutph htn

Uü2wpd uwwuhtp li wunfniq

Howwinlup

Чрлчwlч упрнлчп: Зтмлцкнвжнцгп 2h чунчлчпрнцч чwhшлчпч:

Znphqnhuwlyu 6tnptpn U2 ndhpunui

Elypwnzwnhwqwug uniq lwwf wnhwqwug wuwdwn t (U2 ntdhpunuf)

U2 \$nuiqghwú zh qnpδniú

98th lunpuwdp RCA puhlyhui uhuwuhu

Iounhpp nknlu iniduid sk

Unniqtp, wpnjnp hnuwuph uwnjnp uhwqud t: Gpt uwnigntfp nknlu pugwulqujntuf t, huhtp hnuwuph lwppl u utyi pnut wug lyplju uhwgntp:Uhwgntp htnnuunwgntjgp:

Uwpunlyngutph utwnwnnu

Zwutp htnwlqwnwlwpufu wuhwuhlyh qwwhphzp, uwhtgutniul wju ntuyh utpplu: Stwnnptp hughyniu AAA untuwlyh tplyni uwpunlng, hwunqutp, np uwpunlngutph l ughlyh utpuniul putnwllwunlpjnntutplu hpwn hwuwwwnwnuwuhui ti: Uh juwnutp hhlu li unp, huzytu tuwi unwpptn untuwlyh uwpunlngutp: Stwnnptp lwwhphzp:

26nwlqwnwlpwfu ywhwlyh oqnwnpdnlup

Ztwnwqwnwlpupfu uwhwuhgh uhngndl qupnn tp ytpwhuhtl htnnuunwgnjgh pnyn pniulghwutpn:

Uh2n wwhtp ywhwluwln htnnuunwgnjgh nhfuwjhui hwnylwdniuf qnluyn htnwlywnwlpwpufui utluunpwjhui gnighzh nunnipjuwp:

1. VOL-/VOL+. oqunwqnpdlnu l t awjup pwndpwglutni/hgtglutni huuup:
2. TV/RADIO. wquwhnul t htnnuunwuntunipjnhg nthuh nuqhn wugniup, u hwluwnuyn:

17. GUIDE

1. Uhwunuf EPG \$nulghwu (htnniunudwpwqptph Δkniwnp).
2. Upwq wugnul PVR ntduhuhg nthuh utnhw lwhwqwnlhyu hwlqwnwnp:

18. TIME SHIFT

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Top-down schematic of a TV or desktop layout showing front, top, and side views with no visible text or symbols

1

Architectural floor plan showing room layouts and furniture placement (no text or labels)

2

3

∂gδο∂36s:

modification of the following

VOL+/-: bān lādān mān lān qān gān mān gān.

3

ωσχβδον

modification

2

Rs###g### ###308m60

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

modification of the following

bān bāng

APPLICATIONS
Channel			Enter
Channel Options			Enter
Country			Russia
DTV Type			Terrestrial
Auto Tuning			Enter
ATV Manual Tuning			Enter
DTV Manual Tuning			Enter
Common Interface			Enter

1. ζωςζούμον ζωςζυ ▲/▼, οδ δηθερίου συσκήςσο, ήπαξων σήγιδός χυγίσων „σεμοτοχούδου“ θηβούμον, θηλυσκημον ζωςζούμον ENTER.
2. slusmbg3sqo qssfomgn nomssbl ◄/►, qssfomgn nomssbl ENTER dʒdʒbɔŋbl slusmbg3sqo.
3. Ashymbol cosdomszgndol dghcgz dghsbsbscp qos fobs dghbonydo qslssdmybgdcmcp qssfomgcn qonmszl MENU, qssfomgcn qonmszl EXIT dghbonycsb zslsszmycmcp.

Channel Options—ol slus68330,

aydoyg qssfomg mowssb

ENTER 3660800

zaslubgmsq. 3sdmolsbgs

∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂∂Δρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρ:

πομεσθόν υψηφωρωδ:

contents of TV https://www.itv.com/

f g m z b / , DTV Type—ob slusbghzso, g f g m ◀/▶ g to TV g o d u slusbghzso: g , u g .

s30madsyngo shymds

PREFERENCES
Menu Language	English
Teletext Language	English
Key Lock	Off
PC Settings	Enter
PIN Setting	Enter
Parental Control	Enter
Auto Power Down	4 hours

3m300g60u 3s6s4y6ngdo

qssfomg on qomszb ▲/▼, PC Settings -ob slsmhgsq, dgdqng qssfomg on qomszb ENTER sb ▶ dʒdʒbɔŋjdo dʒlsuzemgnsq, qslsqspslʒŋmjdmsq qssfomg on ENTER sb ▶ (kmggls3 ʃgɛnʒɔrbmno doŋmndʒymos 3mdʒoŋjgmssb).

SETUP
OSD Timer	Off
Cinema	Super Live
Blue Screen	On
Sleep Timer	Off
Location	Home
Quick Setup	Enter
Upgrade	Enter
Channel Details	Enter
Reset TV	Enter

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Top-down schematic of a computer monitor layout showing front, top, and side views (no text or labels)

1

Top-down schematic of a device layout with no visible text, numbers, or symbols

2

3

Piezīmes:

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Funkciju apraksts

Attēla izvēlne

APPLICATIONS
Channel	Enter
Channel Options	Enter
Country	Russia
DTV Type	Terrestrial
Auto Tuning	Enter
ATV Manual Tuning	Enter
DTV Manual Tuning	Enter
Common Interface	Enter

Kanāli

PREFERENCES
Menu Language	English
Teletext Language	English
Key Lock	Off
PC Settings	Enter
PIN Setting	Enter
Parental Control	Enter
Auto Power Down	4 hours

SETUP
OSD Timer			Off
Cinema			Super Live
Blue Screen			On
Sleep Timer			Off
Location			Home
Quick Setup			Enter
Upgrade			Enter
Channel Details			Enter
Reset TV			Enter

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Instale

a TV

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Menu de imagem

APPLICATIONS
Channel			Enter
Channel Options			Enter
Country			Russia
DTV Type			Terrestrial
Auto Tuning			Enter
ATV Manual Tuning			Enter
DTV Manual Tuning			Enter
Common Interface			Enter

PREFERENCES
Menu Language			English
Teletext Language			English
Key Lock			Off
PC Settings			Enter
PIN Setting			Enter
Parental Control			Enter
Auto Power Down			4 hours

SETUP
OSD Timer	Off
Cinema	Super Live
Blue Screen	On
Sleep Timer	Off
Location	Home
Quick Setup	Enter
Upgrade	Enter
Channel Details	Enter
Reset TV	Enter
