Product Type	Freestanding Wine Cooler
Model	MCWC12B
Brand	Magic Chef
Capacity	12 standard wine bottles
Cooling System	Peltier (thermoelectric) – no compressor, no CFCs
Temperature Range	54°F to 66°F (12°C to 18°C)
Temperature Control	Adjustable knob with + and – buttons
Interior Light	Yes, manually switched
Number of Shelves	3 chrome wire shelves (adjustable)
Door Type	Solid door with recessed handle
Leveling Legs	Yes, 4 adjustable
Drip Tray	Internal self-evaporation system (no external tray)
Installation	Freestanding only, requires 5 inches clearance on sides and back
Electrical Rating	110-120V AC, 60Hz, standard 3-prong grounded outlet
Power Consumption	Approximately 60W (estimated)
Weight	Approximately 30 lbs (13.6 kg)
Dimensions (W x D x H)	Approximately 17.5 x 18.5 x 25 inches
Noise Level	Low (fan and Peltier system)
Limited Warranty	1 year parts and labor (non-transferable)
Customer Service	888-775-0202 or www.mcappliance.com

Frequently Asked Questions - MCWC12B Magic Chef

What should I do if my wine cooler does not operate?

First, check that it is plugged in. Test the wall socket with another appliance. Also check if the circuit breaker tripped or a fuse blew.

Why is the temperature inside my wine cooler too warm?

Possible causes: door opened too often or not fully closed, gasket not sealing, recent disconnection, or temperature set too warm. Allow 24 hours for stabilization. Ensure 5 inches clearance around unit and avoid heat sources.

Why is the temperature too cold?

The temperature control may be set too cold. Turn the control to a warmer setting and wait several hours for the temperature to stabilize.

How do I clean my wine cooler?

Unplug the unit. Remove contents. Wash interior with a solution of 2 tablespoons baking soda per quart of lukewarm water. Clean racks with mild detergent. Wipe door gasket and exterior with mild detergent and warm water. Dry thoroughly.

Why is there moisture on the inside walls?

The door may be slightly open, opened too often, or the gasket may not seal properly. Ensure the door closes completely and reduce frequency of opening.

Why is the fan running constantly?

This is normal for the cooling system. The fan runs more at lower temperature settings or if the room is warmer than 77°F (25°C). It helps maintain the set temperature.

What should I do if water appears under the wine cooler?

This unit has a self-evaporation system. If water forms, the room humidity is too high. Use a dehumidifier or move the unit to a less humid room.

Can I install the wine cooler in a built-in or recessed area?

No, this wine cooler is designed for freestanding installation only. It requires at least 5 inches of clearance on the sides and back for proper ventilation.

Can I use an extension cord?

No, do not use an extension cord. If the power cord is too short, have a qualified electrician install an outlet near the appliance.

How can I save energy with my wine cooler?

Place the wine cooler in the coolest area away from heat sources and direct sunlight. Ensure the door is closed properly when the unit is on.

USER MANUAL MCWC12B Magic Chef

Freestanding Wine Cooler

User's Manual

Line drawing of a double boiler with three wavy roof rows and a 'Magic Chef' logo at the bottom (no text or symbols on the diagram itself)

Model MCWC12B

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR WINE COOLER AND KEEP IT FOR FUTURE REFERENCE.

Product Registration

Thank you for purchasing a Magic Chef® product. The first step to protect your new product is to complete the product registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following:

1. Registering your product will allow us to contact you regarding a safety notification or product update.
2. Registering your product will allow for more efficient warranty service processing when warranty service is required.
3. Registering your product could act as your proof of purchase in the event of insurance loss.

Once again, thank you for purchasing a Magic Chef® product.

TABLE OF CONTENTS

NAMES OF THE PARTS.... 2

IMPORTANT SAFETY INSTRUCTIONS.... 3

INSTALLATION INSTRUCTIONS

BEFORE USING YOUR WINE COOLER.... 3

INSTALLING YOUR WINE COOLER 3

ELECTRICAL CONNECTION.... 4

CLEANING YOUR WINE COOLER.... 6

VACATION TIME.... 6

MOVING YOUR WINE COOLER.... 6

ENERGY SAVING TIPS.... 6

TROUBLESHOOTING GUIDE.... 7-8

WINE COOLER WARRANTY.... 9

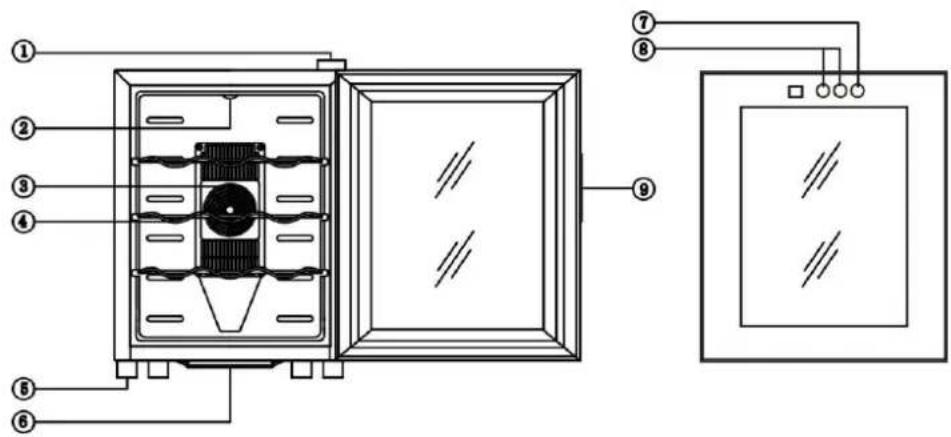

MODEL NO. MCWC12B

1. HINGE
2. LIGHT
3. FAN MASK
4. RACKS
5. LEVELING LEGS
6. DRIP TRAY
7. LIGHT SWITCH
8. TEMPERRATURE CONTROL PANEL
9. RECESSED HANDLE

IMPORTANT SAFETY INSTRUCTIONS

WARNING	To reduce the risk of fire, electrical shock, or injury when using your wine cooler, follow these basic precautions:
Read all instructions before using the wine cooler.Never clean wine cooler parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other wine cooler. The fumes can create a fire hazard or an explosion.-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Wine cooler

• Remove the exterior and interior packing.
• Clean the interior surface with lukewarm water using a soft cloth. (Cleaning instruction on page 6)

Installing Your Wine cooler

• This appliance is designed to be free standing only, and should not be recessed or built-in.
- Allow 5 inches of space between the back and sides of the wine cooler, which allows the proper air ventilation. Adjust the legs to keep the wine cooler level.
- Locate the wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. If the ambient temperature is higher than 80^ F or lower than 55^ F it will hinder the performance of this appliance. This unit is not designed for use in a garage or any other outside installation.
- Avoid locating the wine cooler in moist areas.
- Plug the wine cooler into dedicated, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center. This unit is not designed to be installed in an RV or used with an inverter.
- After plugging the appliance into a wall outlet, allow the unit to cool down for 3 \~ 4 hours under before placing wine bottles in the wine cooler.

Electrical Connection

WARNING

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.

This wine cooler should be properly grounded for your safety. The power cord of this wine cooler is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.

This wine cooler requires a standard 110-120 Volt A.C. / 60Hz electrical outlet with three-prong ground.

This wine cooler is not designed to be used with an inverter.

The cord should be secured behind the wine cooler and not left exposed or dangling to prevent accidental injury.

Never unplug the wine cooler by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance. Use of an extension cord can negatively affect the performance of the unit.

If any problems with the appliance persist, please contact our Customer Service Dept. to consult with a representative at 888 775-0202 or visit our website to request warranty service at www.mcappliance.com.

- LIGHT SWITCH ( ): To manually illuminate/extinguish the interior light

- TEMPERATURE CONTROL PANEL ( + ): Increase Temperature

- TEMPERATURE CONTROL PANEL (☐): Decrease Temperature

Temperature Control

The lead-time to achieve the pre-set temperature depends on the nature and quantity of the object placed inside the cavity.

The temperature range can be set as low as 54^ or as high as 66^ to suit your specific storage requirements. You can adjust the desired temperature by adjusting the temperature adjust knob.

The actual cabinet temperature in thermal electric units is dependent on the ambient room temperature. Thus, the unit may not reach the desired preset temperature. For example, when the ambient temperature is 77^ F, the lowest cabinet temperature that the wine cooler can reach is approximately 54^ F. When the ambient temperature is 82^ F, the cabinet temperature can reach approximately 59^ F.

In the event of a power failure or interruption, all modified settings will be lost.

CARE AND MAINTENANCE

Cleaning Your Wine cooler

• Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.
• Unplug the unit from the wall outlet.
• Remove all contents.
• Wash the inside with a damp warm cloth soaked in lukewarm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the racks with a mild detergent solution.
• Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
• The outside of the wine cooler should be cleaned with mild detergent and warm water.
• Dry the interior and exterior with a soft cloth.
• Dust or anything else blocking the vent may hinder the cooling efficiency of the wine cooler. Vacuum the vent if necessary.

Vacation Time

• Unplug the unit from the wall outlet.
• Remove all the contents.
• Clean the wine cooler.
• Short vacations: Leave the wine cooler operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all content and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

Moving Your Wine cooler

• Unplug the unit from the wall outlet.
• Remove all the contents.
• Securely tape down all loose items inside your wine cooler.
• Tape the doors shut.

Energy Saving Tips

• The wine cooler should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Ensure that the door is closed when the wine cooler is turned on.

TROUBLESHOOTING GUIDE

You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service.

PROBLEM	POSSIBLE CAUSE
Wine cooler does not operate.	Not plugged in.Make sure the wall socket is functional by testing another electrical appliance in the power socket.The circuit breaker tripped or a blown fuse.
Temperature inside the wine cooler is too warm.	Door is kept open too long or is opened too frequently. Warm air enters the wine cooler every time the door is opened. Open the door less often.The door is not closed completely.The door gasket does not seal properly.The wine cooler has recently been disconnected for a period of time.Temperature control is set too warm.Allow at least 24 hours for the internal temperature to adjust properly.*The interior temperature can be set between 54°F (12°C) and 66°F (18°C) only at the room temperature of 77°F (25°C).To achieve accurate temperature control, the unit should not be used or operated in any of the following locations:in a sunny place.in a room with poor air circulation such as a garage.near another heat producing appliance (dishwasher, oven, refrigerator).with an outlet shared with a refrigerator as it will drain power from the unit.built-in a wall recess, niche or cabinet.in a cabinet or closet.And remember to have at least 5 inch (15 cm) of space on each side of unit.
Temperature inside the wine cooler is too cold.	Temperature control is set too cold. Turn the control to a warmer setting and allow several hours for the temperature to stabilize.
Vibrations.	Check to assure that the wine cooler is on a level surface.The wine cooler is touching the wall. Re-level the wine cooler and move it from the wall.If continued vibration occurs, unplug the unit from the wall outlet. Contact Customer Service Dept. for further assistance.
Moisture forms on inside wine cooler walls.	Door is slightly open.Door is kept open too long, or is opened too frequently. Open the door less often.The door is not sealed properly.
The door will not close properly.	The wine cooler is not on a level surface.The gasket is dirty.The racks are out of position
Fan is always running.	This is simply a function of the cooling system.The lower the temperature setting, the more the fan will run. If the room is warmer than 77°F (25°C), it will run more.
There is a puddle of water under/around the wine cooler.	This wine cooler features a self-evaporation system. An external drip tray is therefore not required for accumulating condensation. If water forms under/around the wine cooler, the humidity level in the room is too high. Either try to lower the humidity level in the room (using, for example, a dehumidifier) or place the wine cooler in an another room.
General Statements	The unit does not use any CFC's. There is no compressor inside this unit.The cooling system is called a Peltier System.

Limited Warranty

MC Appliance Corporation warrants each new Freestanding Wine Cooler to be free from defects in material and workmanship, and agrees to remedy any such defect or to furnish a new part(s), at the company's option, for any part(s) of the unit that has failed during the warranty period. Parts and labor expenses are covered on this unit for a period of one year from the date of purchase. A copy of the dated sales receipt/invoice is required to receive warranty service, replacement or refund.

This warranty covers appliances in use within the contiguous United States, Alaska, Hawaii and Puerto Rico. This warranty does not cover the following:

• Damages due to shipping damage or improper installation.
• Damages due to misuse or abuse.
- Punctures to the evaporator system due to improper defrosting of the unit.
• Content losses due to failure of the unit.
• Repairs performed by unauthorized service agents.
• Service calls that do not involve defects in material and workmanship such as instructions on proper use of the product or improper installation.
- Replacement or resetting of house fuses or circuit breakers.
• Failure of this product if used for other purposes than its intended purpose.
• Disposal costs for any failed unit not returned to our factory.
• Any delivery/installation costs incurred as the result of a unit that fails to perform as specified.
- Expenses for travel and transportation for product service if your appliance is located in a remote area where service by an authorized service technician is not available.
- The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
• Refunds for non repairable products are limited to the price paid for the unit per the sales receipt.
• This warranty is non transferable. This warranty applies only to the original purchaser and does not extend to any subsequent owner(s).

Limitations of Remedies and Exclusions:

Product repair in accordance with the terms herein, is your sole and exclusive remedy under this limited warranty. Any and all implied warranties including merchantability and fitness for a particular purpose are hereby limited to one year or the shortest period allowed by law. MC Appliance Corporation is not liable for incidental or consequential damages and no representative or person is authorized to assume for us any other liability in connection with the sale of this product. Under no circumstances is the consumer permitted to return this unit to the factory without the prior written consent of MC Appliance Corporation.

Some states prohibit the exclusion or limitation of incidental or consequential damages, or limitations on implied warranties. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Model

MCWC12B

Parts

One

Year

Labor

One

Type

Year

For Service or Assistance please call 888-775-0202 or visit us on the web at www.mcappliance.com to request warranty service or order parts.

CNA International, Inc. d/b/a MC Appliance Corporation. All rights reserved. Magic Chef® logo is a registered trademark of CNA International, Inc.

www.mcappliance.com Printed in China

Line drawing of a Magic Chef oven with three horizontal rows of wavy lines and a top control panel (no text or symbols on the main diagram)

Modelo MCWC12B

1. BISAGRA
2. LUZ
3. MÁSCARA DEL VENTILADOR
4. ESTANTE
5. AJUSTABLE PATAS
6. BANDEJA DE GOTEO
7. CONTROL DE LUZ
8. TEMPERATURA DEL PANEL DE CONTROL
9. MANGO HUECO
