M 601 X - Cooker Meireles - Free user manual and instructions
Find the device manual for free M 601 X Meireles in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Freestanding Cooker |
| Brand | Meireles |
| Model | M 601 X |
| Energy Source | Gas (hob) / Electric (oven) |
| Number of Burners | 4 gas burners |
| Burner Types | 1 rapid, 2 semi-rapid, 1 auxiliary |
| Oven Type | Electric fan-assisted oven |
| Oven Capacity | 65 liters |
| Oven Functions | Conventional, fan, grill, fan grill, defrost |
| Main Control Type | Knobs for burners and oven functions |
| Ignition | Automatic ignition on burners |
| Safety Features | Flame failure safety device on all burners, oven door double glazing, child lock |
| Cleaning | Enamel cavity, removable oven door, catalytic liners optional |
| Dimensions (H x W x D) | 85 x 90 x 60 cm |
| Weight | Approx. 50 kg |
| Power Supply | 230 V / 50 Hz for oven; gas connection for hob |
| Energy Efficiency Class | A (oven) |
| Spare Parts Availability | Burner caps, oven thermostat, door hinges, knobs available online |
| Repairability Index | High (common parts, easy access) |
| Warranty | 2 years manufacturer warranty |
| User Manual Languages | EN, DE, ES, PT |
Frequently Asked Questions - M 601 X Meireles
How do I install the Meireles M 601 X cooker?

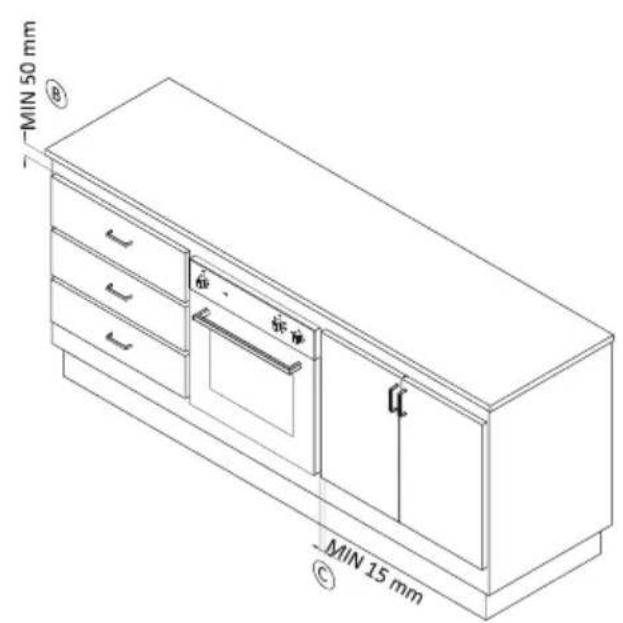

Ensure the gas connection is done by a qualified technician. The cooker must be installed with a minimum clearance of 5 cm from side walls and a distance of 70 cm between the hob and an extractor hood. The electric oven requires a 230 V / 50 Hz supply with a dedicated circuit.
What type of gas does the cooker use?
The cooker is set for natural gas (G20) but can be converted to LPG (G30/G31) using the corresponding injectors. Refer to the conversion instructions in the manual.
How do I clean the oven?

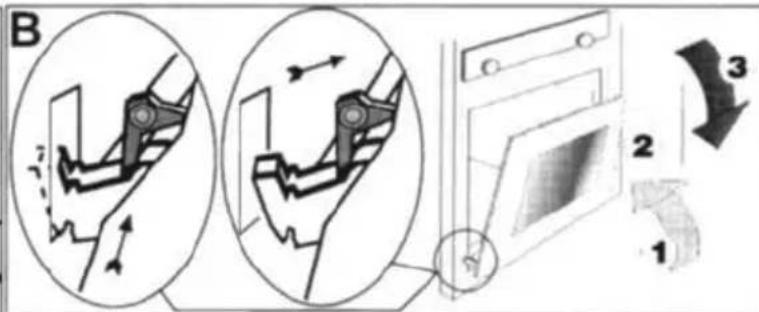

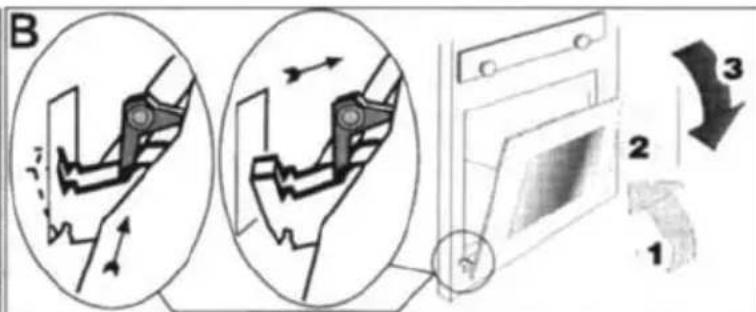

For everyday cleaning, wipe the enamel cavity with a damp cloth and mild detergent. Avoid abrasive cleaners. The oven door is removable for thorough cleaning. Some models have catalytic liners that self-clean during hot cycles.
Why won't the oven heat up?
Check if the oven is properly connected to the power supply. Verify that the oven knob is set to a function and temperature. If the problem persists, the heating element or thermostat may be faulty. Contact customer support.
Can I use aluminum foil in the oven?
Yes, but do not cover the entire bottom of the oven as it can block airflow and damage the heating element. Use foil only on baking trays.
How do I switch off the oven light?
The oven light turns off automatically when the oven door is closed or after the cooking function is deactivated. Some models have a manual switch; check the control panel.
What does the 'flame failure' device do?
It is a safety feature that cuts off gas supply if the burner flame goes out accidentally. To reset, turn the knob to the off position, wait a few seconds, and relight.
How often should I replace the oven door gasket?
Inspect the gasket regularly for wear and tear. Replace it if you notice heat leakage or when the gasket no longer seals properly. This helps maintain oven efficiency.
Can I use a wok on the gas burners?
Yes, the burners are suitable for woks. Use a wok stand to ensure stability and proper flame contact. Do not use cookware wider than the burner base.
Where can I find spare parts for the M 601 X?
Spare parts like burner caps, knobs, oven thermostats, and door hinges are available on the Meireles official website or authorized retailers. Use the model number to find compatible parts.
