Product Type	Smartphone
Brand	T-Mobile (Samsung GT-S5830)
Model	99918242
Dimensions	Approx. 112.4 x 59.9 x 11.5 mm
Weight	Approx. 113 g (with battery)
Battery	Li-Ion 1350 mAh, removable
Display	3.5-inch TFT capacitive touchscreen, 320x480 pixels
Operating System	Android 2.2 (Froyo)
Processor	800 MHz ARM 11
RAM	384 MB
Internal Storage	158 MB (expandable via microSD up to 32 GB)
Camera	Rear: 5 MP with autofocus and LED flash; Front: none
Video Recording	640x480 pixels at 24 fps
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 2.1, microUSB 2.0, 3.5mm jack
Network	GSM/EDGE/UMTS/HSDPA
Sensors	Accelerometer, proximity, compass
GPS	Yes, with A-GPS
FM Radio	Yes (requires headset as antenna)
Security Features	Screen lock (pattern, PIN, password); SIM card lock
Maintenance	Keep dry; avoid dust; clean with soft cloth; use approved accessories
Reparability	Battery and memory card replaceable; back cover removable

Frequently Asked Questions - 99918242 T-Mobile

How do I install the SIM card and battery?

Turn off the device, remove the back cover, insert the SIM card with gold contacts facing down, then insert the battery and replace the cover.

How can I extend battery life?

Adjust screen brightness, disable connectivity features when not in use, close background apps via the task manager, and avoid overcharging (charge only until full).

Can I use a memory card with this phone?

Yes, it supports microSD and microSDHC cards up to 32 GB. Insert the card with gold contacts facing down into the slot on the side. Format the card on the device if needed.

How do I take a screenshot?

This model does not have a built-in screenshot function. You may need third-party apps from Android Market (now Google Play) to capture screenshots.

How do I set a screen lock?

Go to Settings > Location and security > Set screen lock. You can choose Pattern, PIN, or Password. Follow the on-screen instructions to create and confirm your code.

Why is my phone not charging?

Ensure the charger is properly connected to the device and power outlet. Try a different USB cable or adapter. If the battery is completely depleted, allow a few minutes of charging before turning on. If issues persist, contact a Samsung Service Centre.

How do I transfer files between the phone and a PC?

Connect via USB cable. On the phone, open the shortcuts panel and select 'USB connected'. Choose 'Mass storage' to mount the SD card as a drive on your PC. You can also use Samsung Kies software for sync.

Can I use Bluetooth headphones?

Yes, the phone supports Bluetooth 2.1. Pair your headphones: go to Settings > Wireless and networks > Bluetooth settings, turn on Bluetooth, scan for devices, and select your headphones. Enter PIN if prompted.

What should I do if the touch screen is unresponsive?

Remove any screen protector. Ensure your fingers are clean and dry. Restart the device by holding the Power key and selecting Power off. If the issue persists, try a factory reset (back up data first) or contact support.

Is the phone water-resistant?

No, it is not water-resistant. Keep the device dry; avoid exposure to liquids. If it gets wet, turn it off, remove the battery, and dry with a towel. Visit a service centre for damage assessment.

USER MANUAL 99918242 T-Mobile

Stylized illustration of a tree with mobile phones and butterflies, no text or symbols present

···T···Mobile·

Using this manual

Thank you for purchasing this Samsung mobile device. This device will provide you with high quality mobile communication and entertainment based on Samsung's exceptional technology and high standards.

This user manual has been specially designed to guide you through the functions and features of your device.

Read me first

Please read all safety precautions and this manual • carefully before using your device to ensure safe and proper use.

• The descriptions in this manual are based on the default settings of your device.

• Images and screenshots used in this user manual may differ in appearance from the actual product.

• Content in this user manual may differ from the product, or from software provided by service providers or carriers, and is subject to change without prior notice. Refer to www.samsung.com for the latest version of the user manual.
  • Available features and additional services may vary by device, software, or service provider.

• Formatting and delivery of this user manual is based on Google Android operating systems and may vary depending on the user's operating system.
• Applications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by third-party applications.
• Samsung is not liable for performance issues or incompatibilities caused by user editing of registry settings.

• You may upgrade your mobile device's software by accessing www.samsung.com.

• Software, sound sources, wallpapers, images, and other contents provided in this device are licenced for limited use between Samsung and their respective owners.
  Extracting and using these materials for commercial or other purposes is an infringement of copyright laws.
  Samsung is not liable for such copyright infringement by the user.

• Please keep this manual for future reference.

Instructional icons

Before you start, familiarise yourself with the icons you will see in this manual:

Warning—situations that could cause injury to yourself or others

Caution—situations that could cause damage to your device or other equipment

Note—notes, usage tips, or additional information

Refer to—pages with related information; for example:▶ p.12 (represents "see page 12")

Followed by—the order of options or menus you must select to perform a step; for example: In Idle mode, open the application list and select Settings → About phone (represents Settings, followed by About phone)

Square brackets—device keys; for example: [①] (represents the Power/Lock key)

Copyright

Copyright © 2011 Samsung Electronics

This user manual is protected under international copyright laws.

No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics.

Trademarks

SAMSUNG and the SAMSUNG logo are registered • trademarks of Samsung Electronics.

- The Android logo, Google Search™, Google Maps™, Google Mail™, YouTube™, Android Market™, and Google Talk™ are trademarks of Google, Inc.

Bluetooth ^® is a registered trademark of the Bluetooth SIG, Inc. worldwide.

• SRS and are trademarks of SRS Labs, Inc. CS Headphone and WOW HD technologies are incorporated under licence from SRS Labs, Inc.
- Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.
- All other trademarks and copyrights are the property of their respective owners.

dlna®

CERTIFIED

C€0168①

Contents

Assembling 9

Unpack 9

Install the SIM or USIM card and battery ..... 9

Charge the battery 11

Insert a memory card (optional) 13

Attach a hand strap (optional) 16

Getting started 17

Turn your device on and off 17

Get to know your device 17

Use the touch screen 20

Lock or unlock the touch screen and keys .22

Get to know the idle screen 22

Access applications 24

Customise your device 26

Enter text 30

Download applications from Android Market 33

Download files from the web 34

Synchronise data 34

Communication 36

Calling 36

Messaging 40

Google Mail 42

Email 43

Talk 45

Social Hub 46

Entertainment 47

Camera 47

Gallery 55

Music 56

FM radio 60

Personal information 63

Contacts 63

Calendar 67

Memo 68

Voice recorder 69

Web 70

Internet 70

Maps 73

Google Search 77

YouTube 78

News & Weather 79

Samsung Apps 80

Market 80

Mobile Jukebox 81

TopApps 81

Connectivity 82

Bluetooth 82

Wi-Fi 84

AllShare 85

Mobile network sharing 87

PC connections 88

VPN connections 90

Tools 92

Clock 92

Calculator 93

Downloads 93

My files 93

SIM Toolkit 94

Task manager 94

ThinkFree Office 95

Voice Search 96

Settings 97

Access the Settings menu 97

Wireless and networks 97

Call settings 98

Sound 100

Display 100

Location and security 101

Applications 102

Accounts and sync 103

Privacy 103

SD card and phone storage 103

Locale and text 104

Voice input and output 106

Accessibility 107

Date and time 107

About phone 107

Troubleshooting 108

Safety precautions 114

Index 124

Assembling

Unpack

Check your product box for the following items:

- Mobile device

Battery•

Quick start guide•

Use only Samsung-approved software. Pirated or illegal software may cause damage or malfunctions that are not covered by your manufacturer's warranty.

The items supplied with your device may vary • depending on the software and accessories available in your region or offered by your service provider.

• You can obtain additional accessories from your local Samsung dealer.
• The supplied accessories perform best for your device.
• Accessories other than the supplied ones may not be compatible with your device.

Install the SIM or USIM card and battery

When you subscribe to a cellular service, you will receive a Subscriber Identity Module (SIM) card, with subscription details, such as your personal identification number (PIN) and optional services. To use UMTS services, you can purchase a Universal Subscriber Identity Module (USIM) card.

To install the SIM or USIM card and battery,

1 If the device is on, press and hold [①] and select Power off → OK to turn it off.
2 Remove the back cover.

Illustration of a smartphone showing the side panel and battery cover (no text or symbols)

Be careful not to damage your fingernails when you remove the back cover.

3 Insert the SIM or USIM card with the gold-coloured contacts facing down.

Illustration of a smartphone showing a device with a blue arrow pointing to its internal structure (no text or symbols present)

If you do not insert a SIM or USIM card, you can only use your device's non-network services and some menus.

4 Insert the battery.

5 Replace the back cover.

Illustration of a smartphone showing two blue arrows indicating movement or force (no text or symbols present)

Charge the battery

Before using the device for the first time, you must charge the battery.

You can charge the device with a travel adapter or by connecting the device to a PC with a USB cable.

Use only Samsung-approved chargers and cables. Unauthorised chargers or cables can cause batteries to explode or damage your device.

When your battery is low, the device will emit a warning tone and display a low battery message. The battery icon will also be empty. If the battery level becomes too low, the device will automatically power off. Recharge your battery to continue using your device.

- If the battery is completely discharged, you cannot turn on the device, even with the travel adapter connected. Allow a depleted battery to charge for a few minutes before you try to turn on the device.

> Charge with a travel adapter

1 Open the cover of the multifunction jack.

2 Plug the small end of the travel adapter into the multifunction jack.

Line drawing of a smartphone with an attached USB cable showing a small plug inserted (no text or symbols)

Connecting the travel adapter improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

3 Plug the large end of the travel adapter into a power outlet.

You can use the device while it is charging, but it may take longer to fully charge the battery.

- While the device is charging, the touch screen may not function due to an unstable power supply. If this happens, unplug the travel adapter from the device.

- While charging, the device may heat up. This is normal and should not affect your device's lifespan or performance.

- If your device is not charging properly, bring your device and the charger to a Samsung Service Centre.

4 When the battery is fully charged (the battery icon is no longer moving), unplug the travel adapter from the device and then from the power outlet.

Do not remove the battery before removing the travel adapter. Doing this may cause damage to the device.

To save energy, unplug the travel adapter when not in use. The travel adapter does not have a power switch, so you must unplug the travel adapter from the outlet to interrupt the power supply. The travel adapter should remain close to the socket when in use.

> Charge with a USB cable

Before charging, ensure that your PC is turned on.

1 Open the cover of the multifunction jack.

2 Plug one end (micro-USB) of the USB cable into the multifunction jack.

3 Plug the other end of the USB cable into a USB port on a PC.

Depending on the type of USB cable you are using, it may take some time before charging begins.

4 When the battery is fully charged (the battery icon is no longer moving), unplug the USB cable from the device and then from the PC.

Insert a memory card (optional)

To store additional multimedia files, you must insert a memory card. Your device accepts microSD™ or microSDHC™ memory cards with maximum capacities of 32 GB (depending on memory card manufacturer and type).

Samsung uses approved industry standards for memory cards, but some brands may not be fully compatible with your device. Using an incompatible memory card may damage your device or the memory card and can corrupt data stored on the card.

Your device supports only the FAT file structure for • memory cards. If you insert a card formatted with a different file structure, your device will ask you to reformat the memory card.

• Frequent writing and erasing of data will shorten the lifespan of memory cards.
• When you insert a memory card in your device, the file directory of the memory card will appear in the sdcard folder.

1 Open the cover of the memory card slot on the side of the device.
2 Insert a memory card with the gold-coloured contacts facing down.

Diagram of a smartphone showing a cable being inserted into a connector (no text or symbols present)

3 Push the memory card in the memory card slot until it locks in place.

4 Close the cover of the memory card slot.

Remove the memory card

Before removing a memory card, first unmount it for safe removal.

1 In Idle mode, select 📋 → Settings → SD card and phone storage → Unmount SD card → OK.
2 Open the cover of the memory card slot on the side of the device.
3 Push the memory card gently until it disengages from the device.
4 Pull the memory card out of the memory card slot.
5 Close the cover of the memory card slot.

Do not remove a memory card while the device is transferring or accessing information, as this could result in loss of data or damage to the memory card or device.

> Format the memory card

Formatting your memory card on a PC may cause incompatibilities with your device. Format the memory card only on the device.

In Idle mode, select → Settings → SD card and phone storage → Unmount SD card → OK → Format SD card → Format SD card → Erase everything.

Before formatting the memory card, remember to make backup copies of all important data stored on your device. The manufacturer's warranty does not cover loss of data resulting from user actions.

Attach a hand strap (optional)

1 Remove the back cover.
2 Slide a hand strap through the slot and hook it over the small projection.

Diagram of a smartphone with a close-up circular annotation highlighting a cable being inserted (no text or symbols present)

3 Replace the back cover.

Line drawing of a modern multi-story building with buses and pedestrians, no text or symbols present

Getting started

Turn your device on and off

To turn on your device,

1 Press and hold [①].
2 If you turn on your device for the first time, follow the on-screen instructions to set up your device.

To turn off your device, press and hold [①] and select Power off → OK.

Follow all posted warnings and directions from • official personnel when in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals.

- To use your device's non-network services only, switch to Flight mode. Press and hold [Øand select Airplane mode.

Get to know your device

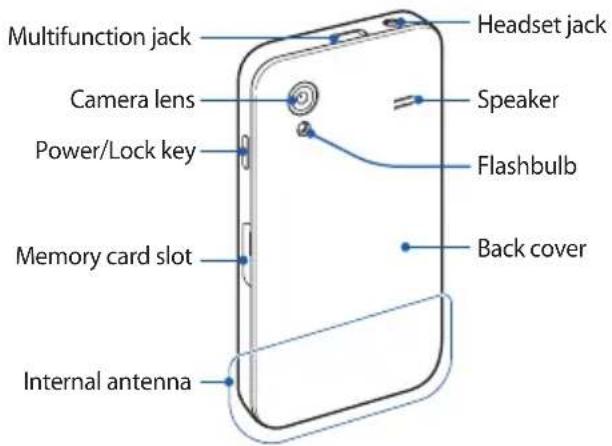

> Device layout

Keys

Key Function
	Power/ Lock	Turn on the device (press and hold); Access the quick menus (press and hold); Lock the touch screen.
	Menu	Open a list of options available on the current screen.
	Home	Return to the idle screen; Open the list of recent applications (press and hold).
	Back Return to the previous screen.
	Volume Adjust the device's volume.

Indicator icons

Icons shown on the display may vary depending on your region or service provider.

Icon Definition
	No signal
	Signal strength
	GPRS network connected
	UMTS network connected
	Open WLANs available
	WLAN connected
	Bluetooth activated
	Bluetooth headset connected
	GPS activated

Icon Definition
	Call in progress
	Call on hold
	Speakerphone activated
	Missed call
	Synchronised with the web
↑	Uploading data
↓	Downloading data
	Call diverting activated
	Connected to PC
	USB tethering activated
	Mobile AP activated
	No SIM or USIM card
	New text or multimedia message
	New email message
	New voice mail message
	Alarm activated
	Event notification
	Roaming (outside of normal service area)
	Silent mode activated
	Flight mode activated
	Vibration mode activated
	Music playback in progress

Icon Definition
	Music playback paused
	FM radio turned on in the background
	Error occurred or caution required
	Battery power level
10:00	Current time

Use the touch screen

Your device's touch screen lets you easily select items or perform functions. Learn basic actions to use the touch screen.

To avoid scratching the touch screen, do not use sharp tools.

- Do not allow the touch screen to come into contact with other electrical devices. Electrostatic discharges can cause the touch screen to malfunction.

- Do not allow the touch screen to come into contact with water. The touch screen may malfunction in humid conditions or when exposed to water.

For optimal use of the touch screen, remove the • screen protection film before using your device.

- Your touch screen has a layer that detects small electrical charges emitted by the human body. For best performance, tap the touch screen with your fingertip. The touch screen will not react to touches of sharp tools, such as a stylus or pen.

Control your touch screen with the following actions:

• Tap: Touch once with your finger to select or launch a menu, option, or application.
• Tap and hold: Tap an item and hold it for more than 2 seconds to open a pop-up option list.
• Drag: Tap and drag your finger up, down, left, or right to move to items on lists.
• Drag and drop: Tap and hold your finger on an item, and then drag your finger to move the item.
• Double-tap: Tap twice quickly with your finger to zoom in or out while viewing photos or web pages.

Your device turns off the touch screen when you do not use the device for a specified period. To turn on the screen, press [①] or the Home key.

- You can adjust the backlight time. In Idle mode, open the application list and select Settings → Display → Screen timeout.

Lock or unlock the touch screen and keys

You can lock the touch screen and keys to prevent any unwanted device operations.

To lock, press [①]. To unlock, turn on the screen and drag right until it reaches the dot.

You can activate the screen lock feature to prevent others from using or accessing your personal data and information saved in your device. ▶ p. 28

Get to know the idle screen

When the device is in Idle mode, you will see the idle screen. From the idle screen, you can view your device's status and access applications.

The idle screen has multiple panels. Scroll left or right to a panel of the idle screen.

> Add items to the idle screen

You can customise the idle screen by adding shortcuts to applications or items in applications, widgets, or folders. To add items to the idle screen,

1 Press [≡] → Add or tap and hold the empty area on the idle screen.
2 Select the item category → an item:

• Widgets. Widgets are small applications that provide convenient functions and information on your idle screen.
• Shortcutsortcuts to items, such as applications, bookmarks, and contacts.
• Folders are a new folder or add folders for your contacts.
• Wallpaperskground image.

Move items on the idle screen

1 Tap and hold an item to move until the item appears grey.
2 Drag the item to the location you want.

Remove items from the idle screen

1 Tap and hold an item to remove.
The trash bin appears at the bottom of the idle screen.
2 Drag the item to the trash bin.
3 When the item turns red, release the item.

Use the shortcuts panel

In Idle mode or while using an application, tap the indicator icons area and drag your finger down to open the shortcuts panel. You can activate or deactivate wireless connection features and access a list of notifications, such as messages, calls, events or processing status. To hide the list, drag the bottom of the list up.

From the shortcuts panel, you can use the following options:

• Wi:Activate or deactivate the WLAN connection feature. ▶ p. 84
• B/T Activate or deactivate the Bluetooth wireless connection feature. ▶ p. 82
  • GPSActivate or deactivate the GPS feature.
  • Sound/Vibration activate Vibration mode.
  • Auto rotation deactivate the auto rotation.

Available options may vary depending on your region or service provider.

> Add or remove panels to the idle screen

You can add or remove panels of the idle screen to organise widgets according to your preferences and needs.

1 In Idle mode, press [≡] → Edit.

You can also place your two fingers on the screen and pinch to switch to Edit mode.

2 Add or remove panels by using the following features:

To remove a panel, tap and hold the thumbnail of a • panel and drag it to the trash bin at the bottom of the screen.

- To add a new panel, select

- To change the order of the panels, tap and hold the thumbnail of a panel and drag it to the location you want.

3 When you are finished, press [→].

Access applications

To access your device's applications,

1 In Idle mode, select ☐ to access the application list.

2 Scroll left or right to another application screen. You can also select a dot on the top of the screen to move to the corresponding main menu screen directly.

3 Select an application.

When you use applications provided by Google, • you must have a Google account. If you do not have a Google account, sign up for a Google account.

- You can add a shortcut to an application by tapping and holding the application icon from the application list. You can move the icon to the location you want on the idle screen.

4 Press [→] to return to the previous screen; Press the Home key to return to the idle screen.

Your device has a built-in motion sensor that detects its orientation. If you rotate the device while using some features, the interface will automatically switch to landscape view. To set the interface to keep the orientation when you rotate the device, select Settings → Display → Auto-rotate screen.

Organise applications

You can reorganise the applications in the application list by changing their order or grouping them into categories to suit your preferences and needs.

1 In the application list, press [≡] → Edit.
2 Tap and hold an application.

3 Drag the application icon to the location you want. You can move an application icon to another main menu screen.
4 Press [≡] → Save.

To change the order of the main menu screens,

1 In the application list, place your two fingers on the screen and pinch.
2 Tap and hold the thumbnail of a screen and drag it to the location you want.

Access recent applications

1 Press and hold the Home key to open the list of applications you have accessed recently.
2 Select an application to access.

> Use the task manager

Your device is a multitasking device. It can run more than one application at the same time. However, multitasking may cause hang-ups, freezing, memory problems, or additional power consumption. To avoid these problems, end unnecessary programs using the task manager.

1 In Idle mode, open the application list and select Task manager → Active applications.
The list of all the applications currently running on your device appears.
2 To close an application, select End.
To close all active applications, select End all.

Customise your device

Get more from your device by customising it to match your preferences.

> Set the current time and date

1 In Idle mode, open the application list and select Settings → Date and time.
2 Set the time and date and change other options.

> Turn on or off the touch tone

In Idle mode, open the application list and select Settings → Sound → Audible selection.

> Adjust the volume of the ringtones

Press the Volume key up or down to adjust the ringtone volume.

> Switch to Silent mode

To mute or unmute your device, do one of the following:

• In Idle mode, open the application list and select → Keypad and tap and hold #.
• Open the shortcuts panel from the top of the screen and select Sound.
  • Press and check Silent mode.

You can set the device to alert you to various events in Silent mode. In Idle mode, open the application list and select Settings → Sound → Vibrate → Always or Only in Silent mode. When you switch to Silent mode, will appear in place of

Change your ringtone

1 In Idle mode, open the application list and select Settings → Sound → Phone ringtone.
2 Select a ringtone from the list and select OK.

> Activate animation for switching windows

In Idle mode, open the application list and select Settings → Display → Animation → Some animations or All animations.

Select a wallpaper for the idle screen

1 In Idle mode, press [≡] → Wallpaper → an option.
2 Select an image.
3 Select Save or Set wallpaper.

Samsung is not responsible for any use of default images or wallpapers provided on your device.

Adjust the brightness of the display

1 In Idle mode, open the application list and select Settings → Display → Brightness.
2 Drag the slider to adjust the level of brightness.
3 Select OK.

The brightness level of the display will affect how quickly the device consumes battery power.

Set a screen lock

You can lock the touch screen with an unlock pattern or password to prevent unauthorised people from using the device without your permission.

Once you set a screen lock, your device will require an unlock code each time you turn it on or unlock the touch screen.

• If you forget your PIN or password, bring your device to a Samsung Service Centre to reset it.
• Samsung is not responsible for any loss of security codes or private information or other damages caused by illegal software.

Set an unlock pattern

1 In Idle mode, open the application list and select Settings → Location and security → Set screen lock → Pattern.
2 See the on-screen instructions and example patterns and select Next.
3 Draw a pattern by dragging your finger to connect at least 4 dots.
4 Select Continue.

5 Draw a pattern again to confirm.
6 Select Confirm.

Set an unlock PIN code

1 In Idle mode, open the application list and select Settings → Location and security → Set screen lock → PIN.
2 Enter a new PIN (numeric) and select Continue.
3 Enter the PIN again and select OK.

Set an unlock password

1 In Idle mode, open the application list and select Settings → Location and security → Set screen lock → Password.
2 Enter a new password (alphanumeric) and select Continue.
3 Enter the password again and select OK.

> Lock your SIM or USIM card

You can lock your device by activating the PIN supplied with your SIM or USIM card.

1 In Idle mode, open the application list and select Settings → Location and security → Set up SIM card lock → Lock SIM card.
2 Enter your PIN and select OK.

Once the PIN lock is enabled, you must enter the PIN each time you turn on the device.

If you enter an incorrect PIN too many times, your SIM or USIM card will be blocked. You must enter a PIN unlock key (PUK) to unblock the SIM or USIM card.

- If you block your SIM or USIM card by entering an incorrect PUK, bring the card to your service provider to unblock it.

Enter text

You can enter text by selecting characters on the virtual keypad or by inputting handwriting on the screen.

You cannot enter text in some languages. To enter text, you should change the writing language to one of the supported languages. ▶ p. 104

Change the keyboard type

You can change the keyboard type. Tap and hold the text input field and select Input method → a keyboard type (Samsung keypad or Swype).

Enter text using the Samsung keypad

1 Select ⚙ → Portrait keypad types and select a text input method.

You can select one of key input methods (QWERTY or traditional keypad) or handwriting input methods.

2 Enter text by selecting alphanumeric keys or writing on the screen.

You can also use the following keys:

Number Function
1	Change case.
2	Switch between Number/Symbol mode and ABC mode.
3	Enter text by voice; This icon is available only when you activate the voice input feature for the Samsung keypad. This feature may be unavailable depending on the selected input language.
4	Clear your input.
5	Start a new line.
6	Access the keypad settings; Change the keyboard type (tap and hold).
7	Insert a space; Insert a period (double-tap); Change the input language (scroll left or right). Functions of this key may vary depending on your service provider.

Enter text using the Swype keyboard

1 Select the first character of a word and drag your finger to the second character without releasing the finger from the screen.

2 Continue until you have finished the word.

3 Release the finger on the last character.

4 When the word displays correctly, select 📋 to insert a space. If the correct word does not display, select an alternative word from the list that appears.
5 Repeat steps 1-4 to complete your text. Tap and hold each key to enter additional characters.

You can also use the following keys:

Number Function
1	Change case.

Number Function
2	Switch between Symbol mode and ABC/ Number mode.
3	Insert a space.
4	Delete characters.
5	Start a new line.
6	Enter text by voice.This feature may be unavailable depending on the selected input language.

To hide the Swype keyboard, press [→]. To view help information for using the Swype keyboard, tap and hold

> Copy and paste text

While you are entering text, you can use the copy and paste feature to use text in other applications.

1 Place the cursor on the text you want to copy.
2 Select
3 Select T or L
4 Drag or to select the text you want.
5 Select ☐ to copy, or ☐ to cut the text onto the clipboard.
6 In another application, place the cursor where you want to paste the text.
7 Select → to insert the text from the clipboard into the text field.

Download applications from Android Market

Based on the Android platform, your device's functionality can be extended by installing additional applications. Android Market provides you an easy and quick way to shop for games and mobile applications.

This feature may be unavailable depending on • your region or service provider.

- Your device will save user files from downloaded applications to the internal memory.

> Install an application

1 In Idle mode, open the application list and select Market.
2 Select Accept when the terms and conditions appear.
3 Search for a file or application and download it.

> Uninstall an application

1 From the Android Market home screen, select My apps.
2 Select the item you want to delete.
3 Select Uninstall → OK.

Download files from the web

When you download files or web applications from the web, your device saves them in a memory card.

Files you download from the web can include viruses that will damage your device. To lessen your risk, only download files from sources you trust.

Some media files include Digital Rights Management to protect copyrights. This protection may prevent you from downloading, copying, modifying, or transferring some files.

To download files from the web,

1 In Idle mode, open the application list and select Internet.
2 Search for a file or application and download it.

To install applications downloaded from websites other than Android Market, you must select Settings → Applications → Unknown sources.

Synchronise data

You can synchronise data with various web servers and back up or restore your data.

Once the synchronisation is completed, your device stays connected to the web. If any change is made on the web, the updated information will appear on your device and will automatically begin synchronisation, and vice versa.

This feature may be unavailable depending on your region or service provider.

> Set up a server account

1 In Idle mode, open the application list and select Settings → Accounts and sync.
2 Select Add account → an account type.
3 Follow the on-screen instructions to complete the account setup. For online community services, such as Facebook or MySpace, enter your user name and password and select Log in.

> Activate automatic sync

1 In Idle mode, open the application list and select Settings → Accounts and sync.
2 Select Auto-sync.

3 Select an account.
4 Select the applications you want to synchronise.

To exclude applications from automatic synchronisation, clear the check boxes next to the applications you want.

Synchronise data manually

1 In Idle mode, open the application list and select Settings → Accounts and sync.
2 Select an account.
3 Press [≡] → Sync now. Your device will start synchronising the data you set for synchronisation.

Communication

Calling

Learn to use calling functions, such as making and answering calls, using options available during a call or customising and using call-related features.

> Make and answer a call

You can use the buttons or the touch screen when you make, accept, end, or reject calls.

When you turn on the proximity sensor, your • device automatically turns off and locks the touch screen to prevent accidental inputs when you hold the device near your face. ▶ p. 99

- Static electricity discharged from your body or clothing may interfere with the proximity sensor during a call.

Make a call

1 In Idle mode, open the application list and select → Keypad, and enter an area code and a phone number.

2 Select to make a call.

3 To end the call, select End call.

Use the phonebook to save numbers you dial • frequently. ▶ p. 63

- To quickly access the call log to redial the numbers you dialled recently, select → Logs.

Answer a call

1 When a call comes in, drag right until it reaches the dot.

When the device is ringing, press the Volume key to mute the ringtone.

2 To end the call, select End call.

Reject a call

When a call comes in, drag left until it reaches the dot.

The caller will hear a busy tone.

Call an international number

1 In Idle mode, open the application list and select 📞 → Keypad, and tap and hold 0 to insert the + character.
2 Enter the complete number you want to dial (country code, area code and phone number), and then select to dial the number.

Use a headset

By plugging a headset into the device, you can answer and control calls hands-free:

• To answer a call, press the headset button.
  To reject a call, press and hold the headset button.

To place a call on hold or retrieve a held call during a call, press and hold the headset button.

• To end a call, press the headset button.

Use options during a call

You can use the following options while a call is in progress:

• To adjust the voice volume, press the Volume key up or down.
• To hold a location, select Unhold.
• To add call and click, select at new number.
• To right until it reaches call the bag dot when a call waiting tone sounds. The device asks whether to end or hold the first call. You must subscribe to the call waiting service to use this feature.

• To Dispatchle dialling screen, select
- To listen and talk to the other party via a Bluetooth headset, select Headset.
- To turn off the microphone so that the other party cannot hear you, select Mute.
• ToSpeaker the speakerphone feature, select
In noisy environments, you may have difficulty hearing some calls while using the speakerphone feature. For better audio performance, use the normal phone mode.
• ToSwaph between the two calls, select
- To make a multiparty call (conference call), make or answer a second call when connected to the second party, select Merge calls. You must subscribe to the multiparty call service to use this feature.

> View and dial missed calls

Your device will display calls you have missed. To dial the number of a missed call, open the shortcuts panel and select the missed call notification.

> Use additional features

You can use various other call-related features, such as Fixed Dialling Number (FDN) mode or call diverting.

Use Fixed Dialling Number (FDN) mode

In FDN mode, your device will restrict outgoing calls, except for the numbers stored in the FDN list. To activate FDN mode,

1 In Idle mode, open the application list and select Settings → Call settings → Fixed Dialing Numbers → Enable FDN.

2 Enter the PIN2 supplied with your SIM or USIM card and select OK.
3 Select FDN list and add contacts to be used in FDN mode.

Set call forwarding

Call diverting is a network feature to send incoming calls to another number that you specify. You can set this feature separately for several conditions when you are not able to answer calls, such as when you are already on the phone or when you are outside of the service area.

1 In Idle mode, open the application list and select Settings → Call settings → Call forwarding.
2 Select a condition.
3 Enter a number to which calls will be forwarded and select Enable.
Your setting will be sent to the network.

Set call waiting

Call waiting is a network feature to alert you of an incoming call while you are on a previous call.

In Idle mode, open the application list and select Settings → Call settings → Additional settings → Call waiting.

Your setting will be sent to the network.

> View call logs

You can view logs of your calls filtered by their types.

1 In Idle mode, open the application list and select → Logs.
2 Press [≡] → View by → an option to sort the call logs.
From the call logs, you can make a call or send a message directly to a contact by flicking the contact to the left or right.

3 Select a log to view its details.

From the detail view, you can dial the number, send a message to the number or add the number to the phonebook.

Messaging

Learn to create and send text (SMS) or multimedia (MMS) messages, and view or manage messages you have sent or received.

You may incur additional charges for sending or receiving messages while outside your home service area. For details, contact your service provider.

> Send a text message

1 In Idle mode, open the application list and select → New message.

2 Select Contacts. You can enter a number manually or select one from the logs or contact groups by selecting another option.

3 Select contacts and select Add.

4 Select Tap to compose and enter your message text. To insert emoticons, press [≡] → Insert smiley.

5 Select Send to send the message.

Send a multimedia message

1 In Idle mode, open the application list and select → New message.

2 Select Contacts. You can enter a number manually or select one from the logs or contact groups by selecting another option. When you enter an email address, the device will convert the message to a multimedia message.

3 Select contacts and select Add.
4 Select Tap to compose and enter your message text. To insert emoticons, press [☐] → Insert smiley.
5 Select → an option and add an item.
You can select a file from the file list or create a new photo, video, or sound.
6 Press [≡] → Add subject and add a subject for the message.
7 Select Send to send the message.

View a text or multimedia message

1 In Idle mode, open the application list and select Your messages are grouped into message threads by contact, like a messenger.

2 Select a contact.
3 For a multimedia message, select a message to view the details.

> Listen to voice mail messages

If you have set missed calls to be diverted to the voice mail server, callers may leave voice messages when you do not answer incoming calls. To access your voice mail inbox and listen to voice mail messages,

1 In Idle mode, open the application list and select → Keypad and then tap and hold 1.

2 Follow the instructions from the voice mail server.

You must save the voice mail server number before accessing the server. Your service provider can give you the number.

Google Mail

You can retrieve new email messages from Google Mail™ to your Inbox. When you access this application, the Inbox screen appears. The total number of unread messages displays in the title bar and unread messages display in bold.

This feature may be unavailable depending on your region or service provider.

- This Google Mail menu may be labelled differently depending on your service provider.

> Send an email message

1 In Idle mode, open the application list and select Google Mail.
2 If you are launching this application for the first time, select OK.
3 Press [≡] → Compose.

4 Enter a name or address in the recipient field.
5 Enter a subject and message.
6 To attach an image file, press [≡] → Attach → a file.
7 Select ☐ to send the message.

> View email messages

1 In Idle mode, open the application list and select Google Mail.
2 Select an email message.

From the message view, use the following options:

• To reply to the message, select
- To reply to the message including all recipients, select → Reply all.
• To forward the message to other people, select ↔ Forward.

To add a star to the message, select ★ .

• To Review attachment to select memory card, select Download.
  • ToArchive.the message, select
• ToDelete.the message, select
• To move to the previous or next message, select < or >.

Organise email by labels

You can organise your email by labelling your messages or adding stars to mark important messages. You can sort messages by label filter.

Add a label to a message

1 From the Inbox screen, tap and hold a message.
2 Select Change labels.
3 Select a label to add and select OK.

Add a star to a message

1 From the Inbox screen, tap and hold a message.
2 Select Add star. The star icon next to the message is activated.

Filter messages

1 From the Inbox screen, press [≡] → Go to labels.
2 Select the label of the messages you want to view.

Email

Learn to send or view email messages via your personal or company email account.

> Set up an email account

1 In Idle mode, open the application list and select Email.
2 Enter your email address and password.

Communication

3 Select Next (for general email accounts) or Manual setup (for other company email accounts).
4 Follow the on-screen instructions.

When you are finished setting up the email account, the email messages are downloaded to your device. If you have created more than two accounts, you can switch between email accounts; Press [≡] → Accounts and select one you want to retrieve messages from.

> Send an email message

1 In Idle mode, open the application list and select Email → an email account.
2 Press [≡] → Compose.
3 Select Contacts.

You can enter an email address manually or select one from the logs or contact groups by selecting another option.

4 Select contacts and select Add.
5 Select the Cc/Bcc field and add more recipients.
6 Select the subject field and enter a subject.
7 Select the text input field and enter your email text.
8 Select Attach and attach a file.

You can select a file from the file list or create a new photo, video, or sound.

9 Select Send to send the message.

If you are offline or outside your service area, the message will be held in the message thread list until you are online and in your service area.

> View an email message

When you open an email account, you can view previously retrieved emails offline or connect to the email server to view new messages. After retrieving email messages, you can view them offline.

1 In Idle mode, open the application list and select Email → an email account.
2 Press [≡] → Refresh to update the message list.
3 Select an email message.

From the message view, use the following options:

• To]reply to the message, press [≡ → Reply.
• To]forward the message to other people, press [≡ → Forward.
• To]delete the message, press [≡ → Delete.
• To]move the message to another folder, press [≡ → Move to folder.
• To]load images from the message, press [☐] → Show pictures.
• To view an attachment, select the attachment item. To save it to your memory card, select 📞

Talk

Learn to chat with friends and family via Google Talk ^TM .

This feature may be unavailable depending on your region or service provider.

> Add friends to your friend list

In Idle mode, open the application list and select Talk. The friend list shows all of your Google Talk contacts at a glance.
2 Press [≡] → Add friend.
3 Enter an email address of the friend and select Send invitation.

When your friend accepts the invitation, the friend is added to your friend list.

> Start a chat

1 In Idle mode, open the application list and select Talk.
2 Select a friend from the friend list. The chat screen opens.
3 Enter your message and select Send. To insert emoticons, press [☐] → More → Insert smiley.
4 To switch between active chats, press [≡] → Switch chats.
5 To end the chat, press [≡] → End chat.

Social Hub

Learn to access Social Hub ^™ , the integrated communication application for Social Network Service (SNS), email, messages, instant messages (IM), contacts or calendar information. Visit socialhub.samsungapps.com for more details.

1 In Idle mode, open the application list and select Social Hub.
2 Check and use contents delivered from Social Hub.

Entertainment

Camera

Learn how to capture and view photos and videos. You can take photos at resolutions up to 2560 x 1920 pixels (5 megapixels) and videos at resolutions up to 640 x 480 pixels.

To use the camera, you must first insert a memory card.

The camera interface appears only in the landscape orientation.

• Tap the screen to hide or display icons in the viewfinder.
• The camera automatically turns off when you do not use it for a specified period.
• The memory capacity may differ depending on the shooting scene or shooting conditions.

Capture a photo

1 In Idle mode, open the application list and select Camera.
2 Rotate the device anti-clockwise to landscape view.
3 Aim the lens at the subject and make any necessary adjustments.

Number	Function
1	Check the camera status and settings.ResolutionExposure metre typeNumber of photos you can take (according to available memory): Storage location
2	Change the shooting mode.
3	Change the scene mode.
4	Change the flash setting; You can manually turn the flash on or off or set the camera to automatically use the flash when needed.
5	Change the camera settings.
6	Switch to the camcorder.

Number	Function
7	Capture a photo.
8	View the photo you captured last.

4 Press the Volume key to zoom in or out.

The zoom function may be unavailable when shooting in the highest resolution.

5 Select to take a photo.

The photo is saved automatically.

After taking photos, select ▶ to view the taken photos.

• To view more photos, scroll left or right.

- To zoom in or out, tap the screen and select ⊕ or ⚙. You can also tap the screen with two fingers and spread them apart (move your fingers closer together to zoom out) or double-tap the screen.

• ToSharbea photo to others, select

• To set a photo as wallpaper or a caller ID image for a contact, select Set as.
• ToDelete.a photo, select

Capture a photo by using preset options for various scenes

Your camera provides you with predefined settings for various scenes. You can simply select the proper mode for your shooting condition and subjects.

For example, when you take photos at night, select the night mode that uses an extended exposure.

1 In Idle mode, open the application list and select Camera.
2 Rotate the device anti-clockwise to landscape view.
3 Select SCN → a scene.
4 Make any necessary adjustments.
5 Select 📷 to take a photo.

Capture a photo in Smile shot mode

Your camera can recognise people's faces and help you take photos of their smiling faces.

1 In Idle mode, open the application list and select Camera.
2 Rotate the device anti-clockwise to landscape view.
3 Select □ → Smile shot.
4 Make any necessary adjustments.
5 Select
6 Aim the camera lens at your subject. Your device recognises people in an image and detects their smiles. When the subject smiles, the device automatically takes a photo.

Capture a series of photos

You can easily take a series of photos of moving subjects. This is useful when you are photographing children at play or a sporting event.

1 In Idle mode, open the application list and select Camera.
2 Rotate the device anti-clockwise to landscape view.
3 Select □ → Continuous.
4 Make any necessary adjustments.
5 Tap and hold 📄. The camera will continue to take photos until you release the key.

Capture a panoramic photo

You can take wide panoramic photos using Panorama shooting mode. This mode is convenient for photographing landscapes.

1 In Idle mode, open the application list and select Camera.
2 Rotate the device anti-clockwise to landscape view.
3 Select □ → Panorama.
4 Make any necessary adjustments.
5 Select to take the first photo.
6 Slowly move the device in any direction and align the green frame with the viewfinder. When you have aligned the green frame and viewfinder, the camera will automatically take the next photo.
7 Repeat step 6 to complete the panoramic photo.

Customise camera settings

Before taking a photo, select ⏻ → to access the following options:

Option Function
Exposure value	Set the exposure value.
Focus mode	Take close-up photos or set the camera to focus on the subject.
Timer	Select the length of the delay before the camera takes a photo.
Resolution Change the resolution option.
White balance	Adjust the colour balance according to lighting conditions.
Effects Apply a special effect.
ISO	Adjust the sensitivity of the camera imaging sensor.

Option Function
Metering Select a type of exposure metre.
Auto contrast	Automatically adjust contrast between your subject and background.
Image quality	Set the quality level for your photos.
Adjust	Adjust contrast, saturation, and sharpness.

Before taking a photo, select → to access the following settings:

Setting Function
Guidelines	Display the guidelines on the preview screen.
Review	Set the camera to display the taken image.
Setting Function
GPS	Set the camera to include location information for your photos. To improve GPS signals, avoid shooting in locations where the signal may be obstructed, such as between buildings or in low-lying areas, or in poor weather conditions.
Shutter sound	Set the camera shutter to make a sound when capturing a photo.
Reset Reset menus and shooting options.

> Record a video

1 In Idle mode, open the application list and select Camera.
2 Rotate the device anti-clockwise to landscape view.
3 Select 📷 to switch to the camcorder.
4 Aim the lens at the subject and make any necessary adjustments.

Number Function
1	Check the camcorder status and settings.Resolutionof video that can be recorded (according to available memory): Storage location
2	Change the recording mode (for attaching to a multimedia message or for saving normally).
3	Change the flash setting; You can manually turn the flash on or off or set the camera to automatically use the flash when needed.
4	Change the camcorder settings.

Number	Function
5	Switch to the camera.
6	Record a video.
7	View the video you recorded last.

5 Press the Volume key to zoom in or out.

The zoom function may be unavailable when recording in the highest resolution.

6 Select ● to start recording.

7 Select ■ to stop recording.

The video is saved automatically.

The camera may not be able to properly record videos to a memory card with a slow transfer speed.

After recording videos, select ▶ to view the recorded videos.

• To view more videos, scroll left or right.
• To send a video to others, select Share.
- Toplay.a video, select
- To delete a video, select

Customise camcorder settings

Before recording a video, select → 📷 to access the following options:

Option Function
Timer	Select the length of the delay before the camera starts recording a video.
Resolution Change the resolution option.
White balance	Adjust the colour balance according to lighting conditions.

Option Function
Effects Apply a special effect.
Video quality Set the quality level for your videos.
Adjust	Adjust contrast, saturation, and sharpness.

Before recording a video, select → to access the following settings:

Setting Function
Guidelines	Display the guidelines on the preview screen.
Audio recording	Turn the audio on or off.
Review	Set the camera to display the recorded video.
Reset Reset menus and shooting options.

Gallery

Learn to view photos and play videos saved on your memory card.

Supported file formats

Type Format
Image Extension: bmp, gif, jpg, png, wbmp, agif
Video	• Extension: 3gp, mp4Codec: MPEG4, H.263, H.264•

Some file formats are not supported depending • on the software of the device.

- If the file size exceeds the available memory, an error can occur when you open files.

View a photo

1 In Idle mode, open the application list and select Gallery.
2 Select a folder.
3 To change the view mode, select or at the top right of the screen.
4 Select a photo (with no icon) to view.

While viewing a photo, use the following options:

• To view more photos, scroll left or right.
- To zoom in or out, select ⊕ or ⬇. You can also tap the screen with two fingers and spread them apart (move your fingers closer together to zoom out) or double-tap the screen.
- To start a slideshow in the selected folder, select Slideshow. Tap the screen to stop the slideshow.
• To use additional features using the photo, such as sharing, deleting, and editing options, select Menu.

> Play a video

1 In Idle mode, open the application list and select Gallery.
2 Select a video (with the icon) to play.
3 Rotate the device anti-clockwise to landscape view.
4 Control playback with the virtual keys.

Share images or videos

1 In Idle mode, open the application list and select Gallery.
2 Select a folder.
3 Press [≡] and select image or video files.
4 Select Share → a sharing option.

Music

Learn to listen to your favourite music while on the go with the music player. The music player supports the following file formats: mp3, ogg, aac.

To use the music player, you must first insert a memory card.

You can also play music files in the following • formats if you open them from My files, multimedia messages, or on the web browser: mid, xmf, rtttl, imy, rtx, ota, amr, wav, mxmf.

• Some file formats are not supported depending on the software of the device.
• If the file size exceeds the available memory, an error can occur when you open files.

> Add music files to your memory card

Start by transferring files to your memory card:

- Download from the wireless web.

• Download from a PC with Samsung Kies.

- Redeipe & 3a Bluetooth.

• Copy to your memory card.

> Play music

After transferring music files to your device or memory card,

1 In Idle mode, open the application list and select Music.

2 Select a music category → a music file.

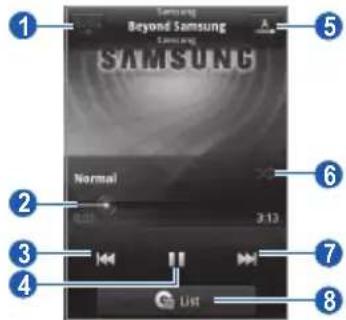

3 Control playback with the following keys:

Number	Function
1	Activate the 5.1 channel surround sound system when a headset is connected.
2	Move to a point of the file by dragging the bar.
3	Restart playback or skip backward; Scan backward in a file (tap and hold).
4	Pause playback; Select to resume playback.
5	Change the repeat mode (off, repeating one file, or repeating all files).
61	Activate Shuffle mode.
7	Skip forward; Scan forward in a file (tap and hold).
8	Open the playlist.

1. These icons are shown when you tap the player screen.

You can control the music player with a headset. In • Idle mode, press and hold the headset button to launch the music player. Press the headset button to start or pause playback.

- SRS CS Headphone™ delivers a 5.1 surround sound experience over standard headphones or earbuds when listening to multichannel content, such as DVD movies.

- WOW HD™ significantly improves the playback quality of audio, delivering a dynamic 3D entertainment experience with deep, rich bass and high frequency clarity for crisp detail.

> Create a playlist

1 In Idle mode, open the application list and select Music.

2 Select a category → a music file.

3 Press [≡] → Add to playlist → New.
4 Enter a title for your new playlist and select Save.
5 To add more music files to the playlist, play a file and press [≡] → Add to playlist → the new playlist.

Use the party shuffle feature

When you turn on the party shuffle feature, your device selects and plays music files randomly.

1 In Idle mode, open the application list and select Music.
2 Press [≡] → Party shuffle.
3 To turn off the party shuffle feature, press [≡] → Party shuffle off.

Customise music player settings

1 In Idle mode, open the application list and select Music.
2 Select a category → a music file.
3 Press [≡] → Settings.
4 Adjust the following settings to customise your music player:

Option Function
5.1 channel	Set whether or not to activate the virtual 5.1 channel surround sound system when a headset is connected.
Equaliser Select	a default equaliser type.

FM radio

Learn to listen to music and news on the FM radio. To listen to the FM radio, you must connect a headset, which serves as the radio antenna.

> Listen to the FM radio

1 Plug a headset into the device.
2 In Idle mode, open the application list and select FM radio.
The FM radio scans and saves available stations automatically.

The first time you turn on the FM radio, it will start automatic tuning.

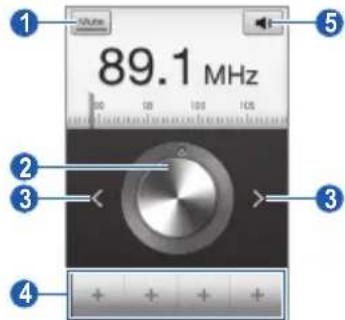

3 Control the FM radio with the following keys:

Number	Function
1	Turn the FM radio off or on.
2	Fine-tune the frequency.
3	Search for an available radio station.
Number Function
4	Add the current radio station to the favourites list.
5	Adjust the volume.

> Save a radio station automatically

1 Plug a headset into the device.
2 In Idle mode, open the application list and select FM radio.
3 Press [≡] → Scan → a scanning option.
The FM radio scans and saves available stations automatically.

> Add a radio station to the favourites list

1 Plug a headset into the device.
2 In Idle mode, open the application list and select FM radio.
3 Scroll to the radio station you want.
4 Select + to add to the favourites list.

You can add a name for a radio station or remove a radio station; Tap and hold a radio station on the favourites list and select Remove or Rename.

Customise FM radio settings

1 In Idle mode, open the application list and select FM radio.
2 Press [≡] → Settings.
3 Adjust the following settings to customise your FM radio:

Option Function
Region Select	your region.
Background playing	Set whether or not to run the FM radio in the background while using other applications. If this feature is on, you can control the FM radio from the shortcuts panel.

Option Function
Show station ID	Set whether or not to show the station ID on the FM radio screen; Station IDs are available only from radio stations that provide this information.
Alternative frequency	Set whether or not the FM radio attempts to retune a radio station when the current signal is weak.
FM auto off	Set the FM radio to automatically turn off after a specified length of time.

Personal information

Contacts

Learn to create and manage a list of your personal or business contacts. You can save names, mobile phone numbers, home phone numbers, email addresses, birthdays and more for your contacts.

> Create a contact

1 In Idle mode, open the application list and select 📁.
2 Select
3 Select a memory location. If you have more than one account, select an account to which you want to add the contact.

4 Enter contact information.
5 Select Save to add the contact to memory.

You can also create a contact from the dialling screen.

1 In Idle mode, open the application list and select → Keypad.
2 Enter a phone number.
3 Select Add to Contacts →
4 Select a memory location. If you have more than one account, select an account to which you want to add the contact.
5 Enter contact information.
6 Select Save to add the contact to memory.

> Find a contact

1 In Idle mode, open the application list and select
2 Scroll up or down on the contact list.
3 Select a contact's name.

Once you find a contact, you can:

• call the contact by selecting a phone number.
• send a message by selecting Message.
• send an email message by selecting an email address. edit the contact information by pressing [→] → Edit.

Set a speed dial number

1 In Idle mode, open the application list and select 📁.
2 Press [≡] → More → Speed dial.

3 Select a location number → a contact.

You can quickly dial this number by touching and holding the location number from the dialling screen.

> Create your namecard

1 In Idle mode, open the application list and select 📁.
2 Press [≡] → My profile.
3 Enter your own personal details.
4 Select Save.

You can send your namecard by attaching it to a message or email or transferring it via the Bluetooth wireless feature.

▶ Retrieve contacts from your community accounts

You can view the list of community website accounts and select an account to add a contact from the website to your phone contacts.

1 In Idle mode, open the application list and select ☐.
2 Press [≡] → Get friends.
3 Select an account.

> Create a group of contacts

By creating groups of contacts, you can manage multiple contacts and send messages or email to an entire group. Start by creating a group.

1 In Idle mode, open the application list and select →Groups.
2 Press [≡] → Create.

3 Enter a name and select a ringtone for the group.
4 Select Save.

> Copy contacts

To copy contacts from the SIM or USIM card to your device,

1 In Idle mode, open the application list and select 🔒.
2 Press [≡] → Import/Export → Import from SIM card.
3 Select contacts to copy and select Import.

To copy contacts from your device to the SIM or USIM card,

1 In Idle mode, open the application list and select ☐.
2 Press [≡] → Import/Export → Export to SIM card.
3 Select contacts to copy and select Export→Yes.

> Import or export contacts

To import contact files (in vcf format) from a memory card to your device,

1 In Idle mode, open the application list and select 📁.
2 Press [≡] → Import/Export → Import from SD card.
3 Select a memory location. If you have more than one account, select an account to which you want to add the contact.

4 Select an option for importing a single contact file, multiple contact files, or all contact files, and select OK.

5 Select contact files to import and select OK.

To export contacts from your device to a memory card,

1 In Idle mode, open the application list and select 📁.
2 Press [≡] → Import/Export → Export to SD card.
3 Select Yes to confirm.

> View the communication log

You can view the communication log of calls, messages, email or SNS threads.

1 In Idle mode, open the application list and select → History.
2 Select an item you want to view.

> View social network activities

You can view the recent activities of contacts in social network services, such as Facebook, MySpace, and Twitter.

1 In Idle mode, open the application list and select → Activities.
2 Select an item you want to view.

Calendar

Learn to create and manage daily, weekly or monthly events, and set alarms to remind yourself of important events.

> Create an event

1 In Idle mode, open the application list and select Calendar.
2 Press [≡] → More → Create.

3 Enter the details of the event as required.
4 Select Done.

> View events

To change the calendar view,

1 In Idle mode, open the application list and select Calendar.
2 Press [≡] and select Day, Week, or Month.

To view events of a specific date,

1 In Idle mode, open the application list and select Calendar.
2 Select a date on the calendar. In month view, days with scheduled events are indicated by a blue bar. To select today's date, press [≡] → Today.
3 Select an event to view its details.

> Stop an event alarm

If you set an alarm for a calendar event, the event alarm icon will appear at the specified time.

1 Open the shortcuts panel from the top of the screen.
2 Select a reminder to view more details about the event.
3 To snooze or dismiss the reminder, select Snooze all or Dismiss all.

Memo

Learn to record important information to save and view at a later date.

Create a memo

1 In Idle mode, open the application list and select Memo.

2 Select Create memo or press [ ] → Create.
3 Enter your memo text.
4 Press [→] to hide the keypad.
5 Select a colour to change a background colour.
6 Select Save.

> View memos

1 In Idle mode, open the application list and select Memo.
2 Select a memo to view its details. To edit the memo, select 🤕.

• To delete the memo, select × → OK.

You can send the memo to others by tapping and holding the memo and selecting Send via → an option.

Voice recorder

Learn to operate your device's voice recorder.

To use the voice recorder, you must first insert a memory card.

Record a voice memo

1 In Idle mode, open the application list and select Voice recorder.
2 Select Record to start recording.
3 Speak into the microphone.
4 When you are finished recording a memo, select Stop. Your memo is saved automatically.
5 To record more voice memos, select Record from the bottom of the screen.

> Play a voice memo

1 In Idle mode, open the application list and select Voice recorder.
2 Select List.
3 Select a voice memo to play.
You can send the voice memo to others by pressing [≡] → Share → an option.

Web

Web services require a data connection. Contact your operator to choose the best data plan.

Internet

Learn to access and bookmark your favourite web pages.

You may incur additional charges for accessing the web and downloading media. For details, contact your service provider.

• The web browser menu may be labelled differently depending on your service provider.
  • Available icons may vary depending on your region or service provider.

> Browse web pages

1 In Idle mode, open the application list and select Internet to launch a specified homepage.

To access a specific web page, select the URL input field, enter the web address of the web page, and select →.

2 Navigate web pages with the following keys:

The screen may differ depending on your region or service provider.

Number Function
1	Enter the web address of a web page to access.
2	Open a list of saved bookmarks, frequently visited pages and recent internet history.

While browsing the web page, use the following options:

• To zoom in or out, double-tap the screen. You can also use the two finger zoom; Place your two fingers on the screen and slowly pinch or spread apart.
• To]open a new window, press [≡ → New window.
• To]view the currently active windows, press [→ Windows. You can open multiple pages and switch back and forth between them.

To reload the current web page, press [→] → Refresh.

• To]go to the next page in history, press [≡] → Forward.
• To]bookmark the current web page, press [≡] → Add bookmark.
  • To add a shortcut to the current web page to the idle screen, press [☐] → More → Add shortcut to Home.
• To]search for text on the web page, press [≡] → More → Find on page.
• To]view web page details, press [≡] → More → Page info.
• To send the web address of the web page to others, press [T] → More → Share page.
• To]view the download history, press [≡] → More → Downloads.
• To]customise browser settings, press [≡] → More → Settings.

> Search for information by voice

This feature may be unavailable depending on your region or service provider.

1 In Idle mode, open the application list and select Internet.
2 Select the address field.
3 Select 🔔 and say a keyword into your device's microphone. The device searches for information and web pages related with the keyword.

> Bookmark your favourite web pages

If you know the web address of a web page, you can manually add a bookmark. To add a bookmark,

1 In Idle mode, open the application list and select Internet.

2 Select → Bookmarks.
3 Select Add or press [F] → Bookmark last-viewed page.
4 Enter a page title and a web address.
5 Select OK.

From the bookmark list, tap and hold a bookmark and use the following options:

• To open the web page in the current window, select Open.

• To open the web page in a new window, select new window.
  • To Edit bookmark mark details, select
  • To add the bookmark shortcut to the idle screen, select Add shortcut to Home.
  • To send the web address of the web page to others, select Share link.

• ToCopy the web address of the web page, select link URL.
  • To Delete the bookmark, select
  • To use the web page as your homepage of the browser, select Set as homepage.

Access the frequently visited pages or the recent history

1 In Idle mode, open the application list and select Internet.
2 Select → Most visited or History.
3 Select a web page to access.

You can add a web page to the bookmark list by selecting the star icon on the right.

Maps

Learn to use Google Maps ^™ to find your location, search the map for streets, cities, or countries, and get directions.

To receive better GPS signals, avoid using your device in the following conditions:

• between buildings, in tunnels or underground passages, or inside buildings
• in poor weather around high voltage or electromagnetic fields• in a vehicle with sun protection film•

Do not touch the internal antenna area or cover this area with your hands or other objects while using the GPS functions.

This feature may be unavailable depending on your region or service provider.

> Activate location services to use with Google Maps

You must activate location services to find your location and search the map.

1 In Idle mode, open the application list and select Settings → Location and security.

2 Adjust the following settings to activate location services:

Option Function
Use wireless networks	Set to use WLAN and/or mobile networks for finding your location.
Use GPS satellites	Set to use the GPS satellite for finding your location.

> Search for a specific location

1 In Idle mode, open the application list and select Maps.
2 If you are launching this application for the first time, select OK to confirm.

The map will display your current location.

3 Press [≡] → Search or select Q
4 Enter a keyword for the location and select

• To search for a location by voice, select
- To view a list of all results for your search, select
• To zoom in or out, select
• To search for a place around you, select?
• To add layers to the map, select
• To view your current location, select

To add a star to the location, select the balloon of the location name → ☆.

> Get directions to a specific destination

1 In Idle mode, open the application list and select Maps.
2 Press [≡] → Directions.
3 Enter the addresses of the starting location and the ending location.

To select an address from your contact list or starred places, or point the location on the map, select → Contacts, Point on map, or Starred places.

4 Select a travel method (car, bus, or walk) and select Go.
5 Select a travel route to view details of your trip (if necessary).
6 Select n.

The route is indicated on the map. To view only the single part of the route, select ← or .

7 When you are finished, press [☐] → Clear Map.

Share your location via Google Latitude

Learn to share your location with your friends and view friends' locations via Google Latitude™.

1 In Idle mode, open the application list and select Latitude.
The device automatically joins Latitude.
2 Press [≡] → Add friends → Select from Contacts or Add via email address.
3 Select a friend you want to add, or enter an email address and select Add friends.
4 Select Yes.

When your friend accepts your invitation, you can share locations.

5 Press [≡] → See map.

Your friends' locations are marked with their photos on the map.

> Search for a place around you

This feature may be unavailable depending on your region or service provider.

1 In Idle mode, open the application list and select Places.
2 Select a category.
Your device searches for places around your current location that are related to the category.
3 Select a place name to view its details.
4 To view the place on the map, select ☐.
To view the route to the place, select ◆.
To view the phone number of the place, select 📞.

> Navigate to your destination

Learn to use the GPS navigation system to find and show your destination with voice guidance.

Navigation maps, your current location, and other • navigational data may differ from actual location information. You should always pay attention to road conditions, traffic, and any other factors that may affect your driving and follow all safety warnings and regulations while driving.

- This feature may be unavailable depending on your region or service provider.

1 In Idle mode, open the application list and select Navigation.

2 If you are launching this application for the first time, select Accept.

3 Enter your destination by using one of the following methods:

• Speak Destinationination such as "Navigate to destination."
• Type Destination with the virtual keypad.
• Contacts your destination from addresses of your contacts.
  • Starred Places destination from the list of your starred places.

4 Select Install to use voice-guided navigation (if necessary).

5 Follow the route indicated on the map and the voice guide.

To view directions in text form, select ☐.

6 To end the navigation, press [≡] → Exit Navigation.

Google Search

You can search for applications in your device and specific data on the web.

1 In Idle mode, open the application list and select Google Search.
2 Enter a letter or a word of the data to search for. To search for data by voice, select and say a keyword into your device's microphone.
3 Select the item's name you want to access.

YouTube

Learn to view and upload videos via YouTube.

This feature may be unavailable depending on your region or service provider.

> Watch videos

1 In Idle mode, open the application list and select YouTube.
2 If you are launching this application for the first time, select Accept to confirm.
3 Select a video from the list.

4 Rotate the device anti-clockwise to landscape view.
5 Control playback with the following keys:

Number	Function
1	Move to a point of the file by dragging the bar.
2	Change the quality of the display.

> Upload videos

1 In Idle mode, open the application list and select YouTube.
2 Press [≡] → Upload and select a video. Skip to 8. If you want to upload new videos, select 🔒 to turn on the camera.
3 Rotate the device anti-clockwise to landscape view.
4 Aim the lens at the subject and make any adjustments.
5 Select ● to start recording.
6 Select ■ to stop recording.
7 Select Save to upload the video that you have recorded.
8 Enter your user name and password and select Sign in.
9 Enter details of the upload and select Upload.

News & Weather

Learn to view the weather information and read top news and other news articles.

> View the weather information

1 In Idle mode, open the application list and select News & Weather.
2 Select Weather at the top of the screen. Your device searches for your current location and displays the weather information.

You can change the location to view the weather information in another region. Press [≡] → Settings → Weather settings and clear the check box next to Use My Location. Then select a location in Set location.

Read news articles

1 In Idle mode, open the application list and select News & Weather.
2 Select a news topic at the top of the screen.
3 Select an article to open.

To add news topics, press [] → Settings → News settings → Select news topics.

Samsung Apps

Samsung Apps allows you to simply and easily download an abundance of applications directly to your device. Featuring a wealth of games, news, reference, social networking, navigation, health related applications and more, Samsung Apps gives you instant access to a huge choice of mobile experience.

Your device gets smarter with fully optimised applications from Samsung Apps. Explore amazing applications and make your mobile life even better.

The feature may be unavailable depending on your region or service provider.

- For details, please visit www.samsungapps.com.

1 In Idle mode, open the application list and select Samsung Apps.
2 Search for and download applications as desired.

Market

You can download games, ringtones, or other applications from the Android Market.

This feature may be unavailable depending on your region or service provider.

1 In Idle mode, open the application list and select Market.
2 Search for a file and download it to the device. ▶ p. 33

Mobile Jukebox

You can download and play music from the preset web page.

In Idle mode, open the application list and select Mobile Jukebox.

This feature may be unavailable depending on your region.

TopApps

You can check and download applications from Top Apps.

This feature may be unavailable depending on your region.

1 In Idle mode, open the application list and select TopApps.
2 Search for a file and download it to the device.

Connectivity

Bluetooth

Bluetooth is a short-range wireless communications technology capable of exchanging information over a distance of about 10 m without requiring a physical connection.

You do not need to line up the devices to beam information with Bluetooth. If the devices are within range of one another, you can exchange information between them even if they are located in different rooms.

Samsung is not responsible for the loss, • interception, or misuse of data sent or received via the Bluetooth wireless feature.

• Always ensure that you share and receive data with devices that are trusted and properly secured. If there are obstacles between the devices, the operating distance may be reduced.
• Some devices, especially those that are not tested or approved by Bluetooth SIG, may be incompatible with your device.

> Turn on the Bluetooth wireless feature

1 In Idle mode, open the application list and select Settings → Wireless and networks → Bluetooth settings.
2 Select Bluetooth to turn on the Bluetooth wireless feature.

Find and pair with other Bluetooth-enabled devices

1 In Idle mode, open the application list and select Settings → Wireless and networks → Bluetooth settings → Scan devices.
2 Select a device.
3 Enter a PIN for the Bluetooth wireless feature or the other device's Bluetooth PIN, if it has one, and select OK. Alternatively, select Accept to match the PIN between your device and the device.

When the owner of the other device enters the same PIN or accepts the connection, pairing is complete. If the pairing is successful, the device will automatically search for available services.

Some devices, especially headsets or hands-free car kits, may have a fixed Bluetooth PIN, such as 0000. If the other device has a PIN, you must enter it.

Send data using the Bluetooth wireless feature

1 Select a file or item, such as a contact, memo, or media file, from an appropriate application or My files.
2 Select an option for sending data via Bluetooth.

The method for selecting an option may vary by data type.

3 Search for and pair with a Bluetooth-enabled device.

Receive data using the Bluetooth wireless feature
1 In Idle mode, open the application list and select Settings → Wireless and networks → Bluetooth settings → Discoverable.

Your device is visible to other Bluetooth devices for 120 seconds.

2 When prompted, enter the PIN for the Bluetooth wireless feature and select OK (if necessary).
3 Select Accept to confirm that you are willing to receive data from the device (if necessary).

Received data is saved to the bluetooth folder. If you receive a contact, it is automatically saved to the phonebook.

Wi-Fi

Learn to use your device's wireless networking capabilities to activate and connect to any wireless local area network (WLAN) compatible with the IEEE 802.11 b/g/n standards.

You can connect to the internet or other network devices anywhere an access point or wireless hotspot is available.

Your device uses non-harmonised frequency and is intended for use in all European countries. The WLAN can be operated in the EU without restriction indoors, but cannot be operated outdoors in France.

> Activate the WLAN feature

In Idle mode, open the application list and select Settings → Wireless and networks → Wi-Fi settings → Wi-Fi.

An active WLAN running in the background will consume battery power. To preserve battery power, activate the WLAN only when needed.

> Find and connect to a WLAN

1 In Idle mode, open the application list and select Settings → Wireless and networks → Wi-Fi settings. The device will automatically search for available WLANs.
2 Select a network under Wi-Fi networks.
3 Enter a password for the network (if necessary).
4 Select Connect.

> Add a WLAN manually

1 In Idle mode, open the application list and select Settings → Wireless and networks → Wi-Fi settings → Add Wi-Fi network.
2 Enter the SSID for the network and select the security type.
3 Set the security settings depending on the selected security type.
4 Select Save.

AllShare

Learn to use the Digital Living Network Alliance (DLNA) service that enables you to share media files between DLNA-enabled devices in your home over a WLAN.

You must first activate the WLAN feature and add a WLAN profile. ▶ p. 84

Customise DLNA settings for sharing media files

To allow other DLNA-enabled devices to access media files on your device, you must activate media sharing.

Some files may not play on the DLNA-enabled devices depending on the devices.

1 In Idle mode, open the application list and select AllShare.
2 Select Settings.
3 Adjust the following settings to customise the DLNA feature:

Option Function
Media server name	Enter a name for your device as a media server.
Share media	Turn on video sharing, image sharing, or music sharing with other DLNA-enabled devices.
Access point network	Select a WLAN AP to use for DLNA connections.
Upload from other devices	Set whether or not to accept the upload from other devices.

> Play your files on another DLNA-enabled device

1 In Idle mode, open the application list and select AllShare.
2 Select Play file from my phone on another player.
3 Select a media category and select files you want to play.
4 Select Add to playlist.

5 Select a player—the one that will play the media file. Playback begins at the selected player.
6 Control playback using icons of your device.

Playback may be buffered, depending on the network connection and the connected server.

> Play files of one device on the other device

1 In Idle mode, open the application list and select AllShare.
2 Select Play file from server on another player via my phone.

Your device automatically searches for DLNA-enabled devices.

3 Select a device as the media server—the one that contains media files.
4 Select a media category and select files you want to play.
5 Select Add to playlist.
6 Select a player—the one that will play the media file. Playback begins at the selected player.
7 Control playback using icons of your device.

Mobile network sharing

Learn to set your device as a wireless modem or wireless access point for PCs or other devices, and share your device's mobile network connection.

Share your device's mobile network via USB

1 Using a USB cable, connect the multifunction jack on your device to a PC.
2 In Idle mode, open the application list and select Settings → Wireless and networks → Tethering and portable hotspot.
3 Select USB tethering to activate the USB tethering feature.
Your device shares the mobile network connection on your PC.
To stop sharing the network connection, clear the check box next to USB tethering.

The sharing method for the network connection may differ depending on the PC's operating system.

Share your device's mobile network via WLAN

1 In Idle mode, open the application list and select Settings → Wireless and networks → Tethering and portable hotspot.

2 Select Mobile AP to activate the mobile AP feature.

3 Select Mobile AP settings → Configure mobile AP to customise the mobile AP feature:

Option Function
Network SSID	View and edit the device name that will be shown to external devices.
Security Select	the security type.

4 From another device, locate your device's name in the available connection list and connect to the network. Your device shares the mobile network connection on another device.

PC connections

Learn to connect your device to a PC with a USB cable in various USB connection modes. By connecting the device to a PC, you can transfer data to and from your device directly and use the Samsung Kies program.

> Connect with Samsung Kies

Ensure that Samsung Kies is installed on your PC. You can download the program from the Samsung website (www.samsung.com/kies).

Samsung Kies will work on both Windows and Macintosh computers.

1 Using a USB cable, connect the multifunction jack on your device to a PC.
Samsung Kies will launch automatically.
If Samsung Kies does not automatically launch, double-click the Samsung Kies icon on your PC.
2 Copy files from the PC to the device.
Refer to the Samsung Kies help for more information.

> Connect as a mass storage device

If you insert a memory card in the device, you can access the file directory of the memory card by using the device as a memory card reader.

1 Insert a memory card into the device.

2 Using a USB cable, connect the multifunction jack on your device to a PC.

3 Open the shortcuts panel.
4 Select USB connected → Connect storage to PC → OK.
5 Open the folder to view files.
6 Copy files from the PC to the memory card.
7 When you are finished, select Disconnect storage from PC.

To disconnect the device from the PC, click the USB device icon on the Windows task bar and click the option to safely remove the mass storage device. Then remove the USB cable from the PC. Otherwise, you may lose data stored on the memory card or damage the memory card.

VPN connections

You can create virtual private networks (VPN) and connect to your private network securely through a public network, such as the internet.

Your device should already be configured with internet access. If you have trouble accessing the internet, you need to edit connections. If you are not sure about the connection information to enter, ask your service provider.

> Set up VPN connections

1 In Idle mode, open the application list and select Settings → Wireless and networks → VPN settings → Add VPN.

2 Select a VPN type.

3 Customise the connection information.

Available options may vary depending on the VPN type.

Option Function
VPN name Enter a name of the VPN server.
Set VPN server	Enter the IP address of the VPN server.
Enable Encryption	Set to encrypt the VPN server.
Set IPsec pre-shared key	Enter a pre-shared key.
Enable L2TP secret	Set to use the L2TP secret password.
Set L2TP secret	Enter the L2TP secret password.
Set user certificate	Select a user certificate that the VPN server uses to identify you. You can import certificates from the VPN server or download from the web.
Set CA certificate	Select a certificate authority (CA) certificate that the VPN server uses to identify you. You can import certificates from the VPN server or download from the web.
DNS search domains	Enter the domain name server (DNS) address.

4 When you are finished, press [≡] → Save.

> Connect to a private network

1 In Idle mode, open the application list and select Settings → Wireless and networks → VPN settings.
2 Select a private network to connect.
3 Enter the user name and password and select Connect.

Tools

Clock

Learn to use the clock display on the Idle screen, and set and control alarms for important events.

Use the clock display

1 In Idle mode, open the application list and select Clock.
2 While using the clock display, use the following features:

• To create or delete an alarm, select
- To play a slideshow with photos in Gallery, select
• To launch the music player, select
• To return to the idle screen, select

> Set a new alarm

1 In Idle mode, open the application list and select Clock.
2 Press [≡] → Add alarm.
3 Set alarm details.
4 When you are finished, select Done.

The snooze feature sets the device to repeat the alarm after a specific length of time. To set the length of time for the snooze feature, press [≡] → Settings → Snooze duration.

> Stop an alarm

When the alarm sounds,

• SelDismiss to stop the alarm.
• Sellooze to repeat the alarm after a specified length of time.

Calculator

Learn to perform mathematical calculations directly on your device like a typical hand-held or desktop calculator.

1 In Idle mode, open the application list and select Calculator.
2 Use the keys that correspond to the calculator display to perform basic mathematical operations.
3 Press [≡] → Advanced panel to use scientific calculator.

Downloads

Learn to manage logs of files you have downloaded from the web and email.

1 In Idle mode, open the application list and select Downloads.

2 Select a download folder.
3 To open a downloaded file, select the log. To delete a log, select the check box and then select Delete.

My files

Learn to quickly and easily access all of your images, videos, music, sound clips, and other types of files stored on your memory card.

1 In Idle mode, open the application list and select My files.
2 Select a folder.
- To move up one level in the file directory, select Up.
• ToHome to the Home directory, select
3 Select a file to open.

In a folder, press [≡] to use the following options:

• To send a file to others via multimedia message, email or the Bluetooth wireless feature, select Share.
  • ToCreate folderfolder, select
• To delete.files or folders, select
  • To view by the view mode, select
• To list files or folders, select
• To use additional features using a file, such as moving, copying or renaming option, select More.

SIM Toolkit

Use a variety of additional services offered by your service provider. Depending on your SIM or USIM card, this menu may be available but labelled differently.

In Idle mode, open the application list and select SIM Toolkit.

Task manager

With the task manager, you can view currently running applications, package size of applications, and memory information, and monitor the RAM memory.

1 In Idle mode, open the application list and select Task manager.
2 Use the following options:

Active applications• : View the list of all the applications currently running on your device.

• Package the package size of applications installed on your device.
• RAMcheck and manage the RAM memory for your device.
• Summary he used and available memory on your device and memory card.
• Helpiew help information about extending battery life.

ThinkFree Office

Learn to create and view document files on your device. If you have an account with the ThinkFree web service, you can manage documents online. This application supports the following file formats: txt, doc, docx, xls, xlsx, ppt, pptx, pdf.

> Create a new document

1 In Idle mode, open the application list and select ThinkFree Office.
2 Select Accept to confirm, if you are launching this application for the first time.
3 Select Activate now → Close to activate ThinkFree Office.
4 Select My Docs.
5 Press [■] → New → a document type.

6 Enter a name for the document and select OK.
7 Enter contents in the document by using the tools at the bottom of the screen.
8 When you are finished editing, select 📄 on the toolbar or press [icon] → File → Save.

View and edit a document on your device

1 In Idle mode, open the application list and select ThinkFree Office.
2 Select My Docs→ a document.
3 Select a text encoding type (if necessary).
4 View and edit the document as desired.
To zoom in or out, use the two finger zoom; Place your two fingers on the screen and slowly pinch or spread apart.

To open the toolbar to edit the document (word, • text, or excel file), press [f] → Edit.

- To search for text in the document, press = → Find.

5 When you are finished editing, save the document.

> Manage documents online

1 In Idle mode, open the application list and select ThinkFree Office.
2 Select Online.
3 Enter your user name and password to access your account, and then select Sign in.
4 View and manage your documents on the server as desired.

Voice Search

Learn to use the voice command feature to dial a number, send a message, or search for locations and information by voice.

This feature may be unavailable depending on your region or service provider.

1 In Idle mode, open the application list and select Voice Search.
2 If you are launching this application for the first time, select Agree to use location information for your search, and then set whether or not to activate personalised recognition.
3 Select Speak now.
4 Say a command into the microphone.

Settings

Access the Settings menu

1 In Idle mode, open the application list and select Settings.
2 Select a setting category and select an option.

Wireless and networks

Change the settings for wireless network connections.

> Flight mode

Disable all wireless functions on your device. You can use only non-network services.

> Wi-Fi settings

• Wi-Fi: Turn the WLAN feature on or off. ▶ p. 84
• Network notification notify you when an open network is available.
- AddAdd-PInNetworksmanually.

Bluetooth settings

• Bluetooth: Turn the Bluetooth wireless feature on or off. ▶ p. 82
  • Device a Blmetooth name for your device.
• Discoverable device to be visible to other Bluetooth devices.
• Scafe devices available Bluetooth devices.

Tethering and portable hotspot

• USB tethering: Activate the USB tethering feature to share your device's mobile network connection with PCs via USB. When connected to a PC, your device is used as a wireless modem for a PC. ▶ p. 87
• Mobile AP the Portable WLAN hotspot feature to share your device's mobile network connection with PCs or other devices through the WLAN feature. ▶ p. 88
• Mobile AP settings fork settings for your WLAN hotspot.

VPN settings

Set up and connect to virtual private networks (VPNs). ▶ p. 90

> Mobile networks

Use packet data• : Set to allow packet switched data networks for network services.

• Data to the rating to connect another network when you are roaming or your home network is not available.
• Access PointNameint names (APNs).
• Use only 2G network connect only to a 2G network.
  • Network operatorsable networks and select a network for roaming.

Call settings

Customise the settings for calling features.

> Fixed Dialing Numbers

• Enable FDN: Activate or deactivate FDN mode to restrict calls to numbers in the FDN list. You must enter the PIN2 supplied with your SIM or USIM card.
• Change PIN2, which is used to protect the primary PIN. If the SIM or USIM card is locked, this menu changes to Unblock PIN2.
• FDN list up a list of contacts for fixed dialling.

Voice mail service

Select your service provider's voicemail service. You can also select other voicemail services if you downloaded applications that support them.

Voice mail number

Enter the number to access the voicemail service. You can obtain this number from your service provider.

> Call forwarding

Divert incoming calls to another number.

> Additional settings

• Caller ID: Display your caller ID to other parties for outgoing calls.
• Call/Waiting coming call alerts when a call is in progress.
• Turn on proximity sensor: Set to turn on the proximity sensor during a call.

Sound

Change the settings for various sounds on your device.

• Silent time the silent mode to mute all sounds except media sounds and alarm ringtones.
• Vibrate when the device will vibrate for various events.
• Voladjusted the volume level for call ringtones, music and videos, alarm ringtones, system sound, and notification ringtones.
  • PhoSelering someone to alert you to incoming calls.
• Notificationingtone alert you to events, such as incoming messages and missed calls.

• Audible touch tones: Set the device to sound when you touch the keys on the dialling screen.

• Audible selection: Set the device to sound when you select an application or option.

• Screenlock sounds sound when you lock or unlock the touch screen.

Display

Change the settings for the display.

- Wallpapers - Home screen wallpaper image for the idle screen. - Lock screen wallpaper image for the screen lock.

- For this style the font type for the display text. You can download fonts from Android Market by selecting Get fonts online.

- Brightness brightness of the display.

• Auto-rotate screennot to rotate the content automatically when the device is rotated.
• Animation device to display animation when you switch between windows.
• Screen timeout: Set the length of time the device waits before turning off the display's backlight.
• Horizontal calibration: Calibrate the accelerometer to adjust the horizontal axis of the device for better motion recognition.

Location and security

Change the settings for securing your device and the SIM or USIM card, and GPS functionality.

• Use wireless networks: Set to use WLAN and/or mobile networks for finding your location.
• Use GPS satellites: Set to use the GPS satellite for finding your location.

- Set screen lock: Set the unlock security code. When you have set your security code, this option changes to Change screen lock.

- No Disable the screen lock.

Pattern unlock pattern to unlock the screen.

PINet a PIN (numeric) to unlock the screen.

- Password password (alphanumeric) to unlock the screen.

- Set up SIM card lock

LockSIM card deactivate the PIN lock feature to require the PIN before using the device.

ChangeSIM-PNN used to access SIM or USIM data.

• Visible password to display your password as you enter.

• Select device administrators administrators installed on your device. You can activate device administrators to apply new policies to your device.

• Use secure credentials credentials to ensure secure use of various applications.
  • Install upon Spcard certificates that are stored on a memory card.

• Set password confirm a password for accessing credentials.
• Clear storage credential contents from the device and reset the password.

Applications

Change the settings for managing installed applications.

• Unknown sources: Select to download applications from any source. If you do not select this option, you can download applications only from Android Market.

• Manage applications: Access the list of the applications installed on the device and check the application information.

• Running services: View the services you are using and access them to manage.

• Memory usage is able memory and the memory used by applications on your device and memory card.
• Battery use amount of power consumed by your device.
• Development

USBidebloggingindication development.

When your device is connected to a PC with a USB cable, the USB debugging mode will be activated and Samsung Kies will launch automatically.

Stayawake device's screen to stay on while charging the battery.

-All-Novomod locations and service information to be sent to a Location Manager service for testing. This is for application development.

- Sarisleng Appwork connection (WLAN or packet switched data network) to get application update notification from Samsung Apps.

This feature may be unavailable depending on your region or service provider.

Accounts and sync

Change the settings for the auto sync feature or manage accounts for synchronisation.

- Background dating to use the auto sync feature. The auto sync will run in the background without opening applications and synchronise data.

- AutoSync device to synchronise contact, calendar, and email data automatically.

Privacy

Change the settings for managing your settings and data.

- Backup up my data device's settings to the Google server.

- Automatic device to restore applications' data you backed up when they are installed in your device.

- Factory data settings to the factory default values and delete all your data.

SD card and phone storage

Check memory information of memory cards and your device, and format a memory card.

Locale and text

Change the settings for text input.

Select language

Select a display language for all menus and applications.

> Select input method

Select a default keyboard type for text input.

Swype

Language• : Select a language for text input.

You cannot enter text in some languages. To enter text, you should change the writing language to one of the supported languages.

- Word prediction to predict words according to your input and display word suggestions.

Audio feedback• : Set to alert you when there are no alternative words for your input if you double-tap a word.

• Enable tip indicator quick help by blinking the tip indicator.
• Autoespacingvice to automatically insert a space between words.
• Auto-capitalization automatically capitalise the first letter after a final punctuation mark, such as a period, question mark, or exclamation mark.
  • Show complete trace of your dragging on the keyboard.
• Worldchoice windowword list will display.
• Speed the accuracy for the speed and accuracy.
• Swype help information for using the Swype keyboard.

- Tutorial how to enter text faster with the Swype keyboard.

- Version version information.

Samsung keypad

- Portrait keypad types: Select the default input method, such as the QWERTY keyboard, traditional keypad, or handwriting screen.

- Input languages for text input.

You cannot enter text in some languages. To enter text, you should change the writing language to one of the supported languages.

- XT9Activate XT9 mode to enter text using Predictive input mode.

- XT9 advanced settings: Activate the advanced features of XT9 mode, such as auto completion, auto correction, or auto substitution, and set up your own word list.

Keypad sweeping• : Enable or disable the keypad sweeping feature for the text input mode. You can switch between input modes by scrolling left or right on the keypad.

- Auto-capitalization automatically capitalise the first letter after a final punctuation mark, such as a period, question mark, or exclamation mark.

- Handwriting settingsognition time in Handwriting mode.

- Voieetinput the voice input feature to enter text by voice on the Samsung keypad.

- Autofullsdapice to insert a period when you double-tap the space bar.

- Tuttoriah how to enter text with the Samsung keypad.

Voice input and output

Change the settings for the voice recogniser and the text-to-speech feature.

Voice recognition settings

Language• : Select a language for the Google voice recognition.

• SafeSearch device to filter explicit text and/or images from voice search results.
• Block offensive words your device recognised from voice search results.

Text-to-speech settings

• Listen to an example: Listen to the spoken text for an example. Install voice data for using the text-to-speech feature.
• Always use my settings rate and language settings you specify over the settings saved in applications.
• Default enginech synthesis engine to be used for spoken text.
• Install voice data install voice data for the text-to-speech feature.
• Speech rate speed for the text-to-speech feature.
• Language language for the text-to-speech feature.
  • Engines the text-to-speech engines downloaded from Android Market.

Accessibility

Change the settings for accessibility features.

• Accessibility on accessibility application you have downloaded, such as Talkback or Kickback, which provide voice, melody, or vibration feedback.
• The power key tends call when you press [①].

Date and time

Access and alter the following settings to control how time and date are displayed on your device.

If the battery remains fully discharged or removed from the device, the date and time will be reset.

Automatic• : Automatically update the time when you move across time zones.

• Set that the current date manually.
• Select time home time zone.
• Set time the current time manually.
• Use 24-hour format be displayed in 24-hour format.
• Selectated data format.

About phone

Access information about your device, check the device's status, and learn how to use your device.

Troubleshooting

When you turn on your device or while you are using the device, it prompts you to enter one of the following codes:

Code Try this to solve the problem:
Password	When the device lock feature is enabled, you must enter the password you set for the device.
PIN	When using the device for the first time or when the PIN requirement is enabled, you must enter the PIN supplied with the SIM or USIM card. You can disable this feature by using the Lock SIM card menu.

Code Try this to solve the problem:
PUK	Your SIM or USIM card is blocked, usually as a result of entering your PIN incorrectly several times. You must enter the PUK supplied by your service provider.
PIN2	When you access a menu requiring the PIN2, you must enter the PIN2 supplied with the SIM or USIM card. For details, contact your service provider.

Your device displays network or service error messages

When you are in areas with weak signals or poor • reception, you may lose reception. Move to another area and try again.

- You cannot access some options without a subscription. Contact your service provider for more details.

The touch screen responds slowly or improperly

If your device has a touch screen and the touch screen is not responding properly, try the following:

• Remove any protective covers from the touch screen. Protective covers may prevent the device from recognising your inputs and are not recommended for touch screen devices.
• Ensure that your hands are clean and dry when tapping the touch screen.
• Restart your device to clear any temporary software bugs.
• Ensure that your device software is upgraded to the latest version.
• If the touch screen is scratched or damaged, take it to your local Samsung Service Centre.

Your device freezes or has fatal errors

If your device freezes or hangs, you may need to close programs or reset the device to regain functionality. If your device is frozen and unresponsive, press and hold [1] for 8-10 seconds. The device will reboot automatically.

If this does not solve the problem, perform a factory data reset. In Idle mode, open the application list and select

Settings → Privacy → Factory data reset → Reset phone → Erase everything.

Calls are being dropped

When you are in areas with weak signals or poor reception, you may lose your connection to the network. Move to another area and try again.

Outgoing calls are not connected

Ensure that you have pressed the Dial key.

Ensure that you have accessed the right cellular network.

Ensure that you have not set call barring for the phone • number you are dialling.

Incoming calls are not connected

Ensure that your device is turned on.

Ensure that you have accessed the right cellular network.

Ensure that you have not set call barring for the • incoming phone number.

Others cannot hear you speaking on a call

Ensure that you are not covering the built-in • microphone.

- Ensure that the microphone is close to your mouth. If using a headset, ensure that it is properly connected.

Audio quality is poor

Ensure that you are not blocking the device's internal antenna.

- When you are in areas with weak signals or poor reception, you may lose reception. Move to another area and try again.

When dialling from contacts, the call is not connected

Ensure that the correct number is stored in the contact • list.

- Re-enter and save the number, if necessary.

Ensure that you have not set call barring for the contact's phone number.

The device beeps and the battery icon flashes

Your battery is low. Recharge or replace the battery to continue using the device.

The battery does not charge properly or the device turns off

The battery terminals may be dirty. Wipe both gold-coloured contacts with a clean, soft cloth and try charging the battery again.

- If the battery will no longer charge completely, dispose of the old battery properly and replace it with a new battery (refer to your local ordinances for proper disposal instructions).

Your device is hot to the touch

When you use applications that require more power or use applications on your device for an extended period of time, your device may feel hot to the touch. This is normal and should not affect your device's lifespan or performance.

Error messages appear when launching the camera

Your Samsung mobile device must have sufficient available memory and battery power to operate the camera application. If you receive error messages when launching the camera, try the following:

• Charge the battery or replace it with a battery that is fully charged.
• Free some memory by transferring files to a PC or deleting files from your device.
• Restart the device. If you are still having trouble with the camera application after trying these tips, contact a Samsung Service Centre.

Error messages appear when launching the FM radio

The FM radio application on your Samsung mobile device uses the headset cable as an antenna. Without a headset connected, the FM radio will be unable to receive radio stations. To use the FM radio, first ensure that the headset is properly connected. Next, scan for and save the available radio stations.

If you still cannot use the FM radio after performing these steps, try accessing your desired station with another radio receiver. If you can hear the station with another receiver, your device may require service. Contact a Samsung Service Centre.

Error messages appear when opening music files

Some music files may not play on your Samsung mobile device for a variety of reasons. If you receive error messages when opening music files on your device, try the following:

• Free some memory by transferring files to a PC or deleting files from your device.
• Ensure that the music file is not Digital Rights Management (DRM)-protected. If the file is DRM-protected, ensure that you have the appropriate license or key to play the file.
• Ensure that your device supports the file type.

Another Bluetooth device is not located

Ensure that the Bluetooth wireless feature is activated on your device.

• Ensure that the Bluetooth wireless feature is activated on the device you wish to connect to, if necessary.
• Ensure that your device and the other Bluetooth device are within the maximum Bluetooth range (10 m).

If the tips above do not solve the problem, contact a Samsung Service Centre.

A connection is not established when you connect the device to a PC

Ensure that the USB cable you are using is compatible with your device.

- Ensure that you have the proper drivers installed and updated on your PC.

Line drawing of a modern multi-story building with buses and parked cars, no text or symbols present

Troubleshooting

Safety precautions

To prevent injury to yourself and others or damage to your device, read all of the following information before using your device.

Warning: Prevent electric shock, fire, and explosion

Do not use damaged power cords or plugs, or loose electrical sockets

Do not touch the power cord with wet hands, or disconnect the charger by pulling on the cord

Do not bend or damage the power cord

Do not use your device while charging or touch your device with wet hands

Do not short-circuit the charger or the battery

Do not drop or cause an impact to the charger or the battery

Do not charge the battery with chargers that are not approved by the manufacturer

Do not use your device during a thunderstorm

Your device may malfunction and your risk of electric shock is increased.

Do not handle a damaged or leaking Lithium Ion (Li-Ion) battery

For safe disposal of your Li-Ion batteries, contact your nearest authorised service centre.

Handle and dispose of batteries and chargers with care

Use only Samsung-approved batteries and chargers specifically designed for your device. Incompatible batteries and chargers can cause serious injuries or damage to your device.

• Never dispose of batteries or devices in a fire. Follow all local regulations when disposing of used batteries or devices.
• Never place batteries or devices on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.
• Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating.

Protect the device, batteries, and chargers from damage

Avoid exposing your device and batteries to very cold or very hot • temperatures.

• Extreme temperatures can cause the deformation of the device and reduce the charging capacity and life of your device and batteries.
• Prevent batteries from contacting metal objects, as this can create a connection between the + and – terminals of your batteries and lead to temporary or permanent battery damage.
• Never use a damaged charger or battery.

Caution: Follow all safety warnings and regulations when using your device in restricted areas

Turn off your device where prohibited

Comply with all regulations that restrict the use of a mobile device in a particular area.

Do not use your device near other electronic devices

Most electronic devices use radio frequency signals. Your device may interfere with other electronic devices.

Do not use your device near a pacemaker

Avoid using your device within a 15 cm range of a pacemaker if possible, as your device can interfere with the pacemaker.

• If you must use your device, keep at least 15 cm away from the pacemaker.
• To minimise the possible interference with a pacemaker, use your device on the opposite side of your body from the pacemaker.

Do not use your device in a hospital or near medical equipment that can be interfered with by radio frequency

If you personally use any medical equipment, contact the manufacturer of the equipment to ensure the safety of your equipment from radio frequency.

If you are using a hearing aid, contact the manufacturer for information about radio interference

Some hearing aids may be interfered with by the radio frequency of your device. Contact the manufacturer to ensure the safety of your hearing aid.

Turn off the device in potentially explosive environments

Turn off your device in potentially explosive environments instead of • removing the battery.

• Always comply with regulations, instructions and signs in potentially explosive environments.

• Do not use your device at refuelling points (service stations), near fuels or chemicals, and at blasting areas.
• Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or accessories.

Turn off your device when in an aircraft

Using your device in an aircraft is illegal. Your device may interfere with the electronic navigation instruments of the aircraft.

Electronic devices in a motor vehicle may malfunction due to the radio frequency of your device

Electronic devices in your car may malfunction due to radio frequency of your device. Contact the manufacturer for more information.

Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicle

While driving, safely operating the vehicle is your first responsibility. Never use your mobile device while driving, if it is prohibited by law. For your safety and the safety of others, practice good common sense and remember the following tips:

Use a hands-free device.

Get to know your device and its convenience features, such as speed dial and redial. These features help you reduce the time needed to place or receive calls on your mobile device.

• Position your device within easy reach. Be able to access your wireless device without removing your eyes from the road. If you receive an incoming call at an inconvenient time, let your voice mail answer it for you.
• Let the person you are speaking with know you are driving. Suspend calls in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice, and heavy traffic can be hazardous.
• Do not take notes or look up phone numbers. Jotting down a "to do" list or flipping through your address book takes attention away from your primary responsibility of driving safely.
• Dial sensibly and assess the traffic. Place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call, dial only a few numbers, check the road and your mirrors, then continue.

• Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that have the potential to divert your attention from the road.

• Use your device to call for help. Dial a local emergency number in the case of fire, traffic accident, or medical emergencies.

• Use your device to help others in emergencies. If you see an auto accident, a crime in progress, or a serious emergency where lives are in danger, call a local emergency number.
• Call roadside assistance or a special, non-emergency assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or another special, non-emergency number.

Proper care and use of your mobile device

Keep your device dry

Humidity and all types of liquids may damage device parts or electronic circuits.

• Do not turn on your device if it is wet. If your device is already on, turn it off and remove the battery immediately (if the device will not turn off or you cannot remove the battery, leave it as-is). Then, dry the device with a towel and take it to a service centre.
• Liquids will change the colour of the label that indicates water damage inside the device. Water damage to your device can void your manufacturer's warranty.

Do not use or store your device in dusty, dirty areas

Dust can cause your device to malfunction.

Do not store your device on slopes

If your device falls, it can be damaged.

Do not store your device in hot or cold areas. Use your device at -20 °C to 50 °C

Your device can explode if left inside a closed vehicle, as the inside temperature can reach up to 80 °C.

• Do not expose your device to direct sunlight for extended periods of time (such as on the dashboard of a car).
• Store the battery at 0 °C to 40 °C.

Do not store your device with such metal objects as coins, keys and necklaces

Your device may become deformed or malfunction.

If the battery terminals are in contact with metal objects, it may cause a fire.

Do not store your device near magnetic fields

Your device may malfunction or the battery may discharge from exposure to magnetic fields.

• Magnetic stripe cards, including credit cards, phone cards, passbooks, and boarding passes, may be damaged by magnetic fields.
• Do not use carrying cases or accessories with magnetic closures or allow your device to come in contact with magnetic fields for extended periods of time.

Do not store your device near or in heaters, microwaves, hot cooking equipment, or high pressure containers

The battery may leak.

Your device may overheat and cause a fire.

Do not drop your device or cause impacts to your device

The screen of your device may be damaged.

If bent or deformed, your device may be damaged or parts may malfunction.

If your device has a camera flash or light, do not use a flash close to the eyes of people or pets

Using a flash close to the eyes may cause temporary loss of vision or damage to the eyes.

Use caution when exposed to flashing lights

While using your device, leave some lights on in the room and do not hold the screen too close to your eyes.

• Seizures or blackouts can occur when you are exposed to flashing lights while watching videos or playing Flash-based games for extended periods. If you feel any discomfort, stop using the device immediately.

Reduce the risk of repetitive motion injuries

When you repetitively perform actions, such as pressing keys, drawing characters on a touch screen with your fingers, or playing games, you may experience occasional discomfort in your hands, neck, shoulders, or other parts of your body. When using your device for extended periods, hold the device with a relaxed grip, press the keys lightly, and take frequent breaks. If you continue to have discomfort during or after such use, stop use and see a physician.

Ensure maximum battery and charger life

Avoid charging batteries for more than a week, as overcharging may • shorten battery life.

• Over time, unused batteries will discharge and must be recharged before use.

Disconnect chargers from power sources when not in use.

Use batteries only for their intended purposes.

Use manufacturer-approved batteries, chargers, accessories and supplies

Using generic batteries or chargers may shorten the life of your device • or cause the device to malfunction.

- Samsung cannot be responsible for the user's safety when using accessories or supplies that are not approved by Samsung.

Do not bite or suck on the device or the battery

Doing so may damage the device or cause explosion.

If children use the device, make sure that they use the device properly.

When speaking on the device:

Hold the device upright, as you would with a traditional phone.

Speak directly into the mouthpiece.

Avoid contact with your device's internal antenna. Touching the • antenna may reduce the call quality or cause the device to transmit more radio frequency than necessary.

Protect your hearing and ears when using a headset

Excessive exposure to loud sounds can cause hearing damage.

- Exposure to loud sounds while driving may distract your attention and cause an accident.

• Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music.

- In dry environments, static electricity can build up in the headset. Avoid using headsets in dry environments or touch a metal object to discharge static electricity before connecting a headset to the device.

Use caution when using the device while walking or moving

Always be aware of your surroundings to avoid injury to yourself or others.

Do not carry your device in your back pockets or around your waist

You can be injured or damage the device if you fall.

Do not disassemble, modify, or repair your device

Any changes or modifications to your device can void your • manufacturer's warranty. For service, take your device to a Samsung Service Centre.

- Do not disassemble or puncture the battery, as this can cause explosion or fire.

Do not paint or put stickers on your device

Paint and stickers can clog moving parts and prevent proper operation. If you are allergic to paint or metal parts of the product, you may experience itching, eczema, or swelling of the skin. When this happens, stop using the product and consult your physician.

When cleaning your device:

Wipe your device or charger with a towel or a rubber.

Clean the terminals of the battery with a cotton ball or a towel.

Do not use chemicals or detergents.

Do not use the device if the screen is cracked or broken

Broken glass or acrylic could cause injury to your hands and face. Take the device to a Samsung Service Centre to have it repaired.

Do not use the device for anything other than its intended use

Avoid disturbing others when using the device in public

Do not allow children to use your device

Your device is not a toy. Do not allow children to play with it as they could hurt themselves and others, damage the device, or make calls that increase your charges.

Install mobile devices and equipment with caution

Ensure that any mobile devices or related equipment installed in your vehicle are securely mounted.

- Avoid placing your device and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly.

Allow only qualified personnel to service your device

Allowing unqualified personnel to service your device may result in damage to your device and will void your manufacturer's warranty.

Handle SIM cards or memory cards with care

Do not remove a card while the device is transferring or accessing • information, as this could result in loss of data and/or damage to the card or device.

• Protect cards from strong shocks, static electricity, and electrical noise from other devices.
• Do not touch gold-coloured contacts or terminals with your fingers or metal objects. If dirty, wipe the card with a soft cloth.

Ensure access to emergency services

Emergency calls from your device may not be possible in some areas or circumstances. Before travelling in remote or undeveloped areas, plan an alternate method of contacting emergency services personnel.

Keep your personal and important data safe

While using your device, be sure to back up important data. Samsung is not responsible for data loss.

- When disposing of your device, back up all data and then reset your device to prevent misuse of your personal information.

Do not distribute copyright-protected material

Do not distribute copyright-protected material that you have recorded to others without the permission of the content owners. Doing this may violate copyright laws. The manufacturer is not liable for any legal issues caused by the user's illegal use of copyrighted material.

Specific Absorption Rate (SAR) certification information

Your device conforms to European Union (EU) standards that limit human exposure to radio frequency (RF) energy emitted by radio and telecommunications equipment. These standards prevent the sale of mobile devices that exceed a maximum exposure level (known as the Specific Absorption Rate, or SAR) of 2.0 W/kg.

During testing, the maximum SAR recorded for this model was 0.840 W/kg. In normal use, the actual SAR is likely to be much lower, as the device has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. By automatically emitting lower levels when possible, your device reduces your overall exposure to RF energy.

The Declaration of Conformity statement at the back of this manual demonstrates your device's compliance with the European Radio & Terminal Telecommunications Equipment (R&TTE) directive. For more information about the SAR and related EU standards, visit the Samsung website.

Correct disposal of this product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working

life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Disclaimer

Some content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal noncommercial use. You may not use any content or services in a manner that has not been authorised by the content owner or service provider. Without limiting the foregoing, unless expressly authorised by the applicable content owner or service provider, you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services displayed through this device.

"THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS." SAMSUNG DOES NOT WARRANT CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE. SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT,

INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES."

Third party services may be terminated or interrupted at any time, and Samsung makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Samsung has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any responsibility or liability for any interruption or suspension of any content or service made available through this device.

Samsung is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers.

Index

access codes 108

airplane mode 17

alarms

creating 92

stopping 92

AllShare 85

battery

charging 11

installing 9

Bluetooth

activating 82

finding and pairing with

devices 83

receiving data 83

sending data 83

brightness, display 28

calculator 93

calendar

creating events 67

viewing events 67

call forwarding 39

call log 39

calls

answering 36

forwarding 39

international numbers 37

making 36

rejecting 37

using headset 37

using options during voice 37

viewing missed 38

waiting 39

call waiting 39

camera

capturing photos 47

capturing videos 52

customising camcorder 54

customising camera 51

connections

Bluetooth 82

DLNA 85

PC 88

WLAN 84

contacts

copying 65

creating 63

finding 64

importing 66

setting speed dial 64

device

customising 26

indicator icons 19

keys 18

layout 17

settings 97

shortcuts panel 23

turning on or off 17

DLNA

see AllShare

downloads

applications 33

files 34, 93

email

sending 44

setting accounts 43

viewing 44

file manager 93

fixed dialling number mode 38

FM radio

listening to 60

saving stations 61

gallery

file formats 55

playing videos 56

viewing photos 55

Google Mail 42

Google Maps 73

Google Search 77

Google Talk 45

idle screen

adding items 22

adding panels 24

internet

see web browser

language 104

latitude 75

memory card

formatting 15

inserting 13

removing 15

memos

creating 68

viewing 68

menu screen

accessing 24

organising applications 25

messages

accessing voice mail 41

sending email 44

sending multimedia 40

sending text 40

setting email accounts 43

multimedia messages

sending 40

viewing 41

music player

adding files 57

creating playlists 58

playing music 57

news and weather 79

PC connections

mass storage 89

Samsung Kies 88

phonebook

creating contacts 63

creating groups 65

creating your namecard 64

finding contacts 64

photos

capturing 47

capturing a series 50

capturing by scene 49

capturing in smile shot 49

capturing panoramic 50

viewing 55

PIN lock 29

Samsung Apps 80

Samsung Kies 88

settings

about phone 107

accessibility 107

accounts and sync 103

applications 102

call settings 98

date and time 107

display 100

locale and text 104

location and security 101

privacy 103

SD card and phone storage 103

sound 100

voice input and output 106

wireless and networks 97

silent mode 27

SIM card

installing 9

locking 29

social hub 46

synchronisation

with web accounts 34

task manager 94

text input 30

text memos 68

text messages

sending 40

viewing 41

ThinkFree Office 95

time and date, set 26

touch screen

locking 22

using 20

unpack 9

USIM card

installing 9

locking 29

video player 56

videos

capturing 52

playing 56

voice command 96

voice mail 41

voice recorder

playing 69

recording 69

VPN connections

connecting to 91

creating 90

web browser

adding bookmarks 72

browsing web pages 70

WLAN

activating 84

finding and connecting to

networks 84

YouTube

uploading videos 79

watching videos 78

SAMSUNG ELECTRONICS

Declaration of Conformity (R&TTE)

We, Samsung Electronics

declare under our sole responsibility that the product

GSM WCDMA Wi-Fi Mobile Phone : GT-S5830

to which this declaration relates, is in conformity with the following standards and/or other normative documents.

SAFETY EN 60950-1:2006+A11:2009

EN 50332-2:2003

SAR EN 50360:2001

EN 62209-1:2006

EMC EN 301 489-01 V1.8.1 (04-2008)

EN 301 489-07 V1.3.1 (11-2005)

We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.

The conformity assessment procedure referred to in Article 10 and detailed in Annex[IV] of Directive 1999/5/EC has been followed with the involvement of the following Notified Body(ies):

BABT, Forsyth House,

Churchfield Road,

Walton-on-Thames,

Surrey, KT12 2TD, UK*

Identification mark: 0168

C€0168①

The technical documentation kept at :

Samsung Electronics QA Lab.

which will be made available upon request.

(Representative in the EU)

Samsung Electronics Euro QA Lab.

Blackbushe Business Park, Saxony Way,

Yateley, Hampshire, GU46 6GG, UK*

2010.12.09 Joong-Hoon Choi / Lab Manager

(place and date of issue) (name and signature of authorised person)

* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product.

Some of the contents in this manual may differ from your device depending on the software of the device or your service provider.

To install Kies (PC Sync) Kies

Download the latest version of Kies from the Samsung 1 website (www.samsung.com/kies) and install it on your PC.

Using a USB cable, connect your device to your PC. 2.

Samsung Kies will launch automatically.

Refer to the Kies help for more information.

www.samsung.com English. 07/2011. Rev. 1.0
