Product Type	Built-in Electric Oven
Brand	Gram
Model	IOP 12654-92 X
Dimensions (H x W x D)	595 x 595 x 550 mm
Weight	30 kg
Power Supply	230 V, 50 Hz
Energy Class	A
Oven Capacity	65 liters
Number of Functions	8 (Conventional, Grill, Fan, Defrost, etc.)
Temperature Range	50-250 °C
Control Type	Knobs and Timer
Interior Light	Yes
Cleaning Type	Easy-clean enamel coating
Child Lock	Yes
Cool Door	Yes, triple-glazed
Auto Shut-off	Yes
Spare Parts Availability	Available through Gram customer service
Manual	Free PDF download on notice-facile.com

Frequently Asked Questions - IOP 12654-92 X GRAM

How do I install the Gram IOP 12654-92 X oven?

Installation must be done by a qualified technician. Ensure the oven is placed in a built-in cabinet with proper ventilation. Refer to the manual for exact measurements and electrical requirements. The oven must be connected to a 230V outlet with a grounded plug.

How do I clean the oven?

The oven has an easy-clean enamel interior. Wipe with a damp cloth and mild detergent after each use. Avoid abrasive cleaners. For stubborn stains, use a baking soda paste. The oven door can be removed for thorough cleaning.

Does the oven have a child lock?

Yes, the Gram IOP 12654-92 X is equipped with a child lock function. Activate it by pressing a specific button combination (see manual). This prevents accidental operation by children.

Why is my oven not heating?

Check if the oven is properly plugged in and the power supply is on. Ensure the timer is set and the function selector is not in '0'. If the issue persists, the heating element may be faulty; contact Gram service for replacement.

How do I preheat the oven?

Turn the function knob to the desired setting (e.g., conventional heat) and set the temperature. Wait until the thermostat indicator light turns off, indicating the oven has reached the set temperature.

What is the maximum cooking time?

The timer can be set up to 120 minutes. For longer cooking, use the manual mode without timer. The oven also has a continuous operation option.

Can I use aluminum foil in the oven?

Aluminum foil can be used, but avoid covering the bottom of the oven or the heating elements. It may cause overheating and damage. Always place foil on a baking tray.

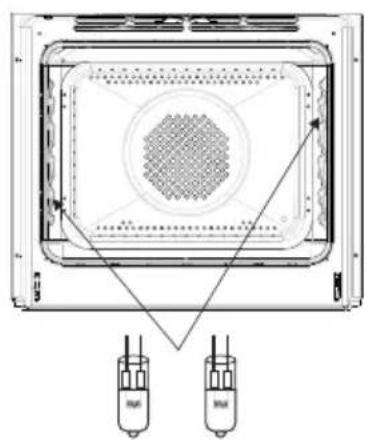

How do I replace the oven light bulb?

Turn off the oven and allow it to cool. Remove the glass cover by twisting it counterclockwise. Replace the bulb with a new 40W, 300°C resistant halogen bulb. Reinstall the cover.

Where can I find spare parts for my Gram oven?

Spare parts are available through Gram customer service or authorized dealers. You can also search online with the model number IOP 12654-92 X. The manual includes a parts list.

How do I download the manual for the Gram IOP 12654-92 X?

The manual is available for free in PDF format on notice-facile.com. Search for 'Gram IOP 12654-92 X' and click download. You can also request a translation by email.

USER MANUAL IOP 12654-92 X GRAM

Line drawing of a standard oven with control panel and door (no text or symbols)

EN Instruction Manual 2

The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy.

Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality.

Before using the appliance, please read the instruction manual carefully.

By following these instructions carefully you will be able to avoid any problems in using the appliance.

It is important to keep the instruction manual and store it in a safe place so that it can be consulted at any time.

It is necessary to follow the instructions in the manual carefully in order to avoid possible accidents.

Caution!

Do not use the oven until you have read this instruction manual.

The oven is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

TABLE OF CONTENTS

Safety instructions .... 4
Description of the appliance 8
Installation 10
Operation....12
Baking in the oven – practical hints....25
Test dishes....28
Cleaning and maintenance....30
Troubleshooting....34
Technical data....35

Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

Accessible parts may become hot during use. Young children should be kept away.

Warning: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

You should not use steam cleaning devices to clean the appliance.

During the pyrolytic oven cleaning process the oven chamber can reach a very high temperature. Consequently, the appliance outer surfaces can heat up more than usual, so keep children away at all times.

Danger of burns! Hot steam may escape when you open the oven door. Be careful when you open the oven door during or after cooking. Do NOT lean over the door when you open it. Please note that depending on the temperature the steam can be invisible.

• Ensure that small items of household equipment, including connection leads, do not touch the hot oven as the insulation material of this equipment is usually not resistant to high temperatures.
• Do not leave the oven unattended when frying. Oils and fats may catch fire due to overheating or boiling over.
• Do not put pans weighing over 15 kg on the opened door of the oven.
• Do not use harsh cleaning agents or sharp metal objects to clean the door as they can scratch the surface, which could then result in the glass cracking.
• Do not use the oven in the event of a technical fault. Any faults must be fixed by an appropriately qualified and authorised person.
• In the event of any incident caused by a technical fault, disconnect the power and report the fault to the service centre to be repaired.
• The rules and provisions contained in this instruction manual should be strictly observed. Do not allow anybody who is not familiar with the contents of this instruction manual to operate the oven.
• The appliance has been designed only for cooking. Any other use (for example for heating) does not comply with its operating profile and may cause danger.

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Using energy in a responsible way not only saves money but also helps the environment. So let's save energy! And this is how you can do it:

• Do not uncover the pan too often (a watched pot never boils!).
  Do not open the oven door unnecessarily often.
• Only use the oven when cooking larger dishes.

Meat of up to 1 kg can be prepared more economically in a pan on the cooker hob.

- Make use of residual heat from the oven.

If the cooking time is greater than 40 minutes switch off the oven 10 minutes before the end time.

Important! When using the timer, set appropriately shorter cooking times according to the dish being prepared.

- Make sure the oven door is properly closed.

Heat can leak through spillages on the door seals. Clean up any spillages immediately.

- Do not install the cooker in the direct vicinity of refrigerators/freezers.

Otherwise energy consumption increases unnecessarily.

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept out of reach of children.

Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or the packaging shows that it is suitable for recycling.

Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you are making a significant contribution to the protection of our environment.

Information on appropriate disposal centres for used devices can be provided by your local authority.

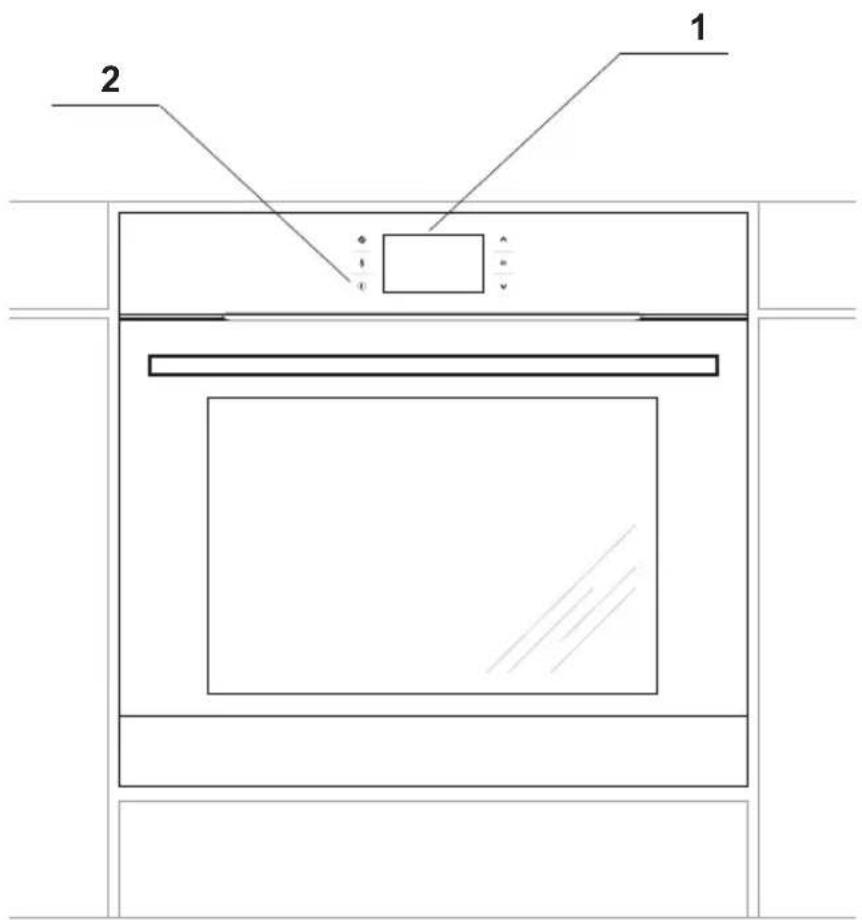

1 Control Panel
2 On / off switch

Oven fittings:

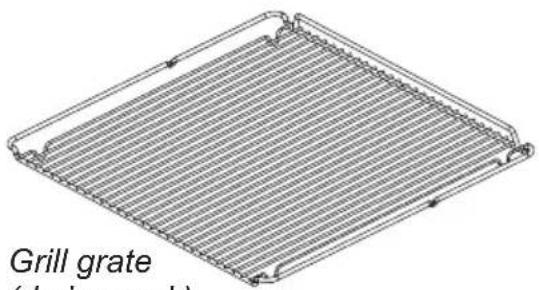

3D diagram of a grill grate structure with no text or symbols on the grate itself

Grill grate (drying rack)

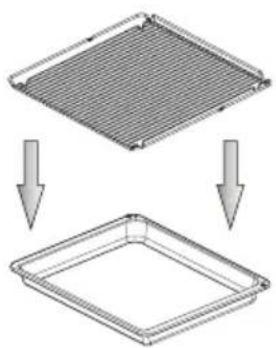


Line drawing of a rectangular tray with no text or symbols on the tray itself

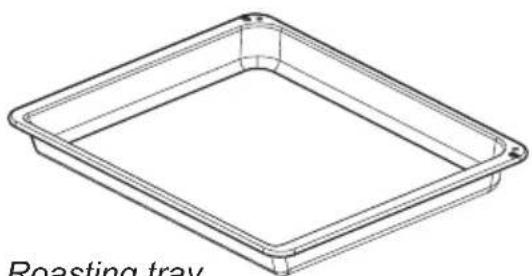

Roasting tray

Simple line drawing of a square frame with rounded corners and a small circular cutout on top (no text or symbols)

Baking tray Meat probe

Simple line drawing of a medical or laboratory probe with two probes and a curved arm (no text or symbols)

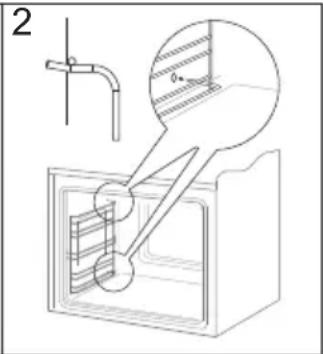

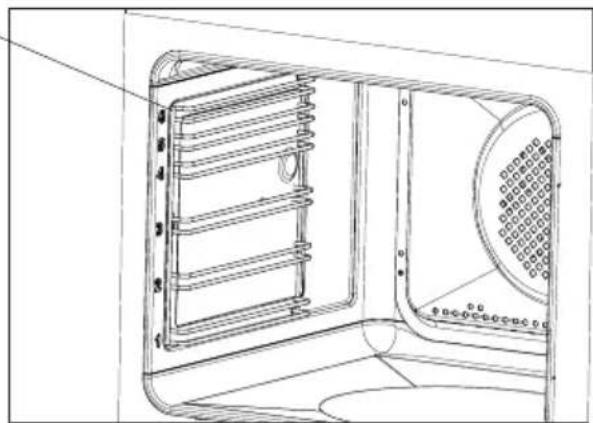

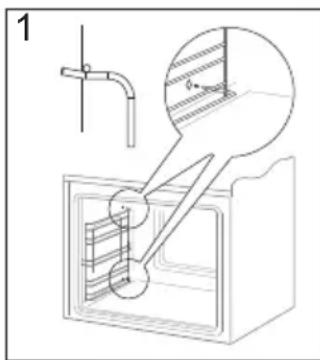

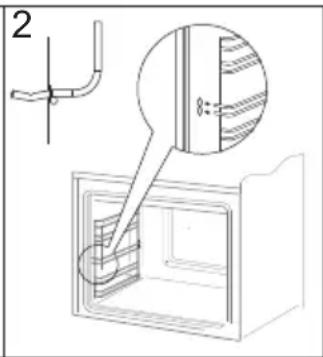

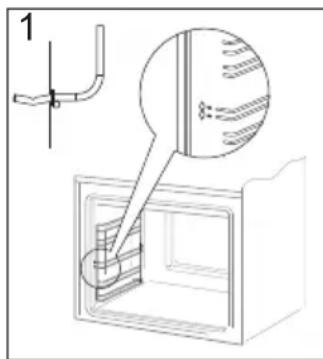

Side racks

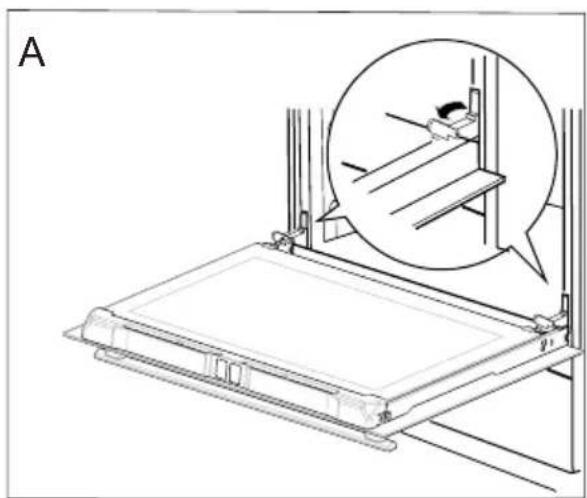

Technical line drawing of a door with internal structure and ventilation slots (no text or symbols)

Installing the oven

• The kitchen area should be dry and aired and equipped with efficient ventilation. When installing the oven, easy access to all control elements should be ensured.
• This is a Y-type design built-in oven, which means that its back wall and one side wall can be placed next to a high piece of furniture or a wall. Coating or veneer used on fitted furniture must be applied with a heat-resistant adhesive (100°C). This prevents surface deformation or detachment of the coating.
• Hoods should be installed according to the manufacturer's instructions.

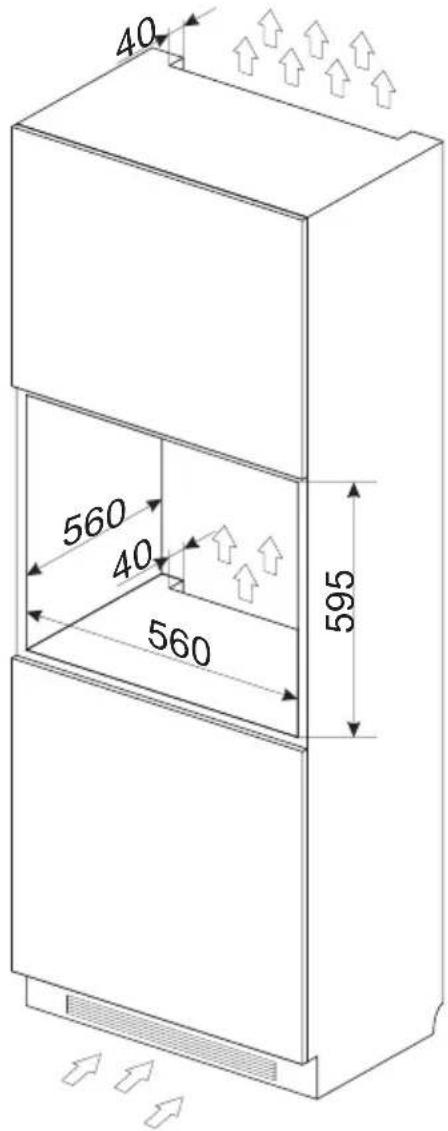

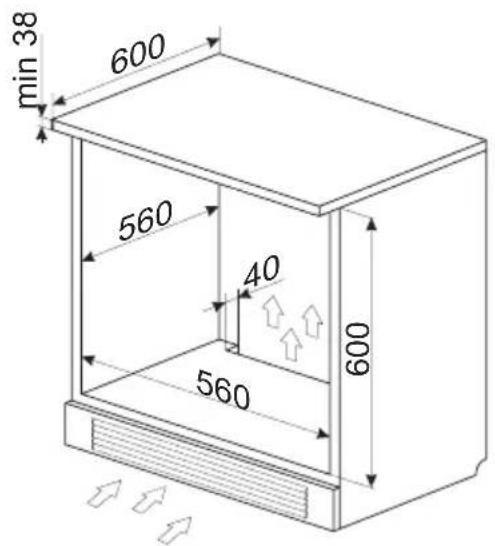

• Make an opening with the dimensions given in the diagram for the oven to be fitted.
• Make sure the mains plug is disconnected and then connect the oven to the mains supply.

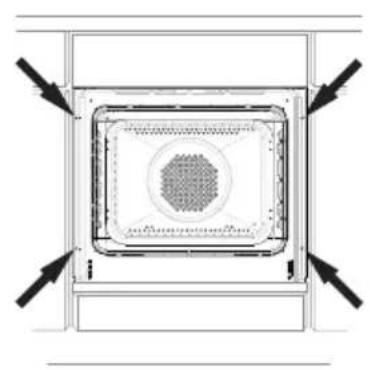

• Insert the oven completely into the opening without allowing the four screws in the places shown in the diagram to fall out.

Top-down schematic of a rectangular device with internal grid pattern and directional arrows (no text or symbols)

Electrical connection

• The oven is manufactured to work with a one-phase alternating current (230V 1N\~50 Hz) and is equipped with a 3 x 1,5 mm² connection lead of 1,5 m length with a plug including a protection contact.
• A connection socket for electricity supply should be equipped with a protection pin and may not be located above the cooker. After the cooker is positioned, it is necessary to make the connection socket accessible to the user.

• Before connecting the oven to the socket, check if:

• the fuse and electricity supply are able to withstand the cooker load,

• the electricity supply is equipped with an efficacious ground system which meets the requirements of current standards and provisions,
• the plug is within easy reach.

Important!

If the fixed power supply cable is damaged, it should be replaced at the manufacturer or at an authorized servicing outlet, or by a qualified person to avoid danger.

Before first use

• Remove all packaging elements, particularly those protecting the interior of the oven chamber during transport.
• Remove all the accessories from inside of the oven and wash them thoroughly in warm water with gentle washing up liquid.
• Remove the protective foil from the surfaces of the telescopic runners.
• Use warm water with the addition of mild detergent to wash the inside of the chamber. Do not use hard brushes or sponges. They could damage the coating of the inside of the chamber.

Warm up the oven chamber

• Turn on the ventilation in the room or open a window.
• Select conventional heating or fan assisted heating (a detailed description of these functions can be found below in this manual).

The oven should operate for a minimum of 30 minutes; while it is operating the oven produces a smell, which is only present at the beginning but will eventually go away as the appliance is used. This is perfectly normal and is part of the process of warming up the oven chamber.

Control Panel

On/off switch is on the left side of the display. To activate the On/off switch, touch the glass in the place indicated by a pictogram. An acoustic signal will be heard, which was selected in the menu. (See section: Control panel).

Touch sensor surfaces must be kept clean.

Control panel

The Control Panel is equipped with an LCD display and 6 touch sensors:

Sensors Description Symbol Description

On / off switch (Standby mode) Child Lock

Temperature of the setting Adjust temperature

Clock setting Active SmellCatalyst

Plus / up [+] Door lock (pyrolysis)

OK Confirm End Time

Minus / down [-] Duration

Automatic power cut out

Note: You will hear a beep each time you touch a sensor. It is not possible to turn off the acoustic beeps.

Note: When mains power is cut and restored (power outage), the appliance automatically enters standby and immediately displays the current time.

Switch on the appliance and select interface language.

When you connect the appliance to mains power you will be prompted to select your preferred LANGUAGE.

Use the \sensor to go through all the items in the LANGUAGE menu. Select the language in which you want the messages to be displayed and touch to confirm.

Set current time

Once your preferred language is set you now need to confirm the current time by touching OK or set the time using the \sensors.

Time can be set in the range from 0:00 to 23:59 for 24-hour clock system or from 0:00 to 12:00 for the 12-hour clock system. When current time is set, the appliance enters standby mode in which the display shows the current time only.

You need to touch Ⓐto start setting the current time. Use the \sensors to select SETTINGS and touch OK to confirm. Use the ∨ ∧ sensors to enter the TIME menu, select TIME and touch OK to confirm.

Important!

To exit to submenu at any time, simultaneously touch ∧ and .OK

Menu

Touch ① to activate the appliance from standby. Use the v sensors to navigate the menu.

The following main menu items are available:

• SETTINGS,
• HEATING FUNCTIONS,
• PRE-SET PROGRAMMES
• USER PROGRAMMES,
• CLEANING
• OPENUP!
• EXIT

Touch OK to select any menu item.

If no changes are made within 60 seconds, the appliance enters standby mode. To immediately exit from the menu and switch the appliance to standby mode, select the EXIT icon and touch OK to confirm. To immediately exit from the menu and switch the appliance to standby mode simultaneously touch ∧ and OK

Settings

Touch Ⓡ to enter the menu. Use the ∨ ∧ sensors to select the SETTINGS menu and touch 0 to confirm.

The SETTINGS menu items:

• LANGUAGE,
• TIME
• LIGHTING
• TONES
• DISPLAY BRIGHTNESS
• SERVICE,
• FACTORY SETTINGS,
• EXIT

Use the \sensors to navigate the menu.

Touch OK to select the chosen item.

To exit from the SETTINGS, navigate to exit using the v and touch to confirm.

To immediately exit from the SETTINGS menu and switch the appliance to standby mode, simultaneously touch ∧ and .OK

Language

In the LANGUAGE menu select the required language using the sensors and touch OK to confirm.

Available languages:

• DEUTSCH,
• ENGLISH,
• POLSKI,
• РУССКИЙ,
• ČESKY,
• SRBSKI,
• LIETUVIŠKAI,
• EESTI,
• LATVISKI,
• FRANÇAIS,
• ESPAÑOL,
• TÜRKÇE,
• SVENSKA,
• NORSK,
• SUOMI,
• DANSK,

• ITALIANO,

• NEDERLANDS

• EXIT,

To exit into SETTINGS from the LANGUAGE menu use the sensors to select EXIT and touch OK to confirm.

To immediately exit from the LANGUAGE menu and switch the appliance to standby mode, simultaneously touch ∧and .OK

Time

Use the V sensors to select TIME and touch 0 to confirm. Items available in the TIME menu

• CURRENT TIME,
• MINUTE MINDER,
• CLOCK TYPE,
• TIME FORMAT
• EXIT.

Use the \sensors to select the required item and touch OK to confirm.

Clock type

Select the clock type menu and touch OK. The following items will be available:

• DIGITAL,
• ANALOGUE.

Use the \sensors to make your choice in the CLOCK TYPE menu and touch OKo confirm. The selection is stored by the appliance and the TIME upper level menu is automatically displayed.

The selected clock type will now appear in the upper right corner of the display and during standby.

Time format

Select the TIME FORMAT menu and touch OK. The following items will be available:

• 24h,
• AM / PM.

Use the \sensors to make your choice of time format and touch OK to confirm. The selection is stored by the appliance and the TIME upper level menu is automatically displayed.

This option is only available for a digital clock.

Minute Minder

When you select the MINUTE MINDER and touch Qkthe appliance will display the time in the following format: 00:00.

When the appliance is in standby you can also access Minute Minder when you touch ⏻ and then ⏻

If no changes are made within 5 seconds, the appliance enters standby mode.

Touch the √ sensors to adjust minute minder in 1 minute steps. Touch0 to confirm and start the countdown.

Touch the ⏻ sensor to adjust the minute minder setting during countdown.

When the time has elapsed, a beep will sound and the display will show the time - 00:00.

Touch OKo mute the beeping. The appliance switches to standby mode.

Lighting

Select the LIGHTING menu and touch OK The following items will be available:

• CONTINUOUS LIGHTING
• ECO LIGHTING

Use the V sensors to select the desired lighting option and touch OK to confirm. The selection is stored by the appliance and the SETTINGS upper level menu is displayed.

CONTINUOUS LIGHTING

When continuous lighting mode is selected, the light will be on continuously during the programme (heating function) or when the oven door is opened.

ECO LIGHTING

When this option is selected, the lighting will be on for 30 seconds when you touch any sensor during a programme (heating function). When oven door is opened, light is turned on for as long as the oven door is open, but no longer than 10 minutes, after which the light is turned off.

Tones

Select the tones menu and touch OK The following items will be available:

• TONE 1
• TONE 2
• TONE 3

Use the V sensors to select the desired option and touch OK to confirm. The selection is stored by the appliance and the SET-TINGS upper level menu is displayed.

Display brightness

Select the DISPLAY BRIGHTNESS menu and touch OKThe display brightness expressed in % will be shown on the display.

Use the \sensors to adjust display brightness within 0-100% range in 1% steps. Touch OK to store the selected display brightness level. The selection is stored by the appliance and the SETTINGS upper level menu is displayed.

Service

Select the SERVICE menu and touch OK The following message will be shown.

If the appliance detects an error, its code will be displayed on the screen.

Factory settings

Select the FACTORY SETTINGS menu and touch OKThe following message will be shown.

Use the \sensors to choose to restore the factory settings or leave the current settings.

To keep current settings, select "No" and touch OK to confirm. The appliance will exit to SETTING upper level menu.

Select "Yes" to restore the factory settings.

Heating functions

Use the sensors to select the HEATING FUNCTIONS menu and touch 0 to confirm. The following HEATING FUNCTIONS menu items are available:

• RAPID PREHEATING
• CONVENTIONAL
• PASTRY
• GRILL
• TURBO GRILL
• SUPER GRILL
• FAN COOKING
• PIZZA
• BROWNING
• ROASTING
• DEFROSTING
• ECO FAN COOKING
• EXIT.

Please, see the table below for overview of oven functions, oven elements, temperature and default settings.

Function Description	Oven elements	Temperature [°C]		Default temperature [°C]	Level from the bottom
		min. max
RAPID PREHEATING	fan heater + fan + grill 30 280 180 3
CONVENTIONAL	bottom heater + top heater	30	280	180	3
PASTRY	bottom heater + top heater + fan	30	280	170	3
GRILL	grill	30 280	280 4
TURBO GRILL	Grill + Fan	30 280	200 2
SUPER GRILL	grill + top heater	30	280	280	4
FAN COOKING	Fan heater + fan	30	280	170	3
PIZZA	fan heater + bottom heater + fan	30	280	220	2
BROWNING	top heater	30	230	180	-
ROASTING	bottom heater	30	240	200	-
DEFROSTING	fan	-	-	-	3
ECO FAN COOKING*	Fan heater + fan	30 280	170 3

* ECO Fan Cooing is an optimised heating function designed to save energy when cooking food.

Fan cooking

Use the Vsensors to select the FAN COOKING and touch OKto confirm. The following screen is displayed showing the default temperature of 170°C and level three.

You can adjust the default temperature within 5 seconds when the ↓ symbol is flashing.

Touch the V sensors to adjust the settings. Touch OKo confirm and the symbol will disappear.

Touch ⚡ to adjust temperature again.

Note. The appliance will beep when the set temperature in the oven cavity is reached.

When Duration is not set, touch Ⓐ to turn off the appliance. The appliance switches to standby mode.

Use the meat probe

When select a heating function, set the desired cooking temperature, or accept the default temperature.

Plug the meat probe in the socket. The default meat probe temperature of 80^ C will be displayed.

When meat probe is connected, the will flash for 5 seconds. If no changes are made within 5 seconds, the default temperature is set for the meat probe.

Use the sensors to adjust the temperature from 30^ to 99^ in 1^ steps.

Touch OK to confirm. The symbol and current meat probe temperature will be displayed.

You can also adjust the temperature during a programme.

To do this touch ⚙. When you first touch the ⚙ sensor, the set meat probe temperature is displayed, the ⚗ symbol is flashing and you can adjust the temperature.

TouchOK to confirm the adjusted meat probe temperature, the R will stop flashing and the appliance will resume normal operation.

Touch twice to adjust the oven temperature setting. Touch the sensors to adjust temperature in 1°C steps. Touch to confirm the temperature.

When the time has elapsed you will hear a beep and the continues to flash.

Touch OK to mute the beeping. The appliance switches to standby mode.

The use of meat probe is recommended when cooking large portions of meat (at least 1 kg). The use of meat probe is not recommended when cooking poultry and meat with bones.

When not in use, unplug the meat probe from its socket and remove from oven cavity.

Note:

Only use the meat probe provided with your appliance.

Recommended meat probe temperature settings

Type of meat Temperature [°C]
Pork 85 - 90
Beef 80 - 85
Veal 75 - 80
Lamb 80 - 85
Venison 80 - 85

Setting Duration (for a heating function)

When the heating function is set, touch the ⏻ sensor. When the symbol flashes, the display will show DURATION and "00:00".

Display before Duration or Duration and End Time are set

Display when Duration or Duration and End Time are set

If you make no adjustment within 5 seconds the display will show the temperature only, duration will not be shown and the symbol will stop flashing.

Touch the sensors to adjust duration in 1 minute steps. Touch OKo confirm and store the duration. DURATION changes to END TIME and entered Duration, for example 0:30, changes to the actual end time, while the remaining time is displayed on the bar below the actual end time. The symbol is displayed continuously.

When the time has elapsed you will hear a beep and the continues to flash.

Touch OK to mute the beeping. The appliance switches to standby mode.

Note. Once the Duration has elapsed you can extend it. Do not touch and touch and adjust the extended duration using the √ ∧ sensors.

Set Duration and End Time (for a heating function)

For details on how to set Duration, please refer to the preceding paragraph.

Set the End Time.

When the symbol is displayed touch twice and will be displayed and the symbol will flash, and the DURATION display will show start time.

If you make no adjustments within 5 seconds, the appliance will return to previous settings of Duration and the selected heating function. Use the sensors to adjust End Time in 1 minute steps.

Touch OK to confirm and store End Time. END TIME will change to START TIME and the actual start time will be displayed.

If you do not make any adjustments within 60 seconds the appliance will enter standby and the and symbols will be displayed along with current time.

Touch I to turn on the appliance and display the entered settings.

Appliance operation in selected mode

When the current time reaches the Start Time, the appliance will start the selected heating function.

START TIME changes to END TIME and the display shows end time and the time remaining to end time is displayed on the bar below the actual end time. When the appliance starts the symbol is off and the symbol is on.

When the time has elapsed you will hear a beep and the continues to flash. Touch OK to mute the beeping. The appliance switches to standby mode.

Pre-set programmes

Select PRE-SET PROGRAMMES menu and touch OK The following items will be available:

• MEAT
• POULTRY
• PIZZA
• FROZEN PRODUCTS
• PASTRIES
• DOUGH PROVING
• DRYING
• KEEP FOOD WARM

When you select a programme and touch OK to confirm the following submenu items will be available:

MEAT

• BEEF
• PORK
• LAMB
• VEAL

POULTRY

• CHICKEN
• DUCK
• GOOSE
• TURKEY

PIZZA

• THIN BASE
• THICK BASE
• FROZEN

FROZEN PRODUCTS

DOUGH PROVING DRYING

KEEP FOOD WARM

Use the \sensors to select the desired menu and touch OK to confirm.

You can adjust oven cavity or meat probe temperature at any time, however this will end the pre-set programme.

When you adjust the temperature (the or stop flashing) the pre-set programme will change to a regular heating function. Touch ① to stop any programme at any time.

When you touch Ⓐ the appliance switches to standby mode.

In some programs, you can change the weight. When the scale symbol is flashing you can adjust the weight or confirm the default weight. Use the sensors to make adjustments and then touch OK to confirm and store the adjusted weight.

To start a pre-set programme with pre-heating function, select it and touch OKo confirm. Oven will start preheating to 200 °C.

When the temperature reaches 200^ C, a beep will sound and the ⚠ symbol will flash. The temperature of 200^ C in the oven cavity will be maintained.

Place food in the oven, close the door and touch OK to start the programme.

When the pre-set programme completes, you will hear beeping. The display will show the set oven cavity temperature.

TouchOKo mute the beeping. The appliance switches to standby mode.

User programmes

Use the v sensors to select user programmes and touch OK to confirm. There are 10 user programmes that can be customized to suit your needs.

Use the v sensors to select PRO-GRAMME 1 THROUGH PROGRAMME 10 and touch OK to confirm. You can then select the heating function, adjust temperature, cooking level and duration.

Adjustments are the same as for any heating function.

Once Duration is confirmed, a keyboard will be displayed to enter a custom programme name.

Programme name may contain up to 25 characters.

When the user programme completes, you will hear beeping. The display will show the set oven cavity temperature.

Touch OK to mute the beeping. The appliance switches to standby mode.

Special functions

Child Lock

To activate the child lock simultaneously touch and hold the OK and for about 3 seconds. When the Child Lock function is set, the symbol and the message "Simultaneously touch √ and OK to release" The message will be displayed for 3 seconds. When Child Lock is active the message is displayed each time any sensor is touched.

When child lock is enabled, you will not be able to make any changes to the cooking programmes. All the sensors, except OK and are inactive. When child lock is enabled touch OK and together to deactivate the child lock or OK sensor to acknowledge a completed programme. When child lock is enabled the sensor serves only to interrupt the programme rather than access the menu.

Simultaneously touch OK and for approximately 3 seconds to deactivate the child lock. When the Child Lock function is released the symbol and the message "Simultaneously touch and to release" will be off.

Note. Child Lock continues to be active even after a power outage.

Automatic power cut out

If the oven operates any heating function for a long (excessive) period of time, heating elements are disconnected. Example: If oven cavity temperature is 200^ C heating elements are turned off after about 3 hours. At a temperature of 100^ C after about 10 hours. This prevents overheating.

If all the heating elements are disconnected, this is indicated by a flashing display backlight and the symbol.

To deactivate the automatic power cut out of heating elements, touch In standby mode. The appliance exits to the main menu.

Night Mode

Between 22:00 and 6:00 the appliance automatically switches to night mode dimming display backlight intensity.

Open door alert

If the oven chamber door is opened during cooking, an acoustic signal will be sounded after 30 seconds and the message DOOR OPEN will be displayed.

AutoDoor Open

This function allows you to open the oven door by touching the handle. There are two opening modes to choose from - One-time (☐ is displayed) and a Always ( is displayed). In On-time mode you can touch the handle to open the door once only when the oven is on. In Always mode you can always touch the handle to open the door when the oven is on.

IMPORTANT: AutoDoor Open function does not work when the oven is turned off (in stand-by mode, when the clock indicates the current time).

To enable the function, use the ∨ ∧ sensors to select the AutoDoor Open menu and then one of the following options:

ALWAYS

ONE TIME

POWER OFF

EXIT

To open the oven door, touch the metal strip of the oven door handle. You need to touch the handle for at least 1/2 second. The sensitivity of the handle allows you to open the door with your hand or a covered part of the body, e.g. the elbow or the knee.

Regardless of the AutoDoor Open settings, the door can be opened manually in any situation by pulling the handle.

Note: When AutoDoor Open function is active in Always mode, door can be easily opened inadvertently. We recommend to closely supervise children or to deactivate the AutoDoor Open function.

Pyrolytic cleaning

The pyrolytic cleaning function is a special programme with additional requirements. When you select the PYROLYTIC CLEANING, the display shows the pictogram. Touch to confirm the message "Remove all items from the oven" will be shown. When you acknowledge, sue the √to select the duration of 1:30h, 2:00h, or 2:30h. Touch to confirm and the pyrolytic cleaning will start. The display will show the temperature of 490°C and the symbol (odour catalyst, read on for more details). The oven door must be closed. When the pyrolytic cleaning starts, the oven door is locked for the duration of the cleaning programme and until the oven cavity has cooled to a safe temperature. The lock symbol will be shown on the display.

When the pyrolytic cleaning completes and the oven has cooled down you will hear beeping and the display will flash. Touch OK to mute the beeping. The appliance switches to standby mode.

Note:

• If the door is still open when you confirm the duration of the pyrolytic cleaning, the door lock icon on the display will flash. If you do not close the door within 10 seconds, the pyrolytic cleaning will be aborted.
• Before starting pyrolytic cleaning, make sure that all items which do not withstand pyrolisys have been removed from the oven.
• Temperature inside oven cavity can exceed 490°C – make sure that there are no children near the appliance.
  • The door will be unlocked when the

temperature inside the oven cavity cools down to 150^ C (the door lock symbol will disappear from the display).

• You cannot change the duration of pyrolytic cleaning already in progress.
• To turn abort the pyrolytic cleaning before it ends, touch and hold the sensor for approx. 3 seconds. When you abort the pyrolytic cleaning, the oven door will only unlock when the oven cavity has cooled down to a safe temperature.
• If there is a power outage during the pyrolytic cleaning and then power is restored, the appliance will start the cooling down process and then the oven door will only unlock when the oven cavity has cooled down to a safe temperature.

SmellCatalyst

The SmellCatalyst largely removes the odours emitted from the oven during baking or cleaning. SmellCatalyst starts automatically during pyrolytic cleaning.

Simultaneously touch and hold the sensors to activate the SmellCatalyst function. The display will show Touch and hold the ∨ ∧ sensors again to turn off the function.

IMPORTANT: The SmellCatalyst function cannot be activated for the rapid preheat and defrosting functions.

Cooling fan

Cooling fan operates independently of the set functions and the appliance mode of operation. The cooling fan activates automatically when any function is activated. The cooling fan operates as long as the oven cavity temperature exceeds 80^ C. Below this temperature, the cooling fan turns off.

Baking

• we recommend using the baking trays which were provided with your cooker;
• it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;
• shapes and trays with bright or shiny surfaces are not recommended when using the conventional heating method (top and bottom heaters), use of such tins can result in undercooking the base of cakes;
• when using the ultra-fan function it is not necessary to initially heat up the oven chamber, for other types of heating you should warm up the oven chamber before the cake is inserted;
• before the cake is taken out of the oven, check if it is ready using a wooden stick (if the cake is ready the stick should come out dry and clean after being inserted into the cake);
• after switching off the oven it is advisable to leave the cake inside for about 5 min.;
• temperatures for baking with the ultra-fan function are usually around 20 – 30 degrees lower than in normal baking (using top and bottom heaters);
• the baking parameters given in Table are approximate and can be corrected based on your own experience and cooking preferences;
• if information given in recipe books is significantly different from the values included in this instruction manual, please apply the instructions from the manual.

Roasting meat

• cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on the gas burners.
• use heatproof ovenware for roasting, with handles that are also resistant to high temperatures;
• when roasting on the drying rack or the grate we recommend that you place a baking tray with a small amount of water on the lowest level of the oven;
• it is advisable to turn the meat over at least once during the roasting time and during roasting you should also baste the meat with its juices or with hot salty water – do not pour cold water over the meat.

ECO Heating

• ECO Heating an optimised heating function designed to save energy when preparing food.
• You cannot reduce the cooking time by setting a higher temperature; preheating the oven is not recommended.
• Do not change the temperature setting and do not open the oven door during cooking.

Recommended setting for ECO Heating

Type of dish	Oven functions		Temperature (°C)	Level Time	in minutes
Sponge cake		[1YG5]	180 - 200 2 - 3	50 - 70
Yeast cake/ Pound cake			180 - 200 2 50	- 70
Fish			190 - 210 2 - 3	45 - 60
Beef			200 - 220 2 90	- 120
Pork			200 - 220 2 90	- 160
Chicken			180 - 200 2 80	- 100

Type of dish	Type of heating	Temperature (°C)	Level Time	(min.)
Sponge cake 160	-200 2 30 - 50
Yeast cake/ Pound cake		160 - 170 1)	3 25 - 40	2)
Yeast cake/ Pound cake		155 - 170 1)	3 25 - 40	2)
Pizza 200 - 230		1)	2 - 3 15 - 25
Fish 210 - 220	2 45 -
Fish 160 - 180	2 - 3 60
Fish 190 2 - 3	60 - 7
Sausages 220	4 14 - 18
Beef 225 - 250	2 120 50
Beef 160 - 180	2 120 60
Pork 160 - 230	2 90 0
Pork 160 - 190	2 90 0
Chicken 180 - 190	2 7 90
Chicken 160 - 180	2 4 60
Chicken 175 - 190	2 6 70
Vegetables 190	-210 2, 50
Vegetables 170	-190 3, 50

The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

^1) Preheat

^2) Baking smaller items

Note: The figures given in Tables are approximate and can be adapted based on your own experience and cooking preferences.

Baking

Type of dish Accessory Level Type			of heating	Temperature (°C)	Baking time 2)(min.)
Small cakes	Baking tray 4	160		1)	28 - 32 2)
	Baking tray 3	155		1)	23 - 26 2)
	Baking tray 3	150		1)	26 - 30 2)
	Baking tray Roasting tray	2 + 42 - baking tray or roasting tray4 - baking tray		150 1)	27 - 30 2)
Shortbread	Baking tray 3	150 - 160		1)	30 - 40 2)
	Baking tray 3	150 - 170		1)	25 - 35 2)
	Baking tray 3	150 - 170		1)	25 - 35 2)
	Baking tray Roasting tray	2 + 42 - baking tray or roasting tray4 - baking tray		160 - 175 1)	25 - 35 2)
Fatless sponge cake	Wire rack + black baking tin diameter 26cm	2 170 - 180		1)	38 - 46 2)
Apple pie	Wire rack + 2 black baking tins diameter 20cm	2 black baking tins placed after the diagonal, back right, front left		180 - 200 1)	50 - 65 2)

^1) Preheat, do not use Rapid preheat function about 5 minutes
^2) The times are apply to dish that is placed into a cold oven.

TEST DISHES. According to standard EN 60350-1.

Grilling

Type of dish Accessory Level Type			of heating	Temperature (°C)	Time (min.)
White bread toast	Wire rack 4 220		[88x3]	1)	1,5 - 2,5
	Wire rack 4 220		[3x37]	2)	2 - 3
Beef burgers	Wire rack + roasting tray (to gather drops)	4 - wire rack 3 - roasting tray		220 1)	1st side 10 - 152nd side 8 - 13

^1) Preheat for 5 minutes, do not use Rapid preheat function.
^2) Preheat for 8 minutes, do not use Rapid preheat function.

Roasting

Type of dish	Accessory Level	Type	of heating	Temperature (°C)	Time (min.)
Whole chicken	Wire rack + roasting tray (to gather drops)	2 - wire rack1 - roasting tray		180 - 190 70	-90
	Wire rack + roasting tray (to gather drops)	2 - wire rack1 - roasting tray		180 - 190 80	-100

The times are apply to dish that is placed into a cold oven. For the preheated oven, the times should be reduced by about 5-10 minutes.

By ensuring proper cleaning and maintenance of your oven you can have a significant influence on the continuing fault-free operation of your appliance.

Before you start cleaning, the oven must be switched off and you should ensure that all knobs are set to the position off. Do not start cleaning until the oven has completely cooled.

Oven

• The oven should be cleaned after every use. When cleaning the oven the lighting should be switched on to enable you to see the surfaces better.
• The oven chamber should only be washed with warm water and a small amount of washing-up liquid.
• After cleaning the oven chamber wipe it dry.

Important!

Do not use any abrasive agents, harsh detergents or abrasive objects for cleaning.

Only use warm water with a small amount of dishwashing liquid to clean the front of the appliance. Do not use washing powders or creams.

Wire shelf supports

Oven is equipped with easily removable wire shelf supports. To remove them for washing, pull the front catch, then tilt the support and remove from the rear catch.

Pyrolytic cleaning

Oven pyrolytic self-cleaning. The oven heats up to a temperature of about 480^ C. Grilling or baking residue is burnt into an easy to remove ash that can be wiped off with a damp cloth.

Before pyrolytic cleaning.

Important!

Before starting pyrolytic cleaning, make sure that all items which do not withstand pyrolisys have been removed from the oven.

• Remove stubborn stains from the oven chamber.
• Clean the outside of the oven with a damp cloth.
• Follow the instructions.

During the cleaning process.

• Do not leave the cloth near the hot oven.
• Do not use the hob.
• Do not turn on the oven lighting.
• The oven door is equipped with a lock, which prevents it from being opened during the cleaning process. Do not open the door so as not to interrupt the cleaning process.

Important!

During pyrolytic cleaning, the oven chamber can reach a very high temperature. Consequently, the outer oven surfaces can heat up more than usual, so keep children away at all times.

Some fumes can be emitted during the cleaning, so make sure the kitchen is well ventilated.

The pyrolytic cleaning process:

• Close the oven door.
• Follow the instructions in the Pyrolytic cleaning section.

Important!

If the oven temperature is high (higher than in normal use) the door will not be unlocked. Once the oven cools down, you can open the door and remove the ash with a soft, damp cloth. Replace the wire shelf supports and other accessories. Your oven is ready for use.

Door removal

In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door. To do this, tilt the safety catch part of the hinge upwards (fig. A). Close the door lightly, lift and pull it out towards you. In order to fit the door back on to the cooker, do the inverse. When fitting, ensure that the notch of the hinge is correctly placed on the protrusion of the hinge holder. After the door is fitted to the oven, the safety catch should be carefully lowered down again. If the safety catch is not set it may cause damage to the hinge when closing the door.

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Tilting the hinge safety catches

Removing the inner panel

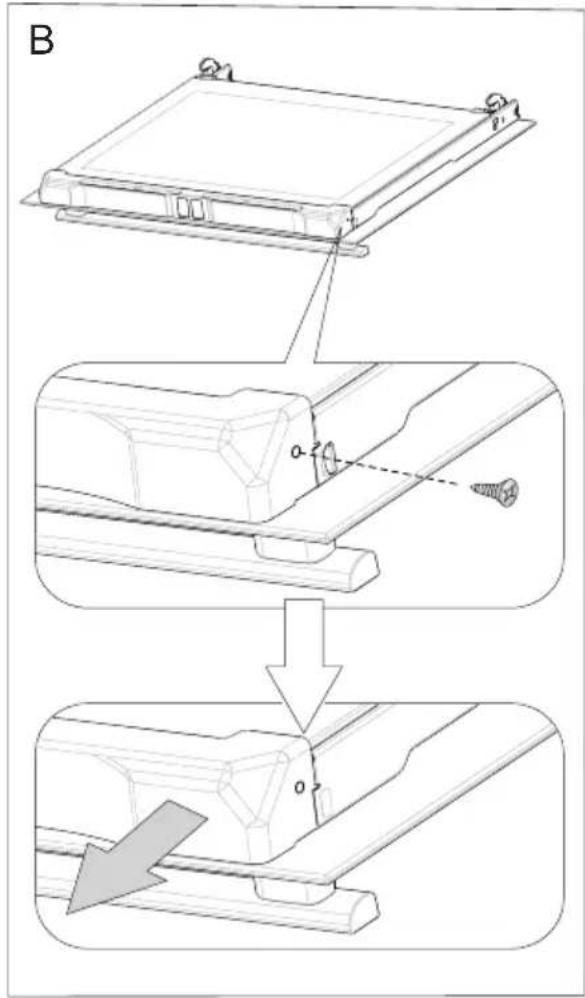

1. Using a cross-head screwdriver undo the screws in the upper door slat (fig. B).

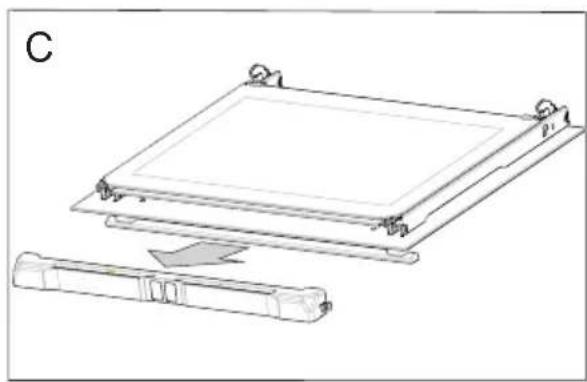

2. Using a flat screwdriver remove the upper door slat, prying it gently on the sides (fig. B, C).

Technical line drawing of a mechanical assembly with a rectangular frame and a separate cylindrical component (no text or symbols)

1. Pull the inner glass panel from its seat (in the lower section of the door).

Important! Risk of damage to glass panel mounting. Do not lift the glass panel up but pull it out.

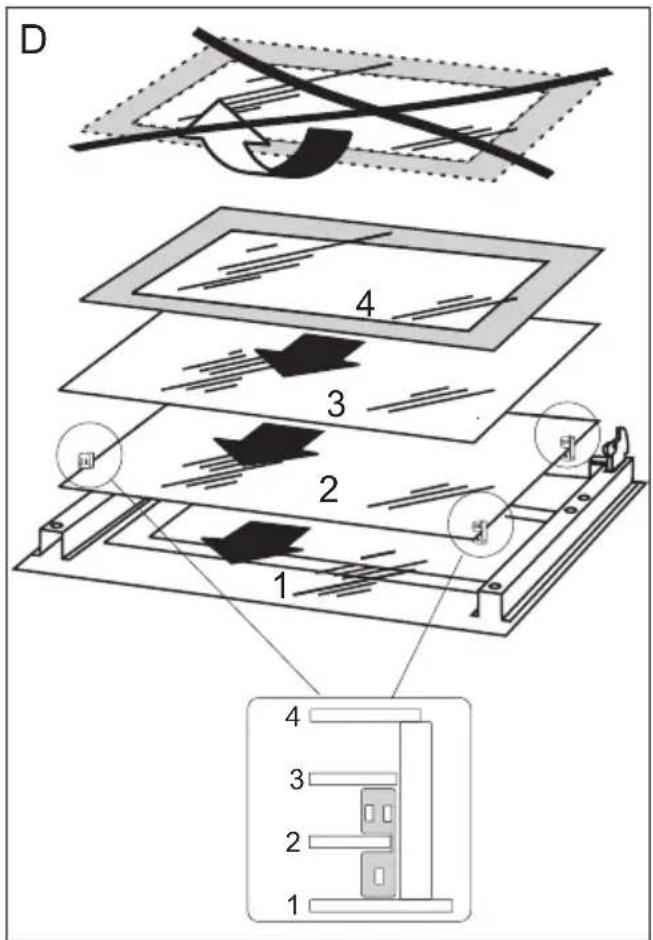

Remove the inner panel (fig. D).

1. Clean the panel with warm water with some cleaning agent added.

Carry out the same in reverse order to reassemble the inner glass panel. Its smooth surface shall be pointed upwards.

Replacing the halogen bulb in the oven

Before replacing the halogen bulb, make sure the appliance is disconnected from the electric mains to avoid a possible electric shock.

1. Unplug the appliance
2. Remove shelves and trays from the oven.
3. If the oven has telescopic runners, remove them also.
4. Use a flat screwdriver to pry the lamp cover loose, remove it, wash and carefully wipe it dry.
5. Pull the halogen bulb out by sliding it down using a cloth or paper. If necessary, replace the halogen bulb with a new one.
6. type G9
7. voltage 230V
8. power 25W
9. Replace the halogen bulb in its socket.
10. Replace the lamp cover.

Technical diagram of a microwave oven with two labeled sensors (no text or symbols present)

Oven lighting

In the event of any fault:

• turn off the appliance,
• disconnect the power supply,
• based on the instructions given in the table below, some minor issues can be corrected by the user. Please check the consecutive points in the table before you refer the repair to Gram service.

Problem Reason Remedy
1. The appliance does not work	No power Check the fuse, replace	if blown
2. Oven lighting does not work.	Loose or damaged bulb	Replace the blown bulb (see Cleaning and Maintenance section)
3. Fan does not work Risk of overheating! Immediately unplug the appliance or switch off the main circuit breaker. Refer the repair to Gram Service.

If the problem is not solved, disconnect the power supply and report the fault.

Important! All repairs must be performed by qualified service technicians.

Voltage rating 230V\~50 Hz

Power rating max. 3,6 kW

Cooker dimensions H/W/D 59,5 / 59,5 / 57,5 cm

The product meets the requirements of European standards EN 60335-1; EN60335-2-6.

The data on the energy labels of electric ovens is given according to standard EN 60350-1 / IEC 60350-1. These values are defined with a standard workload a with the functions active: bottom and top heaters (conventional heating) and fan assisted heating (forced air heating), if these functions are available.

The energy efficiency class was assigned depending on the function available in the product in accordance with the priority below:

Forced air circulation ECO (ring heater + fan)
Forced air circulation ECO (bottom heater + top + roaster + fan)
Conventional mode ECO (bottom heater + top)

During energy consumption test, remove the telescopic runners (if the product is fitted with any).

NO:

SE:

FI:

Gram A/S Gram A/S Gram A/S

Tel.: [phone]

Tel.: [phone] Tel.: [phone]

www.gram.no www.gram.se www.gram.fi

Gram A/S

Gejlhavegård 2B

DK-6000 Kolding

[phone]

www.gram.dk

IO-CBI-1283 / 8506319

(02.2020 V2)
